Impact of Crown Closure on Cone Production and Effective Number of Parents in Natural Stands of Taurus Cedar (Cedrus libani A. Rich.)

1. Introduction

Taurus cedar also known cedar of Lebanon (Cedrus libani A. Rich.), has its main natural occurrence in the Taurus Mountains in southern Turkey, generally between 800 and 2100 m elevation. It can be found at lower (500-600 m) and higher (2400 m) elevations as small populations or small groups and individuals [1]. Its reported extent in southern Turkey is 405424 ha [2]. The species is classified as one of the economically and ecologically important tree species for Turkish forestry and the “National Tree Breeding and Seed Production Program” [3] because of valuable wood product and social-cultural importance of the species. The species is also used in reforestation and afforestation practices togetherwith landscape planning as monumental tree. Annual seed production is about 139 tones for different forestry practices of Taurus cedar based on forestry inventory [2]. 22 seed stands at 3437.8 ha were selected to supply seed demand of the species together with 9 seed orchards established at 60.55 ha [2]. Reported maxima, for different individual trees, are 1000 years age, 3 m stem diameter and 50 m height [1]. Taurus cedar generally bears cone by 30 years in natural stands. Male flowers of the dioecious species appear in July and elongate 3-5 cm in August, while female flowers can be seen in September. Pollination takes place in September or early October, depending on the elevation. The following year between April and June, conelets develop to mature cone sizes. Opening of the cone scales begins in October, about 25-26 months after flowering [4]. Good seed years have been reported as generally every 2-3 years [1] or 3-5 years [4] in the species. Knowledge of the fecundity and fertility (expressed as the individual's ability to fertilize - reproductive success), estimated from cones, flowers, pollen, fruit and seed production [5,6,7,8] is an important prerequisite of breeding and seed production program. Fertility variation estimated based on reproductive characters is easy, cheap, and light survey in plant science. While some studies reported reproductive data of the species [i.e., 4,9,10,11,12], the impact of crown closure on cone production and genetic parameters have not been studied. It is clear that many biological (i.e., number of individuals per area, age, species, growth characteristics, stand structure, population) [8,9,10,13,14] and environmental (i.e., edaphic, altitude, temperature, aspects and rainfall) [7,12,13,15,16] factors impact negatively or positively cone production and fertility variation. However, crown closure can be managed by silvicultural practices. While preparatory cutting practice for natural regeneration in shelter-wood method has many ecological and biological functions like improving the soil characteristics and seedbed, it also results increased strobili, cone and seed production in Taurus cedar. Boydak [1] reported that additional seeds are suggested for shelter-wood and clear-cut areas in natural regeneration practices of Taurus cedar. So, additional seeds are needed in natural regeneration practices of the species. One of the stages of the shelter-wood method is to be provoked of seed trees in natural regeneration practices by crown closure balancing to obtain additional cone/seed crops. Odabasi [4] reported that cone production could be related to crown closure. However, it has not been investigated detail, yet. Effect of crown closure on cone production, fertility variation and related parameters need to be observed to estimate the seed productivity of a population.

The purposes of this study are 1) to estimate the effect of crown closure classes on cone production, 2) to estimate fertility variation and its allied parameters such as effective number of parents and gene diversity in natural populations, 3) to estimate relations among the growth characteristics and cone productions, to improve natural regeneration, management of seed sources and other silvicultural practices of C. libani.

2. Materials and Methods

2.1. Study area

Populations of Taurus cedar were selected from natural stands available between 37°50' and 37°53' N and between 31°17' and 31°20' E at average 1630 m from southern Turkey. Averages of three heights (H), diameter at base (D₀), diameter at breast height (d_1.30), crown diameter (CD) and age, and altitude of the crown closure classes (CCCs) are given in Table 1.

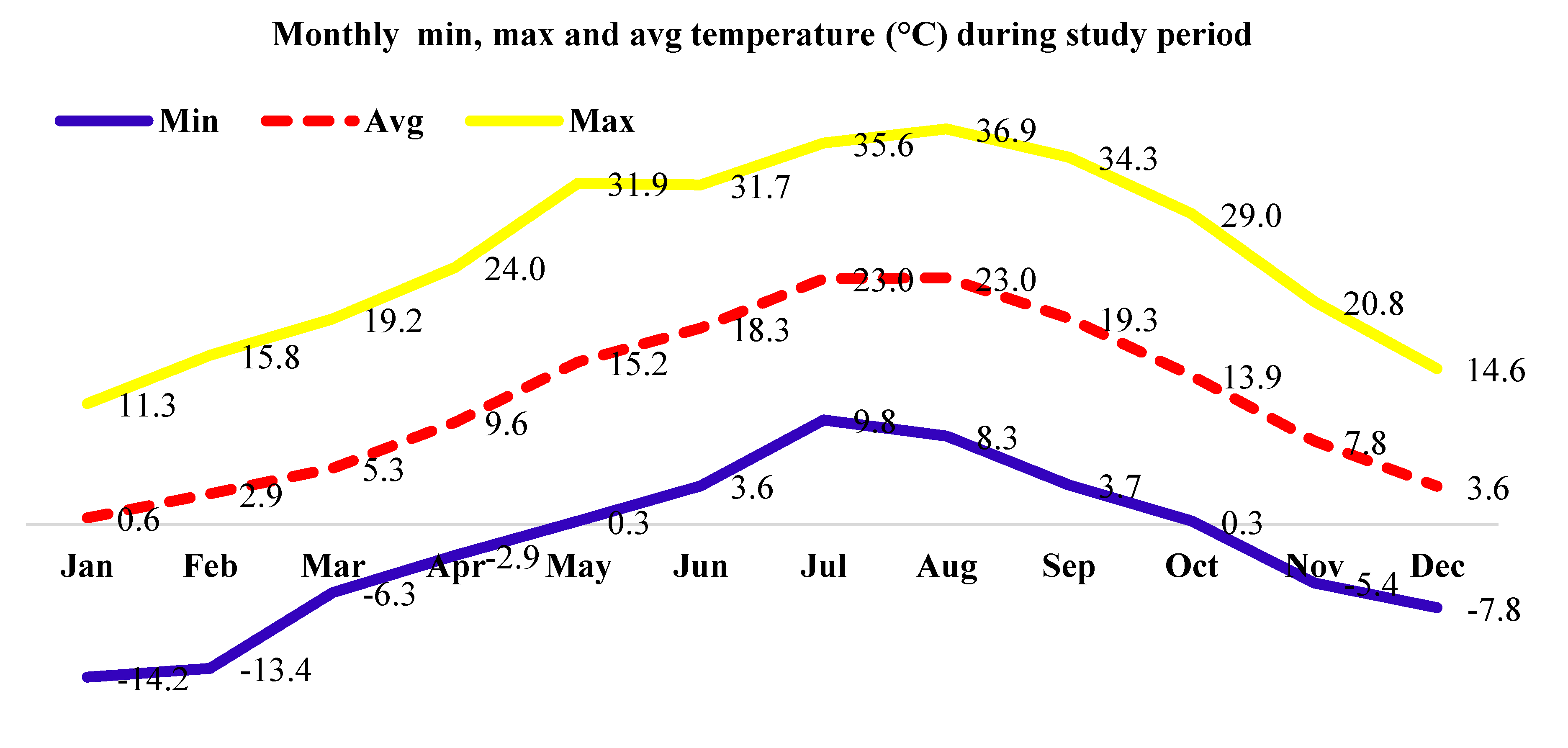

Monthly maximum, minimum and average temperature (Figure 1) and average monthly precipitation and relative humidity (Figure 2) of the location were observed during the study period for two consecutive years (2020 - year 1 and 2021 - year 2).

Fifty genotypes each were selected from four crown closure classes [17]– crown closure classified using Spherical densitometer as: degraded forest (DF- up to 10%), low crown coverage (LC - 11% to 40%), medium crown coverage (MC - 41% to 70%) and full crown coverage (FC - 71% to 100%) from natural area of the species.

2.2. Data collection and analysis

The numbers of brown mature cones which had 8.5 cm length and 5 cm diameter (Odabasi, 1990) (Figure 3) were counted from the fifty phenotypically selected and marked trees during two consecutive years (2020-2021).

The following GLM of ANOVA was used to analyses the difference of cone productions among CCCs and years by the SAS software [18] in the present study.

$$Y_i{{}_j}_k=\mu +F_i+B{(F)}_{j(i)}+e_{ijk}$$

(1)

Where Y_ijk is the observation from the k^th tree of the j^th crown closure in the i^th year, μ is the overall mean of cone production, F_i is the effect of i^th year, B(F)_j(i) is the effect of the j^th population in the i^th year, and e_ijk is the random error.

Phenotypic Pearson’ correlation of cone production between years was estimated by Rohlf and Sokal [19].

Cone fertility variation (expressed as sibling coefficient -Ψ) was estimated as per Kang and Lindgren [20] and Bilir [7] as:

(2)

Where N is the census number of trees, Con_i is the cone fertility of the i^th individual, and CV is the coefficient of variation in total fertility. The coefficients of variations (CV) for cone fertility were calculated and applied to estimate the fertility variation in parents.

In this paper, the fertility of i^th individual was estimated by the proportion of cone production in each crown closure. Therefore, the cone fertility represents the total contribution as zygotic parents.

The effective number of parents (N_p), defined as the number of individuals in which an idealized population would produce the same number of offspring (sibs) as the real population, or defined as a function of fertility variation was estimated [20] as:

(3)

The gene diversity (GD) was estimated based on census number (N) and fertility variation (Ψ) [21] as:

$$GD=1-\frac{0.5\Psi }{N}$$

(4)

3. Results

3.1. Cone production

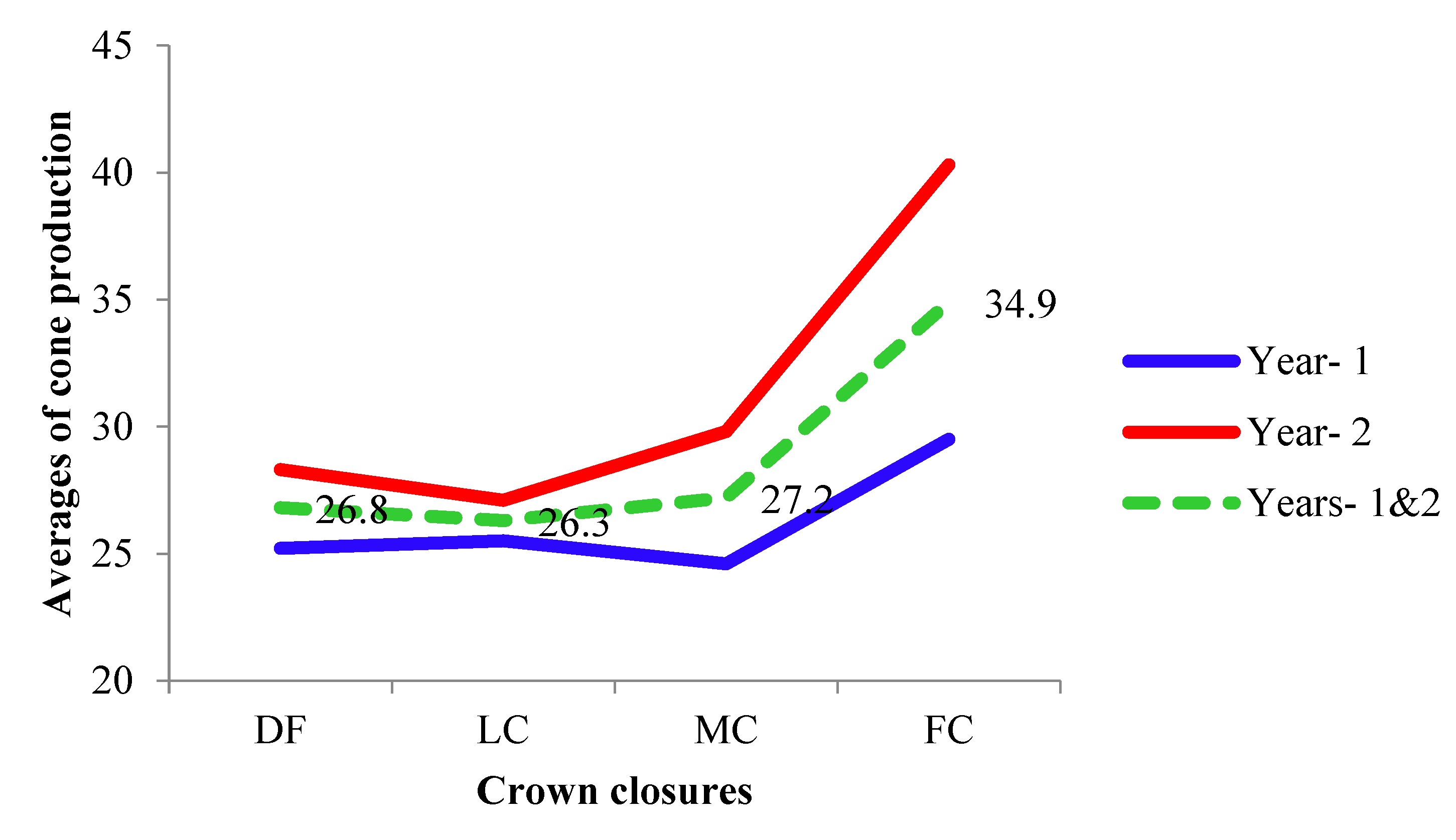

The mean cone production varied between years and among crown closure classes within year (Figure 4), and among individuals within the crown closure class (Table 2).

Highest average cone production (29.5 and 40.3) was noticed in FC in both years (year 1 and 2 respectively- Table 2), while for both years pooled it ranged from 34.9 (FC), 27.2 (MC), 26.8 (DF), to 26.3 (LC) in the different CCCs (Figure 4).

The cone production was 20% higher (31.4/tree) in year 2 than year 1 (26.2). The most fecund five trees (10% of trees) produced about 17% and 24% of total cones in year 1 and 2 respectively in all the crown classes. Cone production varied among individual trees within crown class in both years ranging from 10 to 50 in LC (year 1), and 8 to 108 in FC (year 2) (Table 2). The cone production in FC was very different from the other crown classes in both years (Table 2). The coefficient of variation (CV) increased from 32.8% (DF) to 41.0% (FC) in year 1 and from 51.4% (DF) to 74.6% (FC) in year 2 (Table 2). It was also 37.4% in year 1, 67.1% in year 2, and 43.6% for pooled years across CCCs. The differences between years, and among CCCs in second year were significant (p≤0.05) for the cone productions, while CCCs x year interaction was not significant (p>0.05).

Correlation analysis showed positive and significant (p<0.05) correlations between years (r=0.22) for cone production, and between cone production and crown closure classes (r=0.29). Growth characteristics had no effective on cone productions in individual crown closure classes opposite to significant (p≤0.05) correlations between diameter at breast height and cone production (r= 0.15 and 0.17) for both years in pooled populations.

3.2. Fertility variation, effective number of parents and gene diversity

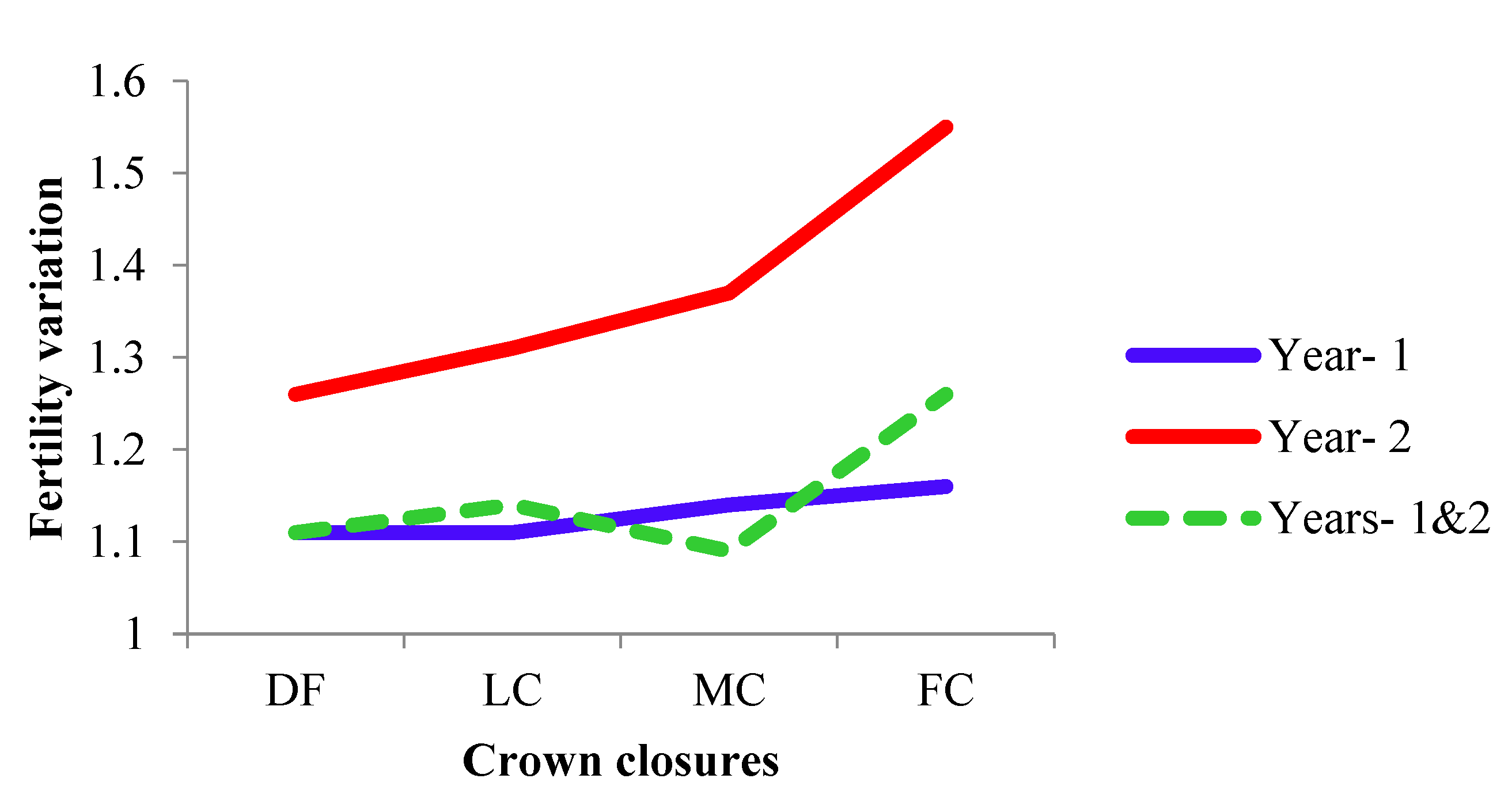

The fertility variation (sibling coefficient, Ψ) ranged from 1.11 (DF and LC) to 1.16 (FC) in year 1, increased with the crown closure from 1.26 (DF) to 1.55 (FC) in year 2. The fertility variations of CCCs in year 2 were decreased by combining the years, while the combined fertility variation (1.09) was lower than within each year (1.14 and 1.37) of MC (Table 3 and Figure 5). It was 1.14 (88% fertile trees), 1.45 (69%) and 1.19 (84%) at years 1 and 2, and across CCCs respectively.

The fertility variation was more or less similar between different crown closure classes in year 1 compared to year 2 - DF (1.26), LC (1.31), MC (1.37) and FC (1.55) (Table 3). Depending on the fertility variation the effective number of parents (N_p) also showed the same trend ranging from 42.91 (86% fertile trees) in FC to 45.23 (91%) in DF in year 1, and from 32.35 (65%) in FC to 39.71 (79%) in DF in year 2 (Table 3). The effective population size, equivalent to the ideal populations, was 21% larger in year 1 than year 2, based on the fertility variation of individuals in the full crown closure, while it was 13% in low crown closure (Table 3).

Gene diversity was higher in first year than in second year in all CCCs (Table 3). Estimated loss of gene diversity from other crown closure classes to FC was 0.001 in year 1. Between the two years FC had highest loss of gene diversity of 0.004 (0.988 and 0.984 in two years). However, the gene diversity was higher (0.988 and 0.989) in pooled years of each CCCs than in year 2 (Table 3). The relative number of parents ranged from 65% to 91% in all classes of crowns (Table 3).

3.3. Cumulative contribution curve

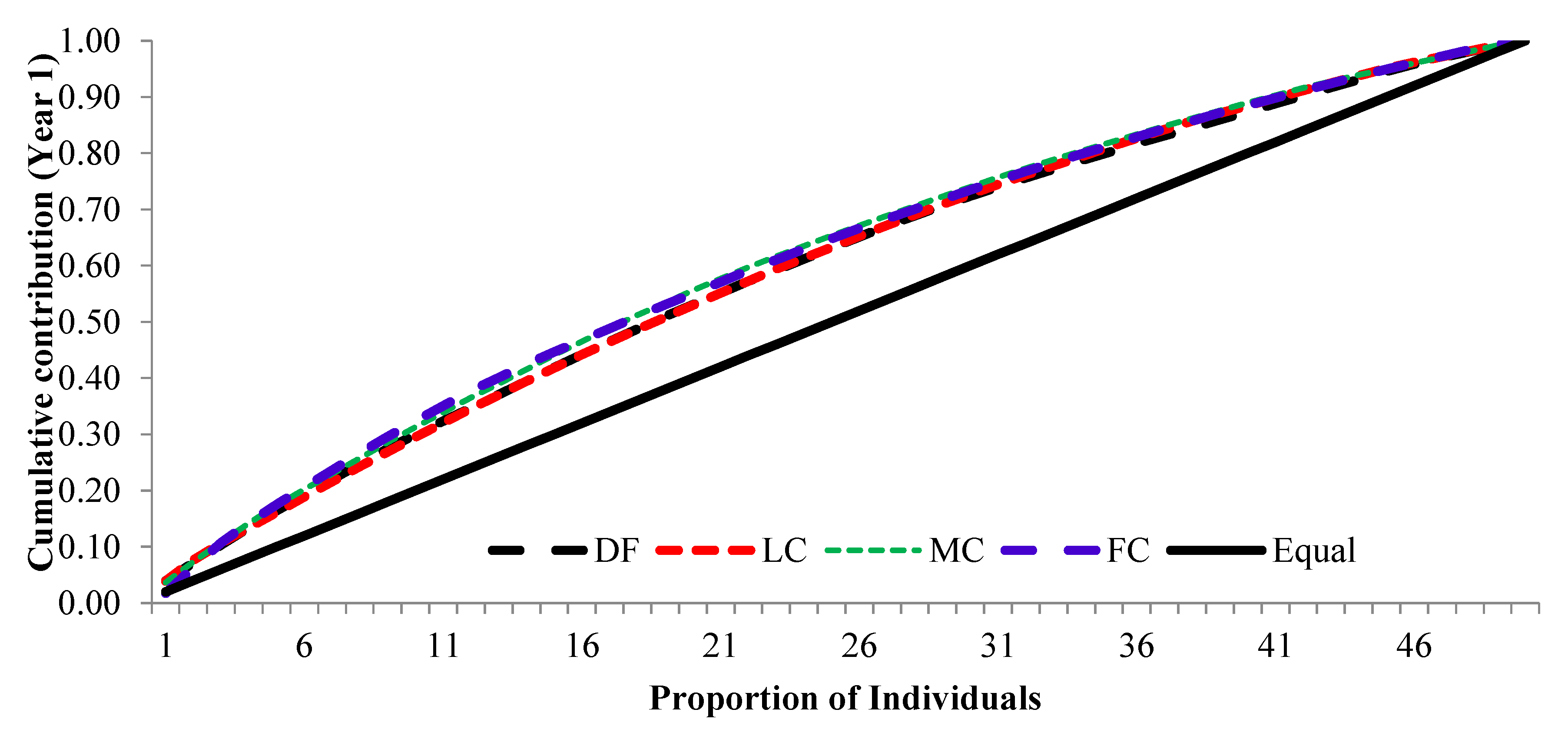

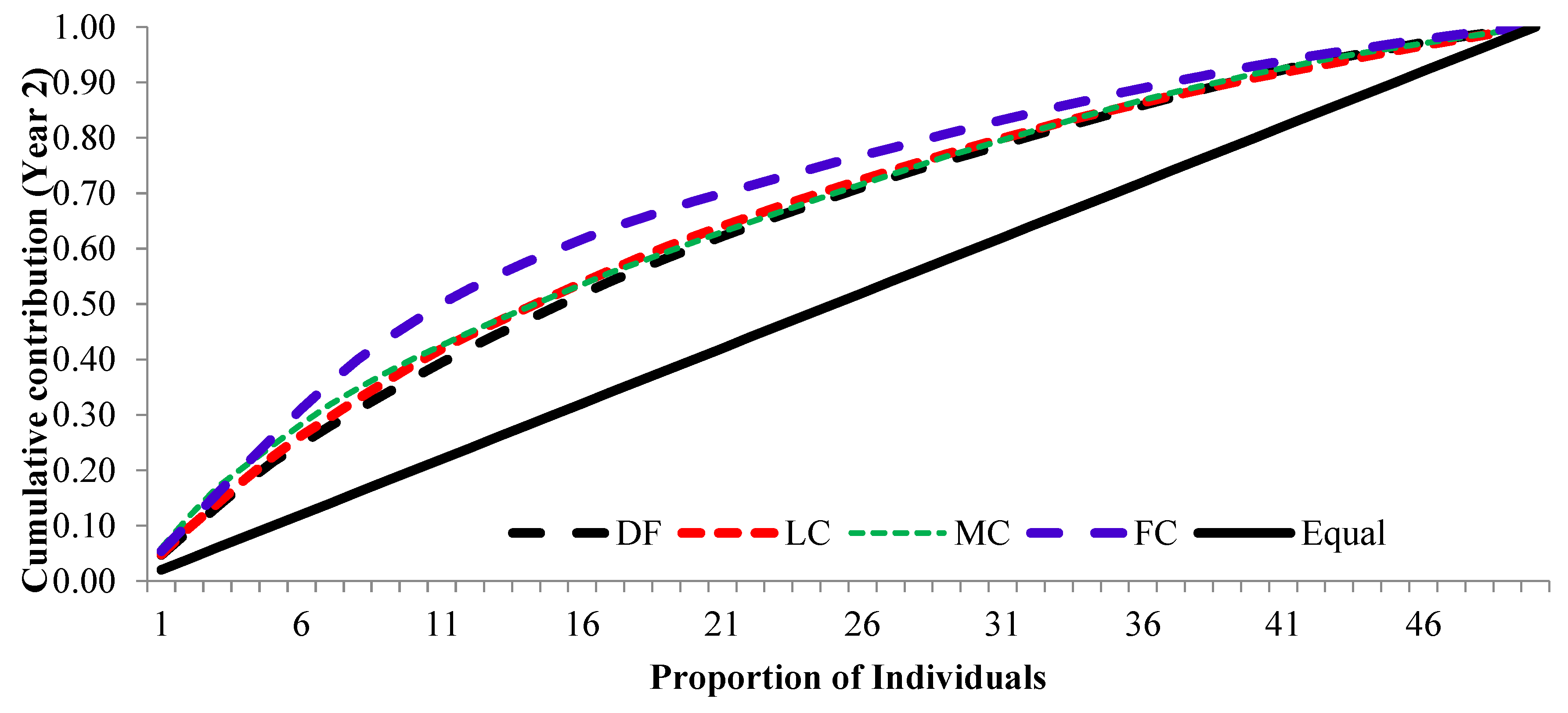

The cumulative contribution of trees to the overall fertility estimates for years 1, 2 and pooled contribution of two years are shown in Figure 6, Figure 7 and Figure 8.

The cumulative contribution curve describes the relative proportion of trees to the accumulative gamete contribution. In an ideal situation, that is expecting an equal contribution from each of the individuals (a condition where Ψ=1), this cumulative curve attains a straight line. There was a deviation in cumulative contribution from expectation in all crown closure classes. It can be inferred that various crown closure classes (DF, LC, MC and FC) showed a similar trend in both years (Figure 6 and Figure 7). Only FC showed a skewed distribution in year 2. It could thus be concluded that the FC deviated from the ideal situation more compared to the other three crown closures only in year 2 (Figure 7) and fertility combined for two years (Figure 8). When seed crop of two years was mixed, the cumulative contribution increased (Figure 8) in all crown closure classes.

4. Discussion

4.1. Cone production

Average cone numbers of DF, LC, and MC (Table 2 and Figure 4) were slightly higher than two populations of the species reported earlier (20 and 22) [9] and a population (19) [11] of Taurus cedar, while it was dramatically higher in FC (40.3) in year 2. It could be due to more competition among trees in FC than the other crown closure classes. Rotation periods of Taurus cedar are 120-140 years on good sites and 160-180 years on poor sites [1]. The crown closure in populations which were at end of rotation age seemed stable for cone productions in the present study. It is generally suggested that taller trees allocate much of their energy to vegetative growth rather than to reproductive growth [21]. Initial research results and observation suggested that 15-20 kg/ha of additional seeds was sufficient for shelter-wood areas, but higher rates 20-30 kg/ha is necessary for strip clear-cut areas of the species [1]. The results of the study showed that additional cone/seed could be obtained by CCCs managements.

Cone production gives an estimate of seed yield in the different crown management practices. The large difference in cone productivity among individuals within each crown closure class (Table 2) shows the importance of individual selection of seed tree for regeneration and other silvicultural practices. Statistically significant (p≤0.05) difference in average cone production across years (26.2/tree and 31.4), and among CCCs within second year emphasized the need for considering the crown closure management practice in forestry for seed harvest, natural regeneration and other forestry practices. The results were well accordance with differences in cone numbers among aspects and years reported by Yazici and Bilir [12], and for strobili productions among years and populations by Bilir and Kang [9,10] in the species. Large differences among individuals within a population and among populations in fecundity and reproductive characteristics were also reported in natural stands of different forest tree species [eg., 14,15,16,22,23] and in Taurus cedar [eg., 9,10,12]. Odabasi [4] reported 144 seeds per cone in Taurus cedar which works out to 750 additional seeds from per tree in year 2 than in year 1. However, cone production which gives an estimate of seed yield could be affected by many biotic and environmental factors. Growth characteristics did not impact significantly (p>0.05) on cone productions in CCCs for both years opposite to significant (p≤0.05) correlations between diameter at breast height for both years (r= 0.15 and 0.17) in pooled populations. Correlation analysis showed significant (p≤0.05) positive correlation between cone production and crown closure during both years (r= 0.29). Similar observations were also made by Odabasi [4] in Cedrus libani and Eler [13] in Pinus brutia. Positive correlation in cone production (r=0.22) and crown closure across years observed in the study is in line with the findings on cone [12] and strobilus [10] production in the species, and other forest tree species [eg., 16,23]. The results highlight importance of considering fertility and crown closure in forest management. Climatic data recorded at the studied location (Figure 1 and Figure 2) are similar to climate of the natural distribution of the species reported by Boydak [1]. Eler [13] found that age, elevation and crown closure were important factors in seed yield in Pinus brutia. Differences in age and environmental variation, mainly in soil properties, may have influenced the observed variation in fruiting and seed set within each population in the natural forests [15]. Altitudinal differences were reported in strobili production in Pinus brutia [16], cone production among populations in P. nigra [8], and reproductive characteristics in other forest tree species [23]. In a results of recent study indicated a higher influence of the year and probably of the sensitivity to climate, and less variability between clones for cone production in a Silver fir (Abies alba Mill.) seed orchard [24]. They [24] also reported that repeatability of mean annual clone production suggests moderate continuity of cone crops in the production rank of individual clones, while heritability was under genetic control. However, crown closure is a silviculturally manageable.

Coefficient of variation in cone production ranged from 51.4% (DF) to 74.6% (FC) in second year, while it was varied between 32.8% (DF) and 41.0% (FC) in first year (Table 2). Lower cone production in year 1 than in year 2 is contradictory to an earlier estimation of strobilus production in the species [10]. Low coefficient of variation (CV) is desirable for higher gene diversity for forest managers. It is suggested as a rough generalized heuristic rule that CV should be lower than 140% (Ψ≤3) for natural populations [25], and the crown closure classes considered in the current study had lower CVs.

4.2. Fertility variation, effective number of parents and gene diversity

The fertility variation (Ψ) increased with crown closure that will reduce gene diversity in second year, while it was similar in different crown closure classes in the first year (Table 3 and Figure 5). It is suggested as a thumb rule that, Ψ should be lower than 3 in natural stands and less than 2 in managed populations like seed orchards [14]. The proportion of the numbers of cones and fertility variation estimated in the current study populations is acceptable especially with respect to the highest Ψ value of FC (1.56) in year 2 which is typical of natural populations [14,21] (Table 3). Fertility variation (cone production) of 1.55, 3.05, and 1.64 in pooled stands aspectual for three consecutive years [12], 1.43 in a natural population [11], 1.57 and 1.26 in two natural populations [9] were reported the species. Fertility with respect to strobili production varied between 1.22 and 1.91 in three natural populations of the species for three consecutive years [10]. The results have emphasized the importance of estimation of fertility and reproductive characteristics across years. Data collection on cone production was easier, cheaper and more accurate than that of other reproductive characteristics such as strobilus or pollen count as also suggested by Bilir and Kang [9]. The tree keeps the cone in longer period than strobili or pollen in a year.

Ψ could be also related by standard deviation (S) and average (x̄) of cone production based on CV given in equation 1 by Kang and Lindgren [26], and Bilir [7]. It showed the importance of balancing between amount of cone production and its variation among individual trees for lower fertility variation and higher gene diversity.

The effective number of parents (N_p) decreased from DF to FC in both years. Effective number of parents (N_p) was related by gene diversity (GD) as: GD=1-0.5/N_p by Kang and Lindgren [26]. Estimated loss of gene diversity was 0.003 between crown closures in second year. The highest loss of gene diversity was in FC (0.004) (Table 3). However, it could be balanced to increase gene diversity by natural regeneration, forest tending or other forestry practices (i.e., mixed seed from different crown closure classes and years. For instance, gene diversity increased from seed crop of year 2 by mixing seed from both years (Table 3). Forestry practices such as seed cutting in natural regeneration, and seed harvesting were preferred generally in good seed year. However, poor seed year could be also used for seed collection if the right strategies are used to increase the genetic diversity using suitable management strategies. The results could be used in establishment of seed collection areas (e.g., spacing). It showed mixed cones should be harvested from different crown closure classes and years to increase gene diversity in natural regeneration or plantation forestry.

5. Conclusions

Differences in cone production and fertility among crown closure classes emphasized the importance of crown closure classes and which can be managed by forestry practices (i.e., natural regeneration or plantation forestry). Gene diversity could be enhanced by harvesting cones from different crown closure classes and years. Results of the study could be used in managing gene conservation and seed collection areas, and other forestry operations such as natural regeneration of the species. Impact of crown closure classes on cone production was investigated in the present study. New studies should be carried out to estimate impact of crown closure classes in quality and quantity of seed production.
