Perсhlozone Resistance in Clinical Isolates of Mycobacterium tuberculosis

1. Introduction

Tuberculosis currently remains a major public health problem worldwide. The transmission of drug-resistant strains of M. tuberculosis are becoming common in many regions of the world. The numbers of multidrug-resistant (MDR) and extensively drug-resistant (XDR) tuberculosis primary cases are steadily increasing. The chemotherapy regimens for such patients need to be modified in a timely manner to include effective drugs.

Thiosemicarbazones are a group of chemical compounds with mycobactericidal activity, discovered upon the systematic investigation of sulfonamides and thiazoles as anti-tuberculosis agents [1]. The best known representative of this group was thioacetazone, also known as Tibione or Tb 1, the first synthetic anti-tuberculosis drug, which began be used in the late 1940s. It was widely tested and used in postwar Europe, despite adverse reactions such as severe gastrointestinal, hepatic, and renal disorders. Subsequently, the high toxicity of tibone forced the search for less toxic analogs. In 1952, three isomeric forms of nicotinaldehyde thiosemicarbazone in the alpha, beta and gamma positions were produced [2]. The betta and gamma forms were less toxic than thioacetazone. The thiosemicarbazone isonicotinaldehyde (gamma isomer) obtained at that time is the precursor of the modern perchlozone. However, simultaneously, the high anti-tuberculosis activity of isonicotine hydrazine (isoniazid), which has lower toxicity, was also shown [3]. This led to an intensive study on isoniazid as one of the most effective anti-tuberculosis drugs of the time.

The emergence of drug-resistant tuberculosis has pushed forward the development of new drugs, also as the studies of repurposed and previously described less effective drugs [4]. Thioureidominomethylpyridinium perchlorate or perchlozone received official approval in November 2012 and was included in the Russian national clinical guidelines as a treatment for multidrug-resistant and extensively drug-resistant tuberculosis patients. However, only a few studies on perchlozone MICs for clinical M. tuberculosis strains and their molecular mechanisms of action have been performed [5].

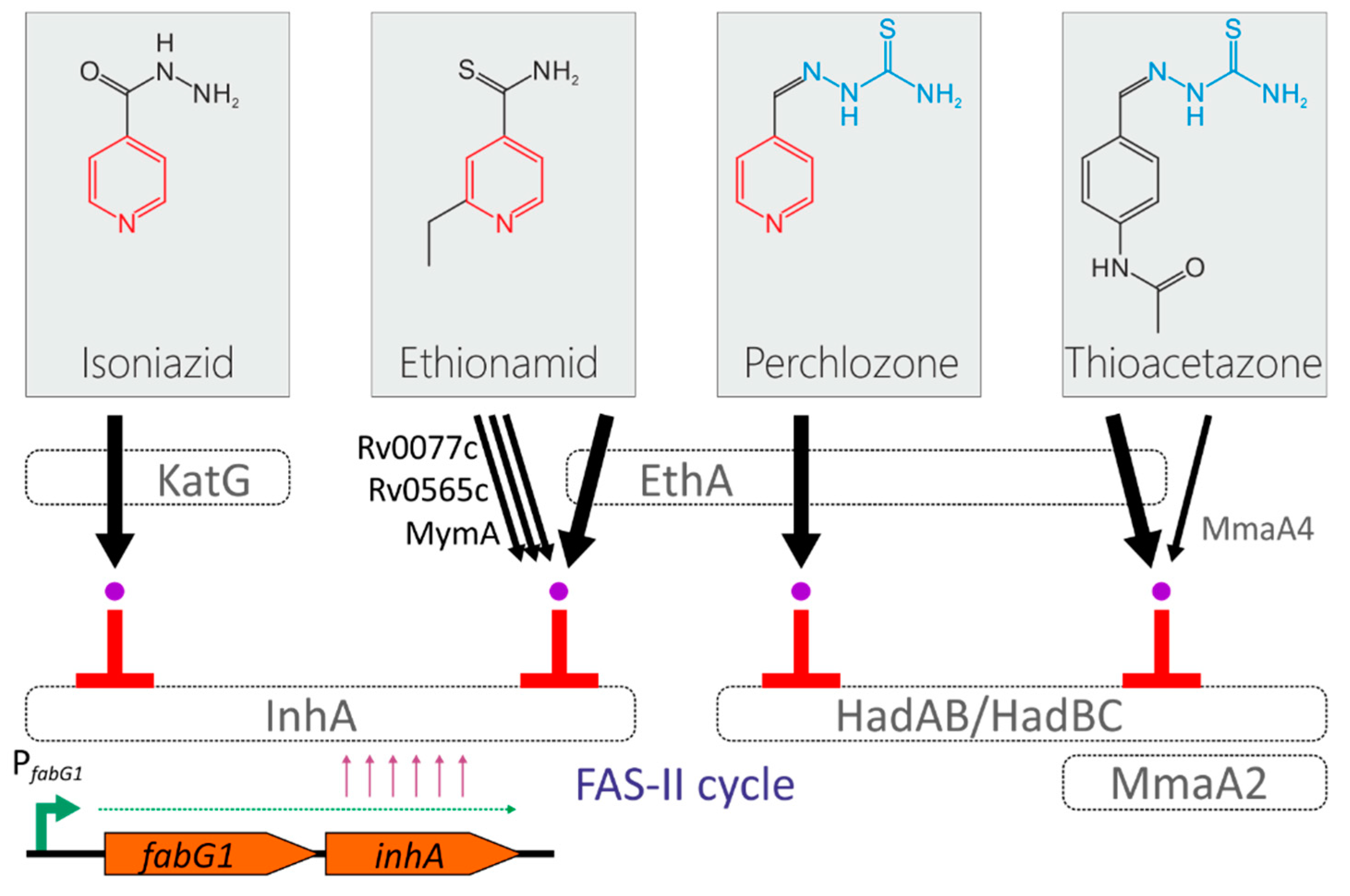

The mechanism of action of the perchlozone was revealed by Pooja Gopal and Thomas Dick, who found that HadABC is the target of perchlozone activated in the cell by EthA (Figure 1) [6]. The activation path by EthA monooxygenase is also shared by thioacetazone and ethionamide, and the possibility of cross-resistance between perchlozone, thioacetazone and ethionamide by inactivating mutations in the ethA locus has also been proposed [6].

In this report, we describe the phenotypic and genetic characteristics of clinical isolates of M. tuberculosis from the Moscow region with variable susceptibility to perchlozone, ethionamide, and isoniazid. Combining phenotypic and molecular data, we estimated the proportion of drug-resistant isolates suitable for perchlozone treatment.

2. Results

Clinical isolates from 22 patients were analyzed in this study. Samples were obtained in 2017–2018 from patients who attended the Moscow Research and Clinical Center for Tuberculosis Control. Eight of the 22 patients had susceptible form of tuberculosis, twelve patients had MDR-TB, and two had pre-XDR-TB, detrmined as additional resistance to fluoroquinolones (Table S1).

Isolates were genotyped by the 24-loci MIRU-VNTR method, and all samples belonged to the L2 Beijing lineage. Most of the isolates were from the modern clonal complexes CC1 and CC2 (Table S1) [7]. Seven isolates Central Asian/Russian Beijing cluster 94-32 were predominately susceptible, whereas six isolates of Beijing B0/W-148 cluster (MIRU type 100-32) were MDR of pre-XDR.

Resistance to ethionamide and high MICs of perchlozone were identified only in MDR isolates. The observed MIC of perchlozone spanned from 2 to 64 mg/L, with a statistically insignificant difference in isolate numbers at each concentration.

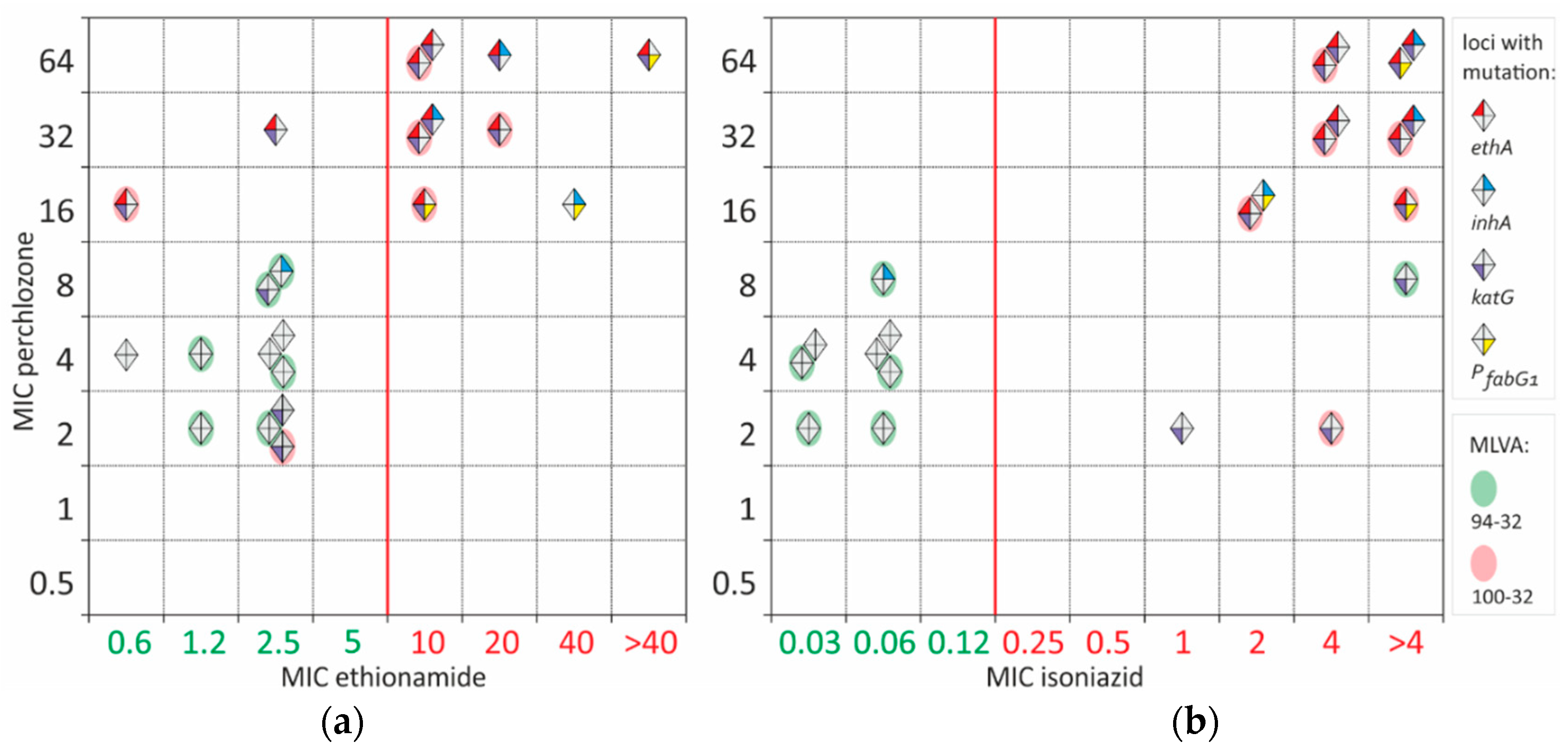

Common activation path of perchlozone and ethionamide by EthA lead to at least partial cross-resistance between these drugs (Figure 2). All ethionamide-resistant isolates had also high perchlozone MIC. Most of resistant isolates had an altered ethA sequence. However, two samples with mutations in ethA and a high MIC of perchlozone (16 and 32 mg/L) retained low ethionamide MIC of 0.6 and 2.5 mg/L, which were below the breakpoint. One of them bore EthA L440P substitution with an unknown effect on protein function, while the other had a frameshift mutation at 880 position. The latter was resistant to ethionamide as determined by critical concentration at 5 mg/L.

Pairwise correlation of isoniazid and perchlozone MIC revealed partial cross-correlation (Figure 2b). Isoniazid resistance could be explained by KatG S315T substitution in 13 of 14 isolates. Only one resistant isolate had P_fabG1 mutation and InhA I194V substituon. Two isoniazid-resistant and presumably perchlozone-susceptible isolates had perchlozone MIC of 2 mg/L. No other mutations besides KatG S315T were found.

Two isolates had an ‘intermediate’ perchlozone MIC of 8 mg/L. One was susceptible to isoniazid and had F97L substitution in InhA. It was not previously described in resistant isolates and could be neutral. The second was isoniazid-resistant and had S315T substitution in KatG.

Some discrepancies between ethA mutations and phenotype existed for three isolates with perchlozone MIC of 16mg/L. One strain had no mutations in the ethA gene, and high MICs of ethionamide and isoniazid could be explained by frequently identified promoter P_fabG1 mutation c(-15)t and InhA substituton I194V. Additional sequencing of the hadABC locus did not reveal any mutations, thus, high perchlozone MIC is caused by alterations in other genomic loci.

Nine presumable susceptible to perchlozone isolates with MICs of 2-4 mg/L had no mutations in ethA. They are also characterized by low ethionamide MICs ranging from 0.6 to 2.5 mg/L (Figure 2). Control M. tuberculosis H37Rv strain had perchlozone MIC of 4 mg/L.

3. Discussion

Treatment of MDR-TB is challenging due to the limited number of effective drugs available and severe adverse drug reactions. Additionaly, cross-resistance between antituberculosis drugs may limit their efficacy. Besides a common target of action for structurally similar drugs, such as in the rifamycins or fluoroquinolones groups, cross-resistance mechanisms may be due to common pathways of drug efflux or prodrug activation. For example, mutations in the transcriptional repressor gene rv0678 lead to cross-resistance to bedaquiline and clofazimine due to derepression of mmpL5-mmpS5 efflux pump operon [8]. Even more frightening is a recent report that the same type of mutations may also lead to low-level resistance to promising new drugs in the benzothiazinone group PBTZ169 and BTZ043 [9].

Perchlozone is a relatively new drug approved and used in the Russian Federation since 2012. Being a member of the thiosemicarbazone family, it has a mechanism of action similar to that of thioacetozone, according to the experiments on in vitro selection of resistant mutants [6]. Perchlozone is a prodrug and is activated by EthA monooxygenase also as ethionamide, thioacetazone, and isoxyl [10], so cross-resistance between currently used in tuberculosis treatment perchlozone and ethionamide has been suggested [6].

We found a wide variation in the MIC of perchlozone from 2 to 64 mg/L, correlating with the overall resistance profile of unexposed clinical strain: the MIC was higher for MDR and pre-XDR isolates. For presumably susceptible wild-type strains, the MIC of perchlozone was 2–4 mg/L. Gopal and Dick reported the perchlozone MIC₅₀ value measured by optical density in 7H9 liquid medium equal to 0.04 mg/L for M. tuberculosis and 3.6 mg/L for M. bovis BCG. These values are underestimated in comparison to the MIC defined in the standard way [6]. The data for agar medium were based on 99% growth inhibition and for M. bovis the MIC of perchlozone was 18.2 mg/L. In an in vitro efficacy study of thioacetasone analogs, the MIC of for a structurally matched compound (ID=7) for M. tuberculosis strain H37Rv was 0.8 mg/L, which is comparable to our data [11]. It is worth noting that perchlozone was 20 times less effective than thioacetazone in the Gopal study [6] and 8 times less effective in the Alahari study [11]. The average plasma concentrations from pharmacokinetic studies at doses ranging from 800 to 1600 mg/day for patients of different body weights was 23.4 mg/L [12]. Thus, the preliminary breakpoint concentration of perchlozone on Middlebrook 7H10 agar medium could be estimated as 4-8 mg/L.

In our work, we showed the cross-resistance between the ethionamide and the perchlozone in the primary non-exposed to perchlozone M. tuberculosis clinical isolates. Mutations associated with resistance were localized in the gene encoding EthA monooxygenase, and all strains with a high MIC of ethionamide also had a high MIC of the perchlozone. A previous study on a set of clinical isolates lacked phenotypic data on perchlozone susceptibility, which limits the interpretation of the results [13]. However, in one case, in concordance with the proposal by Gopal and Dick and our findings, an additional frameshift mutation in the ethA gene emerged during treatment with the perchlozone. It could be proposed that isolates with elevated MIC of ethionamide and frameshift mutations in the ethA gene should be considered resistant and such cases should not be treated with the perchlozone.

The observed incomplete cross-resistance between isoniazid and perchlozone was due to the properties of the strains chosen for the study, since all strains with high MIC of isoniazid and perchlozone carry mutations in ethA and were resistant to ethionamide. Generally, susceptibility to perchlozone retained for a part of MDR strains, as does suceptibility to ethionamide [14,15,16], providing the possibility of therapy for such cases based on phenotypic or molecular analysis.

Other mutations could be the cause of elevated perchlozone MIC. We analyzed the sequence of HadABC locus in one isolate with MIC of 8 mg/L and wild-type ethA, but it was also unmutated. Another possible mechanism could be caused by the structural similarity of perchlozone and thioacetazone. Alahari, 2007 showed the effect of thioacetazone on the cyclopropane mycolic acid synthases family of mycobacterial enzymes responsible for the synthesis of different subtypes of mycolic acids. In the proposed model, thioacetozone inhibits MmaA2 and activated by MmaA4 [11,17], which are involved in the production of the mycolic keto acids. An independent confirmation was obtained by in vitro selection of resistant M. tuberculosis strains, and obtained strains bore mutations in hadA, hadC, and mmaA4 [18].

A limitation of this study is the relatively small sample size of 22 isolates. Nevertheless, this is the first study of clinical M. tuberculosis clinical isolates, that combined phenotypic and molecular data and confirmed the basic assumptions about the mechanisms of perchlozone resistance.

4. Materials and Methods

4.1. Mycobacterium tuberculosis Strains

The M. tuberculosis isolates were obtained from clinical specimens collected from patients with TB at the Moscow Research and Clinical Center for Tuberculosis Control. All clinical strains were isolated in 2017–2018 from sputum of newly diagnosed patients before the start of anti-tuberculosis therapy or its long-term lasting no more than one month. The laboratory reference strain M. tuberculosis Н37Rv was used as a control strain. For molecular analysis samples were isolated sequentially, one isolate from one patient, before treatment initiation. Drug susceptibility testing for rifampicin, isoniazid, streptomycin, ethambutol, pyrazinamide, ofloxacin, moxifloxacin, kanamycin, capreomycin, and amikacin, PAS, ethionamide was performed using Bactec MGIT 960 as previously described [19,20]. Sensititre MYCOTB MIC determination was performed as described in [21]. The MIC of perchlozone was determined using serial dilutions method on Middlerook 7H10 agar plates supple-mented with the drug at the following concentrations: 0.5, 1, 2, 4, 8, 16, 32, 64 mg/L.

4.2. DNA Isolation and Sequencing

DNA isolation and sequencing of the ethA, inhA and PfabG1 fragments were performed as previously described [48]. The following PCR primers were used: ethAR-F1: 5′-cgacgttgaaatcacgctgg-3′, ethAR-R1: 5′-gtgaccgacaccattgaacg-3′; ethAR-F2: 5′-ttcaaccccgttgcggtaat-3′; ethAR-R2: 5′-ctctttctgtgcagcggcta-3′; ethAR-F3: 5′-atgatcggcccgacgaaatc-3′; ethAR-R3: 5′-ccctggcagcttactacgtg-3′; PfabG1-F: 5′-cctcgctgcccagaaaggga-3′; PfabG1-R: 5′-atcccccggtttcctccggt-3′; inhA-F2: 5′-gagctatatctccggtgcgg-3′; inhA-R2: 5′-gcgaccgtcatccagttgta-3′; inhA-F3: 5′-ccacatctcggcgtattcgt-3′; inhA-R3: 5′-cggtgataccccaccgaaat-3′.

4.3. MIRU-VNTR typing

Twenty-four loci MIRU-VNTR typing was made according to [22]. Profiles in the article are given in the following order: MIRU04(ETRD-1), MIRU26, MIRU40, MIRU10, MIRU16, MIRU31(ETRE), Mtub04, ETRC, ETR-A, Mtub30, Mtub39, Qub4156, Qub11b, Mtub21, Qub26, MIRU02, MIRU23, MIRU39, MIRU20, MIRU24, MIRU27 (Qub5), Mtub29, ETRB, Mtub34. The MLVA types were compared to MIRU-VNTRplus online (http://www.miru-vntrplus.org/) [23].
