Adaptive Parametric Identification of Systems with Multiple Nonlinearities

1. Introduction

Identification of systems with multiple nonlinearities studied in several papers. Parametric identification of nonlinearities [1] based on the use of frequency response inversion based on insufficient data. Sinusoidal tests used to detect nonlinearity. The type nonlinearity determines based on the analysis of the restoring force function. The curve fitting method is the basis for estimating nonlinearity parameters. The function description method [2] used for the parametric identification of a system with two nonlinear elements. An approach to parameters estimating of the transfer function of a second-order system suggests in [3]. The system contains dry and quadratic friction. Harmonic linearization of nonlinearities performed beforehand. Parameter estimates define as the solution of an equations system.

Identification of nonlinear systems, especially with multiple local nonlinearities [4] exhibiting disproportionate ratios of the degree of nonlinearity and present at a single or multiple spatial location, is a challenging inverse problem. Identification of such complex nonlinear systems cannot handle by the existing conventional restoring force or by describing function methods. Meta support vector machine approach [4] uses for the identification of a spring mass system with several degrees of freedom. Systems identification with multiple nonlinearities considers in [5]. The approach is based on the Hilbert–Huang transform. Application stages of this approach and the amplitude-frequency modulation procedure considered. In [6], a nonlinear vibration system study with a known structure. Optimization method and recursive algorithm used to nonlinearity form select from a given class.

The second- and third-order system identification with dry friction nonlinearities connected in parallel studies in [7]. The identification procedure base on application of the weighted least squares method. Identifiable conditions obtained and the parameters finding algorithm for a discrete nonlinear system [8] with feedback proposed. Nonlinear mechanical vibrations study in [9]. A gray box model or a model based on semi-physical principles applied. It assumed that observed nonlinearities localized in the physical space.

The system with two nonlinearities considers in [10]. The structure one nonlinearity is a priori known. The second nonlinearity approximates by a time series. In [11], the method presented to design mathematical models for the dynamic system on a set of local nonlinear attachments. Devices installed in the same primary construction. The identification method uses on the measurements processing, and the synthesis of the model based on physical laws. The closed system identification considered in [12]. Frequency methods applied for estimation system. Convolution schemes use and the learning theory apply in [13]. Voltaire and Taylor series use to design models. State space models and learning algorithms based on variational auto-coders used for nonlinear systems (NS) parameters identification [14].

The review [15] contains the methods analysis applied for the nonlinear process’s identification in the structure’s dynamics. Disadvantages of approaches based on linearization, harmonic balance, and the surface restoring force method note. Identification algorithms based on the Hilbert frequency transformation proposed in [16]. The chaos theory used to identify bifurcation processes in [17]. The systems Identification with feedback considered in [18,19]. The proposed approach is based on the transfer function analysis of the system. The approaches analysis of feedback systems (FS) identification consider in [20]. The algorithm determining (AD) parameter estimates asymptotic bias in a nonlinear FS proposed in [21]. AD based on the correlation analysis between the system input and the noise. Very often, the FS identification replaces by the open system parameters assessment [22,23]. A complex structure is the identification problem of nonlinear FS. A recursive identification procedure proposes in [24]. The forward channel describes by an autoregressive model, and the reverse channel describes by a nonlinear model.

So, the review shows that most of the studies based on NS frequency identification methods. Estimating approaches to the nonlinearity structure proposing sometimes. Different procedures apply to linearization of the nonlinearity from a specified class. Approaches to NS linearization with feedback considered. The identification problem of systems with multiple nonlinearities is less studied. The complexity of such systems is the main difficulty for the identification. Identification approaches and methods of such systems base on localization of nonlinearity.

We propose an approach to adaptive identification of a system with multiple nonlinearities. This is a complex problem, and its solution boils down to: (i) the requirements formation on state variables for system parameters evaluation; (ii) conditions analysis guaranteeing the consideration system nonlinear properties (S-synchronizability); (iii) synthesis of an adaptive system. We give a solution to these problems.

2. Problem statement

Consider the system $S_F$

$$\dot{X}(t)=AX(t)+D{F}_1(X,t)+BU(t),$$

(1)

$$\mathcal{L}Y(t)=CX(t)+F_2(X,t),$$

(2)

where $X\in {ℝ}^m$ is the state vector, $A\in {ℝ}^{m\times m}$ is the state matrix, $D\in {ℝ}^{m\times q}$, $F_1(X,t):{ℝ}^m\to {ℝ}^q$ is nonlinear vector-function, $U\in {ℝ}^k$ is input (control) vector, $B\in {ℝ}^{m\times k}$, $Y\in {ℝ}^n$ is output vector, $C\in {ℝ}^{n\times m}$, $F_2(X,t):{ℝ}^m\to {ℝ}^n$ is perturbation vector (measurement errors), $\mathcal{L}$ is operator to obtain the vector $Y$. $\mathcal{L}$can be a differential operator.

Information set for $S_F$

(3)

where $t_N<\infty$.

Assumption 1. Elements ${\phi }_{1,i}\left(x_j\right)\in F_1(X,t)$, ${\phi }_{2,i}\left(x_j\right)\in F_2(X,t)$are smooth, one-valued functions and belong to the class

$${\mathcal{F}}_{\phi }=\left\{{\gamma }_1{\xi }^2\le \phi (\xi )\xi \le {\gamma }_2{\xi }^2,\xi \ne 0,\phi (0)=0,{\gamma }_1\ge 0,{\gamma }_2<\infty \right\}$$

(4)

where $\xi \in ℝ$ is input of a nonlinear element.

The condition ${\phi }_i^1\left(x_j\right)={\phi }_i^1\left({\phi }_k^1\left(x_j\right)\right)$$i\ne k$ may be met in some cases. We apply the model

$$M_F:\{\begin{array}{l}\dot{\widehat{X}}(t)=\widehat{A}(t)\widehat{X}(t)+\widehat{D}(t)F_1(X,t)+\widehat{B}(t)U(t),\\ \mathcal{L}\widehat{Y}(t)=CX(t)+F_2(X,t)\end{array}$$

(5)

for the parameters estimation of matrices $A,D,B$, where $\widehat{A}(t)$, $\widehat{D}(t)$, $\widehat{B}(t)$are matrices with tuning parameters.

Problem: construct the model (5) for the system (1) based on the analysis ${\mathrm{I}}_o$and assumption 1, and find the tuning laws $\widehat{A}(t)$, $\widehat{D}(t)$и $\widehat{B}(t)$to

$$\underset{t\to \infty }{\lim }\Vert \widehat{Y}(t)-Y(t)\Vert \le {\delta }_y$$

(6)

where$\Vert \cdot \Vert$is the Euclidean norm.

We use the S-synchronizability concept of the system (1).

3. S-synchronizability of system $S_F$

S-synchronizability (SS) guarantees the structural identifiability for the system $S_F$. SS bases on the property’s analysis of geometric frameworks ${\mathcal{S}}_{ey}$[26]. ${\mathcal{S}}_{ey}$reflects system $S_F$nonlinear properties, and properties ${\mathcal{S}}_{ey}$depend on the parameters ${\mathrm{I}}_o$. An unsuccessful choice of input can give to a so-called “insignificant” framework $\mathcal{N}{\mathcal{S}}_{ey}$ [25]. Therefore, the input (control) choice is the important problem in the identification systems design.

Let the framework ${\mathcal{S}}_{ey}$closed, and its area is not zero. Denote the ${\mathcal{S}}_{ey}$height as $h\left(S_{ey}\right)$, where height is the distance between two points on framework opposite sides. Then the framework $S_{ey}$, and consequently, the system is identifiable or $h$-identifiable [25] if:

(i) the input $U(t)$bounded, piecewise, continuous and constantly excited (see below);

(ii) ${\delta }_S>0$exists such that $h\left(S_{ey}\right)\ge {\delta }_S$.

Structural identifiability conditions of the system. Let ${\mathcal{D}}_y=\mathrm{dom}\left({\mathcal{S}}_{ey}\right)$is the domain $S_{ey}$, $D_y=D_y\left({\mathcal{D}}_y\right)=\underset{t}{\max }y(t)-\underset{t}{\min }y(t)$is diameter ${\mathcal{D}}_y$; $U(t)\in \mathbb{U}$, where $\mathbb{U}$is acceptable inputs set for the system. The set $\mathbb{U}$contains representative inputs.

Definition 1. The input $U(t)\in {\mathbb{U}}_{\mathcal{S}}\subseteq \mathbb{U}$is S-synchronizing the system $S_F$if the domain ${\mathcal{D}}_y$of the framework $S_{ey}$has a maximum diameter $D_y$on the set $\left\{Y(t),t\in \mathbb{J}\right\}$.

Remark 1. We understand the system (1), (2) synchronization as the choice of such the input $U_h(t)\in \mathbb{U}$, which reflects all the features of the framework $S_{ey}$.

Consider a reference framework $S_{ey}^{ref}$. $S_{ey}^{ref}$is the structure $S_{ey}$that reflects all the properties of the nonlinear function $\phi (y)$. Let $D_y^{ref}=D_y\left(S_{ey}^{ref}\right)$be the diameter of the framework $S_{ey}^{ref}$. $D_y^{ref}$exists for a system (1), (2) with an S-synchronizing input. If $S_{ey}\cong S_{ey}^{ref}$, then

$$\left|D_y-D_y^{ref}\right|\le {\epsilon }_y$$

(7)

where ${\epsilon }_y\ge 0$, $\cong$is a sign of closeness. Subset ${\mathbb{U}}_{\mathcal{S}}$elements have the property

(8)

Consider the framework $S_{ey}$. Denote the framework $S_{ey}$center on the set ${\mathbb{J}}_y=\left\{y(t)\right\}$as ${с}_{\mathcal{S}}$, and the area ${\mathcal{D}}_y$center denote as ${с}_{D_y}$. Let $S_{ey}={\mathrm{F}}_{S_{ey}}^l\cup {\mathrm{F}}_{S_{ey}}^r$. Determine secants ${\gamma }_S^{\upsilon }=a^{\upsilon }y+b^{\upsilon }$ for fragments $F_{S_{ey}}^l,F_{S_{ey}}^r$, where $\upsilon =r,l$; $a^{\upsilon }$, $b^{\upsilon }$, $a^{\upsilon }$, and $b^{\upsilon }$ are parameters ${\gamma }_S^{\upsilon }$.

Theorem 1 [25]. Let the set ${\mathbb{U}}_{\mathcal{S}}$ of synchronizing inputs for the system $S_F$ obtain and (i) $\epsilon \ge 0$ exists such that $\left|{с}_{\mathcal{S}}-{с}_{D_y}\right|\le \epsilon$; (ii) the condition $\left|\left|a^l\right|-\left|a^r\right|\right|\le {\delta }_h$ is hold, where $a^l,a^r$ are secant coefficients for fragments $F_{S_{ey}}^l,F_{S_{ey}}^r$, ${\delta }_h\ge 0$. Then the system $S_F$ is $h_{{\delta }_h}$-identifiable or structurally identifiable, and $\left(U_h(t)\in {\mathbb{U}}_{\mathcal{S}}\right)\in \mathcal{S}$.

4. On excitation constancy condition

The condition excitation constant (EC) is important in parametric identification problems. If the system is nonlinear, then the EC condition may not be sufficient. The system must be S-synchronized as we consider the nonlinear properties of the system. The EC condition has the form.

Definition 2. Vector $P\in {\text{ℝ}}^m$ constantly excited with level $\alpha$ or has property $\mathcal{P}{\mathcal{E}}_{\alpha }$ if

(9)

for $\alpha >0$ and $\forall t\ge t_0$ at some interval $T>0$, where $I_l\in {\text{ℝ}}^{m\times m}$ is unity matrix.

The condition (9) has a different form

$$\frac{1}{T}{\displaystyle \underset{t_0}{\overset{t_0+T}{\int }}P(t)P^T(t)}\ge \alpha I_l$$

(10)

We use condition (9) next.

Assumption 2. The frequencies set ${\mathsf{\Omega }}_P(\omega )$ correspond to $P(t)$ when $P(t)$ have expansion into the Fourier series.

Assumption 3. ${\mathsf{\Omega }}_{\mathcal{S}}(\omega )$ is the set of allowable input frequencies that ensure S-synchronizability of the system.

If ${\mathsf{\Omega }}_P(\omega )$ guarantees the system S-synchronizability by the variable $P\in {\text{ℝ}}^m\Rightarrow P(t)\in \mathcal{S}$, then a vector $P(t)$ is representative and applicable for the adaptive identification. Assuming the $P(t)$ boundedness, we write the condition EC for $B_P(t)=P(t)P^T(t)$ as

(11)

where $\overline{\alpha }>0$ is some number.

5. Structural-parametric approach to system $S_F$ identification

We propose a method for the system $S_F$ identification based on the structural-parametric approach (SPA) [27]. The SPA realization depends on a priori information. The system $S_F$ has a complex form. Therefore, the adaptive algorithms synthesis is based on a priori information about the system structure.

Let the composition of subsystems included in $S_F$ be known. Knowing the output vector dimension the matrix $A$ can decompose into $n$ blocks (subsystem $S_{F,n}\subseteq S_F,\left\{s_{F,j}\right\}\in S_{F,n},j<n$). Perform the subsystems analysis and select subsystems that contain nonlinearities $S_{F,nel}\subseteq S_{F,n}$. Apply SPA to each element $s_{F,nel,k}\in S_{F,nel}$. If the $\left\{s_{F,j}\right\}\in S_{F,n}\backslash S_{F,nel}$ subsystem does not contain nonlinearities, then apply the adaptive identification procedure.

Remark 2. The SPA based on the system S-synchronizability and the condition (9) fulfillment.

The SPA contains two procedures under uncertainty: (i) SF1 structural analysis, (ii) parametric (adaptive) identification. These stages describe in [27].

Remark 3. The system's structural identifiability (S-synchronizability) affects the connection of subsystems and the correlation of variables. The relationships analysis excludes influencing relationships and gives a solution to the system (nonlinearity) structural identifiability problem. The mutual influence diagram construction is possible only if the condition $\mathcal{P}{\mathcal{E}}_{\alpha ,\overline{\alpha }}^S$is true.

Remark 4. The system S-synchronizability evaluation is based on the framework ${\mathcal{S}}_{ey}$construction and analysis. ${\mathcal{S}}_{ey}$[25,26] reflects the nonlinearity structure of the corresponding subsystem $s_{F,nel,k}$.

Remark 5. Obtained estimates of nonlinearities structure in $S_F$are the basis for the adaptive parametric identification implementation.

Remark 6. We have information about nonlinearity. Therefore, the structural analysis stage for $S_F$ was not performed.

Remark 7. Structural identification and structural identifiability based on a single approach. Structural identifiability guarantees the solution of the structural identification problem for nonlinear systems.

6. Adaptive identification of system $S_F$

Consider the subsystem $s_{F,i}\in S_F$, $\dim s_{F,i}=n_i$, $\mathcal{L}$is a linear operator in (2). Let the information set ${\mathbb{I}}_{o,i}\subset {\mathbb{I}}_o$ be known for $s_{F,i}$. $n_i$-th order differential equation

$$W_{s_{F,i}}(\upsilon )y_{s_{F,i}}={\displaystyle \sum _{k=1}^{n_i}{\displaystyle \sum _{j=1}^{n_i}\left(d_{1,s_{F,i}}^{k,h}{f}_{s_{F,i}}^{h,j}+b_{s_{F,i}}^{k,j}{u}_{s_{F,i}}^j\right)}}$$

(12)

corresponds to the equations system describing the subsystem $s_{F,i}$

(13)

where $X_{s_{F,i}}\in {\text{ℝ}}^{n_i}$ is state vector, $x_{s_{F,i}}^1$ is the first element $X_{s_{F,i}}$; $D_{1,s_{F,i}}$, $F_{1,s_{F,i}}$ and $B_{s_{F,i}}$ are matrices of corresponding dimensions; $d_{1,s_{F,i}}^{k,h}\in D_{1,s_{F,i}},f_{s_{F,i}}^j\in F_{1,s_{F,i}},b_{s_{F,i}}^{k,j}\in B_{s_{F,i}},u_{s_{F,i}}^j\in U_{s_{F,i}}$; $\upsilon =d/dt$; $W_{s_{F,i}}(\upsilon )$ is degree $n_i$ polynomial. $A_{s_{F,i}}\in {ℝ}^{n_i\times n_i}$2 is a Hurwitz matrix.

Divide the left and right parts of (12) into a degree $n_i-1$polynomial

(14)

where ${\mu }_k>0$ does not coincide with roots of the polynomial $W_{s_{F,i}}(\upsilon )$. Then (12)

(15)

where ${\eta }_{s_{F,i}}>0$, ${\tilde{d}}_{s_{F,i}}^{k,h}$ and ${\tilde{b}}_{s_{F,i}}^{k,j}$ depend on subsystem parameters $s_{F,i}$ and ${\mu }_k$, variables $p_{z_{s_{F,i}}^j}$$\left(z=f,u\right)$ satisfy the equation

(16)

Remark 8. The specificity and structure of the right part (15) define by the matrix $A_{s_{F,i}}$and the polynomial $H_{s_{F,i}}(\upsilon )$.

The representation (15) allows us to estimate the parameters of $s_{F,i}$on a given set of ${\mathbb{I}}_{o,i}$. Apply the adaptive model

(17)

where $k_{S_{F,i}}$; ${\widehat{\kappa }}_{s_{F,i}}$, ${\widehat{\tilde{d}}}_{s_{F,i}}^{k,h}$, ${\widehat{\tilde{b}}}_{s_{F,i}}^{k,j}$are tuned parameters. The equation for identification error

$${\dot{e}}_{s_{F,i}}=-k_{s_{F,i}}{e}_{s_{F,i}}+\mathsf{\Delta }{\kappa }_{s_{F,i}}{y}_{s_{F,i}}+{\displaystyle \sum _{k=1}^{n_i-1}{\displaystyle \sum _{j=1}^{n_i-1}\left(\mathsf{\Delta }{\tilde{d}}_{s_{F,i}}^{k,h}{p}_{f_{s_{F,i}}^{h,j}}+\mathsf{\Delta }{\tilde{b}}_{s_{F,i}}^{k,j}{p}_{u_{s_{F,i}}^j}\right)}}$$

(18)

where $e_{s_{F,i}}={\widehat{y}}_{s_{F,i}}-y_{s_{F,i}}$, $\mathsf{\Delta }{\kappa }_{s_{F,i}}={\widehat{\kappa }}_{s_{F,i}}-{\eta }_{s_{F,i}}$, $\mathsf{\Delta }{\tilde{d}}_{s_{F,i}}^{k,h}={\widehat{\tilde{d}}}_{s_{F,i}}^{k,h}-{\tilde{d}}_{s_{F,i}}^{k,h}$, $\mathsf{\Delta }{\tilde{b}}_{s_{F,i}}^{k,j}={\widehat{\tilde{b}}}_{s_{F,i}}^{k,j}-{\tilde{b}}_{s_{F,i}}^{k,j}$.

Lyapunov function (LF) for the identification algorithms synthesis has the form $V_{e,i}\left(e_{s_{F,i}}\right)=0.5e_{s_{F,i}}^2$. Then

$${\dot{V}}_{e,i}\left(e_{s_{F,i}}\right)=e_{s_{F,i}}\left[-k_{s_{F,i}}{e}_{s_{F,i}}+\mathsf{\Delta }{\kappa }_{s_{F,i}}{y}_{s_{F,i}}+{\displaystyle \sum _{k=1}^{n_i-1}{\displaystyle \sum _{j=1}^{n_i-1}\left(\mathsf{\Delta }{\tilde{d}}_{s_{F,i}}^{k,h}{p}_{f_{s_{F,i}}^{h,j}}+\mathsf{\Delta }{\tilde{b}}_{s_{F,i}}^{k,j}{p}_{u_{s_{F,i}}^j}\right)}}\right]$$

(19)

If $p_{f_{s_{F,i}}^{h,j}}$, $p_{u_{s_{F,i}}^j}$ have the property $\mathcal{P}{\mathcal{E}}_{\alpha ,\overline{\alpha }}^S$, then obtain from ${\dot{V}}_i\left(e_{s_{F,i}}\right)<0$

$$\mathsf{\Delta }{\dot{\kappa }}_{s_{F,i}}=-{\gamma }_{\kappa ,s_{F,i}}{e}_{s_{F,i}}{y}_{s_{F,i}},$$

(20)

$$\mathsf{\Delta }{\dot{\tilde{d}}}_{1,s_{F,i}}^{k,h}=-{\gamma }_{k,h,s_{F,i}}{e}_{s_{F,i}}{p}_{f_{s_{F,i}}^{h,j}},$$

(21)

$$\mathsf{\Delta }{\dot{\tilde{b}}}_{s_{F,i}}^{k,j}{p}_{u_{s_{F,i}}^j}=-{\gamma }_{k,j,s_{F,i}}{e}_{s_{F,i}}{p}_{u_{s_{F,i}}^j},$$

(22)

where ${\gamma }_{\kappa ,s_{F,i}}$, ${\gamma }_{k,h,s_{F,i}}$, ${\gamma }_{k,j,s_{F,i}}$ are positive numbers ensuring algorithms convergence. Get algorithms to adjust model (17) parameters from (20)-(22)

$${\dot{\widehat{\kappa }}}_{s_{F,i}}=-{\gamma }_{\kappa ,s_{F,i}}{e}_{s_{F,i}}{y}_{s_{F,i}},$$

(20a)

$${\dot{\widehat{\tilde{d}}}}_{1,s_{F,i}}^{k,h}=-{\gamma }_{k,h,s_{F,i}}{e}_{s_{F,i}}{p}_{f_{s_{F,i}}^{h,j}},$$

(21a)

$${\dot{\widehat{\tilde{b}}}}_{s_{F,i}}^{k,j}{p}_{u_{s_{F,i}}^j}=-{\gamma }_{k,j,s_{F,i}}{e}_{s_{F,i}}{p}_{u_{s_{F,i}}^j},$$

(22a)

So, the adaptive system for identification of subsystem $s_{F,i}$ parameters describe by the equations (18), (20) – (22). Denote it as $A{S}_{F,i}$.

Consider LF

$$V_{\mathsf{\Delta },i}=0.5{\gamma }_{\kappa ,s_{F,i}}^{-1}{\left(\mathsf{\Delta }{\kappa }_{s_{F,i}}\right)}^2+0.5\mathrm{Sp}\left(\mathsf{\Delta }{D}_{1,s_{F,i}}{\mathsf{\Gamma }}_{k,h,s_{F,i}}^{-1}\mathsf{\Delta }{D}_{1,s_{F,i}}^T\right)+0.5\mathrm{Sp}\left(\mathsf{\Delta }{B}_{s_{F,i}}{\mathsf{\Gamma }}_{k,j,s_{F,i}}^{-1}\mathsf{\Delta }{B}_{s_{F,i}}^T\right)$$

(23)

where $\mathrm{Sp}(\cdot )$ is spur of matrix, ${\mathsf{\Gamma }}_{k,h,s_{F,i}}=\mathrm{diag}({\gamma }_{k,h,s_{F,i}})$, ${\mathsf{\Gamma }}_{k,j,s_{F,i}}^{-1}=\mathrm{diag}\left({\gamma }_{k,j,s_{F,i}}\right)$, $\mathsf{\Delta }{\tilde{d}}_{s_{F,i}}^{k,h}\in \mathsf{\Delta }{D}_{1,s_{F,i}}$ and $\mathsf{\Delta }{\tilde{b}}_{s_{F,i}}^{k,j}\in \mathsf{\Delta }{B}_{s_{F,i}}$.

Let $\mathsf{\Delta }{K}_{s_{F,i}}\triangleq \left[\mathsf{\Delta }{D}_{1,s_{F,i}},\mathsf{\Delta }{B}_{s_{F,i}}\right]$ and

$$V_{s_{F,i}}(t)=V_e(t)+V_{\mathsf{\Delta },i}(t)$$

(24)

Theorem 2. Let (i) functions $V_{e,i}(t)$, $V_{\mathsf{\Delta },i}(t)$ are positive definite and satisfy conditions

(ii) $A_{s_{F,i}}\in {ℝ}^{n_i\times n_i}$ is Hurwitz matrix; (iii) variables $p_{f_{s_{F,i}}^{h,j}}$, $p_{u_{s_{F,i}}^j}$ have the property $\mathcal{P}{\mathcal{E}}_{\alpha ,\overline{\alpha }}^S$. The all trajectories of the system $A{S}_{F,i}$ bounded belong to the domain ${\mathrm{G}}_t=\left\{\left(e_{s_{F,i}},\mathsf{\Delta }{\kappa }_{s_{F,i}},\mathsf{\Delta }{K}_{s_{F,i}}\right):V_{s_{F,i}}(t)\le V_{s_{F,i}}\left(t_0\right)\right\}$, and the estimate

$$2k_{s_{F,i}}{\displaystyle \underset{t_0}{\overset{t}{\int }}{V}_{e,i}(\tau )}d\tau \le V_{s_{F,i}}(t_0)-V_{s_{F,i}}(t)$$

(25)

is valid.

The Theorem 2 proof gives in Appendix A.

Let

$$0.5\underset{\_}{\vartheta }\left\{\mathrm{Sp}\left(\mathsf{\Delta }{K}_{s_{F,i}}(t)\mathsf{\Delta }{K}_{s_{F,i}}^T(t)\right)+{\left(\mathsf{\Delta }{\kappa }_{s_{F,i}}\right)}^2\right\}\le V_{\mathsf{\Delta },i}(t)\le 0.5\overline{\vartheta }\left\{\mathrm{Sp}\left(\mathsf{\Delta }{K}_{s_{F,i}}(t)\mathsf{\Delta }{K}_{s_{F,i}}^T(t)\right)+{\left(\mathsf{\Delta }{\kappa }_{s_{F,i}}\right)}^2\right\},$$

(26)

where ${\mathsf{\Gamma }}_{s_{F,i}}={\mathsf{\Gamma }}_{k,h,s_{F,i}}\dot{+}{\mathsf{\Gamma }}_{k,j,s_{F,i}}$, $\dot{+}$ is the sign of the matrices direct sum, ${\beta }_1\left({\mathsf{\Gamma }}_{s_{F,i}}\right)$, ${\beta }_l\left({\mathsf{\Gamma }}_{s_{F,i}}\right)$ are minimum and maximum matrix ${\mathsf{\Gamma }}_{s_{F,i}}$ eigenvalues, $\underset{\_}{\vartheta }=\min \left({\beta }_l^{-1}\left({\mathsf{\Gamma }}_{s_{F,i}}\right),{\gamma }_{\kappa ,s_{F,i}}^{-1}\right)$ $\overline{\vartheta }=\max \left({\beta }_1^{-1}\left({\mathsf{\Gamma }}_{s_{F,i}}\right),{\gamma }_{\kappa ,s_{F,i}}^{-1}\right)$.

The exponential stability proof is based on ensuring the $M^{+}$-property for functions ${\dot{V}}_{e,i}(t)$, ${\dot{V}}_{\mathsf{\Delta },i}(t)$[29].

Definition 3[29]. A non-positive quadratic form $W(Y,X)$ has the $M^{+}$-property or $W(Y,X)\in M^{+}$ if fair

$$W(Y,X)=-c_y{\Vert Y\Vert }^2+c_x{\Vert X\Vert }^2,$$

(27)

for any $Y\in R^m$, $X\in R^n$in some bounded domain

$${\mathsf{\Omega }}_D=\left\{Y\in R^m,X\in R^n:\left|\right|Y|{|}^2+|\left|X\right|{|}^2\le \chi ,\chi \ge 0\right\},$$

(28)

where $\left|\right|Y\left|\right|$ is the Euclidean norm of the vector Y, $c_y>0$, $c_x\ge 0$.

$M^{+}$-property is the constructive completeness sign the quadratic form $W(Y,X)$. It reduces the $W(Y,X)$properties analysis to the characteristic’s evaluation of the M-matrix [30].

Lemma 1.${\dot{V}}_{e,i}(t)$has the $M^{+}$-property

$${\dot{V}}_{e,i}\le -k_{s_{F,i}}{V}_{e,i}+\frac{\overline{\alpha }\overline{\vartheta }}{2k_{s_{F,i}}}{V}_{\mathsf{\Delta },i}$$

(29)

if matrix $P_{f_{s_{F,i}}^{h,j},u_{s_{F,i}}^j}^T(t)P_{f_{s_{F,i}}^{h,j},u_{s_{F,i}}^j}(t)\in P{E}_{{\alpha }_P,{\overline{\alpha }}_P}^S$ and $y_{s_{F,i}}(t)\in P{E}_{{\alpha }_{y_i},{\overline{\alpha }}_{y_i}}^S$, where ${\alpha }_{P_i},{\overline{\alpha }}_{P_i},{\alpha }_{y_i},{\overline{\alpha }}_{y_i}$are positive numbers, $\overline{\alpha }=\max \left({\overline{\alpha }}_{P_i},{\overline{\alpha }}_{y_i}\right)$.

The Lemma 1 proof gives in Appendix B.

Lemma 2. If Lemma 1 conditions satisfy, then ${\dot{V}}_{\mathsf{\Delta },i}(t)$has the $M^{+}$-property

$${\dot{V}}_{\mathsf{\Delta },i}\le -\frac{3}{8}\pi {\alpha }_i{V}_{\mathsf{\Delta },i}+\frac{8}{3}\pi V_{e,i}$$

(30)

where $\pi \ge 0$.

The Lemma 1 proof gives in Appendix C.

Consider the Lyapunov vector function $V_{e_i,{\mathsf{\Delta }}_i}(t)={\left[V_{e,i}(t)V_{\mathsf{\Delta },i}(t)\right]}^T$. Let functions $s_{\rho }(t)\ge 0$exist such that

(31)

Analysis of adaptive system properties (18), (20) – (22) based on the study of the inequalities system

$$\left[\begin{array}{c}{\dot{V}}_{e,i}\\ {\dot{V}}_{\mathsf{\Delta },i}\end{array}\right]\le \left[\begin{array}{cc}-k_{s_{F,i}}& \frac{\overline{\alpha }\overline{\vartheta }}{2k_{s_{F,i}}}\\ \frac{8}{3}\pi & -\frac{3}{8}\pi {\alpha }_i\end{array}\right]\left[\begin{array}{c}{V}_{e,i}\\ V_{\mathsf{\Delta },i}\end{array}\right],$$

(32)

Apply (31) and obtain a vector comparison system for (32)

(33)

where $S={\left[s_{\epsilon }{s}_K\right]}^T$, $A_V\in R^{2\times 2}$ is M-matrix

The stability conditions for the M-matrix $A_V$have the form [30]

where $m_1,m_2$ are diagonal minors of the matrix $A_V$.

These conditions have the form for $A_V$

(34)

So, the following statement is true.

Theorem 3. Let (i) positive-definite Lyapunov functions

have the infinitesimal higher limit for $\left|e_{s_{F,i}}(t)\right|\to 0$, $\left|\mathsf{\Delta }{\kappa }_{s_{F,i}}\right|\to 0,\Vert \mathsf{\Delta }{K}_{s_{F,i}}\Vert \to 0$; (ii) matrix $P_{f_{s_{F,i}}^{h,j},u_{s_{F,i}}^j}^T(t)P_{f_{s_{F,i}}^{h,j},u_{s_{F,i}}^j}(t)\in P{E}_{{\alpha }_P,{\overline{\alpha }}_P}^S$ and $y_{s_{F,i}}(t)\in P{E}_{{\alpha }_{y_i},{\overline{\alpha }}_{y_i}}^S$ are piecewise continuous bounded and $W_{s_{F,i}}(t)\in P{E}_{\alpha ,\overline{\alpha }}^S$, $y_{s_{F,i}}(t)\in P{E}_{{\alpha }_{y_i},{\overline{\alpha }}_{y_i}}^S$; (iii) the equality

is fair in area $O_{\nu }(O)$, where $\pi >0$, $O=\{0,0^{n_i\times n_i}\}\subset ℝ\times {ℝ}^{n_i\times n_i}\times {\mathbb{J}}_{0,\infty }$, $0^{n_i\times n_i}\in {\text{ℝ}}^{n_i\times n_i}$ is null matrix, $O_{\nu }$ is some neighborhood of the point $O$, $t\in [0,\infty ]={\mathbb{J}}_{0,\infty }$; (iv) Lemma 1, 2 conditions satisfied for ${\dot{V}}_{e,i}$ and ${\dot{V}}_{\mathsf{\Delta },i}$; (v) the estimate (26) fair for function $V_{\mathsf{\Delta },i}(t)$; (vi) the inequalities system (32) is valid for ${\dot{V}}_{e,i}$, ${\dot{V}}_{\mathsf{\Delta },i}$; (vii) the upper solution for $V_{e_i,{\mathsf{\Delta }}_i}(t)={\left[V_{e,i}(t)V_{\mathsf{\Delta },i}(t)\right]}^T$ satisfies equation (33) if inequality (31) is true for elements $V_{e,i},V_{\mathsf{\Delta },i}$. Then the adaptive system (18), (20) – (22) is exponentially stable with the estimate

(35)

if conditions (34) held.

Theorem 3 shows if the information matrix $W_{s_{F,i}}(t)=P_{f_{s_{F,i}}^{h,j},u_{s_{F,i}}^j}^T(t)P_{f_{s_{F,i}}^{h,j},u_{s_{F,i}}^j}(t)$ is constantly excited, then the adaptive system (18), (20) – (22) guarantees consistent parameters estimates for system $s_{F,i}$. This statement is valid if (34) is fulfilled.

Remark 9. The EC condition ( $\mathcal{P}{\mathcal{E}}_{\alpha ,\overline{\alpha }}^S$) is the base for the stability proof of the adaptive system. EC indirectly consider when applying the Lyapunov function. The approach proposed above ensures the ${\mathcal{M}}^{+}$-property for the Lyapunov function. It bases on consideration the condition $\mathcal{P}{\mathcal{E}}_{\alpha ,\overline{\alpha }}^S$. The Lyapunov function analysis considers features of adaptive algorithms when the $\mathcal{P}{\mathcal{E}}_{\alpha ,\overline{\alpha }}^S$ condition applies.

7. Nonlinear correction of nonlinear system

The system contains an amplifier with an electric motor and a relay control described by a function$f_1(u)$. The correcting device is a nonlinear velocity feedback with a parabolic characteristic $f_2(x_2)$

(36)

(37)

where $u=\omega -{х}_1-f_2(x_2)$ is control, $f_2(x_2)=k_{os}{x}_2^{2}sign\left(x_2\right),$ $\omega$is input, $c>0,d>0$.

Equation (13) and polynomials in (13), (14) have the form

(38)

(39)

(40)

where ${\mu }_1$, ${\mu }_2$ are positive numbers that do not coincide with the roots of the equation $W(\upsilon )=0$.

Adaptive model and algorithms for estimating system parameters (42), (43)

(44)

(45)

where $e=\widehat{y}-y$, $i=\eta ,v_1,v_2,b_1,b_2$. Equation for error $e(t)$

(46)

where $k>0$, $\mathsf{\Delta }\sigma =\widehat{\sigma }-\sigma$, $\sigma =\eta ,v_1,v_2,b_2,b_2$.

Denote $\mathsf{\Delta }K\triangleq {\left[\mathsf{\Delta }\eta ,\mathsf{\Delta }{v}_1,\mathsf{\Delta }{v}_2,\mathsf{\Delta }{b}_1,\mathsf{\Delta }{b}_2\right]}^T$. The vector tuning law follows from (35)

(47)

where ${\mathsf{\Gamma }}_K=\mathrm{diag}\left({\gamma }_{\eta },{\gamma }_{v_1},{\gamma }_{v_2,}{\gamma }_{b_1},{\gamma }_{b_2}\right)$, $P_y={\left[y,p_{y,{\mu }_1},p_{y,{\mu }_2},p_{f_1,{\mu }_1},p_{f_1,{\mu }_2}\right]}^T$.

The system (44), and (46) trajectories boundedness follows from Theorem 2. The simulation results show in Figures 1-4. Present the model (44) parameter tuning in Figures 1 and 2. Figure 3 reflects the change in the estimation error. The output form determines the error change. Figure 3 shows also the change in $e(t)$depending on the dynamics of the system output (36). The model adequacy in the output space demonstrates in Figure 4.

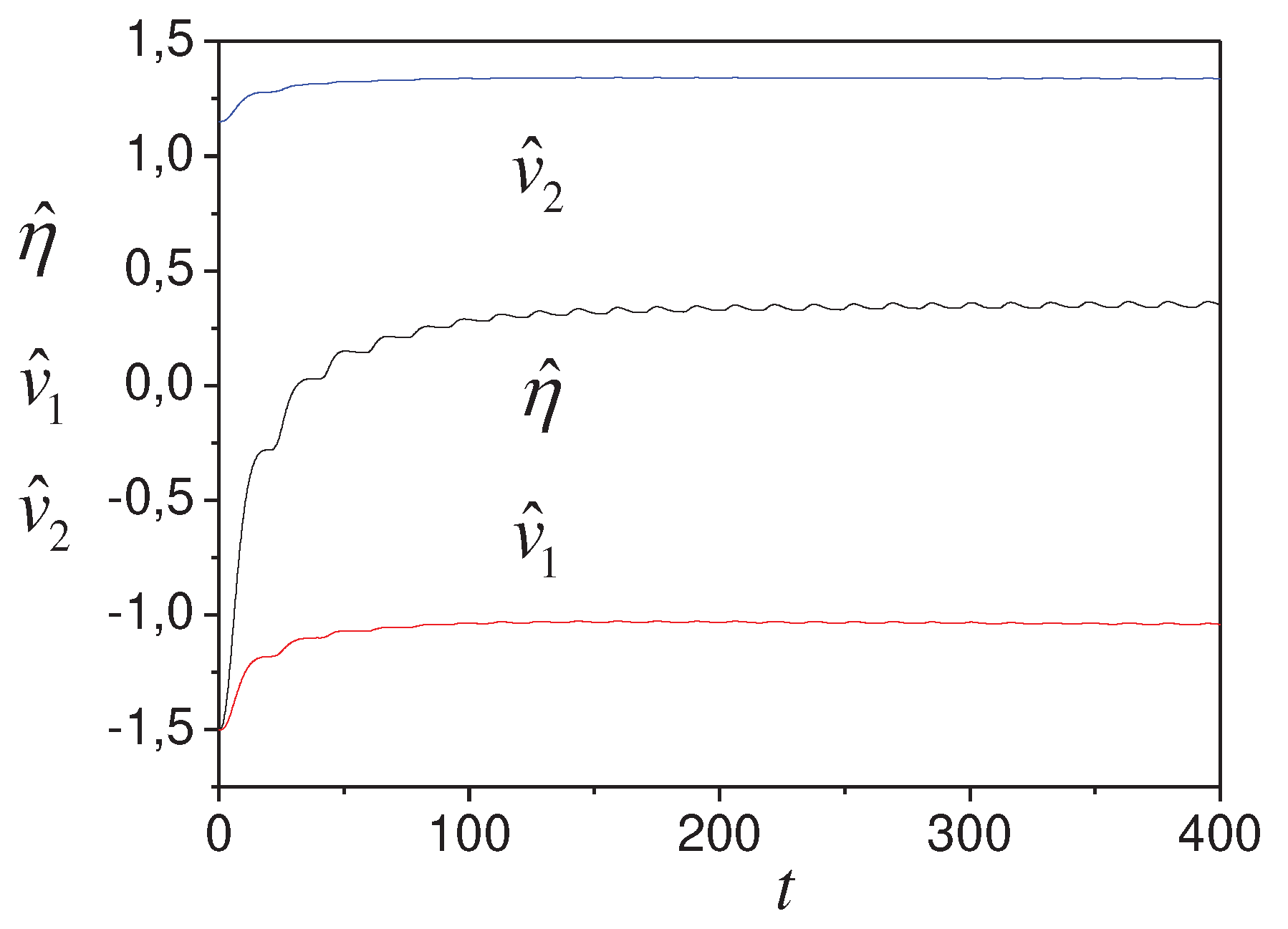

Figure 1. Model (44) parameters tuning.

Figure 1. Model (44) parameters tuning.

Figure 2. Model (44) parameters tuning.

Figure 2. Model (44) parameters tuning.

Figure 3. Changing the estimation error.

Figure 3. Changing the estimation error.

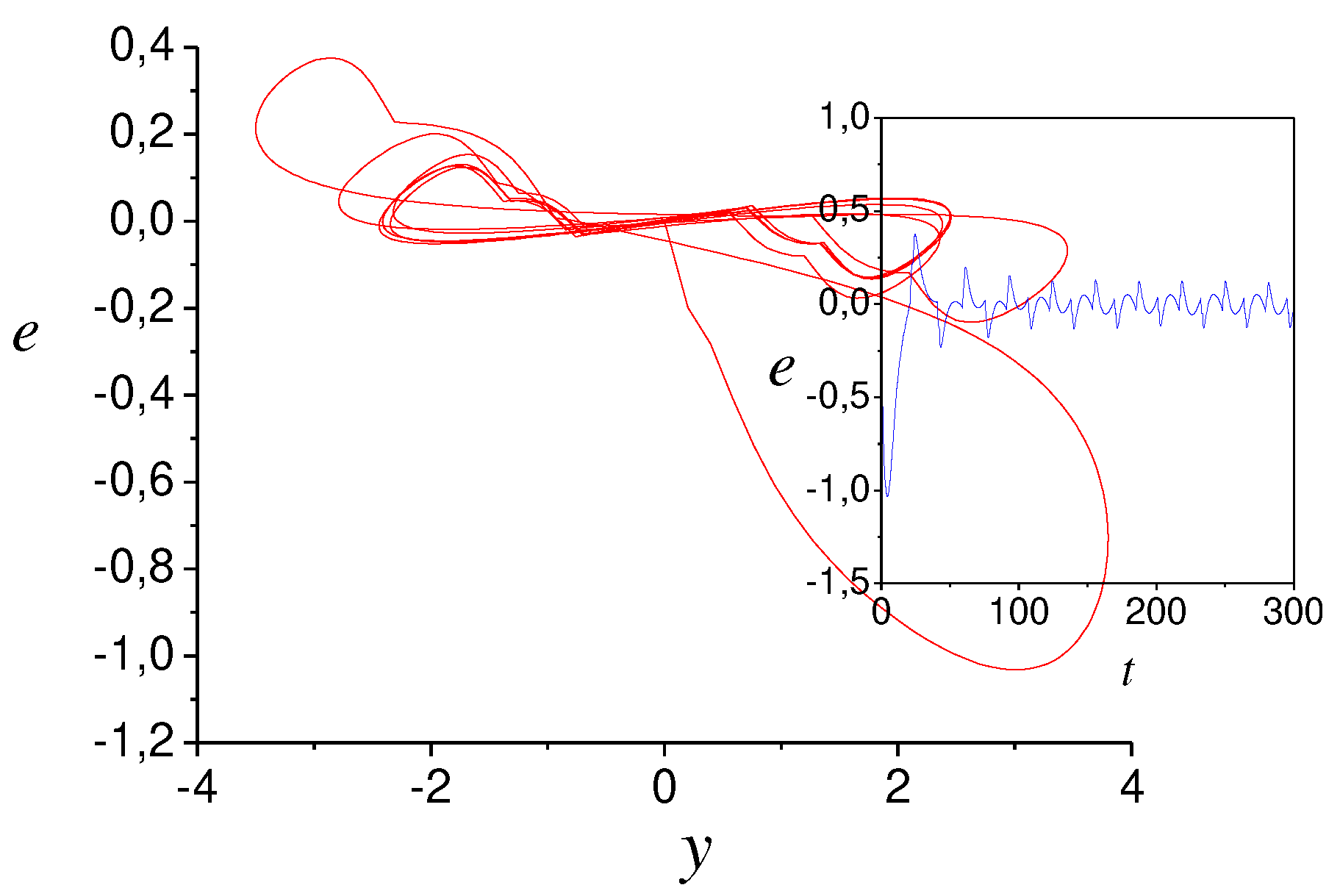

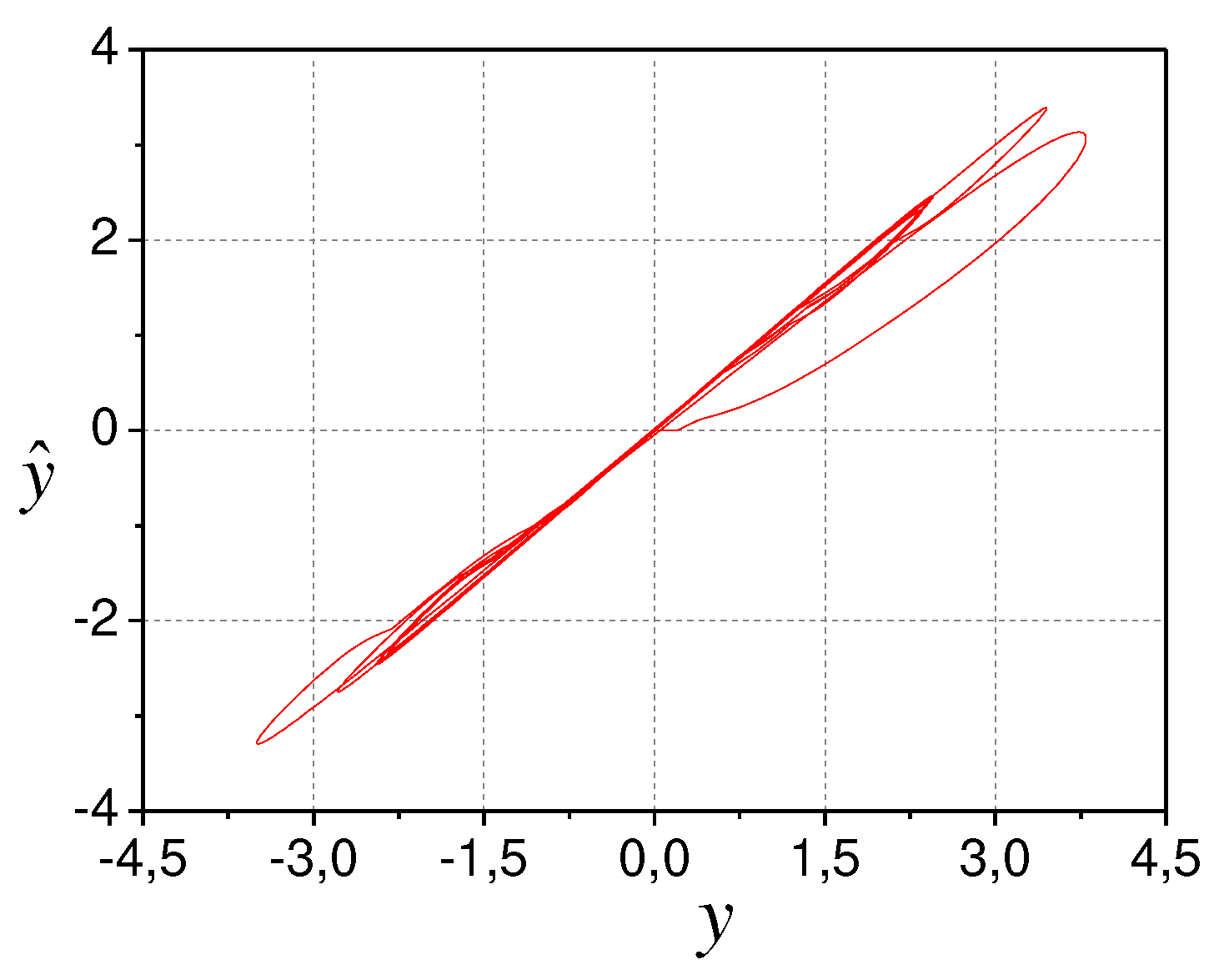

Figure 4. Model adequacy in output space.

Figure 4. Model adequacy in output space.

Note [32] that the system (36), (37) is unidentifiable by the function F2 on the measurements set. In this case, we can use indirect information about the dependence of $u_1=\omega -{х}_1$on $x_2$. It is true since the relationship between $u_1$and $u$.

Consider the case when the structure of nonlinearity is a priori unknown. Use the relationship diagram (RD) [28] for system (36). The relationship between $u_1$and $u$is significant. Therefore, consider the framework ${\mathcal{S}}_{x_3{u}_1}$described by the function $f_{x_3{u}_1}:u_1\to x_3$(Figure 5). $f_1(u)$belongs to the relay functions class with a dead zone. Replacing $u$with $u_1$changes the boundaries of the dead zone. This problem solves in the identification process. Construct the framework ${\mathcal{S}}_{u_1{x}_3}$described by the mapping ${\chi }_{u_1{x}_3}:x_3\to u_1$(the structure ${\mathcal{S}}_{u_1{x}_3}$coincides with ${\mathcal{S}}_{x_3{u}_1}$), and the secant

where ${\pi }_0=23.63,{\pi }_1=0.129$. Coefficient of determination is $r_{u_1,x_3}=0.66$. It indicates the presence of nonlinear properties.

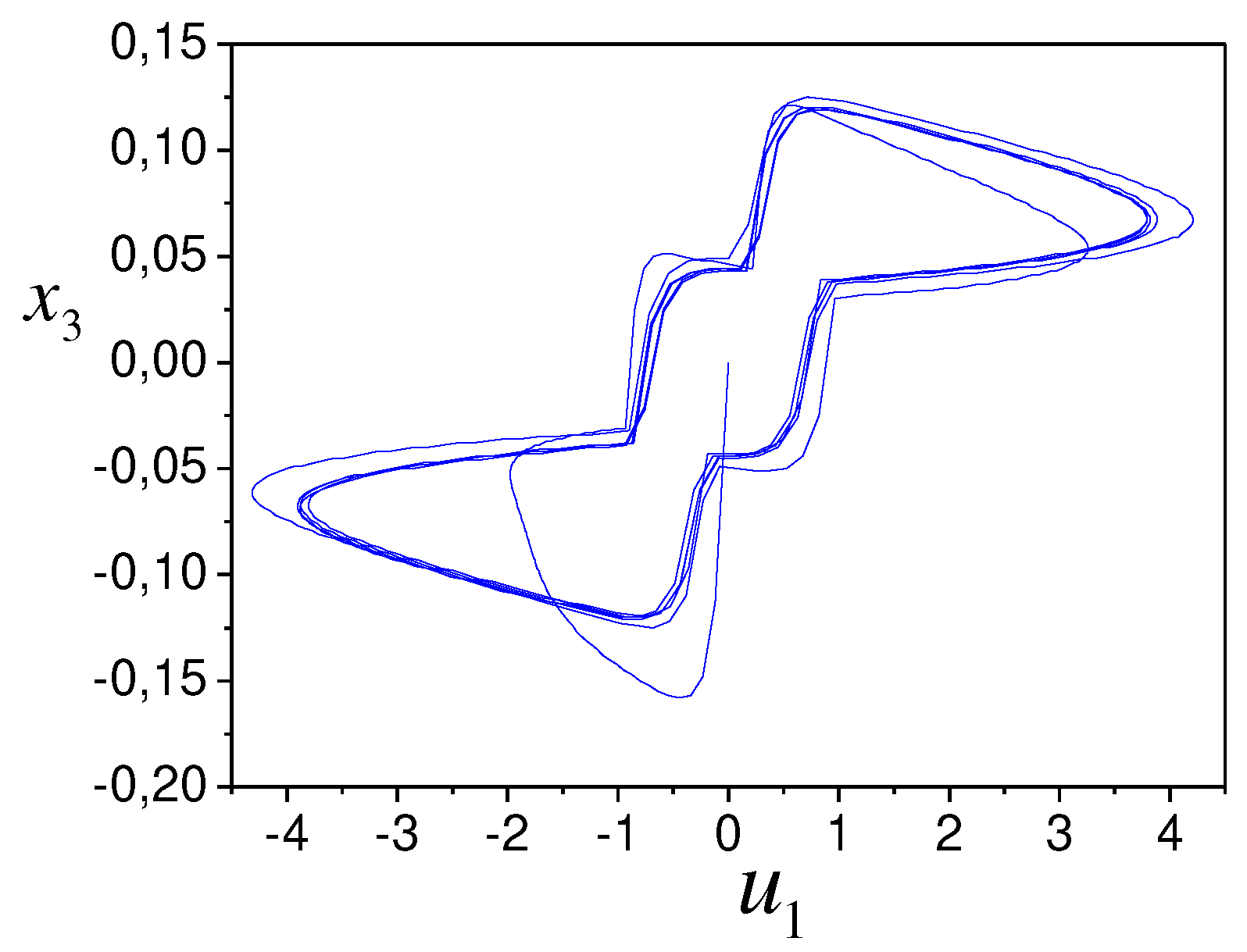

Figure 5. Framework ${\mathcal{S}}_{x_3{u}_1}$

Figure 5. Framework ${\mathcal{S}}_{x_3{u}_1}$

Determine the discrepancy ${\epsilon }_{u_1}\triangleq {\widehat{u}}_1-u_1$. It contains information about the function $f_2$. Construction ${\epsilon }_{u_1}={\epsilon }_{u_1}\left(x_2\right)$ and approximate the curve on the interval ${\mathbb{J}}_{x_2}=\left[-0.64;1\right]$. Obtain a model with a quadratic structure. The model structure coincides with $f_2$. So, we have performed a structural identification of the system (36).

8. Self-oscillation generation system

The self-oscillation system contains (i) a control object (variables $y_1,y_2$), (ii) nonlinear (variable $y_3$) and linear (variable $y_4$) converters, (iii) an amplifier-converter with a nonlinear actuator (variable $y_5$)

(48)

where $T_i>0$ is time constant, $g\ge 0$, $y_5$ is input. $f_i(x)$ ($i=1,3$) is a saturation function with a dead zone

(49)

The object phase portrait shows in Figure 6. It shows self-oscillations in the system. We transform the first two equations of the system (48) using the approach from Section 6. Present these equations as (38) and divide (38) by $\upsilon +\mu$. Transform variables $y_1,y_5$

Figure 6. Object phase portrait.

Figure 6. Object phase portrait.

(50)

and obtain the identification form

(51)

The adaptive system for evaluating system (51) parameters has the form

(52)

where $e_i={\widehat{y}}_i-y_i$, $i=1;3;4;5$.

Consider the Lyapunov functions $V_i\left(e_i\right)=0.5e_i^2$ and get adaptive algorithms for tuning system parameters (52)

(53)

where ${\gamma }_{ij}>0$.

Apply Theorem 2 and get the boundedness of trajectories in an adaptive system

(54)

(55)

where $\mathsf{\Delta }{a}_{ij}(t)={\widehat{a}}_{ij}(t)-a_{ij}$.

Show the simulation results in Figures 7-10. Figures 7 and 8 represent the system (52) parameters tuning, and Figure 9 shows the change $e_i$. Results confirm the adaptive system trajectories boundedness.

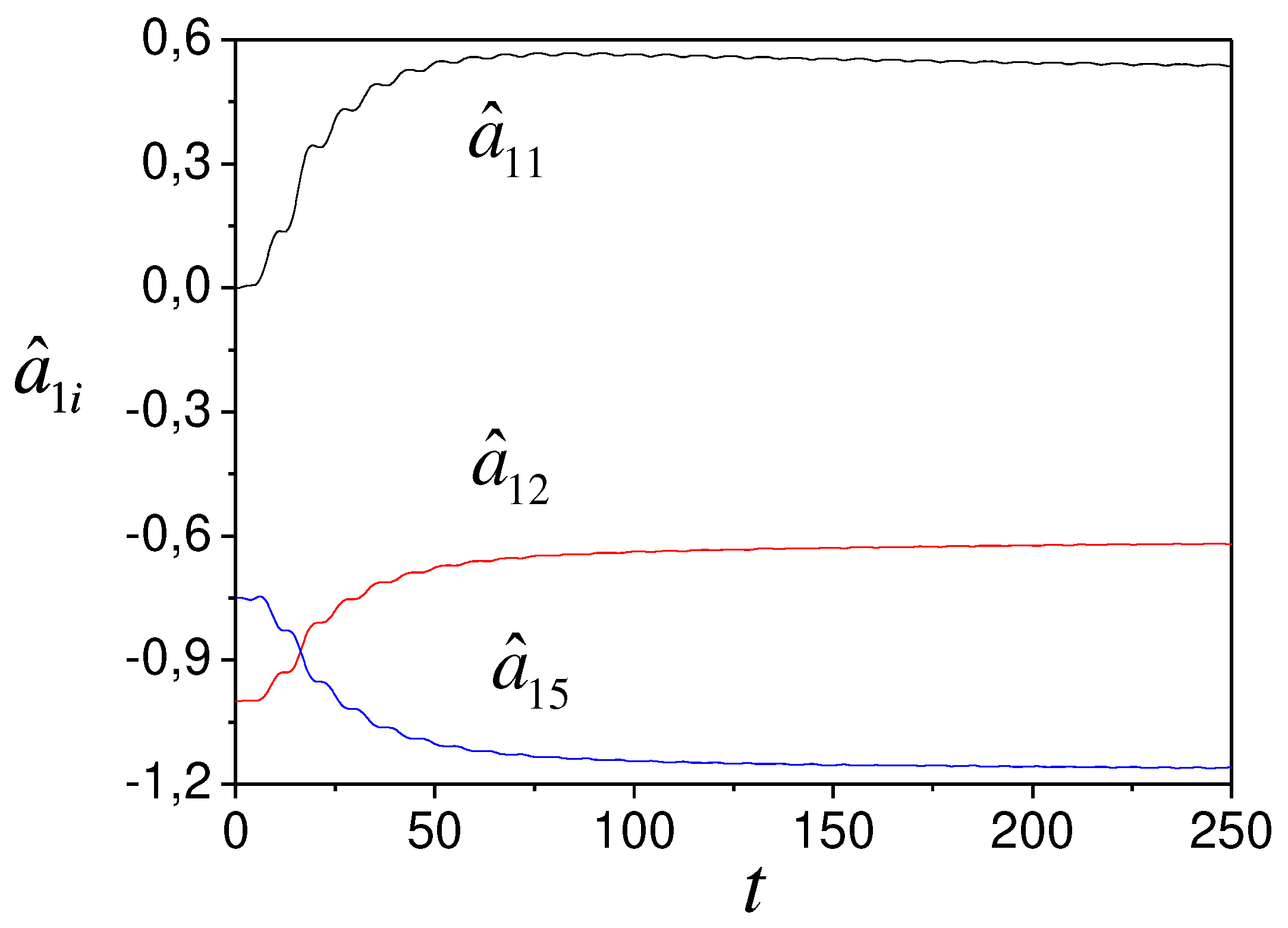

Figure 7. Tuning model parameters for estimation $y_1$

Figure 7. Tuning model parameters for estimation $y_1$

Figure 8. Tuning model parameters for estimation $y_3,y_4,y_5$

Figure 8. Tuning model parameters for estimation $y_3,y_4,y_5$

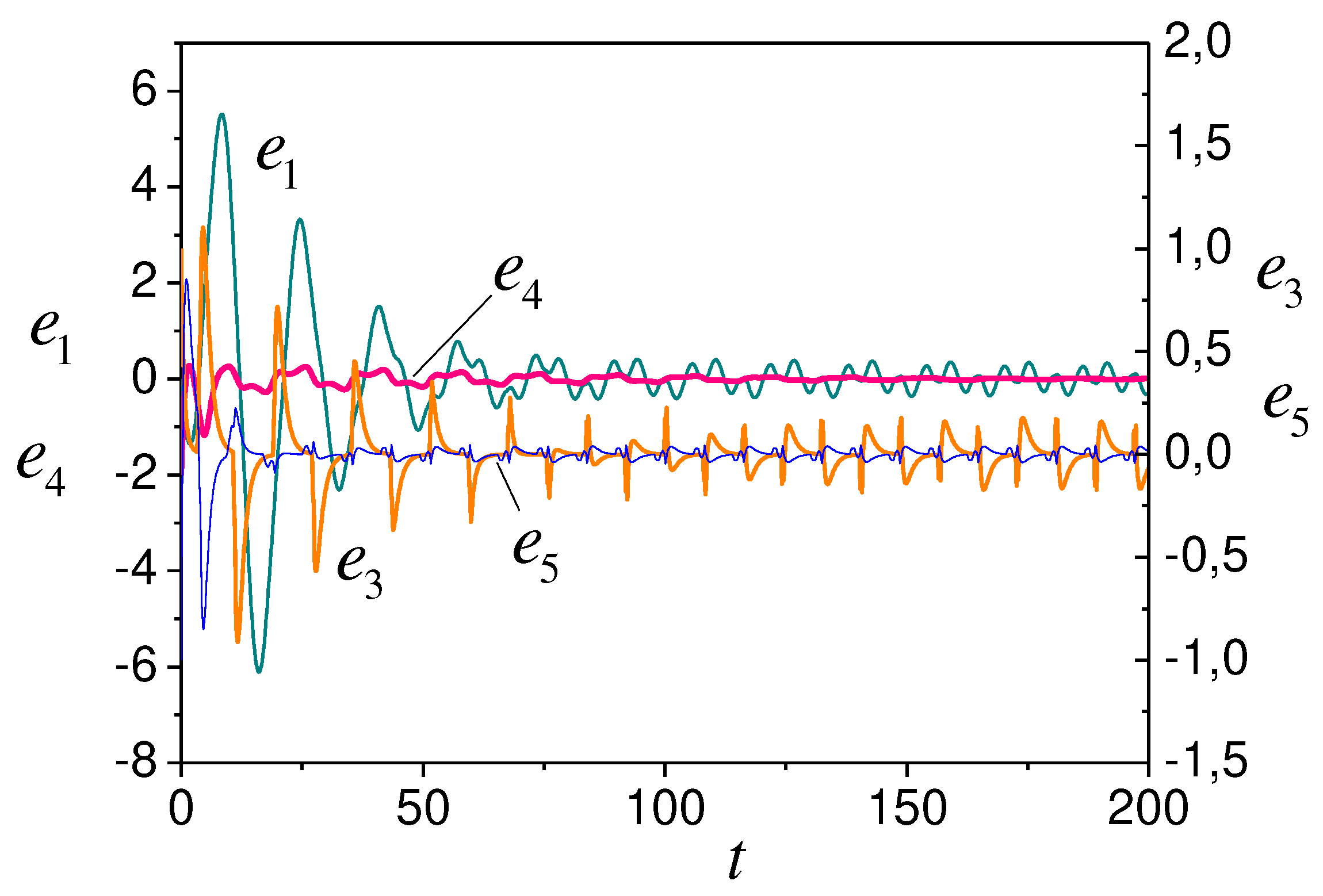

Figure 9. System errors (52) for various variables (green is $e_1$, red is $e_4$, orange is $e_3$, blue is $e_5$).

Figure 9. System errors (52) for various variables (green is $e_1$, red is $e_4$, orange is $e_3$, blue is $e_5$).

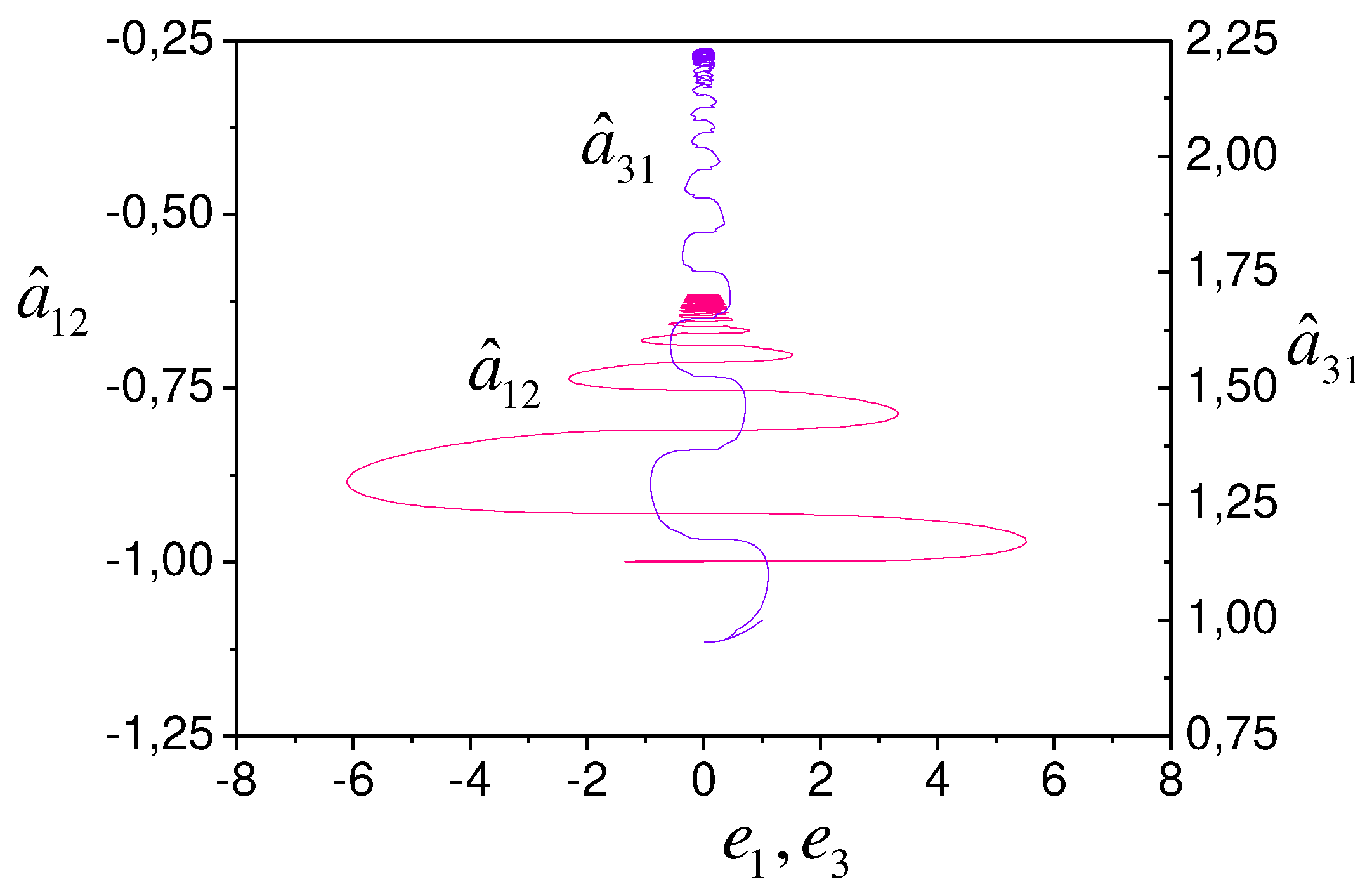

Tuning parameters in the space $\left(e_i,{\widehat{a}}_{ij}\right)$ shows in Figure 10. We see that $y_5\in \mathcal{P}{\mathcal{E}}_{\alpha ,\overline{\alpha }}^S$ and S-synchronizability execution does not guarantee the asymptotic stability of the system. Nonlinearity is the reason for such properties of an adaptive system.

Figure 10. Tuning parameters in space $\left(e_i,{\widehat{a}}_{ij}\right)$

Figure 10. Tuning parameters in space $\left(e_i,{\widehat{a}}_{ij}\right)$

Consider Lyapunov functions $V_{e,1-5}(t)=0.5{\displaystyle \sum _{i=1,i\ne 2}^5{e}_i^2}(t)$,

(56)

Theorem 4. Let (i) positive-definite Lyapunov functions

have an infinitesimal upper limit at $\left|e_i(t)\right|\to 0$, $\left|\mathsf{\Delta }{a}_{ij}\right|\to 0$; (ii) $y_i(t)\in P{E}_{{\alpha }_{y_i},{\overline{\alpha }}_{y_i}}^S$,

(57)

where $\mathsf{\Delta }{G}_1(t)={\left[\mathsf{\Delta }{a}_{11}(t),\mathsf{\Delta }{a}_{12}(t),\mathsf{\Delta }{a}_{15}(t)\right]}^T$, ${\mathsf{\Gamma }}_1=\mathrm{diag}\left({\gamma }_{11},{\gamma }_{11},{\gamma }_{15}\right)$, ${\underset{\_}{\vartheta }}_1={\beta }_l^{-1}\left({\mathsf{\Gamma }}_1\right),$ ${\overline{\vartheta }}_1={\beta }_1^{-1}\left({\mathsf{\Gamma }}_1\right)$, ${\beta }_1\left({\mathsf{\Gamma }}_1\right)$ and ${\beta }_l\left({\mathsf{\Gamma }}_1\right)$ are minimum and maximum eigenvalues of the matrix ${\mathsf{\Gamma }}_1$; (iv) ${\alpha }_{f_1,y_3}-\underset{\_}{{\upsilon }_3}\le {\left(f_1\left(y_1\right)-y_3\right)}^2\le {\overline{\alpha }}_{f_1,y_3}+{\upsilon }_3$, where $\underset{\rightharpoondown }{{\upsilon }_3}\ge 0$, ${\upsilon }_3\ge 0$; (v) ${\gamma }_4=\max \left({\gamma }_{41},{\gamma }_{42}\right)$; (vi) the equality $e_i\mathsf{\Delta }{a}_{ij}{\omega }_i={\pi }_i\left(e_i^2+{\left(\mathsf{\Delta }{a}_{ij}\right)}^2{\omega }_i^2\right)$ fulfilled in the domain $O_{\nu }(O)$, where $\pi >0$, $O=\{0^4,0^n\}\subset {ℝ}^4\times {ℝ}^n\times {\mathbb{J}}_{0,\infty }$, $0^4\mathrm{and}{0}^n$ are zero vectors, $n$ is number of adjustable parameters, $O_{\nu }$ is some neighborhood of a point $O$, $t\in [0,\infty ]={\mathbb{J}}_{0,\infty }$; (vii) the matrix system of inequalities

(58)

is valid for $V_{e,\mathsf{\Delta }}(t)$, where $A_{e,\mathsf{\Delta }}$ block-diagonal matrix

(viii) the upper solution for $V_{e,\mathsf{\Delta }}(t)$ satisfies the equation ${\dot{S}}_{e,\mathsf{\Delta }}=A_{e,\mathsf{\Delta }}{S}_{e,\mathsf{\Delta }}+B_{e,\mathsf{\Delta }}$ if functions $s_i(t)\ge 0$ exist such that $V_{e,\mathsf{\Delta },i}(t)\le s_i(t)$ $\forall \left(t\ge t_0\right)\&\left(V_{e,\mathsf{\Delta },i}\left(t_0\right)\le s_i\left(t_0\right)\right)$, $i=1,3;4;5$, where $S_{e,\mathsf{\Delta }}\in {ℝ}^6$, $s_i$ is vector $S_{e,\mathsf{\Delta }}$element. Then the adaptive system (54), (55) is exponentially dissipative with the estimate

(59)

if

(60)

The Theorem 4 proof gives in Appendix D.

As follows from Theorem 4, system (48), (49) limiting properties depend on nonlinearity, feedback and constant excitation. In particular, this is true for block 3. The Theorem 4 statement confirms by Figure 11. It reflects the change of parametric error norm for channels 3-5

(61)

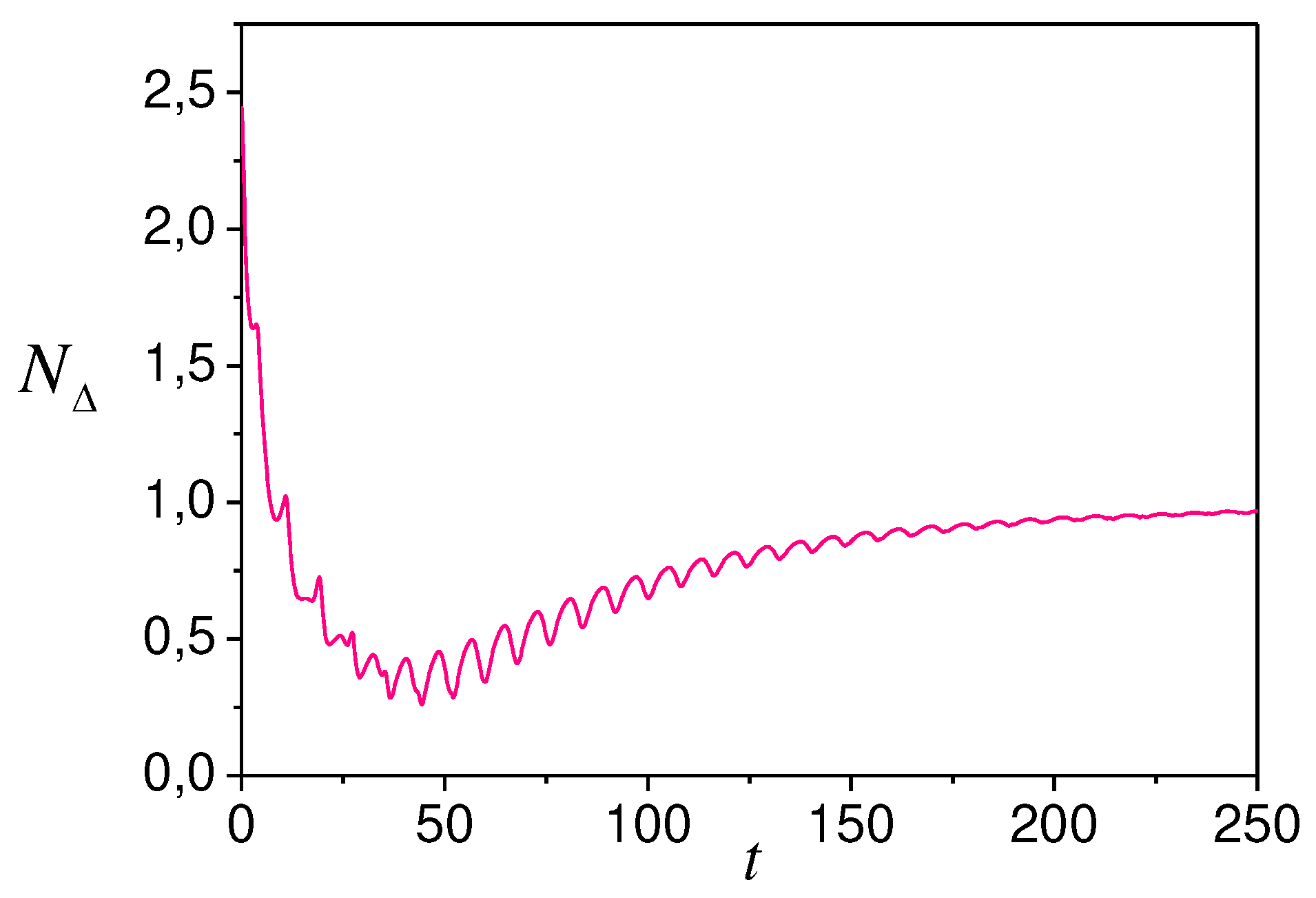

Figure 11. Parametric residual norm.

Figure 11. Parametric residual norm.

So, the nonlinearities and feedback give biased estimates for the system parameters (48).
