Abstract

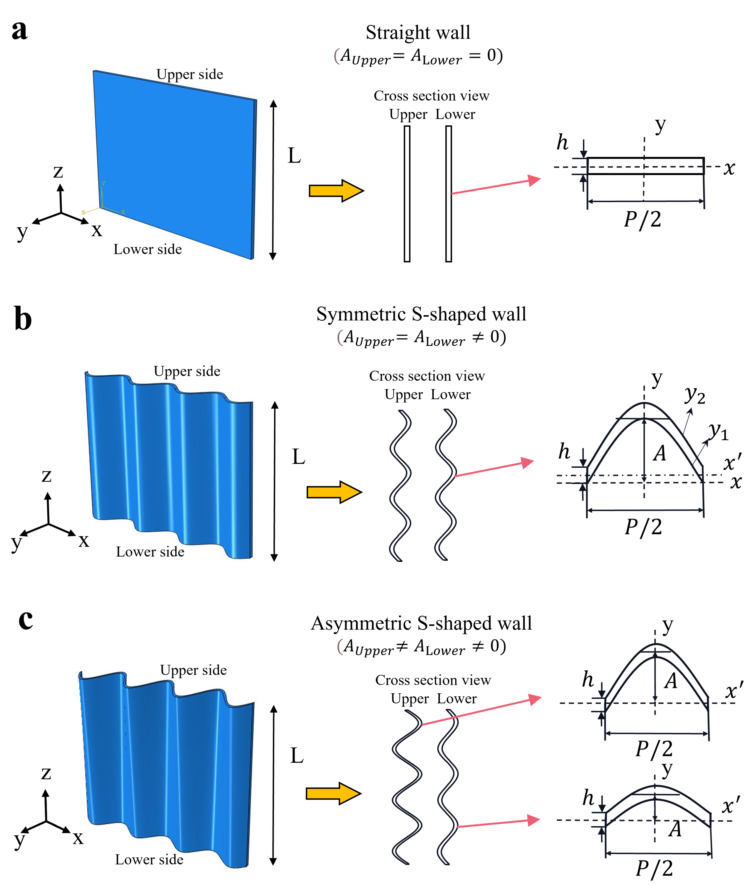

The cuttlebone-like structure is a complex porous bionic structure with asymmetric sinusoidal S-shaped wall structure connecting laminar septa, and studies have shown that the cuttlebone-like structure has light weight, high strength and excellent energy absorption capability. It has become an important research to investigate the mechanical mechanism of cuttlebone-like structure and to design a bionic structure beyond nature structure based on it. In order to investigate the mechanical properties of the static compression and shearing processes of the cuttlebone-like structure, this paper establishes theoretical formulas and analyzes the influence of dimensionless parameters such as height-to-thickness ratio $\lambda$, period-to-thickness ratio $\xi$ and amplitude to period ratio $\eta$ on the compression and shearing processes with the help of ABAQUS finite element software.The parameter sensitivity analysis method was used to compare the important influence degree of each dimensionless parameter on the mechanical properties of the structure and to determine the relative optimal parameters of the structural mechanical properties under compression and shearing. Based on the relatively optimal parameter of the cuttlebone-like structure, the cross-sectional geometry of the structure is improved to build a new cuttlebone-like structure.The experimental results showed that the new cuttlebone-like structure with revised cross-section improved the mechanical properties of the cuttlebone-like structure.The study results are of theoretical guidance to enhance the mechanical properties and geometric design of cuttlebone-like structures.
Keywords
Cuttlebone-like structure; Bionic structure; Finite element analysis; 3D Printing; Compression; Shearing
Subject
Physical Sciences, Applied Physics
