Comparison of the Plasma Temperature and Electron Number Density of Pulsed Electrolyte Cathode Atmospheric Pressure Discharge and Direct Current Solution Cathode Glow Discharge
Version 1
: Received: 1 April 2018 / Approved: 3 April 2018 / Online: 3 April 2018 (03:58:35 CEST)
How to cite:
Wang, J.; Li, S.; Zheng, P.; Chen, Y. Comparison of the Plasma Temperature and Electron Number Density of Pulsed Electrolyte Cathode Atmospheric Pressure Discharge and Direct Current Solution Cathode Glow Discharge. Preprints2018, 2018040029. https://doi.org/10.20944/preprints201804.0029.v1
Wang, J.; Li, S.; Zheng, P.; Chen, Y. Comparison of the Plasma Temperature and Electron Number Density of Pulsed Electrolyte Cathode Atmospheric Pressure Discharge and Direct Current Solution Cathode Glow Discharge. Preprints 2018, 2018040029. https://doi.org/10.20944/preprints201804.0029.v1
Wang, J.; Li, S.; Zheng, P.; Chen, Y. Comparison of the Plasma Temperature and Electron Number Density of Pulsed Electrolyte Cathode Atmospheric Pressure Discharge and Direct Current Solution Cathode Glow Discharge. Preprints2018, 2018040029. https://doi.org/10.20944/preprints201804.0029.v1
APA Style
Wang, J., Li, S., Zheng, P., & Chen, Y. (2018). Comparison of the Plasma Temperature and Electron Number Density of Pulsed Electrolyte Cathode Atmospheric Pressure Discharge and Direct Current Solution Cathode Glow Discharge. Preprints. https://doi.org/10.20944/preprints201804.0029.v1
Chicago/Turabian Style
Wang, J., Peichao Zheng and Yanying Chen. 2018 "Comparison of the Plasma Temperature and Electron Number Density of Pulsed Electrolyte Cathode Atmospheric Pressure Discharge and Direct Current Solution Cathode Glow Discharge" Preprints. https://doi.org/10.20944/preprints201804.0029.v1
Abstract

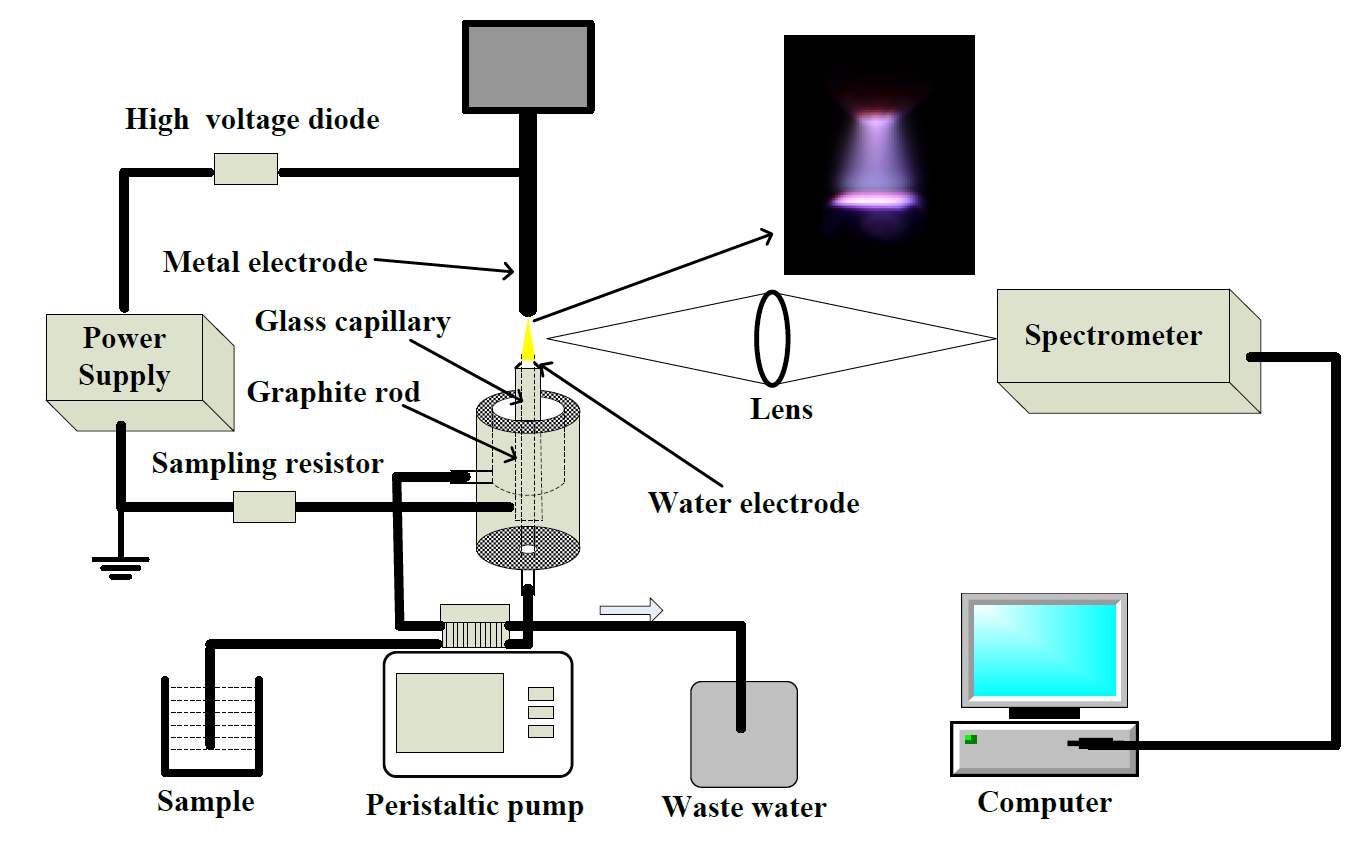

A novel plasma source of pulsed electrolyte cathode atmospheric pressure discharge (pulsed-ECAD) driven by an alternating current (AC) power supply coupled with a high voltage diode was generated, and the discharge was generated in the open-to-air atmosphere between a metal electrode and a small-sized flowing liquid cathode. The spatial distribution of plasma temperatures (excitation, vibrational and rotational) of the pulsed-ECAD were investigated. The electron excitation temperature of H Texc(H), vibrational temperature of N2Tvib(N2), and rotational temperature of OH Trot(OH) were measured as 4900±36-6800±108 K, 4600±86-5800±100 K and 1050±20-1140±10 K, respectively. Meanwhile, the temperature characteristics of dc solution cathode glow discharge (dc-SCGD) were also studied for comparison with pulsed-ECAD. The effects of operating parameters, including discharge voltage and discharge frequency, on the plasma temperatures were investigated. The electron number density determined in the discharge system and dc-SCGD were within the range (3.8–18.9) ×1014 cm-3 and 2.6×1014-17.2×1014 cm-3, respectively.
Keywords
pulsed electrolyte cathode atmospheric pressure discharge (pulsed-ECAD); plasma temperatures; temperature characteristics; electron number density
Subject
Chemistry and Materials Science, Analytical Chemistry
Copyright:
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Received:
7 June 2021
Commenter:
Jared Viggers
The commenter has declared there is no conflict of interests.
Comment:
Hello I really enjoyed this article, I am also working on an SCGD myself, and I was wondering if the instrument would be negatively impacted by omitting the high voltage diode?
