Submitted:
12 June 2026
Posted:
16 June 2026
You are already at the latest version
Abstract
Keywords:
1. Introduction
2. Materials and Methods
2.1. Study Area
2.2. In Situ, Satellite, and Auxiliary Data Sources
2.3. Data Preprocessing

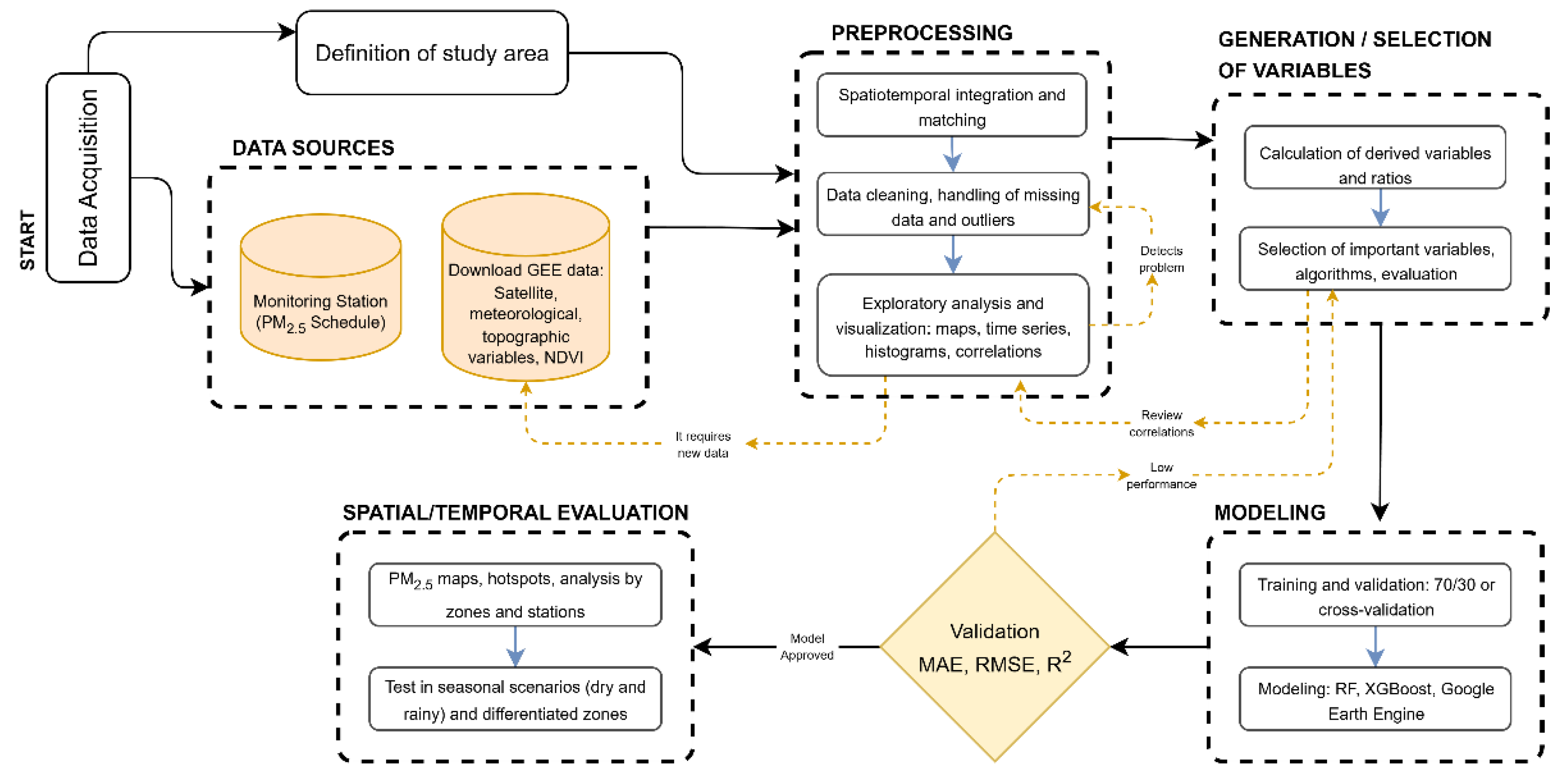

2.4. Model Development and Validation
3. Results and Discussion

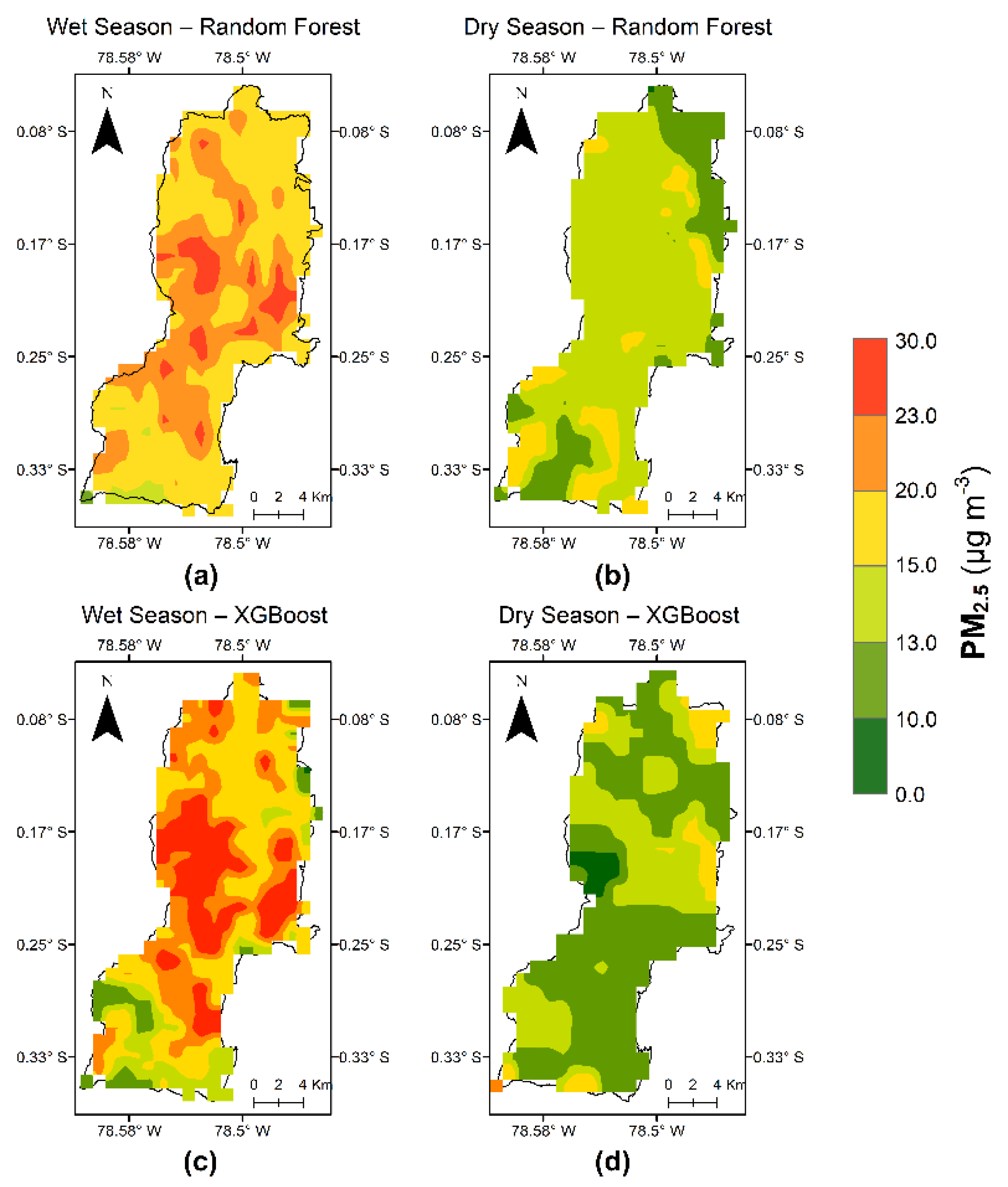

3.1. Spatiotemporal Dynamics of PM2.5

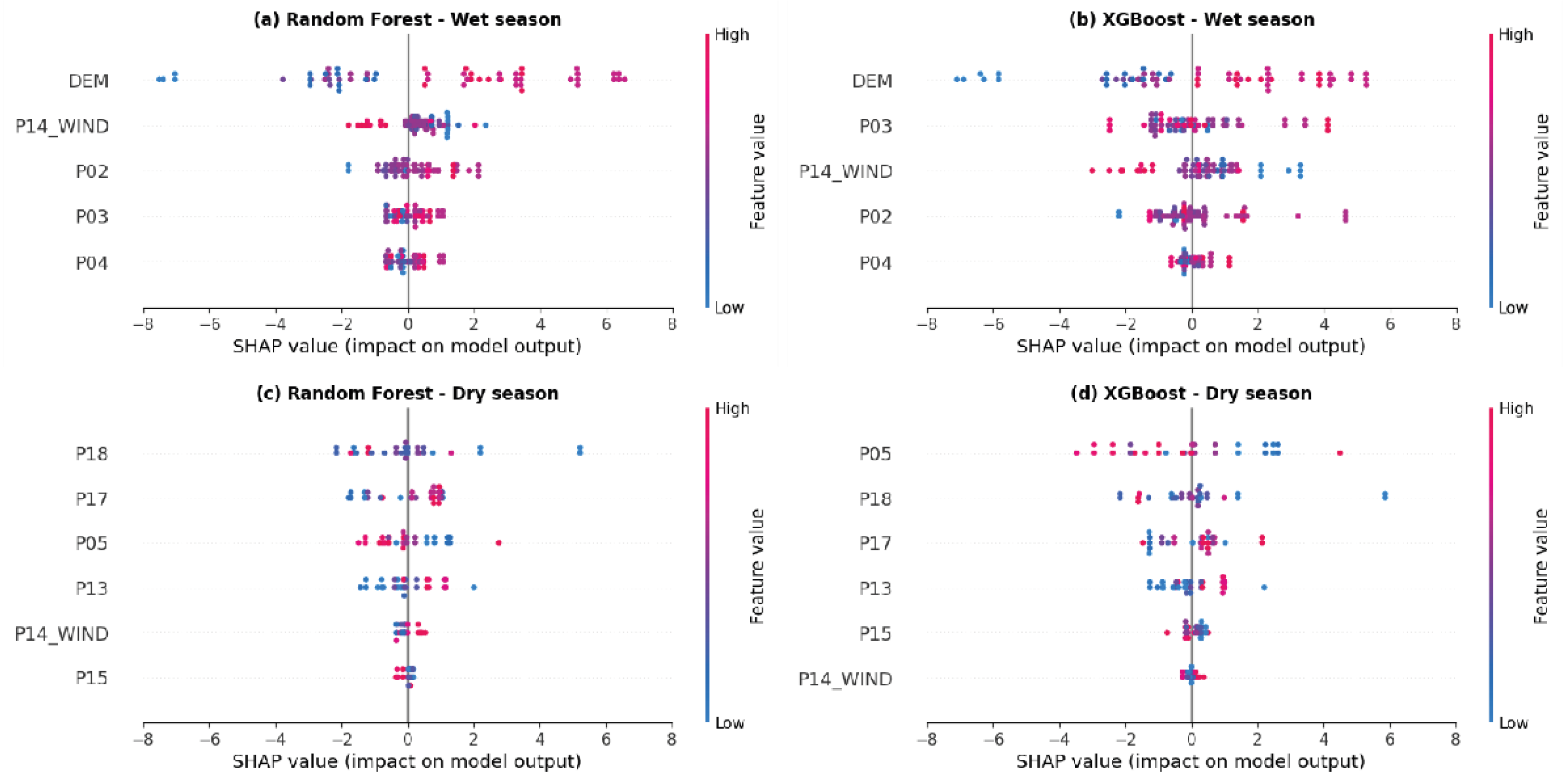

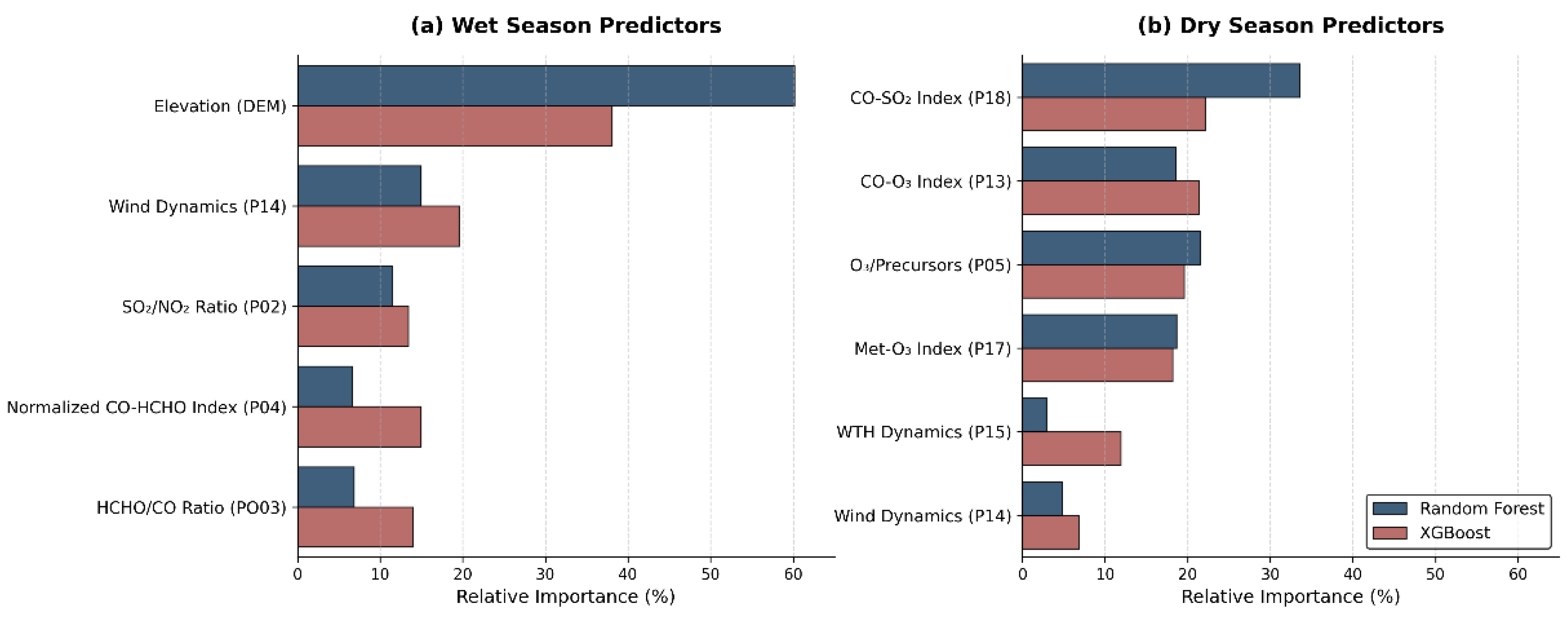

3.2. Influence of Predictor Variables: Orography Versus Atmospheric Chemistry

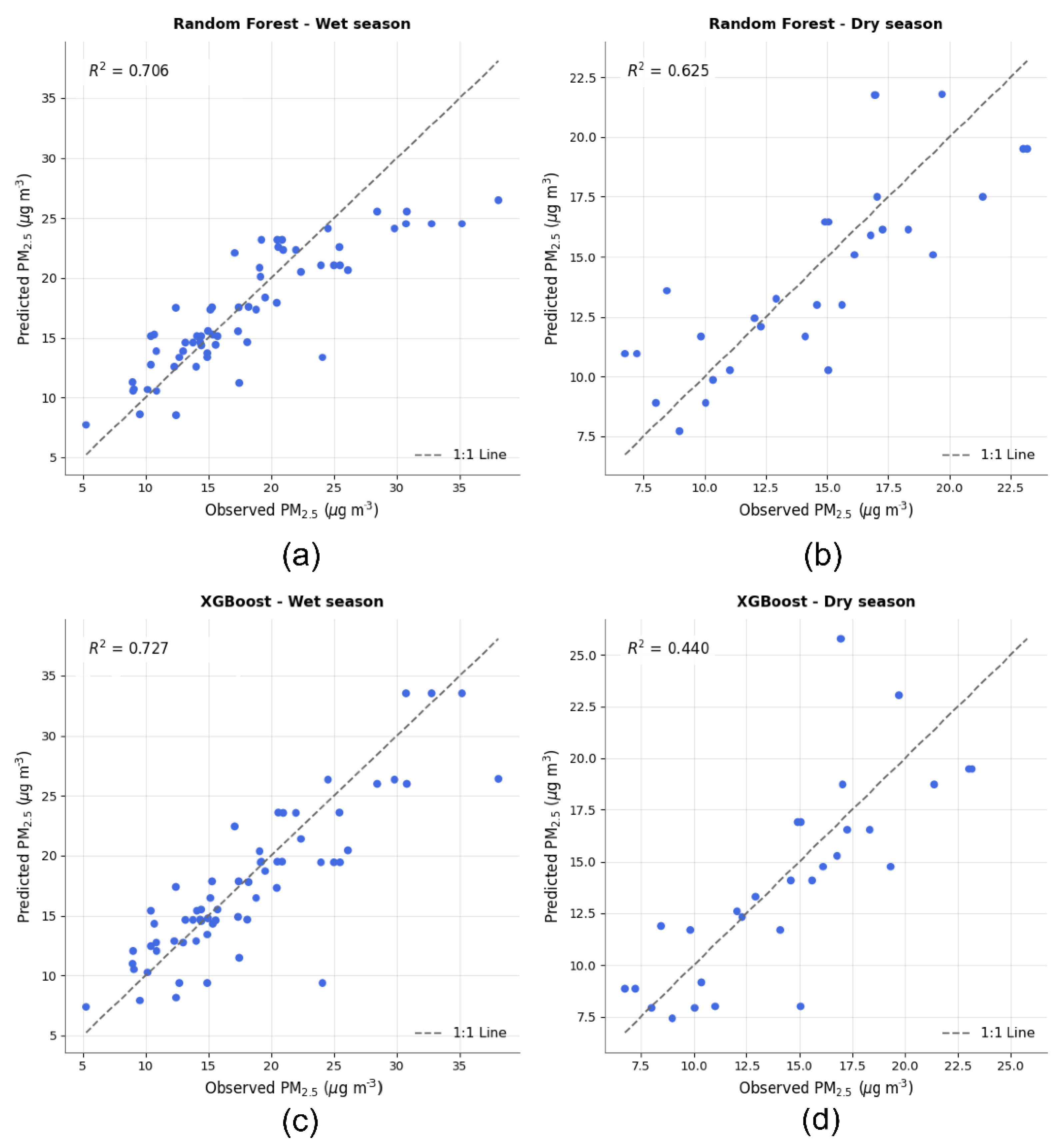

3.3. Performance Evaluation of Machine Learning Models
3.4. Limitations and Future Research Directions
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Abbreviations
| Random Forest | RF |
| Extreme Gradient Boost | XGBoost |
| TROPOspheric Monitoring Instrument | TROPOMI |
| Metropolitan District of Quito | MDQ |
| The Metropolitan Atmospheric Monitoring Network | RMMAQ |
| Planetary boundary layer height | PBLH |
References
- Gouveia, N.; Rodriguez-Hernandez, J.L.; Kephart, J.L.; Ortigoza, A.; Betancourt, R.M.; Sangrador, J.L.T.; Rodriguez, D.A.; Diez Roux, A.V.; Sanchez, B.; Yamada, G. Short-Term Associations between Fine Particulate Air Pollution and Cardiovascular and Respiratory Mortality in 337 Cities in Latin America. Sci. Total Environ. 2024, 920, 171073. [Google Scholar] [CrossRef] [PubMed]
- Thangavel, P.; Park, D.; Lee, Y.-C. Recent Insights into Particulate Matter (PM2.5)-Mediated Toxicity in Humans: An Overview. Int. J. Environ. Res. Public. Health 2022, 19, 7511. [Google Scholar] [CrossRef] [PubMed]
- Lim, E.Y.; Kim, G.-D. Particulate Matter-Induced Emerging Health Effects Associated with Oxidative Stress and Inflammation. Antioxidants 2024, 13, 1256. [Google Scholar] [CrossRef] [PubMed]
- Garcia, A.; Santa-Helena, E.; De Falco, A.; de Paula Ribeiro, J.; Gioda, A.; Gioda, C.R. Toxicological Effects of Fine Particulate Matter (PM2.5): Health Risks and Associated Systemic Injuries—Systematic Review. Water. Air. Soil Pollut. 2023, 234, 346. [Google Scholar] [CrossRef] [PubMed]
- Bainomugisha, E.; Ssematimba, J.; Okedi, D.; Nsubuga, A.; Banda, M.; Settala, G.W.; Lubisia, G. AirQo Sensor Kit: A Particulate Matter Air Quality Sensing Kit Custom Designed for Low-Resource Settings. HardwareX 2023, 16, e00482. [Google Scholar] [CrossRef] [PubMed]
- Li, T.; Shen, H.; Yuan, Q.; Zhang, L. Geographically and Temporally Weighted Neural Networks for Satellite-Based Mapping of Ground-Level PM2.5. ISPRS J. Photogramm. Remote Sens. 2020, 167, 178–188. [Google Scholar] [CrossRef]
- Mamić, L.; Gašparović, M.; Kaplan, G. Developing PM2.5 and PM10 Prediction Models on a National and Regional Scale Using Open-Source Remote Sensing Data. Environ. Monit. Assess. 2023, 195, 644. [Google Scholar] [CrossRef] [PubMed]
- Plakotaris, D.D.; Kassandros, T.; Bagkis, E.; Karatzas, K. Estimation of Particulate Matter Levels in City Center Pedestrian Routes with the Aid of Low-Cost Sensors. Atmosphere 2024, 15, 965. [Google Scholar] [CrossRef]
- Xia, H.; Chen, X.; Wang, Z.; Chen, X.; Dong, F. A Multi-Modal Deep-Learning Air Quality Prediction Method Based on Multi-Station Time-Series Data and Remote-Sensing Images: Case Study of Beijing and Tianjin. Entropy 2024, 26, 91. [Google Scholar] [CrossRef] [PubMed]
- Tonion, F.; Pirotti, F. SENTINEL-5P NO2 DATA: CROSS-VALIDATION AND COMPARISON WITH GROUND MEASUREMENTS. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2022, XLIII-B3-2022, 749–756. [Google Scholar] [CrossRef]
- Ibrahim, S.; Landa, M.; Pešek, O.; Brodský, L.; Halounová, L. Machine Learning-Based Approach Using Open Data to Estimate PM2.5 over Europe. Remote Sens. 2022, 14, 3392. [Google Scholar] [CrossRef]
- Yu, R.; Yang, Y.; Yang, L.; Han, G.; Move, O. RAQ–A Random Forest Approach for Predicting Air Quality in Urban Sensing Systems. Sensors 2016, 16, 86. [Google Scholar] [CrossRef] [PubMed]
- Wang, Y.; Yuan, Q.; Li, T.; Tan, S.; Zhang, L. Full-Coverage Spatiotemporal Mapping of Ambient PM2.5 and PM10 over China from Sentinel-5P and Assimilated Datasets: Considering the Precursors and Chemical Compositions. Sci. Total Environ. 2021, 793, 148535. [Google Scholar] [CrossRef] [PubMed]
- Son, R.; Kim, H.C.; Yoon, J.-H.; Stratoulias, D. Estimation of Surface Pm2.5 Concentrations from Atmospheric Gas Species Retrieved from Tropomi Using Deep Learning: Impacts of Fire on Air Pollution Over Thailand. SSRN Electron. J. 2022. [Google Scholar] [CrossRef]
- Mamić, L.; Kaplan, G.; Gašparović, M. FUSING MULTIPLE OPEN-SOURCE REMOTE SENSING DATA TO ESTIMATE PM2.5 AND PM10MONTHLY CONCENTRATIONS IN CROATIA. GIS Odyssey J. 2022, 2, 59–77. [Google Scholar] [CrossRef]
- Tsunemoto, H.; Ishitani, H. The Role of Oxygen in Intake and Exhaust on NO Emission, Smoke and BMEP of a Diesel Engine with EGR System; SAE International, 1980. [Google Scholar]
- Zalakeviciute, R.; López-Villada, J.; Rybarczyk, Y. Contrasted Effects of Relative Humidity and Precipitation on Urban PM2.5 Pollution in High Elevation Urban Areas. Sustainability 2018, 10, 2064. [Google Scholar] [CrossRef]
- Eguis Cuentas, M.C. Dispersión atmosférica de material particulado en ciudades de montaña y tropicales. Tesis de Maestría, Universidad Nacional de Colombia, Medellín, Colombia, 2023. [Google Scholar]
- Secretaría de Ambiente del Distrito Metropolitano de Quito Red Metropolitana de Monitoreo Atmosférico de Quito (REMMAQ).
- Oña Proaño, D.; Tafur, P. Diseño de Un Modelo Geoestadístico de La Calidad Del Aire. AXIOMA 2025, 1, 21–30. [Google Scholar] [CrossRef]
- Vega, D.; Ocaña, L.; Parra Narváez, R. Inventario de emisiones atmosféricas del tráfico vehicular en el Distrito Metropolitano de Quito. Año base 2012. ACI Av. En Cienc. E Ing. 2015, 7. [Google Scholar] [CrossRef]
- Kumar, M.; Agrawal, Y.; Adamala, S.; Pushpanjali; Subbarao, A.V.M.; Singh, V.K.; Srivastava, A. Generalization Ability of Bagging and Boosting Type Deep Learning Models in Evapotranspiration Estimation. Water 2024, 16, 2233. [Google Scholar] [CrossRef]
- Jafarzadeh, H.; Mahdianpari, M.; Gill, E.; Mohammadimanesh, F.; Homayouni, S. Bagging and Boosting Ensemble Classifiers for Classification of Multispectral, Hyperspectral and PolSAR Data: A Comparative Evaluation. Remote Sens. 2021, 13, 4405. [Google Scholar] [CrossRef]
- Cazorla, M.; Giles, D.M.; Herrera, E.; Suárez, L.; Estevan, R.; Andrade, M.; Bastidas, Á. Latitudinal and Temporal Distribution of Aerosols and Precipitable Water Vapor in the Tropical Andes from AERONET, Sounding, and MERRA-2 Data. Sci. Rep. 2024, 14, 897. [Google Scholar] [CrossRef] [PubMed]
- Barrera, A.; Cabrera-Barona, P.; Velasco-Oña, P. Derechos, Calidad de Vida y División Social Del Espacio En El Distrito Metropolitano de Quito. EURE 2022, 48. [Google Scholar] [CrossRef]
- Zhou, J.; Gladson, L.; Díaz Suárez, V.; Cromar, K. Respiratory Health Impacts of Outdoor Air Pollution and the Efficacy of Local Risk Communication in Quito, Ecuador. Int. J. Environ. Res. Public Health 2023, 20, 6326. [Google Scholar] [CrossRef] [PubMed]
- Zalakeviciute, R.; Vallejo, F.; Erazo, B.; Chimborazo, O.; Bonilla-Bedoya, S.; Mejia, D.; Tapia-Flores, T.I.; Chuquimarca, G.; Rybarczyk, Y. Beyond Global Trends: Two Decades of Climate Data in the World’s Highest Equatorial City. Atmosphere 2025, 16, 1080. [Google Scholar] [CrossRef]
- Guarderas, P.; Smith, F.; Dufrene, M. Land Use and Land Cover Change in a Tropical Mountain Landscape of Northern Ecuador: Altitudinal Patterns and Driving Forces. PLoS ONE 2022, 17, e0260191. [Google Scholar] [CrossRef] [PubMed]
- Raysoni, A.; Armijos, R.; Weigel, M.; Echanique, P.; Racines, M.; Pingitore, N.; Li, W.-W. Evaluation of Sources and Patterns of Elemental Composition of PM2.5 at Three Low-Income Neighborhood Schools and Residences in Quito, Ecuador. Int. J. Environ. Res. Public. Health 2017, 14, 674. [Google Scholar] [CrossRef] [PubMed]
- Veefkind, J.P.; Aben, I.; McMullan, K.; Förster, H.; de Vries, J.; Otter, G.; Claas, J.; Eskes, H.J.; de Haan, J.F.; Kleipool, Q.; et al. TROPOMI on the ESA Sentinel-5 Precursor: A GMES Mission for Global Observations of the Atmospheric Composition for Climate, Air Quality and Ozone Layer Applications. Remote Sens. Environ. 2012, 120, 70–83. [Google Scholar] [CrossRef]
- National Centers for Environmental Prediction/National Weather Service/NOAA/U.S. Department of Commerce NCEP GFS 0.25 Degree Global Forecast Grids Historical Archive 2015.
- Japan Aerospace Exploration Agency ALOS World 3D 30 Meter DEM 2021.
- Cassales, G.W.; Liu, J.J.; Bifet, A. Accelerated Weka: GPU Machine Learning with Weka Workbench. Neurocomputing 2025, 646, 130432. [Google Scholar] [CrossRef]
- Frank, E.; Hall, M.A.; Witten, I.H.; Pal, C.J. The WEKA Workbench. Online Appendix for “Data Mining: Practical Machine Learning Tools and Techniques”. In Data Mining: Practical Machine Learning Tools and Techniques; Morgan Kaufmann, 2016. [Google Scholar]
- Lundberg, S.M.; Lee, S.-I. A Unified Approach to Interpreting Model Predictions; arXiv: Long Beach, CA, USA, 25 November 2017. [Google Scholar]
- Shikwambana, L.; Kganyago, M.; Zhang, X. Analyzing the Effect of the 2015/16 Catastrophic El Niño Event on Wildfire Emissions in Southern Africa Using Lagged Correlation and Interrupted Time-Series Causal Impact Technique. Earth 2026, 7, 42. [Google Scholar] [CrossRef]
- Mantovani, J.A.; Carneiro, R.; Borges, C.K.; Ibarra-Espinosa, S.; Aravéquia, J.A.; Fisch, G.; Herdies, D.L. Impact of PBL Schemes on the Simulation of PBL Height in the Central Amazon Basin. Geosciences 2026, 16, 134. [Google Scholar] [CrossRef]
- Arias-Arana, D.; Montilla-Rosero, E.; Calderón-Losada, O.; Reina, J.H. Correlating Particulate Matter and Planetary Boundary Layer Dynamics in Northwestern South America: A Case Study of Santiago de Cali. Atmos. Pollut. Res. 2025, 16, 102352. [Google Scholar] [CrossRef]
- Palácios, R.; Machado, A.; Franco, R. de C.; Morais, F.G.; Franco, M.A.; Oliveira, F.; Cirino, G.; Imbiriba, B.; Silva, J. de A.; Curado, L.F.A.; et al. Long-Term Links Between Precipitation Regimes and PM2.5 in an Urban Area of Eastern Amazonia (Belém, Brazil), 1980–2024. Atmosphere 2026, 17, 399. [Google Scholar] [CrossRef]
- Wang, H.; Huang, C. Investigating Vertical Distributions and Driving Factors of Black Carbon in the Atmospheric Boundary Layer Using Unmanned Aerial Vehicle Measurements in Shanghai, China. Atmosphere 2023, 14, 1472. [Google Scholar] [CrossRef]
- Marín, D.; Herrera, V.; Piñeros-Jiménez, J.G.; Rojas-Sánchez, O.A.; Mangones, S.C.; Rojas, Y.; Cáceres, J.; Agudelo-Castañeda, D.M.; Rojas, N.Y.; Belalcazar-Ceron, L.C.; et al. Long-Term Exposure to PM2.5 and Cardiorespiratory Mortality: An Ecological Small-Area Study in Five Cities in Colombia. Cad. Saúde Pública 2025, 41, e00071024. [Google Scholar] [CrossRef] [PubMed]
- Zhang, X.; Liu, Y.; Chen, R.; Si, M.; Zhang, C.; Tian, Y.; Shang, G. The Spatiotemporal Evolution and Driving Forces of the Urban Heat Island in Shijiazhuang. Remote Sens. 2025, 17, 781. [Google Scholar] [CrossRef]
- Chimla, S.; Chotamonsak, C.; Chaipimonplin, T. Integration of WRF-Chem Model-Based, Satellite-Based, and Ground-Based Observation Data to Predict PM2.5 Concentration by Machine Learning Approach. Atmosphere 2025, 16, 1304. [Google Scholar] [CrossRef]
- Lin, H.; Li, S.; Niu, J.; Yang, J.; Wang, Q.; Li, W.; Liu, S. Estimation of Ultrahigh Resolution PM2.5 in Urban Areas by Using 30 m Landsat-8 and Sentinel-2 AOD Retrievals. Remote Sens. 2025, 17, 2609. [Google Scholar] [CrossRef]






| Mission/Source | Product (Variable) | Parameter Description |
|---|---|---|
| Sentinel-5P TROPOMI | NO2 | Nitrogen dioxide column density |
| CO | Carbon monoxide column density | |
| HCHO | Formaldehyde column density | |
| O3 | Ozone column density | |
| AI | UV Aerosol Index | |
| SO2 | Sulfur dioxide column density | |
| NOAA (GFS / ERA5) | 2-m air temperature (T2M) | Air temperature at 2 m above ground level |
| HUM | Specific humidity at 2 m above ground level | |
| U-WIND | Zonal wind component at 10 m | |
| V-WIND | Meridional wind component at 10 m | |
| JAXA ALOS | DEM | Digital Elevation Model |
| SLOPE | Terrain slope derived from the DEM |
| Derived Variable | Code |
|---|---|
| (NO2+SO2)/(NO2-SO2) | P01 |
| NO2/SO2 | P02 |
| HCHO/CO | P03 |
| (CO+HCHO)/CO-HCHO) | P04 |
| O3/(NO2+SO2+CO) | P05 |
| AI*(NO2/SO2) | P06 |
| O3/(NO2/SO2) | P07 |
| O3/((NO2+SO2)/(NO2-SO2)) | P08 |
| SQRT(1/(NO2+SO2+O3)) | P09 |
| (AI+HUM)/(AI-HUM) | P10 |
| (AI+DEM)/(AI-DEM) | P11 |
| (CO+NO2)/CO-NO2) | P12 |
| (CO+O3)/(CO-O3) | P13 |
| WIND1 | WIND |
| (U-WIND + V-WIND)/2 | P14 |
| WHT2 | P15 |
| (WHT+AI)/(WHT-AI) | P16 |
| (WHT+O3)/(WHT-O3) | P17 |
| (CO+SO2)/(CO-SO2) | P18 |
| Season | Instances | Selected Predictor Variables |
|---|---|---|
| Wet season | 1153 | DEM, P02, P03, P04, P14_WIND |
| Dry season | 256 | P05, P13, P14_WIND, P15, P17, P18 |
| Season | Model | R2 | MAE (µg m-3) | RMSE (µg m-3) |
|---|---|---|---|---|
| Wet | RF | 0.71 | 2.73 | 3.76 |
| XGBoost | 0.73 | 2.56 | 3.63 | |
| Dry | RF | 0.63 | 2.25 | 2.74 |
| XGBoost | 0.44 | 2.52 | 3.35 |
