Dietary Cadmium Inhibits Neuronal Calcium Activity Prior to Onset of Optomotor Deficits in Zebrafish

1. Introduction

Cadmium (Cd) is a known carcinogen, mutagen and immunotoxin that is increasing in the environment [1,2,3]. Cd is found in nearly everything we eat, drink and breathe. Diet is the leading source of Cd exposure in the general population (non-occupational and nonsmoking) due to Cd’s near ubiquitous presence in food [2,4,5]. Dietary Cd intake estimates in Europe are 10–30 μg/kg/d [6], with increased risk of consumption with certain foods such as shellfish and rice [7,8,9]. Individuals consuming some seafood were found to have a daily fecal excretion of Cd up to 580 μg, more than 10 times the provisional tolerated weekly intake. Cd accumulation in ocular [10], nervous [11,12], and reproductive [13,14] tissues suggests that Cd exposure is a significant threat to vision, cognition, and development. Increased accumulation of Cd with age, indicates Cd exposure is chronic. Once accumulated, Cd has a biological half-life that can reach decades [15,16]. Nearly ubiquitous presence of Cd in food and ocular tissue highlights the need to test for dietary Cd-induced visuo-behavior disorders [17,18,19,20].

Elevated Cd exposure in humans is linked to deficits in visual acuity and night blindness. Human adult ocular tissue has nearly ubiquitous accumulation of Cd [18,21,22]. Epidemiological and animal studies link some neuro-cognitive disorders with visual impairments (e.g., visuomotor impairments, visual memory deficits – Autism Spectrum Disorders) [23,24,25,26]. Diet is a possible pathway for ocular Cd, as rodents fed human dietary levels of Cd for 7wks showed Cd in the eye [27]. Human ocular studies show that retina Cd levels are 20-fold higher than brain Cd levels [21,22]. An effective assay to test the effects of contaminants on visually-guided behavior is the Optomotor Response (OMR) [28]. The OMR is where the animal moves in the direction of whole-field visual motion to stabilize its position relative to the visual world. The OMR is observed in animals ranging from invertebrates such as cephalopods [29,30] and flies [31] to vertebrates such as zebrafish [32,33], mice [34], and humans [35].

Cadmium intoxication can lead to widespread changes in the central and peripheral nervous system [12,36,37]. Cadmium uptake in adults is minimal and is a greater threat to children and younger animals due to differences in BBB integrity [38]. Rodents that ingested Cd showed deficits in spontaneous and evoked visual electrocortigrams and behavior [39]. Visually-guided behavior may be disrupted by Cd-induced alterations in Ca²⁺ activity. Alterations in cytosolic Ca²⁺ can affect the regulation of many neuronal functions [40,41]. Neuronal excitation causes a transient increase in intracellular Ca²⁺, which in turn mediates a neuronal response. The increase in intracellular Ca²⁺ is dependent on voltage-dependent channels. Cd inhibits all of the known pathways of cellular Ca²⁺ influx, and competes with Ca²⁺ at the voltage-dependent Ca²⁺ channels [11,42,43]. In some instances, Cd may elevate intracellular Ca²⁺. For example, disassociated mesencephalic trigeminal neurons of the adult rats exposed to Cd showed elevated concentration of cytoplasmic and nuclear Ca²⁺ [44]. Examining the relationship between neuronal Ca²⁺activity and behavior can help us better understand dietary Cd-induced behavioral alterations.

Zebrafish serve as a well-established model to understand how contaminants affect neuro-behavior in the lab [45,46,47,48]. Field-based studies of zebrafish help strengthen ethological relevance of experiments [49,50,51]. Zebrafish like humans rely heavily on vision to navigate their environment [45,52,53]. The visual system in vertebrates is conserved with OMR serving as a translational assay to assess visual acuity [28,54,55]. Cellular differentiation and cellular migration during development, and the Ca²⁺ signaling activities of zebrafish eyes, brain and stomach, closely mirror patterns observed in mammals, making them valuable for studying physiological and molecular mechanisms underlying toxicant exposures [45,48,56,57]. Zebrafish biomedical toolkit enables the use of mutant and transgenic models to assess neurophysiology including Ca²⁺ activity in intact animals. Mutant zebrafish, nacre(mitf)^w2/w2, lacking melanocytes with the transgene Tg[elavl3:GCaMP5g] are optically clear and are equipped with a genetically encoded calcium indicator that enables to the intracellular visualization of Ca²⁺ as a proxy for neuronal activity in vivo [58,59].

The goal of the study is to examine neurophysiological changes that may predict dietary Cd-induced visuomotor deficits. This was achieved by assessing the optomotor response and spontaneous Ca²⁺ activity in vivo in zebrafish fed diets salted with human-relevant concentration of Cd for various days. We hypothesized that dietary Cd would trigger optomotor deficits and these deficits would be preceded by alterations in neuronal activity. We predict that deficits in OMR resulting from dietary Cd exposure will become more pronounced with longer exposure durations and will vary according to dietary Cd concentration.

2. Method

2.1. Zebrafish Care and Maintenance

Adult and larval zebrafish were obtained from lines maintained in the University of Georgia Zebrafish Facility following standard procedures. Nacre(mitf)^w2/w2 were originally obtained from the Zebrafish International Research Center (ZIRC). Fish transgenic for Tg[elavl3:GCaMP5g] were obtained from Dr. Ahrens [58,59]. All adult fish were maintained in Aquatic Habitats (Apopka, FL) multi-rack system. Habitat water consisted of reverse osmosis filtered/sterilized water to which sodium bicarbonate and other salts (Instant Ocean, Aquarium Systems, Inc., Mentor, OH, USA) were added to maintain water quality under standard husbandry conditions (Table S1).

2.2. Diet Creation

Diets targeting nominal concentrations of 0, 30 and 600 µg/g Cd were prepared via top coating for three diet granule sizes obtained from Skretting (Stabanger, Norway): GEMMA Micro 75 (50–100 µm pellet size). All diets consisted of 59% protein, 14% oil, and 14% ash. To make each treatment, 40 g of diet was thinly spread in a circular mixing bowl lined with saran wrap. Cadmium Chloride (CdCl₂₎ stock solution was diluted into 24 mL of 70% ethanol inside of 50 mL polypropylene tube (VWR; Cat: 12-565-270) to achieve the appropriate mass for each target nominal concentration. The solution was pipetted onto the diet until the surface was evenly damp, and the diet was mixed thoroughly with a plastic spatula, allowed to dry, and respread across the bowl. This process was repeated until the contents of the bottle were depleted, at which point the polypropylene tube was rinsed thrice with 2 mL of ethanol and rinsate was pipetted onto the diet. Following complete application, the diet was allowed to dry for 6 h and vortexed. The Cd-contaminated diet was thoroughly mixed to ensure homogeneity, distributed into 50 mL polypropylene tubes (Sigma Aldrich; SKU: CLS352070) and stored at 4 °C. The control diet was prepared using the same method, but with only 70% ethanol. Duplicates or triplicates samples of each diet were collected and stored at −20 °C until analytical verification of Cd concentration using Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES; see Sections S1–S3). Average measured concentrations in replicate (n = 2-3) diet samples varied from 81-85% of nominal (Table 1) with control diets having Cd levels below the limit of detection (LOD).

2.3. Dietary Exposure

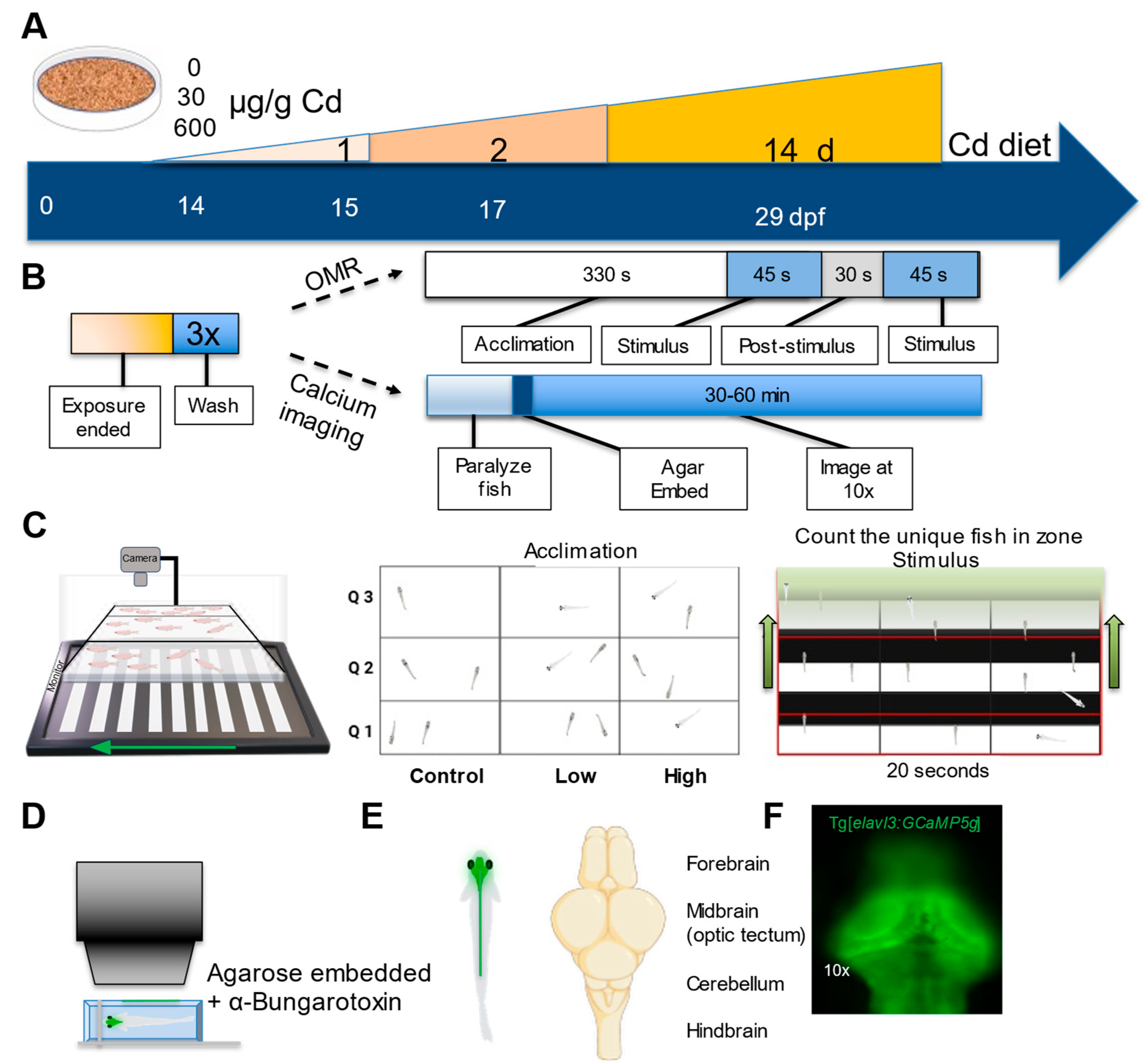

At 14 dpf, the juvenile zebrafish were transferred to tanks with 2.8 L capacity equipped with modified plastic breeder frames (Popetop UPC: 784911901709). The breeder frames were lined with white nylon and spandex blended kneehighs (On The Go Hosiery UPC: 784716506222) at densities of up to 40 fish per breeder frame and put onto an isolated intermittent flow system to facilitate the dietary exposure. Fish were fed the control or Cd-contaminated diets from 14 to 29 dpf, a total of 1, 2, or 14 days (Figure 1A). The amount of food administered was scaled with the number of fish in the breeder frames such that breeder frames with 10-20 fish received an average 11 mg of food and those with 30-40 fish received an average of 22 mg or an average of 0.55-1.1 mg of food per fish three times per day to facilitate normal feeding behavior. Owing to the small size of the fish and feeding behavior during the juvenile life stage, it was not possible to quantify the amount of food consumed. Additionally, water inputs were scheduled within 15–30 min after each feeding to remove uneaten food and circulate water. Tanks received 3-4 water inputs of 2.8 – 5.6 L of system water per input to reach a total of 3–4 tank exchanges per day during the dietary exposure period. Detritus and food debris was removed from tanks daily via siphoning, and water quality (i.e., temperature, pH, conductivity, ammonia, nitrate, and nitrite levels) was monitored daily.

2.4. Genotypes Used for Calcium Imaging and Optomotor Assays

To circumvent pigmentation interfering with calcium imaging, we reduced pigmentation in the fish using genetics. Nacre(mitf)^w2/w2, Tg[elavl3:GCaMP5g] juveniles were used as controls for experiments in which neural activity was perturbed using Cd. As a control for the potential effects of nacre(mitf)^w2/w2, others have imaged larvae harboring Tg[elavl3:GCaMP5g] but otherwise wild-type after exposure to pharmacological depigmentation agent, PTU, were imaged [58,60,61]. They found no difference in calcium activity between mitf^+/+, Tg[elavl3:GCaMP5g] larvae reared in 0.003% PTU and nacre(mitf)^w2/w2, Tg[elavl3:GCaMP5g] [62,63]. They did find differences between PTU treated and wild-type (mitf)^+/+ and nacre(mitf)^w2/w2 in eye size [64], impaired retinal light adaptation [65]), optomotor deficits, and reduced mobility [62], suggesting PTU induced toxicity. Reliable OMR responses are observed in nacre(mitf)^w2/w2 fish [66,67,68].

2.5. Calcium Imaging

Calcium imaging was performed on a Zeiss Axio Imager D2 with a 10X objective equipped with a digital camera (AxioCam HSm, Zeiss). Transgenic zebrafish juveniles at 15, 17, and 29 dpf were washed three times in system water and then immobilized with 125 µM of alpha-bungarotoxin (Figure 1B). The fish were then mounted in 1.5% low-melting agarose prepared with system water matching facility conditions in a slide with a bridge coverslip (Figure 1D; method adapted from [69]. Each fish was imaged at approximately the same horizontal plane referenced from the dorsal surface of the optic tectum or hind brain continuously for 30 to 60 minutes with short intermittent breaks for health assessments and perfusion with system water to maintain physiological conditions and to address motion if observed (Figure 1E,F). Images were collected at 1 frame per second or 1 Hz.

2.6. Image Analysis

For calcium image analysis, we scored instances where the fish displayed large-amplitude calcium transients characterized by a rapid, coordinated increase in fluorescence across the hindbrain and optic tectum, followed by a return to baseline. These events were consistent with propagating calcium waves. If a fish exhibited at least one such calcium wave during the imaging period, it was scored as exhibiting a calcium wave (1). If no such large-amplitude fluorescence events were observed during the imaging period, the fish was scored as not exhibiting a calcium wave (0).

2.7. Optomotor Response (OMR) Assay

The OMR assays were performed by washing fish three times with system water to remove any unbound Cd (Figure 1B). We then transferred up to 10 juveniles into each transparent arena channel containing about 0.5-1.0 cm of system water (19.4 x 6.7 x 2.5 cm) Container Store, SKU: 10072023). The shallow water ensured that fish were in a similar plane and limited movement in the z-plane. The arena was located on top of a horizontal screen (Spectre) where the fish were shown a movie (Figure 1C). The monitor was used with the following settings: 80 backlight, 50 brightness, 50 contrast, and a lux range of 74-96. We modified the script of [32] to present a movie with a 330 s acclimation period with a white screen followed by a stimulus consisting of a high-contrast black and white moving grating (cycle length: 2.3 cm; drift speed: 4600 cm/s) for 45 s, which was repeated twice in opposite directions with a 30 s non-moving gray screen in between. While the stimulus was in motion the number of unique fish in each section of the channel was recorded during the first 20 s. We scored the response to the second stimulus presentation as the first stimulus presentation startled the fish. Juvenile fish with typical vision swim in the direction of the moving grating towards the end of the channel. A positive OMR response was recorded as the number of unique fish in the furthest quadrat (or 33% of the channel) in the direction of the moving grating, and other behavior was recorded as no response.

2.8. Statistical Analysis

We used Pearson’s Chi-Squared tests to compare fish exposed to different Cd diets to identify differences in the exhibition of calcium waves for each age. We fit the chi-squared models using the “chisq.test” functions in the stats package, respectively. To assess the effects of Cd diets for different exposure periods on the optomotor response, we fit the logistic regression using “glm” function in the stats package. For general linear models that reached statistical significance, we followed up with Tukey post-hoc test using “emmeans” and “pairs” functions on the log odds in the emmeans package [70]. Our alpha level was 0.05. We used R for all statistical tests [71].

3. Results

3.1. Deficits in Neuronal Calcium Activity are Observed After a Single Day of Dietary Cd

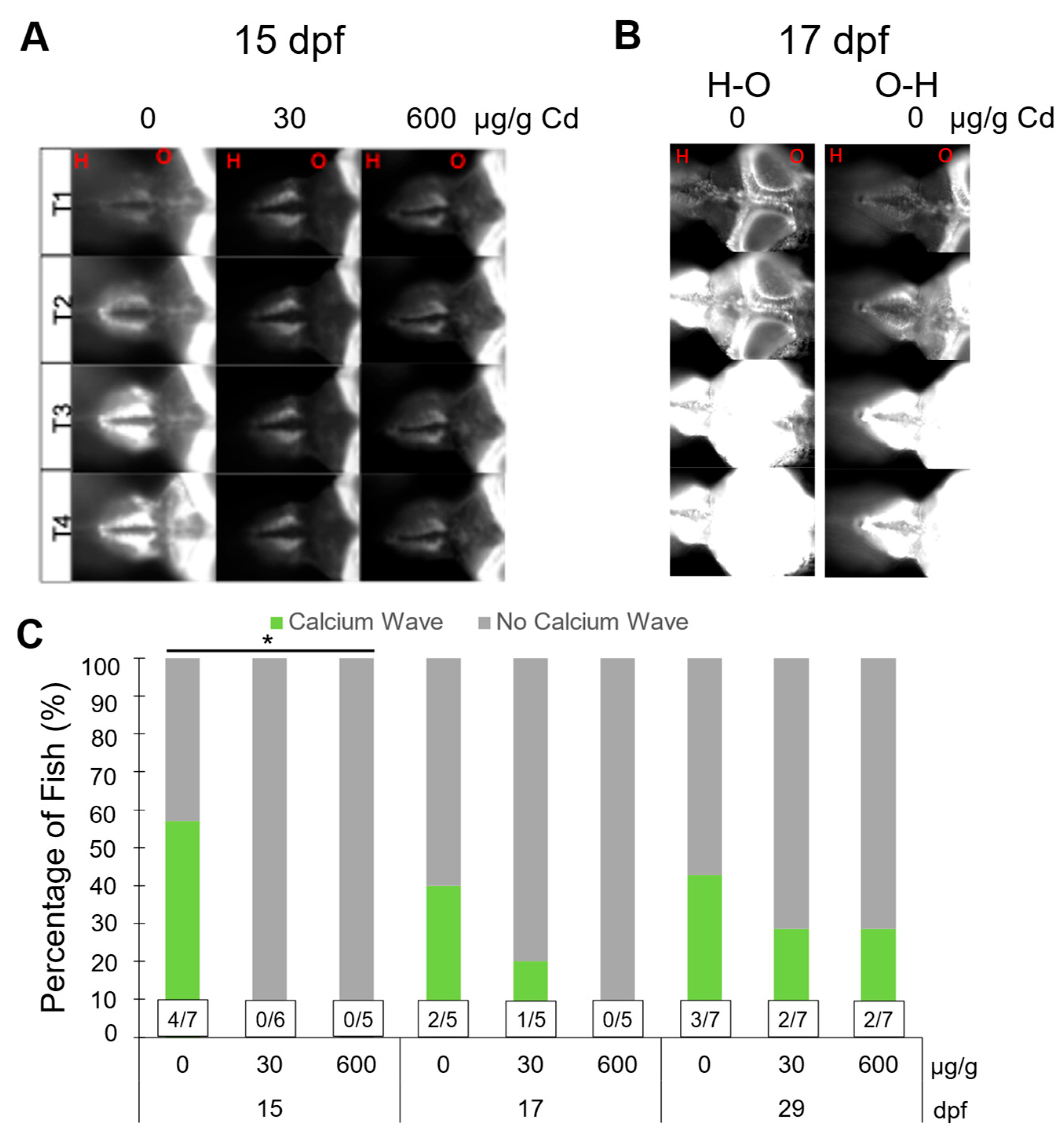

Juvenile fish were exposed to 0, 30, or 600 µg/g Cd beginning at 14 dpf and imaged at 15, 17, and 29 dpf (Figure 2). Calcium waves were defined as large-amplitude fluorescence events spanning the hindbrain and optic tectum. Dietary Cd exposure had concentration and time-dependent effects on calcium activity. Calcium waves occurred in either a hindbrain-to-tectum (H-O) or tectum-to-hindbrain (O-H) direction (Figure 2A,B). At 15 dpf (1 day of exposure), 4/7 control fish exhibited calcium waves, whereas no calcium wave events were observed in fish exposed to 30 µg/g (0/6) or 600 µg/g Cd (0/5) (Figure 2C). This difference in the proportion of fish exhibiting calcium waves among treatments was significant (X² (2, N = 18) = 8.08, p = 0.02). At 17 dpf (2 days of exposure), calcium wave activity remained reduced in Cd-treated groups, with 2/5 control fish, 1/5 fish exposed to 30 µg/g Cd, and 0/5 fish exposed to 600 µg/g Cd exhibiting calcium waves. Differences among treatments at this time point were not statistically significant (X² (2, N = 15) = 2.5, p = 0.29). At 29 dpf (14 days of exposure), calcium waves were observed in all treatment groups, with 3/7 control fish, 2/7 fish exposed to 30 µg/g Cd, and 2/7 fish exposed to 600 µg/g Cd exhibiting calcium waves. There were no significant differences in the proportion of fish exhibiting calcium waves among treatments at this time point (X² (2, N = 21) = 0.43, p = 0.81). Across all ages, control fish exhibited calcium waves more frequently than Cd-treated fish (Figure 2C), resulting in a significant overall treatment (X² (2, N = 54) = 7.13, p = 0.03). These results indicate an early suppression of calcium wave activity following Cd exposure, followed by partial recovery over time.

3.2. OMR Deficits Emerge After Two Weeks of Dietary Cd

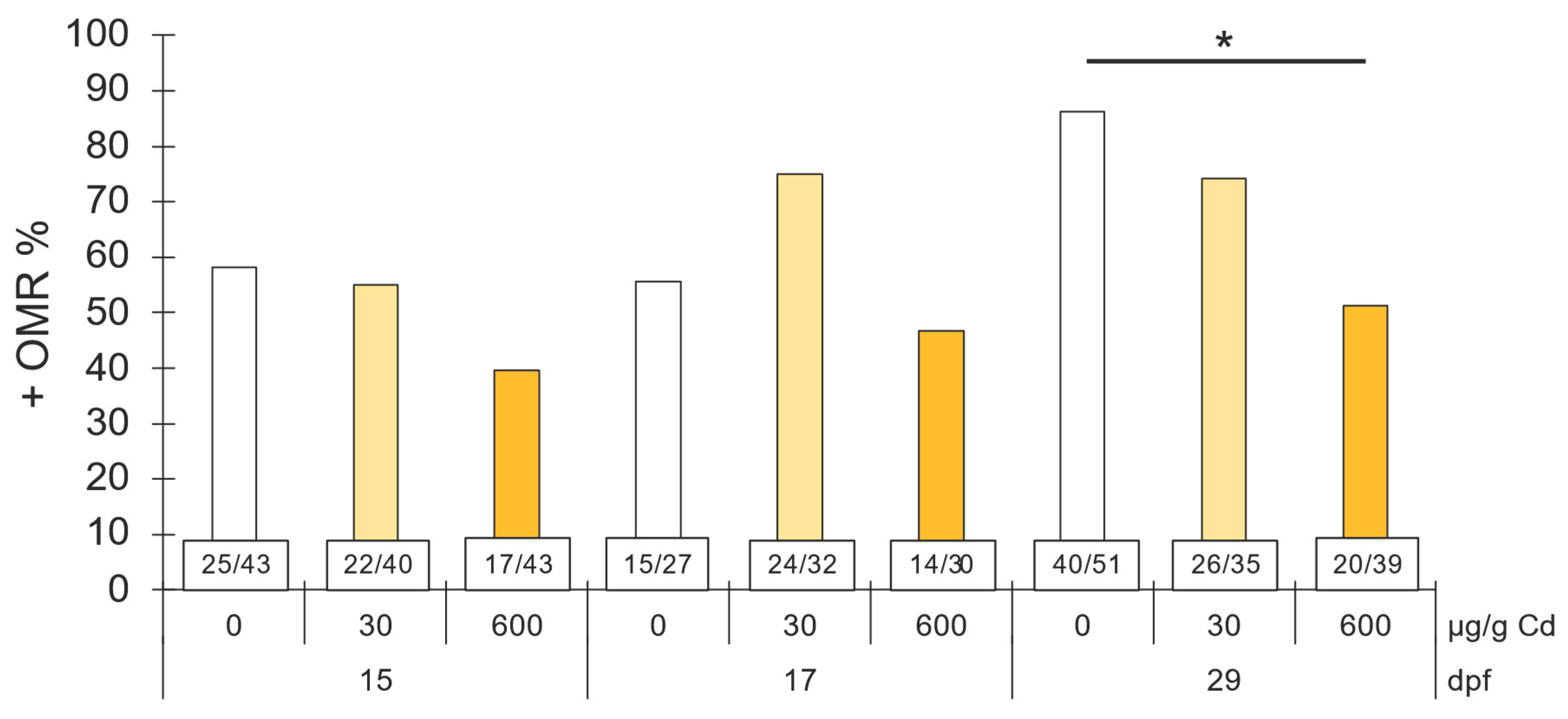

Dietary Cd exposure had exposure length/age and concentration-dependent effects on the optomotor response (Figure 3). A single day of dietary Cd did not affect the OMR in fish fed 30 µg/g Cd with 55% of fish displaying OMR, while the 600 µg/g Cd fed fish showed a 9% reduction in OMR, compared to 58% in the control group. The probability of fish fed 30 µg/g Cd displaying OMR was not significantly affected (B= -0.13, z = -0.29, p = 0.77, Exp (B) = 0.88, 95% CI [0.37, 2.10]). There was a trend for the odds of 600 µg/g fish to display OMR to decrease by 0.39 or have 32% lower probability of exhibiting OMR than control diet fed fish (B = -0.75, z = -1.72, p = 0.09, Exp (B) = 0.47, 95% CI [0.20, 1.10]). After two days of Cd exposure, the 30 µg/g Cd fed fish increased their OMR by 20%, whereas the 0 and 600 µg/g Cd groups maintained similar levels of response. This difference in proportions of OMR by Cd diet at 17 dpf (or 2-days of exposure) did not reach statistical significance for 30 µg/g Cd fish (B = 0.88, z = 1.56, p = 0.12, Exp (B) = 2.40, 95% CI [0.81, 7.47]) or 600 µg/g Cd fish (B = -0.29, z = -0.54, p = 0.59, Exp (B) = 0.75, 95% CI [0.26, 2.14]). After two weeks of dietary exposure, 78% of control fed fish displayed OMR, whereas 4% and 27% fewer 30 and 600 µg/g Cd fed showed OMR, respectively. When comparing fish fed Cd, 23% fewer fish exposed to 600 µg/g Cd than did 30 µg/g Cd group displayed OMR. The probability of 600 µg/g Cd fed fish displaying OMR is 35% lower than control fish. We observed that the odds that 600 µg/g Cd fed fish display OMR decreases by 2.21 (B= -1.24, z = -2.65, p < 0.01, Exp (B) = 0.29, 95% CI [0.11, 0.71]). There was a trend for 600 µg/g fish to display fewer OMR than 30 µg/g fed fish (z = 2.01, p = .11, Tukey). The likelihood of OMR expression was not affected by a two-week exposure to 30 µg/g Cd diet (B = -0.23, z = -0.45, p = 0.66, Exp (B) = 0.79, 95% CI [0.29, 2.22]).

4. Discussion

We found that deficits in the occurrence of spontaneous Ca²⁺ activity preceded behavioral deficits. After a single day of dietary Cd, there was a reduction in the occurrence of large-amplitude calcium events. After two weeks of dietary Cd, spontaneous large-amplitude Ca²⁺ activity increased, approaching levels observed in control fish, with lower dietary exposures approaching control levels faster than higher exposures. After two weeks of dietary Cd, deficits in the OMR began to emerge. The similarity between the control and Cd fed fish in spontaneous Ca²⁺ activity after two weeks of exposure suggests the likelihood of detecting calcium waves may partially recover. However, the progressive deficit in OMR suggests that while large-scale calcium activity patterns may appear to normalize, the circuits or other underlying mechanisms may not.

We observed that Cd fed fish exhibited fewer Ca²⁺ events after a single day of exposure to diets with an average daily intake of Cd and high levels of Cd, with partial recovery in calcium occurrence over longer exposure durations. This result suggests that Cd absorbed gastrointestinally poses neurotoxic effects. This finding is striking given that the gastrointestinal absorption of Cd is suggested to be 3-7% in humans and ~2% in rodents [3,72,73]. Similarly, mice with the genetically encoded Ca²⁺ indicator GCaMP6 exposed to 3 mg/L Cd daily through their drinking water for 70 days showed disrupted Ca²⁺ transients of hippocampal neurons while imaged during an associative learning task [74]. While studies that examine the effects of dietary Cd on Ca²⁺ activity in vivo are sparse, greater mechanistic insights stem from ex vivo and in vitro studies. The effects of dietary Cd on Ca²⁺ in the intestine of chickens reveals that Cd competes with Ca²⁺, as there is a decrease in calcium biding proteins and calcium absorption in chickens fed 3, 10 and 100 mg/day Cd diets, for 3wks (Fullmer et al. 1980). While short-term (< 24h) exposures to Cd can elevate intracellular Ca²⁺, longer-term exposures to Cd can deplete intracellular Ca²⁺.

In this study, calcium waves represent large-scale, coordinated calcium activity patterns; however, their occurrence may reflect neuronal activity and indicator properties under Cd exposure. Given that Cd may compete with Ca²⁺ for calcium binding proteins such as calmodulin and activate similar conformational changes, we cannot rule out that Cd rather than Ca²⁺ is activating GCaMP5 [75,76,77]. Thus, different mechanisms may be leading to the observed calcium signals over the course of the exposure. That is, Cd may deplete intracellular Ca²⁺ initially inhibiting calcium wave occurrences and then bind to GCaMP5 leading to detectable calcium signals after longer exposures. Cd competing with Ca²⁺ for calcium binding proteins is a prevalent issue with the use of Ca²⁺ indicators in the presence of Cd. To overcome this challenge, a technique with a combination of two indicators with varying affinity for Ca²⁺ and Cd is used for in vitro studies [78,79]. While this technique is not feasible in vivo Ca²⁺ imaging studies. Using an approach with a dual combination of genetically encoded zinc sensors that have an affinity for Cd and genetically encoded calcium sensors with a higher affinity for Ca²⁺ is a possibility [80,81]. Therefore, caution is warranted in interpreting calcium wave occurrence solely as a direct measure of neuronal activity in the presence of Cd. To further interrogate this possibility future studies should examine if the circuit is intact when presented with a visually-evoked stimulus as can be done with pERK/MAPK mapping followed by LA-ICP-MS or autoradiography to localize Cd and Ca²⁺.

Optomotor deficits are observed after two-weeks of exposure to 600 µg/g but not 30 µg/g Cd diets. The time course and concentration for an effect of dietary Cd on the optomotor response is longer and higher than for waterborne exposures, as deficits are observed after a single exposure to 1 µg/L Cd for 17 h in adult zebrafish [33] and a 66-h exposure to 0.5 µg/L Cd in larval zebrafish [82]. This suggests that Cd exposure through water and dietary routes may have different mechanisms of action. The accumulation time course for Cd also varies by exposure route and organ with dietary Cd increasing weekly and waterborne Cd showing more gradual accumulation in rainbow trout, Cd accumulated at similar rates independent of exposure route in rats [83]. Organs also showed exposure route specific accumulation patterns with some organs (e.g. kidney) showing negligible accumulation of Cd after a week of waterborne exposure and significant accumulation after a week of dietary exposure [84]. Similarly, trout exposed to 3 and 10 µg/L Cd for 1h, 2h, 3h, 10 days, and 30 days showed that Cd had penetrated their blood and reached equilibrium after 3h while other organs continued to accumulate Cd [85]. The divergence between early changes in calcium wave occurrence and later behavioral deficits suggests that disruptions in large-scale neuronal dynamics may precede measurable functional impairment. This raises the possibility that compensatory mechanisms temporarily restore global activity patterns while underlying circuit integrity remains altered. Future studies should test whether waterborne Cd directly penetrates and affects the eyes and whether dietary Cd is absorbed through the gastrointestinal tract [86] and subsequently impacts neural circuits involved in visual processing.

Although we report novel in vivo evidence that dietary Cd exposure alters Ca²⁺ activity, our study is limited to the measurement of spontaneous neuronal activity. Assessing stimulus-evoked calcium responses could further clarify circuit-level deficits, particularly those related to visual sensory pathways. While we evaluated optomotor responses at a single spatial frequency, examining a broader range of spatial frequencies would better resolve age- and concentration-dependent changes in visual acuity. Integrating measures of whole-body and tissue-specific Cd burden and localization with neuronal activity and visual function assays would improve understanding of the temporal progression, specificity, and underlying mechanisms of Cd toxicity.

5. Conclusions

In summary, the goal of the study was to examine neurophysiological changes that may predict human-relevant dietary Cd-induced visuomotor deficits. Our results show that exposure to Cd at human-relevant levels immediately alters whole-brain activity that precede measurable impairments in the optomotor response. Although dietary Cd exposure disrupted in vivo neuronal Ca²⁺ activity in zebrafish after a single day, these differences were transient, suggesting that more refined, circuit-level analyses are required to detect persistent dysfunction. Once ingested Cd poses significant threats to sensitive systems including the nervous system with cascading effects on visually-guided behavior. Identifying early neurophysiological predictors of long-term behavioral impairments is therefore critical for defining mechanisms of Cd neurotoxicity and for informing early intervention and prevention strategies for environmentally induced neurobehavioral disorders.
