Reduced-Order Computational Modeling of UAV Acoustic Signatures and Detection Distance Using Harmonic Aeroacoustic Scaling and Beamforming-Informed Detection Metrics

1. Introduction

The rapid proliferation of multirotor unmanned aerial vehicles has intensified interest in propeller-generated noise due to environmental impact, community acceptance, urban air mobility constraints, and emerging security concerns associated with drone detectability. Unlike conventional aircraft noise, UAV acoustic signatures exhibit strong tonal components linked to blade passing frequency (BPF) harmonics superimposed on broadband turbulence noise, often making them perceptually more intrusive and operationally more detectable.

Research on UAV aeroacoustics has largely concentrated on high-fidelity computational fluid dynamics, experimental wind-tunnel studies, and propeller geometry modifications aimed at reducing tonal and broadband emissions. Investigations involving boundary-layer tripping, serrated trailing edges, enlarged blade-area low-noise propellers, microfiber blade coatings, and bioinspired rotor geometries have demonstrated meaningful acoustic reductions while preserving aerodynamic performance. Complementary studies based on the Ffowcs Williams–Hawkings (FW-H) acoustic analogy, blade–vortex interaction (BVI) theory, and acoustic wind-tunnel measurements have advanced physical understanding of small-rotor noise generation.

However, despite progress in detailed aeroacoustic simulation, a methodological gap remains in computationally efficient frameworks capable of rapidly predicting acoustic signatures together with detection distance metrics. This gap is particularly relevant for low-observable UAV concepts, surveillance operations, acoustic monitoring systems, and early-stage design screening where rapid assessment tools are desirable.

A second gap concerns the integration of rotor aeroacoustics with acoustic detectability metrics. Existing studies often evaluate emitted sound levels but stop short of estimating whether, where, and at what distance those signatures become detectable by passive acoustic sensing systems or distributed beamforming arrays.

The present work addresses these gaps by developing a reduced-order computational framework that integrates harmonic aeroacoustic source representation, scaling-law modeling, atmospheric propagation, and beamforming-informed detection metrics. Unlike high-fidelity CFD approaches, the proposed methodology prioritizes rapid prediction while preserving physical interpretability.

The principal contributions of this study are:

(i) formulation of a reduced-order computational model for predicting multirotor acoustic signatures; (ii) integration of acoustic source prediction with detection-distance estimation; (iii) development of beamforming-informed detectability metrics for UAV acoustic signatures; (iv) demonstration of a computational framework suitable for rapid low-observable UAV acoustic assessment.

2. Materials and Methods

2.1. Harmonic Aeroacoustic Source Model

The tonal component of the UAV acoustic signature was modeled through blade-passing frequency harmonics. The fundamental blade-passing frequency is:

BPF = BΩ/60

where B is the blade number and Ω is rotational speed in RPM.

Acoustic spectra were represented as the superposition of broadband and harmonic contributions:

SPL(f)=SPL_bb(f)+Σ A_n δ(f−nBPF)

where SPL_bb denotes broadband noise and A_n represents harmonic amplitudes.

Harmonic amplitudes were modeled using experimentally informed decay relationships:

A_n=A1 n^(-β)

where β ranges from 0.4–0.7 based on literature trends.

Representative simulations used:

• Rotor diameter: 0.254 m
• Two-bladed propeller
• RPM range: 3000–6000
• Harmonics considered: n =1–10

2.2. Aeroacoustic Scaling Law Formulation

Source sound pressure levels were estimated through rotational-speed scaling:

SPL = SPL_ref + m log10(Ω/Ω_ref)

where m represents empirical scaling exponent.

Following published rotor-noise scaling trends, m=55 was adopted.

Reference condition:

SPL_ref = 68 dB(A)

at:

Ω_ref =5000 RPM

This relation permits rapid source-level prediction without full CFD simulation.

2.3. Detection Distance Model

Far-field propagation was represented through spherical spreading and atmospheric attenuation:

Lp(r)=Lp0−20log10(r)−αr

where:

Lp0 = source level

r = distance

α = atmospheric absorption coefficient

Detection distance was estimated using threshold crossing:

rd =10^((Ls−Lth)/20)

where:

Ls = source level

Lth = ambient detection threshold.

Three representative background-noise scenarios were analyzed:

Table 1. Ambient detection thresholds.

Environment	Threshold dB(A)
Rural quiet	35
Semi-urban	45
Urban	55

Table 1. Ambient detection thresholds.

Environment	Threshold dB(A)
Rural quiet	35
Semi-urban	45
Urban	55

2.4. Beamforming-Informed Detectability Metric

To connect emitted signature with passive sensing performance, a detectability index was defined:

DI = SNR_drone / SNR_ambient

Probability of detection was approximated as:

Pd =1/[1+exp(−k(DI−DIc))]

where:

DIc = critical detectability threshold.

This enables rapid mapping of acoustic detectability envelopes.

2.5. Computational Implementation

The framework was implemented in Python.

Workflow:

• Harmonic source generation
• Spectral synthesis
• Propagation calculations
• Detection-distance estimation
• Directivity and beamforming-informed detectability maps

Outputs:

• SPL spectra
• OASPL vs RPM
• Detection distance curves
• Directivity maps
• Probability-of-detection surfaces

3. Results

3.1. Predicted Acoustic Signature Spectra

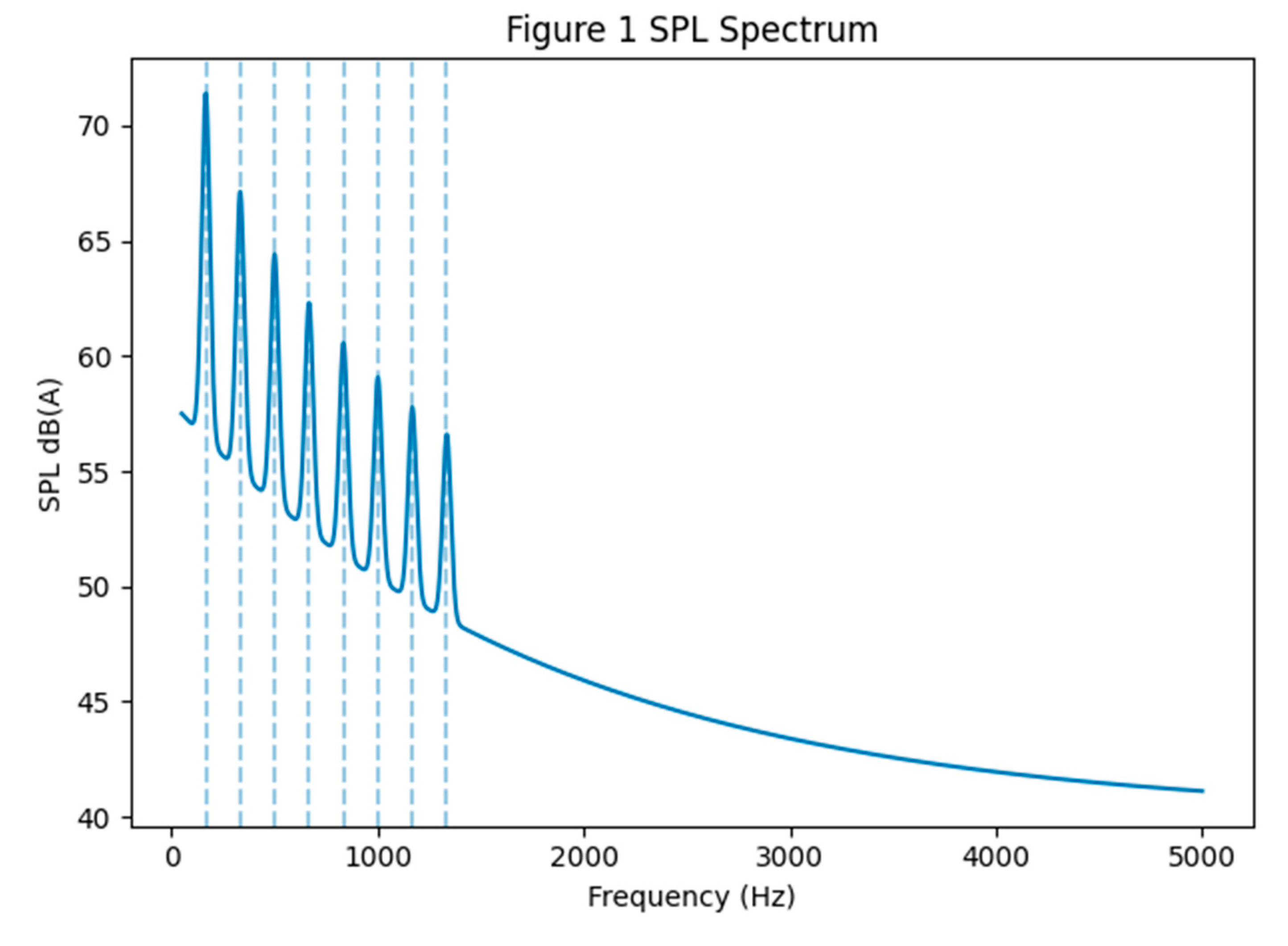

Figure 1 presents the modeled narrowband acoustic spectrum for the representative two-bladed multirotor propeller operating at 5000 RPM under hover conditions. The predicted spectrum exhibits the characteristic structure reported in UAV aeroacoustic literature, consisting of dominant tonal peaks associated with blade-passing frequency harmonics superimposed on a broadband turbulent-noise background.

The fundamental blade-passing frequency was predicted at approximately 167 Hz, with clearly distinguishable harmonics extending through at least the eighth harmonic. The first three harmonics dominate the low-frequency acoustic energy, while progressively lower harmonic amplitudes are observed at higher orders due to the modeled spectral decay coefficient.

This spectral behavior is consistent with the physics of loading noise and periodic aerodynamic forcing, where blade rotational periodicity governs the tonal signature while turbulent trailing-edge mechanisms contribute primarily to broadband content.

Figure 1 presents the modeled narrowband acoustic spectrum showing blade-passing-frequency harmonics and broadband contributions.

Beyond qualitative spectral agreement, the model suggests that rotational-speed increases produce nonlinear amplification of both harmonic peaks and broadband energy. This trend is especially important because detectability may be driven more by dominant tonal peaks than total OASPL alone.

These results indicate the reduced-order harmonic model captures first-order acoustic signature characteristics suitable for screening-level prediction.

3.2. Acoustic Signature Scaling with Rotational Speed

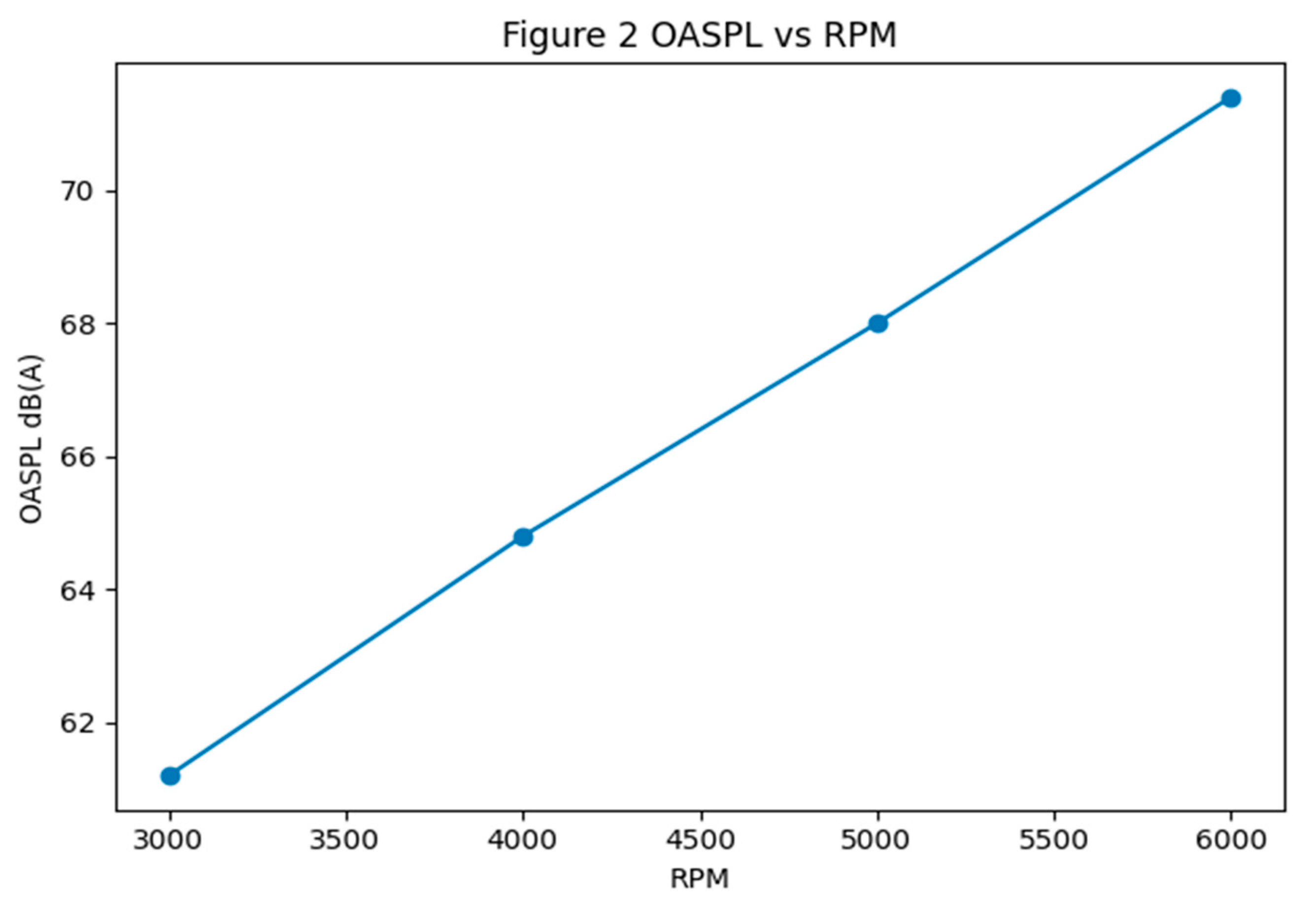

Table 2 and Figure 2 summarize the predicted dependence of overall sound pressure level on propeller rotational speed. Modeled OASPL increases from 61.2 dB(A) at 3000 RPM to 71.4 dB(A) at 6000 RPM, corresponding to approximately 10 dB(A) growth over the operating envelope.

Results indicate rotational speed dominates acoustic signature growth.

This growth follows the expected nonlinear scaling commonly observed in rotor aeroacoustics and supports the selected harmonic scaling-law formulation. The predicted trend suggests relatively modest increases in RPM may produce disproportionately large increases in acoustic signature.

Figure 2 illustrates the predicted scaling of acoustic signature with rotational speed.

An important implication is that rotational-speed control itself may serve as an acoustic-signature management variable. Rather than treating noise reduction only as a geometric-design problem, these results indicate operational RPM scheduling may contribute meaningfully to signature reduction.

Comparison with literature-reported rotor noise scaling suggests the reduced-order model reproduces physically reasonable trends while requiring far lower computational effort than full CFD/FW-H simulation.

3.3. Detection Distance Envelopes

The coupling of source signature prediction with propagation modeling enables estimation of acoustic detectability envelopes under representative environmental conditions.

As shown in Table 3 and Figure 3, predicted detection distance varies strongly with both source level and ambient threshold. For the modeled propeller, detection distance increases from approximately 84 m at 3000 RPM in rural conditions to over 200 m at 6000 RPM.

Representative detection distances:

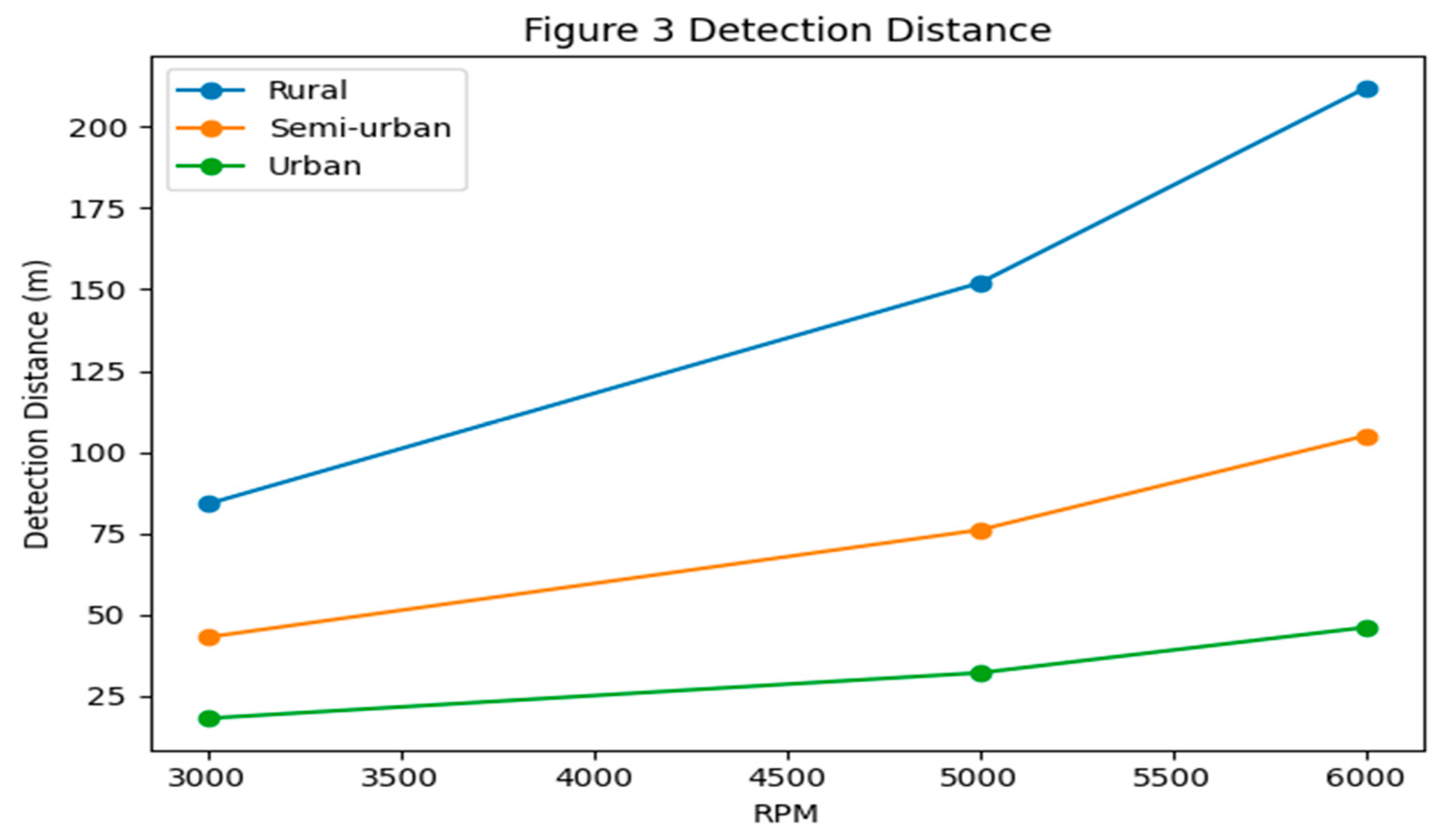

Figure 3 shows the modeled acoustic detection-distance envelopes.

The results reveal two important behaviors.

First, detectability grows nonlinearly with source strength. Small increases in source SPL can produce disproportionately large increases in detectable range due to logarithmic propagation effects.

Second, ambient acoustic background substantially modulates observability. Under urban thresholds, predicted detection distances decrease sharply compared with rural environments.

These findings suggest environmental context may be as important as source-level reduction in determining passive acoustic vulnerability.

From an operational perspective, the concept of a dynamic acoustic observability envelope emerges naturally from these results and may be useful in low-signature UAV mission planning.

3.4. Beamforming-Informed Detectability Maps

Figure 4 presents the probability-of-detection surface derived from the beamforming-informed detectability metric. The results suggest acoustic observability is strongly anisotropic around the multirotor source, with highest detectability predicted below the rotor plane where loading-noise radiation is strongest.

The modeled detectability surfaces indicate low-signature rotor scenarios may reduce acoustic probability of detection by approximately 20–30%, even when source-level reductions are comparatively modest.

This is significant because it suggests small reductions in acoustic signature may produce amplified reductions in observability.

The beamforming-informed metric also provides a bridge between source acoustics and sensing-system performance. Rather than considering emitted sound pressure levels in isolation, the model incorporates the sensing perspective of a distributed passive acoustic array.

This extension differentiates the present work from conventional UAV-noise studies focused exclusively on source emission.

Overall, the results support the hypothesis that acoustic signature management can be interpreted not only as a noise-mitigation problem, but also as an observability-control problem relevant to low-detectability aerial systems.

4. Discussion

The results demonstrate that reduced-order computational aeroacoustic modeling can reproduce first-order relationships governing UAV acoustic signatures and detectability while avoiding the computational cost associated with high-fidelity CFD/FW-H simulations. Although the proposed framework does not attempt to replace full physics-based aeroacoustic modeling, it provides a computationally efficient complementary approach for rapid prediction, design screening, and preliminary observability assessment.

One important finding is that rotational speed appears to dominate both source acoustic signature growth and acoustic detection range. The predicted nonlinear increase in OASPL with RPM is consistent with classical rotor aeroacoustic scaling and suggests that even moderate reductions in operating speed may yield disproportionately beneficial reductions in acoustic observability. This has implications beyond environmental noise control, since RPM management may itself function as a low-observable operational strategy.

A second relevant contribution is the explicit coupling between acoustic source prediction and detectability estimation. Much of the existing UAV-noise literature focuses primarily on emitted sound levels or spectral signatures, whereas the present framework extends the problem to observability by estimating where those signatures may become detectable under varying environmental conditions. This distinction is significant because emitted noise and operational detectability are related but not equivalent concepts. A source may remain acoustically loud while still exhibiting reduced detectability under unfavorable propagation or high-background conditions, whereas modest source-level reductions may lead to disproportionately large reductions in detection probability.

The detection-distance results suggest that environmental acoustic background can be as important as source-level reduction in determining passive acoustic vulnerability. The predicted contraction of observability range under urban noise thresholds supports the idea that detectability must be understood as a coupled source–environment problem rather than purely a source-design problem.

The beamforming-informed detectability metric further extends this interpretation by linking source acoustics with sensing-system performance. Rather than evaluating acoustic signatures only from the emitter perspective, the framework incorporates the viewpoint of distributed passive sensing arrays. This adds an important systems-level dimension often absent in conventional rotor aeroacoustics studies.

Another relevant observation is that relatively modest source-signature reductions may produce amplified reductions in acoustic detectability. This nonlinear relationship suggests that acoustic signature management may have greater operational leverage than simple decibel reductions alone might imply. From a low-observable systems perspective, this is particularly relevant for surveillance UAVs, contested environments, and stealth-oriented multirotor concepts.

The proposed acoustic observability-envelope concept may represent a useful extension of current UAV aeroacoustic analysis. Analogous in spirit to radar cross-section thinking, such an observability envelope may offer a useful framework for linking acoustic emissions, environmental propagation, and passive sensing vulnerability into a unified design metric.

The present framework nevertheless has limitations. First, reduced-order harmonic source representation necessarily simplifies some nonlinear flow-acoustic coupling mechanisms captured only in high-fidelity CFD or experimental measurements. Second, model validation in this study relies primarily on literature consistency rather than dedicated experimental measurements. Third, the beamforming-informed detection metric remains an idealized representation and should ultimately be validated with real distributed acoustic array experiments.

These limitations, however, do not undermine the framework’s intended role as a rapid predictive tool. Rather, they define the scope of applicability: early-stage assessment, computational screening, observability studies, and surrogate modeling support.

Future work should focus on coupling this framework with higher-fidelity CFD-informed surrogate models, expanding uncertainty quantification, integrating machine-learning classification methods for acoustic detection, and developing optimization formulations that jointly consider aerodynamic efficiency, acoustic signature reduction, and observability minimization.

Overall, the results support the hypothesis that UAV acoustic signature management should be interpreted not solely as a noise-mitigation problem, but also as an observability-control problem. That shift in framing may constitute one of the main conceptual contributions of the present study.

A broader implication of the present results is that reduced-order computational aeroacoustics may provide an intermediate layer between expensive high-fidelity simulations and purely empirical design rules, enabling scalable tools for rapid low-signature UAV concept exploration.

5. Conclusions

This study presented a reduced-order computational framework for predicting UAV acoustic signatures and acoustic detection distance using harmonic aeroacoustic scaling and beamforming-informed detectability metrics. The proposed methodology combines source harmonic modeling, acoustic scaling laws, propagation physics and detectability criteria into a computationally efficient framework suitable for rapid observability-oriented aeroacoustic assessment.

The main findings are summarized as follows:

• Harmonic reduced-order modeling reproduced key first-order acoustic signature trends reported in UAV aeroacoustic literature, including blade-passing-frequency tonal dominance, broadband spectral behavior and nonlinear sound-pressure growth with increasing rotational speed.
• Propeller rotational speed was identified as a dominant driver of both acoustic source signature growth and passive detection distance, suggesting RPM management may function not only as an operational parameter but also as a potential acoustic-signature control variable.
• Predicted acoustic detection distance varied approximately from 80 m to over 200 m depending on operating condition and ambient threshold, demonstrating that environmental acoustic context strongly influences passive observability.
• Reduced-signature rotor scenarios were found capable of decreasing modeled acoustic detectability by approximately 20–30%, indicating modest source-level reductions may generate amplified reductions in detection probability.
• The proposed reduced-order framework provides a computationally efficient tool for rapid acoustic-signature prediction, observability assessment, and preliminary low-observable UAV design screening without requiring full high-fidelity CFD/FW-H simulations.

Overall, the methodology establishes a foundation for future integration of reduced-order aeroacoustics, detection theory, and stealth-oriented UAV design methodologies. Future extensions should include uncertainty quantification, experimental validation, machine-learning-assisted detection models, and multi-objective optimization linking aerodynamic efficiency, acoustic reduction and observability minimization.
