Slope Damage and the Onset of Acceleration: A Framework for Progressive Failure Monitoring

1. Introduction

Open pit slope failures represent one of the most significant geotechnical hazards in mining operations worldwide. The consequences of unexpected slope failures range from operational disruptions and economic losses to potential threats to personnel safety and environmental impacts. While advancements in monitoring technologies have substantially improved our ability to detect and track slope movements, uncertainty remains regarding the real-time identification of progressive failure states and the systematic implementation of alarm frameworks.

This paper builds upon the frameworks and case studies presented by a significant number of geotechnical practitioners. For instance, [1] discussed several notable publications towards an empirical approach of failure forecasting methods. These are summarized in Table 1 below. While Table 1 is certainly not exhaustive, it illustrates both the topic’s significance and the enduring appeal of the premise that all slope failures can be successfully predicted from monitoring data alone. This premise, however appealing, should not be mistaken for an established fact; failure forecasting remains an interpretive discipline rather than an exact science, particularly in the context of brittle failure mechanisms where phenomenological observations are inherently difficult to generalize.

Current state-of-practice in slope monitoring emphasizes deformation and velocity measurements, with the inverse velocity method [7] serving as the primary tool for predicting the time of failure. Despite the physical reality of acceleration in all slope failures, comparatively little attention has been paid to the systematic assessment of acceleration characteristics from either a monitoring or a design perspective. From a monitoring standpoint, acceleration is typically assessed indirectly by visualizing increasing velocity trends on time-series plots. This indirect approach may limit our ability to identify critical transitions between regressive and progressive failure states in real-time.

The concept of the Onset of Acceleration (OOA) point, defined as the transition from regressive to progressive failure [15], represents a critical juncture in the evolution of slope failure. Accurate identification of this point is straightforward in back-analysis but challenging in real-time monitoring due to multiple confounding factors, including system accuracy, episodic accelerations, atmospheric effects, and varying failure mechanisms. Understanding the geotechnical conditions associated with OOA has important implications for both monitoring system design and failure forecasting methodology.

This paper investigates the acceleration characteristics of progressive slope failures by analyzing a comprehensive database of historical slope-monitoring records compiled by [19]; readers are referred to that work, which is publicly available as a dissertation, for full details on the database composition, case study selection criteria, and individual monitoring records. Building on this foundation, the present paper develops a conceptual and analytical framework for acceleration-based slope monitoring, with the following specific objectives:

• Characterisation of acceleration patterns and their diagnostic relationship to progressive and regressive failure states;
• Development of the slope damage concept as a cumulative measure of progressive failure, and demonstration of its utility in identifying the OOA point;
• Investigation of the geotechnical conditions necessary for the validity of the inverse velocity method;
• Exploration of the conceptual link between rock bridge degradation, fracture network connectivity, and the OOA framework;
• Discussion of implications for slope monitoring frameworks and Trigger Action Response Plans (TARPs).

2. Conceptual Framework

This section develops the conceptual foundation for the acceleration-based monitoring framework proposed in this paper. The physical basis for acceleration as a diagnostic parameter is established, the slope damage concept is introduced as a cumulative metric for tracking failure progression, and the geotechnical conditions necessary for sustained acceleration are examined. The section concludes with a refined operational definition of the OOA point, illustrated by a representative case study.

2.1. Acceleration in Progressive Failures

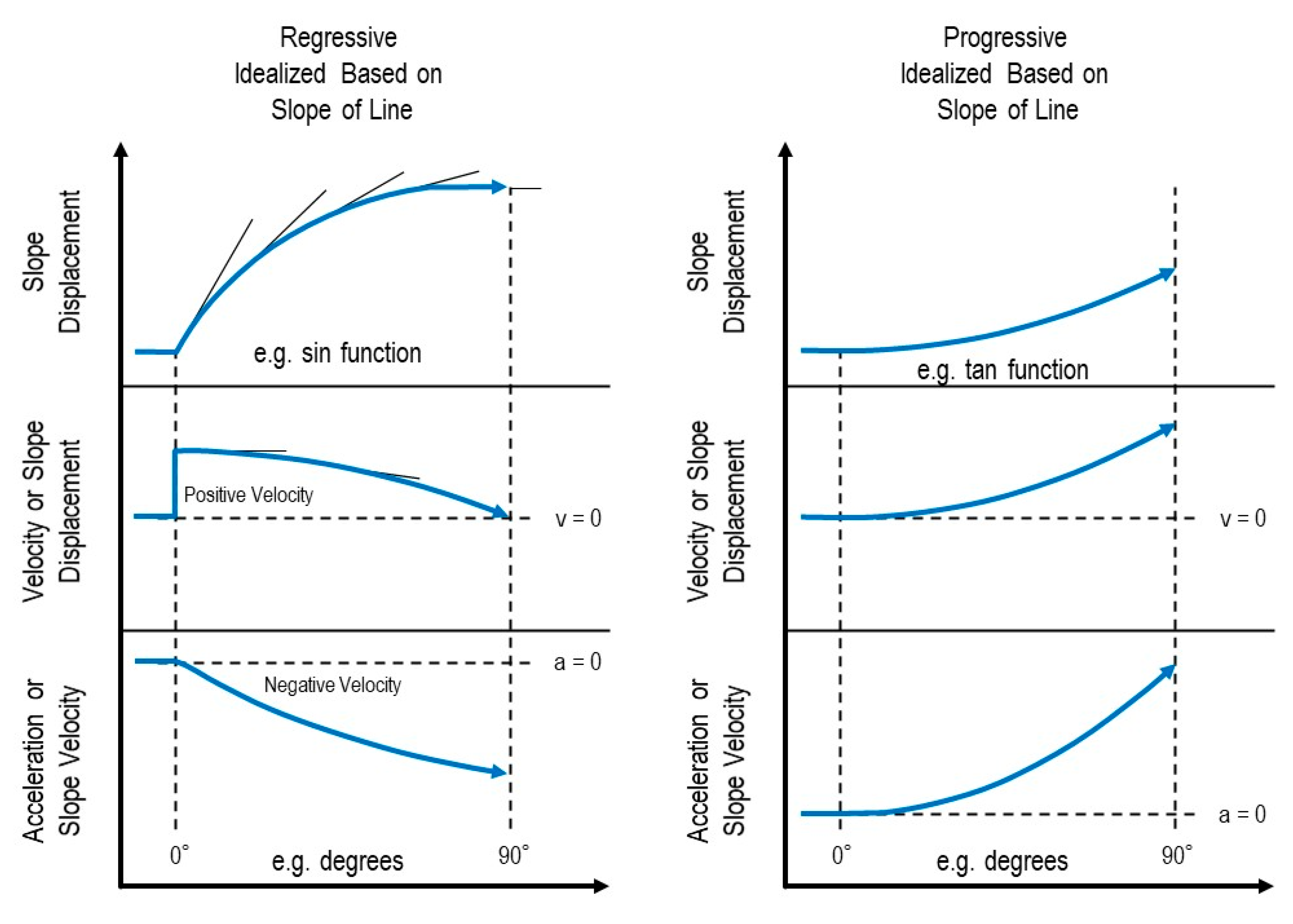

Acceleration is a physically necessary precondition for all slope failures. By definition, it represents the rate of change of velocity (the second derivative of displacement with respect to time) and, in the context of slope instability, reflects the evolving mechanical state of the failing rock mass. The fundamental distinction between regressive and progressive failure can be characterized through acceleration trends (Figure 1): regressive deformations are associated with episodic accelerations that return to near-zero values following discrete triggering events (e.g., blasting, rainfall), whereas progressive failures exhibit sustained positive accelerations that increase systematically toward collapse. This distinction forms the basis for defining the OOA point.

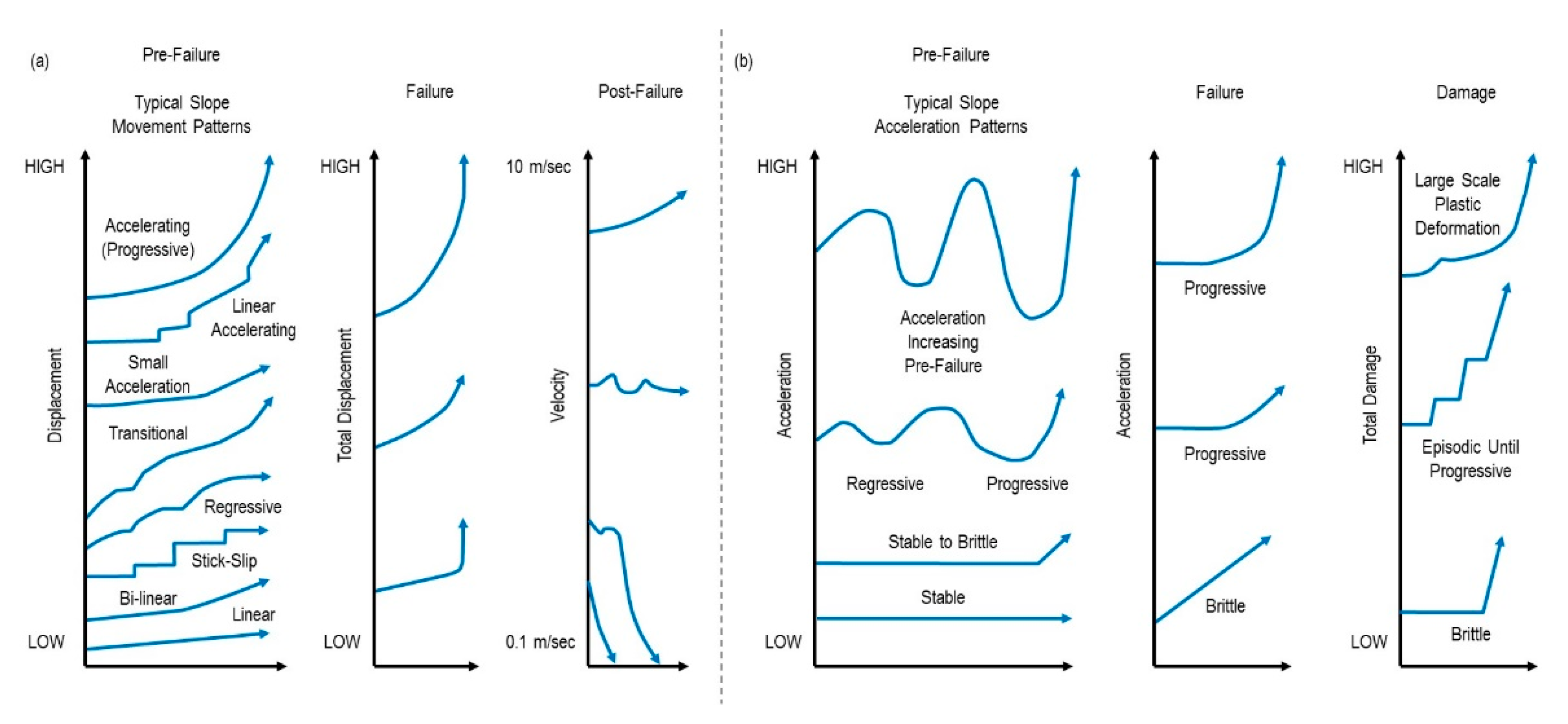

Figure 2 illustrates characteristic deformation, velocity, and acceleration curves for progressive slope failures. Unlike deformation curves, which show continuously increasing displacement, or velocity curves, which capture increasing rates, acceleration curves isolate periods of active slope damage by filtering out constant-velocity trends and highlighting intervals of changing mechanical behaviour. The OOA point represents the critical transition from regressive to progressive failure. While previous authors [15,20] characterized this transition based on displacement-time behaviour, the present work proposes a refined definition based on sustained acceleration.

Although acceleration is simply a higher-order derivative of displacement, its diagnostic value lies precisely in its ability to remove either flat (non-deforming) or constant-velocity trends, yielding either episodic or progressive signatures. The question then naturally arises: why is acceleration not routinely assessed in slope monitoring practice or incorporated into design frameworks? The answer likely lies in the practical difficulty of reliably computing and interpreting acceleration, particularly in real time. It is the authors’ view that limitations in certain monitoring software present meaningful obstacles to the adequate assessment of acceleration trends.

From a monitoring standpoint, it is proposed that acceleration not be assessed incrementally. Real-time identification of the OOA point is inherently challenging: episodic accelerations may precede the true OOA, and slopes may temporarily accelerate before regressing. Environmental factors, including diurnal temperature variations, atmospheric pressure changes, and precipitation events, can induce short-term accelerations that do not reflect progressive failure.

Distinguishing between episodic and sustained progressive acceleration, therefore, requires careful integration of monitoring data trends, failure mechanisms, and broader geotechnical context. Instead, acceleration should be evaluated as the slope of velocity over a sufficiently long time window to attenuate diurnal and atmospheric effects (Figure 3). The OOA point is reached when accelerations remain persistently above zero for a sustained period, signalling the transition from episodic, event-driven deformation to continuous progressive failure. What constitutes a “sustained” or “sufficiently long” period must be determined within the holistic slope monitoring and design framework applicable to the site in question.

2.2. Slope Damage Concept

We introduce the concept of slope damage as a cumulative measure of progressive failure development. Slope damage is calculated as the accumulated positive accelerations over time:

Slope Damage = S(a_t) for a_t > 0

(1)

This formulation captures the intuitive notion that slope damage accumulates during periods of acceleration, whereas periods of zero or negative acceleration (deceleration/regression) do not contribute to progressive failure. The slope damage curve provides a clear visual representation of when and how rapidly damage accumulates in the slope mass. Conceptually, slope damage calculations are expected to provide clearer identification of OOA boundaries than velocity-based metrics alone, a proposition supported by the representative monitoring records discussed in Section 2.4. The slope damage approach appears to show early signs of adverse conditions in monitoring data, serving as a precursor to slope failure. This enhanced clarity stems from filtering out negative accelerations, acknowledging that episodic decelerations and recovery periods do not contribute to the cumulative damage metric.

Figure 4 illustrates slope damage accumulation for a typical failure record (undisclosed mine location, see [19] for details). In Figure 4(c), the three curves represent different calculation periods for acceleration (labelled 1, 2, and 3, corresponding to 24, 100, and 200 points, respectively), demonstrating that the slope-damage concept (Figure 4d) is robust across various data-processing approaches. Note how slope damage remains relatively flat during regressive periods and increases systematically during the seven days preceding failure.

For failure forecasting purposes, acceleration trends alone do not appear to offer advantages over the inverse velocity method, given their episodic nature during the regressive phase. Figure 4(e) shows the corresponding inverse-velocity record for the same case study. The pattern shown is common among slope failure records: episodic accelerations of increasing amplitude occur in the lead-up to failure, and a reasonable linear trend can be fitted to the inverse velocity record over the full monitoring period. This raises an important observation: the inverse velocity method could, in principle, be applied throughout this record, not only after the identified OOA point. Nevertheless, the change in the character of the monitoring data at the OOA point suggests that conditions within the slope changed meaningfully around November 21^st, even if the precise boundary between regressive and progressive behaviour remains difficult to assign objectively in Figure 4(e). Indeed, prior to the OOA point, inverse velocity trends were characterized by episodic breaks rather than a sustained linear progression.

2.3. Geotechnical Basis for Sustained Acceleration

Under the assumption that the inverse velocity method applies throughout the period of a progressive failure, a natural corollary question arises: Is it reasonable to assume the method also applies during regressive slope deformations? Slope monitoring records that did not progress to ultimate failure are therefore as instructive as those that did, providing essential context for establishing TARP threshold values and for bounding the distinction between progressive and regressive behaviour. In this regard, Beingessner (2026) compiled a database of slope monitoring records in which no failure occurred, yet TARP velocity thresholds were nonetheless triggered. Examined from an acceleration monitoring perspective, however, those records show little deviation from zero, with only minor excursions during discrete episodic events. Crucially, accelerations did not remain persistently elevated above zero as regressive deformations consistently produced a return toward baseline, consistent with the dampening characteristic of non-progressive behaviour.

It is therefore inappropriate to assign an OOA point to a non-accelerating slope, or to invoke inverse velocity analysis in the absence of progressive failure conditions. While this may appear self-evident, it raises a more consequential question: Is velocity-based monitoring, using predefined threshold velocities, even appropriate for slopes that are not trending toward failure? Geotechnical practitioners reasonably need to know whether a slope is displacing faster than acceptable limits, regardless of failure trajectory; surficial ravelling, for instance, may be accompanied by elevated velocities that warrant attention even in the absence of deep-seated progressive failure. Nevertheless, the distinction between hazard-relevant velocity exceedance and failure-indicative progressive acceleration should be made explicit within slope monitoring and design frameworks, to avoid misapplication of methods developed specifically for progressive failure conditions.

This distinction naturally leads to a more fundamental question: what geotechnical conditions must exist for acceleration to persist, rather than episodically return to zero? We propose that sustained acceleration requires a fully or nearly fully mobilized failure surface. Prior to complete mobilization, episodic accelerations occur as local areas of the potential failure surface yield, with subsequent load redistribution to adjacent regions that retain sufficient strength to maintain stability (a behaviour characteristic of regressive deformation). Once the failure surface is sufficiently developed, the system loses its capacity to redistribute loads to areas retaining peak strength, and sustained acceleration ensues. Our conclusion aligns with the results presented by [21], which characterized failure of jointed rock slopes as a function of rock bridge failure, leading to the development of a fully continuous failure surface.

2.4. Definition of the Onset of Acceleration Point

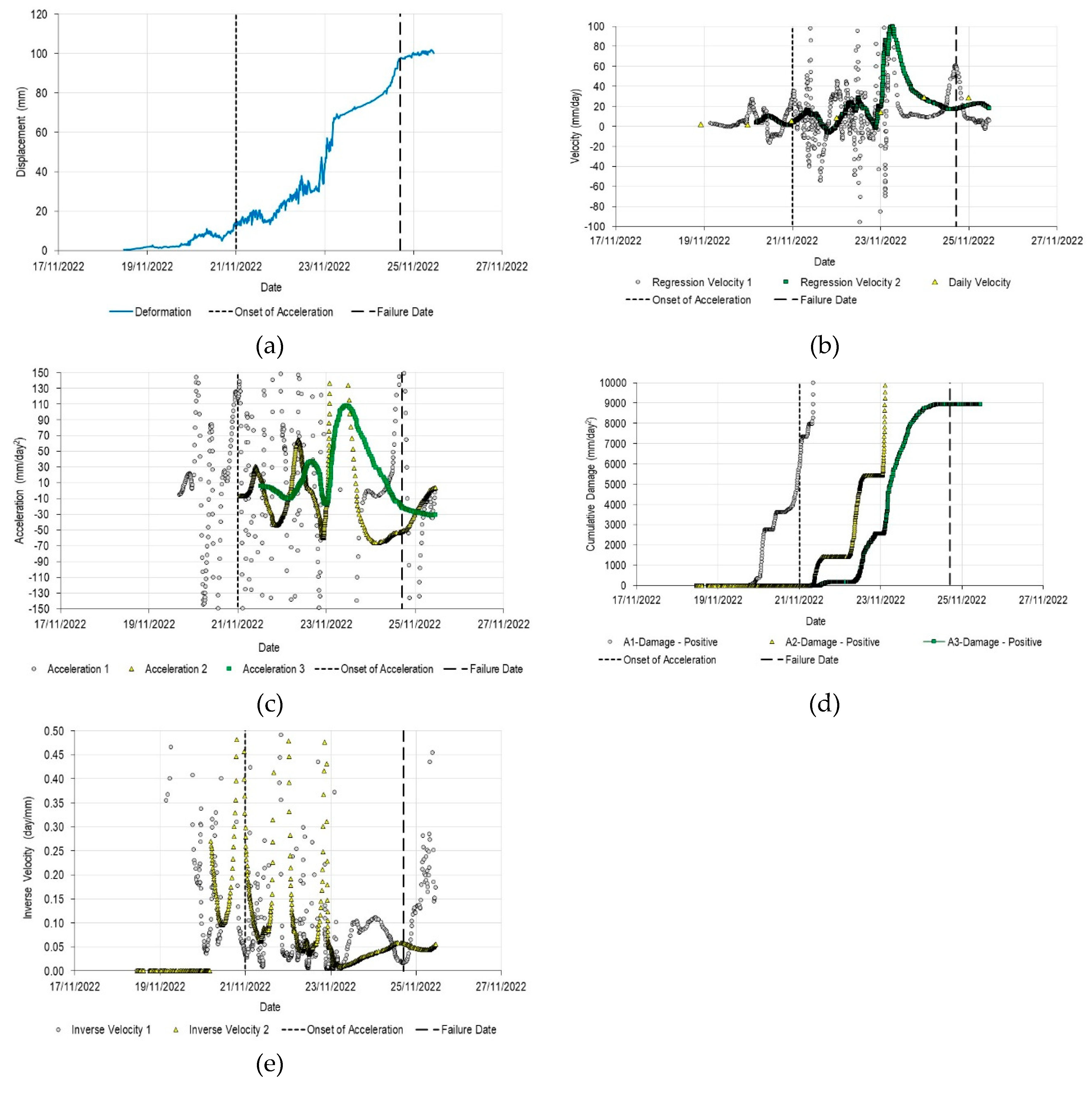

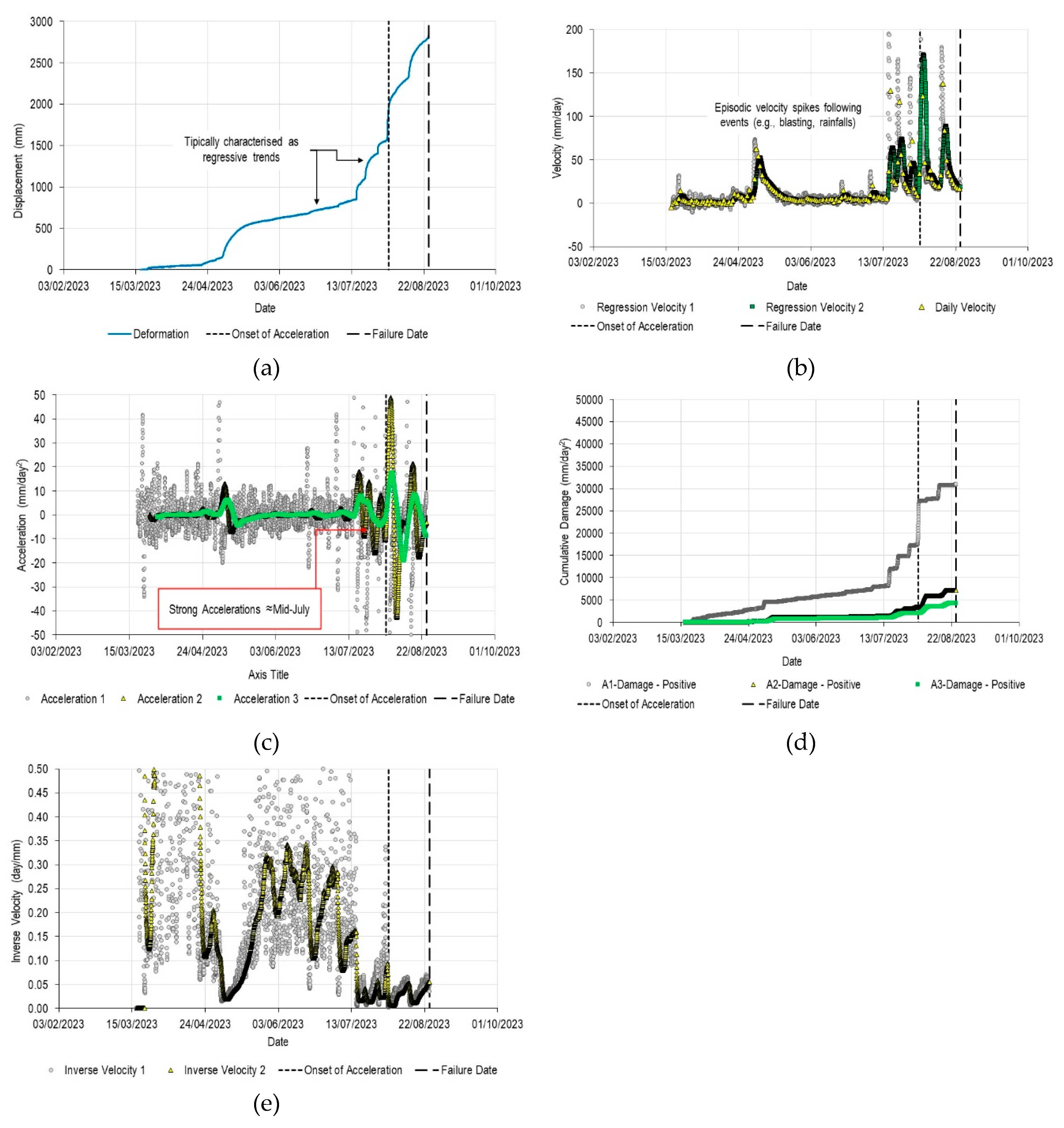

Figure 5 below illustrates a slope monitoring record over a reasonably long period (160 days), spanning both regressive and progressive trends. The slope can be thought of as subject to brittle accelerations (typically following an event such as mining or blasting), followed by plastic strain, and shearing occurring through the rock mass along a basal shear plane. The slope was previously understood to be affected by toppling mechanisms until sufficient damage had occurred along the basal plane, causing the failure mechanism to change in the weeks leading up to failure. Slope deformations could be characterized as regressive up to the day of failure, as illustrated in the deformation plot. However, it is reasonably clear from the acceleration plots that a notable change in trend occurred sometime in mid-July, during which accelerations (along with velocities) increased and remained above zero for substantial periods. This trend has a ‘regressive’ shape (as defined earlier in Figure 2) on a smaller scale, but accelerates overall in context. This is difficult to interpret within the definitions provided in Figure 2, as it could be argued to be either accelerating or regressive. The corresponding slope-damage record and inverse-velocity plot are presented in Figure 5(d) and Figure 5(e), respectively.

The inverse velocity record for this case shows an earlier trend toward failure, mirroring the spikes in displacement and velocity attributed to triggering events rather than to the initiation of actual failure. This is, in itself, a significant observation, as it suggests that inverse velocity alone would not have provided reliable failure forecasting for this slope (albeit earlier alarms may retain a degree of conservatism). What the record does reveal, however, is a discernible step change around mid-July, coinciding with a change in relative acceleration and a corresponding inflection in the slope damage curve. The convergence of these three signals at the same point in time strengthens the case for using acceleration and slope damage as complementary indicators, particularly when inverse velocity trends are ambiguous or non-linear.

3. A New Framework to Monitor Slope Failure

This study develops a conceptual and analytical framework for characterizing acceleration in progressive slope failures. The methodology proceeds in two steps:

• The OOA point is defined through a systematic examination of acceleration and slope-damage trends in representative monitoring records.
• A calculation framework is proposed to reliably derive acceleration from displacement time-series data.

The approach emphasizes the distinction between episodic and sustained acceleration as the basis for differentiating regressive from progressive failure states, and establishes the conditions under which inverse velocity analysis is appropriately applied.

3.1. Proposed Acceleration Calculation Framework

The goal of an acceleration calculation framework is to produce mostly null (or zero) values unless an actual event (e.g., slope movement triggered by mining, blasting, or damage) occurs. Unfortunately, the specific periods used to calculate the slope of velocities can vary widely, depending on system and atmospheric parameters. It is suggested that the period spans at least one full day and likely less than one full month (30 days). While 30 days may seem like a long period, its main effect is to dampen the amplitude of acceleration, not necessarily to miss short-term movements. Note that acceleration should be calculated by fitting points using calculated velocity values, themselves obtained via regression, or by another method that determines reliable and consistent velocity values. This may represent a substantial degree of smoothing, and the risk of over-dampening genuine acceleration signals must be acknowledged.

The period should, however, be long enough to bridge over at least two atmospheric events. It is the author’s experience that atmospheric, or system-based deformations, resulting in deformation spikes, can sometimes offset. This may not, however, be true in the case of cumulated spikes. Regardless, the previously stated goal of this smoothing or dampening process remains the same. In general, this should be assessed on a stable (i.e., non-deforming) area, or, if no stable areas are available, on a constantly deforming area. The resulting acceleration should simply be zero, or very close to zero. This will also ensure that the resulting slope damage is zero, unless a change (i.e., not related to data quality) is recorded. Interestingly, following an event such as blasting, the resulting slope damage parameter appears to be a relatively good indicator of the damage induced by the blast (or any other event type).

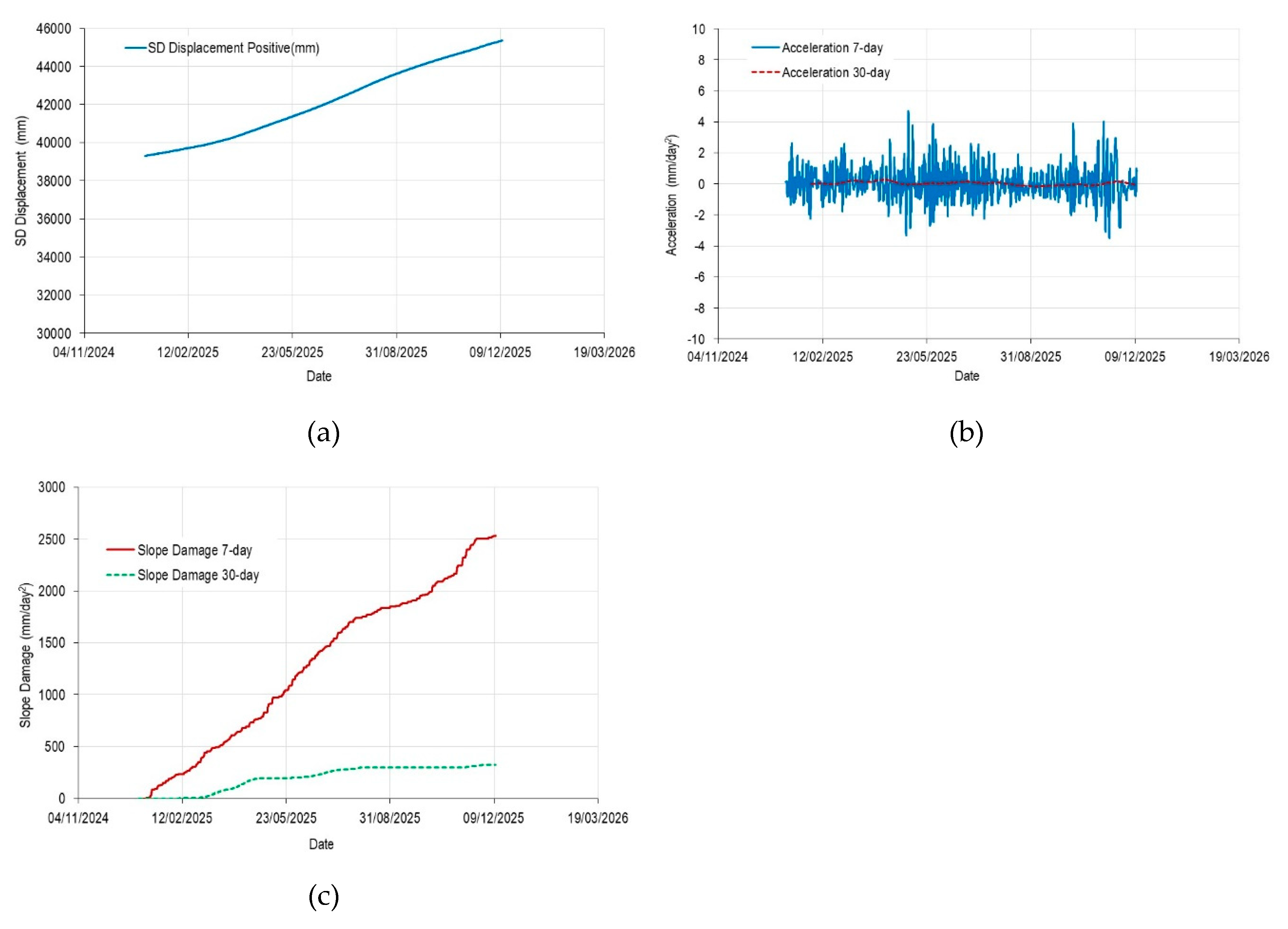

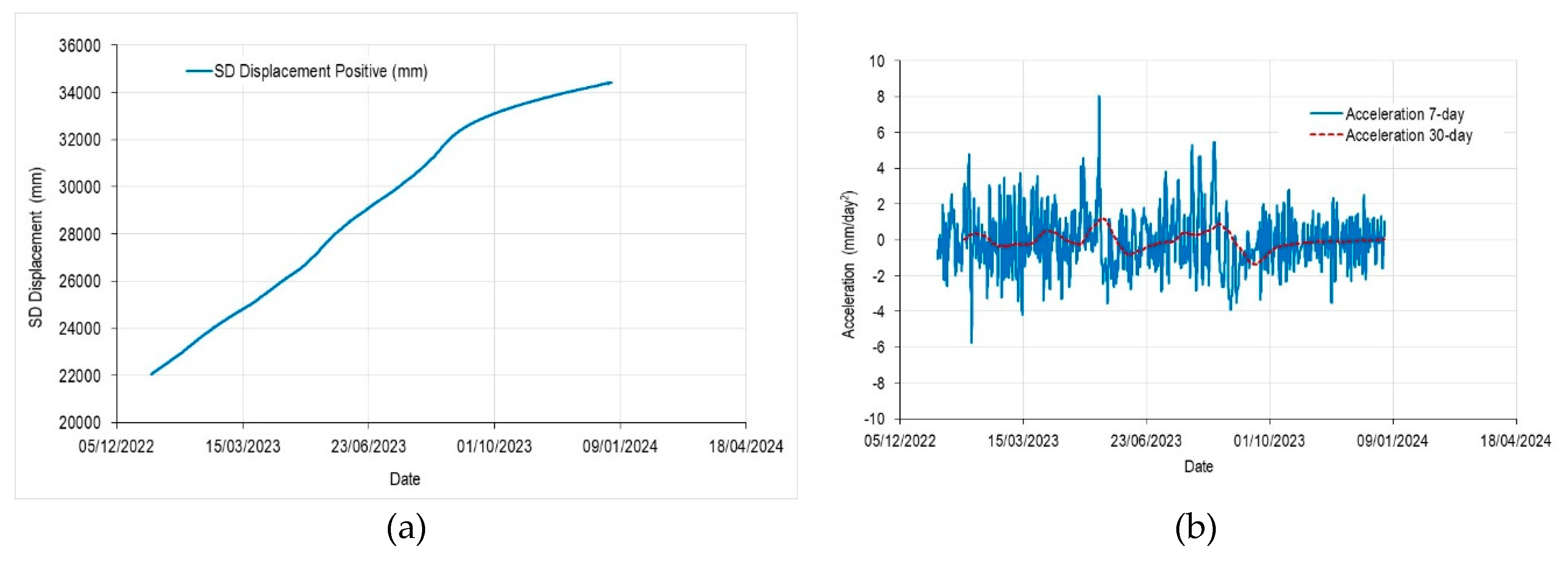

This is further illustrated in Figure 6 and Figure 7 below, which show two comparative plots taken from the same prism set. In Figure 6 (timeframe 2024-2025), the data indicate a period of relative stability despite high deformation. To determine an appropriate period for assessing acceleration, various intervals can be evaluated, as illustrated, with the stated goal of identifying acceleration near zero. An acceleration period of more than 7 days but less than 30 days would be appropriate for identifying a slight acceleration trend in spring of 2025 related, for this specific case, to freshet conditions (Beingessner, 2026). During this period, approximately 10 metres of displacement occurred over one year. Total slope damage accumulation over approximately one year, using acceleration compounded over a 30-day period, is approximately 450 mm/day².

The application of the acceleration framework to an accelerating slope is shown in Figure 7 (timeframe: 2022-2024). Clearly, despite acceleration periods ranging from 1 week to 30 days, acceleration is most pronounced in the 30-day window. Slope damage is clearly accumulating during both acceleration windows. Total slope damage accumulation, over approximately one year, using acceleration compounded over a 30-day period, is approximately 1,000 mm/day². Note that this specific monitoring prism was adjacent to a slope which failed on August 24, 2023.

It is worth noting that new methods, such as Precision Atmospherics [22] or Circular Algorithm modifications, are proposed to provide more reliable and consistent data and are very worthwhile, perhaps somewhat similar (compared to acceleration damping) endeavours that radar providers are utilizing to remove spikes in data. As they are relatively new technologies and subject to intellectual property constraints, it is unclear exactly which smoothing processes are employed to reduce data spikes. However, the resulting plots are not used to determine acceleration or OOA. Additional efforts will be required to successfully implement acceleration methods either within software providers or by geotechnical practitioners.

3.2. Slope Monitoring Frameworks

Comprehensive treatments of slope monitoring frameworks are available in the literature and are not reproduced here in full; the reader is referred in particular to the Large Open Pit (LOP) project guidelines [23,24] and to recent parametric reviews of alarm frameworks and trigger levels [18,25]. Monitoring equipment and software providers also publish reference documentation and training materials that detail implementation. The present section provides only the overview necessary to contextualize the roles of acceleration and OOA, and the conditions for the applicability of inverse velocity, within a TARP framework, and to clarify how parameters such as velocity and acceleration are derived from raw monitoring data across different system types.

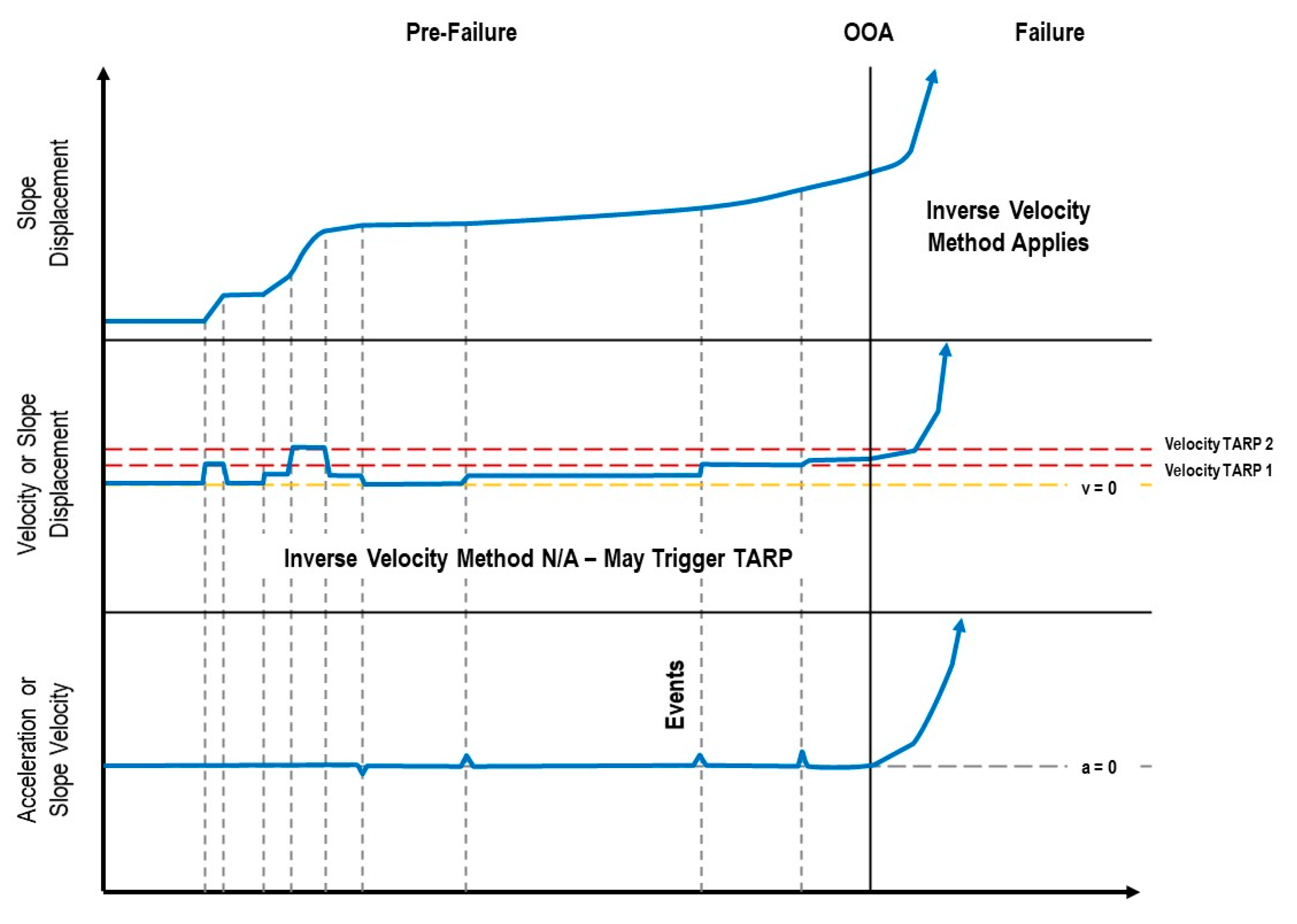

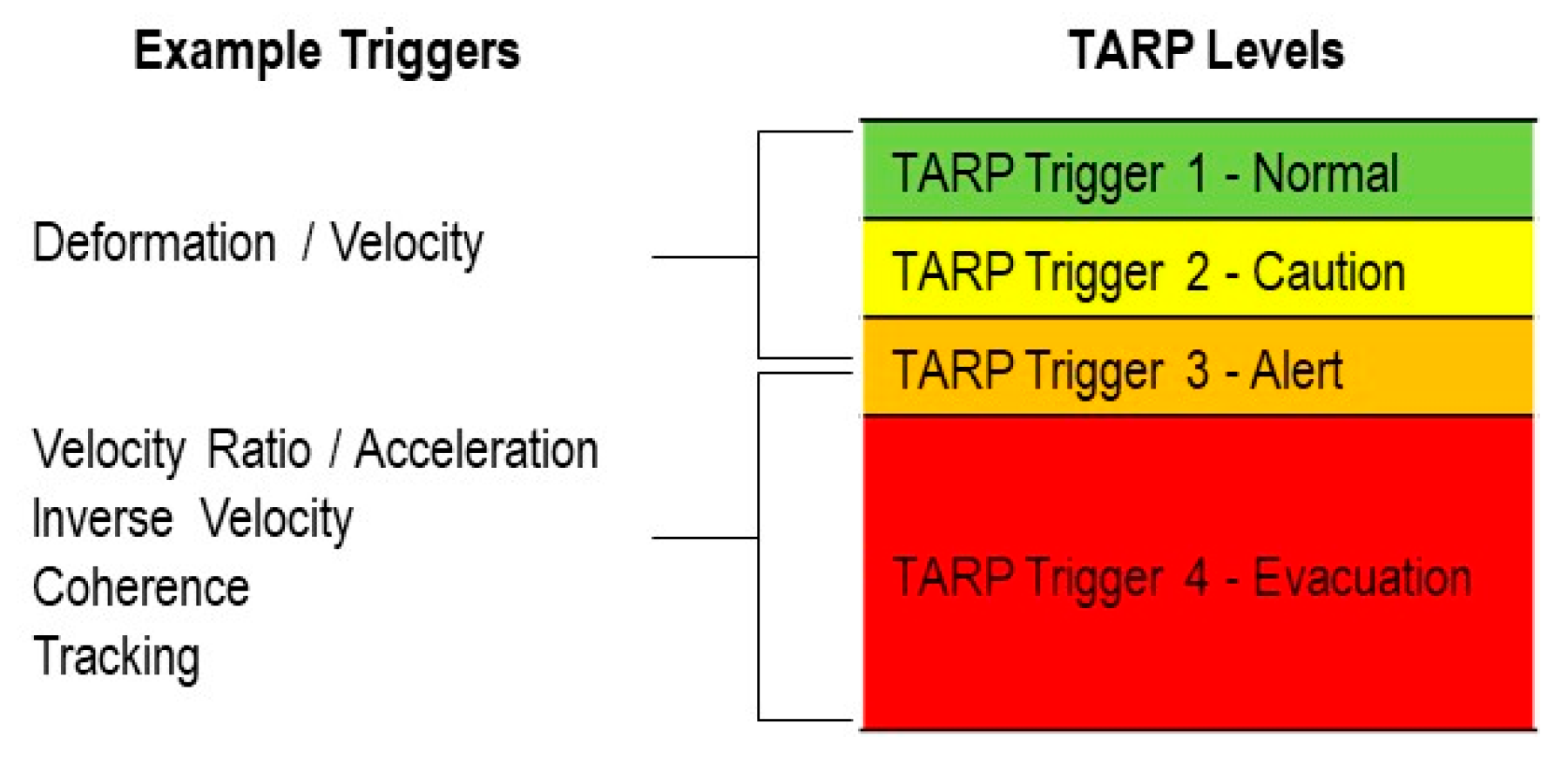

Typical alarm frameworks are structured as layered or stackable trigger levels within TARPs, as illustrated in Figure 8. The primary parameters, including deformation, velocity, velocity ratio, and inverse velocity, are derived from Line-of-Sight (LOS) displacement measurements via successive calculations. Velocity ratio, it should be noted, is functionally related to acceleration, though it is not equivalent to the acceleration metric proposed in this paper. Coherence, used principally in radar-based systems, describes the correlation between successive scans and is particularly useful for detecting rockfall precursors or defining failure boundaries. Tracking refers to the maximum recordable displacement between successive scans and serves as a data quality indicator. Each of these metrics has demonstrated value in slope failure monitoring across a wide range of operational settings [18].

3.3. Proposed Acceleration TARP Framework

The acceleration trends derived from the calculation framework described in Section 3.1 represent meaningful deviations from baseline behaviour when they differ from zero. It should be emphasized, however, that acceleration monitoring is not proposed as a replacement for existing monitoring parameters. Deformation and velocity data retain considerable diagnostic value and remain essential components of a comprehensive slope monitoring framework.

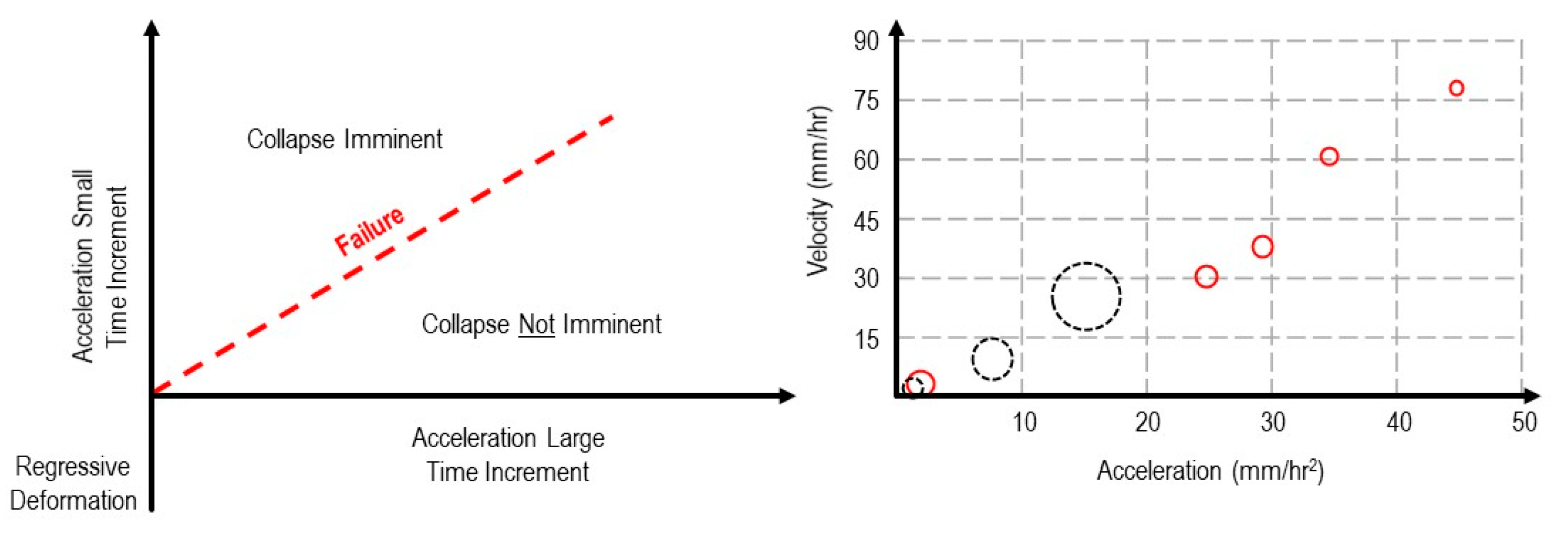

Non-zero acceleration deviations are particularly useful as a screening tool, as they represent departures from expected behaviour. In practice, baseline conditions frequently include instrument cycling, atmospheric effects, and other sources of noise that velocity-based triggers may be disproportionately sensitive to. Sustained positive acceleration, that is, acceleration remaining above zero over a sufficient time window, may indicate the approach to a critical failure state, particularly when accompanied by concurrent increases in deformation and velocity. Under these conditions, the OOA point can be identified, and the inverse velocity method should be applied to estimate potential failure times, as established in the literature [3,7,14].

A potential acceleration trend function leading to failure is discussed in Beingessner [19]. This function is analogous in form to those proposed for deformation and velocity, but is applied to the acceleration signal. Combined use of acceleration and velocity has also been proposed by [27], who demonstrated that plotting the relative magnitude of velocity and acceleration against a trend line can discriminate between stable and non-stable slope states; the approach, illustrated in Figure 9, was reviewed across nine monitoring records at an open pit mine in Norway. Nevertheless, among mining operators and consultants, the inverse velocity method remains the most practical approach for estimating failure time, given its simplicity and established track record.

The TARP framework proposed here and summarised in Table 2, offers a potential middle path: reducing nuisance alarms during regressive conditions while preserving sensitivity to the onset of progressive failure. Acceleration primarily serves to identify the OOA point and to determine when the Fukuzono method [7] is appropriately applied. Episodic acceleration is interpreted as indicative of an incomplete failure surface, whereas sustained positive acceleration suggests that the failure surface is fully, or nearly fully, developed. Supplementary alarm criteria, including coherence, amplitude, and tracking alarms [28], may be applied following OOA identification through acceleration filtering. A known limitation of velocity-based alarms is their susceptibility to atmospheric artifacts, which can generate false positives and contribute to alarm fatigue. Uncritical acceptance of velocity threshold exceedances without assessing contextual trends is therefore problematic. While some practitioners have argued against blanket alarm systems for this reason, a monitoring program that relies solely on periodic trend review introduces its own risks, including susceptibility to heuristic bias and delayed response.

4. Brittle Failure and Rock Bridges

When considering brittle failure processes, the reliability of monitoring-driven TARPs depends not only on the adopted calculation frameworks but also on the underlying geotechnical conditions that govern failure development. Two factors are particularly relevant: the nature of brittle failure processes, which determines whether progressive acceleration, as required by the Fukuzono method [7], will occur; and the role of rock bridges, which governs the transition from episodic to sustained acceleration. This section examines both and develops the conceptual link between rock bridge degradation, fracture network connectivity, and the OOA point.

4.1. Applicability of the Inverse Velocity Method

As previously discussed, the inverse velocity method was developed under controlled laboratory conditions using a model consisting of a sloped concrete base with loose frictional sand, in which failure was induced by wetting. The resulting monitoring data exhibited progressive acceleration, and by inverting the velocity plot, a linear trend was identified, whose intercept with the time axis provided an estimate of the failure time; this linearity was also noted by [3] during the terminal phase preceding catastrophic failure.

The applicability of this method to field conditions has been questioned, particularly given the fundamental differences in stress-strain behaviour between granular soils and rock, and the specific concern that a soil-derived empirical method may not translate reliably to brittle rock failure. Empirical evidence suggests, however, that the method has broad applicability and has performed well across a wide range of failure types, from early documented cases [4,29] to more recent investigations [27] and those documented in Beingessner [19]. The method appears most applicable to failures exhibiting progressive acceleration toward catastrophic collapse. It is less reliably applied in the following circumstances:

• Brittle failures, such as rockfalls or liquefaction events;
• Slopes with strongly contrasting material stiffness or shear strength along the failure surface, where load redistribution is highly localized;
• Sudden, catastrophic events, such as those triggered by extreme seismic loading.

The theoretical basis for the method’s applicability to brittle rock failure has been explored by several authors. Voight [29] invoked subcritical crack growth and progressive stress transfer to adjacent rock as mechanisms for accelerating deformation, a concept further elaborated in the context of creeping landslides by [30]. Reches and Lockner [31] proposed that at a critical crack density, adjacent microcracks interact and propagate unstably into intact rock, generating a shear surface that advances progressively through undeformed material. Helmstetter et al. [32] applied a slider-block model to the La Clapière and Vajont landslides to explore how velocity- and state-dependent friction laws might govern basal sliding. More broadly, material damage laws [33,34] have been applied across a wide range of materials and loading conditions, including strain- and seismic energy-based formulations, providing a theoretical basis for the proposition that materials under load, including rock, may exhibit accelerating deformation preceding catastrophic failure.

Some ambiguity in this discussion stems from the inconsistent use of the term “brittle failure,” which is applied both to sudden, low-ductility fracture following elastic deformation and, separately, to liquefaction, phenomena that are mechanistically distinct. For the purposes of this paper, brittle failure refers to a rapid loss of strength with limited plastic deformation prior to the peak stress, resulting in a comparatively abrupt change in acceleration as observed in monitoring data. This is distinguished from ductile or creep-dominated failure, in which strength loss is gradual and acceleration trends are correspondingly more progressive.

In practice, different portions of a failure surface may simultaneously undergo plastic shear, approach peak strength, or fail through intact rock along microdefects, consistent with the progressive failure framework described by Voight [29]. The precise mechanism operating along any given failure surface is inherently uncertain. What does appear empirically robust is that ground movements follow Newton’s second law: acceleration occurs when a net destabilizing force is applied. This is proposed to hold for both episodic acceleration and for progressive failure following the OOA point, under which conditions the inverse velocity method is considered applicable.

Several case studies presented in Beingessner [19] indicate that brittle failures can be successfully monitored using the inverse velocity method. Some records exhibit steep inverse velocity trends, providing limited warning time; others indicate warning periods of less than one day. However, the same author notes that this specific case is characterized by identifiable precursor signals, including a change in relative acceleration and incremental deformation recorded at the toe of the failure rather than at the crest, consistent with a basal rather than a toppling mechanism. The observation that steeper, smoother inverse-velocity trends are associated with more brittle failure behaviour is consistent with the broader pattern observed across many case studies [19].

It is the authors’ view that brittle failures can, in general, be effectively monitored, particularly with modern high-frequency ground-based monitoring systems. However, an appropriate TARP configuration within a robust governance framework is essential. High-frequency acquisition systems (e.g., two-minute scan intervals) are more susceptible to calculation artifacts than lower-frequency systems, while low-frequency systems (e.g., weekly satellite acquisitions) may fail to capture rapidly evolving events entirely. Acceleration monitoring and slope damage calculations may provide early deviation signals within a Plan-Do-Check-Act (PDCA) framework, offering a basis for tiered alarm response.

Regarding whether the inverse velocity method applies to brittle failure, a binary answer is neither appropriate nor accurate. The method is demonstrably effective in certain brittle-failure settings and requires caution in others. The governing principle remains: for an object to change position, energy must be expended. Large-scale brittle failures in rock should not be treated as inherently sudden or unforeseeable events; rather, they warrant systematic engineering assessment, recognizing that slope movements, however rapid, are physical processes governed by Newton’s second law and, as such, are, in principle, detectable through diligent monitoring.

4.2. Brittle Failure Processes and Slope Damage

Following the conceptual framework introduced in Section 2.2, slope damage can be understood as the cumulative number of acceleration events the slope has undergone. This differs from a strain-based method [20] in that linear velocity strain is not accumulated, and there is no divisor such as slope height. Both methods are thought to be at least partially difficult to implement and track, especially when using non-continuous methods such as ground-based radars, which require frequent re-creation of monitoring records.

The value of the strain-based method is that it is rooted in strain principles, which apply in stress-strain curves and associated laboratory testing of rock samples. A difficulty with the method is that it is somewhat arbitrary to assign a slope height at which the percentage of strain is determined. In complete monitoring records and stable slope heights, such as those presented for a wedge failure at Greenhills [35], strain-based methods appear to show reasonable correlations with OOA at around 2% strain. Some slopes at Gibraltar mine, however, reached a value of 25% prior to failing [20]. Comparatively, slope damage (as currently proposed) is subject to an artificial dampening of acceleration from the outset, which may yield different values depending on the extent of the relative reduction in acceleration amplitude.

Some failures appear to withstand significantly more deformation than others. For example, the in-situ rock in the 2019 Jordan Slide [36]degraded into a soil-like mass before resulting in a 330 kt circular failure. In others, structural geology can result in significant strain with no failure [19]. Recent advancements in geophysical monitoring may offer insights into relative stiffness, resonant frequency, and the monitoring of brittle failure processes at depth, as illustrated by the La Praz landslide [37] and landslides in the Austrian Alps [30].

If stress transfer is a key parameter governing the potential for brittle failure in rock slopes, the conceptual validity of limit equilibrium models under such conditions warrants scrutiny, particularly given their inability to account for the progressive, stress-path-dependent nature of rock bridge failure. The direct quantification of rock bridge contribution within limit equilibrium models presents a fundamental challenge. As discussed by Elmo (2023), the existence and definition of rock bridges depend on the specific rock engineering problem and failure mechanism under consideration. Current industry practice commonly relies on Jennings’ rock bridge percentage method [38]; however, Elmo [39] has demonstrated that this approach can lead to non-conservative assumptions when a rock bridge percentage greater than 10% is assumed in the analysis. This limitation is compounded by a more fundamental problem: direct measurement of rock bridge percentage in the field is not possible, rendering the input parameter itself an unverifiable assumption rather than a measurable quantity. This is further discussed in Section 4.3.

The inverse velocity method in rock slopes can be influenced by factors such as triggers, for example, a reduction in shear strength related to groundwater, damage, or shearing; loading factors such as cyclic loading (seismic, groundwater or other) or placement of material; or removal of passive resistance during mining activities. Indeed, several case studies refer to the removal of a “key-block” [20]. These key blocks provide the last vestiges of strength, holding material in place. In general, they represent regions where potential brittle failure would concentrate and can occur from relatively low amounts of (additional) strain, either along existing fractures or through intact rock. In the case of failure through intact rock, tensile strength and crack development theory [40] may apply more than is currently understood or analyzed, particularly in toppling slopes. In the context of subcritical crack growth and creep velocity [30], the applied stress along a shear plane may increase exponentially within an intact key block. It is proposed that an increase in acceleration amplitude may provide an early indication of this slope condition. Indeed, [19] reported several examples of acceleration curves that resemble seismic (earthquake) plots.

Updates to Griffith’s crack theory, which assessed the direction and associated movements of a fracture, have been further examined by investigating force chains in brittle fracture [41]. As part of this, a conceptual framework was developed to show where loads might develop during a slope failure, as inferred from slope stability radar data [41].

These are all important factors to consider in the case of the inverse velocity method as it relates to failure forecasting, and requires detailed assessments of geotechnical models. For example, structural geology may greatly influence the development of a slope failure and cause it to coalesce in a very different manner [42]. Groundwater, in both pressure and hydromechanical senses, may influence the development and propagation of shear planes [12].

4.2.1. Slope Damage: An Acceleration Framework and Slope Modelling Perspective

Slope damage, from an acceleration-framework and slope-modelling perspective, is most likely to occur during modelling time steps in which the model is changed. In most models, this would occur during excavation steps (akin to removing a block), thereby altering the slope’s stress regime. Other event types could include changes in boundary conditions, changes in pore pressure, or seismically induced events. When considering models capable of simulating time-dependent damage, it would be possible to establish acceleration variations within the model. These accelerations may be episodic and related to an event, followed by a regression to a null (zero) value. In order for this to occur, the stress must have exceeded the strength of the material (ignoring, for the purposes of this discussion, linear elastic response to unloading). In numerical models, these “damage” events typically manifest as yielded elements.

Episodic acceleration that does not progress to failure is, within the context of this paper, classified as accumulating slope damage. Accelerations that progress to failure would be indicated in numerical modelling either by catastrophic failure or by models “failing to resolve” due to deformation amounts exceeding the software’s capacity. This would particularly be the case in “small strain” type models. Slope damage is recorded as progressing to failure through continual acceleration until the model capacity is reached.

Differing modelling types have varying capabilities in this regard [43]. For instance, when assessing the San Leo landslide (Italy), the authors [43] used two different modelling approaches: a Finite-Discrete Element (FDEM) analysis and a lattice-spring model, both of which allow representation of brittle failure, explicit in the former and implicit in the latter. Havaej et al. [21] tested several modelling approaches, including continuum-based frictional plasticity theory, discontinuum-based DEM modelling with Voronoi tessellation, and FDEM modelling with explicit fracture capability. Damage intensity versus simulation time was illustrated graphically on a per-section basis and described a slope-damage approach to failure development.

4.3. OOA Hypothesis and Rock Bridge Strength Degradation

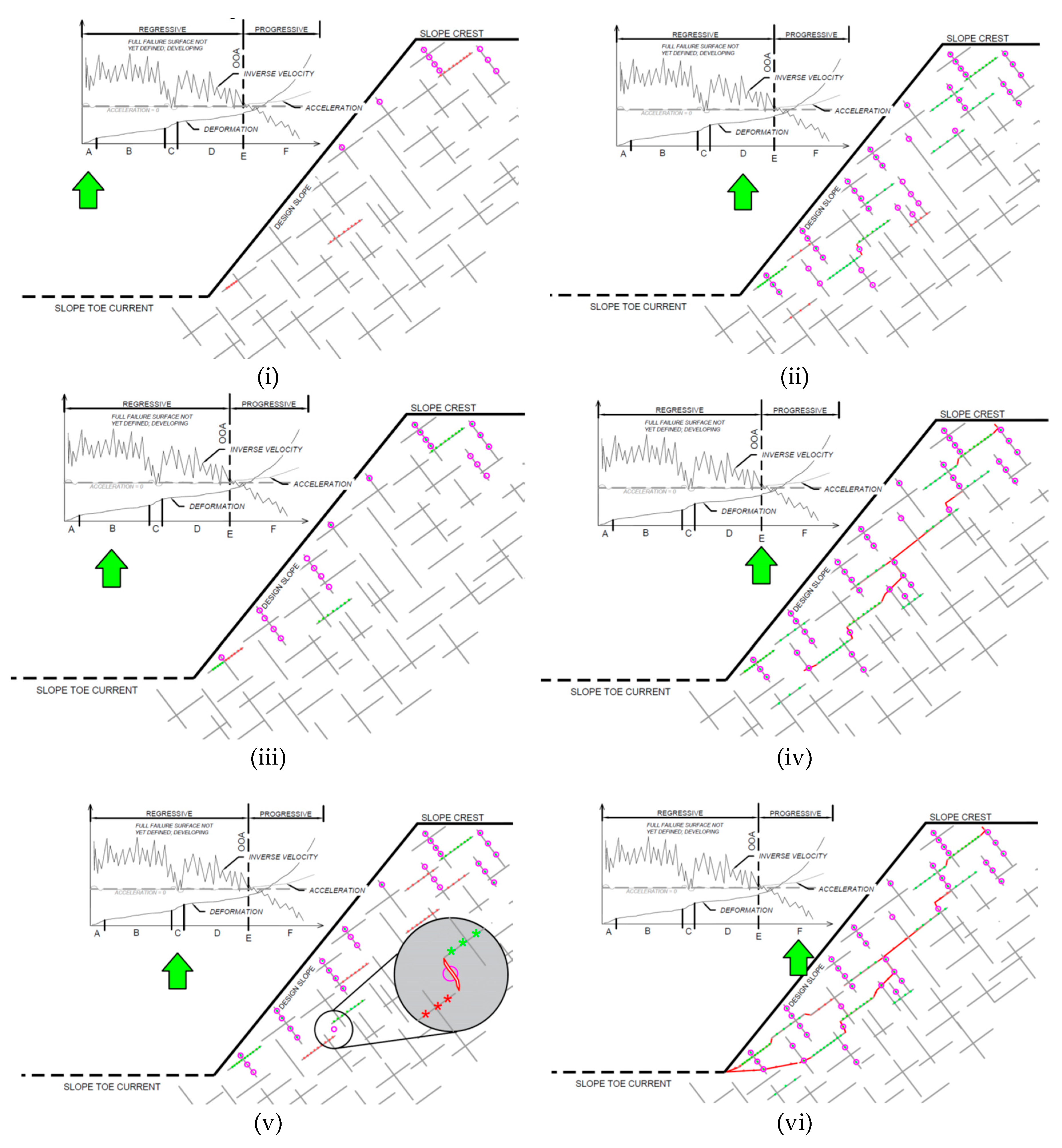

Figure 10 below illustrates a hypothetical slope in which rock bridge failure (i.e., brittle failure) may occur, along with potential slope-monitoring indicators of inverse velocity and acceleration trends, as well as when the OOA and inverse-velocity methods are thought to apply. In our conceptual model, three periods (A, C and E) represent acceleration events. These events could be considered triggered by activities such as mining or blasting. The first two events represent temporary acceleration above zero, during which brittle fracture and shear sliding mechanisms, namely rock bridge failure and displacement across existing joint surfaces, mobilize certain portions of the slope. Small strains result in initial brittle shear along joints, leaving residual shear strength characteristics on portions of the overall slip surface that are not yet fully developed. Other portions of the slip surface, or the intact rock mass, which have not been sheared in a brittle manner, then have comparatively higher stress or driving load (from gravity).

Continual deformation (sometimes referred to as secondary creep) then occurs, until point E, or OOA. At the OOA point, acceleration remains above zero for prolonged periods, and a full, or quite close to full, slip surface exists along the length of the slope. Additionally, as a result of continued deformation and increased load on the comparatively small remaining portions of the slip surface that have yet to be fully mobilized or sheared at peak strength, failure along rock bridges may occur [39,44]. Rock bridge failure may have occurred earlier (as illustrated during period C); however, at the OOA point, it is hypothesized that a comparatively greater failure occurs in the remaining intact portions of the rock bridge due to the increased load. Conceptually, with ongoing deformation (strain) and shear, an increasing number of portions of the overall failure surface are thought to be at residual strength. Prior to OOA (Point E), inverse velocity does not show a consistent linear trend to failure, and acceleration decreases back to zero. At stage E, the OOA point is reached: a fully, or nearly fully, developed failure surface exists, acceleration remains persistently above zero, and inverse velocity follows a sustained linear trend toward failure. Stage F represents the progressive failure phase, during which the inverse velocity method is applicable, and acceleration continues to increase toward collapse. This conceptual interpretation matches failure records listed in [19].

In the context of the inverse velocity method, inverse velocity, acceleration and slope damage may provide clues describing the potential state of rock bridge failure within a slope. As different portions of slopes may deform in different amounts and have different strength characteristics, some portions of slopes may be stable, while others may be comparatively unstable. It stands to reason, then, that wide area monitoring methods provide significant value. Methods such as SSAFE [41] have investigated the assignment of relative stability weightings across a slope.

Up to this point, the discussion has implicitly assumed that rock bridges can be defined and identified prior to failure. Figure 10 reflects this assumption by adopting an implicit definition of rock bridges as the geometric distances between non-persistent fractures. However, Elmo [39] identifies two fundamental restrictions on our knowledge of rock bridges that challenge this assumption:

• A rock bridge comes into existence only the moment it fails. It can neither be observed nor measured before failure.
• Because of this conditional existence, the contribution of rock bridges to rock mass strength can only be described as a potential, not a quantity or a percentage.

The concept of rock bridge potential refers to the capacity of a rock mass to resist failure, governed by a combination of intact rock strength, loading conditions, fracture network connectivity, and block interlocking [39].

During progressive failure (as the example illustrated in Figure 10), the rock bridge potential is dissipated through kinematically controlled mechanisms, elastic deformation, and plastic yielding, resulting in fracturing of the intact rock and block sliding or rotation.

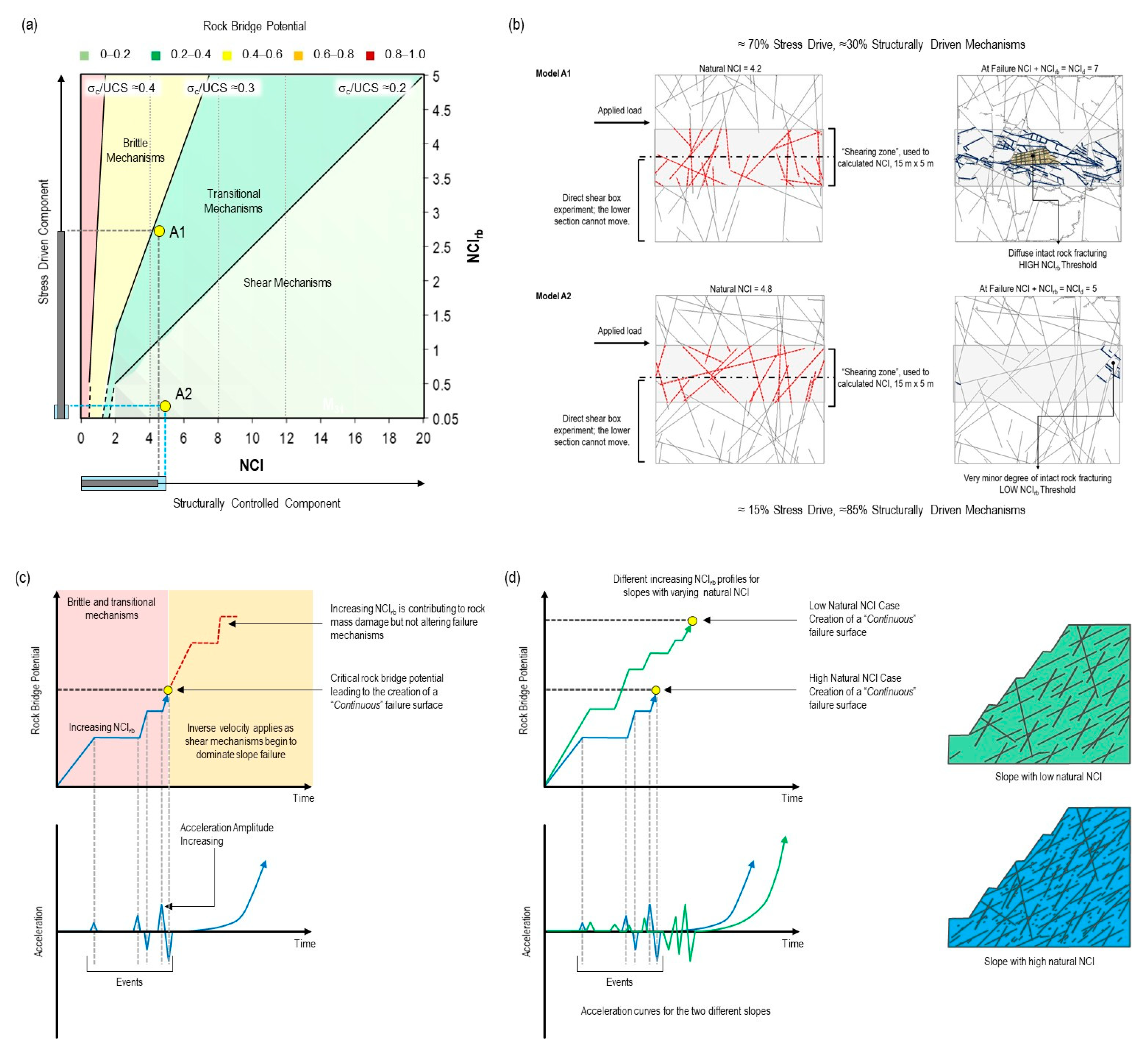

To characterise the degree of connectivity and interlocking within a rock mass, [39,45] developed the Network Connectivity Index (NCI), a connectivity-based characterisation tool that integrates fracture size (fracture intensity), fracture intersections, and fracture density per unit area or volume. The NCI quantifies the degree of fracture network connectivity along a potential failure surface and, by extension, the residual contribution of intact rock bridges to rock mass strength.

Building on this, Elmo [39] proposed that numerical simulations of fracturing processes can be used to define a rock bridge potential, expressed as the ratio of the induced fracturing NCI_rb to the combined total of natural NCI and induced-fracturing NCI_rb at failure (Figure 11a,b). Indeed, Figure 11(b) illustrates how two rock masses with approximately equivalent NCI values yield markedly different NCI_rb values, demonstrating that their failure mechanisms are fundamentally distinct. For rock mass A1, failure is governed largely by stress-driven fracturing, with structurally controlled mechanisms becoming more prominent only after a failure surface has been established. Rock mass A2, by contrast, already presents a near-continuous fracture along the shearing path, resulting in minimal stress-driven failure; the overall mechanism in this case is structurally controlled from the outset.

As a rock slope fails by brittle fracture, NCI_rb increases progressively toward a critical threshold, reflecting the transition from a poorly connected fracture network with significant intact rock bridge strength to a fully connected network governed solely by residual strength (Figure 11c). Applying this reasoning to the context of acceleration monitoring, we therefore hypothesize that the OOA point corresponds to reaching this critical NCI_rb, at which point the remaining rock bridge strength is insufficient to arrest progressive acceleration, and sustained failure becomes inevitable. It follows that the threshold at which inverse velocity becomes applicable, marking the onset of structurally controlled failure mechanisms, is itself a function of the initial natural NCI (Figure 11d). Rock masses with higher natural connectivity will reach this threshold with comparatively less induced fracturing and are therefore more susceptible to a rapid transition from regressive to progressive failure.

It should be acknowledged, however, that NCI_rb is currently a conceptual threshold. Direct measurement of this critical value remains a challenge, and NCI_rb, as currently conceived, must be derived from DFN and geomechanical models subject to well-documented calibration and validation limitations. The hypothesis is nevertheless falsifiable in principle, and establishing empirical bounds on NCI_rb through back-analysis of monitored failures represents a meaningful direction for future work.

5. Discussion and Conclusions

The central argument of this paper is that acceleration, when calculated over an appropriate time window, provides diagnostic information that velocity and displacement monitoring alone cannot reliably provide, specifically, the capacity to distinguish episodic, event-driven deformation from sustained, progressive failure in near real time. The three components of the proposed framework are conceptually unified by this argument. Slope damage, as the cumulative integral of positive accelerations, translates the instantaneous acceleration signal into a progressive record of failure development, providing a clearer visual basis for identifying the OOA point than velocity trends alone. The OOA point, in turn, defines the condition under which the inverse velocity method is appropriately applied; namely, a fully or nearly fully mobilised failure surface along which load redistribution to intact material is no longer possible. The NCI hypothesis connects this mechanical condition to a measurable structural parameter, proposing that the OOA point corresponds to the critical fracture-network connectivity threshold beyond which rock-bridge strength can no longer arrest acceleration. Together, these three elements constitute a framework that advances from signal processing through failure mechanics to structural geology, providing a more physically grounded basis for progressive failure monitoring than currently exists in practice.

The proposed framework is complementary to, rather than a replacement for, existing monitoring practice. The inverse velocity method remains the most practical tool for failure time estimation, as established by decades of empirical application [7,14], and the present work does not challenge its utility within its domain of applicability. Strain-based OOA approaches [46] offer a physically grounded alternative metric for OOA identification, and the slope-damage concept shares a similar motivation as both seek to capture progressive failure development over time. The key distinction is that slope damage is acceleration-derived rather than displacement-derived, which makes it less sensitive to absolute deformation magnitudes and more sensitive to changes in the rate of deformation. This may be advantageous in settings where large background displacements obscure velocity trends, or where failure occurs at relatively low total displacement. Velocity-based TARP thresholds retain their value as hazard management tools, particularly for non-progressive conditions such as surficial ravelling; the present framework does not argue against their use, but proposes that acceleration filtering provides a basis for contextualizing velocity exceedances and reducing alarm fatigue in regressive conditions.

The question of whether the inverse velocity method applies to brittle failure deserves a direct response. The evidence presented in this paper, together with the broader literature, supports the following position: the method is applicable to brittle failures provided that progressive acceleration precedes collapse. That is, provided the failure is not truly instantaneous but involves a period of accelerating deformation, however brief, that is detectable by the monitoring system. The critical practical constraint is therefore not the failure mechanism per se, but the ratio between the duration of the accelerating phase and the monitoring system’s temporal resolution. High-frequency ground-based systems can capture brittle failure precursors that lower-frequency systems would miss entirely. The framework proposed here, in which acceleration is calculated over windows ranging from 1 day to 1 month, is calibrated to detect progressive failure over days to weeks and is less suited to failures that accelerate over hours. For such cases, shorter calculation windows and higher-frequency acquisition are necessary, and the TARP framework should be configured accordingly.

Several limitations of the present work should be acknowledged. First, the acceleration calculation is sensitive to the choice of time window, and no objective criterion currently exists for selecting an appropriate window length for a given site and monitoring system. The guidance offered in Section 3.1, spanning at least one day and no more than one month, with the specific period calibrated against stable reference areas, is necessarily qualitative. Establishing more robust, site-adaptive criteria for window selection represents an important area for further development. Second, the NCIrb threshold is currently a conceptual construct. While the hypothesis is falsifiable in principle, it has not yet been tested against empirical data, and the critical connectivity value at which OOA occurs is unknown. Third, the framework has been illustrated through representative monitoring records rather than validated against a systematic dataset. The conceptual claims are supported by the case study evidence presented, but their generalisability across failure mechanisms, rock mass types, and monitoring system configurations has not been formally established.

These limitations define a clear agenda for future work. The most immediate priority is empirical validation of the acceleration-OOA framework against a larger and more systematically characterised dataset of slope monitoring records, spanning both failure and non-failure cases. This work is directly enabled by the database compiled in [19] and is planned as a follow-on study. Establishing empirical bounds on NCIrb through back-analysis of monitored failures, using DFN and geomechanical models calibrated to documented cases, would provide the first quantitative test of the NCI hypothesis and could ultimately support its integration into design practice. Integration of the acceleration calculation and slope damage framework into slope monitoring software platforms is a practical priority, given that current software limitations are among the principal obstacles to routine acceleration assessment identified in this paper.

Finally, numerical modelling, using hybrid finite-discrete element approaches capable of representing progressive brittle fracture, provides a controlled environment for testing the relationship among rock bridge degradation, fracture network connectivity, and the onset of sustained acceleration. Taken together, these directions position the present conceptual framework as a foundation for a more physically grounded and operationally practical approach to monitoring progressive slope failure.
