Machine Learning-Based Neuroergonomic Stress Quantification of Factory Workers in Human–Robot Collaboration Environments Using Multimodal Data

1. Introduction

Digitisation and automation have reshaped manufacturing systems, leading to the smart factories where Human–Robot Collaboration (HRC) is critical for optimum and desired productivity, flexibility, and quality standards [1]. In these settings, although combining human cognitive strengths with robotic precision offers significant benefits [2], constant interaction with smart machines and adapting to dynamic robot behaviour can also create psychological challenges [3]. These factors may increase cognitive stress among workers in human-robot collaborative environments [3,4].

Technostress, mental strain caused by rapid technological change [5], is particularly evident in human–robot collaborative environments. Although cobots are designed for safety and efficiency [6,7], their close proximity can pose psychological pressure [4]. Continuous monitoring of robot behaviour, fear of unexpected malfunctions, and the need to synchronise with automated systems can induce anxiety. Trusting complicated automated systems for personal safety and productivity can cause mental overload, fatigue, and heightened stress, affecting workers’ cognitive health and job satisfaction [8].

In smart factories, incorporating neuroergonomics and human factors is crucial to create human-centred, stress-free workspaces for employees collaborating with cobots [9,10]. However, the rapid evolution of smart manufacturing has raised concerns about worker health, safety, and prevalent ergonomic problems [11]. Improving employee well-being remains an ongoing challenge for both SMEs and large industrial organisations [12].

Conventionally, mental stress has been evaluated using subjective measures, such as self-report questionnaires and rating systems [13,14,15,16] and behavioural measures, including task accuracy, reaction time, speech features, facial expressions, and gaze behaviour [17,18,19,20]. While these measures provide useful insights, physiological measures offer a more objective assessment by recording stress-induced bodily changes [21,22]. Common physiological indicators include heart rate variability (HRV) [23,24], cortisol levels [25], electrodermal activity (EDA), body temperature, and ocular metrics such as pupil dilation and blink rate [25,26,27]. Advances in sensing technology and data analytics have facilitated the integration of physiological signals, such as electrocardiography (ECG) [28], facial expressions, and speech features [29], into multimodal stress-evaluation frameworks, often combined with machine learning for continuous, real-time monitoring [30,31]. Among these indicators, brain signals, including electroencephalography (EEG) [32], functional magnetic resonance imaging (fMRI) [33]and functional near-infrared spectroscopy (fNIRS) [34] are important for understanding the neurological mechanisms underlying mental stress.

In this study, an experiment is designed to quantify factory workers’ cognitive stress using EEG and fNIRS neuroimaging, along with gaze data such as pupil diameter. Error rate is used as the behavioural indicator, while the NASA Task Load Index (NASA-TLX) [14] and State-Trait Anxiety Inventory (STAI) [15] scores provide subjective assessments. Additional gaze metrics, including fixation duration, number of visits, and visit duration, reflect behavioural responses.

Existing literature shows significant efforts to detect and analyse mental stress; however, to the best of the authors’ knowledge, cognitive stress has not yet been quantified as a continuous, measurable variable. Most prior studies rely on qualitative assessments, self-reports, or observational methods, and recent advances mainly classify stress into binary or multiple categories rather than tracking real-time stress intensity as a quantifiable and measurable factor. Therefore, this research aims to address this gap by developing a novel, comprehensive framework that quantifies cognitive stress and provides meaningful insights for both employers and employees.

This study aims to quantify factory workers’ cognitive stress within a human–machine collaborative environment by simulating a production line and using multidimensional data, including behavioural, physiological, and subjective parameters. A novel stress-quantification framework is proposed, representing one of the first studies to measure mental stress as a measurable variable rather than in categorical levels. Another novelty of this study is that the feature selection followed by an ensemble learning approach has been employed towards the end of the stress quantification pipeline to obtain a final model with improved accuracy (for the classification approach) and lower RMSE (for the regression approach). This approach has also reduced the bias for both classification and regression approaches. The interpretations from this research can be applied to any workspace where humans and cobots coexist.

2. Methodology

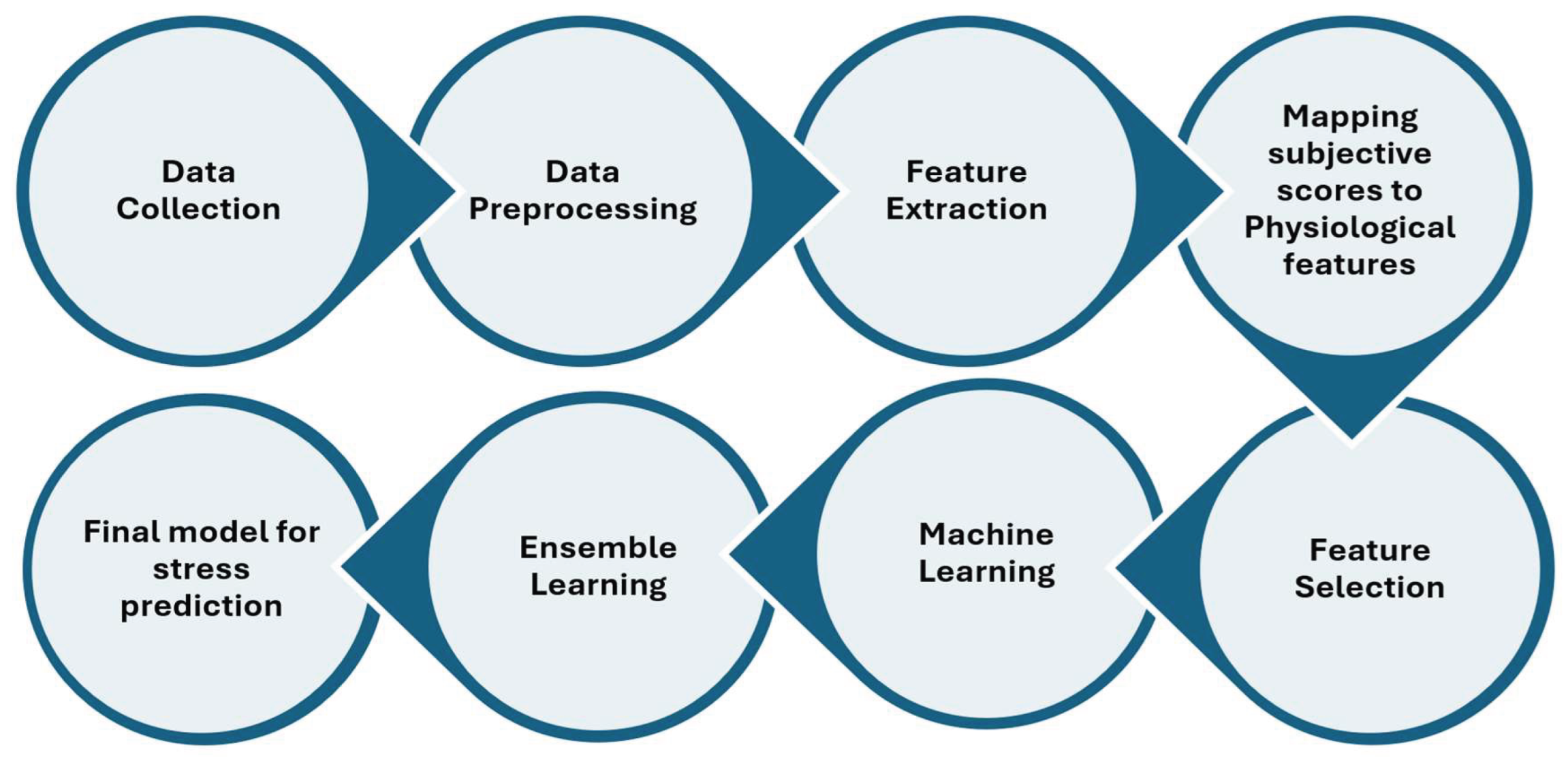

This study uses an eight-step pipeline (Figure 1) to digitise and quantify cognitive stress. The process begins with collecting subjective, behavioural, and physiological data during stress-inducing tasks that mimic real workplace situations. The data preprocessing is then done to remove noise and artefacts, followed by the extraction of statistical, frequency-domain, and time-domain features. A key novelty of the framework is the mapping of subjective stress scores to physiological features to generate labelled data for supervised learning. Feature selection is applied to reduce dimensionality and enhance model efficiency, after which multiple machine-learning models are trained and tested to identify the best predictors of stress. Finally, ensemble learning is employed to improve robustness, accuracy, and reduce overfitting across models.

The ensemble model is ultimately tested and chosen as the framework’s output, providing a predictive model that quantifies mental stress using multidimensional data. This model supports practical applications in real-time occupational stress monitoring. Overall, the pipeline not only enables stress quantification but also contributes to mental health technology by incorporating machine intelligence into mental state analysis.

2.1. Flow of Experiment

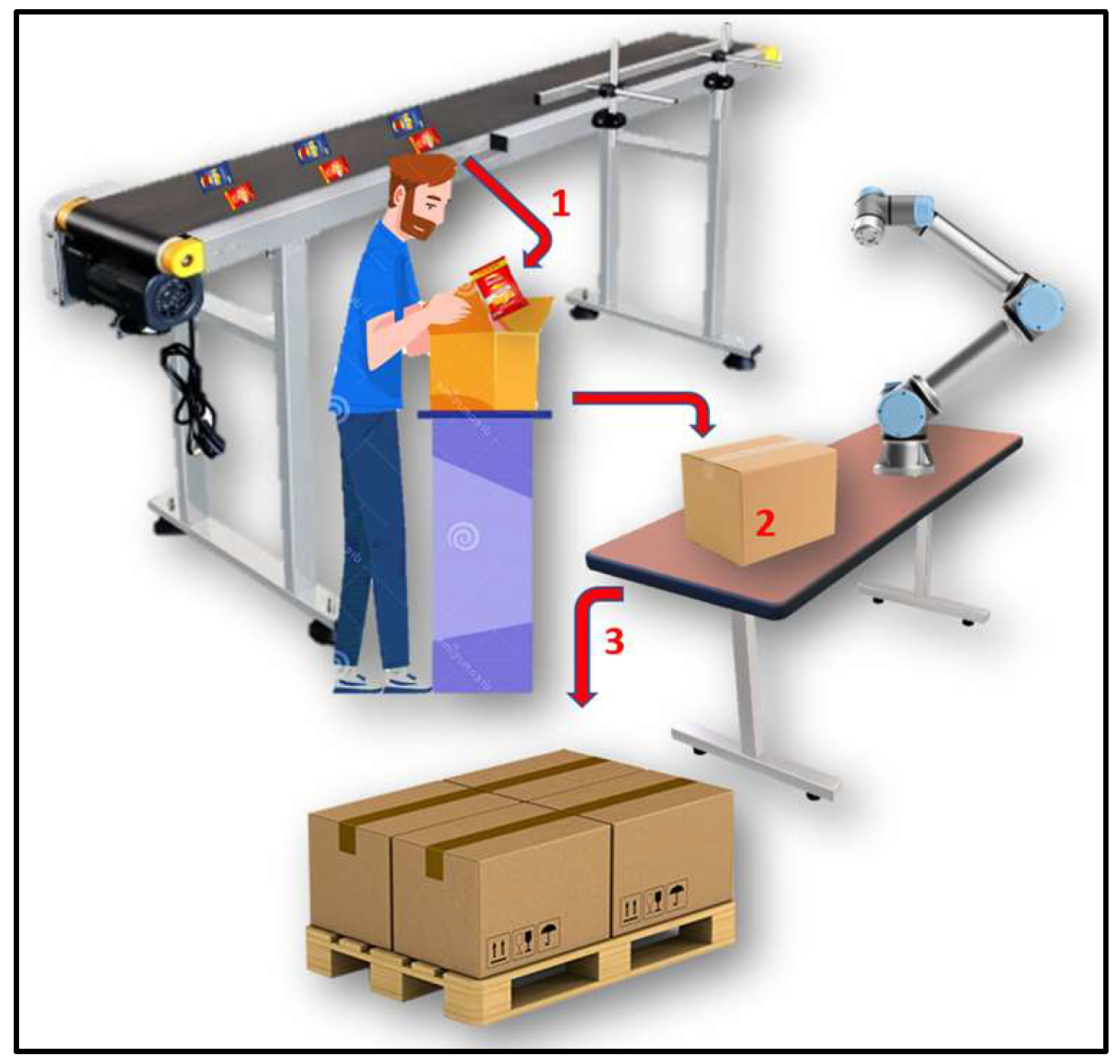

In this experiment, crisp packets are delivered to the participant on a conveyor belt, each displaying a cognitive question. The participant picks up the packets, answers the questions, and drops them into a box. Once the required number of packets is collected, the box is placed in front of the cobot, which completes the packing process before the participant places it on the pallet. As illustrated in Figure 2, this workflow simulates a realistic production scenario. Cognitive stress is evaluated by varying task complexity and speed, noise level, and light intensity.

A secondary task is introduced to increase task complexity. The participant receives a visual stimulus in the form of a damaged packet and must separate these from the intact ones. Damaged packets must not be placed in the box; doing so is counted as an error.

2.2. Experimental Paradigm

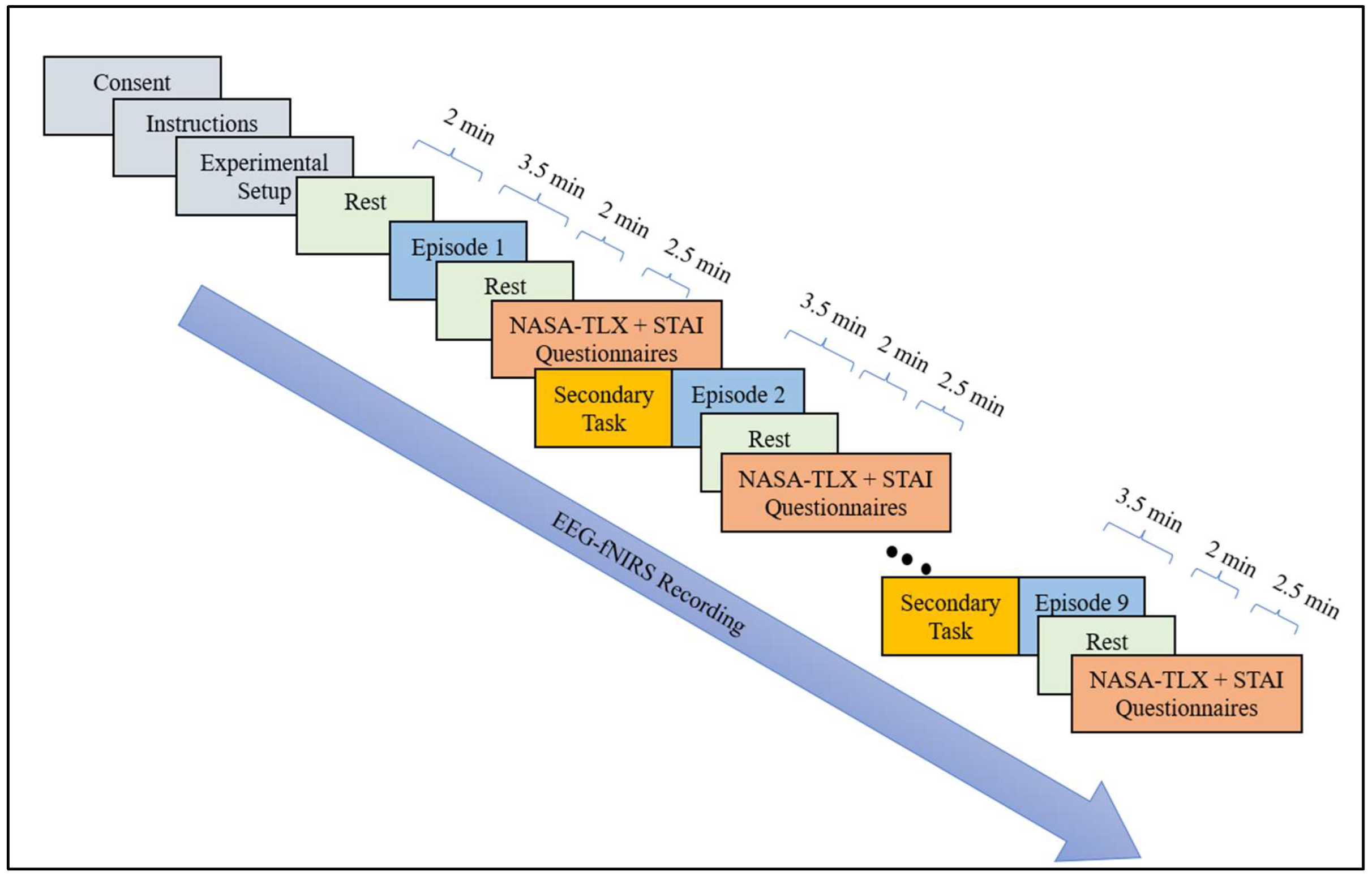

The experiment is designed to record participants’ brain activity continuously for 60 minutes. Before data collection, participants receive instructions, provide informed consent, and have all devices calibrated and fitted. The session begins with a two-minute rest period, followed by the first task episode of approximately 3.5 minutes. After each episode, participants complete the NASA-TLX and STAI questionnaires. As shown in Figure 3 and detailed in Table 1, each episode is conducted under predefined low or high parameter settings. In the ninth episode, the cobot is replaced by a human operator to compare mental stress during human–robot and human–human interaction.

2.3. Data Acquisition

EEG and fNIRS data are gathered to measure neural and hemodynamic activity, respectively. EEG signals are recorded using the TMSi Saga wireless system at a 4000 Hz sampling rate [37], with 19 electrodes positioned according to the international 10–20 system. fNIRS data is acquired using the Artinis Brite device with 21 channels at a 75 Hz sampling frequency [38], with transmitter–receiver pairs spaced 20–30 mm apart. Gaze tracking is conducted throughout the experiment using Tobii Pro Glasses 3, recorded at a sampling frequency of 50 Hz and 25 fps with a 1920×1080 resolution [39]. Subjective measures are recorded after each episode using the NASA-TLX and STAI questionnaires.

2.4. Data Pre-Processing

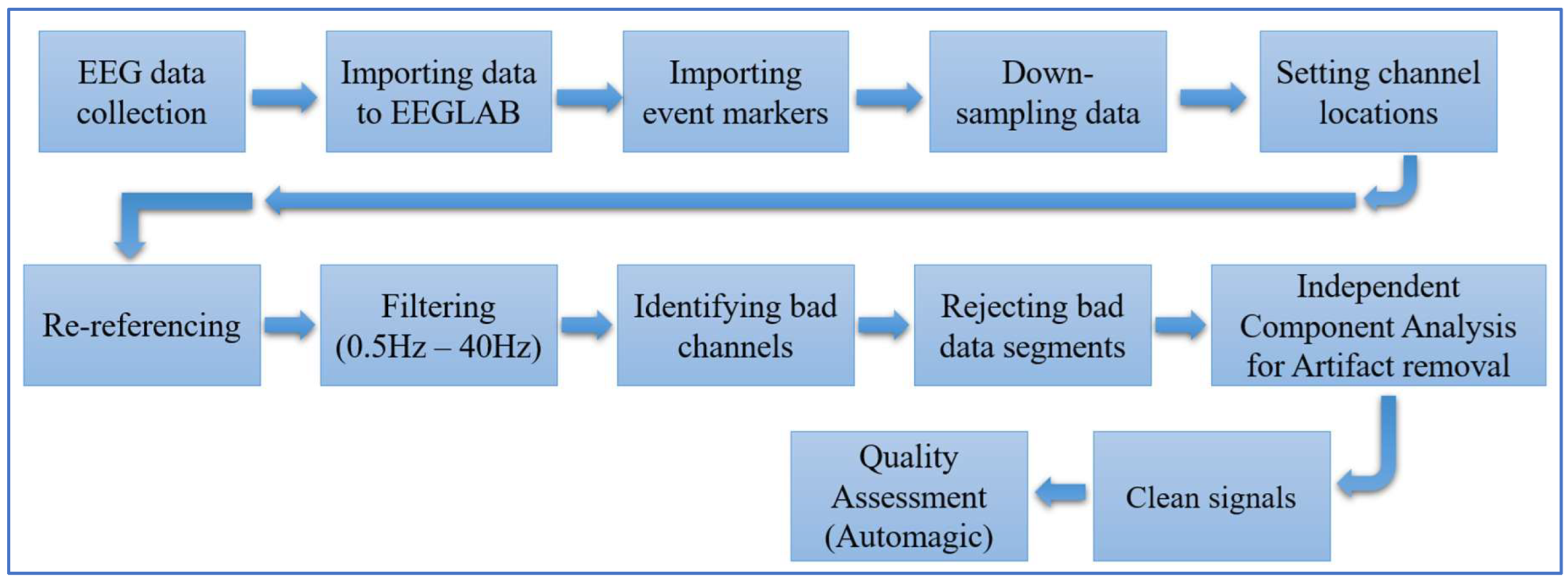

Both EEG and fNIRS data are pre-processed to obtain clean signals (Figure 4 and Figure 5). EEG recordings are first cleaned using an ICA-based method to remove artefacts and non-brain activity, then down-sampled to 250 Hz and filtered with a 0.5–40 Hz band-pass filter to eliminate drift and high-frequency noise. The EEG frequency bands considered include delta (0.5–4 Hz), theta (4–8 Hz), alpha (8–12 Hz), beta (12–28 Hz), and gamma (28–50 Hz) [40].

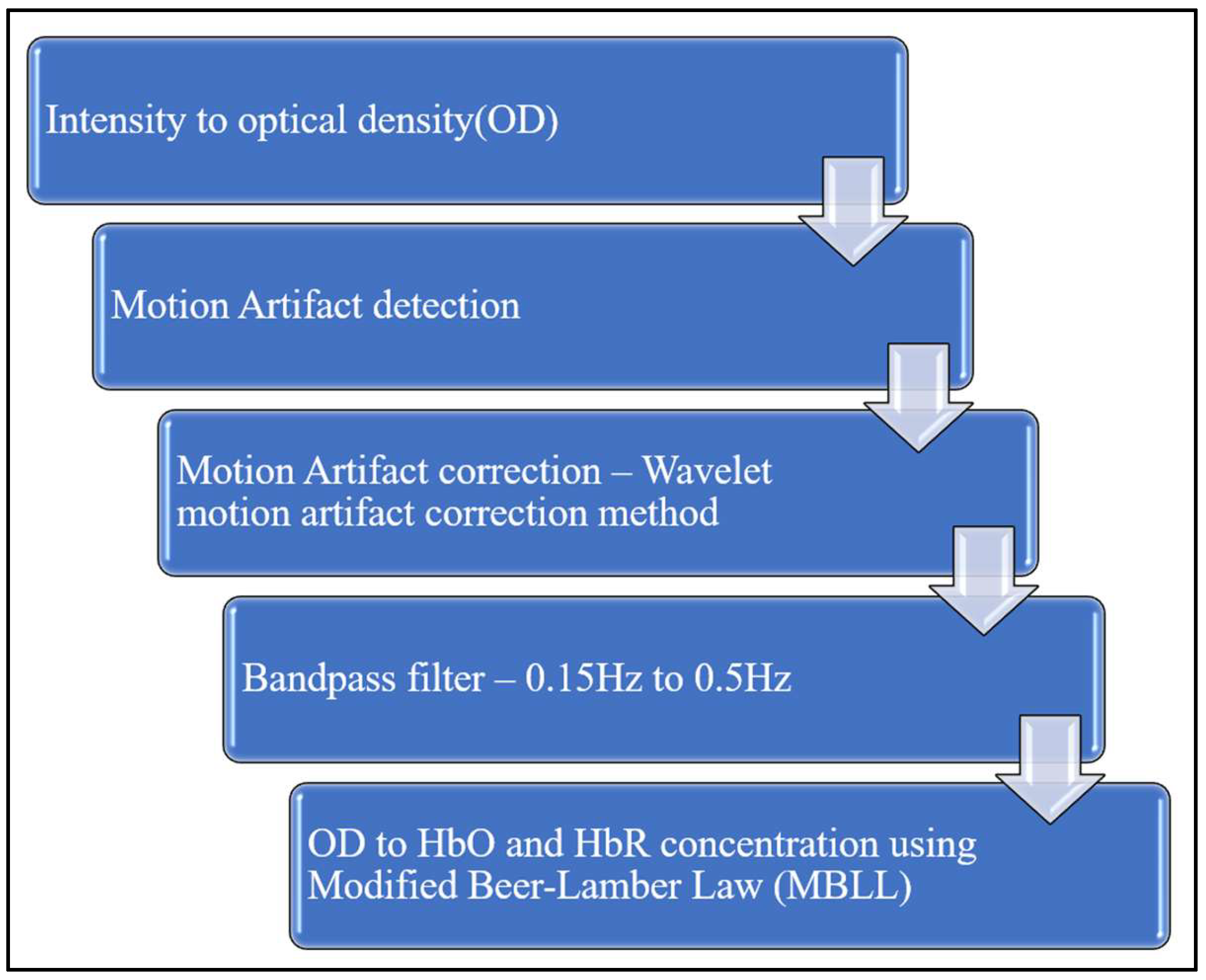

To obtain artefact-free fNIRS signals, the intensity is first transformed to optical density (OD). Motion artefacts are then rectified using a wavelet-based motion artefact correction approach, after which each channel is filtered between 0.15 and 0.5 Hz. Finally, the Modified Beer-Lambert law is applied to convert OD to HbO and HbR concentrations [41].

2.5. Feature Extraction

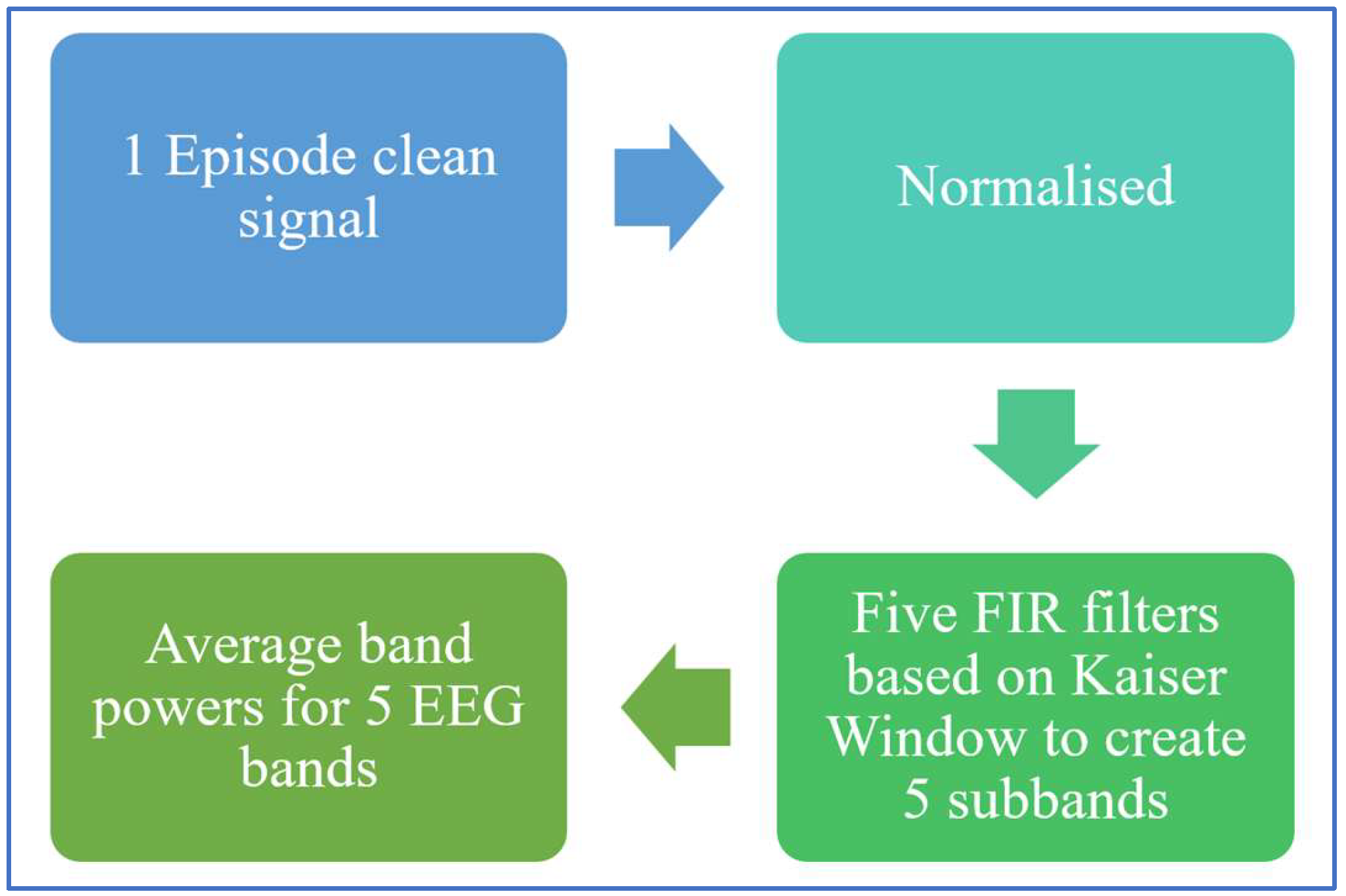

Features are extracted from the pre-processed EEG and fNIRS signals. For EEG, spectral features are computed by normalising each clean signal and applying five Kaiser-window-based FIR filters to generate the standard EEG sub-bands (Figure 6) [42]. The average band powers for five frequency bands are then calculated and used as spectral features.

Several statistical features, including mean, standard deviation, variance, kurtosis, skewness, root mean square, shape factor, impulse factor, first and second differences and their normalised forms, are extracted from the EEG data [43,44]. For fNIRS signals, both linear features (mean, skewness, kurtosis, standard deviation, variance) and nonlinear features (entropy, fractal dimension (box-count), and detrended fluctuation analysis (alpha)) are computed [45].

2.6. Data Selection

For EEG data, all recordings are initially imported into the Automagic toolbox [46], where signal quality is assessed using four measures: the ratio of bad channels, overall high-amplitude data (OHA), timepoints of high variance (THV), and channels of high variance (CHV). Using amplitude and standard-deviation thresholds of 30 μV, found suitable for this dataset, the toolbox classifies each recording as Good, OK, or Bad. This evaluation enables consistent comparison across recordings and supports logical inclusion or exclusion of data in subsequent analysis.

The pertinent EEG data is then selected by visually examining the clean data. The following criteria are applied:

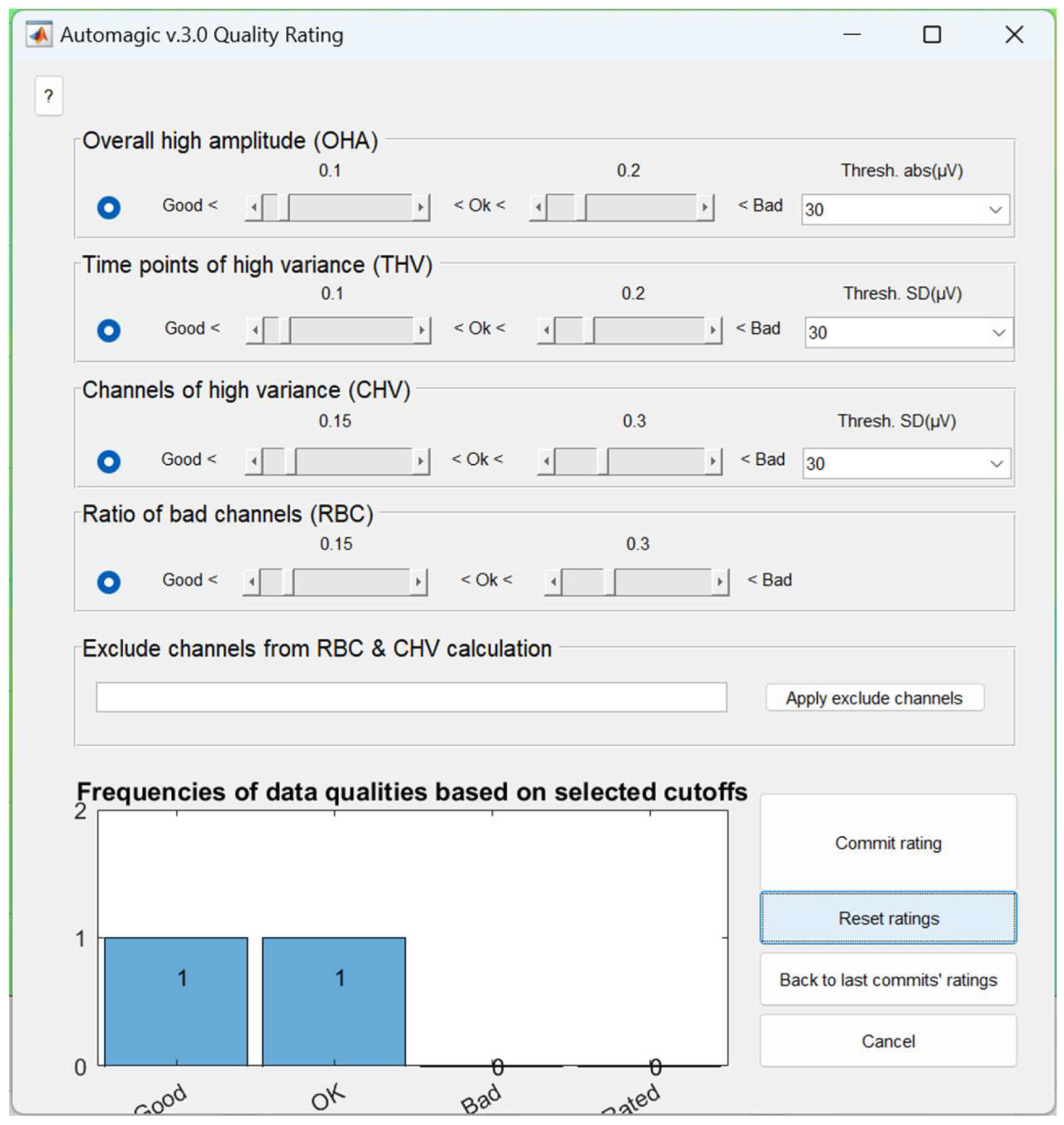

• Only data labelled “Good” or “OK” by the Automagic toolbox are retained, as illustrated in Figure 7.
• Only those participants’ data are eliminated where all episodes are marked as “Bad”.
• Noisy channels identified through visual inspection are removed.
• Only the bad channels’ feature data is excluded instead of discarding an entire episode.

For fNIRS data, the following criteria are adopted to select the relevant data:

• Bad channels affecting signal quality are identified through visual inspection.
• Only the features from bad channels are removed, rather than discarding entire episodes.
• Episodes with brief signal-loss or connection dropouts are excluded.

A few measures are taken to further improve the outcomes:

• Rejecting the first 5 seconds from all episodes, as the participant is not performing any cognitive task during this period, and only the conveyor belt is in motion to deliver the crisp.
• An undefined gap, generated in the feature matrix due to rejecting bad channels, is filled in using the averaging approach.
• Min–max normalisation [47] is applied to scale each feature in the matrix between 0 and 1, using the formula:

$$Z_{norm}={\displaystyle \frac{Z-Z_{min}}{Z_{max}-Z_{min}}}$$

(1)

Machine learning approaches, especially those relying on distance or gradient calculations, can be more biased toward features with wider numerical ranges; however, normalisation ensures that each feature contributes equally [48].

• The ensemble model approach, covered in more detail in section 2.10, is used to determine the optimal feature combination.

2.7. Data Labelling

Mental stress is quantified by mapping the feature matrix to two target scores: NASA-TLX (0–100) [49] and STAI (1–4) [50]. These scores serve as target variables for supervised machine-learning models in both regression and classification approaches. For regression, the feature matrix is labelled with the NASA-TLX score and the STAI score is rescaled to 0–100 to ensure comparability. For classification, NASA-TLX scores are grouped into three stress levels (Table 2). STAI scores are first mapped from 1–4 to 20–80 and then divided into three anxiety levels, as shown in Table 3 [45].

2.8. Machine Learning for Mental Stress Prediction

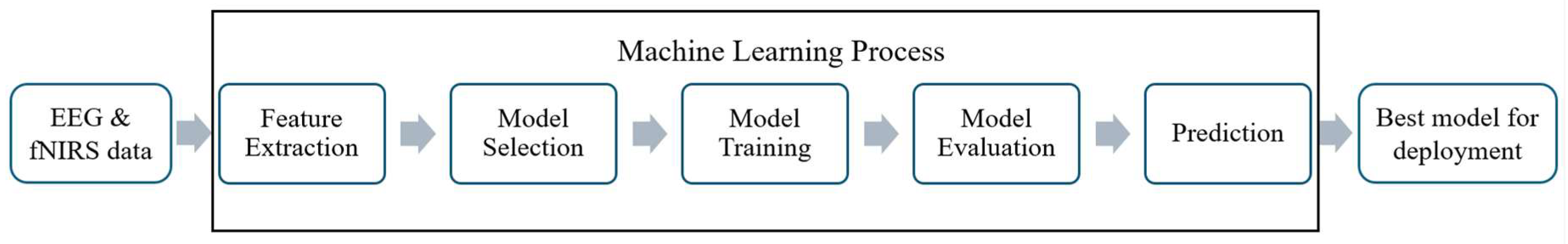

Machine learning algorithms are used to predict cognitive stress and anxiety based on physiological and subjective indicators. Both regression and classification approaches are applied, using 70% of the data for training and 30% for testing, with 5-fold cross-validation to reduce overfitting. As shown in Figure 8, the workflow includes data collection, feature extraction, model selection, training, testing, prediction, and optimal model deployment. Seven regression models, tree, linear regression, including SVM, Gaussian process regression, ensemble, neural networks, and kernel models, are evaluated. For classification, eight techniques are tested, including linear regression, SVM, tree, ensemble, Naïve Bayes, neural networks, kernel, and K-nearest neighbours (KNN). Additionally, other variants of these primary regression and classification methods are examined.

A range of EEG (spectral and statistical) and fNIRS (linear and nonlinear) feature combinations is used to predict both NASA-TLX and STAI targets. All regression and classification models are tested across multiple predictor sets, using accuracy as the metric for classification and RMSE for regression. For each set, the model achieving the lowest RMSE or highest accuracy is selected, and the best feature combination is selected for each target.

2.9. Feature Selection

Feature selection is crucial for developing effective machine learning models, as it identifies the most informative features while removing redundant ones. This process enhances accuracy, minimises overfitting, speeds up computation, and improves interpretability, especially important for dealing with high-dimensional datasets. In this study, ReliefF [51] and the F-test [52] are used for regression, while Kruskal–Wallis [53], ANOVA [54], Chi² [55], and ReliefF [56], are applied for classification.

2.10. Ensemble Learning Approach

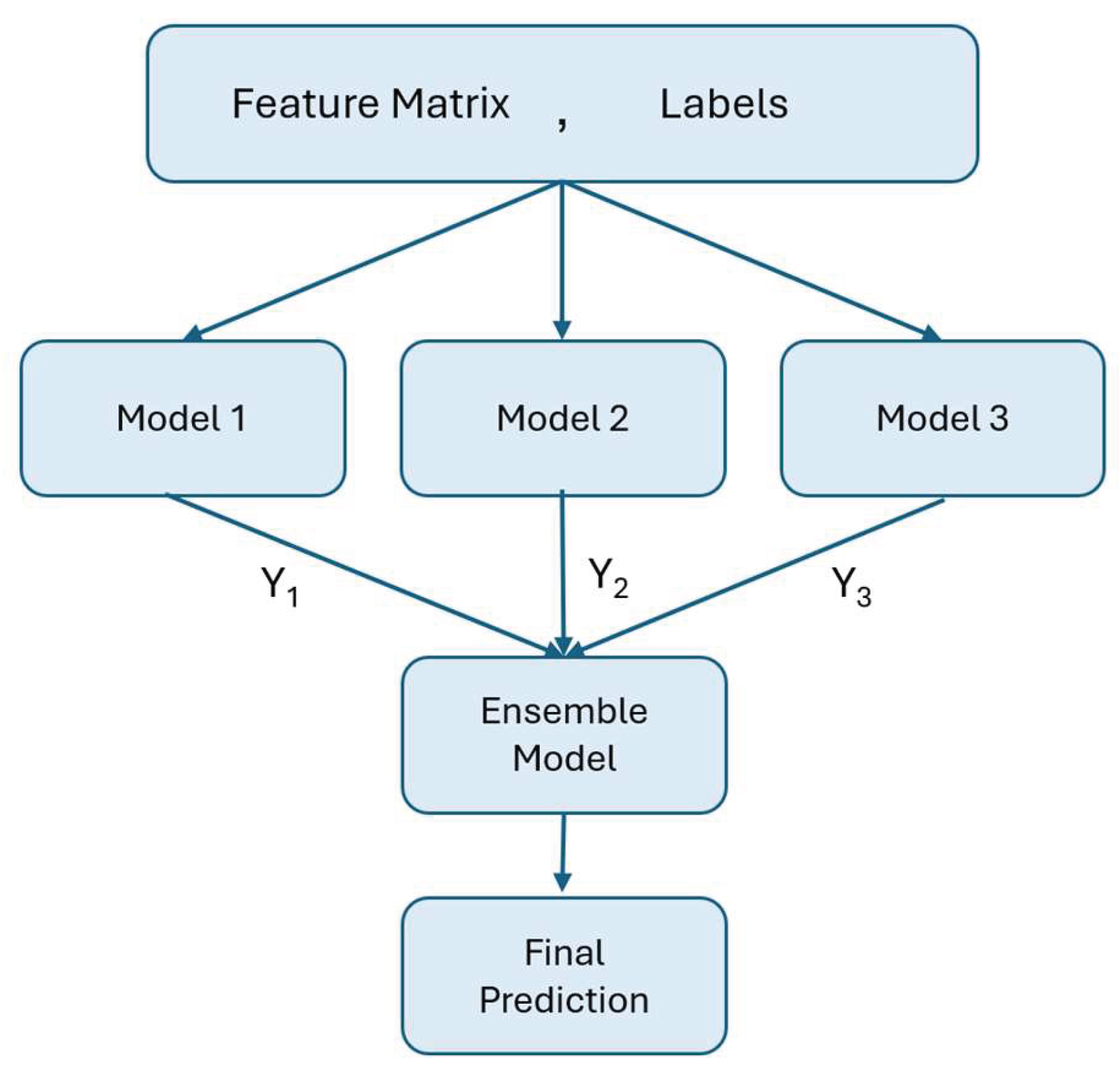

Ensemble learning is a machine learning approach in which multiple base or weak learners are trained and their outputs combined to improve performance [57], as illustrated in Figure 9. By aggregating diverse models, ensemble methods typically outperform individual models in accuracy, robustness, and resistance to overfitting. Although each model has its own advantages and disadvantages, combining them produces more stable predictions and reduces bias and variance [58]. In this study, four ensemble variants, averaging, weighted averaging, majority voting, and weighted majority voting, are employed to identify the best-performing configuration.

These ensemble techniques, including averaging, weighted averaging, majority voting, and weighted majority voting, improve model performance by utilising the strengths of several base learners. The detailed results of the mental stress quantification framework applied to the stress assessment experiment for the factory workers are discussed in Section 3.

2.11. Stress Score Prediction and Visualisation

Another dimension of this study's scope is the development of a digital solution in the form of an Android application, Stress Sense, to monitor workers’ stress levels, enabling preventive measures and seamless communication between workers and supervisors. For this purpose, the mental stress score is predicted using the best-performing machine learning model. The predicted stress score is translated into a visual stress scale, which is integrated within the Android app to support mental stress interpretation.

3. Results and Discussion

The suggested stress-quantification framework is demonstrated through a factory workers’ stress assessment experiment, where participants perform mentally challenging tasks alongside a pick-and-place activity in a smart factory setting, and multidimensional data have been gathered. The goal is to identify critical stress indicators and predict mental stress in a digitised format using machine learning to help employers and employees better understand employees’ mental condition.

3.1. Regression

The regression approach was initially applied to two datasets, one using the complete feature matrix (EEG and fNIRS) and another with data rejection based on data selection criteria, to compare the results and observe the effects of data selection. Using NASA-TLX and STAI scores as target variables, this comparison has enabled evaluation of how selective data inclusion influences the accuracy and reliability of regression results.

Initially, regression is applied separately to EEG spectral features, EEG statistical features, and fNIRS linear and nonlinear features, followed by combined EEG and fNIRS predictors for both targets. All seven regression techniques are tested for each feature set, and the best-performing model is reported. Using the entire dataset without data rejection, the ensemble model achieves the lowest validation RMSE (18.48) and a test RMSE of 13.59 for the STAI score as the target, as shown in Figure 10.

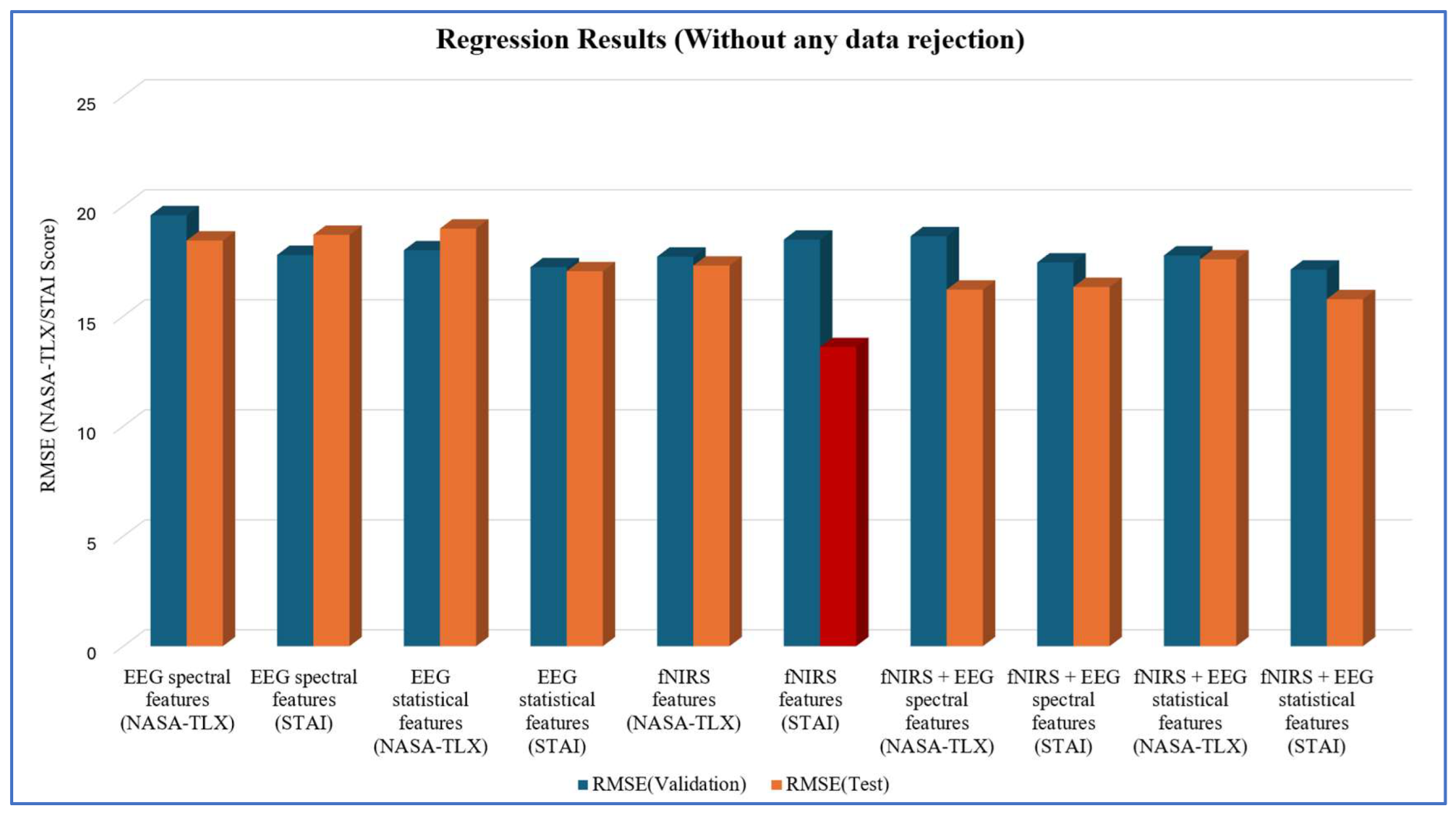

Figure 10 indicates that fNIRS features alone achieve the best performance for the full, unrejected dataset, with the ensemble model performing optimally and highlighting the significance of linear and nonlinear fNIRS features. Combining fNIRS with EEG statistical features shows the best performance for the STAI score as the target, emphasising the importance of EEG statistical predictors. In contrast, EEG spectral features consistently produce higher RMSE values for NASA-TLX, while fNIRS features provide low RMSE for the STAI score as the target.

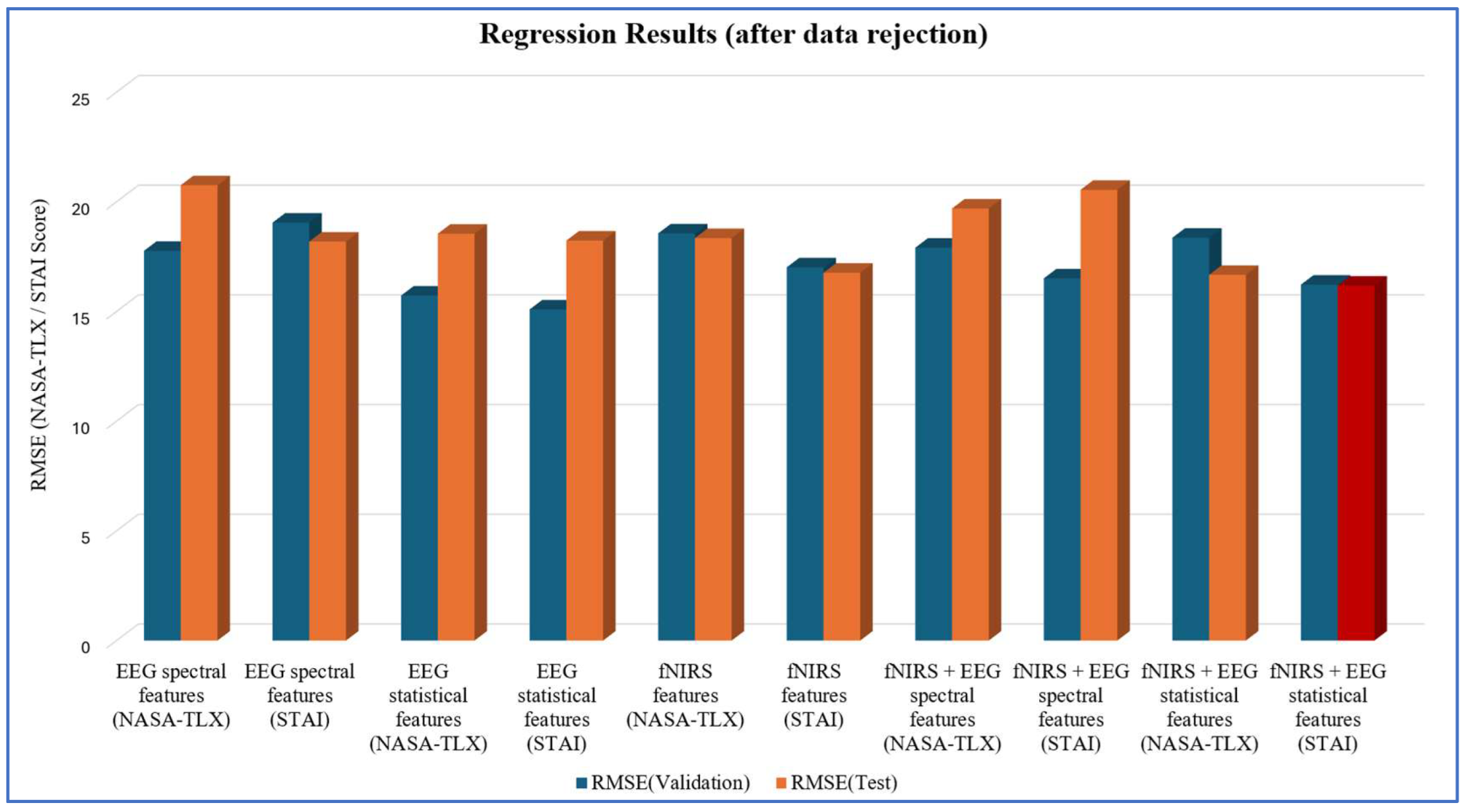

After applying data-selection criteria, multiple models are tested using EEG-only, fNIRS-only, and combined feature sets for both targets, NASA-TLX and STAI scores. The best performance is achieved by combining EEG statistical and fNIRS features, with the ensemble model (Figure 11) reaching a validation RMSE of 16.22 and a test RMSE of 16.18 for the STAI score as the target. Overall, EEG spectral features continue to show higher RMSE values than statistical features across both targets.

In the unrejected dataset, most feature sets produce a minimum test RMSE of around 18, with the best case reaching approximately 14. However, this does not indicate that the no-rejection technique is superior. Noise and artefacts can deceptively boost performance and reduce real-world generalisability. Data selection ensures cleaner inputs, lowers bias from poor-quality segments, and yields more consistent performance across feature sets [59]. Although the test RMSE is slightly higher after data selection, the reduced gap between validation and test suggests improved robustness and reduced overfitting [60]. Overall, data selection is essential for obtaining reliable and generalisable regression results.

A few strategies have been investigated to observe their effect on the outcomes, as mentioned in Section 2.6. After rejecting the initial five seconds of each episode in the fNIRS and EEG data, the feature matrix's undefined values are filled using the averaging approach. The best results were obtained by combining EEG spectral features and fNIRS features, with the STAI score as the target, and adopting Gaussian Process Regression as the regression algorithm (validation RMSE: 16.074), resulting in a minimum test RMSE of 11.747.

Normalisation is then applied to improve model performance by reducing scale-related bias in the selected feature set (combined fNIRS and EEG spectral features). Using the STAI score as the target, seven regression models were tested on the normalised data, with SVM achieving the best results (validation RMSE: 15.884; test RMSE: 11.563). The lower test RMSE indicates better generalisation, showing that normalisation can help maintain a consistent scale for all features while reducing bias from overly large-valued features. Overall, normalisation enhances feature comparability, stabilises training, and helps the model more effectively capture stress patterns in multimodal physiological data.

3.2. Classification

Similarly, the classification approach has been employed for two datasets, the dataset without any data rejected and the dataset selected based on data selection criteria stated in Section 2.6, to compare the outcomes. The results for the full dataset have been obtained first, followed by the selected dataset after data rejection. Like regression, the two targets for this strategy are NASA-TLX and STAI scores.

This investigation followed a similar approach to regression analysis. For the first dataset, EEG features are employed first, followed by fNIRS features, and then combined feature sets. As shown in Figure 12, eight classifiers are tested for each predictor set, and the best-performing model is demonstrated. The highest test accuracy of 67.30% (validation accuracy 60.97%) is achieved using combined fNIRS and EEG spectral features with the STAI score as the target, and neural networks as the best performing model.

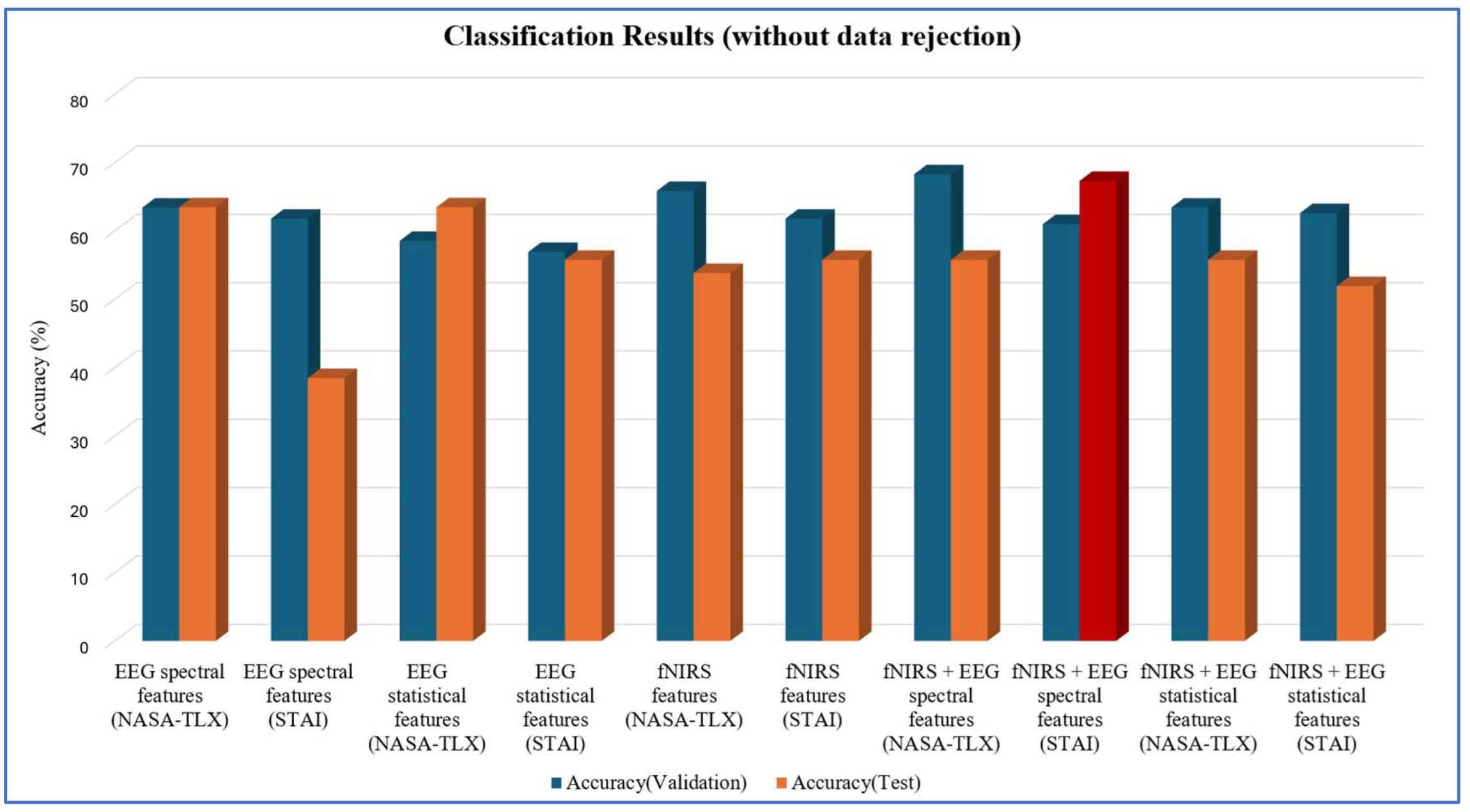

Figure 12 depicts the optimal performance achieved by combining EEG and fNIRS features for several classifiers, using the first dataset with the STAI score as the target, demonstrating the contribution of EEG features. In most cases, accuracy is higher using NASA-TLX as the target.

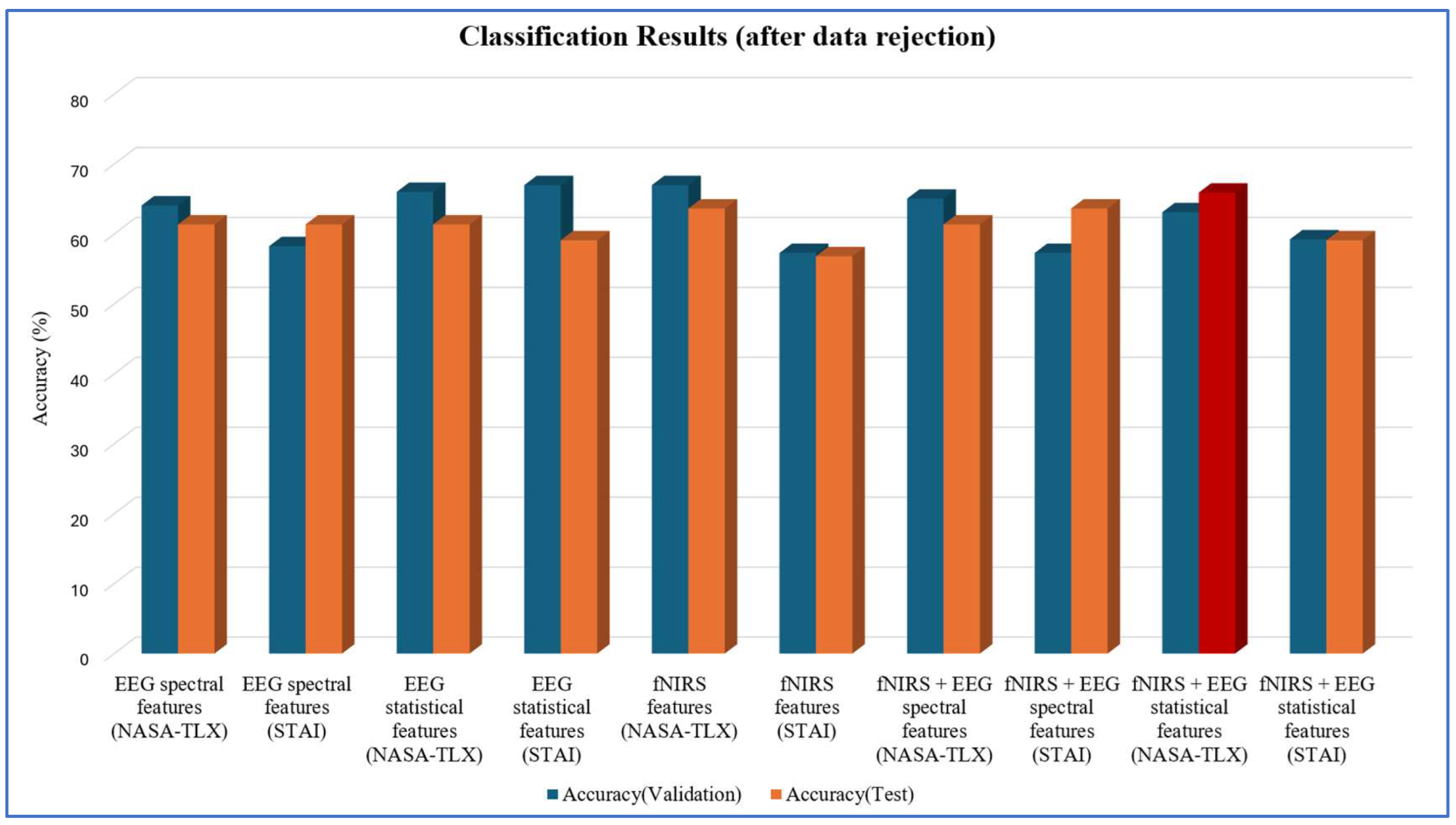

After applying data-selection criteria, the classification approach is repeated across all EEG, fNIRS, and combined feature sets using eight classifiers. As shown in Figure 13, the highest test accuracy of 65.9% (validation accuracy 63.1%) is achieved by combining fNIRS and EEG statistical features with the NASA-TLX target using neural networks, highlighting the significance of EEG statistical measures [32] and both linear [61,62] and nonlinear fNIRS features [45]. Overall, most predictor sets show higher accuracy when NASA-TLX is used as the target.

After applying the data-selection criteria, validation accuracies decrease slightly compared to the unrejected dataset, but test accuracies become significantly more consistent. For example, the fNIRS + EEG spectral feature set (target: STAI score) shows a sharp drop from ~70% validation accuracy to ~55% on the test set, indicating overfitting. In contrast, the fNIRS + EEG statistical feature set (target: NASA-TLX score) achieves a consistent test accuracy of ~66%, closely matching its validation accuracy and demonstrating improved robustness. This pattern aligns with the principle that cleaner datasets may yield lower validation performance yet generalise better [63], as noise removal reduces overfitting and helps models learn meaningful patterns [64]. Consequently, although accuracy decreases slightly after data rejection, the resulting models are more reliable and generalisable.

Further refinements, removing the initial five seconds of each EEG and fNIRS recording and filling missing values using averaging, improve performance. Using combined fNIRS and EEG statistical features with STAI as the target, SVM achieves a test accuracy of 79.55% (validation accuracy: 66.02%). After normalisation, the same test accuracy is maintained (validation: 64.08%), suggesting enhanced generalisation to unseen data. The significant difference between validation and test accuracy likely reflects that the validation set is not entirely representative of the underlying data distribution, or that the test set aligned better with the features used by the classifier.

3.3. Results After Feature Selection and Ensemble Approach

As outlined in Section 2.9, multiple feature selection algorithms are used to retain the most relevant features while rejecting redundant ones, for both regression and classification approaches. After applying the machine learning algorithms, an ensemble model is utilised to further reduce bias and improve robustness. The final model, chosen based on its optimal performance, is used to predict mental stress.

3.3.1. Regression

For the regression approach, the combined fNIRS and EEG spectral feature set with STAI score as the target has shown the best performance. Two feature selection techniques, ReliefF and the F-test, are applied to identify the most significant features. Table 4 displays the number of features retained, the number of machine learning approaches used to apply the ensemble model and the resulting test RMSE values.

Using ReliefF, with 0 as the threshold, has retained 213 of 284 features, producing the lowest test RMSE of 10.86 when combined with the ensemble model. The F-test, with the 10th-percentile threshold, has kept 211 features and achieved a higher RMSE of 11.32 when employed with the ensemble model. As ReliefF performed best, as shown in Table 4, it is used for channel selection. The channel selection criterion followed here is that if more than 4 features in a channel are rejected, the entire channel is removed. This led to the exclusion of one EEG channel and six fNIRS channels, leaving 210 features and yielding a test RMSE of 11.19.

Without feature selection, the baseline RMSE is slightly below 11. Applying ReliefF reduces the RMSE to about 10.85, giving the best performance among all methods. In contrast, the F-test produces the highest RMSE at around 11.35, indicating weaker performance. After channel selection using ReliefF, the RMSE rises to approximately roughly 11.2, still better than the F-test but not as strong as using ReliefF alone.

ReliefF outperforms the other feature-selection methods because it effectively handles complex, high-dimensional, and noisy multimodal data, capturing nonlinear feature interactions that statistical tests like the F-test cannot [65]. Its robustness to noise and redundancy improves generalisability and reduces RMSE, achieving the best value of about 10.85. The strongest regression performance is obtained by applying ReliefF followed by an ensemble model using the combined fNIRS and EEG statistical feature set, which is then used to quantify factory workers’ mental stress.

3.3.2. Classification

Similar to the regression analysis, the combined fNIRS and EEG statistical feature set, with the STAI score as the target, is used for feature selection and ensemble modelling. Four feature selection techniques (Kruskal–Wallis, ANOVA, Chi², and ReliefF) are applied to select the most informative features. Table 5 compares the results after applying the feature selection algorithms followed by an ensemble model.

For Kruskal–Wallis, features scoring below 10% of the highest rank are eliminated, leaving 316 of 417 features. ReliefF has used a threshold of 0, while ANOVA and Chi² are tested with two thresholds: 10% of the highest rank and the 10th percentile. As shown in Table 5, the highest accuracy (84.1%) is achieved using Chi² with the 10% rank threshold. The selected Chi² features are then utilised for channel selection, applying the same rule as in the regression analysis; channels with more than four rejected features are removed. This resulted in retaining 351 of 417 features, with only one EEG channel and six fNIRS channels discarded. Using these selected channels, the final ensemble model has achieved a test accuracy of 77.27%.

Without feature selection, the ensemble classifier achieves a baseline accuracy of about 81%. Using Chi² with a 10% rank threshold increases accuracy to approximately 85%, demonstrating its effectiveness in identifying relevant features and removing redundancy. ANOVA and Kruskal–Wallis yield similar accuracies of around 80%, while ReliefF performs the worst at roughly 75%. After channel selection based on the best Chi² configuration, test accuracy decreases to about 78%, suggesting that some relevant features may have been eliminated.

Chi² is particularly effective for categorical outcomes because it evaluates how strongly each feature’s distribution correlates with discrete class separation [66]. In this experiment, it successfully identifies distinct EEG and fNIRS patterns across stress levels. Eliminating the lowest-ranked 10% of features reduces noise and minimises overfitting, enabling the model to focus on the most informative predictors. This balance enhances overall classification accuracy by retaining relevant features while discarding redundant ones.

3.4. Digital Solution Development

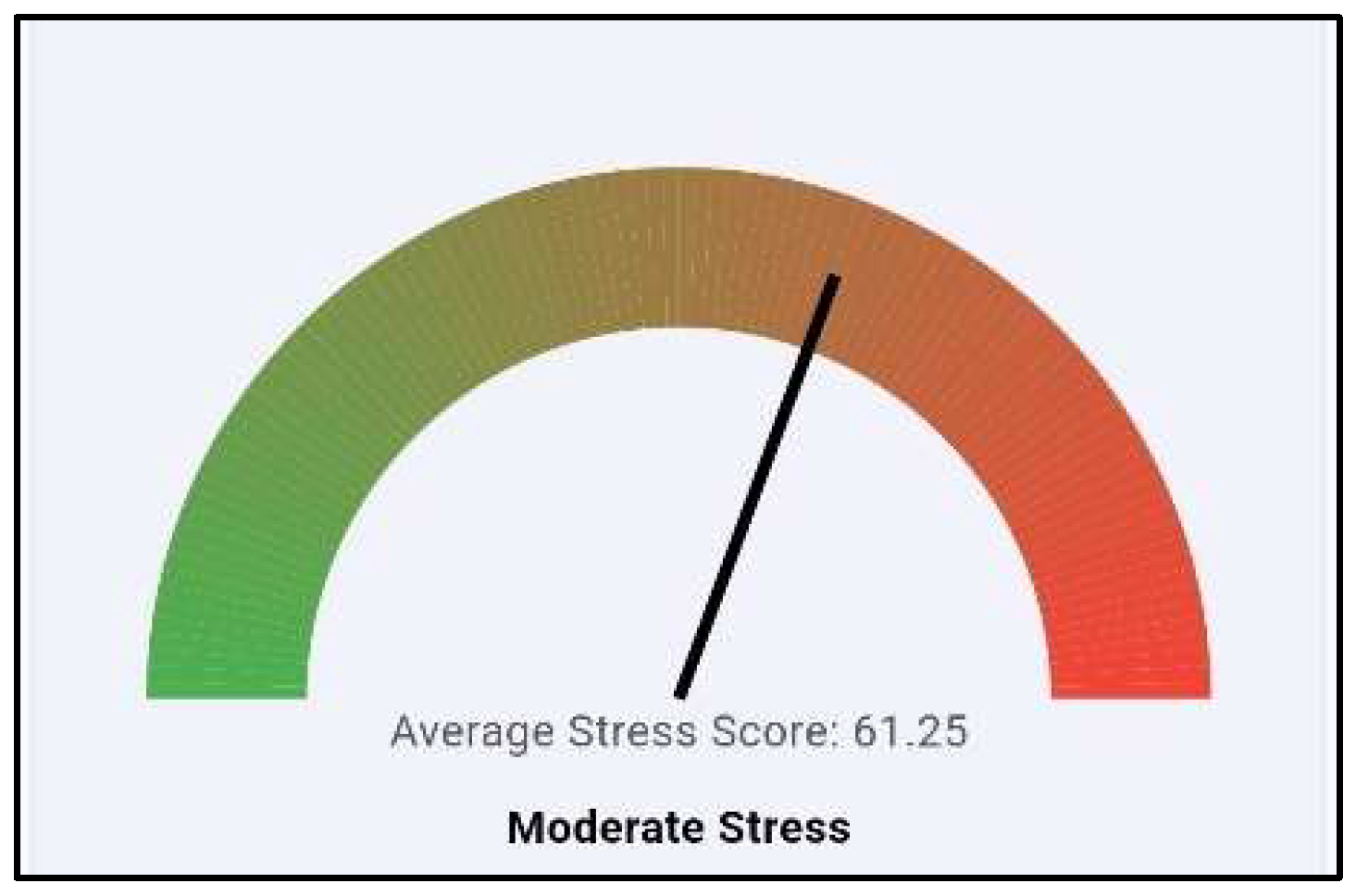

An Android application, Stress Sense, was developed to support the factory workers’ stress assessment experiment by enabling supervisors and managers to monitor employees’ mental states. The app is built using data collected during the experiment and allows stress scores from all nine task episodes to be aggregated for each participant. An average stress score is then calculated and displayed. These scores are mapped onto a visual stress scale, as shown in Figure 14, integrated into the app’s interface using predictions from the ensemble model based on the best-performing regression approach combining fNIRS and EEG spectral features, with the STAI score as the target.

3.5. Gaze Tracking

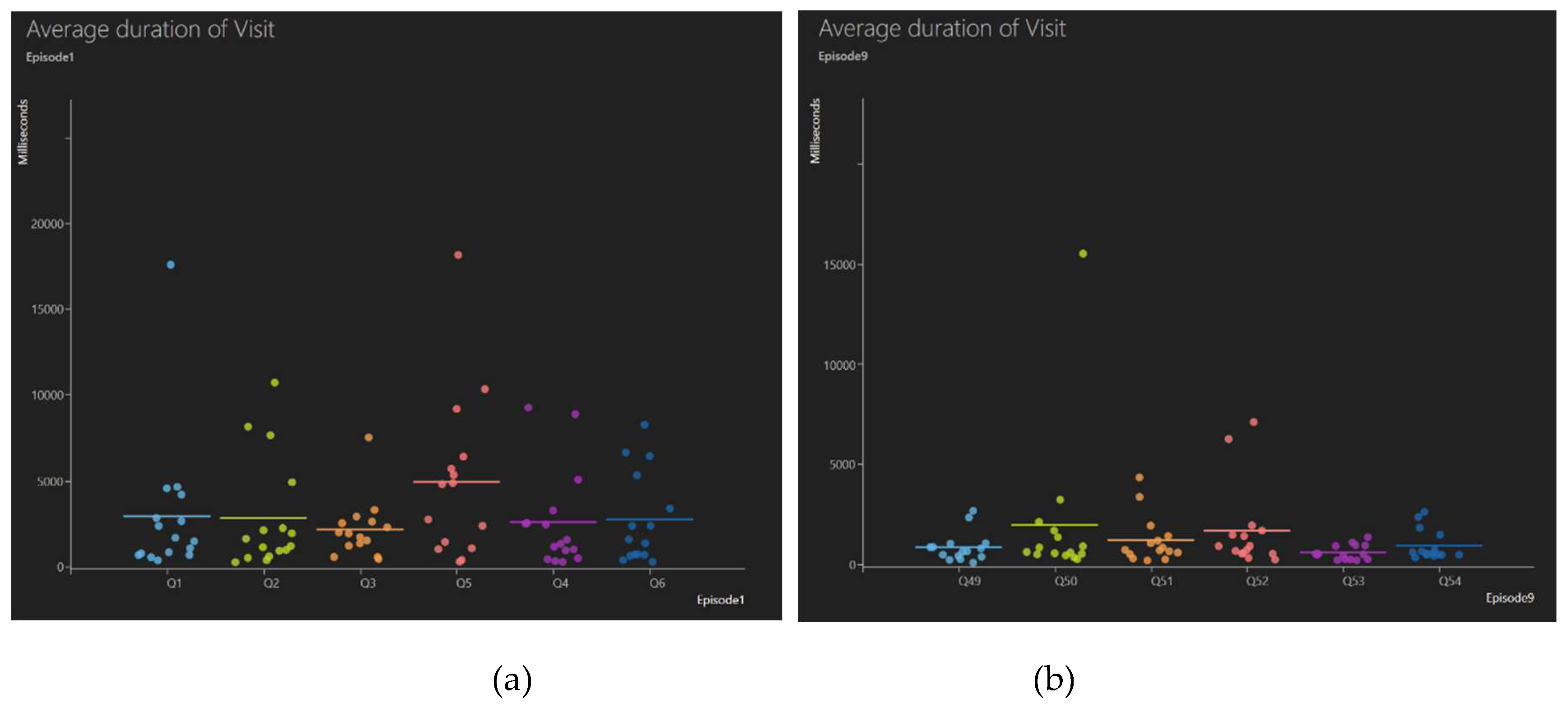

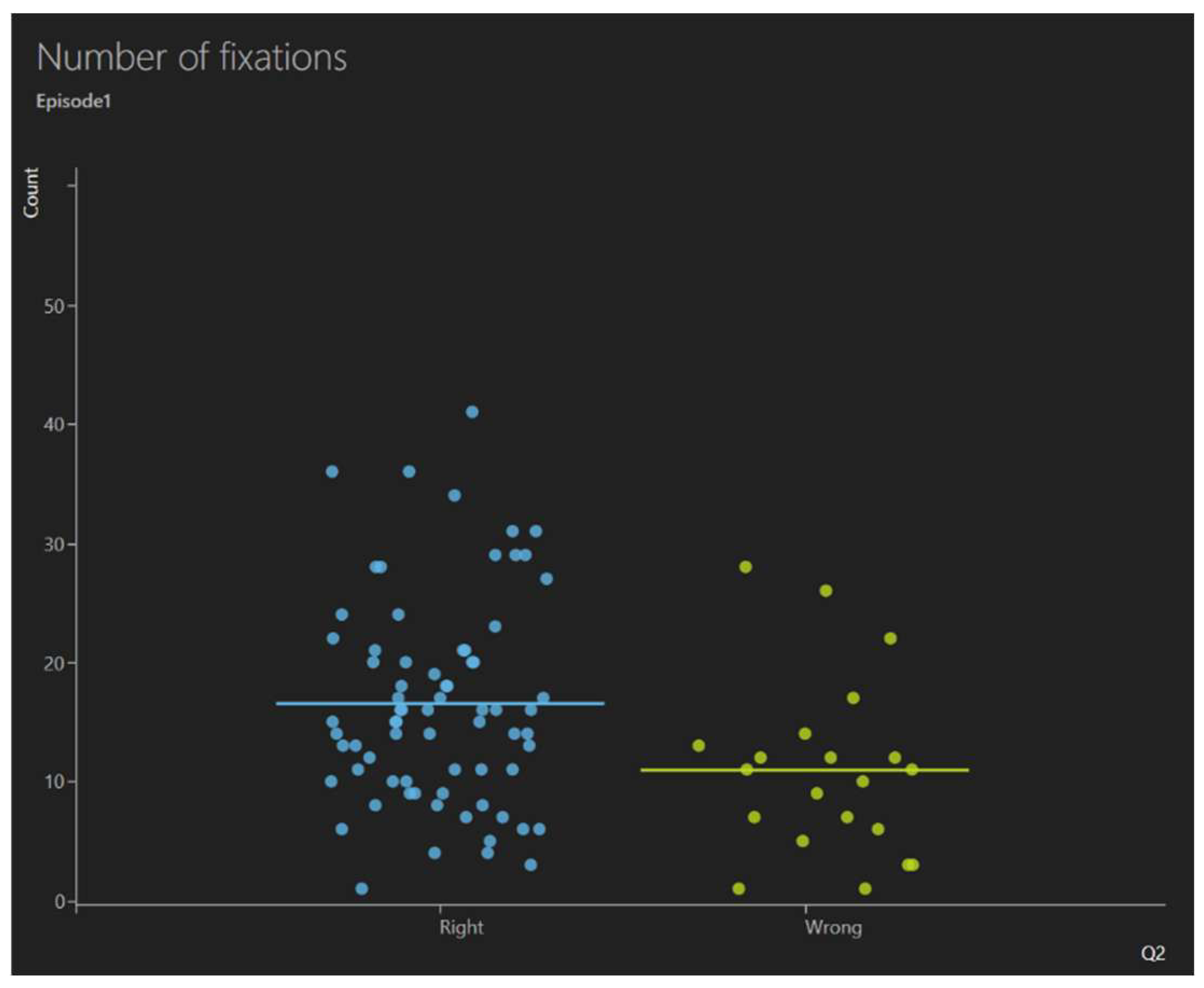

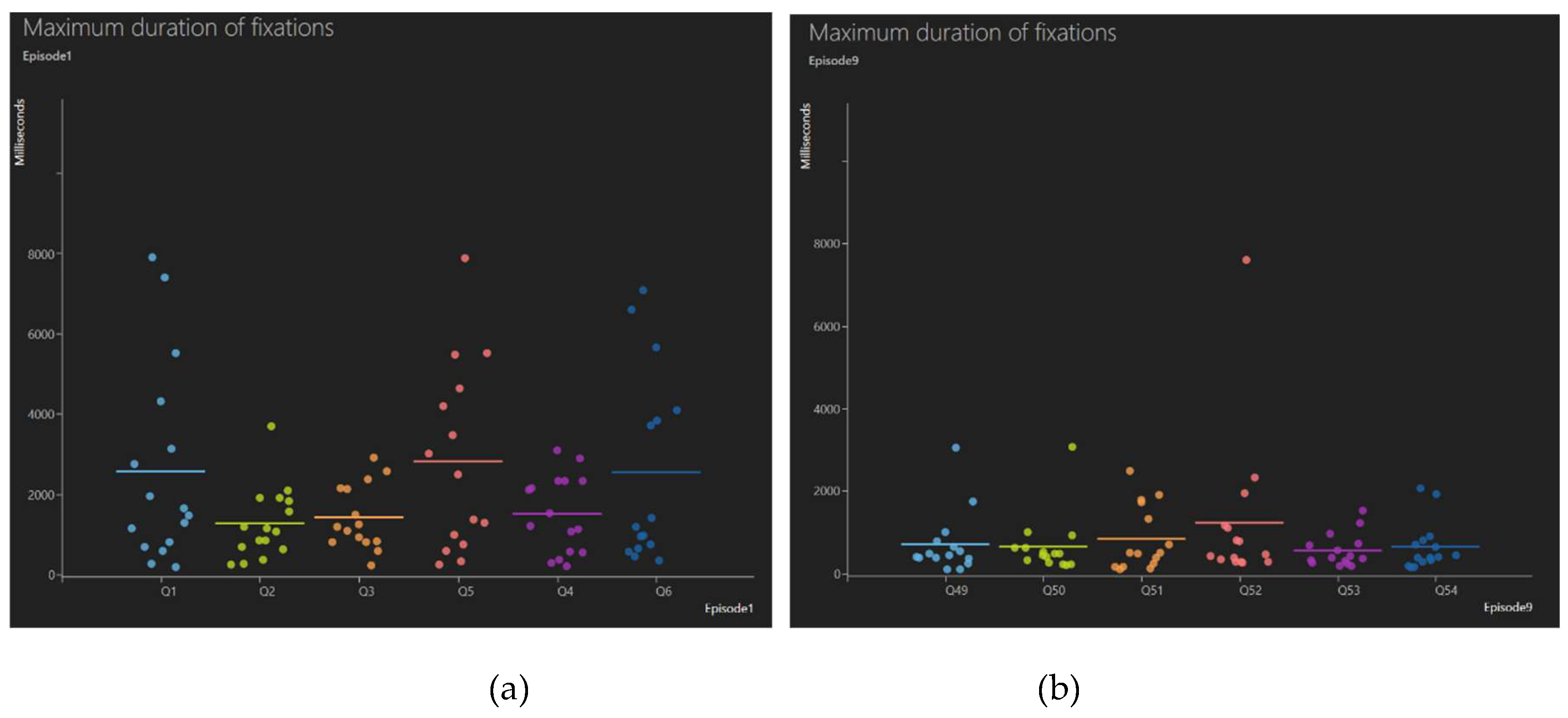

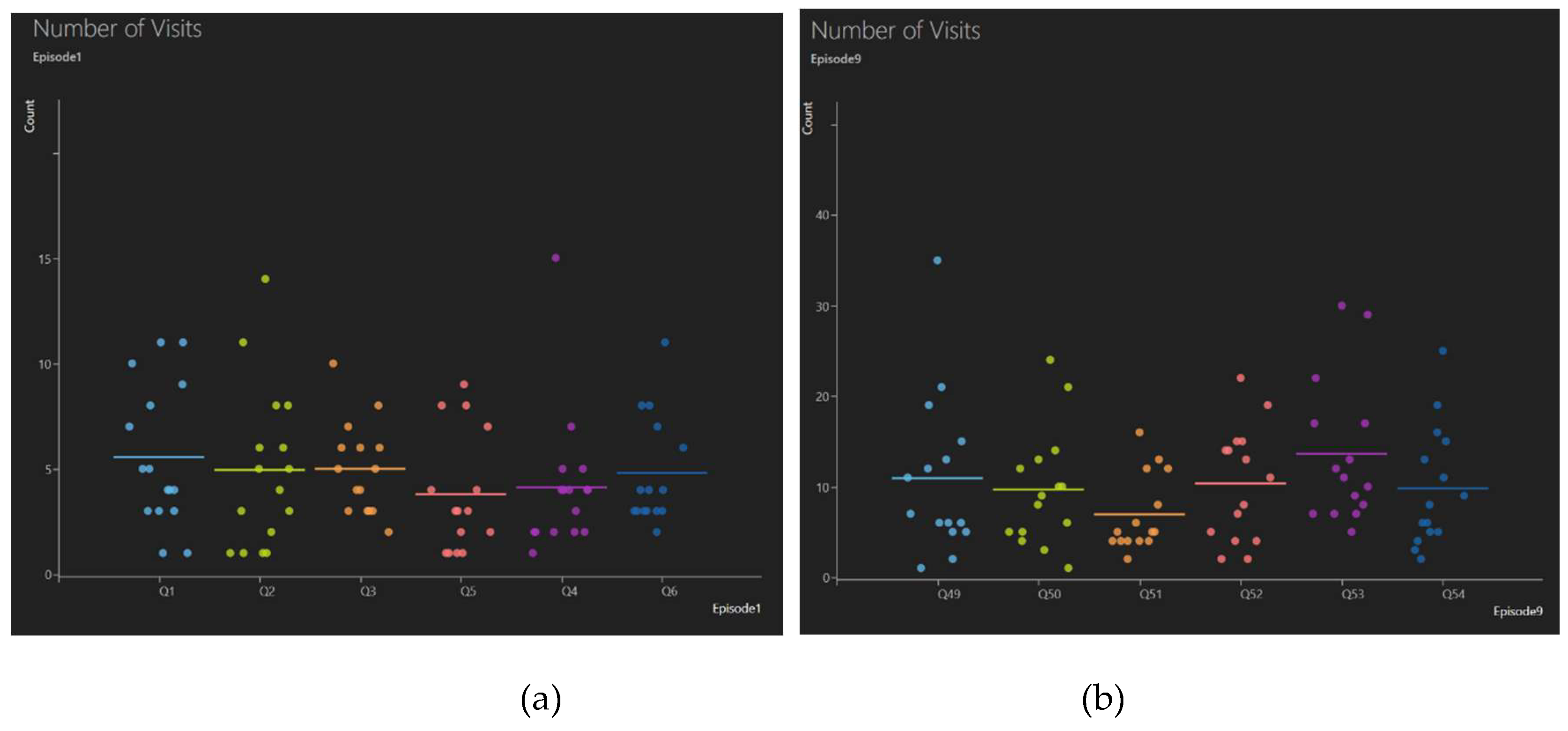

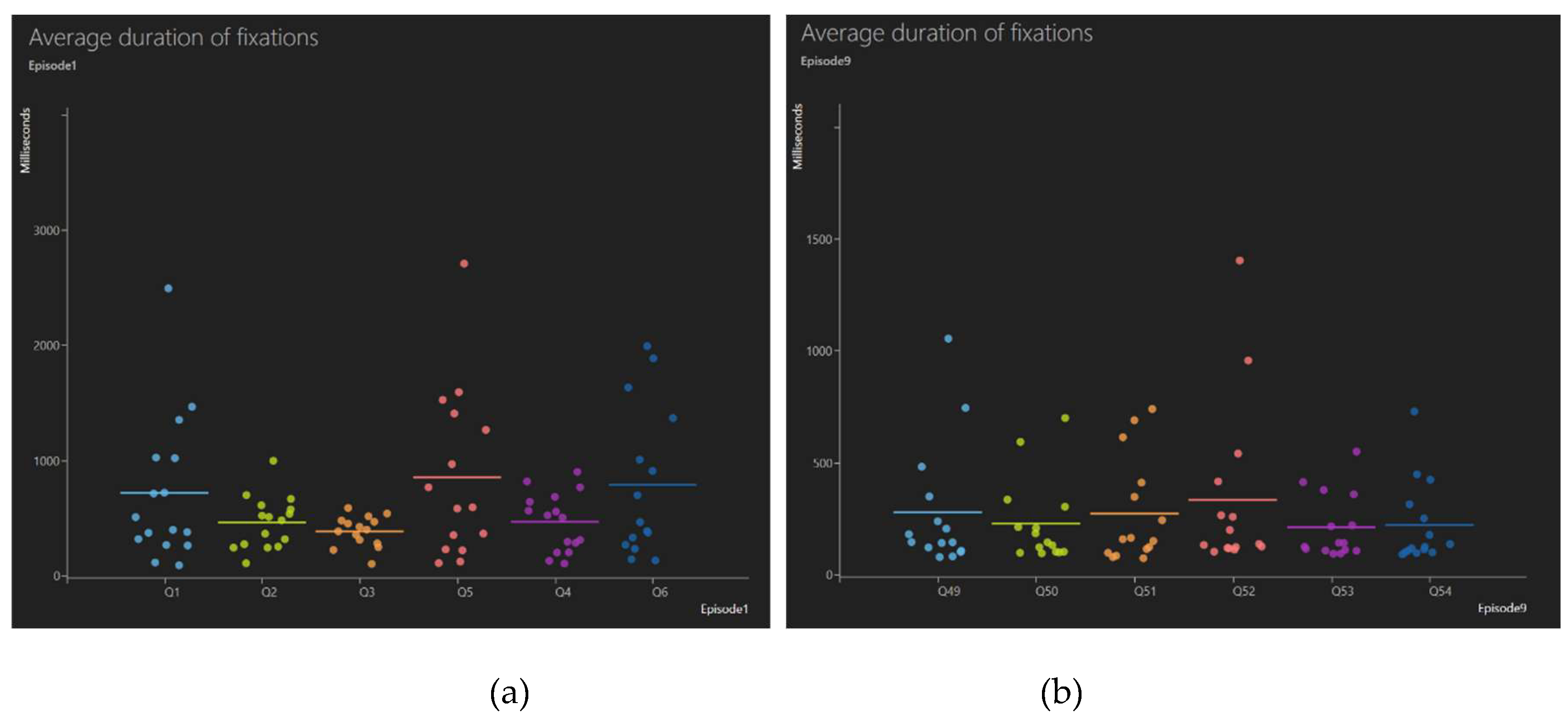

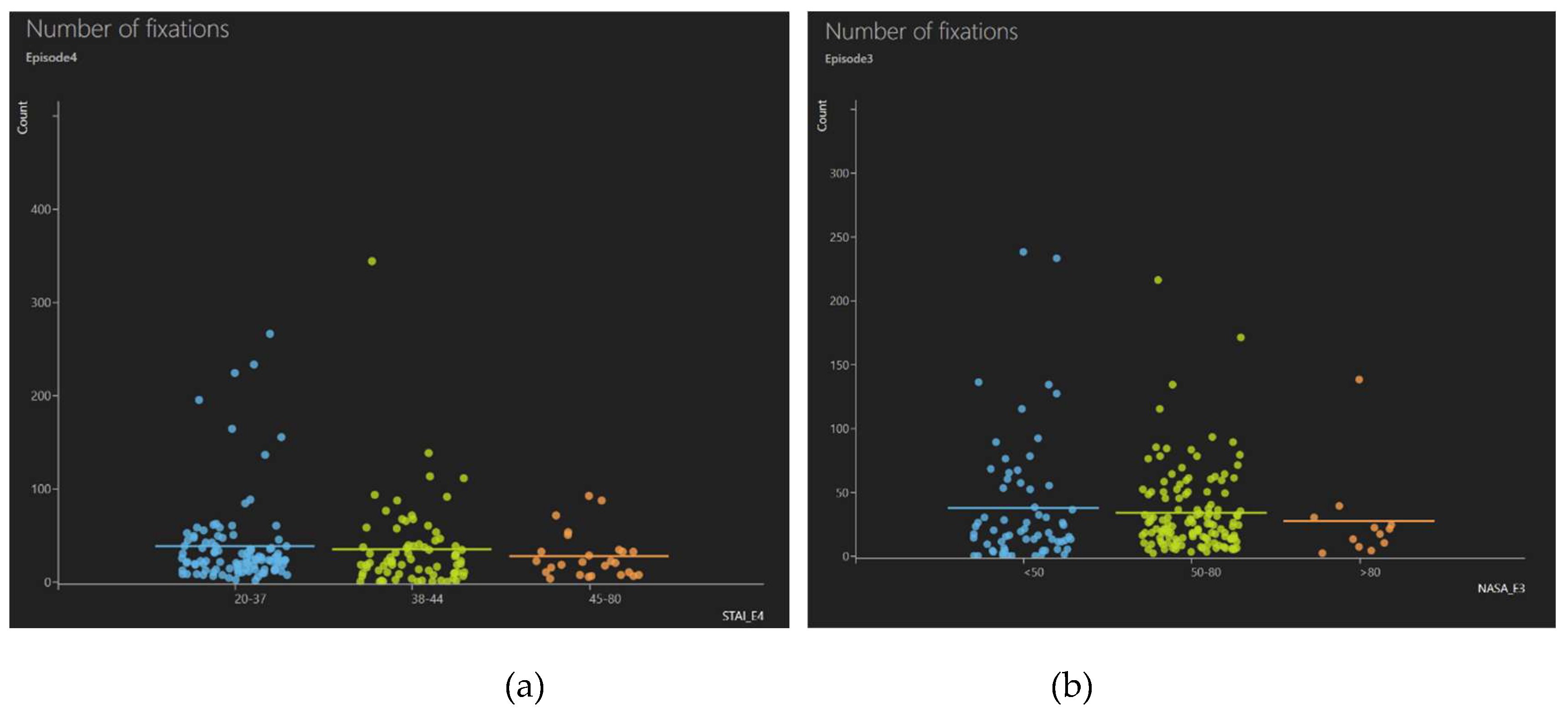

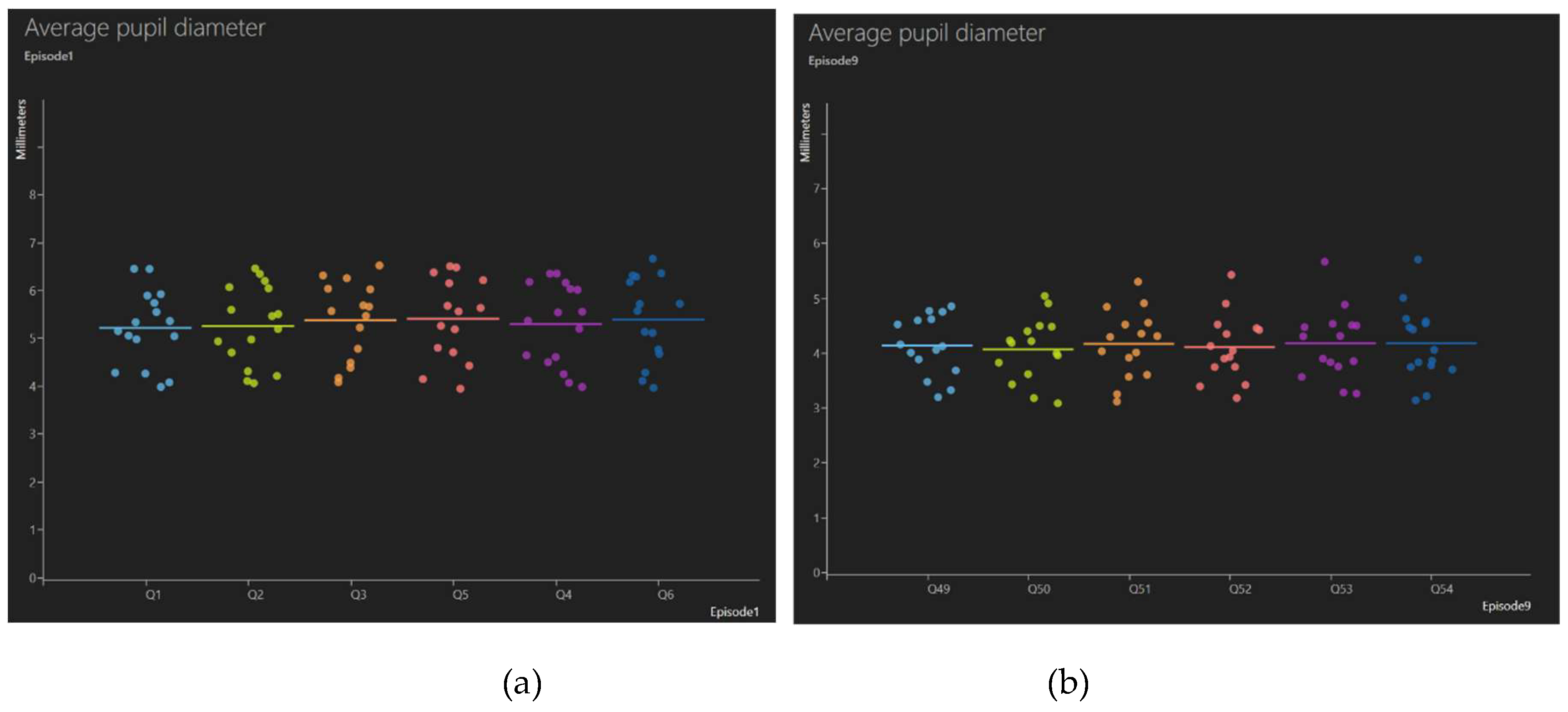

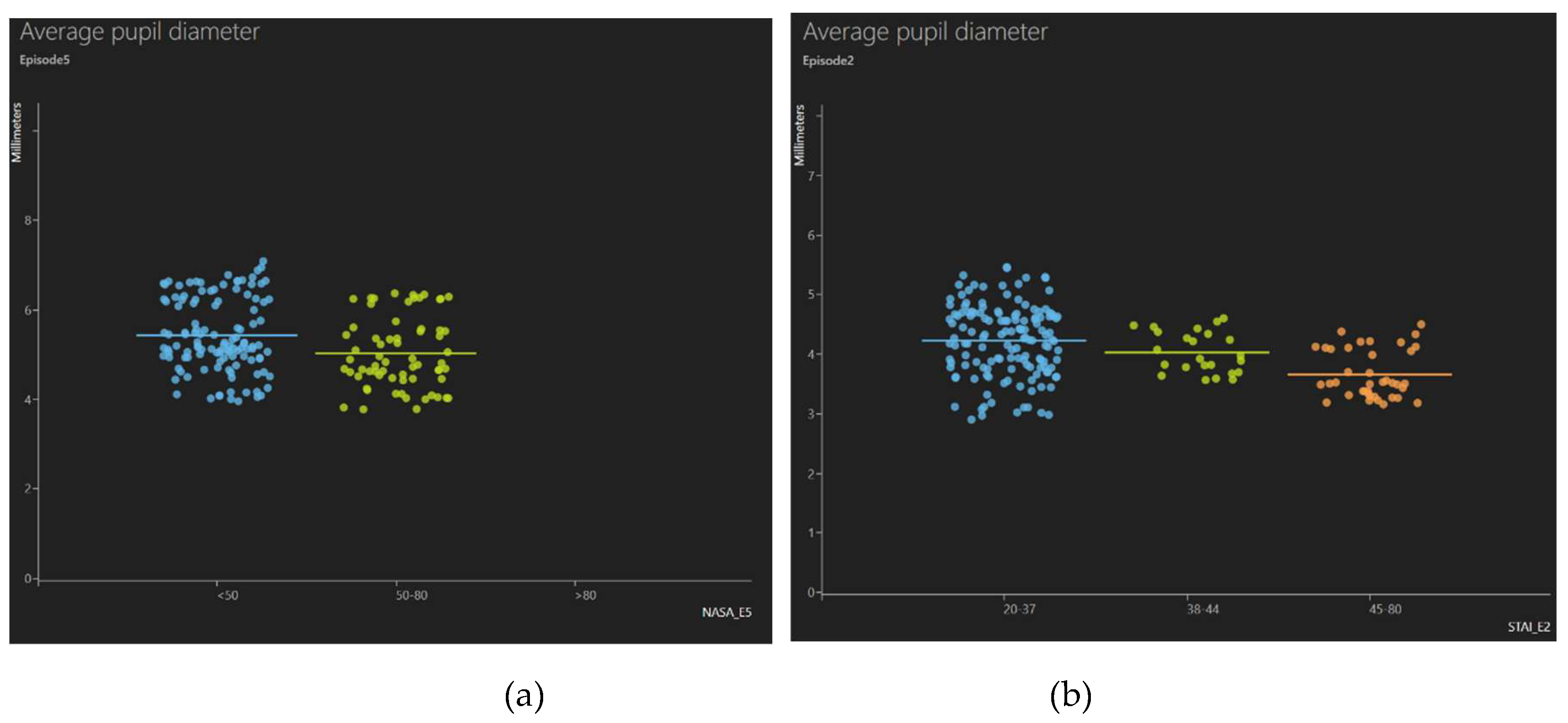

Several eye-tracking parameters are explored in this study, including fixation duration, pupil diameter, visit duration, and number of visits. Results show that average durations of fixation, maximum duration of fixation, and average time of a visit are highest in the first episode and steadily decline by episode 9, while the number of visits increases, as can be seen in Figure 15, Figure 16, Figure 17, Figure 18 and Figure 19. Average pupil diameter is larger in low-light conditions (5–6 mm) and smaller in high-light conditions (4–5 mm). Each episode contains six cognitive questions, represented as Q1–Q6 in episode 1 and Q49–Q54 in episode 9 across the figures.

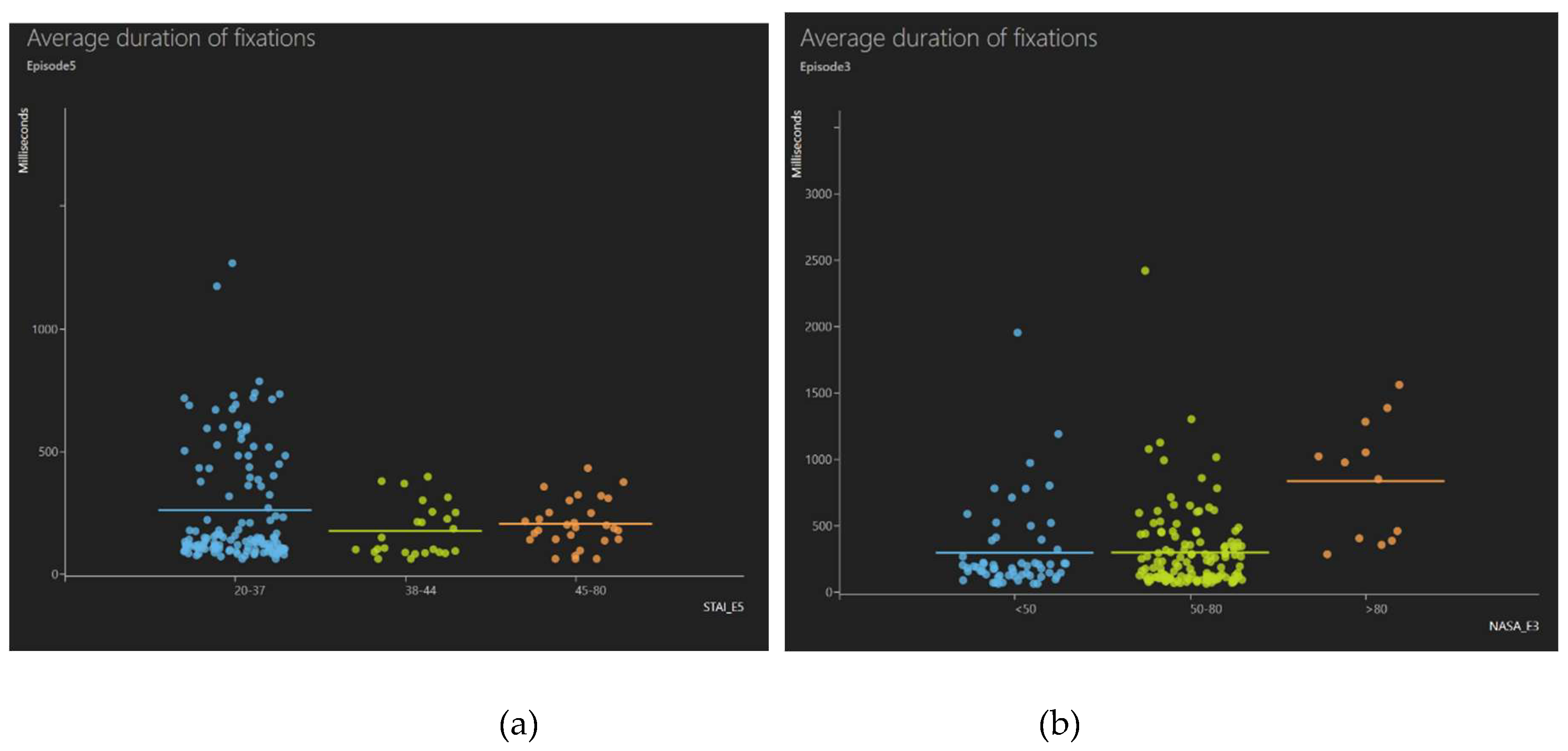

Fixation duration is higher for low and high STAI scores but lower for medium scores, and it generally increases with NASA-TLX across episodes, as shown in Figure 20. The number of fixations has decreased as both NASA-TLX and STAI scores have risen, as shown in Figure 21. Average pupil diameter has also declined with higher NASA-TLX and STAI scores, as indicated in Figure 22. Additionally, Figure 23 shows that fewer fixations have occurred for incorrect answers compared with correct ones.

This research reveals clear patterns in visual attention and cognitive load. Longer fixation durations and visit times in the first episode indicate stronger initial cognitive effort, which diminishes as the task becomes more familiar, suggesting a learning effect. Pupil diameter variations between low- and high-light settings match expected physiological responses. The increased number of visits after the first episode indicates a shift in the visual search method. Associations between fixation metrics and STAI/NASA-TLX scores indicate that higher workload leads to longer but fewer fixations [67]. Fewer fixations on incorrect answers than on correct ones suggest different information-processing strategies.

3.6. Subjective Measures

3.6.1. STAI Score

STAI scores vary across episodes with changes in task and ambient variables (Figure 24). Noise and light show clear effects in the first four episodes. Episode 7 shows the highest score due to the most challenging conditions, i.e. high task speed and complexity, elevated noise, and low light, while episode 2 records the lowest score under favourable settings. Episodes 8 and 9 show comparable scores, indicating that replacing the robot with a human has minimal variance. The decreased stress trend in later episodes suggests a learning effect, as familiarity reduces mental tension.

3.6.2. NASA-TLX Score

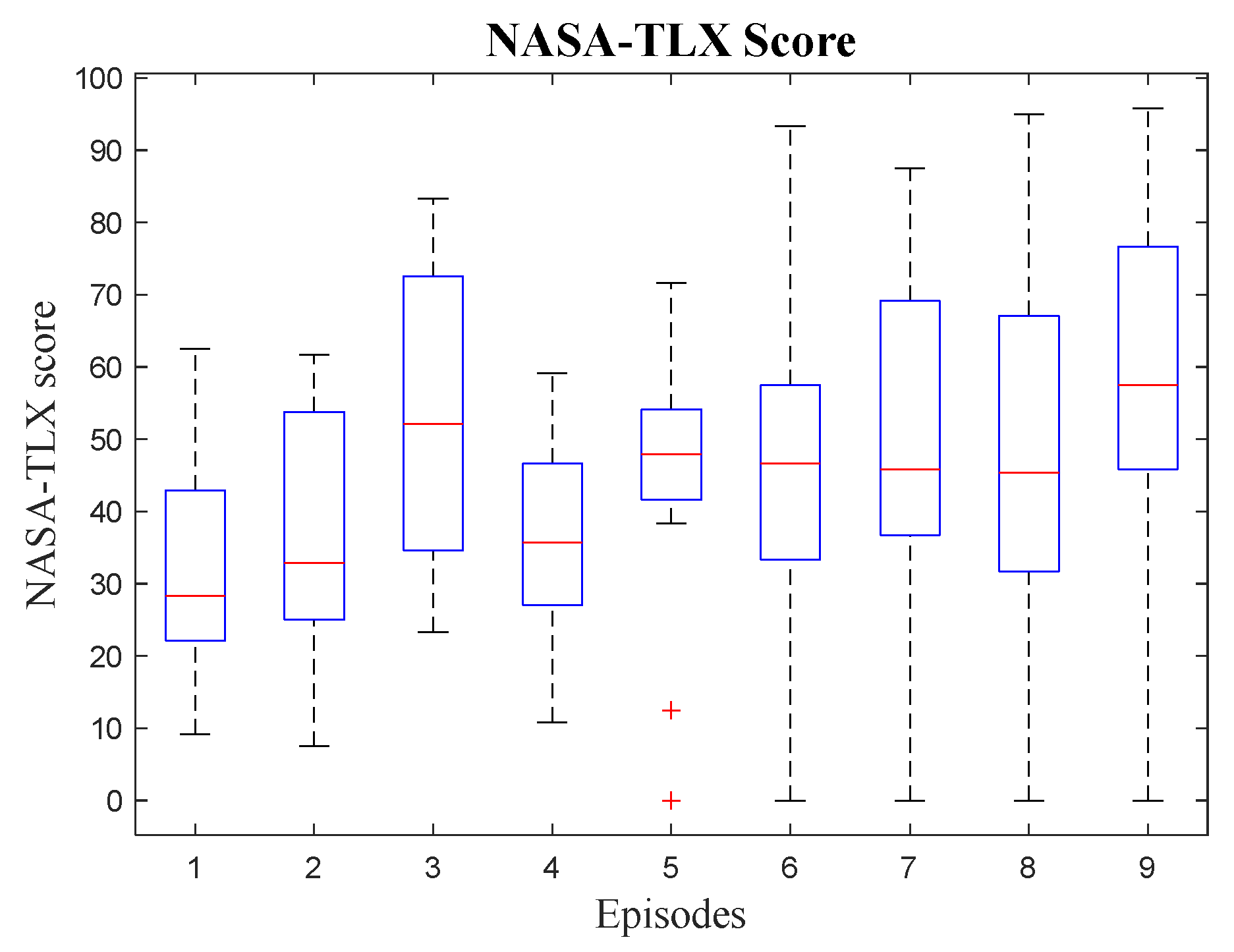

Figure 25 shows that the NASA-TLX scores for all episodes vary significantly depending on the task and the ambient conditions.

The effects of noise and light are evident in the first four episodes, where workload perceptions fluctuate. Episode 9 shows the highest NASA-TLX score, indicating increased mental stress by the end of the experiment, while episode 1 records the lowest score, reflecting minimal cognitive load at the start. Overall, the NASA-TLX scores steadily increase across episodes, with early episodes, particularly episode 1, representing a low-strain baseline. Although noise and light influence stress in the initial episodes, the progressive increase highlights the combined impact of prolonged task engagement and growing fatigue on cognitive stress.

3.7. Behavioural Measures

3.7.1. Error Rate

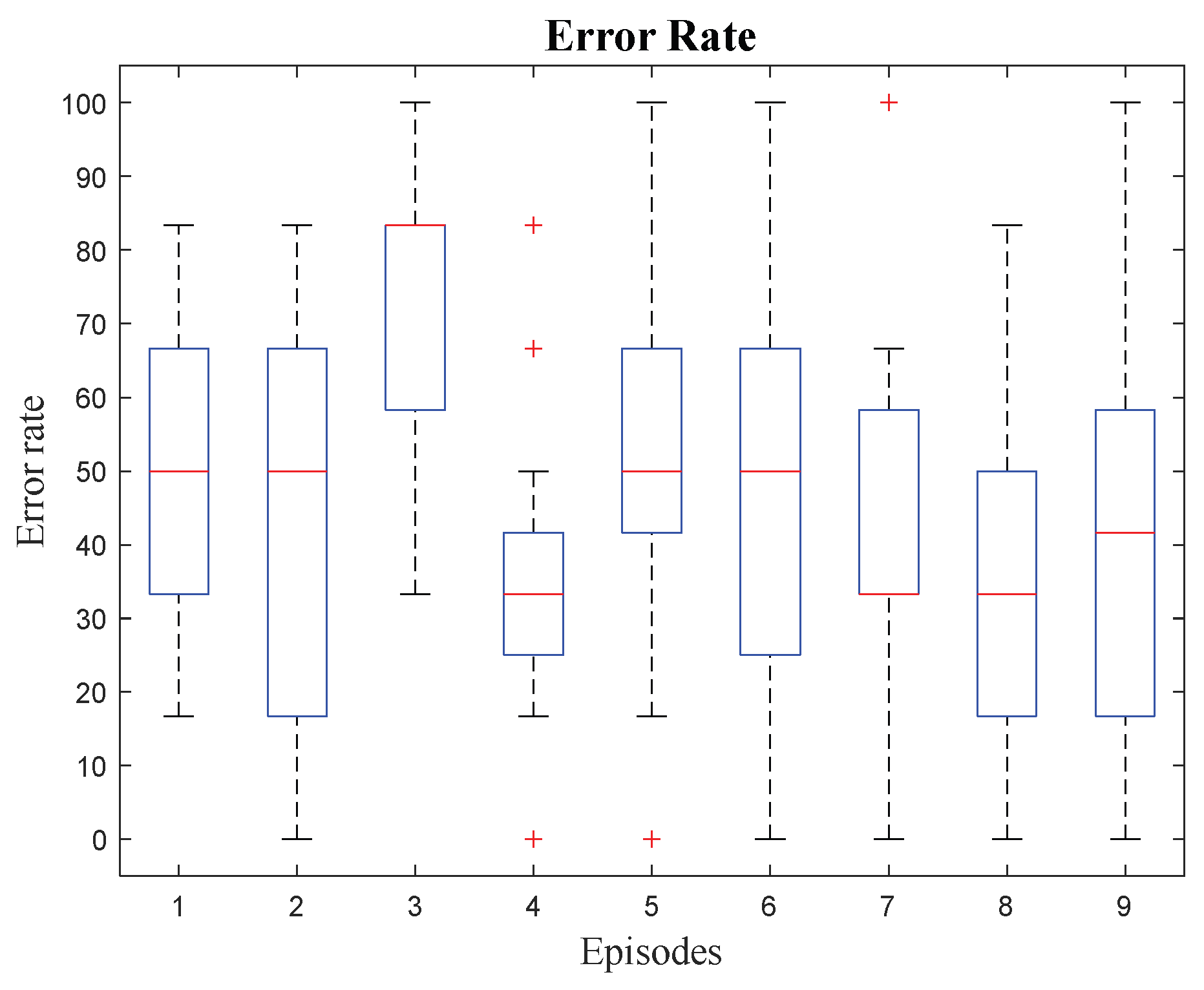

Figure 26 shows that error rates vary across episodes with shifts in environmental conditions. In the first four episodes, the combined influence of noise and light is evident. The highest error rate occurs in episode 3 when high noise is introduced, whereas episodes 4 and 8 record the lowest error rates under high light. Overall, noise spikes increase errors, while higher light levels help reduce mistakes, highlighting the sensitivity of error rates to sudden environmental changes.

For the secondary task, episode 5 shows the highest error rate in Figure 27, highlighting the added difficulty introduced by this task. Episode 8 has the lowest error rate because the participants received the fewest damaged packs, while episode 9, where the most damaged packs were provided, shows more spread.

4. Limitations and Future Work

Although this study shows strong potential for cognitive stress evaluation using neuroimaging, physiological data, and machine learning, several limitations must be acknowledged. The proposed framework does not operate in real time, limiting its use in dynamic, stressful environments, and currently depends on offline analysis followed by stress score prediction. The experiment has been conducted in a controlled simulation to study baseline stress patterns; it may not fully capture real workplace variability, such as unpredictability, environmental noise, or individual differences. The dataset used is relatively small, increasing the risk of overfitting [68]. The framework has only been tested with factory workers, restricting its robustness and generalisability across other occupational settings.

Future research can contribute to strengthen the stress-assessment framework by enabling real-time monitoring through an enhanced pipeline that integrates multimodal data with adaptive algorithms. Extending the framework to different occupational sectors would help evaluate its flexibility and improve its generalisability. Larger and more diverse datasets are also needed to extend the findings across various demographics, vocations and stress conditions. Improving physiological data quality remains important, as some artefacts could not be fully removed in this study; future studies should consider more accurate sensors with enhanced connectivity with the participant's body and experimental designs that minimise movement-related noise and artefacts. Overall, the framework can be advanced by using higher-quality and larger datasets, and adaptive real-time methods to broaden its application across a wider range of occupational contexts.

5. Conclusions

This study presents and validates a novel stress-quantification framework for factory workers, using machine learning to predict cognitive stress as a measurable and quantified entity. The experimental setup combines IQ-style cognitive questions with a pick-and-place activity in an HRC environment. The results demonstrate the effectiveness of integrating EEG and fNIRS features with feature selection and ensemble learning. Chi² has produced the highest classification accuracy, while ReliefF achieved the best regression performance, underscoring the importance of effective feature selection for robust modelling. Ensemble techniques further improved predictive accuracy, yielding the best results for both regression (RMSE: 10.86) and classification (accuracy: 84.1%), with the STAI score outperforming NASA-TLX as the target measure. An Android app-based digital solution has been developed to provide a visual tool to interpret mental stress in the form of a stress scale. Gaze-tracking analysis showed that fixation duration, number of fixations, visit duration, and pupil diameter varied with changes in process parameters. The average duration of fixation, number of fixations, and average pupil diameter are all affected by changes in subjective measures as well as the error rate. Changes in the levels of process parameters have an impact on NASA-TLX and STAI scores. Subjective variables have shown an elevated mental stress under adverse conditions. Overall, human-machine interaction, combined with ambient variables such as low light (50 to 60 lux) and high noise (above 80dB), raises the mental stress of a human participant.

This study advances occupational stress research by demonstrating that a multimodal stress-monitoring framework, combined with machine learning, can deliver meaningful insights and implementable solutions. The framework provides a solid foundation for future work, including real-time stress evaluation, long-term stress tracking, and broader application across diverse work environments. Overall, the novel framework presented in this study is an important step toward safer, healthier, and more sustainable workplaces, enabling proactive stress detection, intelligent decision-making, and timely interventions.
