Flexible Meandered UHF RFID Tag Antenna on Oiled-Paper: Impact of Chip Placement and Material Proximity for Industrial Applications

1. Introduction

Radio Frequency Identification (RFID) has become a key enabling technology in modern information and communication systems, supporting a wide spectrum of applications that require efficient, reliable, and contactless identification. In supply chain management [1], RFID enables real-time traceability and inventory optimization, while in healthcare it enhances patient safety [2,3,4,5], pharmaceutical monitoring [6], and medical equipment tracking [7,8]. In industrial automation, RFID contributes to intelligent production flows, asset monitoring, and predictive maintenance strategies [9,10]. Moreover, RFID-based access control systems ensure secure authentication in transportation networks and service infrastructures [11,12]. Beyond these application-specific contexts, RFID plays a central role in digital transformation frameworks by enabling robust object identification and seamless data integration within cyber–physical systems [13,14].

An RFID system typically consists of a reader equipped with a dedicated antenna and a tag integrating both an antenna and an integrated circuit (IC). Depending on their powering mechanism, RFID tags are classified as passive, semi-passive, or active. Passive tags operate exclusively by harvesting energy from the incident electromagnetic field, semi-passive tags incorporate a small battery to support internal circuitry, and active tags rely on an internal power source for communication and sensing functionalities [15]. RFID technology spans several frequency bands, including Low Frequency (LF, 125–134 kHz), High Frequency (HF, 13.56 MHz), and Ultra-High Frequency (UHF, 860–960 MHz), which supports long-range identification and high data-rate operation [16]. Among these, the UHF band has emerged as the dominant choice for large-scale logistics and industrial deployments due to its extended read range, rapid inventory capability, and compatibility with global supply-chain standards [17,18].

Despite its widespread adoption, the design of UHF RFID tag antennas continues to face several unresolved challenges. One of the most critical issues is achieving reliable conjugate impedance matching between the antenna and the highly capacitive RFID IC, as any mismatch directly degrades power transfer efficiency and limits the achievable read range [19,20]. In addition, antenna sensitivity remains a limiting factor, particularly in industrial environments where tags are exposed to diverse surrounding materials that significantly alter their electromagnetic behavior [21,22]. Proximity to dielectric or metallic objects often results in resonance detuning, bandwidth reduction, and severe radiation efficiency degradation [23,24]. Environmental conditions such as humidity, temperature variations, and mechanical stress further complicate tag operation and impose additional constraints on long-term reliability and robustness [25,26].

Another major design challenge lies in antenna miniaturization. Compact tag antennas are highly desirable for integration into modern packaging, wearable platforms, and embedded sensing systems [27,28,29,30]. However, reducing the antenna footprint typically leads to increased losses, narrower bandwidth, and greater sensitivity to material loading effects [31]. To address these issues, various miniaturization strategies have been explored, including meander-line geometries, folded dipole structures, and capacitive loading techniques [32,33,34]. While these approaches enable size reduction, they often introduce trade-offs between efficiency, bandwidth, robustness, and manufacturability, particularly when flexible or unconventional substrates are considered [35].

In this context, the development of flexible UHF RFID tag antennas capable of maintaining stable performance under material proximity and industrial constraints remains an open research problem. Substrate selection plays a crucial role in this regard, as unconventional and low-cost materials may offer advantages in terms of flexibility and sustainability but may also introduce additional electromagnetic uncertainties. Furthermore, chip placement tolerance and robustness against environmental loading are rarely addressed jointly in existing studies, despite their practical relevance for large-scale industrial deployments [36,37].

This paper presents the design of a flexible meandered UHF RFID tag antenna fabricated on an oiled-paper substrate, with a particular focus on robustness and practical deployment constraints. An experimental investigation is conducted to evaluate the tolerance of the antenna to variations in RFID chip placement and to analyze the impact of such variations on impedance matching and read-range stability. The robustness of the proposed design is further examined under proximity to industrially relevant materials, including metallic surfaces. The performance of the proposed antenna is comparatively assessed against state-of-the-art UHF RFID tag antennas in terms of physical size, operational bandwidth, and achievable read range. In addition, an experimental benchmark against two commercially available UHF RFID tags is performed under identical free-space and material-proximity conditions, providing a realistic reference for evaluating read-range degradation trends and overall robustness in representative industrial scenarios.

The remainder of this paper is organized as follows. Section 2 introduces the theoretical background and equivalent circuit modeling. Section 3 presents the antenna configurations and experimental validation. The measured and simulated results are then discussed, followed by concluding remarks.

2. Antenna Design and Theoretical Background

2.1. Antenna Geometry and Operating Band

The proposed UHF RFID tag is implemented as a meandered dipole structure on a flexible oiled-paper substrate (${\epsilon }_r=3.87$, thickness $=0.2$ mm), with the radiating element fabricated in copper (thickness $=0.035$ mm). The design operates within the UHF RFID band of 865–868 MHz, with a nominal resonance at 866.6 MHz. The initial layout is derived from a half-wavelength dipole optimized for the UHF range and is shortened through meander sections to reduce the physical length while maintaining the required electrical path.

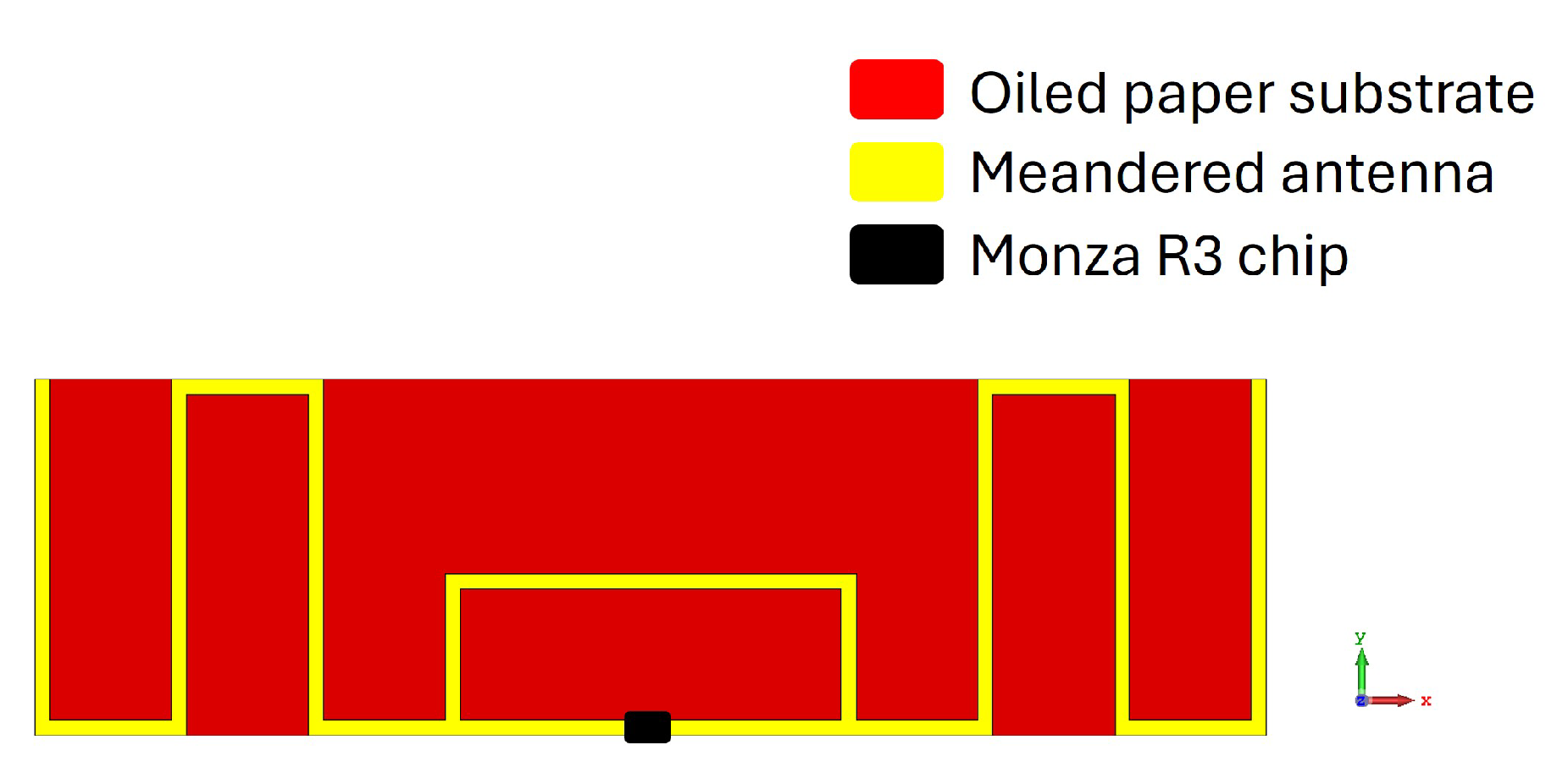

Figure 1. Proposed meandered UHF RFID tag design.

Figure 1. Proposed meandered UHF RFID tag design.

In this study, four reference configurations were realized, differing only in the placement of the IC along the dipole loop region, in order to provide a systematic evaluation of chip-location effects on input impedance and matching.

2.2. Electrical Model of the RFID Tag

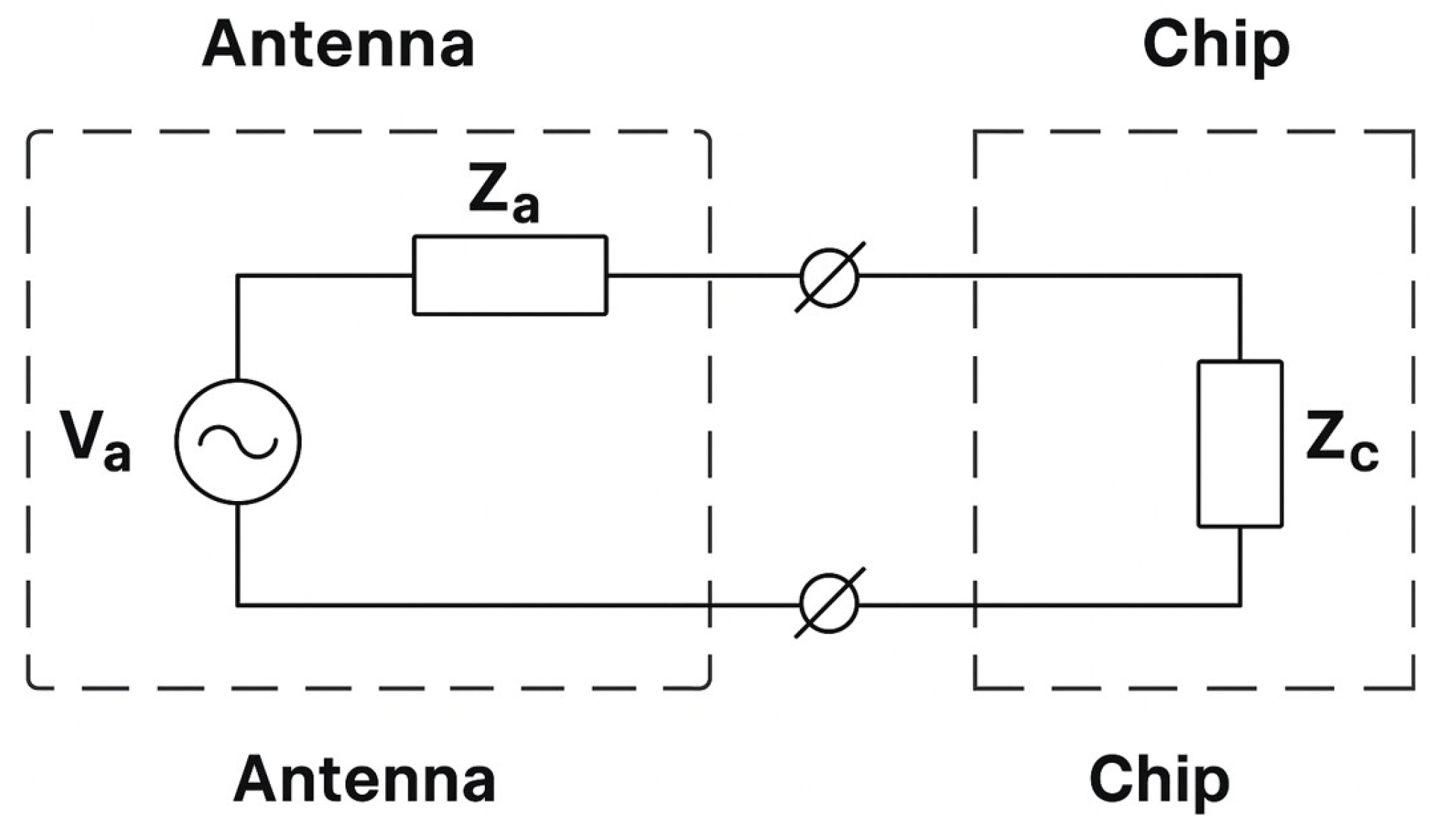

The equivalent circuit of an RFID tag is shown in Figure 2. The source $V_{\mathrm{a}}$ corresponds to the open-circuit RF voltage at the antenna terminals. The impedance of the chip reflects both its input properties and the parasitic elements of the package. Both $Z_{\mathrm{a}}$ and $Z_{\mathrm{chip}}$ vary with frequency, and $Z_{\mathrm{chip}}$ may also depend on the incident power level. For proper operation, the antenna is designed to achieve conjugate matching with the chip at the minimum activation power.

The antenna is modeled by its complex impedance

$$Z_{\mathrm{a}}=R_{\mathrm{a}}+j{X}_{\mathrm{a}}$$

(1)

The chip is represented by

$$Z_{\mathrm{chip}}=R_{\mathrm{chip}}-j{X}_{\mathrm{chip}}$$

(2)

The design objective is to satisfy the conjugate-matching condition at the nominal frequency $f_0$

$$Z_{\mathrm{a}}=Z_{\mathrm{chip}}^{*}$$

(3)

which maximizes the power delivered to the chip and represents the standard design criterion in the development of UHF RFID tags.

2.3. Electrical Modeling of the RFID Chip

The RFID integrated circuit (IC) is a fundamental component in the operation of the UHF tag, as it defines the conditions for energy transfer from the reader and backscatter data communication. In this study, the Impinj Monza R3 IC is selected, a widely used chip compliant with EPC Gen2 technology and recognized for its stable performance. Its input impedance is $Z_{\mathrm{chip}}=32-j228\Omega$ [38], making conjugate matching with the antenna impedance essential to maximize power transfer and ensure reliable tag activation.

Although it belongs to an older generation, the Monza R3 chip remains practical for laboratory prototyping due to its quad-pad configuration (RF1, RF2, GND, GND), which allows straightforward manual soldering without specialized equipment. More recent chips, such as the Monza R6, are significantly smaller and generally require dedicated packaging modules (e.g., from Murata), which increases fabrication cost. The Monza R3 exhibits a read sensitivity of approximately $-15$ dBm, compared to about $-22$ dBm for the Monza R6. Despite this limitation, the experimental results obtained in this study remain satisfactory.

For accurate impedance matching during antenna design, the chip is represented by an equivalent circuit implemented in CST Studio Suite. In this work, the chip is modeled using a series configuration, where the real part is represented by a resistance ($R_s$) and the reactive part by a capacitance ($C_s$). In the simulation environment, discrete ports define the resistive value in ohms, while lumped elements represent the capacitive component in farads, as illustrated in Figure 3.

This equivalent circuit provides a reliable representation of the chip behavior and its interaction with the antenna. The resistance and capacitance values are derived directly from the complex chip impedance and are then used to optimize the matching performance at the resonance frequency $f_0$:

$$Z_{\mathrm{chip}}=R_{\mathrm{chip}}-j{X}_{\mathrm{chip}}$$

(4)

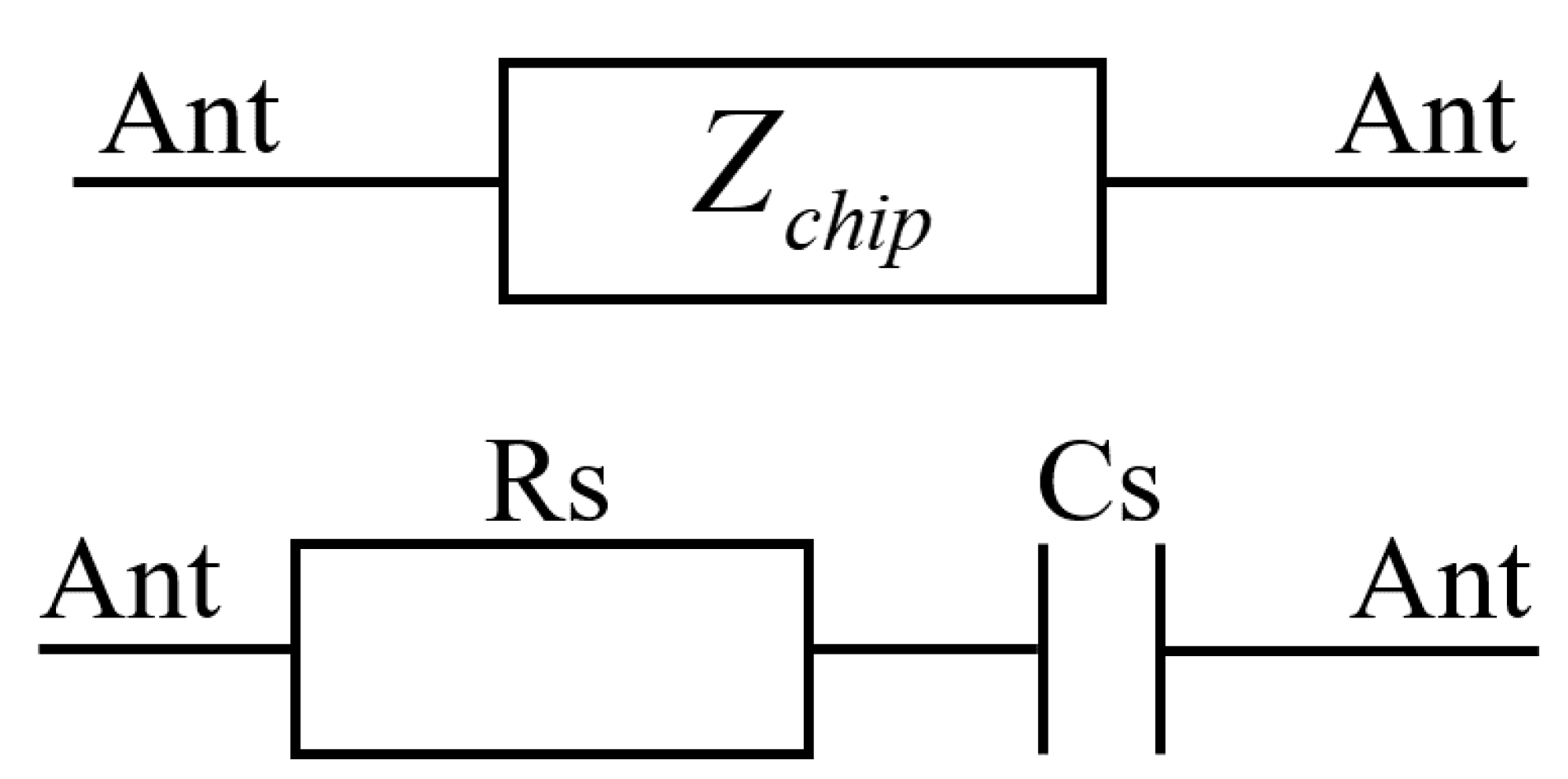

According to the equivalent series model shown in Figure 2, the chip impedance defined in Eq. (2) can also be expressed in terms of $R_s$ and $C_s$ as

$$\begin{array}{cc}\hfill R_s& =R_{\mathrm{chip}}\hfill \end{array}$$

(5)

$$\begin{array}{cc}\hfill C_s& ={\displaystyle \frac{1}{2\pi f_0{X}_{\mathrm{chip}}}}\hfill \end{array}$$

(6)

3. Analysis of the Reference Antenna Configurations

3.1. Description of Antenna Configurations

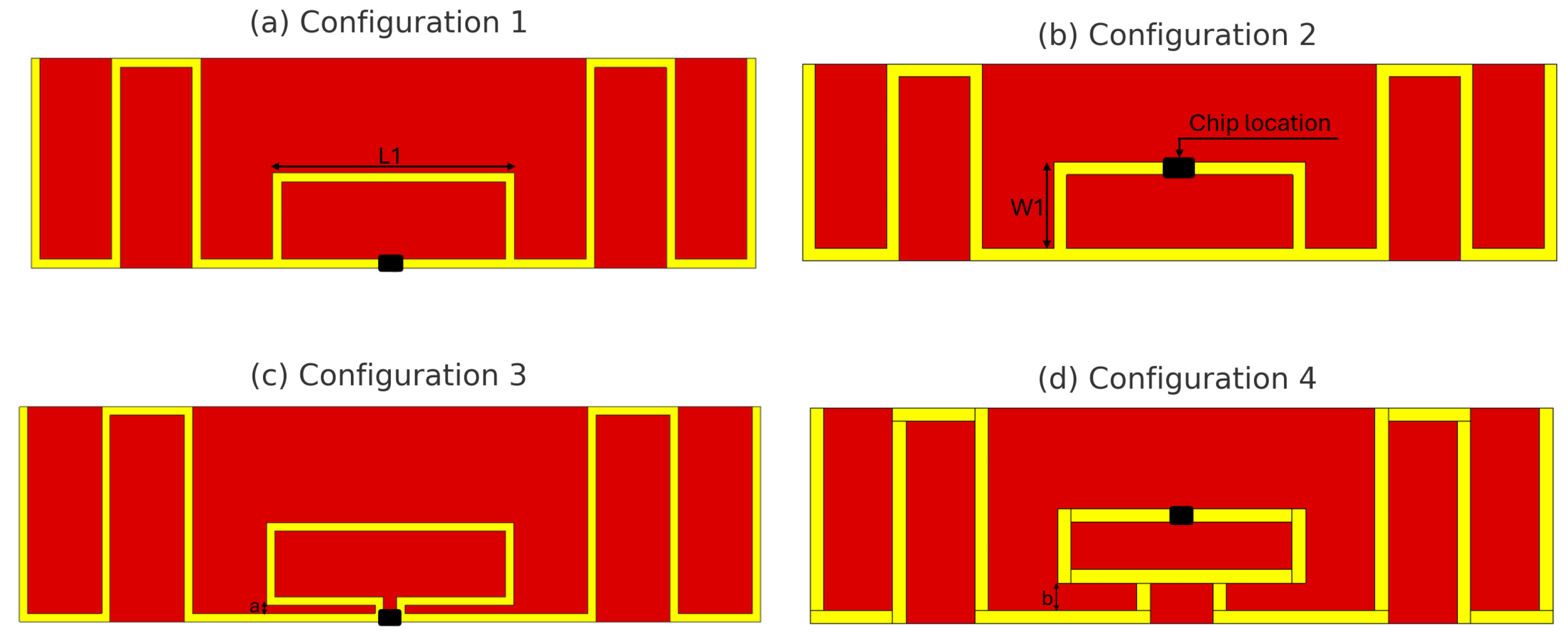

As illustrated in Figure 4, four configurations of the Monza R3 IC placement on the meandered dipole tag were investigated. In Configuration 1, the IC is mounted at the central position of the loop, aligned with the lower edge of the structure. In Configuration 2, the IC is placed at the upper edge of the loop with a vertical offset of $W_1$. In Configuration 3, the loop is separated from the dipole arms by a gap of $a=1$ mm, and the IC is positioned on the inner side of the loop.

In Configuration 4, the loop antenna gap is extended to $b=3$ mm, and the IC is located at the upper part of the loop. In Configurations 1 and 2, the IC is directly connected to the loop, whereas Configurations 3 and 4 introduce a controlled separation between the coupling loop and the radiating arms. This approach enables a comparative evaluation between direct mounting and loop-gap integration.

Modifying the IC position within the tag structure is not merely a geometrical displacement. Each configuration required specific adjustments to the antenna dimensions (length and width) in order to preserve impedance matching. This fine-tuning ensured that all variants operate within the European UHF RFID band, maintaining resonance at $f_0=866.6$ MHz.

3.2. Simulation and Measurement Setup

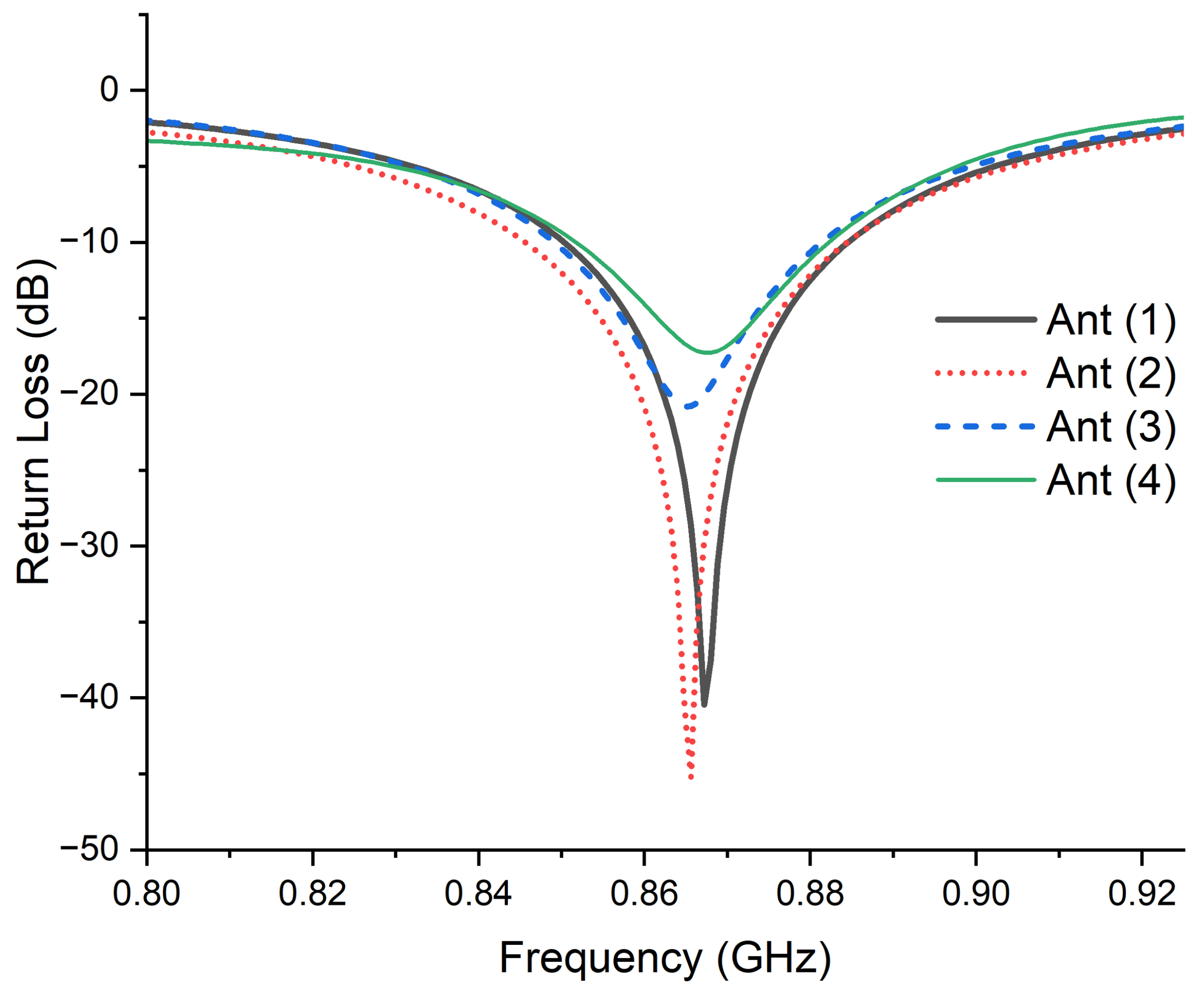

The four antenna configurations were modeled in CST Studio Suite and optimized to resonate at $f_0=866.6$ MHz. Figure 5 presents the simulated reflection coefficients ($S_{11}$) for the different structures. Small frequency shifts are observed due to variations in the IC location, which directly influence the impedance matching between the antenna and the chip. The geometrical parameters were iteratively refined to ensure that all structures resonate within the designated frequency band.

Antennas 1 and 2 exhibit excellent impedance matching, with minimum return-loss values of approximately $-40$ dB and $-45$ dB, respectively. These results confirm the effectiveness of directly mounting the RFID IC within the coupling loop, enabling strong conjugate interaction at resonance. Antenna 3 presents a moderate response, with a return-loss minimum around $-20$ dB, indicating reduced matching efficiency but still acceptable performance. Antenna 4 represents the least efficient configuration, with a minimum near $-17$ dB. Although this value remains below the conventional $-10$ dB matching threshold, the adaptation is significantly weaker compared to the first two configurations. The progressive degradation observed from Antennas 1–2 to Antennas 3–4 results from the increased separation between the coupling loop and radiating arms ($a=1$ mm and $b=3$ mm), which weakens the electromagnetic coupling.

3.3. Power Sensitivity Evaluation

• Experimental Setup:

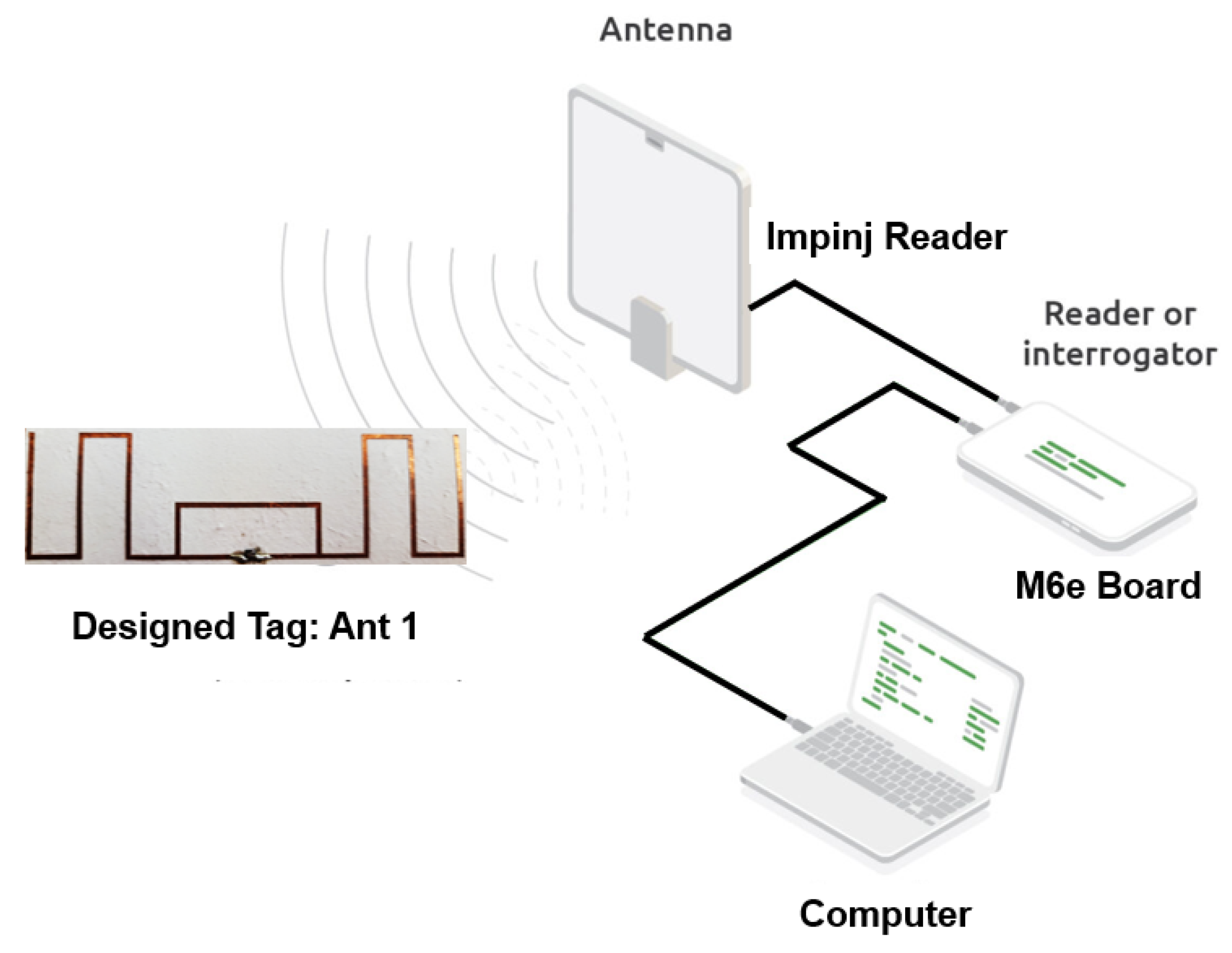

While reflection coefficients provide an initial indication of impedance matching quality, the practical performance of UHF RFID tags must also be evaluated in terms of the minimum power required to activate the IC, commonly referred to as power sensitivity. This parameter was measured using an M6E evaluation board equipped with an RF front-end and connected via a coaxial cable to a reader antenna. The board was interfaced with a computer that controlled the measurement procedure and recorded the data.

During testing, the fabricated tag antennas were positioned approximately $1\mathrm{m}$ from the reader antenna. The system recorded the minimum transmitted power at which each tag was successfully energized, providing a direct measure of power sensitivity, as shown in Figure 6.

• Impact of IC Placement on Tag Sensitivity:

The power sensitivity measurements provide a clear comparison among the four configurations. Antenna 1 exhibited the lowest required input power, with a minimum of $-16.3\mathrm{dBm}$ at $866\mathrm{MHz}$, confirming the advantage of placing the IC directly within the coupling loop to ensure strong conjugate impedance interaction. Antenna 2 showed nearly identical performance, with a minimum of $-16.2\mathrm{dBm}$. Antenna 3 required approximately $-15.2\mathrm{dBm}$, indicating reduced sensitivity due to partial decoupling caused by the increased loop offset. Antenna 4 demonstrated the weakest performance, with a minimum of $-14.7\mathrm{dBm}$, corresponding to a noticeable degradation in power transfer efficiency.

These results demonstrate that IC placement within the radiating structure not only affects the reflection characteristics but also directly influences tag sensitivity and the practical read range. The spatial relationship between the coupling loop and the antenna arms governs the impedance transformation efficiency, determining how effectively the IC can be energized under low-power conditions. Therefore, precise IC positioning is a critical design parameter in UHF RFID tag optimization.

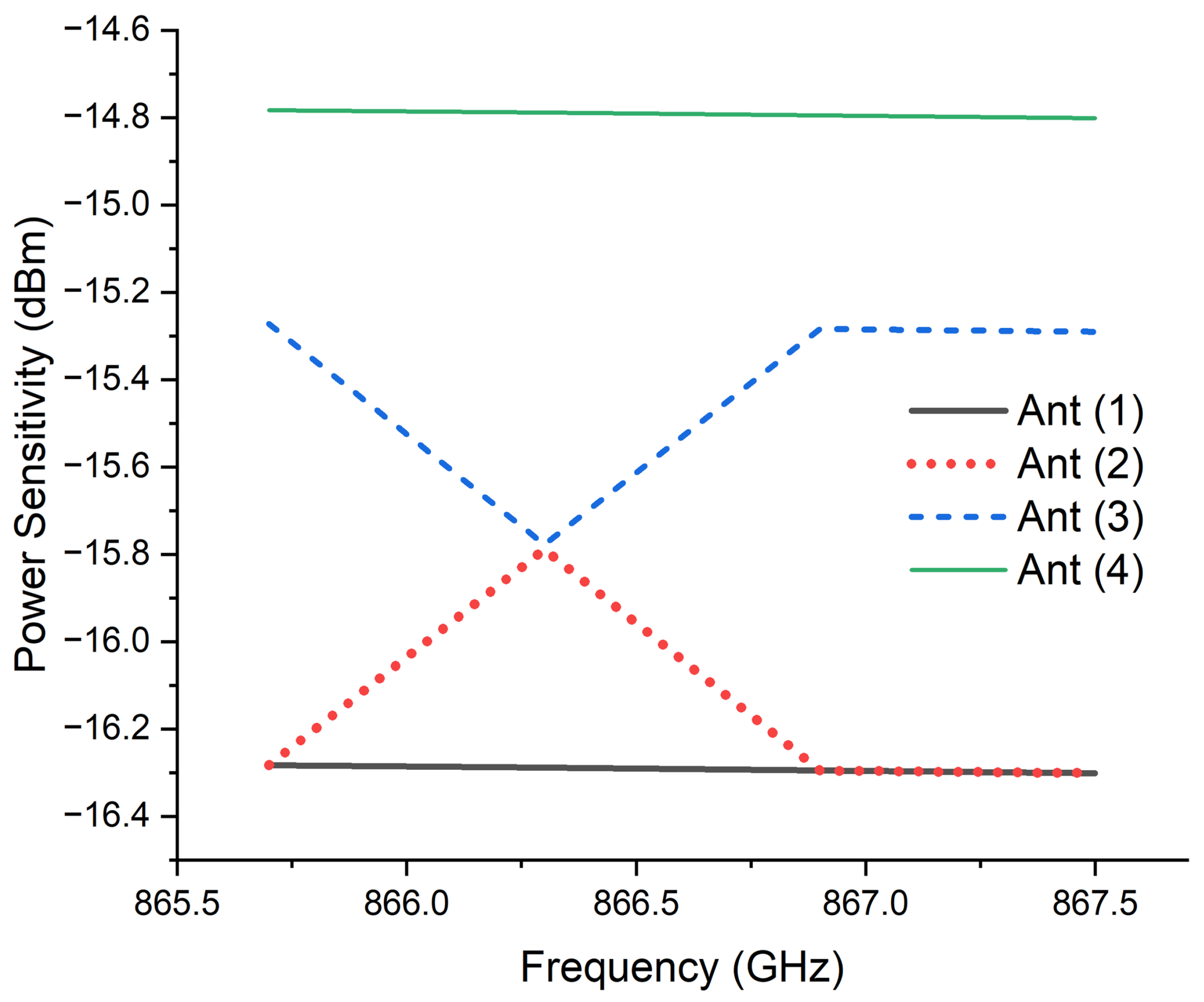

Figure 7. Power sensitivity of the four RFID tag antenna configurations.

Figure 7. Power sensitivity of the four RFID tag antenna configurations.

4. Miniaturized Antenna Design and Robustness Evaluation

4.1. Miniaturized Antenna: Antenna 5

Based on the comparative analysis of the four reference configurations, Antenna 1 was identified as the most efficient structure and selected as the reference model for miniaturization. In this stage, additional meandered sections were introduced into the radiating arms in order to reduce the physical size while preserving the effective electrical length.

The incorporation of these folded lines initially shifted the resonance toward higher frequencies due to modifications in the current distribution. This shift was compensated through iterative adjustments of the meander lengths and trace widths, restoring resonance at $866\mathrm{MHz}$.

To further enhance impedance matching, a capacitive end-loading was implemented at the extremities of the structure. This technique improves reactive compensation and facilitates conjugate matching between the antenna input impedance and the RFID chip while maintaining compact dimensions.

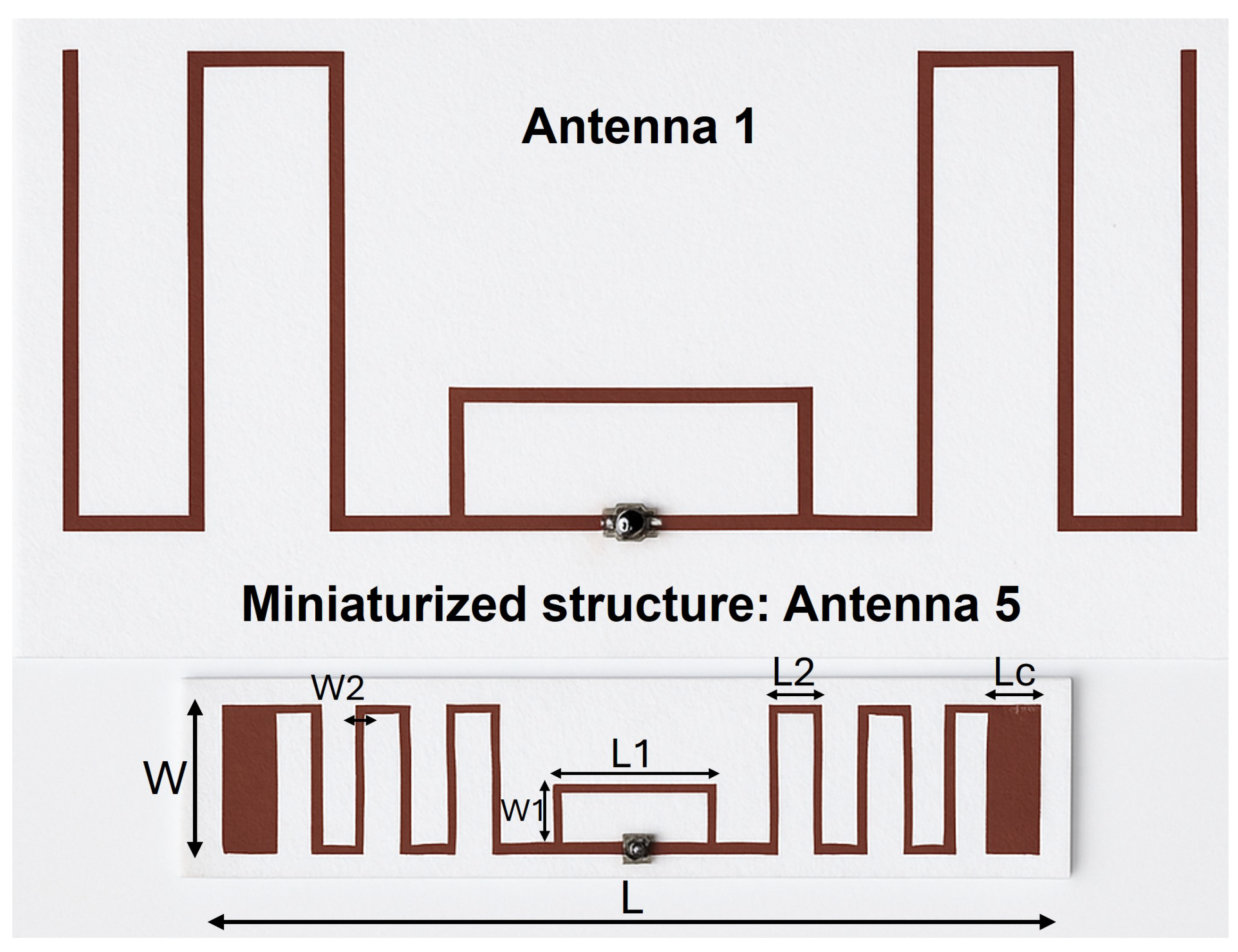

Figure 8. Design parameters of Antenna 1 and the miniaturized Antenna 5.

Figure 8. Design parameters of Antenna 1 and the miniaturized Antenna 5.

The optimized geometric parameters of the miniaturized antenna (Antenna 5) are summarized in Table 1. These values correspond to the final configuration obtained after integrating the meandered sections and capacitive end-loading, ensuring resonance at $866\mathrm{MHz}$ within the European UHF RFID band.

4.2. Material Proximity Effects

• Measurement Setup Using Voyantic Tagformance:

The performance of the fabricated tags was evaluated using the Voyantic Tagformance measurement system, a widely adopted platform for RFID characterization. The setup consists of a calibrated reader antenna and a controlled measurement station that excites the tag under test. The reader antenna was positioned at a fixed distance of $30\mathrm{cm}$ from the fabricated tag. A low-loss spacer (${\epsilon }_r\approx 1$) was used to maintain quasi-free-space conditions.

The Tagformance software enables accurate extraction of key parameters, including transmitted power, backscattered power, radar cross section (RCS), theoretical read range, and orientation sensitivity across the UHF RFID band.

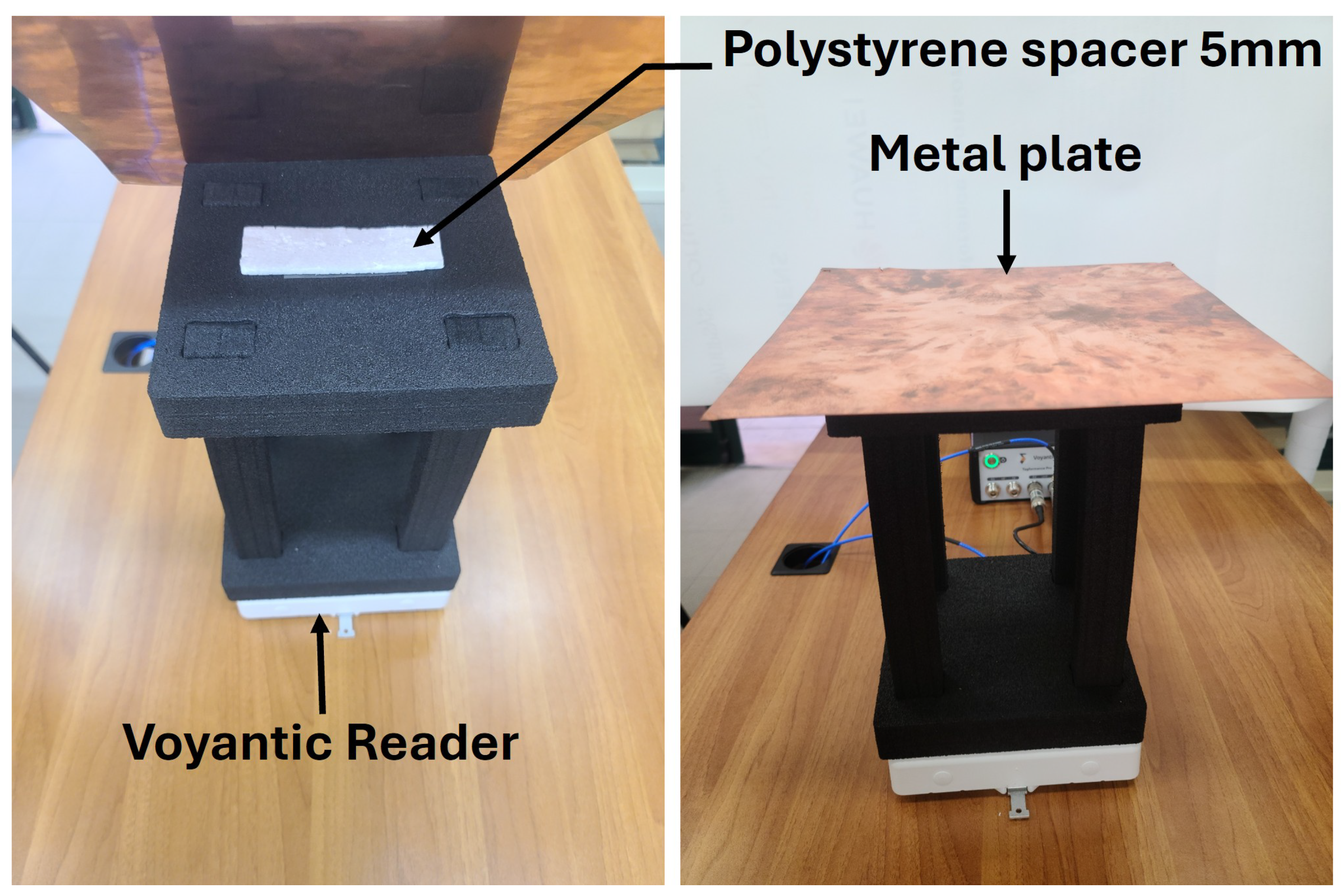

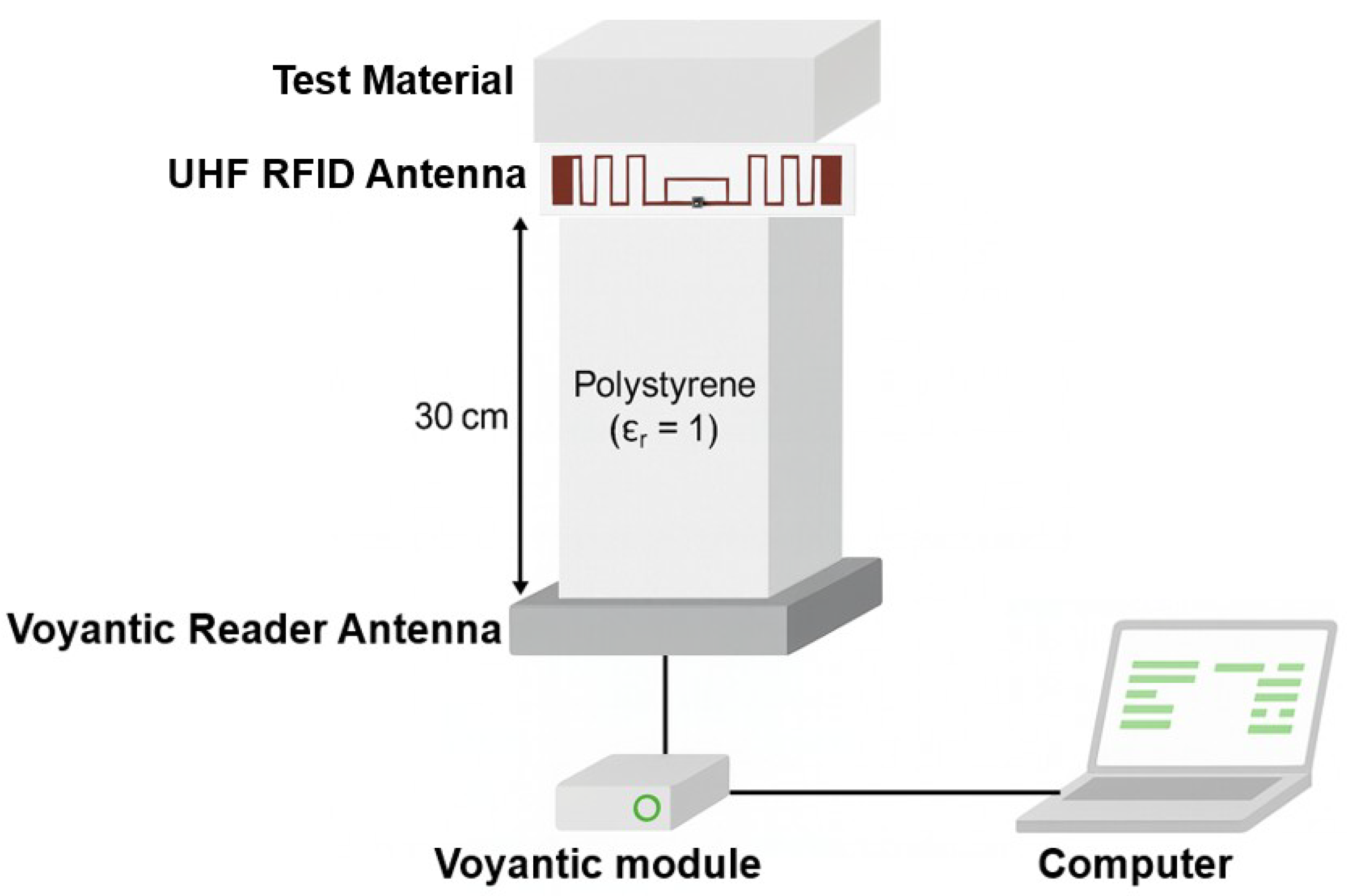

Figure 9. Measurement setup for the UHF RFID antenna in proximity to test materials.

Figure 9. Measurement setup for the UHF RFID antenna in proximity to test materials.

• Read Range Evaluation of Antenna 1:

The objective of this experiment was to evaluate tag performance in proximity to different materials representative of practical industrial environments. Figure 11 presents the measured forward read range of Antenna 1 under various loading conditions.

In the reference configuration, the antenna was placed on a polystyrene support at a fixed distance of $30\mathrm{cm}$ from the reader antenna. Under these quasi-free-space conditions, Antenna 1 achieved a maximum read range of approximately $8.6\mathrm{m}$ at $866\mathrm{MHz}$.

When a wooden plate ($20\times 20{\mathrm{cm}}^2$) with a thickness of $9\mathrm{mm}$ was placed above the tag, the read range decreased to approximately $5\mathrm{m}$. Increasing the wood thickness to $15\mathrm{mm}$ further reduced the read range to about $4\mathrm{m}$.

For metallic loading, a copper sheet was introduced. To prevent electrical short-circuiting, a $5\mathrm{mm}$ polystyrene spacer was inserted between the tag and the metallic surface, as illustrated in Figure 10.

Under metallic proximity, the antenna performance degraded further, with the read range limited to approximately $3\mathrm{m}$. Increasing the copper thickness to $0.5\mathrm{mm}$ produced a similar effect, maintaining a read range close to $3\mathrm{m}$ at $866\mathrm{MHz}$.

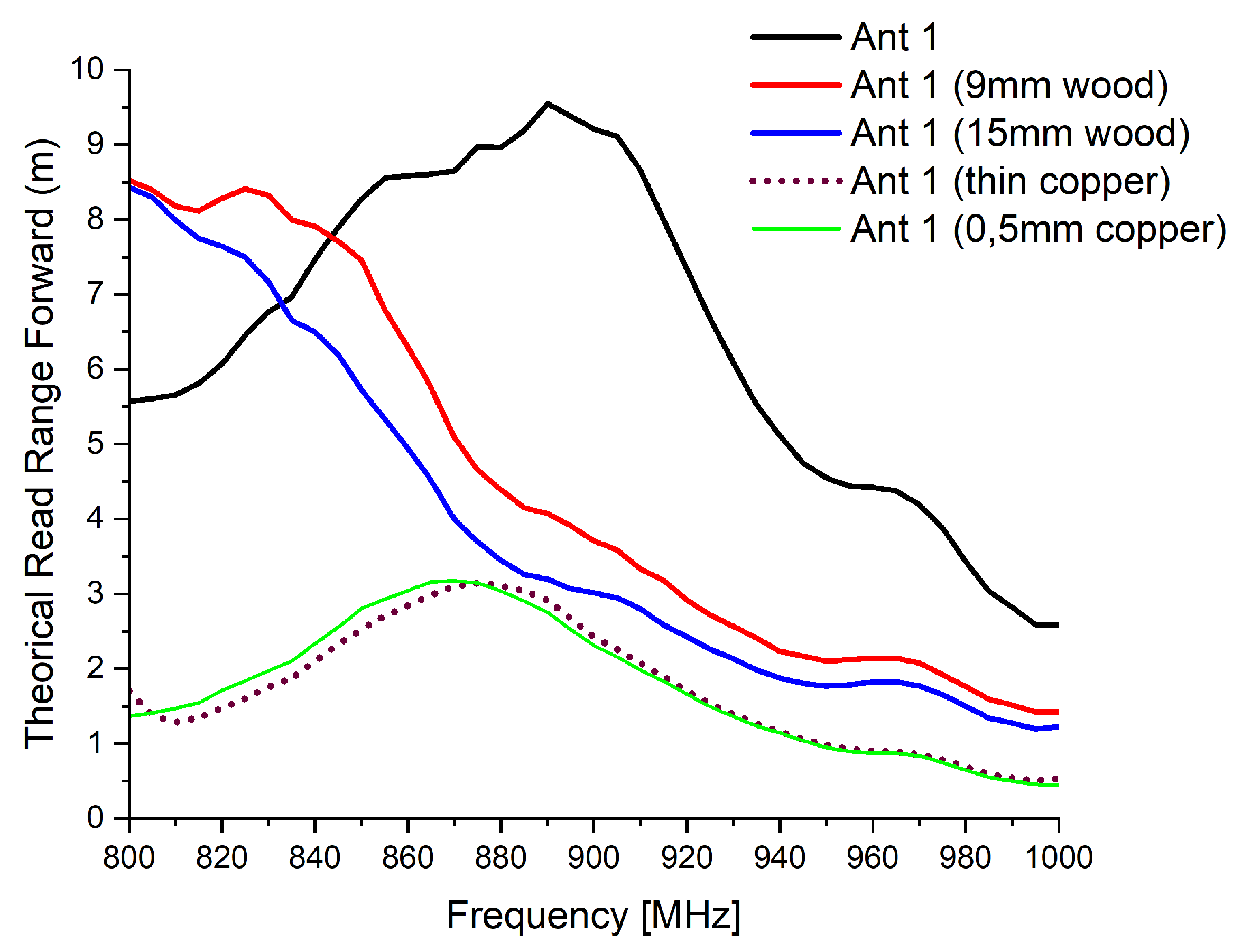

Figure 11. Theoretical read range of Antenna 1 under different material loading conditions.

Figure 11. Theoretical read range of Antenna 1 under different material loading conditions.

• Read Range Evaluation of Antenna 5:

For the miniaturized structure (Antenna 5), a noticeable reduction in performance was observed compared to Antenna 1. Under free-space conditions, the maximum forward read range reached approximately $6.3\mathrm{m}$ at $866\mathrm{MHz}$.

When loaded with a $9\mathrm{mm}$ wooden plate, the read range decreased significantly to about $1.6\mathrm{m}$ and further dropped to approximately $1.3\mathrm{m}$ with a $15\mathrm{mm}$ wooden plate.

In the presence of copper layers, regardless of thickness (thin sheet or $0.5\mathrm{mm}$), the read range was severely limited, stabilizing around $0.5\mathrm{m}$.

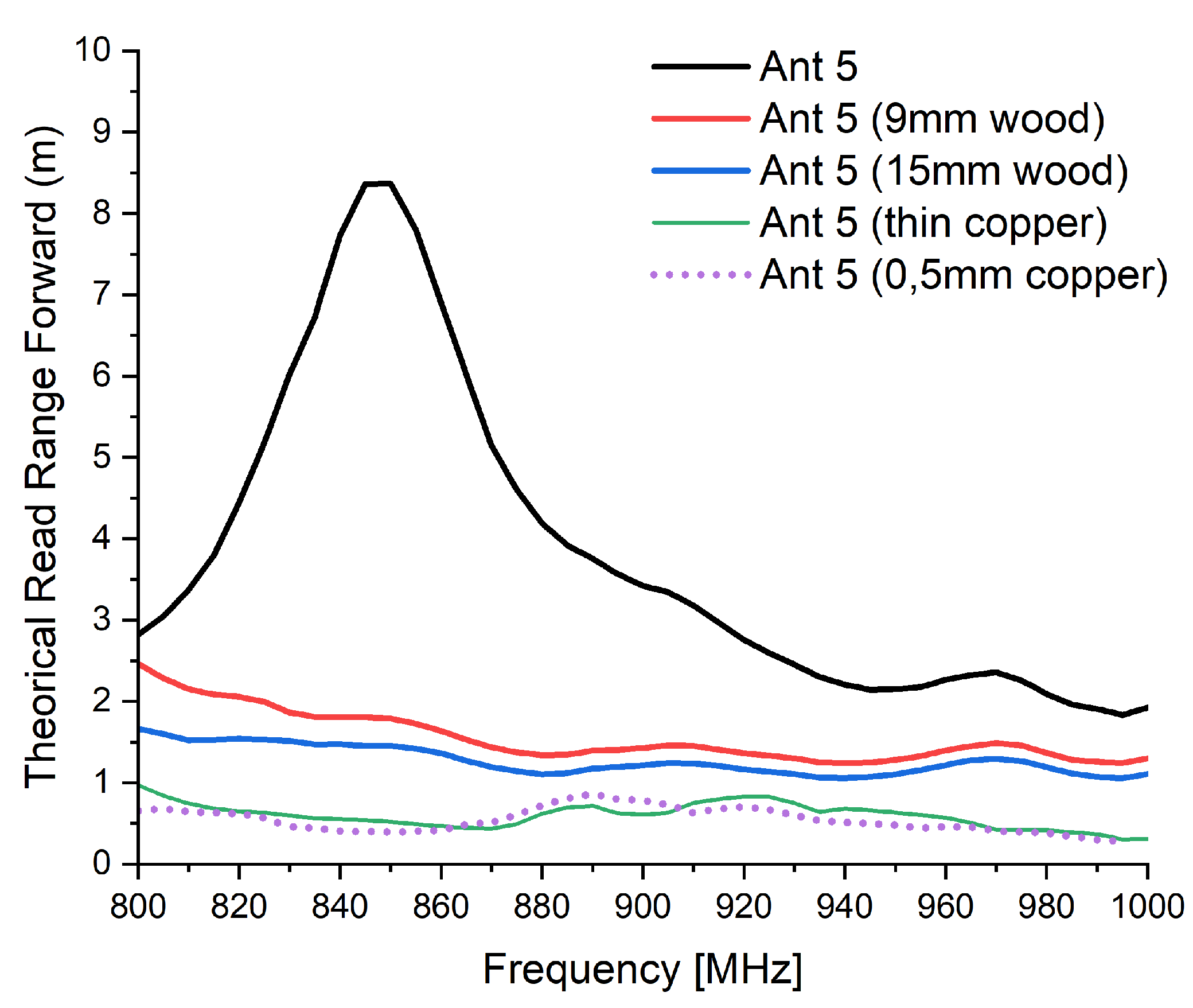

Figure 12. Theoretical read range of Antenna 5 under different material loading conditions.

Figure 12. Theoretical read range of Antenna 5 under different material loading conditions.

• Normalized Radiation Patterns:

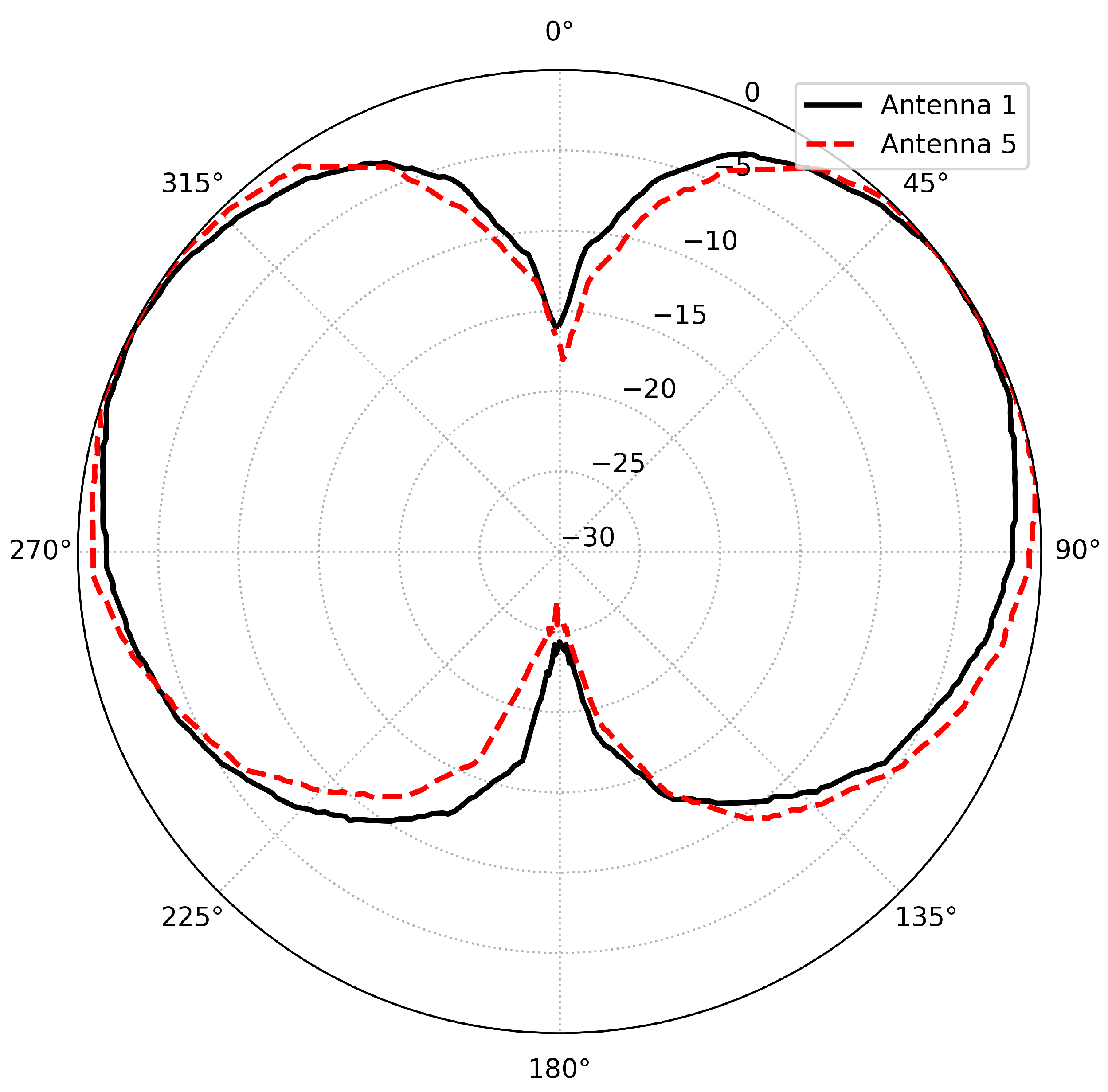

Figure 13 presents the normalized radiation patterns (in dB) of the two most efficient structures: Antenna 1 and its miniaturized version, Antenna 5. Despite the dimensional reduction and the decrease in free-space read range, both antennas preserve a similar angular distribution, characterized by a bidirectional pattern with main lobes oriented at $0^{\circ }$ and ${180}^{\circ }$.

This result indicates that the miniaturization process did not significantly alter the fundamental radiation characteristics of the dipole-based structure, thereby maintaining acceptable orientation stability and spatial coverage.

4.3. Commercial Tag Benchmark

To contextualize the material-proximity results obtained for the proposed antennas, additional measurements were conducted on two commercially available UHF RFID tags used as practical benchmarks. This comparison provides a reference level of read-range degradation under dielectric and conductive loading conditions.

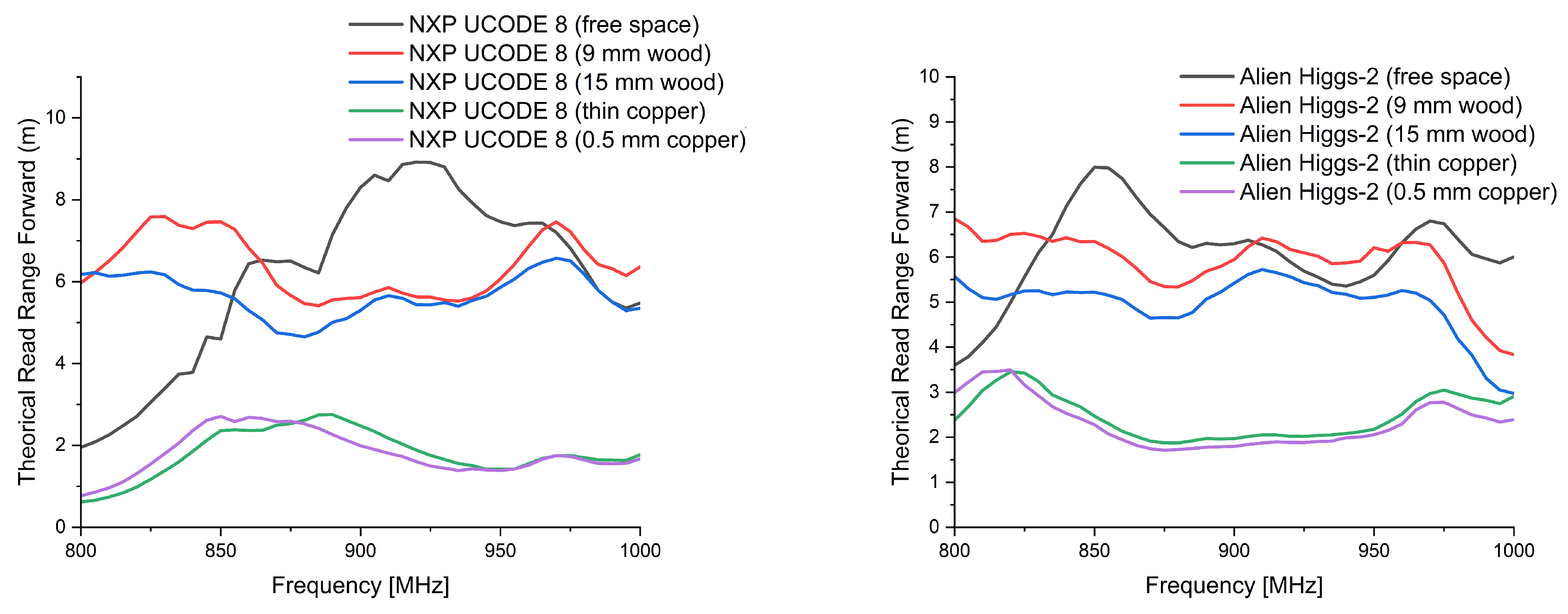

Figure 14 presents the measured read range versus frequency for two commercial UHF RFID tags under three conditions: free space, wood proximity, and copper proximity.

The first benchmark, a commercial tag equipped with an NXP UCODE 8 integrated circuit, exhibits a maximum read range of approximately $6.5\mathrm{m}$ at $866.6\mathrm{MHz}$ under free-space conditions. When a wooden slab is placed in direct proximity, the read range decreases to about $5\mathrm{m}$, corresponding to a reduction of nearly 23%. In the presence of copper, a more significant degradation is observed, with the read range reduced to approximately $2.5\mathrm{m}$, representing a reduction exceeding 60% relative to free space.

The second benchmark, a ThinPropeller 2006 commercial tag equipped with an Alien Higgs-2 IC, achieves a free-space read range of approximately $7.2\mathrm{m}$ at $866.6\mathrm{MHz}$. Under wood proximity, the read range decreases to about $5.5\mathrm{m}$. In the presence of copper, a pronounced degradation occurs, limiting the maximum read range to approximately $1.9\mathrm{m}$.

These results highlight the strong sensitivity of commercially available RFID tags to nearby materials, particularly conductive objects, despite being optimized for logistics and tracking applications.

Table 2 summarizes the measured read range values and the corresponding degradation induced by wood and copper proximity for the proposed antennas and the commercial benchmarks, under identical experimental conditions at $866.6\mathrm{MHz}$.

• Discussion:

The material-proximity measurements were conducted to emulate realistic deployment scenarios and to evaluate the robustness of the proposed tag antennas under dielectric and conductive loading conditions. In free-space operation at $866\mathrm{MHz}$, Antenna 1 achieves a read range of $8.6\mathrm{m}$, comparable to the selected commercial benchmarks ($7.2\mathrm{m}$ for the ThinPropeller 2006 with Alien Higgs-2 IC and $6.5\mathrm{m}$ for the UCODE 8-based tag).

Under wood loading, all tags exhibit moderate degradation, which is consistent with dielectric loading effects. The presence of a dielectric layer modifies the effective permittivity surrounding the antenna, perturbs its electrical length, and alters the antenna–IC conjugate matching condition. As a result, the available power transferred to the chip decreases, leading to a reduced read range.

A significantly stronger degradation is observed under copper proximity. Conductive loading introduces severe detuning and reduces radiation efficiency due to induced surface currents and near-field confinement. These effects increase mismatch losses and raise the minimum activation threshold of the chip. In this critical scenario, Antenna 1 maintains a read range of approximately $3\mathrm{m}$, which is comparable to the UCODE 8 benchmark (about $2.5\mathrm{m}$) and higher than the ThinPropeller 2006 benchmark (about $1.9\mathrm{m}$). This confirms that the proposed reference structure remains operational and competitive under conductive loading conditions.

In contrast, Antenna 5, although compact and well matched in free space, exhibits substantially higher sensitivity to nearby materials, reaching approximately $0.5\mathrm{m}$ under copper loading. This behavior reflects the inherent trade-off between miniaturization and environmental robustness. The stronger current confinement and increased quality factor associated with aggressive size reduction amplify detuning effects in the presence of external materials.

Beyond read-range analysis, the normalized radiation patterns demonstrate that the miniaturization process preserved the bidirectional angular distribution of the reference design. This characteristic remains advantageous for orientation robustness in practical tracking applications.

5. Conclusions

In this work, several UHF RFID tag antenna configurations were designed and experimentally evaluated, all derived from a common reference layout. Four initial structures were investigated by varying the IC placement within the coupling loop, demonstrating that chip positioning critically influences impedance matching, power sensitivity, and overall activation performance. Among the evaluated configurations, Antenna 1 exhibited the best performance, achieving a measured power sensitivity of $-16.3\mathrm{dBm}$ at $866\mathrm{MHz}$ and a maximum read range of $8.6\mathrm{m}$. This structure was selected as the baseline for miniaturization, leading to the development of Antenna 5. Despite its reduced physical dimensions, Antenna 5 maintained acceptable free-space performance, with a read range of $6.3\mathrm{m}$ and preserved bidirectional radiation characteristics. Material proximity tests under dielectric (wood) and conductive (copper) loading confirmed that the reference design maintains competitive robustness compared to commercially available RFID tags. The miniaturized version, while compact, exhibits increased sensitivity to conductive environments, highlighting the trade-off between size reduction and environmental stability. The comparative benchmark with commercial tags demonstrates that the proposed reference antenna achieves performance levels comparable to practical market solutions, particularly under conductive loading conditions. Overall, the results validate the effectiveness of IC-position optimization and controlled miniaturization in UHF RFID tag design, while clearly identifying the associated robustness limitations in aggressive compact configurations.
