Room-Temperature Operation of an Injection-Type Ballistic Rectifier on Bilayer Graphene

1. Introduction

Four-terminal ballistic rectifiers represent a novel class of nanoelectronic devices that enable full-wave rectification of small signals owing to zero cut-in voltage. This is achieved by exploiting a sufficiently long ballistic motion of charge carriers and controlling their trajectory by means of a structural asymmetry. There are two fundamentally different approaches to achieving this. The first is the scattering-type rectifier, which is based on an orthogonal cross junction with an asymmetric scatterer at its center [1]. When a charge carriers beam is injected via one of the quantum point contacts into the current path, it is reflected specularly by the scatterer. Since in both current directions the carriers are deflected towards the same voltage lead, full-wave rectification of the input signal results. Due to the space required for the scattering element, a charge carrier film with a large mean free path is necessary. While rectifiers on semiconductor heterostructures only achieve the required mean free path at low temperatures, graphene, with its high mobility, offers sufficiently long paths for ballistic rectifying even at room temperature [2,3,4]. Recently, the rectification of signals in the THz range was demonstrated using this technique [5,6].

The second approach is the injection-type rectifier, which is based upon an asymmetric cross junction consisting of a straight voltage stem with upper (U) and lower (L) contacts and opposing current injector leads (1,2) that converge into the stem at an angle of less than 90 degrees, see Figure 1. Samples were fabricated on GaAs/AlGaAs [7,8] or Si/SiGe [9,10,11,12] heterostructures. Due to a short ballistic carrier length, especially in Si/SiGe, the width of stem and injector channel must be as small as possible without compromising the channel conductivity (normally conductive). This is approximately 200 nm without gain from a biased gate electrode [11]. One advantage of this concept is the small size of the cross junction and the associated lower requirements for the ballistic path length. This allows the use of materials with low mobility, i.e., short ballistic length. Comprehensive investigations of ballistic rectifiers on Si/SiGe at T = 4.2 K showed a quadratic dependence of the ballistically generated output voltage on the input current [9,12]. Depending on the geometry and the gate voltage, the ballistic component was superimposed with a hot electron thermopower, which could be separated from the ballistic component [9,11,12]. A specific advantage of the injection-type device is the possibility of cascading multiple stages to increase the output signal amplitude [13,14]. Furthermore, a stage spacing smaller than the ballistic length leads to synergistic gain of the output signal due to the parabolic transfer characteristic [14].

Before selecting a suitable material for operating the ballistic rectifier at room temperature, the main factors limiting the ballistic length should be addressed. The most important limitation arises from the interaction of charge carriers with phonons. In GaAs, strong coupling of the carrier motion to LO phonons with an energy of 36 meV limits the ballistic transport in a two-dimensional electron gas [15], and in Si TA phonons with 20 meV destroyed the carrier momentum [16]. This aligns with our observation that the injection rectifiers based on GaAs and Si only work up to a temperature of about 150 K [8]. In cross-junctions with channel widths below 100 nm on the nitride semiconductor InAlN, at room temperature a negative bend resistance was observed as a signature of ballistic transport, which was attributed to the high phonon energy of 92 meV [17]. Compared to classical semiconductors, graphene is a particularly interesting material due to its high charge-carrier mobility at room-temperature [3,4,5,6]. Based on a fabrication technique that avoided scattering by charged impurities or microscopic ripples, devices were prepared of monolayer and bilayer graphene which revealed an extremely low electron-phonon scattering rate [18]. Accordingly, encapsulated graphene with mobility µ > 100 000 cm²/Vs at room temperature was used to fabricate cross junctions with 1 µm wide channels. These junctions exhibited negative bend resistance at temperatures up to T = 250 K [19].

The second limiting factor is the diffuse scattering of charge carriers at the edge of the current-carrying channels. In classical semiconductors such as Si, GaAs or nitrides, the finite energy gap causes a lateral depletion zone at the edge of a conducting channel, which favors specular edge scattering. For the ballistic rectifier, the problem of a small ballistic length in a material like Si could therefore be solved by reducing the device dimensions. In contrast, the edge of the zero-gap semiconductor graphene is rough and therefore a diffuse scatterer, which significantly reduces the ballistic length. In a high-mobility graphene film, large dimensions can reduce the influence of the edge on the charge carrier ballistics [19]. This advantage can hardly be exploited with a material that has low mobility. Experiments on orthogonal cross junctions on low-mobility graphene revealed at T = 4.2 K a negative bend resistance only on 50 nm wide channels, but not for wider or narrower ones [20].

Bilayer graphene (BLG) offers an interesting solution. Under the influence of a perpendicular electric field, a band gap opens [21,22] creating a lateral depletion zone at the edges, which leads to specular repulsion of the charge carriers. Thus, BLG behaves like a classical semiconductor, but the effective mass of the charge carriers is very small and the ballistic length is correspondingly large. Therefore, BLG offers the potential for operating injection-type ballistic rectifiers at room-temperature, even if the material has low mobility.

2. Materials and Methods

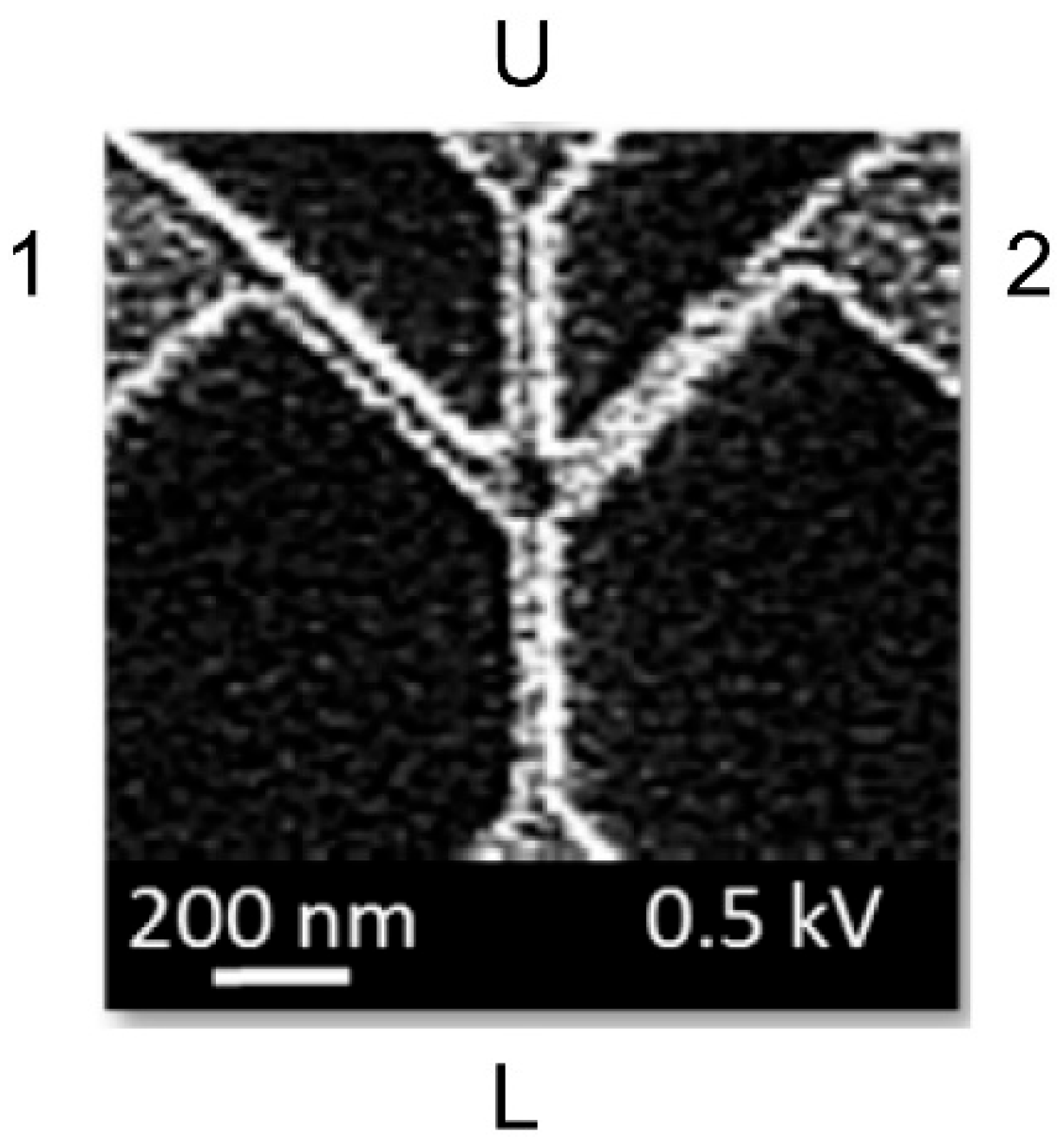

The devices were fabricated on BLG flakes, which were exfoliated from highly oriented pyrolytic graphite and deposited on 300 nm thick SiO₂ grown thermally on an Sb-doped n+-Si wafer (ρ ≈ 0.01 Ωcm). The substrate serves as a back gate for adjusting the charge carrier type and density. The BLG flakes were selected and identified using optical microscopy [23] and Raman spectroscopy [24]. Device fabricating begun with the positioning of the ohmic contacts using a laser pattern generator for photoresist exposure, followed by the deposition of Ti (10 nm) and Au (130 nm), and the lift-off process. The nanostructure was finally defined by 15 kV electron-beam lithography in PMMA resist, followed by oxygen plasma etching and cleaning in acetone. Figure 1 shows an SEM image of the central region of the device with an injection angle of 45°. This angle represents a trade-off between higher rectification efficiency at smaller angles [12] and poorer definition of the transition between the injector and stem channels due to the proximity effect in electron-beam lithography. In addition to the nanoscale devices, Hall-bar samples with 1 µm wide channels were prepared to characterize the material.

3. Results

All electrical measurements were performed at room temperature. The Hall-bar devices revealed a mobility of µ = 1300 cm²/Vs, which underlines the need for nanoscale implementation of the ballistic rectifier. The present charge carrier density proved to be p-type with a hole density of 7×10¹² cm^‒2, which we attribute to residual contamination from the PMMA resist layer. The ballistic rectifier was investigated by measuring the channel conductance and transfer characteristics under control by the back-gate voltage V_BG. Under V_BG > 0 the leakage current gradually increased and reached a value of 150 pA at V_BG = 100 V. In contrast, negative back-gate voltages led to a sharp increase in leakage current. Therefore, measurements were only performed with positive back-gate voltages.

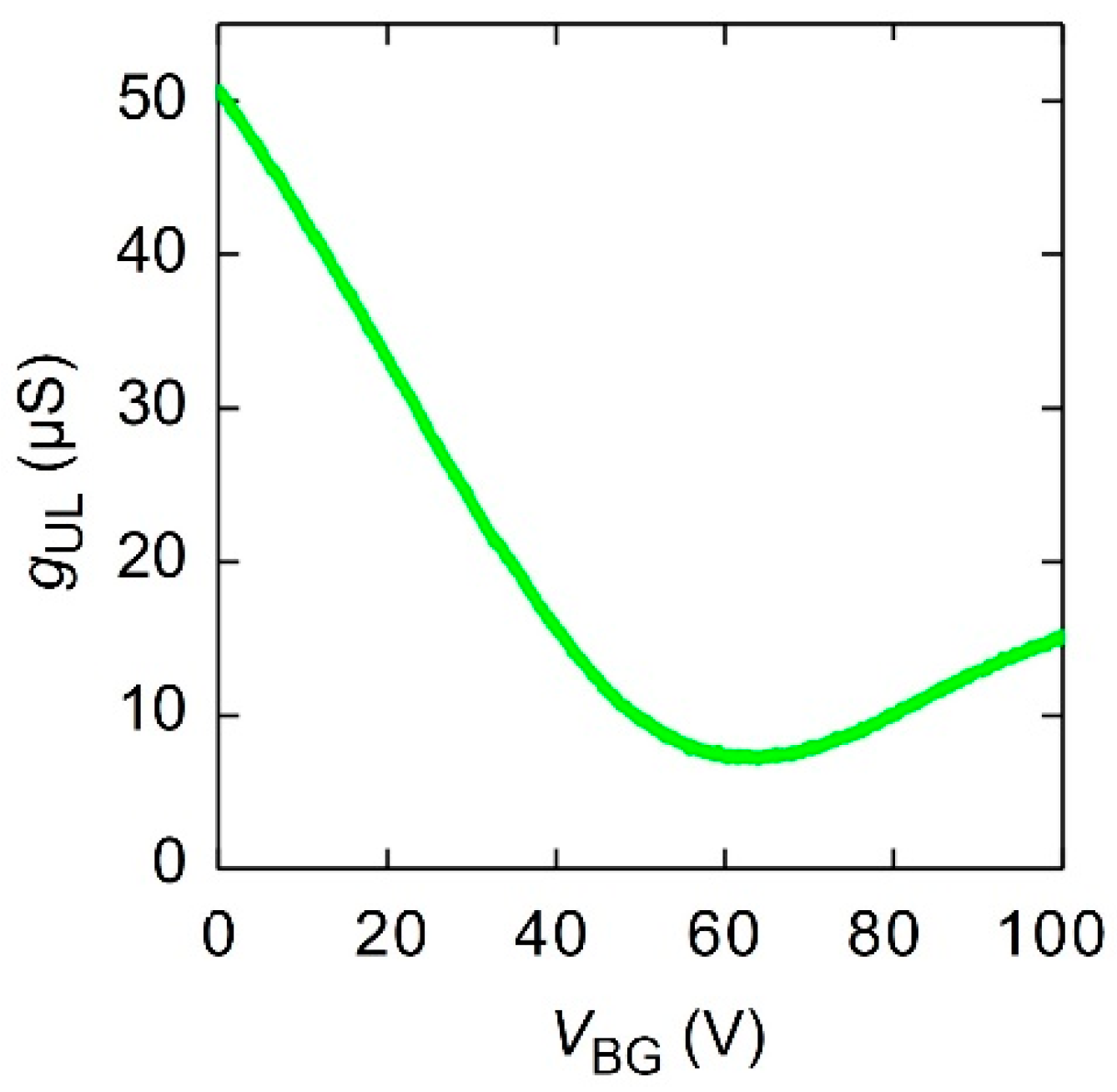

Figure 2 illustrates the influence of the back-gate voltage V_BG on the differential conductance of the stem channel. As reported on BLG [18], the conductance curve is V-shaped with its minimum at the neutrality point (NP) at V_BG,NP ≈ 63 V. The position of the NP corresponds to a p-type doping of 4.5×10¹² cm^‒2, similar to the Hall-bar device. The minimum conductance of about g_UL,NP ≈ 7.3 µS ≈ 0.18 e²/h is significantly lower than the theoretical value of 4 e²/h for the zero-gap state of BLG [22]. This suggests that a band gap is already present at V_BG,NP. Furthermore, it cannot be ruled out that lateral p-n junctions form at the interfaces between the large-area contacts U or L and the narrow stem channel, contributing to the overall resistance. For wide channels on BLG, the conductance curve is known to be approximately symmetrical around the NP [18]. The curve shown here exhibits a distinct asymmetry, which is attributable to the small channel width. At low V_BG the entire channel width contributes to the hole conductance. As V_BG increases, a finite band gap develops, leading to lateral depletion zones at the channel edges. In particular the electron channel narrows laterally at V_BG > V_BG,NP , thereby reducing the number of transport modes and thus the conductance.

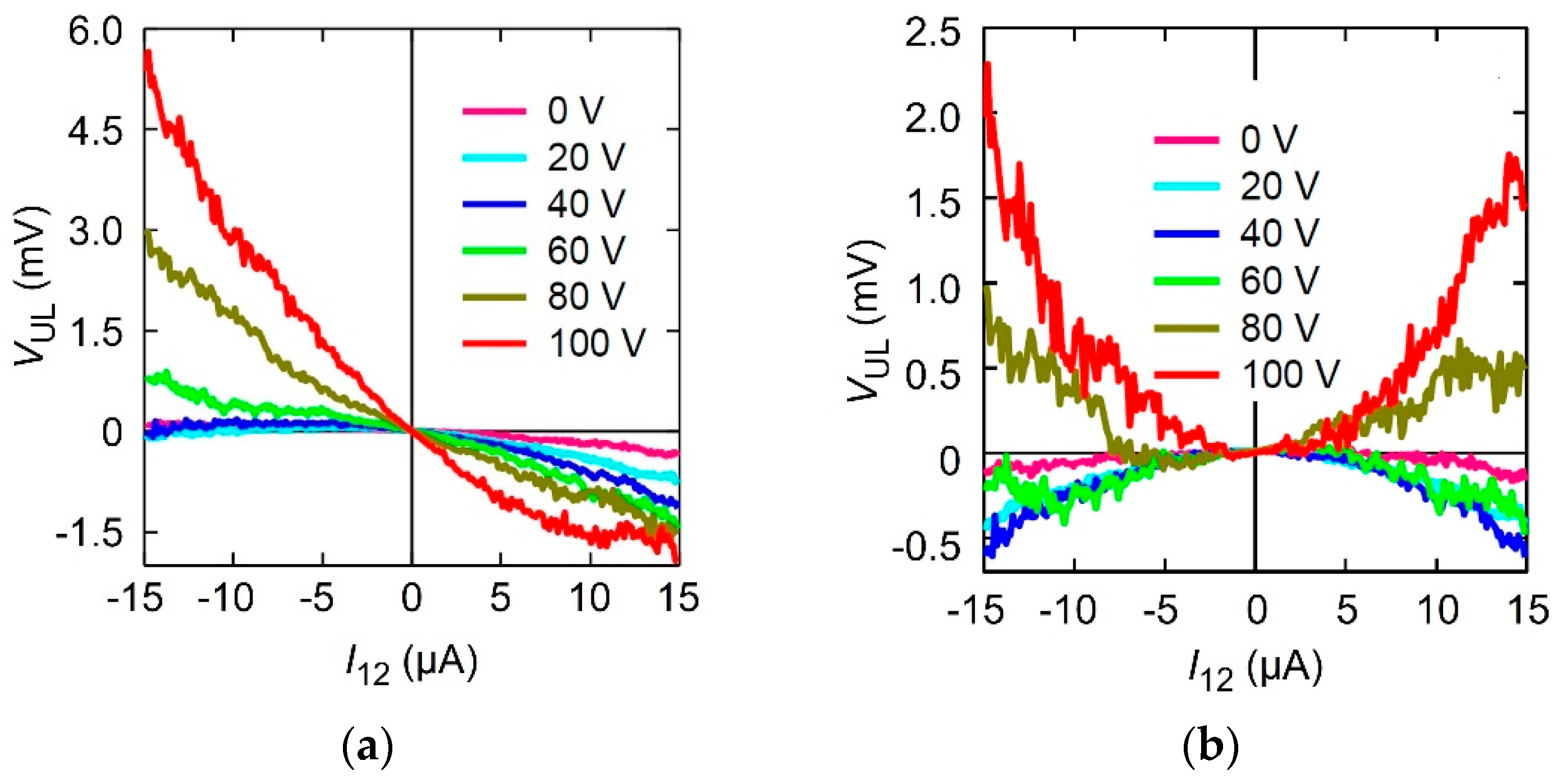

The four-probe characteristics of the output voltage V_UL as a function of injected current I₁₂, measured at various V_SB values, is shown in Figure 3. The raw data in Figure 3a are superimposed with a linear background caused by a misalignment of the injectors relative to each other at their entry point into the stem. This causes an ohmic voltage drop across the short part of the stem channel between the entry points. The pure ballistic part of the output signal was obtained by subtracting the ohmic linear component. This component, V_UL,linear(I₁₂), was determined from the data points using a least squares calculation, V_UL,linear(I₁₂) = 0.5[V_UL(I₁₂) – V_UL(–I₁₂)], and subtracted from the raw data. As shown in Figure 3b, a series of parabola results, the curvature of which indicates the type of the charge carriers. Therefore V_UL is negative for holes (V_BG < V_BG,NP) and positive for electrons (V_BG > V_BG,NP). It should also be noted that, as a result of the small device dimensions, room temperature operation of the injection-type rectifier on BLG is achieved even at V_BG = 0.

4. Discussion

Two mechanisms determine the effectiveness of the rectification. Fundamentally, the transition from hole to electron conduction occurs at the NP, where no output signal is generated. Therefore, a large difference |V_BG – V_BG,NP| is advantageous for achieving large output signals. A second effect arises from the formation of the lateral depletion zone at the channel edge, which reduces diffuse scattering at the edges. This effect becomes more significant with increasing V_BG. For this reason, hole-carrier rectification is more effective at V_BG = 60 V, near the NP, than at V_BG = 0, while electron-carrier rectification is the most effective one at V_BG = 100 V. Using the transfer resistance R_T = |V_UL/I₁₂| as the quality criterion, R_T ≈ 110 Ω is obtained at I₁₂ = 15 µA. This value is approximately in agreement with values determined for rectifiers on GaAs/AlGaAs [7,8] or Si/SiGe [9,10,11,12] heterostructures at low temperatures. Obviously, the transmission characteristics are significantly noisier than those of Si/SiGe-based components. In addition to the fact that the thermal noise is higher at room temperature than at low temperatures, the noise increases from the linear regime at low currents to the nonlinear regime at high currents. This could be due to scattering at the SiO₂ surface [2]. One possible measure to reduce the noise level is to use hexagonal boron nitride as the substrate [3].

5. Conclusions

We have demonstrated that a nanoscale ballistic injection-type rectifier on low-mobility BLGs operates at room temperature. Furthermore, diffuse edge scattering was significantly reduced by creating a band gap in the BLG using a perpendicular electric field. At a nonzero band gap, lateral depletion zones form at the edges of the narrow channels. These depletion zones represent smooth barriers that favor specular reflection of the charge carriers. As a result, the ballistic length of the charge carriers in the nanochannels increases. This not only improves the performance of a single-stage ballistic rectifier but should also enhance the synergistic gain in multi-stage ballistic rectifiers [14].
