A Matrix-Driven Cellular Automata Model for Analyzing Urban Decay and Vitality Indicators at the Neighborhood Scale

1. Introduction

Urban decay areas are defined as spaces where physical and social deterioration coexist, accompanied by multidimensional problems such as economic decline [1]. Interventions in these areas are carried out under the broader concept of urban regeneration through various approaches, including renewal, rehabilitation, conservation, revitalization, redevelopment, restructuring, improvement, and infill development [2]. However, these approaches, long employed in the literature, have largely been shaped by qualitative definitions and planning practices. The identification of areas requiring intervention, the selection of intervention types, and the determination of implementation methods are generally addressed within institutional decision-making processes, highlighting the need for objective and comparable evaluation criteria.

With increasing access to data and advancements in spatial information technologies, urban problems can now be examined through computational design and modeling tools [3]. In this context, it has become important not only to analyze existing decay areas but also to identify decay tendencies and risk potentials through quantitative data. Indeed, a recent study examining urban decay and its impacts through cognitive mapping suggests the development of systems capable of measuring real-time deterioration indicators in urban neighborhoods and mitigating such decline as a key direction for future research [4].

Within this context, urban regeneration practices implemented in informal settlement areas, along with the formation processes and socio-economic transformations of these areas, have been extensively addressed in the literature and continue to be examined. In contrast, studies focusing on decay areas located in city centers within the Turkish context remain limited. Existing research predominantly concentrates on parcel- or building-scale analyses, while comprehensive spatial evaluations at the neighborhood scale are relatively scarce. Moreover, it has been argued that public authorities often define and address decay areas in city centers primarily through physical construction problems [5]. This approach makes it difficult to assess decay areas in terms of their social, economic, and spatial dimensions and may delay the early identification of emerging problems as well as the development of preventive interventions for areas at risk of decline.

This study addresses the limited approaches in the literature concerning how urban decay can be quantified and how such quantification can be integrated into spatial analysis processes. Today, not only structural deterioration but also spatial and social decline has emerged as a critical urban issue. These areas are characterized not only by physical degradation but also by weakened urban vitality and reduced social interaction [6]. However, the concept of urban vitality is generally defined through densely populated, central, and active areas, and its inverse relationship with decay areas has received limited attention. This gap indicates both a theoretical and methodological deficiency. Although Cellular Automata (CA), as a computational design tool, has been widely used to examine urban change patterns, existing studies mainly focus on measurable parameters such as physical transformation and land use [7]. Research that holistically incorporates human-centered socio-cultural parameters within the framework of urban vitality remains limited. Accordingly, this study aims to construct a parameter matrix based on socio-cultural, physical, and economic data derived from the intersection of urban vitality and regionalism approaches, and to develop a neighborhood-scale Cellular Automata model based on this matrix.

The primary objective of this study is to develop an evaluation system that analyzes urban decay not only in terms of physical deterioration but also through the intersection of urban vitality and regionalism approaches, adopting a human-centered perspective encompassing economic, social, physical, and cultural dimensions. To this end, indicators identified through a literature review were quantified using a decision matrix and integrated into a Cellular Automata (CA) model.

The proposed approach provides an indicator-based decision-support framework that enables the analysis of spatial patterns of urban decay and potential risk areas at the neighborhood scale prior to design and planning processes. In this respect, the study aims to contribute to data-driven, measurable, and context-sensitive evaluations in urban regeneration and intervention practices.

2. Literature Review

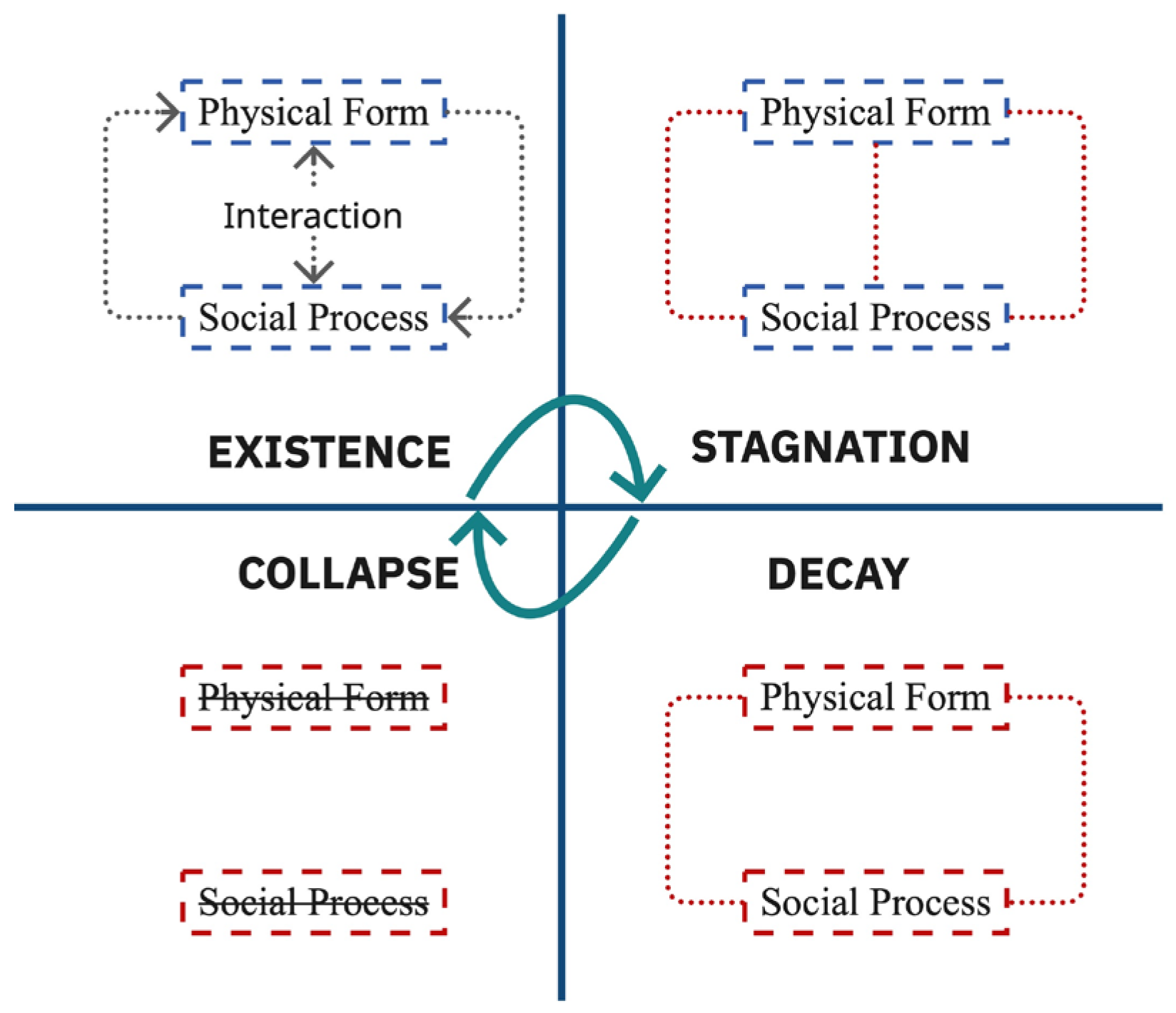

The concepts of urban decay and urban vitality represent two opposing yet complementary dimensions of urban space. Urban decay is generally defined through negative processes such as physical deterioration, economic decline, and social disintegration, whereas urban vitality focuses on positive attributes including intensity of use, level of social interaction, and continuity of public life. Although these two concepts are often addressed under separate headings in the literature, the reciprocal relationship between decay processes and the weakening of vitality has been discussed only to a limited extent.

However, urban decay areas are not merely spaces characterized by physical deterioration; they also emerge as environments where urban vitality declines and social interaction weakens. Similarly, reductions in vitality indicators can often be interpreted as early signs of emerging decay processes. For this reason, addressing urban decay and urban vitality together enables a more comprehensive understanding of urban problems, encompassing not only their outcomes but also the spatial and social dynamics that give rise to them.

2.1. Urban Decay and Urban Vitality in Urban Studies

While cities continuously and independently renew themselves Lefebvre [8], societies, spaces, regions, and even entire cities that fail to regenerate become focal points of decline. Although the concept of “urban decay” is often perceived primarily as physical deterioration and the formation of obsolete spaces, it fundamentally reflects a socio-economic condition [9]. In rapidly growing cities, new developments often conceal impoverished, neglected, and disorderly areas. These areas, which urban residents tend to avoid and gradually attempt to eliminate, are defined as “urban decay” [4,10]. Urban decay refers to spaces that undergo morphological transformation as a result of losing their functions and negatively affecting urban identity [5]. Problems arising from poor planning at the neighborhood or district scale, as well as voids created by various other factors, are defined as urban voids [11]. Areas that become vacant and lose their economic vitality often turn into abandoned and distressed environments. These spaces are typically occupied by low-income residents or migrants seeking affordable housing [4]. Urban vacancy has become one of the most prevalent urban issues today, affecting cities and specific neighborhoods differently depending on local conditions [12]. Doron [13] argues that urban voids are never truly empty; rather, they possess historical layers, are used by different groups, and exist as suspended spaces.

Over time, vandalism in such areas may increase crime rates and erode social cohesion [14]. According to the “broken windows” theory, visible disorder in public space may contribute to more serious crimes and deepen urban decline [15]. Urban decay thus encompasses multidimensional processes involving social, economic, and physical regression [16].

Urban decay thus encompasses multidimensional processes involving social, economic, and physical regression [17,18]. Slums are typically characterized by physically deteriorated environments, high population density, and social isolation [19]. The concept of the ghetto intersects social and spatial exclusion and was first defined by sociologist Louis Wirth [20], who emphasized the distinct social life of marginalized communities. In contrast, suburbs emerged as planned responses to rapid industrial urbanization, often shaped by state policies [21].

Although these concepts reflect forms of socio-spatial segregation, they differ from one another. Urban decay areas are distinct from slums that emerge as a result of urban housing shortages [22]. Residents of urban decay areas often live primarily for survival, without expectations of full integration into the broader urban system. In contrast, slum areas have been described as places where hope begins. Individuals migrating from rural to urban areas often do so in pursuit of better opportunities in health, education, and employment, striving to improve their living conditions [21]. Nevertheless, slums and decay areas share adverse living conditions, such as poor building quality and aesthetics, inadequate infrastructure, insufficient public amenities (parks, schools, hospitals), and social isolation from the broader urban context. Residents of these areas frequently experience economic, social, cultural, political, and spatial exclusion. Factors such as youth, low educational attainment, migrant status, prolonged unemployment, lack of social security, and economic insecurity intensify feelings of exclusion. When such characteristics become concentrated within a neighborhood, a broader sense of marginalization may emerge, often accompanied by deepening poverty processes [23].

As urbanization accelerates globally, housing shortages continue to grow, triggering socio-spatial segregation [22]. Ghettos are characterized by distinctive social structures formed through ethnic, political, or religious exclusion. Slums result from rapid internal migration and informal construction, whereas suburbs emerge as planned residential areas, often shaped by state policies and post-colonial migration processes [21,24]. Unlike ghettos and suburbs, slums are distinguished by residents’ efforts to claim permanence and gradually improve their living conditions [21]. Thus, slums denote unplanned and necessity-driven settlements, ghettos reflect exclusion-based spatial segregation, and suburbs represent voluntary or policy-driven separation. In such areas, processes such as population decline, building aging, and housing inadequacy may lead to urban decay [25]. As residents relocate from historic city centers to areas offering better living conditions, central housing stock may become vacant, leading to physical deterioration, functional decline, and value loss. Urban decay consequently results in declining property values, unemployment, crime, and security concerns, ultimately exerting negative long-term impacts on national economies [4,26].

Arabacıoğlu and Yılmaz [27] argue that when the unique identity and urban fabric of a city cannot be preserved, decay areas undergo physical deterioration, become obsolete, and are eventually forgotten. Decay areas may arise at building, regional, or urban scales and evolve through layered stages of existence, impact, collapse, abandonment, and eventual transformation [9]. Işıkkaya emphasizes that three stages—stagnation, obsolescence, and aging—must sequentially occur for an area to be considered a decay zone. Political and economic crises further intensify these processes, while legal interventions often remain insufficient to fully resolve them. Aytaç [28] conceptualizes the formation of decay areas through four stages: physical aging, deterioration, obsolescence, and ultimately urban regeneration.

Although individual studies emphasize different variables, most approaches converge on the notion that economic and functional weakening precede physical and social deterioration. Some decay areas may eventually enter a revitalization phase. As illustrated in Figure 1, decay areas emerge through identifiable stages and may develop at structural, regional, or urban scales. Initially, the physical form and social processes interact dynamically; however, as this interaction weakens, stagnation occurs. Over time, changing social, economic, and physical conditions lead to building aging and population decline, marking the obsolescence stage. With further deterioration of the physical environment and disintegration of the social fabric, the area enters collapse and eventual abandonment. Urban regeneration may reintegrate such areas into the city, breaking the cycle of decline and fostering renewed social cohesion and sense of place [29].

Urban vitality holds critical importance for urban life. The health, social, economic, and environmental values of a place collectively reflect its overall quality. Vitality, beginning at the street scale, directly influences urban quality of life [30]. Jacobs [31] argued that isolated and lifeless urban spaces devoid of human presence were being produced and introduced the concept of “eyes on the street” in The Death and Life of Great American Cities as a sociological framework. She defined urban vitality as the diversity of activities and intensity of human presence in specific spaces such as streets and sidewalks. By emphasizing sidewalks as the primary elements of urban life, Jacobs suggested that pedestrian activity and visual surveillance from building windows contribute to street safety. She maintained that a vibrant and well-functioning city requires density (of people and buildings), diversity (a mix of old and new buildings and mixed uses), interaction, and permeability [31]. In large urban areas, promoting diversity, improving accessibility, and minimizing spatial voids are essential to encourage pedestrian activity and foster safe, high-quality built environments.

Lynch, in Good City Form, identified vitality as one of five fundamental dimensions of a good city, alongside sense, fit, access, and control. He considered vitality a primary condition for sustaining quality of life, relating it to the extent to which urban environments support human needs and capabilities. A safe environment enables diverse activities and enhances overall well-being [32]. Maas [33] conceptualized urban vitality through three components: people in public space, their activities, and the physical environment in which these activities occur. He associated vitality with diversity, uniqueness, social interaction, and the scale and diversity of pedestrian populations. Montgomery [34] argued that urban vitality emerges from the interaction between people’s activities and the diversity of urban functions, forming the foundation for sustainable and safe cities. Gehl [35] emphasized that social activities in public space positively influence urban environments, defining vitality as the presence of everyday street life. Jin [36] demonstrated a strong relationship between urban morphology and vitality through spatial regression analysis. More recently, Paköz and Işık [37] examined the relationship between vitality, healthy environments, and density during the COVID-19 period, highlighting the importance of functional diversity. Eloah et al. [38] suggested that urban vitality can be analyzed computationally in relation to place quality and urban morphology.

Urban vitality is examined in some studies under three main dimensions—social, economic, and cultural—while others also include environmental vitality. Rapidly growing cities and increasingly complex urban structures demonstrate that urban vitality is influenced not only by physical environmental factors but also by social and cultural dynamics. For this reason, urban vitality is currently regarded as an abstract yet complex concept encompassing multiple dimensions, including social, economic, and cultural components [39]. Creating vitality in urban areas contributes to improving residents’ quality of life and promoting sustainable urban development. Accordingly, urban vitality holds significant importance for urban planning, development, and governance. It has been widely studied across disciplines such as urban studies, geography, sociology (human–space interactions, street life, and social dynamics), urban planning, economics, culture, and ecology [40,41]. This multidisciplinarity underscores the complexity of measuring urban vitality. Diverse human activities occurring at different times shape urban functions, which in turn sustain the dynamic character of urban areas and support their progression. The formation of a vibrant urban environment depends on well-designed urban morphology, appropriately developed urban functions that respond to residents’ needs, and a variety of opportunities that encourage active participation [40].

The disappearance of factors that sustain urban vitality may create conditions conducive to urban decay. Within the scope of this study, the urban vitality literature suggests that decay areas are closely associated with very low levels of vitality. While vitality reflects dynamism and activity within an area, it simultaneously reveals degrees of stagnation and inactivity. Due to its abstract nature, measuring urban vitality remains challenging. Indicators of vitality reflect whether an area can be considered “vibrant” based on the interaction among various urban components. Ensuring vitality therefore requires spatially operationalizable parameters. In this context, recent analytical approaches in urban vitality research have been examined. The measurement criteria, applied methods, case study contexts, and scales of analysis used in each study were systematically classified. This process clarifies how measurable vitality indicators have been operationalized and provides the analytical foundation for the decision matrix developed in this research.

Jacobs and Montgomery identified key built environment characteristics influencing urban vitality, including mixed land use, building density, small block sizes, and intersection density [31]. Beyond these earlier criteria, recent studies demonstrate that vitality measurement indicators have diversified and vary according to scale. Following Warnke’s [42] area-based study, vitality assessments have been conducted at multiple scales—from city-wide analyses to neighborhood-level investigations—highlighting the increasing importance of scale-sensitive approaches in vitality research.

2.2. Indicator-Based Approaches for Urban Analysis

As presented in Table 1, a comprehensive review of recent case studies was conducted to identify approaches addressing urban decay, urban vitality, and contemporary analytical methods. As a result of this screening process, 21 urban vitality studies were selected and examined in detail. The studies were classified according to the criteria employed, the methods applied, and the scale of analysis. Most of the reviewed studies utilized measurement criteria aimed at identifying the relationship between urban form and urban vitality. These criteria were applied in various case studies using different methodological approaches. Numerous studies have demonstrated the connections between urban vitality and functional structure, urban morphology, population density, and economic characteristics. The findings emphasize that distance, accessibility, density, building typology, and diversity constitute key spatial variables influencing urban vitality [36,39,40,43,44,45,46,47,48,49].

Indicator-based approaches in the evaluation of urban areas are addressed through various methods, including index-based assessments, multi-criteria decision-making techniques, spatial data analyses, deep learning, and machine learning. While these approaches contribute to the quantification of urban phenomena, they often produce static evaluations and address the spatial interactions among indicators only to a limited extent. Moreover, in many of these studies, where physical indicators tend to dominate, the holistic integration of social and cultural dimensions into the modeling process remains limited. At the neighborhood scale, however, local socio-economic, physical, and cultural conditions play a decisive role in shaping urban processes. The literature emphasizes the importance of considering criteria such as data availability, spatial applicability, and contextual relevance in the selection of indicators [47,50]. In this context, the indicators derived from the literature in this study were evaluated through a context-sensitive approach. Criteria that were not suitable for the research area, could not be spatially represented, or were incompatible with the model structure were eliminated to establish the final set of parameters. This process aimed to enable meaningful and comparable spatial analyses at the neighborhood scale.

3. Methodology

During the selection process of parameters to be used in the Cellular Automata model, a literature-based decision matrix was developed. This matrix enabled the systematic identification of variables to be integrated into the model. Since urban decay and urban vitality processes are governed by different dynamics, the criteria were evaluated through two separate decision matrices within the scope of this study.

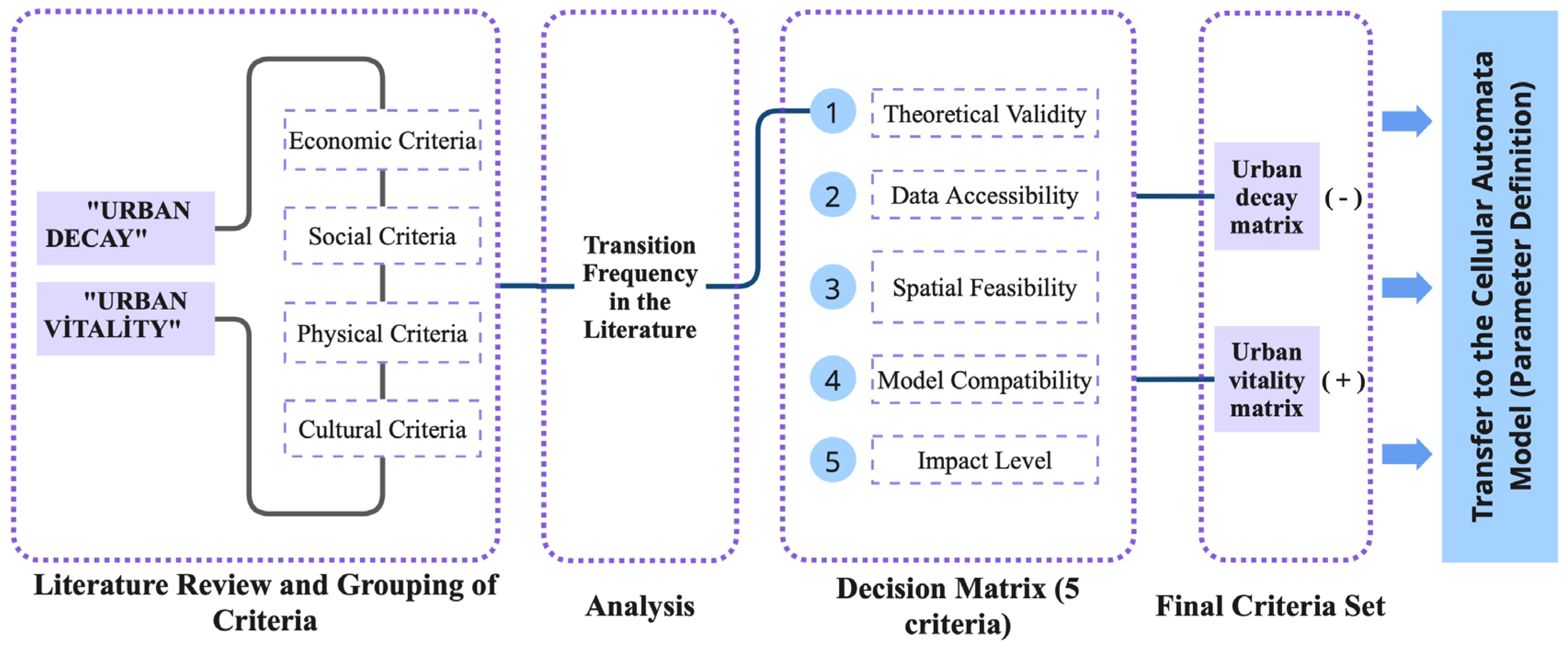

As illustrated in Figure 2, urban decay and urban vitality criteria identified in the literature were first grouped into four categories and analyzed according to their frequency of occurrence. The most frequently cited criteria were then listed. However, it was anticipated that a selection approach based solely on frequency would not sufficiently address the spatial requirements of the model. Therefore, the identified criteria were further evaluated using a decision matrix method based on five assessment criteria: theoretical validity, data accessibility, spatial applicability, model compatibility, and impact level. Frequency of occurrence in the literature was incorporated into the matrix under the criterion of theoretical validity. In this way, indicators demonstrating both strong representation in the literature and high compatibility with the Cellular Automata framework were selected as model parameters. As a result of the evaluation based on these five criteria, a final set of high-scoring indicators was established. This final set defines the parameters to be used in the Cellular Automata model.

3.1. Literature-Based Indicator Identification

Urban decay within the scope of the literature review, the frequency with which each criterion was repeated in each study was analyzed, and the most frequently used parameters were determined based on transition frequency. In this context, 20 studies conducted on decay areas in the literature were examined, and according to the analysis:

• Poor physical order and facade quality was the most common parameter, appearing in 18 different sources. This parameter refers to elements such as abandoned buildings, facade deterioration, and lack of maintenance in the physical category.
• Deterioration in quality of life was mentioned in 14 different sources. This parameter, in the social category, refers to a decrease in urban satisfaction and an increase in the tendency of the people living in the area to move away from the area.
• Low public space ratio and poverty were mentioned in 13 different sources. Low public space ratio is in the physical category; it shows the importance of spatial planning. The poverty parameter is in the economic category; it also indicates that there are many households receiving social assistance due to the low income level of the people in the region.
• Unemployment rate, lack of social interaction (social segregation/exclusion), building maintenance status, low housing value, crime rate and security issues, loss of place identity or cultural alienation, high emigration (migration), and low level of social solidarity (neighborhood) parameters were evaluated as priority criteria, appearing 8-12 times in different sources.
• The decline in industrial employment rates and the neighborhood-segregating effect of transportation infrastructure (railway lines, etc.) are the least recurring criteria, appearing in only four different sources. Upon examination, these criteria are found in the literature depending on the region where the fieldwork was conducted.

As a result of this analysis, an objective analysis was performed based on the level of acceptance in the literature, rather than just the validity of the parameters to be used in the model. As a result, Table 2 brings together the reasons emphasized by different studies under these four categories, showing that the urban decay approach is a holistic process formed at the intersection of economic, social, physical, and cultural factors.

Recent case studies have been limited to a detailed screening aimed at identifying urban decay, urban vitality, and current methods, and 21 urban vitality studies related to the subject have been identified and examined. The urban vitality measurement criteria used in the studies were analyzed and classified according to the research methods and scale. Of the 21 studies, 6 were examined at the city scale, 4 at the regional scale, 3 at the historic district scale, 4 at the neighborhood scale, 3 at the street scale, and 1 at the block scale. The studies generally used measurement criteria aimed at determining the relationship between urban form and urban vitality. These criteria were applied in case studies using different methods. The link between urban vitality and function, morphology, population density, and different aspects of the economy was revealed in many studies. Research emphasizes that distance, accessibility, density, building typology, and diversity are important spatial variables that determine urban vitality [36,39,40,43,44,45,46,47,48,49].

The frequency with which the measurement criteria identified in the detailed literature review on urban vitality are used to demonstrate their importance in the concept of vitality is shown in Table 3. [61] were not included in the evaluation because their review study contained conceptual explanations, and the evaluation was based on 20 studies. According to this analysis:

• Land use diversity was the most common parameter, appearing in 12 different sources. This parameter, in the physical category, refers to the diversity in the spatial distribution of different types of use in an area, such as residential, commercial, public space, industrial, etc.
• Commercial density and quality appeared in 11 different sources. This parameter, in the economic category, refers to commercial spaces, and quality can be measured by the number of stores, ratings, and user reviews.
• POI (point of interest) density is found in 10 different sources. This parameter refers to the density of service, commercial, and recreational areas in a region.
• The parameters of activity intensity in the economic category, activity intensity in the social category, and target accessibility (walkability) in the physical category are included in 9 different sources. In addition, the parameters of building density, building size diversity, road density, public transport accessibility in the physical category, and cultural facility density/diversity in the cultural category are evaluated as priority criteria as they are found in 8 different sources.
• Real estate values/housing prices, street usage behaviors, population characteristics, building age diversity, active facades and permeability, distance from boundary gaps, cultural activity density, and cultural symbols parameters appear in 1-5 sources and are the least recurring criteria. When these criteria are examined, they are found in the literature depending on the area where the fieldwork was conducted.

Table 3. Frequency of Parameter Occurrence in Urban Vitality Literature (n = 20).

Category	Indicator	Frequency
Economic	Commercial density and quality	11
Economic	Activity density	9
Economic	Property values/Housing prices	2
Social	Activity density	9
Social	Street use behaviors	3
Social	Population characteristics	4
Physical	Building density	8
Physical	POI (Point of Interest) density	10
Physical	Land use diversity-function	12
Physical	Building age diversity	3
Physical	Building size diversity	8
Physical	Active facades and permeability	1
Physical	Road density	8
Physical	Public transportation accessibility	8
Physical	Destination accessibility (walkability)	9
Physical	Distance from boundary gaps	2
Cultiral	Cultural facility density, diversity	8
Cultiral	Cultural activity density	5
Cultiral	Cultural symbols	1

* [36,38,39,41,44,45,46,47,48,49,62,63,64,65,66,67,68,69,70,71].

Table 3. Frequency of Parameter Occurrence in Urban Vitality Literature (n = 20).

Category	Indicator	Frequency
Economic	Commercial density and quality	11
Economic	Activity density	9
Economic	Property values/Housing prices	2
Social	Activity density	9
Social	Street use behaviors	3
Social	Population characteristics	4
Physical	Building density	8
Physical	POI (Point of Interest) density	10
Physical	Land use diversity-function	12
Physical	Building age diversity	3
Physical	Building size diversity	8
Physical	Active facades and permeability	1
Physical	Road density	8
Physical	Public transportation accessibility	8
Physical	Destination accessibility (walkability)	9
Physical	Distance from boundary gaps	2
Cultiral	Cultural facility density, diversity	8
Cultiral	Cultural activity density	5
Cultiral	Cultural symbols	1

* [36,38,39,41,44,45,46,47,48,49,62,63,64,65,66,67,68,69,70,71].

3.2. Construction of the Decision Matrix

This study determines the parameters using a multi-criteria evaluation method based on five criteria [72]. The five criteria used to determine the criteria in the decision matrix were obtained from both literature and application-based studies. A systematic evaluation was conducted regarding the literature validity of the criteria [4,59] data accessibility, and suitability for the modeling process [47,50].

1.Theoretical validity indicates how valid the criteria are in the urban decay and urban vitality literature. Concepts with high scores have a strong recognition in the literature. The scoring of this criterion was obtained from an analysis of frequency of occurrence in the literature.

2. Data accessibility relates to the availability of data for the criterion and the reliability of the data. Data obtained from sources such as municipalities, TÜİK, or open data sources are highly rated.

3. Spatial applicability refers to whether the criteria can be modeled or analyzed at the cellular level. Data that can be converted into a cell or grid format has high applicability.

4. Model fit indicates the extent to which the criteria can be integrated into the Cellular Automata model. Variables determining cell state have high scores.

5. Impact level indicates the criterion's power to determine the urban decay and urban vitality process. Criteria that directly affect (trigger or slow down) decay and vitality have a high impact level.

The five different evaluation criteria used in the decision matrix are evaluated on a scale of 1 to 5, where 1 is weak and 5 is strong. When making the evaluation, the limits of the score ranges were determined based on the literature and are shown in Table 4. Each criterion is scored according to these limits, increasing the objectivity of the decision matrix. In this context, urban decay and urban vitality decision matrices have been prepared.

The urban decay and urban vitality decision matrix; as shown in Table 5, a scale of 1-5 points was applied based on five criteria—theoretical validity, data accessibility, spatial adaptability, model fit, and impact level—to be used in parameter selection, and importance weights (Wi) were calculated. The total score was obtained using the weighted sum method, commonly used in multi-criteria evaluation, according to the formula below [72].

$$S={\displaystyle \sum }_{i=1}^{5}WiXi$$

Wi= pi/Σpi

Accordingly;

S = Total suitability score of the parameter

Wi = Importance weight assigned to the i^(th) criterion

Xi = Scaled score obtained by the parameter from the i^(th) criterion (1–5)

n = Number of criteria (n=5)

pi= Importance score

The total suitability score of a parameter represents the numerical equivalent of the indicator's importance and level of fit with the model. This approach has made the relative importance and level of fit with the model of each indicator numerically comparable. Thus, the importance level of the parameters has been made comparable.

After evaluation, parameters with a total suitability score of 4 or higher were accepted as parameters that would contribute to the cellular automata model and were included in the analysis model. Accordingly, in the urban decay matrix, the parameters are ranked in order of importance as follows: S2- crime rate/security issues, F1- low public space ratio, F3- low physical order and facade quality, F4- the neighborhood-separating effect of transportation infrastructure (railway lines, etc.), and F2- building maintenance status. When examining the urban vitality matrix, the order of importance is F3-Land use diversity-function, E1-Commercial density and quality, S1-Activity density, F6-Active facades and permeability, F9-Target accessibility (walkability), F2-POI (Point of Interest) density, F1-Building density, and K1-Cultural facility density and diversity. Thus, a total of 13 parameters were selected: 5 negative (depression) and 8 positive (vitality) parameters. These parameters are categorized as 1 economic, 2 social, 9 physical, and 1 cultural.

Based on the urban decay literature, 5 out of 14 criteria were identified; based on the urban vitality literature, 8 out of 19 criteria were identified through decision matrices and integrated into the Cellular Automata (CA) model. In this context, the final set of criteria to be transferred to the CA model has been prepared and is shown in Table 6.

Accordingly;

The crime rate/security issue parameter is a critical indicator in terms of the causes of decline and its spatial reflection, as it has the highest total score [26]. This parameter was evaluated by examining official crime records, spatial crime densities, the area's surveillance camera coverage, and lighting levels through field observation. The land use diversity parameter has the highest total score and is a decisive criterion for vitality in the region. This parameter refers to the diversity of functions such as residential, commercial, service, and recreational [71]. The Commercial Density and Quality parameter directly affects the economic and social structure of the area and refers to the number, diversity, and accessibility of commercial structures in the area [39]. The low public space ratio parameter refers to the ratio of parks, green spaces, and public open spaces to the total area in a region [60]. The physical order and facade quality parameter refers to the spatial assessment of problems such as lack of maintenance, material deterioration, and discontinuity of facades in buildings when evaluated through the street silhouette [27]. The activity density parameter refers to activities such as social interaction, pedestrian mobility, and frequency of use occurring in an urban area. The active facades and permeability parameter refers to the level of interaction between building facades and pedestrians in the street silhouette and the continuity of pedestrian movement in spaces [38]. The target accessibility (walkability) parameter refers to the capacity of individuals to reach basic functions used in daily life quickly and without interruption [70]. The transportation infrastructure's neighborhood-dividing effect parameter refers to the degree to which busy roads and railway lines disrupt a region's spatial integrity and interrupt pedestrian mobility [27]. The POI (Point of Interest) density parameter indicates the spatial density of commercial, social, cultural, and service functions in an urban area [71]. The building maintenance condition parameter indicates the physical condition and maintenance level of structures in the area [11]. The building density parameter represents the density of structures in an area [26]. Density values were determined by calculating the number of buildings and floor area in each grid cell using satellite images, zoning plans, and field observations. They were scored from 1 (very low building density) to 5 (very high building density) and integrated into the model. The parameter is positively correlated and represents urban vitality. The cultural facility density and diversity parameter indicates the number and functional diversity of spaces such as libraries, museums, cultural centers, theaters, and art studios in the urban area [38].

<

3.3. Celluar Automata (CA) Model Structure

Generative systems, which are part of contemporary design applications, enable the creation of new and original design alternatives. Generative systems create design alternatives through features such as evolution, reproduction, and crossbreeding. These systems have the ability to generate complexity, the complex and interconnected relationship between organisms and their environment, the ability to self-maintain and repair, and the ability to create new structures, behaviors, outcomes, or relationships [73]. In this context, generative systems in computational design offer different rule-based models for deriving complex spatial patterns. These systems include: Shape Grammars are a method used to express architectural form, in which design variations are generated by directly computing through sets of rules for shapes [74]. L-Systems are a system that models the growth logic of plant forms in nature and particularly produces fractal designs [75]. Swarm Intelligence and Multi-Agent Systems aim to measure complex behaviors performed by independent agents, particularly those based on movement, interaction, and orientation [76]. Genetic Algorithm is a computational system that seeks to find the best option in the selection, mutation, and evolution cycle to produce solutions to optimization problems [77].

Cellular automata (CA) is a system of cells on a regular or irregular grid that develops according to a set of rules and time intervals, guided by the state of the neighboring cells around a cell [78]. It is a model that represents the grid-based spatial structure of the urban fabric, its neighborhood interactions, and the transformation process it undergoes over time. It allows for the systematic simulation of spatial parameters such as urban decay and urban vitality based on cell states. Therefore, CA was selected as the most suitable generative system for this study because it is compatible with the process of recurring change and development in the city over time and allows for the transfer of multi-criteria decision-making outputs to cellular behavior on the grid.

<

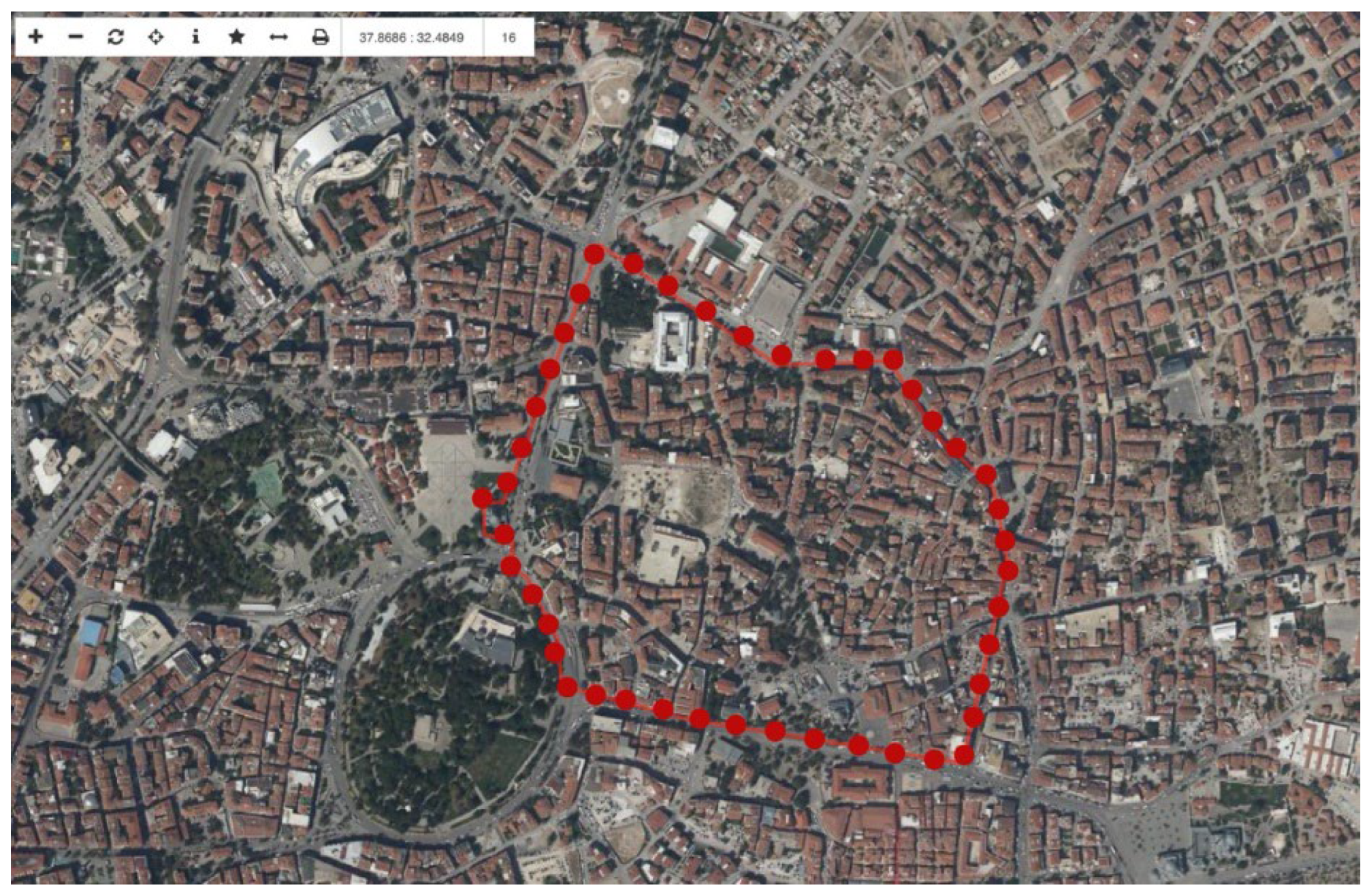

4.1. Study Area Description

The CA model will be applied in the Semsi Tebrizi Neighborhood, located between Istanbul Street, Mevlana Street, Sultan Veled Street, and Ankara Street in the historic city center of Konya, as shown in Figure 3. The Şemsi Tebrizi Neighborhood, selected for fieldwork within the scope of this study, allows for the simultaneous observation of urban vitality and decay processes within the same area. It was chosen as the study area due to its diverse range of uses, organic street fabric, and high pedestrian traffic. Although the neighborhood has cultural attractions, there are significant spatial differences in terms of physical environmental quality and functional continuity. In this context, it provides a suitable ground for testing the cellular automata model's decay and vitality states through neighborhood interactions. The study area covers approximately 600 m × 600 m. It has been converted into a regular grid structure consisting of 15 m × 15 m cells to provide input for the cellular automata model. This creates approximately 1500 cells. This number of cells has been determined to distinguish between facades, buildings, and streets.

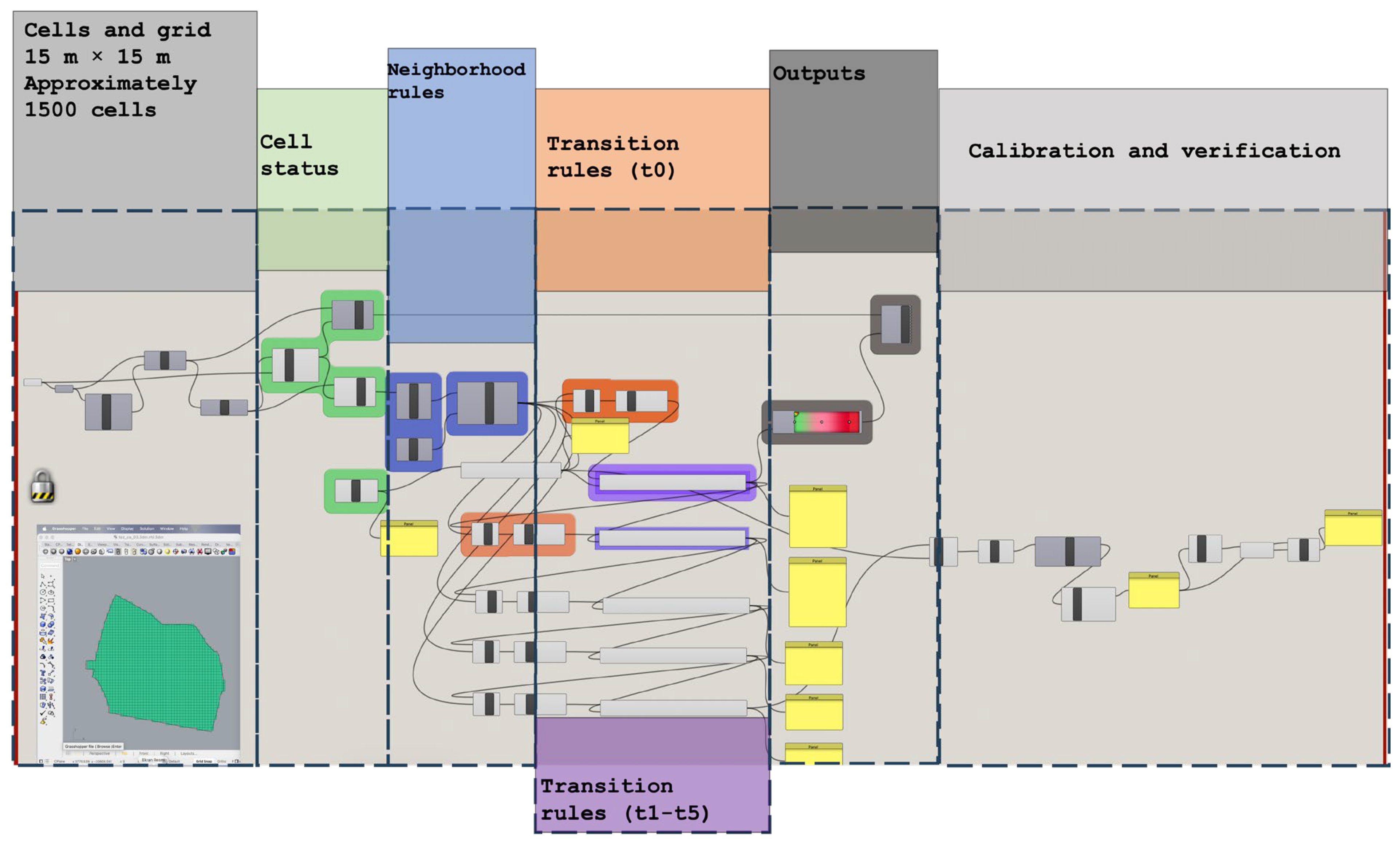

4.2. Model Definition

The decision matrix resulted in a total of 13 parameters, both positive and negative. These parameters were converted to a standardized 1–5 scale to illustrate the model's operational logic and integrated into the cellular automata framework. Scale values were defined to represent low and high vitality/collapse states. Accordingly, a value of 1 indicates a very low vitality and high collapse state, while a value of 5 indicates a very high vitality and low collapse state. Figure 4 shows the integration of the indicators determined by the decision matrix into the cellular automata model developed in the Rhino–Grasshopper environment.

Each cell produces a single state for 13 parameters. The average score is defined as S1 for 1.0-2.0, S2 for 2.0-3.5, and S3 for 3.5-5.0. Within the scope of the study, transition rules are defined as follows: when the average vitality level of neighboring cells exceeds certain threshold values, the cell transitions to a higher state; when it falls below the thresholds, it regresses to a lower state. Rules are determined based on the average state of neighboring cells to realistically represent interaction between cells, time-spanning transformation, and the urban process. In this context, there are three different situations:

• If a cell's neighbors are predominantly S3, the cell is pulled up.
• If its neighbors are predominantly S1, the cell moves down.
• If it is intermediate in S2 weight, the cell state is maintained.

Following this rule logic, the model was run over five successive generations (t0–t5), and the relative changes in cell states were observed. Figure 5 shows the spatial distribution obtained in the final generation. On the map, yellow, red, and green cells represent medium-level transition areas, depression concentrations, and vitality foci, respectively.

This study aims to integrate the indicators determined by the decision matrix into the cellular automata model and to present the spatial analysis logic. The algorithmic and structural design of the model has been completed, and the indicator set can be integrated into the grid-based system. However, within the scope of this study, the parameters have not been calibrated with field data. The model provides an open framework for application and validation with context-specific data sets.

5. Results

The model was run over generations t0–t5 to examine relative spatial changes in cell states. In each generation, the composite state values of cells were recalculated based on neighborhood effects and indicator densities, and spatial patterns were observed.

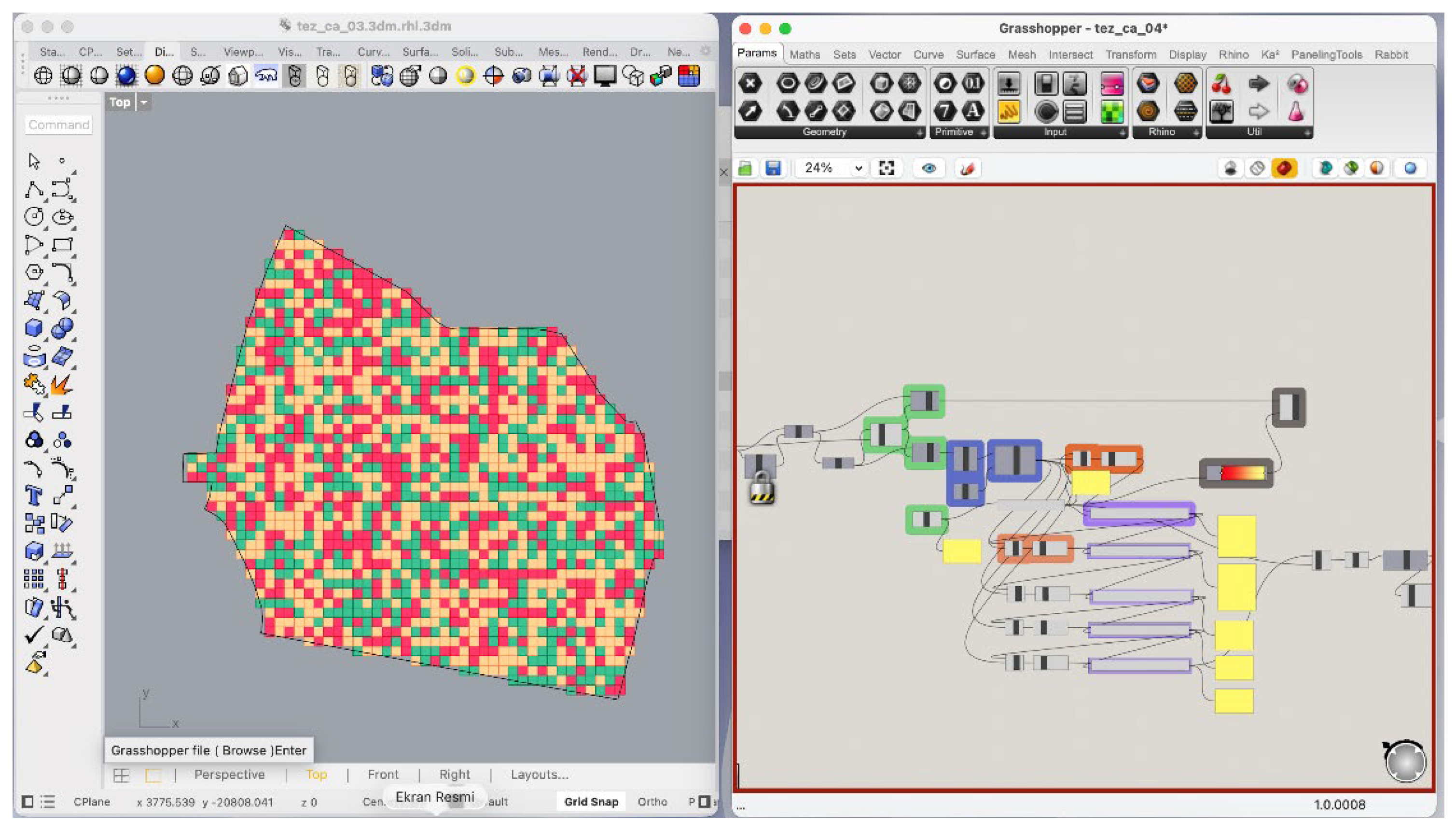

The final generation map presented in Figure 5 shows distinct clustering at the neighborhood scale. Red cells represent depression clusters, green cells represent vitality foci, and yellow cells represent transition zones. When examining the spatial distribution, it is seen that the decline areas are concentrated in specific foci and have a gradual effect on the cells surrounding these areas. Similarly, positive clusters have formed in areas with high vitality indicators, and it has been determined that these cells show spatial continuity with neighboring areas.

The distribution obtained reveals that the indicators interact spatially not only through individual values but also through neighborhood relationships. Thus, the model provides an analytical framework that makes visible the relative distribution of fragility and vitality trends at the neighborhood scale.

6. Discussion

This study addresses urban decay and urban vitality as opposing yet interrelated processes and proposes a methodological framework that quantifies this dual structure through an indicator-based decision matrix and transfers it into the spatial domain using a cellular automata model. In the literature, urban decay is generally examined through physical deterioration, while urban vitality is often assessed through indicators of density and centrality. By integrating economic, social, physical, and cultural dimensions, this study develops a more comprehensive evaluation approach.

The primary contribution of the proposed model lies not only in identifying indicators but also in integrating them into a spatial grid system and transforming them into an interactive, cell-based analytical framework. This approach makes the relative distribution of vulnerability areas and vitality nodes visible at the neighborhood scale, offering an analytical basis for planning and design processes. Rather than producing a predictive growth simulation, the model is positioned as a decision-support tool that reveals the spatial co-effect of indicators.

However, within the scope of this study, the model has not been calibrated with context-specific field data. Therefore, the resulting spatial distributions do not claim temporal validation but aim to demonstrate the operational logic of the method. Future research integrating local datasets and conducting comparative applications across different neighborhoods will be essential to enhance the model’s generalizability and validation.

In this respect, the study contributes to making urban decay and vitality processes measurable and spatially operational and proposes a methodological approach for integrating computational design tools into neighborhood-scale decision-support mechanisms.
