Comparative Analysis of AOMDV Protocol Performance in Random Obstacle Mobility Environments

1. Introduction

A MANET is a collection of autonomous mobile nodes communicating with each other using wireless links and decentralized administration; there is no fixed net-work infrastructure. In this environment, nodes are involved in decision-making, performing maintenance duties and taking part in routing algorithms. In general, any proposal applicable to a MANET must consider the constraints imposed by the inherent characteristics of these networks. These characteristics are defined in [1] and they are: dynamic topology, limited bandwidth links, energy constraints [2], physical security constraints [3], and processing capacity of the nodes. So far, research efforts have primarily focused on routing issues. Considering that routing is one of the most important mechanisms in MANETs, others like QoS provided or security and service discovery, cannot be executed if there is no optimal communication link [3]. The increasing usage of new applications has enabled more people to use and take advantage of smart devices o smartphone [4] but configuring more challenging scenarios. A scenario is composed of a particular number of nodes, topography, and a mobility algorithm, which includes direction, speed and pauses of those nodes. In real-world scenarios, the topography tends to be irregular due to the presence of numerous obstacles resulting from unexpected events, which alter typical mobility paths. Consequently, the motion algorithm is defined based on the terrain’s characteristics and the corresponding nodes that must adjust their movement according to these obstacles. On the other hand, it is also important to mention that there is a novel node routing strategy that, because nodes lose energy, they become selfish after being classified as reliable by everyone. This strategy can be used by various types of routing protocols where nodes are not considered malicious, so they are allowed to provide information about their current energy level. Knowledge about the energy status of neighbors helps a node avoid those nodes with very little energy, in order to prevent these nodes from discarding the packets presented to them for forwarding in a selfish manner in order to save energy [5]. The number of nodes depends on the MANET network and of course [6], if it is in an urban or in a rural area. When there is a non-planned event, normal mobility routes change, and new rescue and evacuation routes are recalculated. The main objective of this work is to determine which of the Ad Hoc strategies reviewed, has a better performance. For the comparative analysis on QoS parameters [7], we chose one routing protocol from each of the following groups: proactive, reactive and hybrid [8,9]. The simulation was performed for any urban area, under the Random Obstacle Mobility Model, for twenty-four scenarios, and with help of the NS2 (Network Simulator version 2.35) tool [10].

2. Related Work

2.1. Routing Protocols

Proactive routing protocols maintain information on all routes throughout the network, even if they are not required, so each node can have them registered [11]. Generally, these protocols exchange control information between nodes to keep updated routing tables in the entire network [12]. They also react when a new node appears or when another node is no longer within the network topology. The most known proactive protocols are Destination-Sequence Distance-Vector (DSDV) [13] and Optimized Link State Routing (OLSR) [14].

Currently, several types of research have been carried out on reactive and proactive routing protocols in MANET. Among the results, studies show that routing protocols have good quality of service performance, but this depends on the context in which it is linked in the analysis. On the other hand, it is also important to clarify that these protocols are developed from link-state or distance-vector routing algorithms, which represent the techniques that allow them to extract information related to the network topology [15]

The DSDV protocol [13] solves the major problem associated with distance vector routing of wired networks i.e., Count-to-infinity, by using destination sequence number. The DSDV protocol requires each mobile station to advertise to each of its current neighbors. However, this protocol also requires each node to maintain routing tables. These routing tables may cause a significant amount of memory overhead at each node as the size of the network increases.

Optimized Link State Routing (OLSR) [14] is a point-to-point protocol based on the traditional link state algorithm. In this protocol, topology information is periodically exchanged by using link state messages. The advantage of OLSR is that it minimizes the size of each protocol message and the number of rebroadcasting nodes during each route update by employing a multipoint replying strategy.

As mentioned above, when a change occurs, updates are propagated through the network to keep routing tables on day. It is an ongoing assessment of the routes between nodes. However, these events can cause serious overloading in the network, affecting the utilization of bandwidth, performance and energy [2]. In static topologies, this routing scheme can adapt and work properly, but for highly dynamic topologies, the network may not perform in terms of scalability [16].

Reactive routing protocols only allow on-demand updating of the tables. For example, when a unique node wants to exchange information in the network, an on-demand routing protocol typically includes two components:

• Route Discovery: If the source does not have the route towards the destination in its current routing table, it broadcasts a route discovery packet throughout the network. Once the route between the source and destination has been established, the data could be transmitted through the selected route.
• Route Maintenance: Due to the dynamic nature of MANETs, failure of the links through the route may happen. Route maintenance is a mechanism to handle the route breaks. A node can confirm if a packet is correctly received on its downstream node (backward Route), by using any of the three types of acknowledgments: link-level, passive (listening to the forwarding by next-hop node), and network-layer.

Among the most known reactive protocols are: Dynamic Source Routing (DSR) [17] and Ad Hoc Demand Distance Vector (AODV) [8,18]. The Ad hoc on Demand Distance Vector (AODV) [19] routing protocol is based on the DSDV and DSR [17,20,21] protocols. It provides unicast, multicast, and broadcast communication. It uses the periodic beaconing and sequence numbering procedure of DSDV, and a similar route discovery procedure as used in DSR. However, there are major differences between DSR and AODV. The most distinguishing is that in DSR each packet carries full routing information whereas in AODV the packets only carry the destination address, meaning that AODV has potentially fewer routing overheads than DSR [20]. DSR protocol requires each transmitted packet to carry the full address from the source to the destination likewise the mechanism used in AODV. This mechanism in DSR makes it not to perform effectively in large networks, since the amount of overhead carried in these packets is increased dramatically as the size of network grows [16,22]. Hence, in highly dynamic and large networks the overhead may consume a large amount of bandwidth. However, this protocol has several advantages over routing protocols such as AODV and TORA (Temporally Ordered Routing Algorithm) [23] and in small to moderately size networks, this protocol performs better.

Hybrid routing. This sort of routing combines reactive and proactive features. For our specific case, within this classification we find the AOMDV routing protocol, an AODV extension, which allows calculating several disjoint paths without loops and without links. AOMDV [24] can be used to find node-disjoints or link-disjoint routes. To find node-disjoint paths, each node does not reject duplicate RREQs immediately. Each Route Request (RREQ), which arrives via a neighbor different from the source, defines a path of node-disjoints. This is because the nodes cannot broadcast duplicated RREQs, so any RREQ arriving at an intermediate node through a neighbor, could not have passed through the same node. In an attempt to get multiple link-disjoint paths, the destination responds duplicating RREQs. After the first jump, Route Replies (RREPs) traverse the return paths that are node-disjoints and therefore link-disjoints. The trajectories of each RREP can be cut at an intermediate node, but each one of them has a different return path to the source for ensuring link disjunction [24,25]. In general terms, the advantage of using AOMDV is that it concedes intermediate nodes to respond to RREQs, while disjoint paths are still being screened. Of course, always considering that AOMDV has more overhead messages during the route discovery, since it is a multipath protocol, and it suffers increased flooding.

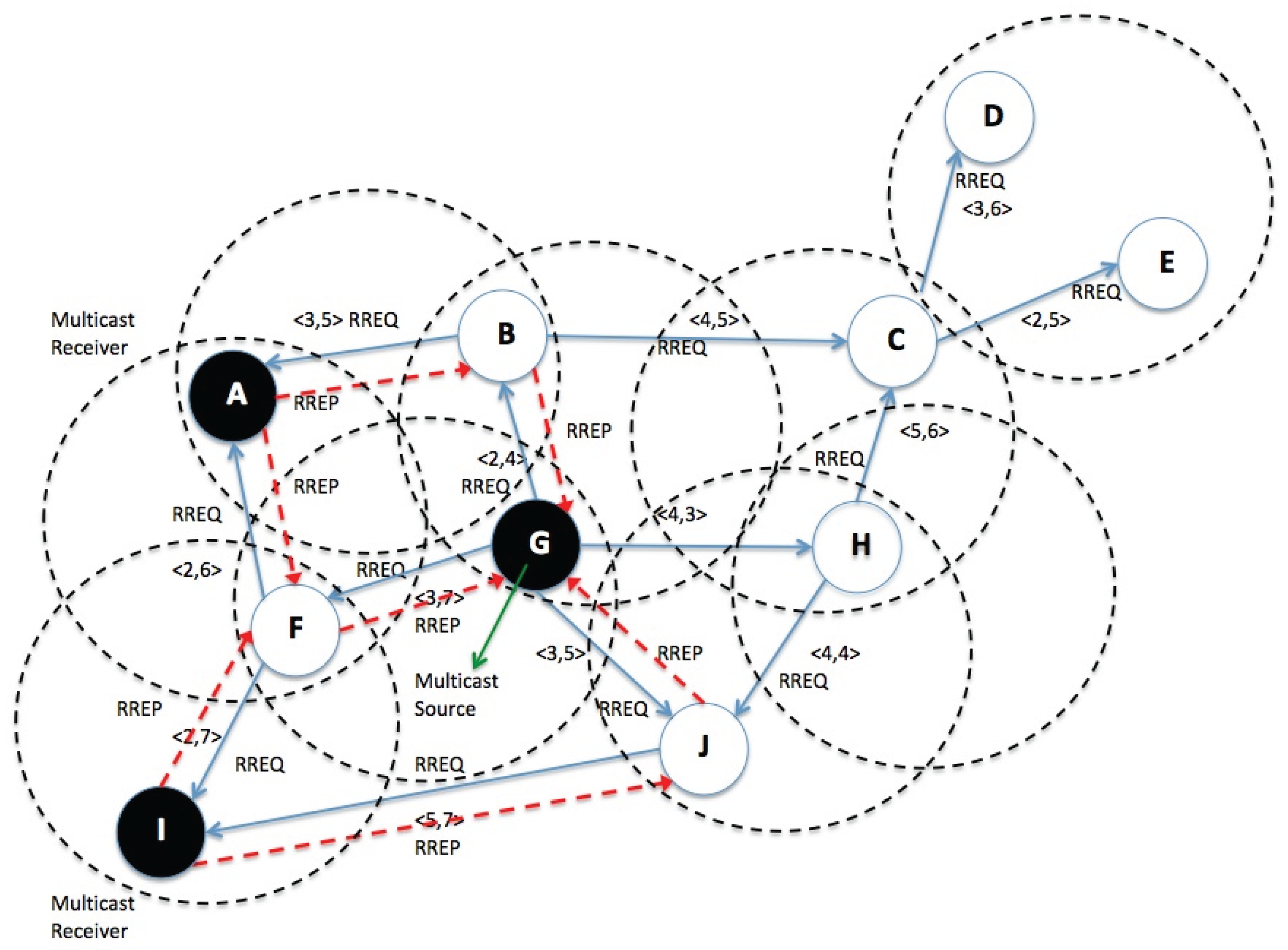

Figure 1 shows components and communications processes of a hybrid AOMDV routing protocol.

2.2. Mobility Model

In the context of networks, solutions are needed for efficient and effective information management in order to solve problems related to resource scarcity, such as energy, storage, bandwidth, and connectivity of communication devices [26]. It is believed that when algorithms self-organize and cooperate, they are more likely to overcome constraints, which would lead them to better comply with service quality parameters. That is why mobile ad hoc networks (MANETs) are considered to use multicasting as a way to optimize the use of available bandwidth. This multicasting feature saves resources because it sends a single set of data to many receivers at once, reducing the cost of communication in a network.

One of the most used methods for evaluating the characteristics of Ad Hoc routing protocols is through simulation. With a simulation we obtain a number of significant benefits including repeatable scenarios, removal or changes of parameters, and exploration of a variety of metrics.

Once the nodes are set in a certain area, the mobility model governs the displacement of the nodes within the network [27,28,29].

In general, the mobility model can be categorized either as a synthetic mobility model or as a based-on-traces mobility model [30]. In the synthetic mobility model, nodes move according to certain rules and equations. Moreover, the nodes in the based-on-trace mobility model are sustained on information of real trace files. These files are obtained by tracking the mobility of nodes in real scenarios. The synthetic mobility model has attracted much attention in recent decades because of its simplicity. Taking this particular type of mobility model, the Ad Hoc network’s performance has been evaluated under different patterns [30]. So far, the Random Waypoint Mobility Model is the most used one in Ad Hoc networks. However, it may not be accurate for real-life scenarios. The nodes do not follow a uniform density, as the central positions are heavier than others. That’s why for the simulation of the analyzed routing AOMDV, DSDV and AODV protocols, we used the Random Obstacle Mobility Model, which applies for a broader range of movement possibilities in urban areas.

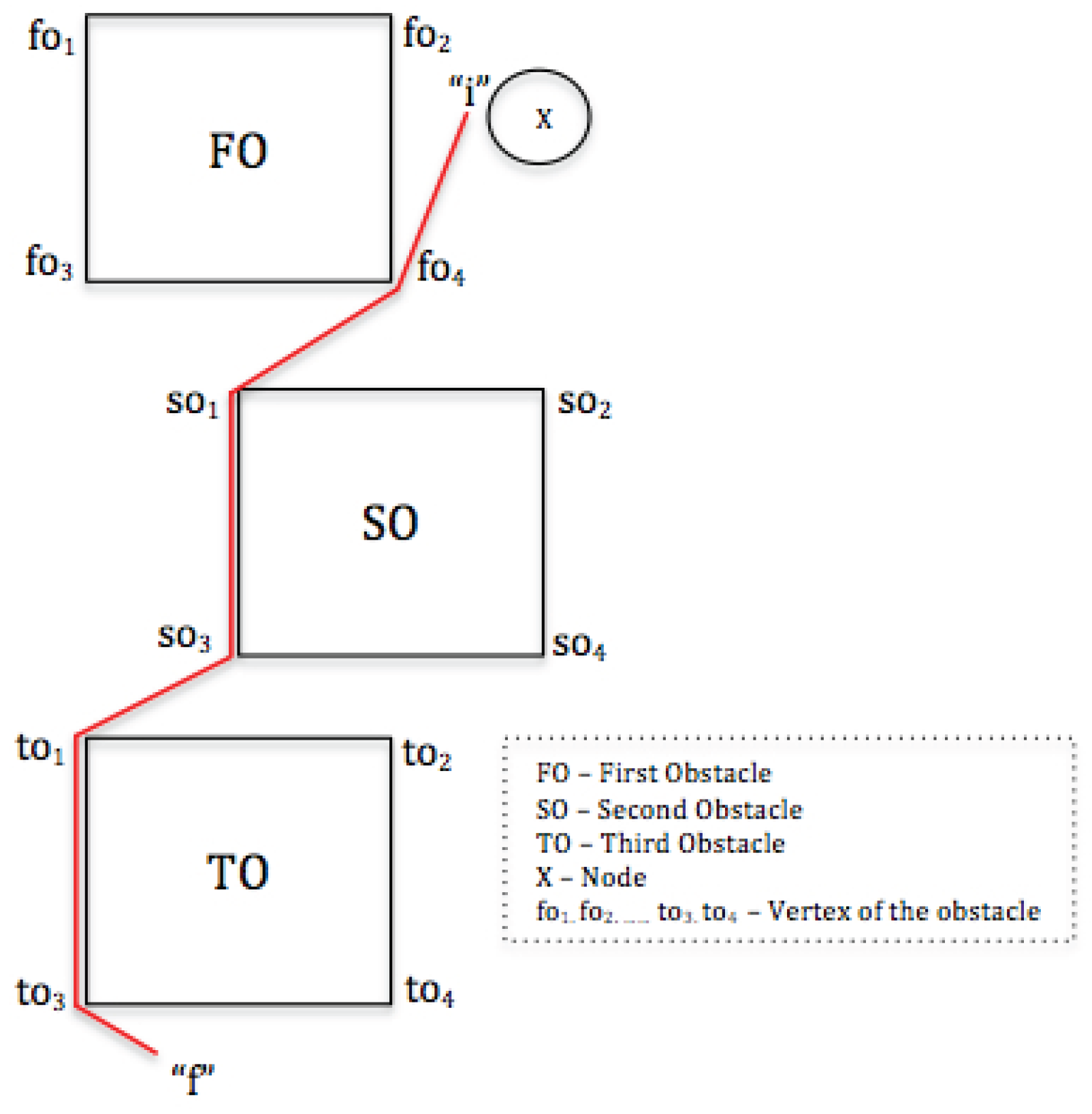

The purpose of this approach is to also consider the applications in various emergency scenarios or disaster areas, where, for instance, rescue teams such as doctors, firefighters, police and more, operators, are facing a stage full of obstacles. The X node first sets i as the start point of mobility and f as the destination, then it analyzes the vertex so₁ and so₂ from the nearest obstacle from f node, which is SO. In case this vertex is inaccessible due to a SO obstacle, the node selects a vertex fo₄, nearest to obstacle FO and to the so₁ vertex from SO. This is done until reaching your destination f, as shown in Figure 2.

Our design sets a mobility model that reflects a realistic behavior of people around obstacles. When a person moves to a particular point, it is reasonable to assume that he will try to go dodging the obstacles in the way, to reach the desired destination, even if at the end, this is not the most optimal path in terms of the total distance. In most cases, obstacles are presumably unknown for a person moving in those areas and cases. Below is the architecture process considering all components from the beginning of the simulation to the general results here discussed (Figure 3).

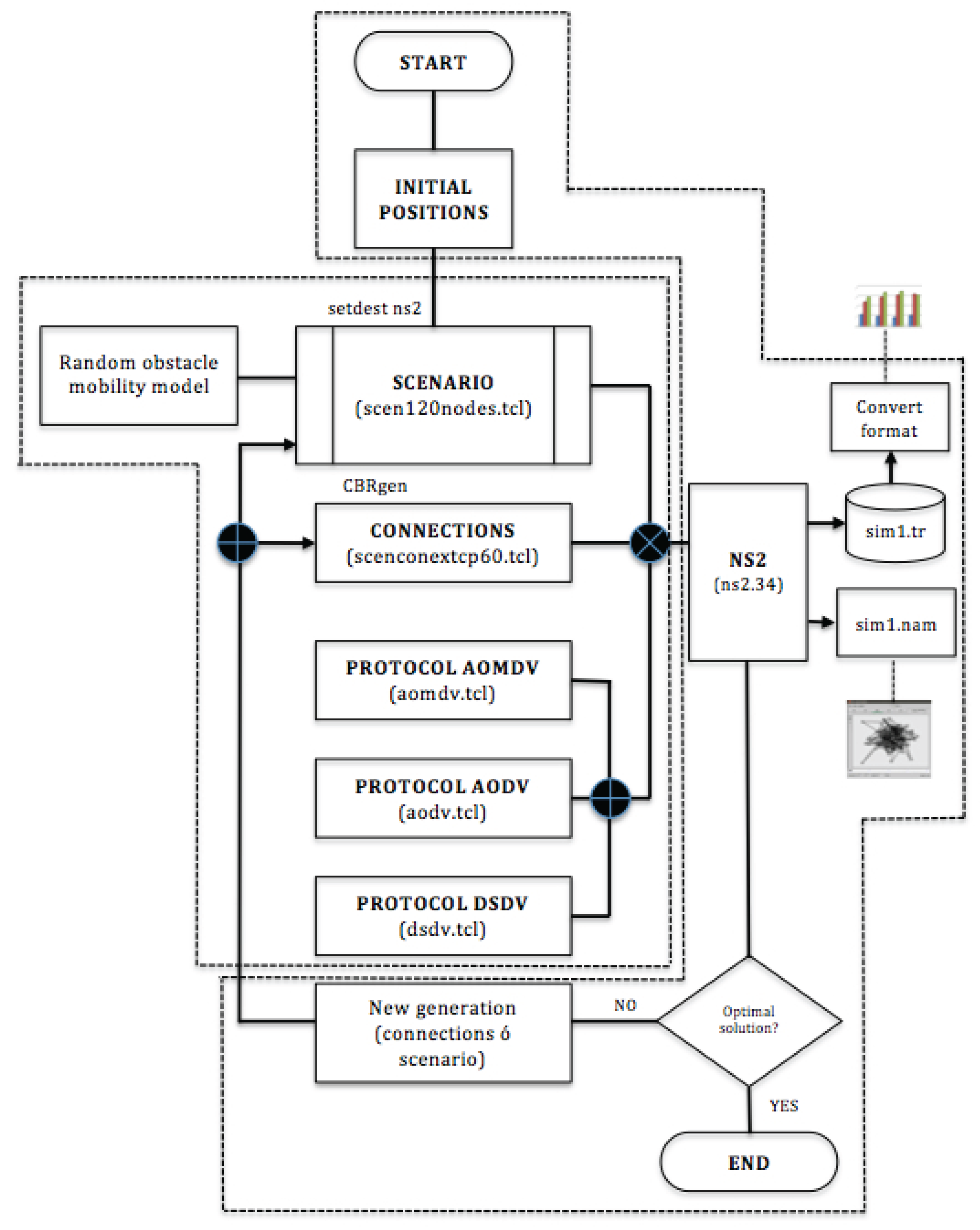

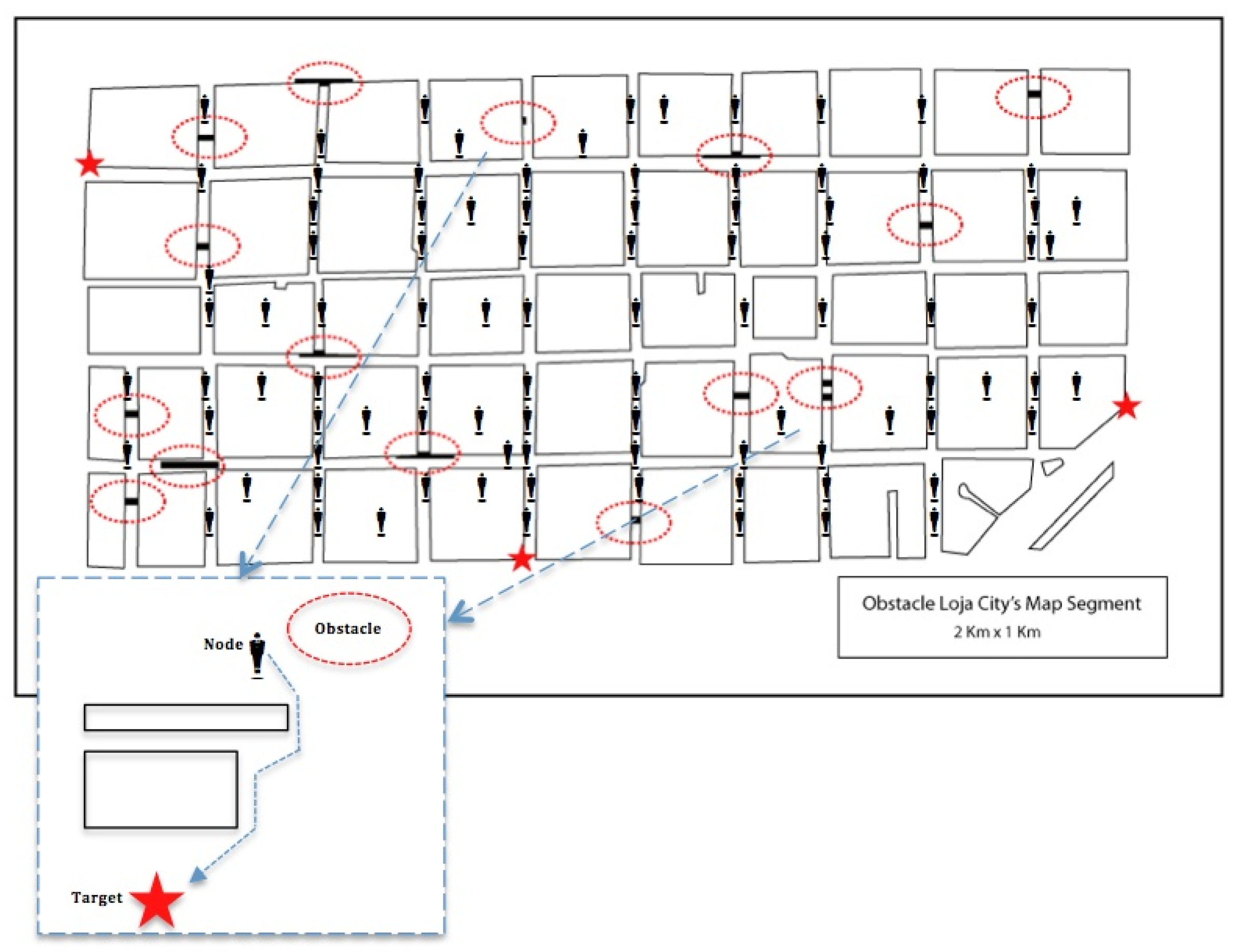

Next, we will set the variables to simulate scenarios, starting with the calculation of the node densities in an area of 1000m x 2000m (Figure 4).

3. Materials and Methods

3.1. Simulation process of Real scenario chosen and node density calculation

The calculation of the node density P_nodes is supported by information obtained from the Ecuadorian census in 2010. An important factor for the calculation of the node density is the percentage of the Economically Active Population (PEA). To calculate the density of nodes the following equation has been proposed [7,31].

$$P_{nodes}={\displaystyle \frac{{zu}_l\ast F_{uel}\ast F_{PEA}\ast F_{us}}{A_{zu}}}\ast A_s$$

$$P_{nodes}= P_{nodes1}= 97$$

Where:

${ zu}_l$- Number of people in the urban areas

${ F}_{us}$- Urban smartphone factor

${ F}_{PEA}$ - Loja - PEA is 62% for urban area

${ F}_{uel}$ - Urban factor specified for the simulation area

$A_{zu}$ - Urban area

$A_s$ - Chosen area for simulation

We found that P_nodes1, P_nodes2 and P_nodes3 are 90, 120 and 150, respectively. The node densities for simulation are: P_nodes0 = 90, P_nodes1 = 97, P_nodes2 = 120 and P_nodes3 = 150.

3.2. Creating Scenarios

Using a terminal, we entered the following directory: ns-allinone, then we ac- cessed ns2.35/indeputils/cmugen/setdest/setdest, in order to create a scenario of 120 nodes with the following command /set- dest-v 120-2-n-m 2 s 1 m 6-t- 150-P-1-p 2 x 2000-and 1000. The sample was successfully created and named Scenario1. This should be replicated to the other scenarios we need to create. In the command shown: run-v 2, which is the scenario generator version; we identify: n, which means the number of nodes; s, is the kind of speed (1 = Uniform); minspeed, represented with lowercase m, is the minimum speed in m/s; maxspeed, represented with uppercase m, is the maximum speed in m/s; -t, indicating the simulation time in seconds; -P is the pause time simulation in seconds; maxX, the size in meters for the X dimension; maxY, the size in meters for the Y dimension; and finally [outdir = file], Filename motion itself scenario name. The directory should be reopened to verify the creation of all scenarios.

3.3. Creating Connections

First, we entered ns-allinone, then, the next route is ns2.35/indeputils/cmugen/setdest/. In this direction, the cbrgen.tcl file is located, this file functions as a basis to create the connections, it should be emphasized that for this scenario we created two types of connections 30 and 60 for 90, 97, 120 and 150 nodes. To generate the connections, we accessed via a terminal ns2.35 and executed the following command: ns cbrgen.tcl-type tcp-nn 120 seed-mc 60-rate rate 2 > scenconextcp60. Where: tcp -, is the type of traffic; nn -, indicates the number of nodes in the simulation; seed, random seed; mc -, connections number of connections; - rate, indicates the baud rate in pkts/sec; and finally [outdir=file] that becomes the file name connections.

3.4. Characteristics and Performance Metrics of Routing Protocols in MANETs

Commonly, there are four main metrics presented in [32] as parameters of QoS which are dropped packet (or packet delivery ratio), delay (route latency), jitter (delay variance), and bandwidth. Table 1 provides a list of popular qualitative and quantitative properties and characteristics of MANET routing protocols as well [33,34]. Some of the metrics in [34] are applied to compare proactive and reactive routing protocols in terms of overhead, scalability, and loop-freedom. The purpose of referring to performance metrics in this paper is to correlate proactive, reactive and hybrid protocols according to these metrics. Considering that some publications have contrasted routing protocols using the packet delivery ratio, control overhead, hop count, and end-to-end delay, the performance of routing protocols in this paper is mostly evaluated in terms of delay, jitter and dropped packets with random obstacle mobility model. To define the simulation scenarios, we used the same basis as in [39,40]. Some of these values are shown in the Table 2.

In order to analyze results and measure behavior of protocols, we selected some indicators from [33,41]. These indicators are performance, protocol overhead, packet dropped, average delay and the variation of the delay or jitter. They are all compared with those of the following protocols: AOMDV, AODV and DSDV.

4. Results

The NS2 simulator [10] is used to determine protocols behaviour with the data shown in Table 1. In order to determine which is the best protocol, we considered the following indicators:

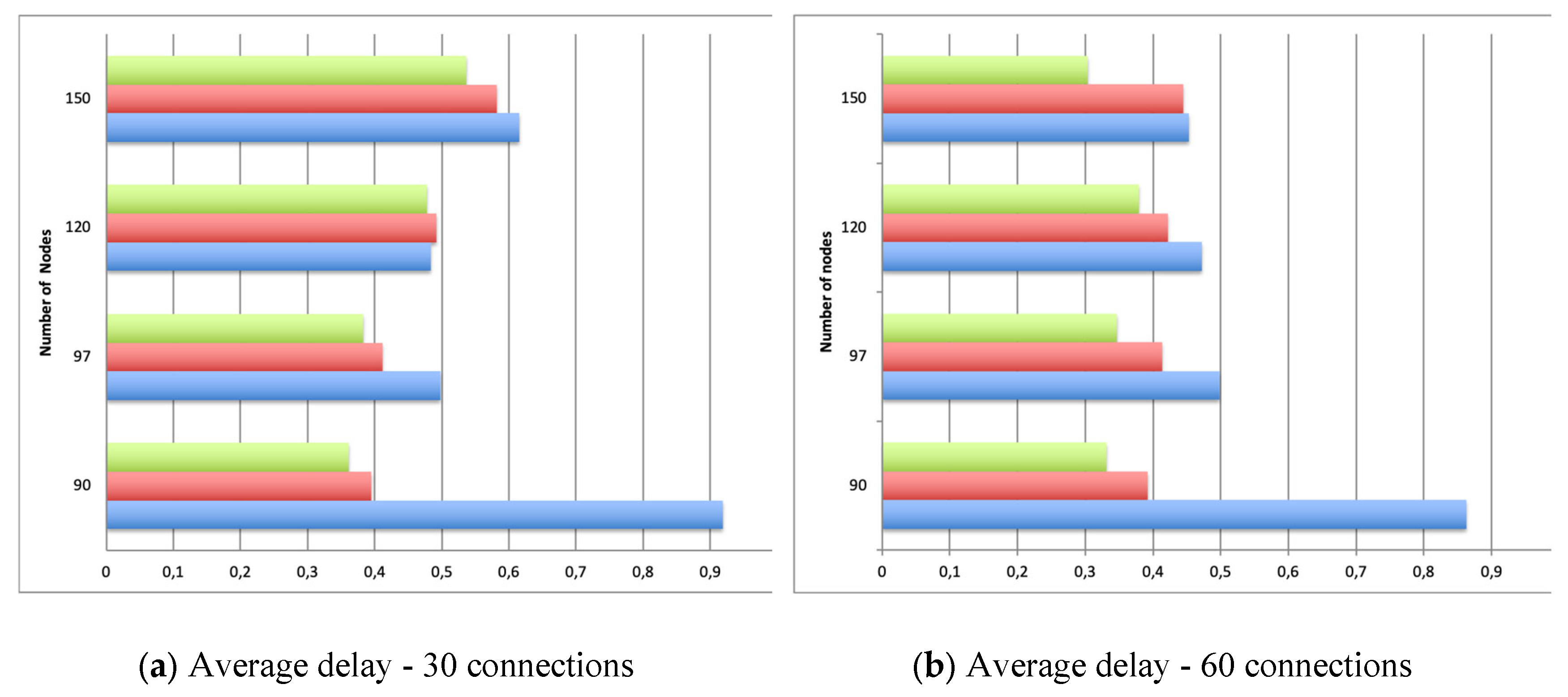

– Average Delay. This is very significant to measure for our purpose, because there is a need to send and receive network management information as soon as possible. With 30 connections, and with 120 and 150 nodes, AOMDV protocol yields little delays. Instead, with 60 connections, the panorama changes to demonstrate a great advantage in AOMDV usage over AODV and DSDV. Collected data is shown in Table 3, Table 4, Figure 5 (a), and Figure 5 (b).

– Packet delay variation. It is the difference or delay between end-to-end communication selected packets. In MANETs, it allows to measure convergence and network stability.

This parameter is related to the mean fluctuation and helps us to determine which one of the three protocols would be the most appropriate. The protocol with the lower jitter is the best, and it is the AOMDV. The simulation results are shown in Table 5, Table 6, Figure 6 (a) and Figure 6 (b).

– Dropped Packet. This is the number of packets dropped by intermediate nodes due to the effects produced by its own continuous mobility, timer expiration, and unreachable destinations by Address Resolution Protocol (ARP).

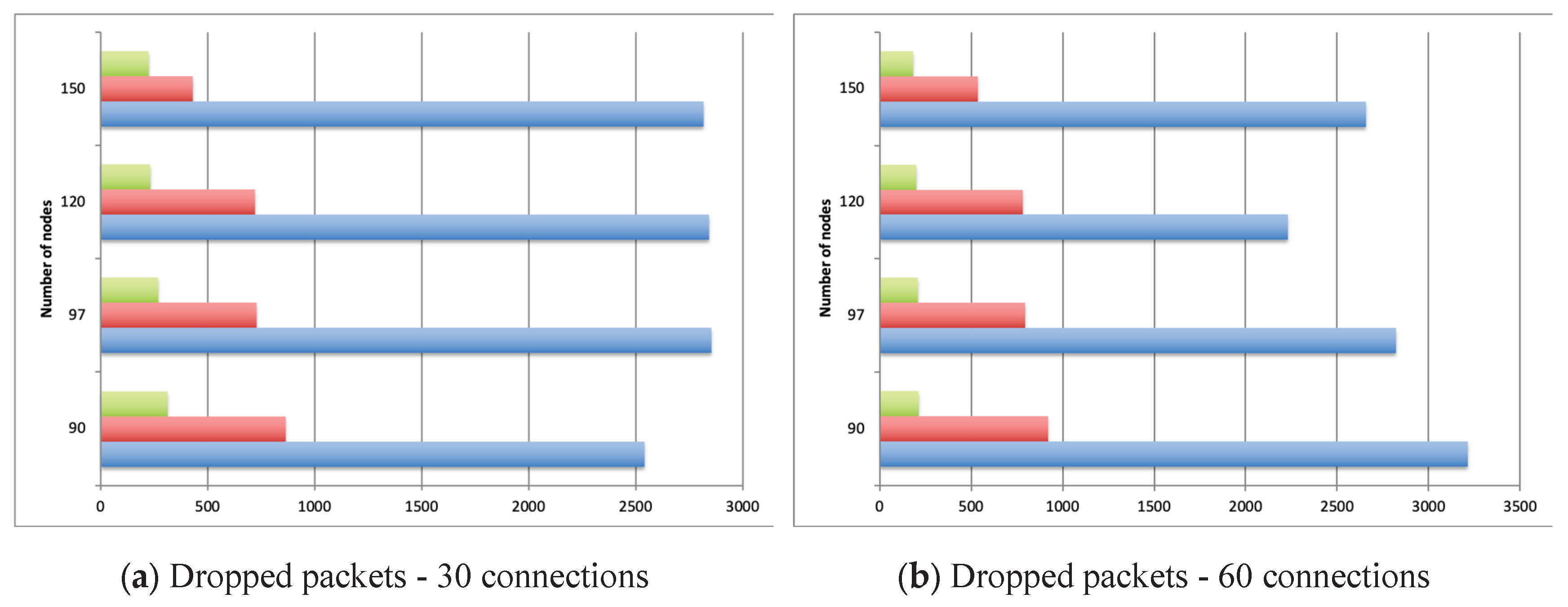

The purpose of this simulation is to set up which of the three routing protocols developed shows better QoS characteristics. According to the analysis, the protocol that removes fewer packets during transmission is the AOMDV protocol, both with 30 and with 60 connections. Data is shown in Table 7 y Table 8, Figure 7 (a) and Figure 7 (b).

5. Conclusions

Mobility models are representations of human behavior that require prior analysis and should be analyzed in all their dimensions. In this article they were implemented on a defined and simulated urban area, considering random obstacles, and governed by various parameters such as time of simulation, number of nodes, and others.

The Random Obstacle Mobility Model grants QoS parameters to be analyzed reliably in routing protocols simulations to adapt for more unpredictable cases in this research.

Finally, of the twenty-four simulated scenarios under AODV, DSDV and AOMDV routing protocols, the one that has greater compatibility with the Random Obstacle Mobility Model, and best QoS characteristics at the communication time between nodes is the AOMDV.
