Dielectric-Dependent Wavelength Compression via Hybrid Plasmonic Modes in Nano-Hole Arrays

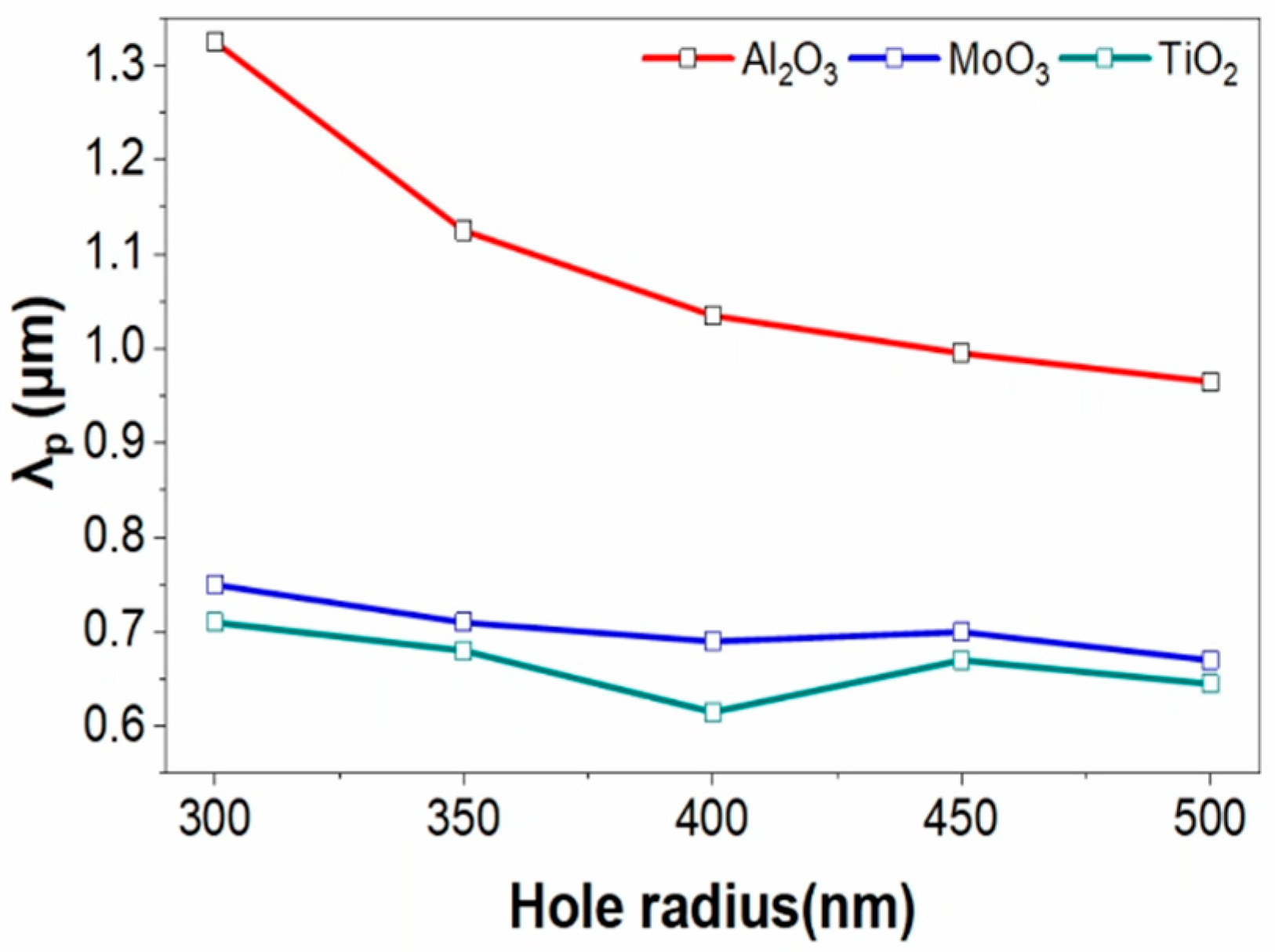

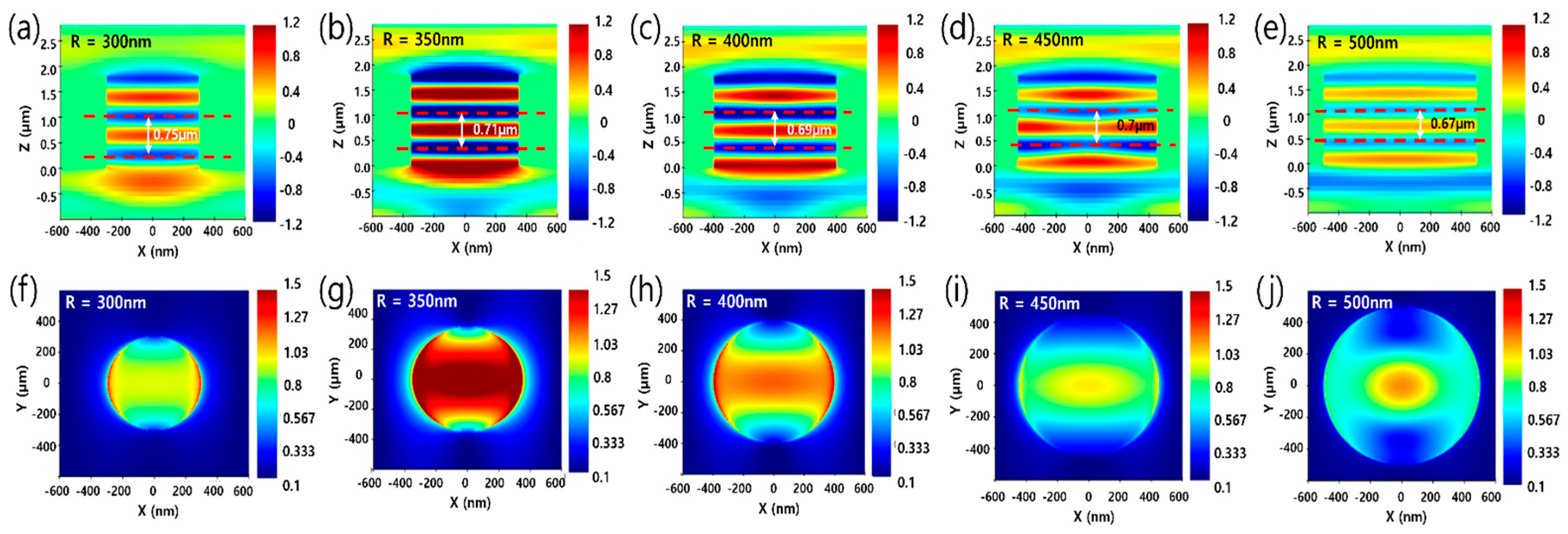

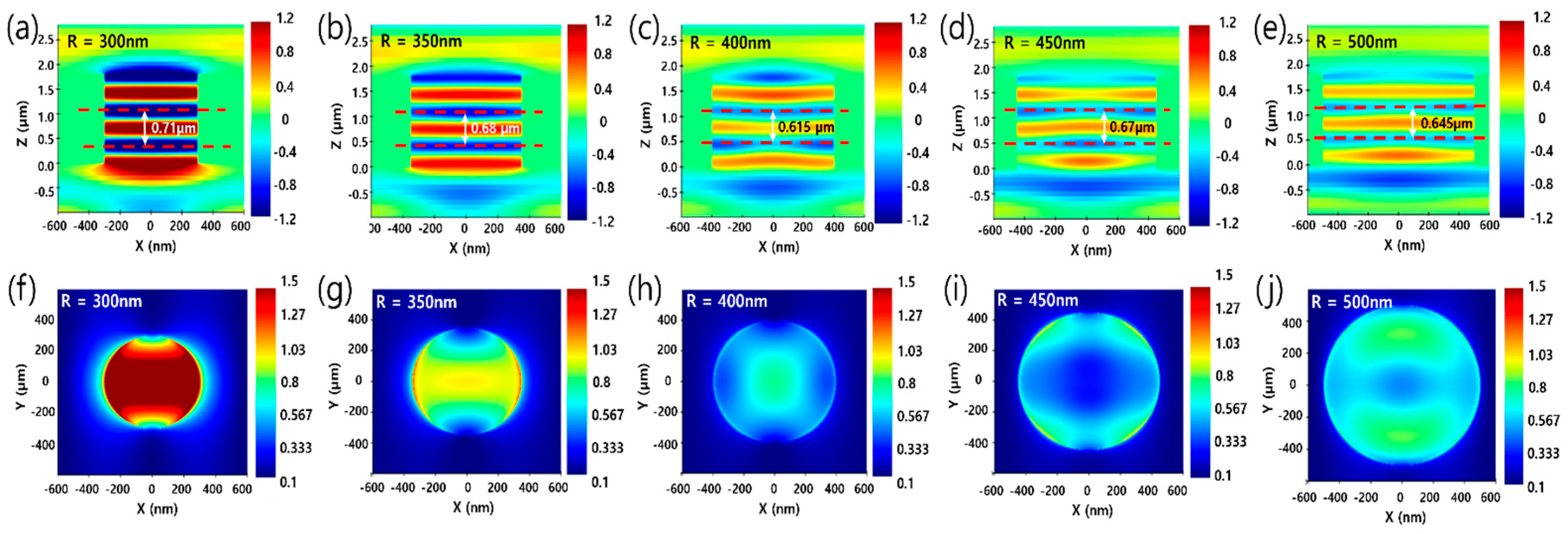

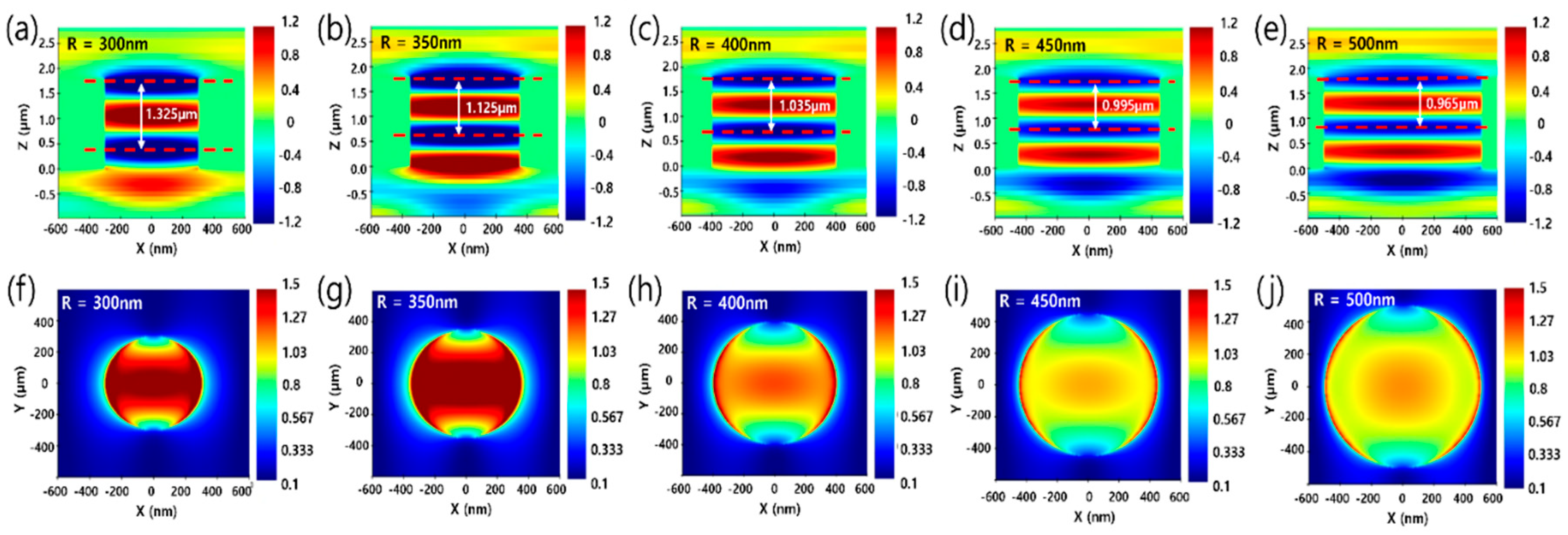

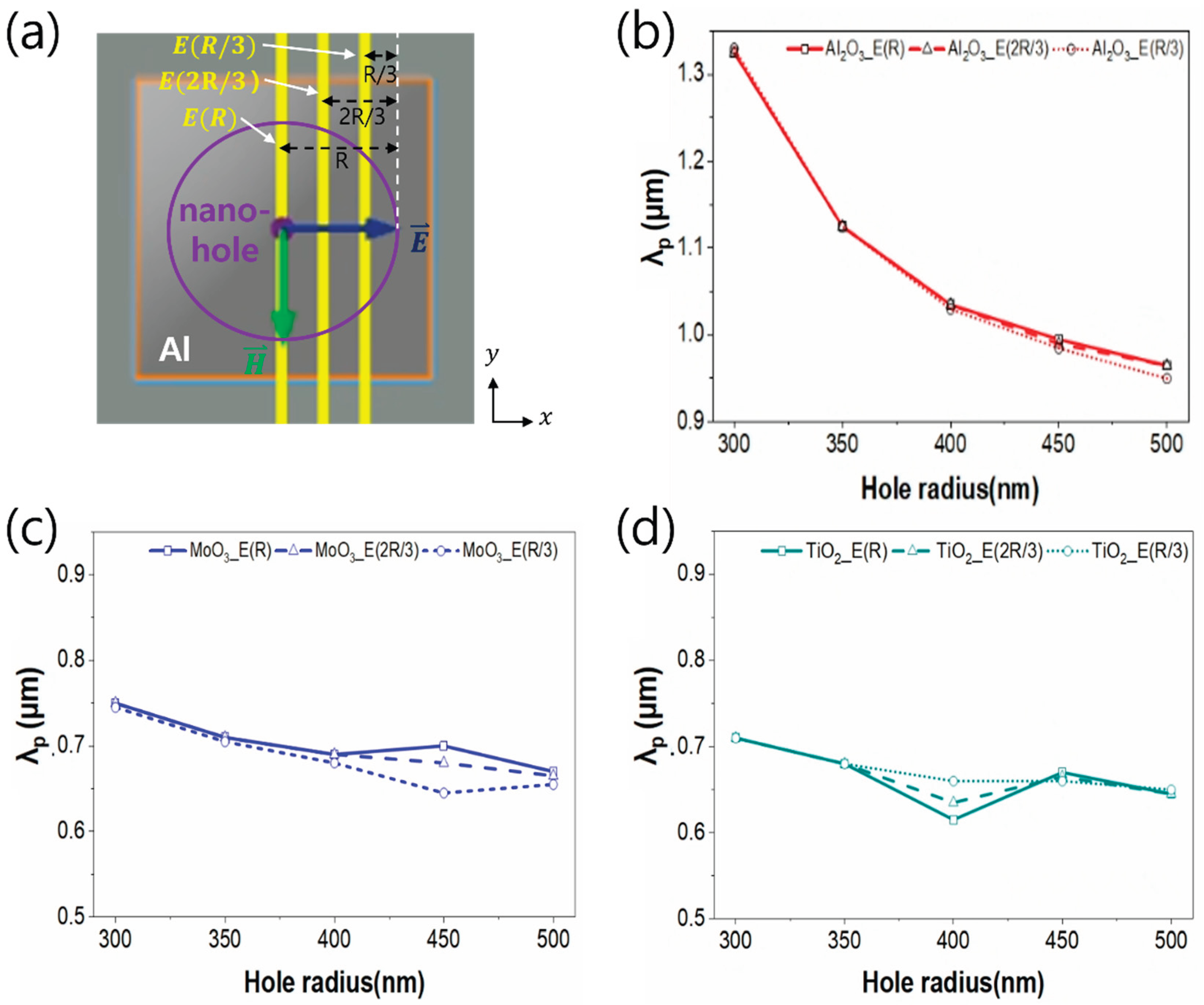

Dielectric engineered plasmonic nano-hole arrays (NHAs) provide an effective approach for controlling subwavelength light confinement. Here, we investigate wavelength compression in aluminum NHAs filled with three different dielectric materials such as Al₂O₃, MoO₃, and TiO₂ under illumination by a 1.5 µm lightwave. The hole radius varies from 300 nm to 500 nm to analyze the combined effects of geometry and dielectric environment on the plasmonic response. The NHAs filled with Al₂O₃ exhibit a pronounced and monotonic increase of the compressed wavelength with decreasing hole radius, indicating strong geometric tunability of the dominant plasmonic mode. Meanwhile, the structures filled with MoO₃ or TiO₂ show weak wavelength variations over the same radius range. Spatially resolved analysis at these nano-holes reveals nearly position-independent wavelength squeezing for Al₂O₃, whereas noticeable spatial variations appear for MoO₃ and TiO₂ at hole radii of 450 nm and 400 nm, respectively. The observed wavelength compression is attributed to hybrid plasmonic modes originating from the interplay between in-hole–like compressed cavity modes and localized surface plasmon polaritons. Our findings demonstrate how dielectric composition tunes wavelength compression in plasmonic NHAs, offering practical guidelines for designing the near-infrared plasmonic devices.
