Machine Learning Workflow for Fracture Modeling in the Tensleep Reservoir

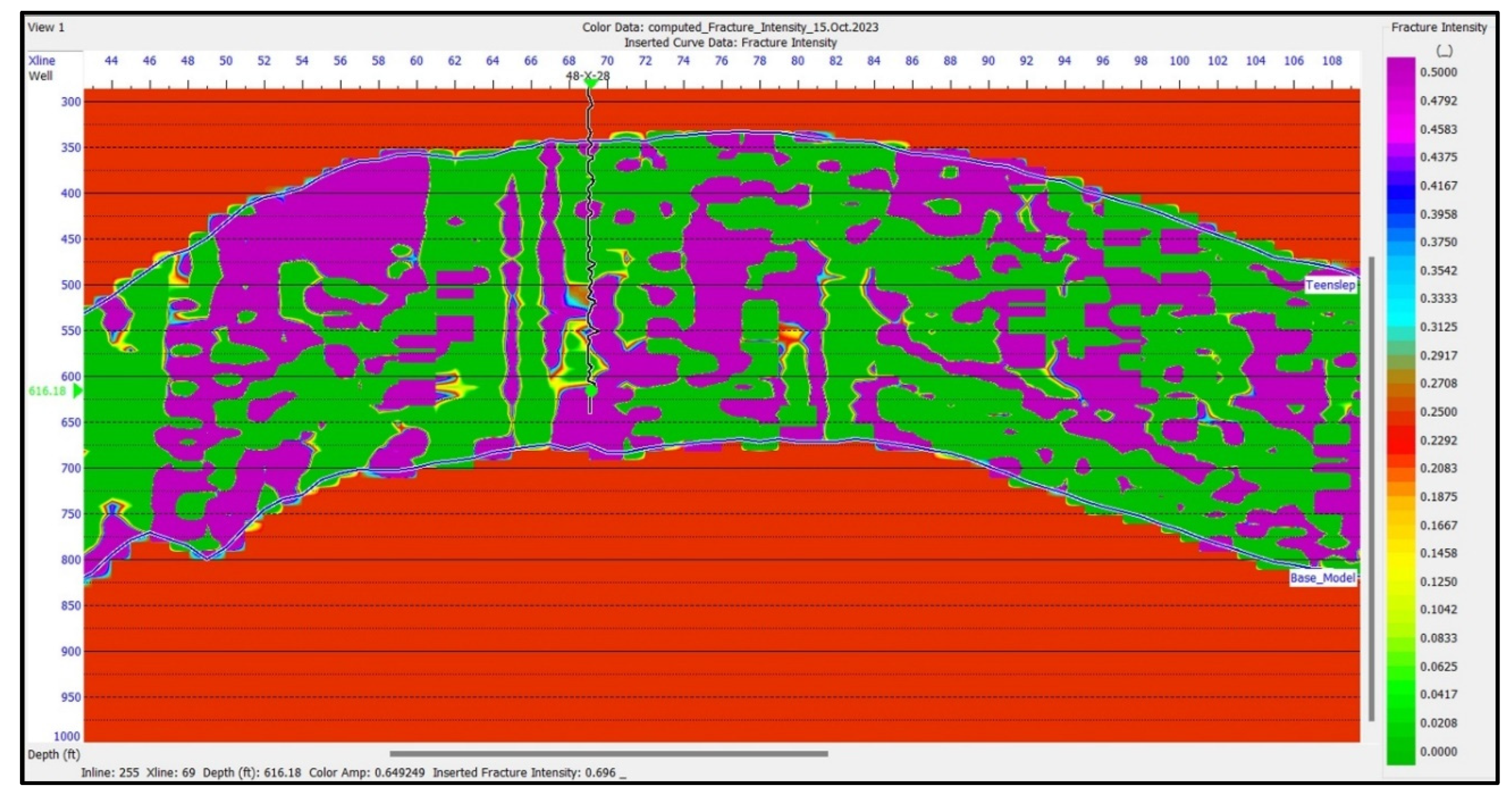

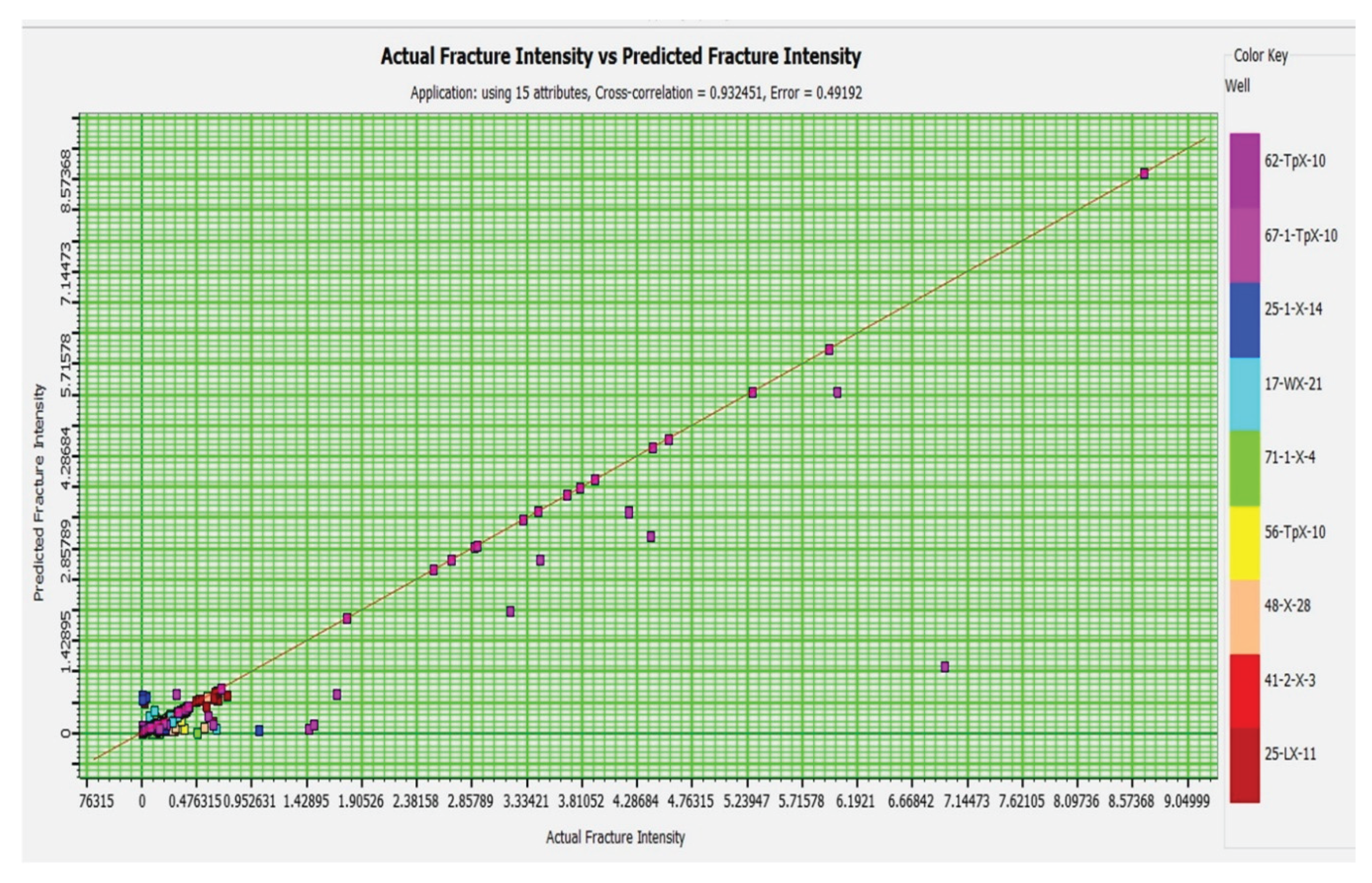

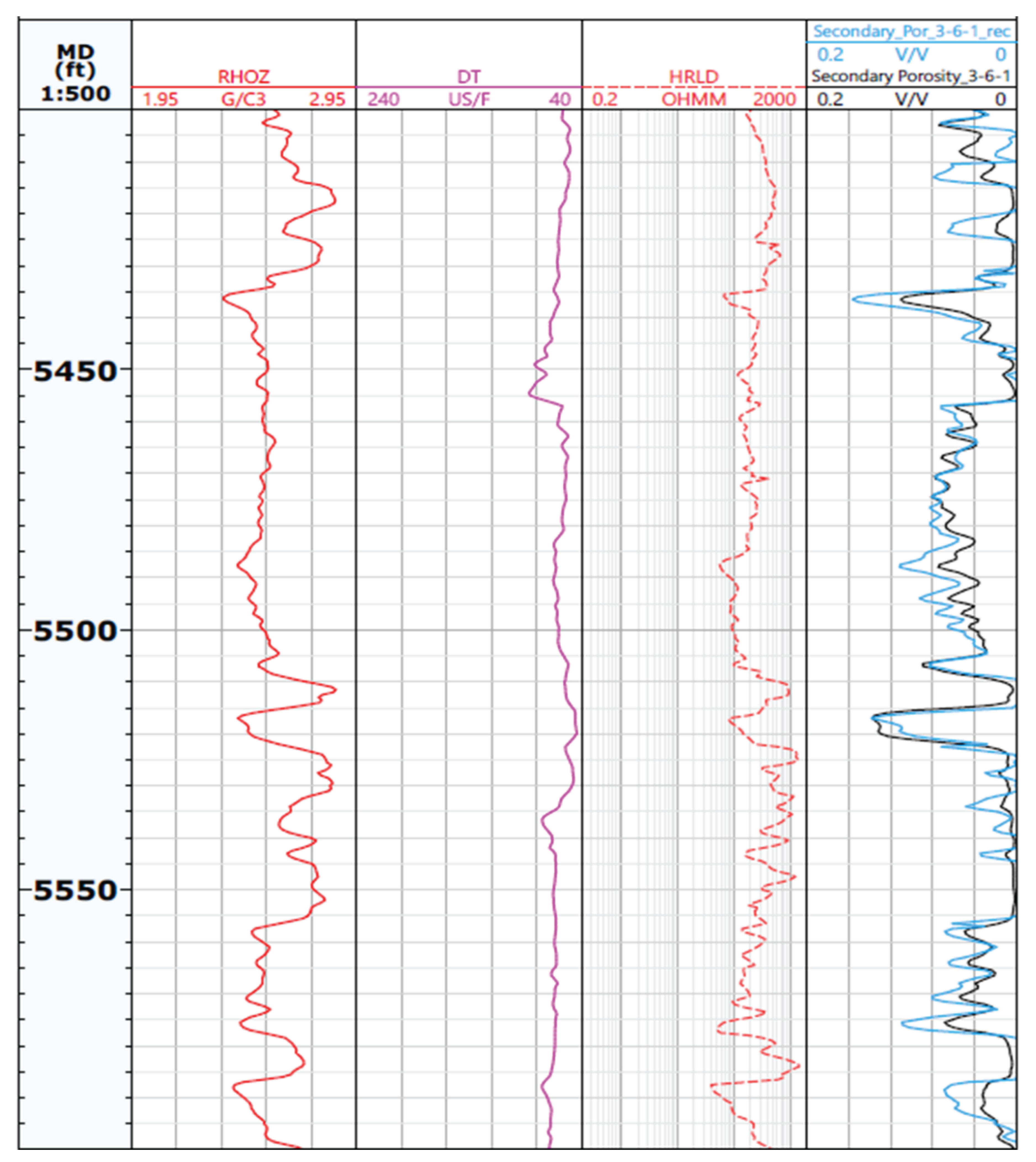

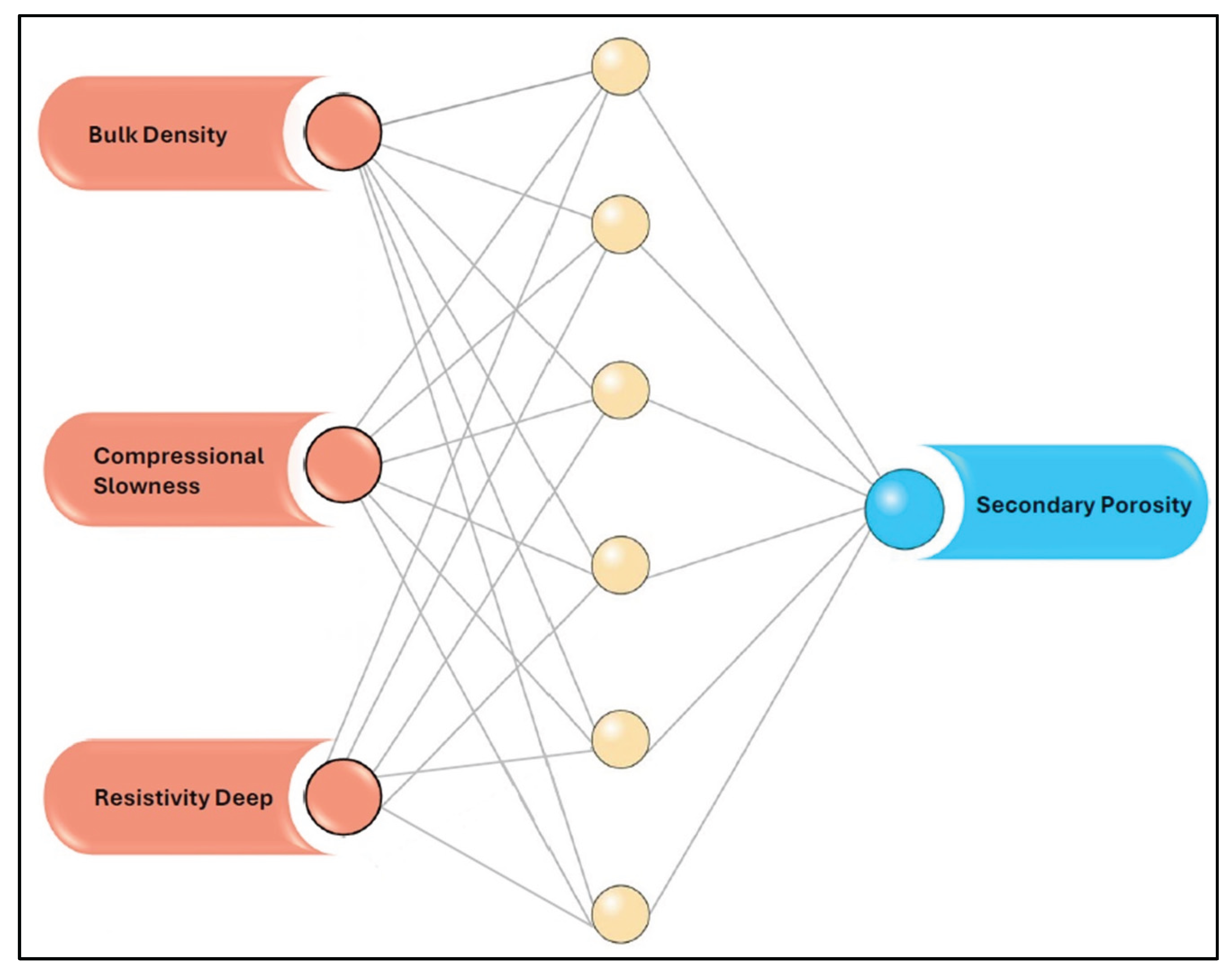

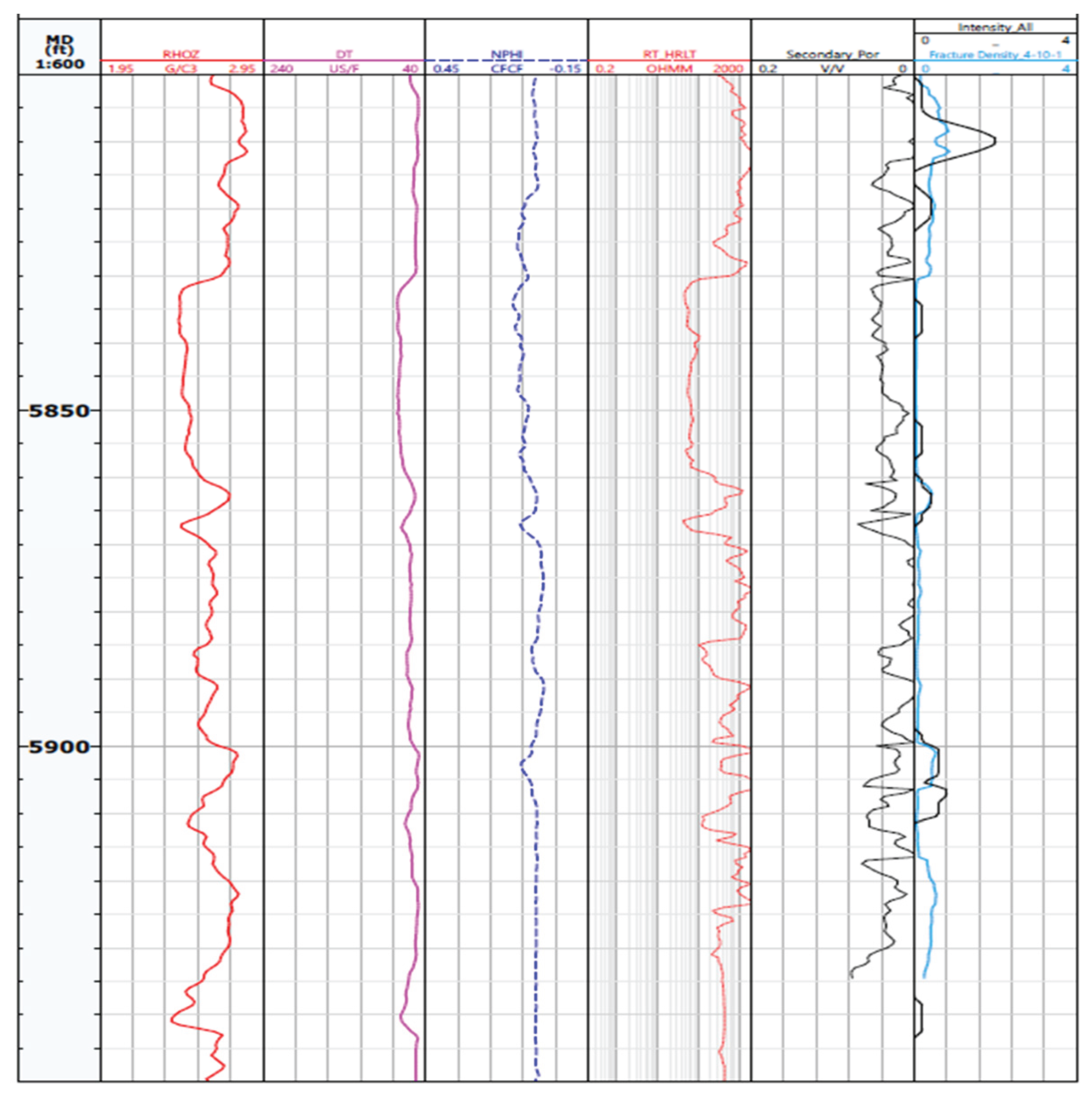

Fractured reservoir characterization is a complex and challenging task due to its depositional nature and high uncertainty in the spatial distribution of fractures, typically when well data is limited and interpolation algorithms are employed. This paper introduces an alternative workflow designed to enhance fracture modeling between well locations by incorporating seismic attributes, using publicly released data from the Teapot Dome field. The paper's objective is to create a fracture model for the Tensleep reservoir in the Teapot Dome Anticline by employing seismic attributes sensitive to fault and fracture features, while also demonstrating the limitations of interpolation-based models such as Gaussian simulation. The approach uses artificial neural networks to predict fracture intensity by analyzing seismic data and well logs, training supervised probabilistic artificial networks to identify the seismic attributes that most closely correlate with the fracture intensity property derived from well log data. The validated network successfully transformed the 3D seismic data into 3D fracture intensity data, achieving a high correlation coefficient between the selected seismic attributes and the training wells. The research findings are extremely valuable because they help address the lack of information on fractures, improve reservoir management, and optimize well placement.
