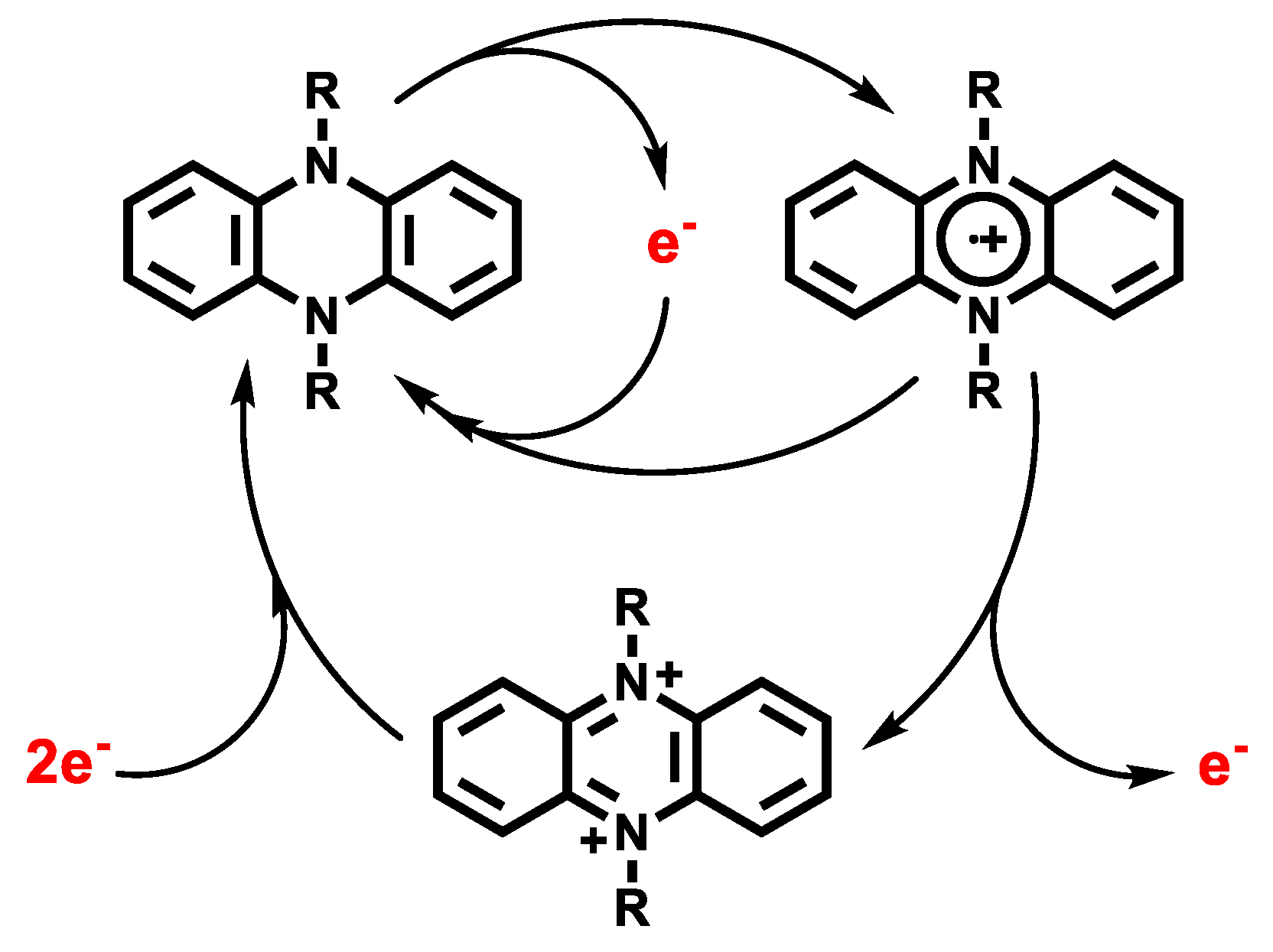

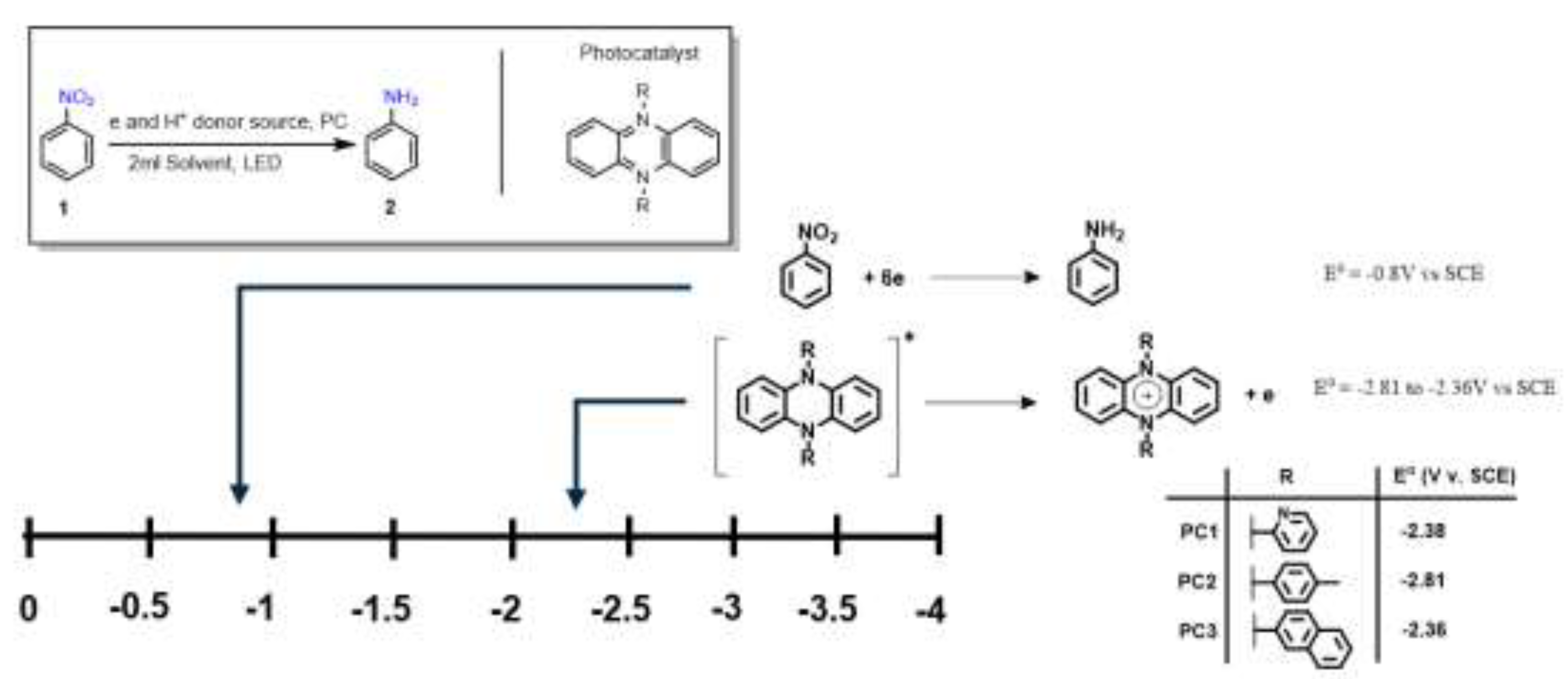

Phenazine-based photocatalysts previously developed by our group were selected for evaluation as candidates for the sustainable and selective formation of anilines under mild conditions.[
13] These catalysts exhibit sufficiently negative redox potentials, enabling the reduction of nitroarene substrates in the presence of a sacrificial electron donor and hydrogen source. To characterize their redox behavior, we employed spectroelectrochemical (SEC) analysis in combination with cyclic voltammetry (CV). The photocatalysts
PC1,
PC2, and
PC3 displayed redox potentials of –2.38 V, –2.81 V, and –2.36 V vs. SCE, respectively.[
13] These values are markedly more negative than the reported reduction potential of typical nitroarene substrates (–0.8 V vs. SCE),[
14] thereby supporting their thermodynamic capacity to initiate substrate reduction via photoinduced electron transfer (
Figure 2).
2.1. Screening of Reaction Conditions for the Photocatalytic Hydrogenation of Nitrobenzene
The reduction capabilities of
PC1–PC3 were evaluated in the photocatalytic hydrogenation of nitrobenzene under argon atmosphere, irradiated with a 390 nm LED at room temperature (
Table 1). Among the three photocatalysts tested,
PC1 exhibited superior hydrogenation performance. This enhanced activity is attributed to the electron-withdrawing 2-pyridyl group in
PC1, which likely stabilizes the radical cation intermediate formed during the photocatalytic cycle. Such stabilization facilitates electron transfer and promotes the stepwise cleavage of the N=O π-bonds and formation of N–H bonds. Evidence for reaction intermediates such as azoxy and azo species was supported by GC–MS analysis.
The electron-withdrawing group on PC1 is expected to lower the energy of the singly occupied molecular orbital (SOMO) of the radical species, increasing radical stability and overall catalytic efficiency. Although PC3 achieved a high yield (80%), it was excluded from further screening due to its poor atom economy and low synthetic yield. Consequently, PC1 was identified as the most effective homogeneous catalyst for this transformation and was selected for further optimization. Interestingly, the high yield observed for PC3 suggests that the naphthyl substituent may exert a weak electron-donating effect, although it does not significantly disrupt the phenazine core’s redox behavior.
Next, the effect of various bases on the photocatalytic hydrogenation of nitrobenzene was investigated, with particular attention to the role of triethanolamine (TEOA) as the sacrificial electron and proton donor (
Table 2). While most tested bases supported notable conversion, hydrazine showed no measurable activity, likely due to its high water content, which compromised the solubility of the photocatalyst in what is intended to be a homogeneous reaction mixture. Among the tested tertiary amines, TEOA and diethylethanolamine (DEEA) led to the highest substrate conversions and aniline yields—81% and 56%, respectively. Despite donating only two protons and a limited number of electrons per molecule, TEOA outperformed DEEA, which is attributed to its three hydroxyl groups that act as additional proton-donating sites. This structural feature enhances its efficiency as both an electron and proton donor.
The electron-donating hydroxyl groups in TEOA not only stabilize cationic intermediates during the catalytic cycle but also facilitate the regeneration of the photocatalyst’s neutral ground state, thereby sustaining the catalytic turnover. Additionally, the release of protons through nucleophilic substitution by hydroxyl-bearing amines occurs more readily than alkylation processes typical of methyl-substituted amines. Among the secondary amines tested, dimethylethanolamine demonstrated better performance than triethylamine, likely due to the higher nucleophilicity of the secondary amine nitrogen, which enhances reactivity toward electrophilic intermediates. Similarly, diisopropylethylamine outperformed triethylamine, reinforcing the trend that secondary amines generally exhibit superior hydrogen-donating capabilities. Interestingly, diethylamine, a primary amine lacking electron-donating alkyl branches, delivered 100% selectivity toward aniline, highlighting a trade-off between conversion efficiency and product selectivity depending on the donor structure.
Incremental increases in TEOA concentration beyond 3 equivalents did not significantly impact reaction yield. Theoretically, the complete reduction of a nitro group to an aniline requires 12 protons, which can be supplied via the oxidation of approximately 3 equivalents of TEOA, producing oxidized side-products such as carboxylic acids. The stable yields suggest that this stoichiometry is sufficient under the reaction conditions. Based on these observations, 3 equivalents of TEOA were selected as the optimal condition for all further investigations into nitrobenzene hydrogenation.
A variety of solvents was screened to assess their influence on the photocatalytic reduction of nitrobenzene to aniline (
Table 3). Glycerol, a green solvent, was initially considered but showed negligible conversion, likely due to the poor solubility of the photocatalyst in this viscous medium. Another environmentally benign option, formic acid, afforded modest conversion (60%) and yield (44%). However, its acidic nature likely interferes with the basicity of triethanolamine (TEOA), the sacrificial electron donor, potentially inhibiting the reaction or degrading the photocatalyst.
Among the solvents tested, DMSO—known for scavenging hydroxyl radicals (•OH)—delivered high conversion and moderate aniline yield, indicating compatibility with the photocatalytic cycle. However, acetonitrile, a polar aprotic solvent, provided both high conversion and the highest selectivity for aniline formation. In contrast, protic solvents such as isopropanol (i-PrOH) and other alcohols facilitated higher overall conversions. Notably, i-PrOH achieved quantitative conversion and a yield of 38% in the presence of PC1. In this case, i-PrOH may act not only as solvent but also as the hydrogen donor. Conversely, despite not contributing reducing equivalents directly, acetonitrile’s high selectivity for aniline made it the solvent of choice in this study, especially given the focus on selective nitroarene hydrogenation.
The effect of irradiation wavelength on photocatalytic activity was evaluated (see
Table S1). The photocatalyst demonstrated enhanced nitrobenzene reduction at shorter wavelengths, particularly in the UV range around 370 nm. This correlates with increased light absorption as the excitation wavelength decreased from 420 nm to 320 nm (see
Figure 5). Notably, irradiation at 440 nm resulted in the highest nitrobenzene conversion rate among the tested visible wavelengths, but with only moderate aniline yields, suggesting the involvement of non-productive side reactions. In contrast, no conversion was observed at 467 nm, indicating that the photocatalyst is not effectively excited at wavelengths beyond its absorption threshold.
Additional reaction parameters were screened in order to gain a better understanding of the behaviour of the photocatalytic system (see
Table S1). In aprotic solvents such as acetonitrile, an inverse correlation was observed between catalyst loading and product yield. Although increasing the photocatalyst concentration to 11 mol% improved conversion, the aniline yield declined sharply to 49%. This reduction in yield is likely due to the excess dye photocatalyst impeding light penetration and shifting the system away from optimal absorption at the target wavelength.
When isopropanol was used as the solvent and hydrogen donor, the system responded differently. Here, conversion remained consistently near 100%, and yield exhibited a nonlinear trend with increasing catalyst loading. The aniline yield remained stable at low catalyst loadings (2–5 mol%), peaked at 93% with 9–11 mol% PC1 and decreased slightly to 80% at 13 mol%. These fluctuations are again attributed to excessive light absorption by surplus photocatalyst hindering the formation of its radical cation, which in turn suppresses the generation of the electrons and protons required for nitroarene reduction.
Control experiments highlighted the essential role of each component: no product formation was observed in the absence of light, or when a suitable hydrogen and electron donor was not present. This confirms that the reaction is not thermally driven. Interestingly, TEOA (a widely used sacrificial electron donor)[
15] can be readily oxidised under photoirradiation to form an α-amino radical, which can then abstract hydrogen atoms from isopropanol. This process generates α-hydroxyalkyl radicals, which are subsequently converted to acetone, releasing hydrogen atoms that indirectly facilitate the reduction of the nitro group. This behaviour is consistent with previous reports that highlight the reducing nature of isopropanol, which contributes to increased product yields by acting as both a solvent and a hydrogen source.[
16] In contrast, using hydrazine as the electron donor yielded no conversion, mirroring results obtained in the dark. This is likely due to its high water content, which negatively impacts the solubility of the photocatalyst in acetonitrile. Similarly, the presence of oxygen was found to partially inhibit the hydrogenation process, albeit not severely. Finally, the impact of radical scavenging was examined using TEMPO at 5 mol% and 3 equivalents (corresponding to the concentrations of the catalyst and TEOA, respectively). In both cases, photocatalytic activity remained unchanged, suggesting that radical intermediates may have short lifetimes or are not significantly quenched by TEMPO. Fluorescence studies support this observation, indicating that the excited states of the phenazine catalysts and electron donors are transient and decay rapidly under reaction conditions.
2.2. Kinetic Profiling and Product Speciation of Nitrobenzene Reduction

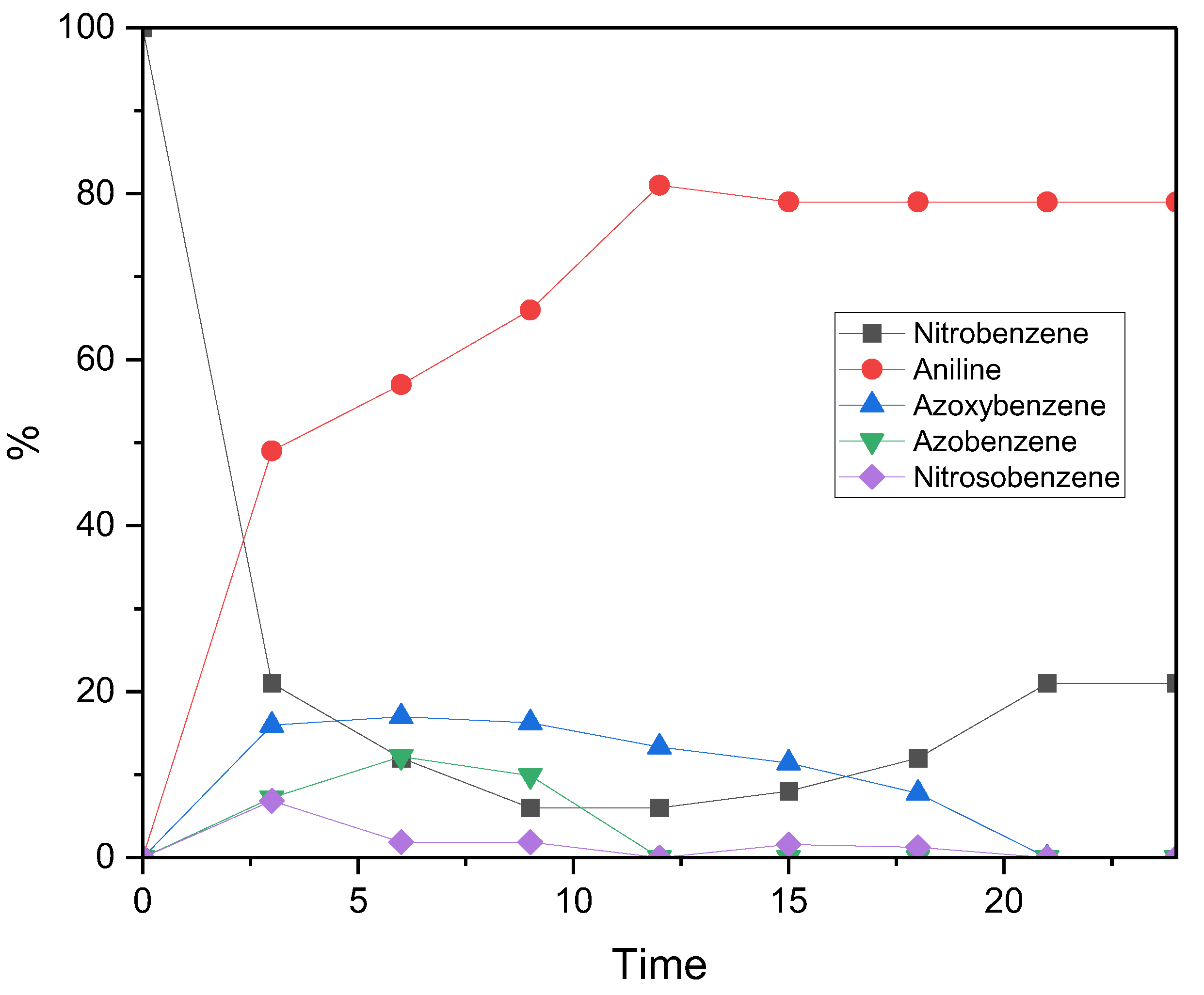

To gain a deeper insight into how reaction intermediates evolve over the 24-hour photocatalytic cycle, the reduction profile of nitrobenzene under standard conditions was monitored using GC–MS (see
Figure 3). Within the first three hours of irradiation, both conversion and aniline yield increased sharply, reaching 79% conversion and 49% yield, respectively. Aniline formation then continued steadily, peaking at an 81% yield after 12 hours, remaining stable thereafter. In contrast, the nitrobenzene conversion profile showed a non-monotonic trend: the total amount of reduced products peaked at 92% after 9 hours, but then declined to 79% after 24 hours. Nevertheless, the final selectivity towards aniline was complete. This behaviour suggests the transient formation and degradation of unstable intermediates between 0 and 15 hours. Some of these intermediates may have undergone reoxidation back to nitrobenzene, potentially via interaction with reactive oxygen species (e.g. superoxide anion radical, O
2•−), which are likely to be generated from water decomposition during the reduction cycle. The stabilisation of the reaction profile after ~22 hours likely reflects the depletion of reactive intermediates, which suppresses side reactions and allows the system to reach a steady state.[
17,
18]
Further support for a reversible Haber mechanism,[
19] where azo intermediates reconvert to nitrobenzene via nitrosobenzene intermediates, was provided by GC–MS analysis. This was evidenced by a drop in azoxybenzene concentration coinciding with an increase in nitrosobenzene, which reinforces the idea of a dynamic equilibrium among the intermediates. Phenylhydroxylamine was notably absent, likely due to its spontaneous condensation with nitrosobenzene and/or dehydration, both of which rapidly convert it into more stable intermediates, such as azoxybenzene. The inherently unstable nature of phenylhydroxylamine, along with its rapid consumption, explains its absence from the GC–MS spectrum (
Figure S5). The relatively high abundance of azoxybenzene and nitrosobenzene compared to azobenzene and phenylhydroxylamine can be attributed to their lower activation energy barriers, which allow them to persist for longer in the reaction mixture prior to analysis. These findings are consistent with previous studies, which have identified azoxy- and azobenzene derivatives as key intermediates, or even target products, in nitrobenzene reduction via thermal, chemical, photocatalytic and electrochemical approaches.[
19,
20]
2.3. Substrate Scope

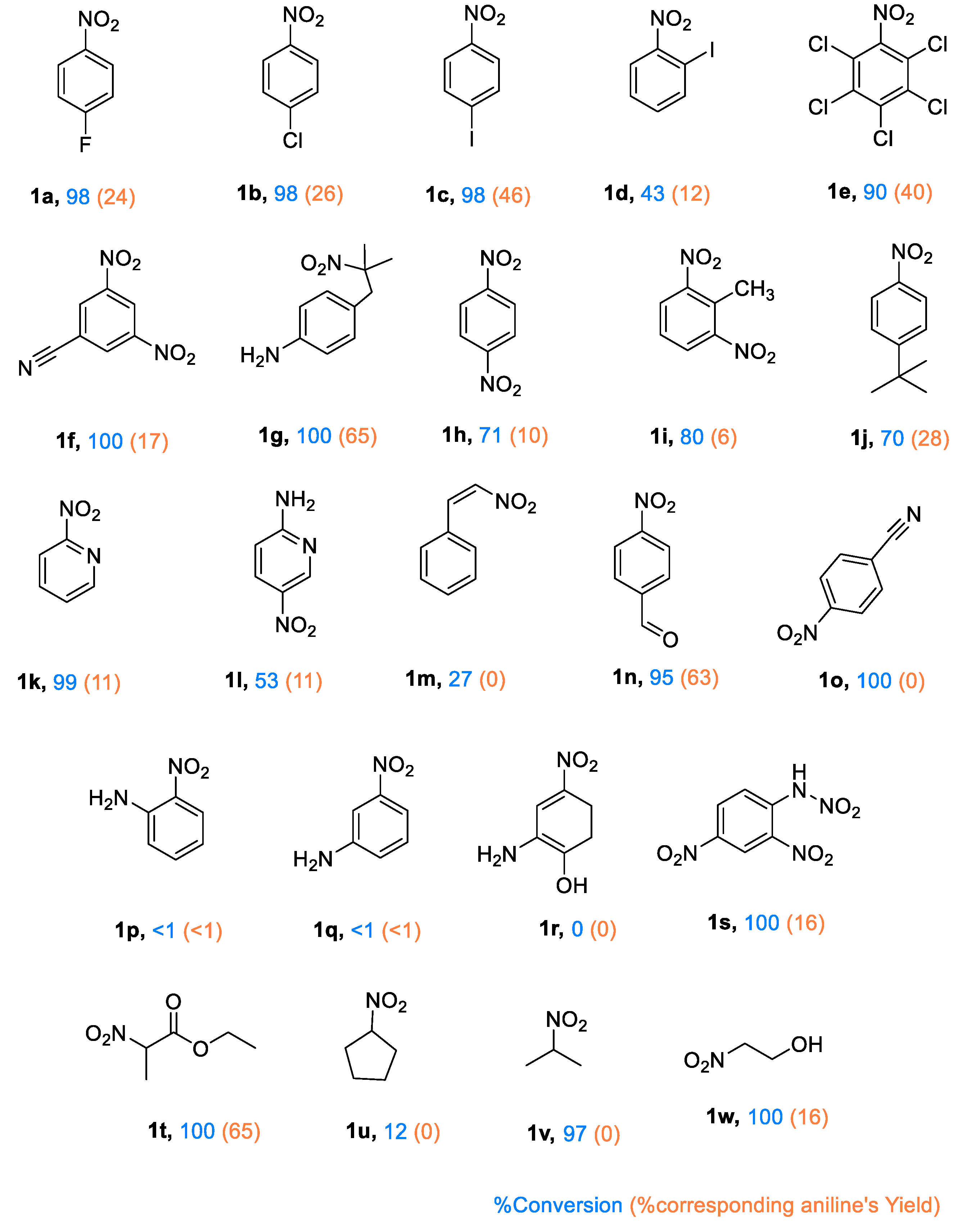

The photocatalytic reductive activity of PC1 was evaluated using various nitroarenes (see
Figure 4). Substrates bearing halogen substituents exhibited high reactivity, with conversion rates reaching 98%. Interestingly, aniline yields decreased as halogen electronegativity increased, likely due to stronger electron-withdrawing effects reducing the efficiency of electron transfer from the TEOA
•+ donor. Furthermore, the position of the halogen also had a significant impact: para-substituted 4-iodonitrobenzene (
1c) demonstrated greater reductive efficiency and generated a wider range of intermediates than its ortho-substituted analogue (
1d). The presence of five chlorine groups in quintozene (
1e) appears to balance intramolecular electron withdrawal, resulting in higher yields than those of mono-substituted analogues.
Quintozene (1e) and 3-iodonitrobenzene (1c) were selected for an in-depth analysis of the product profile due to their moderate yields and high conversion rates. In both cases, the reactions proceeded rapidly, with the intermediates being further converted into secondary products. For 1e, hexachlorobenzene and pentachlorobenzene were detected, with the latter accounting for 45% of the product mixture (see Supporting Information). This suggests a mechanism involving C–N bond cleavage to generate a pentachlorophenyl radical (C6Cl5•), which then either captures a chlorine radical (possibly from residual hydrochloric acid in commercial quintozene) to form hexachlorobenzene, or abstracts a hydrogen atom to yield pentachlorobenzene. In the reduction of 1c, multiple products were identified, including aniline, nitrobenzene, azobenzene, azoxybenzene and a mono-iodinated azobenzene derivative (see Supporting Information).
Beyond halogenated nitroarenes, strong reactivity was also observed for 2-nitro-2-(4-nitrobenzyl)propane (1g) and ethyl 2-nitropropionate (1t), with full conversion and yields of up to 65% being achieved. Among the dinitrobenzene derivatives tested, the highest conversions were exhibited by 2,4-dinitrobenzonitrile (1f), 1,3-dinitrotoluene (1i) and 2,4-dinitrophenylhydrazine (1s), while 1,4-dinitrobenzene (1h) showed slightly reduced efficiency. These results are likely influenced by the cleavage of labile bonds in bulky substituents, which facilitates product formation via non-classical pathways.
Some substrates did not yield aniline derivatives, instead forming alternative reduced products. For example, trans-β-nitrostyrene (1m) exhibited poor reactivity, producing only minor non-Haber-type by-products. Similarly, 2,4-dinitrophenylhydrazine (1s), which contains an N–N bond that is susceptible to cleavage, produced only 1% 1,3-dinitrobenzene and 9% 1,3-aminonitrobenzene. Full conversion was achieved in the case of 4-nitrobenzonitrile (1o), with the formation of azoxybenzene (18%) and azobenzene (8%) as the major products.
Substrates containing both nitro and amino groups (e.g. 1l, 1p, 1q and 1r) generally showed negligible conversion. The exception was 1l, a pyridine derivative, which underwent significant conversion, albeit with a low yield of amine products. Similarly, 2-nitropyridine (1k) achieved near-complete conversion, though the yield of the corresponding aniline remained low.
2-nitroethanol (1w) and 2-nitropropane (1v) underwent high conversion, producing low yields of aniline-type products. Instead, dimethyl ketoxime was identified as a major product. The bulkier aliphatic substrates, nitrocyclopentane (1u), showed only ~12% conversion into minor by-products, with traces of cyclopentanone oxime being detected by GC–MS.
Overall, photocatalyst PC1 demonstrated activity towards a broad range of substrates, achieving high conversion efficiencies, particularly for electron-deficient nitroarenes. The structure of the substrate had a significant impact on selectivity, with several compounds undergoing non-Haber-type transformations involving C–X and N–N bond cleavage to form diverse reduction products beyond conventional anilines.
2.4. Mechanistic Studies
2.4.1. UV-Vis Absorption Studies
UV–Vis absorption spectra were recorded for various mixtures to investigate the interactions among components in the photocatalytic system. The absorption peak observed for nitrobenzene at 264 nm corresponds to π→π* transitions within the aromatic ring. This peak is slightly red-shifted due to the presence of the electron-withdrawing nitro group, compared to that observed for unsubstituted benzene. When the photocatalyst and electron/hydrogen donor (TEOA) were added, the intensity and bandwidth of the peak increased, indicating enhanced electronic interactions within the system. This spectral broadening is attributed to charge transfer or complex formation between the substrate, photocatalyst and donor species, altering the substrate’s local electronic environment. These interactions facilitate more efficient electronic transitions, resulting in a broader and more intense absorption profile in the UV–Vis spectrum.
Figure 5.
UV–Vis absorption spectra of individual components and photocatalytic mixtures recorded in acetonitrile: (black) PC1 (4.16 × 10⁻⁶ M); (red) nitrobenzene (NB, 8.3 × 10-5 M); (blue) NB (4.2 × 10-5 M) + PC1 (2.8 × 10-3 M); (green) NB (2.1 × 10-5 M) + PC1 (1.04 × 10-5 M) + TEOA (6.25 × 10-5 M).
Figure 5.
UV–Vis absorption spectra of individual components and photocatalytic mixtures recorded in acetonitrile: (black) PC1 (4.16 × 10⁻⁶ M); (red) nitrobenzene (NB, 8.3 × 10-5 M); (blue) NB (4.2 × 10-5 M) + PC1 (2.8 × 10-3 M); (green) NB (2.1 × 10-5 M) + PC1 (1.04 × 10-5 M) + TEOA (6.25 × 10-5 M).

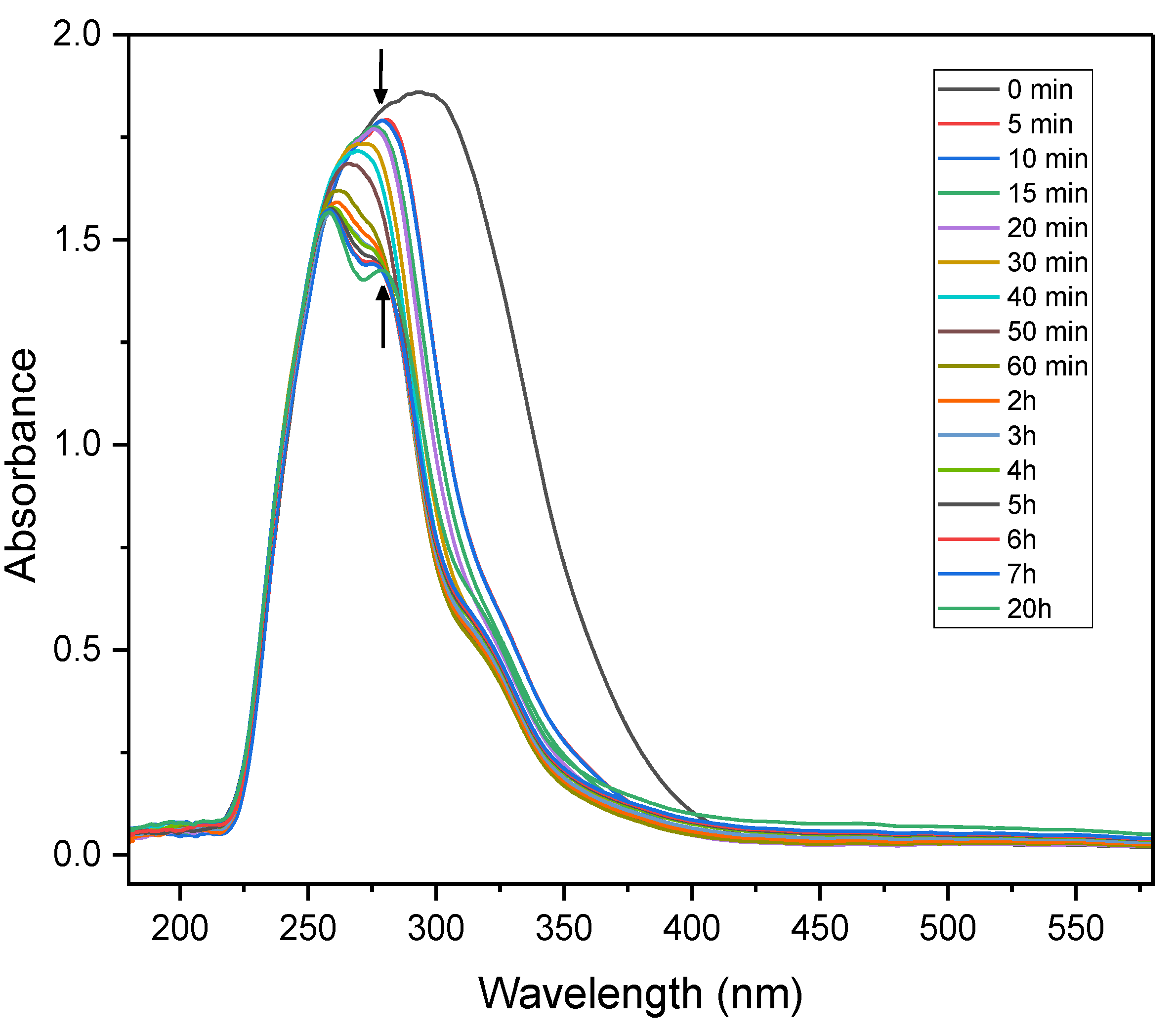

Time-resolved UV–Vis spectroscopy was conducted over a 20-hour period using a solution containing nitrobenzene (0.08 mmol), TEOA (0.5 equivalents) and PC1 (0.8 mol%) in acetonitrile, under continuous irradiation with a 390 nm LED light source. As illustrated in
Figure 6, exposure to violet light caused the broad absorbance feature of the initial mixture to narrow and decrease significantly in intensity within the first 5 minutes, indicating rapid photoexcitation and the dynamics of the initial reaction stages. Over the next two hours, the absorbance intensity continued to decline and peak splitting was observed, suggesting the emergence of new, distinct species within the system.
These spectral changes likely correspond to the formation of key radical intermediates, including the nitrobenzene radical anion, the PC1 and TEOA radical cations,[
13] and potentially other transient species involved in the stepwise reduction of the nitro group. To further investigate these intermediates, fluorescence spectroscopy was employed to monitor quenching behaviour and emission changes. Consistent with the observations of Enoki, monomeric dye-based photocatalysts tend to exhibit weak fluorescence.[
21] In this study, excess amounts of each component were used deliberately to enhance signal clarity, compensating for the short-lived excited states and rapid radiative decay typical of organic dye photocatalysts compared to metal-based ones.
2.4.2. Fluorescence Studies

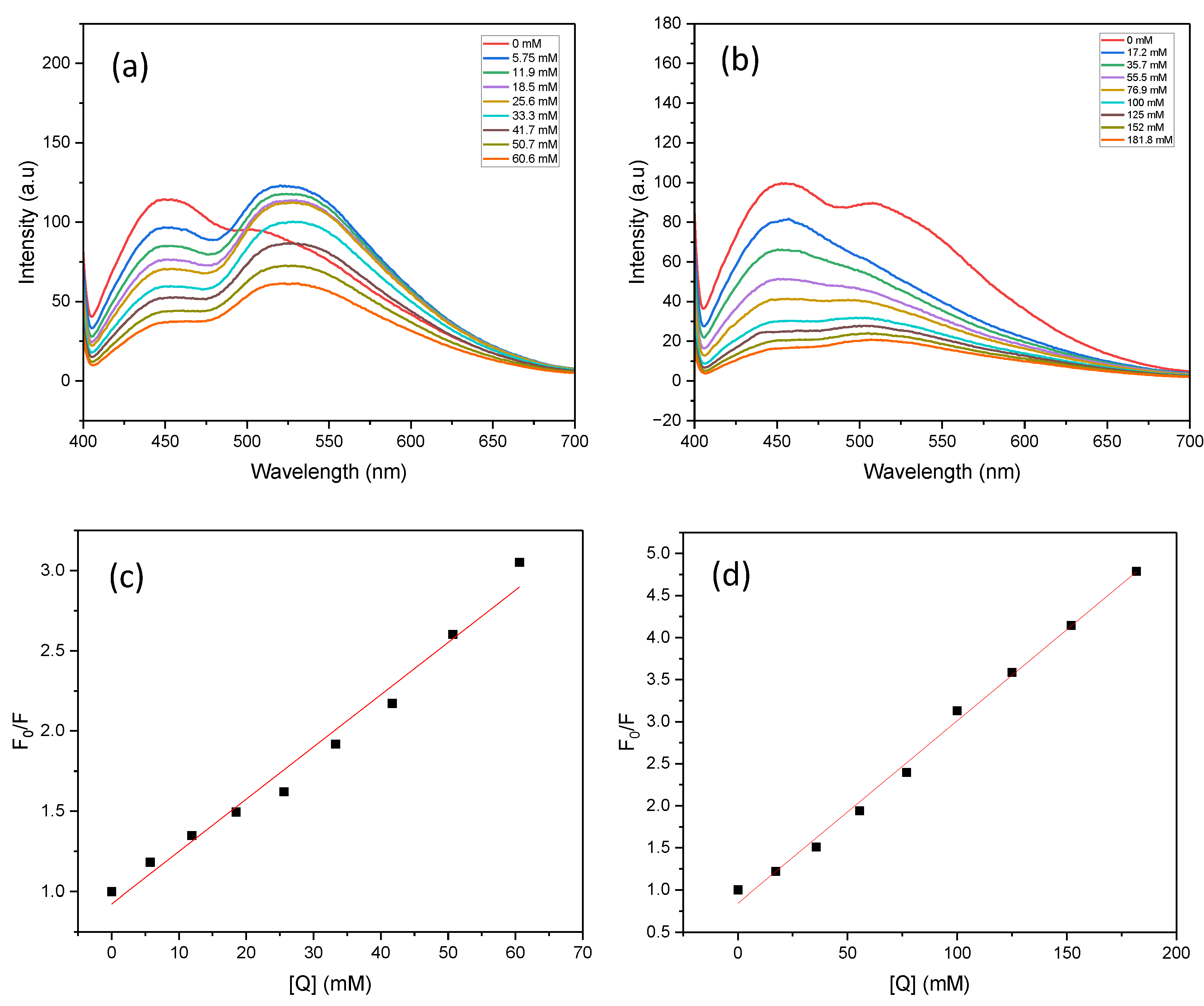

The fluorescence spectra of PC1 were recorded to investigate its oxidative and reductive quenching behaviour in the presence of nitrobenzene (NB) and triethanolamine (TEOA), respectively. Excitation wavelengths of 370, 390, 440 and 467 nm were used (see Supporting Information, section 5). Fluorescence emission was weakest at 467 nm, with peak intensities below 50 a.u., indicating minimal photocatalyst excitation at this wavelength. As the excitation wavelength decreased, the fluorescence intensity increased and reached a maximum of 124 a.u. at 390 nm. This correlated with the highest aniline yield observed under identical conditions. This suggests that the efficiency of fluorescence quenching is closely linked to photocatalytic activity.
Under 390 nm excitation, PC1 in acetonitrile exhibited a strong emission peak centred at 466 nm, with a secondary shoulder around 508 nm (
Figure 7a). When 5.75 mM nitrobenzene was added, the emission profile changed notably, yielding two distinct peaks: a sharp peak at 448 nm (~98 a.u.) and a broader peak at 523 nm (~124 a.u.). In contrast, the addition of TEOA caused the disappearance of the 508 nm shoulder (
Figure 7b), resulting in a simpler spectrum with a single dominant emission. This indicates that there are distinct quenching mechanisms between the two quenchers.
Furthermore, the fluorescence intensity of the PC1 and nitrobenzene mixture was significantly higher than that of the PC1 and TEOA mixture. This suggests that the initial interaction between PC1 and nitrobenzene is stronger. This implies that nitrobenzene is more readily reduced by the excited-state PC1, whereas TEOA primarily acts in the catalyst regeneration step by forming the TEOA radical cation.
The fluorescence quenching data were analysed using the Stern–Volmer model (see
Figure 7c and
Figure 7d). For TEOA, the Stern–Volmer plot showed strong linear correlation (R
2 > 0.99) across all eight tested concentrations, indicating dynamic quenching behaviour. In contrast, the nitrobenzene plot was only linear at lower concentrations, deviating from linearity at higher quencher levels. This non-linearity may be due to saturation effects, inner filter effects, or changes in the local microenvironment surrounding PC1 at elevated nitrobenzene concentrations.
2.4.3. Electronic Paramagnetic Resonance (EPR) Studies
In situ EPR spectroscopy was conducted to identify the key radical species generated during the photocatalytic reduction of nitrobenzene to aniline using PC1.

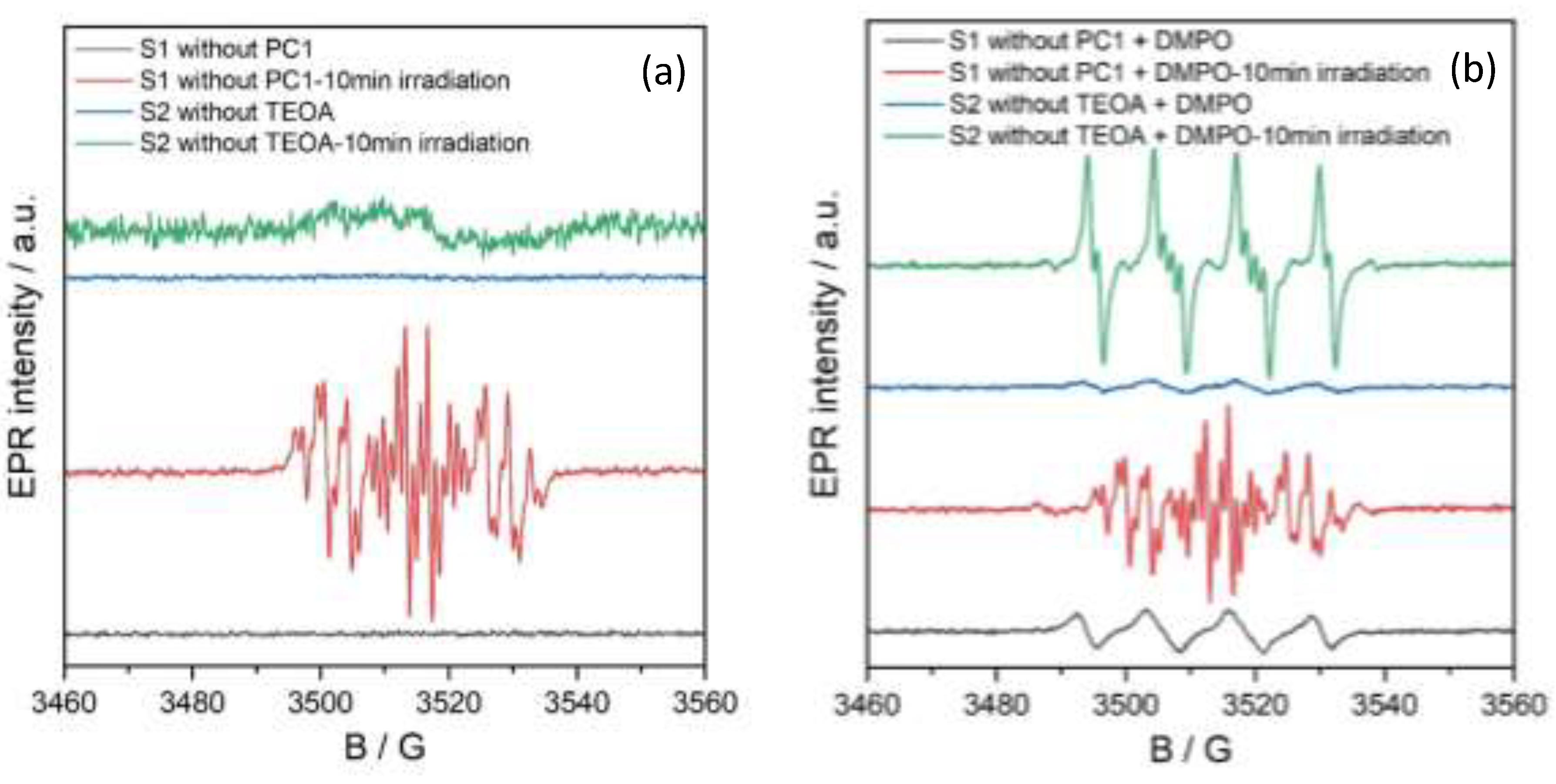

Figure 8 shows the EPR spectra of two control solutions: S1, which lacks PC1 (substrate: 0.5 mmol, TEOA: 3 equivalents, acetonitrile: 2 ml), and S2, which lacks TEOA (substrate: 0.5 mmol, PC1: 5 mol%, acetonitrile: 2 ml). Both samples were measured under an oxygen atmosphere at room temperature in the dark, and after 10 minutes of irradiation with a 390 nm (40 W) LED lamp.
Under dark conditions, no EPR signals were observed in either solution (black and blue traces in
Figure 8), indicating the absence of detectable radical species without photoexcitation. However, upon irradiation, the EPR spectrum of solution S1 (without PC1) displayed a distinct multiline signal centred at g = 2.006, with hyperfine coupling constants A
N = 12.57 G, A
Ho = 3.67 G and 3.29 G, A
Hp= 3.60 G, A
Hm = 1.10 G (red trace). This pattern is consistent with the formation of a nitrosobenzene radical anion, in agreement with prior literature reports.[
22]
In contrast, solution S2 (without TEOA) showed only a weak, broad signal indicative of non-specific organic radical formation.
Spin-trapping experiments were conducted using 5,5-dimethyl-1-pyrroline N-oxide (DMPO) to identify the organic radical species formed during photocatalysis. DMPO was added to solution S2, which contained the substrate and PC1 in acetonitrile but not TEOA. As can be seen in
Figure 9 (blue line), the EPR spectrum of this mixture showed a signal that was characteristic of the DMPO/O₂
•- or DMPO/OOH spin adduct, with hyperfine coupling constants of A
N = 12.80 G and A
Hβ = 10.73 G.
Upon irradiating this solution, a new, intense EPR signal emerged that corresponded to the DMPO/OPh spin adduct (A
N = 12.83 G, A
Hβ = 10.17 G and A
Hγ = 1.32 G). This is shown by the green line in
Figure 9 and is confirmed by the simulated spectra in
Figure S95b (b, blue trace). The intensity of this signal decreased with prolonged irradiation (
Figure S96), suggesting the transient formation of OPh-centred radicals during the photocatalytic cycle.

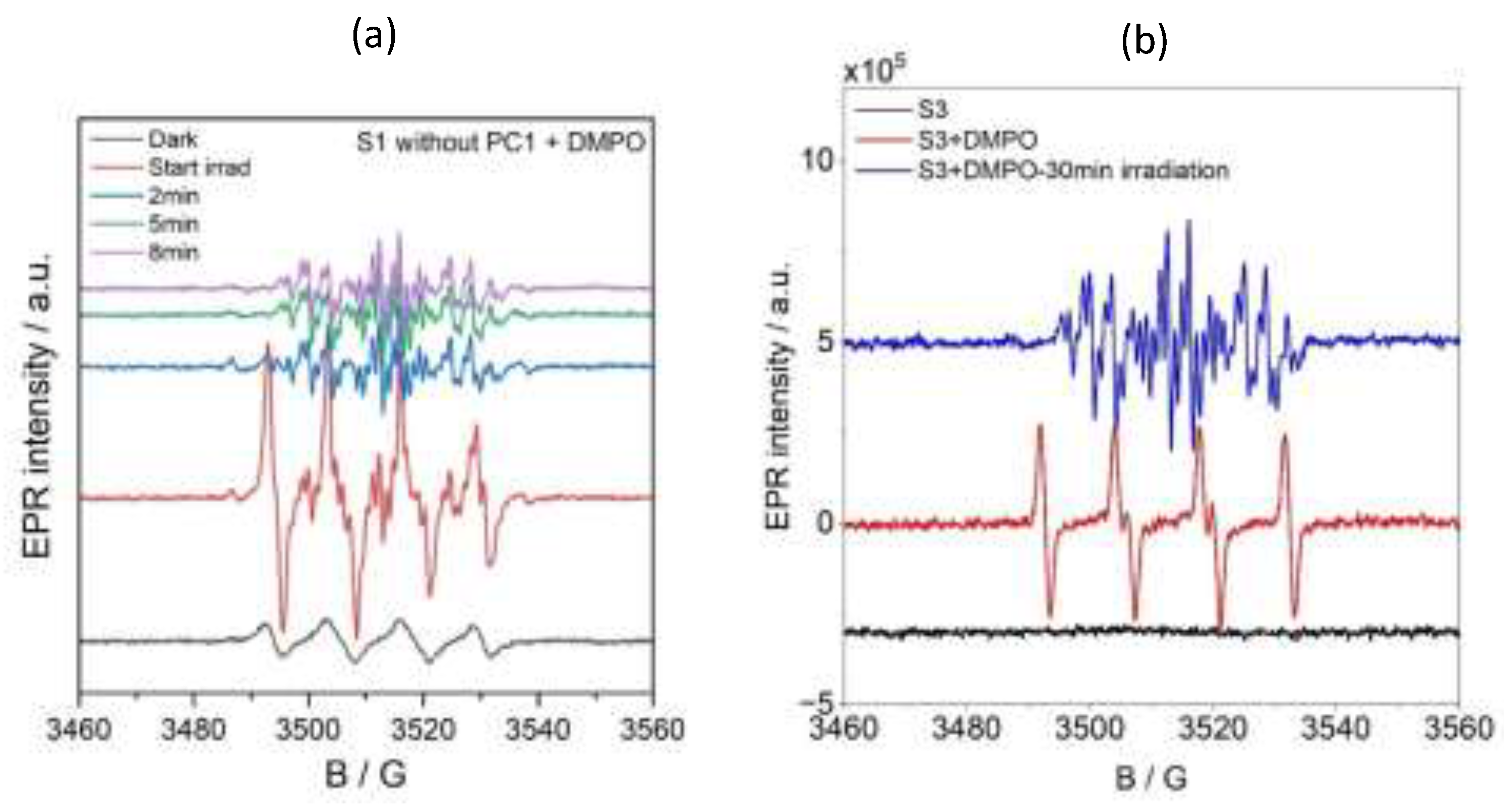

A similar DMPO/O
2•- or DMPO/OOH signal was observed in the S1 solution (substrate and TEOA in acetonitrile, without PC1) under dark conditions (see
Figure 9a and
Figure 9b, black lines). Upon in situ irradiation at room temperature, this solution exhibited complex EPR spectra (
Figure 9a, red line), indicating the formation of multiple radical species. Simulations of these spectra (
Figure S95b) revealed the presence of three distinct spin adducts: a DMPO-C-centred radical, the DMPO-OPh adduct and the nitrosobenzene radical. The corresponding hyperfine parameters are summarised in
Table S6. Interestingly, after 10 minutes of irradiation, only the nitrosobenzene signal remained (
Figure S9a, purple line), suggesting that TEOA plays a pivotal role in promoting nitrosobenzene radical formation during photocatalytic reduction.
The reaction mixture S3 (containing all components) exhibited no detectable EPR signal in the dark (
Figure 9b, black line). However, when DMPO was added as a spin-trapping agent, a strong signal corresponding to the DMPO/O₂⁻ or DMPO/OOH adduct appeared (
Figure 9b, red line). When this mixture was irradiated in situ at room temperature, the intensity of this signal decreased significantly while new signals corresponding to the DMPO-centred radical adduct and nitrosobenzene radical emerged (
Figure S96b). After 30 minutes of continuous irradiation, only the nitrosobenzene signal remained detectable (
Figure 9b, blue line), indicating that it is the predominant persistent radical species formed under these reaction conditions.
Taken together, these results confirm the presence of significant radical activity within the system, with the rapid generation of reactive species occurring within seconds of exposure to light. These radicals appear to be highly stable and reactive, making them only partially susceptible to capture by conventional spin-trapping agents.
2.4.4. Proposed Reaction Mechanism

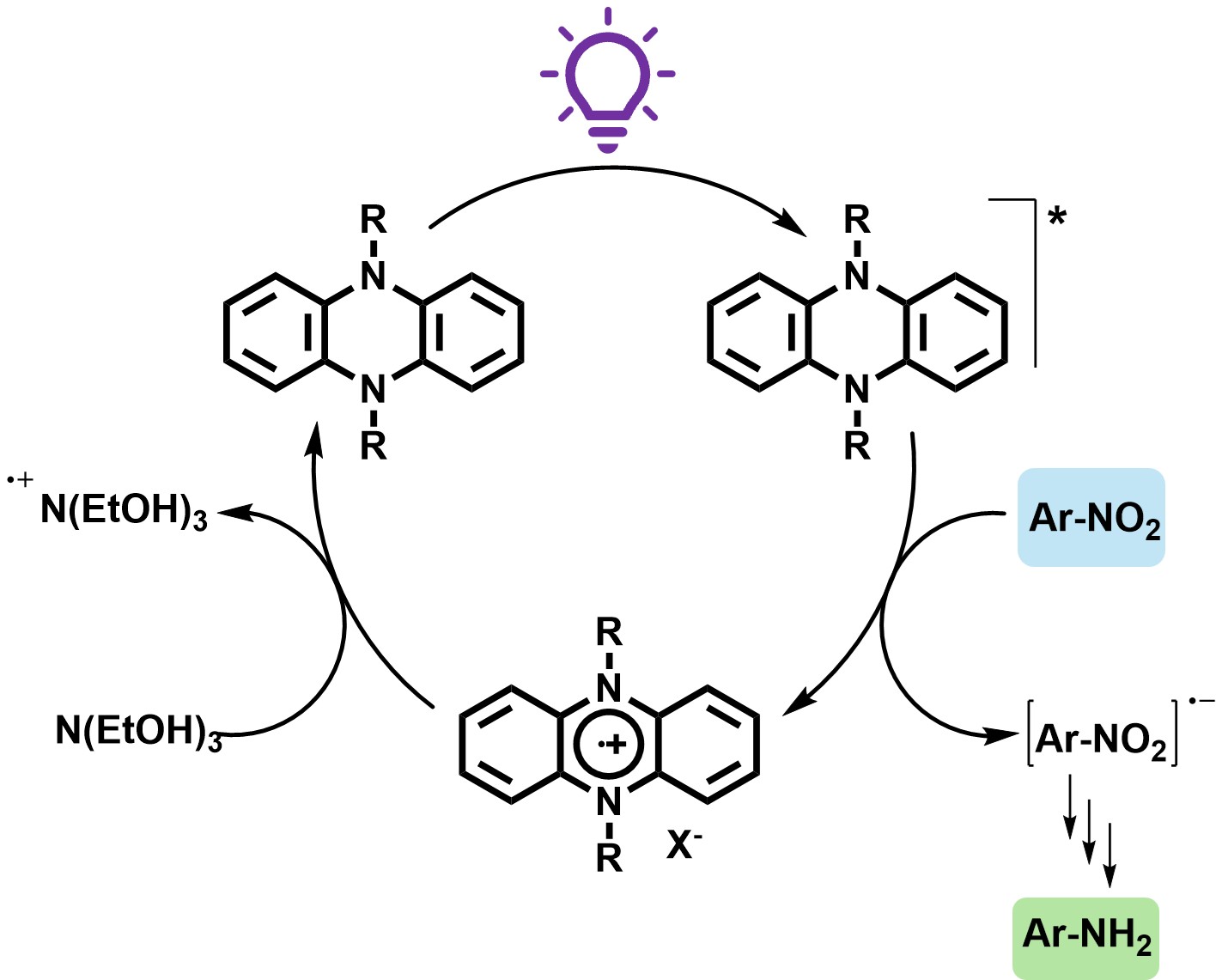

Based on combined evidence from UV–Vis absorption, fluorescence and EPR spectroscopy, alongside product distribution data and insights from previous studies,[
10,
11,
13,

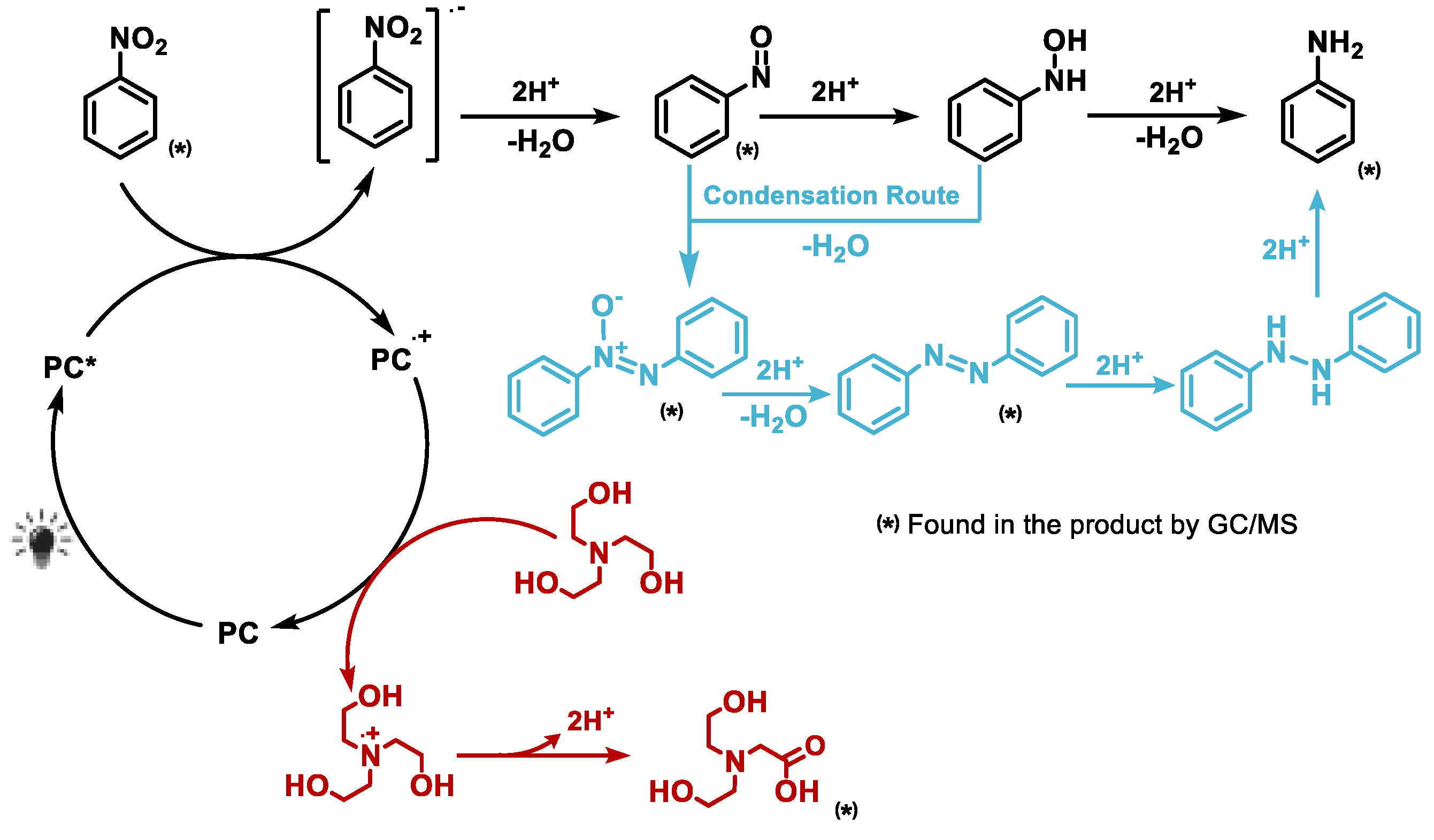

20] we propose the following mechanism for the photocatalytic reduction of nitro compounds using phenazine-based catalysts (
Figure 10). When irradiated at 390 nm, the photocatalyst PC1 transitions from its ground state to a photoexcited singlet or triplet state (PC1*), which enables it to initiate electron transfer processes. The excited PC1* then undergoes photoinduced electron transfer with the substrate (nitrobenzene, NB), resulting in the oxidative quenching of the photocatalyst and reduction of the substrate. This step generates the radical cation PC1
•+ and the nitrobenzene radical anion NB
•-.
The electron-rich NB•- intermediate then proceeds along Haber’s classical hydrogenation pathway, undergoing sequential proton and electron transfers to ultimately form aniline. These protons and electrons are supplied by triethanolamine (TEOA), which simultaneously serves as a sacrificial electron donor. The oxidised photocatalyst PC1•+ is subsequently reduced back to its ground state by TEOA, thus closing the catalytic cycle. During this process, TEOA is oxidised to form a radical cation and one of its hydroxyl groups is further oxidised to form a carboxylic acid, releasing two protons that facilitate hydrogenation. GC–MS analysis confirmed the formation of TEOA oxidation by-products, further substantiating its role as an active participant in the reduction mechanism.
