Single-Molecule Study of L-Asparaginase Thermal Denaturation

1. Introduction

L-asparaginase (L-Aspase) enzyme pertains to hydrolases; the molecular weight of its monomer is about 36 kDa [1]. This enzyme catalyzes conversion of L-asparagine into aspartate [2]. Since L-asparagine, in its turn, represents an essential amino acid (AA) for tumour cells [2], L-Aspase has found applications in cancer therapy: for instance, the use of L-Aspase for treatment of lymphoblastic leukemia [3,4], hepatocellular carcinoma, lymphosarcoma, pancreatic adenocarcinoma ant other cancers [5,6]. Of note, only Type II L-Aspase is suitable for medical applications, while Type I enzyme lacks therapeutic activity [7].

Molecular detectors, which include atomic force microscope and nanopore-based detectors, allow one to perform single-molecule studies of biological macromolecules, such as proteins (including enzymes) [8,9] and DNA [10]. While atomic force microscopy (AFM) allows for visualization of enzyme macromolecules [8,9], (solid state nanopore)-based electrical detectors (SSNPEDs) enable registration of functional activity of single enzyme molecules [11,12,13].

The present research is aimed at single-molecule study of thermal denaturation of L-Aspase E. сarotovora. Functionality of the enzyme has been checked at 25°C with an SSNPED, whose nanopore was formed in a silicon nitride (SiN) membrane. Thermal denaturation and dependence of aggregation state of the enzyme on temperature have subsequently been studied by AFM within 25 to 60 °C temperature range. The results of the study can be of use in the development of novel anticancer drugs based on L-Aspase.

2. Materials and Methods

2.1. Enzyme and Chemicals

L-Asparaginase enzyme E. сarotovora was obtained and purified in IBMC (Laboratory of Medical Biotechnology) according to previously published protocols [17]. Lyophilized powder of the enzyme was dissolved in 2 mM Dulbecco’s modified phosphate buffered saline (PBSD) and diluted to the desired concentration. In all experiments, ultrapure (with a resistivity of 18.2 MΩ×cm) water obtained with a Simplicity UV purification system (Millipore, Molsheim, France) was used.

2.2. Solid State Nanopore-Based Electrical Detector

The SSNPED comprised a measuring cell fabricated from polydimethylsiloxane (PDMS). The cell was divided into two chambers with a holder, in which a nanopore chip was fixed. Namely, 40-nm-thick silicon nitride chip with a single ~6 nm nanopore was inserted into and fixed in the holder. The nanopore was formed in the chip by electron beam drilling (EBD) with a JEM 2000F transmission electron microscope (TEM; JEOL Ltd., Akishima, Tokyo, Japan). Figure 1 displays a TEM image of the nanopore.

Each of the two chambers was filled with 700 µL of 1 mM PBSD (pH 7.6). Ag/AgCl electrodes were immersed into the solution in each chamber in order to perform electrical measurements.

2.3. AFM Experiments

In AFM experiments, samples of enzyme solution were first warmed up to the desired temperature in a test tube; secondly, the enzyme was adsorbed from the warmed-up solution onto mica AFM substrates. This procedure was performed in the following way.

Firstly, 0.1 µM solution of L-Aspase in 2 mM PBSD (pH 7.4) was placed in an Eppendorf Thermomixer Comfort shaker (Eppendorf, Germany), and sequentially warmed up to the desired temperatures within the studied temperature range (25°С, 30°С, 45°С, 55°С, and 60°С). At each of these temperature points, two 1-mL samples of the solution were taken, and the warming-up was continued until the 60°С value was reached.

Secondly, the enzyme from the samples taken as described above was directly adsorbed [15] onto bare mica AFM substrates. Each 1-mL sample of the enzyme solution was pipetted into an 1.7-mL Eppendorf-type test tube, and a 7×15 mm rectangular piece of muscovite mica (SPI, USA) was immersed into the solution. The test tube was then placed into an Eppendorf Thermomixer Comfort shaker (Eppendorf, Germany) and continuously shaken at 60 rpm and room temperature (25°С) for ten minutes. Each of the AFM substrates was then evacuated from the enzyme solution, placed in another test tube with 1 mL of ultrapure water and, again, shaken at 60 rpm and room temperature (25°С) for ten minutes in order to wash off buffer salts from the substrate surface.

All AFM measurements were performed with a NTEGRA PRIMA atomic force microscope (NT-MDT, Zelenograd, Russia). Prior to the measurements, the microscope was calibrated with a TGZ1 calibration grating (NT-MDT, Zelenograd, Russia). The AFM scanning was performed in taping mode in air at controlled laboratory conditions (25°C temperature, 55% air humidity). For each AFM substrate, no less than twenty-five 4 µm×4 µm scans with a resolution of 256×256 were obtained.

The analysis of the AFM data was performed with a NOVA Px software (NT-MDT, Zelenograd, Russia) and odAFM specialized software developed in IBMC (Rospatent registration No. 2010613458, 05/26/2010), and the main criterion for assessing the size of enzyme molecules was the height of their AFM images. The processing of the AFM data included calculation of the distributions of AFM images of the enzyme molecules by height ρ(h) and the normalized number N₄₀₀ of the enzyme molecules per 400 µm² area of the AFM substrate; these calculations were performed as described elsewhere [16].

3. Results

This section may be divided by subheadings. It should provide a concise and precise description of the experimental results, their interpretation, as well as the experimental conclusions that can be drawn.

3.1. SSNPED Measurements of L-Aspase Functionality

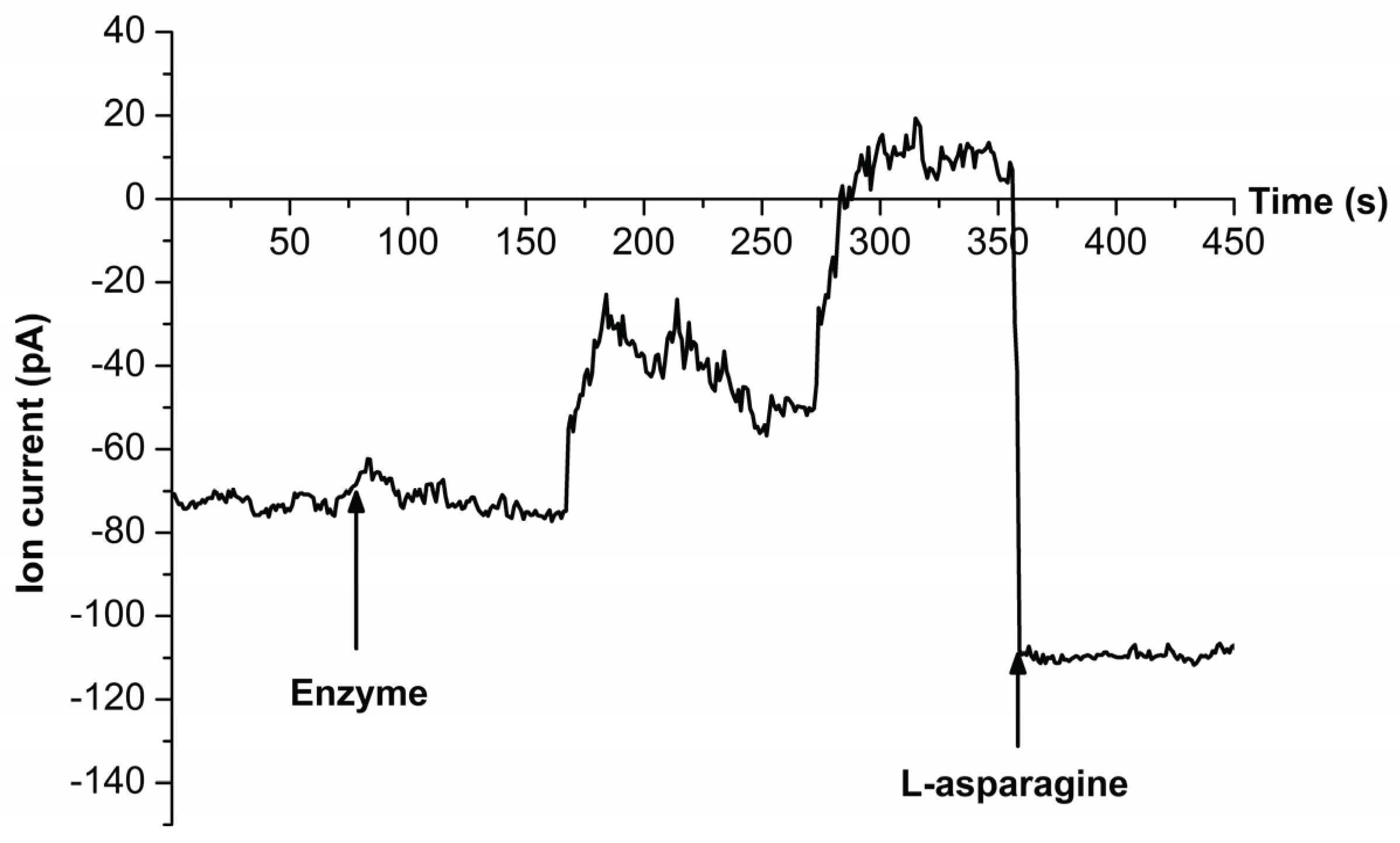

In the SSNPED measurements, time dependence of the ion current through the nanopore dividing the measuring cell into two chambers (cis-chamber and trans-chamber) was recorded (Figure 2). Prior to the enzyme addition, baseline level of the ion current through the nanopore was recorded in 1 mM PBSD (pH 7.6) at 25°С. Then, the solution in the cis-chamber of the SSNPED’s measuring cell was substituted with 0.1 µM L-Aspase solution (Figure 1). After the enzyme addition, the absolute value of the ion current decreased, indicating partial blockade of the nanopore by a molecule of the enzyme. Subsequent addition of 10 µM L-asparagine solution, in its turn, led to a considerable increase in the ion current (Figure 1), indicating unblocking of the nanopore. In blank experiments performed with pure buffer instead of L-Aspase solution, no considerable change in the ion current was observed.

3.2. AFM Study of L-Aspase Thermal Denaturation

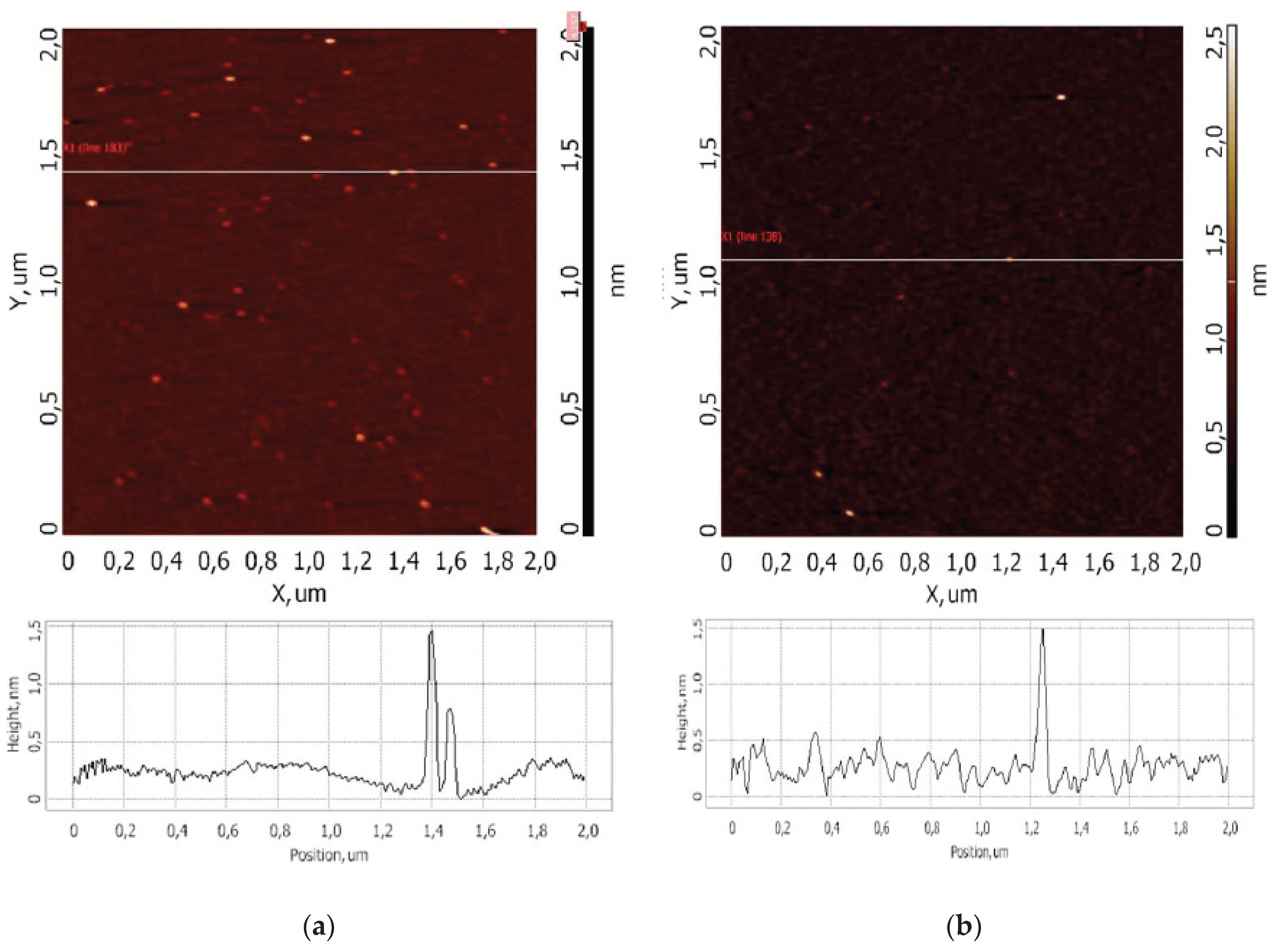

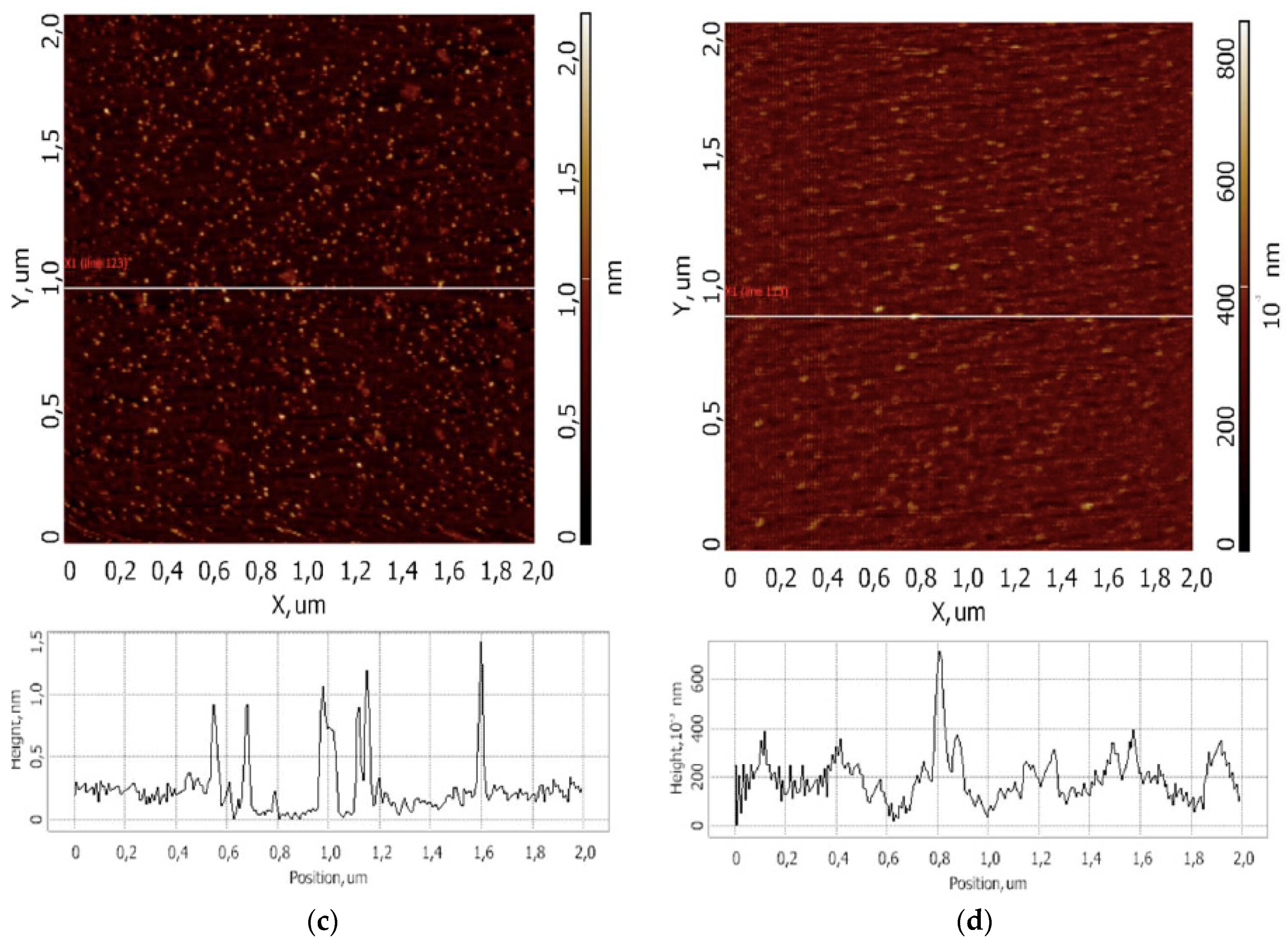

Figure 3 displays typical AFM images of L-Aspase adsorbed on mica from its solutions treated at either 25°С, 30°С, 45°С, or 55°С. In Figure 3d, black ellipses mark denatured L-Aspase structures. At 60°С, no adsorption of the enzyme was observed.

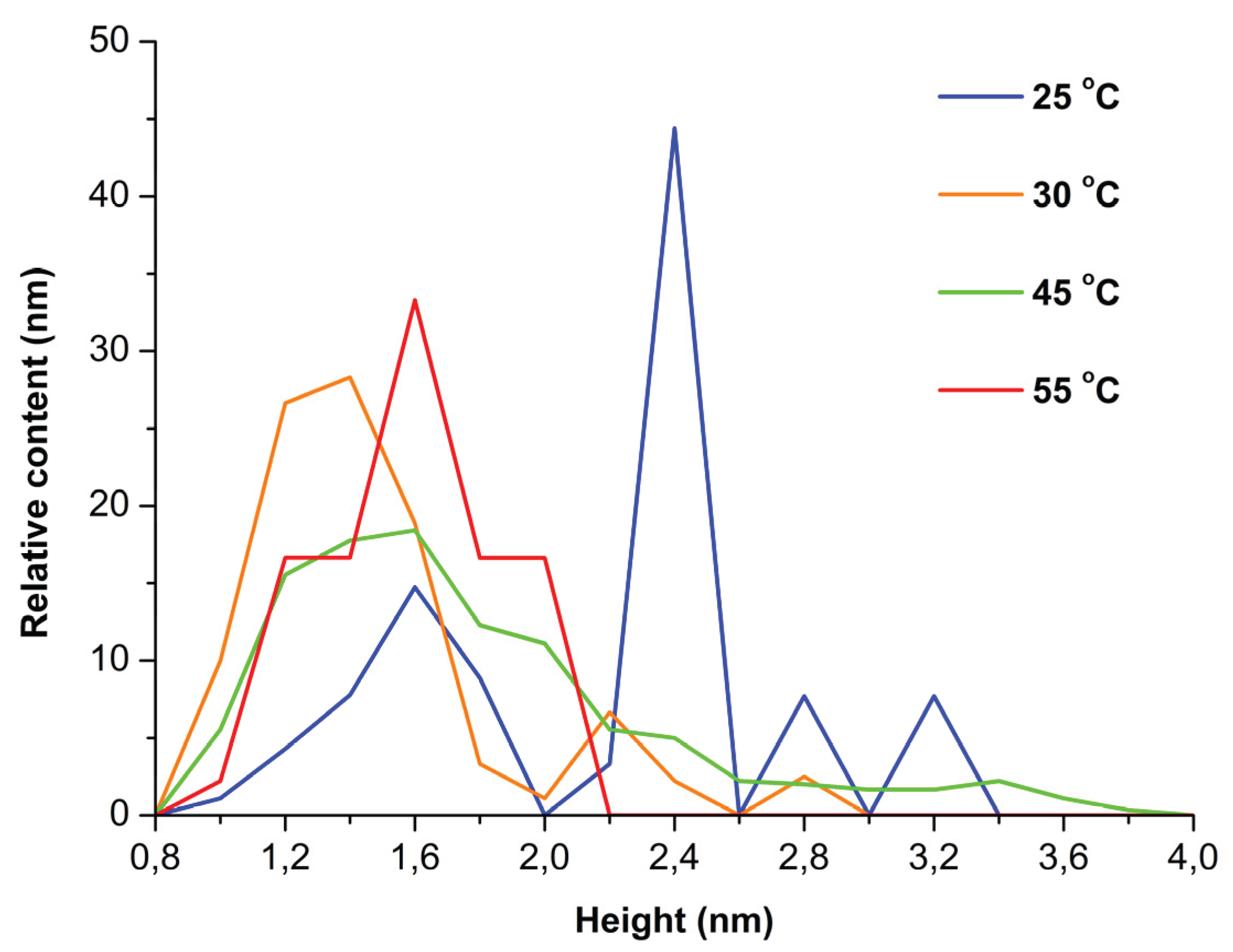

The AFM images shown in Figure 3 illustrate that within 25 to 45°С temperature range, the enzyme adsorbed on mica in the form of separate globules, while warming of the enzyme solution up to 55°C led to its adsorption in the form of extended structures. The latter indicates considerable denaturation of the enzyme at 55°C. Figure 4 displays typical plots of ρ(h) distributions obtained for the enzyme samples treated at either 25°С, 30°С, 45°С, or 55°С.

In Figure 4, blue curve indicates that the maximum h_max of the ρ(h) distribution of L-Aspase, adsorbed on mica at 25°С, corresponds to h = 2.4 nm. In previous AFM studies of another enzyme — horseradish peroxidase (HRP), whose molecular weight (40 to 44 kDa [17,18]) is comparable to that of L-Aspaase (36 kDa [1]), it was demonstrated that the maximum height of AFM images of monomeric form of HRP on mica is 1.0 to 1.2 nm [8,9]; the height of AFM images of high-order HRP aggregates on mica makes up ≥2.4 nm [9]. For these considerations, we conclude that after treatment at 25°С, L-Aspase adsorbs onto mica in the form of aggregates with heights of AFM images about 2.4 nm.

In our experiments reported herein, upon treatment at higher (30 to 45°С) temperatures, we observe a decrease in h_max down to the 1.6 and 1.4 nm values (see Figure 4, orange and green curves). This decrease indicates a disaggregation of L-Aspase with an increase in the relative content of monomeric L-Aspase in the total amount of the mica-adsorbed enzyme.

The AFM images of mica-adsorbed individual molecules of L-Aspase are quite well distinguishable for all temperature values studied — namely, up to 45°С (see Figure 3a-c). In contrast, at higher (55°С) temperature, compact objects are virtually not observed (Figure 3d). The lack of compact objects in the AFM images obtained in experiments with the enzyme treated at 55°С indicates that the enzyme molecules undergo considerable structural changes at this high temperature. These changes lead to the occurrence of extended structures on mica (Figure 3d), while no adsorption of the enzyme in its “usual” form is observed. In experiments performed at 55°С, only filamentary structures of denatured enzyme are visualized. The height of AFM images of these structures makes up 0.5 to 0.8 nm. Further elevation of temperature to 60°С leads to a complete disappearance of the enzyme adsorption on mica: neither compact objects nor filamentary structures are visualized after treatment of the enzyme at such a high temperature.

Table 1 lists the number N₄₀₀ of mica-adsorbed L-Aspase particles normalized per 400 µm² area of the AFM substrate.

The data listed in Table 1 indicate that maximum adsorption of the enzyme is observed after its treatment at 45°С.

4. Discussion

AFM study of thermal denaturation of L-Aspase has shown that at 25°С the enzyme adsorbs onto mica in aggregated form. Elevation of temperature to 30°С has led to a twofold decrease in the N₄₀₀ number of mica-adsorbed enzyme particles. The latter fact indicates a temperature-induced changes in the conformation of the enzyme globules, which have led to the decrease in the enzyme adsorption. Based on both the N₄₀₀ values (see Table 1) and ρ(h) plots (See Figure 4), one can conclude that the elevation of temperature favours disaggregation of the enzyme and adsorption of higher amount of monomeric enzyme. These phenomena are likely connected with thermal denaturation processes. Further elevation of temperature up to 45°С promotes the enzyme adsorption, indicating a continuation of the denaturation processes, which lead to changes in the enzyme globule’s conformation. The latter favoured stronger attachment of the enzyme to the mica surface. Here we, again, emphasized that maximum adsorption of L-aspase on mica is observed at 45°С. Further elevation of temperature up to 55°С, however, leads to a dramatic decrease in the enzyme adsorption accompanied by occurrence of filamentary structures of denatured enzyme. At highest temperature studied (60°С) the enzyme completely loses its adsorbability, since neither compact objects nor filamentary structures are visualized on mica.

In the experiments with SSNPED, the addition of the enzyme into the measuring cell leads to a decrease in the ion current through the nanopore, indicating its blockade. The addition of L-asparagine — the L-Aspase substrate — the nanopore-embedded enzyme molecule begins functioning, partially unblocking the nanopore. This is why the ion current increased after the addition of L-asparagine. Thus, the use of SSNPED with a 6-nm nanopore has allowed us to register functioning of L-Aspase at 25°С. Disaggregation of the enzyme at higher temperatures may, however, lead to passing of the enzyme through the nanopore instead of embedding in it.

5. Conclusions

The successful use of molecular detectors — atomic force microscope and solid state nanopore-based electrical detector — for single-molecule study of thermal denaturation of L-Aspase has been demonstrated. The results of the experiments with the electrical detector based on 6-nm solid-state nanopore formed in silicon nitride have indicated that the enzyme was functionally active at 25°C. By AFM, the height of mica-adsorbed L-Aspase has been found to decrease from 2.4 nm at 25°C down to 1.6 and 1.4 nm values within 35 to 45°C temperature range. At that, the number of mica-adsorbed L-Aspase particles considerably increased, reaching its maximum at 45°C. This indicated that changes in the enzyme’s globule structure, induced by thermal denaturation within this range of temperatures, favoured its adsorption onto mica. However, further elevation of temperature up to 55°C has led to a dramatic decrease in the enzyme adsorbability, which was accompanied by formation of filamentary structures on the mica surface. Furthermore, at highest temperature studied (60°C), the enzyme exhibited a complete loss of adsorbability on mica. The results reported herein can be of use in further development of anti-cancer drugs.
