Resonant Forcing of Oceanic and Atmospheric Rossby Waves in (Sub)Harmonic Modes: Climate Impacts

1. Introduction

Baroclinic wave resonance, particularly Rossby waves, has attracted great interest in ocean and atmospheric physics since the 1950s. However, the field of investigation of these phenomena being very vast, this work focuses on the resonant forcing of atmospheric and oceanic Rossby waves, sometimes leading to the observation of harmonics. They explain climatic phenomena ranging from El Niño and other oceanic circulation variability, extreme weather events via blocking of large-scale atmospheric Rossby waves, and glacial-interglacial periods.

1.1. Atmospheric Rossby waves

Westward-propagating planetary waves with discrete periods between 4 and 20 days have been frequently observed from wind speeds and geopotential heights since the 1950s [1]. These Rossby waves have been demonstrated with various normal modes up to the stratopause, at about 50 km [2,3,4,5], propagating at large scales (zonal wavenumbers 1, 2, and 3) [6,7,8]. Further studies have been conducted up to the mesopause using stratospheric and mesospheric sounder observations, highlighting an increasing damping effect with altitude [9]. More recently, the signatures of two transient waves with periods of 16 and 8 days in the middle atmosphere have been observed. Their temporal evolution, frequency-wavenumber relationships, and phase couplings demonstrated that the 16-day period corresponds to a normal Rossby wave mode, with an 8-day harmonic period. What the authors attribute to Rossby wave nonlinearity [10] will be interpreted here by the resonant forcing of linearly coupled multi-frequency Rossby waves.

The meteorological impact of transient Rossby wave packets has been studied in both hemispheres. Their recurrence over periods of several days to several weeks results in high-impact meteorological events, whether persistent cold or heat waves, in relation to atmospheric blocking as well as quasi-resonant amplification of quasi-stationary Rossby waves [11].

1.2. Oceanic Rossby Waves

1.2.1. The Indian Ocean

The first-baroclinic mode Rossby wave is known to govern the annual sea level variability in the southern tropical Indian Ocean. An analysis of continuously stratified linear ocean model reveals that the second-baroclinic mode also has significant contribution to the annual sea level variability [12,13,14]. Studies have investigated how second-baroclinic-mode Kelvin and Rossby waves in the equatorial Indian Ocean interact to form basin resonances at the 180- and 90-day periods. The magnitudes of the second-baroclinic waves are much larger than those of the first-baroclinic waves because of the larger near resonant wind stress forcing on the second-baroclinic mode [15,16,17]. The alongshore winds along the east coast of Africa and the Rossby waves in the off-equatorial areas contribute significantly to the annual harmonics of the equatorial Kelvin waves at the western boundary. The semi-annual harmonics of the Kelvin waves originate primarily from a direct reflection of the equatorial Rossby waves without involving off-equatorial Rossby waves [18].

Wyrtki jets (which are strong equatorial zonal flows that occur typically during boreal spring and fall in the Indian Ocean) are primarily forced by the semi-annual winds over the equatorial area and a resonant forcing of the second-baroclinic mode [17,19,20]. From Han et al. [17] the reflected Rossby waves from the eastern boundary impact the strength and structure of the Wyrtki jets, contributing to the resonant response to wind forcing [21].

1.2.2. The Pacific Ocean

White et al. [22,23] highlighted the resonant response of interannual first-baroclinic mode Rossby waves to wind forcing; Graham et al. [24] found that most of the magnitude in this wave occurred in response to wind stress curl forcing in the central and western tropical Pacific, amplified by resonant forcing. The quasi-decadal oscillation of 9- to 13-year period in the Earth’s climate system is governed by a delayed action oscillator mechanism in the tropical Pacific Ocean similar to that governing the El Niño–Southern Oscillation (ENSO) of 3- to 5-year period. It could be explained thanks to the Fast Ocean Atmosphere Model of Jacob et al. [25], in the presence of the 11-year-period solar forcing [26]. Resonant forcing of low-frequency longwave basin modes occurs because longwave energy is efficiently retransmitted from the western boundary of the basin to the eastern boundary. Explicit calculations of the eigenmodes for a basin geometry similar to that of the North Pacific yield basin modes that are sufficiently weakly damped to be resonantly forced [27]. Pacific interdecadal variability contains three spectral resonances the period of which are 13 ± 1-year, 20 ± 5-year and 60 ± 10-year [28], which may be attributed to atmospheric and oceanic teleconnections between the extra-tropics and tropics.

1.2.3. The Atlantic Ocean

Semi-annual Rossby waves with a wavelength of about 500 km have been observed in the South Atlantic subtropical gyre, between 15° and 35°S, west of the Walvis Ridge (5°E) [29]. Their pattern is very similar to that of the annual Rossby waves [30], suggesting that these waves are related to the semi-annual component of the wind.

1.3. Conditions for Resonant Forcing

Standing equatorial wave modes are shown to be exact solutions of the forced, linear, inviscid shallow water equations when the forcing is zonally uniform and equatorially confined in the meridional direction at a single frequency [31,32]. The spectrum of linear free modes of a reduced-gravity ocean in a closed basin with weak dissipation has been examined [33]. The constraint of total mass conservation, which in the quasi-geostrophic formulation determines the pressure on the boundary as a function of time, allows the existence of selected large-scale, low-frequency basin modes that are very weakly damped in the presence of dissipation. These weakly damped modes can be quasi-resonantly excited by time-dependent forcing near the natural periods, or during the process of adjustment to Sverdrup balance with a steady wind from arbitrary initial conditions. The frequency of the oscillations is of the order of decades for midlatitude, large-scale basins.

For basins with a large variation of the Coriolis parameter, large-scale eigenmodes emerge: the natural frequencies are integer multiples of the frequency for the gravest mode, which, in turn, has a period given by the travel time of the slowest long Rossby wave. The half-time decline is comparable to the period and independent of friction [34]. This decadal-frequency peak is most evident on the eastern and western boundaries and in the equatorial region of the basin. The presence of zonal phase variations in Ekman pumping field may play an important role in exciting large amplitude Rossby waves [22,35,36].

2. Materials and Methods

2.1. Data

The daily Ocean Surface Current Analyses Real-time (OSCAR) Surface Currents - Final (0.25◦ × 0.25◦) since 1993 (Version 2.0) are provided by the National Aeronautics and Space Administration (NASA) [39,40].

The wind velocity as a function of atmospheric pressure (17 levels) is obtained from the NCEP/DOE Reanalysis II data provided by the National Oceanic and Atmospheric Administration (NOAA) PSL, Boulder, CO, USA. The daily gridded data (2.5◦ × 2.5◦) from 1979 to now [41] are available at https://www.psl.noaa.gov/data/gridded/data.ncep.reanalysis2.html, accessed on 13 May 2024.

The monthly global (2◦ × 2◦) Extended Reconstructed Sea Surface Temperature (ERSST) has been revised and updated from version 4 to version 5 [42]. Highly reliable data provided by NOAA (National Oceanic and Atmospheric Administration) have been available since 1854 [43].

2.2. Quasi-Stationary Rossby Waves Resonantly Forced

2.2.1. Where We Find Them

Research on Rossby wave resonance covers a wide variety of phenomena that may seem disparate. However, common properties can be established by focusing on a specific class of Rossby waves. These are the stationary Rossby waves traveling at the interface of two stratified fluids. This assumes a clear differentiation of the pycnocline where the density varies strongly vertically, which is observed both in the atmosphere and in the oceans: 1) In the atmosphere, quasi-stationary Rossby waves are observable at the tropopause, at the interface between the polar jet and the ascending air column at the meeting of the polar and Ferrel cell circulation or between the subtropical jet and the descending air column at the meeting of the Ferrel and Hadley cell circulation. The movement of these air columns varies according to the declination of the Sun [37,38] - 2) In the oceans, quasi-stationary Rossby waves are observable in the tropics, at mid-latitudes, and around the subtropical gyres. They are sensitive to variations in solar irradiance that induce a vertical movement of the pycnocline, which most of the time coincides with the thermocline. The oscillation of this interface in stratified media occurs either as a direct result of the heating/cooling of the water floating above the deep cold waters, or as an indirect effect via winds. Equatorially trapped Rossby and Kelvin waves, as well as off-equatorial Rossby waves, are observed in tropical oceans. They result from the vertical movement of the main pycnocline at the interface between cold deep water and buoyant warm water. Rossby waves are also observed at mid-latitudes, where western boundary currents leave the continents to re-enter the subtropical gyres, as well as very long-wavelength Gyral Rossby waves (GRWs) around the subtropical gyres. The pycnocline is well differentiated around the gyre due to the buoyant properties of warm waters originating from tropical oceans, transported to high latitudes by western boundary currents.

2.2.2. How They Perturb the Geostrophic Balance

Quasi-stationary long-period Rossby waves are responsible for climate variations as familiar as El Niño, glacial-interglacial cycles, or extreme events generated by cold drops or, conversely, heat waves. These climatic phenomena, however varied they may be, result from the resonant forcing of these Rossby waves due to variations in solar irradiance. Subjected to external forcing, these Rossby waves form coupled multi-frequency systems with induced geostrophic and gravity forces tending to restore a geostrophic balance at the basin scale. This is the approximate state of most large-scale flows in the ocean and atmosphere, despite specific boundary conditions which determine the state of equilibrium. An air or water parcel in geostrophic balance moves steadily parallel to the isobars, which contrasts with the zonal and meridional velocity variation of Rossby wave-driven parcels. In this case, velocity anomalies appear as ridges or valleys in the ocean or atmospheric velocity field. The work of restoring geostrophic balance by geostrophic and gravitational forces consists of smoothing out the velocity anomalies induced by Rossby waves until they are cancelled out.

From these very general concepts applying to quasi-stationary Rossby waves, the conditions of their resonant forcing will be specified. The equations of motion of coupled multifrequency Rossby wave systems will make it possible to specify the harmonic and subharmonic modes that govern these dynamic systems.

2.3. In Search of a Unified Explanation of Resonant Forcing of Quasi-Stationary Rossby Waves

This study is meant to tie multiple phenomena together under one overarching theory. Whether oceanic or atmospheric Rossby waves, their forcing becomes all the more significant when the natural period of oscillation of the interface is close to the period of forcing. This resonant forcing promotes the interface oscillation because Rossby waves behaving like inertial oscillators, the synchronism between the forcing and the wave response causes the amplitude to increase during each period until Rayleigh friction limits this growth. When this synchronism is lacking, the forcing irremediably opposes the movement of the interface, which causes the damping of asynchronous waves. The coincidence of the forcing period and the natural period of the Rossby wave may seem fortuitous because, since long-period Rossby waves are approximately non-dispersive, their apparent wavelength must adjust so that the two periods tune. This apparent wavelength is perceived by a fixed observer: westward-traveling, Rossby waves are generally embedded in an eastward-traveling baseflow.

Traveling at the interfaces of stratified media, Rossby waves owe their origin to the gradient β of the Coriolis frequency relative to the latitude. In cartesian coordinates, the forced, linear, inviscid shallow water equations on the β-plane are momentum Equations (1) and (2) and the continuity Equation (3), with the potential vorticity Equation (4) that follows from the previous ones (surface stress is not considered) [37,44]:

$$\partial u/\partial t-\beta yv=-g\partial \eta /\partial x$$

(1)

$$\partial \upsilon /\partial t+\beta yu=-g\partial \eta /\partial y$$

(2)

$${\displaystyle \frac{\partial \eta }{\partial t}}+T\left({\displaystyle \frac{\partial u}{\partial x}}+{\displaystyle \frac{\partial v}{\partial y}}\right)=E$$

(3)

$${\displaystyle \frac{\partial }{\partial t}}\left(\xi -f\eta /T\right)+\beta v=-{\displaystyle \frac{fE}{T}}$$

(4)

where $\eta$ is the perturbation of the interface height $H$, u is the zonal modulated current, v the meridional modulated current; $T$ is the thickness of the upper layer, $f=\beta y$ where $f$ is the Coriolis frequency, and $g$ the acceleration of gravity. $\xi =\partial v/\partial x-\partial u/\partial y$ is the relative vorticity. The forcing term $E$ is the ascending/descending velocity of the interface under the effect of solar irradiation.

This system of equations of motion concerns off-equatorial and equatorial oceanic quasi-stationary waves to which equatorial Kelvin waves should be added: since $v=0$ Equations (1) and (3) give $\partial u/\partial t=-g\partial \eta /\partial x$, ${\displaystyle \frac{\partial \eta }{\partial t}}+T{\displaystyle \frac{\partial u}{\partial x}}=E$.

The dispersion relation is, in the case of long planetary waves, approximated by [44]:

$$\omega /k=-c^2\mathrm{c}\mathrm{o}\mathrm{s}\left(\phi \right)/2\mathsf{\Omega }R{\mathrm{s}\mathrm{i}\mathrm{n}}^2\left(\phi \right)$$

(5)

where c is the phase velocity of an equatorial Kelvin wave. ω/k is the phase velocity of Rossby waves at latitude φ, ω is the pulsation, and k the wave number, Ω is the rotation rate of the Earth, R is the radius of the Earth.

Considering the tropospheric quasi-stationary Rossby waves as resulting from the ascending/descending air columns at the meeting of the polar, Ferrel, and Hadley cell circulation, enables treating atmospheric and oceanic systems as analogous. Equations of motion (1) to (4) referring to oceanic Rossby waves also apply to atmospheric waves, as well as the dispersion relation (5). The variable $\eta$ is the perturbation of the interface height $H$ at the tropopause, u is the zonal modulated airflow, v the meridional modulated airflow. $T$ is the thickness of the transition zone between the interface and the stratosphere. Forced by variations in solar irradiance, both oceanic and atmospheric Rossby waves are dominated by baroclinic modes with a vertical structure dependent on temperature.

On the other hand, as regards very long period GRWs winding around the subtropical gyres, the β-plane approximation has to be replaced by the β-cone approximation so that GRWs owe their origin to the gradient β of the Coriolis frequency relative to the mean radius of the gyre [45]. The advantage of the β-cone approximation over spherical geometry is that, as in the case of the β-plane approximation, the solution leads to a physical interpretation of the phenomena, without being purely numerical. The dispersion relation is virtualy the same as (5) where φ represents the latitude of the gyre’s centroid. In all cases, the solution of this system of equations involves the vertical perturbation η of the interface as well as the zonal current u and meridional current v. They depend on the time t as well as the cartesian or conic coordinates depending on whether the β-plane or the β-cone approximation is used.

2.4. Resonant Forcing in Harmonic and Subharmonic Modes

Rossby waves form multi-frequency coupled wave systems. Indeed, when the forcing results from the declination of the Sun, the fundamental wave system, with an annual period, produces wave systems with shorter periods, which can be seasonal. In the case of orbital forcing of GRWs, these may reflect the cycles of the different orbital parameters, precession, obliquity, and eccentricity. The coupling of superimposed multi-frequency wave systems occurs in exchange zones. Here, the geostrophic forces reflecting the superposition of zonal/polar and meridional/radial currents of the waves perturb the geostrophic balance of the basin. In the absence of forcing, the motions of the wave system tend to become quasi-geostrophic. This acts as a restoring force. The conditions for the sustainability of such dynamic systems require that each oscillator receives as much interaction energy from other oscillators as it gives them overtime. It can be described by the Caldirola-Kanai equations, which are a prototype of coupled oscillator systems. This governs the motion of a system of N coupled oscillators with inertia corresponding to the N resonance frequencies. Applied to the case of multi-frequency forced Rossby wave systems, it gives [46]:

$${\mathcal{M}}_i{\ddot{\varnothing }}_i+\gamma {\mathcal{M}}_i{\dot{\varnothing }}_i+{\sum }_{j=1}^N{J}_{ij}\left({\varnothing }_i-{\varnothing }_j\right)=I_i\cos \left(\Omega t\right)$$

(6)

where ${\varnothing }_i$ is the phase of the ith oscillator, here the modulated geostrophic zonal/polar current velocity $u_i$, ${\mathcal{M}}_i$ the inertia parameter, here the mass of water displaced during a cycle resulting from the geostrophic forces applied to the ith oscillator, $\gamma$ the damping parameter referring to the Rayleigh friction and $J_{ij}$ measures the coupling strength between the oscillators $i$ and $j$. The right-hand side describes the periodic forcing with frequency $\mathsf{\Omega }$ where $I_i$ is the amplitude of the forcing on the $i^{th}$ oscillator. The restoring force simply depends on the phase difference between the oscillators. So, it vanishes when the phases are equal $u_i=u_j$ so that the geostrophic forces reflecting the superposition of the waves in the exchange zone remain unchanged. On the other hand, the interaction between the oscillators $i$ and $j$ is all the stronger as the difference in zonal/polar velocities is higher. This is because the geostrophic forces of the exchange zone impact the geostrophic balance of the basin so that the faster current slows down in favor of the slower current which accelerates. In other words, the geostrophic balance of the basin levels the crests and valleys of the velocity field of modulated geostrophic currents resulting from baroclinic waves subject to external forcing.

Multi-frequency Rossby wave systems share common characteristics. They are fed by an input current, have common exchange zones (coupling regions) where the forcing of Rossby waves occurs resonantly, and finally an output current. This process is repeated stationarily. The quasi-periodicity of the motions, which mirror the quasi-periodicity of the forcing, makes Rossby wave systems appear quasi-stationary. The interaction energy of the $j^{th}$ oscillator, that is the Hamiltonian of the dynamic system (6), is given by [46]:

$$E_j\left(t\right)=-{\sum }_{i<j}{J}_{ij}\mathrm{c}\mathrm{o}\mathrm{s}({\varnothing }_i-{\varnothing }_j)$$

(7)

It is from this relationship that a necessary and sufficient condition to ensure the durability of the resonant oscillatory system is established: the coupled oscillators form oscillatory subsystems so that the resonance conditions are to be defined recursively:

$${\tau }_i=n_i{\tau }_{i-1}\mathrm{with}{\tau }_0=T$$

(8)

where $n_i=2$ or 3. Indeed, the resonance of the fundamental wave system implies that its period ${\tau }_0$ tunes to the forcing period T, which requires a control mechanism based on a significant phase shift and adjustable through the wave system. It is from these general conditions that the resonant forcing in harmonic and subharmonic modes (8) of the multifrequency system arises. These considerations explain why quasi-stationary multifrequency Rossby wave systems tend to resonate in harmonic and subharmonic modes when forced quasi-periodically. These properties are reflected in the climate system due to ocean-atmosphere and high-low atmosphere interactions.

The purpose of this article is to emphasize the characteristics of the different dynamic systems that lead to major climatic variations, in order to better understand and/or better anticipate them. The approach will consist of highlighting - 1) the exchange zones where the coupling of multi-frequency wave systems occurs to produce harmonics and/or subharmonics of the fundamental wave system - 2) the mechanisms leading to the tuning of the periods of the dynamic system to the forcing period.

3. Results and Discussion

The results, which concern the different Rossby wave systems, are presented systematically, in the most exhaustive way possible, to highlight their common characteristics. From the different databases, the cross-wavelet processing of the data with respect to a reference makes it possible to highlight the amplitude of the Rossby waves in prescribed period ranges, representative of different (sub)harmonic modes, as well as their coherence and their phase with respect to the reference. The choice of a reference consists of sampling the data at a specific location representative of the phenomenon to be studied.

3.1. Rossby Waves in the Tropical Oceans

The three tropical oceans form a system of annual waves resonantly forced by the declination of the Sun and the associated easterlies.

3.1.1. The Tropical Pacific

The tropical Pacific Ocean is traversed by a system of strongly coupled Rossby waves, an annual fundamental wave, and two subharmonic waves with mean periods of 4 and 8 years (the biennial wave is not shown). In order to highlight the variability of different wave systems, they are represented in Figure 1 on 15/11/1997 and Figure 2 on 15/12/2006. The dates are chosen so that an El Niño event reached its maturation stage characterized by a thermal anomaly in the eastern equatorial Pacific (EP) event in Figure 1 and in the central equatorial Pacific (CP) event in Figure 2, causing a response of the Walker circulation [47,48].

The amplitude, coherence and phase of Rossby waves are obtained respectively from the square root of the cross-wavelet power, the wavelet coherence and the coherence phase of the current velocity, namely sign$\left(u\right)\times \sqrt{u^2+v^2}$ where $u$ and $v$ are the zonal and meridional components of the velocity [49]. The amplitude of the modulated current velocities of the different wave systems is represented in Figure 1a,d,g and Figure 2a,d,g. The coherence (Figure 1b,e,h and Figure 2b,e,h) with respect to the reference located at 0.5°N, 159.5°E shows the coherence of the different components of the wave systems. The phase (Figure 1c,f,i and Figure 2c,f,i) exhibits the time shifts, with respect to the reference, of the wave systems.

• The annual Rossby wave system

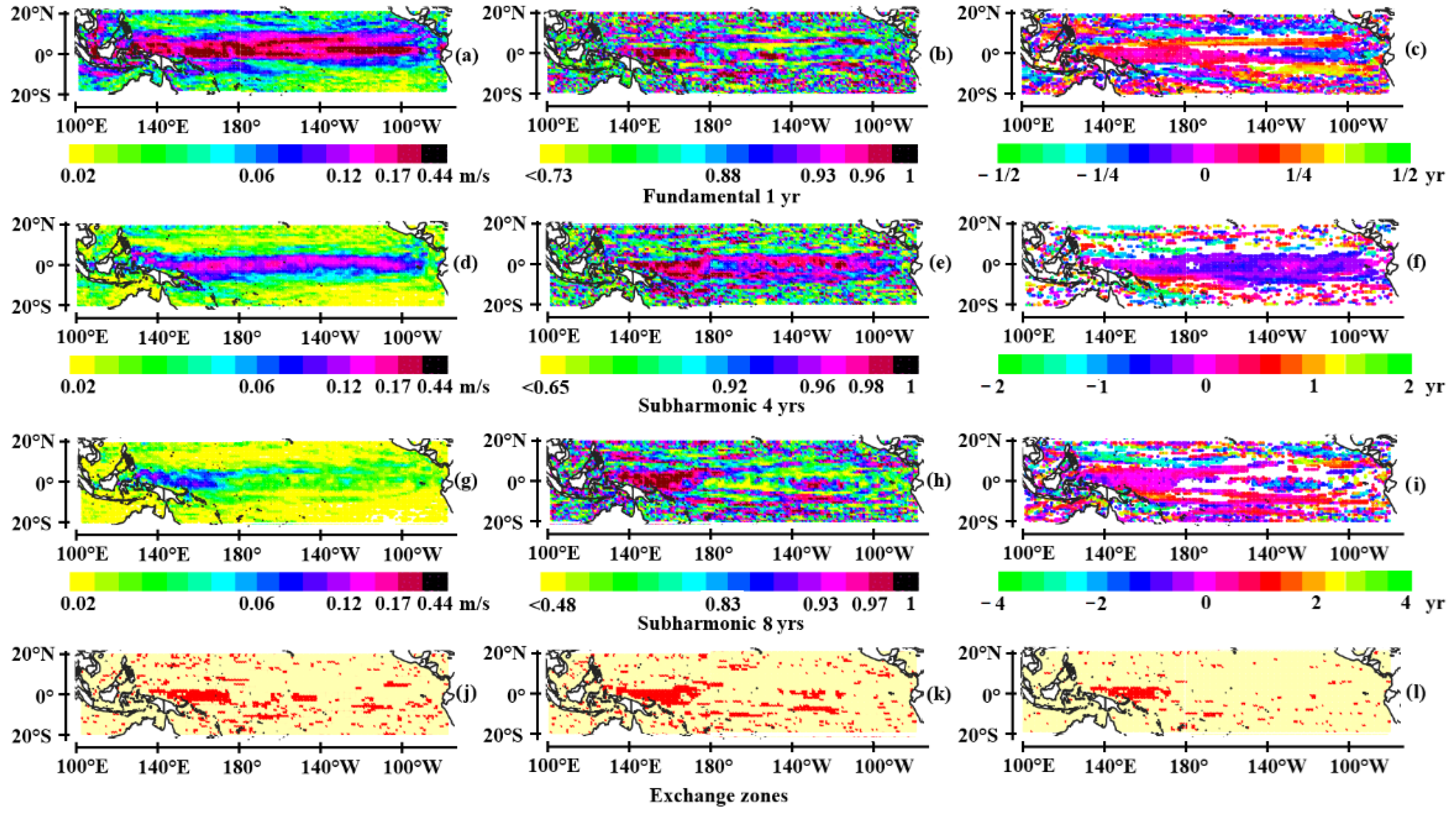

Figure 1a–c is obtained by scale-averaging the geostrophic current velocity over the 0.75-1.5 year period range. The annual wave is formed by 4 well-differentiated zonal bands in its eastern part beyond 180°. These 4 bands are in phase opposition two by two. The latitude of the northernmost band is close to 15°N (phase in blue), the two bands on either side of the equator (phase in red and blue) are well separated beyond 150°W, finally the southernmost band (phase in red) is located at latitude 5°S. This suggests that the four coherent bands highlight the first-baroclinic mode, fourth-meridional mode Rossby wave [50]. The modulated geostrophic current of the Rossby wave is rooted deep in the tropical ocean, exhibiting a high meridional mode [51]. These bands tighten in the western part of the basin to form a broad band whose phase is homogeneous. Only the northernmost band remains, reaching the western boundary of the basin. This suggests a change in mode of the Rossby wave in the western part of the basin, to become a first-baroclinic mode, first-meridional mode Rossby wave. What was the northernmost band of the Rossby wave in the eastern part of the basin is no longer an integral part of the Rossby wave in the western part.

The northernmost band constitutes the modulated component of the North Equatorial Current (NEC). The two bands on either side of the equator constitute the modulated components of the North Equatorial Counter Current (NECC) and the northernmost ramification of the South Equatorial Current (SEC). These two modulated currents merge around latitude 160°W, the SEC being retroflected to join the NECC. The southernmost branch, on the other hand, is supported by the southernmost branch of the SEC. Mainly forced by easterlies in boreal winter, the modulated current velocity can reach 0.44 m/s in the northern hemisphere (Figure 1a,c): the phase is close to zero in the western part of the basin, which corresponds to January-February.

The tuning of the natural Rossby wave period to the annual forcing period is done by matching, in the eastern part of the basin, the fourth-meridional mode whose phase velocity is much lower than that of the first-meridional mode: the phase velocity is $\mathsf{\omega }/\mathrm{k}=-\mathrm{c}/\left(2m+1\right)$ where ω is the pulsation, k the wavenumber, $\mathrm{c}\approx$2.8 m/s the phase velocity of the first-baroclinic mode Kelvin wave and m the meridional mode of the Rossby wave. Consequently, the phase velocity of the fourth-meridional mode Rossby wave is 3 times lower than that of the first-meridional mode Rossby wave. The change in the meridional mode of the Rossby wave around 160°W suggests that its natural period is annual (the first-meridional mode Rossby wave takes 6 months to cross the Pacific Ocean, the fourth-meridional mode Rossby wave takes 18 months). As shown in Figure 2, the longitude where the meridional mode changes varies significantly depending on the year: it is about 180° on 15/12/2006, which constitutes a tuning factor for the natural period of the annual Rossby wave.

• The quadrennial wave system

As shown in Figure 1d, e, f obtained by scale-averaging the geostrophic current velocity over the 3-6 year period range, the quadrennial wave consists of a main band along the equator, which testifies to the presence of a first-baroclinic mode, first-meridional mode equatorial Rossby wave. The phase difference of the wave between the eastern and western boundaries of the basin is 6-8 months, which corresponds to the traveling time of the equatorial Rossby wave. It is propelled westward by the Southeast Trade Winds to about longitude 180° E (phase in indigo in Figure 1f). Two strongly phase-shifted off-equatorial Rossby waves are visible at latitudes $~$5°N carried by the NEC and 10-20°S carried by the SEC (phases in light blue), west of the basin up to the longitude 170°W. They are almost 3 years ahead compared to the equatorial wave in its western part.

While the geostrophic current velocity anomaly shows a single equatorial band, the coherence and phase of the equatorial Rossby wave show that it consists of two zonal bands in its eastern part, then approaches and merges in its western part, at about 180° longitude. In its eastern part, the northernmost band merges with the NECC, the southernmost with a branch of the SEC, as do the two in-phase bands of the annual wave, slightly behind the reference (phase in red in Figure 1c).

Due to geostrophic forces acting to the west of the tropical basin, the equatorial Rossby wave is deflected as it approaches Indonesia, and divided towards the north and towards the south, to form the two off-equatorial branches. The phase velocity of off-equatorial Rossby waves is lower the further they move away from the equator, which constitutes a parameter for tuning the period of the quadrennial wave system. Then, after almost 3 years, the off-equatorial waves come back to the equator to form a Kelvin wave (hidden by the equatorial Rossby wave in Figure 1f), thanks to the geostrophic forces acting to the west of the tropical basin. This Kelvin wave will be “reflected” against the South American continent to form an equatorial Rossby wave and the cycle begins again.

The tuning of the quadrennial wave system is carried out owing to its two off-equatorial branches. They behave like the slide of a brass instrument such as the slide trombone. But while the annual wave is resonantly forced by the declination of the Sun and the resulting easterlies, the quadrennial wave is partly forced by the El Niño Southern Oscillation (ENSO), partly by its coupling with the annual wave. ENSO occurs when the Kelvin wave, which causes warm waters to migrate from the west to the east of the tropical basin under geostrophic forces, encounters cold waters off Peru and Chile, thereby causing a response of the Walker circulation. Stimulation of convective and evaporative processes leads to a lifting of the thermocline, the start of a new 4-year average period cycle that may be accompanied by an La Niña event when upwelling off the coast is stimulated under the effect of recession of the Rossby wave and resulting geostrophic forces. Nevertheless, this forcing mode causes the quadrennial wave period to undergo considerable variability, with two consecutive ENSO events that may be separated by 1.5 to 7 years.

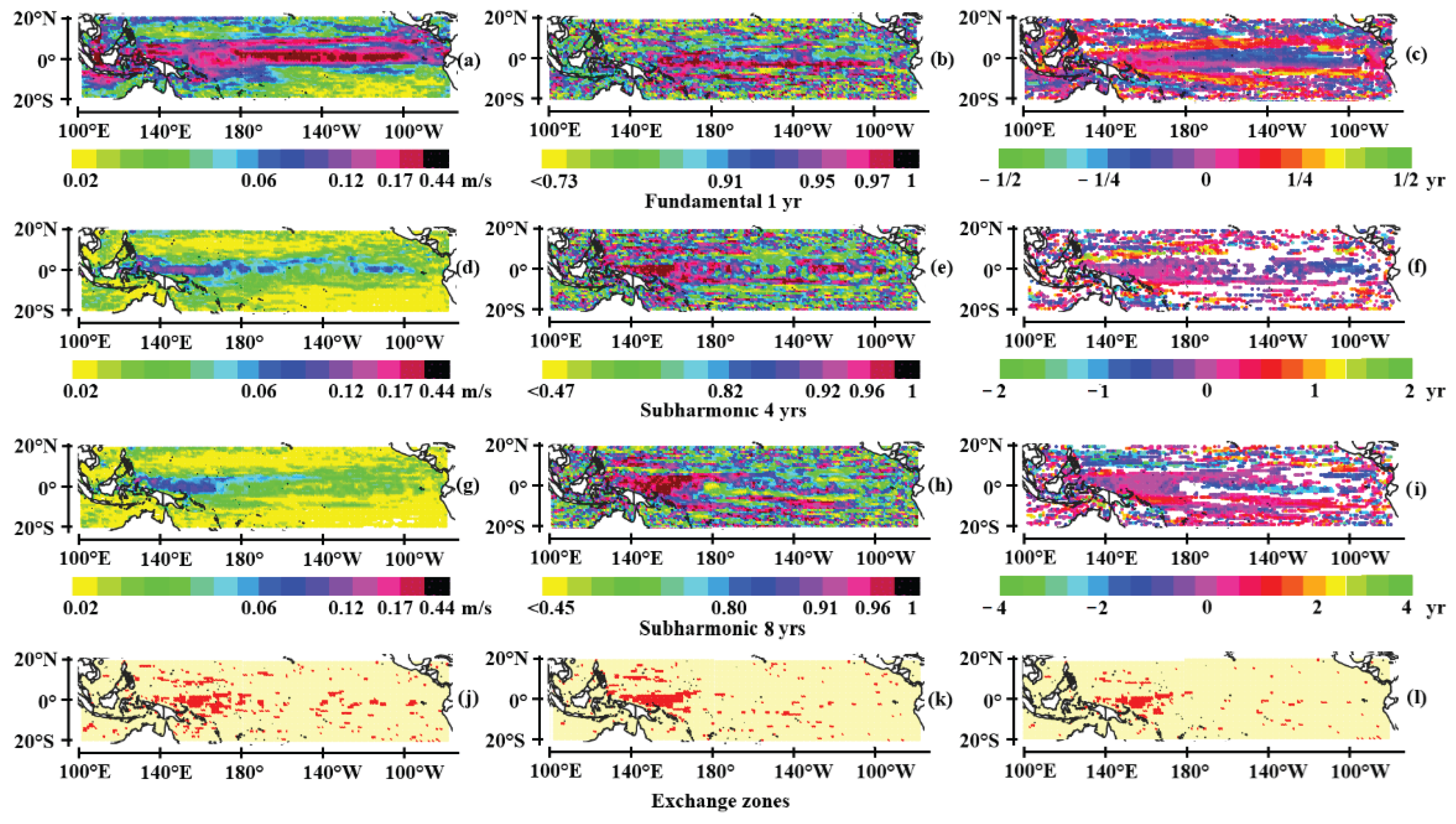

In Figure 2d–f the geostrophic current velocity anomaly is much lower than in the previous case, the coherence of equatorial and off-equatorial current velocities as well. Off-equatorial currents are identifiable by the phase in yellow 5°N, in light blue 20°S (Figure 2f), which confirms the durability of the role played by the modulated components of the NECC and the SEC in the tuning of the period of the quadrennial wave system.

• The 8-year period wave system

Although the geostrophic current velocity anomaly is low, except in the western part of the basin, the 8-year period wave system looks similar to the previous one when a change in the period scale is made (Figure 1g–i and Figure 2g–i). Thus, it contributes to ENSO due to the transfer of warm water from the western to the eastern Pacific by the Kelvin wave. Here again, the tuning of the natural period is carried out thanks to off-equatorial currents which are strongly out of phase in the western part of the basin (phase in light blue in Figure 1i and Figure 2i). But the presence of out-of-phase zonal bands in the eastern part of the basin suggests that several modes coexist.

• Coupling of the wave systems

The exchange zones where the coupling in (sub)harmonic modes of the different wave systems occurs, which are deduced from the temporal and spatial coherence of the main subharmonic pairs, are shown in Figure 1j–l and Figure 2j–l. These sub-figures show extended exchange zones between the 2 main subharmonics and the fundamental annual wave (j, k), as well as the 2 subharmonics between them (l). The surface of the areas involved in coupling is subject to significant variability. The same is true of the interaction forces between the different wave systems. The wave systems observed in November 1997 reveal strong interactions, mainly between the fundamental wave and the two main subharmonics. The couplings are less pronounced in December 2006. However, in both cases, coupling occurs mainly in the western part of the basin, particularly in the area where the SEC is deflected against Indonesia to form the NECC, as well as along the NECC north of the equator and along the SEC south of the equator.

Some properties of ENSO are inherited from the couplings between the 3 main wave systems (here, the harmonic of half a year average period is ignored). ENSO depends on the date of occurrence compared to the central value of 4-year intervals of January 1992 to January 1996, January 1996 to January 2000, etc. (Figure 3). Indeed, the Rossby wave is coherent in its entirety when the lag is close to zero while it undergoes a loss of temporal coherence when the lag increases. This is illustrated by the strength of the coupling between the different harmonics reflected by the efficiency of geostrophic forces in generating ENSO. Figure 1 and Figure 2 represent the geostrophic current velocity anomalies, both at the end of autumn but with different lags, equal to -0.17 and 1.00 years, respectively. In both cases, the equatorial Rossby wave recedes after ENSO occurs, in November 1997 and in December 2006, respectively, tending to restore the geostrophic balance at the tropical basin scale.

From [47] Central Pacific (CP) events always occur while the El Niño peaks out of phase with the annual quasi-stationary wave (segments in red, no event can occur in the black segment). Eastern Pacific (EP) events occur while the El Niño peaks in phase with the annual quasi-stationary wave (green, dark, and light blue segments). This speciation of ENSO depending on its date of appearance is attributable to the geostrophic forces which appear in the exchange zones. The distinction between CP and EP events, which depends on the synchronization between the annual and quadrennial wave systems, reflects the role of the phase shift between the Kelvin waves produced by these two wave systems. The volume of warm water transferred from the west to the east of the equatorial Pacific depends on this.

3.1.2. The Tropical Atlantic

In addition to the annual fundamental wave system, the tropical Atlantic Ocean is crossed by a harmonic wave system with a mean period of half a year (Figure 4) [52].

• The annual wave system

The phase of the equatorial Rossby wave is anti-symmetrical with respect to the equator, with the two opposite parts being in phase opposition, which characterizes the second-meridional mode of the wave. Its apparent wavelength is close to the distance between the eastern and western boundaries of the basin at the equator, which is evidenced by the anti-symmetry of the phase with respect to the meridian at 10°W. The phase velocity of the first-baroclinic mode, second-meridional mode equatorial Rossby wave is $\approx 2.8/5$ m/s = 0.56 m/s so that the Rossby wave takes almost 4 months to cross the Atlantic. The period is tuned by both the zonal Rossby waves embedded in the South Equatorial Current (SEC) between 10°S-20°S and the North Equatorial countercurrent (NECC) between 5°N-10°N. Off-equatorial waves are out of phase relative to the equatorial Rossby wave west of the basin (phase in light blue in Figure 4c,f).

The dynamics of the annual wave system resembles that of the Pacific quadrennial wave system. Due to geostrophic forces acting to the west of the tropical basin, the equatorial Rossby wave is deflected as it approaches the American continent, and divided towards the north and towards the south, to form the two off-equatorial branches, which constitutes a parameter for tuning the period of the annual wave system. Then, after 6-7 months, the off-equatorial waves come back to the equator to form a Kelvin wave (hidden by the equatorial Rossby wave in Figure 4f), thanks to the geostrophic forces acting to the west of the tropical basin. After about twenty days, the equatorial Kelvin wave forms a poleward coastal wave when it encounters the African continent. This wave then flows back equatorward due to the geostrophic forces of the basin (after a short period, this is hardly noticeable in Figure 4f) to form an equatorial Rossby wave, and the cycle begins again. The annual wave system is forced by easterly winds in the eastern part of the basin up to about 5°W longitude so that surface stress is exerted in the direction of the geostrophic current in both boreal and austral winter.

• The semi-annual wave system

The two wave systems, annual and semi-annual, are distinguished by the meridional mode of the equatorial Rossby wave. Indeed, in the case of the semi-annual wave, the Atlantic is crossed by a first-baroclinic mode, first-meridional mode Rossby wave attested by the symmetry of the wave with respect to the equator. Moreover, an important difference appears regarding off-equatorial Rossby waves which are much more developed in the case of the annual wave. This partly explains the difference in periods between the two systems, the other part coming from the fact that the Rossby wave of the first-meridian mode is faster than that of the second-meridian mode (2.3 months instead of 3.8 months).

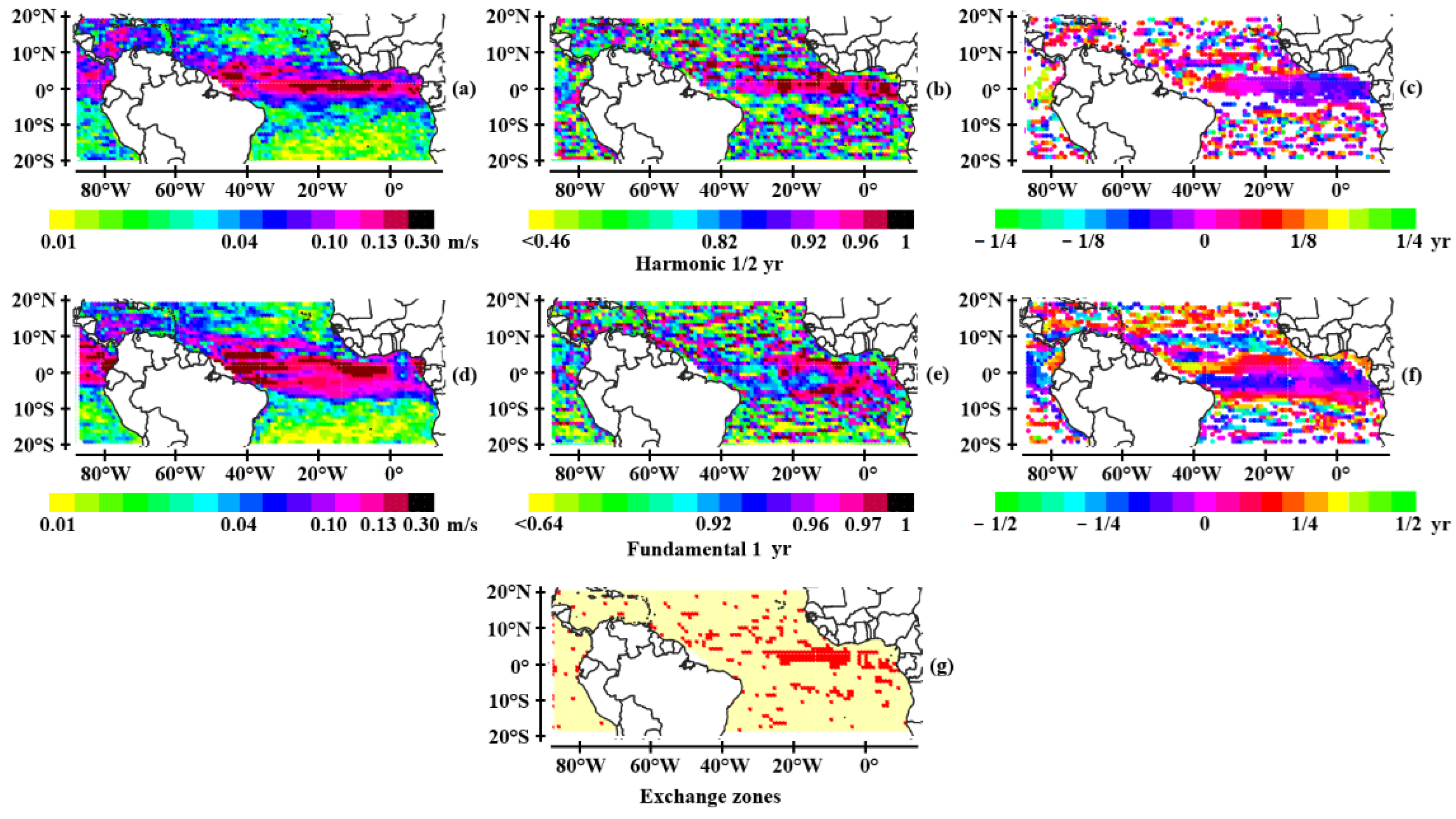

As shown in Figure 4g, wave system coupling occurs in an equatorial exchange zone that extends 25°W to 5°W. The strong temporal and spatial coherence between the two wave systems highlights the strong interaction between the fundamental wave and the main harmonic.

3.1.3. The Tropical Indian Ocean

• The semi-annual wave system

The tropical Indian Ocean is characterized by the superposition of three Rossby wave systems whose mean periods are 1/2-, 1- and 4-years (Figure 5) [53]. Here, the fundamental wave system is semi-annual. This is supported by 1) the velocity of the Equatorial Geostrophic Current, which reaches 0.47 m/s (average velocity of the upper quantile) along a broad ridge, in the period range 0.37-0.75 years (Figure 5a) – 2) the two off-equatorial currents west of the basin, out of phase with the equatorial Rossby wave, and by the phase change between the eastern and western parts of the equatorial Rossby wave, these indices underlining the tuning of the natural period of the wave system to the semi-annual forcing period (Figure 5b,c).

These observations suggest that the equatorial wave is a westward-traveling first-baroclinic, first-meridional mode Rossby wave. It is deflected as it approaches the African continent, and divided towards the north and towards the south, to form the two off-equatorial branches (dark blue phase in the north, light blue in the south). The northernmost current is embedded in the Northeast Monsoon Drift in the Arabian Sea; the southernmost current is embedded in the South Equatorial Current. These off-equatorial Rossby waves reverse a quarter of a period later to reflect against the African continent under the effect of geostrophic forces, giving rise to an eastward-traveling Kelvin wave. However, it appears that the Kelvin wave does not reach the eastern boundary of the basin, in this case Indonesia, but, embedded into the equatorial countercurrent (ECC), flows back as a Rossby wave to longitude 95°E under the effect of geostrophic forces. The forcing results mainly from the surface stress caused by reversing Asian monsoon winds.

• The annual wave system

The dynamics of the annual wave system breaks down as follows: the equatorial Rossby wave is diverted against the African continent in May-June (phase in red) to form off-equatorial Rossby waves that merge with the semi-annual waves (Figure 5e,f). Half a period later, they reverse (phase in blue) and reflect off the African continent to form an eastward-traveling equatorial Kelvin wave, driven by the equatorial countercurrent. This equatorial wave will travel westward as a Rossby wave, as the equatorial countercurrent slows down.

In addition to being a subharmonic wave of the semi-annual wave, the annual wave is influenced by the western Pacific basin through coherent baroclinic waves. This is because the water in the western equatorial Pacific Ocean has a higher temperature and lower salinity than the water in the Indian Ocean. One is embedded in the South Equatorial Current originating from the throughflow from the Timor passage, approaching the equator 8°S, with a half-period phase rotation (first yellow-orange phase, then blue). Further north, another coherent wave is embedded in the current from the Pacific which joins the monsoon current of the Indian Ocean, this time without phase variation (phase in blue). Finally, a strong coherent modulated geostrophic current forms an arc between Malaysia and Kalimantan (phase in orange), lagging behind the equatorial wave by a quarter of a period. This is probably the result of atmospheric coupling between the equatorial Indian Ocean and the far western Pacific, associated with the synchronized variation in sea level resulting from throughflows. A four-year period subharmonic is superimposed on the equatorial wave systems Figure 5g–i.

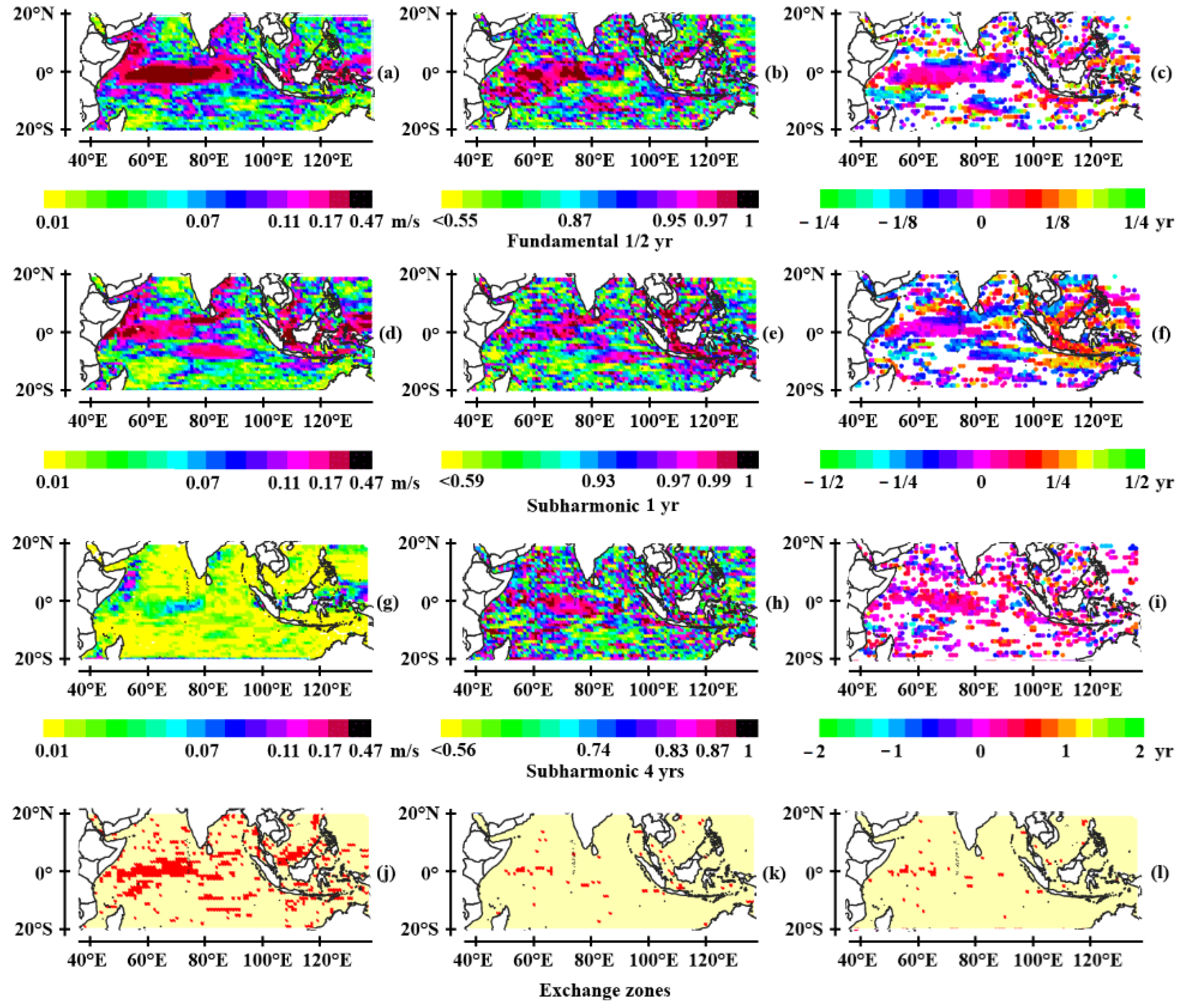

As shown in Figure 5j–l) the Rossby wave coupling occurs mainly in an equatorial exchange zone located to the west of the basin, between longitudes 50°E and 80°E. It mainly concerns the very strong link between the fundamental and the annual subharmonic, as well as between the fundamental and the 4-yr period subharmonic to the east of Malaysia (Figure 5j).

3.2. Quasi-Stationary Rossby Waves in the Tropopause

3.2.1. The Northern Hemisphere

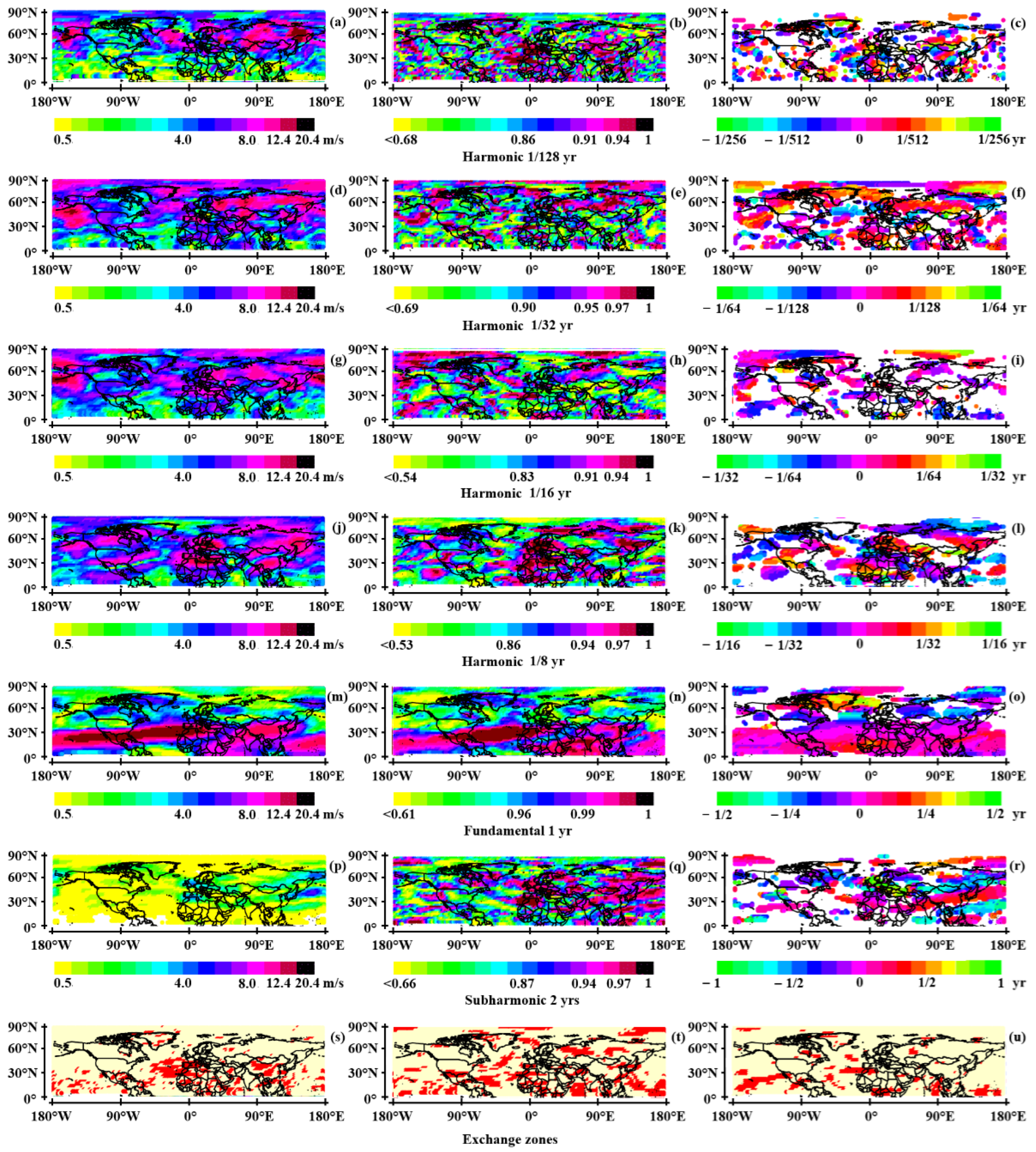

In Figure 6 the amplitude, coherence and phase of the wind velocity at 250 mb in relation to a reference (the wind velocity at 30°N, 0°E) is represented on 01/01/2002. The mean periods of the main harmonics are 1/128 year (a, b, c), 1/32 year (d, e, f), 1/16 year (g, h, i), 1/8 year (j, k, l), 1 year (m, n, o), and 2 years (p, q, r). The velocity of the modulated airflows varies a lot according to the harmonics (Figure 6a,d,g,j,m,p). On the other hand, one of the peculiarities of Rossby waves at the tropopause is that they are coherent over a large area as shown in Figure 6b,e,h,k,n,q. Only the phase can distinguish between the different Rossby waves: subtropical, polar, as well as above the tropospheric polar vortex and above the Intertropical Convergence Zone (ITCZ): Figure 7.

• The fundamental wave

The fundamental wave is clearly identifiable due to the broad strip almost continuous along the 30°N parallel, revealing the annual subtropical Rossby wave. It is both coherent and in phase with the reference (Figure 6m–o). The phase of this broad strip (in pink) is close to zero, which means that the maximum velocity of the annual subtropical airflow is reached concomitantly with that of the reference, i.e., in January, which is close to the boreal winter solstice on December 21. A significant phase variation occurs at a lower latitude where the maximum airflow velocity is reached 2 months later (phase in red): Figure 6n,o. This suggests that the fundamental subtropical Rossby wave is resonantly forced by the declination of the Sun, which is not the case for the polar Rossby wave, whose temporal coherence is fragmented. Furthermore, the maximum airflow velocity reaches 20 m/s for the subtropical wave, while it is around 5 m/s for the polar wave.

Rossby waves travel westward. Being embedded into the westerly jet streams, they appear to travel eastward. Resonant forcing of the subtropical Rossby waves results from the variation in the phase along the fundamental wave that winds one turn around the Earth (Figure 6n,o). Phase modulations along the annual subtropical airflow result from a shift in the path, either equatorward or poleward, of the subtropical Rossby wave, causing its apparent phase velocity to increase or decrease as it travels eastward. As latitude decreases, the phase velocity of the Rossby wave increases, causing its apparent velocity to decrease. This causes the wave to take longer to complete one revolution. The phase velocity decreases as the path shifts poleward, which means that the subtropical Rossby wave takes less time to complete a revolution since its apparent eastward velocity increases. Making a revolution in one year near latitude 30°N, the apparent eastward phase velocity of the Rossby wave is 1.10 m/s.

Phase modulations along the annual Rossby wave allows its natural period to tune to the forcing period by varying the amplitude of modulations. If this tuning does not occur, the lack of synchronism between the declination of the Sun and the Rossby wave traveling would lead to a weakening of its amplitude, as happens with the polar Rossby wave. Considering the dispersion relation (5) and the circumference of the parallels at 30°N/S and 60°N/S, it appears that, in the absence of base flow, the polar Rossby wave would take three times longer than the subtropical wave to complete a revolution. Thus, the apparent eastward velocity of the polar Rossby wave is too high to allow its natural period to tune to the forcing period.

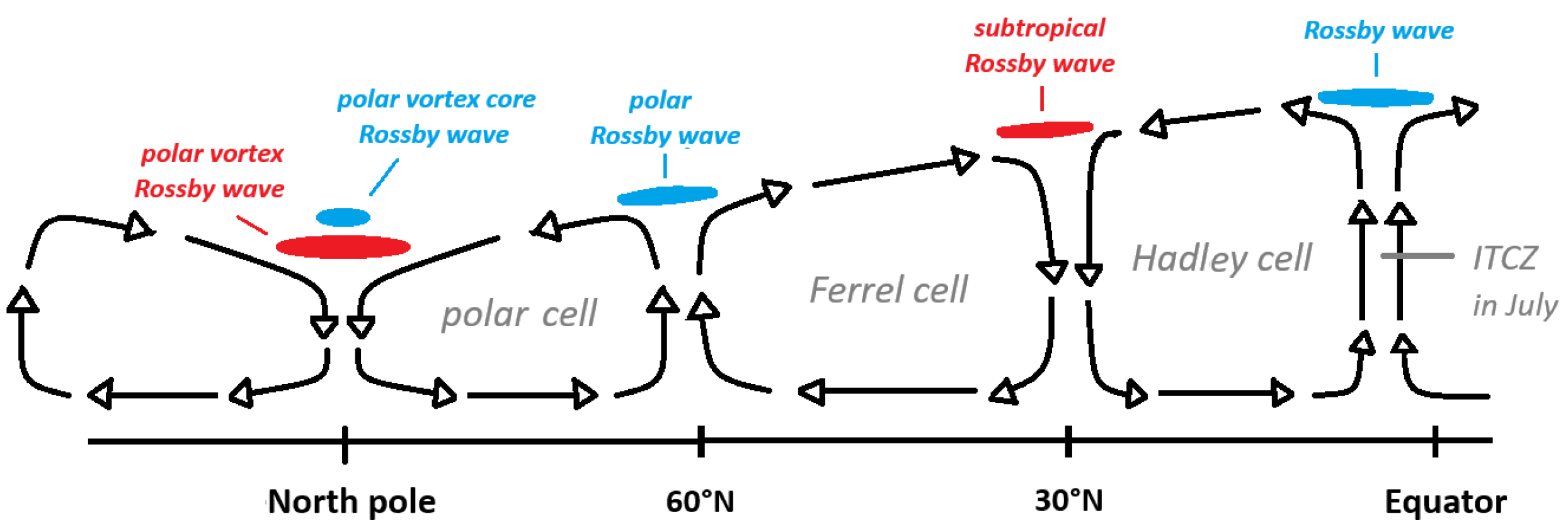

In accordance with the equations of motion (1-4), the interface between the subtropical jet and the descending air column at the meeting of the Ferrel and Hadley cell circulation reaches its highest level, the interface above the polar vortex as well. On the other hand, the interface between the polar jet and the ascending air column at the meeting of the Ferrel and polar cell circulation reaches its lowest level, the interface above the ITCZ as well. This is the reason why the modulated airflows are in opposite phase two by two: the subtropical airflow reaches its maximum velocity in January, concomitantly with the maximum velocity of the airflow above the polar vortex as they flow eastward (phases in red). Similarly, the polar airflow and the airflow above the ITCZ reach their maximum velocity in January, as they flow westward (phases in blue): Figure 7. Half a period earlier/later the phases reverse: the subtropical airflow and the airflow above the polar vortex reach their maximum velocity in July as they flow westward. Concomitantly, the airflow above the ITCZ and the polar airflow reach their maximum velocity as they flow eastward.

The modulated subtropical airflow is cold when flowing eastward since its velocity reaches a maximum in January, i.e., around the boreal winter solstice on December 21. On the other hand, it is warm when flowing westward since its velocity reaches a maximum in July, i.e., around the boreal summer solstice on June 21. This property is also true for other modulated airflows: the airflow above the polar vortex is cold when flowing eastward, warm when flowing westward. The airflow above the ITCZ and the polar airflow are warm when flowing eastward, cold when flowing westward.

• Harmonics and subharmonics

For each harmonic, the traveling direction of the modulated airflows is expressed relative to the reference on 01/01/2002. As with the fundamental wave, the modulated airflows change direction over a period, alternating between warm and cold airflows as they flow eastward or westward. This property, which results from the dynamics of the coupled Hadley, Ferrel, and polar cells, extends to all quasi-stationary Rossby waves at the tropopause given their coherence. Leading to cold drops or heatwaves, this is why harmonics determine the duration of blocking of cyclonic or anticyclonic systems. They play a key role in the genesis of extreme events, whether torrential rainfall or heat domes [37,38].

The harmonics represented in Figure 6, whose period ranges from 1/128 year (limited by the daily sampling step) to 1/8 year, highlight a temporal coherence generally greater than 0.9, or even close to 1. This occurs for harmonics whose periods are 1/32 year, 1/8 year, and for the 2-year period subharmonic (Figure 6e,k,q). This results in the integrity of the different Rossby waves on the scale of the entire hemisphere. Their spatial coherence increases with their wavelength, which is proportional to the period, proven by phase differentiation. The phases of the different Rossby waves, that is, the one above the ITCZ, the subtropical and polar waves, as well as the wave above the tropospheric polar vortex, are distinguished because they are in opposition two by two, with contrasting colors (Figure 7). The direction of the modulated airflows varies depending on whether the interface above which the Rossby wave travels is located on a rising or descending air column. Apart from the annual waves which present no ambiguity, the attribution of the different harmonics may be complex because they can be shifted poleward or equatorward. This occurs as a result of the latitudinal extension of the Rossby wave above the ITCZ in the first case, which happens most of the time in boreal summer, or above the tropospheric polar vortex in the second, which generally happens in boreal winter, as can be seen in the Figure 6c,f,i,l.

The phase differentiation appears in the Figure 6f for the 1/32-year-period harmonic. The subtropical modulated airflow is visible between the equator and latitude 30°N (phase in pink, eastward traveling), the polar modulated airflow (phase in blue, westward traveling) appears sandwiched between the subtropical modulated airflow and the polar vortex (phase in red-orange, eastward traveling) which meanders between longitudes 180°W and 160°E.

This differentiation is confirmed in Figure 6l for the 1/8-year-period harmonic. Here the polar modulated airflow (phase in blue, westward traveling) travels an extended arc: starting at a latitude of around 10°N above Asia; it describes a gigantic arc, reaching 70°N above North America, then 30°N in the middle of the Pacific. The modulated airflow between latitudes 80°N and 90°N, and between longitudes 80°E and 180°E (phase in blue, westward traveling), north of the modulated airflow attributable to the tropospheric polar vortex (phase in red, eastward traveling), is attributed to the polar vortex core.

Finally, the 2-year-period subharmonic exhibits the modulated airflow above the ITCZ (phase in blue, westward traveling) between longitudes 180°E and 80°E where it joins the equator (Figure 6p–r). This highlights that the migration of the Rossby wave over the ITCZ to the southern hemisphere is a few months out of phase with the ITCZ. The airflow above the ITCZ is south of the modulated subtropical airflow (phase in red, eastward traveling) which, itself, is south of the modulated polar airflow (phase in blue, westward traveling).

Exchange zones where the coupling of multi-frequency Rossby waves occurs are represented in red in Figure 6s,t, u for the pairs of harmonics whose mean periods are 1/128 year-1 year, 1/32 year-1 year, and 1/16 year-1 year. These regions form scattered islands in the Northern Hemisphere with a preference for low latitudes, below 40°N, as shown by the spatial coherence of the annual modulated subtropical airflow. The exchange zones are more uniformly distributed with respect to the pair of harmonics whose mean periods are 1/32 year-1 year, which highlights a strong coupling between the fundamental wave and the polar harmonic of period 1/32 year.

The range of harmonic periods for which the velocity of modulated airflows is conducive to a climatic or meteorological impact is very wide. But the coupling between modulated airflows at the tropopause and cyclonic or anticyclonic systems occurs mainly for periods of 1/32 year and 1/16 year, which reflects the duration of blocking. This is due to the specific dynamics of vortices, especially dual systems that favor extreme events. They are formed by two joint vortices of opposite signs reversing over a period, concomitantly with the involved modulated airflows at the tropopause [37,38]. Although the modulated airflow velocity does not exceed 6 m/s, the 2-year period subharmonic may impact Europe and the Far East of Asia by creating a memory effect from one year to the next. A wet year tends to follow a wet year, a dry year to follow a dry year.

3.2.2. The Southern Hemisphere

• The fundamental wave

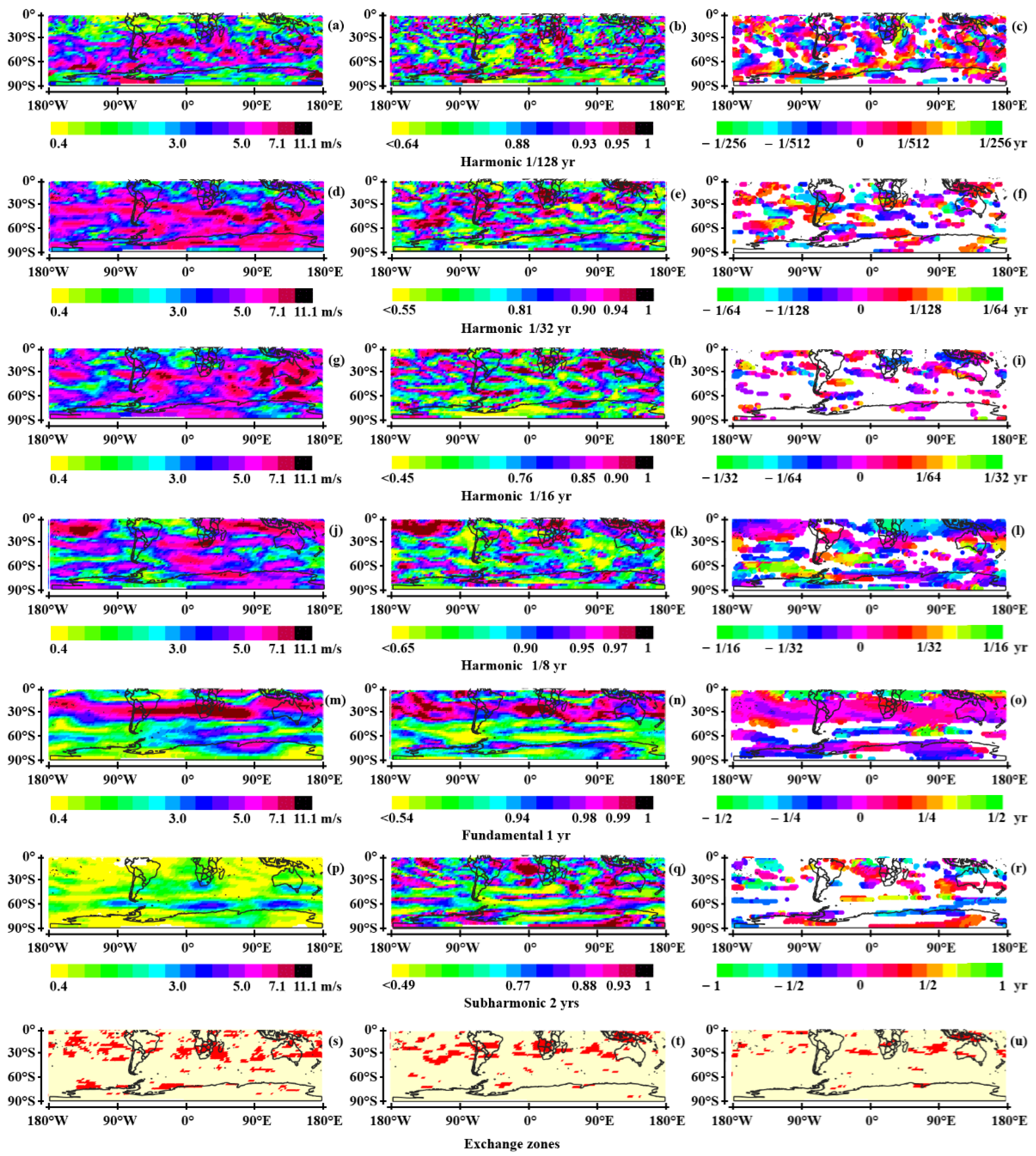

The amplitude, coherence, and phase of airflows within characteristic period ranges are represented on 01/07/2002 (Figure 8). The reference is the wind velocity at 30°S, 0°E. Like in the northern hemisphere, resonant forcing of Rossby waves under the effect of solar declination occurs on the annual subtropical Rossby wave as evidenced by the spatial and temporal coherence of the modulated subtropical airflow in the period range 0.75 to 1.5 year (Figure 8m–o). The phase represents a homogeneous strip (in pink) free from offset relative to the reference. The modulated subtropical airflow therefore reaches a maximum in July, as does the reference, as it flows eastward. The phase shows significant variations, either 2 months behind the reference, mainly near the northern edge (phase in red), or 3 months ahead, rather near the southern edge (phase in blue). These modulations allow the resonant forcing of the annual subtropical Rossby wave to occur, by tuning its natural period to the forcing period.

But unlike what is observed in the northern hemisphere, the modulated airflows show low temporal coherence outside the subtropical Rossy wave. This highlights the relative independence of Hadley, Ferrel, and polar cell circulations. On the other hand, the velocity of the subtropical modulated airflow is almost 2 times lower than that of the northern hemisphere.

• Harmonics and subharmonics

These findings also apply to the different harmonics, whether they concern the velocity of the modulated airflows (Figure 8a,d,g,j) or their temporal coherence, in particular with regard to the 1/8-year period harmonic and the 2-year period subharmonic (Figure 8k, q). Finally, the exchange zones between harmonics and the fundamental Rossby wave are mainly confined below latitude 40°S (Figure 8s–u).

For each harmonic, the traveling direction of the modulated airflows is expressed relative to the reference on 01/07/2002. In both hemispheres the date chosen to represent the events is close to the boreal/austral winter solstice. The references are symmetrical with respect to the equator, the reason why the prevailing winds at 250 mb are oriented towards the east in both cases. But in the Southern Hemisphere, the attribution of Rossby waves is more ambiguous than in the Northern Hemisphere. Concerning the 1/8-year period harmonic, the modulated subtropical airflow is visible (phase in pink, eastward traveling) in the vicinity of 30°S (Figure 8j–l). Further south is the modulated polar airflow (phase in blue or green, westward traveling). Further south is the tropospheric polar vortex between latitudes 70°S and 80°S (phase in red or pink, eastward traveling). In the far south, the polar vortex core is distinguished by its blue phase between longitudes 90°W and 90°E. The modulated airflow between the equator and 20°S, and between longitudes 30°W and 170°W (phase in blue, westward traveling) is attributed to the Rossby wave above the ITCZ. Like in the northern hemisphere, this implies a delay of several months in its migration to the opposite hemisphere.

Concerning the 2-year-period subharmonic (Figure 8p–r), Rossby waves are well differentiated along parallels, exhibiting from the equator to the pole the airflow above the ITCZ (phase in light blue, westward traveling), the subtropical airflow (phase in red, eastward traveling), the split polar airflow (phase in blue, westward traveling and yellow, eastward traveling), and the airflow above the polar vortex (phase in red, eastward traveling). The phase of the northernmost polar airflow highlights a phase inversion between longitudes 30°W and 120°E which corresponds to the development of the complete wave during one revolution (by chance, the Rossby wave is synchronized with the declination of the Sun).

Despite these differences, both hemispheres experience extreme events resulting from vortex blocking at mid-latitudes, whether warm or cold waves. Induced by modulated warm or cold airflows, these events are mainly produced by 1/32- and 1/16-year period harmonics. Indeed, in both hemispheres, the velocity of modulated airflows may occasionally reach 20 m/s [37,38].

3.3. Gyral Rossby Waves (GRWs)

Long-period Rossby waves wrapping around the subtropical gyres are resonantly forced in subharmonic modes from solar and orbital cycles. Embedded in the anticyclonic wind-driven current of the gyre, GRWs travel cyclonically. Their phase velocity being lower than the velocity of the wind-driven gyre current, they appear to travel anticyclonically. Resonant forcing of the GRWs in subharmonic modes supposes that their natural period tunes to the forcing periods of orbital cycles. From the dispersion relation (5) fine tuning occurs by shifting the gyre centroid latitudinally.

Subharmonic modes in (8) are represented by a succession of integers $n_i$ $i=1\dots 15$ reflecting the number of revolutions made by GRWs. They can be specified by decomposing the signals obtained from proxies of paleotemperature as a function of time [54]. Unlike short-period Rossby waves, which can be detected directly from their geostrophic currents, long-period waves require the use of proxies. The duration of the series used for this purpose must be at least three times the period of the observed phenomena. Only SST, which reflects thermocline movements, meets this requirement.

In the North Atlantic, the 64-year period GRW was observed from the high coherence and phase homogeneity of SST [43]. This method can be transposed to the South Atlantic gyre, the resonance period of the first subharmonic mode is 64 years, too. On the other hand, the identification of the Indian and Pacific Ocean gyres, whose resonance period of the first subharmonic mode is 128 years, would require a longer SST series.

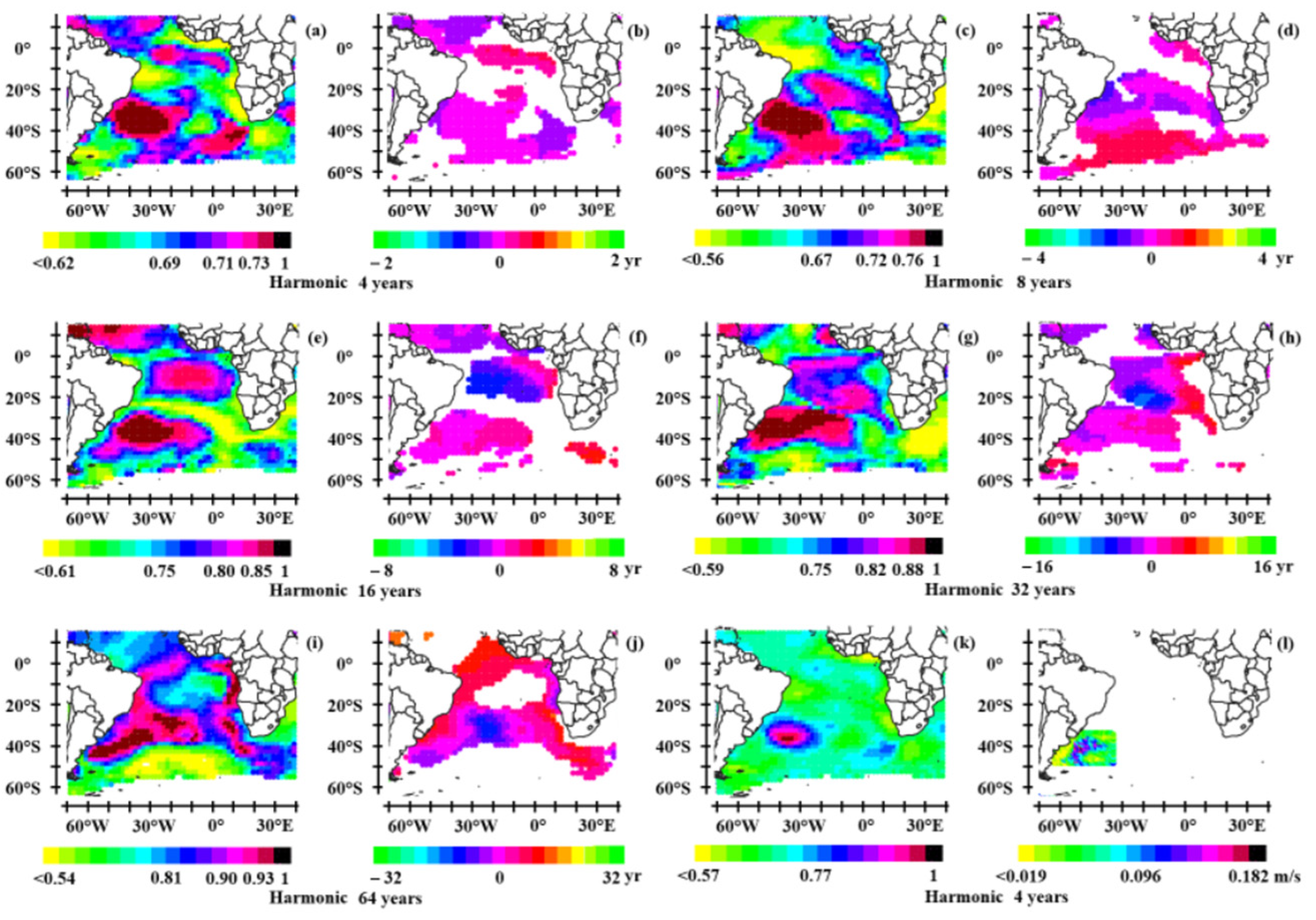

In Figure 9, the coherence and phase of the SST are shown in joint period ranges, whose bandwidth forms a harmonic progression. Quasi-stationary Rossby waves are evidenced by high coherence and phase uniformity as the period lengthens and the wavelength as well, resulting in the gyral wave (Figure 9i,j).

High coherence and phase homogeneity of SST show that the 64-year period GRW shifts 20° northward at low latitudes. Such a shift has also been observed in the North Atlantic. It reveals a general northward movement of the upper troposphere over the Atlantic. This sliding indeed suggests that the SST anomaly used as a proxy for the gyral wave causes evaporation processes above the low latitudes of the gyre, followed by precipitation further north. These observations are confirmed in Figure 9k, l which highlights the northeastward shift of the SST relative to the geostrophic current velocity anomaly, where the Brazil Current leaves the South American continent to re-enter the South Atlantic Gyre. Long-period Rossby waves embedded in the northeast-flowing Falkland Current southeast of the South American continent are also visible, as are those embedded in the retroflecting Agulhas Current south of the African continent. Since the circumference of the gyre is equal to half the apparent wavelength of the gyral wave [45], the phase inversion visible southwest of the gyre (phase in blue) occurs where it travels outward from the gyre to join the Antarctic Circumpolar Current.

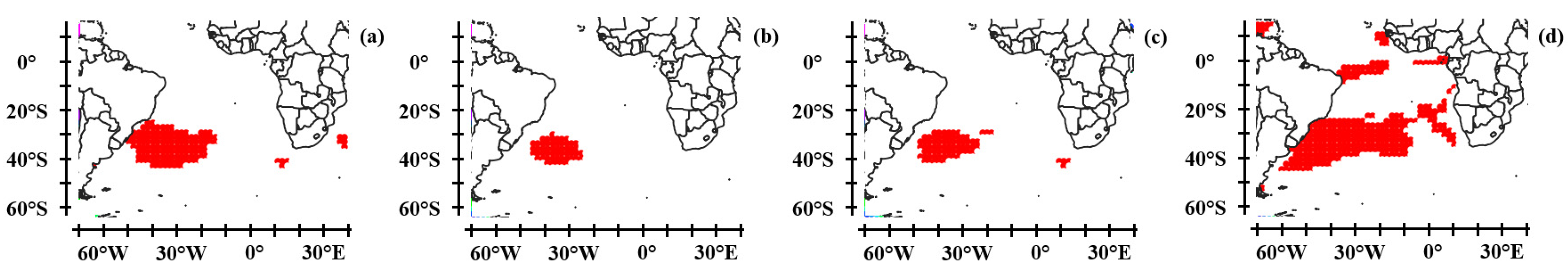

Exchange zones defined so that the mean coherence of the coupled waves is higher than 0.85 are shown in Figure 10 for different couples of GRWs. The different harmonics couple both with the fundamental wave (Figure 10a) and with each other (Figure 10b–d), extending around the gyre as the apparent wavelength increases.

Gyral waves have a significant impact on climate through the western boundary current, which forms the western part of the gyre. This western boundary current accelerates alternately northward and southward during each cycle, influencing the amount of heat transported from the tropics to high latitudes. Long-period cycles deduced from subharmonics (up to 1.57 ${10}^6$ years) of the 64-year period fundamental GRW are the origin of glacial-interglacial periods [54]. Shorter cycles clarify the influence of global warming on the geostrophic component of western boundary currents [55].

4. Conclusions

The ubiquity of resonant forcing in (sub)harmonic modes of Rossby waves in stratified media results from two properties: 1) the natural period of Rossby wave systems tunes to the forcing period - 2) the restoring forces involving multi-frequency Rossby wave pairs assimilated to inertial CK oscillators are all the stronger as the perturbations of the geostrophic balance in the exchange zones are greater. According to the CK equations, this resonance mode ensures the sustainability of the wave systems despite the variability of the forcing periods.

4.1. Rossby Waves in Tropical Oceans

In the tropical Pacific the annual wave system consists of a first-baroclinic mode equatorial Kelvin and Rossby waves. The meridional mode of the Rossby wave forced by easterlies changes from the fourth mode in the east of the basin to the first mode in the west; the tuning with the forcing period resulting from the declination of the Sun is established as a function of the longitude where the mode change. The quadrennial wave system consists of a first-baroclinic mode equatorial Kelvin wave and a first-baroclinic mode, first-meridional mode Rossby wave, as well as off-equatorial Rossby waves which make the average period of this subharmonic wave system 4 years despite significant variability. Both wave systems are coupled thanks to extended exchange zones. The quadrennial wave system sets the pace for ENSO while being partly forced by it. Time shifts of ENSO over a four-year cycle determine CP or EP events.

In the tropical Atlantic, the annual wave system consists of an equatorial Kelvin wave and a first-baroclinic mode, second-meridional mode Rossby wave forced by easterlies, as well as off-equatorial Rossby waves that ensure the resonant forcing of the wave system. The semi-annual wave system is similar except for the first-meridional mode equatorial Rossby wave.

In the tropical Indian Ocean, the semi-annual wave system is similar to that of the tropical Atlantic, although it is forced by the semi-annual monsoon winds, making it the fundamental wave. In addition to being a subharmonic wave of the semi-annual wave, the annual wave is influenced by the western Pacific basin through coherent baroclinic waves.

4.2. Rossby Waves at the Tropopause

Considering atmospheric Rossby waves, which travel westward at the tropopause, the annual subtropical Rossby wave, located near 30°N/S, is the fundamental wave: being forced from the declination of the sun, it completes one annual revolution in both hemispheres. Its maximum velocity is reached near the boreal/austral winter solstice and near the boreal/austral summer solstice in either traveling direction. The resonant forcing of subtropical Rossby waves results from the variation of their phase velocity: this decreases/increases as their trajectory shifts poleward/equatorward, meaning that the subtropical wave takes more/less time to complete one revolution since its apparent eastward velocity increases/decreases.

The modulated airflows are in phase opposition two by two: the subtropical airflow reaches its maximum eastward/westward velocity simultaneously with the airflow over the polar vortex. Similarly, the polar airflow and the airflow above the ITCZ reach their maximum eastward/westward velocity simultaneously. These airflows are cold or warm depending on their traveling direction. Melting Arctic sea ice due to global warming is strengthening the polar vortex, which is pushing polar and subtropical airflows towards the equator and strengthening the effect of global warming in Europe and western Asia.

The period of the main harmonics is 1/32- and 1/16 year, which determines the blocking period of the eddies resulting from the cold or warm airflows. This is due to the specific dynamics of vortices, especially dual systems that favor extreme events. Exchange zones where the coupling of multi-frequency Rossby waves occurs form scattered islands across both hemispheres with a preference for low latitudes.

4.3. Gyral Rossby Waves (GRWs)

The natural periods of GRWs tune to the forcing periods resulting from orbital cycles by shifting the gyre centroid latitudinally. The exchange zones ensure the coupling between the annual fundamental wave and the different subharmonics whose periods increase up to that of the first-subharmonic mode GRW which completes a turn around the gyre. In the north and south Atlantic the period of the first-subharmonic mode GRW is 64 years.

GRWs have a significant impact on climate through the western boundary current that accelerates alternately poleward and equatorward during each cycle, influencing the amount of heat transported from the tropics to high latitudes. Long-period subharmonic mode GRWs are the origin of glacial-interglacial periods.
