Preprint
Article

This version is not peer-reviewed.

Uncovering the Role of Thrombospodin-1 and Occludin as Potential Prognostic and Diagnostic Biomarkers in Traumatic Brain Injury

A peer-reviewed version of this preprint was published in:
International Journal of Molecular Sciences 2026, 27(2), 571. https://doi.org/10.3390/ijms27020571

Submitted:

14 November 2025

Posted:

17 November 2025

You are already at the latest version

Abstract

Background: Traumatic brain injury (TBI) is a highly heterogeneous disease and achieving an accurate diagnosis remains a significant challenge. Biomarkers play a crucial role in minimizing the reliance on invasive techniques like computed tomography, which also have significant economic costs. Methods: Human samples were obtained from prospective cohort studies. Mice were subjected to an experimental model of traumatic brain injury. Biomarker levels, gene expression, and blood-brain barrier integrity were analyzed using ELISA, qRT-PCR, and Evans Blue assay; data were statistically evaluated using parametric or non-parametric tests as appropriate. Results: This work focuses on evaluating the role of matricellular protein thrombospondin-1 (TSP-1) and the tight junction proteins occludin and ZO-1 as potential biomarkers of TBI. We showed that lower serum TSP-1 levels correlated with poor patient outcome at 6 months compared to those patients with a good outcome. Additionally, the disruption of the blood-brain barrier (BBB) and subsequent release of tight junction proteins allowed us to identify occludin as a potential biomarker for prognosis in a cohort of TBI patients and as a diagnosis biomarker in a subgroup of patients with mild TBI. Conclusions: These findings highlight the critical role of TSP-1 in maintaining the BBB integrity and regulating the inflammatory response after TBI, supported by the worsened condition observed in TSP-1-deficient animals. These results demonstrate the potential of TSP-1 and occludin as valuable biomarkers for secondary injury and disease progression in patients with mild to moderate-severe TBI.

Keywords:
traumatic brain injury
;
biomarkers
;
blood-brain barrier
;
thrombospondin-1
;
tight junction’s protein
Subject:
Medicine and Pharmacology  -   Neuroscience and Neurology

1. Introduction

Traumatic brain injury (TBI) is one of the leading causes of disability and even death worldwide, commonly resulting from traffic accidents, sports injuries, violence in combat zones, and falls. TBI causes neurological damage regardless of age, sex, or genetic background, and survivors of TBI often experience lasting behavioural, cognitive, and emotional changes [1]. TBI is a complex process that involves a cascade of molecular and cellular events, leading to both immediate and delayed brain damage. Primary injury occurs immediately after the impact, while the secondary injury response develops over time, aggravating tissue damage and functional impairment. This second response includes neuroinflammation, excitotoxicity, oxidative stress, mitochondrial dysfunction, and impaired cerebral blood flow. In this context, dysfunction of the vascular system plays an important role in the progression of TBI, contributing to hemorrhage, edema and blood-brain barrier (BBB) disruption [2]. Several studies using postmortem human tissue or mouse models have shown that the integrity of the BBB remains compromised months and even years after TBI [3,4]. A more comprehensive understanding of vascular repair mechanisms is needed, as it may lead to the development of new angiogenic therapies, and the development of biomarkers related to BBB status [5]. TBI is classified from a variety of perspectives, including the classic severity score (Glasgow Coma Scale, GCS) which categorizes injuries as mild, moderate, or severe depending on the level of altered consciousness [6]. Clinicians commonly use the GCS alongside symptoms like headache, nausea, vomiting, loss of consciousness, and amnesia to evaluate TBI patients and determine their risk for intracranial complications. Computed tomography (CT) scans are frequently used to detect and evaluate trauma-related brain lesions; however, they are expensive, involve radiation exposure, and only around 5% of cases reveal a detectable brain damage [6]. This emphasises the importance of establishing clear criteria to determine whether a patient requires a CT scan. For this reason, many efforts have been made in the last decades to develop novel blood biomarkers to predict and monitor brain injury progression [7] and reliably differentiate between CT-positive and CT-negative patients [8].
The BBB is composed of different cell types including endothelial cells, pericytes, and astrocytes. Following primary injury, its permeability increases, contributing to brain edema. While part of this damage is irreversible due to endothelial cell death, dysfunction of endothelial tight junction proteins can be repaired [9,10]. Occludin and ZO-1 are key tight junction proteins that regulate paracellular permeability and maintain BBB integrity. Occludin contributes to barrier stability, while ZO-1 links transmembrane proteins to the cytoskeleton, coordinating junction assembly [11]. All these processes contribute to the extravasation of peripheral immune system cells leading to increased inflammation in the injured area. Previous studies on brain injury models have suggested that tight junction proteins may be potential biomarkers of neonatal hypoxic/ischemic brain injury [12], Alzheimer’s disease [13] and multiple sclerosis [14].
Thrombospondin-1 (TSP-1) is a matricellular glycoprotein that plays a crucial role in modulating cell-cell and cell-matrix interactions in different physiological processes, which include platelet aggregation, angiogenesis, synaptogenesis, dendritic cell maturation and wound healing [15]. Following TBI, TSP-1 is implicated in three key processes: i) BBB integrity, ii) vascular remodelling and iii) synaptogenesis [16].
Therefore, the aim of this study was to evaluate and compare the potential of TSP-1 and tight junction proteins (occludin and ZO-1) as diagnostic and prognostic biomarkers in the serum of TBI patients. Additionally, we aimed to explore the possible relationship of TSP-1, BBB disruption and tight junction proteins in the context of TBI, using the closed-head injury TBI mouse model.

2. Results

2.1. Serum profile of TSP-1, Occludin and ZO-1 and Their Correlation with Prognosis

Table 2 shows the demographic characteristics of TBI patients included in this first part of the study. To validate our cohort, S100β protein levels were analysed at three time points after injury (1, 3, and 7 days) (Figure 1A). S100β serum levels showed a significant increase at 1 day (median = 0.446 µg/L; IQR = 0.208–0.912), followed by a gradual decline at 3 days (median = 0.193 µg/L; IQR = 0.078–0.523) and 7 days (median = 0.089 µg/L; IQR = 0.048–0.231). Subsequently, S100β data were classified according to the Glasgow Outcome Scale – Extended (GOSE) at 6 months to evaluate its correlation with prognosis. Figure 1B shows that patients with a poor prognosis at 6 months post-injury had significantly higher S100β1d values (median = 0.208 µg/l; IQR = 0.127–0.559) than patients with a good prognosis at 1 day after lesion. However, the protein values drastically decreased after the first day and no significant differences in prognosis were observed after 3 and 7 days. These data confirm that our patient cohort is representative of this brain damage.
Table 1. Demographic characteristics of La Paz Hospital cohort
Table 1. Demographic characteristics of La Paz Hospital cohort
Controls 1 day 3 days 7 days
23 24 24 22
Sex (men/women) 9/14 25/7
Age (men/women) 58.2±11.2/47.8±16.1 51.8±19.7/62.9±8.2
Severity (GCS)
Mild
Severe 		-
-		 14
10		 14
10		 13
9
Prognosis (GOSE)
Favorable
Desfavorable 		-
-		 11
13		 12
12		 9
13
Serum TSP-1 levels decreased at 1, 3, and 7 days post-TBI, with no significant differences between time points: TSP-11 day (median = 5,880 ng/mL; IQR = 2,283–9,675), 3 days (median = 5,722 ng/mL; IQR = 2,095–16,138), and 7 days (median = 6,167 ng/mL; IQR = 3,362–14,218) (Figure 2A). To evaluate whether TSP-1 could have diagnostic potential, patients were categorized based on their lesion severity. However, no significant differences were found between mild and severe lesions at any of the three time points (Figure 2B). Regarding prognosis, serum levels of TSP-11d were significantly higher in patients with a poor prognosis (median = 6,865 ng/mL, IQR = 5,067-10,622) than in patients with a good prognosis at 6 months (median = 2,414 ng/mL, IQR = 1,432-8,767). However, it was not discriminatory at 3 and 7 days post-TBI (Figure 2C). ROC curve analysis was used to evaluate whether TSP-11d might distinguish between patients with good and poor prognosis. The area under the curve (AUC) showed an acceptable discrimination of this protein 1-day post-TBI (AUC = 0.745, 95% CI = 0.54-0.96, p=0.039) (Figure 2D).
Considering the critical role of BBB disruption in the pathophysiology of TBI and its association with TSP-1, we next measured the levels of the tight junction proteins ZO-1 and occludin in the serum of these patients. ZO-1 levels were significantly increased in all TBI patients compared to controls (Figure 3A). However, when patients were stratified according to their injury severity, no significant differences were observed between mild and severe cases (Figure 3B). Similarly, serum ZO-1 levels showed no significant differences between groups when analysed in relation to patient outcome (Figure 3C). These findings suggest that although ZO-1 levels are markedly elevated following TBI, they do not serve as a reliable biomarker for either diagnosis or prognosis in these patients.
Occludin was chosen as the second tight junction protein selected for evaluation because, unlike ZO-1, it is highly concentrated in brain endothelial cells and plays a crucial role in vascular permeability [17]. TBI patients had significantly higher occludin levels compared to controls at all time points: occludin1d (median = 4.182 ng/mL; IQR = 2.186-9.109), occludin3d (median=2.542 ng/mL, IQR = 0.917-4.006), and occludin7d (median = 1.774 ng/mL, IQR = 0.9288-3.432) (Figure 4A). Then, patients were stratified based on GCS (mild and severe), but there were no differences between the groups, suggesting that there is no relationship between TBI severity and serum occludin levels (Figure 4B). Finally, we investigated the correlation between serum occludin levels and patient prognosis for 6 months post-TBI. Significant differences were found in occludin levels between patients with good and poor outcomes according to the GOSE scale at 1 and 7 days after TBI (Figure 4C). AUCs of ROC curves for occludin1d and occludin7d indicated that this protein has a highly promising potential as a biomarker, as it demonstrated nearly perfect discrimination for predicting the potential prognosis of patients with mild to severe TBI at 6 months post-injury on both time points (AUC1d = 0.9286, 95% CI = 0.788 - 1; AUC7d = 0.9038, 95% CI = 0.771 - 1) (Figure D, E).
Finally, the possibility of combining biomarkers to improve predictive capacity was explored. Despite occludin showed the strongest potential as a biomarker, combining it with TSP-1 resulted in a loss of significance. Additionally, S100β, a biomarker known to improve predictive capacity when combined with other proteins [18], was also considered. However, in our patient cohort, none of the proteins combined with S100β showed a significant improvement in predictive capacity compared to their individual evaluation.

2.3. Expression Profile of TSP-1 and Occludin and Their Correlation with Prognosis in a Subgroup of Patients with Mild TBI

After verifying the potential role of TSP-1 and occludin in the prognosis of mild and severe TBI, we focused on analysing a subgroup of patients with significant clinical relevance. The cohort consisted of 84 patients with mild TBI and 23 control subjects. Diagnosing mild TBI can be challenging, as CT scan is often required to confirm brain injury. However, CT imaging is costly and exposes the patients to radiation, so finding blood biomarkers to differentiate brain injuries is of utmost importance. The objective was to evaluate whether serum levels of TSP-1 and occludin 1-day post-TBI could correlate with CT scan findings in these patients, evaluating their potential as diagnostic biomarkers.
Table 2. Demographic characteristics of Vall D’Hebron Hospital cohort.
Table 2. Demographic characteristics of Vall D’Hebron Hospital cohort.
Controls CT normal CT pathological
N 24 73 11
Sex (men/women) 11/13 29/44 5/6
Age 53.0±16.5/59.8±19.6 47.4±21.4/64.3±22.5 61.6±23.2/76.3±24.0
TSP-1 levels (ng/mL) 14015.80±10245.56 14570.64±10114.63 11178.53±7043.65
Occludin levels (ng/mL) 0.391±0.665 0.512±0.866 0.946±0.920
Table 3 shows the demographic characteristics of this patient cohort. TSP-1 showed no significant differences between the groups of patients with normal CT scans (median = 12,017 ng/ml, IQR = 7,205 – 19,542 ng/ml) and pathological CT scans (median = 11,336 ng/ml, IQR = 3,822 – 16,120 ng/ml). These results suggest that TSP-1 is not effective in distinguishing CT outcomes in patients with mild TBI (Figure 5A).
We then investigated the potential predictive value of occludin in determining the need for a CT scan in these patients. The analysis revealed significant differences in serum occludin levels between the two groups of patients (normal CT vs. pathological CT) (Figure 5B). The median occludin level in the normal CT group was 0.155 ng/mL (IQR = 0.035 – 0.570), while in the pathological CT group it was 0.367 ng/mL (IQR = 0.129 – 1.722). Additionally, a ROC curve analysis was performed to evaluate the discriminatory ability of serum occludin levels. The AUC was 0.693, which did not reach the necessary values to be considered as a good discriminator (Figure 5C).

2.4. TSP-1 Deficiency Worsens the Neuroinflammatory Response after TBI

To further investigate the potential role of TSP-1 in the context of TBI, we conducted a series of experiments using a moderate/severe closed-head injury TBI animal model. While this model presents a high variability, it specifically produces a unilateral damage to the injured hemisphere (right, ipsilateral). Figure S1A shows the significant increase in Il1b mRNA levels in the ipsilateral side of injured animals 24 hours post-TBI, while no significant differences were observed in this proinflammatory cytokine between naïve animals and the contralateral side. The same applies to the mRNA levels of the proinflammatory gene Tnfa and Vegf (Figure S1B and C). First, we investigate the effect of TSP-1 deficiency on the regulation of neuroinflammatory processes occurring after the TBI. TBI-induced injury resulted in a significant increase in Il1b mRNA levels in both WT and TSP-1 KO animals, with an exaggerated response in KO animals (Figure 6A). The mRNA levels of the monocyte chemoattractant protein C-C motif chemokine ligand 2 (Ccl2) were two-fold higher in the ipsilateral hemisphere of TSP-1 KO compared to WT animals (Figure 6B). The expression of Tnfa, which is primarily secreted by glial cells such as astrocytes and microglia, was also increased at mRNA level in both WT and TSP-1 KO animals after the TBI, with a significant higher response in the TSP-1 KO animals (Figure 6D). These results demonstrate the role of TSP-1 in regulating the inflammatory response following TBI.

2.5. TSP-1 Deficiency Aggravated BBB Disruption and Diminishes Angiogenic Repair After TBI

To further understand the role of TSP-1 in maintaining BBB integrity following TBI, we conducted BBB integrity measurements in WT and TSP-1 KO animals. Figure 7A shows that TSP-1-deficient animals exhibited significantly higher Evans blue extravasation than WT animals 24 hours after the TBI, suggesting a greater BBB disruption. Furthermore, BBB integrity was also analysed in heterozygous animals (TSP-1-/+), demonstrating that the presence of a single allele is sufficient to restore the WT phenotype in terms of Evans Blue extravasation (Figure 7B).
To confirm this loss of BBB integrity, the two tight junction proteins previously analized in patient samples (ZO-1 and occludin) were measured. Serum ZO-1 levels were significantly elevated in TSP-1 KO animals 24 hours post-TBI compared to the WT animals (Figure 7C). In contrast, serum levels of occludin significantly increased after the injury regardless of genotype (Figure 7D). Furthermore, we measured Vegf gene, a molecule involved in post-TBI vascular regeneration, which showed a significant increase in the ipsilateral side, with no differences between naïve animals and the contralateral side (Figure 7E).These results support the notion that TSP-1 deficiency contributes to a differential vascular and endothelial permeability structure within the BBB, compromising its integrity following TBI. Further investigation into the precise neurovascular architecture of TSP-1 KO mice will provide deeper insight into the mechanisms underlying BBB dysfunction and the associated exacerbation of neuroinflammation after TBI.

3. Discussion

TBI is unpredictable, and brain damage is not always easily detectable by medical professionals and procedures. In adults, cognitive impairment and symptoms occur during the acute phase of TBI, but it typically takes 3 to 12 months to resolve [19]. Due to uncertainties in patient prognosis and monitoring, the interest in biomarker research has increased in recent decades [7]. Biomarkers have shown promise in the early stages of TBI and have gained attention from a therapeutic perspective, suggesting that modulating specific biomarkers may open new research opportunities in the treatment of TBI patients [20]. The present work focuses on studying different biomarkers related to BBB integrity and angiogenesis. We identified occludin and TSP-1 as promising biomarkers for TBI diagnosis and prognosis in two different patient cohorts. Furthermore, we demonstrated that TSP-1 protein plays a key role in maintaining BBB integrity, as its absence worsens Evans blue extravasation and animal outcomes in relation to neuroinflammation and angiogenic repair after TBI. A major challenge in biomarker validation has been the focus on a single sampling time point instead of evaluating time-dependent changes [21]. In our first cohort, samples were collected on days 1, 3, and 7 after injury, offering us an advantage over other single time point studies. In this study, S100β was detected at all time points evaluated, yet it was only significantly increased 1 day after TBI (Figure 1A). These results are in line with a study of 154 patients that showed that the maximum release of this protein occurs approximately 27 hours after injury [22]. Regarding the prognosis, we also observed significant differences in serum S100β1d levels when patients were classified according to their 6-month outcome (Figure 1B), suggesting that our cohort is representative of this pathology.
The first new protein examined as a potential biomarker was TSP-1, chosen for its role in regulating important processes such as angiogenesis, inflammatory responses, and tissue repair [16]. Previous work from our group demonstrated that TLR4 activation following TBI increases TSP-1 release, which contributes to synaptic recovery days after injury [23]. Our results showed a statistically significant decrease in TSP-1 levels in TBI patients at all time points compared to controls, regardless of the measurement time or injury severity. However, when patients were stratified by prognosis (GOSE at 6 months), TSP-1 levels at day 1 post-injury were significantly higher in patients with poor outcome than in those with good outcome (Figure 2C). The AUC of the ROC curve was 0.7483, suggesting an acceptable discrimination ability. These findings suggest that TSP-1 could serve as potential prognostic biomarker for TBI outcomes in clinical practice. These promising results need further validation in larger cohorts to confirm its biomarker potential.
Accurate diagnosis of TBI, as well as prognosis, is important to ensure proper medical care and avoid unnecessary radiation exposure from imaging tests such as CT scan. At the same time, it prevents patients' symptoms from being underestimated [24]. This issue is crucial in cases of mild TBI, as subtle or nonspecific symptoms may appear. The first protein evaluated as a potential diagnostic biomarker to discriminate patients with abnormal CT scans was TSP-1. These patients showed a slight trend toward reduced TSP-1 levels, but without statistical differences. These data suggest that TSP-1 does not correlate with CT scan results in mild TBI patients. TSP-1 is involved in brain repair and synaptogenesis after injury, so it may be associated with long-term effects rather than acute-phase lesions [25]. We analysed occludin using the same approach as in the first cohort. The results showed that occludin could differentiate between patients with normal and abnormal CT scans, suggesting its potential as a diagnostic biomarker. The ROC curve showed acceptable discrimination (AUC = 0.693). As the mild TBI cohort included only a small number of patients with abnormal CT (approximately 10% of patients), these promising data need to be further explored in larger cohorts. Tight junction proteins such as ZO-1 and occludin play a crucial role in maintaining the integrity of the BBB by limiting diffusion between endothelial cells [26]. In healthy individuals, ZO-1 was detected in the blood, whereas occludin was barely detectable, indicating that its role is more brain-specific compared to ZO-1. In TBI patients, both proteins showed significantly higher levels at all time points compared to controls. However, no significant differences were observed when patients were stratified by injury severity. When analyzing patients based on prognosis, serum occludin levels at 1 and 7 days after injury were higher in patients with poor outcome. The AUC of the ROC curves were 0.9286 for occludin1d and 0.9038 for occludin7d, indicating a very good discrimination at both time points. Our results are consistent with those obtained in other brain injuries such as hypoxic/ischemic brain injury [27] and Alzheimer’s disease [28], in which tight junctions proteins claudin-V, occludin and ZO-1 have demonstrated a role as promising biomarkers for cerebrovascular dysfunction.
Choosing an animal model for TBI research is challenging due to the complexity and variability of human traumatic brain injury and its underlying causes. To date, no model fully recapitulates human biomechanical mechanisms of TBI [29]. Our model was characterized by increased mRNA levels of pro-inflammatory cytokines, I1b and Tnfa, as well as the vascular growing factor Vegf in the affected area, confirming localized injury. TSP-1 KO mice showed significantly higher Evans blue extravasation than WT animals 24 hours after injury, suggesting that TSP-1 plays a critical role in maintaining BBB integrity, consistent with other TBI models [30]. To further investigate the status of the BBB, we measured occludin and ZO-1 serum levels. While ZO-1 levels barely changed in WT animals after injury, they remained significantly elevated in TSP-1 KO mice, supporting the findings on BBB integrity. However, occludin levels remained elevated after TBI without significant genotypic differences. These findings, together with BBB integrity experiments, highlight the role of TSP-1 in BBB permeability and correlate with the results obtained with patient serum.
TSP-1 deficiency is associated with a proinflammatory gene profile, leading to an exaggerated response to injury compared to WT animals. TSP-1 has both anti- and pro-inflammatory properties as it interacts with various receptors, suggesting a dual role in inflammation [16]. TSP-1 binding to CD36 and CD47 receptors inhibits inflammation by blocking leukocyte activation and adhesion to the endothelium. In vitro wound healing models have shown that TSP-1 deficiency prolongs inflammation by delaying wound closure, although it can also reduce transforming growth factor-β (TGF-β) activation, which is known for its anti-inflammatory and tissue repair effects [31]. On the other hand, when analyzing angiogenic and vascular repair markers after TBI, we observed that Vegf mRNA levels increased in injured WT animals, whereas in TSP-1 KO, Vegf levels remained unchanged despite being inherently elevated at baseline (Figure 7E). Despite the exacerbated inflammatory response observed in these animals, it does not correlate with an additional VEGF increase (Figure 7E). This lack of VEGF upregulation in TSP-1 KO mice is somewhat unexpected, as injury-induced angiogenesis is often accompanied by elevated VEGF levels [32]. TSP-1 is known to regulate VEGF signalling through multiple mechanisms, including inhibition via its receptors CD36 and CD47, which can block downstream VEGF signalling. Additionally, it has been described that TSP-1 can sequester VEGF directly, thereby modulating its availability and bioactivity [33,34]. However, in our model, VEGF levels remained unchanged, suggesting a more complex interaction or potential compensatory mechanisms that limit its expression. As Evans Blue extravasation was not increased in naïve TSP-1 KO, we cannot assume that these animals have a basal increased BBB permeability. Instead, we hypothesize that their vascular structure and angiogenic repair capacity are inherently compromised, making them more susceptible to BBB disruption and enhanced secondary damage following TBI. The variation in VEGF and the role of TSP-1 may therefore influence and determine the progression of acute TBI response, justifying its potential utility as a biomarker in this context, although further investigation is needed to understand the exact mechanism of TSP-1.
Despite the exacerbated inflammatory response observed in these animals, it does not correlate with an additional Vegf increase. As Evans Blue extravasation was not increased in naïve TSP-1 KO we cannot assume that these animals have a basal increased BBB permeability. Instead, we hypothesize that their vascular structure and angiogenic repair capacity are inherently compromised, making them more susceptible to BBB disruption and enhanced secondary damage following TBI. The variation in Vegf and the role of TSP-1 may therefore influence and determine the progression of acute TBI response, justifying its potential utility as biomarker in this context, although further investigation is needed to understand the exact mechanism of TSP-1.

4. Materials and Methods

4.1. Human Samples

Study 1. The human samples were collected during an observational prospective cohort study carried out at the Department of Neurosurgery of Hospital Universitario La Paz (Madrid, Spain) between April 2017 an October 2018. Patients were included in accordance with the following criteria: age between 18 and 85 years, hospital admission with a diagnosis of closed-head injury, presentation within 24 h of injury, and admission to either the Intensive Care Unit or the Neurosurgery Ward. Exclusion criteria included a history of previous neurological disease or cognitive impairment, as well as the inability to undergo head CT, to provide a biological sample, or to complete a proper follow-up. Venous blood samples were obtained at 1, 3 and 7 days after suffering TBI (PI-2153).
Study 2. The human samples were collected during an observational prospective cohort study at the Hospital de Vall D’Hebron (Barcelona, Spain) (PR(AG)195/2012 y PR(CS)27/2019). The samples were collected 24 hours after the TBI and were stratified according to whether the CT scan imaging result was pathological or not.

4.2. Animals

C57Bl6/J (RRID: IMSR_JAX:000664) mice, approximately 3 months old (25-30 g), were obtained from the inhouse colony at the animal facilities of Universidad Autónoma de Madrid (UAM, Madrid, Spain). TSP-1 KO (RRID: IMSR_JAX:006141) mice were kindly provided by M. J. Calzada (Instituto de Investigación Biomédica del Hospital La Princesa, Madrid, Spain). Animals were housed in cages of four at 21 °C with a 12 h light/dark cycle and ingested water and food ad libitum. All animal experimentation was performed under the license PROEX 109/18 granted by the Ethics Committee of Universidad Autónoma de Madrid (Madrid, Spain) and in compliance with the Cruelty to Animals Act, 1876, and the European Community Directive, 86/609/EEC. Every effort was made to minimize stress to the animals.

4.3. Traumatic Brain Injury Model

Mice were subjected to the closed-head injury (CHI) model in which, after being anesthetized with inhaled isoflurane, the head of the animal was immobilized and exposed to a free-fall 50 g weight dropped from a height of 34 cm. This procedure is adapted from Flierl et al. 2009 [35]. After the injury, mice were closely monitored in an individual cage and oxygen was administered until regular breath was restored. This model produces a severe TBI, characterized by a strong inflammatory response and a 5-15% mortality rate. Mice were divided in 2 groups: naïve (no subjected to CHI) and TBI (subjected to CHI).

4.4. Blood-Brain Barrier Integrity Assessment

Evans Blue tracer (Sigma-Aldrich, Madrid, Spain) was diluted at 2% in saline and administered via intraperitoneal injection (3 mL/kg; i.p.) immediately after CHI. Animals were sacrificed 24 h after trauma and brains were gently extracted and sectioned in four 2 mm slices using a mouse brain slicer. Each slice was scanned, and the total area of Evans Blue extravasation was quantified using ImageJ 1.52e software (ImageJ software, National Institutes of Health, Stapleton, NY, USA). Results were represented as total extravasation volume (mm3).

4.5. Tissue Preparation

For transcriptional changes analysis, animals were terminally anesthetized 24 h after TBI with a mix of ketamine:xylacine 1:2 (Ketolar 50 mg/mL, Pfizer, NY, USA; Xilagesic 20 mg/mL, Calier Labs, Barcelona, Spain) and then rapidly transcardially perfused with 0.9% NaCl buffer. Brains were gently removed and a punch of the right (ipsilateral) and left (contralateral) hemispheres were snap frozen and stored at −80 °C until use. RNA and protein were obtained by double-extraction protocol with Trizol reagent (TRI Reagent, Molecular Research Center, Inc., Cincinnati, USA) according to the manufacturer’s instructions.

4.6. ELISA assay

Human blood was used to determine the levels of S100β (Diasorin, Saluggia, Italy), TSP-1 (R&D Systems, Minneapolis, USA), occludin (Elabscience, Texas, USA) and ZO-1 (Elabscience, Texas, USA) using a specific ELISA assay, following the manufacturer protocol. Mice were perfused with 0.9% saline solution and blood was collected in tubes, which were kept at 4 °C overnight to allow blood to clot. Afterward, the tubes were centrifuged at 1500 rpm for 10 minutes at 4 °C, and the serum was collected.

4.7. Quantitative Real-Time Polymerase Chain Reaction (qRT-PCR)

Following the extraction of RNA, the amount and quality of each sample were determined by measuring the optical density using the NanoDrop 2000c spectrophotometer (Thermo Scientific, Waltham, MA, USA). Subsequently, cDNA synthesis was performed using the High-Capacity iScript cDNA Synthesis Kit (BIO RAD, Hercules, CA, USA). Primer and probe sets were designed using the NCBI Nucleotide tool, and their sequences can be found in Table 1. For qRT-PCR, the samples were analyzed in duplicate using SYBR green dsDNA-intercalating fluorescent dye (TB Green Premix, Takara #RR420L) in a QuantStudio5 Real-Time PCR system (Applied Biosystems). The PCR cycling conditions involved an initial step of 10 minutes at 95 °C, followed by 10 seconds at 95 °C and 30 seconds at 60 °C for 40-45 cycles. To quantify the results, the double delta Ct method was employed, with normalization of the Ct values using WT-Naïve values. The gene expression data were further normalized to the 18S housekeeping gene and presented as arbitrary units.
Table 3. Oligonucleotide Primer Sequences for qPCR/PCR.
Table 3. Oligonucleotide Primer Sequences for qPCR/PCR.
Gene Forward primer Reverse primer
18s 5′-CGCCGCTAGAGGTGAAATTCT-3′ 5′-CATTCTTGGCAAATGTCTTTCG-3′
Ccl2 5′-ACAAGAGGATCACCAGCAGC-3′ 5′-GGACCCATTCCTTCTTGGGG-3′
Nlrp3 5′-GCCCAAGGAGGAAGAAGAAG-3′ 5′-TCCGGTTGGTGCTTAGACTT-3′
Il1b 5′-AACCTGCTGGTGTGTGACGTTC-3′ 5′-CAGCACGAGGCTTTTTTGTTGT-3′
Tnfa 5′-GCCTCTTCTCATTCCTGCTTG-3′ 5′-CTGATGAGAGGGAGGCCATT-3′
Vegf 5’- CCACGTCAGAGAGCAACATCA-3’ 5’-TCATCTCTCCTATGTGCTGGCTTT-3’

4.7. Statistical Analyses

Data are presented as means ± standard error of the mean (SEM), with the number of independent experiments and the statistical analysis used specified in each figure. The Kolmogorov-Smirnov test was used to assess population distribution. When the data did not follow a normal distribution, non-parametric tests (Kruskal-Wallis with post hoc pairwise comparisons using Dunn's test) were used. When normality was assumed, one-way or two-way analysis of variance (ANOVA) was performed, depending on the experiment and followed by a Bonferroni post hoc test. For comparisons between two groups, data was analyzed using Student's t-test when normally distributed, and the Mann-Whitney U test was used if the data did not meet the assumptions for parametric analysis. Statistical analysis and graphical representation were performed using GraphPad Prism 8 software.

5. Conclusions

These findings identify TSP-1 and occludin as promising biomarkers in the context of TBI, with both associated with long-term outcomes and occludin showing potential for early diagnosis through its ability to differentiate patients with mild brain injury on CT scans. Moreover, TSP-1 plays a key role in BBB maintenance and post-TBI recovery in our TBI model, with its deficiency leading to worsened neuroinflammation and impaired angiogenic repair, supporting its relevance as potential therapeutic target. These findings highlight the importance of a dynamic, multimodal approach to biomarker research. However, further studies in larger cohorts are necessary to validate the clinical utility of TSP-1 and occludin as diagnostic and prognostic tools in TBI management.

Author Contributions

“Conceptualization, J.E. and A.B.L-R.; methodology, J.E., V.F-A., I.V. and C.D-P.; formal analysis, I.V and A.B.L-R..; investigation, C.D-P., I.V., M.A-R., E.M-C., J.R.C., M.T-L., A.P. and E.F-Y.; resources, J.E., B.J.H., A.G-R. and J.M.; data curation, A.B.L-R., A.G-R. and M.J.C.; writing—original draft preparation, J.E., C.D-P. and I.V.; writing—review and editing, A.B.L-R., M.J.C, J.M. and B.J.H.; visualization, C.D-P., E.M-C., and I.V.; supervision, J.E., J.M. and A.G-R.; project administration, J.E.; funding acquisition, J.E. All authors have read and agreed to the published version of the manuscript.” Please turn to the CRediT taxonomy for the term explanation. Authorship must be limited to those who have contributed substantially to the work reported.

Funding

This research was funded by grants from Fundación Mutua Madrileña and Fondo de Investigaciones Sanitarias (FIS) (ISCIII/FEDER) (PI19/00082 and PI22/00362), from Ministerio de Ciencia, Innovación y Universidades (CNS2023-145023, RED2022-134511-T) to J.E., by Instituto de Salud Carlos III via Sara Borrell postdoctoral contract to I.V. (CD22/00101) and via PFIS contract (FI23/00135) to M.A-R.

Institutional Review Board Statement

The studies involving human participants were approved by the Ethics Committees of Hospital Universitario La Paz (Madrid, Spain; protocol PI-2153) and Hospital Vall d’Hebron (Barcelona, Spain; protocols PR(AG)195/2012 and PR(CS)27/2019). Written informed consent was obtained from all participants in accordance with the Declaration of Helsinki.
All animal procedures were approved by the Ethics Committee of Universidad Autónoma de Madrid (Madrid, Spain) under protocol PROEX 109/18 and conducted in accordance with the Cruelty to Animals Act (1876) and the European Community Directive 86/609/EEC.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author(s). However, individual patient data protected by confidentiality and ethical regulations will not be shared.

Acknowledgments

We would like to express our sincere gratitude to all the patients who participated in this study for their generous contribution. We also deeply thank the clinicians and nursing staff involved, whose dedication and commitment were essential to the successful execution of the trial.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
TBI Traumatic Brain Injury
BBB Blood-brain barrier
TSP-1 Thrombospondin-1
GCS Glasgow Coma Scale
CT Computed Tomography
CHI Closed Head Injury
AUC Area Under the Curve
IL1-β Interleukin-1 beta
TNF-α Tumor Necrosis Farctor alpha
VEGF Vascular Endothelial Growth Factor
CCL2 Monocyte Chemoattractan Protein-1
NLRP3 NOD-like receptor family, pyrin domain containing 3

References

  1. Kundu, S.; Singh, S. What Happens in TBI? A Wide Talk on Animal Models and Future Perspective. Curr Neuropharmacol 2023, 21, 1139–1164. [Google Scholar] [CrossRef]
  2. Hasanpour-Segherlou, Z.; Masheghati, F.; Shakeri-Darzehkanani, M.; Hosseini-Siyanaki, M.-R.; Lucke-Wold, B. Neurodegenerative Disorders in the Context of Vascular Changes after Traumatic Brain Injury. Journal of Vascular Diseases 2024, 3, 319–332. [Google Scholar] [CrossRef]
  3. Hay, J.R.; Johnson, V.E.; Young, A.M.H.; Smith, D.H.; Stewart, W. Blood-Brain Barrier Disruption Is an Early Event That May Persist for Many Years After Traumatic Brain Injury in Humans. J Neuropathol Exp Neurol 2015, 74, 1147–1157. [Google Scholar] [CrossRef]
  4. Wu, Y.; Wu, H.; Guo, X.; Pluimer, B.; Zhao, Z. Blood–Brain Barrier Dysfunction in Mild Traumatic Brain Injury: Evidence From Preclinical Murine Models. Front. Physiol. 2020, 11. [Google Scholar] [CrossRef]
  5. Salehi, A.; Zhang, J.H.; Obenaus, A. Response of the Cerebral Vasculature Following Traumatic Brain Injury. J Cereb Blood Flow Metab 2017, 37, 2320–2339. [Google Scholar] [CrossRef]
  6. Borg, J.; Holm, L.; Cassidy, J.D.; Peloso, P.M.; Carroll, L.J.; von Holst, H.; Ericson, K. ; WHO Collaborating Centre Task Force on Mild Traumatic Brain Injury Diagnostic Procedures in Mild Traumatic Brain Injury: Results of the WHO Collaborating Centre Task Force on Mild Traumatic Brain Injury. J Rehabil Med 2004, 61–75. [Google Scholar] [CrossRef]
  7. Ghaith, H.S.; Nawar, A.A.; Gabra, M.D.; Abdelrahman, M.E.; Nafady, M.H.; Bahbah, E.I.; Ebada, M.A.; Ashraf, G.M.; Negida, A.; Barreto, G.E. A Literature Review of Traumatic Brain Injury Biomarkers. Mol Neurobiol 2022, 59, 4141–4158. [Google Scholar] [CrossRef] [PubMed]
  8. Papa, L.; McKinley, W.I.; Valadka, A.B.; Newman, Z.C.; Nordgren, R.K.; Pramuka, P.E.; Barbosa, C.E.; Brito, A.M.P.; Loss, L.J.; Tinoco-Garcia, L.; et al. Diagnostic Performance of GFAP, UCH-L1, and MAP-2 Within 30 and 60 Minutes of Traumatic Brain Injury. JAMA Netw Open 2024, 7, e2431115. [Google Scholar] [CrossRef] [PubMed]
  9. Bodnar, C.N.; Watson, J.B.; Higgins, E.K.; Quan, N.; Bachstetter, A.D. Inflammatory Regulation of CNS Barriers After Traumatic Brain Injury: A Tale Directed by Interleukin-1. Front Immunol 2021, 12, 688254. [Google Scholar] [CrossRef] [PubMed]
  10. Hue, C.D.; Cho, F.S.; Cao, S.; Bass, C.R. “Dale”; Meaney, D.F.; Morrison, B. Dexamethasone Potentiates in Vitro Blood-Brain Barrier Recovery after Primary Blast Injury by Glucocorticoid Receptor-Mediated Upregulation of ZO-1 Tight Junction Protein. J Cereb Blood Flow Metab 2015, 35, 1191–1198. [Google Scholar] [CrossRef]
  11. Luissint, A.-C.; Artus, C.; Glacial, F.; Ganeshamoorthy, K.; Couraud, P.-O. Tight Junctions at the Blood Brain Barrier: Physiological Architecture and Disease-Associated Dysregulation. Fluids and Barriers of the CNS 2012, 9, 23. [Google Scholar] [CrossRef]
  12. Andersson, E.A.; Mallard, C.; Ek, C.J. Circulating Tight-Junction Proteins Are Potential Biomarkers for Blood-Brain Barrier Function in a Model of Neonatal Hypoxic/Ischemic Brain Injury. Fluids Barriers CNS 2021, 18, 7. [Google Scholar] [CrossRef] [PubMed]
  13. Tachibana, K.; Hirayama, R.; Sato, N.; Hattori, K.; Kato, T.; Takeda, H.; Kondoh, M. Association of Plasma Claudin-5 with Age and Alzheimer Disease. Int J Mol Sci 2024, 25, 1419. [Google Scholar] [CrossRef]
  14. Olsson, A.; Gustavsen, S.; Langkilde, A.R.; Hansen, T.H.; Sellebjerg, F.; Bach Søndergaard, H.; Oturai, A.B. Circulating Levels of Tight Junction Proteins in Multiple Sclerosis: Association with Inflammation and Disease Activity before and after Disease Modifying Therapy. Mult Scler Relat Disord 2021, 54, 103136. [Google Scholar] [CrossRef]
  15. Esemuede, N.; Lee, T.; Pierre-Paul, D.; Sumpio, B.E.; Gahtan, V. The Role of Thrombospondin-1 in Human Disease. J Surg Res 2004, 122, 135–142. [Google Scholar] [CrossRef]
  16. Lopez-Dee, Z.; Pidcock, K.; Gutierrez, L.S. Thrombospondin-1: Multiple Paths to Inflammation. Mediators Inflamm 2011, 2011, 296069. [Google Scholar] [CrossRef] [PubMed]
  17. Hirase, T.; Staddon, J.M.; Saitou, M.; Ando-Akatsuka, Y.; Itoh, M.; Furuse, M.; Fujimoto, K.; Tsukita, S.; Rubin, L.L. Occludin as a Possible Determinant of Tight Junction Permeability in Endothelial Cells. Journal of Cell Science 1997, 110, 1603–1613. [Google Scholar] [CrossRef] [PubMed]
  18. Mafuika, S.N.; Naicker, T.; Harrichandparsad, R.; Lazarus, L. The Potential of Serum S100 Calcium-Binding Protein B and Glial Fibrillary Acidic Protein as Biomarkers for Traumatic Brain Injury. Translational Research in Anatomy 2022, 29, 100228. [Google Scholar] [CrossRef]
  19. Carroll, L.J.; Cassidy, J.D.; Peloso, P.M.; Borg, J.; von Holst, H.; Holm, L.; Paniak, C.; Pépin, M. ; WHO Collaborating Centre Task Force on Mild Traumatic Brain Injury Prognosis for Mild Traumatic Brain Injury: Results of the WHO Collaborating Centre Task Force on Mild Traumatic Brain Injury. J Rehabil Med 2004, 84–105. [Google Scholar] [CrossRef]
  20. Gordillo-Escobar, E.; Egea-Guerrero, J.J.; Rodríguez-Rodríguez, A.; Murillo-Cabezas, F. [Usefulness of biomarkers in the prognosis of severe head injuries]. Med Intensiva 2016, 40, 105–112. [Google Scholar] [CrossRef]
  21. Adrian, H.; Mårten, K.; Salla, N.; Lasse, V. Biomarkers of Traumatic Brain Injury: Temporal Changes in Body Fluids. eNeuro 2016, 3, ENEURO.0294–16.2016. [Google Scholar] [CrossRef]
  22. Ercole, A.; Thelin, E.P.; Holst, A.; Bellander, B.M.; Nelson, D.W. Kinetic Modelling of Serum S100b after Traumatic Brain Injury. BMC Neurol 2016, 16, 93. [Google Scholar] [CrossRef]
  23. Rosa, J.M.; Farré-Alins, V.; Ortega, M.C.; Navarrete, M.; Lopez-Rodriguez, A.B.; Palomino-Antolín, A.; Fernández-López, E.; Vila-Del Sol, V.; Decouty, C.; Narros-Fernández, P.; et al. TLR4 Pathway Impairs Synaptic Number and Cerebrovascular Functions through Astrocyte Activation Following Traumatic Brain Injury. Br J Pharmacol 2021, 178, 3395–3413. [Google Scholar] [CrossRef]
  24. Saran, M.; Arab-Zozani, M.; Behzadifar, M.; Gholami, M.; Azari, S.; Bragazzi, N.L.; Behzadifar, M. Overuse of Computed Tomography for Mild Head Injury: A Systematic Review and Meta-Analysis. PLoS One 2024, 19, e0293558. [Google Scholar] [CrossRef] [PubMed]
  25. Risher, W.C.; Eroglu, C. Thrombospondins as Key Regulators of Synaptogenesis in the Central Nervous System. Matrix Biol 2012, 31, 170–177. [Google Scholar] [CrossRef]
  26. Jiao, H.; Wang, Z.; Liu, Y.; Wang, P.; Xue, Y. Specific Role of Tight Junction Proteins Claudin-5, Occludin, and ZO-1 of the Blood-Brain Barrier in a Focal Cerebral Ischemic Insult. J Mol Neurosci 2011, 44, 130–139. [Google Scholar] [CrossRef] [PubMed]
  27. Sugiyama, S.; Sasaki, T.; Tanaka, H.; Yan, H.; Ikegami, T.; Kanki, H.; Nishiyama, K.; Beck, G.; Gon, Y.; Okazaki, S.; et al. The Tight Junction Protein Occludin Modulates Blood–Brain Barrier Integrity and Neurological Function after Ischemic Stroke in Mice. Sci Rep 2023, 13, 2892. [Google Scholar] [CrossRef]
  28. Yamazaki, Y.; Shinohara, M.; Shinohara, M.; Yamazaki, A.; Murray, M.E.; Liesinger, A.M.; Heckman, M.G.; Lesser, E.R.; Parisi, J.E.; Petersen, R.C.; et al. Selective Loss of Cortical Endothelial Tight Junction Proteins during Alzheimer’s Disease Progression. Brain 2019, 142, 1077–1092. [Google Scholar] [CrossRef] [PubMed]
  29. O’Connor, W.T.; Smyth, A.; Gilchrist, M.D. Animal Models of Traumatic Brain Injury: A Critical Evaluation. Pharmacol Ther 2011, 130, 106–113. [Google Scholar] [CrossRef]
  30. Cheng, C.; Yu, Z.; Zhao, S.; Liao, Z.; Xing, C.; Jiang, Y.; Yang, Y.-G.; Whalen, M.J.; Lo, E.H.; Sun, X.; et al. Thrombospondin-1 Gene Deficiency Worsens the Neurological Outcomes of Traumatic Brain Injury in Mice. Int J Med Sci 2017, 14, 927–936. [Google Scholar] [CrossRef]
  31. Kyriakides, T.R.; Maclauchlan, S. The Role of Thrombospondins in Wound Healing, Ischemia, and the Foreign Body Reaction. J Cell Commun Signal 2009, 3, 215–225. [Google Scholar] [CrossRef]
  32. Wu, M.; Gong, Y.; Jiang, L.; Zhang, M.; Gu, H.; Shen, H.; Dang, B. VEGF Regulates the Blood-brain Barrier through MMP-9 in a Rat Model of Traumatic Brain Injury. Exp Ther Med 2022, 24, 728. [Google Scholar] [CrossRef] [PubMed]
  33. Kaur, S.; Martin-Manso, G.; Pendrak, M.L.; Garfield, S.H.; Isenberg, J.S.; Roberts, D.D. Thrombospondin-1 Inhibits VEGF Receptor-2 Signaling by Disrupting Its Association with CD47. J Biol Chem 2010, 285, 38923–38932. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, Y.; Wang, H.; Oliveira, R.H.M.; Zhao, C.; Popel, A.S. Systems Biology of Angiogenesis Signaling: Computational Models and Omics. WIREs Mech Dis 2022, 14, e1550. [Google Scholar] [CrossRef] [PubMed]
  35. Flierl, M.A.; Stahel, P.F.; Beauchamp, K.M.; Morgan, S.J.; Smith, W.R.; Shohami, E. Mouse Closed Head Injury Model Induced by a Weight-Drop Device. Nat Protoc 2009, 4, 1328–1337. [Google Scholar] [CrossRef]
Preprints 185148 g001

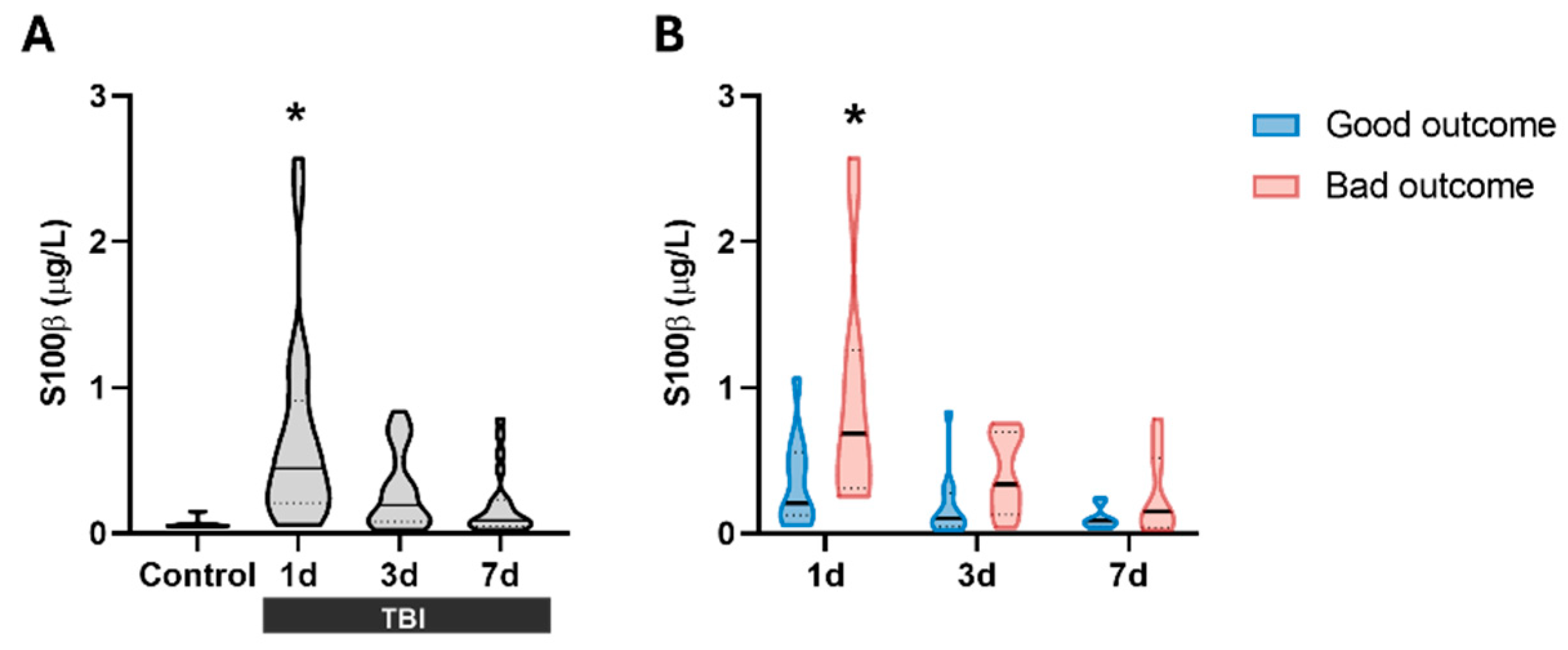

Figure 1. S100β levels in the serum of patients. (A) S100β significantly increases at 1 day after TBI (n = 23) compared to control subjects, but not at 3 days (n = 23) or 7 days (n = 21) compared to control subjects (Control group, n = 7). *p < 0.05 vs Control, Kruskal-Wallis with Dunn's post-hoc. (B) S100β levels stratified by prognosis at 6 months based on GOSE scale. At 1-day post-TBI, S100β levels were significantly higher in patients with bad outcome (n = 12) compared to those with good outcome (n = 11). No significant differences were observed at later time points. *p < 0.05 vs Good Outcome at the same time point, Two-way ANOVA with Bonferroni post-hoc. Data are presented as the median with the interquartile range.
Figure 1. S100β levels in the serum of patients. (A) S100β significantly increases at 1 day after TBI (n = 23) compared to control subjects, but not at 3 days (n = 23) or 7 days (n = 21) compared to control subjects (Control group, n = 7). *p < 0.05 vs Control, Kruskal-Wallis with Dunn's post-hoc. (B) S100β levels stratified by prognosis at 6 months based on GOSE scale. At 1-day post-TBI, S100β levels were significantly higher in patients with bad outcome (n = 12) compared to those with good outcome (n = 11). No significant differences were observed at later time points. *p < 0.05 vs Good Outcome at the same time point, Two-way ANOVA with Bonferroni post-hoc. Data are presented as the median with the interquartile range.
Preprints 185148 g001
Preprints 185148 g002
Figure 2. TSP-1 levels in the serum of patients and its correlation with prognosis. (A) TSP-1 levels in all patients compared to the control group. TSP-1 significantly decreases at all three measured times, 1 day (n = 24), 3 days (n = 24), and 7 days (n = 22) after TBI compared to control subjects (n = 24). (B) TSP-1 levels in patients classified into two groups according to the severity of their injury based on the GCS scale (mild and severe TBI). TSP-1 levels were always significantly lower and did not correlate with severity at any of the times. *p < 0.05 vs Control, One-way ANOVA followed by Bonferroni post-hoc. (C) TSP-11d values were significantly higher in the poor prognosis group. #p < 0.05 vs good prognosis. To see the effect of prognosis at different times, t-test was performed between each time separately. (C) ROC curve for TSP-11d levels to predict possible differences between the bad outcome group (n = 11) and the bad outcome group (n = 13). The red dot represents the value with the highest Youden index on the curve. Data are presented as the median with the interquartile range.
Figure 2. TSP-1 levels in the serum of patients and its correlation with prognosis. (A) TSP-1 levels in all patients compared to the control group. TSP-1 significantly decreases at all three measured times, 1 day (n = 24), 3 days (n = 24), and 7 days (n = 22) after TBI compared to control subjects (n = 24). (B) TSP-1 levels in patients classified into two groups according to the severity of their injury based on the GCS scale (mild and severe TBI). TSP-1 levels were always significantly lower and did not correlate with severity at any of the times. *p < 0.05 vs Control, One-way ANOVA followed by Bonferroni post-hoc. (C) TSP-11d values were significantly higher in the poor prognosis group. #p < 0.05 vs good prognosis. To see the effect of prognosis at different times, t-test was performed between each time separately. (C) ROC curve for TSP-11d levels to predict possible differences between the bad outcome group (n = 11) and the bad outcome group (n = 13). The red dot represents the value with the highest Youden index on the curve. Data are presented as the median with the interquartile range.
Preprints 185148 g002
Preprints 185148 g003

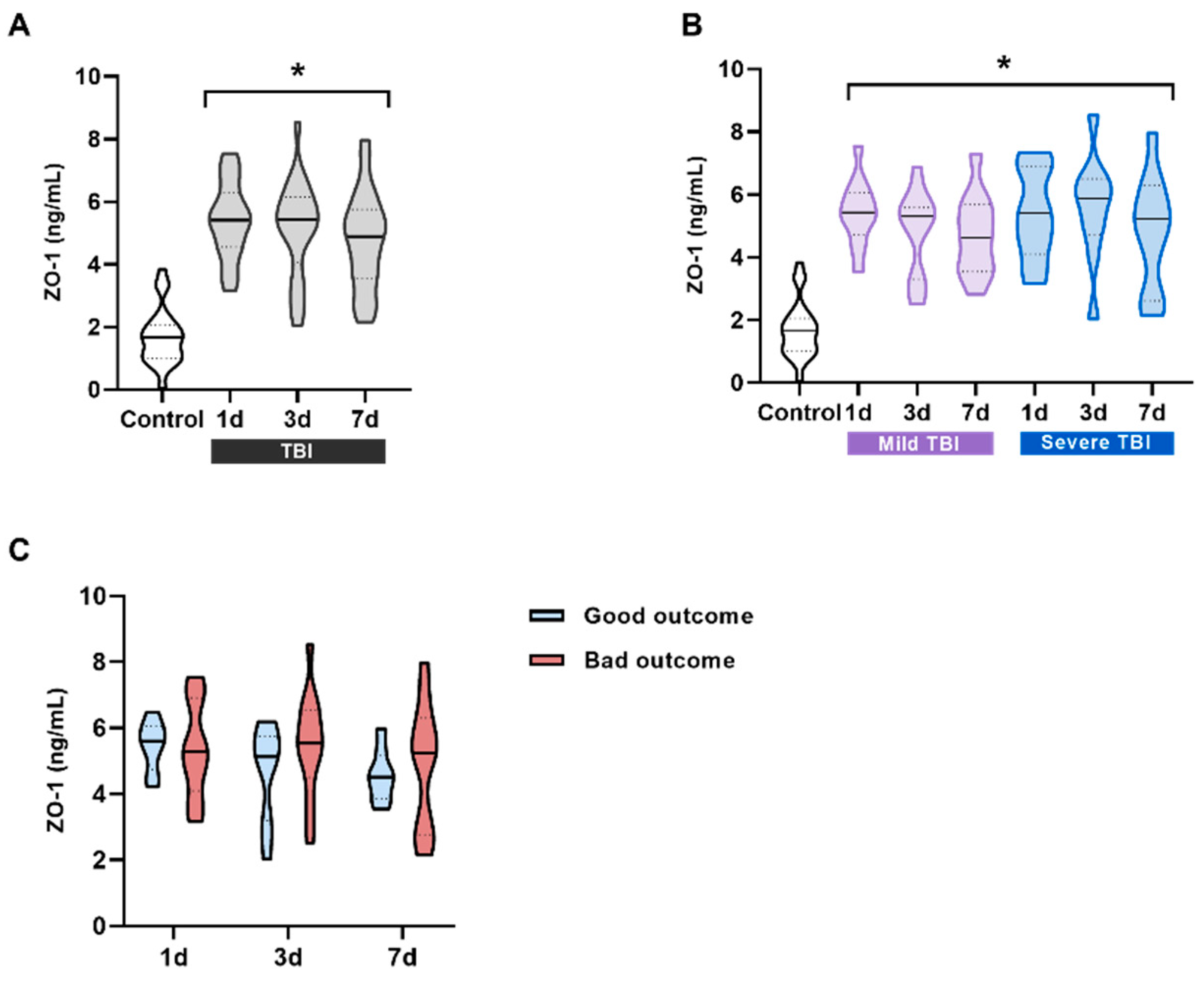

Figure 3. ZO-1 levels in the serum of patients and its correlation with prognosis. (A) ZO-1 serum levels in all patients compared to the control group. ZO-1 significantly increases at all three measured times, 1 day (n = 21), 3 days (n = 23), and 7 days (n = 22) after TBI compared to control subjects (n = 23). *p < 0.05 vs Control, One-way ANOVA followed by Bonferroni post-hoc. (B) Patients were classified into two groups according to the severity of their injury based on the GCS scale (mild and severe TBI). ZO-1 levels were always significantly higher and did not correlate with severity at any of the times. *p < 0.05 vs Control, One-way ANOVA followed by Bonferroni post-hoc. (C) No significant differences were observed between the ZO-1 values at different times for patients with good/bad outcome. Data are presented as the median with the interquartile range.
Figure 3. ZO-1 levels in the serum of patients and its correlation with prognosis. (A) ZO-1 serum levels in all patients compared to the control group. ZO-1 significantly increases at all three measured times, 1 day (n = 21), 3 days (n = 23), and 7 days (n = 22) after TBI compared to control subjects (n = 23). *p < 0.05 vs Control, One-way ANOVA followed by Bonferroni post-hoc. (B) Patients were classified into two groups according to the severity of their injury based on the GCS scale (mild and severe TBI). ZO-1 levels were always significantly higher and did not correlate with severity at any of the times. *p < 0.05 vs Control, One-way ANOVA followed by Bonferroni post-hoc. (C) No significant differences were observed between the ZO-1 values at different times for patients with good/bad outcome. Data are presented as the median with the interquartile range.
Preprints 185148 g003
Preprints 185148 g004
Figure 4. Occludin levels in the serum of patients and its correlation with prognosis. (A) Occludin significantly increases at all three measured times, 1 day (n = 19), 3 days (n = 22), and 7 days (n = 22) after TBI compared to control subjects (n = 23). *p < 0.05 vs Control, Kruskal-Wallis analysis with Dunn's post-hoc. (B) Patients were classified into two groups according to the severity of the injury based on the GCS scale (mild and severe TBI). Occludin levels were always significantly lower and did not correlate with severity at any of the times. *p < 0.05 vs Control, Kruskal-Wallis analysis with Dunn's post-hoc. (A) Occludin1d and occludin7d levels were significantly higher in the bad outcome group (1-day, n = 12 and 7-days n = 13) compared to the good outcome group (1-day, n = 7 and 7-days n = 8) at the same time points. *p < 0.05 vs good outcome. To assess the effect of prognosis at different times, a t-test was performed between each time point separately. (B) ROC curve for occludin1d levels to predict possible differences between the good and the bad outcome groups. (C) ROC curve for occludin7d levels to predict possible differences between the good and the bad outcome groups. The red dot represents the value with the highest Youden index on the curve. Data are presented as the median with the interquartile range.
Figure 4. Occludin levels in the serum of patients and its correlation with prognosis. (A) Occludin significantly increases at all three measured times, 1 day (n = 19), 3 days (n = 22), and 7 days (n = 22) after TBI compared to control subjects (n = 23). *p < 0.05 vs Control, Kruskal-Wallis analysis with Dunn's post-hoc. (B) Patients were classified into two groups according to the severity of the injury based on the GCS scale (mild and severe TBI). Occludin levels were always significantly lower and did not correlate with severity at any of the times. *p < 0.05 vs Control, Kruskal-Wallis analysis with Dunn's post-hoc. (A) Occludin1d and occludin7d levels were significantly higher in the bad outcome group (1-day, n = 12 and 7-days n = 13) compared to the good outcome group (1-day, n = 7 and 7-days n = 8) at the same time points. *p < 0.05 vs good outcome. To assess the effect of prognosis at different times, a t-test was performed between each time point separately. (B) ROC curve for occludin1d levels to predict possible differences between the good and the bad outcome groups. (C) ROC curve for occludin7d levels to predict possible differences between the good and the bad outcome groups. The red dot represents the value with the highest Youden index on the curve. Data are presented as the median with the interquartile range.
Preprints 185148 g004
Preprints 185148 g005

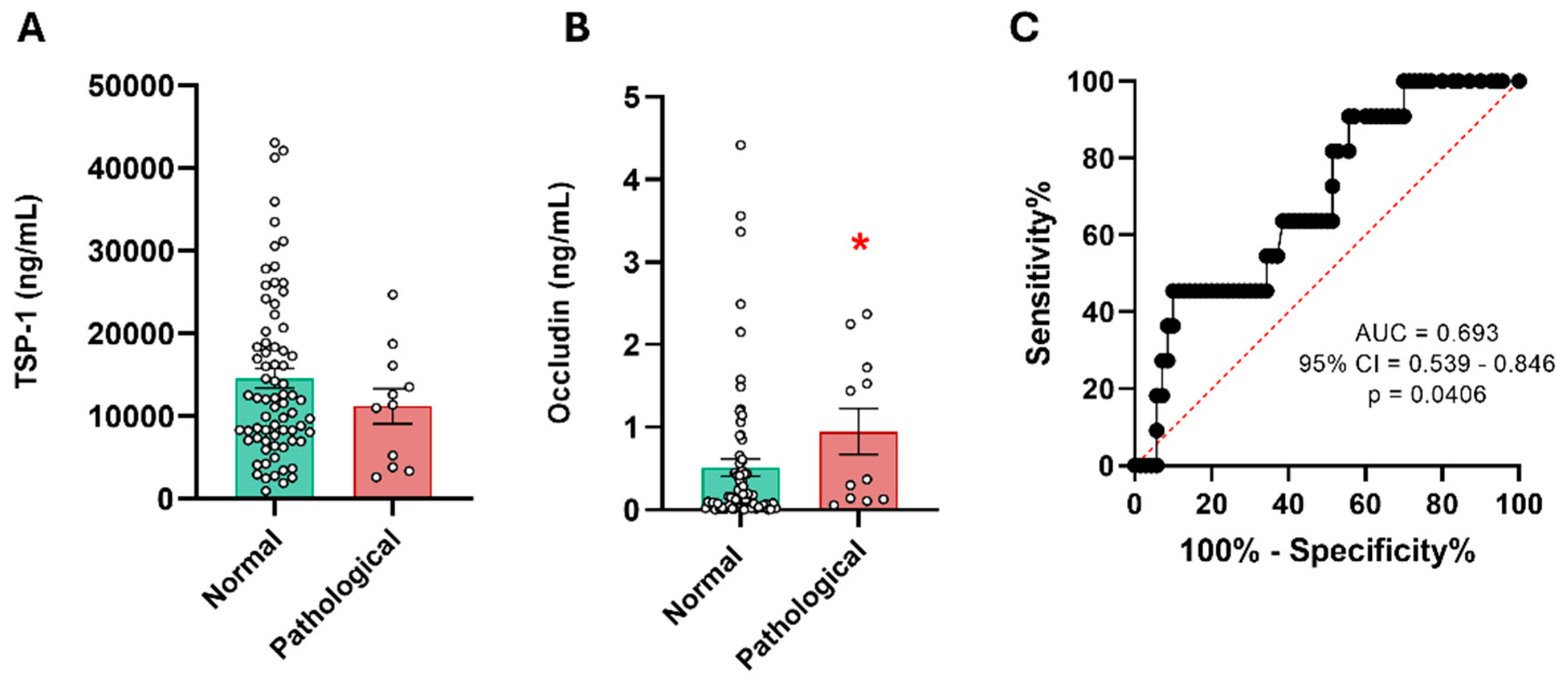

Figure 5. Serum levels of TSP-1 and occludin in patients with mild TBI and their correlation with CT. (A) Serum levels of TSP-1 in patients with mild TBI. No significant differences were found in the TSP-11d levels of patients with mild TBI dichotomized according to their CT results (normal n = 73 and pathological n = 11). (B) Serum levels of occludin in patients with mild TBI showed a significant increase in those with abnormal CT results. *p < 0.05 vs Normal CT group, Student t-test. (C) ROC curve for occludin1d levels to predict possible differences between the normal CT group (n = 70) and the abnormal CT group (n = 11). CT: Computed tomography.
Figure 5. Serum levels of TSP-1 and occludin in patients with mild TBI and their correlation with CT. (A) Serum levels of TSP-1 in patients with mild TBI. No significant differences were found in the TSP-11d levels of patients with mild TBI dichotomized according to their CT results (normal n = 73 and pathological n = 11). (B) Serum levels of occludin in patients with mild TBI showed a significant increase in those with abnormal CT results. *p < 0.05 vs Normal CT group, Student t-test. (C) ROC curve for occludin1d levels to predict possible differences between the normal CT group (n = 70) and the abnormal CT group (n = 11). CT: Computed tomography.
Preprints 185148 g005
Preprints 185148 g006
Figure 6. Inflammatory profile of TSP-1 KO animals after TBI. (A) Il1b expression levels were significantly elevated in the ipsilateral hemisphere in WT mice, and this expression significantly increased in TSP-1 KO animals after injury. (B) Ccl2 expression was exacerbated in the ipsilateral side of TSP-1 KO mice compared to WT animals. (C) Nlrp3 levels only were significantly higher in TSP-1 KO animals after TBI. (D) An increase Tnfa expression was observed in both WT and TSP-1 KO animals after TBI compared to naïve animals. Mean ± SEM (n = 6-8). *p < 0.05 vs naïve of their genotype, #p < 0.05 vs WT, Kruskal-Walli’s analysis followed by Dunn’s post-hoc test. A T-test was performed to assess the effect of genotype. (WT: Wild type; KO: knock out; I: ipsilateral).
Figure 6. Inflammatory profile of TSP-1 KO animals after TBI. (A) Il1b expression levels were significantly elevated in the ipsilateral hemisphere in WT mice, and this expression significantly increased in TSP-1 KO animals after injury. (B) Ccl2 expression was exacerbated in the ipsilateral side of TSP-1 KO mice compared to WT animals. (C) Nlrp3 levels only were significantly higher in TSP-1 KO animals after TBI. (D) An increase Tnfa expression was observed in both WT and TSP-1 KO animals after TBI compared to naïve animals. Mean ± SEM (n = 6-8). *p < 0.05 vs naïve of their genotype, #p < 0.05 vs WT, Kruskal-Walli’s analysis followed by Dunn’s post-hoc test. A T-test was performed to assess the effect of genotype. (WT: Wild type; KO: knock out; I: ipsilateral).
Preprints 185148 g006
Preprints 185148 g007
Figure 7. Effects of TSP-1 deficiency on BBB integrity and angiogenic response. (A) Representative images of 2 mm brain slices for the quantification of Evans blue. (B) Quantification of Evans Blue extravasation. (n = 3 – 9) Mean ± SEM. One-way ANOVA followed by Bonferroni post-hoc test p ≤ 0.05. (* vs. WT). (C) ZO-1 serum levels do not change 24 hours post-TBI in WT animals while in TSP-1-/- mice are significantly increased. (D) Occludin levels are significantly elevated in injured animals 24 hours post-TBI regardless of their genotype. Mean ± SEM (WT naïve n=4, WT TBI n=7-8, TSP-1 KO naïve n=3-4, TSP-1 KO TBI n=7)). Kruskal-Wallis analysis followed by Dunn’s post-hoc test. p ≤ 0.05. (* vs. Naïve of their genotype, # vs. WT). (E) Vegf mRNA levels increased in the ipsilateral hemisphere of injured WT animals. An increase in Vegf was observed in naïve TSP-1 KO animals compared to naïve WT; yet the injury did not modify Vegf mRNA levels in TSP-1 KO animals. *p < 0.05 vs naïve of their genotype, #p < 0.05 vs WT, Two-way ANOVA with Bonferroni post-hoc test.
Figure 7. Effects of TSP-1 deficiency on BBB integrity and angiogenic response. (A) Representative images of 2 mm brain slices for the quantification of Evans blue. (B) Quantification of Evans Blue extravasation. (n = 3 – 9) Mean ± SEM. One-way ANOVA followed by Bonferroni post-hoc test p ≤ 0.05. (* vs. WT). (C) ZO-1 serum levels do not change 24 hours post-TBI in WT animals while in TSP-1-/- mice are significantly increased. (D) Occludin levels are significantly elevated in injured animals 24 hours post-TBI regardless of their genotype. Mean ± SEM (WT naïve n=4, WT TBI n=7-8, TSP-1 KO naïve n=3-4, TSP-1 KO TBI n=7)). Kruskal-Wallis analysis followed by Dunn’s post-hoc test. p ≤ 0.05. (* vs. Naïve of their genotype, # vs. WT). (E) Vegf mRNA levels increased in the ipsilateral hemisphere of injured WT animals. An increase in Vegf was observed in naïve TSP-1 KO animals compared to naïve WT; yet the injury did not modify Vegf mRNA levels in TSP-1 KO animals. *p < 0.05 vs naïve of their genotype, #p < 0.05 vs WT, Two-way ANOVA with Bonferroni post-hoc test.
Preprints 185148 g007
