Unlocking the Future of X-Ray Polarimetry with IXPE: Lessons Learned and Next Steps

1. Introduction: The Imaging X-Ray Polarimetry Explorer in a Nutshell

The Imaging X-ray Polarimetry Explorer (IXPE) [1,2], a NASA–ASI SMEX mission currently operational, represents the culmination of decades of effort by a large community of scientists to follow up the single positive OSO-8 measurement [3,4] with a more sensitive technique, thereby establishing this as observable as a routine tool in astronomy. In this paper, we emphasize the challenges surmounted during development, integration, and on-orbit operations, thanks to the dedication of an integrated Italy–U.S. team. The Italian contribution includes ASI’s programmatic and scientific management; the Space Science Data Center’s provision of instrument flight pipeline modules; the Malindi Ground Station; and the leading roles of INAF and INFN in instrument developing, integration, testing, and calibration. On the industrial side, OHB-Italy served as a crucial contractor for the detector service unit and the design and development of the filter and calibration wheel. The U.S. team at NASA’s Marshall Space Flight Center, the PI institution and provider of the mirrors and the Science Operations Center, worked in close partnership with the spacecraft developer (BAE, British Aerospace) and with the Laboratory for Atmospheric and Space Physics (LASP). This integrated team successfully addressed the challenges discussed in this paper, which we believe merit dissemination as lessons learned, four years after launch. In short, IXPE consists of three mirror modules [5] in the focus of which the instrument [2] hosts three detectors that each incorporate a Gas Pixel Detector (GPD) [6] which allows us to study X-ray polarization from a celestial source by imaging the photoelectron tracks [7]. Scientists were aware of the importance of polarimetry for its ability to reveal emission processes and geometries in the vicinity of compact objects and for answering questions of fundamental physics in a completely novel way. This was made possible by the development of a dedicated ASIC [8]. IXPE was launched on 9 December 2021 from Cape Canaveral from the hystorical Pad 39A, and it detected polarization observing about 100 different sources so far; see the Table 1.

Filter and calibration wheels [9], one for each detector, are routinely used during Earth occultations to equalize the gain, verify the polarization sensitivity, and check for spurious polarization. The event data (photon-by-photon) and the ratemeter data are packetized by the Digital Service Units (DSUs) and stored in on-board memory for transmission to the ASI Ground Station at Malindi (Kenya). The Science Operations Center (SOC) at NASA’s Marshall Space Flight Center (MSFC) in Huntsville organizes the long-term observing plan, manages Target-of-Opportunity (ToO) requests, and operates and maintains the flight pipeline, with the support of the ASI Space Science Data Center (SSDC). Data are received from the Mission Operations Center (MOC) at the Laboratory for Atmospheric and Space Physics (LASP), University of Colorado Boulder. HEASARC is responsible for the dissemination of data, making them publicly available, and issuing and managing the General Observer Program (GOP), which for IXPE is now at GOP number $\tilde{3}$.

2. The Gas Pixel Detector

The photoelectric effect in gas was proposed long ago as a method to measure the polarization of an X-ray photon beam either by searching for coincidences between the wires of a proportional counter [10] or by using the rise time in a single-wire proportional counter [11], and then with multiwire proportional counters [12]. The direction of photoelectron emission has also been inferred by optically imaging the track [13] and, more recently, in a series of works [14,15,16,17]. Several authors attempted to exploit coincidences in the contiguous pixels of CCD [18,19,20] and CMOS sensors [21]. Track imaging with sufficient sensitivity became feasible thanks to advances in microelectronics in the late 1990s, enabling a new generation of gas detectors, either one-dimensional devices adapted from experiments at CERN [22,23] later with instruments expressly developed to image the photoelectron tracks [6,7,8,24], for detecting polarization from celestial sources. These devices, known as Gas Pixel Detectors (GPDs), consist of a gas cell with a drift gap 1 cm thick bounded by a 50 $\mu$m aluminized beryllium X-ray window and the top metallic layer (copper) of a gas electron multiplier (GEM) [25,26]. The gas mixture is dimethyl ether (DME), filled to an initial pressure of 800 mbar (see Section 6), at Oxford X-ray Technologies OY, Espoo, Finland. The GEMs were produced by SciEnergy (Japan). IXPE GEMs have 30 $\mu$m diameter holes, 50 $\mu$m pitch, and 50$\mu$m thickness of the dielectric substrate (Liquid Crystal Polymer). An INFN-designed ASIC records the analog image of the photoelectron track with 105,600 hexagonally arranged pixels at a pitch of 50 $\mu$m. The ASIC implements self-triggering when a sufficient charge is collected in any pixel in a group of four, defining a region of interest (ROI) that includes a fiducial area of 20 pixels, and it also provides an external trigger output. With this information available, essentially all observables encoded in the X-ray beam: impact point, energy, arrival time, and linear polarization (but not circular polarization) can be reconstructed by the analysis of the data provided by GPD.

3. An Extensible Boom Featuring a Tip-Tilt Rotation Mechanism but Onboard Metrology System

IXPE was conceived and designed to be compatible with the Pegasus XL launcher in response to the call and Phase A requirements. Pegasus XL imposes stringent constraints on power, volume, and mass. Therefore, the only viable way to achieve the required focal length of 4 m was to adopt a deployable boom (mast). A similar approach had been used successfully before IXPE on the Nuclear Spectroscopic Telescope Array (NuSTAR), a NASA SMEX mission that remains operational.

Early IXPE designs included a NuSTAR-like metrology system, but this was removed during spacecraft integration for programmatic reasons. However, the optical system incorporated tip-tilt-rotation mechanisms to enable global post-deployment alignment of the optics; this mechanism was exercised once on-orbit with success.

Thermoelastic effects during shadow–sunlight transitions along the orbit induce a boom shift, displacing the image of the celestial source by about 1 arcmin. The IXPE team therefore developed and implemented a correction in the flight processing pipeline. For point-like sources, automatic centroiding and position rescaling provide sufficient accuracy. For extended sources, a different strategy was required: we modeled the shift using simultaneous measurements from the two star trackers (forward and aft), temperatures measured on the boom and on the optics, and, for calibration, centroiding of point-like sources. The resulting model performs well, as illustrated by the improvement in the Cyg X-1 image before and after correction (see Figure 1).

In fact, IXPE was eventually launched on a SpaceX Falcon 9, which offered substantially more volume and resources, but the spacecraft design had already been finalized. Given the payload volume available on Falcon 9, an improvement over the IXPE design, had this launcher been available from the start, would have been to adopt a solid, tapered carbon fiber tube in place of the deployable boom, thus eliminating the tip-tilt-rotate mechanism and mitigating thermoelastic oscillations.

Figure 1. (Left) Cygnus X-1 image after the boom thermo-elastic boom motion correction. (Right) Cygnus X-1 image before the boom motion correction.

Figure 1. (Left) Cygnus X-1 image after the boom thermo-elastic boom motion correction. (Right) Cygnus X-1 image before the boom motion correction.

4. Ground Calibration and the Need to Dither the Satellite’S Pointing Direction

Although it is common practice in the development of a space mission to shorten the planned ground-calibration campaign and rely subsequently on on-orbit calibration, this was not possible for IXPE, a genuine discovery mission. During development, we found at low energy, where most of the photons are detected, that an unpolarized source exhibited a large spurious modulation (a nonzero modulation in the presence of an unpolarized source), far exceeding the acceptable level. At 5.9 keV, spurious modulation was found below the specified requirement, as expected. We therefore made extensive effort on the back-end electronics and on the application-specific integrated circuit (ASIC) configuration to reduce this effect to the point where the electronics contribution became negligible. Ultimately, the residual spurious modulation was reduced to a level at which the dominant contribution arose from the gas electron multiplier (GEM), about 1–2% at 2 keV. This required a final calibration campaign to characterize and filter out the remaining modulation [27]. To achieve the precision required for measuring a polarization of 1%, we calibrated each detector unit (DU) at six energies, collecting 66 million counts per energy in the central part of the detector and about 42 million in the rest of the field of view. Meeting the required uncertainty of 0.15% in spurious modulation consumed about 60% of the total calibration time (approximately 40 days per DU, operating 24/7).

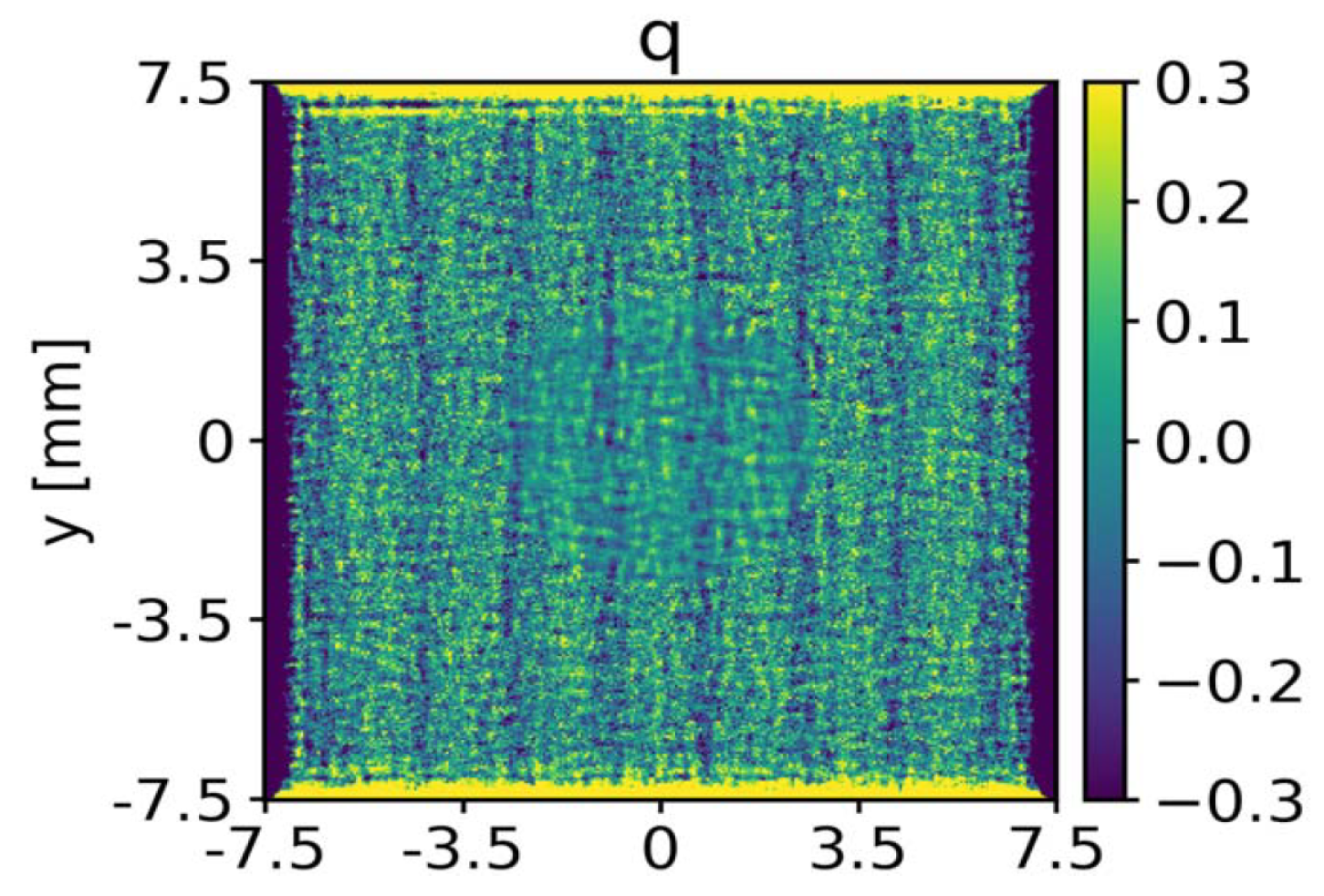

Figure 2. Stoke q = Q/I (2-D map). The visible strips are consistent with the laser etching pattern for producing the holes of the GEM.

Figure 2. Stoke q = Q/I (2-D map). The visible strips are consistent with the laser etching pattern for producing the holes of the GEM.

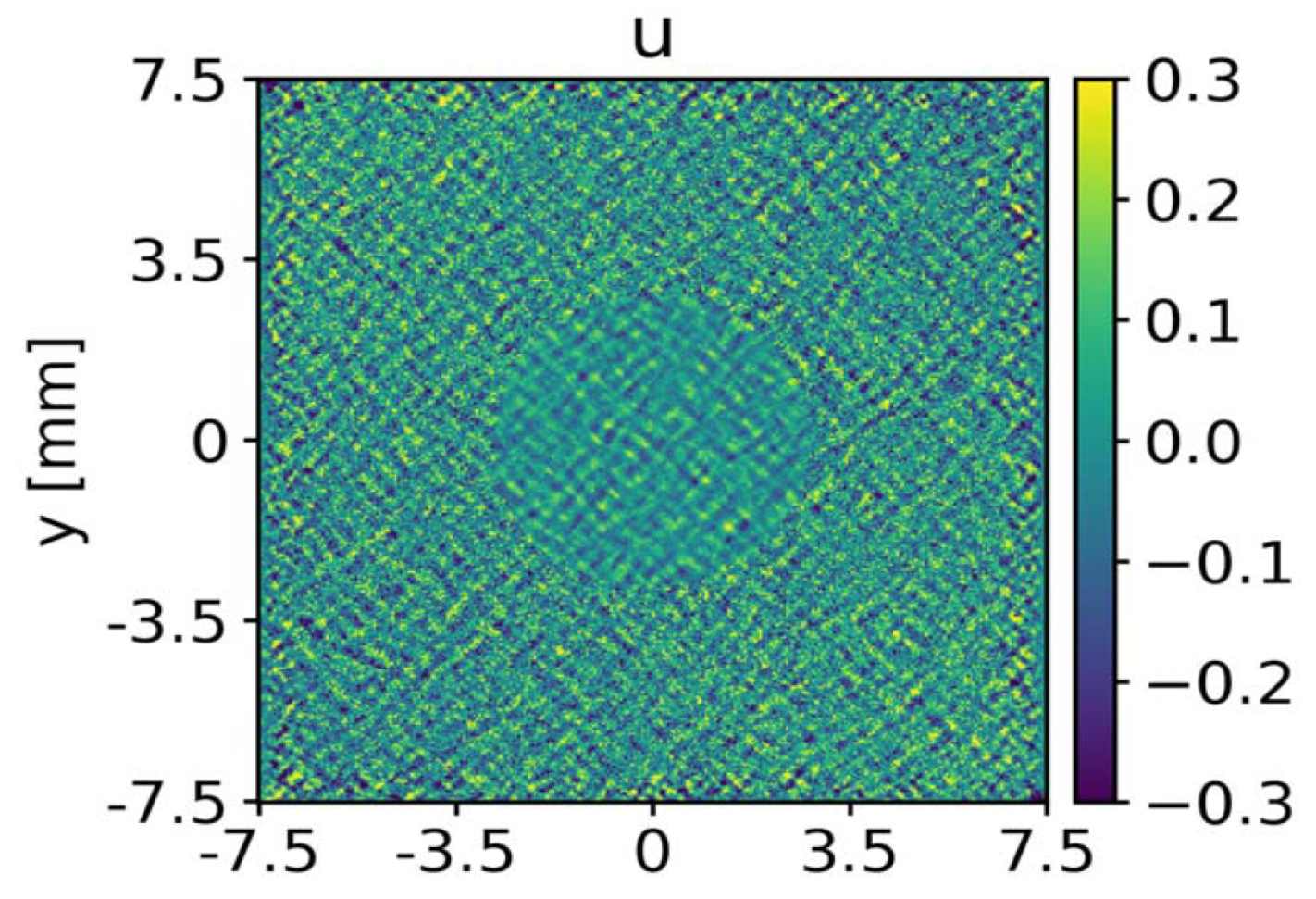

Figure 3. Stoke u = U/I (2-D map). The absence of definite pattern in presence of a Q pattern indicates a coherent polarization angle across the surface.

Figure 3. Stoke u = U/I (2-D map). The absence of definite pattern in presence of a Q pattern indicates a coherent polarization angle across the surface.

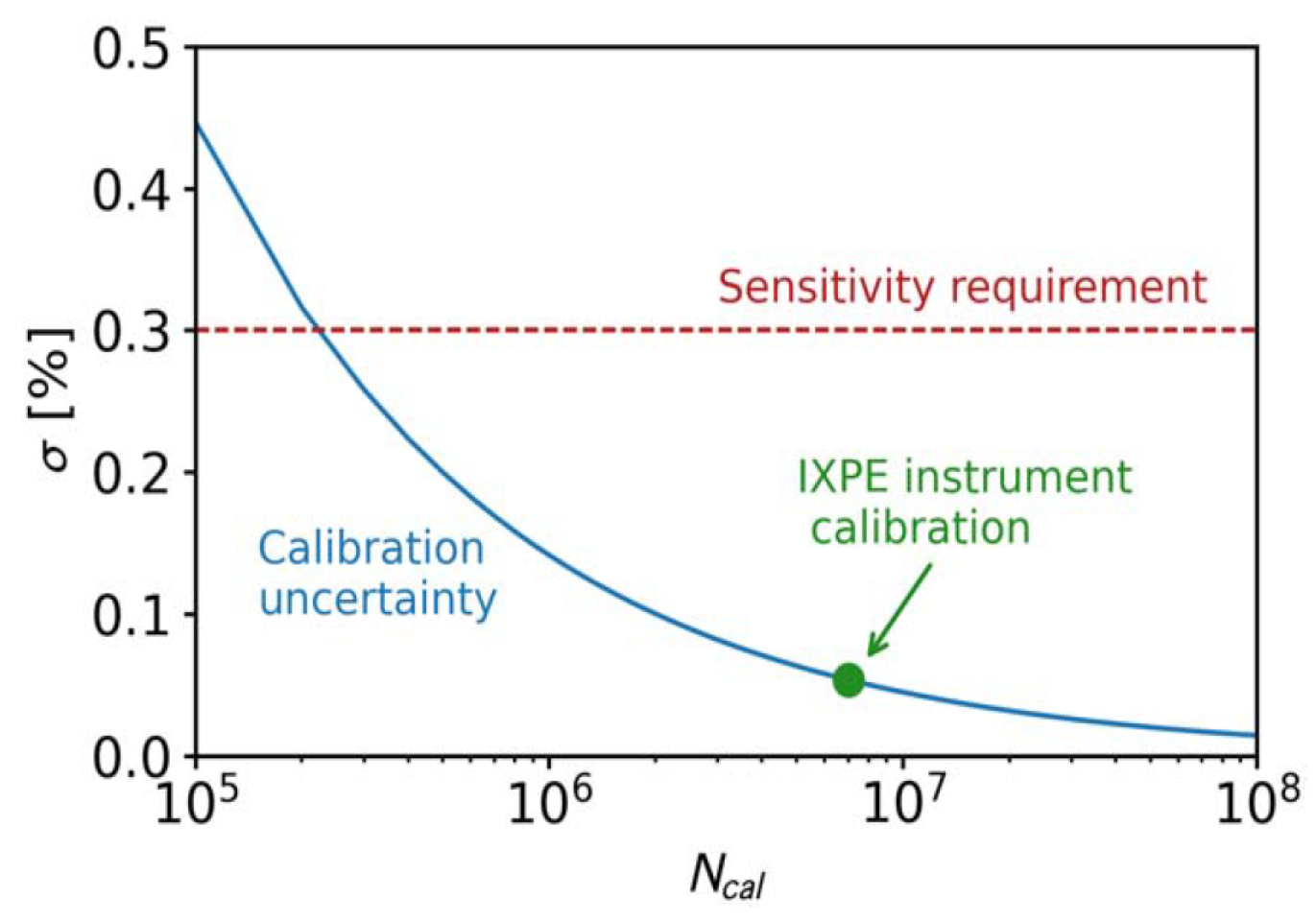

Figure 4. The statistical uncertainty in the measurement of the spurious modulation as a function of detected counts, its requirement and the needed counts to meet the requirement.

Figure 4. The statistical uncertainty in the measurement of the spurious modulation as a function of detected counts, its requirement and the needed counts to meet the requirement.

Since the performance of the GEM and the ASIC, particularly the residual spurious modulation, varies across the detector on spatial scales of a few pixels, a per-pixel calibration was incompatible with the mission schedule. We therefore adopted a hybrid approach that couples calibration and operations: on the ground, we calibrated the entire field of view, but with a higher sensitivity its central part where the most sensitive observations of bright and point-like sources were expected to be carried out; in orbit, we implemented dithering of the satellite so that each target samples many detector pixels, averaging out small-scale response variations (as done for Chandra for the same reason).

The IXPE dithering can be modeled as a two–frequency Lissajous motion with an optional slow radial term,

$$x\left(t\right)=Asin\left({\omega }_{x}t\right),y\left(t\right)=Asin\left({\omega }_{y}t\right),{\omega }_a={\displaystyle \frac{2\pi }{907\mathrm{s}}}.$$

We adopt three selectable dither amplitudes:

$$A\in \{0.8,1.6,2.6\}\mathrm{arcmin}$$

(small, standard—often taken as $A\simeq 1.59$ arcmin—and large). For the fast components, we use

$${\omega }_x={\displaystyle \frac{2\pi }{101\mathrm{s}}}\mathrm{and}{\omega }_y={\displaystyle \frac{2\pi }{449\mathrm{s}}}.$$

The period(s) of the dithering pattern are much shorter than a typical IXPE observation ($\gtrsim {10}^5\mathrm{s}$), so the illumination across the field is effectively uniform. The dithering radius can be chosen among the small (0.8 arcmin), standard (1.6 arcmin), and large (2.6 arcmin) to be converted in the detector area considering a focal length of 4000 mm.

During calibration: we accumulate ${10}^6\mathrm{counts}{\mathrm{mm}}^{-1}$ in the dithering region and ${10}^5\mathrm{counts}{\mathrm{mm}}^{-1}$ outside, for each energy that reaches the needed counts to meet the precision requirement in knowledge of spurious modulation. The flux rate was limited to about $200\mathrm{counts}{\mathrm{s}}^{-1}$ due to the $1.1\mathrm{ms}$ dead time of the IXPE ASIC, which naturally increased the total calibration time.

A practical drawback of dithering is the time–dependent vignetting of the mirror–detector system during an observation. Consequently, the effective area must be treated as a function of time,

$$A_{\mathrm{eff}}\left(t\right)=A_{0}V\left(t\right),$$

where $V\left(t\right)$ encodes the vignetting along the dither path.

For bright sources, residual power can appear in the data at dithering frequencies. These components should be modeled and removed, e.g., by time-dependent effective-area corrections.

5. Impact of GEM Charging on Gas Gain

An effect anticipated on-ground and calibrated was the process of the GEM charging during multipication of primary electron tracks.

In GEMs the charging-up comes from charge sticking to the insulating (Kapton) walls of the holes. Electron build-up (negative charge) on the walls/rims tends to weaken/defocus the field in the hole, so the effective gain drops. Ion build-up (positive charge) usually does the opposite by strengthening/focusing the field, and the gain rises, until an equilibrium is reached. The dominating one depends on fields (drift/multiplication/transfer/), hole geometry, gas, and ion backflow, but a reduction in gain is typically a signature of electron charging of the dielectric.

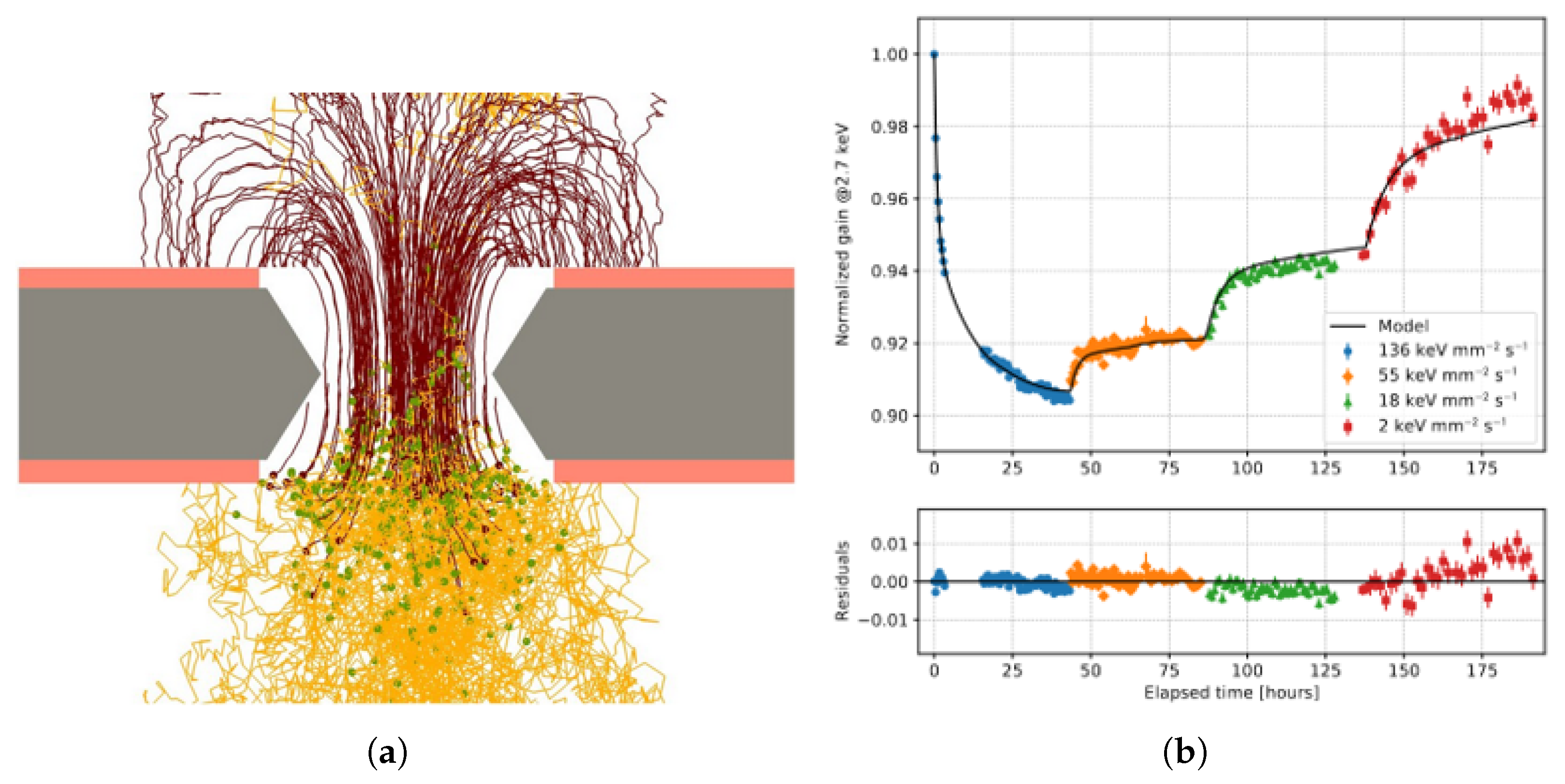

Figure 5. (a). Electrons and ions produced during the multiplication process alter, with opposite sign, the electric field within the multiplication channels and above the exposed dielectric of the GEM. The overall impact is a decrement of the gas gain (b). Example of gain drop and recover as a function of the rate. If we consider the total counting rate of the Crab 80 counts/s, in a single DU [2], at an average energy of 2.7 keV, its energy density rate in the medium dithering area (1.8 mm radius) is 20 keV mm⁻² s⁻¹.

Figure 5. (a). Electrons and ions produced during the multiplication process alter, with opposite sign, the electric field within the multiplication channels and above the exposed dielectric of the GEM. The overall impact is a decrement of the gas gain (b). Example of gain drop and recover as a function of the rate. If we consider the total counting rate of the Crab 80 counts/s, in a single DU [2], at an average energy of 2.7 keV, its energy density rate in the medium dithering area (1.8 mm radius) is 20 keV mm⁻² s⁻¹.

The use of the Filter and Calibration Wheel (FCW), in particular its flood X-ray sources at 5.89 and 1.7 keV, mitigates this effect. Detector calibrations are routinely performed while the celestial target is occulted by the Earth. Nevertheless, the mismatch between the energy density rates of the calibration sources and those of the astrophysical targets prevents an exact compensation of the charging-induced gain variations (see Figure 6).

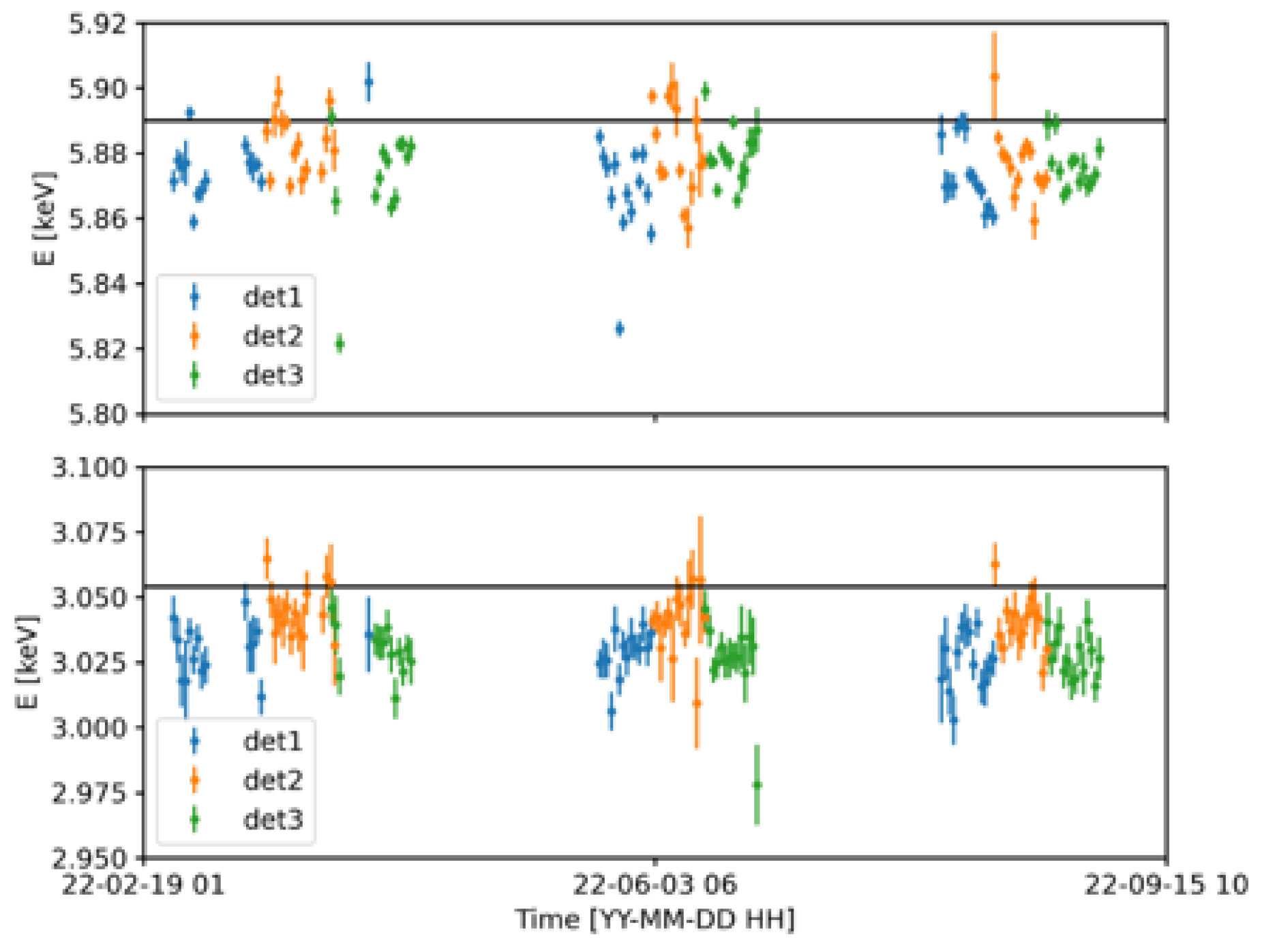

Figure 6. The reconstructed energy of the two on-board polarized sources after calibration with on-board unpolarized and flood 5.89 and 1.7 keV sources. The black horizontal line represents the expected energy of the two lines.

Figure 6. The reconstructed energy of the two on-board polarized sources after calibration with on-board unpolarized and flood 5.89 and 1.7 keV sources. The black horizontal line represents the expected energy of the two lines.

In the flight pipeline that provides data reduction, a correction based on the modeling of charging is provided as in Equation (1).

$${\displaystyle \frac{dq\left(t\right)}{dt}}=\stackrel{\mathrm{charge}}{\overbrace{R{\alpha }_c\left(1-{\displaystyle \frac{q\left(t\right)}{q_{max}}}\right)}}-\stackrel{\mathrm{discharge}}{\overbrace{{\alpha }_{d}q\left(t\right)}}$$

(1)

This result is directly related to the theory of capacitor charging and discharging, governed by two time constants ${\alpha }_c$ and ${\alpha }_d$. In [6] a complete treatment and a closed-form expression derived from Equation (1, reparametrized in terms of nondegenerate physical constants that can be determined from ground calibration, are provided.

Unfortunately, charging could be calibrated for only two of the three flight detectors. Moreover, the simple model adopted for the gain variation, together with the on-board calibration procedure, which was not performed simultaneously with the observations, is not sufficiently accurate. As a result, the spectrum of a particularly bright source (at ∼ crab flux) appears to be steeper % than expected in the absence of charging.

6. Absorption of Dimethyl Ether: Consequences and Mitigation Strategies

Figure 5 shows the quantum efficiency (QE) measurements of the GPDs in flight at $2.69$ and $6.4\mathrm{keV}$, obtained in three campaigns: acceptance tests, DU calibration, and Delta-DU calibration after filter and calibration wheel rework. Measurements were carried out with high accuracy using a well-calibrated commercial silicon drift detector with a thin beryllium window (Amptek), and by carefully determining the transmittance of the residual air column from up-to-date environmental parameters and measured source–detector distances.

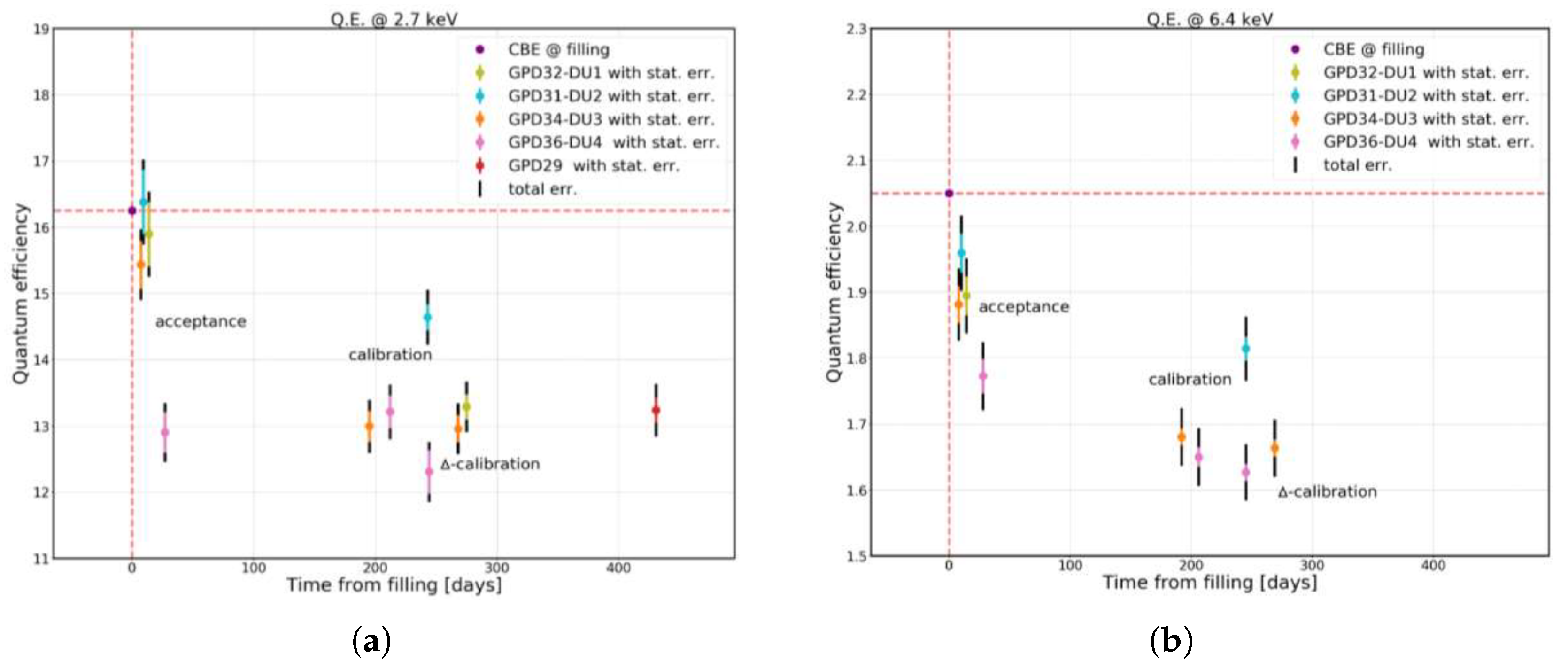

Figure 7. (a). The Quantum Efficiency of the flight detector measured at three epochs at 2.69 keV. The red horizontal line correspond to the expected value. (b). The Quantum Efficiency of the flight detector measured at three epochs at 6.4 keV. The red horizontal line correspond to the expected value.

Figure 7. (a). The Quantum Efficiency of the flight detector measured at three epochs at 2.69 keV. The red horizontal line correspond to the expected value. (b). The Quantum Efficiency of the flight detector measured at three epochs at 6.4 keV. The red horizontal line correspond to the expected value.

We found that the expected quantum efficiency (QE) was not achieved for a GPD filled with 800 $\mathrm{m}$ dimethyl ether (DME); instead, the QE decreased over time. A time-dependent analysis of the energy resolution showed no degradation, whereas the gas gain exhibited a clear upward trend.

$$G_{\mathrm{eff}}^{\mathrm{corr}}={\displaystyle \frac{G_{\mathrm{eff}}}{exp\left(C\times \left(\frac{1}{P/T}-\frac{1}{2.533}\right)\right)}}$$

(2)

The gain increase, which is expected if the pressure drops at constant temperature (see [28] and Equation (2)), was accompanied by longer tracks and a corresponding increase in the modulation factor of the polarimeter. Independent measurements at INFN–Pisa of the beryllium-window curvature induced by internal pressure showed that GPDs exhibiting larger relative gain increases also displayed larger curvature. The observed curvature is well reproduced by simulations in which the internal pressure is inferred using the track length and modulation factor as proxies.

Modeling the time dependence on the pressure [6]:

$$p\left(t;\tau ,{\Delta }_p\right)=p_0-{\Delta }_p\left(1-exp\left\{-{\displaystyle \frac{\left(t-t_0\right)}{\tau }}\right\}\right)$$

(3)

and the dependence of track length from pressure as:

$$L\left(p\right)=L_0{\left({\displaystyle \frac{p}{p_0}}\right)}^{-{\alpha }_L}$$

(4)

From a simultaneous fit of the on-board data from the calibration sources, it was possible to derive the expected efficiency at a given time.

In order to find which element of the Gas Pixel Detector was responsible for the decrease of the internal pressure, we organized a test directly monitoring the pressure inside a vessel and filled with DME at 800 mbar and each single element of the GPD plus a control vessel filled only with a DME mixture. We monitored for many months the temperature and pressure inside the vessel for each of the elements. The interesting result is shown in Figure 9 where the pressure inside the stain-free vessel is plotted. A fast decay time (∼ 18 hours of exponential time constant) is followed by a slow decay time (∼ 1490 hours), which shows that in fact the glue is responsible for the absorption of the DME. The control vessel (filled only with DME) and the other parts of the GPD did not show any gain drop.

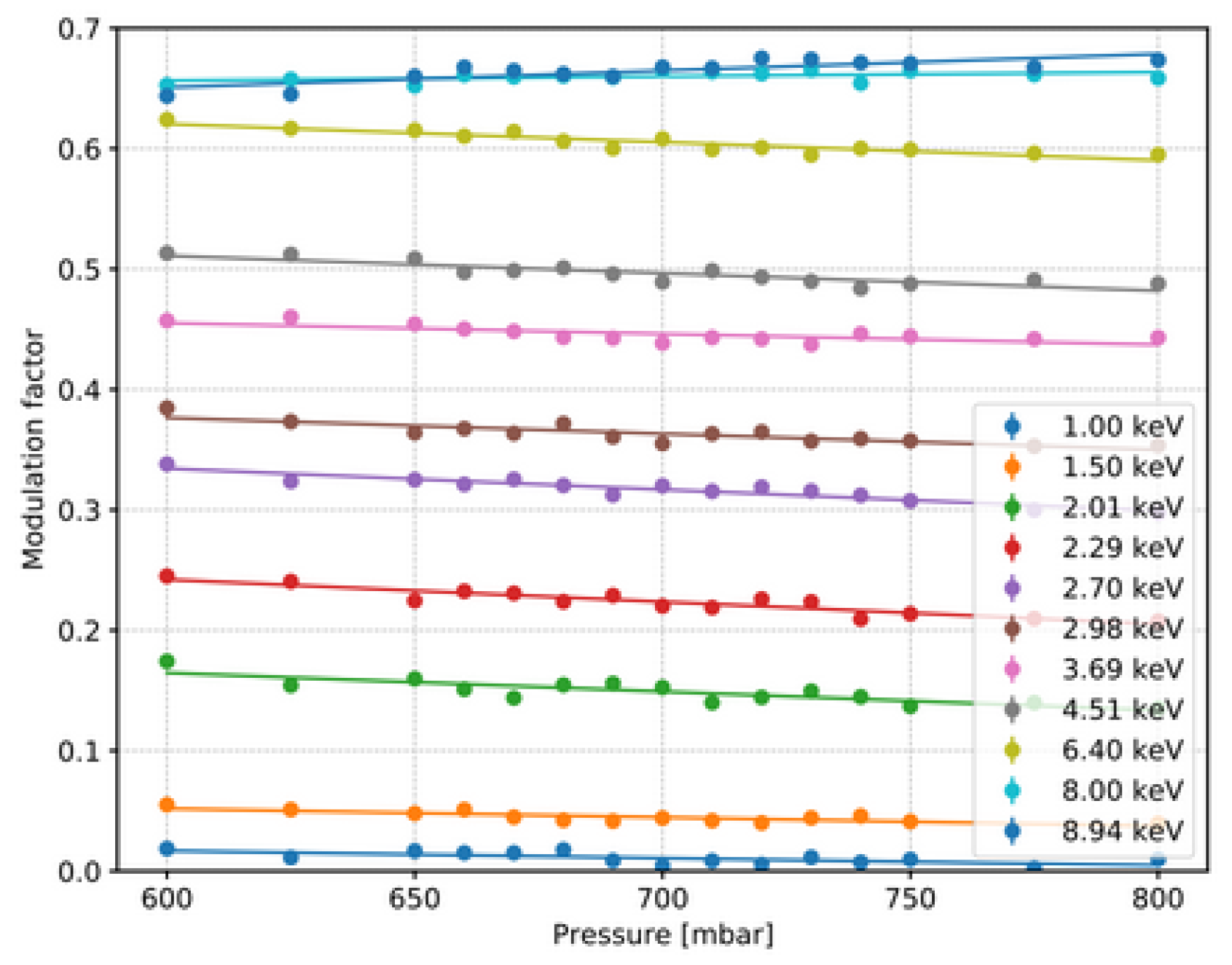

Figure 8. Increase of the modulation factor of the GPD as a function of the decreasing pressure obtained by Monte Carlo Simulation.

Figure 8. Increase of the modulation factor of the GPD as a function of the decreasing pressure obtained by Monte Carlo Simulation.

Figure 9. (a). The glue MasterBond Supreme 10 HT used to seal the different parts of the GPD in the vessel used for the test (b). The trend of decreasing pressure we detected during the test. A fast decay time of 18 hours is followed by a slow decay time of 1490 hours.

Figure 9. (a). The glue MasterBond Supreme 10 HT used to seal the different parts of the GPD in the vessel used for the test (b). The trend of decreasing pressure we detected during the test. A fast decay time of 18 hours is followed by a slow decay time of 1490 hours.

Following the test conducted under INAF–IAPS supervision at Oxford Instruments Technologies Oy (Espoo, Finland), the company responsible for filling the GPDs with flight gas mixtures, an additional test at INFN showed that accurately modeling the time evolution of the continuous pressure decrease requires a constant in-orbit loss term of about 15 mbar per year. The behavior is consistent with not only adsorption leading to saturation, but also absorption that produces a steadily decreasing pressure [29]. The results at INFN-Pisa showed better modeling of the trend using a stretched exponential as in the Equation (5). Such modeling is typically used in absorption processes in solids.

$$p\left(t;p_0,{\Delta }_p,\alpha ,\tau \right)=p_0-{\Delta }_p\left(1-exp\left[-{\left({\displaystyle \frac{t}{\tau }}\right)}^{\alpha }\right]\right)$$

(5)

To clarify the behavior in-orbit, we show Figure 10. The photoelectron track lengths produced by 5.89 keV photons from the on-board calibration source increase steadily with time. A corresponding steady increase in the modulation factor is observed. The length of the track is a good proxy for pressure. The modulation factor increases at all energies, as shown in Figure 8; however, the in-orbit consistency check is performed using the onboard calibration source. This behavior requires lowering the gas gain twice per year and updating the response matrices to reflect the revised quantum efficiency and modulation factor, ensuring an accurate interpretation of the results.

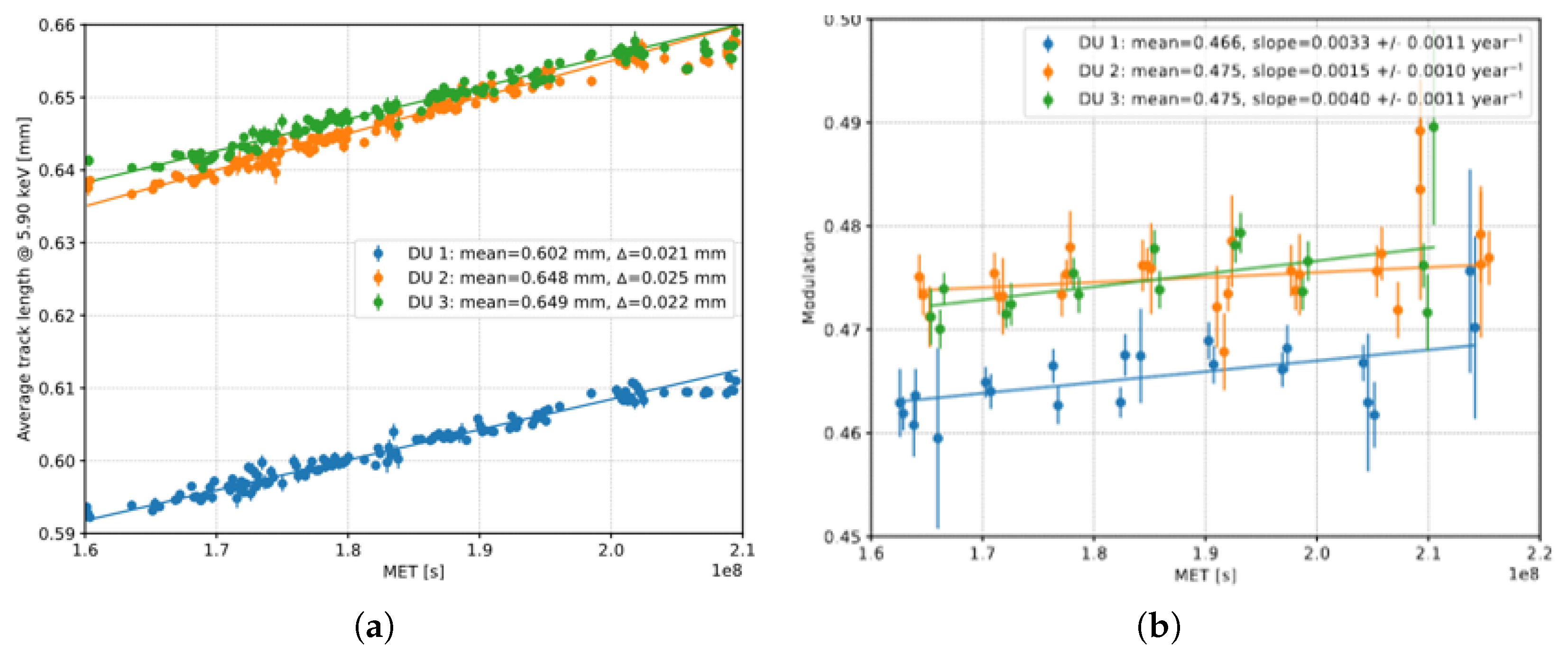

Figure 10. (a). Track length from the on-board calibration source as a function of Mission Elapsed Time (MET, in seconds) since launch on December 9, 2021 at 06:00 UTC. (b). Corresponding modulation factor as a function of time, measured on-orbit with the on-board calibration sources.

Figure 10. (a). Track length from the on-board calibration source as a function of Mission Elapsed Time (MET, in seconds) since launch on December 9, 2021 at 06:00 UTC. (b). Corresponding modulation factor as a function of time, measured on-orbit with the on-board calibration sources.

7. Comparative Inefficiency of Background Rejection

The background in proportional counters has been studied and characterized for many decades, across different configurations and orbits (for a review, see [30]). Minimum–ionizing particles (MIPs) deposit in gas about $2\mathrm{MeV}{\mathrm{cm}}^2{\mathrm{g}}^{-1}$, thus producing signals within the operating energy range of these detectors (in contrast to solid-state detectors with depletion layers of ∼ few hundred $\mu$m in silicon). Background suppression typically combines three standard techniques: low- and high-pulse height thresholds, front/back/side anticoincidence, and pulse-shape discrimination.

The effectiveness of the last two techniques strongly depends on the detector geometry. For example, the Charpak design [31] is well suited to pulse-shaped discrimination and to implement anticoincidence systems [32,33]. The complementary PCA-style design [34] is very effective for anticoincidence systems but less suitable for pulse-shape discrimination.

When the new photoelectric X-ray polarimeters were conceived [7,8,24,35], it was soon recognized that given the large number of counts required by polarimetry (and hence the typically bright celestial sources), the instrumental background would not be the limiting factor. The early proposals therefore benchmarked the expected residual background (i.e., after all rejection techniques) to that measured with the Wisconsin experiment on board OSO-8 [36], in particular its Neon–CO₂ section. In the GPD case, with true two-dimensional imaging of the photoelectron track, pulse-shape discrimination was not possible because the information about the time of arrival of each pixel was lost.

However, detailed pre-flight Geant4 simulations [37] were less encouraging: the estimated residual background for the GPD, in units of counts s⁻¹ cm⁻² keV⁻¹, was predicted to be ∼10–20 times higher than for the Wisconsin experiment. The origin of the unrejected component becomes clear on inspection: MIPs traversing nearly parallel to the sensitive plane distribute their ionization over many pixels; with the modest gas gain ($<200$) the self-trigger is not fired unless a keV-scale $\delta$-ray is produced, which is indistinguishable from a photoelectron of the same energy.

Table 2. Residual background levels in proportional counters and GPDs (all in counts s⁻¹ cm⁻² keV⁻¹).

Instrument/Gas	Energy band (keV)	Residual background
Wisconsin OSO-8 [36]/Ne–CO2	1.6–3.0	$1.5\times {10}^{-4}$
Wisconsin OSO-8 [36]/Ne–CO2	3.0–6.0	$1.0\times {10}^{-4}$
IXPE GPD/DME ([37], est†.)	2.0–8.0	$1.9\times {10}^{-3}$
IXPE GPD/DME ([38], meas.‡)	2.0–8.0	$6.7\times {10}^{-3}$

^† Includes a 75% background-rejection efficiency corresponding to an X-ray acceptance of ∼80%. ^‡ Converted from a measured surface brightness of 0.003 counts s⁻¹ arcmin⁻² (2–8 keV) to counts s⁻¹ cm⁻² keV⁻¹ using IXPE’s plate scale ≃ 51.6″ mm⁻¹ (4 m focal length), i.e., 1 arcmin² ≃ 1.352 × 10⁻² cm² on the focal plane, and dividing by the 6 keV bandpass; a 40% background-rejection factor is applied while keeping the X-ray acceptance ≳ 99% so as not to alter the response matrices.

Table 2. Residual background levels in proportional counters and GPDs (all in counts s⁻¹ cm⁻² keV⁻¹).

Instrument/Gas	Energy band (keV)	Residual background
Wisconsin OSO-8 [36]/Ne–CO2	1.6–3.0	$1.5\times {10}^{-4}$
Wisconsin OSO-8 [36]/Ne–CO2	3.0–6.0	$1.0\times {10}^{-4}$
IXPE GPD/DME ([37], est†.)	2.0–8.0	$1.9\times {10}^{-3}$
IXPE GPD/DME ([38], meas.‡)	2.0–8.0	$6.7\times {10}^{-3}$

^† Includes a 75% background-rejection efficiency corresponding to an X-ray acceptance of ∼80%. ^‡ Converted from a measured surface brightness of 0.003 counts s⁻¹ arcmin⁻² (2–8 keV) to counts s⁻¹ cm⁻² keV⁻¹ using IXPE’s plate scale ≃ 51.6″ mm⁻¹ (4 m focal length), i.e., 1 arcmin² ≃ 1.352 × 10⁻² cm² on the focal plane, and dividing by the 6 keV bandpass; a 40% background-rejection factor is applied while keeping the X-ray acceptance ≳ 99% so as not to alter the response matrices.

The discrepancy between the observed and simulated background is rather small, ultimately close to a factor of ∼ two, once the different background-rejection efficiencies (and corresponding X-ray acceptances) applied in orbit and assumed in the ground simulations are taken into account.

In particular, it is now clear why the GPD does not achieve the same residual background as multi-wire proportional counters: (i) the absence of an anticoincidence system; and (ii) the relatively low gas gain, which limits the effectiveness of background–X-ray discrimination based on track pixel multiplicity and morphology.

8. Dead-Time Fraction in IXPE ASICs and Techniques for Observing Bright Sources

The dead time per-event of the IXPE detector, as measured on the ground, is $\tau \simeq 1.1-1.2\mathrm{ms}$. For a non-paralyzable system, the dead-time fraction for each Detector Unit (DU) is given by Equation (6). Observing the Crab Nebula yields a total rate of about $R_{\mathrm{true}}^{\left(\mathrm{tot}\right)}\approx 240{\mathrm{s}}^{-1}$ across the three DUs [2], i.e., $R_{\mathrm{true}}^{\left(\mathrm{DU}\right)}\approx 240/3\approx 80{\mathrm{s}}^{-1}$ per DU (assuming a uniform distribution). Substituting into Equation (6) gives $f_{\mathrm{dead}}\approx 0.081$–$0.088$ (i.e., $\sim 8$–$9\%$ per DU).

$$f_{\mathrm{dead}}={\displaystyle \frac{\tau R_{\mathrm{true}}}{1+\tau R_{\mathrm{true}}}}.$$

(6)

Most of the dead-time budget arises from (i) the acquisition of the X-ray event and the subsequent on-the-fly pedestal acquisition in the same region of interest and (ii) an overhead related to the peculiar shape of the internal analog signal. An improved version of the ASIC is expected to have a dead time $\sim 5\times$ smaller [39], which would reduce the dead time fraction of crab per-DU to $\sim 1.7$–$1.9\%$.

Given the presence of persistent very bright X-ray sources (e.g., Sco X-1 [40]) and unanticipated transients [41] with rates $\sim 5$–$10\times$ the Crab, the resulting dead-time fraction without mitigation would increase to $\sim 30$–$50\%$ per DU for the current ASIC parameters. To keep the observed rate at a manageable level, FCWs [9] include an aluminized Kapton filter that attenuates the flux. This filter, used in the observations cited above, was accurately calibrated on the ground and its transmission is included in the appropriate response matrices for these observations [2].

For completeness, the forward (non-paralyzable) relation between true and observed rates is as follows:

$$R_{\mathrm{obs}}={\displaystyle \frac{R_{\mathrm{true}}}{1+\tau R_{\mathrm{true}}}},$$

(7)

which is the expression used to predict and control the recorded rate when applying flux attenuation by dead-time.

In fact, the indication for the operation of IXPE is to use the Kapton filter on the whole instrument when the observed source is brighter than twice the rate expected from the Crab Nebula.

9. Discussion

It is widely recognized that the Imaging X-ray Polarimetry Explorer (IXPE) has opened a new window in astrophysics: for the first time it has enabled the detemination of geometrical parameters in compact objects without the necessity of an image at resolution not yet achievable by current or near future X-ray optics, it mapped magnetic-field geometry and turbulence levels at particle-acceleration sites in extended sources, and constrained the emission mechanisms and their respective contributions to the observed polarization. Nevertheless, the instrument technology flown on IXPE entails several limitations:

• Narrow energy band. Although broader than Bragg polarimeters, IXPE’s passband remains limited compared with modern X-ray spectroscopy missions.
• No full 3D track reconstruction. Only the 2D projection of the photoelectron track in the detector plane is available. A true 3D reconstruction would help disentangle large-angle Rutherford scattering from apparent vertical evolution of the track.
• Large dead time. The Gas Pixel Detector (GPD) dead time necessitates the use of flux attenuators for bright sources, reducing sensitivity and complicating calibration.
• Secular pressure drop. Due to the slow decrease in gas pressure, the detection efficiency decreases by about $2.3\%{\mathrm{yr}}^{-1}$ (relative), while the modulation factor increases by $0.3\%{\mathrm{yr}}^{-1}$ (absolute) (measured at 5.9 keV by the calibration source).
• Background discrimination. Limited capability to reject minimum-ionizing particles (MIPs) can hamper background suppression in high particle-background environments.
• GEM charging. Despite the calibration source on board, ground calibrations, and associated modeling, residual (uncompensated) gain drops in the GEM can distort the spectral shape for sources as bright as $\sim 1–2\times {10}^{-8}\mathrm{erg}{\mathrm{cm}}^{-2}{\mathrm{s}}^{-1}$ unless corrected in the analysis.

These limitations were addressed through dedicated procedures and onboard subsystems, which successfully mitigated their impact on the analysis of celestial-source data. The narrow energy band, in particular, was alleviated by multi-satellite campaigns involving NICER, Chandra, XMM, Swift, and NuSTAR, together with a spectropolarimetric approach. Moreover, extensive use of the onboard calibration system—e.g., regular exposures with the built-in source—was instrumental in tracking and correcting gain drifts and modulation-factor variations.

The main limitations at spacecraft/mission level are:

• Earth occultation duty cycle. Because many targets lie in the Galactic plane, Earth occultation in a low-Earth orbit can remove roughly $50\%$ of the available observing time.
• Boom metrology. The use of an extension boom is not accompanied by an active metrology system to correct for thermoelastic expansion and flexure, which can degrade absolute imaging and polarization systematics.
• Limited on-board storage memory and S-band for data transmission. Limited storage (6 GB) prevents the observer from observing bright sources for a long time. The typical S-band download rate (2 Mbit/s) requires 7 days to transmit to the ground station (Malindi) 75 ks of net observation of Crab data (flux $\sim 2\times {10}^{-8}\mathrm{erg}{\mathrm{cm}}^{-2}{\mathrm{s}}^{-1}$).
• Slow response to Target of Opportunity IXPE Mission Operation Control and IXPE spacecraft was not designed for Swift-like follow-up. The SMEX character of IXPE limits a repointing to not less than 3 working days from the reception of a ToO request1.

10. Conclusions

IXPE has been a major success. Teams from NASA, BAE, ASI, INAF and INFN, with contributions from OHB Italia, were instrumental in resolving issues throughout the development and operational life of the satellite. Although selected as a SMEX, IXPE has served as a pathfinder mission; indeed, thanks in part to the strong Italian contribution, NASA suggested that the mission could be regarded as effectively MIDEX-class. In fact, some of us are thinking, already, about future developments based on a possible wide-band observatory and equipped with fast repointing capabilities (see Muleri et al. 2025 submitted as proceedings of this conference).

Martin C. Weisskopf, Paolo Soffitta, and the IXPE team were awarded the 2024 Bruno Rossi Prize of the American Astronomical Society. Enrico Costa, Ronaldo Bellazzini, and Martin C. Weisskopf received the 2025 Feltrinelli International Prize of the Accademia Nazionale dei Lincei (Italy).
