The 2024 Roadmap on Wireless and Microwave Metasurfaces

1. Introduction

Commonly, the electromagnetic properties of a microwave metamaterial are defined by its structure rather than by its chemical composition. Due to the nature of microwaves – electromagnetic radiation at frequencies between 300 MHz and 300 GHz – metamaterials are usually composed of a combination of conductive and dielectric materials, with subwavelength patterns defining how a wave interacts with it. A metamaterial which is very thin with respect to the operating wavelength is usually referred to as a metasurface. While the term “metamaterial” was first coined around the turn of the last millennium [1], antennas engineers have been designing engineered structures which would now be called metamaterials since at least the work of Ben Munk in the 1970s [2], and with the broadest definitions since artificial dielectric lenses were developed by Winston E. Kock at Bell Telephone Laboratories in the 1940s [3]. This historic link to telecommunications means similar techniques are used at lower frequencies, so this roadmap also includes metamaterials for other wireless applications.

It is currently a very exciting time for microwave and wireless metamaterials. While engineered structures such as frequency selective surfaces and high impedance surfaces have long been used for specialist applications such as radomes and low-profile antennas, particularly in the defence sector, we are now starting to see metamaterial products more widely available. This is largely driven by telecommunications, particularly steerable antennas for satellite communications. Meanwhile, since 2019 there has been an explosion of interest in metasurfaces from the wireless communications theory community due to the concept of Reconfigurable Intelligent Surfaces (RIS, also formerly called Large Intelligent Surfaces or Intelligent Reflecting Surfaces) – metasurfaces which can vary the reflected phase from many independently controlled elements, enabling some control of the wireless propagation channel. This transition from people working with metamaterials being electromagnetics scientists or engineers, to communications and systems engineers, presents new challenges in terms of knowledge exchange, technology translation and production scale-up.

As such, it is timely to bring together a roadmap giving an overview of microwave and wireless metamaterials research in the UK. This is part of a joint venture by the UK Metamaterials Network and the Institute of Physics to map the whole breadth of research covered by the umbrella term “metamaterials”. We seek to provide both a snapshot of current research, and begin to chart a way forward for researchers and policy makers to overcome the barriers to fully exploiting the opportunities of microwave metamaterials.

In this roadmap, we combine eight contributions from a mixture of universities, government agencies and industrial researchers across the UK. They broadly fit into three cross-cutting themes: i) Applications, discussing the sectors where we anticipate microwave metamaterials will have the most impact, in particular telecommunications, healthcare and defence; ii) Fundamental science, to capture emerging research which may have impact across many sectors; and iii) Practical concerns, which covers the issues faced as metamaterials move into mass production, including manufacturing, measurement and system-level integration.

By doing this we can begin to draw key themes about the current state of metamaterials research and the key challenges still to be solved. There are scientific challenges remaining, such as the fundamental bandwidth limitations of most metamaterials due to their resonant behaviour, though some non-resonant structures are now emerging. Similarly, metamaterial behaviour is still often heavily contingent on the incident angle of the electromagnetic wave to the material, limiting their usefulness in many applications. Reconfigurability is also often desirable, partly to overcome bandwidth limitations, but combining fast tuning with low losses is still an open challenge, particularly at higher frequencies. There are also practical challenges, such as the need for metamaterials to maintain performance across a product lifetime. This is particularly important in challenging environments such as healthcare, where biocompatibility is important, and defence. Similarly, sustainability and disposal should be considered at the end of the material’s life cycle. Metamaterial properties are also particularly sensitive to variations due to manufacturing tolerances, making reliable mass production difficult. The greatest challenges, though, are in integrating metamaterials into products and systems – both integration into processes for manufacture, assembly, maintenance and disposal of products; and, for reconfigurable metamaterials such as RIS, integration into control algorithms, security protocols, site licensing legalities and more. It is particularly important to remember that the control complexity of reconfigurable metamaterials scales with the number of independently controlled elements, and compute is often a limited resource.

In response to current challenges and research gaps, researchers are identifying possible future solutions extending beyond current state-of-the-art and pushing boundaries. Machine Learning and Artificial Intelligence are common themes across the contributions, potentially simplifying design procedures, proposing new structures to research, assessing robustness to manufacturing tolerances and providing real-time adaptability. Additive manufacturing is also frequently mentioned as a method for producing metamaterial structures, though care should be taken to understand the limits to scaling up such approaches. Integration of metamaterial fabrication into existing mass production methods, such as roll-to-roll processing, may be a more scalable approach. New kinds of constituent materials, such as flexible, transparent and biocompatible dielectrics and conductors, also offer opportunities for medical and conformal metamaterials. Finally, new metamaterial types and control mechanisms, such as nonlinear surfaces and mechanical reconfiguration, offer new solutions to underlying physical problems.

The following contributions explore these ideas in depth and provide a snapshot of a diverse and excellent research activities in microwave and wireless metamaterials for both specialists and people newly interested in the area within the UK and globally. We aim for this roadmap to act as a useful primer on the potential of metamaterials technology, and give direction to attempts at solving the remaining challenges.

2. Metasurfaces for 5G+ Wireless Communications

Status

Wireless connectivity is fundamental to modern society. For example, over 92% of internet access occurs via mobile devices. Mobile data traffic grows exponentially requiring wireless technologies to be smarter, more reliable and more intelligently engineered.

As the demand for better connectivity grows, fundamental limitations appear due to the inherent nature of wireless communication. Wireless environments are generally treated as an uncontrollable medium that can only be described statistically. Sophisticated processing methods are used to compensate for the uncertain variation in a signal during its transit between transmitter and receiver. This processing requires complex hardware, adding cost and latency and consuming power. Higher frequency transmission supports higher data rates but leads to greater attenuation and shadowing. This reduces the coverage area of a transmitter and increases the energy demand of network infrastructure.

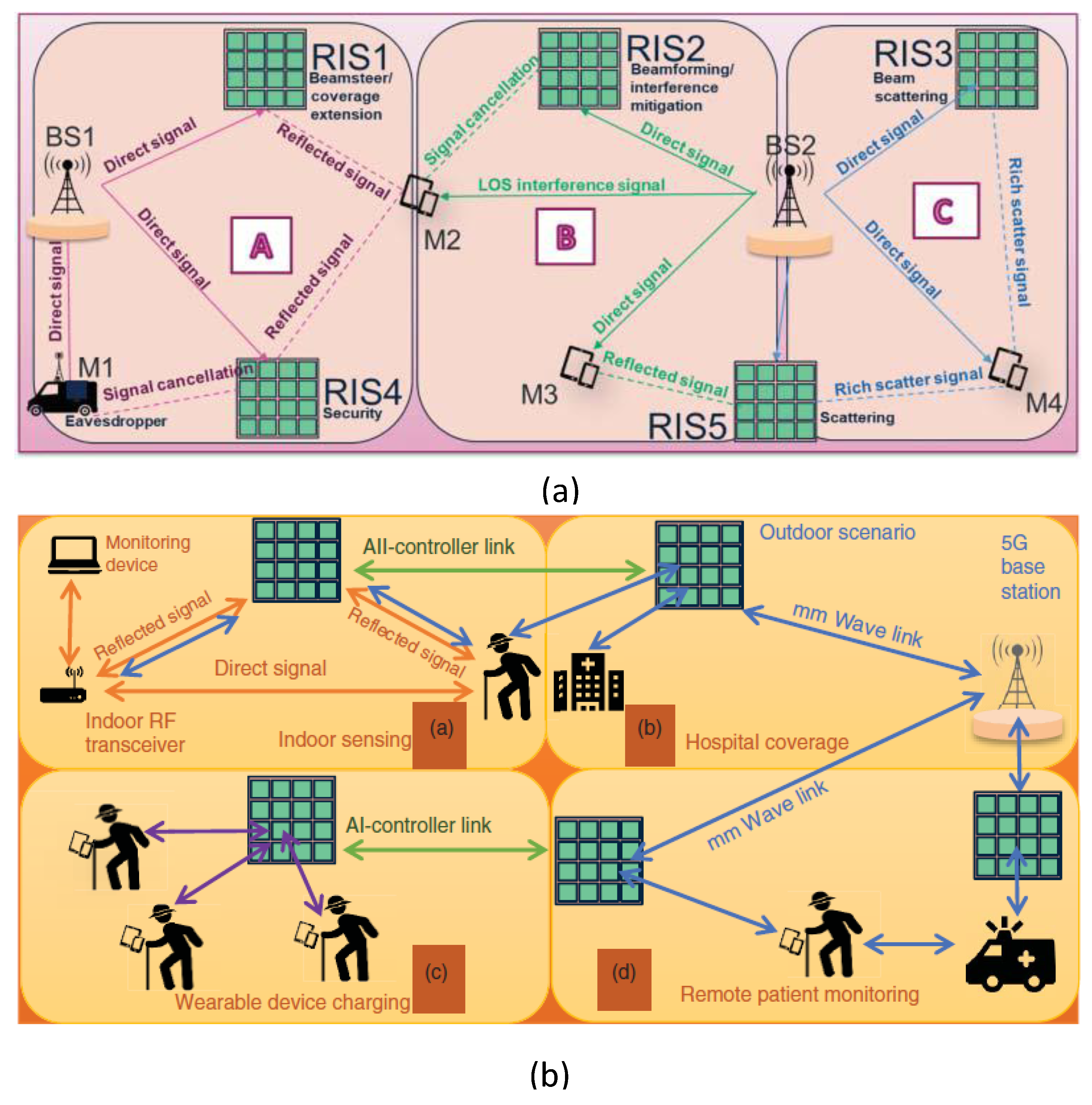

Microwave metamaterials, specifically programmable metasurfaces, can provide an innovative and energy-efficient solution to these emerging challenges. The idea is to “programme the wireless environment” through the use of reconfigurable intelligent surfaces (RIS), capable of redirecting a wireless signal, allowing it to travel around obstacles within the environment and refocus the faint signals gathered over a large surface precisely towards the target mobile device – significantly enhancing the signal strength in the process. A RIS comprises a number of repeating elements called unit cells or meta-atoms, each capable of steering and shaping the reflected or transmitted electromagnetic waves. A large number of these unit cells placed together within a surface allows RF beam steering, polarisation control and signal amplification to be achieved without the requirement of complex signal processing hardware – enabling operation with a close to zero power usage. Numerous RIS-enabled use cases have been identified ranging from those providing not-spot coverage in urban or rural areas through to RIS-assisted physical layer security.

The development of RF and microwave metasurface technology has great potential for the current 5G wireless communications network and beyond. To date, wireless systems have been operated under the assumption that a wireless channel is intrinsically unpredictable. With the introduction of programmable metasurfaces, this long-standing view can be challenged, revolutionising the way future generations of wireless communications networks are designed and implemented. The hope is that reconfigurable metasurfaces will provide greater coverage, connectivity and spectral efficiency across the wireless network, particularly within urban and rural areas, whilst operating at a fraction of the energy consumption of current 5G wireless technologies.

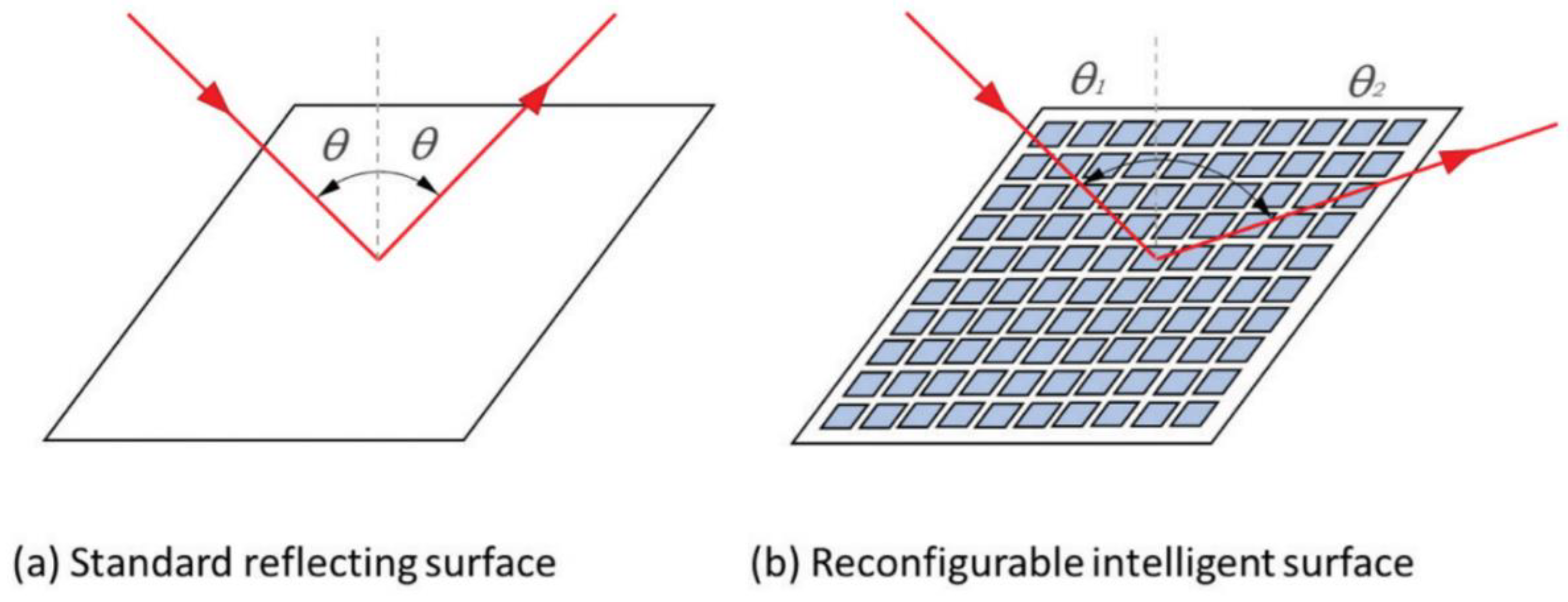

Figure 1. Basic operation of a reconfigurable intelligent surface.

Figure 1. Basic operation of a reconfigurable intelligent surface.

Current and Future Challenges

An RF metasurface can have a wired RF feed and act as a transmitter. If it has a wireless RF feed it can be RF passive or include RF amplification. It can operate in both reflection and transmission with paths having different RF feeds. The term RIS most commonly applies to an RF-passive surface operating in reflection. RIS face several fundamental technical challenges before they can be adopted for widespread use to shape the external electromagnetic environment:

• A RIS needs a large aperture to capture an incident RF beam and reduce diffraction at the edges. Unit cells need to be less than one wavelength, so a large RIS can consist of thousands of unit cells. Beamsteering will be needed to track multiple end-users, so rapid reconfiguration is needed to direct and maintain signal strength to each user. The computational complexity grows exponentially with the number of RIS unit cells, so latency degrades beamforming and beamsteering as the number and mobility of end users increases.
• The basic RIS excludes sensing, so additional functionality is needed to localise users and estimate the channel state information, which adds further computational latency.
• When a mobile operator uses licensed spectrum, it is a licence condition to avoid interference in the adjacent frequency bands licensed to other operators. Out-of-band interference must be avoided in any multi-operator deployments.
• An RF-passive RIS only redirects existing RF signal strength, it does not generate or amplify the signal and does not use amplifiers. It is designed to capture as much of the incident RF signal as possible and direct this to the estimated location of end-users. The RIS will necessarily shadow any users that are located behind it, since it is designed to be opaque and as reflective as possible. In addition, any users that are not in the estimated locations to which RF beams are steered will necessarily receive significantly reduced signal.
• A RIS can be considered as a form of two-dimensional grating or as a diffraction pattern. As such, there will be a reflected main beam and also spurious reflected side lobes that will need to be minimised using a greater number of unit cells and more complex configurations.
• Integrating a RIS within a network as a new network component will need unique authentication, security, control data links and power supply.

Advances in Science and Technology to Meet Challenges

These challenges can all be addressed with a variety of promising technical advances:

• If a RIS is to be used in a multi-operator location, out-of-band interference can be avoided by designing the unit cell resonant response to be narrowly confined within the licensed spectrum. Careful iteration of the metallisation pattern, diode placement, substrate layers and cell crosstalk is a time-consuming activity requiring EM Solver software and considerable patience.
• A RIS is certainly a low power device compared to a conventional 5G antenna array. Nevertheless, the PIN diodes or varactor used in the unit cell design need switching voltages to be controlled and then maintained, which consumes power. The RIS controller can itself also consume significant power so FPGA solutions are required to minimise power consumption.
• As an alternative or addition to purely electronic phase control using diodes in the unit cell, a RIS can use actuators to physically morph its shape, at both the unit cell level and also across the whole RIS. This can augment the range of electronic phase control, reduce the power consumption when the RIS is in a fixed configuration and also enable a conformal surface.
• Numerous physical mechanisms can be used to switch the phase response of a RIS. A RIS does not necessarily need to use diode-based electronic control. Electrically controlled surfaces can be switched very fast but tend to be lossy. Mechanically controlled surfaces tend to be slow to reconfigure. Optically controlled surfaces offer the potential to switch rapidly with low loss and so could be good solutions where high-speed user tracking is required.
• A holographic antenna can be produced by placing surface wave launchers on to a surface with an imposed diffraction pattern, thereby producing a directed leaky-wave antenna. This is effectively the RF-active counterpart of an RF-passive RIS, since both are based on a reconfigurable surface and produce steerable RF beams, either directly or indirectly. Passive and active metasurfaces can be used together to localise users and shape the local EM environment.
• Integrate Sensing and Communications (ISAC) is a well-established radar technique that can be adapted to RIS to permit user localisation and channel state estimation necessary for accurate and high quality RF beamforming and steering. Ideally both communications and sensing will occur in the same licensed frequency band but different frequency bands can also be used for a simpler implementation.

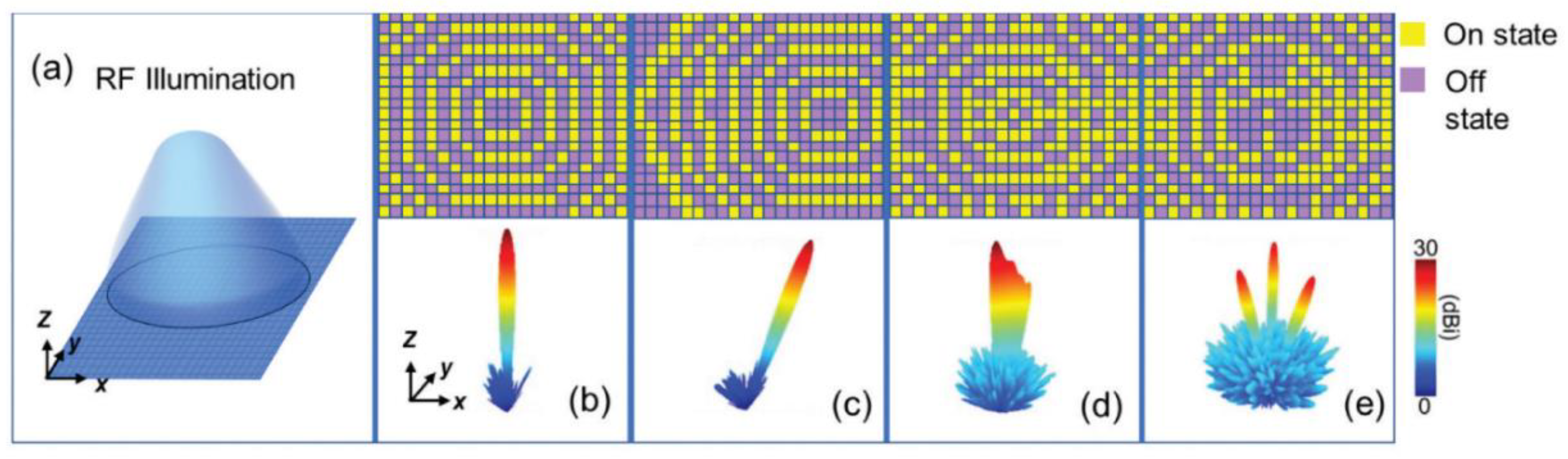

Figure 2. Demonstration of unit cell state configurations and the resulting beam steering pattern.

Figure 2. Demonstration of unit cell state configurations and the resulting beam steering pattern.

Concluding Remarks

Programmable RF metasurfaces, are now commonly called Reconfigurable Intelligent Surfaces (RIS) A RIS is RF-passive and a holographic antenna is the RF-active counterpart. Programmable RF metasurfaces offer the ability to optimise the physical layer of mobile communications beyond 5G. A dominant physical layer challenge that current wireless networks face is the uncontrolled natural environment which dictates the reflection and scattering of radio waves. The physical world is dynamic and complex so the wireless channel between transmitter and receiver distorts a signal in non-trivial ways. Historically, mitigating hostile channel conditions can only be performed at the transmitter-side and receiver-side. With the advent of metasurfaces, wireless sensing and a new generation of artificial intelligence (AI), future mobile telecom networks have the potential to provide greater data throughput, improved coverage and improved energy efficiency.

4. Designing for Manufacture

Status

Many of us discovered that the concepts of our imagination were challenging to implement in reality when we first picked up a colour pencil. For a while this disappointment could be mitigated by the pure joy of casting colour across a page (experimentation), but the endeavour must, inevitably, be perfected and realised (delivered) or discarded. In the context of metamaterial design we have encountered that same problem. The level of impact can vary significantly, but commonly a metamaterial carefully designed and modelled for a specific performance fails to deliver those criteria when manufactured and measured. Currently, therefore, this material is published as proof of principle, but in order to progress beyond this stage to genuine application we must understand why these challenges occur in transition from design to manufacture in order to overcome them.

The finite tolerances of manufacturing techniques in real world scenarios are a frequent culprit for inconsistent performance between model and measurement [1, 2]. Resonant metasurfaces that generate novel properties through the confinement of fields into small areas are inevitably susceptible to minute changes in the dimensions of those features. Deviation can also result from the material properties being inconsistent as was found by Z. Shen et al. [3], who designed a novel water-based negative refractive index metasurface that could be 3D printed. However, when manufactured at least one resonance mode disappeared because the changing properties of the water with temperature could not be controlled for in the model. M. Guo et al. [4] also found that slight variations in the refractive index of the constituent material of a 3D-printed metasurface absorber resulted in a change in its absorption of 6 decibels, which is a factor of 4 drop in absorbed power between prediction and measurement.

High sensitivity to small variations exacerbates the challenge of deriving the underlying physics of a metamaterial’s design, hindering our further understanding of complex interactions [5]. In cases where the material is designed to be tuneable it is necessary to separate the uncertainty inherent in the manufacture from the material’s actively changing properties to discern and evaluate the effect of the tuning. None of these are unique problems for wireless metamaterials, or even metamaterials in general, but the class’s high reliance on periodicity and non-linear effects, along with their relatively small feature size, makes them highly vulnerable to these issues.

In application sectors where assured performance is critical (such as aerospace, defence, emergency services etc.) any new material’s adoption will be predicated on being able to perform consistently from modelling to manufacture and under stress throughout its operational lifetime, hence the interest in incorporating robustness into the design process. For example Tongtong et al. [6] have demonstrated how using connected super units rather than the traditional single unit cell can greatly improve their material’s tolerance. By using a super unit of 16 interconnected unit cells, they can counteract the tolerance of their 3D printing technique, which is visibly curved and irregular compared with the modelled design but has very good agreement in performance.

Current and future challenges

Designing for scale

In order for metamaterial feature sizes to be subwavelength they are on the scale of ~λ/5 to λ/10. For wireless metamaterials this scale presents specific challenges of vulnerability to breakages, cost, specificity of equipment required for manufacture, and extended fabrication time. All these challenges are further exacerbated by manufacturing scale up.

Extraordinary optical transmission (EOT) array metasurfaces are made from a grid of holes in a thin plasmonic metal film, with transmission peak positions dependent on the hole spacing/pitch [7]. EOT’s can be fabricated directly via laser ablation, with the total time to make arrays covering the same area increasing as the hole size and spacing is scaled down. An example [8] that helps to quantify some of the effects of scaling on fabrication time shows 2×2 mm area arrays taking 3, 10 and 19 minutes to pattern 6.6, 4 and 2 µm pitch arrays respectively. Similar issues are encountered when using e-beam lithography to write patterns in electro-beam resist masks on device surfaces for either lift-off or wet-etching, when feature sizes are reduced the beam intensity must also be reduced to achieve sufficient resolution, another factor which currently increases write time.

For both large scale manufacture of metamaterials and bespoke creation of them in rapidly changing scenarios, a metamaterial needs to be accommodating to scale-up techniques in its design. Going back to the example of EOT arrays, it may be possible to save time when making multiple examples of the same device by first writing a large-scale mask using a slow process, which can then be used to pattern multiple holes at once (for example) via UV-curing a photo resist mask for lift-off or wet-etching, but these steps bring additional tolerances and complications that must be accounted for. Scaling up becomes even more challenging in the 3D space, with new technologies in that field bringing their own challenges.

Designing for additive manufacture (AM)

Additive manufacture is an umbrella term for a range of 3D printing techniques and is a key technology for the rapid prototyping of metamaterial designs, allowing for both in house fabrication and access to designs that would otherwise be prohibitively expensive to outsource. It creates options for exploiting difficult materials, or niche materials with limited commercial exploitation. An aspirational exploitation route for AM is for operational deployment for on-site and in situ rapid repair and response, especially applicable for remote operating scenarios such as space.

AM is not, however, a universal solution. For a metamaterial to be suitable for AM it must be composed of materials that are compatible with the chosen manufacturing method, must have features of appropriate size for the materials and method, and must have performance that is robust within the dimensional tolerances of the manufacturing method and available hardware. For the most commonly used fabrication systems these tolerances can be around ~0.3% with a minimum tolerance of ±0.1 mm [9]. Even if the tolerances could hypothetically be eliminated 3D printing can also induce anisotropy into the design based on the raster direction of the layer deposition which may perturb performance if not accounted for.

AM technology is constantly improving and developing, but a metamaterial is unlikely to see wide adoption when it requires the mass deployment of cutting edge and expensive manufacturing tools; better, then, if the design and fabrication philosophies of metamaterials adjust in step with manufacturing advances to accelerate the adoption of metamaterial enabled products in the market.

Advances in science and technology to meet the challenges

One of the most compelling advances in metamaterial design is that of machine learning [10]. Despite having significant potential to reduce design time and simplify optimisation, it has shortcomings that are yet to be fully explored and in a research context brings the challenge of requiring expertise in both computer programming and the scientific disciplines being addressed simultaneously. Challenges aside, it is conceivable that a tool could be created that assesses a design’s robustness to a given tolerance, or appropriateness for a manufacturing technique, with only a small amount of input data.

Advances in manufacturing techniques (additive and conventional), including availability of a wider range of source materials for printing, advances in automation making rapid scale-up simpler and improvements to design tools for fabrication technology will all underpin future improvements for metamaterials and their exploitation. However, adopting design techniques and philosophies that allows the materials of tomorrow to be manufactured on the hardware of today will enhance the future impact of both near-term and far-future metamaterials without anchoring exploitation to an as yet unrealised technological advance.

Concluding remarks

In conclusion, the field of metamaterials is over two decades old and has established a diverse and vibrant application space including novel optics, reconfigurable antennas, energy harvesting and exquisite sensing. If the extraordinary potential of this remarkable class of materials is going to continue to have the impact that the initial laboratory results have promised, a paradigm shift is required where metamaterials researchers consider, and design for, the challenges of manufacturing a material at scale reliably and repeatably thus making accommodations for how their modelled geometries might actually achieve functionality when deployed in a real world setting. No matter the properties that future metamaterials could achieve, it is essential that the ongoing technology “push” is tempered with the end user and stakeholder requirements “pull” towards a mutually beneficial outcome.

5. THz Metamaterials for Beam Manipulation in Wireless Systems and Devices

Status

TeraHertz (THz), the frequency window sandwiched between microwaves and infrared, is attracting a lot of interest driven by the promise of unprecented wireless capacity, high sensitivity to water, intermolecular bonds/motions, and carrier dyanamics in semiconductors, and hyperspectral imaging with millimetre resolution even through many optically opaque materials [1]. All these features are well-suited for communication and sensing applications. In fact, the THz band unleashes joint communication and sensing opportunies that are being articulated in the definition of 6G [2]: benefited by the Tbps data rates promised by THz frequencies, 6G is expected to support high-definition holography and enable ultra-high-capacity wireless backhaul; meanwhile, benefited by THz’s fingerprinting potential and spatial reoslution, 6G is expected to support unprecedented resolution radar and localisation, air quality monitoring, and nano-bio-sensing for transformative healthcare applications.

Metamaterials and their two-dimensional (2D) equivalent metasurfaces are and will play an important role in this context [3] as the manipulation of THz electromagnetic fields is not trivial due to two reasons: (i) the range of accessible material properties is rather limited at THz frequencies [4]; we have basically dielectrics (with moderate values of permittivity, except for few inorganic crystals, and in most cases lossy) and metals; there are no natural low-loss magnetics, not to speak about more exotic and interesting media such as chiral ones that an engineer would need in designing high-performance devices; (ii) THz beam diameters are only moderately large when measured in wavelengths and optical components for beam manipulation (e.g., lenses, mirrors, etc.) have also sizes comparable to the wavelength where diffraction phenomena is relevant [5].

Within the metamaterials paradigm, it becomes possible to widen the material design opportunities. By tailoring the unit cell properties and optimising their arrangements, metamaterials/metasurfaces have produced, among other scarce material properties, chirality and negative refractive index at THz frequencies [6]. The accesibility to a wider material properties has enabled different functionalities with high performance such as filtering with low transmission out of band over several decades [7], negative group delay [8], absorption [9], wave front engineering [10,11], high surface wave confinement [12], anomalouos reflection [13], carpet cloaking [14], and holography [15,16]. In turn, all these functionalities have resulted into improved devices such as detectors [17,18], including a commercial camera by Hamamatsu Photonics, functional emitters [19], modulators with GHz range of reconfiguration speed [20], including spatial THz modulators [21], planar antennas [22], and biosensors [23].

Current and future challenges

In the context of wireless systems and devices, the most pressing challenge facing THz metamaterials, and thus, reflective intelligent surfaces, is still high performance reconfigurability. Over the last decade or so, several tuning mechanisms for reconfigurability have been investigated, including microelectromechanical systems, thermal, microfluidic, liquid crystals, phase change materials and 2D materials [24,25] and significant milestones have been achieved [11,16,20,21], but either tuning speed is slow or the metamaterial has a limited number of units cells or display hysteresis – rendering the metamaterial impractical for applications beyond the lab –, or the power consumption is too large or the performance deteriorates rapidly with tuning.

Other challenges that needs to be addressed sooner rather than later are related to fabrication and accurate modelling. The multiscale manufacturing needs of THz metamaterials falls through the craks of standard microwaves and optical technology manufacturing techniques: the μm topological features of THz metamaterials demands optical technology manufacturing, but the required device size in the range of cm is ill-advised for them. Meanwhile, the fabrication volume/footprint is within reach for microwaves technology manufacturing, but not their accuracy requirements. Hence, THz metamaterials urges very advanced and expensive fabrication techniques with relative low manufacturing yield and not suitable for mass production that prevent the wide spread of THz metamaterials technology. The solution to this problem has been to use metasurfaces that can be fabricated with the more accessible optical photolithography or even laser machining. However, this is done at the expense of limiting functionalities. If there were a cost-effective fabrication technique that allowed 2.5D metamaterials, let alone 3D metamaterials, the number of functionalities that could be encoded in a single metamaterial would explode as demonstrated at microwaves [26]. The modelling challenge is related to three aspects: (i) the inherent multiscale characteristic of THz metamaterials/metasurfaces [27], (ii) the relevance of diffraction due to being in quasi-optic territory [5], and (iii) the increasing importance of surface roughness [28].

A future challenge that can be easily envisioned at this stage is related to integration. With few exceptions, THz metamaterials/metasurfaces are designed, tested and modelled as isolated elements. In integrated solutions, loading effects between nearby components will emerge and will have to be studied not only from the electromagnetic, but also from the electronic, thermal, and electromechanical point of view. The multiphysics analysis is largely unchartered territory for THz metamaterials.

Advances in science and technology meet challenges

To takle the fabrication challenge that, to some extend, affects the reconfigurability challenge, one should steer the attention to the fast-growing additive manufacturing. Micro laser sintering has demonstrated high performance for classical all-metallic devices operating up to 0.2 THz [29] and should be a viable solution for 2.5D/3D THz metamaterials if accuracy is pushed down to a single digit of µm and surface finish is improved. Two-photon polymerisation direct laser writing meet the stringent dimensional accuracy and surface finish requirements for 2.5D/3D THz metamaterials and has been succesfully used with a THz low-loss photoresin [30]. However, the process requires a sintering stage that cause a reduction in volume of the printed structure of ∼45% that is not necesarely isotropic for complex geometries. Hence, there is a need to either understand and control precisely the shrinkage due to the sintering stege, or remove the sintering stage completely by finding a new THz low loss photoresin that does not require it. Another advancement that would be a step change for both micro laser sintering and two-photon polymerasation direct laser writing would be the possiblity to produce metallo-dielectric metamaterials without extra fabrication steps or at least to have an accurate and seamlessly two-step process.

Advances in THz near-field characterisation is an avenue to meet the integration challenge [31,32]. The possiblity to inspect the near-field of fabricated THz metamaterials not only would provide key information about the fabrication, but also about potential near-field effects that could be embedded in the design optimisation of the integrated solutions. The prototyping of integrated solutions, meawhile, could be greatly benefited using multiphysics topological optimisation/machine learning [33] that are well-suited for scenarios with complex nonlinear interactions as those emerging in integrated solutions.

Concluding remarks

THz metamaterials hold promise for beam manipulation in wireless systems and devices, but there are a number of challenges for them to thrive and become the technology of choice. These challenges are in most cases interwined and involve a collective effort from material and microfabrication scientists, microscopists, physicists, electrical and electronic engineers, computer scientists and eventually system engineers.

6. Metasurfaces for Radar Cross Section Reduction

Status

Radar systems find numerous applications in both civil and military fields and reducing the Radar-Cross-Section (RCS) of objects is an important issue. For example, air or maritime navigation surveillance radar can be disrupted by the presence of tall structures in their surveillance zone (typically wind turbines where the movement of the blades creates a Doppler shift). The effectiveness of driving assistance radar can be compromised by the presence of objects with high RCS in their field of vision. Very recently, satellites (civilian or military) can now be subject to unfriendly activities (anti-satellite fire for instance) made possible using radar for detection and localization. As radar capabilities advance, so must stealth technologies evolve to maintain their effectiveness. Metasurfaces, with their ability to manipulate electromagnetic waves at a subwavelength scale, have emerged as a groundbreaking technology in the realm of enhanced stealth applications and RCS reduction for both civil and military applications [1]. The history of metasurfaces dates back to the early 21st century when researchers began exploring the possibilities of artificially engineered materials to control the propagation of electromagnetic waves [2]. Over the years, metasurfaces have evolved from passive structures to actively tunable devices, enabling unprecedented control over the scattering and absorption of electromagnetic radiation [3]. In the context of stealth technology, metasurfaces play a pivotal role in mitigating the detectability of objects by radar systems, thereby enhancing their stealth capabilities, see Fig. 1(a). The importance of this field persists due to the continuous advancements in radar and sensing technologies, driving the need for more sophisticated and adaptable stealth solutions [4,5].

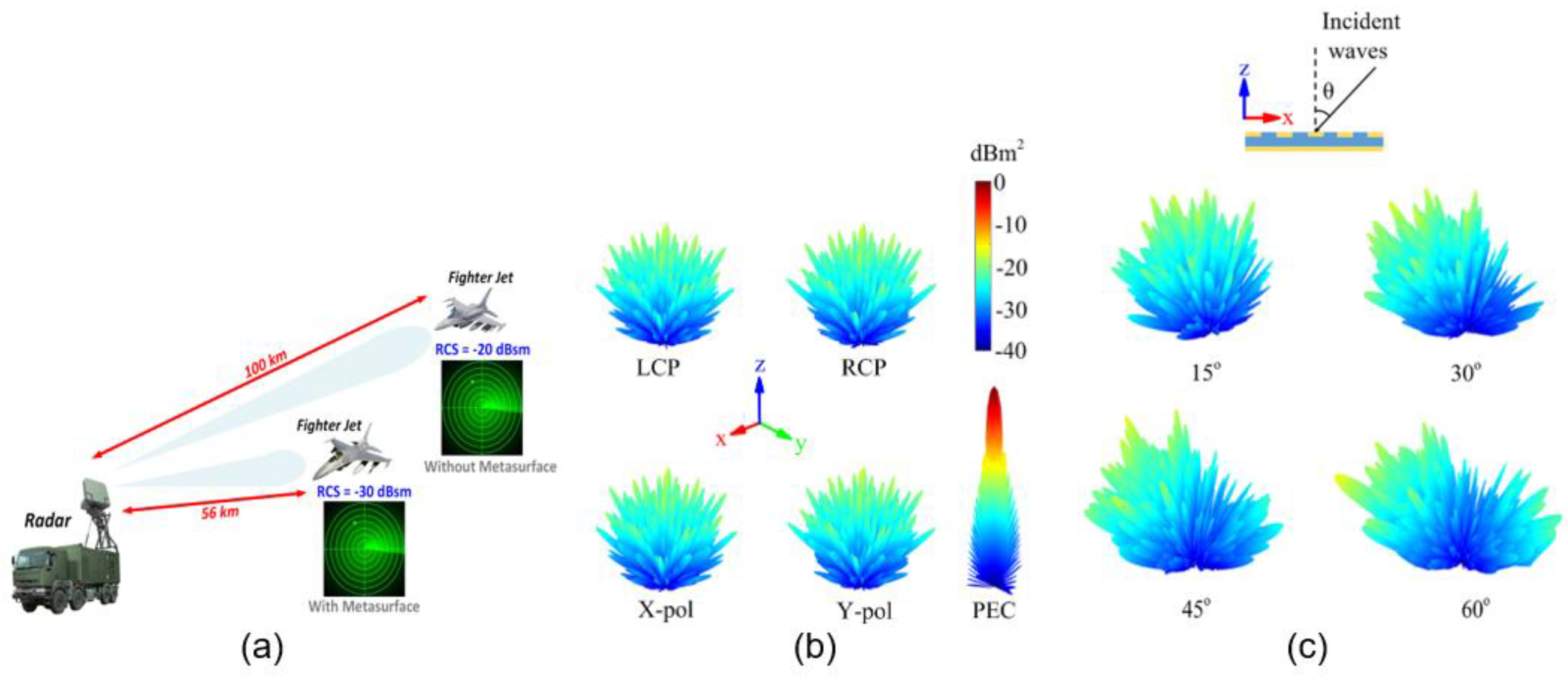

Figure 1. (a) Impact of metasurface application on radar RCS of a Fighter Jet. The application of a metasurface results in a 10 dB reduction in RCS, leading to a significant 40% decrease in radar detection range. (b) Diffuse scattering under normal incidence using metasurface [4]. (c) Metasurface RCS reduction characteristics under oblique incidence up to 60^o [4].

Figure 1. (a) Impact of metasurface application on radar RCS of a Fighter Jet. The application of a metasurface results in a 10 dB reduction in RCS, leading to a significant 40% decrease in radar detection range. (b) Diffuse scattering under normal incidence using metasurface [4]. (c) Metasurface RCS reduction characteristics under oblique incidence up to 60^o [4].

The ongoing research aims to develop metasurfaces that can dynamically adapt to different radar frequencies and polarizations, providing a versatile and responsive approach to stealth. Moreover, the integration of artificial intelligence and machine learning techniques into metasurface design is anticipated to yield self-optimizing structures capable of real-time adaptation to evolving threat scenarios. As metasurface research progresses, it is expected to unlock new dimensions in RCS control, allowing for not only reduced visibility but also controlled redirection of incident radar waves, see Fig. 1(b)-(c). This will be particularly valuable in military and civilian applications where precise control over RCS is crucial. In conclusion, the history of metasurfaces reflects a journey from conceptualization to practical implementation, and their ongoing significance lies in their potential to revolutionize stealth capabilities through dynamic RCS modification. The pursuit of further advances in this field is imperative for staying at the forefront of modern technologies and ensuring the continued effectiveness of stealth applications in an ever-evolving threat landscape.

Current and Future Challenges

Despite the promising advancements in metasurface technology for enhanced stealth applications and RCS modification, several challenges persist in the current research landscape, while new ones loom on the horizon. A significant obstacle in achieving broadband functionality lies in addressing wide-angle of incidence, specifically oblique incidence. Existing metasurfaces typically perform optimally under narrow angles of incidence [6]. Overcoming this limitation necessitates the development of metasurface unit cells capable of dynamically adapting their electromagnetic (EM) characteristics to cover a broad range of incidence angles. This challenge calls for innovative and sophisticated design approaches for the unit cells that constitute the metasurface. Novel and more efficient 2D destructive phase distributions, other than chessboard or random coding, that helps the unit cells to ensure angularly stable 10 dB of RCS reduction is also in need. Another pressing issue is the scalability of metasurface fabrication techniques. While laboratory-scale metasurface prototypes showcase remarkable capabilities, transitioning these technologies to practical (real-world), large-scale applications pose significant manufacturing challenges. The integration of metasurfaces into existing structures and materials also presents hurdles, requiring a balance between performance and compatibility. Another pressing issue is, to date, almost all metasurfaces in the literature were designed and fabricated using stiff dielectric materials, which makes the integration of the metasurfaces on real-world objects impossible in some cases such as NASA almond structures. Thus, more material research should be conducted to produce a flexible and easy to bend (and perhaps transparent). Additionally, the susceptibility of metasurfaces to environmental factors, such as temperature variations and moisture, poses reliability concerns in real-world applications, necessitating robust and durable design solutions. Looking ahead, the incorporation of metasurfaces into complex three-dimensional structures, such as aircraft and vehicles, demands extensive research to address the associated engineering and integration challenges. Additionally, metasurfaces for RCS reduction should be low profile and lightweight, especially for applications in aerospace and defense. Achieving effective RCS reduction while minimizing the impact on the overall system weight and size is a critical design consideration. Furthermore, understanding the long-term effects of metasurface deployment on the overall performance and structural integrity of these platforms is crucial for ensuring sustained effectiveness. As metasurface technology advances, ethical and regulatory considerations related to its application in military and civilian domains become increasingly pertinent. Striking a balance between innovation and responsible deployment will require collaborative efforts between researchers, policymakers, and industry stakeholders. In summary, while metasurfaces hold immense potential for revolutionizing stealth capabilities, addressing current challenges and anticipating future hurdles is essential to unlocking their full spectrum of applications in the realms of enhanced stealth and RCS modification.

Advances in Science and Technology to Meet Challenges

In the pursuit of developing metasurfaces for RCS reduction, groundbreaking advances in science and technology are paramount to address the multifaceted challenges inherent in achieving optimal RCS reduction performance. One key area of advancement lies in the evolution of science and technology to fabricate flexible materials, see Fig. 2. Conventional dielectric materials, often rigid and inflexible, pose inherent limitations in adapting to different shapes and structures required for optimal RCS reduction. The demand for metasurfaces with conformal and flexible properties has spurred significant advancements in material science and fabrication techniques. Novel materials, such as flexible polymers and elastomers, have emerged as promising candidates to replace rigid dielectric substrates. These materials offer the advantage of flexibility, allowing metasurfaces to conform to curved surfaces or irregular shapes, a critical requirement for stealth applications on diverse platforms. Advances in the synthesis of flexible materials involve tailoring their electromagnetic properties to ensure compatibility with radar frequencies of interest [7]. This includes engineering the dielectric constants, loss tangents, and other material parameters to achieve optimal absorption, reflection, or scattering characteristics for radar waves. Furthermore, the fabrication techniques for these flexible materials have undergone significant enhancements. Roll-to-roll manufacturing processes [8], for instance, enable the continuous production of flexible metasurface films over large areas, making them scalable for widespread applications. Additive manufacturing, including techniques such as 3D printing [9,10], allows for the creation of intricate and customized metasurface designs with precision, facilitating the realization of complex shapes that conform to the contours of the platforms they intend to conceal.

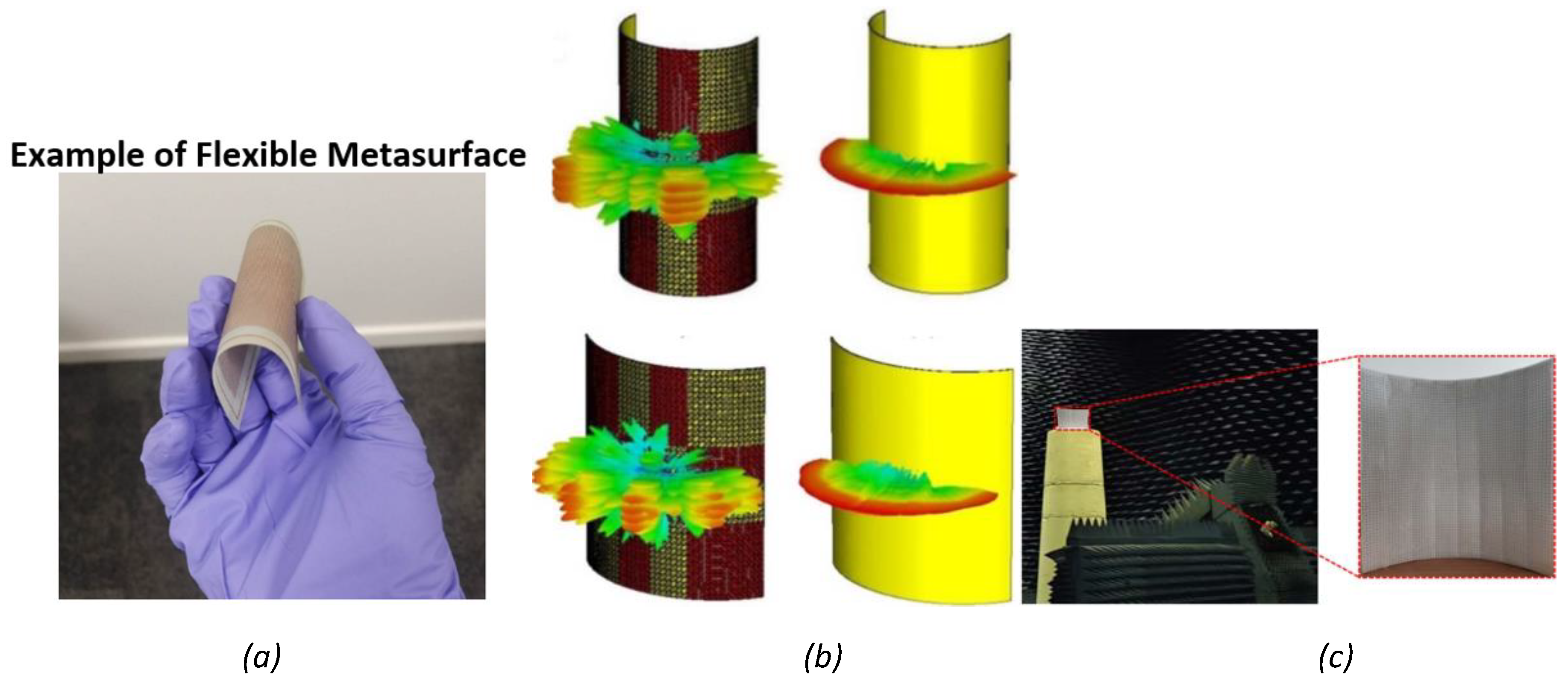

Figure 2. (a) Example of recently fabricated metasurface at Loughborough University using flexible materials. (b) RCS versus frequency curves of NASA Almond 3D geometry with/without metasurface [9]. (c) Conformal metasurfaces for RCS reduction [10].

Figure 2. (a) Example of recently fabricated metasurface at Loughborough University using flexible materials. (b) RCS versus frequency curves of NASA Almond 3D geometry with/without metasurface [9]. (c) Conformal metasurfaces for RCS reduction [10].

To address the challenges associated with wide-angle of incidence RCS reduction, researchers are leveraging computational methods and artificial intelligence (AI) algorithms to design the metasurfaces’ unit cells. Advanced simulations, utilizing high-performance computing, enable the optimization of metasurface designs for specific wide-angle of incidence. Machine learning algorithms are employed to analyze vast datasets, identifying optimal configurations of the unit cell and unit cell distribution that yield the highest stealth performance under widest angle of incidence. This integration of AI into the design process accelerates the development of metasurfaces with enhanced stealth capabilities. Furthermore, advancements in nanotechnology play a pivotal role in achieving finer control over the structure and properties of metasurfaces. Nanoscale fabrication techniques, such as electron beam lithography and focused ion beam milling, allow for the precise manufacturing of subwavelength structures on metasurfaces. These techniques enable the creation of metasurfaces with unique geometries and functionalities, contributing to improved stealth performance.

Concluding Remarks

In conclusion, the exploration of metasurfaces for radar cross-section reduction represents a dynamic frontier in stealth technology, poised to reshape the landscape of modern military and civilian applications. The historical progression from conceptualization to active implementation underscores the evolving nature of metasurface research. The enduring significance of this field lies in its potential to revolutionize stealth capabilities through dynamic radar cross-section modification. Despite current challenges, the pursuit of flexible materials, advancements in artificial intelligence, and breakthroughs in nanotechnology hold the promise of overcoming existing limitations. As we advance, collaborative efforts across disciplines, thoughtful ethical considerations, and proactive engagement with regulatory frameworks will be pivotal to ensuring the responsible deployment of metasurface technology. With ongoing research and technological innovation, metasurfaces stand as a cornerstone in the perpetual quest for staying ahead in the technological race between stealth technologies and radar systems, ensuring our ability to navigate an ever-evolving threat landscape with enhanced stealth and precision.

7. Wireless and Microwave Metasurfaces in Bioelectronics

Status

Wireless technologies are essential for bioelectronic devices used in diagnostics and therapy, ranging from early pacemakers [1] to modern implants like cochlear [2] and retinal devices [3], health monitors, ingestible cameras [4], and spinal cord stimulators [5]. Historically, these devices have depended on batteries for power and reliability over their operational lifespan. However, challenges persist with batteries [6], including their bulkiness for high storage capacity and the need for replacement surgeries due to limited lifespans and corrosion.

Wireless power transfer (WPT) systems present a promising alternative to address these issues. WPT enables device miniaturization, reduces infection risks associated with surgical replacements, and ensures stable long-term operation through reliable wireless charging [7,8]. These advancements suggest that WPT can revolutionize implantable medical devices, enhancing patient outcomes and long-term usability. Radiofrequency (RF) techniques are the most prevalent wireless technology in bioelectronics due to their safety and maturity [9]. However, the human body's lossy, heterogeneous, and dispersive nature poses challenges by absorbing electromagnetic radiation [10]. To avoid adverse effects, lower frequencies (below 5 GHz) are used, which limits miniaturization and the ability to focus electromagnetic fields [11]. Additionally, variations in body size, composition, and movement complicate the design of bioelectronic components.

Metasurfaces [12,13,14], which are structured at the subwavelength scale, offer innovative solutions. These flat, flexible devices can amplify or suppress electromagnetic interactions, enhancing performance and allowing integration into wearable and implantable devices. Metasurfaces can manipulate the amplitude, phase, and polarization of electromagnetic waves, reaching otherwise inaccessible physiological regions [15]. Flexible electronics, including energy harvesters [16] and smart skins [17], benefit from metasurface advancements, which offer improved performance and new capabilities, indicating a promising future for bioelectronics.

Current and future challenges

Integrating metamaterials and metasurfaces into bioelectronics comes with several significant challenges. Firstly, designing and fabricating these materials for optimal performance in the complex biological environment is challenging due to the heterogeneous nature of biological tissues, which exhibit varying electromagnetic properties. Predicting and controlling electromagnetic wave behavior in such an environment requires advanced and often costly nanofabrication techniques. Moreover, ensuring that these metasurfaces maintain their functionality when scaled down for practical applications in wearable and implantable devices is a critical hurdle [18]. Biocompatibility and long-term stability of metasurfaces also pose major challenges. Bioelectronic devices must be safe for extended use within the human body, necessitating materials that do not provoke immune responses or degrade over time [19]. Additionally, integrating these materials into flexible and stretchable substrates suitable for biomedical devices requires ensuring that their mechanical properties match the flexibility and durability needed for continuous use [20].

Power efficiency and thermal management are significant concerns for metasurface-based bioelectronic devices. The human body has strict limits on the amount of electromagnetic energy that can be safely transmitted, restricting the operational power of these devices. Metasurfaces must be designed to minimize energy loss and manage heat dissipation effectively to avoid tissue damage. Future advancements need to focus on enhancing the energy efficiency of these devices while ensuring they operate within safe exposure thresholds to electromagnetic fields [10].

Looking forward, the integration of metasurfaces with advanced technologies like artificial intelligence (AI) and machine learning (ML) offers promising opportunities [21,22] but introduces new challenges. AI and ML can optimize the design and functionality of metasurfaces, enabling real-time adaptability and improved performance. However, embedding these sophisticated computational capabilities within bioelectronic devices requires developing new algorithms and computational models that can function efficiently on the limited hardware of wearable and implantable devices. Seamlessly integrating these advanced technologies with metasurfaces will be crucial for realizing their full potential in future bioelectronics.

Advances in science and technology to meet challenges

To advance metasurface-based bioelectronics, innovation in circuit design, materials, and the use of AI for design optimization is crucial. Despite progress, achieving comprehensive electromagnetic control near the human body remains challenging, mainly due to the limited number of unit cells and tunability in current designs. Implementing novel control mechanisms, including mechanical actuation, optical control, and phase-change materials, offers potential for improving resolution and tunability [23].

For example, dynamic polarization control could address the challenges related to the variable orientation of bioelectronic devices on or within the body [24]. Although optical metasurfaces have explored these concepts, their application in bioelectronic wireless systems is still limited. Additionally, emerging nonlinear [25] and time-varying metasurfaces [26] could introduce novel functionalities, such as Doppler shifts and broken Lorentz reciprocity, potentially enhancing biosensor sensitivity and enabling efficient power transfer to mobile devices. Translating capabilities from optical to RF metasurfaces for bioelectronics involves distinct challenges, including material preferences and penetration depths within biological tissues. While metals with high conductivity are advantageous at radiofrequencies, optical frequencies favour dielectric materials due to lower losses [27]. Optical metasurfaces leverage light's molecular selectivity for interactions with biological matter, whereas RF metasurfaces can penetrate deeper into tissues. Navigating these differences and leveraging scale-invariant principles from Maxwell's equations presents opportunities and challenges in advancing metasurface applications for bioelectronics across both optical and RF domains [27].

Metasurfaces for bioelectronics must be flexible and stretchable to integrate with the human body [8,28,29]. Materials like polyimide, polyethylene terephthalate, ecoflex, polydimethylsiloxane, and textiles offer fabrication methods such as direct and transfer printing. Longer wavelengths reduce resolution demands. Rigid conductors like copper, gold, and aluminum can be made flexible through structural designs like serpentine lines [16], with necessary adjustments for inductance and capacitance. Flexible conductive materials like conductive polymers, hydrogels, and ionogels, such as PEDOT, are promising despite lower conductivity [28]. Liquid metals provide both flexibility and high conductivity for applications like microfluidic antennas [30]. Functional materials can transduce biochemical changes into electromagnetic responses. For example, hydrogels alter permittivity under pressure or sweat, enabling wireless detection [31]. Two-dimensional materials like graphene enable sensors sensitive to biological environments [32]. Biodegradable materials like magnesium, silk, and cellulose create transient metasurfaces [33], while self-healing materials enhance durability for wearable devices [34]. Another emerging trend is integrating transparency into these bioelectronics, which holds the potential to preserve and utilise visual information from interfacing biological systems [35]. This capability could significantly advance comprehensive clinical diagnosis through sophisticated image analysis techniques.

Furthermore, the future of bioelectronics holds significant promise with the advent of magnetoelectric (ME) antennas [36], which are poised to revolutionize the field through enhanced miniaturization and functionality. Traditional antennas rely on wavelengths that are often large relative to the size of the device, making it challenging to achieve the necessary compactness for integration into wearable and implantable bioelectronics. Magnetoelectric antennas, however, can achieve similar performance at a fraction of the size, allowing for the development of much smaller and more discreet bioelectronic devices. This miniaturization opens new possibilities for continuous health monitoring and seamless integration with the human body.

AI enables researchers to efficiently explore complex parameter spaces, aiding in the discovery of innovative metasurfaces. AI models for metasurface design22 can be categorized into supervised, unsupervised, or hybrid models. Generative models, including Generative Adversarial Networks (GANs) [21] and Variational Autoencoders (VAEs), create novel metasurface designs by exploring latent spaces and patterns that would be labor-intensive to identify manually. GANs are effective at generating structures and architectures, while VAEs can offer new configurations with specific functionalities. Optimization algorithms, such as genetic algorithms and particle swarm optimization, also play a crucial role. Genetic algorithms use natural selection principles, whereas particle swarm optimization leverages adaptation principles to fine-tune metasurface architecture. Generative models excel in creativity, producing novel concepts, while optimization algorithms focus on efficiency and finding optimal solutions. Model evaluation involves cross-comparison, performance indices, bootstrapping, and cross-validation to ensure accurate predictions and avoid overfitting.

Concluding remarks

Due to their versatility and compact size, metasurfaces offer functionalities that conventional radio-wave components cannot achieve in biomedical applications. Metasurfaces excel in controlling electromagnetic waves precisely within and around the body, which is crucial for advancing connected personal healthcare systems. Recent advancements highlight their potential in integrating bioelectronics with the human body and designing devices for wireless health monitoring and therapy. However, additional testing is essential to validate their suitability for medical applications.

8. Flexible Antennas and Metasurfaces for Future Millimeter-wave Beyond 5G Communication

Status

Flexible antennas and metasurfaces are key players on the Internet of Everything (IoE) beyond 5G wireless applications. The increasing number of user-friendly wireless devices contributes greatly towards modern lifestyles by transforming how people work, communicate, and interact with the modern world. Smart wearables are vital in real-time health monitoring and diagnostics, augmented and virtual reality AR/VR experiences, smart textiles, enhanced connectivity, smarter human-machine interaction, security and surveillance, and provide sustainable solutions across industries [1]. While a surge of research in compact, flexible and wearable 5G antennas has gained massive success, the extensive adoption of these technologies across diverse internet-of-things (IoT) applications is still evolving. Significant deployment is done in health monitoring wearables, and smart clothing for military and firefighter garments, however, large-scale integration into everyday applications like smart agriculture, smart homes, and industrial technologies is in progress. Fig. 1 shows the scope of wearable antennas and metasurfaces beyond 5G/6G applications. Research into biodegradable materials for electronics is crucial in reducing the electronic waste (e-waste) and environmental impact of these systems [2]. The global e-waste generation reached 53.6 million metric tons in 2019, the world generated a striking 53.6 Mt of e-waste, an average of 7.3 kg per capita, and is projected to grow to 74.7 Mt by 2030 [3,4]. ​Advances in material science, such as biocompatible conductors, biopolymers, and cellulose-based materials can be used in developing biodegradable antennas and printed metasurfaces for seamless wireless connectivity and biodegradability, leaving no harmful residue to the environment. Recently, research on using carbon-based materials like graphene and carbon nanotubes in flexible antennas and metasurfaces has received attention due to their low profile, light weight, low cost, high resistance to corrosion, thermal stability, and tunable conductivity. These new materials exhibit remarkable properties that make them highly attractive for future eco-friendly applications, particularly for millimeter-wave (mm-wave) and terahertz (THz) communications. Several advanced manufacturing techniques have recently been developed to ensure fabrication consistency, reliability, cost-effectiveness and accuracy for biodegradable antennas and printed metasurfaces.

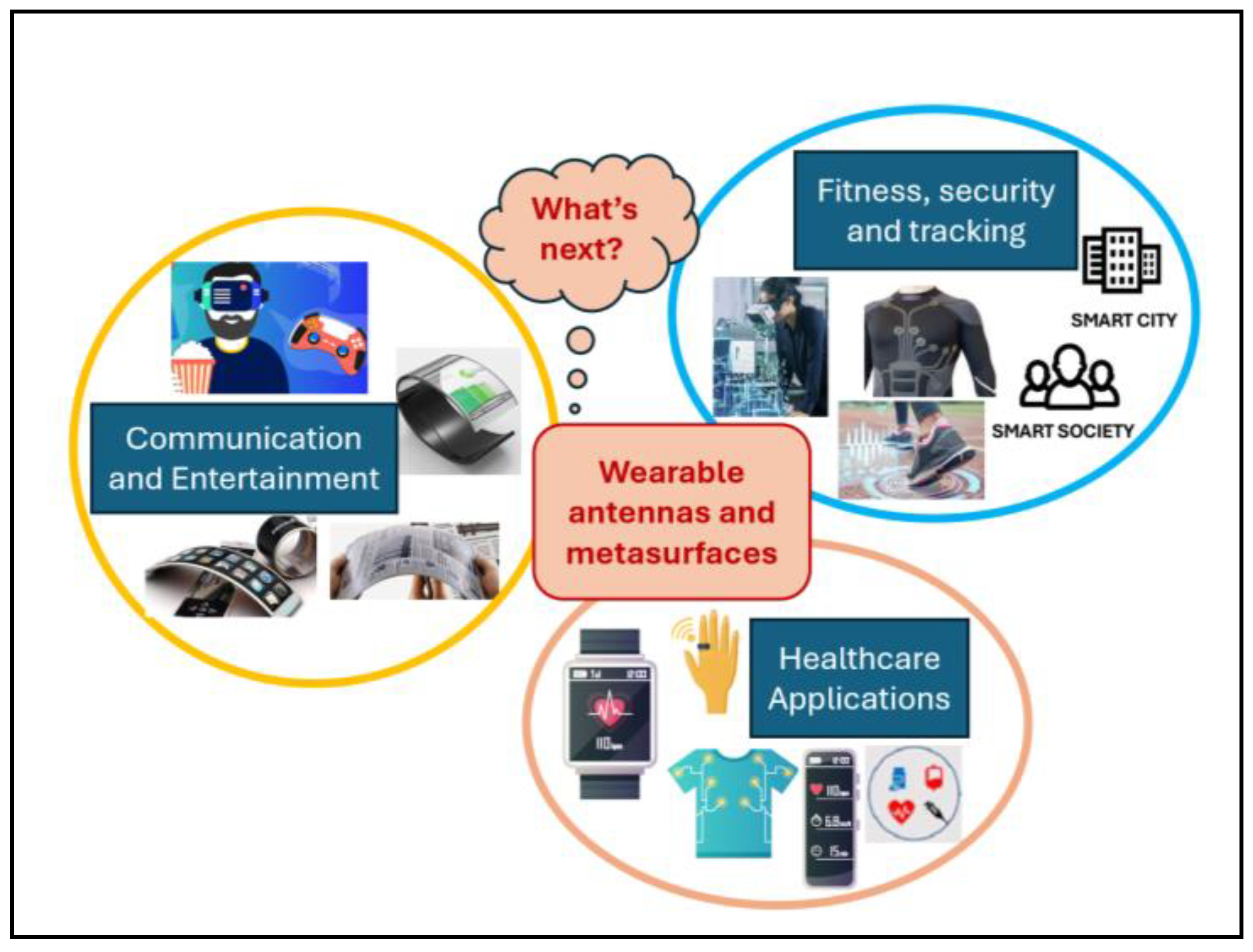

Figure 1. The use of wearable antennas and metasurfaces in beyond 5G applications.

Figure 1. The use of wearable antennas and metasurfaces in beyond 5G applications.

Current and Future Challenges

Beyond 5G requires moving to the available bandwidth at the mm-wave band to realize applications such as smart cities, the IoE, and virtual reality. This transition towards mm-waves requires antenna designs, indoor base stations, and micro and picocells. Attenuations and atmospheric absorptions at mm-waves are challenging and require proper channel modelling and adopting smart techniques, like massive MIMO, adaptive antennas, and cognitive control systems to improve reliability and system capacity, reduce interference, and obtain high spectral efficiency. Wearable electronics have received massive success in consumer electronics. The fabrication and integration of complex antennas and metasurfaces in wearables is challenging due to several critical requirements. For instance, the design and manufacturing of such new components need a small footprint, high fabrication accuracy, scalability, durability, and cost-effectiveness, and the requirements become more critical for mm-wave antennas having much smaller geometries, and while producing biodegradable antennas using new materials. Current research focuses on developing advanced manufacturing processes and mass-production techniques to make them a practical alternative to traditional antennas. The performance of wearable antennas may alter significantly due to their environment, such as whether they operate in free space or are worn on-body. For instance, absorption of body moisture, and physical changes in the body due to temperature change, sweating, etc. can impact the antenna performance. The dielectric material used in antenna fabrication is a critical factor as this material should be able to withstand mechanical stresses like bending, crumpling, and stretching. In addition, the conductive part of wearable antennas must be resilient to performance degradations caused by corrosion and mechanical deformations. As the body’s position changes frequently, the movement causes a change in the distance between the transmitter and receiver which eventually causes changes in the free-space path-loss as mm-waves are more affected by absorptions and attenuations than the microwave frequencies. Smaller wavelengths at mm-waves lead to smaller devices and smaller footprints. Precise and high-resolution manufacturing of flexible and conformal mm-wave metasurfaces is significantly challenging due to the smaller geometries of the design.

Advances in Science and Technology to Meet Challenges

The research on new conductive textiles, such as conductive polymers, silver/copper-coated fabrics, and graphene layers bonded on polymers has gained massive success in flexible antennas. These materials have good conductivity while stretching, bending and folding, which makes them suitable for wearable devices. Several additive manufacturing techniques have been introduced such as inkjet printing [5], screen printing [6], 3D printing, laser etching [7], etc., however, achieving reasonable accuracy and consistency in bulk manufacturing of much smaller geometries at mm-waves could be a difficult task. Traditional conductive materials are corrosive in moisture and humidity and their use in washable wearables can cause serious concerns to health and the environment. Reported research has indicated the use of carbon-based conductive materials such as graphene and carbon nanotubes which offer high electrical conductivity, good resistance towards corrosion, and high chemical and thermal stability in non-oxidizing environments [8]. Mono-layer graphene and carbon nanotubes offer remarkable electrical properties, and flexibility without significant performance losses, however, industrial-scale graphene manufacturing faces challenges in improving quality control, uniform layer growth, reproducibility of graphene flakes, and increasing mass production and scalability [9]. Further research is needed to understand the characteristics of novel materials and develop methods to mitigate possible hazardous effects and ensure their safe use in communication, healthcare, entertainment, etc. with minimal ecological disruption. In addition, advanced biodegradable materials such as biocompatible conductors, biopolymers, and cellulose-based materials can be used in applications like biosensors, medical implants, and on-body wearable gadgets and costumes, as they are non-toxic to human tissue. This biodegradability makes them suitable for implantable antennas designed for humans and animals in biomedical applications as they can degrade safely in the body after use. Another promising use of biodegradable materials is in sustainable electronics, including antennas for eco-friendly applications to reduce electronic waste (e-waste), especially as more disposable electronics are developed. Graphene and biodegradable materials offer a promising future in mm-wave flexible antennas and printed metasurfaces technology, with each material offering unique advantages for wireless communication beyond 5G and wearables electronics. The high-performance characteristics of graphene at high frequencies, eco-friendliness, and biocompatibility of biodegradable materials, can lead to significant advances in mm-wave antenna designs and metasurfaces. However, challenges related to manufacturing consistencies, performance optimization, and durability require further research and technical efforts before the widespread adoption of these materials.

Concluding Remarks

In the 5^th generation of technology and connectivity, the IoT has emerged as a transformative force, redefining how we interact with the modern world. The deployment of IoT capabilities into wearable devices has enabled seamless communication and created remarkable transformations in wireless security, tracking, healthcare, and entertainment sectors. This article addresses the significant role of mm-wave flexible antennas and metasurfaces in applications beyond 5G/6G, critical challenges, and mitigation measures. For instance, e-textiles are usually designed on similar materials to those used in other commercial electronic devices; metals such as copper, silver and gold, and a range of materials hazardous to the environment. It is essential to explore and implement novel biodegradable materials with properties of washability and susceptibility to corrosion to decrease the global e-waste footprint and keep pace with the recent trend towards flexible implements and wearables. Meeting the requirement for suitable textiles and noncorrosive conductive materials creates new challenges related to miniaturisation, fabrication accuracy, and low-cost manufacturing. Several novel biodegradable materials such as biocompatible conductive inks, biopolymers, and cellulose-based materials can be used in applications like biosensors, medical implants, and on-body wearable uniforms and gadgets due to their non-toxic nature.

9. Superscatterers

Status

The ability to enhance electromagnetic scattering from small, subwavelength structures is of great significance across fields as diverse as antenna design, RFID, backscatter communications and remote sensing. For any given electromagnetically resonant structure, there is a theoretical limit to how much a single scattering channel can interact with incident radiation – this is referred to as the ‘single channel limit’. The maximum scattering cross section (SCS) defined by the single channel limit can be written for 2D and 3D structures[1,2] as-

$${\sigma }_{2D lim}={\displaystyle \frac{2\lambda }{n\pi }} {\sigma }_{3D lim}={\displaystyle \frac{3{\lambda }^2}{2n\pi }}$$

Where n is the surrounding refractive index.

Superscattering structures are designed in such a way that they can significantly beat this limit. This is generally achieved by creating a system where multiple resonances occur at a given frequency (‘mode stacking’ – Fig. 1a)), although recently other methods have been demonstrated. Mode-stacking is typically achieved by controlling the internal structure of a scatterer, either to create multiple layers with different resonances that can be designed to occur at the same frequency [3,4], or by selectively altering certain resonances of an existing structure so they occur at the same frequency as others [5,6,7].

The mode stacking approach provides additional advantages over conventional scatterers, as it enables the tuning of the bandwidth, directionality, phase and magnitude of the scattering cross section through controlling interference of radiation scattered by different resonant modes. This can be utilised to produce either omnidirectional or highly directive scattering (despite the compact size of the scatterers), or to completely suppress the backscatter or forward scatter of the system at a given frequency [8]. The early theory of superscattering was laid out by Ruan & Fan in 2010 [3], and over the past decade or so there has been significant interest in creating structures that generate this effect and utilise it in fields from antenna design [9,10] to energy harvesting [11,12,13,14].

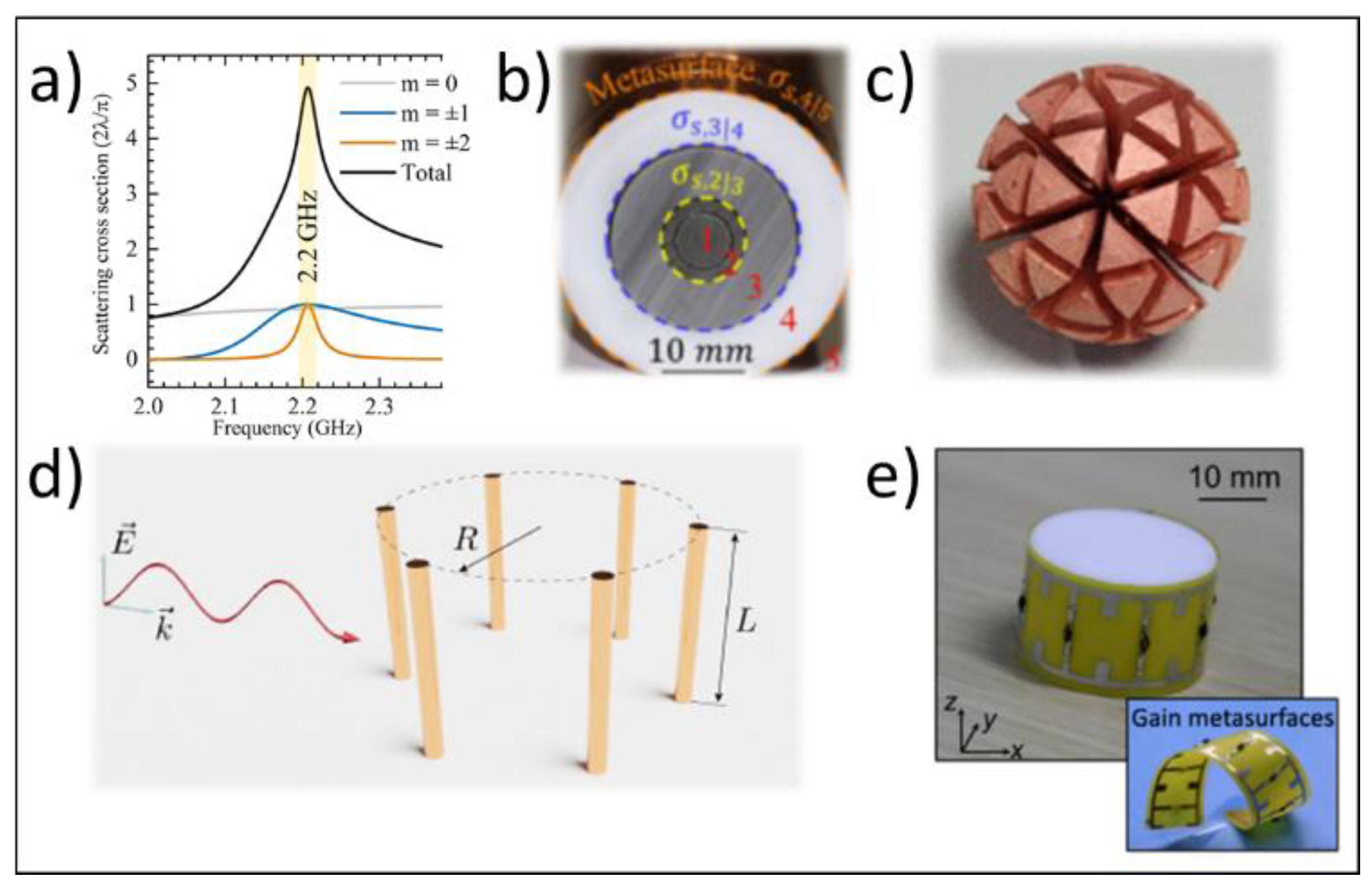

Figure 1. a) An illustration of the principle of superscattering via ‘mode stacking’ [4]. b) A multilayer metamaterial superscattering cylinder that can stack three resonant scattering channels [4]. c) A 3D printed localised spoof plasmon superscatterer [12]. d) A wire bundle superscatterer [13]. e) A gain metasurface superscatterer [14].

Figure 1. a) An illustration of the principle of superscattering via ‘mode stacking’ [4]. b) A multilayer metamaterial superscattering cylinder that can stack three resonant scattering channels [4]. c) A 3D printed localised spoof plasmon superscatterer [12]. d) A wire bundle superscatterer [13]. e) A gain metasurface superscatterer [14].

Current and Future Challenges

Whilst there have been many demonstrations of superscatterers in the literature, few of these have materialised into workable applications. The challenges in the field of superscatterers can be largely broken down into three categories: directivity, bandwidth, and fabrication.

In terms of directivity, whilst three or more modes have been successfully superimposed to give powerful superscattering an order of magnitude above the single channel limit, a problem faced by this approach is that when many modes are superimposed, unless great care is taken, the interference in the far field will suppress backscatter and enhance forward scattering [6,7]. So whilst the SCS value can seem impressive, the (generally useful more useful) backscattering can actually be supressed compared to that of a simple, single resonance scatterer.

Another key challenge with superscatterers is the highly narrow bandwidths of operation necessitated though the operation of scattering by several modes at once. Due to the necessary involvement of higher order, high-Q modes, these structures tend to be highly narrowband. Research to improve the bandwidth and/or produce reconfigurable superscatterers, would strongly enhance their utility for many applications.

In terms of fabrication, many superscatterers require either complex layers of metamaterials and dielectrics, or expensive, heavy ceramics to operate, which reduces their utility in many applications. Moving to more compact, lighter weight materials will be key for moving from scientific demonstrators towards applications.

Advances in Science and Technology to Meet Challenges

Recently there has been increasing diversification in the type of superscatterers available. Ginzburg et al have designed superscatterers based on wire bundle structures (Fig. 1d) [13], which are very compact, easy to fabricate, and lightweight but with a strong scattering response. A disadvantage of these designs is that they are strongly forward scattering, and it has yet to be demonstrated if they could be optimised for improving backscatter. 3D printed structures (Fig. 1c) have also taken a foreground, which are simple and relatively cheap to fabricate, and can be designed to be broadband [12,16], but at a reduced scattering power.

Another design that takes a different approach, has been shown by Qian et al [14], who created a single channel superscatterer using a circular metasurface with gain components (Fig. 1e). This means that a single resonant channel can scatter radiation far in excess of the theoretical limit, and as there is no interference between modes, so a strong degree of backscatter can also be achieved. The disadvantage here is that this material is not totally passive and does require a modest power source.

Whilst recent advances have approached some of the challenges faced by superscatterers, there remain significant issues to be addressed. To the author’s knowledge there has been no attempt so far to make tunable electromagnetic superscatterers at RF frequencies, although interestingly, this has recently been demonstrated for acoustics [17]. This is surprising, as the potential for active superscatterers seems obvious: As there can be three or more resonances in a very small frequency space, large phase gradients can be created with shifts greater than 2π, along with large changes in signal strength (>50 dB). This enables a wide range of waveforms to be modulated onto scattered signals. Wire-based tunable superscatterers could be made reconfigurable using similar techniques to tunable metamaterials, such as integrating varactor diodes or other electronic components, though control of the separate modes presents interesting research challenges [18]. Meanwhile dielectric superscatterers may be produced using phase change media or fluidics.

Concluding Remarks

Superscatterers have demonstrated an unprecedented level of control over the manner in which a subwavelength structure can interact with, and redirect electromagnetic radiation. Previous works show that through utilising ‘mode stacking’, (as well as other approaches), significant control over the power, directivity and bandwidth of the scattering cross section of small objects can be achieved. However, challenges remain in terms of maximising backscatter, fabrication and bandwidth. The future of superscattering is likely to involve creating actively tuneable structures - ‘active superscatterers’, whose greatly increased versatility will enable applications in backscatter communications, antennas, RFID and environmental sensing.
