Surface Ice Velocity near the Terminus of Grey Glacier in the Southern Patagonian Icefield, Based on Direct Field Measurements

1. Introduction

The Southern Patagonia Icefield (SPI) and the Northern Patagonia Icefield (NPI), located in Patagonia (40–55° S), together constitute the third-largest freshwater reserve on Earth, after Antarctica and Greenland [1,2,3,4,5].

These icefields have been identified as regions undergoing substantial mass loss, with frontal ablation representing a significant portion of total ablation [6,7,8,9]. Quantifying frontal ablation and understanding the dynamics of calving glaciers remain major uncertainties in projections of global glacier mass loss [8,10,11]. Surface ablation, driven by meteorological conditions, also plays a crucial role in glacier mass balance [8,12,13,14]. However, the lack of field observations has limited a comprehensive understanding of drivers of ablation in the SPI [13]. Studies combining remote sensing techniques with in-situ measurements are essential for improving our understanding of these processes [15,16].

While most glaciers in Patagonia are rapidly retreating, there are exceptions highlighting the complex and heterogeneous nature of glaciers response to climate change. Pio XI Glacier (49°S), the largest in Patagonia, is also one of the very few that are currently advancing [17,18]. Some glaciers have remained relatively stable or have even advanced, suggesting the influence of local factors such as precipitation patterns, glacier geometry, and subglacial conditions [18,19]. The dynamic behavior of glaciers such as Perito Moreno, which has exhibited frontal oscillations and ice-dam ruptures, underscores the need for continuous monitoring and detailed analysis [9].

The Patagonian Icefields, particularly the SPI, have undergone rapid retreat and significant glacier thinning in recent decades [7,20,21,22]. The SPI, located between Chile and Argentina, is the second-largest contiguous extrapolar icefield in the world [13]. Grey Glacier, along with Tyndall and Amalia glaciers, has experienced overall negative surface elevation changes [7]. Monitoring surface velocities and ice-front positions is essential to understanding individual responses of glaciers to climate change [7,15].

In this context, the study of surface ice velocity in temperate glaciers is crucial to understanding the dynamics of ice loss and the impacts of global climate change on these sensitive environments [15].

Glacier surface velocity is a key parameter for estimating ice volume variations in response to global warming and its subsequent impact on sea-level rise [15,23]. Traditional methods for measuring ice velocity fields often involve cross-correlating pairs of satellite images to track feature displacement between two acquisition dates [15]. However, direct methodologies, such as GPS measurements, offer high precision and temporal resolution, enabling detailed analysis of glacier dynamics [16]. Recent research has highlighted the heterogeneous changes occurring within the SPI, showing variability in both the magnitude and timing of individual glacier responses [9]. Understanding these variations requires detailed, site-specific studies that capture the complex interplay of climatic, topographic, and glaciological factors influencing glacier behavior [9,24].

Nevertheless, studies based on direct in situ observations that characterize ice mass movements, essential for surface mass balance and energy balance models, remain extremely limited in this region [6,8,11].

This study focuses on Grey Glacier, a major outlet glacier in the SPI, to investigate its recent dynamic behavior using direct GPS measurements of surface ice velocity [16,24]. The primary objective is to obtain empirical in situ data on glacier surface motion by measuring ice velocity from stakes installed near the glacier terminus [16].

The results provide valuable insights into the processes driving glacier change in the SPI and contribute to improving future projections of ice mass loss and sea-level rise [8,15]. This is particularly relevant given that the ice mass where the measurements were taken has gone due to the glacier’s continued retreat [7,9,15].

2. Materials and Methods

To quantify short-term surface ice motion, an area of approximately 0.5 km² was selected near the frontal zone of the westernmost terminus of Grey Glacier. A set of stakes was installed roughly perpendicular to the main flow direction, aligned transversely to the central axis of the glacier tongue. This stake deployment strategy is commonly used in glaciological studies, as it allows for monitoring ice flow across a defined transect [25,26,27,28]. Each stake was vertically drilled into the ice to a stable depth and georeferenced using a GPS device [29]. The use of GPS in stake measurements enables precise tracking of stake positions over time [30,31].

After a seven-day interval, all stakes were removed, and their positions remeasured using the same GPS device. This temporal resolution is appropriate for capturing short-term variations in ice velocity [32,33,34]. Horizontal displacements were calculated as vector differences between initial and final stake positions in Universal Transverse Mercator (UTM) coordinates. This displacement calculation method is standard in glaciology, providing a quantitative measure of ice motion [29].

For each stake, the total displacement, average daily velocity, and direction of motion (azimuth), relative to geographic north were derived. These parameters offer a comprehensive description of ice motion at each stake location [35].

All measurements were compiled into a geospatial dataset and visualized using vector plots. These plots are commonly used to visualize glacier surface velocities and facilitate the identification of spatial patterns in ice flow [36]. The resulting displacement vectors were interpreted in the context of the local glacier geometry and expected ice flow dynamics near the terminus. This analysis enhances our understanding of the relationship between ice flow and frontal dynamics [37,38].

2.1. Study Site

This study was conducted on Grey Glacier, one of the principal outlet glaciers of the SPI (Figure 1). This glacier flows into Lago Grey, located in Torres del Paine National Park, Chile (50°59′S, 73°10′W), through three distinct lobes at present (Figure 2). The terminus flows through a geologically complex area characterized by intense folding, which influences ice dynamics in this sector.

The study focuses on the western terminus, approximately 0.5 km from the ice front at the time of data collection (Figure 2b). Grey Glacier is a temperate, dynamic calving glacier that is highly sensitive to seasonal climatic variations [39]. Since the 1980s, the western terminus has retreated by more than 2 km, greater than the retreat observed at the other two termini, showing a trend consistent with other Patagonian glaciers [39,40,41].

As a result, the glacier ice, over which the data were collected, has since disappeared (Figure 2c). This fact is particularly relevant, as it enables a clearer examination of the underlying subglacial bedrock topography, which may help contextualize the findings of this study. According to water depth soundings conducted by Sugiyama et al. (2019) [42], the maximum depth near the eastern terminus is approximately 300 m (Figure 3c).

2.2. Glacier Stake Installation and GPS Survey

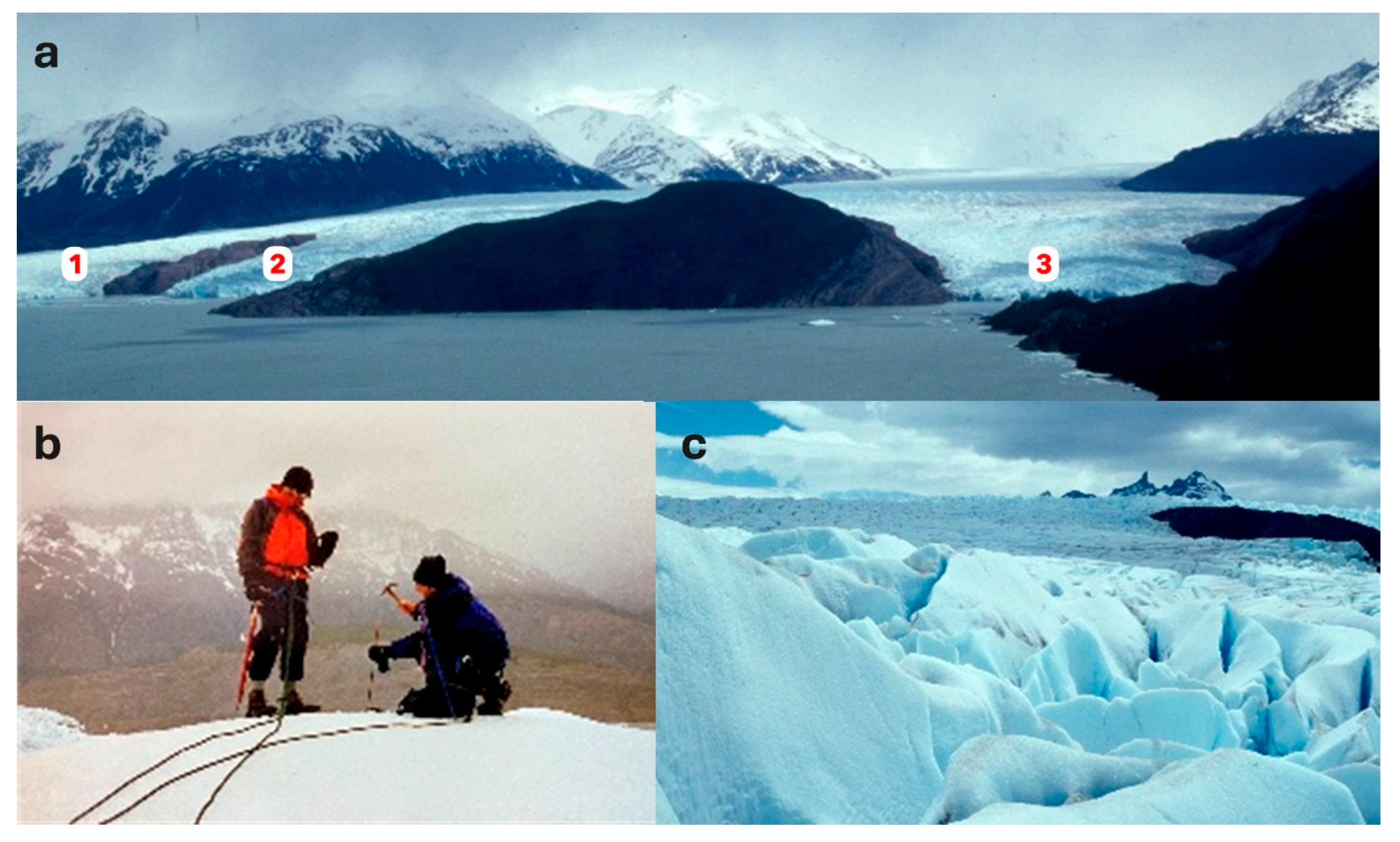

To directly measure surface ice velocity, six iron stakes (120 cm in length, 14 mm in diameter) were manually installed vertically into the glacier surface along a transect perpendicular to the central flowline of the western lobe of Grey Glacier (Figure 3b). Installation was carried out ensuring adequate vertical alignment and sufficient insertion depth to minimize the risk of stake loss due to surface melting or toppling. The stakes were placed at intervals of approximately 50-100 m, extending toward the central flow axis, to capture local spatial variability while maintaining logistical feasibility for retrieval.

Each stake was surveyed using a Garmin eTrex handheld GPS device. Coordinates were recorded in UTM coordinate system (Easting [E], Northing [N], Zone 18F South, WGS84 datum). Under clear-sky conditions, the estimated horizontal positional accuracy was ±2–5 meters, consistent with the device’s specifications.

Initial positions (E_i, N_i) were recorded on 29 November 2002, and final positions (E_f, N_f) were obtained exactly seven days later, on 6 December 2002, using the same observation procedure. During both surveys, the GPS receiver was held stationary for at least 30 seconds to enhance accuracy through signal averaging.

2.3. Displacement and Velocity Calculation

Surface ice velocity was determined from the horizontal displacement between the initial and final positions of each stake. For each stake, the displacement vector was calculated based on the differences in the eastward (ΔE) and northward (ΔN) components in UTM coordinates between the two GPS measurements:

$$\begin{gathered} \Delta E=E_{final}-E_{initial} \\ \Delta N=N_{final}-N_{initia} \end{gathered}$$

The total horizontal displacement (D) was calculated using the Euclidean distance formula:

$$\mathrm{D}\mathrm{i}\mathrm{s}\mathrm{p}\mathrm{l}\mathrm{a}\mathrm{c}\mathrm{e}\mathrm{m}\mathrm{e}\mathrm{n}\mathrm{t}\left(\mathrm{D}\right)=\sqrt{{\left(\mathsf{\Delta }\mathrm{E}\right)}^2+{\left(\mathsf{\Delta }\mathrm{N}\right)}^2}$$

(1)

Mean velocity (V) was computed as:

$$\mathrm{V}\mathrm{e}\mathrm{l}\mathrm{o}\mathrm{c}\mathrm{i}\mathrm{t}\mathrm{y}\left(\mathrm{V}\right)= {\displaystyle \frac{Displacement \left(m\right)}{\mathsf{\Delta }\mathrm{t}\left(\mathrm{d}\mathrm{a}\mathrm{y}\right)}}$$

(2)

where ΔE and ΔN represent changes in easting and northing, respectively, and Δt is the time interval in days. Data storage and analysis were performed using spreadsheets in Microsoft Excel.

2.4. Flow Direction and Displacement Angle

Vector analysis of stake displacements on the glacier surface can reveal the approximate general direction of ice flow. This general flow direction is interpreted as the weighted average of the displacement vectors of all stakes.

To determine the prevailing direction of surface ice flow in the study area, we analyzed horizontal displacements and azimuthal angles (expressed in degrees clockwise from true north) of six stakes measured over a seven-day period during the summer season.

For each stake, the eastward (dx) and northward (dy) Cartesian components of displacement were calculated using the following trigonometric relationships derived from the measured displacement vectors:

$$dx=D·sin\left(\theta \right)$$

(3)

$$dy=D·cos\left(\theta \right)$$

(4)

where:

• D is the horizontal displacement (in meters),
• θ is the azimuthal direction (in degrees),
• dx and dy represent the eastward and northward Cartesian components of displacement, respectively.

The net flow vector was obtained by summing the individual eastward and northward displacement components of all stakes:

$$\begin{gathered} \sum dx \\ \sum dy \end{gathered}$$

The azimuthal direction of the resultant horizontal flow vector (θ) was calculated using the arctangent function as follows:

$$\theta =\mathit{arctan}2\left(\sum dx,\sum dy\right)$$

(5)

Angles were expressed in both radians and degrees to facilitate the geometric interpretation of ice motion.

2.5. Accuracy and Limitations

Given the use of a handheld GPS device, the absolute accuracy of individual stake positions is limited. However, relative displacements over short time intervals can still provide reasonable estimates of surface velocity, provided that consistent measurement conditions are maintained [43]. The expected uncertainty in horizontal displacement is estimated at ±5 m. This level of precision is generally sufficient for resolving bulk ice motion in small- to medium-scale field studies [44].

2.6. Data Handling

All GPS data were converted and projected into UTM coordinates using QGIS v3.40 Geographic Information System (GIS) software. Displacement vectors were then visualized and analyzed to assess spatial consistency and to detect any anomalous stake movements, such as those potentially caused by melting, tilting, burial, or stake loss. Only the six glacier stakes considered potentially valid were included in this analysis. Valid vectors were visualized and cross-verified on a satellite basemap, allowing comparison with the glacier flow patterns previously identified from satellite imagery and earlier studies. For this purpose, ASTER, Landsat, and Sentinel satellite images were used, processed and visualized with tools such as USGS Earth Explorer, Copernicus Browser, Google Earth Engine and Earth Pro.

3. Results

Despite the logistical challenges inherent to fieldwork in the southernmost region of Patagonia, all planned measurements were successfully carried out. Following the recovery of the stakes after a seven-day observation period, the resulting surface displacement data were obtained as follows:

3.1. Horizontal Displacement

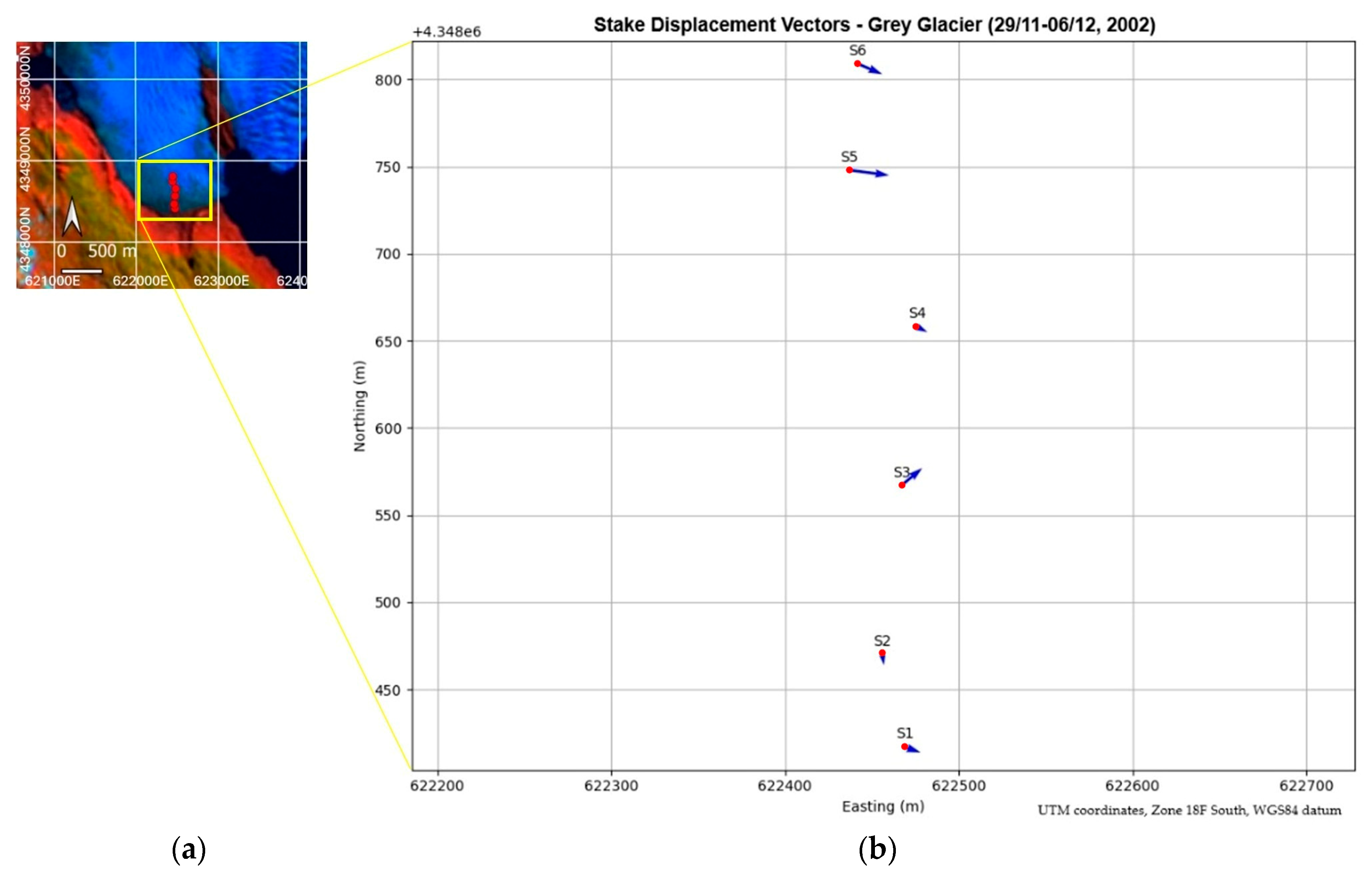

During a short-term field campaign conducted between 29 November and 6 December 2002, six stakes (S1 to S6) were deployed near the terminus of Grey Glacier. Each stake was installed by drilling into the glacier surface, and its initial position was recorded using a GPS receiver (UTM coordinates, Zone 18F South, WGS84 datum). After a seven-day interval, all stakes were revisited and their final positions recorded, allowing for the calculation of horizontal displacement vectors (Equation 1) and surface velocities (Table 1).

3.1.1. Magnitude of Displacement

Measured surface displacements over a seven-day period ranged from 6.08 m (S2) to 23.20 m (S5). Stake S5, positioned closer to the central flowline, exhibited the greatest displacement, suggesting a pronounced longitudinal gradient in flow velocity near the glacier terminus.

A general trend of increasing displacement toward the south is evident, consistent with the glacier’s slope and terminus morphology. This spatial pattern supports the presence of accelerated ice flow toward the calving front, a characteristic commonly observed in tidewater and lake-terminating glaciers, where basal conditions and longitudinal stress gradients play a significant role in controlling ice dynamics [39,40].

3.1.2. Stake Flow Directions

Flow directions were calculated as azimuths of the displacement vectors relative to geographic north (measured clockwise). Most vectors fall within a southeasterly quadrant (approximately 96° to 115°), consistent with the principal flow direction of Grey Glacier (Figure 1). However, significant deviations were observed at S2 (169°) and S3 (48.8°), suggesting localized variations in ice flow dynamics (Figure 4).

These directional anomalies may be associated with lateral shear zones, subglacial topographic controls, or flowline divergence and convergence near the glacier front. Such deviations highlight the complex flow regime characteristic of fast-flowing outlet glaciers.

3.1.3. General Surface Ice Flow Direction

To estimate the overall surface ice flow direction in this sector of Grey Glacier, horizontal displacement measurements from the six stakes were analyzed. The magnitude and azimuth of each displacement vector were decomposed into Cartesian components to determine the general flow direction (Table 2).

For each stake, the eastward (dx) and northward (dy) components were calculated using trigonometric decomposition of the displacement vectors, as defined by Equations 3 and 4.

The average of the eastward and northward vector components across all six stakes was used to determine the overall direction of surface ice motion:

$$\begin{gathered} \sum dx = \mathrm{65,251},\sum dy=-\mathrm{9,457} \\ \sum d\mathrm{x}={\displaystyle \frac{\mathrm{65,251}}{6}}\approx 10.87\hspace{0.17em}\mathrm{m} \\ \sum dy={\displaystyle \frac{-\mathrm{9,457}}{6}}\approx -\mathrm{1,576}\hspace{0.17em}\mathrm{m} \end{gathered}$$

The resultant flow vector was calculated by summing the individual eastward and northward components. Its orientation was then determined using the arctangent function (Equation 5):

$$\begin{gathered} \theta =\mathit{arctan}2\left(\sum dx,\sum dy\right) \\ \theta =\mathit{arctan}2\left(\mathrm{10,87},-\mathrm{1,576}\right)\approx \mathrm{98,2}° \end{gathered}$$

The resultant vector indicates a general ice flow direction of approximately 98.2°, corresponding to an east-southeastward movement (Figure 5). This flow orientation reflects the deflection of the ice mass in this sector, likely influenced by the underlying topography.

Table 2 summarizes the measured horizontal displacements and the corresponding calculated vector components for each stake:

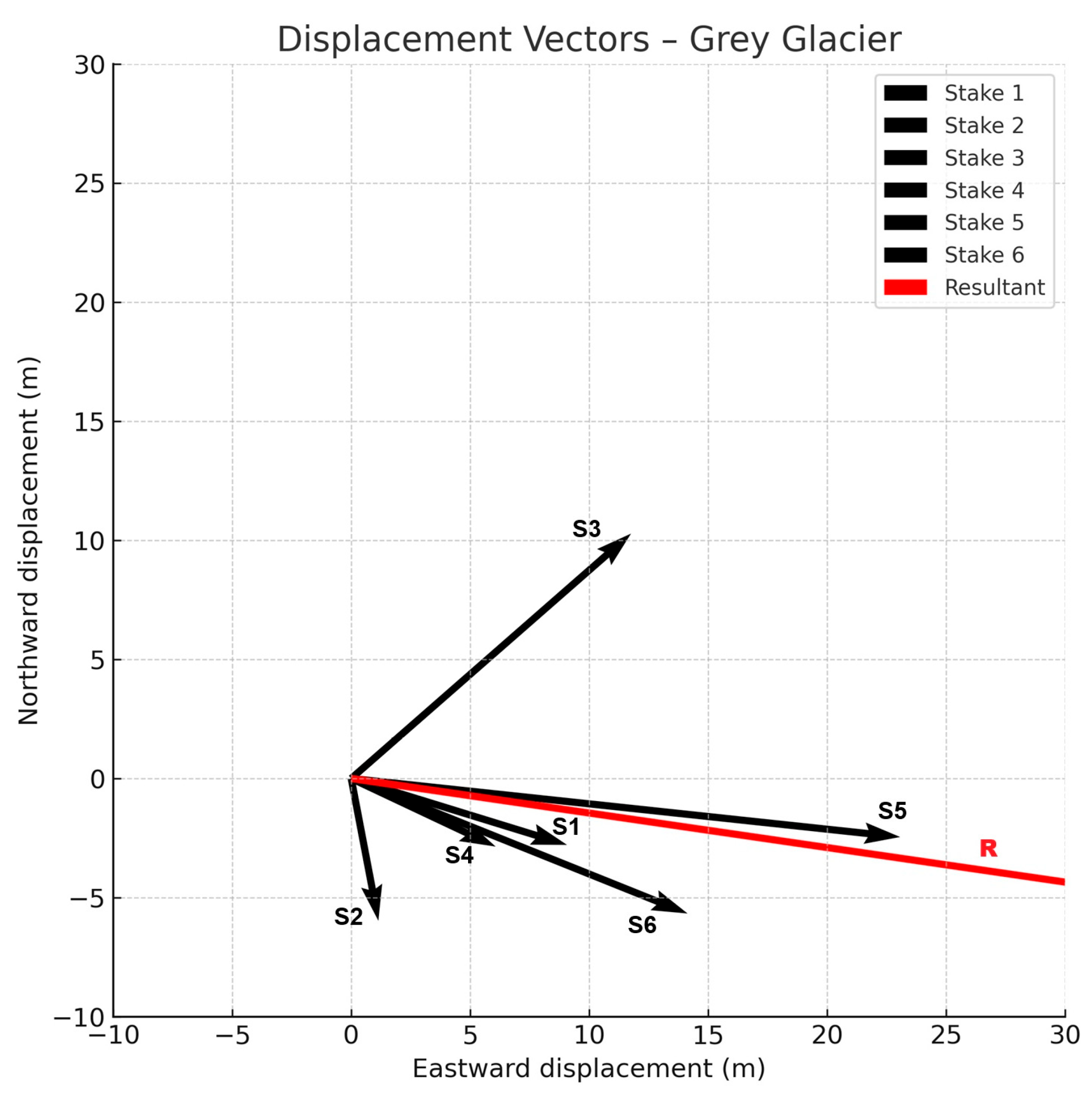

Figure 5 shows the individual displacement vectors along with the resultant flow vector.

3.2. Surface Ice Velocity

Surface ice velocity for each stake was calculated using Equation (2). The resulting velocities reveal significant spatial variability in ice flow near the terminus of the glacier across the six sampled locations. Table 3 presents the calculated surface velocities corresponding to each stake.

Although the direct measurements of surface ice velocity show some localized anomalies, a clear transverse velocity gradient was observed: minimum velocities occurred near the glacier margins, while maximum values were recorded closer to the central flowline. This pattern is consistent with laminar flow behavior, in which lateral drag reduces ice velocity near the margins.

Measured surface velocities ranged from 0.869 to 3.314 m/day, with a mean velocity of approximately 1.817 m/day. The highest velocity was recorded at stake S5 (3.314 m/day), located near the central axis, while the lowest was observed at stake S2 (0.869 m/day), situated closer to the eastern margin. Stakes positioned near the central flowline (e.g., S5, S3, S6) exhibited higher velocities, whereas lateral stakes (e.g., S2, S4) moved more slowly.

Stakes S2 and S4, which recorded significantly lower velocities, may lie within shear margins or zones of enhanced basal friction. These conditions could be influenced by subglacial topography or spatial variability in basal water pressure [28,45]. Some rocky outcrops, revealed by the glacier’s accelerated retreat since the time of data collection, provide additional support for this hypothesis.

The broader range of azimuthal directions, particularly at S2, may indicate localized flow divergence, transverse motion, or interaction with marginal pinning points. Directional data generally show eastward to east-southeastward motion, with some angular dispersion among stakes.

A weak positive relationship between elevation and velocity was noted, with slightly higher velocities at stakes located at greater elevations. This trend may reflect the influence of thicker ice or basal thermal conditions that promote basal sliding. The observed east-southeastward displacement supports convergent flow toward the terminus, potentially constrained by basal geometry, the presence of a heavily crevassed zone (Figure 3c), and lateral resistance from valley walls (Figure 3a).

4. Discussion

The observed spatial variability in surface velocity near the terminus of Grey Glacier reflects the complex dynamic regime governing this outlet glacier. The highest velocities occurred at stakes located near the presumed central flowline, consistent with predominant basal sliding attributable to increased ice thickness and reduced lateral drag. These findings align with previous satellite- and radar-based studies that have reported enhanced ice flow along central channels [40,45,46,47].

Analysis of surface ice velocity, based on direct measurements from six stakes, reveals significant variations that reflect the complex glacial dynamics near the frontal zone [40,48,49,50]. Observed velocities ranged from 0.869 to 3.314 m/day, with a mean of approximately 1.817 m/day. These values are consistent with those reported in previous remote sensing and in situ studies on Grey Glacier and other temperate outlet glaciers in Patagonia [40,51].

Velocity differences across the stakes may result from several interacting factors. Subglacial topography plays a key role in modulating basal friction and, consequently, ice flow [28,44,52,53]. Elevation also appears influential: in general, stakes located at lower altitudes and closer to the glacier front exhibited higher velocities, possibly due to thinner ice and reduced basal resistance [54]. However, this trend is not uniform and is likely influenced by local factors such as surface slope, basal water pressure, and lateral drag.

The direction of displacement vectors also exhibited notable variability. Although the dominant flow was generally eastward to east-southeastward, significant directional deviations were recorded at certain stakes. For instance, stake S3 showed a direction of 48.8°E, while S2 indicated 169.2°E. These anomalies may reflect flow divergence, marginal shear zones, or interactions with local bedrock features and geological structures [52,53,55] (Figure 3a).

Additionally, the influence of surface debris cover must also be considered [56]. Although specific data on debris cover was not available for this study, the presence of supraglacial debris is known to impact glacier flow dynamics, which in turn affects flow velocity.

Temporal variability in ice velocity introduces another important factor. Previous studies have shown that Patagonian glaciers have undergone dynamic changes in recent decades, with episodes of acceleration and deceleration driven by climatic and hydrological conditions [47]. Consequently, the present measurements represent only a snapshot in time and may not fully capture long-term trends in glacier behavior [57].

Taken together, the surface velocity measurements on Grey Glacier highlight the complexity of ice flow near its terminus. Variations in both velocity and direction are likely governed by a combination of subglacial topography, elevation, surface debris cover, and temporal evolution [49]. These findings contribute to a better understanding of Grey Glacier’s dynamic behavior and its response to external forcing such as climate change [58,59,60].

For future research, it is recommended to extended velocity monitoring campaigns to capture seasonal and interannual variability [61]. Detailed mapping of subglacial topography and debris cover is also needed to better constrain their influence on ice dynamics [52,62]. Ground-based measurements could be further integrated with satellite remote sensing data, including Synthetic Aperture Radar (SAR) imagery, to develop a more comprehensive picture of glacier flow [43,63,64,65]. In addition, numerical modeling efforts can help simulate observed patterns and predict future changes under different climate scenarios [66,67].

It is important to note that Grey Glacier, like other glaciers in Patagonia, is undergoing accelerated retreat as a consequence of climate warming [49]. Rising air temperatures have increased melt rates, contributing to mass loss and global sea-level rise [68]. Therefore, continued monitoring is essential to improve our understanding of glacier-climate interactions and inform mitigation and adaptation strategies [60,61,62,63,64,65,66,67,68,69].

5. Conclusions

This stake-based velocity survey provides new insights into the spatial variability of ice flow near the terminus of Grey Glacier. The results reveal pronounced differences in both flow velocity and direction over short distances, indicating complex interactions among basal geomorphological conditions, ice thickness, and flow geometry. These observations are essential for validating remote sensing data and improving numerical models of glacier dynamics and future ice mass changes across the SPI.

The dataset offers a valuable benchmark for ice flow modeling and supports further investigations into frontal dynamics, including calving processes and seasonal variability. It also underscores the importance of ground-based measurements in capturing small-scale variations that are often missed by remote sensing, particularly in fast-flowing outlet glaciers such as Grey Glacier.

Flow in the surveyed section is predominantly directed east-southeastward, consistent with the glacier surface morphology and the orientation of Lago Grey. However, the divergent flow directions observed at stakes S2 and S3 suggest localized structural complexity, potentially related to shear zones, flow convergence, or subglacial topographic features that deflect flow locally.

The recorded displacement vectors provide reliable point-scale data for calibrating and validating ice flow models, offering a baseline for predicting dynamic glacier responses under future climatic or geomorphological changes. The highest velocities were observed at stakes S5 and S6 (up to approximately 3.3 m/day at S5), indicating enhanced ice flow toward the south. This localized acceleration is likely driven by gravitational stress associated with surface slope, increased basal lubrication near the lake margin, and possibly to rapid block falls commonly occurring in heavily crevassed areas.

These in situ measurements highlight the dynamic nature of the glacier terminus and underscore the need for high-resolution observations to capture fine-scale variations in ice flow. The persistence of high surface velocities suggests ongoing dynamic mass loss driven by basal sliding and calving, reinforcing concerns about the glacier’s stability under continued climatic forcing.

The relatively moderate velocities observed indicate stable surface motion during the measurement period (Austral summer), without indications of short-term acceleration typically associated with subglacial hydrological events. However, longer-term monitoring and repeated measurements are required to resolve potential seasonal or interannual variability in ice flow.

The results contribute to the expanding dataset of surface velocity measurements in Patagonia and support the integration of direct measurements with remote sensing techniques. A key outcome of this study is the establishment of contemporary surface velocity measurements near the glacier’s terminus—a sector that has since undergone significant retreat [18,19,31,40]. These data provide a valuable reference for understanding both past and ongoing changes in the dynamic behavior of Grey Glacier in the context of regional climate change.
