Design and Validation of SPMSM with Step-Skew Rotor for EPS System using Cycloid Curve

1. Introduction

As the regulation for CO₂ reduction and fuel efficiency improvement increases, electrified systems have been widely used such as power train and chassis system [1,2,3]. In electrified system in vehicle, EPS (Electric Power Steering) is the most representative electrified system in chassis system as shown in Figure 1 [4,5]. In EPS system, PMSM (Permanent Magnet Synchronous Motor) has been mainly adopted due to high torque density and efficiency [6].

However, cogging torque reduction is the key design quality factor to enhance steering feeling and driving stability at high speed in EPS system [7]. In this reason, SPMSM (Surface Permanent Magnet Synchronous Motor) which has magnet outside rotor core has been widely used to reduce cogging torque, compared to IPMSM (Internal Permanent Magnet Synchronous Motor) which has magnets inside rotor core. Compared to SPMSM, IPMSM has a weakness in terms of reducing cogging due to saliency of rotor structure [8].

Cogging torque is a torque pulsation due to the change of magnetic resistance at no-load drive. This cogging torque depends on the shapes and material properties of the rotor, stator, and magnet [9,10]. In this reason, design methods to reduce cogging has been studied extensively in various ways. Previous studies for cogging torque reduction are mainly classified into magnet shape and skew design for the rotor assembly of SPMSM used in EPS system. In case of magnet shape design, applying eccentricity to the magnet shape has been widely used to improve cogging torque reduction [11,12].

In addition to the magnet shape design, skew design for cogging torque reduction is classified into continuous and step skew. Although continuous skew has more strength than step-skew to reduce cogging torque, step-skew design for rotor assembly has been in mass-production of EPS system for the manufacturing cost reduction [13,14,15]. Generally, the combination design with eccentric magnet shape and step-skew for rotor assembly have been applied [16].

In past studies, cycloid curves have been widely applied in mechanical fields, e.g., in speed reducers and oil pumps [17,18,19]. However, in the study by Park, Lim, and Lee [20], the cycloid curve was applied to the rotor of a motor. In their study, it was also verified that cogging torque was improved for a motor to which a cycloid curve was applied. However, the combination method for cycloidal curve on the magnet shape and step-skew design is not reported and its effectiveness is not also verified.

Furthermore, robust design has been required to guarantee the quality and maintenance of motors after mass-production [21,22,23]. Especially, robust design has been strictly conducted to meet the required variance of cogging torque considering manufacturing disturbances for mass production [24,25,26].

In this study, a cycloid curve on the magnet shape is used to reduce the cogging torque with the combination methods for rotor step skew design. Based on the same rotor step-skew design, an evaluation index δq is used and determined to compare the proposed and conventional magnet shape design. Robust design with cogging torque reduction for the proposed and conventional model are compared and verified through analytical method and prototype tests. using numerical method.

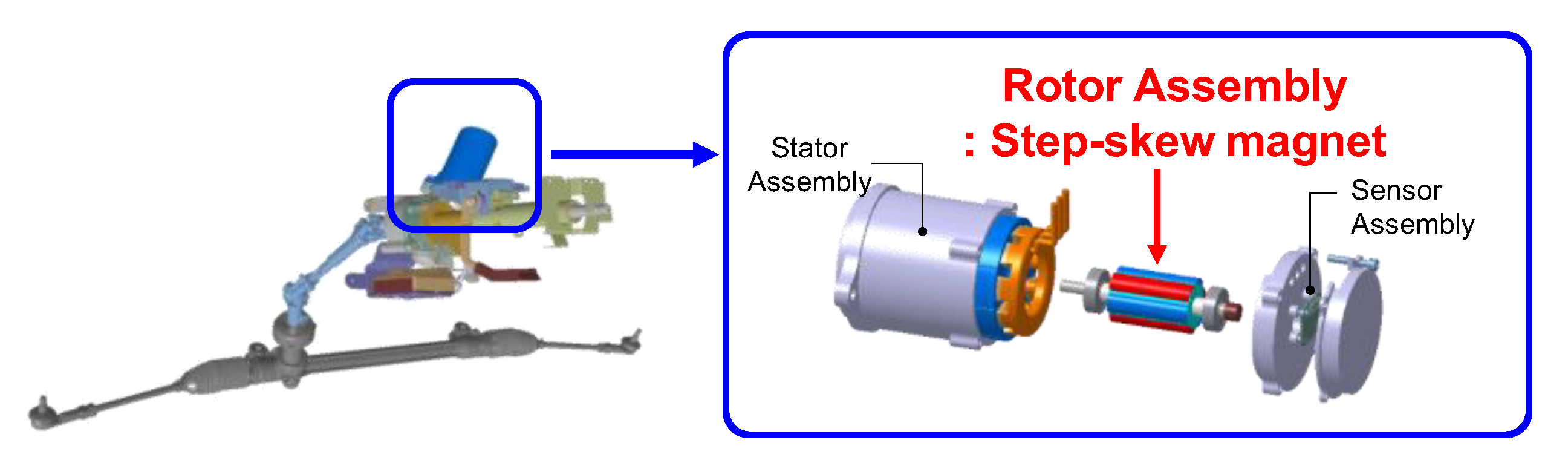

Figure 1. EPS (Electric Power Steering) system in vehicle: (a) Configuration of EPS system; (b) SPMSM (Surface Permanent Magnet Synchronous Motor) used in EPS system.

Figure 1. EPS (Electric Power Steering) system in vehicle: (a) Configuration of EPS system; (b) SPMSM (Surface Permanent Magnet Synchronous Motor) used in EPS system.

2. Analysis Model

In this study, the motor type is SPMSM as shown in Figure 2. Figure 2 (a) and (b) show also the cross-sectional view of stator and rotor core in Figure (1) respectively. The numbers of slot and pole in this study are 9 and 6 respectively. In case of Figure 2 (b), the numbers of poles are 2 with 1/3 model of rotor core which are equivalent to 6 poles. Table 1 shows the detail specifications of stator and rotor core as shown in Figure 2.

Figure 2. Stator and rotor core for analysis model: (a) Stator core with 9 slots; (b) Rotor core and magnet with 2 poles (1/3 model).

Figure 2. Stator and rotor core for analysis model: (a) Stator core with 9 slots; (b) Rotor core and magnet with 2 poles (1/3 model).

Table 1. Main specification for analysis model.

Symbol	Variable name	Unit	Value
-	Type	-	SPMSM
-	Phase/Pole/Slot	-	3/6/9
Rsc	Radius of stator core	mm	42
Rrm	Radius of rotor	mm	19
tm	Magnet thickness	mm	3.3
τa	Magnet pole pitch	Degree	60
τp	Manet pole angle	Degree	52
Lag	Air gap length	mm	1
Lstk	Stack length	mm	57

Table 1. Main specification for analysis model.

Symbol	Variable name	Unit	Value
-	Type	-	SPMSM
-	Phase/Pole/Slot	-	3/6/9
Rsc	Radius of stator core	mm	42
Rrm	Radius of rotor	mm	19
tm	Magnet thickness	mm	3.3
τa	Magnet pole pitch	Degree	60
τp	Manet pole angle	Degree	52
Lag	Air gap length	mm	1
Lstk	Stack length	mm	57

Based on the specification of analysis model as shown in Figure 2 and Table 1, an evaluation index δq is used to compare the proposed and conventional of magnet curve, which is expressed as red dotted line in Figure 3. Δq is the air gap length on the q axis that is electrically at 90 degrees to the axis of the center axis d axis which the magnetic flux of rotor magnet. The length of δq can be described in Figure 3. In this paper, the δq is defined as the distance from the inter-section point of the extended curve for the magnet shape (red dotted line in Figure 3) and the q axis to the intersection point of the rotor outer radius R_rm and the q axis.

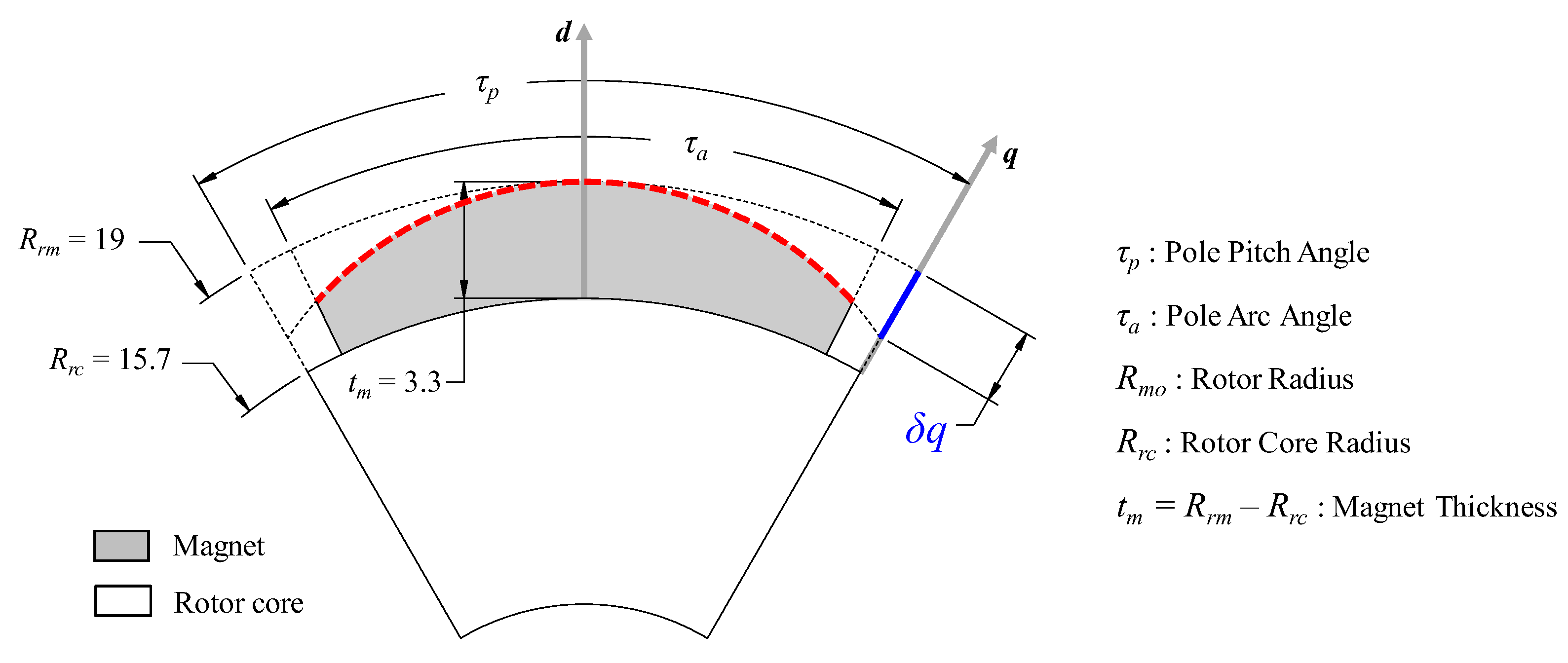

Figure 3. Definition of δq to compare the proposed and conventional magnet curve.

Figure 3. Definition of δq to compare the proposed and conventional magnet curve.

3. Proposed Model for Magnet Shape

The eccentric curve has been generally used in the magnet shape of SPMSM to reduce cogging torque and torque ripple [11,12]. In this study, the eccentric curve, which has an eccentricity from its center, is used to com-pare the proposed curve on the magnet shape as shown in Figure 4. In order to apply the eccentric circle to the magnet shape, the known parameters are decided. The known parameters are δq , R_rm , t_m and N_p (The numbers of pole). The unknown parameters of eccentric circle radius Rec and eccentricity ε_ec can be calculated by using geometrical relation as shown in Figure 4 [20].

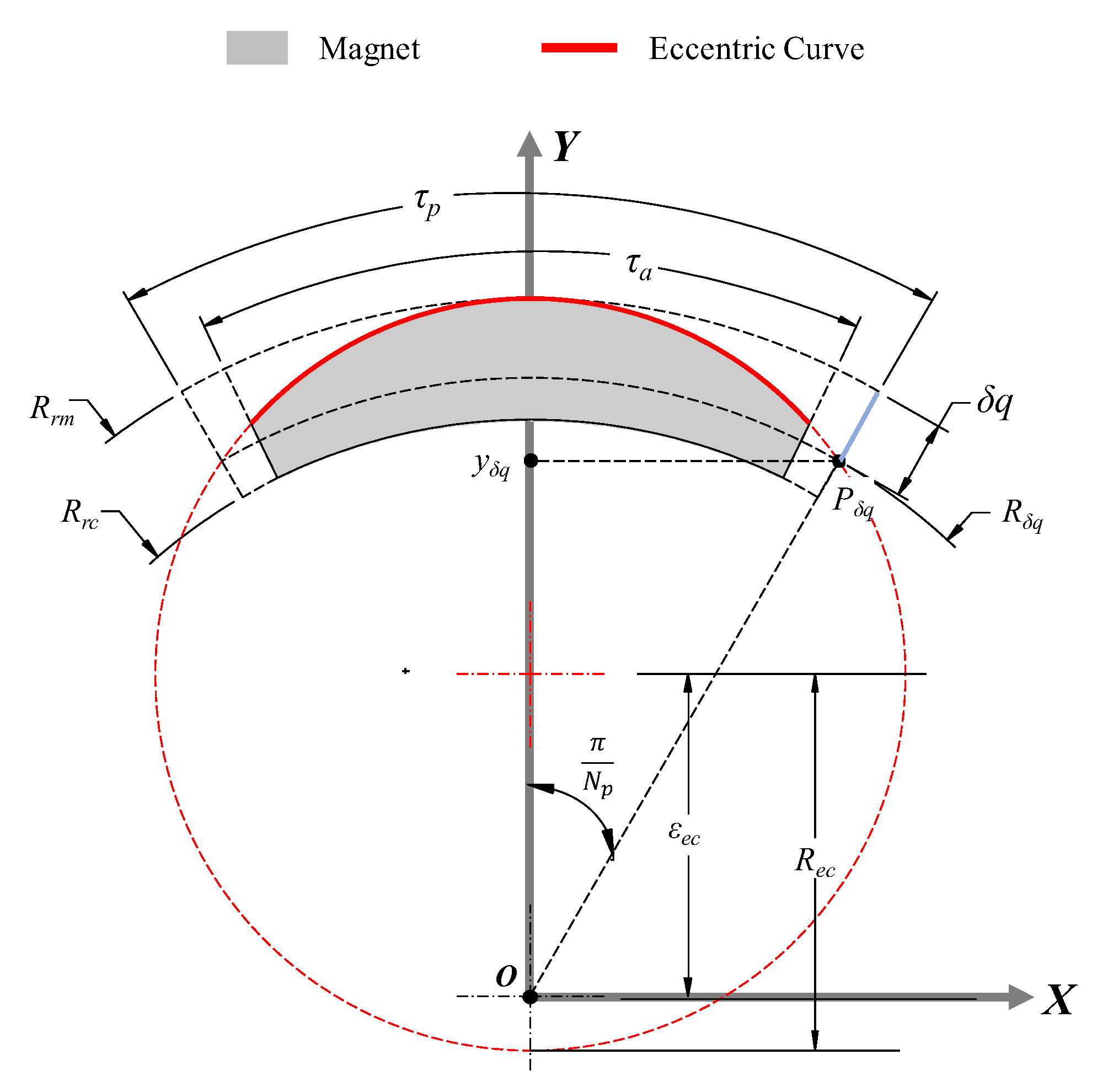

Figure 4. Definition of eccentric curve for the conventional curve on the magnet.

Figure 4. Definition of eccentric curve for the conventional curve on the magnet.

The proposed curve for the magnet shape is cycloid curve. A cycloid is the curve traced by a point in or on rolling circle with radius R_rc as the rolling circle rolls along a fixed circle with radius R_fc without slippage as shown in Figure 5 (a). In order to apply cycloid curve to the magnet shape in the same procedure of eccentric cure, the known parameters are also decided. The known parameters are those of eccentric curve such as δq , R_rm , tm and Np. The unknown parameters of R_fc , R_rc , and eccentricity of cycloid curve ε_ecc can be also calculated by using geometrical relationship as shown in Figure 5 (b) [20].

Figure 4 shows the cycloidal curve trajectory of 6 poles magnet for the rotor model given in Figure 2 (b). In addition, Figure 4 (a) shows the trajectory of cycloid curve for 6 poles of rotor without δq. In contrast to Figure 4(a), Figure 4 (b) shows the trajectory of cycloid curve with a certain value of δq for 1 pole of rotor.

Figure 5. Definition of cycloid curve for the conventional curve on the magnet: (a) Trajectory of cycloid curve for 6 poles of rotor; (b) Trajectory of cycloid curve on the magnet with 1 pole and δq.

Figure 5. Definition of cycloid curve for the conventional curve on the magnet: (a) Trajectory of cycloid curve for 6 poles of rotor; (b) Trajectory of cycloid curve on the magnet with 1 pole and δq.

Based on the design procedure of the conventional and proposed curve on the magnet for a given value of δq , the calculation of cogging torque is conducted. As described in chapter.1 of Introduction section, a cogging torque is a torque pulsation due to the change of magnetic resistance at no-load drive. Generally, the equation of cogging torque T_cog is expressed in Equation 1 [11,12].

$$T_{cog}\left(\theta \right)={\displaystyle \frac{L_{stk}}{{\mu }_{air}}}{\int }_{2\pi }r B_r B_{\theta } r d\theta$$

(1)

In Equation 1, θ is the rotational position of rotor, L_stk is the stack length of motor core, μ_air is the permeability of air, r is the radius of rotor, 2π is the 1 period of cogging toque pulsation, B_r is the magnetic flux density into radial direction and B_θ is the magnetic flux density into tangential direction. Additionally, Cogging torque has also the period of torque pulsation for a given number of pole and slot as shown in Equation 2.

$${\theta }_{cog}={\displaystyle \frac{{360}^{°}}{LCM(N_p, N_s)}}$$

(2)

In Equation 2, θ_cog is the mechanical angle of 1 period for cogging torque pulsation, N_p and N_s denote the number of pole and slot respectively and LCM means Least Common Multiple. In order to calculate cogging torque, analytical method is a possible solution as shown Equation 1. However, it is relatively difficult to calculate cogging torque as following. First, non-linear properties of magnetic materials such as permanent magnet and electric core. Second, complex geometry of magnet shape such as conventional and proposed curve. In this study, Numerical analysis of FEM (Finite Element Method) is used in order to analyze cogging torque.

Figure 6 shows the calculation results of cogging torque. Figure 6 (a) shows the wave form of 1 period for cogging torque pulsation. As described in Equation (2), the mechanical angle of cogging torque θ_cog for Figure 6 (a) is 20° at δq = 4.75mm with 6 Poles and 9 Slots for this analysis model in Table 1. Figure 6 (b) shows the peak to peak values of cogging torque at δq (0 ≤ δq ≤ 4.75).

Figure 6. Calculation results of cogging torque: (a) Wave form of 1 period for cogging torque pulsation; (b) Peak to peak values of cogging torque at δq (0 ≤ δq ≤ 4.75).

Figure 6. Calculation results of cogging torque: (a) Wave form of 1 period for cogging torque pulsation; (b) Peak to peak values of cogging torque at δq (0 ≤ δq ≤ 4.75).

Based on the conventional and prosed curve on the magnet shape, the step skew design, which is the method of cogging torque reduction as explained in chapter 1 of Introduction, is described to reduce cogging torque additionally. Step skew angle θ_Nskew is found by dividing by N_step in Equation (2). Equation (3) shows the calculation of θ_Nskew.

$${\theta }_{Nskew}={\displaystyle \frac{{360}^{°}}{N_{step} LCM(N_p, N_s)}}$$

(3)

In Equation (3), N_step is the number of step and θ_Nskew is the step-skew angle with N_step. In this study, 3 step-skew is used to compare the conventional and proposed curve on the magnet shape. Figure 7 (a) and (b) show Skew angle θ_cog = 20˚ in Equation (2) and Step Skew Angle θ_skew = 6.67° in Equation (3) with 6 poles and 9 slots for L_stk = 57mm respectively.

Figure 7. Skew angle and Step-skew angle for 6 poles and 9 slots: (a) Skew Angle θ_cog = 20˚; (b) Step Skew Angle θ_3skew = 6.67°.

Figure 7. Skew angle and Step-skew angle for 6 poles and 9 slots: (a) Skew Angle θ_cog = 20˚; (b) Step Skew Angle θ_3skew = 6.67°.

In this study, δq is selected as 4.5 considering the performance variation due to the manufacturing tolerances. 3D models for the cycloid curve on the shape magnet is shown in Figure 8 (a) with 3 step-skew of Figure 7. In Figure 8 (b) and (c), the wave-forms of 1 period for cogging torque pulsation is shown for non-skew and 3 step-skew model of the eccentric and proposed curve at δq =4.5, respectively.

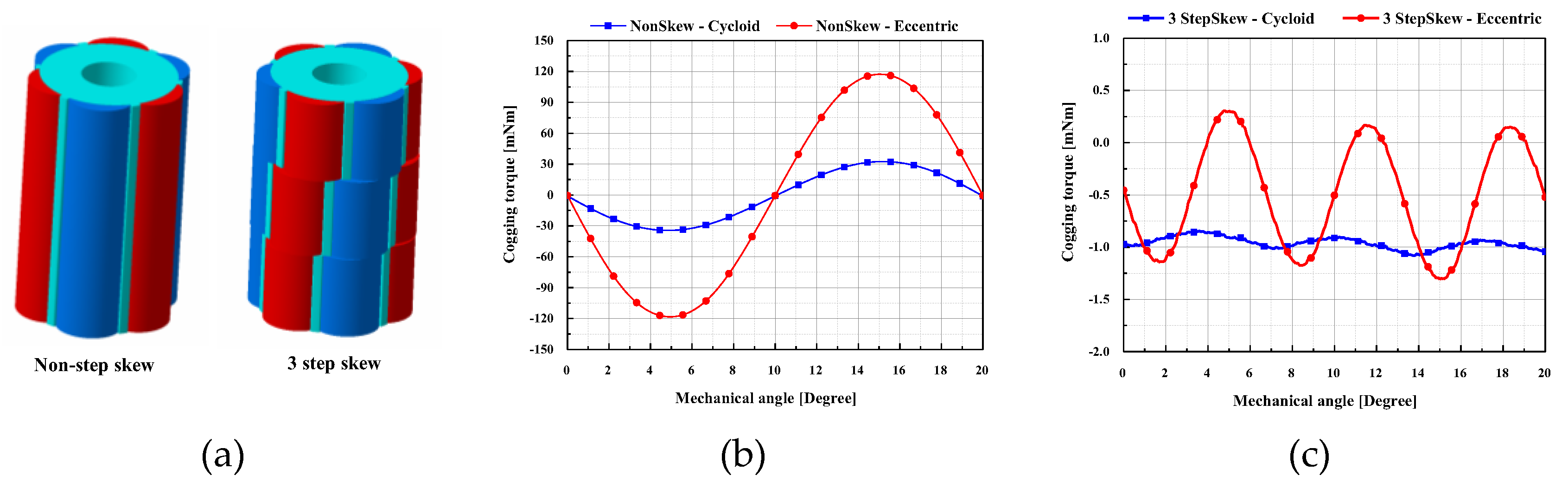

Figure 8. 3 step-skew model and calculation results: (a) 3D models of Non-step skew and 3 step-skew for the cycloid curve at δq =4.5; (b) Wave-forms of cogging torque for non-skew model at δq = 4.5; (c) Wave-forms of cogging torque for 3 step-skew model at δq = 4.5.

Figure 8. 3 step-skew model and calculation results: (a) 3D models of Non-step skew and 3 step-skew for the cycloid curve at δq =4.5; (b) Wave-forms of cogging torque for non-skew model at δq = 4.5; (c) Wave-forms of cogging torque for 3 step-skew model at δq = 4.5.

Table 2 shows the peak to peak values of cogging for the Non-skew and 3 step-skew model with the eccentric and cycloid curve on the magnet δq = 4.5.

Table 2. Cogging torque for the Non-skew and 3 step-skew model δq = 4.5.

Skew model	Cycloid model (Proposed model)	Eccentric model (Conventional model)	Unit
Non-skew	64	236	mNm
3 step-skew	0.2	1.6	mNm

Table 2. Cogging torque for the Non-skew and 3 step-skew model δq = 4.5.

Skew model	Cycloid model (Proposed model)	Eccentric model (Conventional model)	Unit
Non-skew	64	236	mNm
3 step-skew	0.2	1.6	mNm

In order to explain the effective cogging reduction mechanism for the cycloid curve on the magnet, order analyses are conducted for the eccentric and cycloid curve on the magnet with the non-skew step rotor. The electric fundamental order of PMSM with 6 poles and 9 slots in Table 1 is 6 for the 360-mechanical degree. In addition to the fundamental order, the 6n orders with the positive integer value n are also generated. Figure 9 shows the order analysis results of cogging torque wave-form for the non-skew model with 6’th n orders in Figure 8.

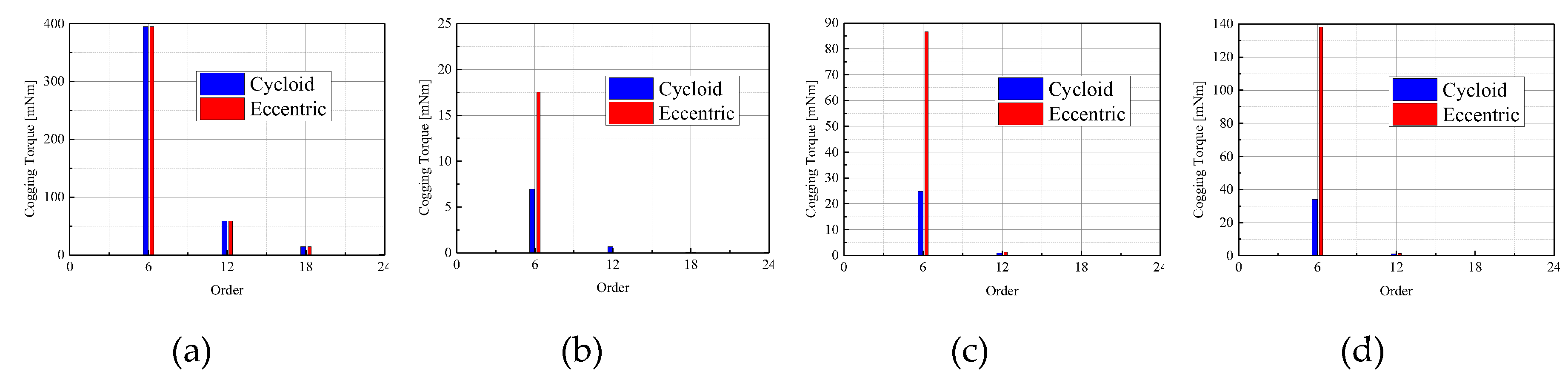

Figure 9. 6n’th cogging torque for the eccentric and cycloid curve on the magnet : (a) δq = 0.0 ; (b) δq = 3.0 ; (c) δq = 4.0 ; (d) δq = 4.75

Figure 9. 6n’th cogging torque for the eccentric and cycloid curve on the magnet : (a) δq = 0.0 ; (b) δq = 3.0 ; (c) δq = 4.0 ; (d) δq = 4.75

As shown in Figure 9, the 6’th orders are dominant orders for the cogging torque at the given values of δq. Figure 10 (a) and (b) show the cogging torque of 6’th and 12’th order for the value of δq. As shown in Figure 10 (a), the 6’th order of cogging torque for the eccentric curve on the magnet increases sharply after δq = 3.0. In this reason, the 6’th and 12’th order of cogging torque are the main orders for the cogging torque generation for the eccentric and cycloid model. Compared the eccentric curve model, the 6’th and 12’th order of cogging torque for the cycloid model are decreased as the values of δq increases.

Figure 10. cogging torque (peak to peak value) of the 6’th and 12’th order for the eccentric and cycloid curve on the magnet : (a) 6’th order cogging torque; (b) 12’th order cogging torque.

Figure 10. cogging torque (peak to peak value) of the 6’th and 12’th order for the eccentric and cycloid curve on the magnet : (a) 6’th order cogging torque; (b) 12’th order cogging torque.

4. Validation

In order to validate the cogging torque reduction for the proposed model, the prototypes are built for the proposed and conventional model as shown in Figure 11. In Figure 11 (c), the reference model has the value of δq = 4.5 as shown in Figure 11 (a) and (b). The reference model was also built to compare the effectiveness for the proposed and conventional model in Figure (c) with δq = 0 for the conventional model.

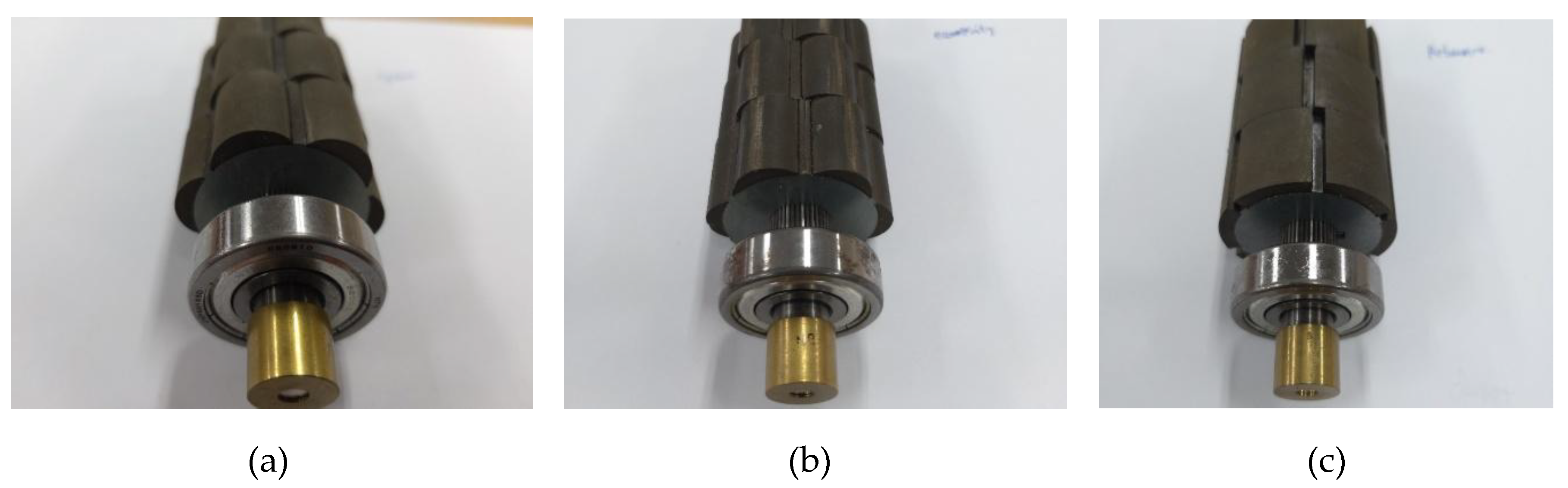

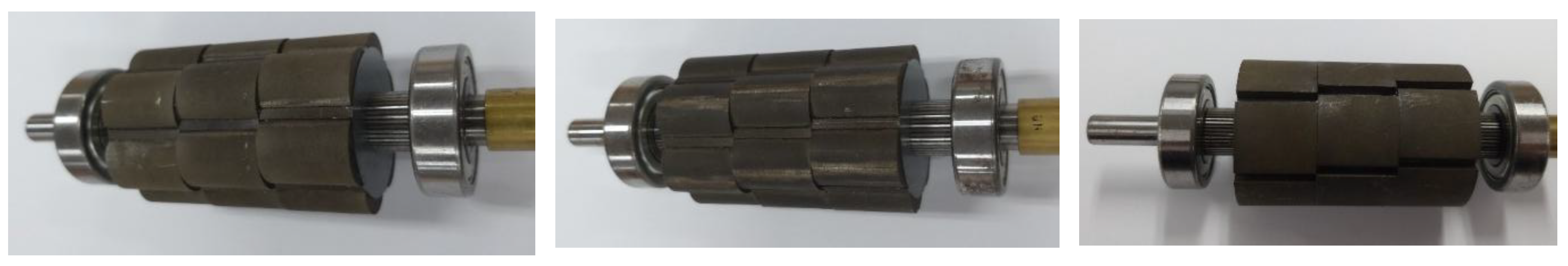

Figure 11. Protypes for the proposed and conventional model at δq = 4.5 : (a) cycloid for the proposed model ; (b) eccentric for the conventional model; (c) reference model.

Figure 11. Protypes for the proposed and conventional model at δq = 4.5 : (a) cycloid for the proposed model ; (b) eccentric for the conventional model; (c) reference model.

Figure 12 (a) and (b) shows the measurement equipment to measure the wave-forms of cogging torque and the measurement results of cogging torque wave-forms for the prototypes as shown in Figure 11. Figure 13 (b) shows the analysis results of cogging torque wave-forms for the prototypes as shown in Figure 11. Figure (c) shows the extended cogging torque wave-forms for the cycloid and eccentric model in Figure 13 (b).

Based on the analysis and tests results as shown in Figure 12 and Figure 13, the peak to peak values of cogging torque for the prototypes in Figure 11 are shown in Table 3. The effectiveness of cogging torque reduction for the proposed model with the cycloid was verified through the results of analysis and tests results as shown in Figure 12, Figure 13 and Table 3.

However, there are considerable differences of the peak to peak values of cogging torque between the analysis and test results in Table 3. In this study, the motor used in EPS system was dealt with a high precision motor used in EPS system are dealt with the strict cogging torque limit in the unit of mNm. In this reason, these considerable differences of cogging torque for the analysis and test results are affected by the manufacturing deteriorations [20,22,23].

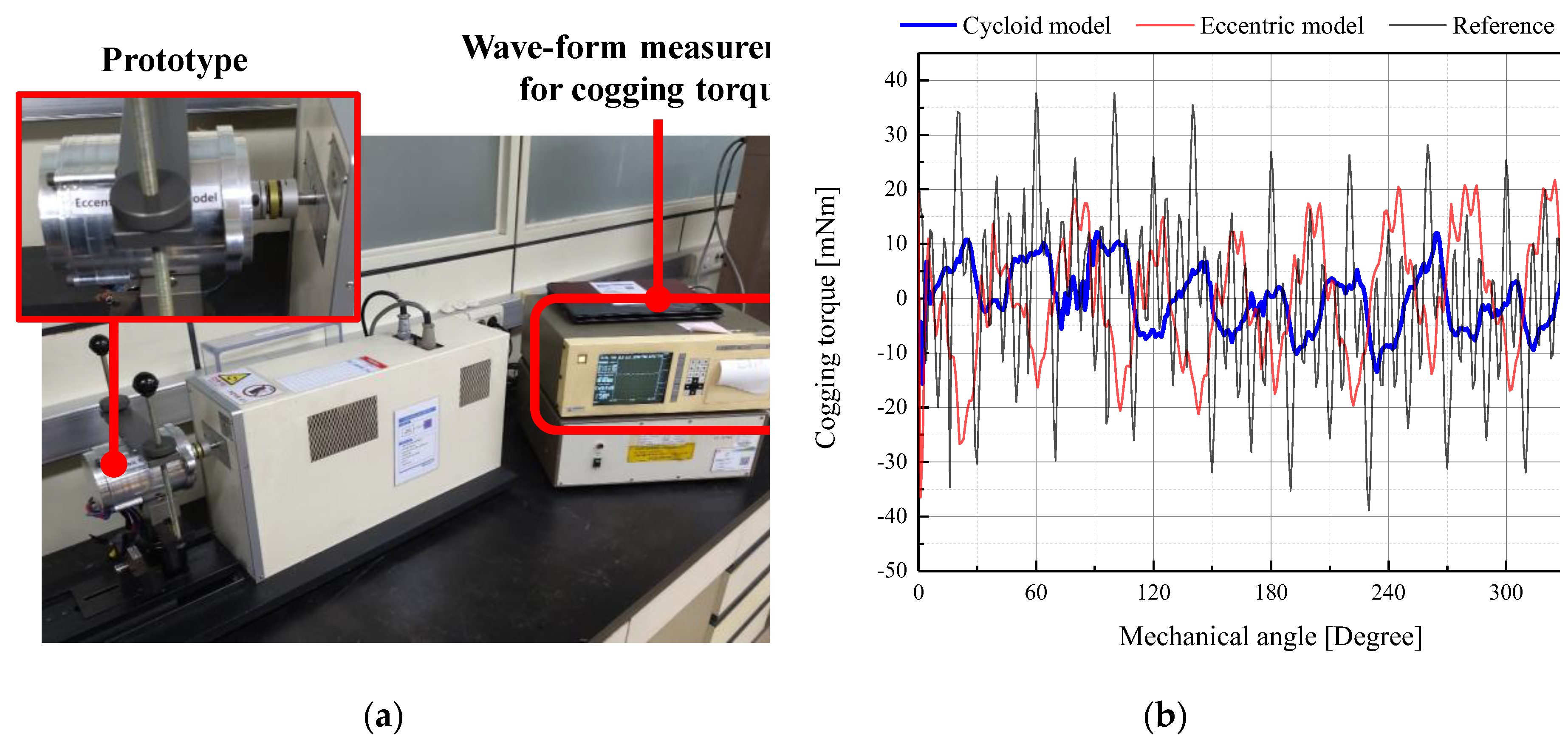

Figure 12. Measurement equipment and test results : (a) Measurement equipment ; (b) Test results of cogging torque wave-forms for the 3 prototypes with the 360 degree of mechanical angle.

Figure 12. Measurement equipment and test results : (a) Measurement equipment ; (b) Test results of cogging torque wave-forms for the 3 prototypes with the 360 degree of mechanical angle.

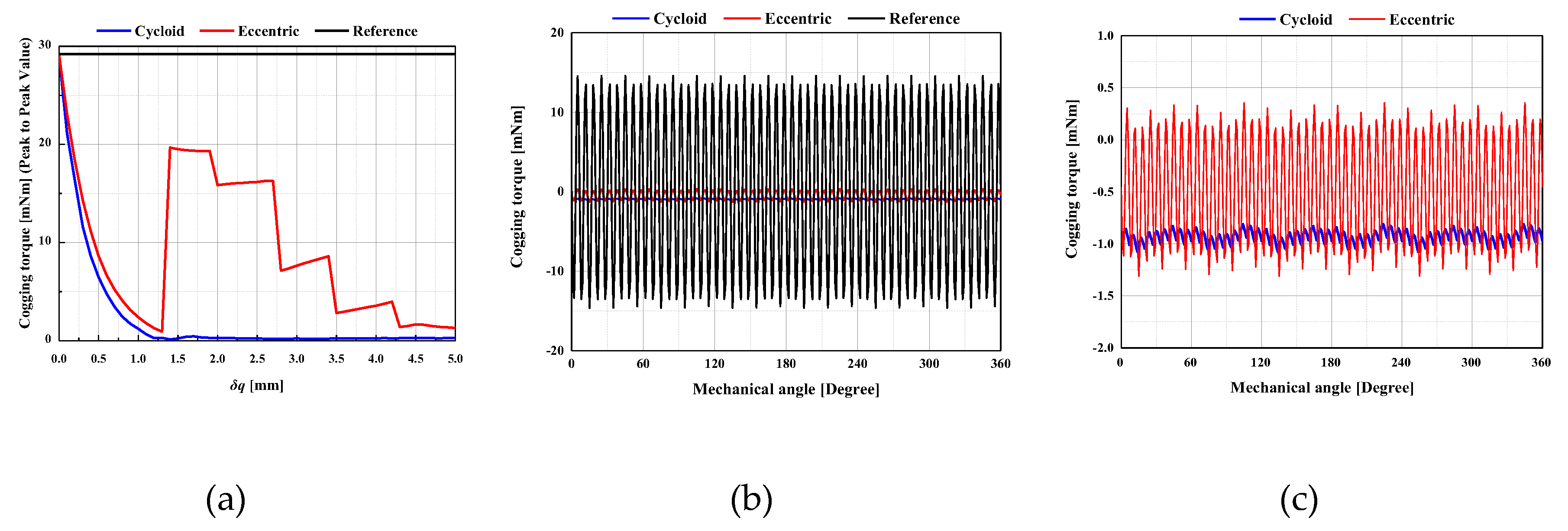

Figure 13. FEM results : (a) cogging torque (peak to peak value) for the δq ; (b) wave-forms of cogging torque for the cycloid, eccentric and reference model for the 360 degree of mechanical angle ; (b) wave-forms of cogging torque for the cycloid and eccentric model for the 360 degree of mechanical angle.

Figure 13. FEM results : (a) cogging torque (peak to peak value) for the δq ; (b) wave-forms of cogging torque for the cycloid, eccentric and reference model for the 360 degree of mechanical angle ; (b) wave-forms of cogging torque for the cycloid and eccentric model for the 360 degree of mechanical angle.

Table 3. Cogging torque for the Non-skew and 3 step-skew model δq = 4.5.

Cogging Torque (Peak to peak value)	Proposed model (Cycloid model)	Conventional model (Eccentric model)	Reference model	Unit
Analysis (FEM)	0.2	1.6	29.2	mNm
Test	27.8	58.2	76.5

Table 3. Cogging torque for the Non-skew and 3 step-skew model δq = 4.5.

Cogging Torque (Peak to peak value)	Proposed model (Cycloid model)	Conventional model (Eccentric model)	Reference model	Unit
Analysis (FEM)	0.2	1.6	29.2	mNm
Test	27.8	58.2	76.5

Although there are considerable differences between analysis and test results, the peak to peak values of cogging torque for the proposed model has little variation for the δq from 1.0 to 5.0 as shown in Figure 10 (a) and Figure 13 (a). In this reason, the proposed model for the non-skew and skew model are verified as the robust model for the manufacturing deteriorations compared to the conventional model.

5. Conclusions

This study proposed the design method of magnet shape with step-skew model to reduce cogging torque. The design strengths of prosed design method with the cycloid curve on the magnet was verified through analysis and test results compared to the conventional model.

The cogging torque for the proposed model is reduced by 72% compared to the conventional model in case of non-skew model. In case of 3 step-skew model, the cogging torque for the proposed model is reduced by 88% compared to the conventional model. Based on the order analysis of cogging torque wave form, the 6’th and 12’th order of cogging torque is the most dominant order to increase cogging torque in the proposed and conventional model. Compared to the conventional mode, the 6’th and 12’th order of cogging torque in the proposed model was decreased sharply as the δq increases. The effectiveness of cogging torque reduction for the proposed model was validated through the test results with the prototypes.

However, it was verified that there were considerable differences of the cogging torque between analysis and test results due to the manufacturing deteriorations. These considerable differences of cogging torque for the analysis and test results are affected by the manufacturing deteriorations for the motor in EPS system with the required lowest cogging torque. In this study, it was also verified that the proposed model has the robustness of the cogging torque reduction for the manufacturing variations compared to the conventional model. The verified results for the proposed model will be extended to meet the required cogging torque variation for the various application driven by SPMSM with the robust design model.
