Updated Applications of Stem Cells in Hypoplastic Left Heart Syndrome

1. Introduction

Hypoplastic left heart syndrome (HLHS) is a severe and complex congenital heart disease (CHD) affecting 1 in 3995 live births in the USA and constitutes roughly 2-3% of all CHDs [1]. It is characterised by underdevelopment of left-sided cardiac structures including left ventricle (LV), mitral valve, aortic valve and ascending aorta [2]. The resulting anatomical deficiency prevents effective systemic circulation and is incompatible with life without early surgical intervention [3].

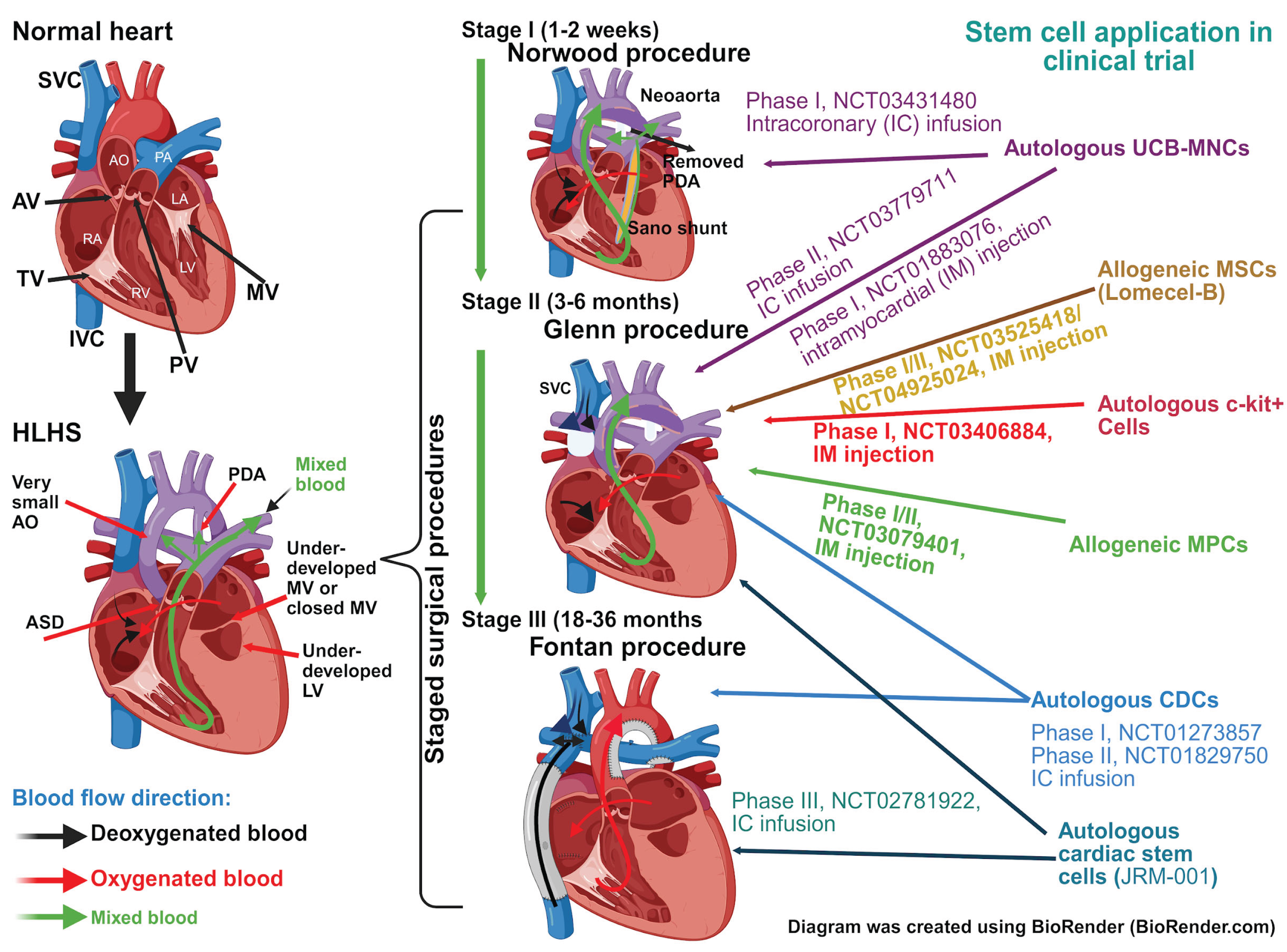

Current standard of care for HLHS patients involves a series of staged surgical procedures aimed to overcome left sided cardiac deficiencies [2,4,5] (Figure 1). The initial Norwood procedure, usually performed in the first week of life, reconstructs the underdeveloped aorta with the pulmonary artery to form a neoaorta. This allows the right ventricle (RV) to supply the systemic circulation [6]. At the same time, a shunt is inserted from the RV to supply the pulmonary circulation and create an artificial connection between the right and left atrium to permit mixing of oxygenated and deoxygenated blood [7]. Subsequently, the bidirectional Glenn procedure, normally occurring at 4-6 months, connects the superior vena cava to the pulmonary arteries, thereby, bypassing the RV and resulting in a reduced RV workload [8]. Similarly, the final palliative stage termed the Fontan procedure, performed between 18 months and 3 years of age, redirects the inferior vena cava to the pulmonary artery, allowing all deoxygenated blood to enter the lungs directly [9]. Overall, these surgical palliation procedures allow HLHS patients to achieve a RV that is capable of supplying fully oxygenated blood to the systemic circulation. Although capable of extending patient life expectancy and improving quality of life [10], end outcomes of these surgical interventions remain inferior compared with healthy individuals [11]. Despite surgical advances enabling survival of an otherwise fatal condition, long-term complications such as arrhythmias [12,13] and eventual RV failure occur [14] in a significant proportion of patients. Even with successful staged palliation surgeries, many patients will eventually require heart transplantation [15] which is significantly limited by availability of suitable donors and comes with significant complications and risks of its own. These limitations combined with the poor regenerative capacity of the myocardium highlight the need for alternative therapeutic options.

The last two decades have seen notable progress towards addressing these limitations with the emergence of stem cell-based regenerative therapies. Multiple sources of viable adult stem cells have been identified from bone marrow, adipose tissue and umbilical cord blood [16,17,18]. These stem cells have shown translational potential within a wide range of pathologies including HLHS, with multiple published and ongoing trials investigating their potential use in HLHS [19]. Early clinical results have demonstrated feasibility and safety of stem cell application in HLHS patients such as in the ELPIS trials [20] laying the foundation for future later-phased efficacy trials.

Other than adult stem cells, pluripotent stem cells (PSCs) including induced PSCs (iPSCs) and embryonic stem cells (ESCs), offer an excellent alternative possibility. PSCs-derived cardiomyocytes (CMs) [21] have been used extensively to study disease modelling, pathogenesis and potential therapeutic applications [22,23,24,25]. More recently, the discovery of cardiac organoids and improvements in cardiac tissue engineering with the introduction of 3D bioprinting has led to some scientists incorporating these elements into the study of HLHS [26,27]. In this review, we aim to explore how recent stem cell technologies have redefined our understanding of HLHS and potentially provide innovative approaches to the treatment of HLHS beyond surgery.

2. Key Pathophysiological Basis and Signaling Molecules of HLHS

Cardiac development initially begins between day 15-17 of embryogenesis with the migration of mesoderm from the primitive streak to the two heart forming regions [28,29]. These regions then give rise to the first heart field (FHF) and the second heart field (SHF). The FHF contributes to the formation of the LV and atria whilst the SHF contributes to the development of the RV and outflow tract. These two structures then subsequently fuse to form the cardiac crescent and the primitive heart tube. The primitive heart tube undergoes looping which transforms the structure from that of a linear tube into a structure with distinct chambers. Subsequent migration of the neural crest cells contributes to the formation of the aorticopulmonary septum [30] whilst endocardial cushions give rise to the valves and septa [31].

Pathological studies have shown that the key pathogenesis of HLHS is attributed to a complex multifactorial disease secondary to cardiac developmental disruptions during early cardiogenesis [2,32]. A multitude of potential developmental and signaling pathways alongside growth and transcription factors have been proposed as contributory or even pathogenic components to HLHS [33] (Table 1). A foundational understanding of the finely balanced genetic and developmental signaling pathways is therefore the key to interpreting recent insights into HLHS pathogenesis.

2.1. Key Signaling Pathways for Heart Development and HLHS

The complex process of cardiogenesis relies on finely tuned spatial and temporal development of cardiac cell populations [86]. This is achieved via interactions between numerous transcription factors and signaling molecules as outlined extensively in Li et al’s review on molecular mechanisms of cardiac development [69]. Here we will highlight the important molecular pathways and transcription factors with relevance to HLHS(Table 1).

The WNT/β-catenin signaling cascade is a well-studied pathway for early cardiac development with direct implications in HLHS [87]. Activation of the canonical WNT pathway leads to an accumulation of β-catenin via frizzled receptors [88,89]. This triggers the development of mesoderm from the primitive streak, subsequently forming the FHF and the SHF. Evidence of the critical involvement of the canonical WNT pathway has been clearly demonstrated by the removal of Wnt 2 and Wnt 11 leading to a reduction in SHF progenitors [69]. Subsequently, the inhibition of the canonical WNT pathway and the activation of the non-canonical WNT/calcium pathway are required specifically for CM differentiation from stem cells. Overall, this highlights the importance of activation and inhibition of various WNT pathways at the correct time being crucial for early cardiogenesis and CMs generation from stem cells. Any genetic disruptions in either the canonical or non-canonical WNT pathways will likely result in cardiac developmental malformations including HLHS.

Another key signaling pathway implicated in the development of the heart is retinoic acid (RA). Under normal circumstances, RA produced by the retinaldehyde dehydrogenase enzymes acts as a morphogen which governs the development of tissue patterning and cardiac defects [90]. By exerting its effects on RA nuclear receptors, RA establish correct anterior-posterior (AP) axis patterns in cardiac mesoderm, which defines atrial and ventricular regions [91,92]. In addition, RA has been proven to prevent overgrowth of cardiac progenitor regions and regulate epithelial to mesenchymal transition [93]. Moreover, RA has been documented to interact with several key factors such as bone morphogenetic proteins (BMPs) and NKX2.5 implicated in HLHS pathogenesis [90], highlighting its role for HLHS aetiology.

Amongst the key cardiac developmental pathways, disruptions in NOTCH signaling remain one of the most extensively studied pathways with strong evidence supporting its role in HLHS pathogenesis. Normal function of the NOTCH pathway begins with Jagged and delta-like ligands binding to NOTCH 1-4 to facilitate activation of downstream genes via the notch intracellular domain (NICD) [34]. During cardiac development, activation of NOTCH signaling initially prevents expression of myocardial genes and inappropriate early cardiac differentiation [94], thereby keeping mesoderm in progenitor state. Subsequently, NOTCH signaling interacts with other pathways such as WNT and BMP, promoting SHF differentiation into outflow tracts (OFTs) and right heart structures. In addition, NOTCH also regulates key processes such as ventricular trabeculation, normal endocardial cushion placement, valve thickness and proper ventricular growth [95,96]. Defects in the NOTCH pathway have been associated with a variety of CHDs including ventricular septal defects (VSD), OFT malformations and HLHS [97].

BMP is a subset of growth factors within the much larger transforming growth factor beta (TGFβ) family. They act as signaling proteins that interact with many of the pathways such as FGF and WNT to ensure normal cardiac development. Different members of the BMP family are instrumental in different aspects of cardiac development. BMP2 and BMP4 working in tandem with WNT, FGF and other growth factors help to guide mesodermal cells to a cardiac fate [39]. These BMPs are required for the development and proliferation of endocardial cushions which eventually form the heart valves, structures that are underdeveloped in HLHS. In contrast, BMP10 is critical in trabeculation [98] and CM proliferation [99], with its absence in mice leading to ventricular wall underdevelopment and increased lethality rates during embryogenesis [100]. These findings highlight the multifaceted roles of members of the BMP family in cardiogenesis and its dysregulation serves as a potential source of pathogenesis for HLHS studies.

While this section does not aim to provide a comprehensive review on the topic of cardiac signaling pathways, the selected pathways offer helpful context for subsequent discussion on the use of stem cell technologies in uncovering HLHS mechanisms. Table 1 lists some key cardiac developmental signaling pathways discovered thus far including some yet to be associated with HLHS. Beyond signaling pathways, some transcription factors have also been investigated in the pathogenesis of HLHS with many of them thought to interact closely with cardiac development pathways.

2.2. Transcription Factors Underpinning Cardiac Development and HLHS

Part of the reason why HLHS etiology remains difficult to elucidate is the multitude of transcription factors, growth factors and signaling pathways involved in normal cardiac development (Table 1). They work synergistically with multiple molecules that must function in tandem [101,102,103]. A single factor can exert multiple permissive and inhibitory effects on other pathways in a precise time-dependent manner with dysregulation at any stage leading to downstream effects [101,104,105]. Key transcription factors implicated in normal cardiac function include HAND1/2 [106], NKX2.5 [62], GATA4 [107], MYRF [64], ISL1 [108], TBX1/5 [109], MEF2C [110] among others. This section focuses on transcription factors with the strongest evidence from literature supporting their involvement in HLHS. Other factors listed in Table 1 remain crucial for cardiogenesis although their roles in HLHS are currently less well-defined.

NKX2.5 is an essential homeobox transcription factor expressed in early cardiac progenitors and is responsible for heart tube formation, chamber specification and heart looping [111]. Studies have shown that interactions between NKX2.5 and other transcription factors promote CM differentiation [112], with NKX2.5 and HAND2 interactions crucial for ventricular identity [106]. NKX2.5 knockout mice [113] and zebrafish [114] exhibited severe cardiac defects including abnormal conduction system, impaired heart tube and ventricle development [115]. In patient cohort studies, NKX2.5 variants have been associated with various CHDs [116], however no strong association with HLHS was established [63]. As a result, patient-derived iPSCs are being used to further investigate the exact role of NKX2.5 in HLHS [61].

Similarly, HAND1, a basic helix-loop-helix (bHLH) transcription factor, interacts with transcription factors such as NKX2.5 and GATA4 [117] to regulate CM differentiation [118]. Crucially for HLHS, HAND1 plays a critical role in left heart development by specifying LV identity [119]. Genetic disruptions of HAND1 in animal models confirmed its critical role in cardiac development. Evidence by the removal of HAND1 leading to severe cardiac malformations including poorly formed or missing LV [119,120], resembling features seen in HLHS. In human studies, sequencing of patient cardiac tissue has identified a recurrent frameshift mutation (A126fs) leading to a truncated HAND1 protein [60]. However, follow-up studies using mouse models engineered with the same mutations were unable to replicate a hypoplastic LV [121]. Instead, mice with the mutation demonstrated increased embryonic lethality and structural abnormalities. These findings reinforce the importance of HAND1 in normal cardiac development although its specific role in HLHS appear more contributory rather than causative, consistent with current understanding of HLHS etiology.

Beyond transcription factors, some vital structural and regulatory proteins such as MYH6, LRP2, and GJA1 amongst others have also been proposed as contributing factors for HLHS [33]. In addition, multiple chromosomal syndromes such as Turner’s, Jacobsen’s, Digeorge, Holt-Oram and Edward’s syndrome have been associated with HLHS to various degrees [2,122], further highlighting the multifactorial etiology of HLHS and its complexity.

3. Application of Stem Cell in HLHS as an Adjunct Treatment

Unsurprisingly, no effective medication is currently available for HLHS patients due to its complicated and multifactorial etiology. Although early staged surgical intervention could extend life expectancy and improve quality of life for patients. Long-term efficacy remains poor, as evidenced by the very high 1-year mortality with the Norwood procedure (15 % to 60 %) [123]. This highlights the need for alternative therapeutic options such as stem cell therapy which may provide long-term benefits to HLHS patients. Stem cell research has advanced our understanding of human disease etiology and expanded our treatment options for a variety of CHDs including HLHS over the past few decades. Moreover, the recent advances of novel stem cell technologies, such as using patient-specific iPSC and organoids has enabled scientists to study HLHS from a precise perspective which may lead to therapeutic development.

Broadly speaking, stem cells can be classified into PSC and adult stem cells. Adult stem cells include hematopoietic stem cells, mesenchymal stem cells (MSCs) and fetal adult stem cells such as umbilical cord stem cells, placental stem cells among others. Whilst many types of stem cells have been applied to study HLHS, adult stem cells have received the most attention culminating in many small-scaled, early-phased clinical trials [19]. In this section, we review selected preclinical and clinical trials that investigate the role of adult stem cells in improving HLHS outcomes in addition to providing updated insights. (Table 2, Figure 1).

3.1. Umbilical Cord Derived Stem Cells

The umbilical cord is a readily available supply of stem cells, consisting of umbilical cord blood mononuclear cells (UCB-MNCs) isolated from blood and mesenchymal stem cells (UCB-MSCs) derived from Wharton’s jelly. UCB-MSCs exhibit a better proliferative capacity, superior mesodermal differentiation potential and higher level of secretion of growth factors compared to other sources of MSCs and other adult stem cells [129,130]. Preclinical investigation using UCB-MSCs in neonatal animal models of RV overload has demonstrated possible therapeutic benefits relevant to a HLHS overloaded state. Davies et al used neonatal ovine models receiving intramyocardial UCB-MSCs to demonstrate improvements in RV ejection fraction (RVEF), reduced fibrosis and increased recruitment of endogenous progenitors [131]. Notably, data from this preclinical study also suggest that the majority of benefits are attributed to the indirect effects of UCB-MSCs to enhance neovascularisation, reduce inflammation and ultimately adverse remodeling, rather than their direct differentiation into CMs [19].

Promising preclinical data have prompted translational efforts in applying UCB-MNCs in neonates with HLHS. Phase I trials investigating the safety of autologous umbilical cord blood-derived cells (NCT01883076) were conducted at Mayo Clinic with intramyocardial injection of UCB-MNCs during the Glenn procedure [126]. They were able to demonstrate that cord cell collection, processing and intramyocardial delivery were feasible and safe with no procedure-related serious adverse events. Echographic follow-up over 6 months, including measurements of RVEF, RV fractional area change, RV index of myocardial performance, demonstrated no evidence of adverse RV remodelling. These findings were supported by inflammatory biomarkers, which remained stable or downtrending, suggesting no evidence of long-term harm from the procedure [126].

Building on evidence from the Mayo clinic trials, Brizard et al [127] used a novel cardioplegia solution during Norwood operation to infuse UCB-MNCs. They reported 3 deaths which were considered unrelated to therapy, with remaining survivors demonstrating desired RV function at the time of stage II operation. Although preclinical studies giving us the mechanistic rationale of treatment and early clinical trials being promising, some UCB-MNC specific limitations remain. Most notably, challenges may arise when collecting viable umbilical cord blood in HLHS patients who are already at increased risk of hemodynamic instability [132]. Further optimisation of collection protocols and long-term follow-up data are urgently required before clinical translation can be implemented.

3.2. Bone Marrow Stem Cells

In addition to the umbilical cord, MSCs can also be sourced from bone marrow in the form of BM-MSCs [16]. BM-MSCs, much like their counterpart in the umbilical cord, is also a potential candidate for HLHS therapy. They exhibit multipotency, low immunogenicity and strong immunomodulatory effect [133] and can be easily isolated and collected with proven safety in vivo [134]. These properties are supported by extensive clinical, preclinical and translational data [135]. Although in vitro studies showed that BM-MSCs with manipulation are capable of differentiating into mesodermal lineages including endothelial cells [136] and CM-like cells [137], their primary therapeutic benefits do not derive direct cell replacement. Instead, BM-MSCs are thought to promote angiogenesis [138], reduce oxidative damage [139], inhibit tissue fibrosis, and prevent apoptosis [140] via paracrine signaling or through secretion of exosomes.

Using a porcine model, Wehman et al showed epicardial injection of BM-MSCs minimised cardiac hypertrophy, increased capillary density and preserved RVEF without any serious adverse events [141]. Building on these findings, Liufu et al simulated RV pressure overload in mouse models using pulmonary artery banding. They found that neonatal BM-MSCs exhibited age-dependent differences in vascular endothelial growth factor (VEGF) secretion and paracrine activity, resulting in improved RV function [142]. Although informative, this study also suggests that BM-MSCs provided meaningful benefits restricted to cells collected from very young donors, posing serious ethical challenges for their use in HLHS. Nonetheless, multiple research groups have conducted phase I/II clinical trials using BM-MSCs from adult volunteers with some promising results. The ELPIS trial was able to demonstrate safety and potential benefits of intramyocardial injection of allogeneic BM-MSCs (Lomocel-B) [20], which has seen progress into the phase IIb ELPIS II trial (NCT04925024). ELPIS II aims to recruit 38 patients for a blinded, randomised control trial to provide more rigorous evidence of efficacy compared to the open, non-randomised, single-arm ELPIS phase I.

A separate phase I/II randomised study investigated the benefits of mesenchymal precursor cells (MPCs) in patients with HLHS. The Mesoblast MPC trial (NCT03079401) [143] used rexlemestrocel-L, a highly purified population of STRO-3⁺ BM-MPCs derived from adult volunteers, to treat HLHS. 10 controls and 9 BM-MPC treated patients were followed up over a period of 24 months, with their cardiac parameters measured by 2D echocardiography, 3D echocardiography, cardiac MRI and catheterisation. When indexed for body surface area, the BM-MPC group demonstrated significant improvements in multiple 2D and 3D echocardiography parameters [143] including LV end diastolic volume and end systolic volume. However, such improvements were absent in cardiac MRI findings. Due to the conflicting results and underpowered nature of the study, no definitive conclusion should be made regarding the efficacy of BM-MPC in HLHS. Despite this, the feasibility and safety demonstrated by the study once again supports the rationale for future, more well-powered BM-MPC studies for HLHS. Interestingly, the authors also noted a higher rate of successful biventricular circulation, a procedure that significantly improves prognosis, with 5/5 BM-MPC patients having successfully completed the surgery compared to 4/7 for control [143]. Although limited by small sample sizes, these preliminary data raise the hypothesis that BM-MPC therapy may improve success rates of biventricular circulation in HLHS patients, which may warrant better-powered studies in the future.

In addition to BM-MSCs, bone marrow harbours other stem cell populations including endothelial progenitor cells and hematopoietic stem cells which have been studied extensively and widely used for many hematological conditions [144,145,146]. However, limited evidence exists which supports any potential benefit of non-mesenchymal bone marrow-derived stem cells in HLHS patients. To date, only one case report has described a 25 year old HLHS patient receiving intracoronary infusion of autologous BM-MNCs [147]. No serious adverse events were recorded and the patient saw significant improvement in RVEF most notably 3 months post infusion with an increase from 30% to 40%. This case suggests BM-MNCs may warrant further investigations following palliative surgery in HLHS.

3.3. Cardiac Stem and Cardiosphere-Derived Cells

Cardiac stem cell (CSC) is another source of stem cells that have been investigated as a potential therapy in HLHS. The concept of using CSCs for cardiac diseases has evolved significantly within the last two decades. Earlier efforts focused on a specific group of endogenous CSCs known as c-kit cells for the regeneration of new CMs following cardiac injury. However, multiple subsequent studies have failed to replicate c-kit cells’ cardiomyogenic potential [148,149]. As a result, the exact therapeutic potential of c-kit cells remains unclear, diverting research efforts into alternative CSC populations. Current CSC research primarily focuses on cardiosphere-derived cells (CDCs). These cells are derived from cardiospheres that comprise a heterogeneous population containing mesenchymal cells, c-kit cells and endothelial cells [150]. Preclinical studies using CDCs were able to demonstrate improved cardiac remodelling in infarcted myocardium of murine [151,152] and porcine [153,154] models. Specifically, compared with controls, CDCs reduced scar size, improved ventricular compliance and function [152] and enhanced neovascularisation [154]. Importantly, in models simulating RV overload similar to a post-surgical HLHS state, CDCs improved RVEF and reduced cardiac fibrosis, with the mechanism thought to be through paracrine effects [155].

Based on the promising outcome in pre-clinical studies with CDCs, the 2015 TICAP trial (Transcoronary Infusion of Cardiac Progenitor Cells in Patients With Single-Ventricle Physiology) was the first to utilise CDCs in the context of HLHS patients [124]. Fourteen infants due to undergo stage II and III palliative surgery were either given CDC intracoronary therapy or control. At 18 months, RVEF increased from 46.9±4.6% to 54.0±2.8% (p=0.0004) in the CDC group. Further functional improvements in heart failure status measured by the New York University Paediatric Heart Failure Index (NYUPHFI) [124] were observed.

The later, larger, phase II trial PERSEUS (Cardiac Progenitor Cell Infusion to Treat Univentricular Heart Disease) similarly evaluated the efficacy of intracoronary CDCs during stage II/III palliative surgery in 34 paediatric patients [125]. Analysis at three months post therapy demonstrated an improvement in RVEF of +6.4% in CDC group versus +1.3%; (p=0.003) in control. Subsequently, patients in the control group were given the option of receiving CDCs 4 months after surgery with all 17 patients electing to do so [125]. In these patients, RVEF improved to 38.8% from 34.8%; p<0.0001 following CDC infusion, corroborating with initial cohort response. Secondary outcomes including heart failure status, quality of life and somatic growth also improved. Follow-up analysis using combined data from TICAP and PERSEUS by Sano et al [156] compared controls to treatment and found significantly improved ventricular function with lower rates of complications and follow-up procedures. Similarly, Tauri et al [157] conducted a 3 year follow-up on TICAP patients and confirmed persistently improved RVEF (+8.0%vs +2.2%; p=0.03) with no serious long-term complications noted. Long-term follow-up analysis of TICAP/PERSEUS trials confirmed that CDC infusion was associated with lower hazards of late failure and adverse events, indicating durable clinical benefit of CDC therapy in patients with heart failure with reduced ejection fraction over 8 years [158]. Despite limitations of small sample size, heterogeneity in patient staging and lack of blinding analysis, early phase clinical trials provide sufficient evidence for more rigorous future studies that can validate therapeutic potential of CDCs in HLHS.

4. PSC Derived Cardiomyocytes for Studying HLHS

4.1. PSC-Derived Cardiomyocyte from HLHS Patients

Since the discovery of iPSCs by Yamanaka et al in 2006 [159], their application in CHD has yielded new insights into pathogenesis and novel therapeutics [160,161]. Briefly, iPSC are reprogrammed from somatic cells such as dermal fibroblasts harvested from a donor into a pluripotent state that closely resemble that of ESCs [162]. This reprogramming is achieved via the ectopic transduction of a combination of key transcription factors (OCT4, SOX2, KLF4 and c-MYC collectively known as OSKM) into dermal fibroblasts [162]. OSKM initiates the reversal of differentiation via epigenetic remodeling, silencing of somatic lineage gene enhancers and the activation of pluripotency associated gene enhancers. This reprogramming induces widespread changes resulting in cells with altered metabolism, signaling and nuclear architecture. Due to clonal competition and heterogeneity, the vast majority of cell colonies do not successfully transition into iPSCs [163]. Surviving and suitable iPSC colonies are selected and screened for future use by analysing their karyotype stability, pluripotency and trilineage differentiation potential in vitro and in vivo [163].

Once the iPSCs have been validated, the next step is directed differentiation into viable CMs. Currently, there is no universally accepted protocol for iPSC-CM derivation, though various protocols have been developed to generate chamber-specific CMs [21,164,165]. Multiple studies have shown that patient-specific iPSC-derived CMs could be a powerful tool to investigate HLHS pathogenesis and the causal effects of genetic variants on HLHS phenotypes or etiology (Table 3). In HLHS, the protocol of iPSC-CM generation for ventricular CMs remains the most clinically relevant and involves the manipulation of the Wnt/β-catenin signaling pathway [21]. During the first 24 hours, iPSCs are induced into mesoderm using a Wnt agonist, typically CHIR99021. Following mesoderm induction, inhibition of Wnt is achieved with IWP-2, IWP-4 or IWR-1 around day 3-4 of CM differentiation. By doing so, mesoderm is guided towards a cardiomyocyte lineage. Insulin can be added from day 7 onwards to support cell growth and survival [166], with spontaneous contracting clusters of CMs emerging at this stage [167]. Purity of the CM population is enhanced through the metabolic selection of cells by culturing them in glucose-free and lactate-rich medium. Lactate-rich medium promotes the preferential survival of CMs that is capable of utilising oxidative metabolism [168]. Final validation of iPSC-CMs is achieved through immunostaining or flow cytometry for cardiac markers such as cTnT, a-actinin, structural imaging to assess sarcomeres or electrophysiological assays [167].

4.2. Human iPSC-Derived Cardiomyocytes as Disease Modelling for HLHS

Advances in iPSC technology have enabled high-resolution disease modeling for CHDs such as HLHS. By reprogramming dermal fibroblasts or other cells from HLHS patients into iPSCs and subsequently differentiating them into CMs [178,179], researchers are able to more accurately model HLHS in-vitro.

Using the aforementioned techniques, several studies were able to demonstrate that HLHS patient-derived iPSC displayed impaired CM differentiation, decreased proliferation capacity, and altered expression levels of key cardiac markers. In addition, these iPSC-CMs exhibited downregulation of biological pathways related to cell cycle, DNA replication, and DNA repair, reduced capacity to form beating clusters, reduced oxygen consumption rate and ATP production, disorganized sarcomere structure, abnormal calcium transient patterns, and altered electrophysiological properties [72,80,170,173,176,180] (Table 3). Kobayashi et al showed that key transcription factors including HAND1/2, NKX2.5 and NOTCH-1 were significantly downregulated in HLHS iPSC-CMs [61]. Epigenetic modifications are thought to contribute to the downregulation of these genes in HLHS-CMs. Specifically, reduced H3K4 dimethylation and elevated H3K27 trimethylation at the NKX2.5 promoter were identified in HLHS iPSC-CMs. These changes align with the transcriptional silencing of NKX2.5 and downregulation of cardiac specific marker genes such as TNNT2 and NPPA [61]. In addition, HLHS iPSC-CMs showed reduced contractility and altered calcium handling signaling, suggesting an intrinsic CM defect as a key part of HLHS pathogenesis rather than solely as a consequence of abnormal blood flow during fetal development.

Later studies such as Yang et al derived iPSCs from 5 HLHS patients to further investigate NOTCH signaling pathway defects as a key driver of HLHS pathogenesis [72]. Exome sequencing using patient fibroblasts highlighted significant deletions in multiple aspects of the NOTCH pathway. HLHS-derived iPSCs displayed multiple abnormalities of NOTCH pathways. These include reduced NOTCH receptors and downstream target effects, diminished generation of cardiac progenitor cells, decreased CM contraction rate and an increased propensity towards smooth muscle relative to control iPSCs [72]. Reversal of defective NOTCH signaling using a Jagged-1 peptide, a NOTCH ligand, was able to restore normal CM functions by improving sarcomere organisation and beating frequency of HLHS iPSC-CMs [72]. These results support the role of dysfunctional NOTCH signaling as an important contributor to pathogenesis in HLHS.

More recently, Ye et al [171] employed CRISPR/Cas9 to generate NOTCH1-knockout iPSCs and demonstrated that NOTCH1 deficiency disrupts cardiac progenitor differentiation. NOTCH1-knockout iPSCs exhibited a significant preference towards atrial differentiation with disrupted ventricular lineage differentiation and suppressed proliferation of CMs via downregulation of NOTCH and WNT downstream effects. Single-cell RNA sequencing revealed that NOTCH1 plays a critical role in cardiac mesoderm transformation into FHF, which contributes to LV formation. This provides an additional mechanism for the ventricular hypoplasia observed in HLHS in addition to the “no flow no grow” model.

Studies using HLHS iPSC-CM models suggest that NOTCH pathway defects may be amplified by dysregulated nitric oxide (NO)-dependent signaling during early cardiogenesis [174]. HLHS iPSC-CMs consistently displayed lower levels of NO and decreased activation of NICD, contributing to defective early cardiac lineage differentiation. Such a linkage is further evidenced by the partial restoration of differentiation capability and CM maturation with the supplementation of NO.

Altogether, these iPSC-based studies provide compelling evidence that HLHS is driven by intrinsic defects in cardiogenesis and dysregulation of signaling pathways such as NOTCH1, NKX2-5 and HAND1 (Table 3). Patient-specific iPSC-CM models have expanded our understanding of HLHS beyond the previously dominant theory of hemodynamic compromise by identifying significant molecular and genetic contributions to disease. Improved understanding of disease modelling and etiology will inform future therapeutic development and may enable personalised treatment strategies.

4.3. HLHS iPSC-CMs: A Platform for Drug Discovery and Evaluating Drug Toxicity

Recent progress in identifying growth factors, transcription factors and signaling pathways critical to HLHS pathogenesis has also established potential therapeutic targets. Patient-specific iPSC-derived CMs have been used as a promising platform to identify and validate potential therapeutics for HLHS (Table 3). Beyond the use of NO [174] and Jagged-1 [34] to rescue NOTCH signaling defects, additional specific targets for HLHS have also been studied as a potential therapeutic option. Paige et al [176] used iPSCs from HLHS patients with the MYH6-R443P variant to show deficient contraction force and velocity of HLHS iPSC-CMs. Subsequent correction of the gene mutation effectively restored contraction and velocity in the HLHS iPSC-CMs. Xu et al [177] also reported an increase in apoptosis and oxidative stress in HLHS iPSC-CMs, features that are frequently observed with early-onset heart failure in clinical settings of HLHS. Treatment with Sildenafil and tauroursodeoxycholic acid reduced apoptosis and oxidative stress in HLHS iPSC-CMs. In addition, partial improvements in mitochondrial and contractile defects with improved sarcomere function were also noted. These findings highlight the possibility of utilising iPSCs in identifying potential cardioprotective compounds for HLHS.

Beyond identifying therapeutic targets, iPSCs have also been proposed as a tool for evaluating drug toxicity in many organs, in particular for the heart [181,182,183]. Compared to traditional animal models and other in vitro systems in drug testing and toxicity assessment, iPSCs offer several distinct advantages. Most notably, iPSCs are generated from human donors which allow for establishing in vitro human models that most accurately reflect human physiology and disease specific phenotypes, thereby enhancing the predictive value of preclinical testing. The scalability of iPSCs makes them highly compatible with high-throughput screening (HTS) technologies which allows for rapid drug evaluation with clearly quantifiable endpoints. Additional benefits with iPSC-CMs may also come from reduced ethical concerns and fewer regulatory barriers compared to animal models.

Currently, one area of cardiology which has seen a strong integration of iPSC-based drug testing and toxicity is the study of arrhythmogenic drugs. This is exemplified by the FDA and counterparts in Japan and Europe, who established the Comprehensive In vitro Proarrhythmia Assay (CiPA), which uses iPSC-CMs to study drugs with high risk of inducing torsades des pointes (tDP) [184,185,186]. The integration of iPSC-CMs into HTS has significantly advanced current and future candidate drug identification alongside toxicity screening. Briefly, HTS is a highly automated system that allows the rapid testing of hundreds to thousands of candidate compounds simultaneously. Miniature assays using iPSC-CMs can generate quantifiable readouts by measuring absorbance or fluorescence in response to compound exposure [187]. Compounds that elicit significant changes in fluorescence or absorbance are then validated in this high efficiency system to identify bioactive molecules or potential toxicity. Overall, HTS significantly accelerates early phase drug testing, especially with the integration of iPSC-CMs. For instance, Huang et al [188] generated iPSC-CMs from 13 HLA-super donors that could represent a significant proportion of the global population. Using HTS, they screened a wide range of compounds and identified dose-dependent toxicity amongst 5 previously known cardiotoxic drugs and a further 4 previously undescribed drugs. Subsequent electrophysiological studies and additional in-vivo studies were able to demonstrate a significant adverse effect on CMs caused by these drugs, thus demonstrating the utility of iPSC-CMs in identifying potential drug toxicities during the preclinical stage.

In the context of HLHS, iPSC-CMs from patients retain patient-specific genetic and epigenetic signatures that allow for study of drug toxicity in a precision medicine approach. Certain compounds tested may exacerbate or alleviate pathological features in some subsets of HLHS, whilst having minimal effect on others. HTS platforms employing HLHS-specific iPSC-CMs allow for rapid evaluation of candidate drugs by measuring their potential effects on endpoints such as electrophysiological stability, viability, and mitochondrial functions. Given the limited availability of non-surgical options and systemic complications arising from lifelong hemodynamics stress, novel medications discovered using HLHS-specific iPSC-based HTS could provide safe, effective and personalised pharmacological interventions to HLHS patients.

4.4. Limitations of iPSC-CMs 2D Model

Although the advent of iPSC-CMs has seen significant progress in elucidating the etiology and therapeutic target identification of HLHS, important limitations remain which must be acknowledged. One of the most frequently cited limitations is the immaturity of iPSC-CMs. Immature iPSC-CMs more closely resemble the fetal CMs with different organisation, calcium handling, electrophysiology and metabolism. This differs from the high pressure, post-natal physiology seen in HLHS patients [189,190,191]. This limitation is particularly relevant when assessing the translational potential of iPSC-CMs based techniques such as cardiac patches. Whilst preliminary data may be positive, more comprehensive analysis of clinical outcomes will be needed to ensure that iPSC-CMs based therapies can integrate effectively without significant adverse effects of arrhythmias, tumorigenesis or immune rejection.

The issue of iPSC-CM immaturity has been addressed by groups using numerous strategies. One possible way to achieve more mature CMs is to apply mechanical stretching alongside electrical stimulation to iPSC-CMs [192,193]. The resulting iPSC-CMs exhibited better calcium handling ability, increased mitochondrial density, improved sarcomere length and organization, and a gene expression profile more akin to adult CMs. Moreover, T-tubule formation alongside enhanced calcium release and improved excitation-contraction coupling were observed in iPSC-CMs treated with hormones such as triiodothyronine and dexamethasone [194]. Furthermore, metabolic strategies using fatty acid supplementation have also been shown to induce a shift from glycolysis to oxidative phosphorylation alongside improving sarcomere organization in iPSC-CMs [195]. Recent literature suggests combining multiple approaches of maturation including metabolic medium optimisation, electrostimulation and culturing in nano-patterned substrates can act synergistically to substantially improve maturation [196]. Collectively, these strategies for maturing iPSC-CMs can be used to generate more physiologically relevant cardiac models to complement existing iPSC-CM studies for HLHS and beyond.

A major challenge of HLHS research remains its complex multifactorial nature. Extensive genetic heterogeneity, copy number variants [197], chromosomal abnormalities and even maternal [198] and environmental impacts [199] have been attributed to risk factors for HLHS. However, many studies using iPSC-CMs fail to capture these complex interactions and focus more on specific genetic or signaling pathway defects. Current iPSC-CMs models often oversimplify the complex nature of cardiac development by predominantly focusing on CMs whilst neglecting the role of endothelial, valve and vascular smooth muscle cells in cardiogenesis. Recognition of these challenges and developing solutions to overcome them will be key to generating highly clinically relevant findings.

5. Implications of hiPSC-Derived 3D Cardiac Patches for Treating HLHS

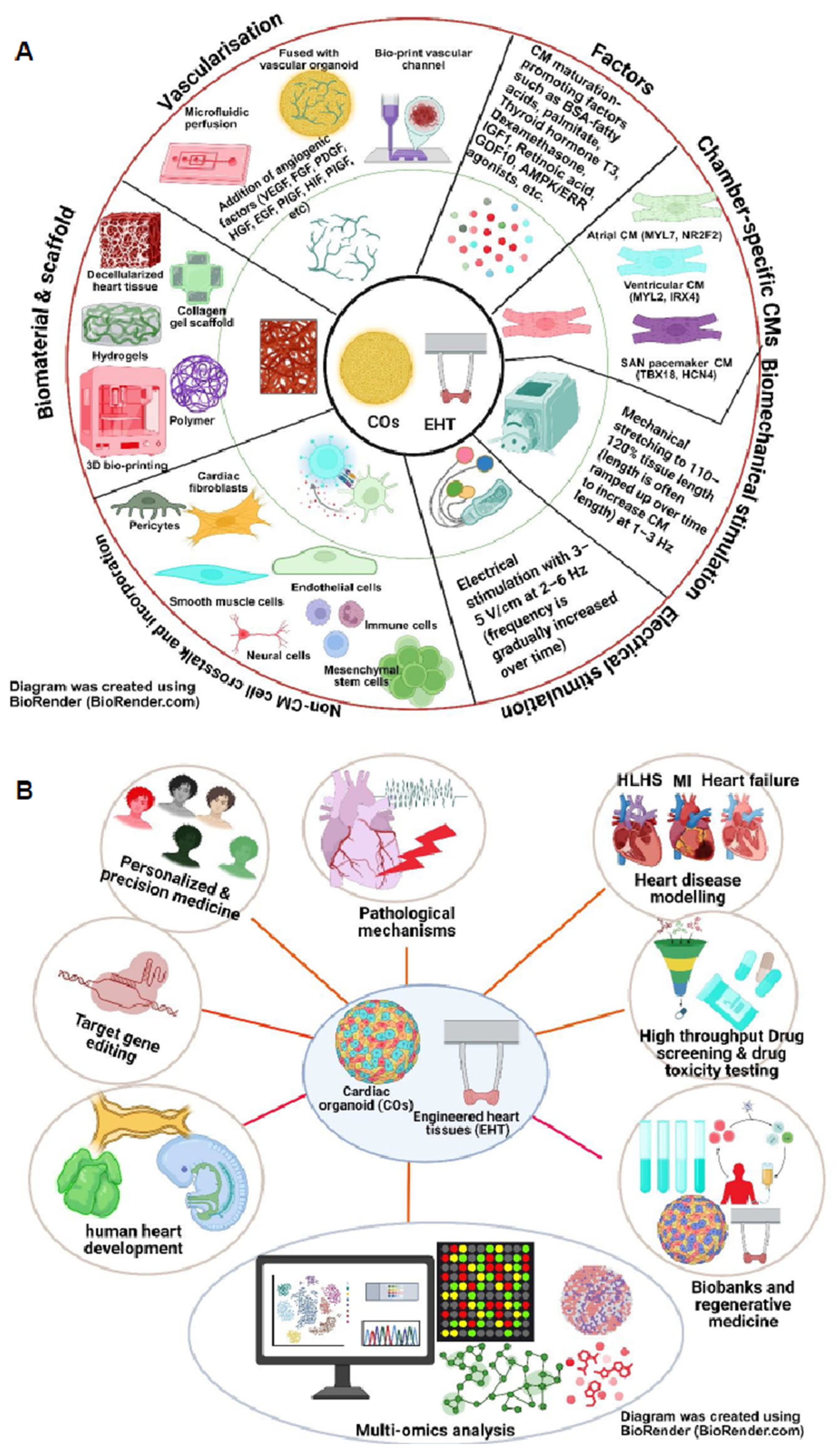

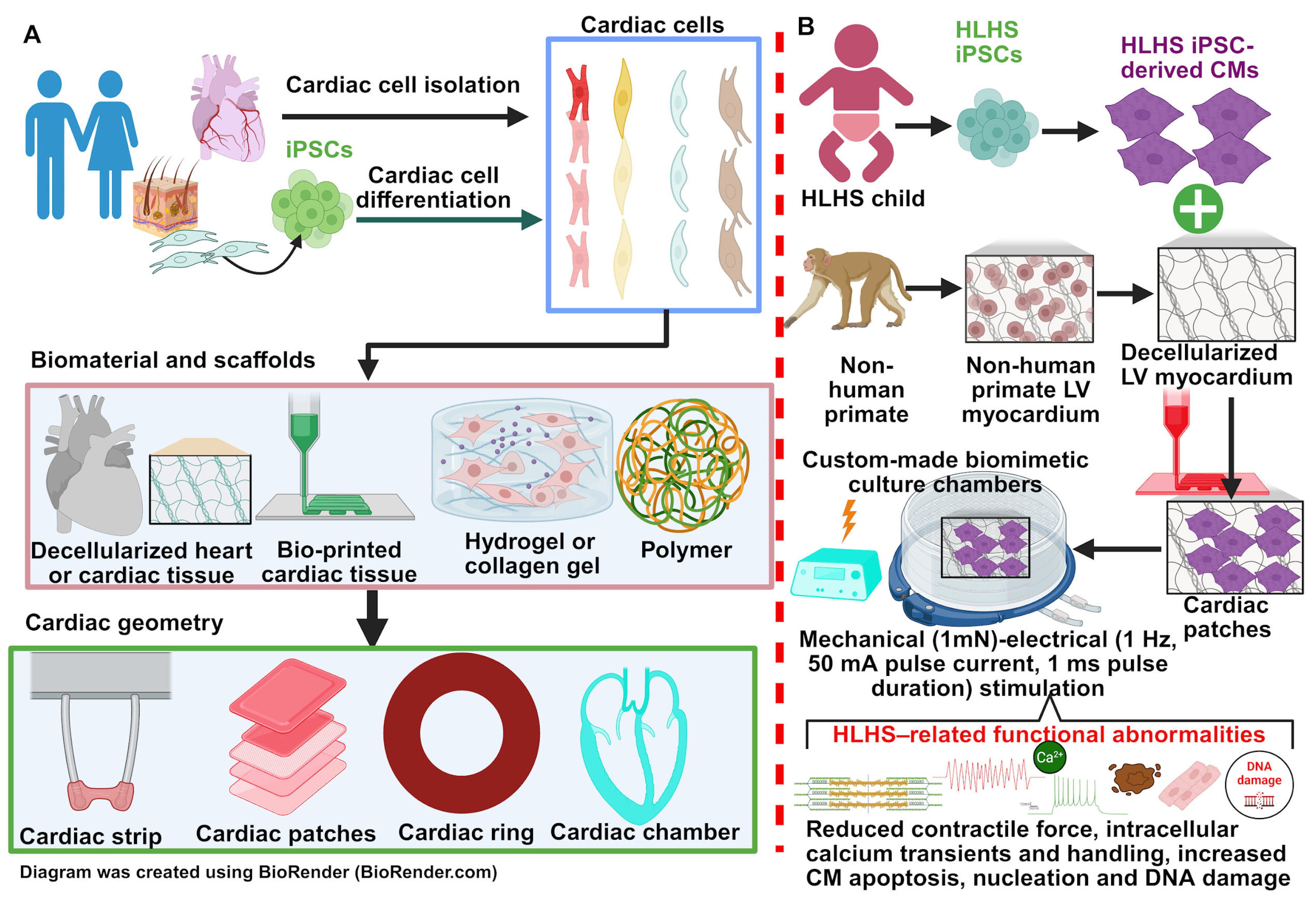

3D cardiac patches or engineered heart tissues (EHTs) offer an alternative use of iPSCs for modelling HLHS and exploring potential therapies. Briefly, cardiac patches are generated initially using iPSC or other stem cells, they are then differentiated into the desired cell types such as CMs, endothelial cells and cardiac fibroblasts. These cells are seeded onto a biomaterial scaffold that supports growth and is designed to mimic the extracellular matrix (ECM) [200]. The scaffold can either be entirely synthetic made from polymers such as polyglycolic acid (PGA) and polycaprolactone (PCL) or from decellularised ECM [201]. Once seeded, the patch is cultured in a bioreactor to promote tissue maturation and form a functional cardiac patch (Figure 2).

Unlike 2D monolayers of iPSC-CMs which fail to replicate complex structural defects, 3D cardiac patches provide a more physiologically relevant model of HLHS [202]. Krane et al [173] used 3D heart patches derived from iPSCs to investigate deeper underlying intrinsic defects associated with HLHS (Figure 2). Corroborating evidence from 2D models, 3D cardiac patches generated from HLHS iPSCs were able to demonstrate a significant increase in MLC2a+ cells and a reduction in MLC2v+ cells representing atrial and ventricular cells respectively, thus indicating a poor maturation response to growth [173]. Importantly, HLHS iPSC-derived 3D cardiac patches were able to uncover additional evidence of DNA damage and CM apoptosis, with roughly 50 percent of CMs demonstrating three or more nuclei compared to roughly 5 percent in control cardiac patches. Analysis of cell cycle markers of Ki67, representing active cycling and PH3 representing mitosis, showed that although more HLHS cells initially entered the cell cycle, few cells completed mitosis, indicating a severe disruption within the cell cycle. Further analysis showed a strong association between multinucleated cells with increased apoptosis as indicated by the increased TUNEL+ and cleaved caspase-3 levels, both representing DNA damage and programmed cell death [173]. Together these results signify a strong genetic and cellular basis of HLHS occurring independently of hemodynamic factors. Furthermore, despite the heterogeneity of HLHS, this study was able to demonstrate a convergence of de novo mutations resulting in aberrant key pathways linked to cardiac development, chromatin organization, and cell cycle phases [173]. These findings highlight potential therapeutic targets that target common dysregulated pathways may be more effective than focusing on individual target mutations.

Conventional cardiac patches made from bovine pericardium or synthetic materials such as GoreTex or polyester are routinely used in clinical practice for the repair of many CHDs including HLHS [203,204]. Compared to conventional patches, cardiac patches derived from iPSC-CMs can integrate into native tissue, conduct impulses and revascularise damaged areas of the heart [205,206,207]. These patches are biodegradable, hence eliminating the need for multiple reinterventions and reducing the likelihood of fibrosis and calcification [208]. Many preclinical trials have investigated cardiac patches as a therapeutic option in cardiovascular disease, especially for ischemic heart disease and heart failure. Heart failure in particular is a highly relevant long-term complication of HLHS. Although surgical advances have improved survival for HLHS patients, the resulting single RV is poorly suited for its new role of long-term systemic circulation, often resulting in RV failure and the eventual need for transplantation. In fact, alongside arrhythmias, heart failure is the leading cause of morbidity amongst HLHS patients following surgical repair [209].

Recent studies in large and small animal models have demonstrated potential of iPSC-CM based cardiac patches in remuscularising infarcted myocardium. These patches are able to successfully integrate within the host structure and restore cardiac contractile and physiological functions in the animal models [205,206]. Building on these initial studies, Querdal et al established a dose-dependent relationship between cardiac patches size and functional recovery in guinea pig models, further validating their therapeutic potential [210]. Similar studies were able to confirm these benefits in their respective models with no significant adverse effects such as arrhythmias or tumorigenesis observed [208,211]. Given the likelihood of RV failure in HLHS, iPSC-CM patches may be used to support the overworked RV after surgical intervention and even as a tool to repair the hypoplastic LV.

Aside from preclinical trials, complete data from late-phased clinical trials on iPSC-CM patches have yet to be published to date. Nonetheless, relevant clinical trials such as in the bioVAT-HF phase 1/2 trial (NCT04396899) are actively recruiting participants. Following preclinical validation on rats and rhesus macaques, the trial aims to evaluate the efficacy of engineered heart muscle (EHM), a form of cardiac patches derived from stromal cells and iPSC-CMs, can be safely and effectively implemented to improve cardiac function in heart failure patients. So far, Zimmerman et al has been recruiting patients with advanced heart failure with an ejection fraction less than 35% and no realistic option of heart transplant. A recent update published by the group demonstrates a proof of concept for the use of EHM in humans. This is highlighted by the study of a patient’s heart with EHM implanted after the patient had received a successful heart transplant. The explanted heart contained viable human CMs that were vascularised indicating successful integration of the EHM with no signs of adverse outcomes such as tumour formation, immune rejection or arrhythmias [206]. Although wider implications of a significant therapeutic benefit cannot be derived from a single case, the evidence thus far supports the continuation of the broader clinical trial. This trial along with other isolated case reports in humans suggests the feasibility of using cardiac patches as a part of the larger HLHS therapy and in particular in the case of post-surgical RV failure. Further HLHS-specific preclinical studies will be required before clinical translation can be safely applied.

6. Future Directions

Despite substantial advances in HLHS mechanism and therapy that can be attributed to stem-cell based technologies, major limitations exist. Current models still fail to recapitulate the complexity of cardiac development with clinical applications limited to early-phase trials. Emerging tools such as 3D bioengineering and organoids [212,213] aim to further improve model fidelity and increase translational potential.

6.1. Cardiac Organoids: Better Model for HLHS?

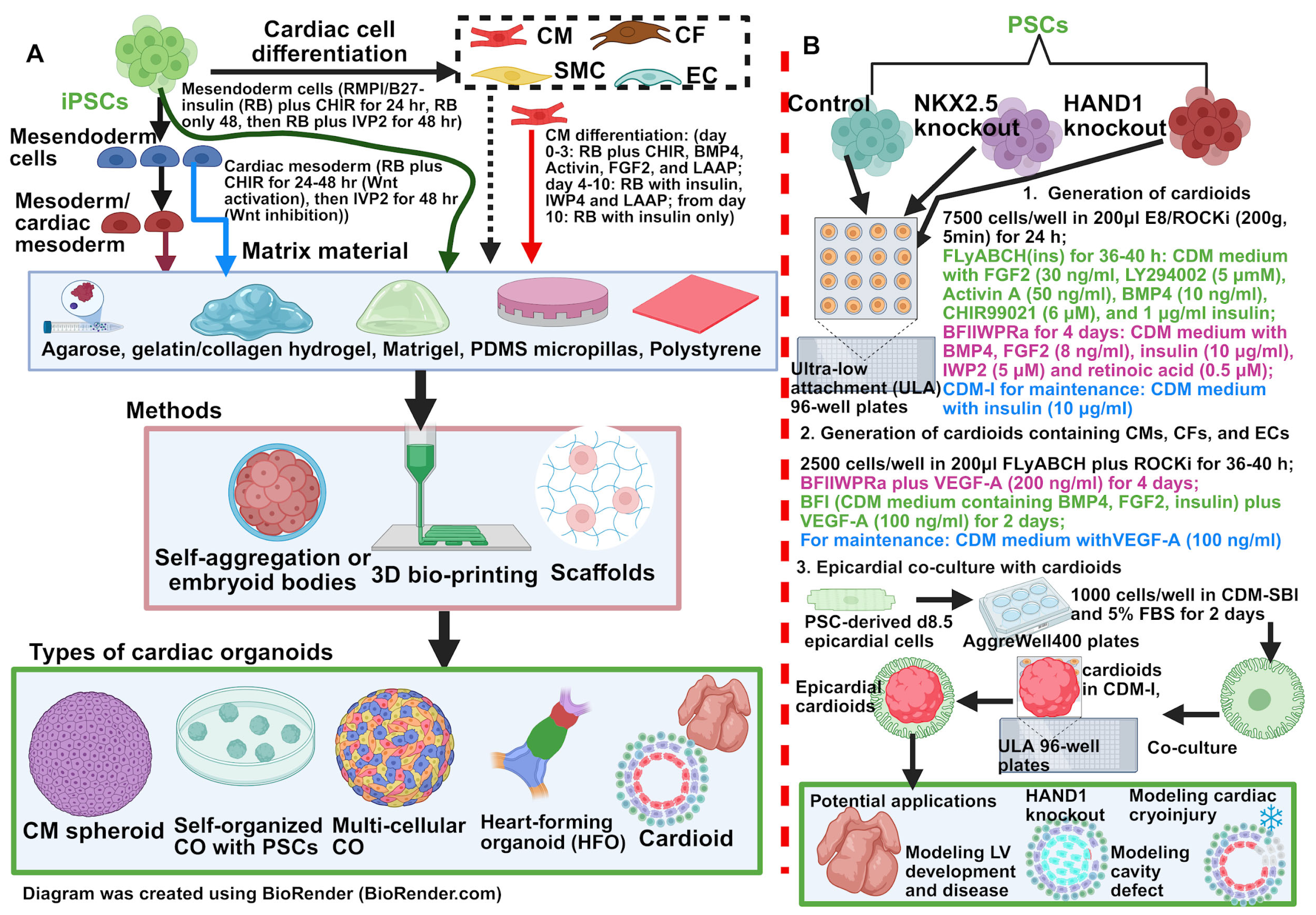

HLHS consists of underdevelopment of multiple structures of the left heart including the LV, mitral valve, aortic valve, ascending aorta accompanied by genetic and cellular defects. While 2D iPSC derived models and traditional animal models have previously given us insight into HLHS pathogenesis, they fail to capture the complex and variable nature of HLHS. The emergence of cardiac organoids (COs) or cardioids has proven to be a better tool to model CHDs including HLHS. COs are self-organising 3D structures derived from PSCs (iPSCs and ESCs) [169,183]. Multiple experimental protocols have been reported to generate COs from human PSCs (Figure 3). They consist of CMs, endothelial cells and fibroblasts that aggregate together to resemble native cardiac tissue, architecture and functional dynamics [169,214]. Interestingly, some COs display properties of cardiac looping, polarity and even chamber formation similar to that of human embryonic heart development [215]. Once generated, these COs are capable of spontaneous rhythmic contractions with some studies even demonstrating the ability to derive vascularised and chambered COs [216]. Together, these properties make cardioids excellent platforms to study CHD such as HLHS.

Much like its 2D counterparts in iPSC-CMs, COs have been applied to model HLHS to uncover even more insights into underlying etiology. A landmark study by Hofbauer et al [169] highlights how 3D self-organising cardioid models can advance our understanding of pathogenesis beyond data provided by 2D iPSC models alone. Focusing on the role of HAND1, a transcription factor implicated in LV development, the study used CRISPR-Cas9 mediated knockout of HAND1 in iPSC to evaluate its role during cardioid formation. They were able to observe several key differences between HAND1-KO and control cardioids. Although HAND1-KO cardioids were still capable of specification into TNNT2⁺ CMs, they consistently failed to form cavities or formed significantly smaller and disorganised cavities. These findings indicate that HAND1 is essential for chamber morphogenesis but not for cardiac lineage commitment) [169].

Parallel NKX2.5-knockout cardioids were also conducted and did not show any cardiac cavity abnormalities or effect on HAND1 levels during the mesodermal stage. However, HAND1 levels in NKX2.5 KO cardioids were significantly reduced in the CM stage, suggesting that HAND1 operates downstream of NKX2.5 in a stage-specific manner during cardiac development [169]. Subsequently, the authors investigated the upstream regulation of HAND1 by manipulating levels of BMP to assess its impacts on downstream signaling pathways. Elevated BMP activity led to an increased HAND1 expression and improved cavity formation while BMP inhibition had the opposite effect [169]. This establishes the critical importance of the BMP-HAND1 axis in controlling chamber formation. Overall, the cardioid model in this study could unlock detailed understanding of gene regulation and signaling pathways during cardiogenesis beyond what a 2D iPSC-CMs model can provide. (Figure 3).

Alternative protocols for generating COs have also been used to study early human cardiogenesis. Drakhlis et al [215] used a protocol to generate COs from human PSCs embedded within Matrigel. The generated COs contained complex structures encompassing foregut endoderm tissue and vascular tissue alongside cardiac cells which they termed heart forming organoids (HFOs). HFOs with knockout of NKX2.5, a gene heavily implicated in HLHS, exhibited a much less compact cardiac tissue and a larger size alongside a greater proportion of disorganised sarcomeres [215]. In addition, NKX2.5-KO HFOs displayed an altered gene expression profile with an increase in markers for smooth muscle differentiation whilst genes associated with normal cardiac development such as IRX4 and NPPA were downregulated, indicating a deviation from normal cardiac cell fate [215]. Although not specifically tailored towards HLHS, the results confirm the possibility of using 3D CO models to study genes implicated in HLHS.

Beyond HLHS, COs have been employed for the study of congenital cardiac conditions. For instance, in the study by Lewis-Israeli et al [214], COs were used to investigate how maternal risk factors, such as pregestational diabetes may affect cardiogenesis and contribute to CHD risk. Other common cardiac conditions such myocardial infarcts have also been successfully replicated using Cos-based models, thus providing a robust alternative to animal models [217,218,219]. Aside from disease modelling, COs have been evaluated for their use in drug toxicity as well as screening therapeutic compounds [183,218]. It is reasonable to assume that HLHS-specific COs will be increasingly used to investigate HLHS pathogenesis and evaluate novel therapeutics for HLHS.

Although 3D cardiac patches and COs have shown promise, one possible future research direction would be to include the use of patient derived iPSC-COs to investigate HLHS associated genes. Whilst current 3D cardiac patches and COs are already more complex than 2D traditional models, moving beyond primitive heart modelling will require even more sophisticated organoids that incorporate anatomically accurate atria, ventricles, conduction systems, and immune components alongside neural crest integration (Figure 4A). Of note, a recent study showed that the addition of 2 μM CHIR99021 during the first 2 days of CO formation and transient 4-day addition of 3 μM DY131 combined with 10 μM MK8722 (days 24–28) significantly improved CO maturation, enabling complex disease modeling and drug discovery [220].

The creation of fully developed, matured, and chambered COs or cardiac patches that can capture salient features of HLHS will no doubt provide more physiologically relevant models. Integration of these highly accurate HLHS COs or cardiac patches into body-on-chip systems coupled with pumps to allow for high pressure microfluids can facilitate the study of hemodynamic challenges in HLHS. Beyond disease modelling, enhanced COs platforms and improved 3D cardiac patches can facilitate more applications for HLHS, such as high-throughput drug screening and the eventual development of personalised regenerative medicine strategies for individual HLHS patients (Figure 4B).

6.2. 3D/4D Bioprinting PSC-Derived Cardiac Tissues for Studying HLHS

3D bioprinting is another three-dimensional strategy which can provide high fidelity models for studying HLHS. 3D bioprinted tissues build on conventional 3D printing by replacing thermoplastic with cells, often derived from stem cells alongside biomaterials and growth factors to create functional 3D tissue constructs [221]. Currently multiple approaches have been validated for the creation of 3D bioprinted tissue structures [222]. Future research could prioritise systemic optimisation and standardisation of protocols to enhance reproducibility and to enable a more seamless transition into clinical applications. Compared to 2D models which require external maturation, 3D bioprinting using appropriate ECM-like hydrogel produces CMs capable of intrinsic maturation with the structure. 3D bioprinted cardiac tissues displayed spontaneous contractility with organised sarcomeres alongside increased expression of multiple cardiac-specific markers such as MYL2, MYH7, TNNI3, and KCNJ4 [26], supporting the use of 3D bioprinting in HLHS and beyond. To date, most research conducted using 3D bioprinting in HLHS comes from iPSCs derived from healthy volunteers. Once the protocol for generating 3D bioprinted cardiac structures becomes more reliably well-established, the next logical step would be to generate 3D bioprinted cardiac tissue constructs using HLHS-specific iPSCs. This would enable the investigation of HLHS-specific morphogenetic defects and facilitate targeted therapeutics. Although 3D bioprinting of the whole heart remains some way away, smaller tissue constructs such as valves, vessels and cardiac patches may be more precisely recreated than traditional seeding and scaffolding techniques.

Concurrently, recent advances in material sciences have inspired potential hypotheses about 4D bioprinting approaches [223]. Currently a 3D bioprinted tissue structure remains static and relatively unadaptable. The properties of some smart biomaterials allow them to change characteristics such as shape, size, and elasticity in response to a variety of stimuli such as pH, mechanical force, and electrical stimulation [224] (Figure 5). Engineering heart tissue with smart materials could eventually produce 4D bioprinted valves, cardiac patches, even whole hearts in the future that are capable of “growing” and adapting with changes to its environment. This technology would enhance integration into host tissue and reduce the need for surgical revisions that an unadaptable 3D bioprinted structure would likely require, thus representing an excellent option for pediatric conditions such as HLHS.

7. Conclusions

Surgical advances have greatly reduced mortality rates in HLHS, yet long-term complications remain prevalent. Despite extensive research, pathophysiology of HLHS remains incomplete with multiple factors implicated contributing to a highly heterogeneous clinical presentation. Stem cell-based techniques have provided an alternative avenue to study HLHS pathogenesis by uncovering complex, intrinsic molecular-level transcriptional defects in HLHS cardiomyocytes. Early-phase clinical trials using adult stem cell populations have demonstrated safety and feasibility with ongoing studies investigating potential therapeutic efficacy. Emerging stem cell techniques in the form of COs and multi-dimensional bioprinting tissue constructs have yielded ever more sophisticated, high-fidelity human models that replicate key disease features. These advances deepen our mechanistic understanding of HLHS and provide robust platforms which can be used in HTS drug screening and development of personalised regenerative medicine strategies.
