Hydraulic Performance Validation of a 4.8L Low-Consumption Toilet Using CFD Simulation

1. Introduction

Water conservation in sanitary systems has become increasingly critical in addressing global environmental challenges. The design and implementation of high-efficiency toilets (HET), capable of performing effective flushing with reduced water consumption, are central to this objective. Traditional toilets typically consumed 6 liters per flush, but new designs have successfully reduced this to 4.8 liters without compromising functionality or user comfort [3,8]. However, validating the hydraulic performance of these systems requires rigorous testing procedures to ensure compliance with quality and operational standards [9,10].

Conventionally, the validation of new toilet models involves extensive physical testing, which can be resource-intensive and environmentally taxing due to water use and the need for multiple prototypes. This has driven interest in using computational fluid dynamics (CFD) to simulate the hydraulic behavior of toilets, providing a cost-effective and sustainable alternative for performance validation during the prototyping phase [2,11]. CFD tools can replicate complex phenomena such as siphon formation and water distribution during flushing, providing insights into system performance while minimizing material and water waste during development [12].

Recent studies have demonstrated the applicability of CFD in modeling two-phase flow in toilet systems, effectively capturing the dynamic interactions between water and air during flushing [6]. Simulations using advanced multiphase models such as the Volume of Fluid (VOF) method have been shown to accurately predict siphon initiation and the subsequent fluid behavior within the system, offering valuable data for design optimization [14]. The integration of CFD into sanitary system design thus enables the development of high-efficiency toilets that meet operational standards while reducing development time and costs [13].

Furthermore, CFD tools allow for testing under various operational conditions without the logistical constraints of experimental setups. For instance, using CFD, it is possible to assess the impact of different flush valve designs, bowl geometries, and water volumes on flushing efficiency, enabling manufacturers to refine designs before physical prototyping [7]. This not only facilitates the development of water-efficient products but also supports environmental sustainability by reducing water and material use throughout the product lifecycle.

The potential for CFD to replace or complement traditional testing is particularly significant in contexts where access to extensive laboratory testing facilities is limited. Through simulation, engineers and researchers can perform iterative analyses, refining designs based on performance data to achieve compliance with local and international standards while adhering to sustainability principles [2,6]. By adopting these advanced simulation methodologies, the sanitary industry can accelerate innovation while aligning with global water conservation goals.

This study aims to validate the hydraulic performance of a 4.8L low-consumption toilet using CFD simulations with OpenFOAM and ANSYS Fluent. By focusing on critical hydraulic phenomena such as siphon action and water distribution within the toilet bowl, the research seeks to demonstrate the feasibility of using CFD as a reliable and sustainable alternative to experimental testing in the design and validation of high-efficiency toilets.

2. Materials and Methods

2.1. Geometry Development

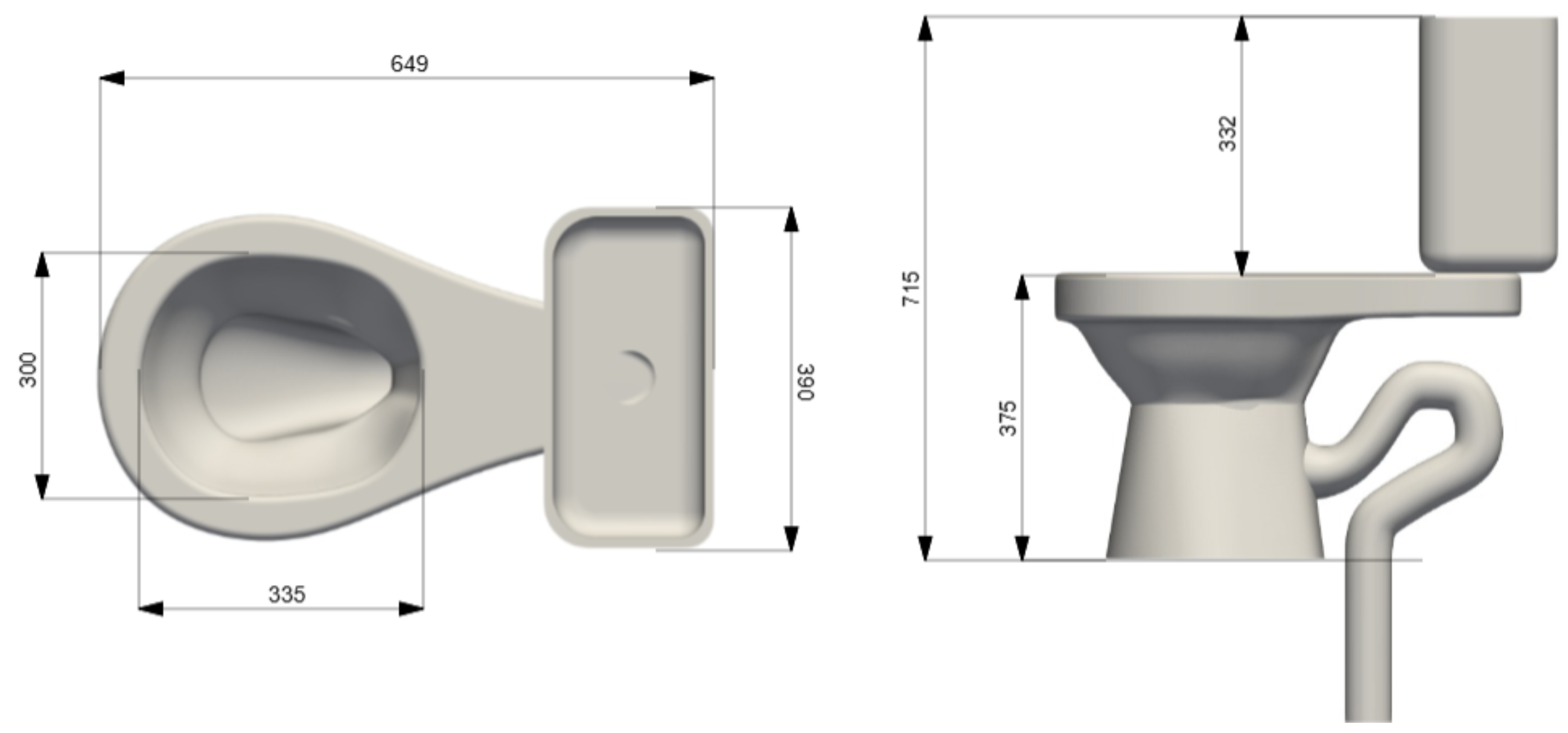

The hydraulic validation of a 4.8L low-consumption toilet was conducted using computational fluid dynamics (CFD) simulations with OpenFOAM (open-source) and ANSYS Fluent (commercial software). The geometry of the toilet, including the bowl, siphon, and tank, was developed using CAD software based on dimensions compliant with the INEN 3082 standard for sanitary systems in Ecuador.

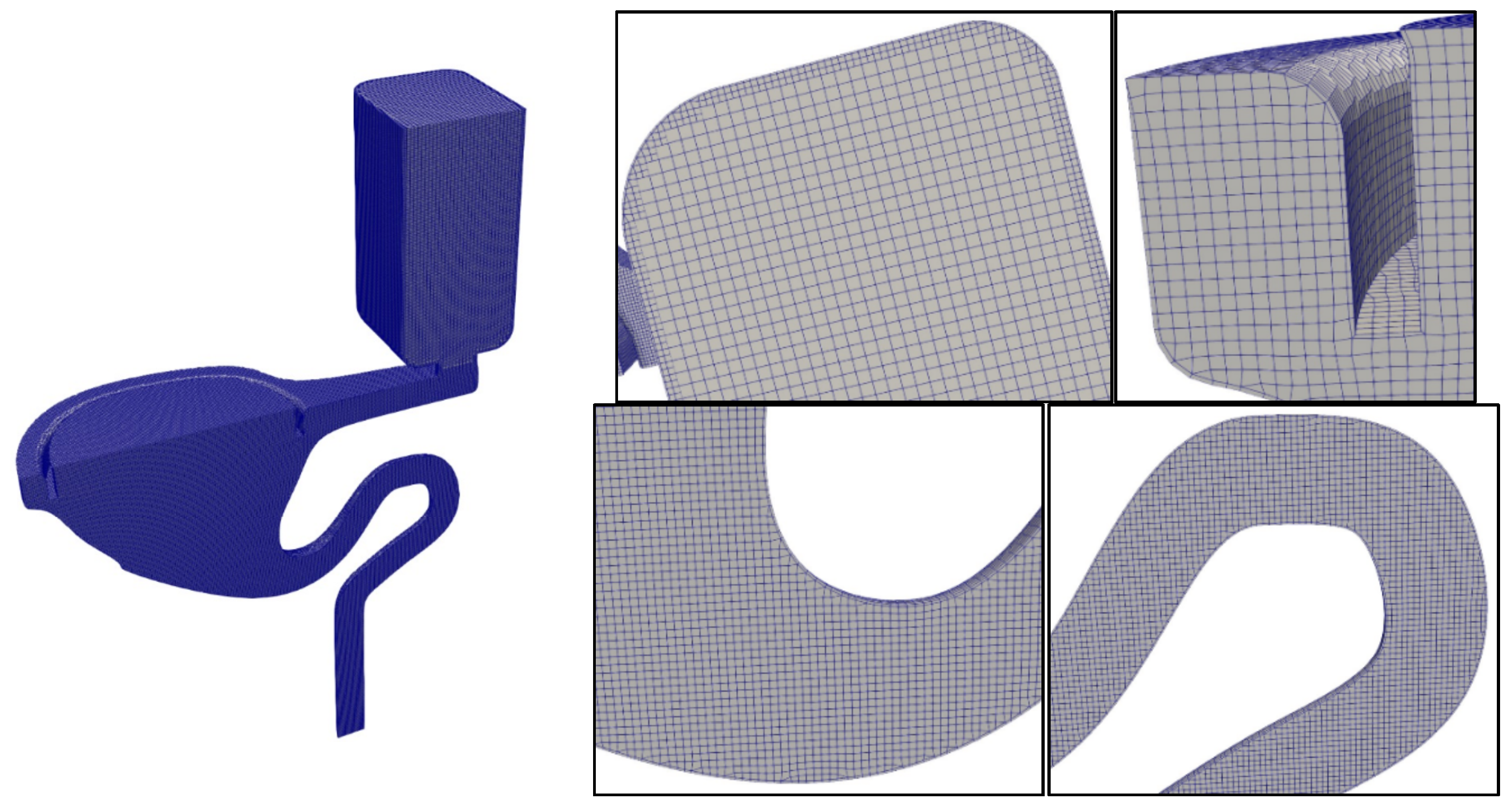

A high-refinement mesh was generated using GMSH and further processed in OpenFOAM using snappyHexMesh, achieving an optimized mesh for accurate simulation of two-phase air-water flow within the system (Figure 1). The mesh consisted primarily of hexahedral elements to ensure numerical stability and efficient computation Figure 1.

2.2. Simulation Setup

Simulations were performed using the Volume of Fluid (VOF) multiphase model to capture the interface dynamics between water and air during flushing, focusing on key phenomena such as siphon formation and water coverage on the bowl surface. Boundary conditions included atmospheric pressure outlets and symmetry planes to reduce computational costs while maintaining physical accuracy (Figure 2). Both OpenFOAM and ANSYS Fluent simulations utilized transient analysis over a 10-second flush cycle to observe siphon development and flushing efficiency.

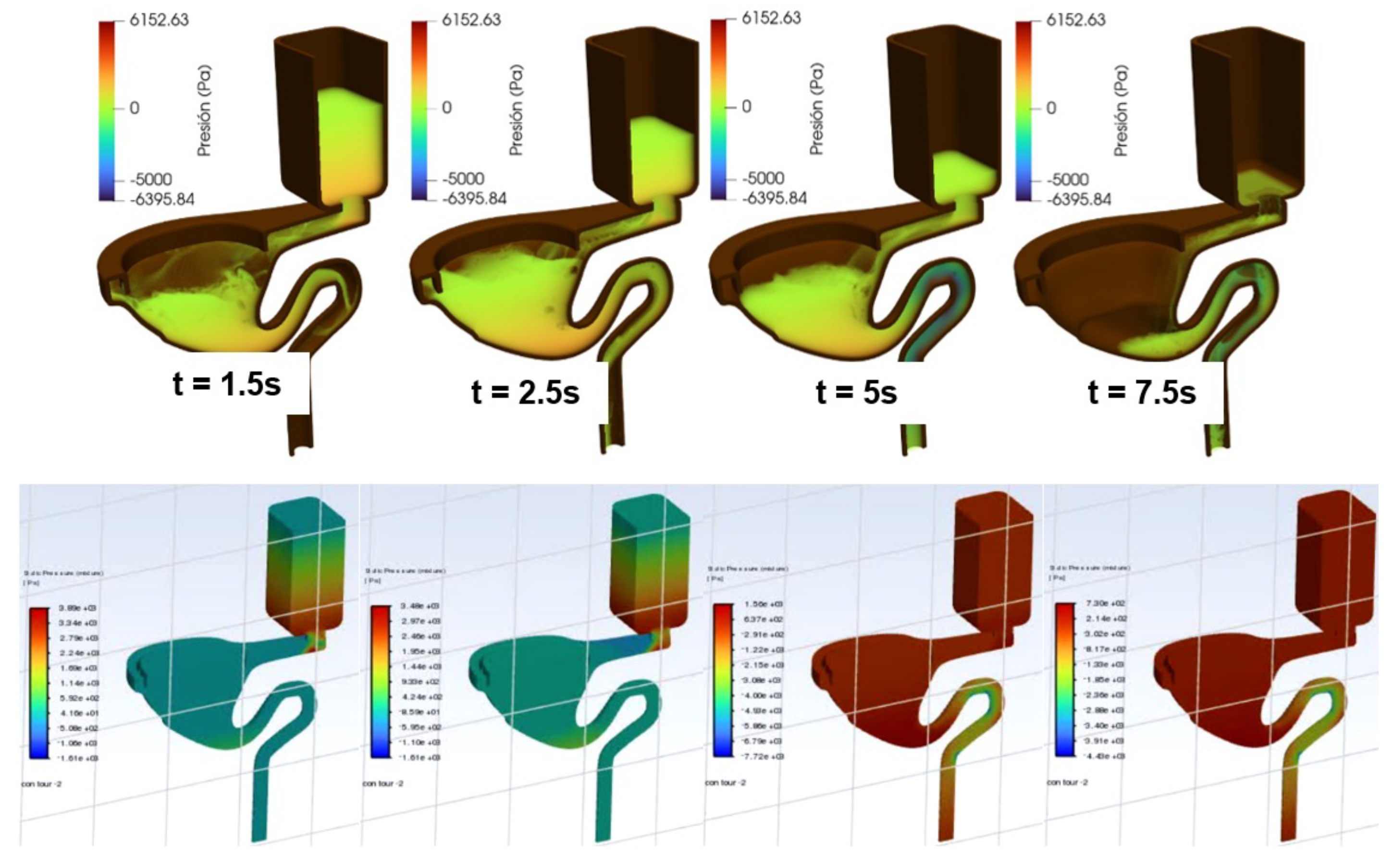

The results, including pressure and velocity distributions within the siphon and bowl, were analyzed and compared across both software platforms to assess consistency and accuracy (Figure 3). Additionally, a cost analysis was performed to evaluate the feasibility of simulation-based validation as an alternative to experimental prototyping in the sanitary industry.

The toilet model includes four key boundary conditions to accurately simulate the flow behavior. A pressure outlet configured as Open Channel allows the free surface behavior of the water to be captured at one of the discharge points, essential for realistic drainage modeling. Another pressure outlet, also configured as Open Channel, is included to manage a secondary discharge location, maintaining realistic hydraulic conditions within the system. A symmetry boundary condition is applied to the geometry, reducing computational cost while preserving the accuracy of the flow pattern based on the toilet’s structure. Finally, an outlet for the mixture volume discharge is included, handling the outflow of the water-air mixture and ensuring correct mass balance while enabling the analysis of flushing efficiency within the toilet system (Figure 3).

2.3. Governing Equations

The Volume of Fluid (VOF) method was used to solve the transient, two-phase (air-water) flow using the Navier-Stokes equations for incompressible, isothermal, immiscible fluids, including surface tension effects.

The continuity equation:

$$\nabla ·\mathbf{u}=0$$

(1)

where $\mathbf{u}$ is the velocity vector.

The momentum equation:

$${\displaystyle \frac{\partial \left(\rho \mathbf{u}\right)}{\partial t}}+\nabla ·\left(\rho \mathbf{u}\mathbf{u}\right)=-\nabla p+\nabla ·\left(\mu (\nabla \mathbf{u}+{(\nabla \mathbf{u})}^T)\right)+\rho \mathbf{g}+{\mathbf{F}}_{\sigma }$$

(2)

where $\rho$ is the density, p is the pressure, $\mu$ is the dynamic viscosity, $\mathbf{g}$ is gravitational acceleration, and ${\mathbf{F}}_{\sigma }$ is the surface tension force.

The VOF method tracks the volume fraction $\alpha$ of water using:

$${\displaystyle \frac{\partial \alpha }{\partial t}}+\nabla ·\left(\alpha \mathbf{u}\right)+\nabla ·\left(\alpha (1-\alpha ){\mathbf{u}}_r\right)=0$$

(3)

where ${\mathbf{u}}_r$ is the relative velocity used for interface compression.

The mixture density and viscosity are calculated as:

$$\rho =\alpha {\rho }_w+(1-\alpha ){\rho }_a$$

(4)

$$\mu =\alpha {\mu }_w+(1-\alpha ){\mu }_a$$

(5)

where ${\rho }_w,{\mu }_w$ are the density and viscosity of water, and ${\rho }_a,{\mu }_a$ are the density and viscosity of air.

Surface tension force using the continuum surface force (CSF) model:

$${\mathbf{F}}_{\sigma }=\sigma \kappa \nabla \alpha$$

(6)

where $\sigma$ is the surface tension coefficient, and $\kappa$ is the interface curvature:

$$\kappa =-\nabla ·\left({\displaystyle \frac{\nabla \alpha }{|\nabla \alpha |}}\right)$$

(7)

These equations were solved using second-order temporal and spatial discretization schemes under transient conditions to capture the flushing process accurately.

3. Results

3.1. Water Distribution During Flushing

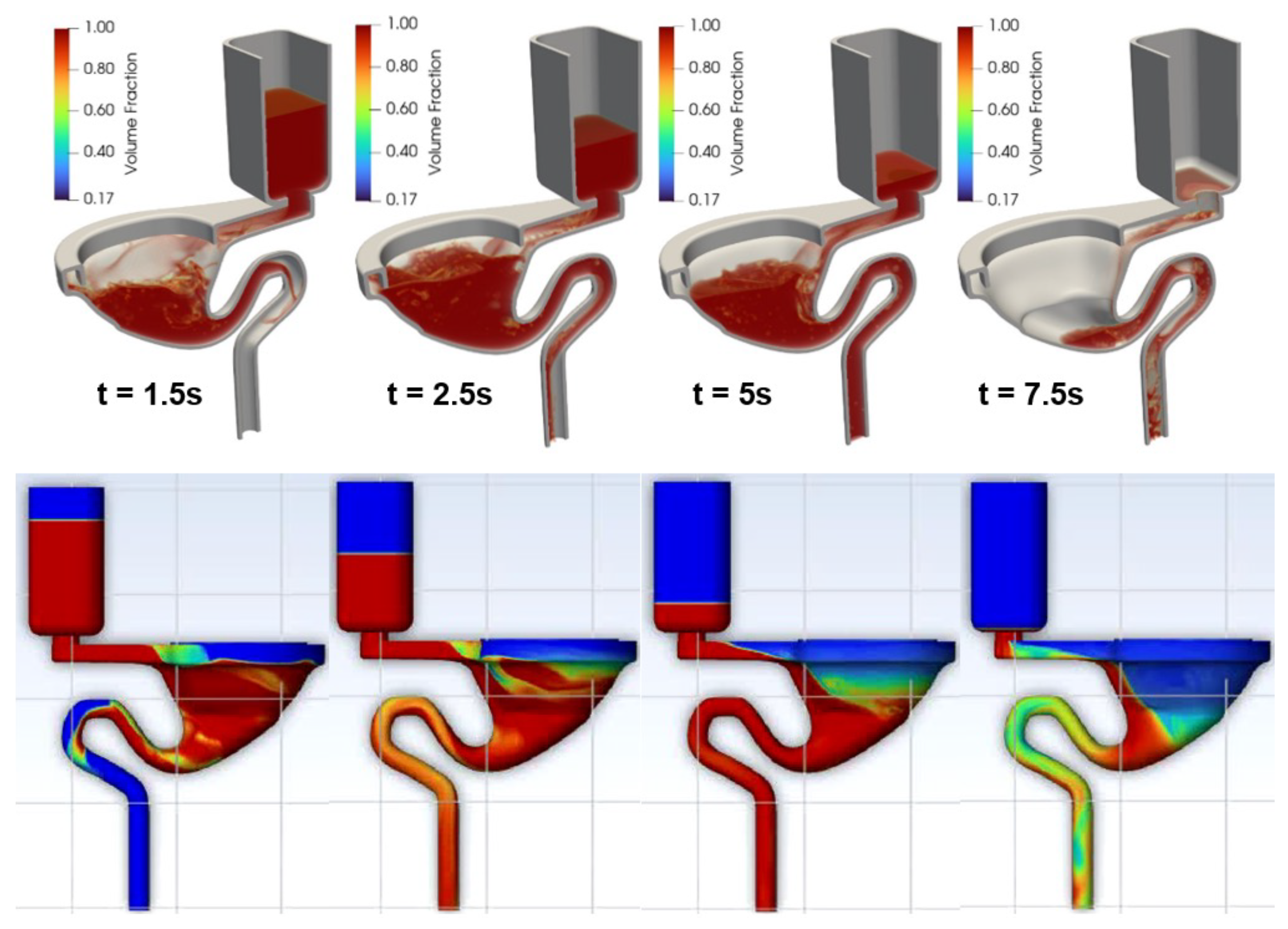

The water distribution over the bowl surface was effectively captured in both OpenFOAM and ANSYS Fluent simulations, demonstrating complete surface coverage within the first seconds of the flush cycle (see Figure 4). This indicates that the toilet geometry and flow conditions allow for efficient bowl cleaning during operation, meeting the functional requirements of high-efficiency toilets.

3.2. Siphon Formation and Pressure Analysis

The simulations revealed the development of the siphon effect at approximately 5 seconds into the flushing process, consistent with empirical observations for new toilets under functional testing conditions. OpenFOAM recorded a peak negative pressure of -3680 Pa in the siphon, while ANSYS Fluent recorded -5283 Pa, reflecting the transient nature of siphon formation during flushing (see Figure 5).

A comparative error analysis (Table 1) indicated an average difference of 31.15% in pressure measurements between OpenFOAM and ANSYS Fluent, with the highest discrepancies occurring during the peak siphon development phase. Despite these variations, the overall pressure trends and timing of siphon formation were consistent across both platforms, validating the reliability of CFD methods for hydraulic analysis in toilet prototyping.

3.3. Velocity Distribution in the Siphon Region

Velocity data obtained in the siphon region showed maximum velocities of 2.98 m/s for OpenFOAM and 4.76 m/s for ANSYS Fluent around 5 seconds into the flush cycle (Figure 7). The average error in velocity measurements was 21.99% between the two software platforms (Table 1). Both simulations reflected consistent transient velocity profiles within the siphon region, supporting the effective evacuation of water and waste during flushing and confirming the system’s functionality.

3.4. Comparative Analysis

Despite software-specific variations in pressure and velocity magnitudes, the timing and pattern of hydraulic phenomena such as siphon formation, surface water coverage, and flushing cycles remained consistent across platforms (Figure 6 and Figure 7). These results support the viability of CFD-based validation for sanitary products, offering accurate performance evaluations while reducing reliance on repeated physical prototyping.

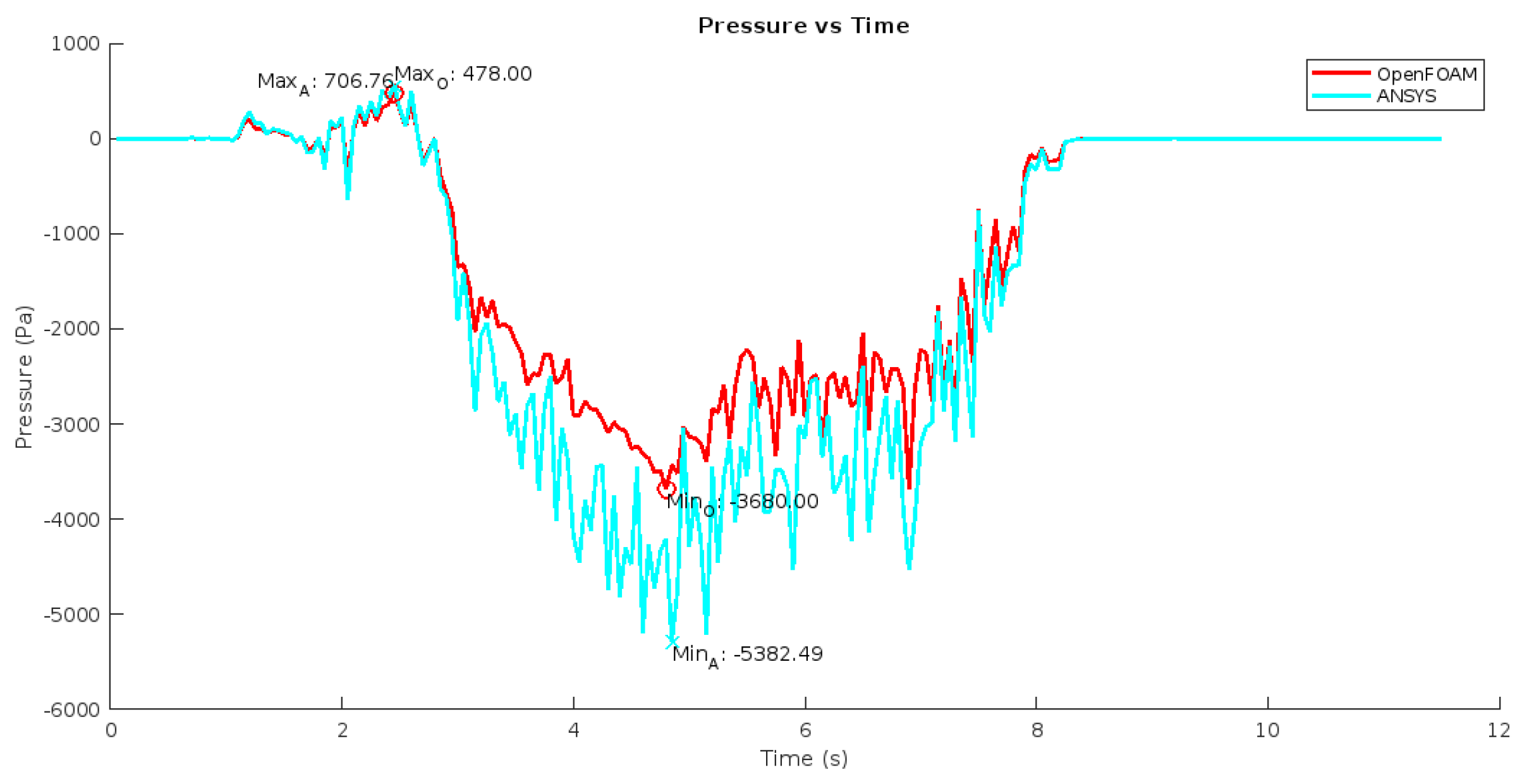

Figure 6. Pressure distribution within the siphon during the flush cycle.

Figure 6. Pressure distribution within the siphon during the flush cycle.

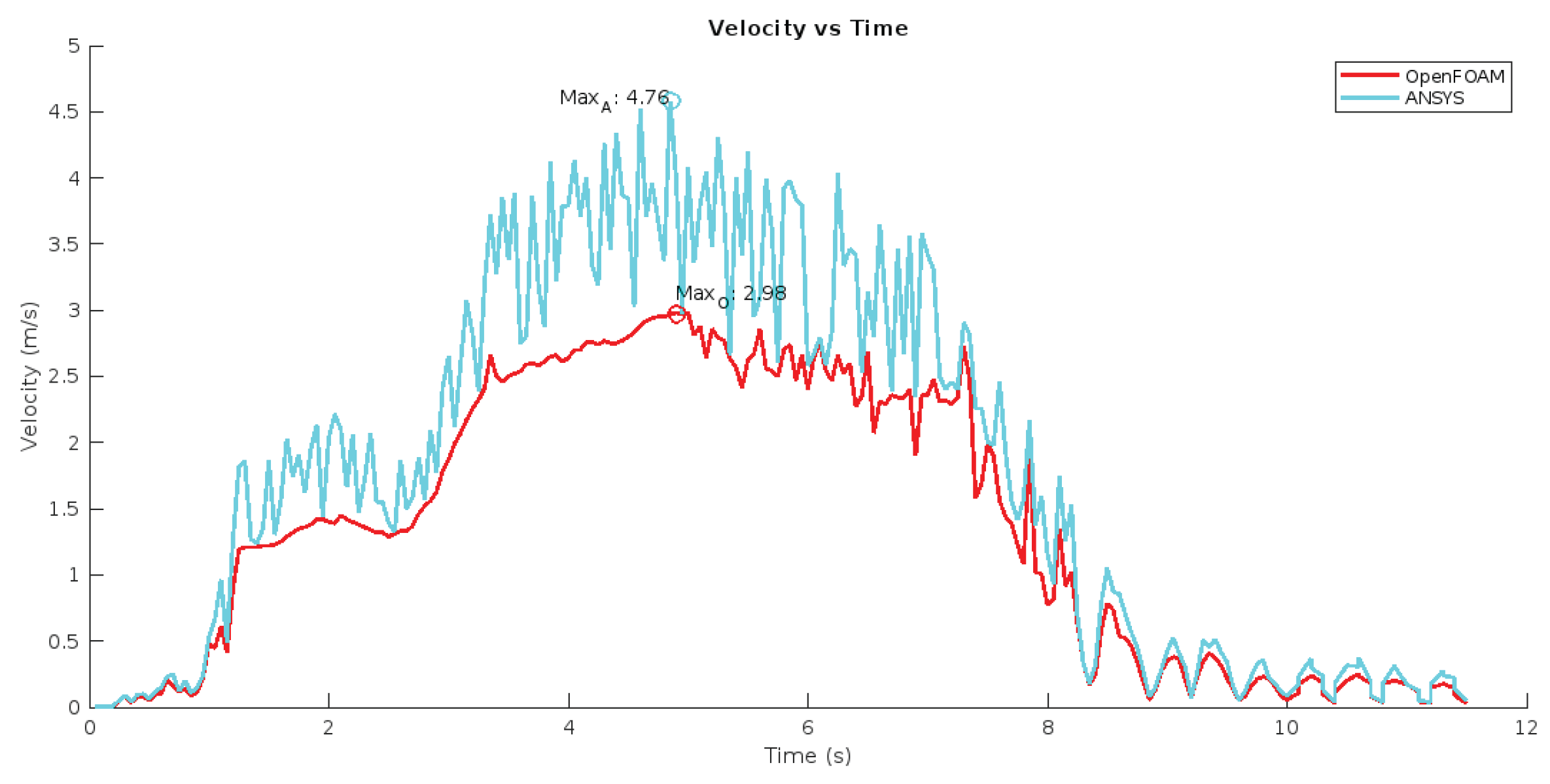

Figure 7. Velocity profiles in the siphon region during flushing.

Figure 7. Velocity profiles in the siphon region during flushing.

Table 2 summarizes the maximum pressures and velocities obtained during the 4.8L flush cycle using OpenFOAM and ANSYS Fluent. The results confirm the development of the siphon effect and effective water evacuation during flushing, with consistent timing across both platforms despite differences in recorded magnitudes. These data validate the hydraulic performance of the system under real operating conditions.

4. Conclusions

This study successfully validated the hydraulic performance of a 4.8L low-consumption toilet using CFD simulations in OpenFOAM and ANSYS Fluent, demonstrating their capability to capture key hydraulic phenomena such as two-phase water-air dynamics, siphon formation, and effective bowl surface coverage during flushing.

The flush cycle simulations captured the complete development of the siphon effect at approximately 5 seconds, consistent with empirical observations in functional testing of new toilets. In the siphon region, OpenFOAM recorded a peak negative pressure of approximately -3680 Pa, while ANSYS Fluent registered -5283 Pa, illustrating effective siphon action in both platforms. Maximum velocities recorded during the flush were 2.98 m/s (OpenFOAM) and 4.76 m/s (ANSYS Fluent), confirming effective water evacuation and waste removal during operation.

The mesh quality was robust, with 61.75% non-orthogonality and an average of 4.45, maintaining the stability and reliability of numerical calculations. Skewness remained within acceptable limits at 2.29, and the aspect ratio reached a maximum of 19.88, confirming the quality of the computational domain for transient hydraulic simulation.

Error analysis between the two platforms indicated an average discrepancy of 31.15% for pressure and 21.99% for velocity measurements (see Table 1), primarily during peak siphon development phases. Despite these differences in magnitude, the consistent trends and timing across platforms confirm the reliability of CFD as a validation tool for hydraulic performance in sanitary product prototyping.

Overall, this study confirms that CFD-based validation is a viable, sustainable alternative to extensive physical testing, reducing water and material waste while ensuring performance validation aligned with INEN 3082 standards. The findings support the adoption of CFD within the sanitary industry to accelerate the design and development of high-efficiency toilets while contributing to global water conservation efforts.
