Proteomic Analysis of Heavy Metal-Induced Toxicity Using the Cellular Slime Mould Dictyostelium discoideum: Effects of Copper Exposure on Aggregation and Protein Expression

1. Introduction

Environmental contamination by heavy metals and organic pollutants remains a significant global issue, threatening both ecosystems and human health [1,2]. Bioassays utilizing living organisms provide a direct and sensitive method to assess environmental toxicity. Traditional bioassays often rely on endpoints such as mortality rates or growth inhibition, requiring prolonged observation and often lacking mechanistic insights into toxicity [3,4].

Recently, there has been increasing interest in understanding how pollutants impact specific cellular signaling pathways and stress responses [5]. Dictyostelium discoideum, a eukaryotic microorganism inhabiting forest soils, exhibits a unique life cycle transitioning from unicellular amoebae to multicellular structures under starvation conditions. This morphological transformation is rapid, highly regulated, and sensitive to environmental stressors, making D. discoideum a valuable model for investigating cellular responses to toxic substances [6].

Previous studies have indicated that D. discoideum is sensitive to heavy metals such as mercury and copper [7,8,9]. However, most assays have employed liquid cultures, which differ substantially from the organism’s natural soil environment. Here, we employed solid agar-based cultures supplemented with copper to closely mimic natural conditions. We aimed to establish a rapid and sensitive bioassay based on aggregation delay and to identify proteomic biomarkers associated with copper-induced toxicity.

2. Materials and Methods

2.1. Chemicals

All chemicals, including copper standard solution (1000 ppm), Mycological Peptone, Yeast Extract, and reagents for electrophoresis, were purchased from recognized suppliers (Wako, Kanto Chemicals, Becton, Dickinson and Company, nacalai tesque, GE Healthcare).

2.2. Strain and Culture Conditions

The seed stock was provided from the Science & Education Center, Ochanomizu University. The AX-2 strain of D. discoideum was cultured axenically in AX-2 medium. D. discoideum was statically cultured in 4 mL of AX-2 medium at 22°C under sterile conditions until the density of the cellular slime mold reached 1-2 × 10⁷ cells/mL. A suspension of D. discoideum was added to a petri dish containing 4 mL of X-2 medium, and the cell density was adjusted to 1-4 × 10⁴ cells/mL, followed by static culture at 22°C.

2.3. Aggregation Assay

The cells were collected from the bottom of the dish in AX-2 medium, by pipetting with 2 mL of Bonner's salt solution. The bacterial solution in the dish was transferred to a tube, stirred for 5 seconds on a vortex mixer, and centrifuged at 627 × g for 1 minute. The supernatant was discarded, and 2 mL of Bonner's salt solution was added, stirred for 5 seconds on a vortex mixer, and centrifuged at 627 × g. This washing procedure was repeated three times. After washing, the cell density was measured using a hemocytometer (Life Technologies Corporation, CA, USA) under an upright optical microscope (Shimadzu Corporation, Kyoto, Japan), and the cell density was adjusted to 3.2 × 10⁷ cells/mL by adding Bonner's salt solution. D. discoideum (6.4 × 10⁷ cells) were seeded on a non-nutrient agar medium (1.5% (w/v) Agarose) and cultured at 22°C under light irradiation. The number of aggregates in an area of 1.4 × 1.0 mm² was recorded and observed under a microscope every 30 minutes for 24 hours using image analysis software Motic Images Plus 2.1S (Shimadzu Corporation, Kyoto, Japan). The effect of copper exposure was examined by seeding D. discoideum on copper-added agar medium (1 ppm (w/v) Cu, 1.5% (w/v) agarose) and performing the same procedure as for the non-nutrient agar medium.

2.4. Protein Extraction and Quantification

The protein concentration of the analytical samples was measured by measuring the absorbance using Qubit® Protein Assay Kits and a QubitⓇ Fluorometer (Life Technologies Corporation, CA, USA) according to the Qubit® Protein Assay Kits (Life Technologies Corporation, CA, USA). The protein concentration of the analytical samples was calculated from the measured absorbance.

Cells at the aggregation stage (10.5 hours post-seeding) were harvested. Proteins were extracted using trichloroacetic acid precipitation, solubilized in a buffer containing urea, thiourea, CHAPS (3-[(3-Cholamidopropyl)dimethylammonio]-1-propanesulfonate), and Triton X-100, and quantified using the Qubit Protein Assay Kit.

2.5. Two-Dimensional Gel Electrophoresis (2-DE)

In this study, immobilized pH gradient isoelectric focusing was used. Immobilized pH gradient isoelectric focusing was performed based on the IPG (immobilized pH gradient strip dry gel) isoelectric focusing method from Nihon Eido Co., Ltd. (Tokyo, Japan). 50 μg of protein from the analysis sample and swelling solution (8 M urea, 4% (w/v) CHAPS, 65 mM DTT (dithiothreitol), 0.5% (w/v) Ampholines pH 3.5-10, 0.001% (w/v) BPB (bromophenol blue) were added to IPG gel (pH 3-10 liner, 7 cm, GE Healthcare, Bucks, UK), and allowed to swell for 16-18 hours at 23°C, after which isoelectric focusing was performed. The electrophoretic conditions were 200 V for 10 min, 400 V for 10 min, 1000 V for 1 h, and 1500 V for 18-22 h. After isoelectric focusing, the gel was shaken for 10 min in 4 mL of SDS-PAGE (sodium dodecyl sulfate-polyacrylamide gel electrophoresis) equilibration buffer (0.0625 M Tris-HCl pH 6.8, 25% (w/v) glycerol, 2% (w/v) SDS, 0.01% (w/v) BPB, 5% (v/v) 2-mercaptoethanol). SDS-PAGE was carried out according to the method of Laemmli [10] using a separating gel of 10% (w/v) polyacrylamide containing 0.1% (w/v) SDS. The acrylamide gel used for the second dimension SDS-PAGE had a gel size of 8.5 cm × 8.5 cm × 0.1 cm, and consisted of a stacking gel of 1 cm and a separating gel of 7.5 cm. The equilibrated gel was placed on top of the prepared acrylamide gel. After the IPG gel was fixed onto the second-dimension SDS-PAGE gel with 1.5% (w/v) agarose-containing SDS-PAGE equilibration buffer, the gel was electrophoresed up to 1 cm from the anode end of the gel at a constant current of 11 mA/cm² in the stacking gel and 17 mA/cm² in the separating gel.

After electrophoresis, the gel was shaken in 50% (v/v) methanol 5% (v/v) acetic acid for 14-18 hours and then in 50% (v/v) methanol for 30 minutes to fix the proteins, followed by silver staining (Wako, Osaka, Japan).

2.6. Image and Data Analysis

The silver-stained gel was scanned using a scanner (GT-X900, EPSON, Tokyo, Japan) and EPSON Scan ver. 3.01, and the behavior of the proteins displayed on the gel was analyzed by the differential display method. The differential display method is a method for comparatively analyzing the difference in the expression level of RNA or protein between different samples using PCR and electrophoresis. The colors of the spots in the obtained electropherograms of copper-exposed and unexposed samples were replaced with red and green, respectively, using ImageJ ver. 1.43, and the expression of the spots in copper-exposed and unexposed samples was compared by overlaying them. Based on the isoelectric point and molecular weight of the proteins whose expression was lost by copper exposure obtained by the analysis, proteins predicted to be expressed were examined using TagIdent. The search conditions were the error tolerance of isoelectric point ±0.1, the error tolerance of molecular weight ±5%, and the organism species was limited to D. discoideum.

3. Results

3.1. Morphological Observations

Figure 1 shows the morphological changes of D. discoideum on non-nutrient agar at different time points after seeding. On non-nutrient agar, D. discoideum formed aggregates by 10.5 hours after seeding. Figure 2 shows the morphological changes of D. discoideum on copper-supplemented agar. Cells on copper-supplemented agar formed aggregates only after 14 hours, indicating a 3.5-hour delay. The number of aggregates significantly decreased under copper exposure at 14 and 24 hours (p < 0.05).

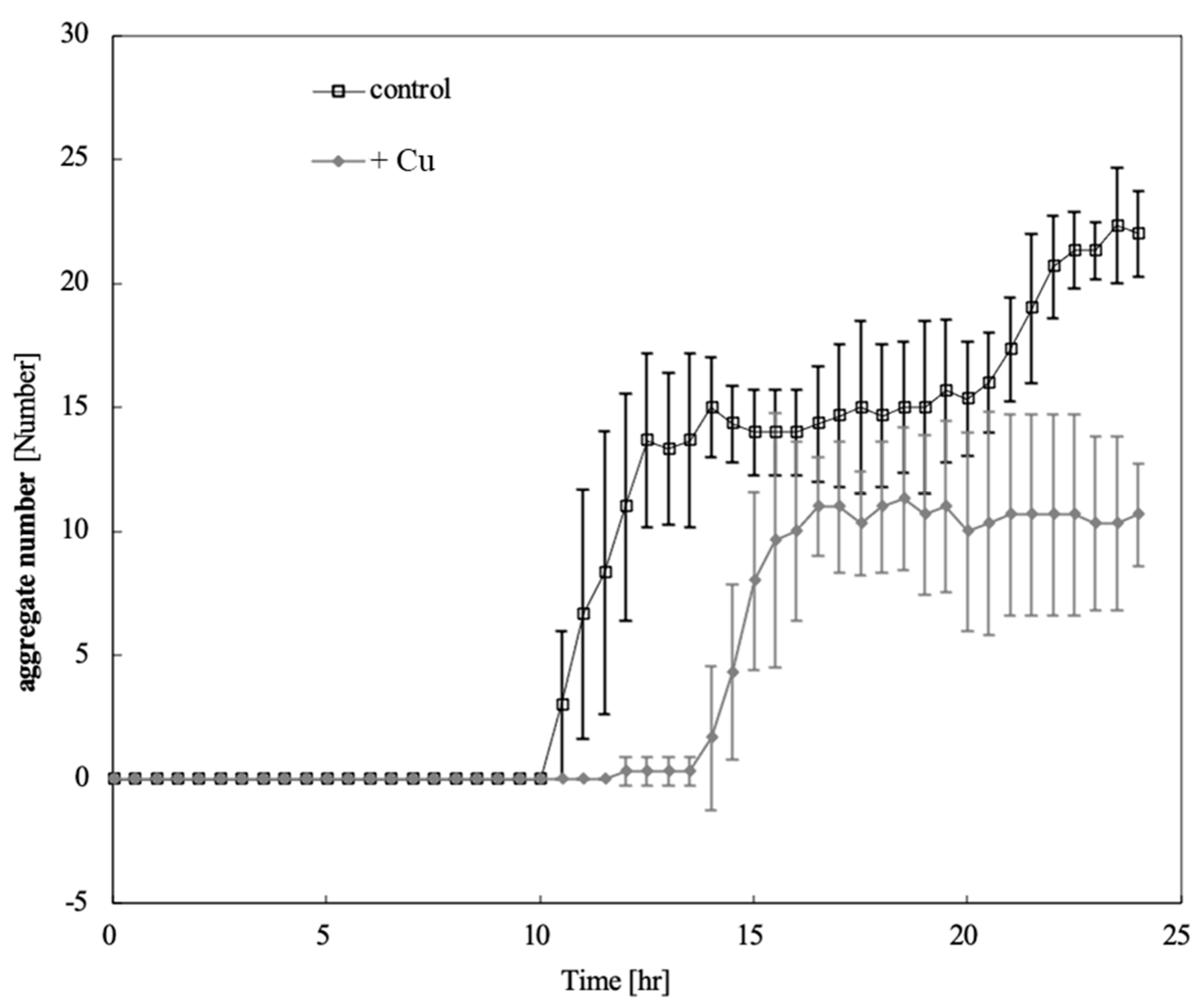

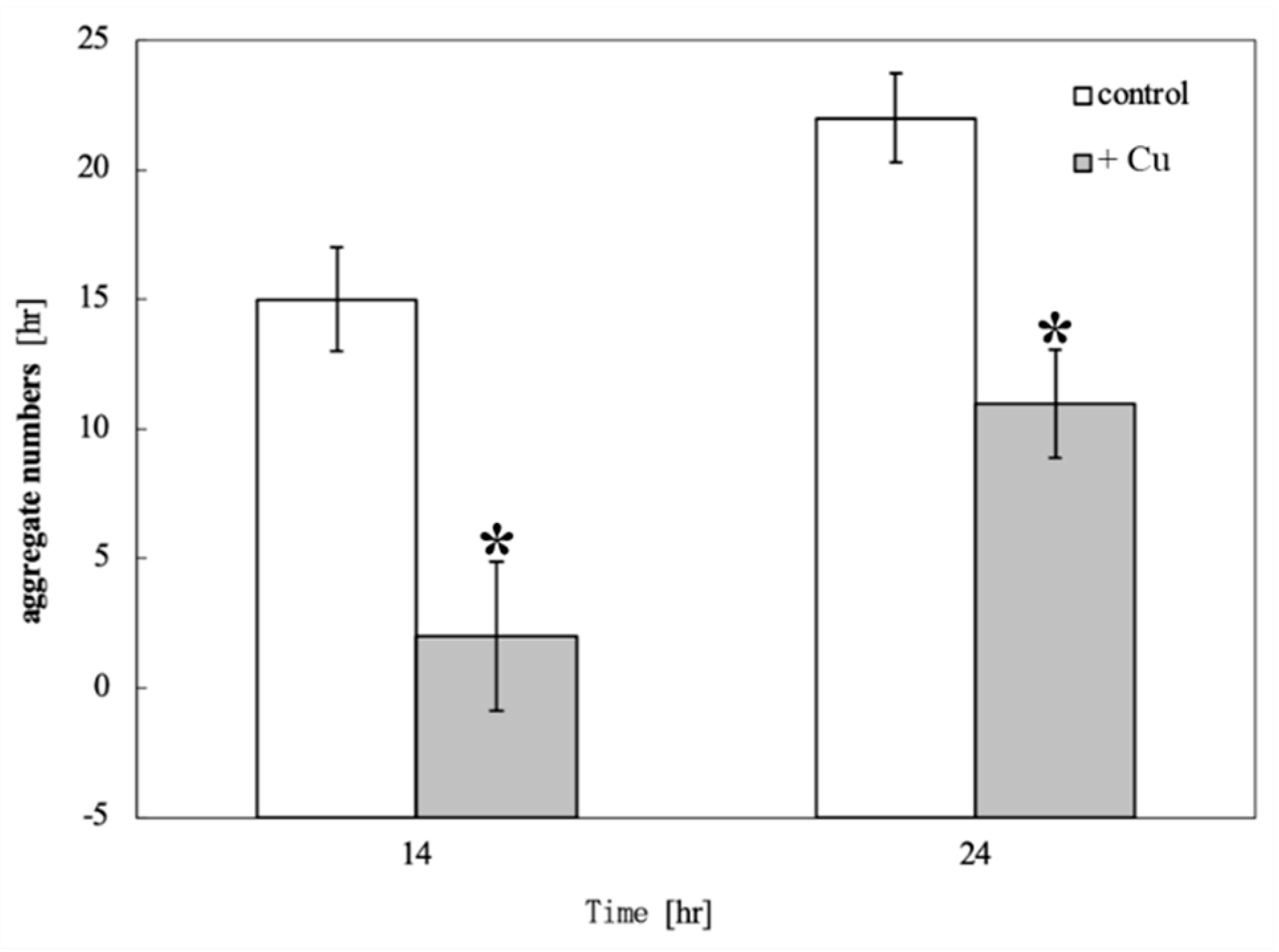

Figure 3 shows the time-course of aggregate number changes on control and copper-exposed agar. Aggregates were detected 10.5 h after starvation in unexposed cells and 14 h after copper exposure. Copper exposure delayed aggregate formation by 3.5 h and reduced the number of aggregates. Figure 4 shows the comparison of aggregate numbers at 14 and 24 hours with and without copper exposure. A significant reduction in D. discoideum aggregates was observed between copper-exposed and unexposed plants at both 14 and 24 hours after inoculation.

3.2. Proteomic Analysis

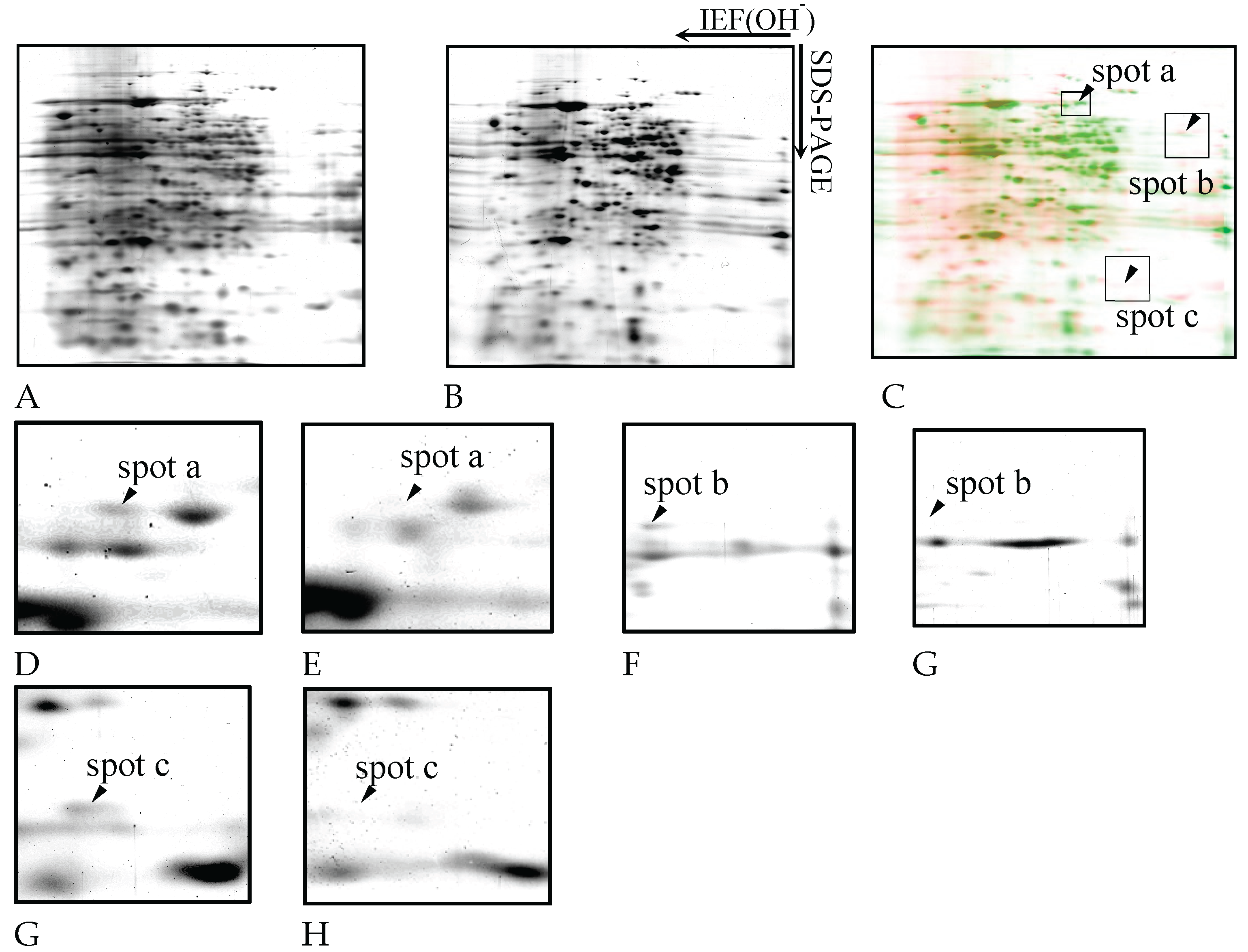

Figure 5A and B show the representative silver-stained gel images of D. discoideum proteins. The samples were treated with trichloroacetic acid (TCA), extracted with a protein solubilizing solution containing urea, and separated by immobilized pH gradient two-dimensional electrophoresis combining isoelectric focusing electrophoresis (IEF) and SDS-PAGE, and then silver stained. Approximately 280 protein spots were detected in both control and copper-exposed samples.

Figure 5C shows the differential display analysis highlighting protein spots affected by copper exposure. Figure 5D to I shows the enlargement of spots a, b, and c disappearing under copper exposure. The spots in the electrophoretic diagram obtained from D. discoideum were colored green for those exposed to copper and red for those not exposed, and the spots were overlaid to compare the expression levels. Three spots (designated spot a, b, and c) were missing under copper exposure. Based on database searches, spot a corresponded to formin-1, spot b to CRAC, and spot c to a TPR-containing protein (Table 1).

4. Discussion

Copper exposure delayed aggregation and reduced the number of aggregates formed by Dictyostelium discoideum. This suggests that copper toxicity interferes with the normal developmental program of D. discoideum, specifically the transition from unicellular amoebae to multicellular aggregates. Similar inhibitory effects of copper on developmental processes have been observed in other model organisms, including Arabidopsis thaliana and Caenorhabditis elegans, highlighting the conserved nature of metal-induced developmental disruption across species [11,12]. These findings support the potential utility of D. discoideum as a sensitive bioindicator organism.

Our proteomic analysis revealed that the expression of three protein spots disappeared under copper exposure. Based on isoelectric point and molecular weight analysis, the proteins were predicted to be formin-1, CRAC (cytoplasmic regulator of adenylyl cyclase), and a TPR-containing protein. Both formin-1 and CRAC are known to be essential for the aggregation process in D. discoideum, pointing to mechanistic disruption of actin cytoskeleton organization and cAMP-mediated chemotaxis. Formin-1 is involved in the nucleation and elongation of actin filaments, which are crucial for pseudopodia formation and directional cell movement [13]. Previous studies have demonstrated that formin knockout strains of D. discoideum exhibit severely impaired aggregation and chemotactic responses [14], reinforcing our interpretation.

CRAC is critical in the relay of cAMP signals, enabling coordinated cell aggregation during starvation. Inhibition or downregulation of CRAC has been shown to result in defective cAMP wave propagation and failure of aggregation center formation [15]. Thus, the disappearance of CRAC under copper stress suggests a direct impairment of signal transduction necessary for aggregation, further explaining the 3.5-hour delay observed in our morphological assays.

The loss of a TPR-containing protein also implies broader disruption in protein complex formation or intracellular transport. TPR domains mediate protein-protein interactions involved in signal transduction, transcriptional regulation, and chaperone function [16]. Though the specific role of the identified TPR-containing protein in D. discoideum is not fully elucidated, similar proteins have been implicated in stress response pathways in mammals [17], suggesting that copper may interfere with cellular stress responses as well.

It should be noted that our identification was based on bioinformatic predictions, and the definitive identification of the affected proteins remains a limitation. Therefore, future work should involve LC-MS/MS analysis to conclusively identify these proteins and to further clarify the molecular pathways disrupted by copper exposure.

Our results demonstrate that copper-induced proteomic changes correlate with measurable developmental phenotypes in D. discoideum. Given the organism's short developmental cycle, genetic tractability, and conservation of key eukaryotic signaling pathways, these findings strengthen the argument for its use in environmental toxicology, particularly in proteomics-based bioassays. Previous research has proposed D. discoideum as a model for neurotoxicity, oxidative stress, and heavy metal responses [18,19]. Our study adds proteomic evidence to this body of work, highlighting the utility of two-dimensional electrophoresis in detecting environmentally responsive protein biomarkers.

5. Conclusions

Our study demonstrates that D. discoideum aggregation is a sensitive indicator of copper toxicity and that proteomic profiling can identify key affected proteins. This approach may serve as a basis for developing rapid and mechanistic environmental bioassays.
