Photonics on a Budget: Low-Cost Polymer Sensors for a Smarter World

1. Introduction

The global demand for real-time, distributed, and cost-effective sensing technologies has grown rapidly in recent years, driven by applications in environmental monitoring, healthcare diagnostics, food safety, structural health, and industrial process control[1,2]. The rise of the Internet of Things (IoT)[3] [4] and Industry 4.0[5] has further intensified the need for sensor platforms that can be produced at low cost, deployed over large areas, and integrated seamlessly into smart systems[6]. Optical sensors have attracted significant interest in this context because of their unique advantages, including high sensitivity, immunity to electromagnetic interference, potential for remote sensing, and compatibility with multiplexing techniques[7,8,9,10].

Despite these strengths, conventional integrated photonic sensor platforms typically based on silicon[11,12], III-V semiconductors[13], or glass[14] face inherent limitations when it comes to large-area and low-cost manufacturing. The high capital costs associated with semiconductor fabrication, the rigidity of inorganic materials, and the complexities of scaling up these technologies to large surfaces have restricted their applicability in scenarios where affordability, mechanical flexibility, and scalability are critical[15]. This has created a pressing need for alternative materials and fabrication approaches capable of meeting the growing demands of modern sensing applications[16,17,18,19].

Polymer-based integrated photonic sensors have emerged as a highly promising solution to these challenges[20,21,22]. Polymer materials offer a unique combination of low cost, mechanical flexibility, and ease of processing that makes them particularly well-suited for large-area and scalable sensing technologies[23]. In addition to being inexpensive and lightweight, polymers can be processed using high-throughput, large-area fabrication techniques such as roll-to-roll (R2R) manufacturing[24,25], nanoimprint lithography (NIL) [26], soft lithography[27], and inkjet or 3D printing[28]. Their flexibility allows them to conform to curved and irregular surfaces, enabling new form factors such as wearable and skin-mounted sensors[29]. Moreover, polymers can be chemically tailored or functionalized with embedded dyes, nanoparticles, or biomolecules to create active sensing elements within the photonic structures themselves[30].

The optical properties of polymers, including their refractive indices, transparency in relevant wavelength ranges, and capacity for birefringence or nonlinearity, can be tuned to suit a wide variety of photonic device designs[31]. Polymer-based photonic waveguides[32], Bragg gratings[33], photonic crystal slabs[34], resonators[35], and interferometers[36] have all been explored as components for integrated sensors, with applications in chemical detection, biosensing, environmental monitoring, and beyond[20].

At the same time, polymer photonic sensors face important technical challenges. These include issues related to environmental stability, such as sensitivity to humidity, temperature, and ultraviolet light, as well as questions of long-term durability and integration with electronics for signal readout and processing[37]. Nonetheless, recent advances in polymer chemistry, hybrid material systems, and innovative fabrication methods are helping to overcome these limitations and are bringing the field closer to delivering scalable, low-cost, large-area photonic sensing solutions[38].

This review presents a comprehensive and up-to-date analysis of polymer-based large-area integrated photonic sensors, focusing on their material foundations, scalable fabrication processes, structural architectures, and application domains. Section 2 details the optical, mechanical, and chemical properties of key polymers such as PMMA, SU-8, polyimides, COC, and PDMS, emphasizing their suitability for integrated sensing applications. Section 3 explores scalable fabrication strategies including NIL, soft lithography, R2R processing, and additive manufacturing highlighting their compatibility with high-throughput, large-area device production. Section 4 delves into critical photonic structures such as waveguides, Bragg gratings, photonic crystals, resonators, and interferometers, examining their operating principles, integration techniques, and sensing performance. Section 5 surveys practical applications across environmental monitoring, biomedical diagnostics, and structural health monitoring, showcasing the real-world impact of polymer photonic sensors. Section 6 addresses major challenges including environmental stability, reproducibility, and photonic-electronic integration, while also identifying opportunities in hybrid material systems and co-packaged optics. Section 7 offers a forward-looking perspective on emerging trends such as smart packaging, wearable sensor arrays, and printable photonics. Finally, Section 8 synthesizes the insights gained, reaffirming the potential of polymer photonic technologies to drive the future of low-cost, high-performance, and scalable sensing systems in diverse and connected environments.

2. Polymer Materials for Large-Area Photonic Sensors

The selection of polymer materials plays a critical role in determining the performance, scalability, and application potential of large-area integrated photonic sensors[39]. Polymers offer a broad palette of optical, mechanical, and chemical properties that can be tailored through molecular design, blending, or incorporation of functional additives[40]. This versatility makes them particularly attractive for photonic sensing platforms aimed at large-area, low-cost, and flexible implementations[41]. The overview of polymer materials and their characteristics for photonic sensors is presented in Table 1.

Among the most widely used polymer materials in integrated photonic sensors is polymethyl methacrylate (PMMA)[42]. PMMA is favored for its excellent optical transparency in the visible and near-infrared regions, low cost, and ease of processing. Its refractive index typically ranges from 1.48 to 1.50 at visible wavelengths, making it compatible for use as a cladding or waveguiding material when paired with higher-index functional layers or substrates[43]. PMMA is also amenable to NIL and other patterning techniques that are suitable for large-area fabrication[44].

SU-8, an epoxy-based negative photoresist, is another common material used in polymer photonics[45]. SU-8 offers a higher refractive index, typically around 1.57, and forms high-aspect-ratio structures with excellent mechanical stability after crosslinking. This makes it suitable for creating precise, high-resolution photonic structures such as waveguides, resonators, and gratings[46]. SU-8 is compatible with standard photolithography and imprinting processes and has been widely used in both planar and three-dimensional polymer photonic devices[47,48].

Polyimides represent another important class of polymer materials for photonic sensing applications[49]. Known for their outstanding thermal stability, chemical resistance, and mechanical robustness, polyimides can operate in demanding environments such as high-temperature or chemically aggressive conditions. Their refractive index typically lies between 1.65 and 1.70, offering strong optical confinement when used in waveguide structures. In addition, polyimides can be spin-coated or printed over large areas and patterned using a variety of techniques[50].

Cyclic olefin copolymers (COCs) have attracted attention for their excellent optical clarity, low birefringence, and low moisture absorption[51]. Their refractive index, around 1.53, and their compatibility with R2R processing make them suitable for large-area photonic sensors, particularly where low optical loss and environmental stability are required. COCs are also biocompatible, making them attractive for medical and bio-integrated photonic devices[52].

Polydimethylsiloxane (PDMS) is a highly flexible, elastomeric polymer widely employed in soft photonics[53]. PDMS has a refractive index near 1.41 and is valued for its optical transparency in the visible and near-infrared ranges, its ability to form conformal contact with surfaces, and its biocompatibility[54]. It is extensively used in microfluidics-integrated photonic sensors and flexible optical components[55]. Furthermore, PDMS can serve as both a structural material and a substrate for embedding other photonic elements[56].

The optical properties of these polymer materials particularly refractive index, transparency, and optical loss are key to their function in photonic sensors. The refractive index determines the guiding and confinement of light within waveguides or resonant structures[57,58]. Transparency across relevant spectral ranges ensures minimal absorption loss, which is crucial for sensitive detection. Most of these polymers exhibit low absorption loss in the visible and near-infrared regions, although scattering loss due to surface roughness or inhomogeneities can be a concern, especially for structures fabricated over large areas[59].

Beyond their intrinsic optical properties, polymers provide exceptional opportunities for functionalization. Polymers can be doped or blended with a variety of active materials to impart specific sensing capabilities[60,61]. For instance, nanoparticles such as gold, silver, copper or quantum dots can be embedded into polymer matrices to enable plasmonic or enhanced fluorescence-based sensing[62,63,64]. Similarly, polymers can be loaded with responsive dyes that change their optical properties in response to environmental stimuli such as pH, temperature, or specific analytes[65]. Surface functionalization of polymer photonic structures with biomolecules including antibodies, enzymes, or nucleic acids can transform passive optical devices into highly selective biosensors[66]. The ability to integrate functional components directly into or onto the polymer matrix opens up a wide design space for realizing sensitive, specific, and tunable photonic sensors suitable for large-area applications.

Table 1. Overview of Polymer Materials and Their Characteristics for Photonic Sensors

Polymer Material	Typical Refractive Index (at 633–1550 nm)	Transparency Range	Key Features	Role in Photonic Sensors
PMMA (Polymethyl methacrylate)[42,67,68]	1.48 – 1.50	Visible to NIR	Low cost, good optical clarity, easy patterning (e.g., nanoimprint)	Cladding layers, waveguides, disposable sensor substrates
SU-8[45,48]	~1.57	Visible to NIR	High mechanical stability, high aspect ratio patterning, epoxy-based	Waveguides, resonators, grating structures, microfluidic-integrated sensors
Polyimide[49,50]	1.65 – 1.70	Visible to NIR	Excellent thermal and chemical stability, robust mechanical properties	Waveguides for harsh environments, chemically resistant sensors
COC (Cyclic Olefin Copolymer)[20,50,52]	~1.53	Visible to NIR	Low moisture absorption, low birefringence, biocompatibility	Large-area substrates, low-loss waveguides, bio-integrated sensors
PDMS (Polydimethylsiloxane)[53,54,55]	~1.41	Visible to NIR	High flexibility, biocompatibility, transparent elastomer	Flexible sensors, microfluidic-integrated photonics, tunable structures

Table 1. Overview of Polymer Materials and Their Characteristics for Photonic Sensors

Polymer Material	Typical Refractive Index (at 633–1550 nm)	Transparency Range	Key Features	Role in Photonic Sensors
PMMA (Polymethyl methacrylate)[42,67,68]	1.48 – 1.50	Visible to NIR	Low cost, good optical clarity, easy patterning (e.g., nanoimprint)	Cladding layers, waveguides, disposable sensor substrates
SU-8[45,48]	~1.57	Visible to NIR	High mechanical stability, high aspect ratio patterning, epoxy-based	Waveguides, resonators, grating structures, microfluidic-integrated sensors
Polyimide[49,50]	1.65 – 1.70	Visible to NIR	Excellent thermal and chemical stability, robust mechanical properties	Waveguides for harsh environments, chemically resistant sensors
COC (Cyclic Olefin Copolymer)[20,50,52]	~1.53	Visible to NIR	Low moisture absorption, low birefringence, biocompatibility	Large-area substrates, low-loss waveguides, bio-integrated sensors
PDMS (Polydimethylsiloxane)[53,54,55]	~1.41	Visible to NIR	High flexibility, biocompatibility, transparent elastomer	Flexible sensors, microfluidic-integrated photonics, tunable structures

3. Fabrication Techniques Enabling Low Cost & Large Area

The ability to produce photonic and nanostructured devices over large areas at low cost is essential for advancing applications in displays, sensors, photovoltaics, and optical coatings. Conventional high-resolution methods such as electron beam lithography (EBL) offer unmatched precision but are prohibitively expensive and slow when scaled to large areas[69]. As a result, several alternative fabrication techniques have emerged that provide a favorable balance of cost, throughput, and resolution, making them suitable for commercial-scale production. Key among these are NIL, soft lithography, R2R processing, and emerging printing techniques like inkjet and 3D printing (Table 2).

3.1. Nanoimprint Lithography (NIL)

NIL is a promising high-resolution technique that enables direct physical replication of nanoscale patterns[24]. In NIL, a hard mold typically made of quartz or silicon and pre-patterned with nanoscale features is pressed into a resist-coated substrate, imprinting its structure[70]. The resist is then cured (thermally or with UV light), and the mold is released, leaving behind the desired pattern[71]. NIL can achieve sub-10 nanometer resolution and is highly versatile, supporting both rigid and flexible substrates[72]. It is well-suited for producing nanophotonic devices, metasurfaces, and anti-reflective coatings[73,74]. However, the high cost and complexity of mold fabrication, potential issues with mold wear, and challenges in aligning multilayer structures are limitations that must be managed, particularly for complex or multilayer devices[75].

Park et al. demonstrated a straightforward, single-step method for fabricating flexible ridge waveguides using nanochannel-guided lithography (NCL)[76]. This technique enabled the continuous extrusion of a polymer to form the waveguide’s core ridge directly onto a polymer undercladding layer. A precisely cleaved mold edge with microtrench patterns was used to slide steadily over a UV-curable resin-coated substrate under conformal contact. The resin and substrate materials were selected to meet the optical requirements for the waveguide core and cladding. Localized heating of the mold allowed for control over the resin’s viscosity, ensuring optimal filling of the microchannels and smooth extrusion, which was then cured using UV light. The extruded polymer core exhibited a highly smooth surface, advantageous for low-loss optical waveguiding—an effect that was confirmed through insertion loss measurements. This approach provided a practical and scalable route for the continuous fabrication of waveguides and integrated photonic components[76].

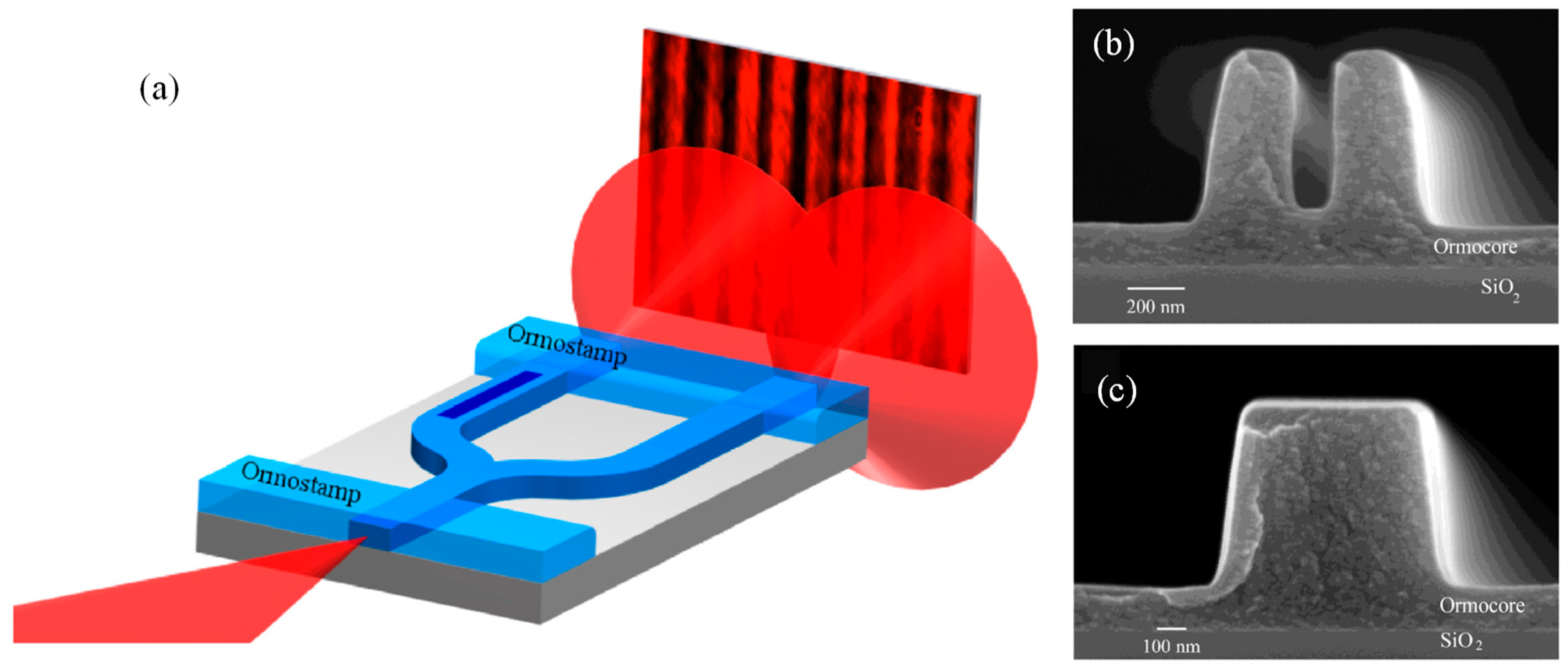

UV-NIL was employed to fabricate single-mode polymer waveguides for both single- and multi-layer passive optical interconnects[77]. The NIL process primarily involves two stages: the creation of the stamp and the NIL itself. The inverted rib waveguide process, illustrated in Figure 1 (a), starts with spin-coating a 30 µm thick layer of a lower-index cladding material, Ormoclad, to provide optical isolation between the waveguide mode and the substrate (Figure 1 (a1)). An imprint stamp is then brought into contact with this cladding layer to form trench waveguides, followed by UV curing (Figure 1 (a3)). A typical trench structure is shown in Figure 1 (b) (top-right). These trenches are filled with a higher refractive index material, a mixture of Ormocore and Ormoclad, applied via spin coating to create a slab layer that covers the trenches completely (Figure 1 (a4)). It is essential that this layer is smooth and fully fills the trenches. After curing the core, a final spin-coating and curing step of Ormoclad, the lower-index material, is performed on top, completing the fabrication of the single-level optical waveguide[77].

The process tolerances associated with this technique were thoroughly investigated, and an experimental approach was developed to quantify subtle variations in the refractive index contrast between the core and cladding of the fabricated structures. Demonstrations included 1×2 optical splitters, realized through directional couplers and multimode interference (MMI) devices, which achieved insertion losses below 0.45 dB and exhibited minimal output power imbalance, measured at 0.02 ± 0.01 dB. Furthermore, an optical via was fabricated to facilitate vertical signal transfer between optical layers, maintaining an insertion loss of less than 0.45 dB. A 1×4 two-dimensional optical port was also demonstrated, successfully dividing the input signal among four outputs with a measured insertion loss of 1.2 dB[77].

3.2. Soft Lithography

Soft lithography including microcontact printing, is a low-cost, versatile technique that uses elastomeric stamps commonly made of polydimethylsiloxane (PDMS) to transfer patterns onto substrates[78]. The stamps are molded from a master template and can conform to both flat and curved surfaces, enabling patterning on non-planar substrates[79]. Soft lithography is especially attractive for patterning organic materials, biomolecules, and for applications such as microfluidics and flexible electronics. Typical resolution is around 50 nm, although achieving features smaller than 30 nm can be challenging due to stamp deformation and ink diffusion[80,81]. While inexpensive and easy to implement, soft lithography is less suited for producing very high-density or high aspect-ratio structures compared to NIL[82].

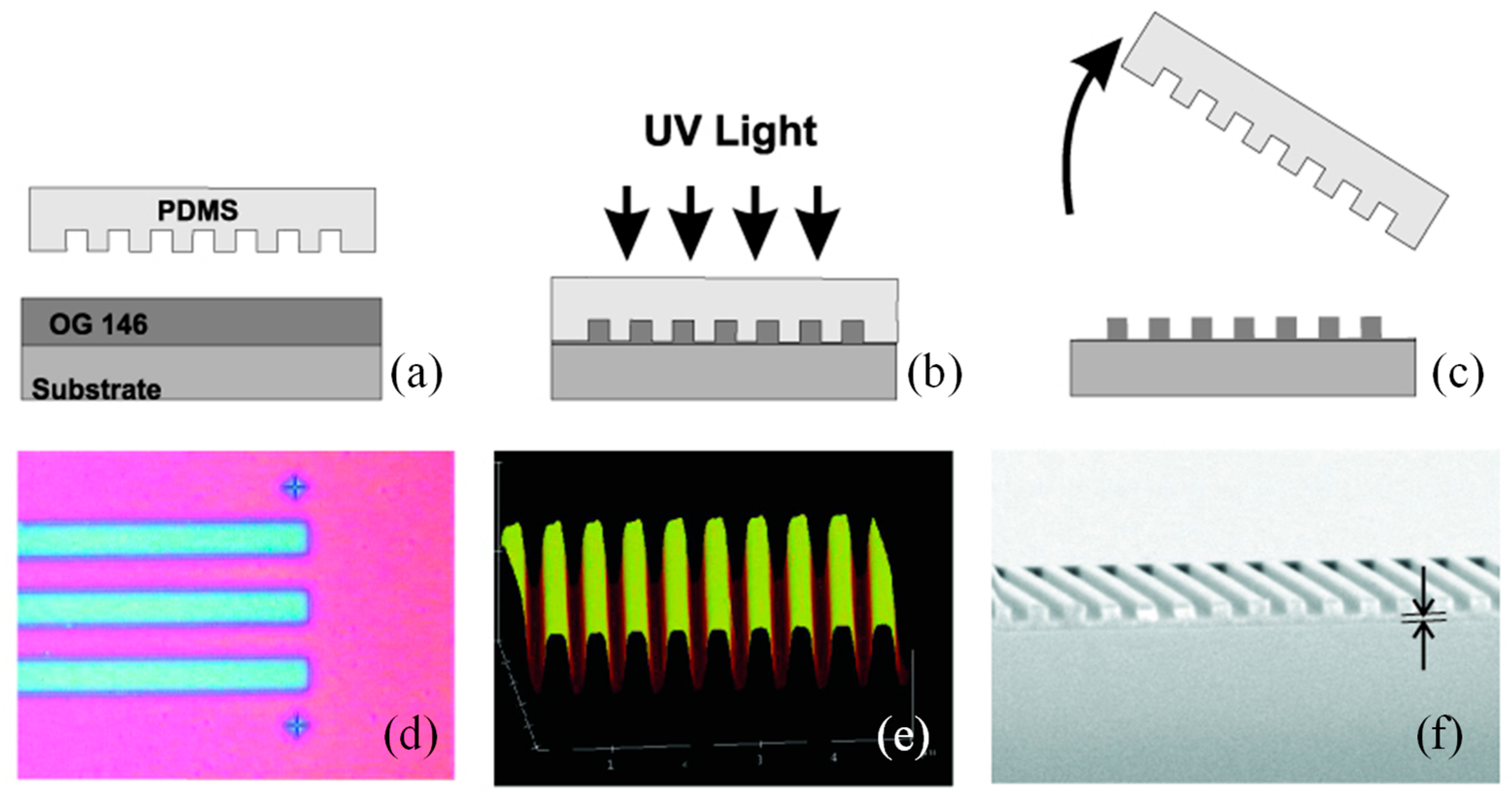

Soft lithography replica molding was used to fabricate microring resonator filters composed of unclad polystyrene (PS) and clad SU-8[83]. The PS resonator was demonstrated to possess an intrinsic quality factor of 1.0 × 10⁴ at a wavelength of 1.55 μm, whereas the SU-8 resonator has shown a quality factor of 7100. Extinction ratios of -12 dB for the PS filter and -20 dB for the SU-8 filter were measured, with net insertion losses of 6.7 dB and 9.9 dB, respectively. These findings, characterized by high quality factors and significant extinction ratios, have confirmed the practicality of soft lithography replica molding for the fabrication of integrated optical devices[83].

A polymeric waveguide Bragg grating filter was produced using a soft lithography method[83]. The master grating pattern was created through electron beam lithography. Through capillary forces and an elastomeric stamp, consistent grating patterns featuring ultra-thin residual layers were transferred onto a UV-curable polymer, eliminating the need for an imprinting device. The waveguide layer, made from BCB optical polymer, was formed via standard optical lithography. The grating transfer process is illustrated in Figure 2 (a-c). The master grating was patterned on a silicon wafer using e-beam lithography and then etched by reactive ion etching. The groove dimensions are: 515 nm period, 200 nm depth, 100 μm width, 2 cm length, and 0.5 duty cycle. The elastomeric stamp was made by casting PDMS over the master and curing at 75 °C for 2 hours before peeling it off. A 5 mm thick PDMS layer sufficed for replication, although composite stamps can enhance pattern fidelity [11].

The PDMS stamp was used to imprint the grating onto a low-viscosity UV-curable pre-polymer (OG 146). The pre-polymer was spin-coated (~1 μm thick) on a silicon wafer with a 7 μm oxide layer. The PDMS stamp was placed gently onto the polymer, allowing capillary action to fill its grooves. UV exposure for 5 minutes cured the polymer, after which the stamp was removed, leaving the grating on the substrate. To evaluate uniformity and residual layer thickness, the pattern was transferred to a silicon wafer. Figure 2 (d) shows a uniform optical image of the grating. The SEM cross-section in Figure 2 (f) reveals groove depth of ~200 nm and residual layer thickness of ~100 nm, which depends on the initial polymer thickness. Figure 2 (e) shows the AFM image confirming the 200 nm depth. Thermal contraction of PDMS during curing causes a 1–3% reduction in grating period, adjustable by curing temperature. This shrinkage allows fine tuning of the grating period by up to ~10 nm, shifting the Bragg resonance wavelength by about 30 nm. This technique offered a straightforward and efficient process for fabricating Bragg grating filters[84].

3.3. Roll-to-roll (R2R) Processing

R2R is an industrial-scale fabrication method that excels in producing large-area devices on flexible substrates at very high throughput[85,86]. In R2R processing, a flexible substrate is continuously fed from a roll through various stations that perform coating, printing, embossing, or curing steps. This technique is widely used for manufacturing flexible displays, organic photovoltaics, and disposable sensors[87]. Although the achievable resolution is generally limited to about 100 nm or larger, unless combined with techniques like nanoimprinting, R2R’s key advantage lies in its ability to produce enormous areas rapidly and cost-effectively. The main technical challenges involve precise control of web tension, alignment, and layer registration during processing[88].

The sequential dewetting mechanism was investigated, and a continuous fabrication method for polymeric microstencils was developed using a R2R imprinting system[89]. To enable residual-free patterning via dewetting, the mold material, polymer resin, and substrate were selected based on interfacial surface energy analysis. A paraffin-coated film was chosen as the substrate, as its low surface energy allowed efficient dewetting, while providing stronger adhesion than the PDMS mold facilitating smooth, continuous demolding during the R2R process.

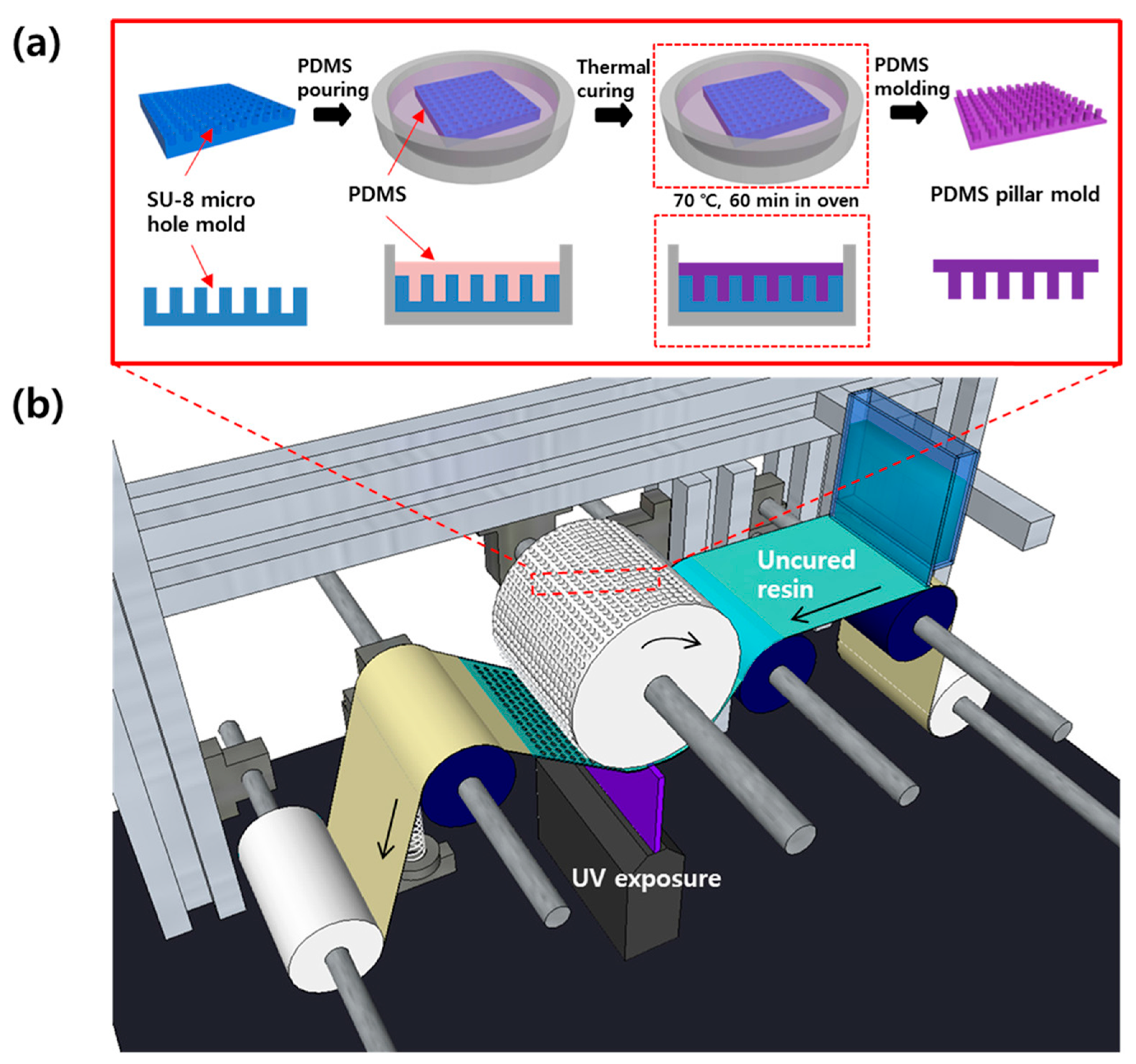

Figure 3 presents a schematic overview of the continuous fabrication process for flexible microstencils using a R2R UV imprint lithography system. The process began with the fabrication of a soft mold embedded with a periodic pillar array, which was produced through a straightforward molding technique (Figure 3 (a)). This flexible mold was subsequently wrapped around a rotating roller, forming the core of the R2R system used to transfer micro-patterns onto a UV-curable resin layer coated on a flexible substrate (Figure 3 (b)). As the roller advanced, the mold came into conformal contact with the resin-coated substrate, enabling pattern transfer. By tailoring the interfacial surface energies among the mold, resin, and substrate, localized dewetting of the liquid resin was triggered. This occurred specifically at locations where the mold’s pillar tips compressed the resin, thinning the layer enough to expose the underlying substrate. Following UV exposure, the patterned resin layer was cured. The resulting microstencil, featuring well-defined perforations, was then carefully separated from the mold and peeled off the substrate, thereby completing the continuous fabrication process.

Key process parameters, including imprinting speed, mold aspect ratio, and applied pressure, were experimentally varied and their effects on microstencil geometry were evaluated. Optimal conditions were identified, under which microstencils were fabricated continuously with high yield and feature resolution reaching 20 μm in diameter. The method developed was validated as a versatile, scalable, and material-specific approach for high-throughput production of microstencil structures suited to flexible and mass-production applications[89].

3.4. Inkjet Printing and 3D Printing

Inkejet printing and 3D printing represent additive, mask-less fabrication approaches that are increasingly being explored for photonic device production[90]. Inkjet printing offers flexibility in pattern design, minimal material waste, and low startup costs, as no physical masks or molds are required. It is well-suited for rapid prototyping and custom components. 3D printing, including advanced techniques like two-photon polymerization, allows for the fabrication of complex three-dimensional photonic structures with feature sizes down to the sub-micrometer or even tens-of-nanometer scale[91]. However, inkjet printing typically provides resolution in the micron range, and while 3D printing can achieve higher resolution, it tends to be slow and less suited for large-area production. Issues such as ink formulation, nozzle clogging, and surface roughness also need to be addressed for consistent high-quality results[92].

In terms of comparative performance, NIL offers the highest resolution (<10 nm) at moderate cost, particularly when mold costs can be amortized over large production volumes[93]. Soft lithography provides lower resolution (typically ~50 nm) but at very low cost and with greater substrate versatility[94]. R2R processing delivers unmatched throughput and the lowest per-area cost but at the expense of resolution, unless integrated with higher-resolution patterning techniques[95]. Inkjet and 3D printing provide design flexibility and low setup costs but generally lag in throughput and resolution for large-area fabrication. The choice among these techniques depends heavily on the specific requirements of resolution, scale, cost, and substrate compatibility for the intended application[96].

Techniques like inkjet, electrohydrodynamic, and aerosol printing classified as non-contact methods have garnered significant interest for their ability to precisely deposit functional materials essential for applications in printed electronics, photonics, biotechnology, microfluidics, and optoelectronics. Theiler et al. presented a method for fabricating tapered optical waveguides via printing, achieving propagation losses as low as 0.19 dB/cm, with an average of 0.61 ± 0.26 dB/cm[97]. Continuous structural features are critical for ensuring functionality in printed designs, yet they are frequently disrupted by capillary effects. An inkjet printing approach was utilized that harnesses these capillary forces to form liquid bridges, guiding them into continuous, smooth lines even on substrates with varying wettability[97].

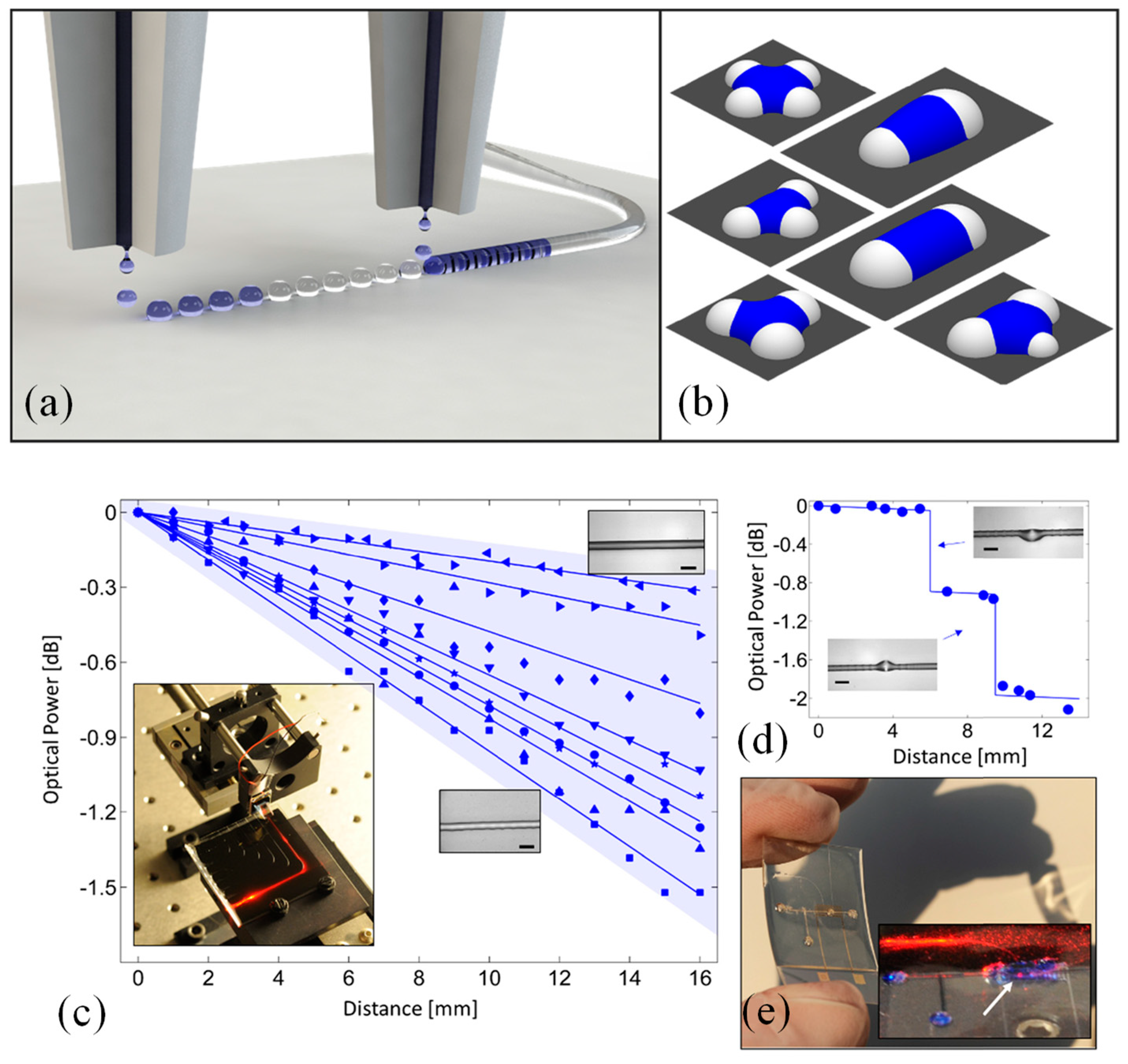

Figure 4 (a) outlines the fabrication strategy. The process begins with the deposition and stabilization of discrete spherical caps, which act as anchoring sites. When droplets are subsequently introduced between these caps, capillary forces drive the formation of self-aligned liquid bridges. These bridges naturally align into straight paths and can then be solidified to form smooth printed lines. Achieving optimal results requires that fresh ink properly wets the previously deposited caps. To ensure isolation between bridges and prevent bulging, the volume of each bridge must be carefully controlled relative to the spacing between caps. Each bridge should contact no more than half of each adjacent cap, allowing distinct bridges to form without fluid transfer between them. Under these conditions, the behavior of individual bridges can be analyzed independently, without compromising the accuracy of the physical model. Importantly, capillary bridges are not restricted to forming between two identical caps. Configurations involving three or more caps can be used to construct more complex geometries, such as junctions and sharp turns. As illustrated in Figure 4 (b), simulated liquid bridges generated using Surface Evolver demonstrate a variety of forms that can serve as primary structural elements in printed patterns.

Figure 4 (c) illustrates the attenuation of optical power along straight, defect-free printed waveguides. To assess optical losses after the bend section, the sliding prism technique was employed (see setup photograph in the inset of Figure 4 (c); the curved configuration prevents direct laser exposure to the sensor). By incorporating measures such as substrate blackening, masking of adjacent waveguides and other scattering sources, and performing background correction (via reference measurements without the prism), the light output was accurately recorded using a photodiode. These measurements, conducted at a wavelength of 650 nm, revealed an average optical loss of 0.61 ± 0.26 dB/cm across ten samples with cladding layers thicker than the optical wavelength regardless of whether PET or glass was used as the substrate. In optimal conditions, where waveguides were particularly smooth (see top-right inset in Figure 4 (c)), losses as low as 0.19 dB/cm were observed. Such performance is comparable to conventional fabrication methods like photolithography or reactive ion etching. Surface quality was found to be a critical factor: for instance, even slight surface roughness could increase losses to around 0.8 dB/cm (see middle inset of Figure 4 (c)).

Figure 4 (d) demonstrates the impact of structural defects on light transmission. Waveguides containing intentionally introduced bulging irregularities showed a minimum of 0.8 dB loss per defect. These findings emphasize the importance of producing optically smooth structures which is a feature that the presented capillary-bridge-based printing technique can consistently achieve. This printing strategy is not confined to optics alone. By selecting different ink materials, the method can be extended to fabricate devices with a wide range of functions. It opens the door to cost-effective, customizable, and fully integrated optical systems produced via additive manufacturing on a single platform. As shown in Figure 4 (e), the versatility of this approach is exemplified by a fully printed prototype comprising a microfluidic channel, a tapered optical waveguide (with light visibly coupled into the blue-dyed fluid), and a metallic comb capacitor. This integration demonstrates the method's promise for creating multifunctional, flexible devices even on delicate or uneven surfaces[97].

Table 2. Characteristic Comparison of NIL, Soft Lithography, R2R Processing, Inkjet Printing, and 3D Printing for the Fabrication of Polymer Sensing Devices.

Technique	Resolution	Throughput / Scalability	Cost	Material Compatibility	Design Flexibility	Typical Use in Polymer Sensors
Nanoimprint Lithography (NIL)[98]	High (sub-10 nm possible)	Moderate (batch or step-and-repeat; scalable via R2R NIL)	Moderate (expensive tooling but low per-unit cost)	Broad (polymers, composites, functional layers)	Low (pattern fixed by mold)	High-resolution features for nanoscale sensing structures
Soft Lithography[99]	High (100 nm – 1 µm typical)	Low to moderate (lab scale, small batch production)	Low to moderate (low tooling cost, manual steps)	Wide (elastomers, hydrogels, various polymers)	Moderate (mold defines pattern, but flexible fabrication)	Microfluidics, flexible sensor substrates, surface patterns
Roll-to-Roll (R2R)[100]	Moderate (10 µm – 100 µm typical)	Very high (continuous, large-area production)	Low (low cost per unit at scale)	Mostly flexible substrates (PET, PEN, flexible polymers)	Low to moderate (depends on integrated patterning tech)	Large-area flexible and wearable sensors
Inkjet Printing[101]	Moderate (20 µm – 50 µm typical)	Moderate (depends on printer speed)	Low (digital, no masks required)	Solution-processable polymers, functional inks	High (digital patterning, easy to modify designs)	Patterned electrodes, sensing layers, functional coatings
3D Printing (e.g., extrusion, photopolymerization)[102]	Low to moderate (10 µm – 100 µm, depending on method)	Low to moderate (slow compared to R2R)	Low to moderate (depends on printer type)	Limited (depends on printable polymer and ink formulation)	Very high (complex 3D geometries possible)	Prototyping, custom sensor housings, integrated structures

Table 2. Characteristic Comparison of NIL, Soft Lithography, R2R Processing, Inkjet Printing, and 3D Printing for the Fabrication of Polymer Sensing Devices.

Technique	Resolution	Throughput / Scalability	Cost	Material Compatibility	Design Flexibility	Typical Use in Polymer Sensors
Nanoimprint Lithography (NIL)[98]	High (sub-10 nm possible)	Moderate (batch or step-and-repeat; scalable via R2R NIL)	Moderate (expensive tooling but low per-unit cost)	Broad (polymers, composites, functional layers)	Low (pattern fixed by mold)	High-resolution features for nanoscale sensing structures
Soft Lithography[99]	High (100 nm – 1 µm typical)	Low to moderate (lab scale, small batch production)	Low to moderate (low tooling cost, manual steps)	Wide (elastomers, hydrogels, various polymers)	Moderate (mold defines pattern, but flexible fabrication)	Microfluidics, flexible sensor substrates, surface patterns
Roll-to-Roll (R2R)[100]	Moderate (10 µm – 100 µm typical)	Very high (continuous, large-area production)	Low (low cost per unit at scale)	Mostly flexible substrates (PET, PEN, flexible polymers)	Low to moderate (depends on integrated patterning tech)	Large-area flexible and wearable sensors
Inkjet Printing[101]	Moderate (20 µm – 50 µm typical)	Moderate (depends on printer speed)	Low (digital, no masks required)	Solution-processable polymers, functional inks	High (digital patterning, easy to modify designs)	Patterned electrodes, sensing layers, functional coatings
3D Printing (e.g., extrusion, photopolymerization)[102]	Low to moderate (10 µm – 100 µm, depending on method)	Low to moderate (slow compared to R2R)	Low to moderate (depends on printer type)	Limited (depends on printable polymer and ink formulation)	Very high (complex 3D geometries possible)	Prototyping, custom sensor housings, integrated structures

4. Polymer Photonic Structures for Sensing

The sensing capabilities of polymer photonic devices are fundamentally defined by the optical structures that guide and manipulate light within the sensor. These architectures enable precise control over light–matter interactions, translating external physical, chemical, or biological changes into detectable optical signals. This section reviews the principal photonic structures employed in polymer-based sensors, each offering distinct advantages in terms of sensitivity, compactness, and fabrication compatibility. Planar, rib, and slot waveguides (Section 4.1) leverage strong evanescent fields for efficient refractive index sensing. Bragg gratings (Section 4.2) provide narrowband spectral responses suitable for temperature, pressure, and chemical detection. Photonic crystal slabs (Section 4.3) utilize bandgap effects and resonant cavities to enhance analyte interaction. Ring and disk resonators (Section 4.4) offer compact, high-Q platforms ideal for detecting subtle environmental changes. Lastly, interferometric configurations such as Mach–Zehnder interferometers (Section 4.5) deliver high-precision phase-based sensing. Each structure is uniquely enabled by the material and processing advantages of polymers, facilitating integration into flexible, low-cost, and scalable sensing platforms. The following subsections detail the operating principles, fabrication techniques, and sensing performance of these key architectures.

4.1. Waveguides (planar, rib, slot)

Planar and rib polymer waveguides provide a compact platform with strong evanescent fields beneficial for sensing refractive-index changes[103,104]. Polymers like SU-8, BCB, PMMA, and Cytop enable easy fabrication via UV imprinting, hot embossing, or R2R nanoimprinting, offering low cost, biocompatibility, and tunable thermo-optic properties for temperature and biomarker detection[105]. For example, SU-8 & BCB waveguides in Mach–Zehnder configurations have been used for real-time clinical assays and environmental monitoring[106]. Slot waveguides offer strong potential for optical sensing due to their ability to concentrate light in low-index regions, enhancing analyte interaction[107]. Bettotti et al. showed that sensitivity in such structures depends more on careful design than on index contrast alone[108]. This enables high-performance sensing even with low-index materials like polymers. Polymers further provide advantages in cost, functionalization, and fabrication, while remaining compatible with CMOS processes and integrated photonic circuits. Low-index slot waveguides are promising as compact alternatives to fiber capillary sensors and in ring resonator designs. These findings align with the capabilities of established polymer photonics technologies[108].

A flexible, low-cost CO₂ sensor was demonstrated using PMMA planar waveguides coated with a uniform ZIF-8 film[109]. Fabricated by hot embossing and simple solution processing, the device achieved ≈2.5 μW/5 vol% sensitivity, rapid ~6 s response, and excellent adsorption-desorption reversibility offering a scalable platform for on-chip gas sensing. In another work, a highly sensitive refractive index sensor was designed and implemented using a Young interferometer integrated with a slot waveguide structure (Figure 5 (a))[110]. The sensor was fabricated on a polymer-based platform through a simple molding process and operated at a visible wavelength of 633 nm. The SEM image of the slot and standard ridge waveguide is shown in Figure 5 (b) and Figure 5 (c), respectively.

To evaluate its performance, phase shifts in the interference pattern were measured using glucose-water solutions of varying concentrations under both TE and TM polarization modes. Experimental results showed that the sensor could detect refractive index changes as small as 6.4 × 10⁻⁶ RIU. Moreover, the interferometric design exhibited inherent compensation for temperature-induced variations. These results confirm the potential of polymeric slot waveguide interferometers as a cost-effective and efficient solution for high-performance refractive index sensing[110].

4.2. Bragg Gratings

Planar and fiber Bragg gratings made of polymers serve as high-resolution, label-free sensors[111]. Polymer optical fiber Bragg gratings (FBGs) allow multipoint sensing under WDM regimes and deployment outside labs, e.g., humidity, strain, or temperature sensing via thermal annealing shifts[112]. On-chip surface-relief Bragg gratings in photoresists (like IP-Dip) are produced via 3D laser lithography and complex imprinting enabling reflection at ~1543 nm and direct fiber coupling[113]. Additionally, planar waveguide Bragg gratings using imprint or hybrid polymer glass structures detect temperature and humidity with good sensitivity[114]. Grating designs such as apodized, chirped, multimode planar have been analysed for realistic sensor deployment[115,116,117].

Li et al. reported a low-cost polymer optical waveguide pressure sensor featuring an integrated Bragg grating[118]. The device exploited the polymer’s low Young’s modulus for high sensitivity, achieving 1.275 nm/kPa over a 0–12 kPa range with 1 kPa accuracy. It responded reliably to pulse signals, showing strong promise for applications in blood pressure monitoring, sleep analysis, and tactile sensing[118].

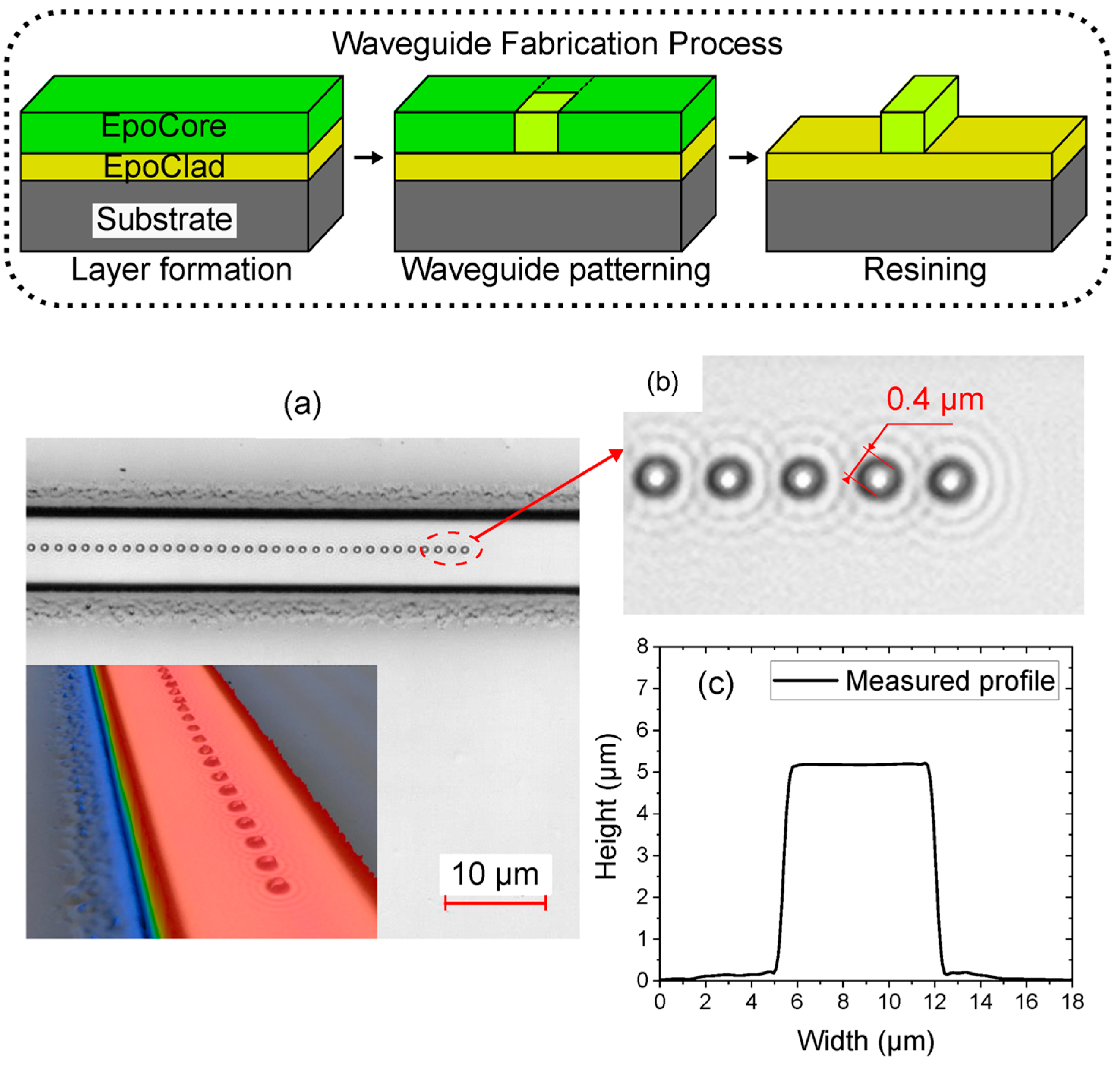

Recently, an integrated optical sensor based on an evanescent Bragg grating was developed for chemical sensing applications[119]. The sensor design combined a few-mode planar polymer waveguide with microchannel structures, both fabricated from epoxide-based polymers. The Bragg grating was introduced into the waveguide using a point-by-point direct inscription method. Figure 6 highlights the fabrication process in the region outlined by dashed lines. The waveguide, observed at 100× magnification, and its cross-sectional profile measured using a laser scanning microscope are shown in Figure 6 (c). The cross-section indicates that the waveguide measures approximately 6.5 µm in width and 5 µm in height. Figure 6 (a) presents a laser scanning microscope (LSM) image of the Bragg grating structure. The inset provides a 3D surface profile of the waveguide with the laser-written Bragg grating, also captured by LSM. In Figure 6 (b), a top-view image reveals the refractive index modulation points produced by individual laser pulses. These grating points, created using a 20× focusing objective, have an average diameter of about 0.4 µm. The overall length of the Bragg grating extends 3 mm along the waveguide.

The sensor’s performance was evaluated through temperature and chemical sensing experiments. Temperature sensitivity was assessed by monitoring the shift in the central wavelength of the reflected Bragg signal, yielding a sensitivity of −47.75 pm/K. To demonstrate the versatility of the evanescent field interaction, two application cases were investigated. First, in refractive index sensing, the device achieved a sensitivity of 6.5 nm/RIU when tested with various aqueous solutions ranging from air to nearly pure isopropyl alcohol (99.9%). Second, for gas-phase hydrogen detection, the waveguide was coated with a functional layer of palladium nanoparticles, enabling reliable detection of hydrogen concentrations up to 4 vol%. The results underline the strong potential of this Bragg grating-integrated waveguide sensor for use in compact lab-on-a-chip systems, particularly for applications requiring simultaneous temperature monitoring and chemical detection[119].

4.3. Photonic Crystal Slabs

Photonic crystal (PhC) slab sensors harness slow-light effects and cavity modes to enhance analyte interaction[120]. Hermannsson et al. introduced a disposable PhC slab sensor made entirely from polymer-based materials, optimized for refractive index and biological sensing[121]. The device demonstrates a sharp resonance response, with a full width at half maximum (FWHM) of less than 1 nm, and achieves a sensitivity of 31 nm per refractive index unit (RIU) in environments with refractive indices near that of water. When combined with a spectrometer offering a resolution of 12 pm/pixel, the sensor is capable of detecting changes as small as 4.5 × 10⁻⁶ RIU. Structurally, the sensor comprises two distinct layers: a base layer of low-refractive-index polymer featuring periodic surface modulation, and a top layer of high-index inorganic-organic hybrid polymer, uniformly coated and doped with zirconia (ZrO₂) nanoparticles. The fabrication process employs cost-efficient, vacuum-free methods, specifically UV nanoimprinting and spin-coating, making the sensor suitable for scalable production and single-use applications[121].

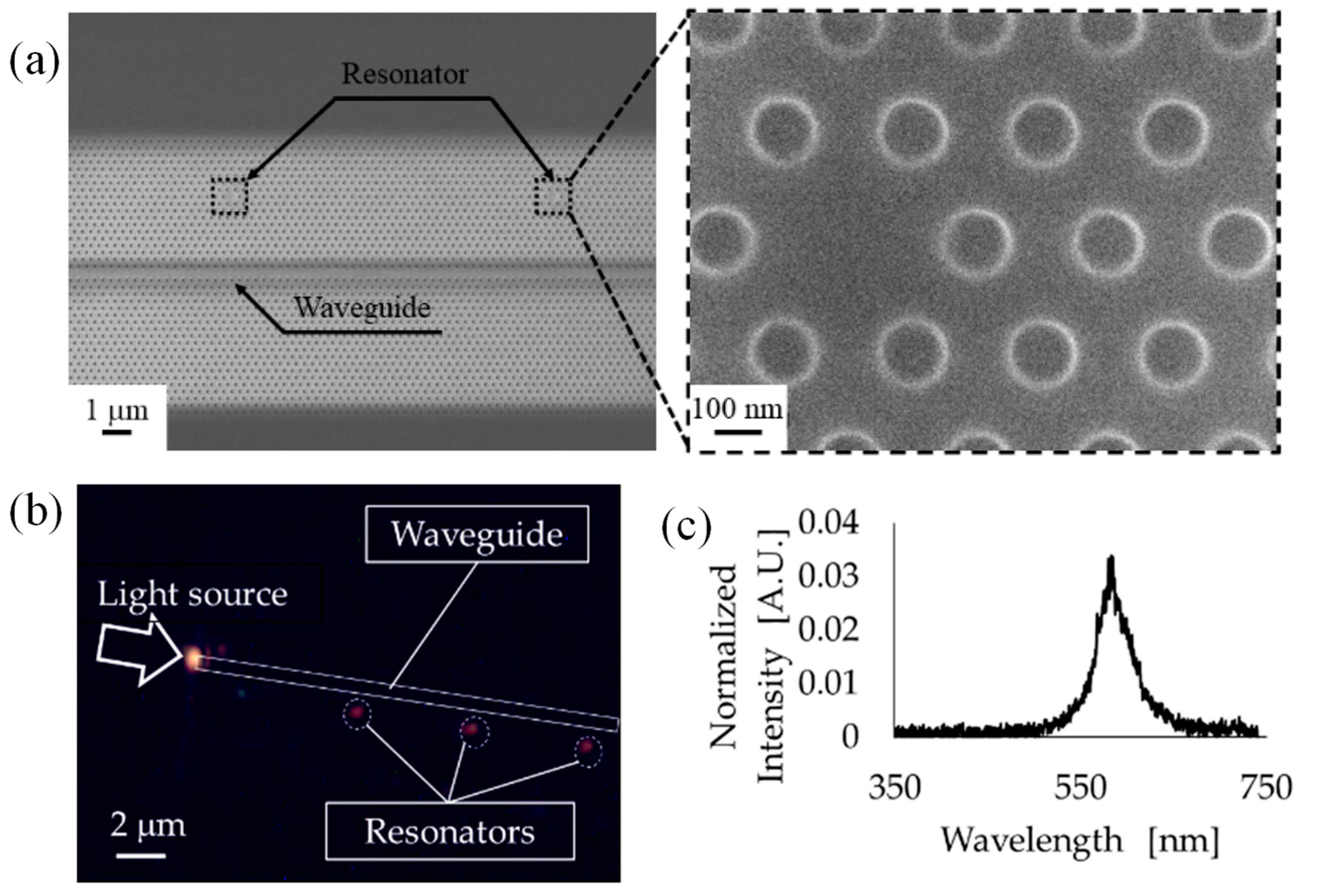

Sun et al. presented a highly sensitive optical sensing platform based on a polymer PhC resonator integrated with a waveguide and designed with cavities of multiple sizes[122]. The structure's optical properties were investigated using finite-difference time-domain (FDTD) simulations. For fabrication, electron beam lithography was employed to pattern the PhC and waveguide on a photoresist layer deposited over a gold-coated silicon substrate. SEM image of the polymer PhC resonator integrated with a waveguide structure is shown in Figure 7 (a). The sensing mechanism relies on monitoring resonant light that was guided through the waveguide and confined within the PhC resonator. To experimentally validate the sensor’s response, a layer-by-layer (LbL) deposition technique was used to apply successive polymer layers. This deposition induced measurable shifts in the resonant wavelength, which were tracked in real time. An optimized design featuring a long cavity formed by introducing a three-hole defect demonstrated a resonance peak shift of 5.26 nm per deposited layer. In the dark-field image presented in Figure 7 (b), resonant light was distinctly visible at the location of the resonator. The corresponding spectrum in Figure 7 (c) confirms a resonance peak at 584 nm with a full width at half maximum (FWHM) of 48 nm. These results indicate that the polymer-based PhC resonator, in conjunction with the waveguide structure, provides an effective and scalable approach for refractive index and thin-film sensing applications[122].

4.4. Ring/Disk Resonators

Polymer-based micro-ring/disk resonators offer compact high-Q sensing: polymers like SU-8, BCB via imprinting or lithography achieve Q ≳ 10⁴ and support detection of proteins, temperature shifts, or gases[123,124,125,126]. Madani et al. presented the design, fabrication, and characterization of a polymer-based micro ring resonator using advanced electro-optic materials[125]. The device, structured in an add/drop configuration, was fabricated using laser beam direct-write lithography with 1 μm resolution. ORMOCORE and ORMOCLAD polymers were chosen for their low optical losses at 1300 nm and 1550 nm. Characterization at 1550 nm was carried out using tapered fibers for light coupling and an optical spectrum analyzer for signal monitoring. The fabricated resonator exhibited a 0.3 nm bandwidth, 0.8 nm free spectral range, and a finesse of 2.6[125].

Zhang et al. introduced an advanced ultrasonic detector that offers both exceptionally broad bandwidth and high sensitivity[127]. This device was based on an imprinted polymer optical microring and demonstrates an acoustic response extending up to 350 megahertz at the three-decibel point. It achieved a noise-limited minimum detectable pressure as low as 10⁵ pascals within this frequency range. When employed in photoacoustic imaging, the detector provides significantly improved axial resolution compared to conventional ultrasound detectors. It achieved axial resolution below three micrometers, representing more than a twofold improvement over the previously reported best performance. The miniature cavity height of the microring ensured a wide frequency response, while the high optical quality factor enhances detection sensitivity. This work demonstrated that polymer-based miniature microring resonators served as high-performance ultrasonic detectors with strong potential for generating volumetric photoacoustic images at cellular and subcellular resolution in three dimensions[127].

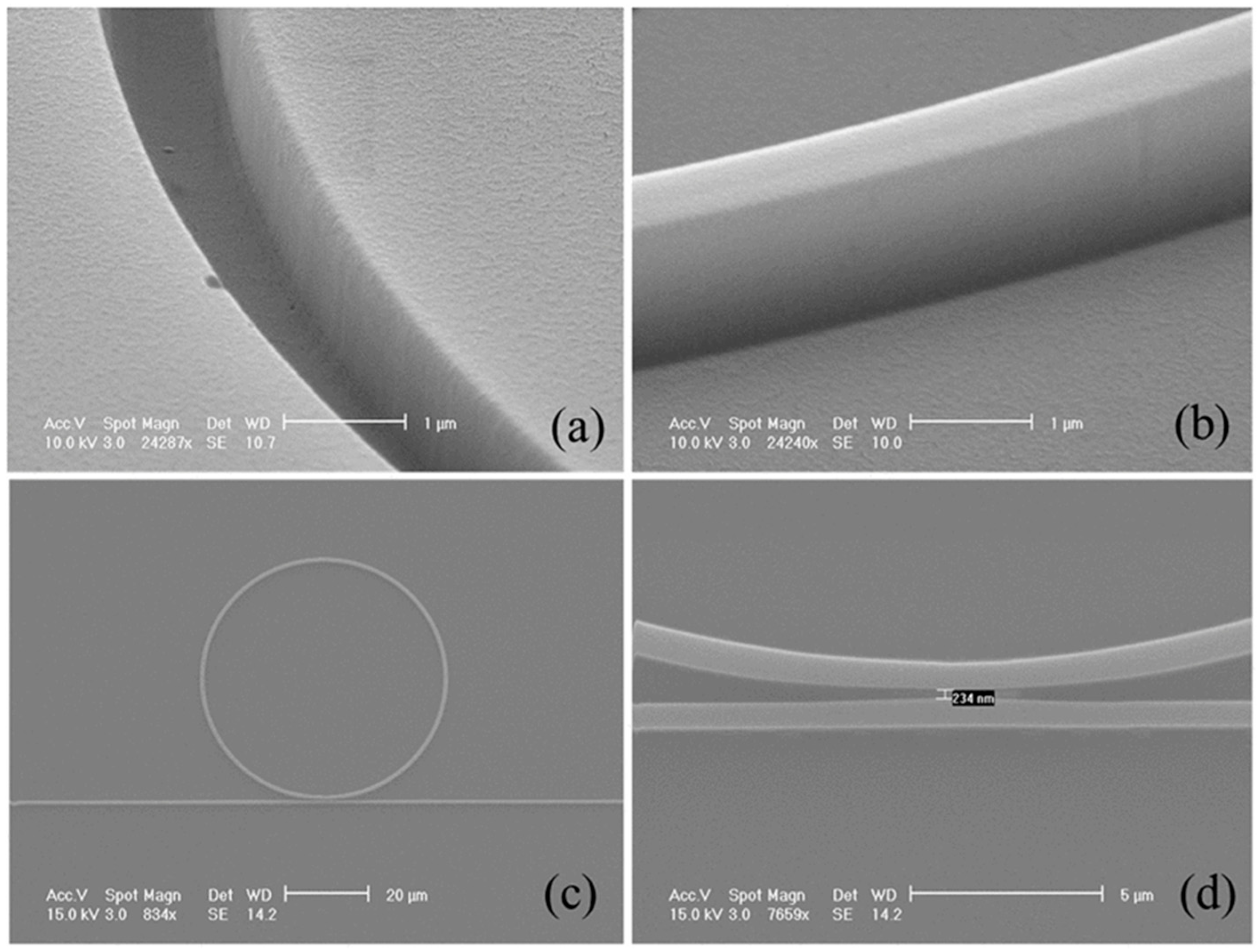

In another study, an ultrahigh-Q polymer microring resonator was systematically studied for its potential in biosensing applications[128]. By refining both the device architecture and fabrication method, the resonator was engineered to operate in a slightly under-coupled regime, achieving a record intrinsic Q factor of 8.0 × 10⁵. This high-Q operation enables enhanced sensitivity and a low detection threshold. Figure 8 presents SEM images of both the mold and the fabricated polymer microring resonator. Images (a) and (b) reveal that the sidewalls of the SSQ mold and SU-8 microring are smooth and well-defined.

The top-view of the complete microring structure is shown in (c), while the zoomed-in image in (d) confirms a coupling gap of 234 nm, consistent with the intended design specifications. Experimental evaluation using bovine serum albumin demonstrated successful detection of a surface mass density as low as 12.7 pg/mm² through physical adsorption. The system exhibited noise-equivalent detection limits of approximately 5.3 pg/mm² via wavelength shift measurements and 55.9 fg/mm² using intensity-based detection. These results highlight the exceptional sensing capabilities of polymer microring resonators when optimized for on-chip biosensing[128].

4.5. Interferometric Configurations (e.g., Mach–Zehnder)

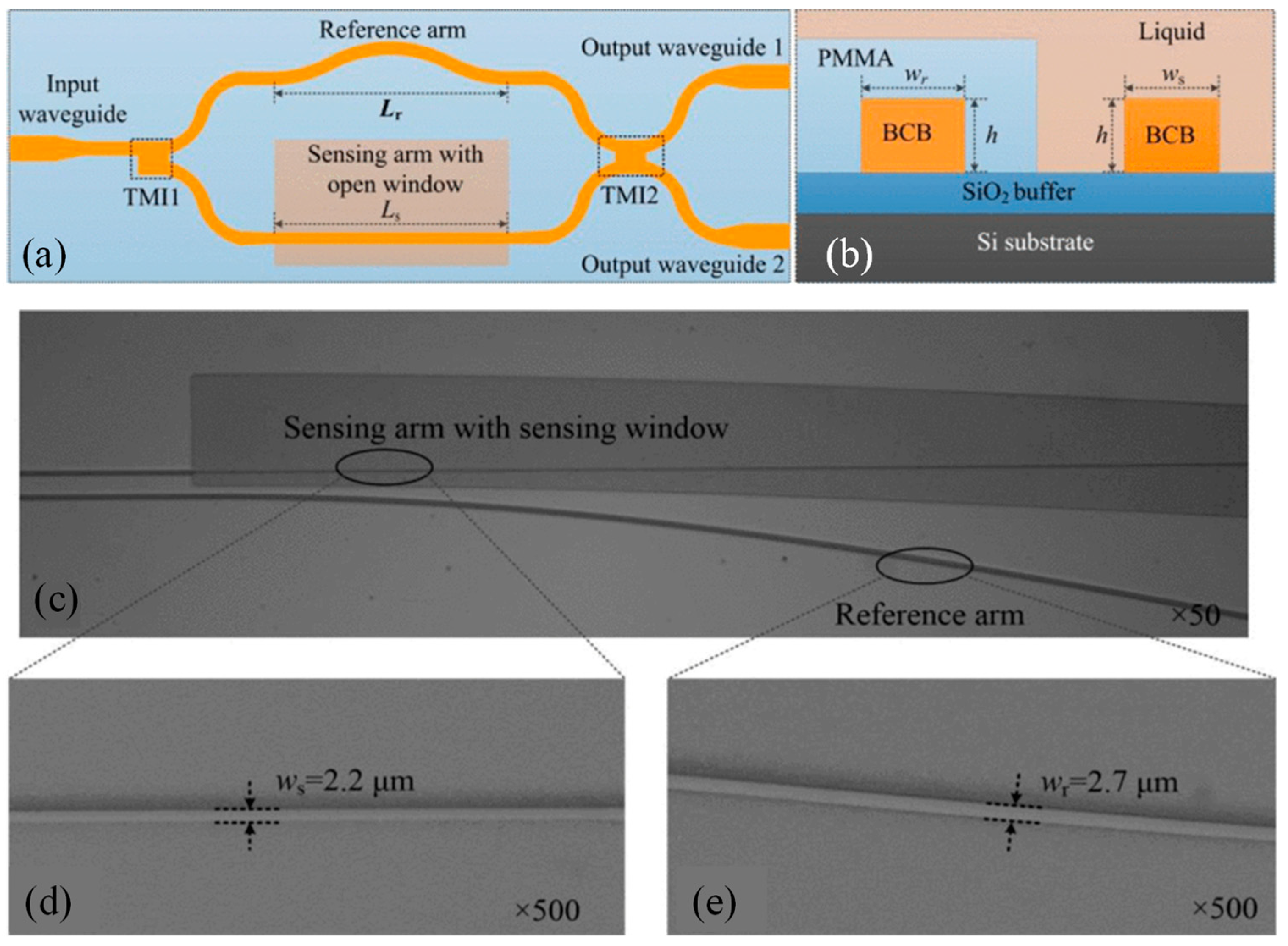

Mach–Zehnder Interferometers (MZIs) in polymer photonics excel in measuring small phase shifts via evanescent–field interactions[129,130,131,132,133]. Xiao et al. presented all-polymer MZIs designed for environmental sensing and fabricated via large-area printing for low-cost production[129]. Unlike conventional MZIs that require complex processing of an interaction window, this design uses an asymmetric structure to avoid such steps, making it suitable for polymer fabrication. Optimized design criteria were developed to enhance sensitivity and performance. Experimental tests with a chemical sensor demonstrate the effectiveness of this approach[129].

Temperature sensors capable of covering broad measurement ranges are essential for various industrial applications. Liu et al. introduced a polymer-based asymmetric MZI designed for temperature sensing[130]. Experimental data reveal that the interference output varies periodically with temperature changes. The sensor achieves a measurement range of 120 °C and a sensitivity of 0.27 rad/°C. These results demonstrate a promising, cost-effective solution for high-performance temperature sensing over an extended range[130]. Ma et al. introduced a cost-efficient polymer-based MZI sensor for detecting liquid refractive index (Figure 9 (a))[131]. Figure 9 (b) schematically presents the cross-sectional structure of the two arms of the proposed MZI, including the materials utilized in this study. Figure 9 (c to e) display optical micrographs of key regions of the fabricated MZI captured at various magnifications, along with the measured widths of the waveguide arms. The sensor’s sensitivity is enhanced by optimizing the reference arm length to minimize the optical path difference (OPD) between the interferometer arms. Several devices were fabricated with a constant sensing arm length of 7900 µm but varied reference arm lengths (7900.0, 7942.5, 7950.9, 7962.2, and 7969.5 µm). Among these, the highest RI sensitivity achieved was 33,662.8 nm/RIU, while the detection range remained stable at approximately 0.0041 ± 0.0002 RIU[131].

Using two-photon polymerization (TPP), an on-chip MZI sensor with asymmetric polymer waveguide arms was fabricated[132]. The differing lengths of the interference arms cause variations in their effective refractive indices with temperature changes, resulting in an initial sensitivity of −348.5 pm/°C over a 20 °C to 60 °C range. When coated with the temperature-responsive polymer polydimethylsiloxane (PDMS), the sensor’s sensitivity improved approximately sixfold to around −2.01 nm/°C between 30 °C and 70 °C, maintaining consistent behavior during both heating and cooling cycles. Compact and integrated, this photonic sensor combines high temperature sensitivity, biocompatibility, and stability, making it ideal for precise temperature monitoring in small or complex environments[132].

5. Applications

Polymer photonic sensors have emerged as versatile and high-performance platforms for a broad range of sensing applications. Their tunable optical properties, mechanical flexibility, and ease of fabrication make them particularly attractive for use in real-world environments where conventional photonic materials may fall short. This section explores the key application domains where polymer photonic sensors are making significant impact, including environmental monitoring, point-of-care medical diagnostics, food safety, and structural health monitoring.

5.1. Environmental Monitoring

Polymer photonic sensors are increasingly used for real-time, in-situ monitoring of environmental parameters such as humidity, temperature, gas concentrations and water quality[134,135,136]. Their optical transduction mechanisms such as changes in refractive index, fluorescence, or photonic bandgap shifts enable high sensitivity and selectivity to a wide range of analytes. Functionalized polymer photonic structures have shown excellent responsiveness to gases such as ammonia, NO₂, and VOCs[137,138]. Colorimetric and photonic crystal-based sensors using polymers like polyaniline and PDMS composites exhibit strong selectivity and visual detectability[139,140]. Hydrogel-based photonic crystals and waveguide sensors enable detection of pH, heavy metal ions (e.g., Pb²⁺, Hg²⁺), and pollutants with fast response times and minimal instrumentation[141,142]. Polymers like polyacrylamide, often doped with ion-specific ligands or dyes, have enabled label-free optical detection in aqueous environments[143].

A polymer-based evanescent Bragg grating sensor was developed by integrating a few-mode planar waveguide into microfluidic channel structures[144]. The waveguide and microchannels were fabricated using epoxide-based polymers, and the Bragg grating was inscribed post-fabrication using a point-by-point direct writing technique. Characterization was performed to assess the sensor's response to various chemical stimuli. A temperature sensitivity of −47.75 pm/K was obtained by monitoring the central wavelength shift of the reflected Bragg signal. To demonstrate functionality based on evanescent field interactions, two application cases were evaluated. Refractive index sensing was carried out using a range of aqueous solutions, achieving a sensitivity of 6.5 nm/RIU from air to 99.9% isopropyl alcohol. For gas-phase hydrogen detection, the sensor surface was coated with a palladium nanoparticle layer, enabling reliable detection of hydrogen concentrations up to 4 vol%. The results confirmed reproducibility and robustness in both liquid- and gas-phase environments. These findings highlight the strong potential of Bragg grating-integrated polymer waveguide sensors for lab-on-a-chip platforms, especially in compact, multifunctional chemical and environmental monitoring systems[144].

A novel optical waveguide (OWG) sensor for low-humidity detection was proposed, in which a localized polyvinylpyrrolidone (PVP) film was applied[134]. The sensor was fabricated by spin coating a PVP layer onto a potassium ion-exchanged glass waveguide. A humid air stream with relative humidity ranging from 10.6% to 32% was introduced at room temperature to characterize the sensor’s performance. The surface morphology of the PVP film was analyzed using atomic force microscopy (AFM), and the humidity sensing mechanism was examined through absorption spectral analysis. High sensitivity, stability, and fast response/recovery characteristics were observed during testing. Based on the experimental results, reliable detection of low water vapor concentrations was achieved. As such, the PVP-coated OWG sensor was demonstrated to be a promising and cost-effective candidate for real-time humidity monitoring applications[134].

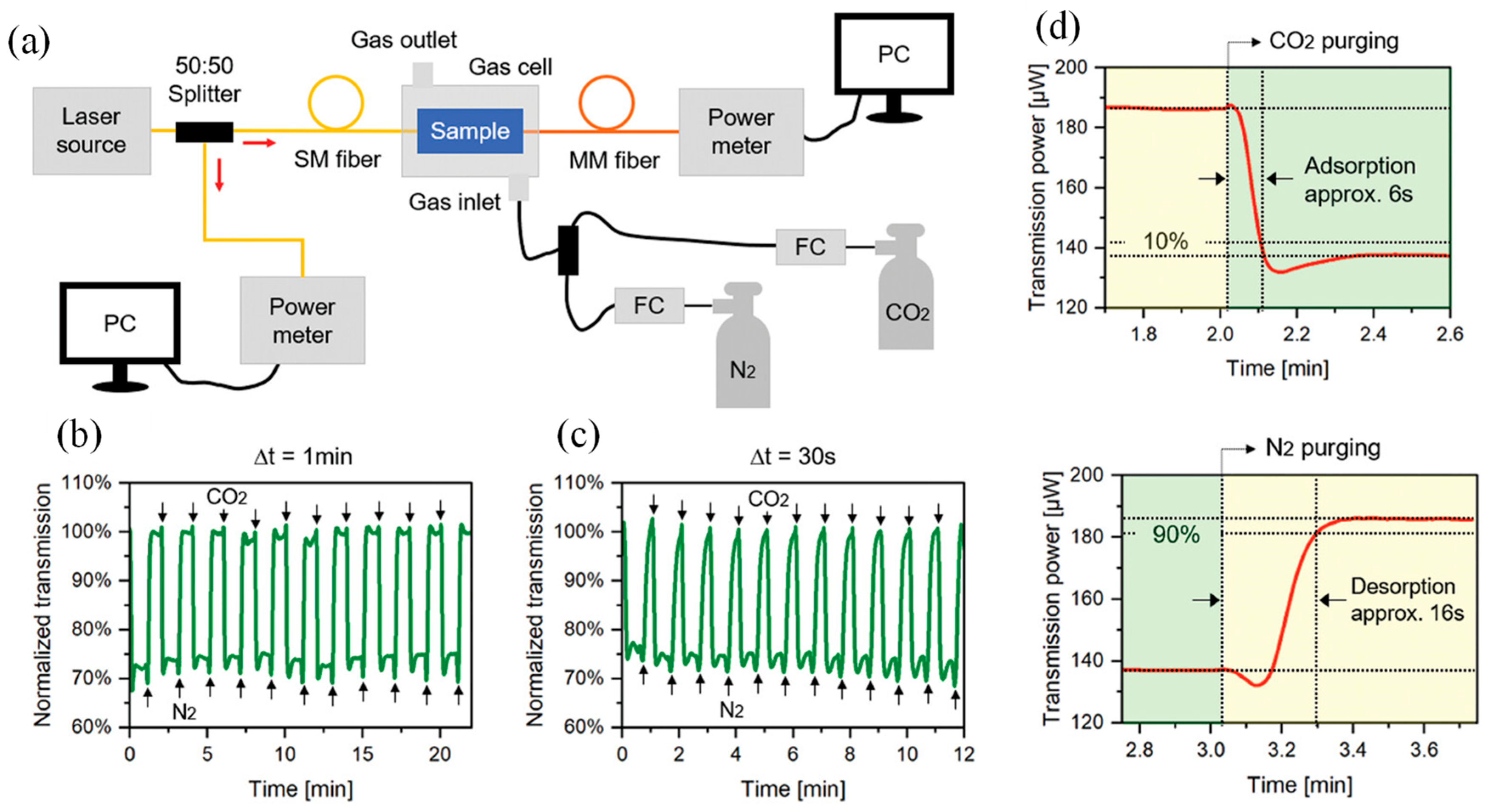

Recently, a flexible and low-cost gas sensor was developed based on planar polymer optical waveguides coated with a zeolitic imidazolate framework-8 (ZIF-8) thin film for carbon dioxide (CO₂) detection[145]. The waveguides were fabricated from polymethylmethacrylate (PMMA) through a hot embossing technique, allowing scalable and economical production. A uniform ZIF-8 film was deposited on the waveguide surface using a simple solution-based method, enabling large-scale integration of metal-organic framework materials into sensing devices. Figure 10 (a) presents a schematic representation of the setup implemented for assessing gas sensing performance.

Figure 10 (b) shows the optical transmission of the ZIF-8-coated PMMA waveguide under gas switching intervals of Δt = 1 min. The signal consistently decreased upon CO₂ exposure and returned during N₂ purging, demonstrating stable and repeatable sensor performance. To evaluate behavior under faster switching, a second test with Δt = 30 s was conducted (Figure 10 (c)). Although the signal did not fully stabilize during N₂ purging due to the shorter interval, periodic variation remained clear, confirming the sensor’s high reversibility and reproducibility. The response and recovery times were extracted from the onset to 90% of the steady-state signal (Figure 10 (d)). CO₂ adsorption and desorption times were approximately 6 s and 16 s, respectively. These fast dynamics result from physisorption within the ZIF-8 layer, enabling rapid gas diffusion and release. The longer desorption time reflects slower gas evacuation but still supports real-time sensing capability. Sensitivity to CO₂ was measured at approximately 2.5 μW per 5 vol%, with a response time of about 6 seconds and excellent reversibility in the adsorption and desorption of gas molecules. This sensing approach was demonstrated as a promising solution for the fabrication of reproducible, flexible, and integrated on-chip gas sensors[145].

5.2. Point-of-Care Medical Diagnostics

Polymer photonic sensors are well-suited for point-of-care (PoC) diagnostics due to their biocompatibility, low cost, and high sensitivity[20,146]. Interferometric, micro-ring resonator, and photonic crystal slab platforms based on polymers such as SU-8, PMMA, and polycarbonate have enabled biomarker detection at clinically relevant levels.

Examples include optical biosensors detecting glucose, lactate, CRP, and viral antigens (e.g., SARS-CoV-2) using surface-functionalized polymer waveguides and resonators[147]. For instance, a compact, cost-effective, and user-friendly urinalysis device was presented for potential use in home healthcare and clinical environments[147]. The device was designed using a polymeric optical waveguide as the sensor platform, while colorimetric absorption was employed as the sensing mechanism. Quantitative analyses were conducted, and detection limits were achieved below 0.1 g/L for glucose, 0.2 g/L for creatinine, 0.025 g/L for albumin, and 0.1 g/L for total protein. Superior performance over conventional dipstick methods were demonstrated, including enhanced sensitivity, quantification capabilities, and reusability. Further development has been undertaken to miniaturize the system by integrating a light-emitting diode (LED) as the illumination source and a photodiode as the detector. Based on these advancements, the device has been recognized as a promising tool for early diagnosis and routine health monitoring[147].

A polymer optical sensor for detecting effective anti-inflammatory concentrations of peimine was fabricated using a metal-printing technique to define the active waveguide[148]. An erbium-doped copolymer was used as the sensing core, with a grafted PMMA material applied as the cladding. Drug–polymer interactions were analyzed via molecular docking, confirming hydrogen-bonding affinities. An optimized multimode interference (MMI) waveguide structure was designed, and its optical response was simulated for various peimine concentrations. A sensitivity of 2 × 10³ RIU⁻¹ was achieved, with a resolution of 2.5 × 10⁻⁴ and a detection limit of 1.3 × 10⁻⁷ RIU. The sensor effectively detected peimine in the 10–25 mg/L range, showing a 5 dB optical power shift and a 3 dB gain for calibration. This approach was validated as a simple, rapid, and sensitive method for alkaloid drug detection in traditional medicine[148].

Recently, the design, fabrication, and testing of a 3D-printed plasmonic sensor were conducted. A silver-gold bilayer has been deposited onto a polymer waveguide to enhance the surface plasmon resonance (SPR) sensor’s performance[149]. The resulting SPR sensor was realized as a compact, low-cost, and straightforward device. Its sensitivity was demonstrated to be sufficient for biosensing applications by functionalizing the bilayer with specific receptors. The proposed sensing approach was identified as suitable for the production of disposable sensor chips applicable in various fields, including PoC testing and environmental monitoring. Both numerical simulations and experimental validations have shown that the sensor’s sensitivity was improved by using the silver-gold bilayer instead of a gold-only layer[149].

Exceptional sensitivity and selectivity have long been pursued as primary goals in sensor development. To meet these demands, a sensing platform was developed by integrating a molecularly imprinted polymer (MIP) with an optical fiber–waveguide–fiber (OFWF) structure[150]. The OFWF configuration was utilized to efficiently launch and collect light signals, while the MIP layer was designed to provide high molecular recognition capability and sensitivity. In constructing the MIP, 2-phenylphenoxyethyl acrylate, a monomer with a high refractive index, was copolymerized with acrylic acid, a functional monomer. Through this formulation, high-refractive index MIP layers were fabricated to enable effective extraction of probe light from the waveguide and its transmission to the sensing interface. To enhance analyte permeability, poly(ethylene glycol) 600 diacrylate was employed as a flexible cross-linker, thereby enlarging the polymer mesh size.

Rhodamine B (Rh B), a commonly used dye in textile manufacturing and a potential environmental hazard, was selected as the molecular template. The MIP layer was formed on the waveguide surface through a curing process activated by the evanescent field of 405 nm light propagated within the waveguide. Using this MIP-OFWF system, selective detection of Rh B in the presence of methyl blue was achieved by monitoring their absorption spectra. An ultralow detection limit of approximately 6.5 × 10⁻¹⁷ g/mL was reached, corresponding to an absolute mass detection in the range of 20–30 attograms[150].

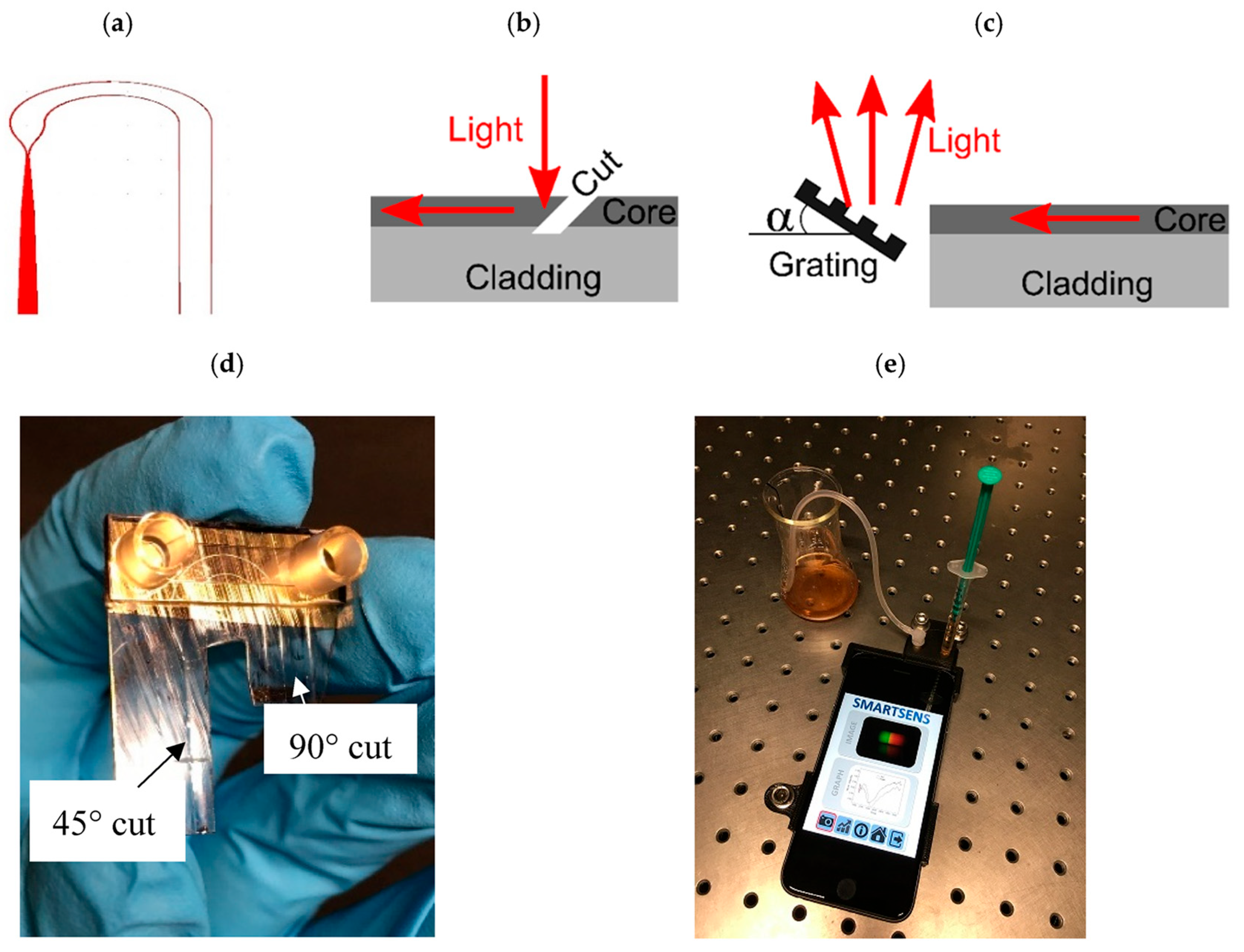

An all-optical plasmonic sensor platform was developed for smartphone integration, utilizing planar-optical waveguide structures embedded within a polymer chip[151]. The applicability of the system for biosensing was demonstrated through the detection of 25-hydroxyvitamin D (25OHD) in human serum samples, using an aptamer-based assay enhanced with gold nanoparticles (AuNPs). Figure 11 (a) shows the schematic of the planar-optical waveguide structure. The design begins with a broad 1200 µm waveguide segment aligned to the smartphone’s flashlight LED to enhance light coupling. This segment tapers to 200 µm, then splits into two 100 µm wide waveguides forming two separate SPR sensors. Each channel further narrows to 50 µm, matching the dimensions used in previous planar-optical SPR sensor studies. A waveguide bend with a 5 mm radius guides light from the LED to the smartphone camera. The sensor chip was fabricated using the hot embossing technique by Rezem et al. [20,21], imprinting a 25 µm deep waveguide pattern into a 375 µm thick PMMA sheet (refractive index 1.49). The cladding structure was then filled by doctor blading with UV-curable epoxy NOA 63 (refractive index 1.56) and cured under UV light[151].

The planar-optical biosensor chip was mounted in a 3D-printed polymer housing designed to fix the sensor onto an Apple iPhone 6s and enable experiments (Figure 11 (e)). The housing has two parts: one aligns the sensor with the smartphone’s LED and camera, and the other blocks ambient light. Light from the smartphone LED was coupled into the sensor via a 45° cut creating total internal reflection (Figure 11 (b)). The waveguide ends were cut perpendicularly with a heated blade to direct light onto a reflective diffraction grating, replicated by hot embossing an 1800 lines/mm Thorlabs grating and coated with 100 nm silver (Figure 11 (c)). Positioned at a 7° angle incorporated in the housing, the grating disperses light into the camera, capturing the full LED spectrum. Fluid delivery and waste removal through the microfluidic chip’s Luer adapters were managed using syringes and silicone tubing. The assembled chip and setup are shown in Figure 11 (d) and 11 (e)[151]. A sensitivity of 0.752 pixels/nM was achieved for 25OHD concentrations ranging from 0 to 100 nM. The waveguide structure was designed to enable both miniaturization and parallelization, allowing for the simultaneous detection of multiple analytes, including biomarkers. The entire optical setup was integrated into a single polymer chip, enabling large-scale and cost-efficient production. The widespread use of smartphone electronics has been considered to make this platform highly promising for lab-on-chip applications[151].

5.3. Structural Health Monitoring

In structural health monitoring (SHM), polymer photonic sensors provide robust, lightweight, and flexible solutions for detecting strain, stress, delamination, and cracks[152,153]. Stretchable photonic waveguides fabricated from elastomers like PDMS and polyurethane have been used for distributed strain sensing across complex geometries[154,155]. In recent years, the need for accurate displacement detection in SHM has been significantly increased, particularly for applications requiring high-sensitivity sensors capable of detecting displacements from the millimeter to micrometer scale.

Three PDMS-based devices were fabricated and characterized for displacement detection through curvature variation, each embedded with a fiber Bragg grating (FBG)[154]. Three structural designs were employed: a solid device, a perforated device with three central holes, and a notched device featuring three notches. The perforated and notched designs were introduced to allow greater deformation, thereby enhancing sensitivity. A comprehensive evaluation was conducted under various displacement and temperature conditions. Due to the integration of FBGs, which were subjected to tensile or compressive strain depending on the bending direction, a wider measurement range was enabled without compromising sensitivity. Significantly higher sensitivities were observed in the perforated and notched designs when compared to the solid configuration. This enhancement was attributed to the increased stress concentration resulting from structural modifications. All three devices were simultaneously tested under both millimetric and micrometric displacements, and parameters such as curvature sensitivity, displacement sensitivity, temperature responsiveness, hysteresis error, linearity, and repeatability were assessed. The solid device was found to have a sensitivity of 112.7 pm/mm, whereas the perforated and notched devices achieved improved sensitivities of 159.5 pm/mm and 162.7 pm/mm, representing increases of 41.5% and 44.36%, respectively. These outcomes have demonstrated the effectiveness of incorporating geometric modifications in enhancing the performance of PDMS-FBG-based displacement sensors, offering practical advantages for structural monitoring systems[154].

Polymer optical fiber sensors are more widely used in SHM than polymer waveguide sensors due to their superior mechanical flexibility, ease of integration, and cost-effectiveness[6]. Polymer optical fiber sensors offer greater tolerance to bending, stretching, and vibration, making them highly suitable for dynamic and harsh environments typically encountered in civil, aerospace, and mechanical structures[156,157]. Unlike polymer waveguides, which often require precise alignment and are more susceptible to optical losses due to surface imperfections or coupling issues, polymer optical fibers can be easily embedded or surface-mounted without complex fabrication requirements[158]. Additionally, polymer optical fiber sensors are capable of supporting longer sensing distances and multiplexing capabilities, enabling the monitoring of large structures with fewer components[159]. Their resilience, scalability, and simpler installation processes make polymer optical fiber sensors a more practical and reliable choice for widespread SHM applications[160].

The anisotropic nature of fiber-reinforced polymer composites, combined with their vulnerability to multiple failure mechanisms, presents significant challenges for SHM throughout their service life. While non-destructive testing techniques have been utilized to address these challenges, they are often hindered by high costs and limited resolution. Furthermore, routine inspections may fail to detect damage occurring between scheduled assessments. Consequently, there is an increasing demand for SHM methods capable of providing continuous monitoring without requiring aircraft grounding.

Taymaz et al. focused on advancing aerospace SHM through the application of piezoresistive MXene fibers[161]. MXene, recognized for its two-dimensional nanostructure and exceptional properties, offers distinct advantages for strain sensing applications. Piezoresistive MXene fibers were successfully fabricated using wet spinning and integrated into carbon fiber-reinforced epoxy laminates to enable in-situ strain sensing. The results demonstrate that MXene fibers exhibit remarkable sensitivity within low strain ranges, achieving a maximum gauge factor of 0.9 at 0.13% strain. Additionally, the fibers showed high reliability under repeated tensile deformations and low-velocity impact loading conditions. This research contributes to the development of self-sensing composite materials, enhancing early detection capabilities for damage and defects in aerospace structures, thereby improving safety and reducing maintenance costs[162].

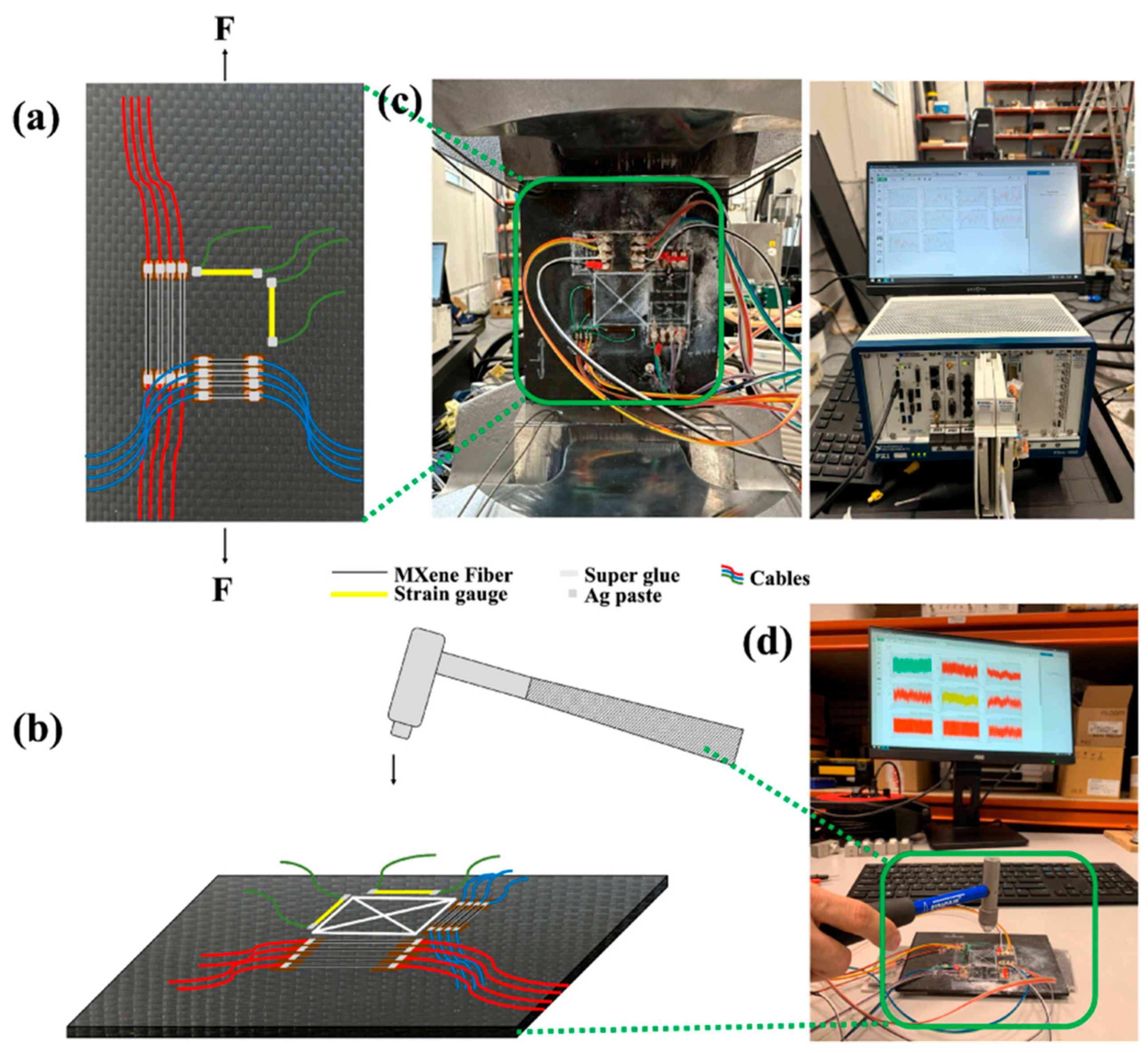

A fiber-reinforced composite sample was fabricated by attaching two sets of MXene fibers of different lengths to its surface (Figure 12 (a, b)). Strain-sensing performance was evaluated using cyclic tensile and hammer tap impact tests. Cyclic tests were conducted on an MTS Acumen 12 system, with strain measured via attached gauges. A single loading cycle at 60 MPa and 3 Hz, simulating high-G UAV maneuvers, was applied to assess resistance change and gauge factor. Electrical data were recorded using the NI PXI system with PXI-8861, FlexLogger, and PXIe-4339 modules for multi-channel resistance monitoring (Figure 12 (c)). For impact testing, at least 50 hammer strikes (100–400 N) were applied at the laminate’s diagonal center (Figure 12). The measurement system was extended with the PXIe-4499 module to capture impact force profiles. Signals from the hammer, MXene fibers, and strain gauges were collected simultaneously at 25 kHz (Figure 12 (d))[162].

6. Challenges and Opportunities

Polymer waveguide sensors hold immense promise due to their inherent advantages such as low-cost fabrication, mechanical flexibility, and ease of functionalization[163,164,165,166]. However, several key challenges hinder their widespread deployment and long-term viability[167]. A primary concern is long-term stability; polymers tend to degrade over time due to environmental factors such as temperature fluctuations, humidity, UV exposure, and oxidative aging[168,169,170]. This environmental sensitivity can lead to drift in optical properties and reduced sensing accuracy, particularly in applications requiring consistent performance over months or years. In parallel, integration with electronics and optical readout systems remains a technical hurdle. Achieving low-loss, scalable coupling between polymer waveguides and standard photonic or optoelectronic components (e.g., photodetectors, modulators) requires precise alignment, compatible materials, and innovative packaging techniques[170,171].

Co-packaged optics increasingly rely on optical interfaces that support high integration density, low loss, and broadband performance while remaining compatible with standard electrical redistribution methods. To meet these demands, Asch et al. demonstrated two heterogeneous integration strategies for establishing efficient optical connections between on-chip silicon nitride (SiN) waveguides and package-level polymer waveguides using adiabatic coupling[167]. In the first method, polymer waveguides were directly patterned onto the photonic chip through conventional lithography, aligning with chip-first fan-out wafer-level packaging workflows. The second method involves flip-chip bonding of the photonic chip to the package substrate, allowing flexible integration for chip-last approaches. Both techniques were experimentally validated, achieving coupling efficiencies of approximately 1 dB in the O-band for both TE and TM polarizations. The SiN waveguides employed tapers designed using the Mono method to enable effective phase matching between the dissimilar waveguides which is a key factor in achieving low-loss performance. These results demonstrated the viability of polymer waveguides for co-packaged optics, enabling chip-to-chip and chip-to-fiber connections with total losses under 2 dB[172].

Another significant issue is reproducibility in large-scale production. While polymers enable cost-effective fabrication via soft lithography, imprinting, or R2R processes, maintaining uniformity in waveguide dimensions, surface roughness, and refractive index across batches poses a challenge[173,174]. Variations can lead to inconsistencies in performance, which is particularly critical in commercial or biomedical applications. Nevertheless, these challenges also open avenues for innovation. One promising direction is the development of hybrid material systems, combining polymers with functional nanomaterials such as 2D materials (e.g., graphene, MoS₂) or inorganic platforms like silicon or silicon nitride[175,176]. These hybrid systems can synergistically merge the mechanical and chemical versatility of polymers with the superior optical or electronic properties of inorganic materials, potentially leading to enhanced sensitivity, stability, and functionality[177,178]. The successful integration of such hybrid platforms could bridge the gap between polymer waveguides and established semiconductor technologies, accelerating the development of next-generation optical sensors.

For instance, to realize a compact mode-locked laser, a germanium-polymer hybrid waveguide was positioned between an indium phosphide (InP) reflective gain chip and a fiber Bragg grating (FBG)[176]. This hybrid waveguide enabled efficient optical coupling by matching the mode fields between the gain chip and the fiber. A key component of the structure is a 50-nanometer amorphous germanium (α-Ge) layer, which exhibited nonlinear absorption at 1550 nm. The nonlinear properties of the waveguide were confirmed through femtosecond pulse transmission experiments, which revealed pulse compression effects. By incorporating the hybrid waveguide into the laser cavity, the α-Ge layer functions as a passive saturable absorber, enabling modulation of the cavity’s longitudinal modes to produce pulsed operation. The laser employed the InP chip for its compact gain source and a tunable-length FBG to control the pulse repetition frequency. Experimental results demonstrated stable mode-locking with a repetition rate near 50 MHz, a pulse width of 147 ps, and a signal-to-noise ratio greater than 50 dB. This approach introduced a “ternary” laser architecture combining discrete photonic elements with a polymer-integrated waveguide and establishes α-Ge films as promising low-cost saturable absorbers for integrated photonic systems[176].

7. Future outlook

Polymer photonic devices have demonstrated remarkable potential across a broad spectrum of applications due to their inherent flexibility, low cost, and tunable optical properties. As research and development in this field progress, several emerging directions promise to define the next era of polymer photonic technologies. Among these, three promising avenues stand out: smart packaging with embedded polymer photonic sensors, flexible and wearable large-area photonic sensor arrays, and advances in printable photonics and additive manufacturing.

7.1. Smart Packaging with Embedded Polymer Photonic Sensors

The convergence of polymer photonics and intelligent packaging technologies offers transformative capabilities in food safety, pharmaceuticals, and logistics[179,180,181]. Smart packaging equipped with polymer-based photonic sensors can provide real-time information about environmental conditions such as temperature, humidity, gas concentration, and even microbial contamination. These sensors typically rely on stimuli-responsive polymers that undergo a reversible change in optical properties such as colorimetric shifts or fluorescence modulation, when exposed to specific analytes[182].

Emerging work on photonic crystals, Bragg stacks, and micro-ring resonators fabricated from responsive polymer matrices shows promise for low-cost integration into packaging films and labels[183,184,185]. In particular, fully passive, battery-free sensors based on structural color shifts or photonic barcodes can allow for seamless, scalable deployment. When combined with QR codes or NFC-enabled data capture, such devices could enable end-to-end tracking and authenticity verification. Future efforts will likely focus on improving the specificity, sensitivity, and shelf stability of these photonic elements, as well as developing sustainable, biodegradable substrates compatible with food-grade regulations[186].

7.2. Flexible/Wearable Large-Area Photonic Sensor Arrays

The development of conformal, large-area photonic sensor arrays is poised to revolutionize human health monitoring, soft robotics, and environmental sensing[187]. Polymer materials, by virtue of their mechanical compliance and optical versatility, are well-suited for the creation of wearable photonic devices that can be laminated onto skin or textiles[188,189]. These sensor arrays can monitor parameters such as strain, pressure, hydration, pH, and biomolecular markers with high spatial and temporal resolution[190].

Photonic sensing mechanisms in this context often include waveguide-based interferometers, flexible optical fibers, photonic skins, and surface plasmon-enhanced films[191]. Recent innovations in stretchable and self-healing polymer photonics further extend the durability and reusability of such arrays under dynamic physiological conditions[188]. In tandem with flexible light sources and detectors, fully integrated systems for on-body photonic sensing are within reach[192].

A critical challenge in this domain is the need for scalable fabrication strategies that ensure device uniformity and signal fidelity across large areas. Integration with wireless communication modules and low-power signal processing will also be pivotal for real-world deployment[193]. Moving forward, synergistic development in polymer chemistry, optical engineering, and wearable electronics will play a central role in realizing practical and high-performance photonic wearables[194].

7.3. Advances in Printable Photonics and Additive Manufacturing

Additive manufacturing and printing technologies such as inkjet printing, aerosol jet printing, direct laser writing, and NIL are reshaping how polymer photonic devices are conceived and fabricated[195,196,197,198]. These techniques allow for the rapid prototyping and low-cost mass production of complex photonic structures on a wide range of substrates, including flexible and stretchable surfaces[199].

Functional polymer inks, comprising active photonic materials, nanoparticles, or dopants, can be precisely deposited to create multi-layered optical circuits, gratings, and resonators[200,201,202,203]. Additive manufacturing also enables the integration of photonic and electronic components within a single fabrication workflow, accelerating the development of optoelectronic systems for sensing, communication, and computing.

One of the most promising frontiers in this area is 3D printing of photonic crystals and gradient refractive index structures using custom-tailored polymer resins[204,205]. These structures can be engineered to exhibit tailored dispersion properties, enabling novel optical functionalities such as slow light, omnidirectional reflectors, and optical cloaking[206]. Moreover, the coupling of additive manufacturing with machine learning-driven design optimization may pave the way for next-generation photonic devices with previously unattainable performance metrics[207,208].

Despite these advances, key challenges remain, including resolution limits, ink stability, and compatibility with multi-material systems. Future research must address these barriers while pushing toward fully integrated, printable polymer photonic platforms suitable for applications ranging from point-of-care diagnostics to intelligent infrastructure.

8. Conclusion

The maturation of polymer photonic technologies marks a significant step toward democratizing access to advanced sensing capabilities. This review has demonstrated that beyond their cost-effectiveness, polymer platforms offer remarkable versatility in material selection, structural design, and functionalization strategies. Their compatibility with unconventional substrates and conformal surfaces supports form factors not achievable with rigid photonic materials, making them uniquely suited for applications in dynamic or space-constrained environments. The reviewed fabrication techniques ranging from nanoimprinting to additive manufacturing showcase the field’s progression toward high-throughput, low-waste production paradigms. Each method presents trade-offs in terms of resolution, scalability, and integration complexity, underscoring the importance of application-specific design choices. Similarly, the diverse range of polymer-based photonic structures reveals how tailored geometries and guided-mode configurations can optimize sensing performance across chemical, biological, mechanical, and environmental domains.

Yet, critical bottlenecks persist. These include material aging, environmental sensitivity, and challenges in monolithic integration with electronics and signal processing hardware. Addressing these issues will require multidisciplinary efforts spanning polymer chemistry, photonic design, and packaging technologies. Future progress hinges on the development of robust, reproducible fabrication workflows and the seamless hybridization of polymer photonics with established microelectronic platforms. With sustained innovation, polymer photonic sensors are poised to become foundational components of next-generation intelligent sensing systems.
