Parvovirus B19 Myocarditis: The Utility of Viral Load Assessment in Determining the Significance of a Virus Positive Biopsy in South Africa

1. Introduction

Viral infections are the commonest cause of acute myocarditis in North America, Europe and South Africa [1,2,3,4,5]. Although entero- and adenoviruses were deemed the most prevalent and important causative viral pathogens of acute myocarditis in the 1950s to 1990s, Parvovirus B19 (PVB19) and human herpes virus-6 (HHV6) have overtaken these over the past twenty years and are now the most frequently detected viruses in the myocardium of patients with myocarditis in the developed world [1,2,3,4]. PVB19 is also the commonest virus isolated in the endomyocardial biopsy (EMB) specimens of patients with clinically suspected myocarditis in South Africa [5].

The clinical relevance and pathogenic role of PVB19 in myocarditis, however, remains debated. PVB19 has been detected in the myocardium of multiple groups of patients without clinical suspicion or evidence of myocarditis, including those with dilated cardiomyopathies (DCM), postmortem cohorts and patients undergoing cardiac surgery [6,7,8,9,10,11,12]. Similarly, unpublished data from our centre showed PVB19 was detected in 87% of a cohort of South African patients undergoing cardiac surgery unrelated to myocarditis.

It has therefore been proposed that in addition to PVB19 positivity, the presence of high copy numbers of PVB19 in the myocardium may be required to prove significance and possible causation of myocarditis, with the current threshold determined to be 500 copies/μg DNA [3,12,13]. However, there may be geographic variations in this threshold, and it may not be applicable to all populations [14,15]. The local PVB19 viral load (VL) threshold for clinical significance remains undetermined.

This retrospective study aims to compare the PVB19 viral loads in EMB specimens of a cohort of South African patients presenting to a single tertiary centre with clinically suspected myocarditis, who subsequently had acute myocarditis confirmed by cardiac magnetic resonance imaging (CMR) and EMB.

2. Materials and Methods

2.1. Population and Study Design

This is a single-centre retrospective cross-sectional study. Consecutive patients over the age of 18 years presenting to Tygerberg Hospital, Cape Town, South Africa between August 2017 and January 2022 who fulfilled the European Society of Cardiology’s (ESC) diagnostic criteria for clinically suspected myocarditis and had undergone all recommended investigations [1], including cardiovascular magnetic resonance imaging (CMR) and EMB, were screened for enrollment. All patients with PVB19 detected by polymerase chain reaction (PCR) in EMB specimens were included.

Myocarditis was clinically suspected if patients presented with symptoms compatible with myocarditis, such as chest pain or symptoms of heart failure, accompanied by at least one additional finding on investigations supporting the diagnosis of myocarditis. This includes newly developed electrocardiographic (ECG) changes such as ST-T wave changes, atrioventricular block or ventricular tachyarrhythmias, evidence of cardiomyocyte necrosis in the form of elevated cardiac troponins, and global or regional dysfunction of the left or right ventricle on transthoracic echocardiography (TTE).

All patients underwent a full clinical evaluation. Routine laboratory studies were performed which included a full blood count (FBC), renal function, high sensitivity troponin T (hsTnT) and C-reactive protein (CRP). Additional laboratory studies were requested at the discretion of the attending physician. All patients also underwent a standard 12-lead ECG and TTE. Coronary angiography was performed to exclude any significant epicardial coronary artery disease, defined as ≥ 50% stenosis in a single coronary artery segment, or evidence of recent plaque rupture. CMR was performed according to standardised protocols previously described [5]. Right ventricular EMB was performed on all patients.

2.2. Cardiac Magnetic Resonance Imaging (CMR)

This was done in accordance with recommendations as set out in the Journal of the American College of Cardiology’s white paper on CMR in myocarditis and the 2018 update of CMR criteria for myocardial inflammation, as well as the Journal of Cardiovascular Magnetic Resonance’s 2013 CMR protocol update [17,18,19], and was previously described in detail [5]. All imaging was done at Tygerberg Hospital using a 1.5T field strength magnet (Magnetom Avanto; Siemens Healthcare GmbH, Erlangen, Germany). CMR analysis was carried out using commercially available software (CMR42, Circle CVI, Calgary, Canada).

CMR case definitions of acute myocarditis and CMR parameter analysis were made according to the Lake Louise criteria (LLC) [17,18,19].

2.3. Endomyocardial Biopsy

Right ventricular septal biopsies were performed on all patients as described in detail previously [20]. At least six specimens were taken from different sections of the septum to improve sensitivity. Three to four specimens were fixed in 4% buffered formalin for histological and immunohistochemical analysis, while the remaining samples were transported in 0.9% saline for viral genome detection by PCR.

2.4. Histopathological and Immunohistochemical Analysis

Specimens were processed and assessed by a single anatomical pathologist at the National Health Laboratory Services (NHLS) as previously described [5]. Acute myocarditis was diagnosed using the Dallas histological criteria and the World Health Organisation (WHO)/International Society and Federation of Cardiology (ISFC) immunohistochemical criteria [21,22].

2.5. Virological Testing of Samples

To investigate viruses associated with myocarditis, a combination of multiplex and singleplex PCR assays were used. EMB material was split into two, for nucleic acid extraction, respectively with the Qiagen RNA easy Mini kit, for RNA extraction, and QIAamp DNA Mini kit (Qiagen, Hilden, Germany), for DNA extraction. DNA was tested with the PVB19 R-GENE® assay (bioMérieux, Marcy-l'Étoile, France) and PVB19 DNA loads quantified. As biopsy volumes varied, viral loads were normalised in a subset of samples against the number of human cellular diploid genomes in the sample with an assay that amplifies the cellular CCR5 gene [23].

2.6. Definition of Myocarditis

For the purpose of the current study, myocarditis was diagnosed if either the original or updated LLC was met on CMR, or the Dallas histological criteria or WHO/ISFC immunohistochemical (IHC) criteria fulfilled on EMB [17,18,19,21,22].

2.7. Statistical Analysis

Statistical analysis was performed using SPSS Statistics version 27.0 (International Business Machines Corp., New York, USA). Normality of data was determined using the Kolmogorov-Smirnov test. Continuous variables were expressed as absolute numbers with associated percentages, mean and standard deviation if normally distributed, or median and interquartile range if not normally distributed. Categorial variables were expressed as absolute numbers and percentages. Comparisons between groups were done by the use of the Mann-Whitney U test for non-normally distributed continuous variables and Student t test for normally distributed variables. The Fisher exact test was used for comparison of categorical variables. Correlation between variables was assessed with Pearson’s correlation coefficient. Receiver operator characteristic (ROC) analysis was performed to generate threshold values with respect to optimal sensitivity, specificity and area under the curve (AUC). Positive predictive value (PPV) and negative predictive value (NPV) were calculated with the optimal diagnostic threshold determined by the ROC analysis. A 2-tailed P value < 0.05 was considered statistically significant.

3. Results

Between August 2017 and January 2022, forty-nine patients who presented with clinically suspected myocarditis to Tygerberg Hospital had PVB19 detected by PCR in their EMB specimens.

Acute myocarditis was confirmed in 39 patients: 17 (43.6%) on CMR only, 8 (20.5%) on EMB only, and 14 (35.9%) on both CMR and EMB.

3.1. Patient Characteristics

The mean age of the cohort of patients with confirmed myocarditis was 46.6 years and those without myocarditis was 42.7 years (p = 0.38). Twenty four (61.5%) of the patients with confirmed myocarditis were male compared to eight (80%) of those without (p = 0.46). The baseline demographics and findings of laboratory investigations and CMR are summarised and compared in Table 1.

There were no statistically significant differences between the mean white cell count, median CRP and left ventricular size and systolic function on CMR between the two groups. Patients with confirmed myocarditis had a significantly higher median hsTnT when compared to those without (295.0ng/L vs 57.5ng/L, p = 0.035).

3.2. Correlation of Normalised and Non-Normalised PVB19 Viral Loads

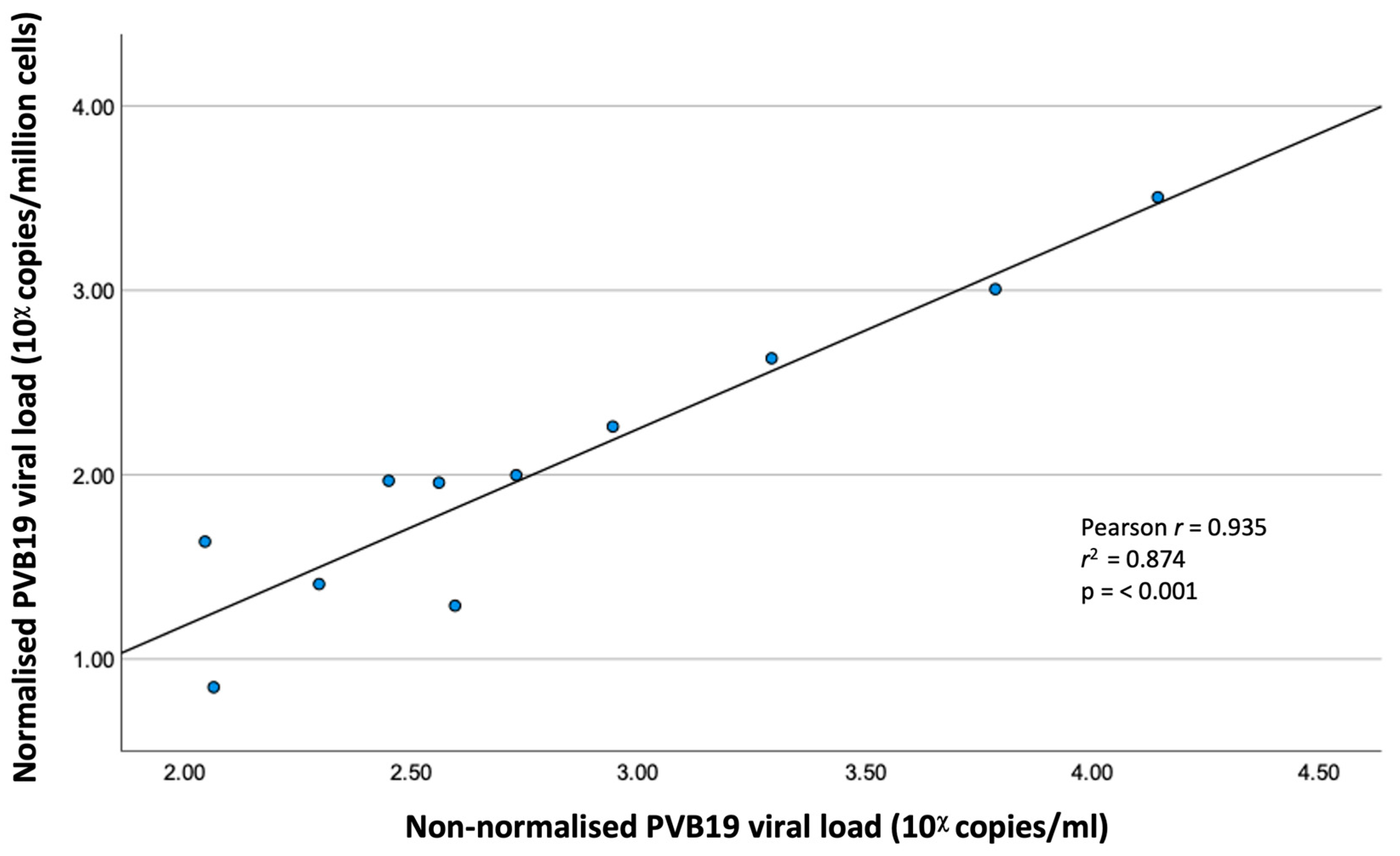

The PVB19 VL was normalised in 11 EMB specimens (7 with confirmed myocarditis, 4 without myocarditis). There was excellent and significant correlation between normalised and non-normalised VL (Pearson r = 0.935, r² = 0.874, p ≤ 0.001). (Figure 1)

3.3. Comparison of PVB19 Viral Loads (Table 2)

The median PVB19 VL of patients with confirmed myocarditis was significantly higher than those without myocarditis (483.0 copies/ml vs 226.0 copies/ml, p = 0.02).

Table 2. Comparison of Parvovirus B19 viral load in patients with confirmed acute myocarditis and those without (n = 49).

	Myocarditis (n = 39)	No Myocarditis (n = 10)	p Value
Viral load (copies/ml)	483.0 (IQR 365.0 – 1615.0)	226.0 (IQR 130.5 – 300.8)	0.02

Table 2. Comparison of Parvovirus B19 viral load in patients with confirmed acute myocarditis and those without (n = 49).

	Myocarditis (n = 39)	No Myocarditis (n = 10)	p Value
Viral load (copies/ml)	483.0 (IQR 365.0 – 1615.0)	226.0 (IQR 130.5 – 300.8)	0.02

3.4. ROC Analysis (Figure 2)

PVB19 VL resulted in an area under the curve (AUC) of 0.733 in ROC analysis. The optimal threshold of PVB19 VL for the diagnosis of acute PVB19 myocarditis was 316 copies/ml (2.5 log copies/ml), achieving a sensitivity of 78.9% and specificity of 80.0%. By applying this threshold to our cohort of patients, the positive predictive value (PPV) was 93.9% and negative predictive value (NPV) 50%.

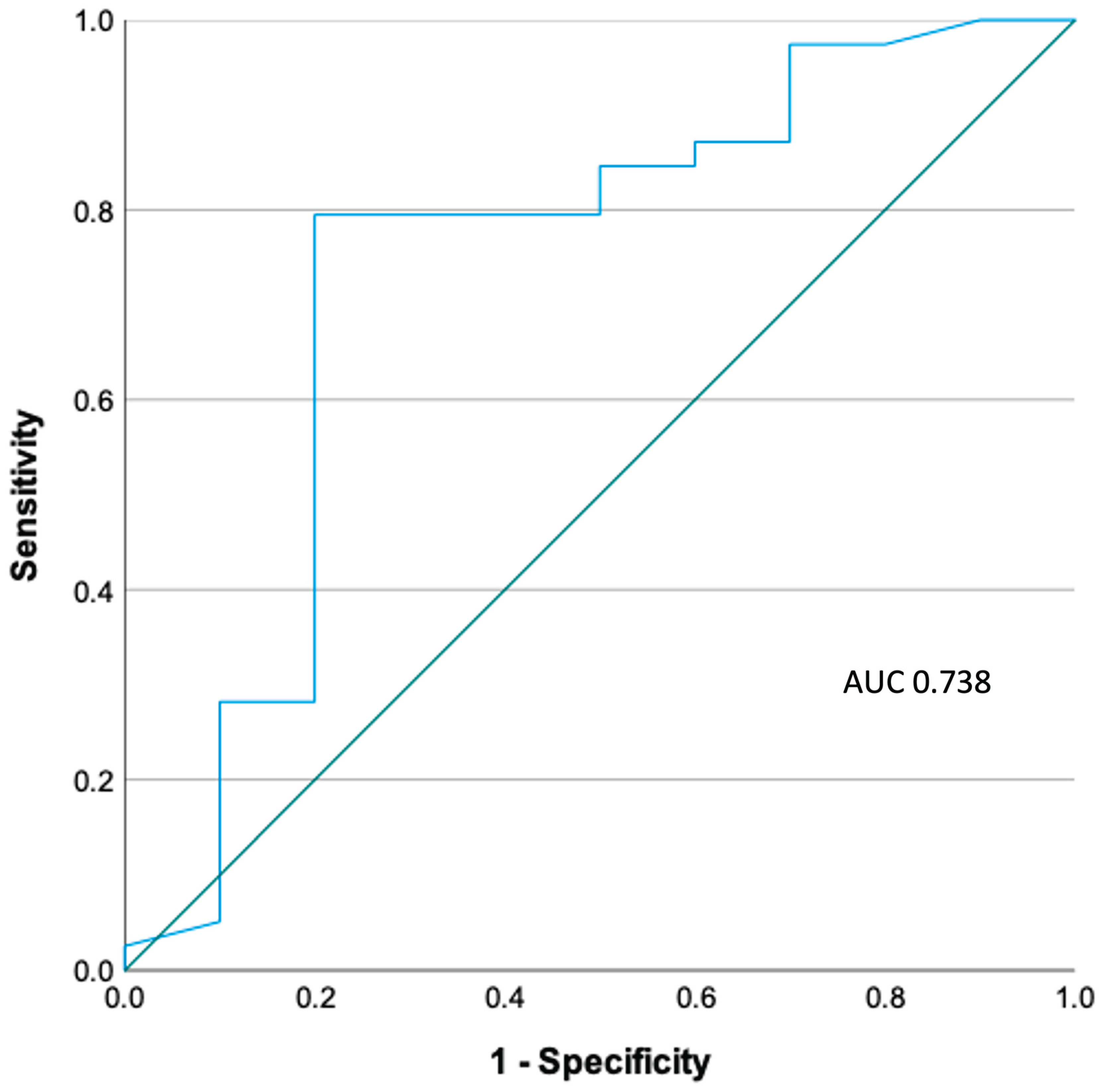

Figure 2. ROC analysis of PVB19 viral load.

Figure 2. ROC analysis of PVB19 viral load.

4. Discussion

The findings of this study confirm that although PVB19 may be detected in the myocardium of patients with and without acute myocarditis, it is present in significantly higher copy numbers in those with myocarditis. Furthermore, the optimal viral load threshold for clinical significance in the local population was determined as 316 copies/ml.

Despite becoming the most frequently detected virus in EMB specimens of patients with acute myocarditis over the last twenty years, the clinical relevance and pathogenic role of PVB19 in myocarditis remains controversial and debated. Primary PVB19 infection is transient in the majority of cases and usually occurs in childhood, manifesting as erythema infectiosum [12]. However, in some individuals, the virus may persist lifelong in certain tissues including liver, synovium and skin [12]. This is supported by findings of previous studies where a genotype of PVB19 that had stopped circulating in Europe 50 years ago was only detected in specimens obtained from patients born before 1973 [7,24]. Earlier studies into myocarditis and DCM found a low prevalence of PVB19 in the myocardium of control subjects, suggesting that PVB19 played an important pathogenic role in both myocarditis and DCM [12]. More recent studies involving both surgical and post-mortem cohorts without myocarditis have however shown high background PVB19 prevalence in both Europe and North America, ranging from 26% in the United States, 44% in Denmark and Italy, and up to 85% in Germany [6,7,8,9,10,11]. Local background PVB19 prevalence appears similarly high, with unpublished data from our centre showing 87% of a cohort of patients undergoing cardiac surgery had PVB19 detected in their myocardium. These findings suggest that PVB19 might be a mere bystander rather than causal pathogen in myocarditis. The detection of PVB19 in EMB specimens of patients with and without confirmed myocarditis in our study would further support this theory. Therefore, the mere presence of PVB19 appears insufficient to prove a direct causal role in disease.

In view of this, subsequent studies have attempted to establish a marker for active viral replication, which results in myocyte necrosis and active myocarditis, as a surrogate for clinical relevance [3,4,12,13]. The most widely accepted approach currently is the determination of viral load by quantitative PCR on EMB specimens [3,4,12,13]. The findings of our study appeared to support this approach, as patients with confirmed acute myocarditis in our cohort had both significantly higher median PVB19 viral loads and median hsTnT, a marker of myocyte necrosis. Whether this truly represents acute PVB19 infection leading to acute myocarditis (causality) or merely signifies the reactivation of dormant PVB19 by acute myocardial inflammation (association) will need to be further investigated.

The optimal threshold of PVB19 viral load for clinical significance most widely in use currently is 500 copies/μg DNA [3,4,12,13]. This cut off has been successfully used to guide the safe immunosuppression of a small cohort of patients with inflammatory cardiomyopathies and low myocardial PVB19 copies [25]. However, there may be geographic variations to this threshold, as a group of Dutch investigators demonstrated clinical benefits of intravenous immunoglobulins (IVIG) in patients with DCM and more than 250 copies/μg DNA of PVB19 detected in their EMB specimens, a threshold that was derived from a post-mortem cohort without histological evidence of myocarditis [14]. Based on the findings of our study, the optimal threshold for the local population appears to be 316 copies/ml, which optimised the combination of diagnostic sensitivity and specificity for PVB19-associated myocarditis to 78.9% and 80% respectively. However, this threshold should only be applied to patients with confirmed acute myocarditis on CMR or EMB, as the diagnosis of acute myocarditis cannot be made by the mere presence of PVB19 alone due to the high background prevalence in the local population. Establishing a locally relevant viral load threshold is especially important as although there is currently no guideline approved therapy for PVB19-associated myocarditis and inflammatory cardiomyopathy, administration of high dose IVIG has been previously shown in registry data and a single pilot study to lead to significant clinical improvement, reduction in myocardial inflammation and improvement in left ventricular ejection fraction [26,27]. However, the current local cost of a single course of IVIG at the recommended dose is equivalent to 90 months’ supply of heart failure therapy consisting of sacubitril/valsartan, dapagliflozin, carvedilol and spironolactone. This threshold may therefore be applied in local patients with acute myocarditis and detectable PVB19 on EMB to select out those who may truly benefit from this therapeutic approach.

5. Limitations

This was a retrospective study was performed in a single centre and its results may not be generalisable to other populations. The sample size, especially of patients without myocarditis, was relatively small. Although the diagnosis of acute myocarditis was based on both CMR and EMB criteria, the sensitivity and specificity of neither investigation approach 100%. There is therefore not a perfect gold standard for the diagnosis of acute myocarditis and cases could have been missed in our study.

6. Conclusions

The mere presence of PVB19 in EMB specimens of patients with clinically suspected myocarditis appears to be insufficient for proving its causal role in acute myocarditis, as it is detectable in the myocardium of patients both with and without myocarditis on South Africa. However, there appears to be significantly higher PVB19 viral copies in patients with active myocarditis, with 316 copies/ml determined to be the optimal threshold for clinical significance in the local population. Whether this truly represents acute PVB19 infection leading to acute myocarditis or merely signifies the reactivation of dormant PVB19 by acute myocardial inflammation will require further research.
