Effect of the Human Heart Material Uniformity on Modeling of the Body Surface Potential Map

1. Introduction

Within the body, the heart is seen as an anisotropic volume source and an inhomogeneous volume conductor [1,2,3,4,5,6,7,8]. The electrical field produced by that volume source can be quantified on the body’s surface using the Body Surface Potential Map (BSPM). Numerous studies have examined the modeling of the cardiac activation BSPM [1,2,3,4,5,6,7,8], and it has been noted that the fidelity of the BSPM is significantly influenced by the accuracy and structure of the ventricular conduction network [9,10]. The impact of cardiac material uniformity on the computed BSPM is covered in this work.

2. Methods

2.1. The Human Torso and the Human Heart Modeling

Several organs have been modelled in a realistic human torso based on CT scans [11]. To describe the excitation propagation, the heart has been reconstructed in two ways: first, as a 3D volume matrix, and second, as a boundary surface for BSPM computations [12]. The Diffusion Volume scalar index was used to extract the human heart’s conduction network (Figure 1), which has been shown through a variety of methods to be reasonably close to the true conduction network [13,14].

2.2. Activation Isochrones Modeling

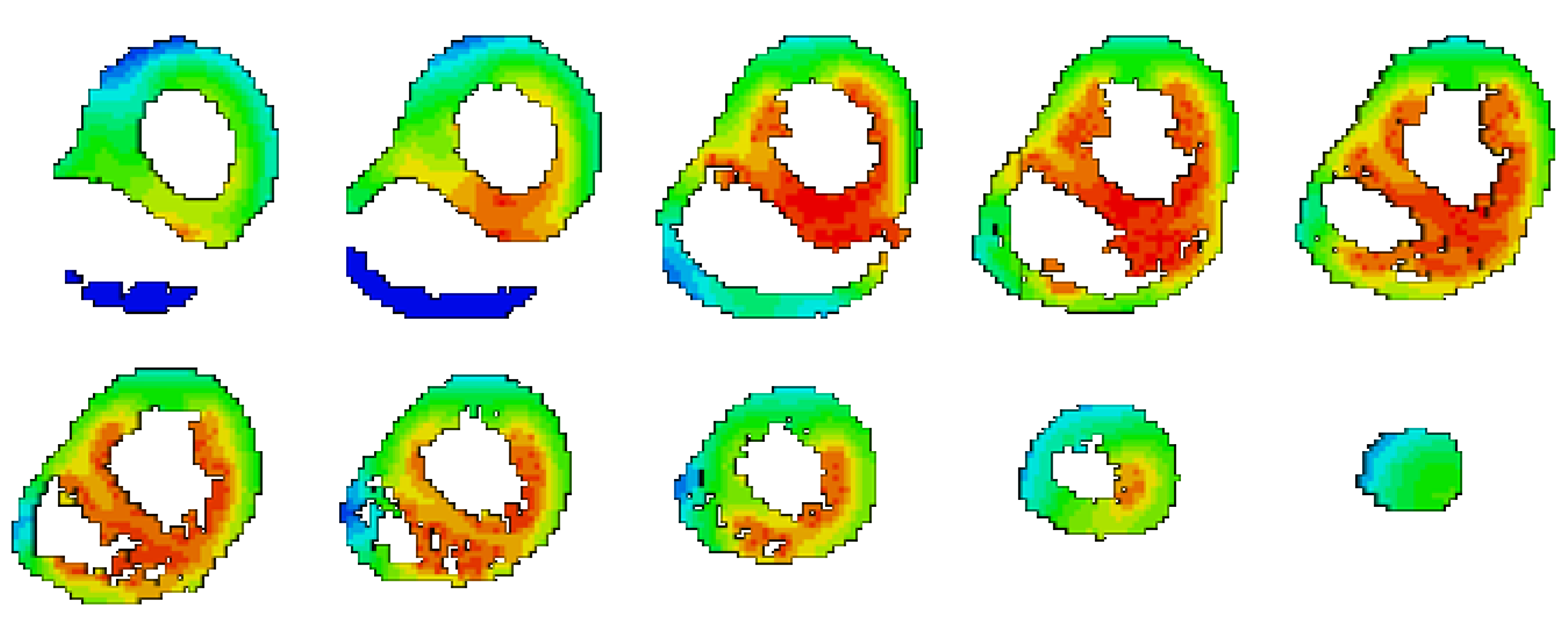

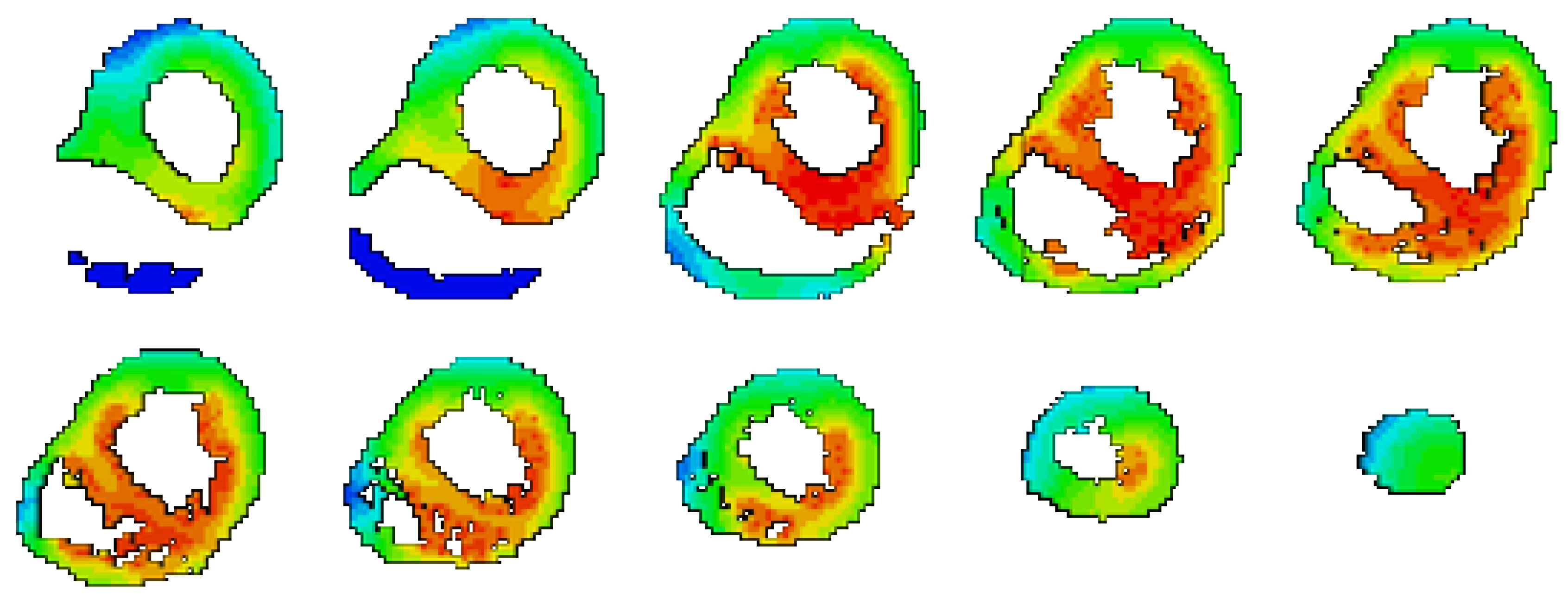

The Monodomain Reaction-Diffusion Equation (MD-RDE) and its modified version [15,16,17] are used to predict the excitation propagation of the heart. The heart was regarded as a non-uniform material in the modified version of the equation, while it was regarded as a uniform material in the original (Figure 2 and Figure 3).

According to the difference between the two activations [17], the non-uniform conductivity activation lags in the right ventricle free wall and leads in the left ventricle free wall and IV Septum. Since the right ventricle’s free wall is activated roughly 25 mSec later than the left ventricle in Durrer et al.’s activation isochrones [18], this is far more realistic than the uniform model.

3. Results

A comparison between the two models has been completed and shown as the Correlation-Coefficient (CC) and Relative-Error (RE). The Body Surface Potential Map (BSPM) has been constructed for both models [19], where the body is regarded an inhomogeneous volume conductor in both cases. The BSPM that is produced with the Original MD-RDE is regarded as the reference.

The CC and RE values were computed for 23 distinct time periods, all of which were separated from one another by roughly 5 mSec. Since the first and last time frames reflected the initial and final states of the depolarization, and because their values were equal to zero, they were eliminated. The peak value of the QRS complex is represented by frames 10 through 12. Prior to these frames (10 to 12), the wave is growing up, and following them, it is declining (as shown in Lead II, for instance, although in certain other leads, as Lead aVF, the center frame value is nearly equal to zero). The CC and RE between the non-uniform and uniform heart’s material are shown in Table 1, and Figure 4 demonstrates that the two created BSPMs differ slightly, particularly during the QRS complex’s building and decay. Therefore, it can be said that the modeled BSPM is not much impacted by the material consistency of the heart.

4. Conclusions

The comparison of uniform and non-uniform heart conductivity models reveals that although local differences in activation timing—particularly within the QRS complex—are evident, the overall BSPM output remains relatively stable. The findings indicate that assuming a uniform material model for the heart introduces only minor discrepancies in BSPM simulation, making it a viable simplification for many applications. However, for high-fidelity simulations or cases requiring detailed spatial accuracy, especially in the right and left ventricular regions, incorporating non-uniform conductivity may be beneficial.
