StingReady: A Novel Device for Controlled Insect Sting Challenge – from Field Capture to Clinical Application

1. Introduction

Hymenoptera venom allergy is a serious medical condition that can lead to severe allergic reactions and, in some cases, death following stings from venomous insects such as bees, wasps, and hornets [1]. Effective diagnostic and treatment strategies are essential for managing this potentially life-threatening condition, especially in patients with venom hypersensitivity. Venom immunotherapy (VIT) is the cornerstone treatment for individuals with a history of severe allergic reactions to Hymenoptera stings, as it significantly reduces the risk of future systemic reactions [2,3,4]. VIT gradually induces changes in the immune system of patients allergic to the venom due to controlled administration to repeated doses of the allergen. This approach also offers long-term protection, enhancing the quality of life for patients with venom hypersensitivity [5].

The sting challenge test (SCT) with Hymenoptera venom involves the provocation of a real sting with a live insect in an allergic patient as an essential tool for assessing the efficacy of VIT [6,7,8]. The SCT tries to simulate an in-field sting and determine whether a patient has achieved immune tolerance through VIT, which is crucial for guiding treatment adjustments or possible discontinuation [9,10,11,12]. In addition, as has been demonstrated, the experience of a well-tolerated sting exposure has been shown to result in improvements in quality of life because of the alleviation of patients' fear and anxiety associated with stings [13,14,15].

Despite its clinical benefits, the SCT is underused due to the logistical challenges of sourcing and handling live insects in clinical environments [16,17,18,19,20]. Traditionally, the SCT approach involves the anesthetization of insects and the removal of wings and legs to facilitate application on the patient’s skin. This method not only increases the risk of venom loss but also requires significant expertise to avoid injuring the insect, which could result in incomplete venom delivery [21]. Finally, the need for precise manipulation with specialized tools adds complexity, making the procedure less accessible for practitioners without entomological training.

In response to the complexities of conventional SCT methods, we have tried to simplify the procedure by designing a versatile device compatible with various hymenopteran species and adaptable to different insect sizes. While the device is designed for broad utility, our primary focus was Vespa velutina, an invasive species spreading rapidly across Europe [22]. The V. velutina has become a significant problem for beekeepers and rural dwellers alike. This species of hornet is known to attack honey bees, causing damage to their colonies, and its sting can lead to severe allergic reactions in humans [23]. Our group have studied the allergenic and toxicological impact of V. velutina and identified Vesp v 5 and glycosylated Vesp v 1 as relevant allergens [24,25]. Tests, such as specific IgE and the basophil activation test, show consistency in V. velutina allergies [26], while preliminary evidence suggests immunotherapy with Vespula venom as a potential treatment [27,28]. Environmental factors and nest architectures have also been studied [22], alongside investigations into chitin extraction and venom protocols [21,29]. Fatalities and sting epidemiology, particularly in Spain, have also been documented by Feás, offering insights into the broader impacts of stinging insects in Europe [1,30].

In this study, we introduce the StingReady device and demonstrate its practical application for conducting sting challenges in a clinical setting. For the first time, we performed controlled SCTs using V. velutina on a cohort of nine patients, providing insights into the device’s efficacy and potential to enhance allergy management protocols for hymenoptera venom allergy cases. This innovation could enable more widespread, standardized, and accurate assessments of VIT effectiveness, ultimately improving patient outcomes.

2. Results

3.1. Capture of Vespa velutina Specimens

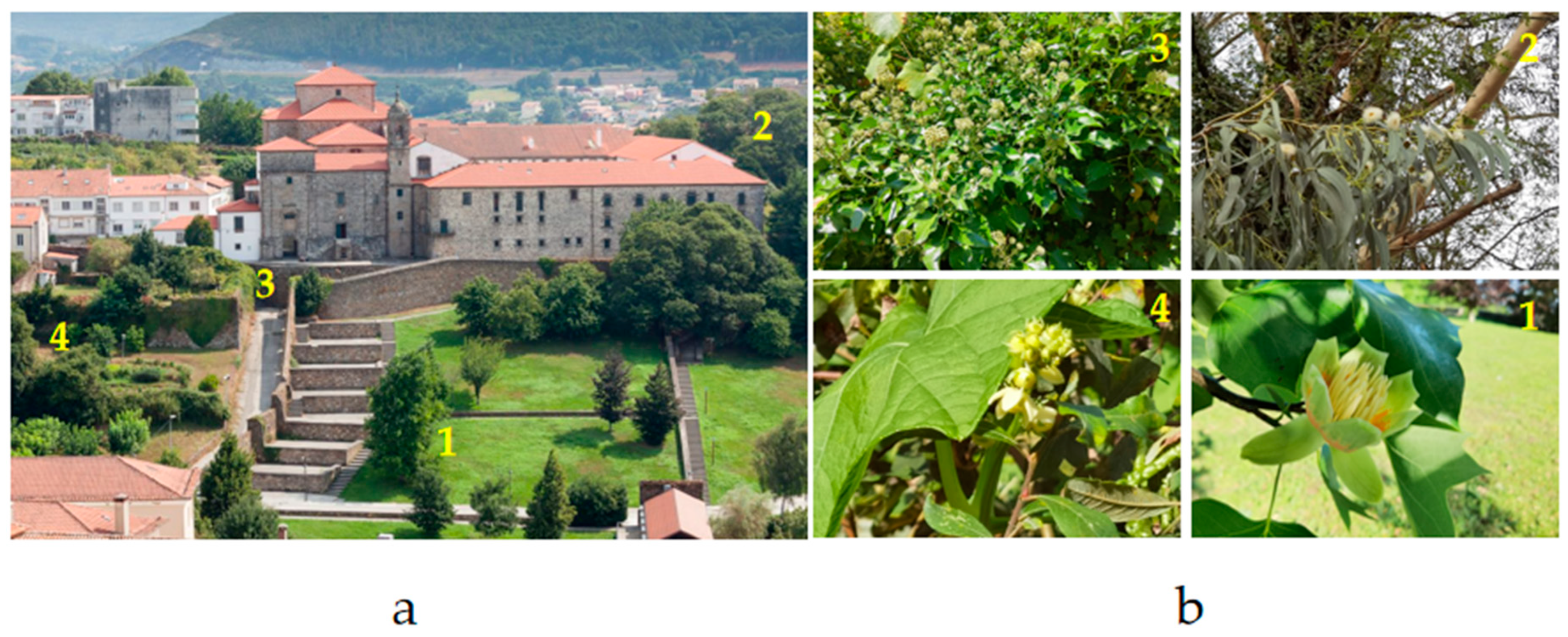

The capture of V. velutina was conducted in pre-identified hotspots within Belvís Park (Figure 1). These locations were chosen based on the seasonal blooming of specific plants known to attract hymenopteran insects in general, and V. velutina particularly. Bait stations were also strategically placed near the flowering plants to enhance the attraction of hornets. The process yielded successful captures, ensuring that enough hornets were available for the SCTs. The V. velutina specimens were captured the day before the SCT and maintained under controlled conditions until the test (darkness and fed ad libitum) ensuring that the insects remained healthy and ready for the SCT.

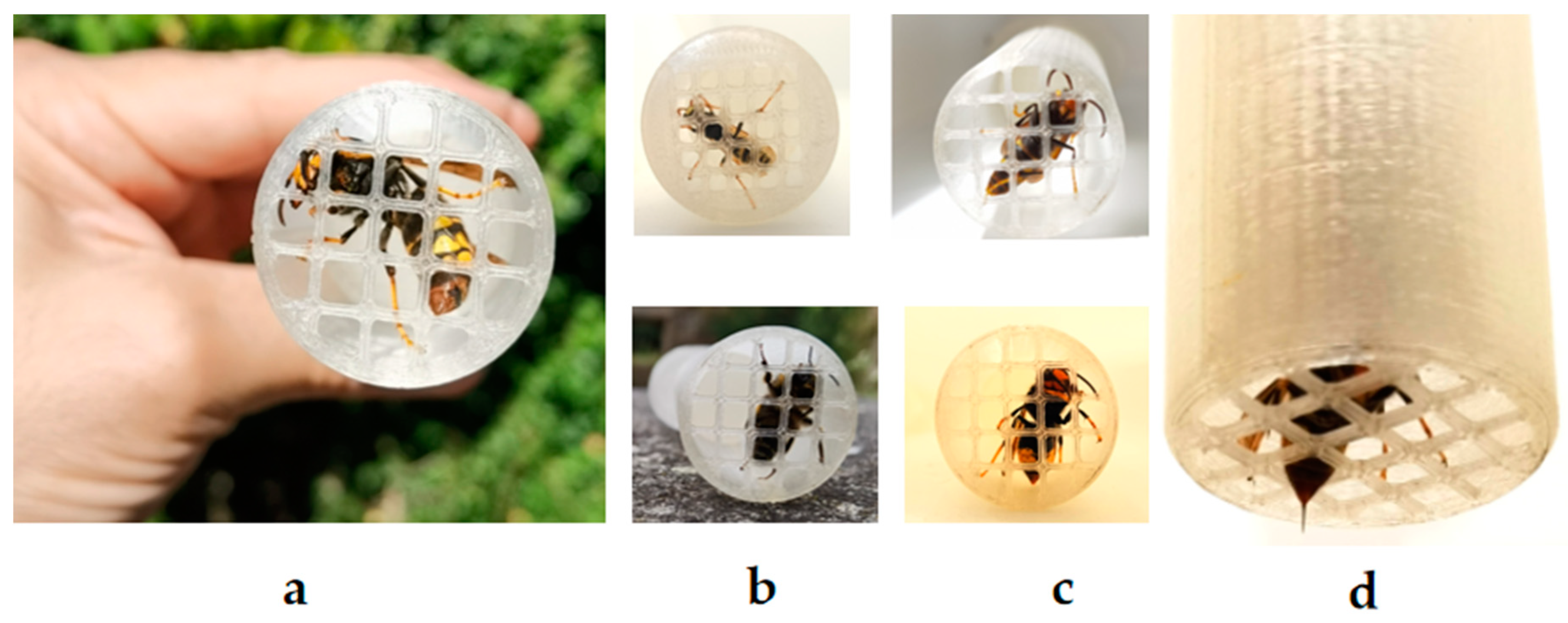

The close-up images of various insect species within the StingReady device highlight the mesh’s dual role in secure containment and in enabling feeding and controlled sting delivery (Figure 2). The mesh size is specifically designed to allow the insect’s stinger and part of the abdomen to access the skin, as shown in the image of a V, velutina queen positioned for sting induction. While Bombus spp. and Polistes spp. were not primary targets, their successful capture further underscores the adaptability of the mesh for smaller species. Male hornets were also easily identified and excluded from capture. However, a male V. velutina was positioned in the device to illustrate morphological distinctions.

3.2. StingReady Device Performance and Observation of Sting Reactions

The StingReady device was used for the sting challenge tests with nine patients. Following the sting application, the patients' skin reactions were observed and documented. Images were taken of the sting sites, and the inflammatory responses were evaluated (Table 1, Figure 3 and Figure 4). In one instance, a V. velutina successfully stung the patient three times, demonstrating the capability of wasps and hornets to sting multiple times (Figure 4b), in contrast to bees, which lose their stinger after a single sting. The application of the StingReady device ensured that the venom was fully delivered in each instance, with no complications in handling.

3. Discussion

The StingReady device demonstrated significant advantages in performing sting challenges, particularly when compared to traditional methods [20]. Conventional techniques for sting challenges involve anesthetizing insects, removing their wings and legs, and handling them with specialized tools like forceps to ensure a controlled sting. These methods not only present challenges in preserving the insect’s integrity but also pose risks of incomplete venom delivery due to mishandling or venom loss during the preparation process. By contrast, the StingReady device eliminates the need for anesthesia and physical alterations to the insects, allowing for a more ethical, efficient, and reliable method of conducting sting challenges. The use of the device also reduces the skill level required by practitioners, making the procedure more accessible. By addressing the primary drawbacks of traditional methods—complexity, risk, and ethical concerns—the StingReady offers a streamlined, safe, and ethical alternative. Although invertebrates, including insects, are not currently subject to animal welfare laws in most jurisdictions, the growing recognition of potential sentience in some invertebrates has prompted ethical considerations within the scientific community. The New York Declaration emphasizes that absolute certainty about consciousness is not required to extend moral consideration to animals. This perspective suggests an obligation to minimize harm even to organisms traditionally excluded from welfare legislation. While the SCT is not constrained by legal frameworks for invertebrate welfare, its ability to reduce risk and harm aligns with emerging ethical standards in scientific practice [32].

The process of collecting hymenopteran specimens remains a logistical challenge for medical professionals, particularly given the difficulties in obtaining live insects. While honey bees and bumble bees can be sourced from beekeepers and commercial breeders, vespids are not as easily available. V. velutina, however, is now widespread in Galicia, and its capture can be facilitated by understanding the insect’s behavior and preferred environments. Our study identified four key locations within Belvís Park in Santiago de Compostela for capturing these hornets, selected based on the seasonal blooming of specific plants that attract them. Additionally, bait stations were employed to increase the attraction of V. velutina to these areas, with attractants to further enhance capture success. These attractants were selected based on their effectiveness in luring V. velutina and other hymenopteran insects [29]. V. velutina is not only common in urban environments, where it uses human made structures for nesting, but is also a serious threat to honey bee populations, particularly in apiaries. At apiaries, V. velutina hunts honeybees by hovering near hive entrances and intercepting foraging bees. This behavior makes apiaries also ideal locations for capturing the hornets, especially during late summer and autumn when their populations peak [29]. In addition to apiaries, other fruitful areas for collecting V. velutina include orchards and vineyards, where the hornets are attracted to ripe fruit due to their preference for sugary substances. This versatility in capture locations highlights the potential for widespread use of the StingReady device in various environments, providing flexibility for practitioners in different regions.

Once captured, the hornets were confined within the StingReady device and maintained in darkness until the sting challenge. The insects were fed ad libitum using syringes inserted through the mesh containment system of the device, ensuring they remained healthy and viable for the procedure. Although not an objective of the present study, it is worth noting that the insects not used for the SCT were successfully kept in captivity for up to 10 days without any apparent issues. This suggests that the device not only allows for maintaining the insects in good condition but also offers the possibility of safely transporting them for SCT conducted at different locations The StingReady device’s ability to capture and maintain V. velutina without causing harm to the insect or compromising the venom delivery during the SCT was further supported by field data.

We present here the results of the StingReady applied to nine allergic patients to identify the protection achieved with venom immunotherapy. In one of the patients, the captured V. velutina was able to sting the patient three times, illustrating a key difference between vespid and bee stings. Unlike bees, which insert their barbed stinger into the skin and die as a result of the stinger being ripped from their body, vespids like V. velutina have smooth stingers that allow them to sting multiple times without injuring themselves. This distinction is important in the context of sting challenges, as the ability of vespids to sting more than once can lead to multiple venom exposures during the procedure, increasing the efficacy of the test. The images included in the Results section offer a visual confirmation of the practical utility of the StingReady device. From the field capture of V. velutina hornets to their application in the clinic, the device proved to be a reliable tool that simplifies the complex procedures involved in SCT. This represents a major improvement over previous techniques, which often required specialized entomological expertise and equipment to anesthetize or handle the insects. Additionally, this method eliminates the need to mutilate or harm the insects, as they are neither anesthetized nor immobilized, allowing for a more humane and efficient process.

The practical implications of the StingReady device are substantial. First, it simplifies the process of obtaining and utilizing insects for sting challenges, making it more accessible to clinical settings that may lack entomological expertise or specialized equipment. The ease of capture, transport, and application reduces the need for extensive training or the presence of entomologists during the procedure, thereby lowering operational costs and time.

From the clinical point of view, the fact that the application on the skin can be done without prior preparation of the insects facilitates the work of the clinician who only has to focus on direct patient care. Although most of the procedures have been performed in the critical care unit, it did not pose any problems or risks in the unit because inside the StingReady it is not possible for the insect to escape and harm other patients or staff. With the exception of patient #4, all patients exhibited a satisfactory tolerance to the sting, thereby substantiating the efficacy of Vespula spp. venom in treating the aforementioned patients. Patient #4 underwent the sting challenge shortly after commencing VIT. This positive result consequently prompted a modification in VIT, thus resulting in the incorporation of V. velutina venom into the treatment regimen. Consequently, the patient is currently undergoing the administration of both vaccines.

Moreover, the StingReady device’s adaptability for different insect species is a key innovation. The ability to adjust the mesh size of the CCh allows it to be used with a wide range of hymenopterans, from smaller bees to larger hornets, potentially broadening its use in venom immunotherapy across different geographic regions and clinical needs. While this study focused on V. velutina, the potential applications of the StingReady device extend to other medically relevant insect species. Future research should explore the device’s efficacy with various species, including honey bees, bumble bees, and other wasps. Another avenue for future research is the application of the StingReady device in ecological studies, where live insect handling is required. Its robust design could facilitate more efficient and humane insect handling in these contexts, further expanding its utility beyond clinical environments.

Overall, the introduction of the StingReady device could lead to a more standardized and accessible approach to conducting sting challenge tests, making this critical diagnostic procedure more widely available to allergists. The elimination of many of the complexities involved in handling V. velutina and other Hymenoptera species could help facilitate more accurate assessments of VIT efficacy, ultimately improving patient outcomes and expanding the clinical application of this therapy. The ability to use the SCD directly from field capture to clinical application without additional equipment or handling makes it an invaluable tool for allergists and immunologists.

4. Conclusions

The StingReady device offers a comprehensive solution for conducting SCTs, from insect capture in the field to safe and effective venom delivery in clinical settings. Its design facilitates the direct capture of insects, such as V. velutina, eliminating the need for additional tools like nets. The device’s Cch ensures that insects remain confined and viable until use, with an easy method for ad libitum feeding. Furthermore, the StingReady device can be adapted for different hymenopteran species, such as bees, bumble bees, and wasps, by adjusting the size of the mesh, allowing for its use in a broader range of allergy testing scenarios. This innovation provides a safer, more efficient, and standardized approach to VIT evaluation, with the potential to become a valuable tool in clinical practice.

5. Materials and Methods

2.1. StingReady

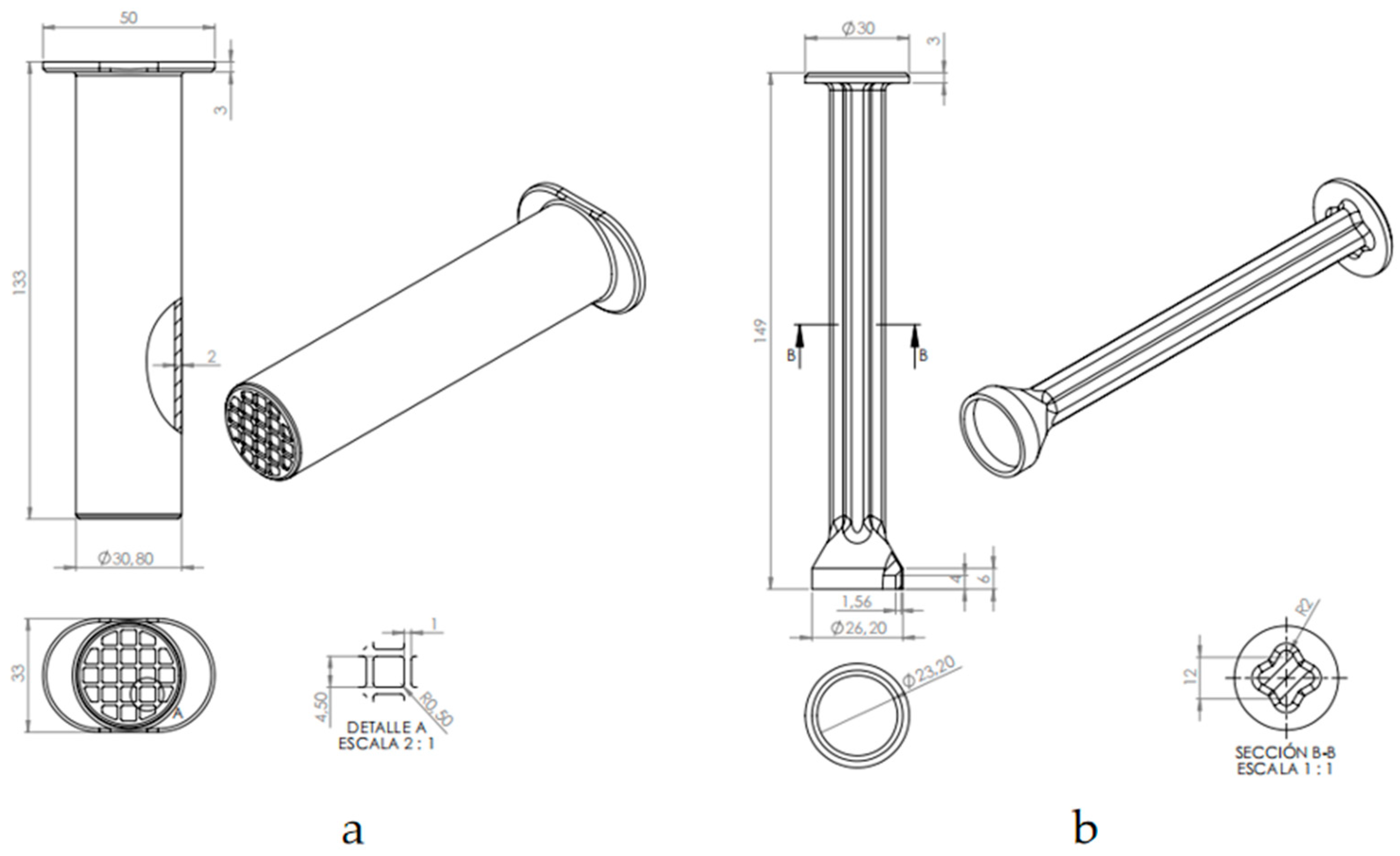

The StingReady device (Figure 5) is a 3D-printed tool specifically designed for capturing and safely handling hymenoptera insects, such as Vespa velutina, for use in clinical settings. The device consists of two main components: a containment chamber (CCh) and a gliding component (GC) that fit together to confine the insect while allowing controlled interaction.

The containment chamber (CCh) (Figure 5a) is a translucent cylindrical structure with a rigid mesh end. This mesh allows safe interaction with the insect without risk of escape while ensuring that the stinger can be exposed to patient´s skin for use in SCT. The material's translucency allows monitoring of the insect and ensures its well-being during transport and handling.

The gliding component (GC) (Figure 5b) is designed to be moved within the CCh, in a gently way, guiding the insect towards the mesh end without causing harm. This component includes a protective cap that securely encloses the insect, holding it in place at the mesh end. This design ensures that the insect remains contained and positioned for safe, controlled use in clinical procedures.

2.2. Study Area and Temporal Framework

Field research aimed at collecting the V. velutina insects was conducted in 2023 and 2024 at various locations within Belvís Park, situated in the historic city-center of Santiago de Compostela (NW Spain). This park covers an area of 30,604 m², encompassing former orchards transformed into an urban green space with expansive lawns, groves with large trees, and small gardens maintained by local residents.

2.3. Insect Collection Points

Vespa velutina insects were identified at various locations within Belvís Park, an area of 30,604 m², encompassing former orchards transformed into an urban green space with expansive lawns, groves with large trees, and small gardens maintained by local residents, in the city center of Santiago de Compostela, NW Spain.

Four specific collection points within Belvís Park were selected based on the presence of flowering plants known to attract V. velutina at different times of the year. Specifically, monitoring and capture efforts were scheduled to align with the nectaring periods of the following plant species within the park: (i) Liriodendron tulipifera (tulip tree), April to May; (ii) Sechium edule (chayote), August to October; (iii) Hedera helix (common ivy), September to November; and (iv) Eucalyptus sp., November to December (Figure 6).

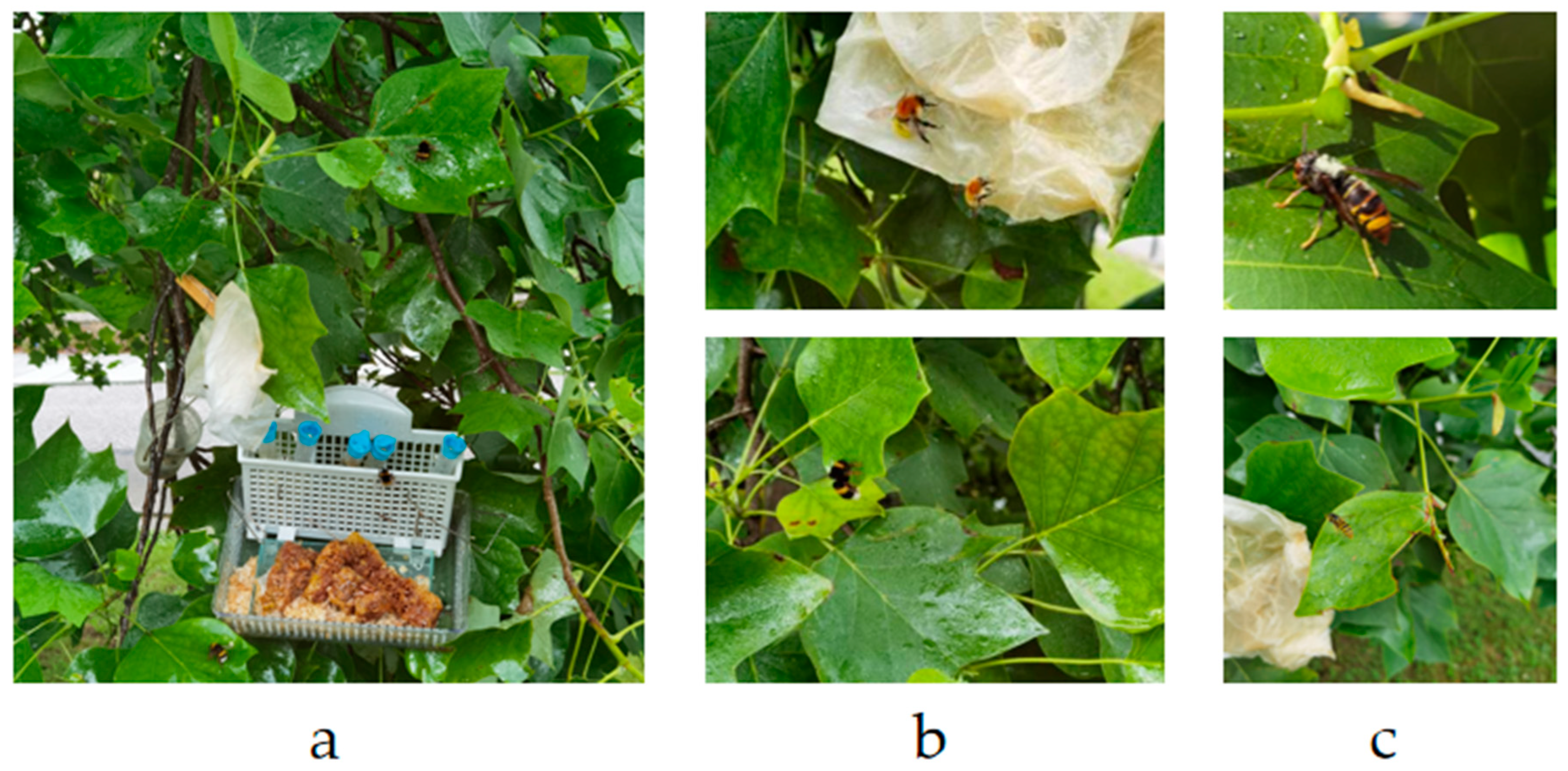

In each of these locations, bait stations (Figure 7) were established to enhance attraction of V. velutina. The bait consisted of a combination of bee wax, honey remnants, and homemade attractant solutions made from fermented sugar, water, and baker’s yeast. The attractants used in the bait stations were regularly replenished to ensure continued effectiveness. Next to each bait station, absorbent paper strips are placed to enhance insect attraction. These strips are treated with 10 ml of a 1% geraniol solution in water, which serves as an additional attractant to lure hymenopteran to the area.

2.4. Identification, Caste and Sex Determination of Vespa velutina Individuals

The insects were identified and sexed based on their external morphological features (Figure 8). Specifically, V. velutina typically measures between 2 to 3 cm in length. It has a black head, with orange face and mouthparts, and antennae that are brown on the dorsal side and orange on the ventral side. The thorax is a dark brown, almost black, color. The metasomal terga are brown, featuring a thin yellow band on the first segment and thin orange bands on the second and third segments, while the fourth metasomal segment is orange, and segments five and six are orange-brown. The legs are brown with yellow tarsi, and the wings have a brownish hyaline appearance. Female and male hornets exhibit sexual dimorphism. Female hornets have 12 antennal segments (including the scape and pedicel), while male hornets have a relatively long, curly-endded antennae with 13 segments (Figure 8c). Female hornets have 6 gastral segments and male hornets have 7 exposed gastral segments. Males have a bilobate apex of the last sternite, which appears sharp in females. The difference between workers (Figure 8b) and reproductive females, queen (Figure 8a) and gynes (Figure 8d), i.e., future queens, was established at a mesoscutum width of 4.5 mm [22].

2.5. Capture of Vespa velutina

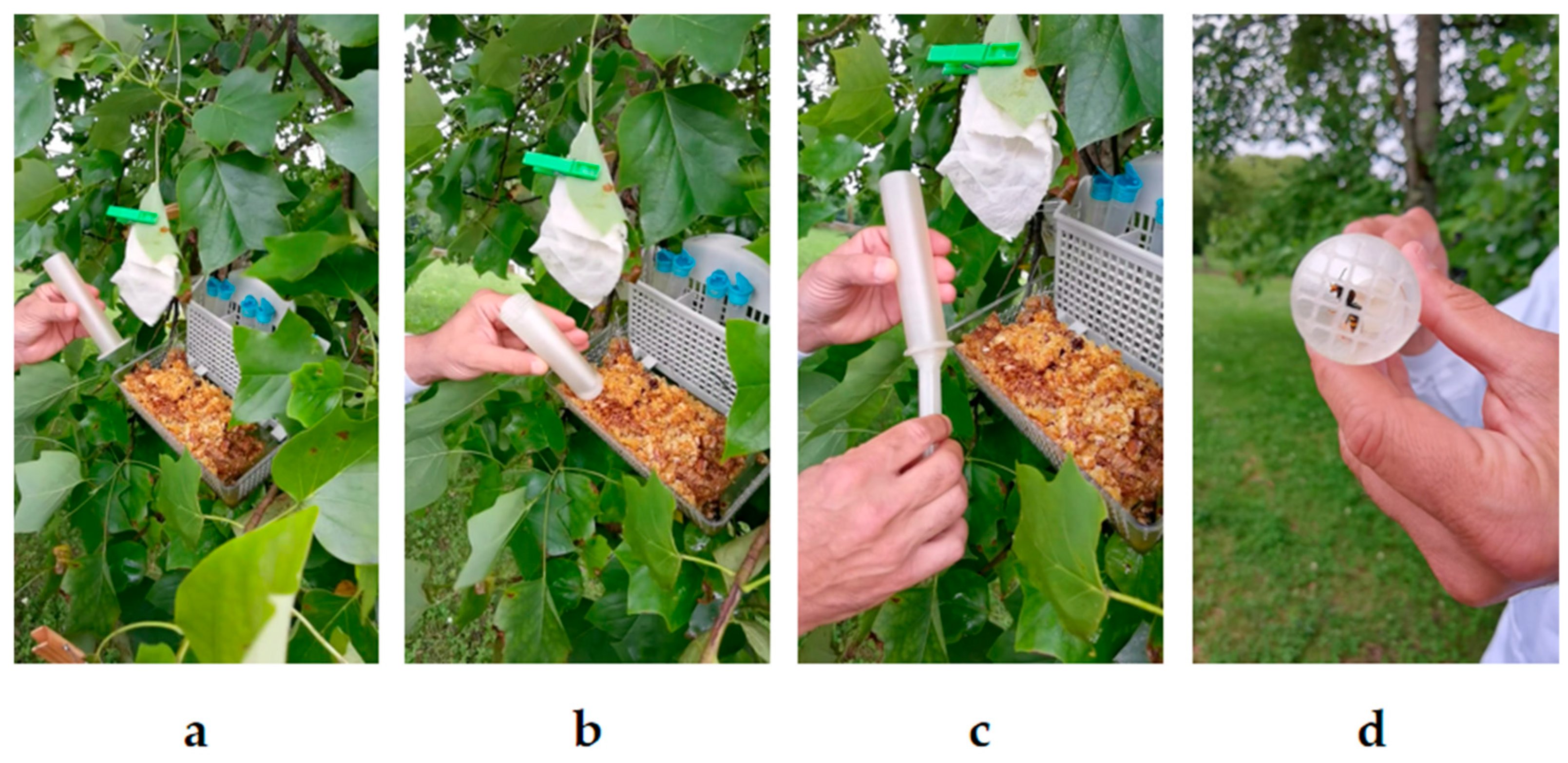

The capture process of V. velutina was conducted at one of our four designated collection points. To capture the hornet, the CCh of the StingReady device is slowly brought close to the insect while it remains occupied at the bait station (Figure 9a). Once the chamber is properly positioned, it is used to swiftly enclose the hornet, allowing it to remain calm and naturally move upward towards the mesh end of the chamber (Figure 9b). In the next step, the GC is gently introduced into the chamber while both hands stabilize the device, ensuring the hornet is securely confined without harm (Figure 9c). Finally, the complete StingReady device is held securely, with the hornet safely contained within, ready for transport (Figure 9d). A video supplement demonstrating the entire capture process is included in this study to provide a detailed visual guide for replicating the methodology (Supplementary VS1). After capture, the insects were kept in darkness until the time of the SCT to minimize stress and activity. During this period, they were fed ad libitum using one 2.5 ml syringe filled with a honey-water solution (80% honey, 20% water) (Figure 9e). The tip of the syringe was carefully inserted through the mesh of the Cch, allowing the insect to access food without being disturbed.

2.6. Clinical Application of StingReady

The Sting Challenge Test (SCT) was conducted at the Allergy Service of the Complejo Hospitalario Universitario de Santiago de Compostela in nine patients (eight males and one female), aged between 25 and 69 years, with a documented history of severe allergic reactions to V. velutina stings. All patients were being treated with Vespula spp. venom (Alutard SQ, ALK, Denmark) 100 µg every 8 weeks after confirming IgE sensitization against Vespula venom components. Vespula spp venom was chosen for immunotherapy because of the lack of previous stings due to V. velutina in most of the patients. As for patients #4 and 5, Vespula spp was selected because of the highest level of sIgE against Vespula spp with respect to V.velutina (data not shown). The median duration of VIT prior to the SCT was 50 months, with a range between 7 to 63 months. Detailed patient demographics, the implicated insect species, and VIT information are summarized in Table 2. SCTs were conducted under controlled clinical conditions, with continuous monitoring of vital signs and immediate availability of emergency treatments to address potential adverse reactions.

Upon the patient's arrival at the clinic, the captured V. velutina is prepared for the SCT (Figure 10) to assess the effectiveness of VIT. The process is as follows:

- Preparation and explanation: The procedure is reviewed with the patient, who is positioned comfortably in a bed at the critical care unit of the hospital. After reading and asking any questions about the procedure, the patient signs the informed consent form. The patient is, then, monitored and with an accessible peripheral venous line.

- Application on to the forearm: The open end of the CCh, where the mesh is located, is placed in direct contact with the patient's skin on the volar surface of the forearm (Figure 10b). The GC is then gently advanced to position the hornet near the mesh. With light pressure, the insect is encouraged to sting.

- Observation of the sting reaction: Once the patient feels the sting, the hornet is kept in position, confined against the mesh, for, at least, 15 seconds to ensure a complete sting. The skin reaction is marked and closely observed, and any immediate signs of allergic response are noted (Figure 10c).

- Euthanasia of the insect: After the procedure, the hornet is euthanized by placing the StingReady device in a freezer at -18 ºC for five minutes (Figure 10d).

6. Patents

A utility model for the StingReady device has been submitted to the Spanish Patent and Trademark Office (OEPM), with the application number U202530786.
