Design and Development of an AI-Powered Mobile Application for a Wall-Drawing Robot

1. Introduction

The aim of this project is to demonstrate that mobile applications incorporating AI can create more efficient and ac- cessible processes for generating art with robots. The objective of the ’Picasso’ app is to augment, if not eliminate, the drawing process and reframe the conversation about what humans and machines can create together in the process of mechanical reproduction of works of art, and improve the field of AI- generated robot art. The Picasso Wall Robot project combines art and technology by creating an AI-powered mobile app that works with a robot to paint on walls. It helps solve the problem of unfinished tech projects and the lack of electronics- related patents in Kyrgyzstan. The app lets users pick images from their phone, generate AI art, and convert images into simple outlines that the robot can draw using Bluetooth. A local database stores these images for later use. The app also includes animations showing how the robot paints, making the experience more interactive. This project is unique because it combines AI-generated art with robotic drawing, unlike other apps. By getting a patent, it aims to boost technological inno- vation in Kyrgyzstan. The goal is to finish development and documentation by April, making it ready for patent registration and real-world use.

2. Methods

A. Image Generation, Processing, and Management

The main component of the mobile application for the Picasso wall bot main component lies in manipulating and processing images. Users can either use images from their gallery or they can create new images using AI based models. Those images are processed to attain simplified contours to make them accessible for the robot. In support of smooth workflow, the app functionality includes an embedded database that allows users to manage images that keeps images tracked. Both user selected images and AI images can be saved, read, and sent back to a device at any time. This image management aspect will allow users to quickly generate and arrange their content for drawing in a more practical form.

B. Bluetooth Pairing, Compression, and Data Transfer

The wall robot and the mobile application communicate via Bluetooth. Whenever a connection is made, the app will search for devices in the vicinity and attempt to establish a secure pairing with the robot. A secure operation between the app and robot will begin with a secure handshake which authenticates both devices and creates a stable one-to-one communication link. Once paired, images will be prepared for transmission. To improve performance, the application has a compression algorithm to make the image files size smaller while still retaining relevant information. This will allow for quicker transfers, as there is a reduced chance there will be a transmission error and the Bluetooth bandwidth will be more efficiently utilized during an image deliver.

3. Robot Interaction and Visualization

A. Robot Execution of Contour Images

Once a contour image is received, the robot considers it a series of drawing instructions. Each simple line and shape corresponds to a series of movements; the robot is then able to reproduce an image on a vertical wall surface. This transformation translates digital content to physical artistic expression and proves that the robot can work as an extension of user-built creativity.

B. Real-Time Robot Animation and Preview

The app includes a robot animation that mimics the drawing process to increase control and accuracy. Prior to sending the image for execution, the user can view the robot’s movements, and how the image will be aligned on the screen. In real-time, the user can see how the robot is moving so that the final image can be exactly what the user imagined, while decreasing the potential for misalignment with the drawing, as well as inspiring a greater degree of engagement between the user and robotic system.

C. Related work

Recent developments in robotic art systems have shown the advancing potential to bring AI-based image processing together with a physical drawing system. Within a similar project, SketcherX was created as an automated robotic system that allows for autonomous drawings based upon human input that focused primarily on edge detection and sketch reproduc- tion (Song, 2024). Although SketcherX is not on the same scale as Picasso, and is not designed to provide as enriched a user experience, as the Picasso app utilizes a mobile device for user interaction, images are generated using prompts from AI, and robot movement is animated in real-time.

Furthermore, T. Imagawa and colleagues have previously investigated the possibility of interactive robot painting and proposed ways to dynamically change robot actions in re- sponse to visual feedback (Imagawa et al., 2024). Although Imagawa’s system relied on external sensors, the Picasso project utilizes pre-processed contour images and Bluetooth to communicate with the robot. In other words, it is a streamlined but more powerful system that is more adaptable for education and artistic practice.

The confluence of robotic execution and mobile-based im- age generation parallels themes discussed in ”Picturing AI: Exploring Human-Robot Collaboration through Robotic Draw- ing” (Romanov, 2024), in which the use of human creativity with machine precision was found to significantly augment user engagement and creative outcomes. In this respect, the Picasso project continues the conversation while centering accessibility and patentability, in emerging markets such as Kyrgyzstan.

D. Performance and Evaluation

During the testing phase we used a variety of mobile devices and a prototype robot in our testing these Bluetooth transmission speeds ranged from 50 to 150 KB/s influenced by the compatibility of the devices and environmental factors. Our preprocessing and compressing of the images typically reduced the file sizes by an average of 70 percent, especially for images with a lot of detail. This resulted in image transfer times usually taking less than 10 seconds. The AI image generation times varied from 3 to 10 seconds based on internet speed and the complexity of the prompt. Accessing a local database was instantaneous and allowed for very rapid image retrieval and reuse.

E. User Testing

A user study with students and hobbyist artists evaluated the app’s usability. The participants completed several tasks in the app, including tasks involving the generating images with AI, processing images into a gallery of images, and pairing a robot. The main takeaway from the feedback was that the app was accessible and provided users with something new and interesting, and that users felt empowered to create unique visual content, with or without art backgrounds. This is consistent with previous findings from the development of wall-scale vector art drawing robots that emphasize the role of user-friendly interfaces to facilitate use of robots as art (Isaev, 2024).

The app incorporates robust error-handling mechanisms to address common issues like failed Bluetooth connections or API timeouts. Users receive notifications of such events, and the system automatically retries the failed operations. Addi- tionally, the app employs check pointing to resume operations from the last successful transmission, minimizing workflow disruptions.

F. Application

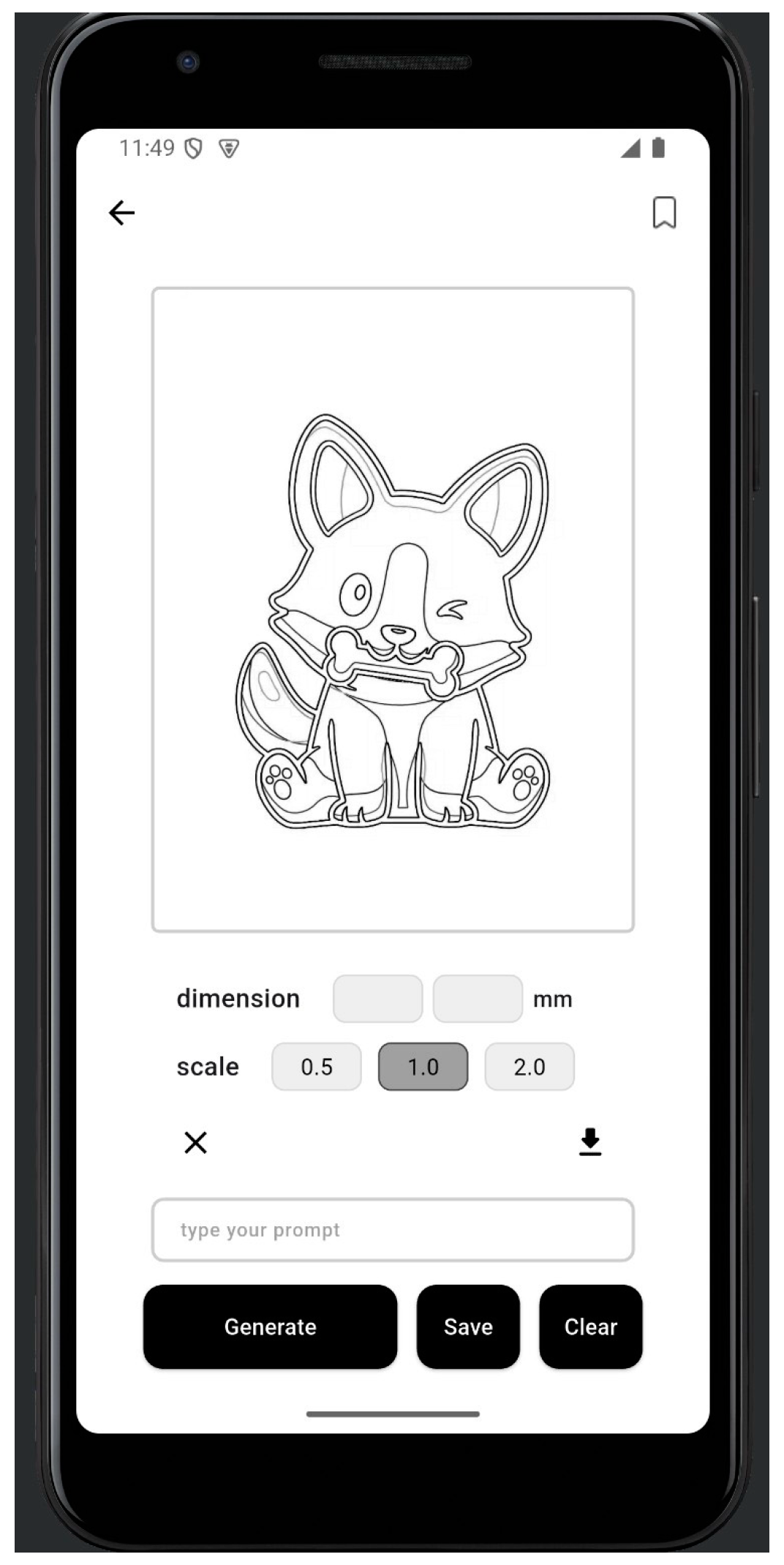

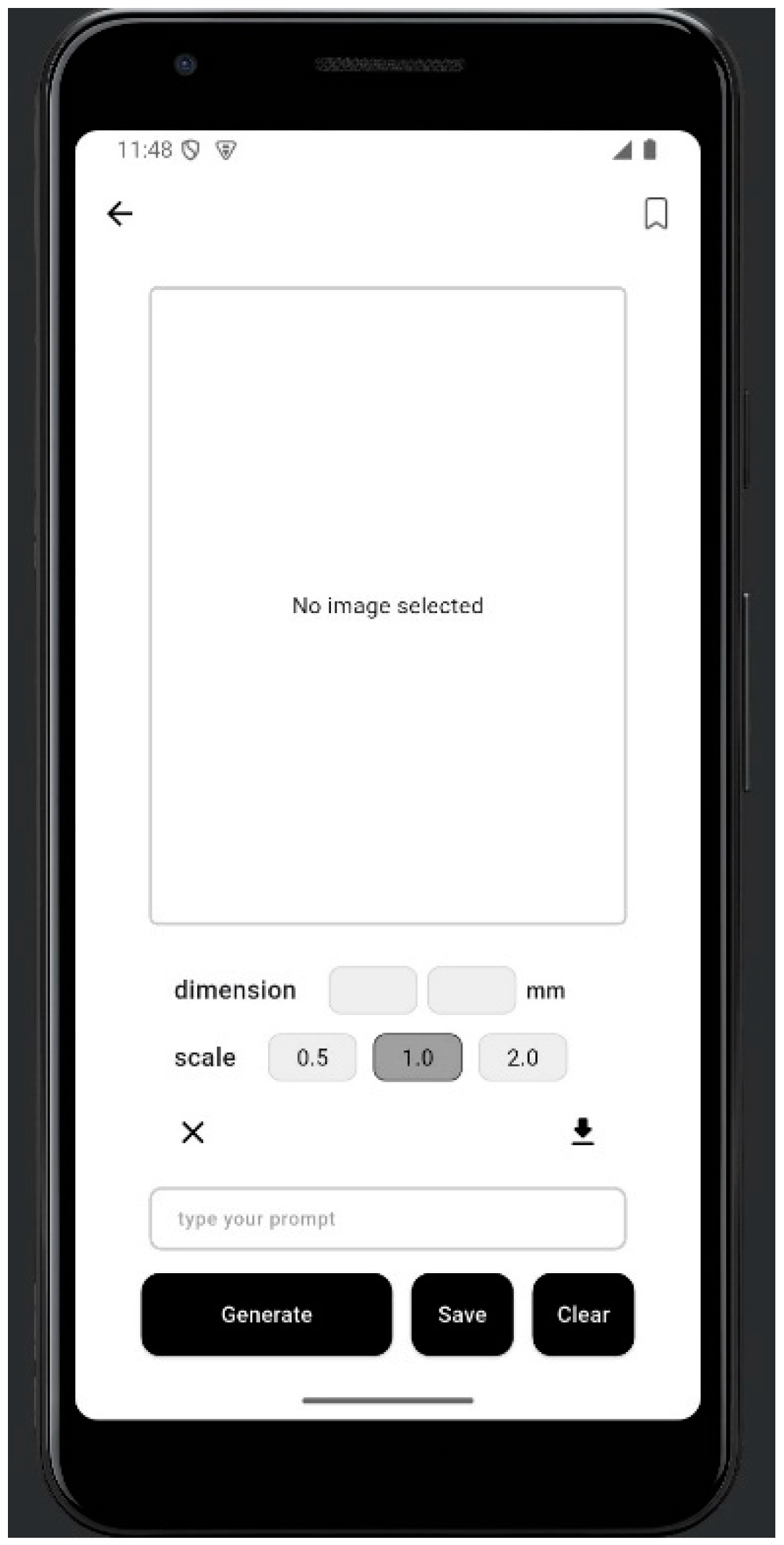

Image selection and AI generation interface: The Picasso mobile application is designed to provide users with a seamless and intuitive experience for creating robotic art. As shown in Figure 1 and Figure 2, the app allows users to either select an image from their device gallery or generate a new image using integrated AI models. After selecting or generating an image, users can preview the robot’s drawing motion through a real-time animation feature. This ensures that the artwork will be accurately positioned and executed by the wall-drawing robot. By offering both image management and execution preview functionalities, the application enhances user interaction, minimizes errors, and bridges the gap between digital creativity and physical robotic art.
