Non-Animal Technologies to Study and Target the Tumour Vasculature and Angiogenesis

1. Introduction

Cancer emerges when mutated cells grow uncontrollably within a permissive tissue environment [1]. Initially, natural safeguards inhibit neoplastic formation, however, prolonged exposure to carcinogenic factors favours the accumulation of further mutations in cancer cells until they become able to evade these defences. Concurrently, growing tumours alter local and systemic environments, enabling cancer progression and spread [2].

Cancers are complex dynamic ecosystems composed of tumour cells and different non-cancerous cells all embedded in an extracellular matrix (ECM) exhibiting distinctive and unique physical, biochemical, and mechanical properties [3] (Figure 1).

The tumour microenvironment (TME) includes immune cells, cancer-associated fibroblasts, endothelial cells, pericytes, and tissue-resident cell types, all playing critical roles in each stage of cancer progression [3,4] (Figure 1). Tumour-TME crosstalk, mediated by cellular interactions, soluble factors and metabolites availability [5] affects cancer cell survival, proliferation, response to anti-cancer drugs and immune evasion, and is emerging as an attractive therapeutic target.

Typically, all cancers elicit a certain degree of local tissue inflammation. Inflammation initially combats cancer development, but, at the same time, it exercises a selective pressure on cancer cells [6,7,8] (Figure 1 B, C). Those cells that survive, become tolerant to inflammation, and ultimately shape the immune landscape both in the TME [2] and systemically. In solid tumours, these initial malignant lesions are called carcinoma in-situ (Figure 1 B), whose prognosis is favourable if they are promptly detected [9,10].

Tumour associated angiogenesis (TAA), and vascular alterations are hallmarks of the TME, and, following the intuition of J. Folkman [11,12], microvascular involvement is included among the criteria defining invasive versus non-invasive lesions (Figure 1 B vs C). A hypo vascular, hypoxic TME can limit the efficacy of chemo-/radiotherapy by hampering delivery of oxygen and drugs [13,14]. On the other hand, uneven intratumor angiogenesis and angiocrine signalling further promote cancer cells phenotypic heterogeneity [2] (Figure 1 D).

Overall, the TME behaves like a chronic, never-healing wound [15] because the sources of tissue damage and inflammation are not removed. The cellular and molecular dynamics in such systems is complex to predict as it depends on many contextual signals which vary widely over time, different genetic background, across different organs, and even within the same tissue. Moreover, by means of systemic signalling, mediated by soluble factors like cyto/chemokines and extracellular vesicles [16], cancer may induce changes in distant tissues including vascular leakiness, angiogenesis, and immunosuppression. All this forms the pre-metastatic niche [17]. Pre-metastatic niches promote the seeding of metastases and are tumour specific (both within the same cancer type and across different types) dictating preferences for specific target organs (seed and soil theory [18]).

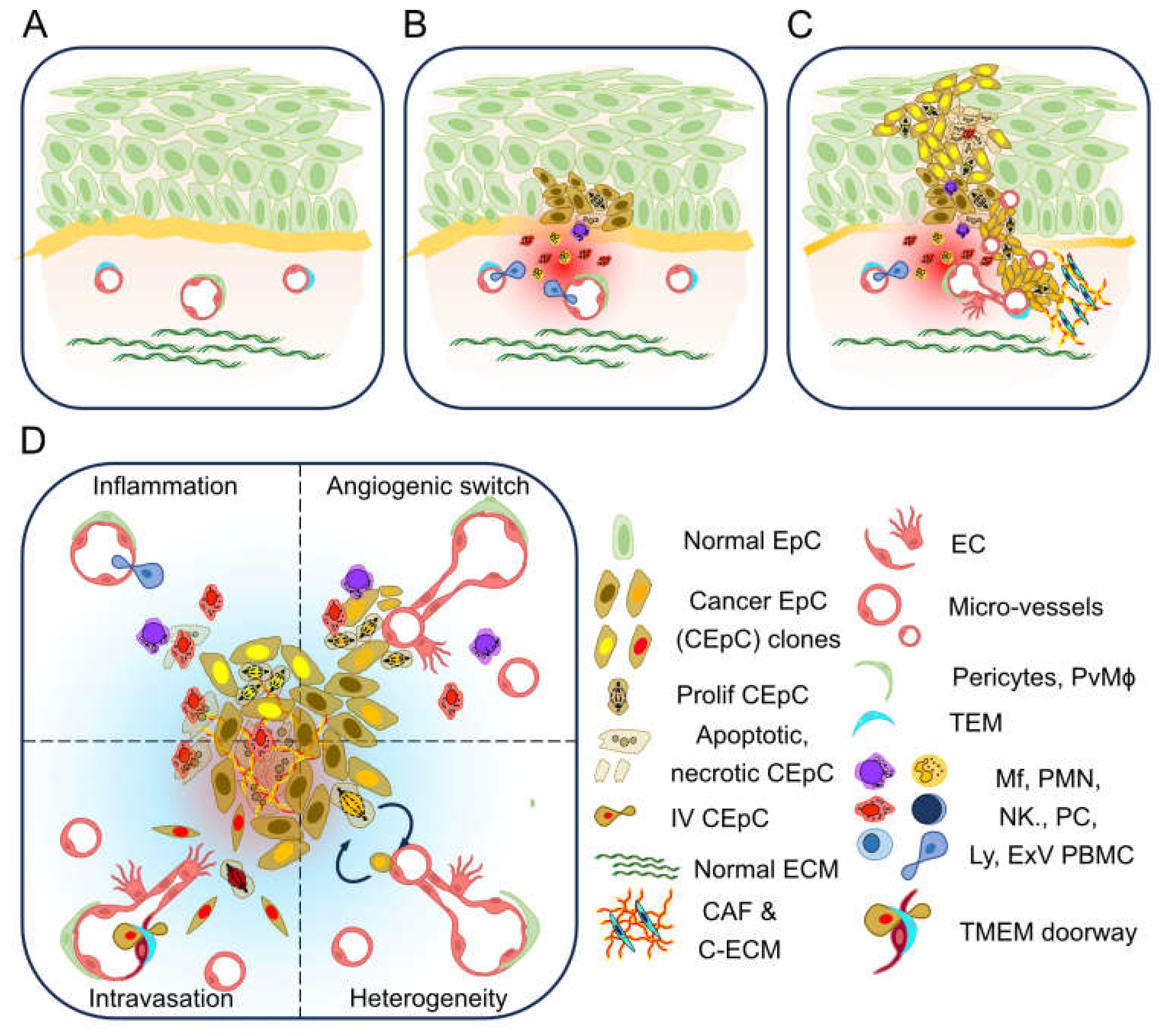

Notably, the Tumour associated micro vasculature (TAMV, Figure 1 C, D) plays a key role at all stages of cancer development and progression, including the “angiogenic switch”, the creation of protective niches for therapy-resistant cancer stem cells (CSC), the creation of pre-metastatic niches, and metastasis.

1.1. Tumour Associated Micro Vasculature

Malignant cancer cells have a high metabolic demand to sustain their abnormal growth, and rapid cell growth promotes intra-tumoral hypoxia and chronic inflammation [19]. All these features contribute to the “angiogenic switch”, i.e., the sustained and uncontrolled induction of pathological angiogenesis leading to the formation of aberrant TAMV (Figure 1 D). Hypoxia activates the cellular oxygen-sensing machinery (Hypoxia-Inducible Factor, HIF, pathway) [20] in endothelial, immune, stromal and cancer cells directly regulating the transcription of pro-angiogenic genes like Vascular Endothelial Growth Factor (VEGF-A), Stromal Derived Factor (SDF-1), and Angiopoietin-2 [19]. However, due to the unbalanced signalling in the TME, the TAMV does not fully mature, is morphologically and functionally abnormal, and provides suboptimal diffusion of oxygen and nutrients, contributing to a self-sustaining hypoxia-inflammatory loop. In such environments, cancer cells can acquire distinct phenotypes, including fast-growing clones, slow growing CSC with self-renewal potential, or migratory clones with high metastatic potential (Figure 1 D).

Endothelial Cells (EC) are the main cellular components of the microvasculature. EC are physiologically heterogeneous across different organs, and within the same organ reflecting a variety of different functions [21]. EC composing the TAMV are phenotypically distinct from their healthy counterparts [22], have distinct metabolism [23], and angiocrine signalling [24].

Dysregulated angiocrine signalling to immune cells contributes to an immunosuppressive TME which hampers natural antitumour responses [25,26,27]. Concurrently the leaky TAMV favour intravasation and dissemination of metastases initiating cells which travel as circulating tumour cells to distant organs along blood or lymphatic streams [28].

In breast cancer, EC, tumour associated perivascular macrophages (TEMs), and specific cancer cells form a functional triad, the tumour microenvironment of metastasis (TMEM) doorways. The number of TMEM doorways in the primary tumours has been found to correlate with the propensity to metastasis [29] (Figure 1 D). It is tempting to assume that similar doorways might exist within other cancer types, possibly with distinct molecular signatures, however, this has not been demonstrated so far.

Upon seeding in multiple organs, metastases initiating cells may generate overt, clinically evident metastases via co-option of permissive microenvironments mimicking the native niches including a primed microvasculature [30,31,32,33].

1.2. Therapeutic Implications

Given the central role of the TAMV in tumour development, vascular targeting has been explored as a therapeutic option in the past 20 years.

Anti-angiogenic therapy (AAT), i.e., attempting to prune the abnormal TAMV via interference with pro-angiogenic signalling, especially the VEGF pathway, has been widely studied and tested experimentally and clinically [32]. Despite the initial promise and some clinical success, AAT has yielded inconsistent clinical results. Not all cancer types are sensitive to AAT, and in those sensitive types, AATs like the monoclonal antibody against VEGF-A, Bevacizumab, causes a host of escape mechanisms like the “angiogenic rebound”, i.e., compensatory up-regulation of VEGF or other angiogenic molecules. Additionally, interference with the VEGF axis causes vessel disruption locally and systemically, producing severe side effects and increasing the propensity to metastasis [22,32].

More recently, vascular normalisation therapy (VNT), i.e., attempting to modulate rather than prune the TMV via fine-tuning of AATs, has been proposed as a promising new route. Animal studies have shown that VNT could alleviate intratumor hypoxia, facilitate delivery of drugs, increase the oxygen-dependent effects of radiotherapy, and favourably modulate the immune TME [13,34,35,36].

Clinical testing of VNT is currently ongoing [36], however previous studies have already highlighted that clinical success of VNT will depend on precisely identifying and measuring the time frame of their therapeutic activity (TAMV normalisation window).

In summary, it is now clear that VNTs are potent tools to modulate the TAMV with huge therapeutic potential. However, their clinical efficacy is currently limited by our capacity to measure and understand the dynamics crosstalk between cancer, the TME, and therapeutic agents.

For example, we do not know how to timely and precisely deliver therapeutic agents to maximise their beneficial effects while minimising their side-effects.

Thanks to intensive research and powerful technologies like OMICS, we are rapidly learning which cell types and molecules are involved in these processes. However, we do not fully understand how these elements crosstalk before, during, and after therapy in different tissues and organs.

Characterising the cellular and molecular dynamics driving TAMV functions is thus a central and unmet clinical need as TAMV associated features, like metastases, still represent the leading cause of cancer-associated death [30,33].

Deciphering the dynamic interplay between cancer cells and the TAMV may offer the opportunity to identify and target pathways common to most cancers. To this purpose, reliable models of TAMV are urgently needed.

Murine models are a cornerstone of biological research and have been successfully used in both translational and pre-clinical research [37]. However, preclinical animal models are typically complex, time-consuming, expensive, and difficult to standardise [38]. More importantly, they do not fully capture the complexity and genetic heterogeneity of human cancers, and they cannot recapitulate the molecular signalling and cancer-TME cellular crosstalk, limiting their translation potential. Indeed, US Food and Drugs Administration agency (FDA) data show that over 90% of drugs successful in pre-clinical animal models, fails to demonstrate safety or effectiveness in humans [39].

We need to develop affordable research tools able to increase our mechanistic understanding of the TME, to facilitate the development of new therapeutic strategies, and to customise treatment to individual patients. Non-Animal Technologies (NATs) able to reproduce selected aspects of human biology are rapidly emerging to fill these gaps.

In the following sections of this review, will discuss advances in modelling the TME, the TAMV, and their dynamic crosstalk, in vitro, ex-vivo, and in silico, focusing on those promising to advance cancer research, therapy, and care.

2. Non-Animal Technologies

2.1. Static Cultures

Cancer research and drug development have long relied upon experiments performed using in vitro culture of cell lines and primary tumour cells grown in two-dimensional (2D) static cultures [40,41,42]. While these culture systems allowed to elucidate basic molecular signatures of cancer, and still are a gold standard in primary drug screenings [43], they fail to properly reproduce spatial and functional complexity of TME, and hence to predict the impact of drugs in individual patients. The pioneering work of Bissell and colleagues [44,45], has clearly demonstrated that normal and tumour cells grown in 2D culture significantly differ from those kept in 3D in terms of morphology, biological behaviour, gene expression profile and response to drugs [46,47].

Experimental cancer models should incorporate elements of the surrounding milieu, to recapitulate tissue specific multi-cellularity and architecture, biochemical and mechanical signals, cell–cell and cell-ECM interactions [40,41,42]. Moreover, in the perspective of patient-specific cancer therapy, the need for personalized tumour models is rapidly emerging [48].

Personalized 3D cell cultures include tumour spheroids, organoids, and explants. Spheroids are clusters of cells, aggregated under static conditions via hanging drop techniques or culture on non-adhesive substrates [49,50,51]. Spheroids derived from tumour cell lines or primary tumour cells recapitulate main features of human solid tumours like their multi-layered structure where peripheral proliferative cells surround a necrotic core, and hypoxia and nutrient gradients, making them suitable for drug screening [52,53]. More complex approaches that incorporate the ECM take advantage of natural or synthetic polymeric substrates with tuneable composition and stiffness. Such substrates can be formed as hydrogels or solid scaffolds, which provide mechanical support and biomimetic physical and chemical environment [54]. Scaffolds allow tumour and stromal cells to attach, and proliferate, mimicking cell-to-cell and cell-to-ECM signals [54].

A better approximation of tumour multi-cellular complexity is represented by patients-derived organoids, which are 3D cell aggregates generated by culturing pluripotent stem cells (PSC) or cells derived from patients’ tumour tissues (tumoroids) under appropriate conditions [48,55]. Compared to tumour spheroids, which are typically monocultures [50,51], organoids more closely mimic TME heterogeneity and composition, and the structure of the tumour they originate from. However, they still don’t incorporate key elements of the TME like the microvasculature. Moreover, current protocols to generate patient-derived tumour organoids have inconsistent yield, are complex and lengthy to implement, and are scarcely standardised across laboratories [52,55].

Finally, 3D bioprinting technology is emerging as a promising strategy to manufacture tissue-engineered constructs with well-defined 3D geometry [56]. 3D bioprinting can be used to build tumour constructs via sequential layering of living cells (both tumour and stroma) within functionalized biomaterials (bioinks) [56,57].

2.2. Ex Vivo Culture of Tumour Explants

Patient-derived preclinical models that can preserve tumour features and predict outcomes in a personalized manner are greatly solicited in the field of cancer drug discovery and development. Compared to tumour-derived organoids, tumour explants obtained from resected tumour/metastasis or biopsy specimens fully incorporate the native genomic, histological and functional profile of cancer cells within their TME [58,59]. For example, tissue slices of human gliomas have been successfully cultured and used to detect metabolically active EC-associated “hot-spots” in otherwise low-grade lesions [59].

Tumour explants cultured under static conditions have a limited lifespan in culture (less than 3 days) limiting their applicability. This limitation has been addressed through the application of dynamic culture technologies, including the Rotary Cell Culture System (RCCS) bioreactor.

2.3. Dynamic Cultures

The 3D models described above have a common limitation in that they do not allow appropriate transport of nutrients, solutes, and metabolic waste in and out of the cultured tissue, all pre-requisites to sustain long-term cell viability and prevent cell necrosis. Thus, complex cancer cultures typically have short life span in culture.

Seminal discoveries and inventions in recent years have fostered the transition from static to dynamic cultures. Dynamic cultures can better reproduce the changes occurring in a growing tumour by providing efficient mass transfer, i.e., nutrients’ delivery and metabolic waste removal, and thus preserving cell viability within 3D cell/tissue masses [60]. These culture conditions can be obtained using dynamic bioreactors [50,61], including roller bottles, spinner flasks, gyratory shakes, perfusion [62,63], and microgravity bioreactors [48,59,60,61].

Among these systems, the microgravity-based RCCS bioreactor stands out as suitable for culturing functional 3D tissue-like bio-constructs and explants of various origins. RCCS bioreactors were primarily used to facilitate the self-assembly and culture of scaffold-free spheroids [64], and then further tuned to tumour-TME co-cultures on scaffolds [65], and tissue explants to study molecular mechanisms involved in cancer development and biology, and for drug testing in a patient-specific context [66,67,68]. Culture in RCCS bioreactor allows to perform downstream analyses, including “Omics” approaches, to dissect metabolic and functional pathways operating within TMEs [69].

In recent years advances in microfluidics technology, i.e., the study of fluid flow within small (<100 micrometres in diameter) conduits and development of affordable devices operating in such conditions, has paved the way towards developing more biomimetic systems.

3D cell culture based on microfluidic devices (often called lab-on-chip, or micro-physiologic-systems, MPS) allows studying key processes like cancer migration, invasion, and angiogenesis, and drug responses in a miniaturized, yet precisely defined culture environment [70].

3. Modelling Tumour Vasculature and Angiogenesis

Micro-vessels, i.e., blood vessels, or capillaries with a calibre smaller than 100 microns, sit at the interface between blood and all tissues in the body. They mediate oxygen and nutrients diffusion, they regulate tissue development and homeostasis via angiocrine signalling, and they are the gatekeepers of immunity and iflammation [22,32].

Comprehensively modelling such functions in vitro is challenging and many of the currently available models [71,72] typically focus on aspects of only one specific function.

3.1. EC Cultures and PCS

The first step towards modelling the microvasculature in vitro is the ability to culture EC and vascular cells like pericytes, under physiologic conditions to retain their original phenotype and functions. After over 20 years of research, it is now possible to robustly isolate and subculture vascular and microvascular EC and pericytes from human samples (primary cells). Primary EC 2D cultures have been extensively characterised, standardised, and validated to model several functions like the endothelial barrier and angiogenesis (sections below).

A new perspective in culturing human EC comes from pluripotent stem cells (PSC) technology, whereby PSC can be differentiated into EC (PSC-EC) via directed differentiation [73,74] or by inducing transcriptional regulators of the EC fate via transgenic strategies [75]. PSC-EC can be generated in large quantities, they can be genetically edited via CRISPR-Cas9 (impossible with primary cells), and thus they are amenable to genetic/pharmacologic screening for drug development.

PSC-EC are also ideal tools to study developmental vasculogenesis/angiogenesis in vitro, to study tissue-specific vascularisation, and to create vascularised organoids. However, the current protocols to generate PSC-EC are still imperfect and until yet, PSC-EC are more expensive, complicate to culture, and less robust in culture than primary EC.

3.2. In Vitro Tools to Study Vascular Permeability and Trans-Endothelial Cells Migration

As discussed, leaky TAMV mediates aberrant extravasation of solutes and immune cells in the TME while offering an entry/exit point for metastatic cancer cells (Figure 1 D).

Transit of solutes and trans-endothelial migration of cells have been studied in vitro leveraging EC monolayer cultures (Figure 2 A, upper panels) upon semi-permeable membranes [76]. Using such assays, it is possible to observe and measure the effects of experimental perturbations (including patients derived samples [77]) on endothelial integrity, its permeability to macromolecules, and its propensity to allow cells’ transmigration. Trans-endothelial migration assays are amenable to high throughput screenings which, in turn, can be efficiently analysed with dedicated image analysis tools [78,79] to achieve detailed molecular insights at cellular and sub-cellular levels.

Despite their utility, initial trans-endothelial migration assays cannot fully reproduce haemodynamic forces, which are key determinants of the above functions. To overcome this challenge more advanced experimental platforms like MPS are required. In recent years several seminal works have established the utility of MPS to model endothelial barriers in different organs like the lung [80], liver [81] and brain [82], under physiologic perfusion. Recent work has also demonstrated how multiple MPS could be joined together to study systemic crosstalk between different tissue via vascular transport [83,84].

3.3. In Vitro Tools to Study Angiogenesis

The microvasculature, especially the TAMV, constantly remodels in response to homeostatic or pathologic stimuli. As discussed above, the angiogenic switch is a hallmark of cancer with therapeutic potential, and assays to study angiogenesis in vitro have been developed since the early 2000s.

Historically, beyond 2D EC monolayers, EC self-organization in tubule-like structures has been appraised by culturing on extracellular matrices containing appropriate growth factors (Matrigel, Figure 2 A middle panel). However, the Matrigel assay can only recapitulate early phases of vascular assembly, and it is inadequate to study sprouting angiogenesis.

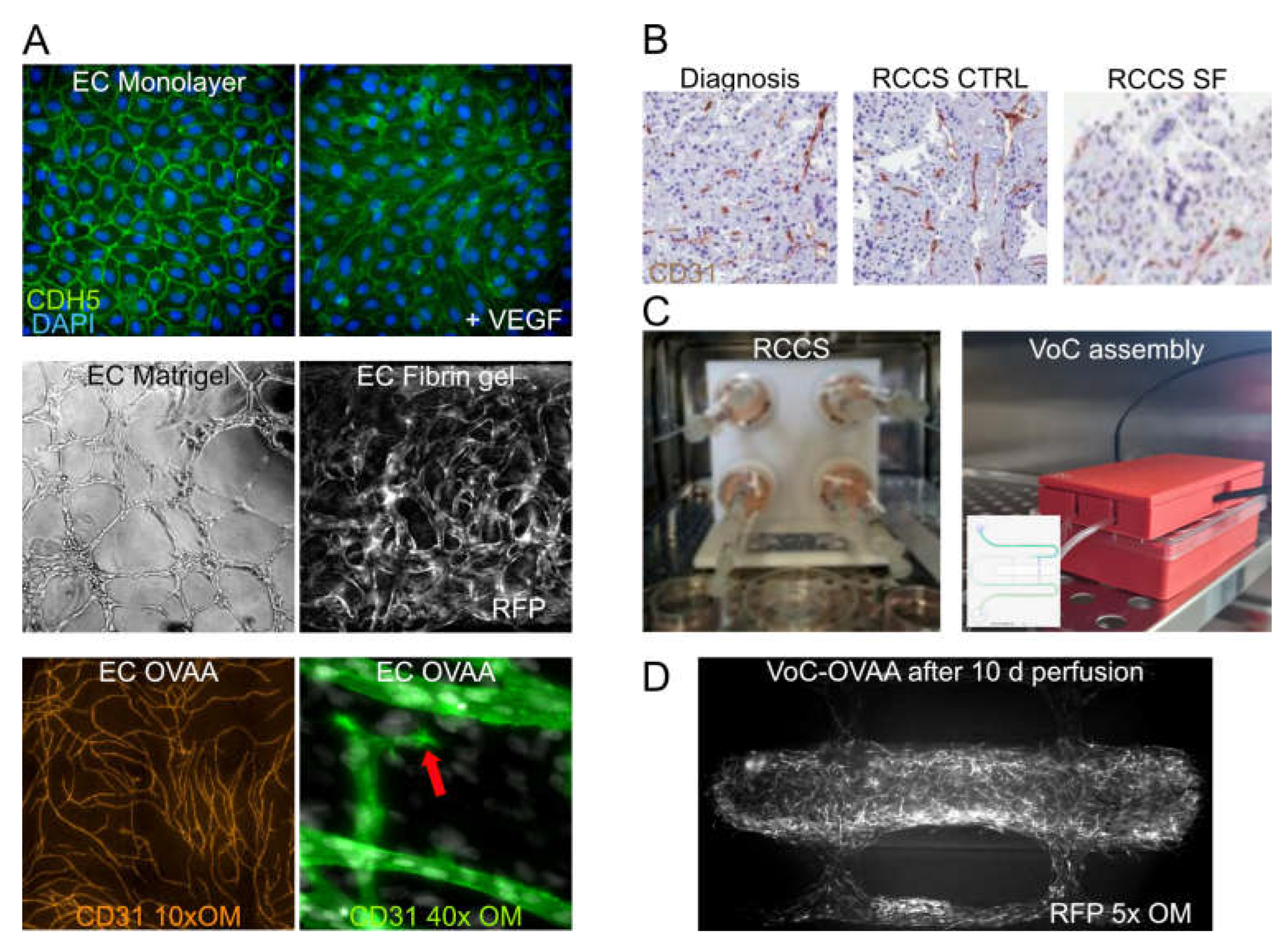

Hydrogel-based angiogenesis models like the fibrin gel assay [85] (Figure 2 A middle panel) offer a more developed alternative to study the initial phases of sprouting angiogenesis. The fibrin gel assay leverages the robust self-assembly of EC into patent microvascular networks within fibrin hydrogels and it has been used to study endothelial signalling during sprouting angiogenesis in different contexts [86,87]. However, microvascular networks grown in fibrin gels cannot mature into well-formed microvasculature mainly because such hydrogels do not possess appropriate mechanical properties.

Developmental and reparative angiogenesis mostly occurs within cell assemblies including matrix-producing stromal cells which offer appropriate biomechanical support and signalling to nascent micro vessels. This fact has inspired the development of a more biomimetic assay, the organotypic vasculo-/angio-genesis assays (OVAA) able to create patent capillaries within layers of matrix-producing fibroblasts or stromal cells [88]. The OVAA generates an interconnected network of patent and functional micro vessels resembling in vivo microvasculature. The OVAA is amenable to high throughput and timelapse imaging and can be used to observe and measure fine cellular and sub-cellular details during sprouting angiogenesis like tip cells, endothelial filopodia, and associated signalling (Figure 2 A bottom panels).

3.4. Vascularised Organoids and 3D Dynamic Cultures

Organoids are multicellular assemblies created by culturing adult or pluripotent stem cells (ASC, PSC respectively) under appropriate in vitro conditions which promote their self-organisation into organ like microtissues able to recapitulate selected tissue functions. Organoids are promising tools for applications like disease modelling and drug screenings. Organoids lifespan and viability in culture are limited due to inappropriate vascular supply, and novel strategies are being developed to overcome this limitation [89,90].

Vascularised organoids can be created by forming organoids in presence of primary or PSC-derived EC and perivascular cells like pericytes or smooth muscle cells [91,92]. Using these strategies several authors have reported successful creation of organoids embedding patent capillary-like structures [89,90]. Such systems can be used to study intratumor angiogenesis and angiocrine signalling, however, they cannot reproduce perfusion-dependent functions like mass transfer unless bioreactors like the RCCS described above (Figure 2 B, C) are used to facilitate it. Notably, the RCCS technology also allows the long-term evaluation of native tumour-associated angiogenic vessels inside cultured tumour explants, including their histochemical identification, quantification and functions [93], (Figure 2 B), and may in perspective be exploited to unveil and validate new molecular targets, thus improving efficacy of anti-angiogenic therapies.

3.5. Microphysiologic Systems to Perfuse Engineered Microvasculature

The research in the past years has yielded robust and flexible assays to create biomimetic capillaries which are amenable to high-throughput screenings and thus can be leveraged in drug discovery. However, until recently, perfusing remodelling capillaries like that in fibrin gels or the OVAA, aiming to enable physiologic mass transfer, has been very challenging.

The work of R Kamm and other groups has pioneered the development of perfusable self-assembling microvasculature in vitro leveraging microfluidics chips and the fibrin gel system described in previous sections. These works have provided many proof-of-principle applications to demonstrate their potential and utility in microvascular and cancer research [94,95,96,97,98]. For example, vascularised MPS can be used to reproduce aspects of the TAMV like its development, and its responses to anticancer drugs [98,99].

As discussed above, fibrin gel systems cannot support microvascular remodelling and maturation, yielding EC-lined sinusoidal structures rather than well-formed capillaries (Figure 2 A middle panel). Large tubule-like structures have low hydraulic resistance, and they can be easily perfused using gravity driven flow without the need of creating secure microfluidics connections. All this greatly simplifies chip manufacture and creating perfusable vasculature, which allowed all the seminal advances outlined above.

Building upon this research, we addressed two critical components that remained unresolved until recently: the need for continuous perfusion and appropriate mechanical stimulation of engineered capillaries, both chief modulators of microvascular architecture and functions. Via the OVAA co-culture model (Figure 2 A bottom panels) it is possible to provide appropriate extravascular signalling and mechanical stimulation to nascent vessels. To perfuse OVAA capillaries and thus provide intravascular flow-dependent mechanical forces, we developed the Vasculature on Chip platform (VoC) [100]. The VoC is based on optimised cell culture substrates, a system to create secure microfluidic connections, a fluidic design allowing medium recirculation, and a compact flow driver fitting standard cell culture incubators (Figure 2 C right panel).

Through the VoC-OVAA, we successfully demonstrated the creation of perfusable microvascular networks reminiscent of those observed in vivo and capable of remodelling over weeks under continuous flow, and a balance of intravascular and extravascular biomechanical forces (Figure 2 D) [100]. The VoC-OVAA allows long-term culture of perfused micro vessels and can be combined with other tissue culture techniques including organoids representing a promising platform to study angiogenic/angiocrine signalling in tissue microenvironments under physiologic conditions including mass transfer.

These technical advances have been made possible by the recent development of affordable microfluidic devices which enable creating appropriate interfaces between microfluidic channels and biologic systems of interest. Despite these advances, MPS technology is still in its infancy, and the future research will need to address key issues like improving biocompatibility, robustness, standardisation, and parallelisation of MPS platforms.

3.6. Spontaneous Tumour Models in Companion Animals

Spontaneous companion animal cancers (SCAC) [101,102,103] are emerging as an alternative to traditional laboratory animal models (LAMs) for cancer research [104]. Although SCAC involve animals, they don’t pose ethical concerns (as LAMs do instead) because they are spontaneously occurring due to similar risk factors than humans, they are treated with curative intent, and they do not involve any additional procedure on the “patient”. Inspired by the concepts of “one health” and “one medicine”, SCAC can be included in “clinical trials” and help us to shed new light on the fundamental mechanisms of oncogenesis which are common to all higher animals, including companion animals and humans.

LAMs typically use an immunocompromised animal, altering the immune response to the tumour while chemically induced tumours do not fully recapitulate the complex multifactorial nature of carcinogenesis [105]. On the other hand, spontaneously occurring cancers in domestic animals, mimic carcinogenesis and the body’s immune response more naturally, and the close relationship between humans and companion animals, results in shared cancer risk factors. For example, second-hand tobacco exposure has been identified as a risk factor for both human and feline oral squamous cell carcinomas [106,107]. The parallel advancements in human and veterinary medical research have dramatically increased companion animal’s life expectancy, without the possibility to evolve tumour suppressive mechanisms, leading to similarities in carcinogenesis in humans and companion animals [108].

As human and veterinary oncology research continues to progress, we are uncovering several prognostic cancer biomarkers common to humans and animals. There is mutual benefit to a comparative oncological approach, as findings from human cancer research can guide investigations in veterinary research and vice versa.

Diagnostic biopsies and tumour resections of spontaneously occurring cancers as part of the surgical management of the cancer contain a wealth of information including information on the tumour vasculature. For example, micro vessel density (MVD) has been investigated in both human and canine breast cancers and carry a similar prognostic significance [109,110]. In the case of prostate cancer, studies have identified numerous cancer-related genes that are altered in both humans and dogs [104,111]. In addition, VEGFR-2 and VEGF-A are evolutionarily conserved, and both carry similar prognostic trends in the two species [104,112].

Furthermore, certain cancers are rare in humans but relatively common in companion animals. For example, oral melanomas are extremely rare in humans, (1-2% of all oral cancers [113]). However, in canines, oral melanomas are the most common oral malignancy [114]. Dogs have been identified as a promising model to study human oral melanomas, and their high incidence provides ample data to study an otherwise very rare cancer in humans.

Combined with advances in computational pathology highlighted in following sections, cancer tissues can be further interrogated to identify biologically relevant prognostic biomarkers from the tumour microenvironment and associated vasculature.

There is a potential utility in performing veterinary clinical trials in spontaneously occurring tumours in companion animal models to form the evidence-base for subsequent human clinical trials. This allows drugs to be tested with curative and therapeutic intent in a system that more closely mimics the disease in humans. Such clinical trials would also provide researchers with the opportunity to observe longer term follow-ups and quality of life metrics from owner-reported questionnaires.

3.7. Computational Pathology and Artificial Intelligence

Human cancers are highly heterogeneous, morphologically, genotypically, and phenotypically, and this represents a main obstacle to understand their biology and deliver appropriate treatment.

Bioptic and excisional samples are an invaluable resource to better understand tumour heterogeneity, because they encapsulate much of the key information regarding each patient’s specific cancer. In parallel with ex-vivo culture systems described above, histopathologic analysis of diagnostic or cultured samples allows detecting and measuring architectural and cytomorphological features of the TME at the single cell level. Analysis of resulting data via univariate or multivariate statistics offers valuable diagnostic/prognostic information [67,115,116].

Systematic quantification of features of interest in bioptic samples is a daunting task if performed manually weighting on dedicated professionals outside their diagnostic routine and strongly limited by human capabilities and biases. Recent computational pathology and image analysis techniques including AI are very promising to automate and standardise tissue histomorphometry. Automation can remove observer’s biases, thus helping compilation of high-quality, large, potentially multicentric datasets [117].

For example, we have previously used image analysis to automatically measure MVD in cancerous, healthy, or irradiated tissue [115,118]. Translationally, this analysis allowed us to correlate MVD and irradiation dose in jaw bones, with direct clinical implications for oral rehabilitation of cancer patients receiving radiation therapy in the head and neck region [115].

However, standard image analysis requires homogeneous samples in terms of tissue preparation, staining quality and intensity, which is a limitation to reliably compare different experiments or samples from different sources.

Previous work has reported a performance decrease of AI models in segmenting heterogeneous Hematoxylin and Eosin (H&E) images without stain normalisation prior to analyses [119]. We have encountered similar challenges in our own work [120] using archival H&E slides.

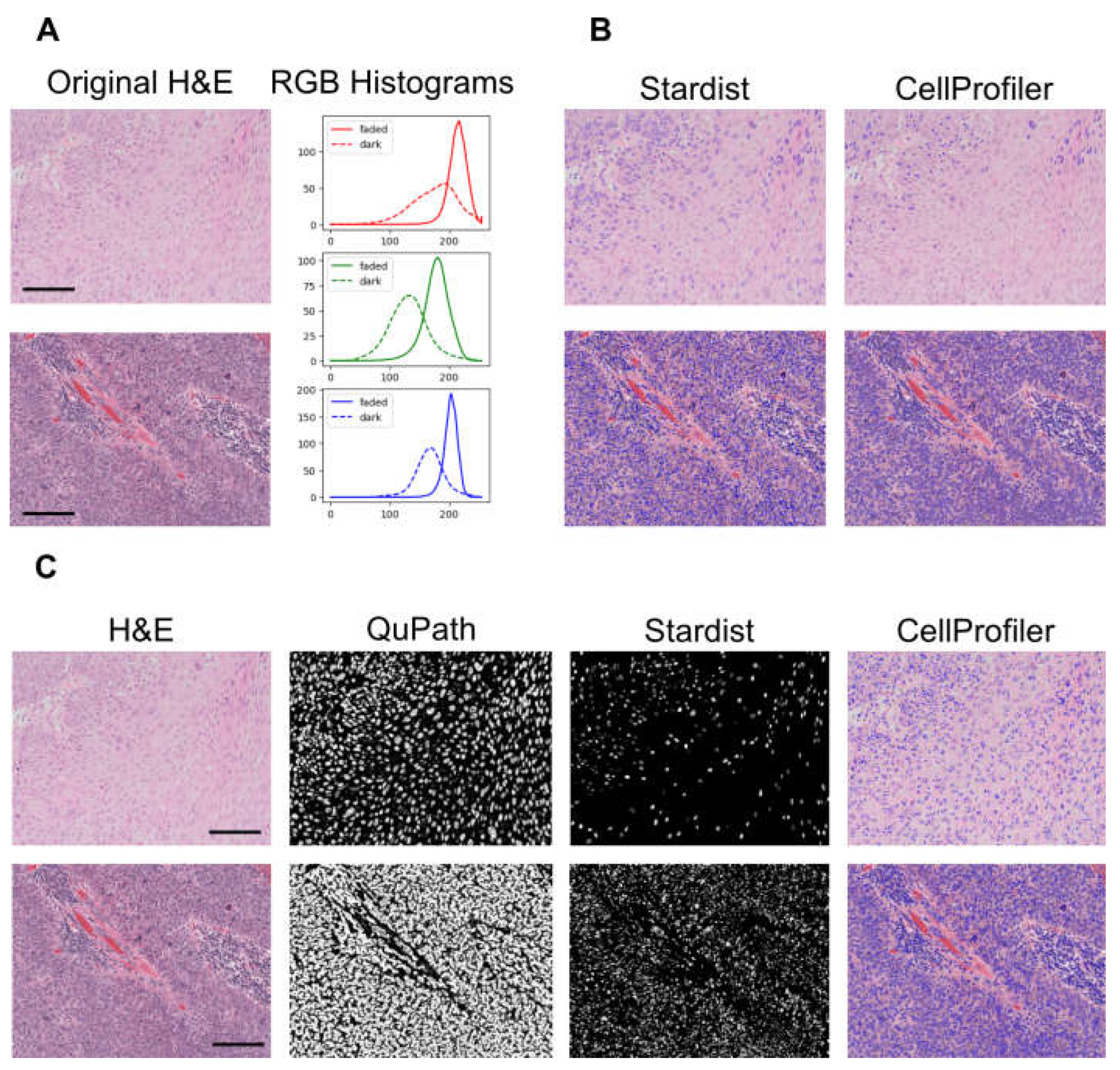

For example, the images shown in Figure 3 A have different staining intensities as evident from the corresponding intensity distribution R, G, B histograms. Standard segmentation techniques and even a Convolutional Neural Network (CNN) based segmentator (Stardist [121]) might fail to appropriately segment heterogeneous data (Figure 3 B). To overcome this issue a variety of image restoration techniques can be applied. Figure 3 C show an example workflow where the images are enhanced with a Random Forest based probability mapper prior to segmentation, and these predictions are further refined with Stardist to accurately identify all nuclei including correctly segmenting overlapping objects.

Using this strategy, we have demonstrated how single cells analysis in HPV positive oropharyngeal squamous cells carcinoma patients, can help predicting therapy outcome solely via analysis of diagnostic histological slides [120]. Thus, proper image pre-processing and accurate segmentation of biologically relevant structures in H&E images are the first step in extracting the rich data encoded within the tumour islands, the TME, and the TAMV.

AI, especially CNN [122], is rapidly reshaping cancer research and personalized clinical care through a wide range of applications, encompassing detection, staging and classification of cancer, and molecular characterization of tumours and their microenvironment [123]. Specifically, machine learning and AI have been successfully used to detect and measure micro vessels in cancer patients’ histopathological samples [124]. Advances in this field, together with the integration of additional data types, including genomics, epigenomics, and proteomics, are likely to yield even more accurate models to automatically detect and measure many features of interest to diagnose and prognosticate patient’s response to therapy or clinical outcomes.

The rapid growth of AI technology has also inspired criticisms and concerns. For example, most CNNs developed for image segmentation and classification do not allow experimenters to backtrack the features or weights that led to specific decisions.This poses ethical and legal concerns to the use of such models in the clinical practice where decisions must be always justified. Current research is concentrating on optimising AI algorithms and on developing robust validation strategies for current NNs and explainable AI technologies to overcome these limitations [125].

One method to introduce a degree of interpretability in “black box” deep learning models is to use class activation mapping which highlights areas of the images that contributed strongly to the model’s predictions. While this provides some insights regarding the most important image features, it does not provide clear explanations regarding how the overall decisions are taken [126]. Furthermore, in some instances, categories mapping areas do not correspond to biologically relevant features the pathologist may expect. Another method to improve the explainability of AI models is by utilising biologically significant features established in the literature as model inputs. Indeed, in our previous work [120] we quantified several pathologically known prognostic biomarkers such as the number of tumour-infiltrating lymphocytes, and tumour morphology as inputs to train an AI model to predict patient outcomes. This can help clinicians to build confidence in AI models trained on evidence-based and explainable features.

3.8. Mechanistic Modelling

As discussed above, we need to understand the dynamic evolution of cancer within its TME to treat it with maximal efficacy and minimal side effects. Biologic experimentation, including the in vitro systems discussed in previous paragraphs are often designed and interpreted via statistical methods providing a qualitative understanding of the underlying phenomena. Achieving comprehensive mechanistic understanding is more challenging.

Mathematical biology, i.e., the study of biological processes defined as mathematical rules, offers an exciting perspective to address this problem. By defining, calibrating, and using suitable set of rules (mathematic equations) we can model complex biologic systems and predict their evolution via computer simulations. For example, Physiologically Based Pharmacokinetics modelling, which allows predicting the adsorption, distribution, metabolism and excretion of drugs, are now widely used to investigate new cancer targeting drugs [127].

Physiologically Based Pharmacokinetics models are ideal to study molecules biodistribution and activity at the organs and systems scale, however they are not suitable to model cell-cell interactions at the tissue, cellular, and subcellular scales. Powerful tools developed in the past 20 years now allow modelling complex cell assemblies, and their signalling.

For example, biochemical network modelling (e.g., Boolean networks, ODE systems) which captures the dynamics of molecular reactions (e.g., enzyme kinetics) can help investigating intracellular signalling qualitatively and quantitatively [128,129]. On the other hand, spatial modelling (e.g., agent-based, cellular automata) can help studying cell-cell and cell-environment interactions dependent on relative cell adhesiveness or intrinsic motility [130]. Finally, multiscale simulations combine the advantages of spatial and non-spatial models to recreate virtual tissues composed of different cell types where the behaviour of each cell can be regulated by cell-specific signalling, juxtacrine, paracrine signalling among cells in the simulation, or interactions with the environment. Typically, multiscale tools offer facilities to simulate molecular transport within tissues including cell secretion and uptake allowing to model paracrine and long-range signalling or delivery of therapeutics.

Currently, there are several software to build and execute multiscale simulations with different focus. Notable examples like Morpheus [131] and Compucell 3D [132] offer a multiscale approach to virtual tissues development including the ability to create complex models of angiogenesis and cancer microenvironment [133,134,135].

For example, Figure 4 A and B shows results obtained by reimplementing the simulation developed by R Merks and colleagues [135] in Compucell 3D. The simulation allows exploring the role of contact inhibited EC chemotaxis and cell adhesion in self-organising networks like that observed in the in vitro Matrigel assay. The simulation reproduces experimental scenarios paralleling the results of perturbation experiments. However, due to its simplicity, and similarly to its in vitro counterpart, this simulation cannot reproduce more complex scenarios like sprouting angiogenesis.

More complex TME simulations can be created, for example, Figure 4 C shows qualitative results of a CC3D model reproducing cancer induced sprouting angiogenesis promoted by tumour-secreted VEGF which induces migratory tip cells and proliferating stalk cells selected by a lateral inhibition mechanism (adaptation after Shirinifard et al. [133]).

This kind of simulations can be invaluable to better interpret experimental results or clinical data, to optimally design new experiments, and, in the future, even to predict disease evolution, anticipate response to therapy, and design personalised therapeutic programs for each patient [136].

The promise is huge, however, selecting and calibrating appropriate rules is a formidable challenge as shown by substantial literature in the field. For example, it is established that simple models of cancer growth limited by immune response can generate complex and difficult to predict dynamic behaviours [137,138]. Much has been done to address these and other problems like appropriately leverage Omics “big data” [139]. However, there is still an urgent need to standardise in silico experiments across different platforms, and to establish suitable metrics to enable meaningful comparisons with experimental data, and cross-validation.

Purposedly designed dynamic cell culture systems described throughout the review can help experimentally measuring the dynamics of multicellular environments like the TME. Co-developing in vitro and in silico models, including suitable metrics common to both, will enable cross-validating simulations against experimental evidence increasing their predictive potential. Validated simulations will then allow inexpensively formulating and testing new hypotheses, and to plan optimally informative experiments.

4. Conclusions/Perspectives

The recent shift in the US FDA's stance towards non-animal pre-clinical testing highlights the growing need for new tools in biomedical research and drug development [39]. While achieving true biomimicry of human tissue in vitro is undoubtedly an ambitious goal, new NATs like patient-derived organoids, tumoroids, ex vivo cultures, and MPS are emerging as promising starting points. Specifically, human-based models of tumour vasculature and angiogenesis are actively pursued and expected to result in a better definition of the molecular mechanisms operating in the TME, and thus in the development of novel therapeutic approaches to manipulate and target cancer progression in individual patients.

Intra-tumour hypoxia and biochemical imbalance, along with resulting phenotypic heterogeneity and co-option of physiologic functions towards metastasis, are still key unresolved issue in cancer therapy. The TAMV is central to all these processes and despite inconsistent results of the first generation of VTTs observed in clinical trials, it is still one of the most promising targets for novel cancer therapies.

Despite significant recent progress, numerous challenges still need to be addressed to bring vascularized tumour models closer to clinical use, including the implementation and standardization of suitable in vitro techniques, as well as the development of widely used analysis tools and metrics for quantification [140].

We envisage that novel microfluidics technologies, bioreactor systems, and biomaterials will help the development of increasingly biomimetic MPS, where engineered or patients-derived tissue, like tissue slices [59], can be robustly cultured for extended time.

Mechanistically, new complex assays and MPS are very promising to replace animal experimentation in both basic and pre-clinical research. Such systems leverage the simplicity of in vitro experimental manipulation, including transgenic approaches, the possibility to appreciate variability in human cells phenotype, and the ability to model complex functions. Furthermore, like 2D culture systems are a gold standard in primary drug/toxicology screenings [43], we envisage that more complex but robust in vitro screening will take the lead in modelling functions like angiogenesis and microvascular homeostasis, reducing the need for animal testing in such contexts.

Tissue, systems, and organism level interactions have been very challenging to model in vitro until recently, leaving animal experimentation as the only viable option. New technologies like ex vivo cultures [68] offer an exciting translational perspective to model and study tissue-level functions, and new multiorgan MPS are being developed to achieve a system level perspective [83]. We envisage that by fostering tight collaboration between clinician, biologist and engineers, such technologies will mature until eventually surpassing in vivo experiments in delivering research or prognostic value.

Capturing, studying, and understanding the variability of cancer phenotypes and manifestations among different patients, with different genetic background, lifestyles, and exposure to risk factors, is a key unmet need that eludes the capabilities of typical animal experiments. Organoids technology can aid unravelling these aspects in vitro [141], and AI-powered digital pathology and OMICS are powerful tools to tackle this challenge, by providing tissue level insights. These technologies are revealing the complexity of hFuman cancer tissue composition [142], and via appropriate statistic modelling they are highlighting useful biomarkers for patient’s stratification and therapy optimisation [120,143]. In addition, taking inspiration form the “one health” concept (https://www.who.int/health-topics/one-health), there is a clear indication to investigate cancers and their development in domesticated animals [104]. This way we can bypass the ethical concerns weighting on traditional animal models, mine an existing and potentially huge source of new data, and promote an integrated health care for humans and companion animals.

The need to mine large data generated via high throughput screenings, OMICS and computational pathology has sparked intense research in bioinformatic yielding numerous tools to infer mechanistic knowledge from large data. Further than this, mechanistic mathematical modelling is offering exciting perspectives to model and simulate multiscale functions, from genes, through cells and tissue, to organs and systems in silico. Despite the promises, creating, calibrating, validating, and standardising these models, is still a huge and only partially addressed challenge.

As discussed above in vitro and in silico technologies can complement and empower each other to create NATs for research which can be further developed to pre-clinical or point-of-care precision medicine applications [144].We believe that all of this will ultimately yield a better understanding of cancer, the TME, and their dynamic responses to therapies to the benefit of patients.

In conclusion, NATs can help us tackle unmet research and clinical needs emphasizing sustainability and translation: To understand the dynamic evolution of the TAMV and TME, to devise new therapeutic strategies, to aid drug discovery, to expedite the diagnostic process, and to personalise therapy.
