Designing an Interactive Visual Analytics System for Precipitation Data Analysis

1. Introduction

Urban development transforms natural surfaces into impermeable ones, which can lead to multiple negative consequences such as increased runoff volume and peak flow, flooding, stream bank erosion, and diminished water quality [1,2]. To protect both society and the environment from these stormwater impacts, engineers and water resource professionals deploy urban stormwater management infrastructure systems [3]. The planning and design of these systems necessitate determining the appropriate sizes, configurations, and operations of engineered elements [4]. Precipitation, including rainfall and snow, serves as the fundamental input parameter for all hydrologic and hydraulic analyses and stormwater management models [5]. Precipitation occurs as a sequence of random meteorological events characterized by varying amounts of rainfall, duration, intensity, and inter-event time [6]. Thus, analyzing their distribution over time and understanding these rainfall characteristics are crucial for developing effective stormwater management systems [7,8].

This study presents an interactive visual analytics system utilizing hourly precipitation data (HPD) to address the challenges of analyzing precipitation patterns in a changing climate, where many regions of the United States are experiencing shifts in rainfall frequency and intensity. Since no single data source provides continuous hourly precipitation records, we have built a comprehensive dataset by integrating various data sources, addressing missing values, and resolving duplicated records. With this dataset, we designed a precipitation analysis system to enable comprehensive storm event characterization based on inter-event time definition (IETD) methodology. The system provides multiple coordinated visualizations that support revealing temporal patterns, spatial distributions, and statistical characteristics of precipitation events. With the system, users can perform interactive exploration to identify precipitation extremes, compare storm events across various timeframes and locations, and identify critical threshold exceedances. As an analytical tool, it allows the selection of meteorological stations of interest, manipulates parameters, and conducts scenario analyses for extreme storm events and their flooding potential. Specifically, it provides both station-specific analysis and multi-site analysis interfaces. The station-specific analysis supports precipitation analysis on individual weather station data. It enables identifying precipitation frequency and trend analysis. It also helps in conducting monthly and seasonal analyses of precipitation data. The multi-site analysis interface enables comparative precipitation analysis across multiple stations, supporting annual and monthly precipitation comparisons. The integration of multi-source hourly precipitation data with visual analytics improves complex hydrological analysis by applying multiple statistical methods for identifying precipitation events and characterizing their properties so that insights derived from the system are statistically sound.

This designed interactive visual analytics system is particularly valuable because it supports detailed analysis of identifying storm intensity, duration, and frequency. In addition, it can detect precipitation trends and possible anomalous precipitation events. Because of these multiple features, the system may provide critical information for designing efficient drainage systems, supporting flood forecasting, and informing hydrologic modeling through detailed precipitation analysis. It also allows users to download precipitation data for further analysis. To determine the usefulness of the system, we performed case studies demonstrating its effectiveness in supporting interactive precipitation data analysis, enabling precise characterization of precipitation patterns, and supporting evidence-based decision-making for infrastructure design, emergency management, and climate adaptation strategies. In summary, this study has the following contributions:

• Created a comprehensive hourly precipitation dataset by building a composite weather station list and integrating multiple data sources
• Designed an innovative visual analytics system for hourly precipitation data analysis
• Integrated multiple statistical analysis methods into visualizations to address limitations of analyzing precipitation data
• Provided multiple user interaction techniques to help users conduct interactive visual analysis on single as well as multiple weather station data

This paper is organized and consists of seven sections. In Section 2, existing studies conducting rainfall event analysis are reviewed. Section 3 provides a detailed explanation of how the comprehensive hourly precipitation dataset is created. After providing a short explanation of the definition of IETD analysis in Section 4, a detailed explanation of the designed system is introduced in Section 5. Performed case studies and findings are included in Section 6 with conclusion and future works in Section 7.

2. Previous Work

Analyzing precipitation data is essential in water systems and climate research to understand trends, patterns, and extremes of climate change. Many studies have been proposed to investigate different methodologies and applications of precipitation data analysis in different contexts. Precipitation research can be generally categorized into three areas: 1) predictive modeling, 2) long-term pattern analysis, and 3) event-specific analysis.

The first stream of research focuses on developing models to predict future precipitation by applying machine learning and statistical methods. Researchers have attempted to generate various precipitation forecasts based on various environmental and meteorological factors. For example, Soe [9] introduced a rainfall forecasting system by applying softmax regression. They analyzed historical weather data with the system to predict the probability of class membership by categorizing them into one of five classes - light, moderate, heavy, violet, or no rainfall - based on the maximum likelihood. The proposed method was tested using weather data collected from 11 cities in Myanmar for 2018 and 2022. The result showed that the system can predict an 83% accuracy rate in rainfall prediction. Bartwal et al. [10] examined the effectiveness of machine learning algorithms in predicting rainfall using the dataset that includes meteorological data such as temperature, humidity, wind direction and speed, atmospheric pressure, and cloud coverage. To improve data quality, they applied various data preprocessing techniques to handle missing values, re-sampling to address data imbalance, encoding categorical features, and detecting outliers. They also performed a feature engineering process to remove irrelevant or redundant attributes. Among the different ML algorithms they evaluated, the results showed that ensemble learning methods, particularly LightGBM, Random Forest, and XGBoost, demonstrated high accuracy and predictive power on both validation and testing sets.

Traditional statistical methods often struggle to capture complex, nonlinear characteristics from precipitation data. To address this challenge, Kumar et al. [11] investigated applying advanced sequential deep learning models, such as Recurrent Neural Networks (RNN) and Long Short-Term Memory (LSTM) networks, in monthly precipitation prediction using all-India monthly average precipitation for the period 1871-2016. They found both RNN and LSTM models captured temporal patterns effectively. They also determined that the RNN model required more computational resources and had higher training complexity. As a result, the LSTM model was recommended for more efficient and accurate precipitation forecasting across various regions in India. Manandhar et al. [12] developed a data-driven machine-learning approach for rainfall prediction. Different ground-based weather features were identified, including temperature, relative humidity, dew point, solar radiation, PWV, and seasonal and diurnal variables, as they may affect precipitation. Although all features contribute to rainfall classification, only a subset, such as precipitable water Vapor, solar radiation, and seasonal/diurnal features, are particularly significant for rainfall prediction. They used these key factors to develop the best feature set for the machine learning algorithm. Experimental results demonstrated a true detection rate of 80.4%, a false alarm rate of 20.3%, and an overall accuracy of 79.6%. They found that the proposed method significantly reduces the false alarm rates compared to previous studies, which reported false alarm rates between 60% and 70%.

The second research stream focuses on the long-term analysis of precipitation patterns and trends. These studies examine variation in precipitation over time by examining seasonal and annual fluctuations. Partal and Kahya [13] examined significant changes in annual and monthly precipitation patterns across different regions of Turkey. They used two non-parametric statistical techniques, the Mann–Kendall and Sen’s slope trend test, to analyze a dataset from 96 precipitation stations between 1929 and 1993. The Mann-Kendall test was used to identify significant trends. The Sen’s slope estimator was used to determine the trend magnitude. Since both techniques do not hold any assumptions about the underlying distribution of data, they are suitable for time series precipitation data analysis. They found significant shifts in monthly trends in January, February, and September, indicating possible seasonal changes in rainfall patterns. Additionally, there was a considerable decline in the annual mean precipitation in western and southern Turkey and along the Black Sea coast. Zerouali et al. [14] introduced three hybrid methods that combine the Innovative Trend Methodology (ITM) and two extensions - Double ITM (D-ITM) and Triple ITM (T-ITM) with the Hilbert Huang Transform (HHT) for analyzing and visualizing rainfall trends. This integrated framework isolates long-term trends by minimizing the influence of short-term variability or noise. They collected and examined annual precipitation data of three different hydrological basins in Northern Algeria from 1920 to 2011. They found that the hybrid approaches yielded important insights and revealed hidden trends. They also determined significant wet periods from 1950 to 1975, followed by a long-term drought in the western region of Northern Algeria. Their comparative results demonstrated that the hybrid methods performed better than conventional methods using Discrete Wavelet Transform (DWT) in identifying hidden trends and providing better visualizations. Panda and Sahu [15] examined long-term trends, variability, and seasonal changes in rainfall and temperature in Odisha, India. Monthly rainfall records and average maximum and minimum temperatures between 1980 and 2017 were analyzed. They found an overall upward annual rainfall trend, with a notable increase during the monsoon season (June to September). In addition, an overall increasing trend in annual temperature was observed, although the maximum and minimum temperatures during the monsoon season showed a decline. Mallakpour and Villarini [16] examined evolving flooding patterns. They employed a block maximum approach to extract the largest daily values within each block. Regression analysis in conjunction with the Mann-Kendall test was employed to identify patterns in the frequency and magnitude of floods over time. They investigated seasonal patterns and the impact of temperature and precipitation as possible causes of the pattern changes. They found little evidence of significant changes in flood peak magnitudes but discovered strong evidence that the frequency of flood events rises. In particular, the central and eastern parts of the region experienced more frequent and severe consecutive wet days and heavy precipitation events. A higher flood frequency was due to seasonal rainfall patterns and temperature changes.

The last stream of research focuses on analyzing specific precipitation events that address severity, frequency, and spatial variation. These studies attempt to improve the knowledge of extreme weather events and their impact on flood risk management and urban development. For example, Zhou et al. [17] examined spatial heterogeneity and frequency of extreme rainfall events in the Baltimore Metropolitan region. They created a comprehensive storm catalog that includes significant storm properties like rainfall intensity, duration, and spatial coverage using a 16-year high-resolution radar rainfall dataset. Spatial distribution and frequency of extreme rainstorm events were then assessed using the stochastic storm transposition (SST) method [18]. From examining two extreme storm events, they demonstrated that the storm catalog with SST effectively captures rainfall spatial and temporal variability. This combined approach provides an effective framework for rainfall intensity-duration-frequency (IDF) estimation in urban planning and flood risk management. Pawar et al. [19] analyzed rainfall intensity and duration data from 1996 to 2019 for the northeastern region of the Nagpur district, India. They applied three statistical distribution methods to develop IDF curves - Log-Normal, Gumbel, and Log-Pearson Type III. The Gumbel distribution was identified as the most suitable model through goodness-of-fit tests and the least sum of squares model identification criterion (LSSMIC). Hael et al. [20] used a statistical functional data analysis (FDA) approach with visualization techniques to analyze daily rainfall data collected in the Taiz Region between 1998 and 2018. As a statistical approach, FDA is good for analyzing time series data since it displays data as smooth curves or functions. Discrete rainfall measurements were converted into continuous functional forms using Fourier basis functions. These functional data were then smoothed through penalized smoothing based on a generalized cross-validation (GCV) criterion to reduce noise and errors and estimate the curves. Subsequently, functional statistical measures - including the mean, standard deviation, covariance, and correlation - were computed to illustrate rainfall variation over time. In particular, singular value decomposition (SVD) [21] was applied to visualize patterns of the functional data. The study showed that the FDA and visualization methods can provide meaningful insights into rainfall patterns and future trends.

Understanding rainfall event patterns is crucial for generating precipitation analysis models and designing urban drainage systems. However, it is difficult to identify independent rainfall events from continuous rainfall records, which consist of sequential pulse (rain periods). Inter-event time Definition (IETD) is commonly used to isolate distinct events, which is the minimum dry period between two consecutive rainfall pulses (see Section 4 for details about the IETD analysis). Because they only consider rainfall event characteristics, traditional IETD estimation techniques like the autocorrelation coefficient, variation in average events, and coefficient of variation may produce inappropriate IETD values. Joo et al. [22] presented a novel solution to this problem by defining IETD as the time between the end of rainfall and the end of direct runoff, considering drainage basin and rainfall characteristics. The proposed method was applied to the Joong-Rang drainage system to establish an area-IETD relationship curve, which was then used to estimate IETD for other urban drainage systems. Simulation results revealed that the new IETD values showed peak flow rates 11% to 15% higher than those estimated using the traditional Huff’s method, which assumed a six-hour IETD. These findings highlight the importance of considering rainfall and basin characteristics in IETD determination. Dey and Hazra [23] introduced a semiparametric Bayesian generalized exponential (GE) regression model by integrating parametric and non-parametric components. They also included a principled distance-based prior for the shape parameter. This prior is intended to shrink the GE distribution towards the exponential distribution to preserve the advantages of the exponential family and the adaptability of the GE model. Extensive simulation experiments were conducted to assess long-term rainfall patterns of 1901-2022 during the monsoon season across the Northern, Middle, and Southern Western Ghats regions in India. They demonstrated that the Penalized Complexity (PC) prior outperformed the traditional gamma prior in terms of coverage probability. Furthermore, there was a significant decrease in absolute fitting error and estimation bias. These results show the precision and reliability of the proposed model over conventional parametric models.

In precipitation data analysis, researchers have broadly used visualization techniques to represent data, patterns, extremes, and trends through basic time series plots, contour maps, and isohyet analysis [24,25,26]. Maidment [27] established standardized approaches for rainfall visualization in hydrologic modeling that emphasize spatial distribution representation within GIS. Gerst et al. [28] performed a study on understanding and improving climate outlook visualizations from NOAA’s Climate Prediction Center. By testing various visualization design versions through interviews and visualization diagnostic guidelines, they emphasized the value of visualization diagnostics in improving complex climate data visualization. Gimesi [29] developed a visualization technique to display changes in various weather parameters over time, demonstrating climate change impacts. They used artificial neural networks (ANN) and a surface joint method using least squares modeling to identify precipitation patterns. Tanaka et al. [30] designed a novel visualization approach to representing precipitation and river water level relationships by incorporating scatter plots. Instead of utilizing a traditional map-based visualization, they designed a graph structure mimicking river tributary systems’ natural connectivity to illustrate rainfall and river level relationships at the same station across multiple time periods. Although numerous studies have applied visualization techniques to improve precipitation data analysis, their primary consideration is to address specific problems rather than develop a comprehensive visualization framework for high-resolution temporal precipitation analysis. Thus, this study introduces a new interactive visual analytics system for addressing this need.

3. Comprehensive Hourly Precipitation Dataset

3.1. Data Collection

Since existing HPD records frequently contain gaps (missing measurements, inconsistent recording periods, or no data due to temporary station outages), we created comprehensive long-term HPD by integrating multiple data sources to construct a complete dataset. Cooperative Observer Program (COOP) Hourly Precipitation [31] is used as a primary data source because it provides well-organized hourly precipitation measurements. The COOP HPD contains quality-controlled precipitation amounts (hourly accumulation for rain and snow) [32] from approximately 2000 observing stations across the United States and several U.S. territories in the Caribbean and Pacific, collected through the National Weather Service (NWS) Fischer-Porter Network [33]. Since the COOP program was phased out in 2013, we incorporated Local Climatological Data (LCD) [34] as our secondary source. LCD is an active, reliable repository of weather and climate data summarizing conditions from airports and prominent weather stations managed by the NWS, Federal Aviation Administration (FAA), and Department of Defense (DOD). While LCD primarily provides monthly summaries of daily temperature extremes and averages, it also includes hourly precipitation data from approximately 1000 U.S. stations.

Although the two datasets contain substantial hourly precipitation records, no common unique identifiers exist for direct alignment. Therefore, we implemented a semi-automatic mapping process by creating a unified weather station list and cross-referencing attributes between the datasets with the list to ensure accurate unification into our comprehensive HPD repository.

3.2. Building a Unified Weather Station List

We first focused on creating a unified station list to track the geographical locations of weather stations effectively. Various organizations and agencies operate and manage their weather stations and collect data, including the National Centers for Environmental Information (NCEI), NWS, FAA, the World Meteorological Organization (WMO), the International Civil Aviation Organization (ICAO), and more. Each organization uses unique identifiers to handle its stations. Thus, we created a unified station list by cross-referencing attributes from multiple data sources. Each station on the list has 46 attributes, including longitude, latitude, elevation, station name, physical address, and the dates marking the beginning and end of data collection. The list includes 85,003 stations, averaging about 1,700 stations per U.S. state. Delaware has the fewest stations, numbering 181, whereas Texas has the most, with 6,794 stations.

As discussed in the previous section, the two datasets (LCD and COOP HPD) are used in this study. They use distinct station identifiers - NCDC ID for the LCD and COOP ID for the COOP HPD datasets. To combine the datasets, the Historical Observing Metadata Repository (HOMR) [35] is used as the primary weather station referencing data. HOMR is NCEI’s integrated station history database. It provides detailed information for various weather stations throughout their lifespans, including identifiers, names, locations, observation times, reporting methods, photos, equipment modifications, and siting. However, HOMR does not include information on unique weather station identifiers. Therefore, we performed data filtration and merged multiple duplicate entries by cross-referencing other additional station datasets, including the primary sources of the International Civil Aviation Organization (ICAO), the FAA, Transport Canada, the NWS, and the WMO. It is important to note that this study only considers weather stations in the U.S. Thus, all international weather station identifiers are excluded.

For example, Table 1 shows records about the station “NEWPORT MUNICIPAL AP” in Oregon, which has been operational since 1949. We found the COOP ID missing for specific periods. We also discovered that the station dataset contained duplicate entries. Thus, we reduced records by combining identical geographical information into a single station entry to address the duplicate entries and avoid missing or redundant data. Because of the scale of the data, which included numerous weather station records, we handled all inconsistently formatted data entries by evaluating the records referencing their original data specifications. Since many data entries were inconsistently formatted, we performed repeated manual reviews to ensure the accuracy of the final corrected station dataset.

A composite station dataset is created by incorporating multiple attributes to track each weather station. Since no universal unique identifier exists to manage all weather stations, a unique identifier number is assigned to handle each station in the dataset. This number is also used to support per-station data analysis with the designed visual analytics system. Since various organizations use different identifiers to handle collected weather data in weather stations, the dataset includes ten identifiers (nine IDs and one call sign) for future reference and connectivity to the original data source. For example, the NCEI uses NCDC IDs (National Climatic Data Center IDs) to manage weather station records. The World Meteorological Organization (WMO) assigns WMO station numbers to weather stations worldwide. These identifiers are used to standardize weather station data internationally.

When referencing multiple weather station datasets, we identified nine unique identifiers managed by different organizations. All station identifiers are saved in the composite station dataset for future reference. Unlike other organizations, the Federal Aviation Administration (FAA) uses a call sign to identify an aviation-related weather station because many FAA-managed weather stations are located at airports. It provides hourly meteorological data such as temperature, wind speed, visibility, and precipitation. Since FAA call signs are used alongside other identifiers like System Identification Numbers (SID) (assigned by the National Weather Service) and WMO station numbers (used internationally), the call sign information is also included when creating the station dataset. Detailed information about the dataset can be found in Appendix A.

Table 2 shows examples in the generated composite station dataset. Multiple identifiers are assigned to indicate the same weather station. For instance, in the COOP HPD dataset, COOP_ID (503475) is used to identify the weather station in Alaska (AK). However, we discovered multiple NCDC identifiers (10000158 and 10500011) assigned to the weather station in the LCD dataset. This occurs because new identifiers are typically assigned when a weather station is relocated within the same geographical region. Through our analysis of the station data, we determined that this particular station has been relocated multiple times (i.e., 1.5 MI NE, 1.5 MI E, 1.25 MI SW, 1 MI NE, 2.7 MI SW, 1.25 MI NE, 2 MI W, and 2.7 MI SE). Approximately 11,926 stations have such relocation information. We included a comprehensive record of all stations’ historical identifiers and relocation details for future reference.

3.3. Managing HPD Data

We implemented a multi-table database structure to efficiently handle a large amount of HPD (approximately 163,779,579 hourly precipitation records and continuously growing) and enhance data access performance and management. Specifically, a per-state structure is designed to store and handle HPD for each U.S. state. This approach enhances query performance because state-wide data retrieval operations and precipitation data analyses occur within isolated tables. The structure ensures faster data fetching and more efficient index utilization. It also provides significant advantages when inserting new HPD records while addressing unexpected data format issues or missing values. Since each table’s indices handle only the HPD recorded in a U.S. state, their size remains relatively small compared to managing all HPD in one table.

However, this approach has the limitation of increasing query complexity when analyzing precipitation data across multiple states. To support multi-station analysis, accessing cross-state data in different tables requires additional logic and more sophisticated application codes. It also potentially increases storage overhead and memory usage for table metadata because separate table structures and indexes are used to handle each state’s precipitation data. Despite these limitations, we adopted the multi-table database structure because it is particularly beneficial for designing an interactive visual analytics system where quick response time is crucial for real-time data analysis. Additionally, the per-state structure enables faster updates or corrections of HPD records because of utilizing isolated database operations on specific tables.

4. IETD Analysis

Storm events can be characterized both by their directly observable parameters and by derived properties requiring modeling [36]. The directly observable parameters include total precipitation volume, storm duration, average intensity, antecedent dry period, peak intensities, and temporal distribution. The derived properties are determined through analysis that integrates different stormwater models to identify moisture distribution, storm structure, energy dynamics, and circulation patterns. Analyzing both observable and derived characteristics is important for understanding the complete dynamics and impacts of storm events. Although supporting both characteristics is important, we only consider providing multiple visualizations to support examining different observable characteristics.

For precipitation analysis, we applied IETD analysis [22,36] to determine observable characteristics of storm events. It identifies clear boundaries between independent storm events by evaluating minimum dry periods and separating consecutive precipitation occurrences into distinct events.

Specifically, it uses a predefined threshold value $\theta$ to classify consecutive precipitation events as single or separate events. Figure 1 demonstrates how the IETD analysis determines storm events using the defined threshold ($\theta =2$ hours). Two events are identified as separate events, indicating that event A ($E_A^{\theta }$) has multiple small amounts of rainfall of less than 1 inch and event B ($E_B^{\theta }$) has a burst of rainfall in 2 h. In event A, several minor precipitation occurrences at the beginning and end are considered part of the same event, as they fall within the IETD threshold ($\theta$).

Since it identifies clear boundaries between independent storm events, it helps determine significant precipitation characteristics through statistical analysis. If each event (E) consists of a sequence of precipitation measurements $(p_i,t_i)$ where $p_i$ is the precipitation intensity amount (inch per hour) at time $t_i$, it can be represented as,

$$E=\{(p_i,t_i)\mid t_{i+1}-t_i\le \theta ,p_i>0\},i=1,\cdots ,n$$

where n represents the total number of observations. Each event’s characteristics can be determined as total event duration ($\Delta t=t_n-t_1$), total precipitation ($\mathcal{S}={\sum }_{i=1}^n{p}_i$), and average precipitation intensity (${\overline{p_E}}^{\mathrm{new}}={\displaystyle \frac{{\sum }_{i=1}^n{p}_i}{n}}$). The average precipitation computation method we used in this study differs from the traditional approach (${\overline{p_E}}^{\mathrm{old}}={\displaystyle \frac{{\sum }_{i=1}^n{p}_i}{\Delta t}}$). In detail, our method calculates the average precipitation by dividing the total precipitation ($\mathcal{S}$) by the number of non-zero precipitation occurrences. In IETD analysis, events often include time steps with zero precipitation between precipitation occurrences depending on the user-defined IETD threshold value. Thus, excluding precipitation periods that have zero intensities is important when computing average precipitation intensity. For example, twenty-eight non-zero precipitations were observed in event A ($E_A$). Since the total precipitation ($\mathcal{S}$) is $6.24$, the computed average precipitation becomes $6.24/30=0.208$ with the traditional method. However, our approach generates $6.24/28=0.222$, excluding two zero hours. It shows a slightly higher precipitation intensity value. The proposed method represents a precise average intensity during actual precipitation periods because it excludes the two zero precipitation periods. Since precipitation patterns are often observed as a series of events with varying intensities and durations, temporal separation is critical to determining periods of precipitation as single, independent events rather than separated occurrences.

The IETD threshold is typically determined by analyzing the time of concentration of the watershed, the characteristics of the drainage system, and local climate patterns [37,38,39]. Using an appropriately determined IETD threshold is critical for accurate precipitation event analysis. If a small IETD threshold is used, a single event may be incorrectly identified as multiple separate events. Conversely, distinct events may be combined to represent a single event in case a high threshold is used. Using an improper IETD threshold may result in incorrect estimation of event frequencies and magnitudes, which could cause a problem in designing a proper drainage system and eventually failing to handle actual storm events correctly. For this reason, in typical urban watersheds, IETD values typically range from 3 to 24 h, depending on catchment characteristics [22,40].

5. Interactive Precipitation Data Analysis System

An interactive visual analytics system is designed to support IETD analysis on visualizations, providing seamless access to hourly precipitation data through a web-based interface. As discussed above, the system manages all hourly precipitation data into a unified database structured with multiple tables to enable efficient data retrieval and analysis. Since each table handles hourly precipitation data for dedicated stations within the state, it provides fast access to each weather station’s hourly precipitation data. Once data is fetched from the database, JSON-formatted precipitation data is created to build interactive time series and multiple visualizations on a web browser.

We designed two distinct interfaces, a station-specific analysis interface and a multi-site analysis interface, to support interactive data analysis within the system. These two interfaces follow distinctive approaches to allow various precipitation pattern analyses. The station-specific analysis interface enables an in-depth examination of individual weather station’s data. It supports temporal pattern analysis (e.g., seasonal variations and storm durations) and local characteristics assessment (e.g., precipitation intensity and event frequencies) on the selected stations HPD. The multiple-site analysis interface supports the analysis of weather patterns across different regions or areas through simultaneous analysis of multiple stations. It helps in understanding spatial distribution (e.g., precipitation gradients between stations, localized heavy precipitation areas) and storm movement patterns. The following subsections provide detailed explanations of both approaches and the system supporting them.

5.1. Station-Specific Analysis Interface

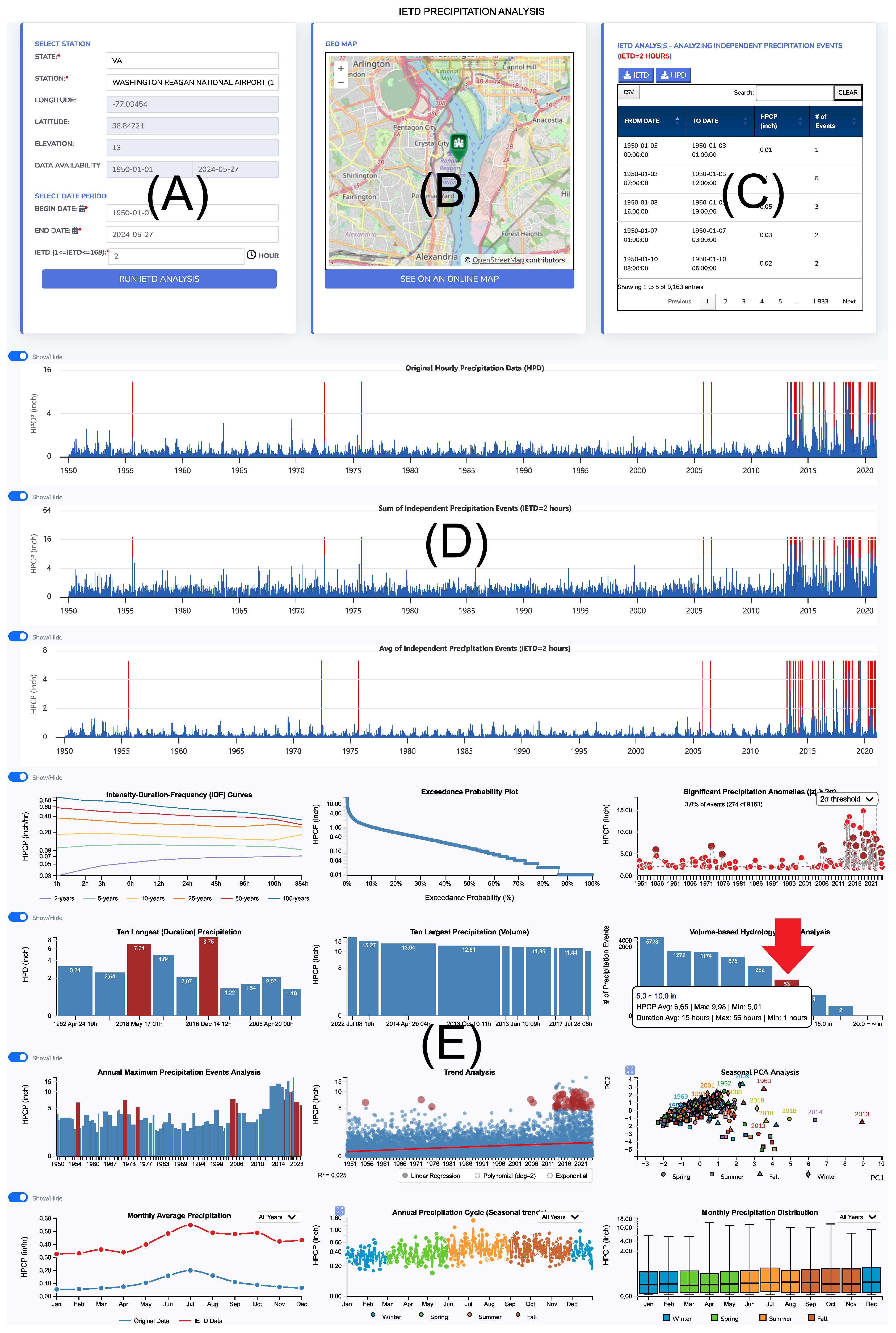

The station-specific analysis interface allows examining precipitation patterns on a selected individual weather station data to find temporal trends, seasonality, and anomalies. Figure 2 shows an example of analyzing the precipitation data from a weather station located at Washington Reagan National Airport. Users can select a specific weather station and specify an IETD threshold in control panes (A). The figure shows a user set the IETD threshold value of 2 h and selected the period from 1950 to 2022. The map view (B) displays the geographical location of the selected station, aiding the user in understanding its physical location through navigation features (i.e., zooming and panning). Performed IETD analysis results are displayed in a data table (C) and visualized through line graphs (D). The user can perform a data search in the data table and download all the data for further evaluation. The three visualizations (D) represent hourly precipitation data. Specifically, the first visualization shows the measured hourly precipitation at a weather station. The following two visualizations represent estimated precipitation volumes - the sum of hourly precipitation ($\mathcal{S}={\sum }_{i=1}^n{p}_i$) and the average hourly precipitation (${\overline{p_E}}^{\mathrm{new}}={\displaystyle \frac{{\sum }_{i=1}^n{p}_i}{n}}$) per event. These visualizations utilize SVG (Scalable Vector Graphics), CSS (Cascading Style Sheets), and D3 [41] to display detailed visual and textual information. The interface also includes multiple graphical representations (E) to show quantitative analysis results. Since numerous visual representations are managed, hiding each visual representation is supported for effective data analysis. Because of its multiple features, the interface supports a comprehensive understanding of precipitation patterns and their relationships across multiple analytical perspectives.

Zooming and panning user interaction techniques are added to support interactive IETD data analysis within visualizations (Figure 2D). Since the visualizations are internally connected, user interactions in one visualization are seamlessly reflected and synchronized across other visualizations. With these interactions, users can navigate and explore the hourly precipitation data by initiating continuous user interactions at any point in the visualizations. For example, suppose a user zooms in to examine the detailed characteristics of the measured average IETD precipitation data. In this situation, the other two visualizations automatically adjust their visual representations by maintaining temporal alignment with the zoomed visualizations. This synchronized representation is helpful because it enables users to analyze precipitation data across different date ranges while maintaining context across other visualizations.

Several statistical methods are added to support analyzing the precipitation data and presenting results through various visualizations (Figure 2E). They are designed as a comprehensive suite of statistical evaluation tools for precipitation events. It includes basic statistical analysis capabilities such as identifying annual maximum, largest (volume), and longest (duration) events. Additionally, the interface provides specialized analyses, including intensity-duration frequency (IDF) analysis, exceedance probability analysis, and volume-based hydrology analysis. Multiple visualizations are added to help understand precipitation trends and annual, seasonal, and monthly statistical analyses. These multi-temporal analyses enable users to examine precipitation patterns at different time scales, from detailed monthly distributions to broader annual cycles. These visualizations are linked to the precipitation data visualizations (Figure 2D). Thus, based on the users’ zooming interactions in the precipitation data visualizations, all visualizations are updated to reflect the changes in the statistical analyses.

Within these multiple visualizations, selection user interaction is added to enable users to highlight and track corresponding hourly precipitation data across different visualizations. Figure 2 demonstrates this interactive capability, where selecting a glyph in the volume-based hydrology analysis visualization triggers the highlighting of related visual elements across other visualizations. Since the glyph indicates that there are 53 precipitation events (as indicated in the label), the actual events can be observed in other visualizations. In detail, red-colored vertical lines in the precipitation visualizations (Figure 2D appear to indicate the specific precipitation events that contributed to the highlighted bar in the volume-based hydrology analysis visualization. At the same time, the events are also highlighted in other visualizations if they are related. This coordinated highlighting is effective because it helps users understand the relationships among different analytical results through visual representations. Since the designed interface provides multiple temporal and statistical representations, this coordinated highlighting maintains visual coherence for users to identify patterns and correlations in the precipitation data more effectively. With the multiple visualizations, multiple precipitation analyses are supported, such as identifying long-term trends (e.g., increasing or decreasing rainfall), recurring seasonal patterns (e.g., wet or dry seasons), and unusual weather events or anomalies (e.g., record-breaking precipitation or unexpected droughts).

5.1.1. Precipitation Frequency Analysis

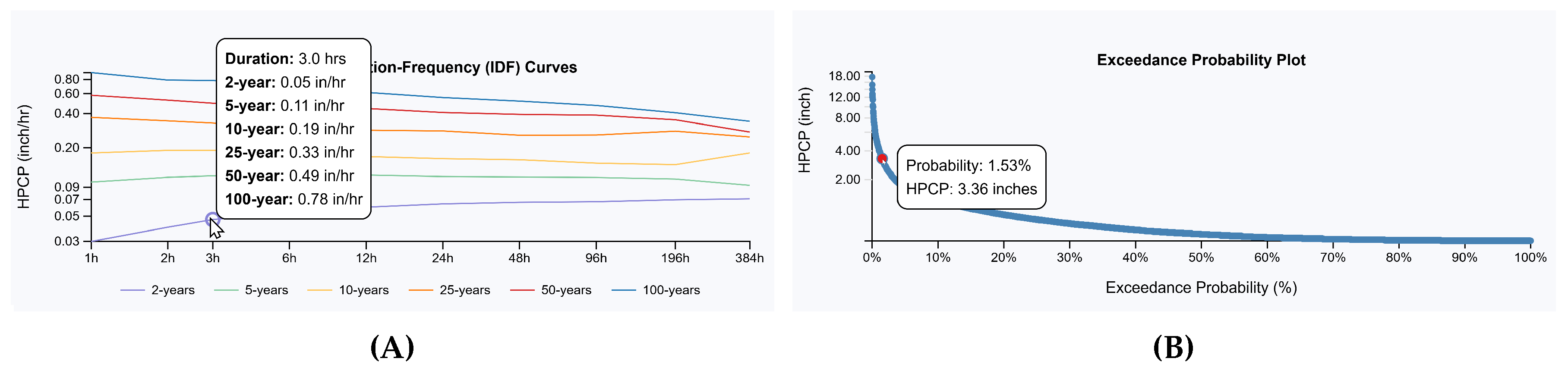

Two visualizations are added to support precipitation frequency analysis to show IDF curves and exceedance probability. IDF curve visualization (Figure 3A) shows the frequency of extreme rainfall events based on their intensity and duration. It provides probability estimates of extreme rainfall events. For evaluating return periods expressed in years, different probabilities are applied with 2 years (50%), 5 years (20%), 10 years (10%), 25 years (4%), 50 years (2%), and 100 years (1%). The return periods characterize events ranging from 2-year (frequent but minor storms) and 5-year (common storms) to 100-year (extreme events). In the visualization, periods are represented with different color attributes. The x-axis shows the duration of the rainfall event, and the y-axis indicates precipitation intensity (inch/hr). Each curve demonstrates an inverse relationship between intensity and duration, where rainfall intensity typically decreases as the duration increases for any given return period. The IDF curve evaluates flood risks to help plan climate change adaptation in flood control systems in urban areas [42]. Users can hover over the curves to view specific rainfall intensity values.

Exceedance probability visualization (Figure 3B) represents the probability of precipitation intensities. It uses intensity-exceedance frequency (IEF) curves that assess the risks of extreme rainfall events by evaluating historical data. The Weibull distribution is used because precipitation values are often positively skewed, with many small and few extreme values. Exceedance probability is computed by sorting and ranking precipitation events using $P(X\ge x)={\displaystyle \frac{i}{n+1}}$. This provides an empirical estimate of the survival function ($P(X\ge x)=1-F\left(x\right)$), where $F(x;\lambda ,\kappa )=1-exp(-{(x/\lambda )}^{\kappa })$ is the cumulative distribution function (CDF). Here, $\lambda$ indicates the scale parameter and $\kappa$ represents the shape parameter, using the Weibull estimator ($F(i,n)={\displaystyle \frac{i}{n+1}}$) [43]. Since precipitation values are always positive, this approach to computing exceedance probability is broadly used in evaluating precipitation data [44,45]. The visualization presents hourly precipitation on the y-axis and the computed exceedance probability on the x-axis. An asymmetric logarithmic scale is applied to show hourly precipitation intensities because of their predominantly small magnitudes.

5.1.2. Precipitation Anomaly Detection

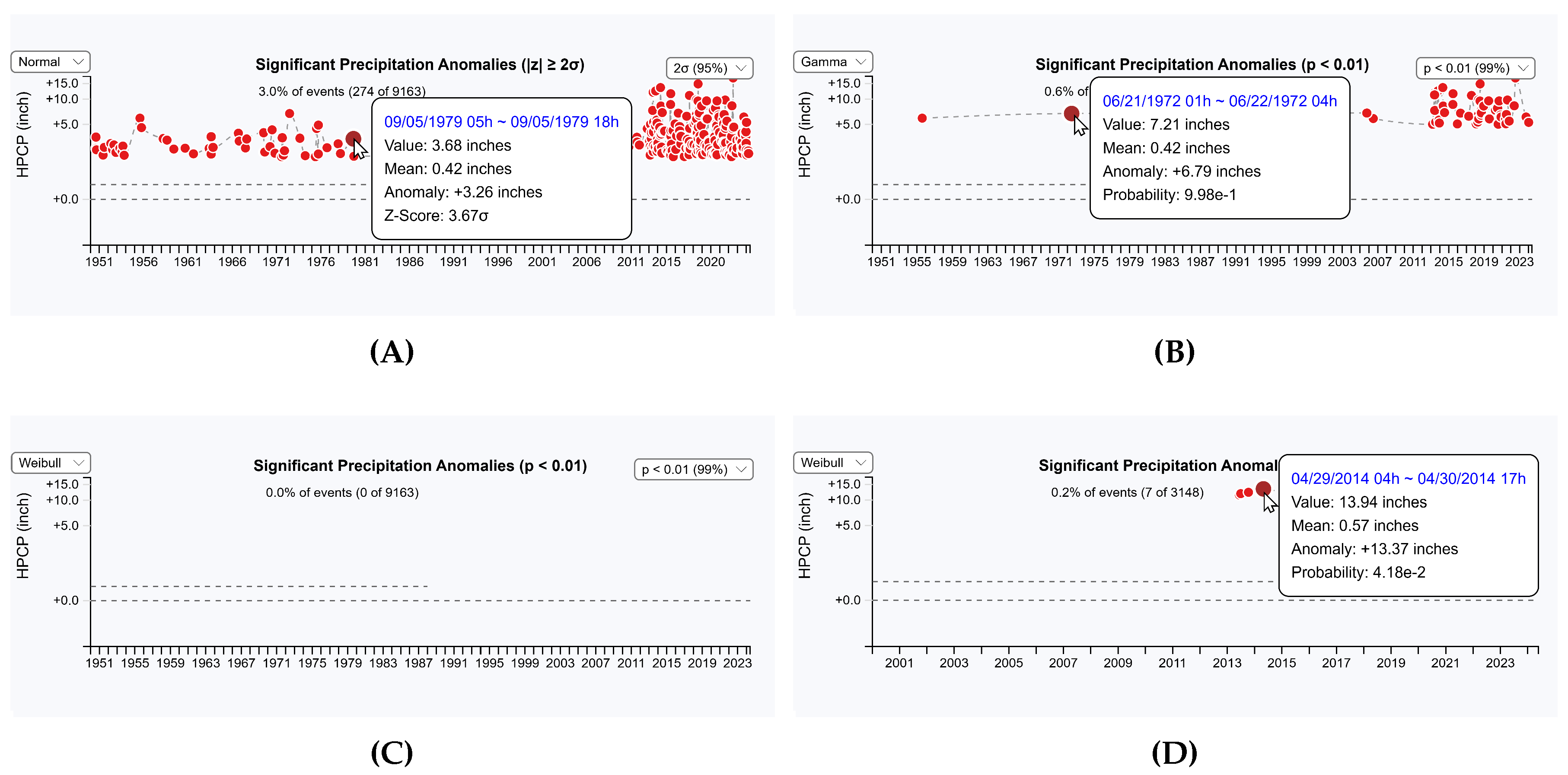

A precipitation anomaly visualization (Figure 4) supports detecting precipitation anomalies by applying anomaly detection using three different distributions - normal, gamma, and Weibull. Red-colored glyphs indicate identified anomalies. It displays detailed measurements when highlighted. The visualization allows switching between distributions to detect potential anomalies under different statistical assumptions. The normal distribution uses z-scores to detect anomalies, with mean precipitation volume serving as the central reference point and standard deviation measuring variation from this average. z-scores ($z={\displaystyle \frac{x-\mu }{\sigma }}$) are calculated for each precipitation event to identify anomalous precipitation events. Possible anomalies are determined by evaluating how much they deviate from the mean. Specifically, it evaluates each precipitation event’s z-score and identifies it as an “anomalous” event if it exceeds a predetermined threshold (typically 2 or 3 standard deviations). The gamma distribution is commonly used in rainfall data analysis because precipitation is non-negative and often has skewed patterns (many small and fewer large events). It has been found that daily precipitation follows the gamma distribution [46]. It uses the gamma cumulative distribution function (CDF), $F(x;k,\theta )={\displaystyle \frac{\gamma (k,x/\theta )}{\Gamma \left(k\right)}}$, to compute the probability of a given rainfall value as $P(X\ge x)=1-F\left(x\right)$, where k and $\theta$ indicate shape and scale parameters, respectively. They are used to control the shape and scale of the distribution. The shape parameter is a useful metric and is broadly used to track changes in extremes in precipitation [46,47]. It is computed as $k={\displaystyle \frac{\mathbb{E}{\left[X\right]}^2}{Var\left(X\right)}}$, where $\mathbb{E}\left[X\right]$ represents the mean of precipitation $\mathbb{E}\left[X\right]={\displaystyle \frac{1}{n}}{\sum }_{i=1}^n{x}_i$ and $Var\left(X\right)$ denotes the variance of the precipitation $Var\left(X\right)={\displaystyle \frac{1}{n}}{\sum }_{i=1}^n{(x_i-\mathbb{E}\left[X\right])}^2$. Anomalies are determined by identifying values whose probability of occurrence is less than a specified threshold (0.05 or 0.01). Figure 4B presents an example of detecting possible precipitation anomalies ($p<0.01$) with the gamma distribution. It has detected numerous precipitation events as possible anomalies since 2013. This might be closely connected to climate change impacts observed in the U.S. [48]. We also found similar trends in precipitation when analyzing multiple stations’ precipitation data with our designed system (see Section 6 for details).

In the visualization, the Weibull distribution is also supported to detect precipitation anomalies [49]. The gamma distribution is well-suited for evaluating long accumulation periods. However, the Weibull distribution is recommended for analyzing precipitation in short accumulation periods [50]. The Weibull distribution uses Weibull CDF, $F(x;k,\lambda )=1-e^{-{(x/\lambda )}^k}$, where k and $\lambda$ indicate shape and scale parameters, respectively. The shape parameter k has effects similar to those in the gamma distribution. It controls skewness and tail behavior. However, it uses a different scale parameter $\lambda$ to determine the distribution of precipitation data. For estimating k, the Newton-Raphson iteration method [51] is used. Once k is estimated, $\lambda$ is computed using $\lambda ={\left({\displaystyle \frac{1}{n}}{\sum }_{i=1}^n{x}_i^k\right)}^{{\displaystyle \frac{1}{k}}}$. After measuring the mean of the Weibull distribution using the gamma function, $\mathbb{E}\left[X\right]=\lambda ·\Gamma (1+{\displaystyle \frac{1}{k}})$, anomalies are determined by evaluating the probability of observing precipitation and comparing it to the threshold (0.05 or 0.01). Figure 4C shows that no precipitation anomaly is detected with the Weibull distribution ($p<0.01$). However, when evaluating the data with the statistical significance $p<0.05$, we found seven precipitation anomalies (see Figure 4D).

5.1.3. Analysis of Precipitation Duration and Intensity Patterns

The interface also provides visualizations to support the analysis of annual precipitation volume and duration. Evaluating the changes in annual precipitation volumes is critical because it helps understand significant deviations from typical probability distributions. Analyzing precipitation durations is also important because it provides valuable insights into how long major precipitation events last. Precipitation duration analysis is often considered a significant method in flood forecasting and water resource management because longer-duration precipitation events can have substantial impacts on hydrological systems [52,53].

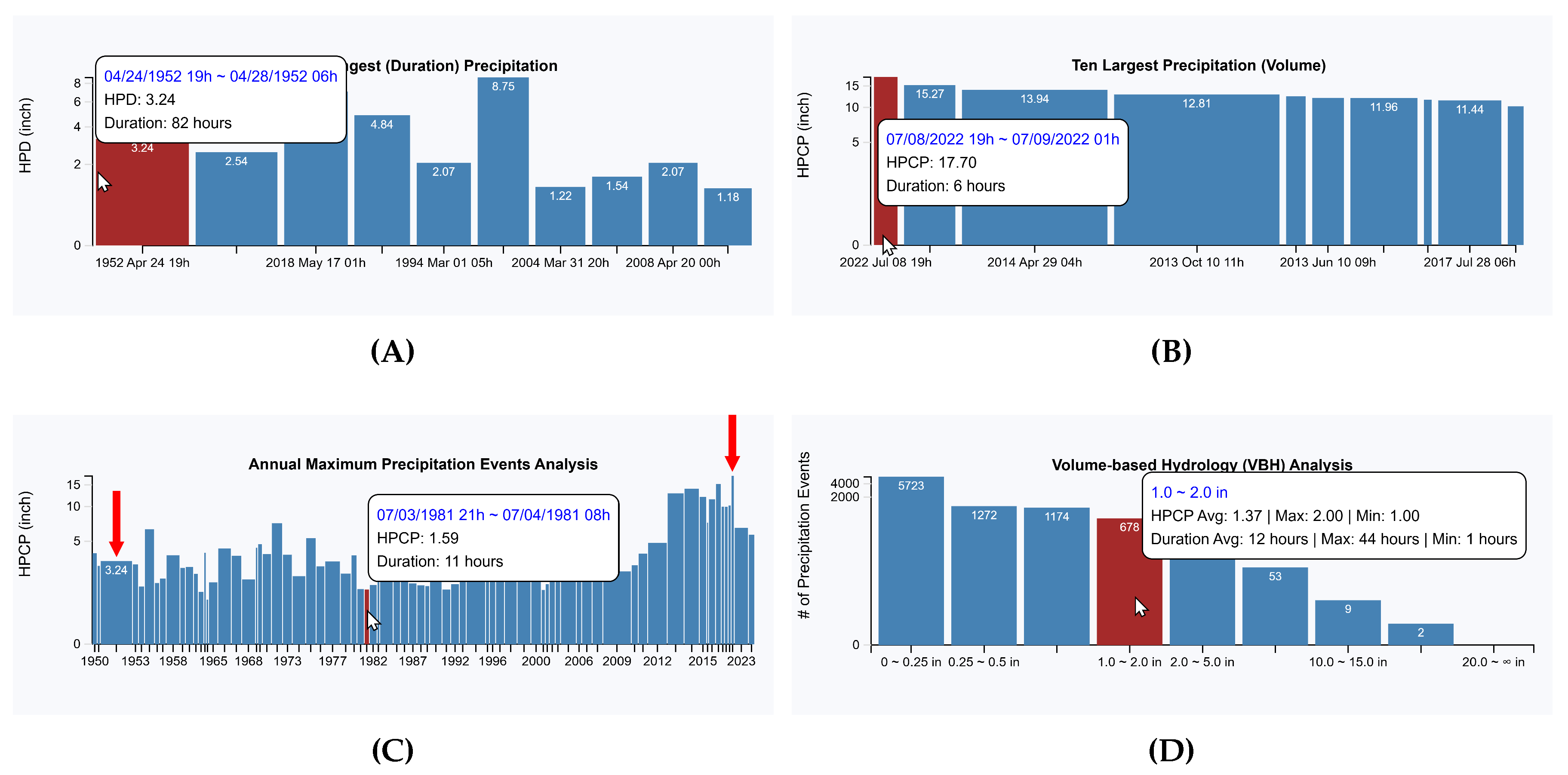

Figure 5 presents visualization results of precipitation data at the Reagan National Airport. In all visualizations (Figure 5A–D), precipitation intensity amount and event duration are used to build each display. Figure 5A,B show the top ten longest (duration) and largest (intensity volume) precipitation events, respectively. The height and width of each bar denote the amount and duration of precipitation. Thus, a wider bar indicates the precipitation event lasted longer, and a narrow bar represents a high-intensity rainfall event. Figure 5A shows that rain continued for 82 h in 1952, with a total precipitation of 3.24 inches. Figure 5B indicates that an intense rainfall occurred in 2022 with a total precipitation of 17.70 inches in two hours. Figure 5C shows the annual maximum precipitation events in chronological order for the user-selected time period. Each bar graph represents the highest recorded precipitation amount for its respective year. Figure 5D shows the hydrology analysis results by evaluating precipitation amounts. It primarily focuses on measuring, analyzing, and managing the volume of water, emphasizing how much water might move through drainage systems over time [54]. The volume-based hydrology analysis categorizes the IETD precipitation events by classifying them into nine precipitation intensity ranges: ≤0.25 inches, 0.25∼0.5 inches, 0.5∼1.0 inches, 1.0∼2.0 inches, 2.0∼5.0 inches, 5.0∼10.0 inches, 10.0∼15.0 inches, 15.0∼20.0 inches, and >20.0 inches. Each bar shows the total number of events observed within their respective intensity ranges.

To show detailed information, including average, maximum, and minimum precipitation intensities and event durations, mouse hovering user interaction is supported on individual bars. When a bar graph is highlighted, its corresponding precipitation event is highlighted in other graphs if matched precipitation events are available. For instance, the two red-colored arrows in Figure 5 indicate the longest duration event (left) and the largest intensity volume event (right) in the years 1952 and 1922, respectively. This interactive analysis feature allows users to track and analyze precipitation events across different visualizations.

5.1.4. Precipitation Trend Analysis

Trend analysis visualization supports identifying precipitation patterns over time using statistical regression methods such as linear, polynomial, and exponential regression. Both long-term and seasonal trend analyses can be performed using these regression methods. Users can switch between different regression methods and long-term and seasonal trend analyses directly within the visualization. Long-term trend analysis evaluates all precipitation data that appeared within the user-selected period. For seasonal trend analysis, only selected seasonal data is utilized to identify seasonal variations in precipitation intensity. Linear regression is a commonly used method for identifying steady, consistent changes in various types of data [55]. It determines the relationship between time and precipitation intensity by fitting a straight line to the precipitation data. The measured R-squared value indicates how well the regression line fits the data. The Mann-Kendall test [56] is also applied to measure whether the determined regression trend is statistically significant or not. Figure 6A shows a linear trend in the precipitation data at the Reagan National Airport from 1950 to 2024. The linear model has a low explanatory power, as indicated by a low value of $R^2=0.025$. Despite this low fit, the Mann-Kendall test indicates the trend is statistically significant, representing a minor increasing trend ($p<0.01$, $\tau =0.043$). This suggests a gradual yet observable increase in precipitation over seventy years, though the linear model explains only a small portion of the variation in the data.

Polynomial regression generalizes linear regression by including higher-degree terms. In our visualization, a quadratic model (degree = 2) is used. It is effective for identifying more complex patterns that cannot be captured by linear regression with a simple straight line. Figure 6B shows a deceleration pattern around the 1950s and changes back to an acceleration pattern after 2000. Polynomial regression is useful for analyzing seasonal precipitation variations that may show a U-shaped pattern clearly (see Figure 6D). This polynomial regression of summer data shows a statistically significant trend representing a precipitation pattern shift ($p<0.01$, $\tau =0.064$), characterized by higher summer rainfall after 2010. This visualization shows the pattern shift but does not explain its underlying causes. However, from the analysis of the pattern with the annual maximum precipitation visualization (Figure 6C), we found that the 1950s were characterized by prolonged periods of low-intensity rainfall, in contrast to the recent trend of having high-intensity burst rainfall events in that region [57]. Exponential regression is useful when data changes exponentially over time. Thus, it is valuable for analyzing extreme precipitation events, where the rate of change increases or decreases exponentially. Exponential regression is often used in climate change studies where precipitation patterns might show accelerating changes rather than linear trends [58,59]. Figure 6C shows a similar accelerated pattern compared to the linear regression result. It also represents a very low R-squared value ($R^2=0.012$) because precipitation data typically do not show continuous exponential growth.

5.1.5. Seasonal and Monthly Precipitation Analysis

Precipitation patterns often vary significantly by month or season. Since supporting seasonal and monthly precipitation analyses is important for identifying unique precipitation patterns, we added four visualizations: seasonal PCA analysis, monthly precipitation average analysis, annual precipitation cycle analysis, and monthly precipitation distribution analysis (Figure 7).

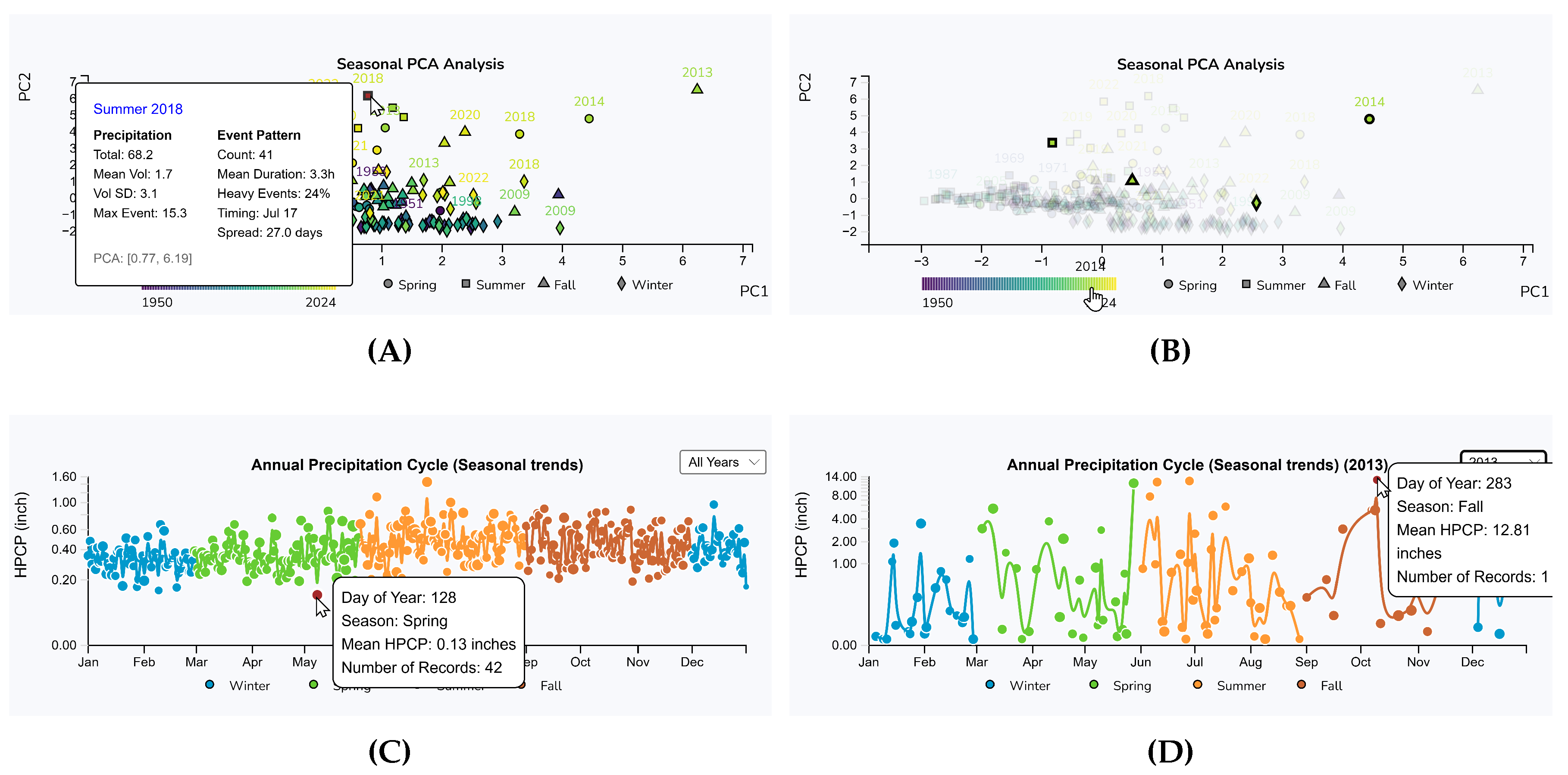

The seasonal PCA analysis visualization (Figure 7A,B) utilizes Principal Component Analysis (PCA) to identify underlying patterns in the precipitation data. PCA captures the main variations in the dataset by determining principal components that represent the directions of maximum variance. This technique is valuable for projecting high-dimensional data into a lower-dimensional space while preserving key relationships. For this analysis, we extract seven features from the precipitation data: mean precipitation volume, standard deviation of precipitation volumes, mean event duration, standard deviation of durations, temporal spread of events (standard deviation of days of the year), proportion of heavy precipitation events (using the 75th percentile threshold), and proportion of wet days. These features characterize each season’s precipitation by its volume ($\mathcal{S}$), event durations ($\Delta t$), and intensities ($\mathcal{S}/\Delta t$).

In the visualization, the first and second principal components are used for the axes of the scatterplot, with distinct shapes representing different seasons (circle: Spring, rectangle: Summer, triangle: Fall, and diamond: Winter) and colors indicating years. An interactive color legend is designed as a gradient color bar from dark purple (earlier years) to bright yellow (recent years), allowing users to highlight specific years of interest. Figure 7B shows an example where the user has highlighted seasonal precipitation averages for 2014. PCA visualization reveals that numerous precipitation events create a cluster that appears on the left bottom of the scatterplot, with several potential outliers positioned far from this cluster. Notably, spring 2014 and fall 2013 precipitation data deviate significantly from the typical pattern, indicating anomalous behavior. This finding aligns with the result in the annual maximum precipitation analysis (see Figure 7C), denoting unusually high-intensity precipitation events during 2013 and 2014.

Figure 7C,D, present annual precipitation cycle visualization designed to reveal distinct seasonal patterns in the daily precipitation data. Since seasonal precipitation cycle analysis is crucial for understanding flooding distribution [60], this visualization depicts mean precipitation values throughout the year, with data points scaled by sample size to indicate observation density. By default, it shows the measured daily cumulative average precipitation for all precipitation data in a selected weather station. It allows users to select data for specific years using a drop-down menu. Different color attributes are used to display seasonal precipitation data to support seasonal trend analysis. Winter precipitation patterns are analyzed in two segments (early winter: January and February, and late winter: December) to represent the cyclic nature of the annual pattern more clearly. To highlight gradual changes in precipitation throughout the year, smooth transition lines between seasons are added using cubic basis spline interpolation. Specifically, Figure 7C represents the annual cycle of seventy-five years of precipitation data. It shows that the precipitation intensity ranges from 0.13 to 1.46 inches, with the lowest average precipitation intensities occurring in Spring and the highest in Summer. It also reveals relatively stable precipitation amounts over the past seventy-five years. However, when evaluating the precipitation data yearly, we found a significant precipitation intensity fluctuation in 2013 (see Figure 7D). This finding indicates a substantial deviation from historical precipitation patterns in the region compared to those observed before 2000.

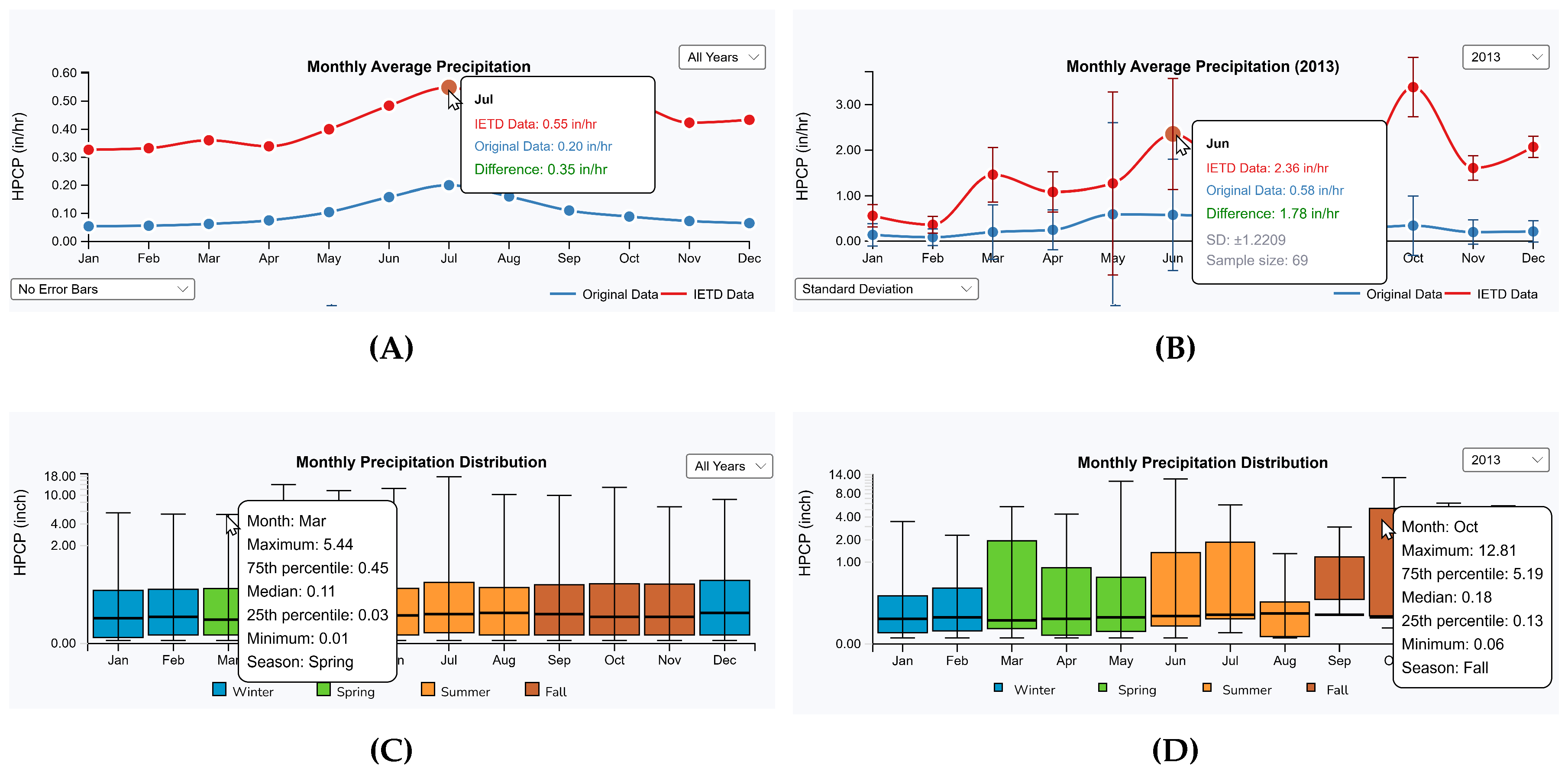

Monthly precipitation analysis is also supported in the interface. It provides insights into precipitation patterns at a monthly temporal scale. Figure 8A,B show monthly precipitation analysis visualization without and with error bars, respectively. It creates cumulative monthly averages. Figure 8A shows the overall monthly average across the entire precipitation data in the selected weather station. Since we applied the IETD analysis, monthly average precipitation was computed on both the original hourly and IETD precipitation events data. The visualization displays the measured monthly average precipitation as a connected polyline. This representation supports a comparative understanding between raw precipitation measurements and IETD-derived precipitation events and helps users determine how the IETD analysis affects the precipitation patterns. When raw and IETD-processed precipitation patterns show substantial differences, it suggests periods of persistent rainfall characterized by short intervals between events, which the IETD analysis combines into unified precipitation events. This visualization incorporates interactive features that enable users to toggle between different temporal views, from the comprehensive multi-year average to specific yearly patterns. Measuring errors and representing them with error bars is supported by three error measures such as standard deviation (SD), standard error (SE), and confidence interval (CI). Since SD shows the spread of all values, it is good for identifying how much precipitation is spread. SE shows uncertainty in the mean estimate. CI represents the range where the true mean likely falls under a confidence range (95% confidence). Figure 8B shows an example of showing SD on the selected year of 2013. The measured SD and sample size information are presented. This flexibility of controlling and changing the visualization options helps identify both long-term precipitation trends and anomalous years.

Boxplots are widely used for analyzing precipitation data because they effectively reveal temporal patterns [61,62,63]. Thus, a boxplot visualization is added to present monthly precipitation data distributions, following the traditional boxplot design of having a box and two whiskers. All precipitation data are broken up into three quartiles (Q1, Q2, and Q3) in the box. Q1 and Q3 indicate lower and upper quartiles representing 25% and 75% of data falls below this value, respectively. Q2 represents the median value, denoting the 50th percentile of data. It shows the interquartile range (IQR) by measuring the difference between Q3 and Q1, depicting the spread of the data. With IQR, the upper and lower whiskers are determined to represent the extension of the largest value within 1.5 × IQR above Q3 and the smallest value within 1.5 × IQR below Q1. The upper and lower whiskers extend to the largest and smallest values within 1.5 × IQR from Q3 and Q1, respectively. Figure 8C shows monthly precipitation distributions at Reagan National Airport through boxplots. By default, monthly boxplots are generated by analyzing all available precipitation data. Users are allowed to change the distribution to a specific year. Figure 8D presents monthly boxplots for 2013. As discussed above, a possible weather pattern shift was observed in that weather station around 2013. The boxplot distributions reveal significantly higher precipitation volumes in March, July, and October, denoting a distinct difference from historical patterns.

With the station-specific analysis interface, several precipitation data analyses can be performed, including temporal pattern analysis, trend examination, seasonality studies, and anomaly detection at a specific location. As explained above, this interface focuses on allowing in-depth analysis of a single weather station, identifying the changes in precipitation patterns through daily, monthly, and yearly analysis to provide insights into local precipitation characteristics. While understanding rainfall patterns and identifying anomalous precipitation events are crucial, analyzing data from a single weather station is ineffective in finding regional or global trends. Therefore, conducting comparative analysis across multiple weather stations is critical for supporting comprehensive precipitation data analysis. Thus, we designed a multi-station analysis interface to address this need.

5.2. Multi-Site Analysis Interface

The multi-site analysis interface enables the analysis of precipitation data across multiple locations. More specifically, performing regional and cross-regional precipitation analyses is supported to help understand spatial patterns and variability of precipitation data on multiple weather stations. The regional analysis evaluates data from proximate weather stations to identify localized precipitation patterns and trends within a specific geographical area. In contrast, the cross-regional analysis evaluates precipitation patterns between geographically separated weather stations. Since this approach allows a side-by-side comparison, it helps reveal variations, similarities, and anomalies between different locations. Eventually, broader precipitation patterns can be identified through the analysis.

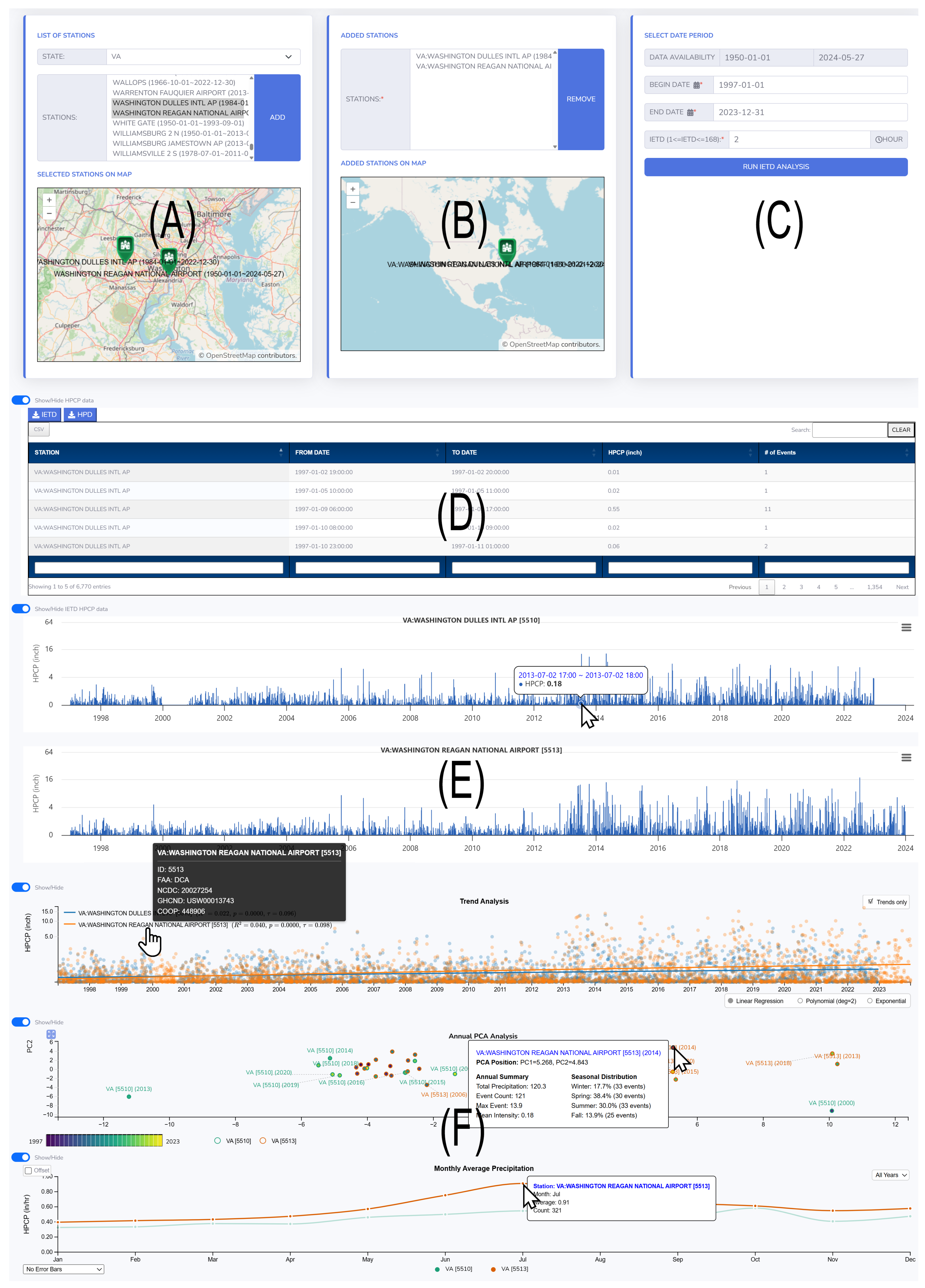

Figure 9 shows an example of performing a multi-site analysis by selecting two geographically nearby weather stations (i.e., Washington Dulles International Airport (IAD) and Washington Reagan International Airport (DCA)). The interface is designed with multiple control panels and visualizations. Panel (A) helps users choose weather stations by displaying their geographical locations on a map. Whenever users select a weather station from a station list, the map view automatically centers on each newly selected station. Panel (B) supports managing all selected stations, displaying their relative positions on a single map view. In this panel, removing stations from a selected station list is allowed. After selecting stations, users can perform an IETD analysis on the selected stations by entering an IETD threshold and a specific date range. Then, it generates IETD line graphs (E) representing selected stations as temporal precipitation visualizations. As shown in the visualizations, they represent similar precipitation patterns because of their close proximity (approximately 22 miles apart). These graphs also support interactive zooming and panning like those in the station-specific analysis interface (Figure 2). Since they are internally connected, user interactions with one graph automatically update all others. Additionally, the system conducts multiple statistical analyses and presents the results through three distinct visualizations (F).

5.2.1. Precipitation Trend Analysis

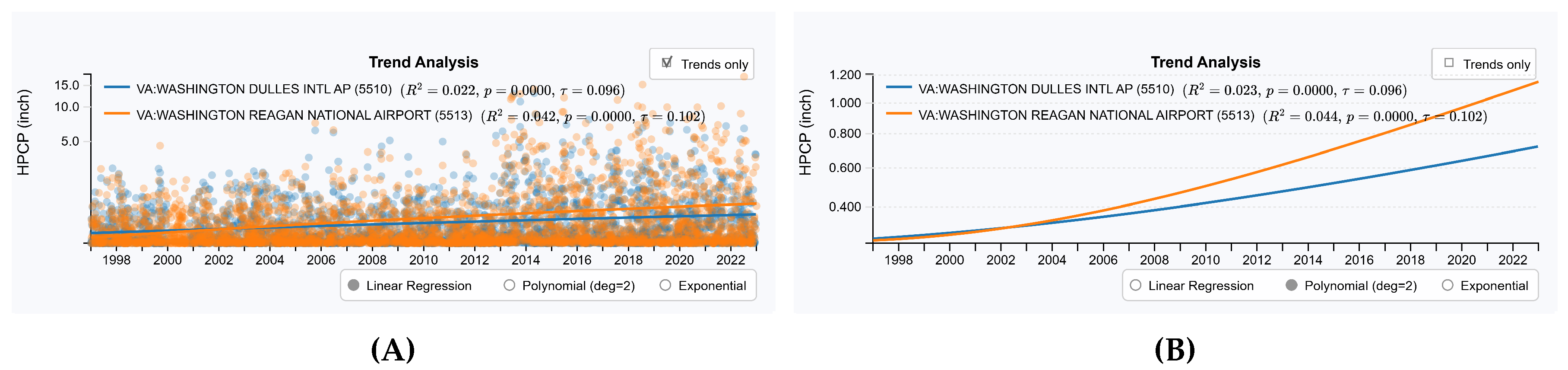

Precipitation trend analysis on multiple weather stations is important for identifying statistical trend differences between stations. Figure 10 shows the performed trend analysis on the two weather stations (i.e., IAD and DCA) from the period of 1997 and 2023. All precipitation events are represented as colored circles. Three statistical methods, linear, polynomial, and exponential regression, are supported to find trend lines on the per-station precipitation data. The Mann-Kendall test is also performed to determine the significance of the trend. The measured statistics are displayed next to each station name. Figure 10A shows the trend analysis with linear regression. It reveals a gradual increasing trend (IAD: $R^2=0.022,p<0.01,\tau =0.099$ and $DCA:R^2=0.040,p<0.01,\tau =0.094$). Figure 10B displays the trend analysis results using polynomial regression while hiding all precipitation events (IAD: $R^2=0.023,p<0.01,\tau =0.099$ and $DCA:R^2=0.042,p<0.01,\tau =0.094$). The option to hide precipitation events enhances the visibility of trend lines. The y-axis scale automatically adjusts by evaluating all visible data in the visualization. Thus, when precipitation events are hidden, the y-axis scale is adjusted to the range of trend line values, resulting in the change of the y-axis scale from $0\sim 15.0$ to $0\sim 1.2$. Currently, trend analysis visualization only supports analyzing up to six stations due to possible causes of visual cluttering and computational overhead of identifying trends for all stations.

5.2.2. Annual PCA Analysis

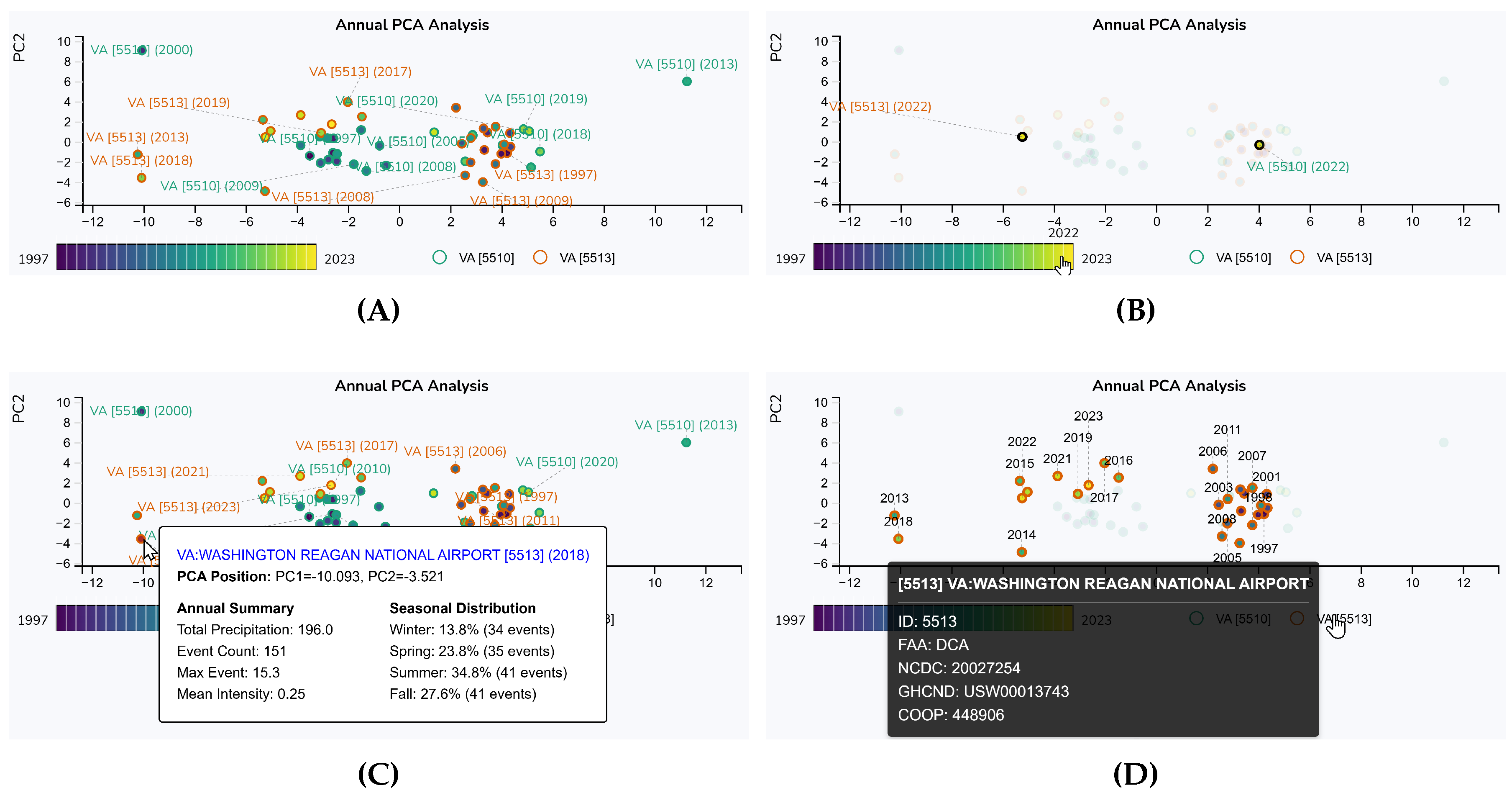

Annual PCA analysis visualization supports understanding the patterns on multiple weather stations. Figure 11 shows analyzed PCA projections of the annual precipitation data in IDA and DCA. To perform this analysis, several comprehensive precipitation features are extracted for each station and year. To find annual and seasonal characteristics, the data is evaluated annually and seasonally. The annual analysis measures annual average precipitation volumes, durations, and their standard deviations. Additionally, the total count of distinct precipitation events, cumulative annual precipitation volume, maximum single event volume, and mean precipitation intensity (volume/duration) are also determined. For the seasonal analysis, the data is analyzed based on seasonal information. For each season, eight features are extracted as the average volume of precipitation events, variability of precipitation volumes, the average duration of precipitation events, variability in event durations, average rate of precipitation (volume per hour), largest single precipitation volume observed, total number of precipitation events, and cumulative precipitation volume. Figure 11 shows PCA visualizations of precipitation data from two weather stations spanning 1997 to 2023. Each circle represents annual precipitation data with corresponding year labels positioned nearby and connected to it. To address visual clutter caused by overlapping labels, an adaptive label placement algorithm is applied to evaluate eight directional positions around each circle to find optimal placement, increasing distance when necessary (Figure 11A). Due to space limitations, all weather stations are represented with abbreviated notation combining state initials and system-assigned station ID numbers. Detailed information about each station appears when highlighted on the station legend located at the bottom (as shown in Figure 11D). The visualization supports a basic user interaction technique, highlighting, to help users understand the represented information more clearly. Figure 11B highlights the visual glyphs of the year 2022 in the visualization. Detailed information of each visual glyph is displayed when highlighted (Figure 11C). To help users conduct comparative analysis on yearly patterns, a colored year panel allows users to highlight glyphs only for a selected year. To help users understand the overall annual trends of each station, highlighting only each station’s data is also supported. Figure 11D shows all precipitation data related to the DCA airport highlighted with year information displayed. When analyzing multiple stations, the default visualization is not large enough to display detailed results effectively and also makes interactive data analysis difficult. Therefore, a floating window feature has been added to support multi-station analysis. This allows users to launch a floating window for an in-depth analysis of precipitation data within an expanded view. Within the floating window, selection user interaction is supported to help users select multiple precipitation events and compare them simultaneously. An example of using this feature for multi-station analysis is included in the case studies (Section 6.2.2).

5.2.3. Monthly Precipitation Analysis

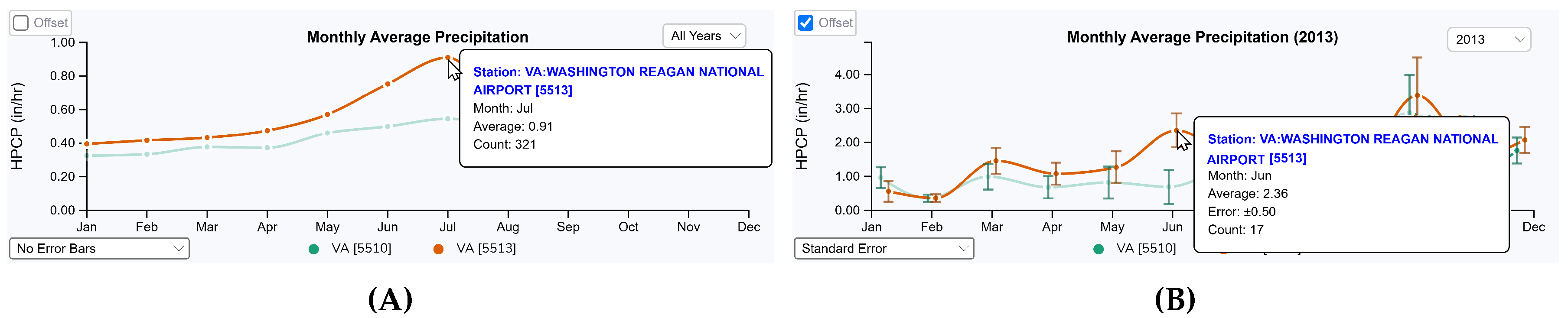

Figure 12 shows visualizations of the measured monthly average precipitation of the two weather stations. Evaluating monthly average precipitation is important for identifying the distinctiveness or similarities in precipitation patterns between stations [64]. The visualization displays multiple lines representing monthly average precipitation values. By default, it shows monthly average precipitation by evaluating all recorded precipitation data (Figure 12A). Analyzing a specific year’s monthly average precipitation is also supported. A bubble window appears when users hover over each monthly average precipitation, in which the calculated average monthly precipitation and the number of precipitation events observed each month are displayed. In the visualization, error metrics are calculated using SD, SE, and CI to be used for evaluating statistical uncertainty in the measured monthly averages. For CI, a 95% confidence interval is applied. Visually representing these errors is supported by choosing an option from the error bar options list. Figure 12B shows a user performing an analysis by selecting the year 2013 and displaying SE. The figure indicates that seventeen precipitation events were observed in June at DCA, with an average of $2.36\pm 0.50$ inches. When analyzing multiple stations or representing error bars, visual clutter often occurs when multiple data glyphs overlap. To address this problem, an offset alignment option is added. When enabled, the visualization slightly adjusts the position of each monthly precipitation to prevent overlapping.

6. Case Studies

To understand the effectiveness of our designed system, we performed two case studies that considered extreme precipitation variability analysis and comparative analysis on multiple regions. For the extreme precipitation variability analysis, we chose Houston, Texas, because the area has numerous extraordinary events that have happened in the past. For the comparative analysis, we selected six geographically distributed long-term weather stations across the U.S. to evaluate their similarities and differences in precipitation patterns.

6.1. Case Study: Analyzing Extreme Precipitation Variability

Multiple locations experience extreme precipitation variability. For example, the Southern California region alternates between severe drought and atmospheric river flooding [65]; Texas (particularly the Houston area) has experienced several catastrophic flood events amid drought periods [66,67]; the Colorado Front Range shows extreme precipitation gradients from mountains to plains [68,69]; and Oklahoma/Kansas experiences dramatic seasonal shifts and tornado-related precipitation [70,71]. Numerous other locations can be identified as the regions with extreme precipitation variability [72].

We analyzed the Houston area of Texas as a case study example. Historically, numerous flooding events occurred in that region. Spring and early summer events include the Memorial Day Flood (May 2015), the Tax Day Flood (April 2016), the 1994 Flood (November 1994), and the 1935 Flood (December 1935). Also, various flooding happened during the hurricane season as Hurricane Harvey (August 2017), Tropical Storm Imelda (September 2019), Hurricane Ike (September 2008), Tropical Storm Allison (June 2001), 1979 Flood from Tropical Storm Claudette (July 1979), and among others [66,73,74]. Our designed system identified most historical events by analyzing that region’s precipitation. We also found that the system can detect such flooding events as possible anomalies.

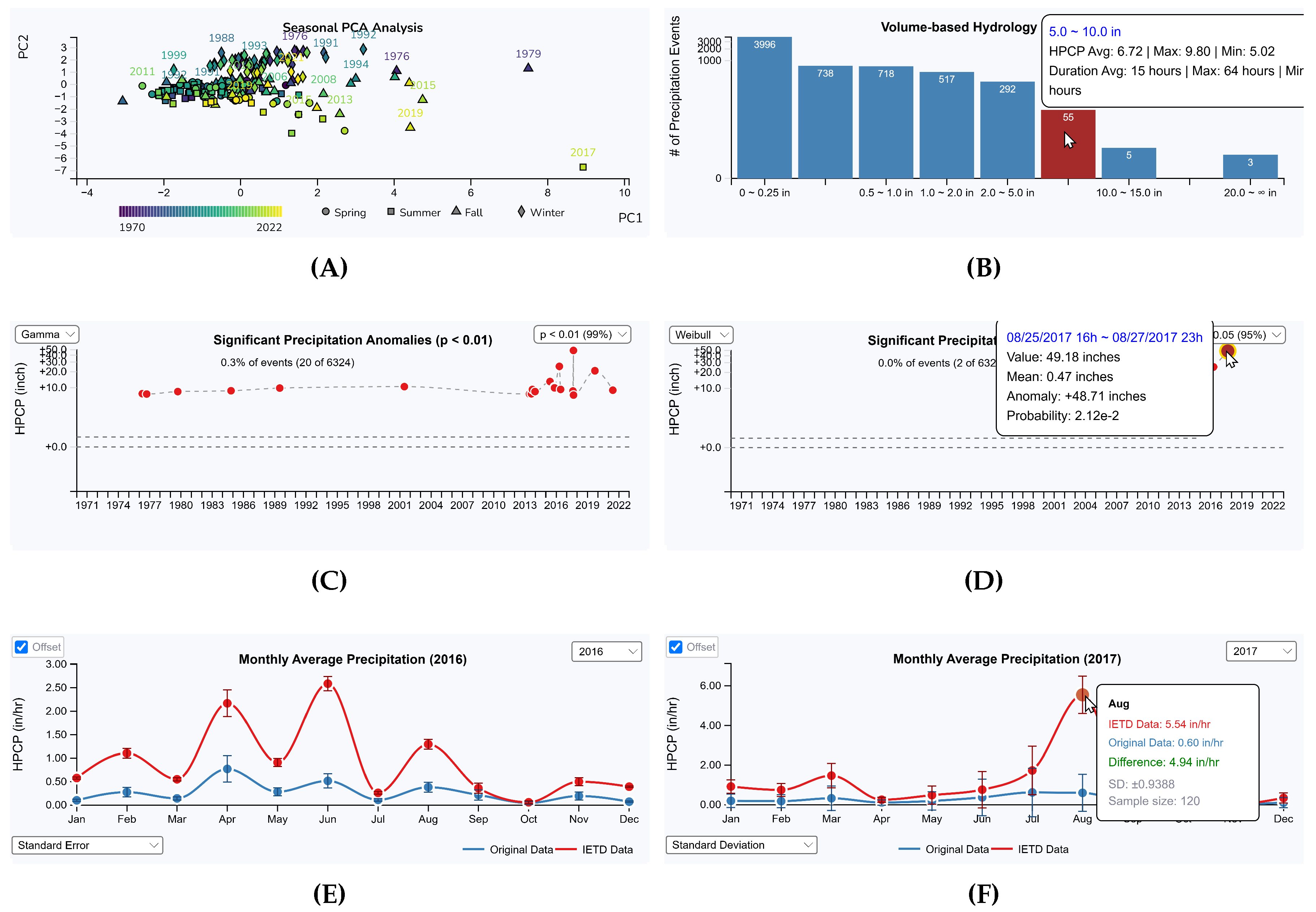

Figure 13 shows examples of analyses performed with the system using an IETD threshold of ($\theta =2$ hours). With the seasonal PCA analysis (Figure 13A), we found an interesting pattern where many precipitation events form a cluster positioned in the left center. As discussed previously, several features are extracted and used to create a PCA analysis visualization by projecting all events on a scatterplot. The visualization shows a clear pattern forming a cluster and identifying several possible anomalies that appear outside of the cluster. Among the anomalies, we found two flooding events in 1979 and 2017, which appeared as extreme anomalies outside of the cluster. Historically, in 1979, Tropical Storm Henri moved inland near Corpus Christi and tracked northeast across Texas [75]. At that time, parts of the Houston area received 10-15 inches of rain over four days (September 17-21), which was significant enough to cause flooding problems. Although this was significant enough to cause flooding, this flooding received less historical attention than the July Claudette event in the same year due to its comparatively lesser impact [76]. In 2017, Hurricane Harvey impacted the Houston metropolitan area and southeast Texas by pouring over 60 inches for approximately 4-5 days (August 25-30, 2017) [77].

In detail, we identified approximately sixty-three events (fifty-five events in $5.0\sim 10.0$ inches, five events in $10.0\sim 15.0$ inches, and three events in $20.0\sim \infty$ inches) in the volume-based hydrology analysis visualization that likely caused flooding problems (Figure 13B). Through anomaly analysis (Figure 13C), we found that most of these events appeared as possible anomalies using the gamma distribution. Specifically, using $p<0.01$ and $p<0.05$, twenty and ninety-three events were determined as possible anomalies, respectively. Using the normal distribution, about one-hundred seventy-six events are identified as possible anomalies with $z>2.0$. The Weibull distribution identified two possible extreme anomalies: Hurricane Harvey (August 2017) and the Tax Day Flood (April 2016) (Figure 13D). The Tax Day Flood was considered a significant flooding event that occurred April 17-18, 2016, during which approximately 12-20 inches of rain fell within a 24-hour period [78].

We found interesting results with the monthly average precipitation visualization showing two high peaks in 2016 (Figure 13E). The first peak appeared in April, indicating the Tax Day Flood. The second peak represents another flooding event in June 2016, the Brazos River Flooding, which occurred in early to mid-June 2016. The overall rainfall was 5 to 12 inches, but it caused flooding due to approximately two weeks of continuous rainfall. This flooding event was not detected as a possible anomaly in the precipitation anomaly detection because it does not consider event duration when detecting anomalies. However, it was recognized as a possible flooding event in the monthly average precipitation visualization, which considers overall rainfall amount and duration information when performing monthly average precipitation analysis.

By evaluating these two flooding events, we found clear distinctions between them. The measured errors are displayed when the user highlights each glyph (see Figure 13D). We found a higher SD ($\pm 1.8907$) for the Tax Day Flood, indicating more significant variability in rainfall amounts across the study area during the April event. In contrast, the Brazos River Flooding showed a lower SD $\pm 1.0727$, representing a more uniform rainfall distribution during the June event. This aligns with characterizing the June event as a persistent, widespread rainfall pattern rather than intense localized downpours [79]. Because more consistent rainfall occurred across the region, it contributed to riverine flooding. For SE measurements, we found greater uncertainty in estimating the true mean precipitation for the Tax Day Flood due to highly variable rainfall patterns ($\pm 0.2818$). However, the June event showed a lower SE ($\pm 0.1517$), indicating more reliable patterns because of consistent spatial rainfall distribution. The CI showed wider and narrower confidence intervals for the Tax Day Flood ($\pm 0.5524$) and the Brazos River Flooding ($\pm 0.2973$), respectively. These results show that the June event had a more consistent, persistent rainfall pattern than the more variable April event.

We also performed monthly average precipitation analysis on 2017 data (Figure 13F). Since Hurricane Harvey is considered one of the most catastrophic and well-documented rainfall events in U.S. history [80], evaluating this data helped determine the usefulness of our designed system. With the system, the average monthly precipitation for the Hurricane Harvey event was found to be $5.54$ inches. Historically, it has been known that some regions had $40-60$ inches [77,81]. It is important to note that the $5.54$ inch value represents the average monthly precipitation measured at the Texas Houston International Airport based on IETD precipitation data. Although Hurricane Harvey caused significant flooding through heavy rainfall, it showed a relatively low SD ($\pm 0.9388$) compared to the 2016 events, representing a more uniform spatial distribution of precipitation. This reflects the hurricane’s unique meteorological characteristics as a stalled tropical system [80] rather than a concentrated band of extreme precipitation like the Tax Day Flood ($\pm 1.8907$). We found a very low SE value ($\pm 0.0857$), indicating high precision in estimating the true mean precipitation across the region. The CI ($\pm 0.1680$) indicates high statistical confidence in the mean rainfall estimate and is much narrower than both the 2016 flooding events ($\pm 0.5524$ and $\pm 0.2973$), suggesting greater statistical certainty in the precipitation events caused by the hurricane.

6.2. Case Study: Performing a Comparative Analysis on Multiple Regions

We performed a comparative analysis on multiple regions using the designed system. Six geographically distributed regions are selected across the United States to perform the analysis, such as Los Angeles International Airport (LAX, CA), Chicago Ohare International Airport (ORD, IL), Kansas City International Airport (MCI, MO), Houston Intercontinental Airport (IAH, TX), Washington Reagan National Airport (DCA, VA), and Seattle (WA). The five stations were selected because they provide more than fifty years of hourly precipitation data. Figure 14 shows the performed IETD analysis ($\theta =2$) of all stations over fifty years from 1972 to 2022.

Among them, Los Angeles (LA) showed distinctive patterns because it follows a Mediterranean climate pattern, characterized by hot, dry summers and cool, wet winters. The visualization shows LA had extremely low rainfall amounts compared to other stations. This pattern is consistent with Southern California’s semi-arid climate, where precipitation predominantly occurs between November and March [82]. Seattle showed significantly more precipitation than LA but still less precipitation than other stations. Since winter is the wettest season, and July is the driest month in Seattle, high spikes were observed in winter with the visualization. Seattle’s precipitation pattern is broadly known as it follows the classic Pacific Northwest maritime climate [83], with persistent light-to-moderate rainfall rather than the high-intensity events characteristic of other regions.

Kansas City and Chicago showed similar patterns, although Chicago typically sees more snowfall than Kansas City. However, rainfall amounts are slightly higher in Kansas City than in Chicago. Both cities represent continental climate patterns with distinct seasonal precipitation cycles [84,85]. The similarity in the pattern but the difference in intensity highlights the importance of considering geographical transitions from the humid subtropical climate of the southern plains to the continental climate of the Great Lakes region [86,87,88]. Similar precipitation patterns were observed when comparing the three weather stations in ORD, DCA, and IAH airports. Chicago (ORD) often showed more precipitation patterns than others. Since tropical systems notably influence Houston’s (IAH) precipitation regime, significant late summer and early fall maxima corresponding to hurricane season were observed in the visualization. Washington DCA displays a more uniform precipitation pattern throughout the year, with slight increases during the summer months due to convective activity and occasional tropical system impacts [89].

By comparing all visualizations of stations, we immediately observed a precipitation increase in all weather stations since 2013. This finding aligns with climate change projections that suggest increased precipitation intensity in many parts of the United States [48,90]. The visualizations indicate that it is a robust signal of consistently increasing patterns affecting diverse areas rather than regional variability. For more detailed analysis, we also performed trend analysis, extreme event analysis, and baseline climatology comparison analysis with the designed multi-site analysis interface. A detailed explanation of the performed analysis is included below.

6.2.1. Trend Analysis

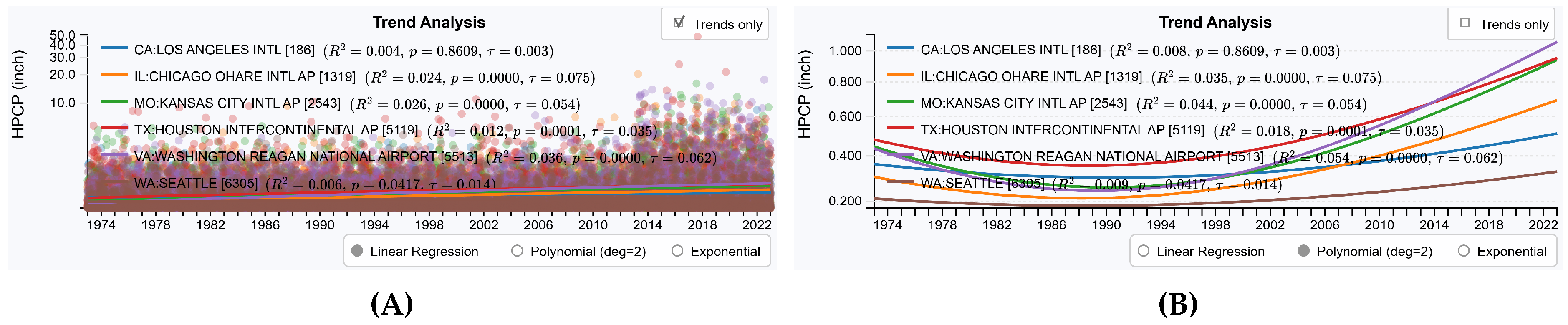

Annual precipitation trend analysis was performed to identify trends across the six weather stations’ precipitation data. Figure 15 shows performed trend analyses. We conducted a comparative analysis with three regression methods (linear, polynomial, and exponential) to examine their similarities and differences. Figure 15A shows the performed analysis with linear regression. We identified increasing precipitation patterns in most regions except Los Angeles ($R^2=0.004,p=0.9309,\tau =0.001$) and Seattle ($R^2=0.006,p=0.1808,\tau =0.009$). The trends in Chicago, Kansas City, and Houston showed statistically significant increases ($p\le 0.0001$). With the polynomial regression method (degree = 2), we found similar results with slightly increased trends (Figure 15B). Interestingly, all weather stations showed curved patterns, indicating precipitation trends decreased around the 1980s before increasing again in the 1990s. Exponential regression produced results similar to linear regression. These statistically validated increasing patterns align with our initial observations in the temporal precipitation visualization (Figure 14). Easterling et al. [90] emphasized the presence of heavy precipitation events in most parts of the U.S. in 2017. Our trend analysis visualization confirms a similar phenomenon (an increase in precipitation) occurring throughout the U.S.

6.2.2. Extreme Event Analysis

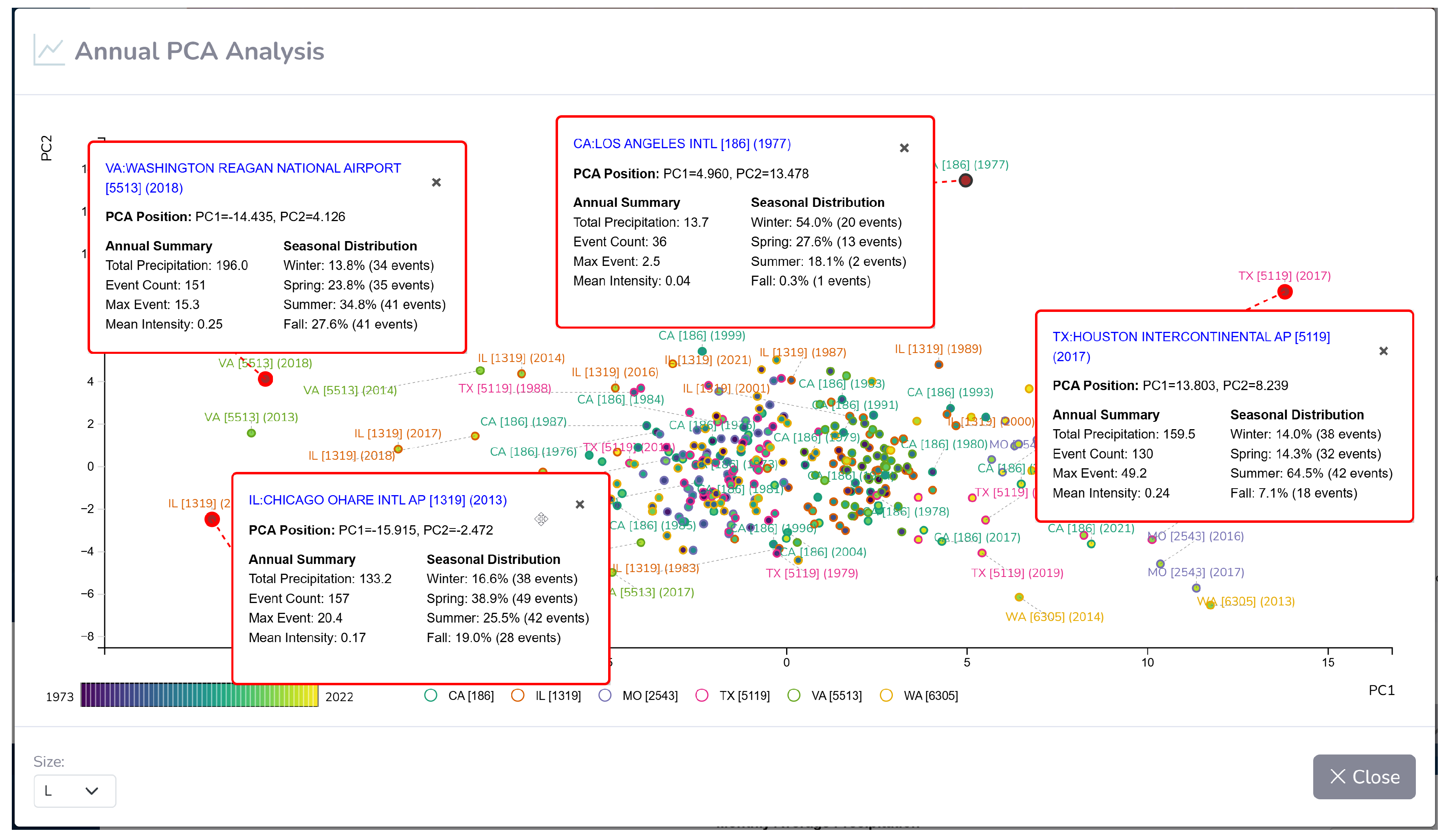

Annual PCA analysis visualization applies PCA computation to evaluate all extracted features of annual precipitation data and project them in a 2-D scatterplot. As described in Section 5.2.1, a comprehensive set of forty-one features was extracted from the precipitation data by analyzing it annually and seasonally. Especially when analyzing the data seasonally, we computed seasonal distribution metrics, including the proportion of annual precipitation occurring in each season and a seasonal variability coefficient that quantifies precipitation fluctuations across seasons. Utilizing the multi-dimensional extracted features is effective in identifying complex patterns from the precipitation data. Figure 16 shows a PCA projection of all six stations’s annual precipitation events. In the visualization, a dense cluster visibly appeared in the center. It shows that numerous annual precipitations maintain similar patterns. Instead, several precipitations outside the cluster can be considered possible outliers, indicating they do not follow and maintain similar precipitation trends. To understand the projected precipitation data effectively, selection user interaction was applied to emphasize only interested data. The figure shows that the user selected possible outliers in a floating window. The selected events are highlighted in red and connected to bubble windows, representing the summary of the performed annual precipitation analysis. We found four annual precipitation events as possible outliers. They are LA 1997, Chicago 2013, Washington DCA Airport (Washington DC) 2013, and Houston 2017. In 1997, LA experienced severe drought conditions in 1976-1977, followed by sudden heavy rainfall events. This dramatic shift from extreme drought to heavy precipitation was unusual and would appear as an anomaly in precipitation patterns [91,92]. From the historical records, we found that there was significant flooding with a record-breaking rainfall amount of over 7 inches of rain in 24 h in Chicago 2013 [93]. In 2013, Washington, DC, experienced unusual precipitation patterns, including several intense rainfall events. July 2013 was particularly notable, with nearly twice the normal monthly rainfall recorded [94]. From the PCA analysis, we found that DCA 2013 and DCA 2018 annual precipitation events appeared as possible outliers positioned next to each other. By evaluating historical records, we found that 2018 was Washington DC’s wettest year on record, with over 66 inches of rain recorded at DCA [95]. The normal annual precipitation is around 40 inches. We also found several extreme rainfall events occurred, including major flooding in July and September. As we found in our previous case study, Texas experienced Hurricane Harvey in August 2017, one of the most devastating hurricanes in US history. When comparing multiple stations’ precipitation data, this event was determined as an unusual precipitation event. Each of these events represents significant deviations from normal precipitation patterns that appear as outliers in our PCA analysis.

6.2.3. Baseline Climatology Comparison

Baseline climatology comparison supports identifying precipitation patterns for each location by performing historical monthly precipitation averages across multiple years. We performed a monthly precipitation analysis to conduct an analysis on the findings from the PCA analysis results (see Section 6.2.2) to identify precipitation patterns that significantly deviate from expected seasonal norms.

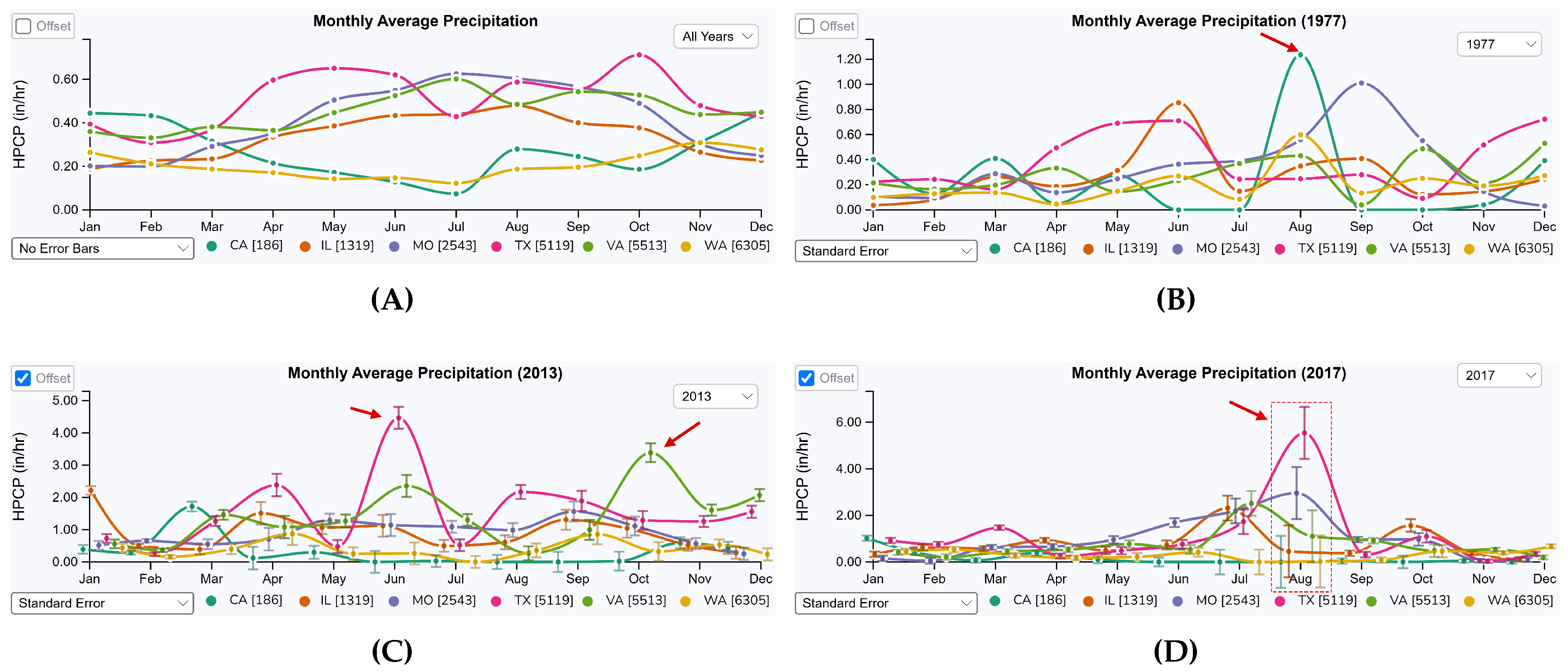

Figure 17A shows visualizations of monthly average precipitation from 1972 to 2022. By evaluating over fifty years of precipitation data in the five stations, we found that the most noticeable precipitation events mainly occurred in Houston. Figure 17B shows the monthly average precipitation in 1977. In that year, none of the stations recorded noticeable precipitation events. However, Los Angeles showed the highest precipitation peak. Although the average precipitation amount was not high, a tropical cyclone, Hurricane Doreen, impacted Southern California, including Los Angeles, in 1977 [96]. It was recognized as an unusual event in Southern California during the normally dry summer months. In 2013, two anomalous precipitation events were observed in Houston and Washington, DC. Houston showed the highest average precipitation in June. Although no major catastrophic event happened in Houston in 2013, an unusually persistent upper-level low-pressure system stalled over the area and produced heavy rainfall from thunderstorms in June. Heavy rainfall happens in the case of conditions of atmospheric instability, abundant moisture, and slow storm movement [97]. Using this unique event, scientists conducted a simulation study to investigate thunderstorm formation mechanisms by modeling the June 2013 conditions [98]. In Oct 2013, a slow-moving frontal system stalled over the region, producing several inches of rain. By evaluating the actual precipitation data with the station-specific analysis interface, we found that it ranged from $0.02$ to $3.45$ inches and averaged $0.34\pm 0.65$ inches from October 9 - 13. Notable intense precipitation occurred on October 7 (3.45 inches in a single hour), October 10 (over 3 inches during the morning hours), and October 11 (peak intensity of 3.4 inches between 7 - 8 PM). Due to these heavy rainfall events during that period, Washington, DC, appeared as the location with the second-highest monthly average precipitation in 2013 [94].

7. Conclusion and Futurework

In this paper, we present an interactive visual analytics system for analyzing hourly precipitation data and identifying the complexities of precipitation patterns in a changing climate. The system provides comprehensive precipitation data across the U.S. and integrates sophisticated statistical analysis techniques to support advanced analysis capabilities of precipitation data analysis.

In the system, station-specific and multi-site analysis interfaces provide a powerful framework for understanding both local precipitation characteristics and broader regional patterns. Multiple statistical methods, including PCA, regression analyses, and probability distributions for anomaly detection, are integrated to enable comprehensive precipitation analysis. As an Interactive Visual Analytics system, it allows users to conduct interactive data analysis by examining visually represented precipitation events and cross-verifying them, leading to a more accurate understanding of precipitation events. We performed case studies to demonstrate the effectiveness of the system in analyzing extreme precipitation variability and performing comparative analyses across multiple regions. In the case study of analyzing extreme precipitation variability, the system successfully identified historical flood events such as Hurricane Harvey and the Tax Day Flood as statistical anomalies, confirming its ability to detect significant precipitation events. The multi-regional comparison case study revealed distinct precipitation patterns across different climate regions.

For future works, we plan to incorporate additional meteorological variables (temperature, humidity, wind) that may provide contextual information for precipitation events. We also consider integrating sub-hourly precipitation data for a more detailed analysis of high-intensity, short-duration events. Additional statistical distributions and machine-learning approaches will be considered because they characterize extreme events better across diverse climate changes and accurate anomaly detection. Since conducting precipitation analysis in diverse areas requires tremendous time and effort for analysts, it is important to design automated or semi-automated pattern recognition techniques to highlight potential anomalies or significant changes in precipitation patterns.
