Water holds a unique position in Iran's geography and architecture. The number of water resources in the Iranian plateau is limited, and most of its rivers are seasonal, flowing only during winter and periods of rainfall. The absence of large, permanent rivers, low precipitation levels, and insufficient freshwater sources are the features of the Iranian plateau. As a result, gaining access to fresh water has posed many challenges for Iranians throughout history, prompting them to devise thoughtful solutions for utilizing, storing, and managing water efficiently, allowing their civilization to expand beyond river environments. In addition to the environmental challenges, cultural and religious teachings have also influenced the Iranian water usage. In pre-Islamic Iran, water was regarded as a sacred, life-giving element, and various ceremonies were held to honor it, and temples were built to sanctify it. After the advent of Islam, Islamic teachings, along with its culture of frugality, promoted the responsible use of water. This interplay of environmental and cultural factors has significantly shaped water's appearance in Iranian architecture. The impact of water shortage is evident in the design and construction of Iranian buildings. Due to the scarcity of water, Iranians have consistently used water in a way to preserve it and make the most out of its limited resources.
3.1. Functional Considerations
Human usage of natural resources was primarily aimed at fulfilling functional needs. In Iranian architecture, water was used for functional purposes such as irrigation, basic everyday chores, and evaporative cooling. Agriculture was not possible without synthetic irrigation methods. Therefore, Iranians needed to develop synthetic irrigation systems and base their agricultural practices accordingly. In regions of Iran that faced low rainfall and drought, an innovative solution called the 'Qanat' was developed for extracting groundwater.
3.1.1. Qanats
Qanats embody successful ecological and cultural adaptation that have kept water flowing through desert settlements on the Persian plateau (Gleick, 1998). They are the backbone of permanent settlements, and life stability in Iran. It is also significantly contributed to the evolution of Persian gardens. And, the birth of these gardens is closely linked to the history of qanats, with the first gardens emerging along the qanat's water outflows. The qanat water, which is guided by a frugality-based plan, transformed dry lands into green spaces. The water flowed continuously through the garden, and any excess water was directed to other uses outside the garden. The gardens were always adjusted in size based on the available water, ensuring they could still be irrigated during periods of water shortage (Pourmand & Keshtkar, 2011). Qanats are mainly about Qanats operate on a gravity-fed system that requires no pumps or electricity which makes them an economical solution for water transportation. Unlike surface canals, the qanat system allows for low evaporation rates since the water is transported underground. This is particularly important in arid climates where evaporation can significantly reduce available water resources. By tapping into the water table rather than surface water, it also reduces environmental disruption.

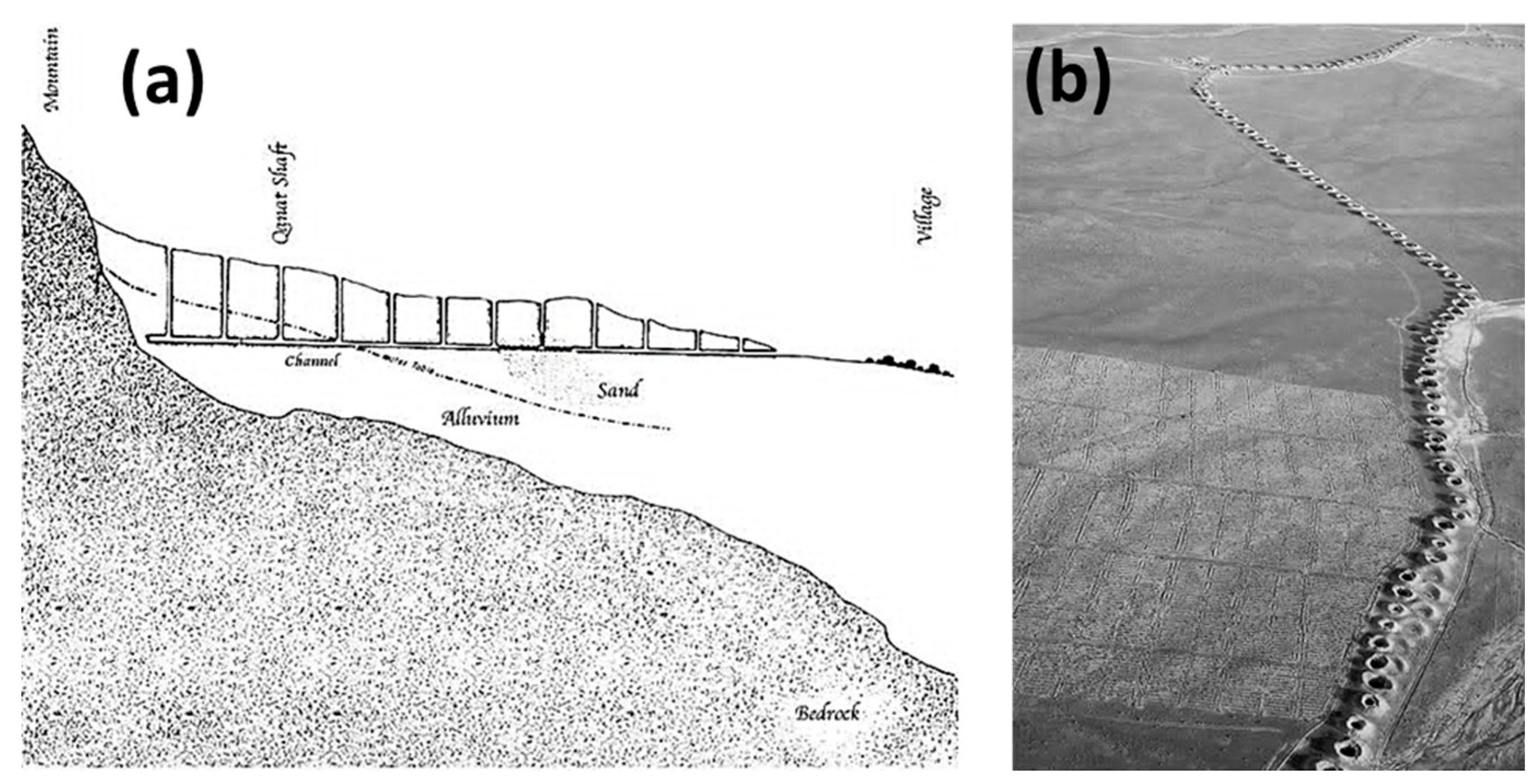

Figure 1.
(a) A scheme and (b) a typical image Qanat or Kārīz, A system for transporting water from an aquifer to the surface, through an underground aqueduct. Originated approximately 3,000 years ago in Iran. With permission from: Khakzand, Mehdi & Tabatabaee, RS. (2013). Investment Methods in Sustainable Water Resource Management using SAW Method. Journal of Arma-Shahr, 11-25.
Figure 1.
(a) A scheme and (b) a typical image Qanat or Kārīz, A system for transporting water from an aquifer to the surface, through an underground aqueduct. Originated approximately 3,000 years ago in Iran. With permission from: Khakzand, Mehdi & Tabatabaee, RS. (2013). Investment Methods in Sustainable Water Resource Management using SAW Method. Journal of Arma-Shahr, 11-25.

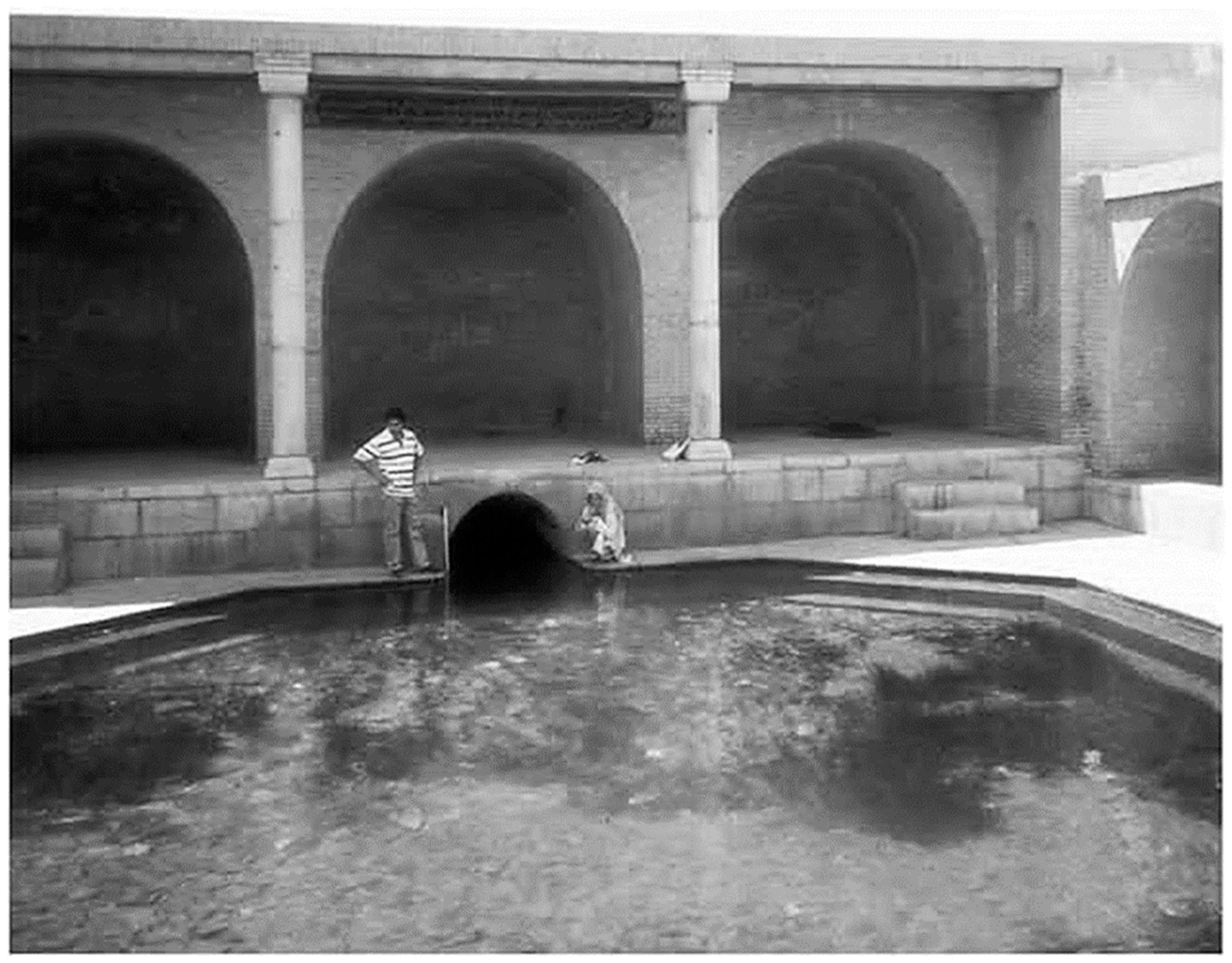

Figure 2.
A Qanat's Outflow, Soleymaniyeh Fountain, Fin Garden, Kashan, Iran. With permission from: Torabzade, A. (2018). Traditional irrigation system of Sulaymaniyah spring in Fin of Kashan. Kashan Shenasi, 10(2), 158-171.
Figure 2.
A Qanat's Outflow, Soleymaniyeh Fountain, Fin Garden, Kashan, Iran. With permission from: Torabzade, A. (2018). Traditional irrigation system of Sulaymaniyah spring in Fin of Kashan. Kashan Shenasi, 10(2), 158-171.
3.1.2. Water Reservoirs
The practice of building underground which prevented water loss continued in the making of water reservoirs in Iran. A water reservoir is a covered and sealed tank which is built below ground level where it is cooler and has less temperature fluctuations. The domed structure of the reservoirs played a role in keeping the water cool and preventing evaporation because the sunlight hits only a portion of the dome, and the rest of the surface received sunlight indirectly. In order to prevent air from becoming trapped and the water from heating up, some ventilation openings and windcatchers were also installed to allow airflow. This ensured continuous air circulation within the reservoir, not only ventilating the space but also contributing to the coolness and freshness of the water (Mohammadpour et al., 2016). The culture of building water reservoirs can be seen as an example of a social project, where each individual, without any expectation of material reward, contributed for the sake of God and the forgiveness of their sins. The offerings that were spent for the construction turned the water reservoirs into problem-solving buildings in popular beliefs. There are some decorations on the head of water reservoirs which holds a particular religious significance; these inscriptions depict Imam Hussain's thirst and reference the Karbala plains and the Day of Ashura.

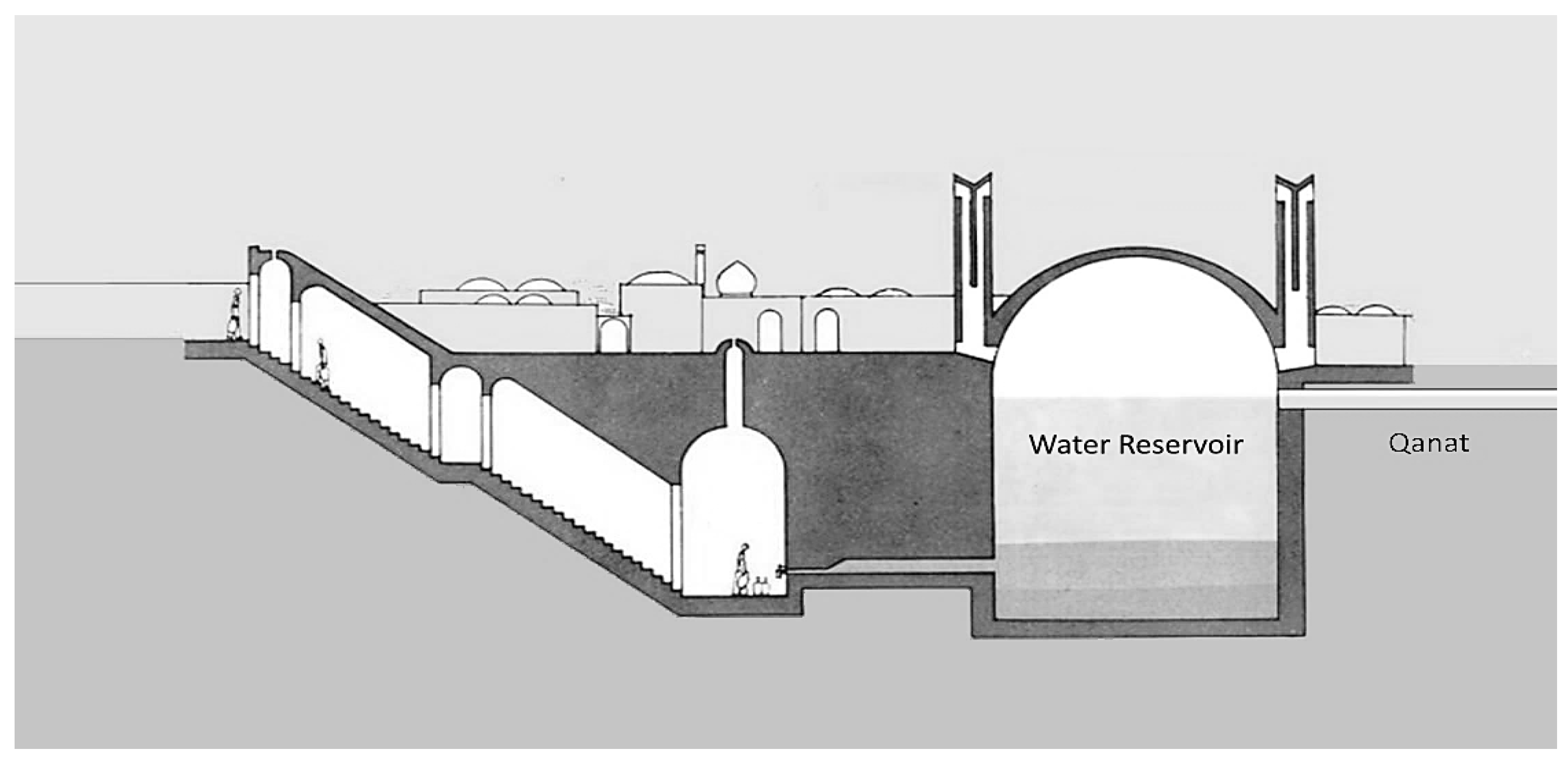

Figure 3.
A Section of a Water Reservoir.
Figure 3.
A Section of a Water Reservoir.

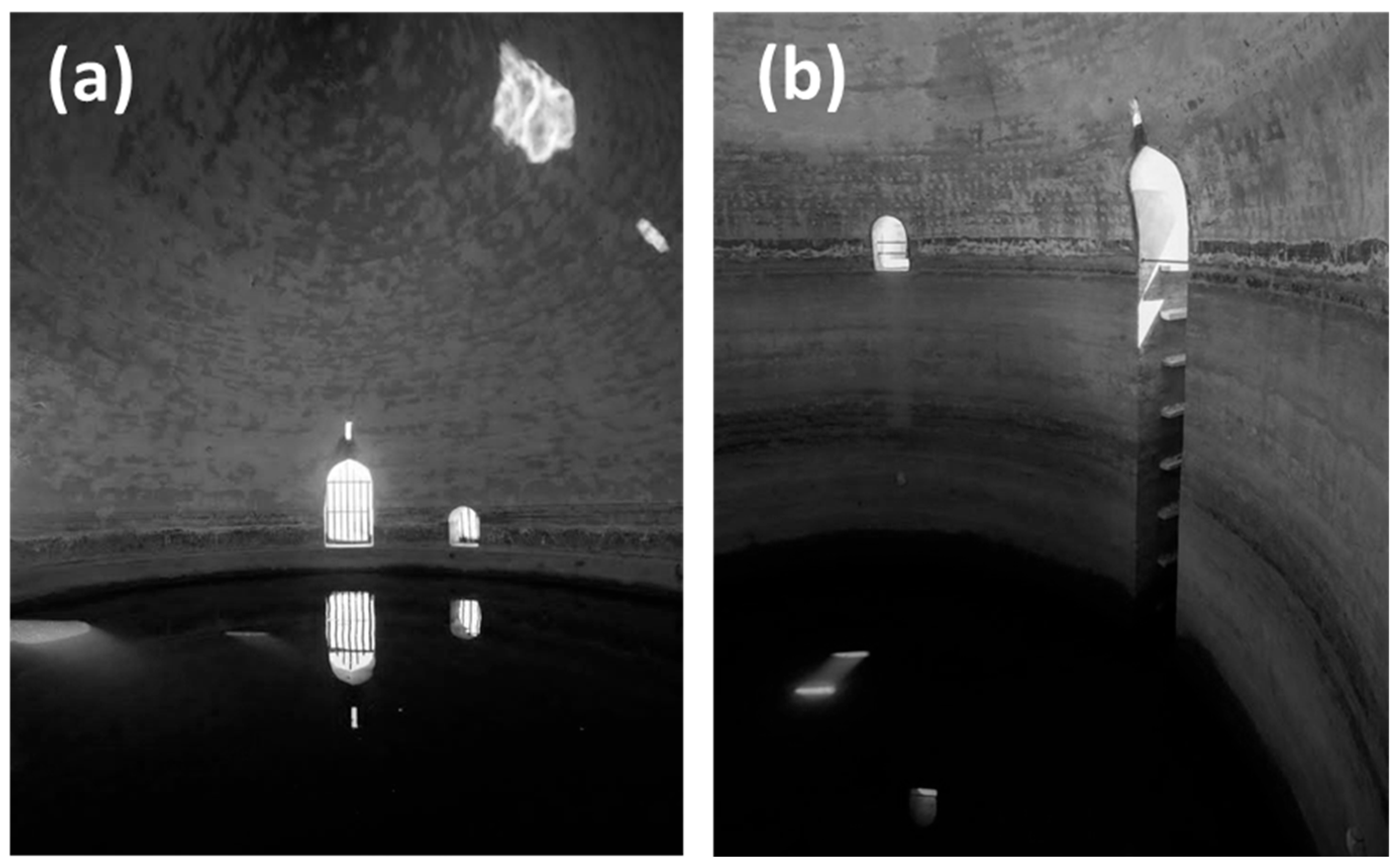

Figure 4.
(a) and (b) Different views of a Water Reservoir Interior, Fars Province, Iran.
Figure 4.
(a) and (b) Different views of a Water Reservoir Interior, Fars Province, Iran.
3.1.3. Pool (Howz)
Pool is one of the most important water elements in traditional Iranian architecture, which is specifically used in hot and dry areas. People gradually stored water in big pools, and used its water for the irrigation and other purposes. Evaporation of the water in the pool helps the ventilation in the garden by developing desirable cool weather. This function was considered in its best forms in the design of pools, in a way that a part of water of the pool and its fountain was evaporated and the air stream containing the water entered the building through the ground floor windows and flew out through the small openings in the dome-shaped ceiling above the pool-house or other windows of the pool-house which caused a cooled air in effect (Soltanzadeh. H & Soltanzadeh. A, 2017).
Windcatchers are important structures in this regard: these structures capture the favorable breeze and direct it over the water's surface into the main rooms of the building, water reservoirs, or basements. As the wind passes, its dust is reduced, and provides ventilation and cooling for the spaces.

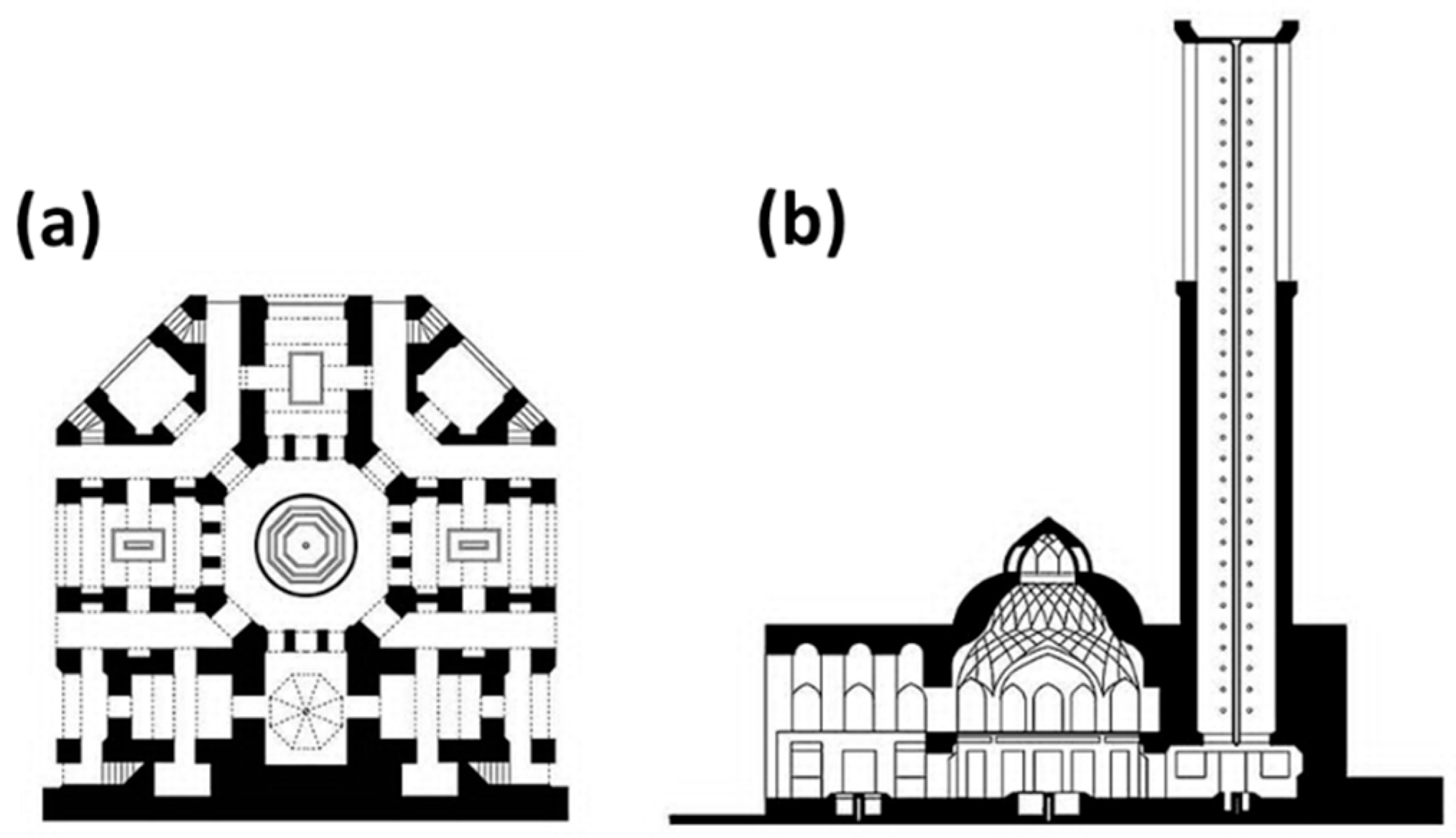

Figure 5.
(a) and (b): A Windcatcher (Badgir), Dowlatabad Garden, Yazd, Iran. The wind passes over the water's surface, and Its dust and temperature are reduced.
Figure 5.
(a) and (b): A Windcatcher (Badgir), Dowlatabad Garden, Yazd, Iran. The wind passes over the water's surface, and Its dust and temperature are reduced.
3.2. Conceptual Implications
In the case of conceptual manner, water in Iran's history plays a major role in defining space identity and creating a sense of place. The ways water appeared in traditional Iranian architecture have implicit connotations. These implications have deep roots in Iranian culture, and geography. There are usually two major forms in which water could appear in traditional Iranian architecture. One is the central water features in central courtyards, and another is its axial appearance in urban areas and gardens.
3.2.1. Forms of Water Appearance
Given the climatic conditions of Iran, water plays a vital role in attracting forms of life and people around it, thereby becoming like a magnet which polarizes space. The dependent spaces within a courtyard usually focus on central pools, which their full, brimming, emerald-green surfaces reflect the divine mercy (Ardalan & Bakhtiar, 1973). In the traditional Iranian design of the pools, a great emphasis was placed on their central placement because the center of each space is dedicated to God in Islam. Water features, regarded as God's creation, are located in the center of courtyards and restrict human presence in the center of the space because it is considered inappropriate. Locating the pool in the access roads to important spaces impeded the direct relocation of the individuals' right into the building as they should go around the pool along a non-direct pathway and return to their route to reach the desired space or building (Soltanzadeh. H & Soltanzadeh. A, 2017). The central presence of water also creates centrality and unity which are one of the main principles in Iranian architecture. It has the potential to establish visual continuity and cohesion within the architectural spaces, consequently making water a revered element in the center of each space.

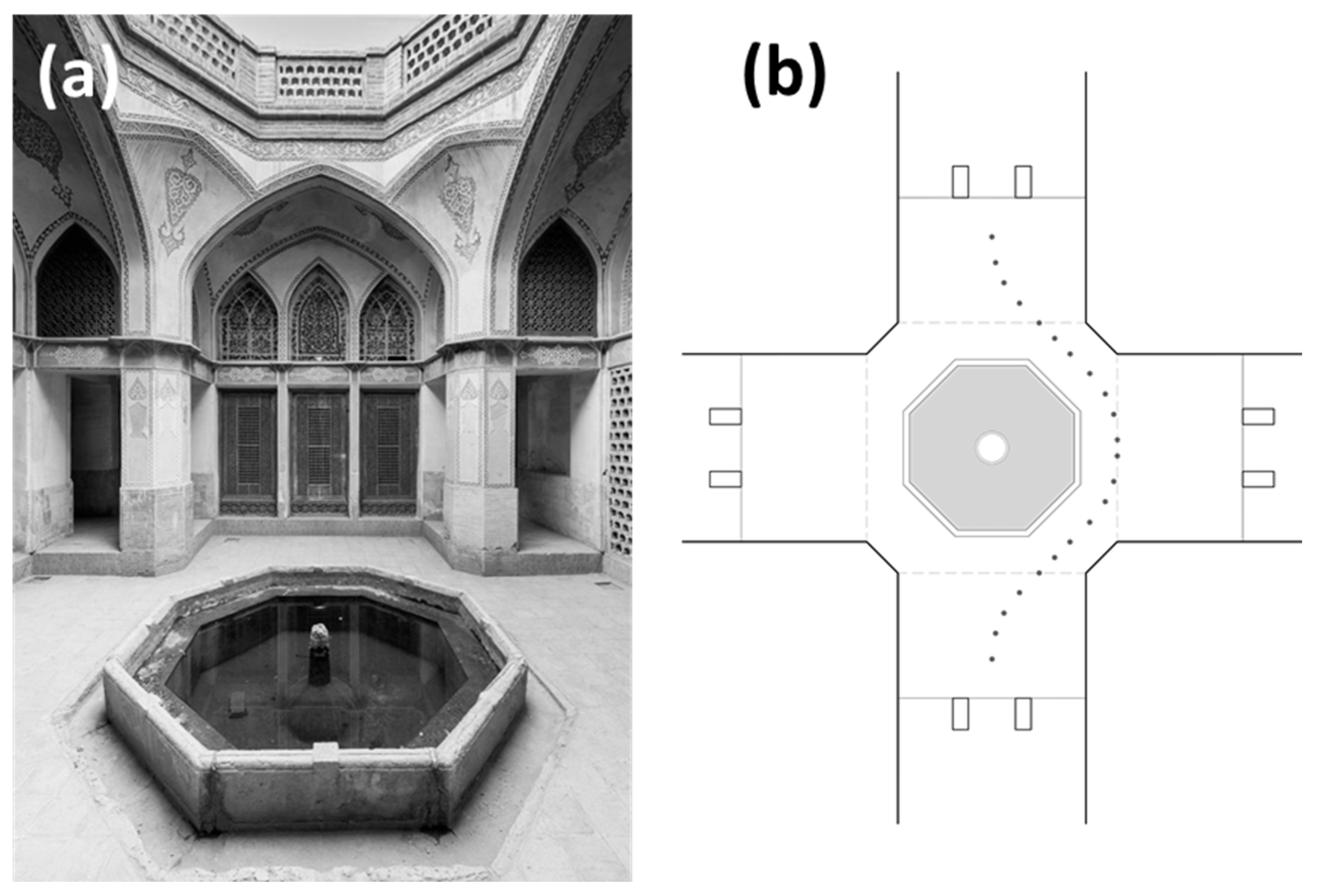

Figure 6.
(a) An image and (b) a sketch of the central presence of water and human path, located in Abbasian House, Kashan, Iran.
Figure 6.
(a) An image and (b) a sketch of the central presence of water and human path, located in Abbasian House, Kashan, Iran.
Path of water usually defines linear order of dwellings in the cities. This linear arrangement is perceptible with either surface or subsurface water channels. In the courtyard houses the water passage magnetizes the dwellings. Linear patterns of water help with spatial division, organization, and the creation of hierarchies in the space. The axial presence of water also emphasizes its dynamic characteristics that evokes a sense of transition and movement in Persian gardens, and it could act as an emphasis towards specific directions such as movement passage in the gardens or the direction of qibla in mosques. Rivers are an example of axial water presence. They form physical boundaries and, as they pass through cities, provide surrounding spaces for gatherings and social interactions (Razavi et al., 2007).

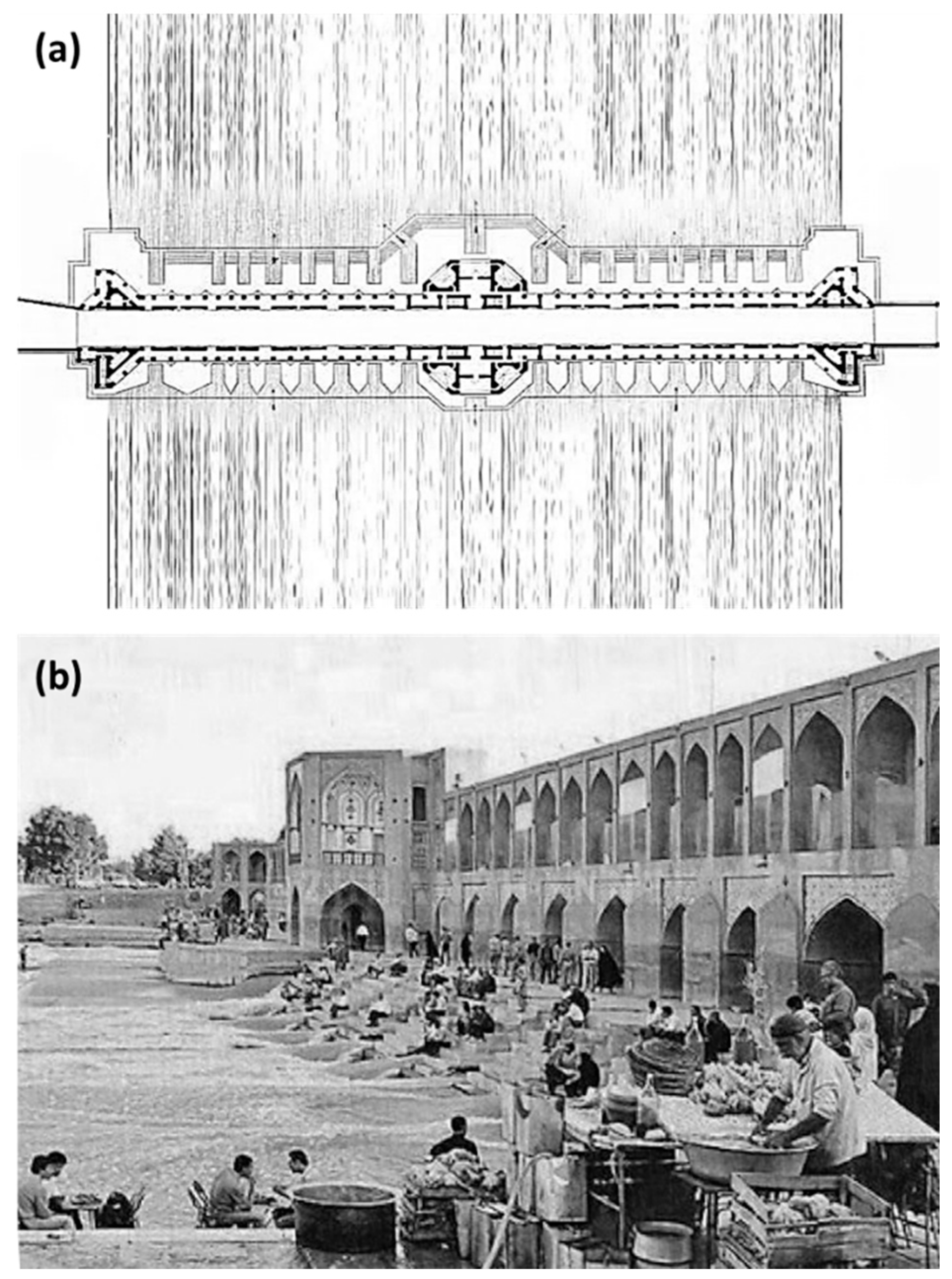

Figure 7.
(a) and (b) Gatherings and social interaction on the side of Khaju Bridge, Isfahan, Iran.
Figure 7.
(a) and (b) Gatherings and social interaction on the side of Khaju Bridge, Isfahan, Iran.
3.2.2. Cleansing and Purification
A unique aspect of water's nature is its capacity to both purify and cleanse. These two concepts differ from one another. Cleansing has a tangible identity, and in the process of performing it, dirt and the remnants of past activities are removed from the human body or physical surface. However, purification has a spiritual identity and refers to the cleansing of the inner self from impurities and sins. For cleansing, the use of water is a common and widespread method. In spiritual purification, water is not necessarily required, and in addition to water, it has been practiced through other methods as well. For example, the Chahar-shanbeh Souri festival in Iran includes activities like jumping over fire, which is considered a symbol of purification. However, water has a unique ability to enable both cleansing and purification simultaneously. Therefore, using water for purification has been more common than other methods. Rituals such as baptism and the washing of the dead are examples of purification through water (Illich, 1985, 27).
For purification, performing some rituals with specific patterns becomes necessary. The act of ablution in Islam, due to its particular arrangements and order, enable purification, and by performing these rituals, Muslims symbolically return to their primordial state. With the widespread religious use of water, the significance of places like ablution areas and public bathhouses as spaces of purification became more prominent. The use of water in these places was not merely functional but also paid attention to its deeper spiritual meanings. Public bathhouses were primarily built near mosques to facilitate purification before prayer. And, in mosques and religious buildings, water was prominently featured in the courtyard to emphasize the importance of purification before prayer. This water was typically in the form of an extended rectangle, usually aligned with the length of the mosque's courtyard and serving to define the direction of the Qibla (Haghayegh & Mirshahzadeh, 2012).

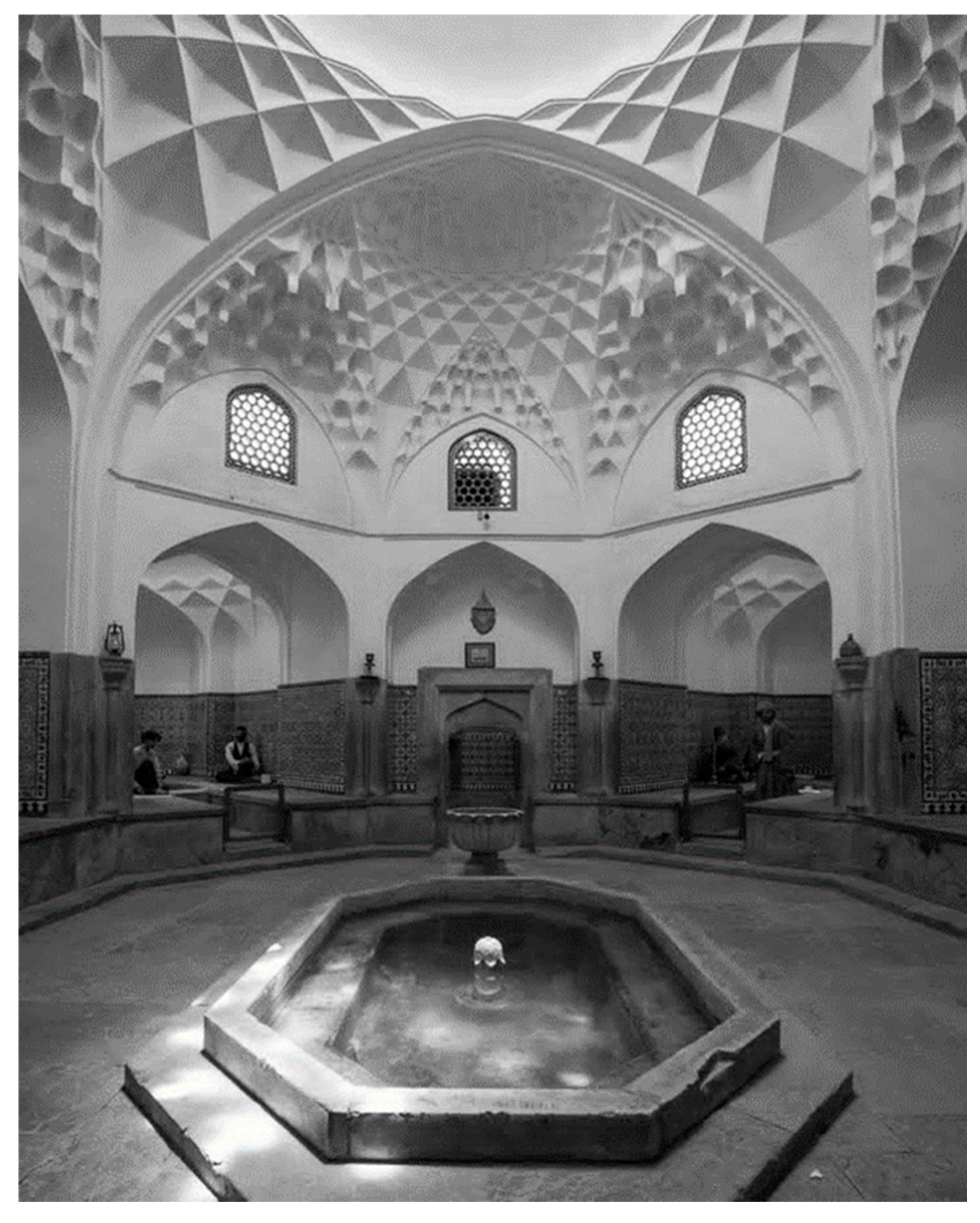

Figure 8.
Ganjali Khan Bath, Kerman, Iran, Water under the Sun: A Symbol of Purification.
Figure 8.
Ganjali Khan Bath, Kerman, Iran, Water under the Sun: A Symbol of Purification.
3.2.3. Symbols of Water
Water is primarily regarded as a symbol of life, and its appearance in architecture is related to prosperity and fertility. Due to Iran's arid nature, water was considered as sacred and revered. people sanctified it as a life-giving element, and constructed ritual places with simple spaces for the veneration of the water wherever permanent springs of water were observed (Soltanzadeh. H & Soltanzadeh. A, 2017).
In Chogha Zanbil, water was channeled through some clay pipes to the altar, and it was regarded as sacred. There are also bas-reliefs from the Elamite civilization depicting ceremonial rituals in honor of water. In these reliefs, worshippers approached the Elamite king and passed through the water to gain an audience with him (Haghayegh & Mirshahzadeh, 2012). The rituals of water sanctification in the Elamite civilization influenced the ceremonies of the Anahita temples, the goddess of water. In these temples water was carefully displayed and sanctified. One of the most famous of these temples is the Temple of Anahita in Bishapur, which was built to showcase and honor the sacred element of water.
In the ancient city of Bishapur, a precise water distribution system was executed at the sanctuary, where water was brought from the Shapur River through a 50-meter qanat to the temple. A stone water distributor, carved with geometrically arranged holes, directed the water through a network of hidden channels to the central basin. The current, gentle slope, smooth channel bed, and cross-sectional area intensity were meticulously calculated throughout the water's flow, upon reaching the central basin. The temple walls were double-layered, and the worshipers would line up in the narrow corridors in between to reach the main space of the temple. The walls framed the sky above and its reflection below allowing sunlight to illuminate the water in a basin at the center. Water symbolized a mirror of the universe in this sacred space (Al Hashemi, 2009).

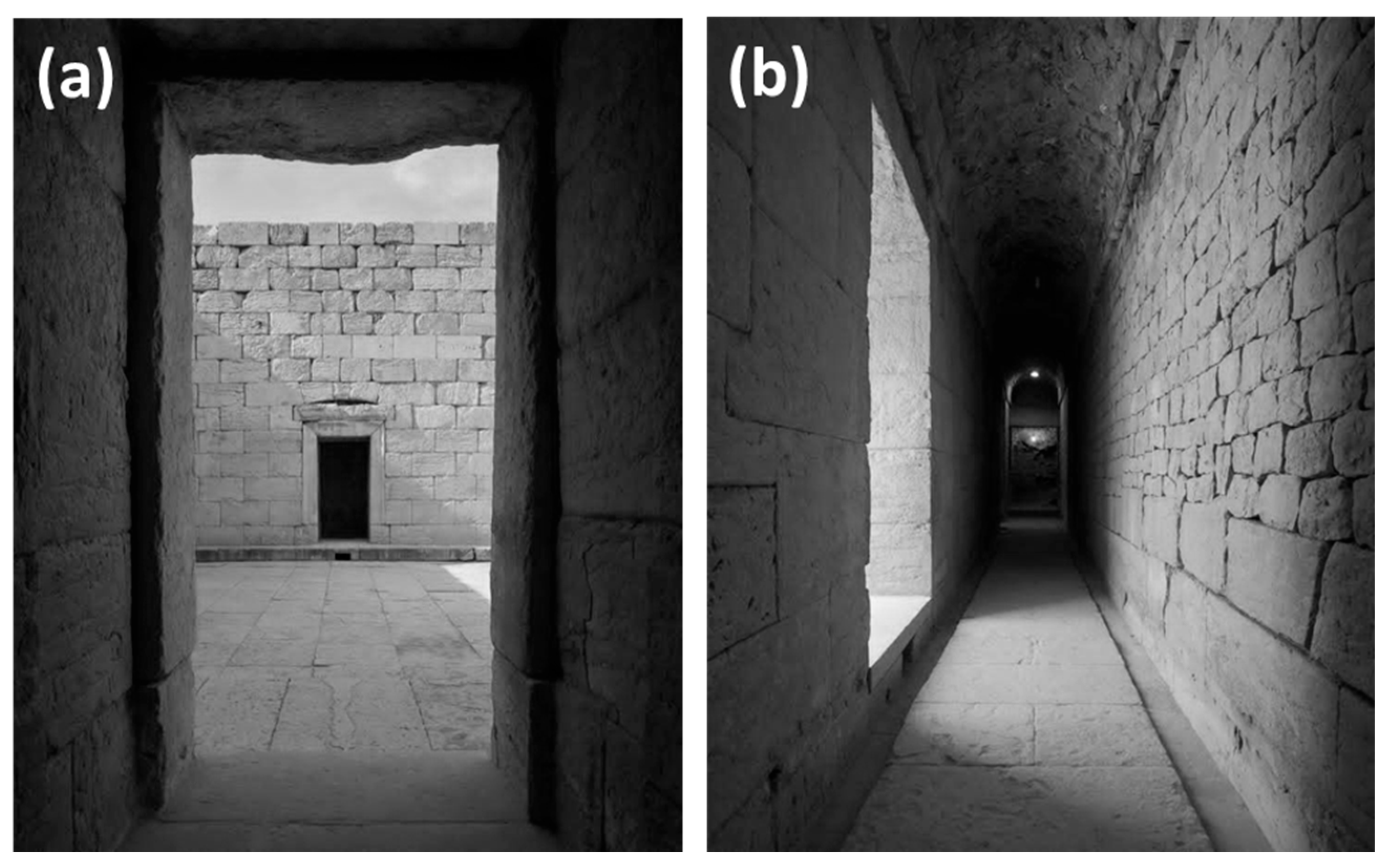

Figure 9.
Corridors leading to the central basin, Anahita Temple, Ancient City of Bishapur, Fars Province, Iran.
Figure 9.
Corridors leading to the central basin, Anahita Temple, Ancient City of Bishapur, Fars Province, Iran.

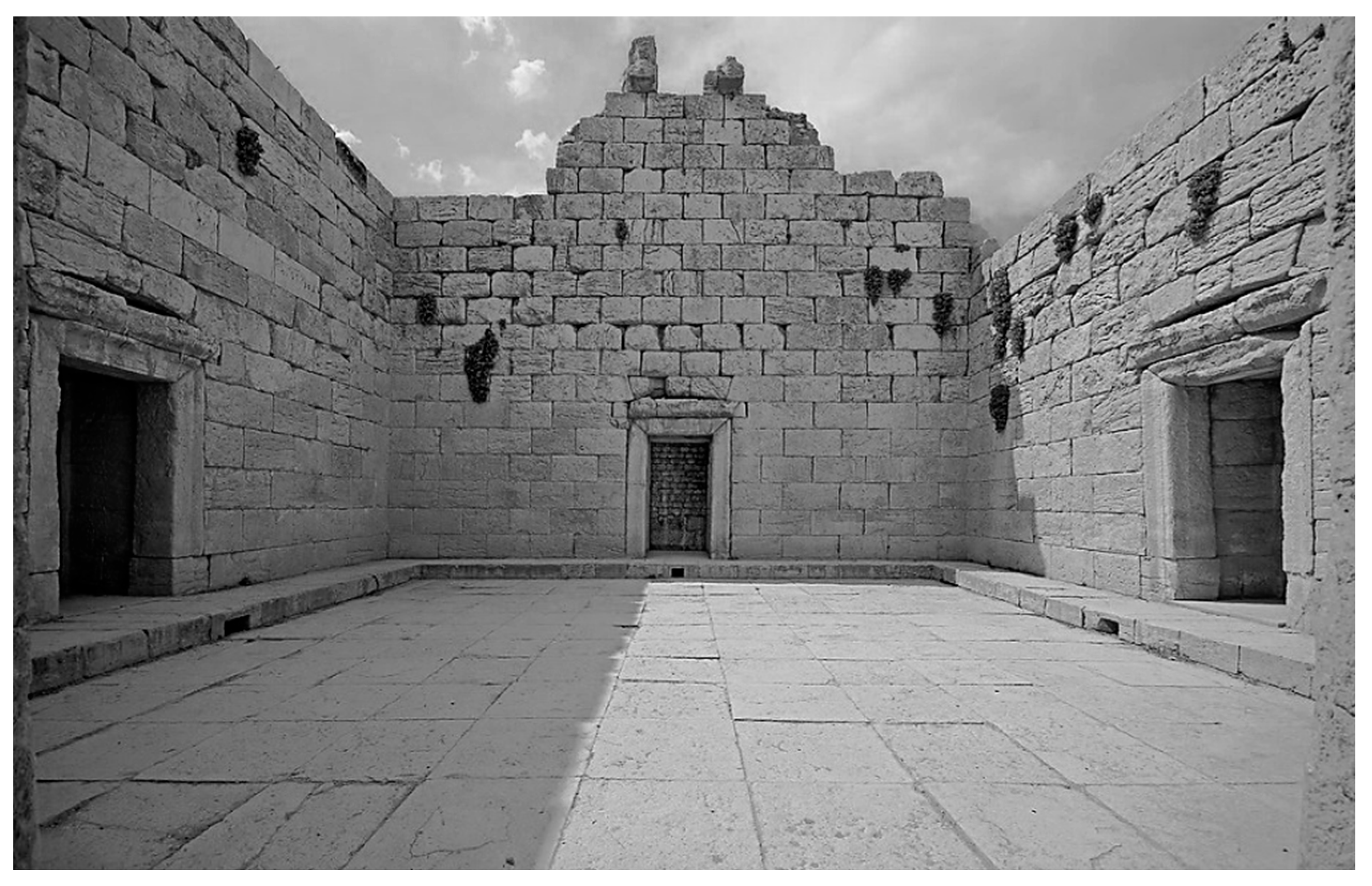

Figure 10.
Anahita Temple, Ancient City of Bishapur, Fars Province, Iran.
Figure 10.
Anahita Temple, Ancient City of Bishapur, Fars Province, Iran.
3.3. Forgotten Water in the Modern Era
With the progress in scientific discoveries, a new interpretation of matter emerged. In this interpretation, the characteristics of a substance are reduced to their physical identities. For example, with the discovery of the molecular structure of water, water and H2O are not considered to be two different identities. In other words, the science of chemistry has taught us that water and its molecular structure refer to a single entity (Karbasi Zadeh & Sheikh Rezaei, 2021). However, Ivan Illich, a philosopher and social analyst, critiques this interpretation of matter. he focuses more on the spiritual aspects of water and sees water and H2O as two completely different things. He argues that throughout history, water has been recognized as a substance with spiritual qualities, and the modern scientific interpretation of water and its formulation as H2O has reduced water to a physical liquid, distancing it from its concepts, symbols, and archetypes (Illich, 1985).
The reduction of water into its molecular structure and the influences of industry and technology have altered society's perspective on it. The water circulating through urban pipelines is no more the same as the water utilized in earlier times, and it has become a result of industrial processes and technical oversight (Illich, 1985). The technical understanding of water, defined as H2O has disconnected this element from human life's spiritual and aspects. Martin Heidegger also questions this technical understanding of water in his famous essay 'The Question Concerning Technology'. He argues that nature is often seen as a source of energy in the industrial age, with human interventions considered as an aggression. He contends that this aggression unjustly expects nature to function solely as an energy provider, enabling the extraction and storage of energy from its core (Heidegger, 1977).

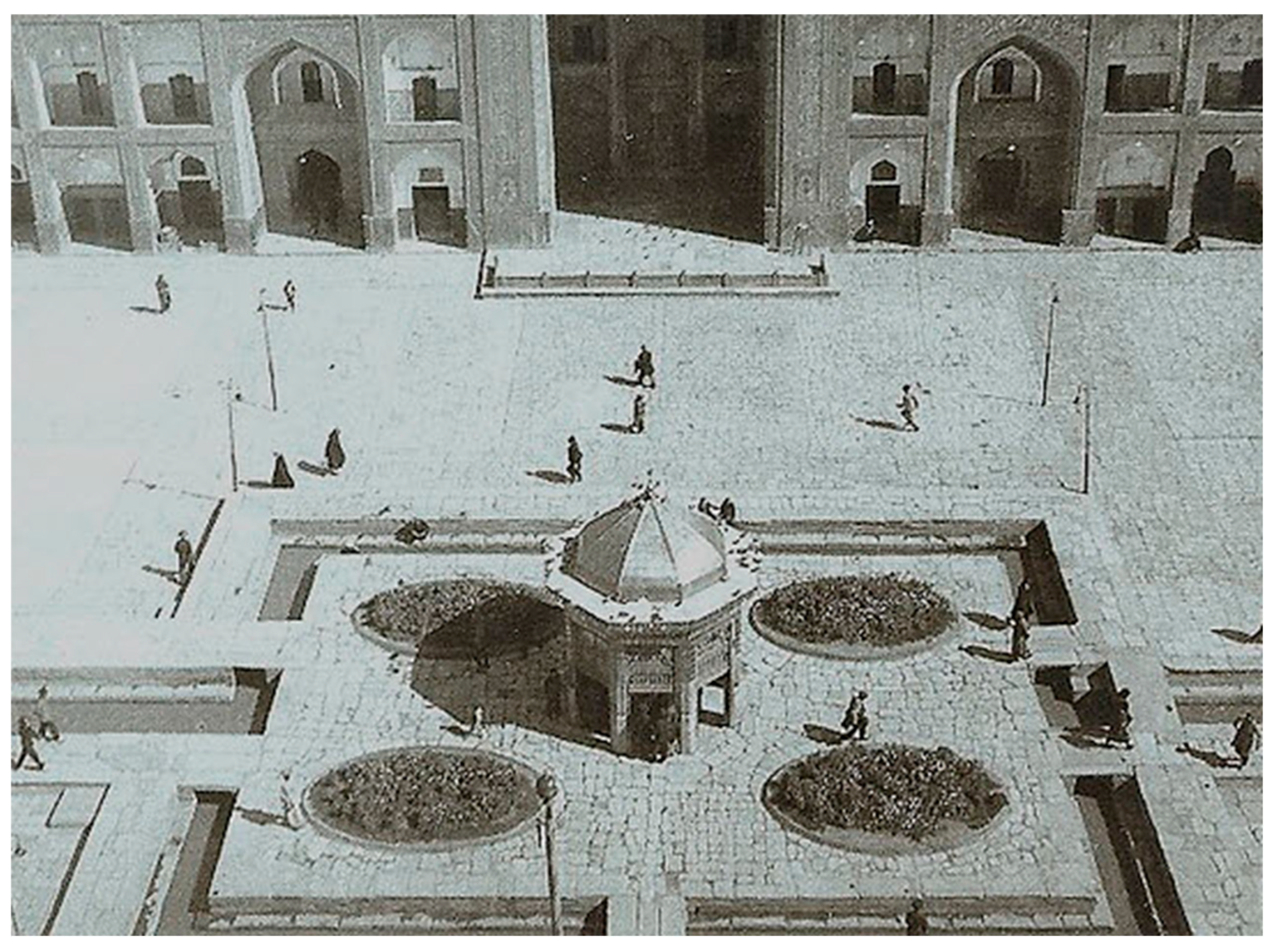

Figure 11.
Esmaeil Tala Saqqa-Khaneh, Imam Reza Holy Shrine, Mashhad, Iran.
Figure 11.
Esmaeil Tala Saqqa-Khaneh, Imam Reza Holy Shrine, Mashhad, Iran.
The Saqqa-Khaneh is a place where a water source is created, with a small bowl placed there to make water accessible for thirsty visitors. This act of providing water was considered a good deed in Islam. Water is a revered element in this place, and it has spiritual functions.
The modern hydroelectric power station located next to the Rhine River is indeed a remarkable example of the Heidegger. It is interpreted as an example of the shift in human attitudes towards nature. He describes the decline of the Rhine and adds: 'This power station reduces the river to an energy supplier. Unlike the old wooden bridge over the river, which allowed it to be just a river and not just an energy source.' (Heidegger, 1977). This problem is known as objectification of water in the modern times when water is utilized solely as a resource for human exploitation and energy consumption. For example, employing water for extensive irrigation, electricity production, and industrial applications instead of its customary uses, such as bathing and fulfilling societal and cultural needs, is viewed as a manifestation of the objectification of water.
In the past, nature was not considered a tool for fulfilling human needs. Nature was regarded as a manifestation of existence, and humans had a direct and unmediated relationship with it. However, when nature was reduced to a tool or an instrument, consumption became the only way in which humans could relate to it. The changes in consumption patterns could influence the role of water in contemporary architecture particularly in arid countries like Iran. In addition, there is also a knowledge gap about how contemporary Iranian architecture can adapt to the challenges of water scarcity? The developments in urbanization and increases in population density made access to water resources an essential necessity. This led to the development of more advanced systems for water storage, purification, and distribution. Also, modern architectural spaces are usually designed with functional and economic considerations in mind, which limits the appearance of certain traditional forms of water features, such as large reflective pools.
