Comparative Analysis of the ELISIO-HX and Xevonta-Hi Dialyzers in Standard Hemodialysis

1. Introduction

As the global prevalence of diabetes, obesity, and chronic kidney disease (CKD) continues to rise, the demand for kidney replacement therapy is also increasing [1]. Hemodialysis remains a cornerstone treatment for patients with end-stage CKD, aiming to remove uremic toxins, maintain fluid balance, and correct metabolic imbalances, mitigating systemic inflammation [1]. The efficiency of hemodialysis largely depends on the dialyzer membrane, particularly its material composition and pore size, which determine solute removal selectivity and performance [2,3,4].

Online post-dilution hemodiafiltration (OL-HDF) has demonstrated superior clearance of uremic toxins and improved cardiovascular and overall survival compared to conventional hemodialysis [5,6,7]. However, its widespread implementation is limited by technical and economic constraints, making standard hemodialysis the most commonly used modality up to date [8,9].

In recent years, the development of medium cut-off (MCO) membranes has aimed to optimize conventional dialysis by enhancing the removal of middle molecules [10,11]. Expanded hemodialysis (HDx) with these MCO membranes has been incorporated into routine clinical practice achieving a clearance performance similar to OL-HDF [12,13]

Among high-performance dialyzers, the Xevonta-Hi (B. Braun) and the ELISIO-HX (Nipro) represent two distinct membrane technologies with different permeability characteristics. The Xevonta-Hi, a high-flux dialyzer, features an Amembris™ polysulfone membrane designed to selectively remove small and some medium-sized molecules while minimizing protein loss [14]. In contrast, the ELISIO-HX incorporates a MCO membrane consisting of Polynephron™ polyethersulfone, which offers a broader pore size range, facilitating the clearance of both small and larger middle molecules [15].

Most comparative studies evaluating these dialyzers have focused on their performance in OL-HDF [16,17]. However, given the limitations in OL-HDF accessibility, understanding their efficacy in standard hemodialysis is crucial. This study aims to compare the Xevonta-Hi and ELISIO-HX dialyzers in conventional hemodialysis by assessing the clearance of uremic toxins across different molecular weight ranges, as well as inflammatory markers including transferrin [18], ceruloplasmin [19], haptoglobin [20], prealbumin [21], C-reactive protein (CRP) [22], interleukin-6 (IL-6) [22], placental growth factor (PLGF) [23], and serum amyloid A [24]. By evaluating these parameters, we seek to clarify the practical implications of membrane design on dialysis efficiency in standard clinical practice when OL-HDF is not a viable option.

2. Materials and Methods

2.1. Inclusion Criteria

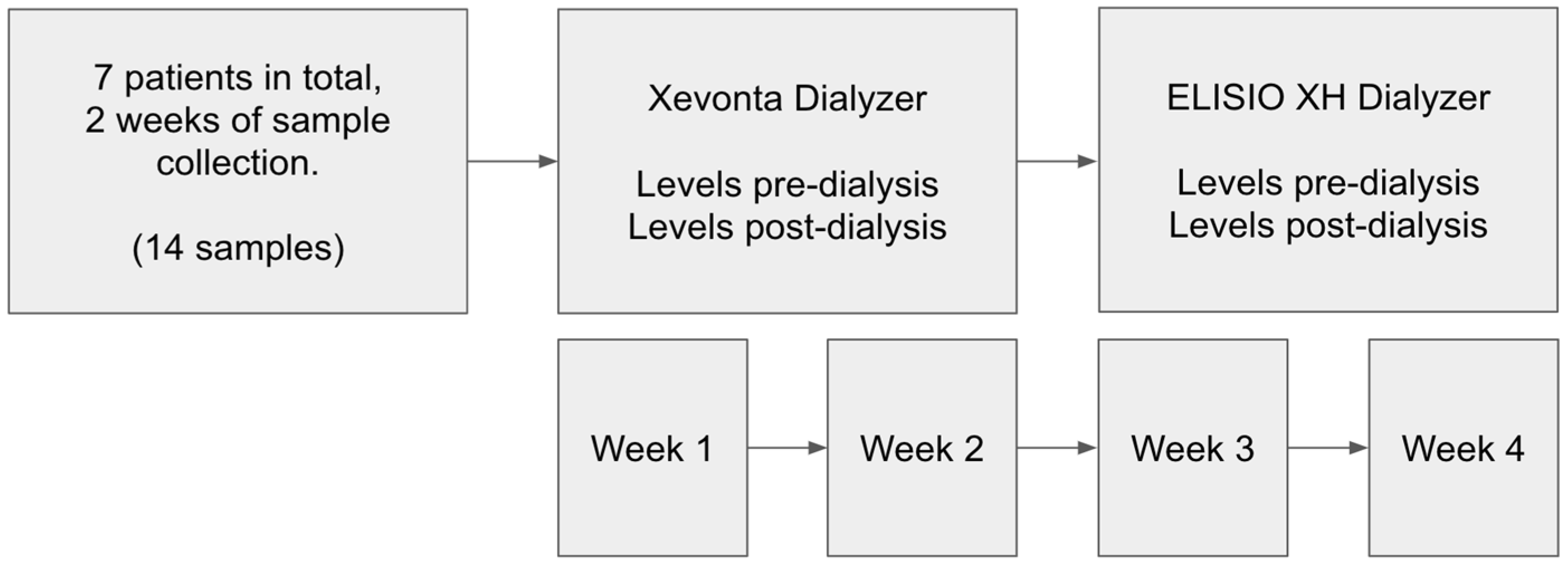

This prospective, observational cohort study evaluated the efficacy of two dialyzers in stable hemodialysis patients. Seven patients undergoing maintenance hemodialysis (>3 months) participated. Each patient sequentially received treatment with the Xevonta-High-flux Hi 20 dialyzer (B. Braun) and the Elisio-HX 21 dialyzer (Nipro). Treatments were administered in standard hemodialysis mode over two consecutive two-week periods. Inclusion criteria were: age >18 years, stable hemodialysis for ≥3 months, and thrice-weekly dialysis sessions at our peripheral unit. All patients were hypertensive; none had active neoplastic disease. Demographic variables included age, sex, and underlying CKD etiology. Comorbidities such as hypertension (HTN), diabetes mellitus (DM), and active neoplastic disease were recorded (Table 2).

2.2. Dialysis Procedure

Hemodialysis was performed using the ARTIS PHYSIO dialysis system (Gambro, Baxter). Treatment parameters recorded on the day of analytical measurements included dialyzer type, session duration, heparin dosage, Kt/V, vascular access type, and blood flow rate (Table 3). Heparin anticoagulation consisted of either enoxaparin (20/40 mg; 2000/4000 IU/mL) or sodium heparin (10 mg initial dose; 1000 IU/mL) with 5 mg hourly supplements. No hypersensitivity reactions occurred during the sessions. Blood samples were drawn Pre and Post-dialysis to assess the clearance of uremic toxins and inflammatory markers. Molecul measured for clearance evaluation included: Small water-soluble molecules (<500 Da): urea, creatinine, phosphorus, potassium, sodium, and calcium; Middle molecules (500 Da – 60 kDa): β2-microglobulin, parathyroid hormone, procalcitonin, and prolactin; Inflammatory markers: transferrin, ceruloplasmin, haptoglobin, prealbumin, CRP, IL-6, PLGF, and serum amyloid A; as well as albumin and total protein to assess protein losses.

2.3. Laboratory Analysis

Biochemical determinations were performed at the Clinical Biochemistry Laboratory of the Virgen del Rocío University Hospital (Seville, Spain). Plasma samples were collected in lithium-heparin containers (BD Vacutainer^®), and serum samples in separator gel tubes (BD Vacutainer^®). Plasma Urea was determined enzymatically measuring absorbance (Alinity c-series, Abbott). Plasma Creatinine was determined using the kinetic alkaline picrate method (Alinity c-series, Abbott). Plasma Phosphorus and calcium were quantified using colorimetric methods (Alinity c-series, Abbott). Plasma Sodium and potassium concentrations were measured through ion-selective potentiometry (Alinity c-series, Abbott). Plasma and Parathyroid hormone, procalcitonin were determined using immunoassays (Alinity ci-series, Abbott). Serum β2-microglobulin, prolactin, transferrin, haptoglobin, prealbumin, and high-sensitivity CRP were assessed using immunoassays (Alinity ci-series, Abbott). Serum Interleukin-6 (IL-6), and placental growth factor (PLGF) were quantified using electrochemiluminescence immunoassays (Elecsys reagent kits on Cobas e801 analyzer, Roche Diagnostics). Serum amyloid A and ceruloplasmin were measured by rate nephelometry (BN II Nephelometer, Siemens).

2.4. Statistical Analysis

Statistical analysis was performed using Python, utilizing standard data analysis packages. Data manipulation was conducted with Pandas, and hypothesis testing with Scipy and Statsmodels. Normality of the data was evaluated using the Shapiro-Wilk test. All continuous variables followed normal distributions and were expressed as means and standard deviations. Reduction ratios (RR) for each solute of interest were calculated using the formula: RR = 1 – (Cpost/Cpre) × 100, where Cpre and Cpost represent pre- and post-dialysis concentrations, respectively. Comparisons of RR between dialyzers were made using Welch's t-test. Data visualizations were created using Seaborn and Matplotlib, with statistical significance set at p < 0.05 (95% Confidence Interval).

3. Results

All dialysis sessions were completed without incidents. No significant differences were observed in the dialysis parameters, including session duration, Heparin dosage, Kt/v, Vascular access flow rate, Vascular access type, and Hemodialysis monitor. Pre-dialysis serum levels of various molecules for each dialyzer are presented in Table 5. No significant differences were found in pre-dialysis serum levels between dialyzers.

3.1. Small Molecules

The reduction ratios (RRs%) of small water-soluble molecules (molecular weight < 500 Da), including urea (60 Da), creatinine (113 Da), phosphorus (30 Da), potassium (39 Da), sodium (23 Da), and calcium (40 Da), were calculated for each dialyzer and are shown in Figure 1. High removal capacities of small molecules were demonstrated by both dialyzers, with Uremic toxin clearance (Urea, Creatinine, Phosphorus) ranging from 80% to 60%. RR of potassium were approximately 30% in both dialyzers and minimal losses were observed for Sodium and Calcium. Although the ELISIO-HX dialyzer showed higher removal capacities than the Xevonta-Hi dialyzer across all parameters, these differences were not statistically significant.

3.2. Middle Molecules

The RRs% of middle molecules (molecular weight 500 Da - 60 kDa), including β2-microglobulin (12 kDa), parathyroid hormone (PTH) (9.4 kDa), procalcitonin (13 kDa), and prolactin (23 kDa), were calculated for each dialyzer and are shown in Figure 1. Both dialyzers exhibited high removal capacities for middle molecules, with RRs% ranging from 75% to 35%. Although the ELISIO-HX dialyzer demonstrated a higher removal capacity than the Xevonta-Hi dialyzer, the differences were not statistically significant.

3.3. Inflammatory Markers

The RRs% of various inflammatory markers, including transferrin, ceruloplasmin, haptoglobin, prealbumin, CRP, IL-6, PLGF, and serum amyloid A, were calculated for each dialyzer and are presented in Figure 2. Moderate reductions (30% to 20%) were observed for serum amyloid A, PLGF, and IL-6. The ELISIO-HX dialyzer showed a consistently higher removal capacity than the Xevonta-Hi dialyzer for these inflammatory markers, but the differences were not statistically significant. No significant reductions were observed for the remaining inflammatory markers.

3.4. Albumin and Total Protein Loss

Minimal losses were observed in both dialyzers. The mean albumin loss was -257.14 ± 303.35 mg for the ELISIO-HX dialyzer and -164.29 ± 381.57 mg for the Xevonta-Hi dialyzer. The mean total protein loss was -428.57 ± 509.79 mg for the ELISIO-HX dialyzer and -242.86 ± 602.38 mg for the Xevonta-Hi dialyzer. No significant differences in albumin or total protein losses were detected between the two dialyzers.

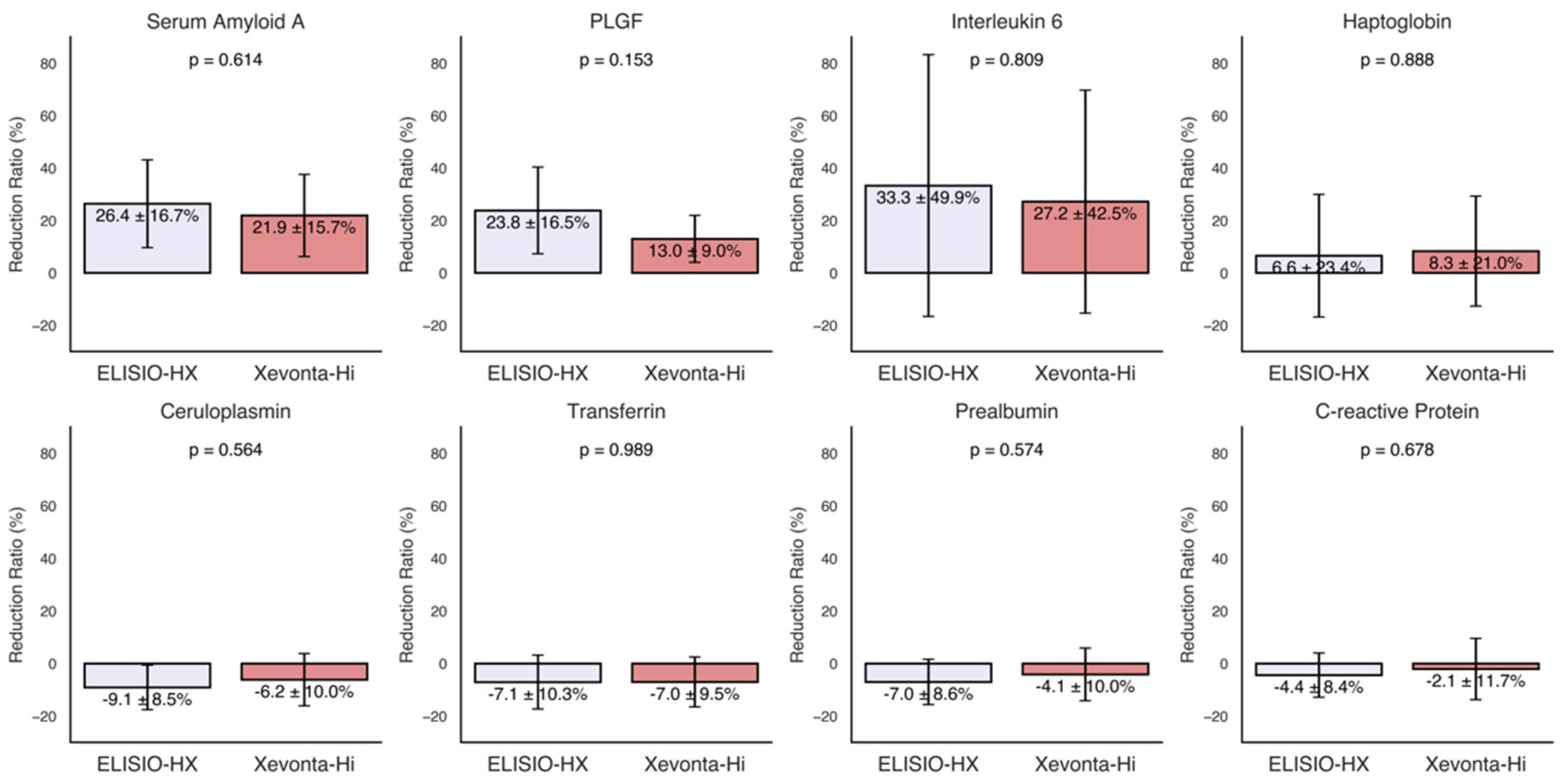

Figure 3. Reduction Ratios (RRs%) of inflammatory markers. Inflammatory markers: transferrin, ceruloplasmin, haptoglobin, prealbumin, C-reactive Protein, Interleukin-6, Placental Growth Factor (PLGF) and serum amyloid A. Comparisons of RRs% between dialyzers were made using Welch's t-test for paired samples (95% Confidence Interval).

Figure 3. Reduction Ratios (RRs%) of inflammatory markers. Inflammatory markers: transferrin, ceruloplasmin, haptoglobin, prealbumin, C-reactive Protein, Interleukin-6, Placental Growth Factor (PLGF) and serum amyloid A. Comparisons of RRs% between dialyzers were made using Welch's t-test for paired samples (95% Confidence Interval).

4. Discussion

This study provides a comparative analysis of the ELISIO-HX and Xevonta-Hi dialyzers in standard hemodialysis, focusing on their efficacy in removing small and middle uremic toxins and reducing inflammatory markers. This is one of the few studies that directly compares the performance of these two dialyzers in a real clinical setting, analyzing both solute removal and treatment safety under identical dialysis conditions. Such direct comparisons are fundamental, as dialysis parameters have a marked impact on sieving coefficients and, consequently, on the estimation of RRs% [25].

The results demonstrate that both dialyzers have a remarkable capacity for removing uremic small molecules, with RRs% ranging from 60% to 80% for urea, creatinine, and phosphorus. Minimal losses were found for Sodium and Calcium, highlighting the favorable safety profile of these dialyzers. Although the ELISIO-HX dialyzer demonstrated superior removal capacity compared to the Xevonta-Hi, the observed differences did not reach statistical significance, demonstrating comparable efficacy between the two dialyzers for the removal of uremic small molecules.

For middle-weight molecules, both dialyzers also demonstrated effective removal capacity, with RRs% values ranging from 35% to 75%. Similarly to small molecules, no significant differences were observed in middle molecule RRs% between the two dialyzers. Notably, RRs% of 70-75% were observed for β2-microglobulin (β2M), a key marker of membrane efficiency. Previous studies have suggested that MCO membranes could surpass high-flux (HF) membranes in β2M clearance in xHD [26,27,28], however, our results show that, for the duration of the study period, the efficieny of the MCO membrane was non-superior to HF.

An important consideration is the removal of inflammatory markers. Markers such as IL-6 and CRP play a critical role in the persistent inflammatory state observed in hemodialysis patients, contributing to cardiovascular and overall morbidity [29,30]. We found moderate reductions in serum amyloid A, PLGF, and IL-6, with no significant differences between the two dializers. This finding suggests that, despite variations in dialyzer structure, the capacity to remove inflammatory mediators is comparable, at least for the duration of the study period.

No reductions were detected in transferrin, ceruloplasmin, haptoglobin, prealbumin, or CRP, which may be explained by their roles as indicators of long-term inflammation rather than acute changes. Longer-term studies are needed to confirm this hypothesis.

Previous randomized controlled trials have shown that MCO membranes can reduce the expression of pro-inflammatory cytokines such as tumor necrosis factor-alpha (TNF-α) and IL-6, although the long-term clinical impact of these reductions remains uncertain [31,32]. Our findings suggest that MCO and HF membranes in xHD may help mitigate the inflammatory burden in hemodialysis patients, potentially improving long-term outcomes.

In terms of safety, both dialyzers demonstrated minimal losses of albumin and total proteins. Specifically, an average albumin loss of -257.14 ± 303.35 mg was recorded for the ELISIO-HX, compared to -164.29 ± 381.57 mg for the Xevonta-Hi. These results are consistent with previous studies [33,34] that independently evaluated each dialyzer, showing that both membranes maintain excellent selectivity, preventing significant losses of essential proteins while enhancing solute clearance.

Altogether, the results indicate comparable performance between the ELISIO-HX and Xevonta-Hi dialyzers in standard hemodialysis, with no significant differences in the removal of small or medium molecules. Despite the theoretical advantage of MCO membranes in enhancing middle-molecule clearance and addressing long-term inflammation, our short-term study did not reveal a measurable benefit over the high-flux dialyzer. These findings suggest that, under standard hemodialysis conditions, the potential advantages of MCO membranes may not translate into immediate differences in uremic toxin removal.

This study presents two primary limitations: the limited sample size and the short-term evaluation period. Increasing the number of participants and extending the duration of future studies would provide a more comprehensive understanding of the long-term effects and potential differences between high-flux and MCO membranes. Additionally, it may be valuable to explore the performance of these dialyzers under varying dialysis parameters, such as shorter session durations or lower flow rates, which could influence clearance efficiency. A notable strength of this study lies in the standardized comparison of the two dialyzers under identical treatment conditions, ensuring that the results reflect differences inherent to the membranes themselves rather than variations in dialysis settings. Furthermore, the comprehensive assessment of a broad spectrum of molecules—including small and middle uremic toxins, as well as inflammatory markers—provides a thorough evaluation of dialyzer performance across multiple clinically relevant parameters.

Despite the limitations, the findings demonstrate that, over the short term and within standard hemodialysis conditions, high-flux and MCO membranes perform equivalently. This suggests that both options are suitable for effective uremic toxin removal and inflammation management in routine clinical practice, though longer-term studies are needed to confirm whether these findings persist over time.

5. Conclusions

This study highlights the comparable efficacy of the ELISIO-HX and Xevonta-Hi dialyzers in standard hemodialysis. Both dialyzers effectively removed small and medium-weight molecules and maintained a favorable safety profile, with minimal albumin and protein losses. These findings indicate that, within the context of standard hemodialysis, both MCO and HF dialyzers are suitable options for efficient uremic toxin removal and inflammation management. However, we emphasize the need for further studies with larger sample sizes and longer evaluation periods to fully assess their long-term impact on patient outcomes.
