Abstract

This study adopts the affine term structure three-factor models outlined by \cite{dai2000specification}, aiming to analyse South African (SA) government bond yields across various maturities. The primary objective is to evaluate whether these models offer robust pricing capabilities—being both admissible and flexible—while capturing the conditional correlations and volatilities of yield factors specific to SA bond yields. For a model to be considered admissible, it must also demonstrate economic identification and maximal flexibility. We thus investigate the short-, medium-, and long-term dynamics of bond yields concurrently. Model estimation involves deriving joint conditional densities through the inversion of the Fourier transform applied to the characteristic function of the state variables. This enables the use of maximum likelihood estimation as an efficient method. We assume that the market prices of risk are proportional to the volatilities of the state variables. The analysis reveals negative correlations between factors. Among the models tested, the $A_1(3)$ model outperforms the $A_2(3)$ model in terms of fit, both in-sample and out-of-sample.

Keywords:

affine term structure models

;

conditional correlation and volatility

;

three-factor models

;

market price of risk

Subject:

Business, Economics and Management - Econometrics and Statistics

1. Introduction

The yield curve continues to be a useful tool for the financial market participants as a guide to levels of interest rates and their economic expectations. Synonymously, it is referred to as the term structure of interest rates, a representation of the yields plotted against a cross-section of unexpired maturities. Bonds and yields are used as a relative pricing benchmark for other financial instruments. Traders of various fixed income securities such as credit default swaps, loans, and related derivatives among others, rely on the yield curve to price their trades. The yield is a discount rate at which cash flow of fixed income securities is equated to the present value of an instrument a point in time. The yield is dependent on short-term interest rates, which in our SA context is a short-rate such as a repo set by the Monetary Policy Committee of the SA Reserve Bank is a proxy.

The yield is linked to a combination of either observable and unobservable (latent) factors, which may be either macroeconomic such as inflation, gross domestic product, yield curve factors, or the three statistical factors level, slope, and curvature as per the empirical evidence by [2]. They evaluate methods of constructing yield curve factors and their loadings such as principal component analysis, the dynamic Nelson-Siegel and affine term structure models (ATSMs). The yield curve factors in particular, refer to the instantaneous or short rate of interest changes and its volatility.

Our study, which motivates the choice for ATSMs, seeks to address the cross-sectional yield dynamics with special attention to conditional volatility and correlation in a multi-factor setting. This would enable us to study several active SA Treasury bonds of different maturities simultaneously. Moreover, these dynamics have a critical impact on the pricing of bond options, risk management (hedging), and measurement such as calculation of value-at-risk. Stochastic volatility models of [1,3], and [4] among others, consider the interest rate volatility to be a latent factor from which many properties of the yield may be observed.

Recent study by [5] models the SA government bond yield using the interpolation method of Nelson-Siegel. Their report cites a remarkable statement that SA bond market is considered to be a leader within the emerging markets, and also ranked the highest in terms of liquidity. In addition, our review of the BIS quarter 4 of 2023 statistics highlights an amount of

$ 238.6

billions of debt securities issued by the SA central government, in all markets at all original maturities denominated in domestic currency at nominal value; see [6]. Whereas the Nelson-Siegel method produced good-fitting results in their study, our aim is to exploit the econometric modelling capabilities within ATSMs to model the SA bond yields. ATSMs provide a tractable and flexible framework to describe this dynamic behaviour of the entire term structure of interest rates by modelling the evolution of short-term and long-term rates simultaneously. They are known to have certain mathematical properties that make them analytically tractable. In particular, they can accommodate stochastic volatility, jumps and correlation among risk factors that drive asset returns. Affine representations of state variables in the DAPMs are popular because they lead to computationally tractable pricing relations and moment equations that can be used in estimation; see [7].

The traditional practice of capturing the bond yield movement over time together with some macroeconomic variables has been conducted by using methods such as the vector autoregression. However, there are limitations when it comes to treatment of certain aspects of the bond and yield. First, a bond is an asset, and that the same bond with several different maturities may be traded at the same time. Second, there is a risk of holding long-dated bonds for a short-term as the investors may require compensation for such risk. There is an expectation that long-term yields represents a risk-adjusted average of a cross-section of short-term yields plus a risk premium in the absence of arbitrage. Third, the yields are not normally distributed, thus making it difficult to compute the expected values of future short rates. ATSMs provide a solution for this problem; see [8].

ATSMs commence with the presumption that the instantaneous short rate

r (t)

is an affine function of an

N -

dimensional state vector Y,

r (t) = ϕ_{0} + ϕ_{Y}^{'} Y (t)

, and that

Y (t)

followed Gaussian and square-root diffusions, respectively. Affine models were extended by [9] into consistent and arbitrage-free multifactor model of the term structure of interest rates in which yields at selected fixed maturities follow a parametric multivariate Markov diffusion process with "stochastic volatility." [1] explore the structural differences and relative goodness-of-fit of the ATSMs. In particular, they consider a trade-off between the following modelling issues. First, the economic representation of both short and long-term dynamics of the state variable when studied simultaneously. Second, the computational burden of estimation and curve fitting. This trade-off is formalized by their classification of

N -

factor affine family into

N + 1

non-nested subfamilies of models. Their special attention to three-factor ATSMs suggests, based on theoretical considerations and empirical evidence, that some subfamilies of ATSMs are better suited than others to explaining historical interest rate behaviour. One example is the case where the conditional probability density of yields in closed-form is non-existent, rendering the maximum likelihood of no use. To circumvent this, a feasible choice should come from estimation methods such as Fourier-based, generalised methods of moments (GMM), Markov chain Monte Carlo (MCMC) and simulated methods of moments (SMM) among others. It is known that the conditional likelihood function of the latent state vector

Y (t)

may not be known, as a result [1] follow the SMM of [10].

The remainder of the paper is structured as follows: Section 2 capturers the review of relevant literature. Section 3 describes the ATSMs. Section 4 defines a canonical representation of the ATSM and restrictions that are imposed on the parameters. 5 An overview and descibes the three-factor ATSMs. 6 Reviews briefly the characteristic function-based estimation methods for the ATSMs. Section 7 - 10 Discusses data collection, scenario determination, model implementation and analysis of the results. In section 11 we conclude.

2. Literature Review

This paper explores the behaviour of the SA interest rates in terms of historical time series and a cross-section of yields across a maturity spectrum. Inspired by the seminal work of [1], we proceed by implementing their model and its maximal counterpart. Among three options of models tested on US Treasury swaps, their

A_{1} (3)

was found to perform better than other models, followed by their

A_{2} (3)

. Initially, they consider a comprehensive framework for the specification, analysis, and classification of ATSMs. They provide a complete characterisation of admissible and identified ATSMs from which it is required that sufficient general conditions exist; see [11], who describe the regular affine process. They also characterise the sufficient general conditions that must be met for a process to be affine; see [7,8] among others.

ATSMs are among popular models in the vast literature on interest rates term structure and bond pricing. Few examples are the early generation consisting of a single-factor Gaussian of [12], and a square-root process by [13], extended by [14] into a multi-factor. The next generation are the correlated mixture affine models of [1,9], among others. The reason for their popularity is the ability to accommodate stochastic volatility, jumps and correlations among factors driving the asset returns; and lead to computationally tractable closed-form prices, and estimation through moment equations; see [7]. Among research problems addressed using ATSMs is the description and treatment of the co-movement of short and long-term bond yields. An affine process Y is defined as one in which a conditional mean

μ

and variance

σ σ^{'}

are affine functions of Y. The process is further defined and characterised by [11] as regular affine process, a class of time-homogeneous Markov processes. They consider a state space

D = R_{+}^{M} \times R^{N}

, for integers

M \geq 0

and

N \geq 0

, from which the logarithm of a characteristic function of a transitional probability

p (x_{t})

of such process is affine with respect to the initial state

x \in D

. [7] conveniently formalises it in terms of their exponential-affine Fourier (for continuous-time) and Laplace (for discrete-time) transforms. The affine relationship is defined by coefficients which are solved by a family of ordinary differential equations (ODEs). These ODEs are the essence of tractability of regular affine processes. [9] apply the ODEs as time-dependent drivers of the solution to a zero-coupon bond, provided the parameters are admissible. An inverted form of these zero-coupon bond gives rise to a yield as a state variable. They also exploit the idea of a yield-only analysis without including additional economic variables as latent factors.

[15,16] are among several authors who have approached the application of ATSMs in discrete-time although they are known to have less popularity compared to their continuous-time counterparts. Earlier models exhibited a tendency of perfectly correlated returns of bonds of all maturities, which is an unrealistic behaviour and unsuitable for hedging; see [17]. Several authors extended these one-factor Markov representation of a short-rate by introducing a range of multi-factor models with the long-run mean

θ (t)

, and the stochastic volatility

υ (t)

r (t)

that are affine functions of

(r (t), θ (t), υ (t))

for which [1] explores several specifications. [18] endorse a parsimonious representation of the yield curve matching the time series and cross-sectional variation of bond yields through three-factor models. They develop a simple estimation approach by exploiting the exponential-affine structure of these models; see also [19] on the stochastic mean and stochastic volatility and three-factor model of the term structure of interest rates and its applications in derivatives pricing and risk management

A specification of an ATSM should be "admissible" and therefore lead to well-defined bond prices. The admissibility property is completely characterised by [11] in the "canonical" state space

D = R_{+}^{M} \times R^{N}

, with a non-negative diagonal matrix. However, this property has a problem of imposing parameter restrictions on the affine process to ensure that it is well defined. One typical scenario is the restriction of parameters to ensure that the conditional variance of a state variable remains non-negative. The requirements for admissibility become more complex as the number of state variables determining conditional variances increase; see [7]. The admissibility condition ensures that the process does not exit the domain

D \in R^{N}

. A family of

A_{M} (N)

models with a domain

D = R_{+}^{M} \times R^{N - M}

are a common admissible family of models; where M factors evolve in a positive state space while

N - M

evolve in an unrestricted space; see [20]. [1] verifies this easily through admissible

N -

factor ATSMs that are uniquely classified into

N + 1

non-nested subfamilies.

Admissible models should also be canonical, meaning that they are economically identified, and maximally flexible; see [7]. As a result, the

A_{M} (N)

benchmark ATSM models should have a canonical representation and also satisfy the non-negative and non-explosive solution of ([21]). Their drift should satisfy a Lipschitz condition, and the diffusion should satisfy the uniqueness condition of [22]; see [8]. These conditions have an effect of restricting the correlation structure of the affine diffusions. Exploiting the Gaussian and square-root form of diffusions, there still appear to be non-satisfaction of the regularity conditions of non-explosive growth and uniqueness, giving rise to need for a Feller condition;1 see [8]. A multi-dimensional extension of a Feller condition was implemented by [9], which was found to handle the general correlated affine diffusions. The condition ensures that only positive factors enter the volatility

σ (y)

. This involves restrictions on the state variables that prevent the instantaneous conditional variances

S_{i i} (t)

from becoming negative. This condition is sufficient for the existence of a unique solution to the affine SDE according to [11].

For each of the

N + 1

subfamilies, there exists a maximal model that is econometrically plausible for all other models within this subfamily. They describe further the maximal models in relation to the

N + 1 = 4

classification; and highlight an interaction within the family of ATSMs between the dependence of the conditional variance of each

Y_{i} (t)

Y (t)

and the admissible structure of the correlation matrix for Y. A key advantage of maximal models is that of overcoming the overidentifying restrictions that are imposed on yield curve dynamics; see [1]. The admissibility property is also confirmed by the no-arbitrage solution for a zero-coupon bond following [9].

[1] specification applied the continuous-time approach to the ATSMs which is popular to a majority of empirical literature. They explore the structural differences and relative goodness-of-fits of ATSMs. They refer to a trade-off between flexibility in modeling the conditional correlations and volatilities of the risk factors. They classify a family of

N -

factor affine into

N + 1

non-nested subfamilies of models. From their three-factor ATSMs, empirical analysis suggests that some subfamilies of ATSMs are better suited than others to explaining historical interest rate behaviour.

The focus of the research is to implement the specifications of [1] to test the pricing of zero-coupon bonds and forecasting the yield curve dynamics when using the SA bond yield. It also attempts to extract the latent factors from the yield itself, without any consideration for other economic factors; see [9]. ATSMs are proven to dominate both theoretical and empirical frameworks in term structure modelling; see [8]. A link between the cross-sectional and time series properties is made consistent by the ATSMs. Evolution of unobserved factors from the risk-neutral dynamics of the yield are proved to have both the drift and the diffusion coefficients as affine functions of such factors by the ATSMs; see [8]. Several methods of estimation are available and require mostly the knowledge of the joint conditional density of yields. In this study, we follow the estimation method of Fourier inversion for the characteristic function of a state variable, which is assumed to lead to a conditional density. This method leads to a closed-form solution where the maximum likelihood is an efficient estimator.

3. Model Establishment

We discuss the model in the context of admissibility of ATSMs. In the absence of arbitrage opportunities, a zero-coupon bond that matures at time T is priced as

\begin{matrix} P (t, τ) = E_{t}^{Q} [e^{- \int_{t}^{τ} r (s) d s}] \end{matrix}

(1)

where:

$P (t, τ)$ is the price of a bond at time t maturing at time $τ$ .
t is the current or initial time at which the bond is evaluated.
$τ$ is the maturity date, at which the bond pays its face value.
s is a continuous time variable at which the interest rate process $r (s)$ evolves.2
$E_{t}^{Q} [\cdot]$ denotes the conditional expectation under the risk-neutral measure Q given the information available at time t.

To obtain an

N -

factor ATSMs it is assumed that an instantaneous short-rate

r (t)

is an affine function of a vector of N unobservable state variables

Y (t) = Y_{1} (t), Y_{2} (t), . . ., Y_{N} (t)

, written as

\begin{matrix} r (t) = δ_{0} + \sum_{i = 1}^{N} δ_{i} Y_{i} (t) \\ = δ_{0} + δ_{y}^{'} Y (t) \end{matrix}

(2)

where

δ_{0} \in R

and

δ_{y} \in R^{N}

Another assumption is that

Y (t)

follows an affine diffusion

d Y (t) = K^{Q} (θ^{Q} - Y (t)) d t + Σ \sqrt{S (t)} d W^{Q} (t)

(3)

K^{Q}

and

θ^{Q}

represent the reversion rate and central tendency (long-term mean) parameters under a risk-neutral measure, respectively.

W^{Q} (t)

is an

N -

dimensional independent Brownian motion under the risk-neutral measure Q;

K

, and

Σ

are

N \times N

matrices, which may be asymmetric or non-diagonal.

S (t)

is a diagonal matrix with the

i t h

diagonal elements written as

{[S (t)]}_{i i} = α_{i} + β_{i}^{'} Y (t)

(4)

where

α_{i} \in R

and

β_{i} \in R^{N}

. The parameter

α

can be interpreted as an intercept, which represents the base or long-run level of the variance for the

i^{t h}

component.

β_{i}

represents the sensitivity of the variance for the

i^{t h}

component to the state vector

Y_{t}

. Together,

α_{i}

and

β_{i}

ensure that the conditional variance is always positive. The non-negativity in (4) is the core requirement for admissibility in this framework.

The drifts in (3) and conditional variances in (4) are both affine in

Y (t)

. [9] has the following time dependent solution to the price of a zero-coupon bond, provided that parameters are admissible.

P (t, τ) = e^{A (τ) - B {(τ)}^{'} Y (t)}

(5)

and the related yield is computed as

y (t, τ) = - \frac{l o g P (t, τ)}{τ} = \frac{A (τ)}{τ} + \frac{B {(τ)}^{'} Y (t)}{τ}

(6)

where

A (τ)

and

B (τ)

are coefficients whose solution satisfies the following ODEs (Ricatti equations)

\frac{d A (τ)}{d τ} = - θ^{'} K^{Q^{'}} B (τ) + \frac{1}{2} \sum_{i = 1}^{N} {[Σ^{'} B (τ)]}_{i}^{2} α_{i} - δ_{0}

(7)

\frac{d A (τ)}{d τ} = - θ^{'} K^{Q^{'}} B (τ) - \frac{1}{2} \sum_{i = 1}^{N} {[Σ^{'} B (τ)]}_{i}^{2} β_{i} + δ_{y}

(8)

A solution to these ODEs is found through numerical integration, starting from the initial conditions

A (0)

B {(0)}_{N \times 1}

. Risk-neutral dynamics of the short rate

r (t)

in (2) through to (4) determine this specification of the ODEs.

To use the closed-form representation of (1) in the empirical study of ATSMs, it is required that the distributions of

P (t, τ)

and

Y (t)

under actual physical measure P be known. To this end, a market price of risk

Λ (t)

is introduced as

Λ (t) = \sqrt{S (t)} λ

(9)

where

λ

is an

N \times 1

vector of constants. The process

Y (t)

under physical measure P, therefore also has an affine form 3

d Y (t) = K (Θ - Y (t)) d t + Σ \sqrt{S (t)} d W (t)

(10)

Note that a superscript Q has been removed.

W (t)

is an

N -

dimensional vector of independent Brownian motion under P,

K = K^{Q} - Σ Φ

Θ = K^{- 1} (K^{Q} θ^{Q} + Σ ψ)

Φ

comprises of

λ_{i} β_{i}^{'}

in its

i t h

row, and

ψ

is an

N -

vector with

λ_{i} α_{i}

as its

i t h

element.

[1] acknowledge that their main purpose of (9) is to preserve the affine structure of

Y_{t}

under

Q

. They do not pursue the impact of the market price of risk on the forecast but only focus on the correlation and volatility dynamics of the state variables. The square-root process is followed here to ensure non-negativity to the price of risk. Their form is referred to as "completely affine", which is found to have limitations as far as pricing of risk is concerned. As a results, some authors extended the completely affine form of market price of risk to address various factors that impact on the price of risk itself; see [25,26] and [27] among others. Our approach focusses on the econometric representation of state variables, which we assume to incorporate a detailed market price of risk. In spite of this, we follow in the footsteps of [1] where the main focus was to address the specification problems considering both correlation and volatility on the cross-section of yield data. Our workings would not focus on analysing the market price of risk but rather leave it to the future research which might incorporate other forms suitable for SA yield curve. We also support the idea of extending a detailed market price of risk to the emerging markets to respond to factors such as volatility, liquidity and bond credit risk; see the recent report by [28]. Their report addresses a joint modelling of liquidity and credit risk for SA bond market, where they recommend their model or similar approach for emerging markets and corporate bonds.

4. A Canonical Representation of ATSMs

According to [1], a general specification for (10) may not always lead to a positive conditional variances over a range of Y, given an arbitrary set of parameters

ψ = (K, Θ, Σ, B, α)

. However, admissibility requires that parameters restrict

S_{i i} (t)

in (10) to be strictly positive for all i; where

B

denotes the matrix of coefficients on Y in

S_{i i} (t)

From (4), there is a special case where there is no admissibility problem when

β_{i} = 0

, for all i, since the instantaneous conditional variances are all constant. Outside the special case, it is necessary to impose constraints on the drift parameters

K

and

Θ

, and diffusion coefficients

Σ

and

B = (β_{1}, β_{2}, \dots, β_{N})

. The requirements for admissibility become more restrictive as a number of state variables determining

S_{i i} (t)

increases.

They consider a case where there are M state variables driving the instantaneous conditional variance of the

N -

vector Y, such that

M = r a n k (B)

. They further propose a set of

N + 1

benchmark models

A_{M} (N)

as the most flexible econometrically identified affine DTSM on the state space

R_{+}^{M} \times R^{N - M}

; see also([11]). It is only when the admissibility conditions are met that a canonical representation may be defined.

Definition 3.1:

For each M,

Y_{t}

is partitioned as

Y^{'} = (Y^{' V}, Y^{' D})

where

Y^{V}

M \times 1

, and

Y^{D}

(N - M) \times 1

; where V and D represent the volatility sources and the dependent factor, respectively. The canonical representation of the benchmark model

A_{M} (N)

is defined as a special case of (3) with

K = (\begin{matrix} K_{M \times M}^{V V} & 0_{M \times (N - M)} \\ K_{(N - M) \times m}^{D V} & K_{(N - M) \times (N - M)}^{D D} \end{matrix})

(11)

for

M > 0

, and

K

is either lower or upper triangular for

M = 0

The canonical representation of

K

is the mean-reversion matrix, with diagonal terms expected to pull the mean level to non-negativity, thus influencing positive variances. Its off-diagonal terms on the other hand reflect how different state variables influence each other, indicating potential dependencies or interactions that could affect the overall system behaviour. The matrix

K

therefore captures both the stabilising effects of the mean-reversion rates and the dynamic interplay between different state variables. In the three-factor analysis, this trade-off between non-negative variance and correlations requires a special attention. It also has an impact on the choice of M, number of state variables entering volatility and the interactions among

N = 3

factors

Θ = (\begin{matrix} Θ_{M \times 1}^{V} \\ 0_{(N - M) \times 1} \end{matrix})

(12)

Σ = I

(13)

α = (\begin{matrix} 0_{M \times 1} \\ 1_{(N - M) \times 1} \end{matrix})

(14)

B = (\begin{matrix} I_{M \times M} & V_{M \times (N - M)}^{V D} \\ 0_{(N - M) \times M} & 0_{(N - M) \times (N - M)} \end{matrix})

(15)

The following parameter restrictions are imposed:

δ_{i} \geq 0, M + 1 \leq i \leq N

(16)

K_{i} Θ \equiv \sum_{j = 1}^{m} K_{i j} Θ_{j} > 0, 1 \leq i \leq M

(17)

K_{i j} \leq 0, 1 \leq j \leq M, j \neq i

(18)

Θ_{i} \geq 0, 1 \leq i \leq M

(19)

B_{i j} \geq 0, 1 \leq i \leq M M + 1 \leq j \leq N

(20)

[1] define a subfamily

A_{M} (N)

; of affine DTSM as nested special cases of the

M t h

canonical model or its invariant transformation; where

M = (0, \dots, N)

. Equivalent affine models are obtained under invariant transformations that preserve admissibility and identification and leave the observable quantities like short rate unchanged. Details on invariant transformation are discussed in Appendix A of [1].

The following issues are further noted from [1]:

The assumed structure of

B

ensures that

r a n k (B) = M

for the

M t h

canonical representation. To verify that M resides in

A_{M} (N)

, instantaneous conditional correlations among

Y^{V} (t)

are zero, whereas the instantaneous correlations among

Y^{D} (t)

are determined by parameters

B_{i j}

because

Σ = I

. Admissibility is established provided (20) holds, and that the conditional covariance matrix of Y depends only on

Y^{V}

. Zero restrictions in the upper right

M \times (N - M)

block of

K

and the constraints in (18) and (19) ensure that

Y^{V}

is positive. Stationarity is also assured by ensuring that all the eigenvalues of

K

are strictly positive; see also Appendix B in [1].

In addition to an admissible canonical representation, in which the minimal known sufficient condition for admissibility were imposed, minimal normalisations for econometric identification are imposed to derive a "maximal" model in

A_{M} (N)

. A more unique class of maximal

A_{M} (N)

, referred to as the equivalence class of

A M_{M} (N)

model is obtained by invariant transformation of the canonical representation; see Appendix A in [1].

[1] further points that the canonical representation of

A_{M} (N)

models may not always be a practical way for analysing state variables in ATSMs. Often, existing literature opted for parameterising ATSMs with the riskless rate r as a state variable, resulting in "affine in r" (Ar) representation. This can be rewritten as an "affine in Y"

(A Y)

, where

r (t)

can be expressed as an unobserved state vector

Y (t)

. As a result, a thorough specification analysis for

N -

factor ATSMs necessitates evaluating

N + 1

non-nested, maximal models, and ensuring that a thorough understanding of the model’s structure and implications is obtained.

5. The Three-Factor ATSMs

Three-factor models are used to describe the historical behaviour of the term structure of interest rates. Traditionally, these factors are unobserved (latent) and can only be defined statistically using techniques such as principal component analysis to convey economic meaning. Popular yield-curve fitting approaches such as the dynamic Nelson-Siegel model apply the principal component analysis (PCA) loadings to fit a yield curve; see [2]. These approaches appear to fit and forecast well but lack the theoretical rigour to enforce some no-arbitrage restrictions. Contrary to the yield-curve fitting approaches, the empirical approaches to the factor models such as the ATSMs are worth pursuing. They consider the maximal parameterisation through which in general the economic identification of factors can be revealed. [18] is among early works that are based on enforcing the no-arbitrage restrictions by implementing the three-factors models. They constructed a simple affine model with short term interest rate, mean rate and volatility as three factors, which are easy to estimate. They further conclude that the short rate plays and important role in yield curve modeling, following their observation that it could not be dominated by any other factor across all maturities.

[1] explores various forms of the canonical ATSMs and their maximal counterparts, as influenced by the number conditional volatility and correlation of factors. Fixing these factors into

N = 3

gives rise to their three-factor models which posit mainly the representation of the short-rate itself, its mean rate and volatility as the three-factors. Analysis and comparisons are made of the Gaussian versus the square root diffusion forms of the models, even though the latter appear to be preferred as it imposes the non-negative variance restrictions.

Three-factor models were derived from the notation

A_{M} (N)

where M is the number of state variables that enter volatility

S (t)

according to [1]. Emphasis has been put on the trade-off between conditional volatility and correlation as a focus for the analysis of the term structure of interest rates. As previously discussed, [9] introduced a multi-dimensional Feller condition. It ensures that negative state factors do not enter the volatility

S_{i i} (t)

by restricting correlations; see also [8]. We have previously also discussed in a similar context, the role of the mean-reversion rate matrix

K

, its non-negative diagonal terms restrictions and interactions among state variables through its off-diagonal terms.

A number M of the factors that drive the process which enters a volatility

S (t)

become the main argument on the choice of an

A_{M} (N)

model, depending on the purpose of the study. [29] point out that more volatility factors result in less flexibility in allowing risk premium and correlation structure. As a result, they are in favour of a one conditional volatility factor models

A_{1} (N)

such as the

A_{1} (3)

by [1]. [30] also favour the

A_{1} (N)

with

N = 3

and

N = 4

for the same purpose of allowing flexibility for risk premium and correlation. Their focus is to impose restrictions on the parameters of

A_{1} (3)

such that the volatility factor

ν (t)

disappears from the bond pricing equation. In our approach, we analyse the admissibility of parameters and cross-equation restrictions that result from interactions among the factors

Y (t) = (ν (t), θ (t), r (t)))

. As previously discussed, the mean-reversion rate matrix

K

has elements with either negative of positive magnitudes playing a role of ensuring that factors are pulled from entering the variance only for non-negative values, otherwise non-negative correlations are the result. This is also applicable in the case of a three-factor model.

In this study we focus on the

A_{1} (3)

A_{2} (3)

models and their maximal counterparts

A M_{1} (3)

and

A M_{2} (3)

to determine both the fit and estimation when applied to the SA bond yield curve.

5.1. $A_{1} (3)$

These models are characterised by one factor Y as a source of conditional volatility. As a result,

M = 1

gives rise to the model form of

A_{1} (3)

. From the original [18] BDFS model, the

A_{1} (3)

according to the notation of [1] is specified as

\begin{array}{r} d ν (t) = μ (\bar{ν} - ν (t)) d t + η \sqrt{ν (t)} d B_{v} (t) \\ d θ (t) = ν (\bar{θ} - θ (t)) d t + ζ d B_{θ} (t) \\ d r (t) = κ (θ (t) - r (t)) d t + \sqrt{ν (t)} d B_{r} (t) + σ_{r ν} η \sqrt{ν (t)} d B_{ν} (t) \end{array}

(21)

where:

$σ_{r ν} = \frac{ρ_{r ν}}{η \sqrt{1 - ρ_{r ν}^{2}}}$

The state variables

ν (t)

θ (t)

and

r (t)

are the stochastic volatility for

r (t)

, central tendency or long-run mean of

r (t)

and short rate processes, respectively. The volatility affects the short rate through its volatility factor

η

. The coefficient

κ

represents the rate at which the short rate reverts to the central tendency. The stochastic volatility

ν (t)

also enters

r (t)

and it is also instantaneously correlated with

r (t)

as noted in the last term

σ_{r ν} η \sqrt{ν (t)} d B_{ν} (t)

The maximal model is best suited for interpreting the parameter restrictions. As a result, [1] prefer the following model in (23) as a maximal

A M_{1} (3)

which is affine in r. They determine their

A_{1} (3)

by relaxing the parameters

σ_{θ r}

and

σ_{r θ}

in order to accommodate a non-zero correlation between the short rate and central tendency. All the other parameters inside the square boxes are set to zero to impose significant restrictions on the dynamics of interest rates and their volatility.

(22)

(23)

where:

$ν (t)$ serves as stochastic volatility for $r (t)$ , but also enters the drift of $r (t)$ , and correlated to $r (t)$ as noted in the term $σ_{r ν}$ ; $θ (t)$ is the central tendency of r and $κ$ is the rate at which the short rate reverts to its central tendency. Appendix E in [1] describes the transformation framework from which a test for admissibility and canonical representations in $A M_{1} (3)$ can be achieved.

5.2. $A_{2} (3)$

These models are characterised by two factors of Y as a source of conditional volatility. As a result,

M = 2

gives rise to the model form of

A_{2} (3)

. The [19] model is the member of this sub-class of models, and it is represented as

\begin{matrix} d ν (t) = μ (\bar{ν} - ν (t)) d t + η \sqrt{ν (t)} d W_{1} (t) \\ d θ (t) = ν (\bar{θ} = θ (t)) d t + ζ \sqrt{θ (t)} d W_{2} (t) \\ d r (t) = κ (θ (t) - r (t)) d t + \sqrt{ν (t)} d W_{3} (t) \end{matrix}

(24)

W_{1}

W_{2}

and

W_{3}

are independent Brownian motions. The

θ

follows a square-root diffusion unlike in the case of the BDFS model. Other parameters

ν

η

and

κ

are the same as in the above models. These leads us to the convenient maximal model for

A_{2} (3)

which is represented as

(25)

(26)

[1] relaxes the restrictions on

κ_{θ ν}

κ_{r ν}

and

σ_{r ν}

, while other parameters within a square box are restricted to zero.

6. Estimation for Affine Models

Several estimation strategies such as the maximum likelihood, generalised method of moments, simulated method of moments, Markov chain Monte Carlo, and the characteristic function-based method are discussed by many authors; see [7,8,31]. We mention three among a possible list of issues to consider when selecting an estimation strategy for the affine models. First, an infinite set of moment conditions can cause a stochastic singularity problem, which leads to constraints for the GMM. This result from a cross-sectional yield data with many maturities. Second, a choice between inclusion or non-inclusion of a measurement error in a representation that links the observed yield with a state variable. Third, maximum likelihood efficiency is dependent on the conditional density of the state variable which is not always known; see [32].

In contrast to the maximum likelihood estimation which requires that the density functions must be computed, CCF-based methods are straight-forward. They depend on the knowledge of functional form of the CCF for variables that are observed from affine diffusions. CCFs are the foundation for computationally tractable and asymptotically efficient estimators of the parameters of affine diffusions and asset pricing models representing the affine state variables; see [31].

It is generally known that the conditional density function f of

Y_{t + 1}

has a solution up to an inverse Fourier transform of

ψ_{t} (ϕ; γ)

f (Y_{t + 1} | Y_{t}) = \frac{1}{{(2 π)}^{N}} \int_{R^{N}} e^{- i ϕ^{'} Y_{t + 1}} ψ_{t} (ϕ; γ) d ϕ

(27)

The charaterisic function

ψ_{t} (ϕ; γ)

for

Y_{t + 1}

given

Y_{t}

ψ (Y_{t + 1}) = E [e^{i ϕ^{'} Y_{t + 1}} | Y_{t}]

(28)

From the Proposition 1 of [33], it can be shown that under suitable regulations (5) is the conditional characteristic function of

Y_{t + 1}

, with

A (τ)

and

B (τ)

derived from the solution of (7) and (8) for

τ = 1

. Therefore, the conditional characteristic function becomes

ψ (τ) = e^{A (1) + B {(1)}^{'} Y_{t + 1}}

(29)

The log-likelihood form for (27) becomes

l_{T} (γ) = \frac{1}{T} \sum_{t = 1}^{T} l o g \{\frac{1}{{(2 π)}^{N}} \int_{R^{N}} e^{- i ϕ^{'} Y_{t + 1}} ψ_{t} (ϕ; γ) d ϕ\}

(30)

By conjecturing the parameters

γ

and computing the Fourier inversion, maximum likelihood can be obtained by maximising (30), to obtain a maximum likelihood estimator by characteristic function (ML-CCF); see [7].

[7] considers densities of individual columns

Y_{i}

, for

i = 1, . . ., N

. A selector vector

l_{j}

is assigned an entry 1 and zero elsewhere. The density f of

y_{j, t + 1} = l_{j} \cdot y_{t + 1}

given the entire

y_{t}

is the inverse Fourier transform of

ψ_{t} (ϕ l_{j}; γ)

f (Y_{t + 1} | Y_{t}) = \frac{1}{{(2 π)}^{N}} \int_{R^{N}} e^{- i ϕ l_{j}^{'} Y_{t + 1}} ψ_{t} (ϕ l_{j}; γ) d ϕ

(31)

Estimation of (31) is based on one-dimensional N integrations instead of

N -

dimensional integrations.

Alternatively, the general method of moments (GMM) using a characteristic function is achieved by the residual

ϵ (t + 1, ϕ; γ) = e^{- i ϕ^{'} Y (t + 1)} - ψ (t, ϕ; γ)

(32)

For an arbitary instrument

z (t, ϕ)

; the estimator becomes

l_{T} = \frac{1}{T} \sum_{t} \int_{R^{N}} z (t, ϕ) e^{- i ϕ^{'} Y_{t + 1}} - ψ (t, ϕ; γ)

(33)

The GMM approach is a beter alternative to a multi-dimensional Fourier inversion. However, as a grid of

ϕ

becomes finer, correlations among moments become increasingly large, leading to a singular distance matrix; see [7].

For an affine DTSM, a link between a set of N-dimenstional yields

y_{t}

of several maturities

τ

, it follows from 6 that

y_{t} = A (γ_{0}) + B (γ_{0}) Y_{t}

; where

Y_{t}

follows an affine diffusion, A is an

N \times 1

vector, B is an

N \times N

matrix. Vector

γ_{0}

is a set of parameters linking

Y_{t}

to the affine representation under the risk-neutral measure

Q

A solution to the latent variable

Y_{t}

can be solved, provided

B (γ_{0})

is invertible, as

Y_{t} = B {(γ_{0})}^{- 1} (y_{t} - A (γ_{0}))

(34)

By the standard change-of-variable analysis, the conditional density function of

y_{t}

under P becomes

f_{y} (y_{t + 1} | y_{t} : γ) = f_{Y} (B {(γ)}^{- 1} [y_{t + 1} - A (γ)] | y_{t}^{'} γ) a b s |B {(γ)}^{- 1}|

(35)

If the conditional density function

f_{Y}

of a state vector is known, it is easy to continue with the estimation of parameters

γ

. For special cases of continuous-time Gaussian and independent square-root processes,

f_{Y}

is known as long as the choice of the market price of risk is chosen to suite an affine process under P; see [7] and references therein.

For the continuous-time affine models in the family

A_{M} (N)

(M \neq 0, N)

, the unknown

f_{y}

can be computed from the CCF. It is easy to express the CCF of

y_{t}

in terms of the CCF of

Y_{t}

, since

B (γ)

is nonsingular and both

Y_{t}

and

y_{t}

can generate the same information set; see [7].

For an affine diffusion it can be shown that CCF of

y_{t}

ψ_{y_{t}} (u, γ) = e^{i u^{'} A (γ)} ψ_{Y_{t}} (B {(γ)}^{'} u)

(36)

The Fourier inversion becomes

f_{y} (y_{t + 1} | y_{t}; γ) = \frac{1}{{(2 π)}^{N}} \int_{R^{N}} e^{i u^{'} B (γ) Y_{t + 1}} ψ_{Y_{t}} (B {(γ)}^{'} u)

(37)

Fourier transforms are more suitable for low dimension problems, as they become numerically burdensome as N increases. The burden could be avoided by selecting a method of moments, though at the expense of econometric efficiency; see [7].

From (34) it is clear that the measurement errors in the yields were excluded. As a result,

B (γ)

can be inverted to compute the state vector

Y_{t}

, with Kalman filtering becoming very usefull; see [8] and references therein. Kalman filtering provide the best solution for extracting nonlinear state vectors from the affine diffusions. We do not discuss the Kalman filter and its different forms in this paper even though we apply it to filter out the state vector

Y_{t}

. There are many sources for a detailed discussion on the Kalman filter; see [23].

7. Data Collection

A sample of weekly yields for active SA government treasury bonds over the periods October 2013 to September 2024 with maturities 3 months, 5, 10, 12, 20, 25, and 30 years, were retrieved from the Thomson Reuters database. Our in-sample and out-sample data were based on the periods October 2013 - Sep 2023 and October 2023 - September 2023, respectively. The out-sample will be best-suited for forecasting and validation. A summary of descriptive statistics for yields across maturities is presented in Table 1. Mean values range between 6.6% to 10.4% exhibiting an upward slope which is also convex in shape. Recent study by [5] reported a similar behaviour for the average yields. The highest weekly standard deviation of 1.3% is observed for the 3-months maturity which is typical in the short end of the yield curve, suggesting that yields may react quickly to changes in monetary policy or market sentiment. It is followed by a drop to 0.7% and 0.6% for the 5-year and 10-year maturities, respectively. The 20-year maturity exhibits a rise in weekly standard deviation to 0.9%, remaining constant towards the long-end. This suggests variation and higher volatility in the short end, followed by relative stability for the long end of the yield curve.

Table 2 presents the correlations across maturities of yields. The short end of the yield curve is characterised by weak correlations. The 3-month and 5-year terms exhibit negative correlations with their long end counterparts. This may suggest a difference and diversity in dynamics between the short and long end of the yield curve. It is also possible among reasons for the negative correlation that high liquidity in SA bond market has a portion of foreign investors who are favoured by falling currency exchange rates. SA bond is also found to have long maturities when compared to its emerging market counterparts; see [28]. Other possible pertaining to positive correlations towards the long end should be associated with lower volatility and large portions of pension fund portfolios investing the same bonds with similar maturities but less trading activity. From the 10-year maturity, higher correlations ranging from 0.612 to 0.999 are observed, suggesting stability as the yield curve approaches its long end.

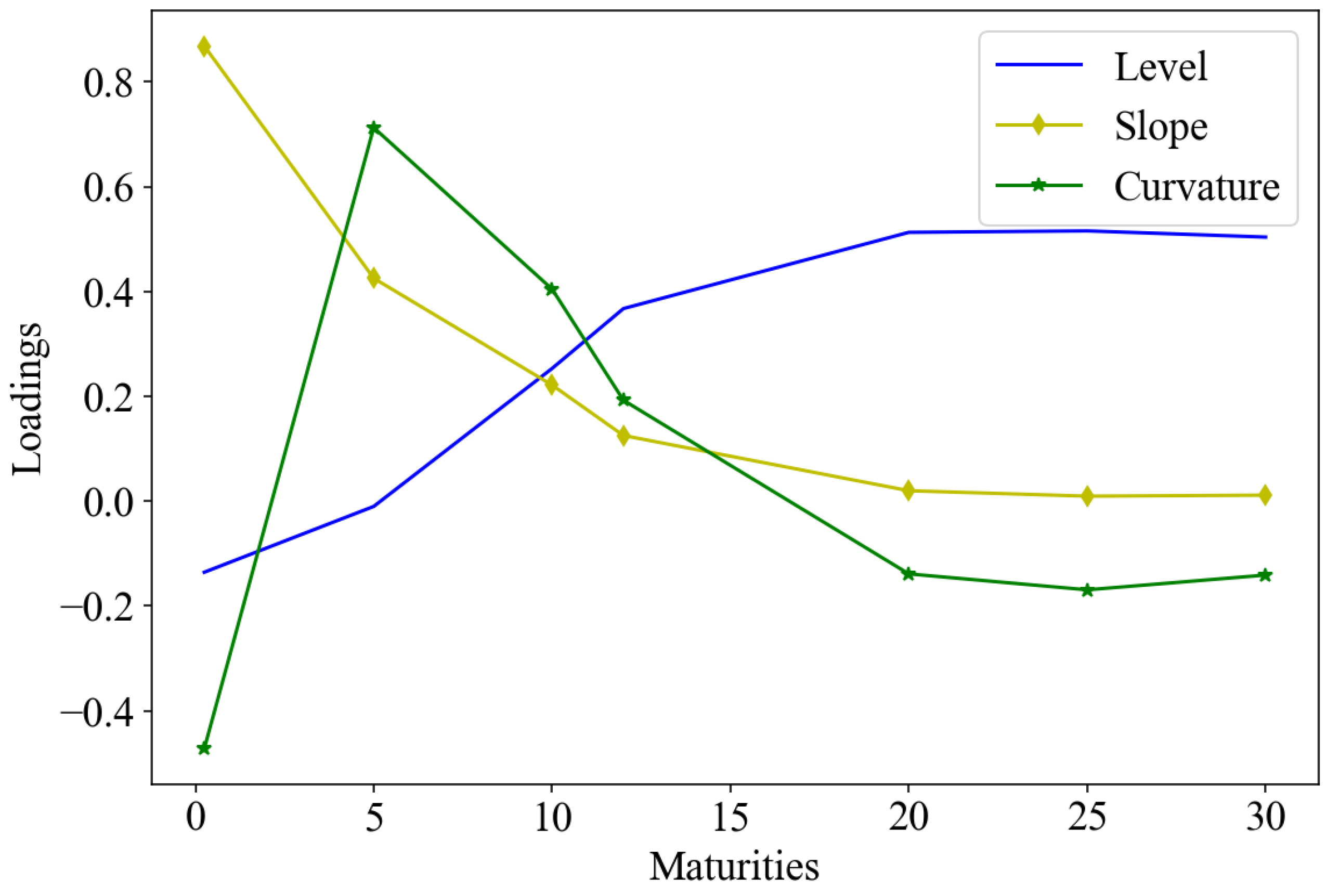

Figure 1 presents the first three principal components (PC) of the yields over maturities. They are explained by the variance of about 99.70%, which is close but slightly abovet the 98% empirical finding according to [34]; see also [2,8]. The first PC represents a key rate shift or level change in rates. It is the result of volatility causing rates of all maturities to fluctuate by almost the same amount. The observation is that short end is associated with high volatility and increasing rates. At mid-term around the 10-year maturity they reach a peak, followed by stability as they approach the long end of the yield curve. The second PC represents a slope which exhibits a downward slope but with its highest level in the short end which might be associated with rate increases and volatility, followed by a drop in rates in mid-term region and stable but falling rates towards the long end. Volatility forces a fall in rates in the short end followed by a drop towards mid-term, 10-year maturity, thereafter, stabilises towards the long end. Both the slope and curvature exhibit the downward and convex slope in the same direction, suggesting a stylised fact of high volatility in the short end and low towards the long end.

The behaviour of PCs is also associated with the correlations as discussed earlier, where short end is associated with weak correlations whereas in the long end of the yield curve, strong correlations were observed. These patterns are suitable for trading in swaps and correlation-based hedging strategies. Our focus being the ATSMs, we believe that these PCs are somehow closely related to the latent factors derived by the solution of coefficients

A (τ)

and

B (τ)

in (6). The three-factor models with three labels short-rate, volatility and central tendency should exhibit nearly a similar pattern to PCs; see [8].

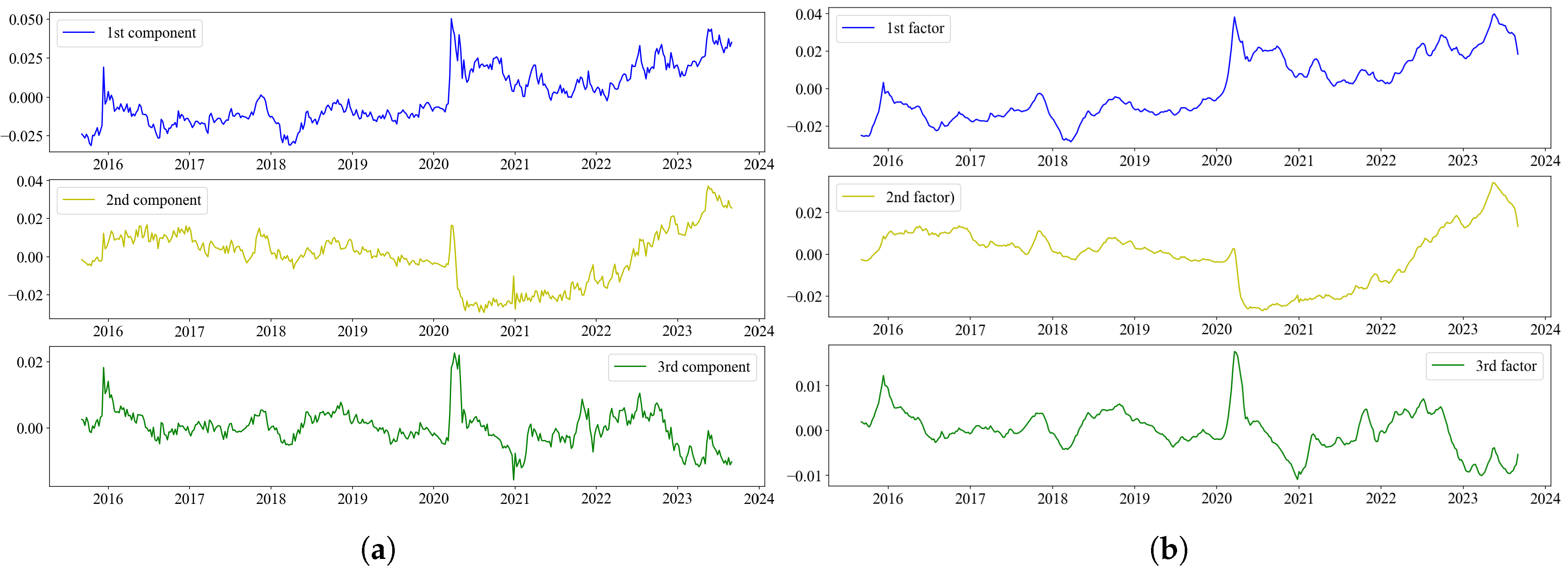

Figure 2 presents a time series of three principal components level, slope and curvature as derived from the observed yields. They are compared to the Kalman filtered time series of state vectors, namely factor 1, factor 2 and factor 3. Both time series are plotted against the observations period of October 2013 - Sep 2023. Both plots have similar patterns with factors on the right hand exhibiting smoother shapes than the principal components on the left. The analysis is extended to conducting a regression between the Kalman-filtered factors (dependent variable) and principal components (PC), with results presented in Table 3. We note a high cumulative variance (94.3%) , suggesting that the first few PCs explain the yields variance. Intercept coefficients are close to zero for all the PCs, suggesting less impact in explaining behaviour of movements relative to the PCs. A sharp jump from 84.1% to 95.8% is a confirmation that the first few PCs captured most of the information in the yields data, with the later components contributing progressively less. The standard errors also vary across rows, with some being quite small, which indicates that the estimates of the corresponding coefficients are relatively precise. It can be concluded that the level, slope and curvature display similar characteristics to the factors from an affine model, therefore confirming the empirical findings by [34].

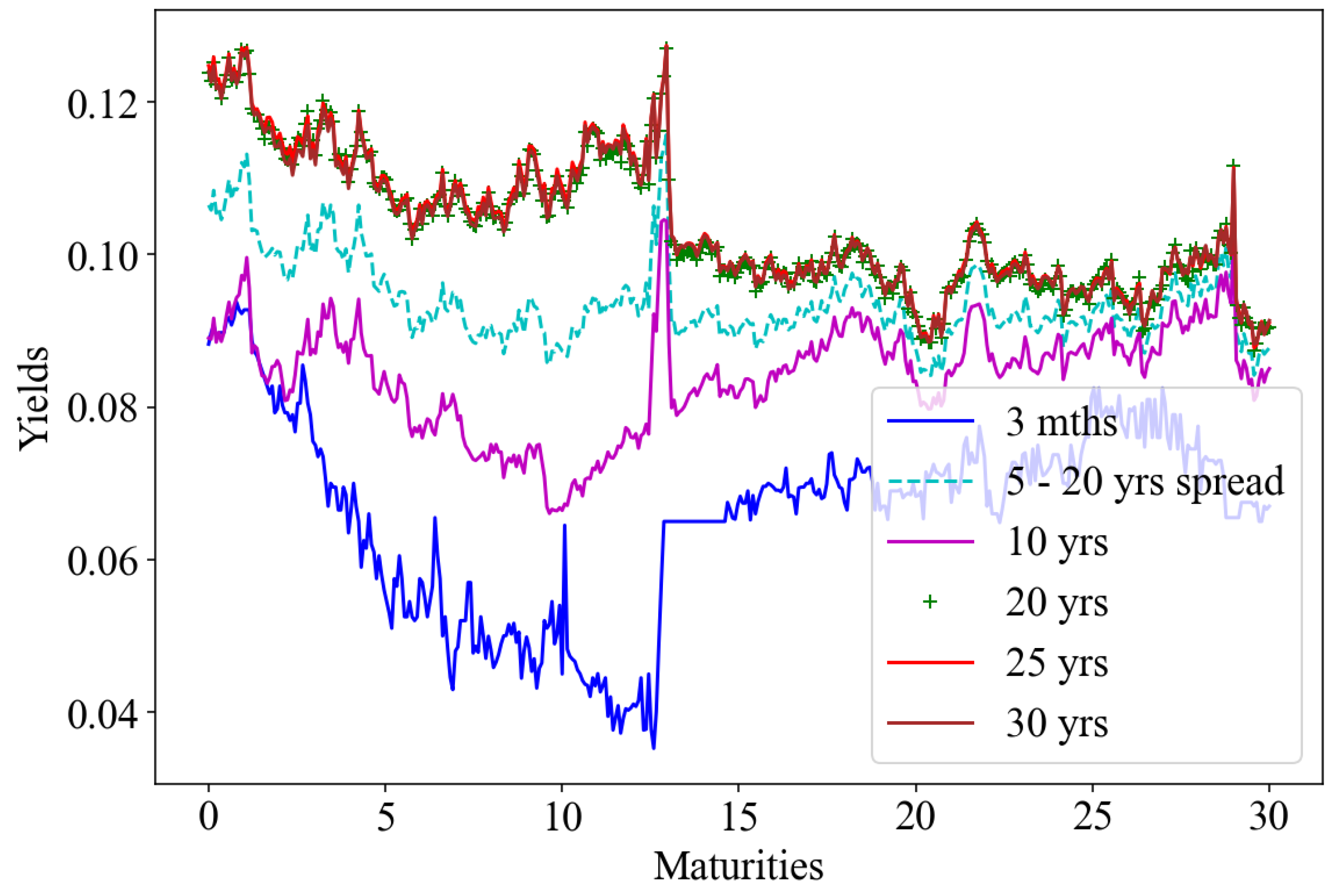

Figure 3 presents a selection of observed yields from the SA Treasury bonds plotted against maturities of up to 30 years. A spread between 5 and 20 years is also plotted and expected to represent a slope. Crossovers are observed among individual plots from time to time, indicative of either positive or negative (inverted) yield curves. Initial unobserved inputs to the three-factor simulation of

ν (t), θ (t), r (t)

are set to the initial values of the first three principal components. The length of a full matrix of yields comprising of 418 weekly observations and seven maturities is based on the maturity column with a minimum length. No gaps in data were discovered, otherwise the ommisions would be filled by applying an average of any preceeding two values. We apply the first vector of the yield matrix as an initial input values together with the initially guessed parameters to simulate the state variables from (10). These are further used as inputs to the solution of ODE (7) and (8) from which coefficients

A (τ)

and

B (τ)

are obtained. Thereafter, a model-based set of zero-coupon bonds and zero-yields are obtained from (6). The selection is also guided by the observations from the PCA, suggesting that our selection is a proxy for level, slope and curvature, taking into consideration the PCA features for short end, mid-term and long end.

8. Scenario Determination

Our objective is to fit the ATSMs using the SA bond yield curve to extract the latent factors by way of zero-yields. From these zero-yields, we pursue a three-factor approach to model specifications in the following scenarios.

Evaluate the performance of model $A_{1} (3)$ and its maximal counterpart from in-sample. Ensure that parameters are admissible and that models meet the canonical form in-sample
Evaluate the performance of model $A_{2} (3)$ and its maximal counterpart from in-sample. Ensure that parameters are admissible and that models meet the canonical form in-sample
Estimate both models and their counterparts out-sample and evaluate their performance.

Further, we draw more insight from optimisation results and statistical analysis. In all the scenarios, we assume the market price of risk is completely affine and of the form

Λ (t) = \sqrt{S (t)} λ (t)

9. Model Implementation

9.1. Three-Factor Models

The first three principal components are selected as proxies to the required three factors. Their initial values are inputs to both the

A_{1} (3)

and

A_{2} (3)

and their maximal counterparts. To calibrate the three-factor parameters we select the 3-month, 10-year and 20-year observed yields. Solution to SDE is initialised by the initial state vector and parameters to obtain

ν (t)

θ

and

r (t)

. The market price of risk associated with each of these factors are also computed by derived equations, following a transformation process; see Appendix E in [1].

The three-factors models are further calibrated using the ML-CCF which is an efficient estimator for the log-likelihood function. The calibration process identifies optimal parameters and the maximum of the log-likelihood function. In addition, the scores of likelihood functions are used to identify the market price of risk parameters; see [31,35]. The same assumptions of completely affine price of risk are made regarding market price of risk. Individual parameters

λ_{υ}

λ_{θ}

and

λ_{r}

are assumed to be easy to identify in the case where time-varying volatility exists. The scores of likelihood function are also applicable to identify the market price of risk as the parameters

λ_{υ}

λ_{θ}

and

λ_{r}

are expected to be non-constant nor collinear. From the invariant transformations, [1] derives the equations to compute these parameters in Appendix E.

10. Analysis of Results

10.1. Fitting the Yield Curve from the Instantaneous Rate

The main output from the three-factor models is the instantaneous rate

r_{t}

from (22) and (25) for

A_{1} (3)

and

A_{2} (3)

, respectively. The process also applies to their maximal counterparts. From the short rate

r_{t}

we bootstrap zero-coupon bond prices using a discount function (1) which are thereafter inverted using (6) to obtain the model-implied yields. Performance analysis is based on the root mean square error (RMSE) and the residual

{\hat{ϵ}}_{t}

, written as

{\hat{ϵ}}_{t, i} = y_{t, i} - Y_{t, i}

(38)

where

y_{t, i}

and

Y_{t, i}

are simulated yields and observed yields at time i for maturity t, respectively.

R M S E = \sqrt{\frac{1}{N K} {\hat{ϵ}}^{2}}

(39)

where K= number of observations and N the number of maturities. Pairwise analysis between models is done using the above metrics.

10.2. In-Sample Analysis

10.2.1. $A_{1} (3)$ and $A M_{1} (3)$ Models

In-sample data were applied to implement both models through SDE’s, from which variables

ν (t)

θ (t)

and

r (t)

for stochastic volatility, central tendency and short rate, respectively were produced. Market price of risk parameters

λ_{ν}

λ_{θ}

and

λ_{r}

, are also obtained from the results of these SDE according to the formulation from Appendix E in [1]. A linear combination of these variables result in a short rate that is fitted according to the affine function (22). The process is followed by implementation of optimisation techniques from which an efficient maximum likelihood and parameters estimates are obtained.

Table 4 presents the estimation results for both

A_{1} (3)

model and its maximal counterpart

A M_{1} (3)

. Estimation results are based on the Fourier inversion of the characteristic function ML-CCF of the factor

Y (t)

from (30). Variables

ν (t)

θ (t)

and

r (t)

were simulated from (23) where initial guess parameters, and the initial vector of factors

Y (i, t)

for

i = 1, 3

, at time t, were inputs. According to [1] the BDFS model is a special case of (23) with the parameters in square brackets restricted to zero. However, in their specification, parameters

σ_{θ r}

and

σ_{r v}

are relaxed and can be assumed take any other non-zero value.

The Nelder-Mead algorithm was used as it does not require a computation of gradients or second derivatives. This is despite its significant limitation that it cannot directly produce standard errors for the parameter estimates due to its inability to compute the Hessian matrix. To evaluate model goodness-of-fit and performance, we relied on the Chi-square (

χ^{2}

) statistics. Both AIC and BIC indicate how model complexity was penalised, taking into account both fit and the number of parameters.

AIC and BIC are both lower for

A M_{1} (3)

compared to

A_{1} (3)

indicating

A M_{1} (3)

to be slightly better at balancing model complexity while it also has slightly more parameters. However, differences between AIC and BIC values, such as -1557.54 vs.-1615.92 for AIC, and -1460.68 vs. -1519.07 for BIC are quite small, suggesting that the models might be very similar in performance. Nonetheless,

A M_{1} (3)

seems to be marginally better. The model with a lower

χ^{2}

of 16.38, which is the

A M_{1} (3)

appears to have a better fit than the

A_{1} (3)

with a

χ^{2}

of 24.98.

Parameters

κ_{r ν}

σ_{θ ν}

α_{r}

and

β_{θ}

are restricted to zero for the

A_{1} (3)

model, whereas they are relaxed for the maximal model

A M_{1} (3)

. In addition, some negative correlations were introduced for

σ_{r θ}

and

σ_{θ r}

. A small movement in

κ_{r ν}

after calibration from zero to 0.035 for

A M_{1} (3)

is exhibited. This suggest that the model has incorporated a weak positive relationship between short rate and volatility, which could reflect realistic market dynamics, though the effect is not large enough to dominate the model’s outcomes.

For model

A_{1} (3)

there is no change in

σ_{θ r}

from -0.094 to -0.094 after calibration which is interpreted as an almost unchanged relationship between the volatility of the central tendency

θ

and short rate r. For

A M_{1} (3)

a change to 0.089 reflects a slightly weak inverse relationship between the volatility of

θ

and r.

A M_{1} (3)

is therefore slightly less sensitive to the impact of central tendency volatility on short rate volatility.

In the case of

σ_{r θ}

A_{1} (3)

there has been no change after calibration from-3.420 suggesting no increase in the negative relationship between the volatility of the short rate r and and the central tendency

θ

. For

A M_{1} (3)

a change from -3.420 to -3.770 indicates a significant increase in the negative correlation between the volatility of r and

θ

. In summary,

A_{1} (3)

exhibits a weaker relationship with volatilities while in the case of

A M_{1} (3)

a slightly stronger negative correlation between short rate and central tendency is observed.

10.2.2. $A_{2} (3)$ and $A M_{2} (3)$ Models

Table 5 presents the results of parameter estimation for both models

A_{2} (3)

and

A M_{2} (3)

. The second column list the initial guesses of parameters4. The third and fourth columns report the estimates of parameters that result from the optimisation.

Both AIC and BIC are almost the same, suggesting that either one of them is worth a selection from a model complexity perspective. However, individual differences of -1750.42 vs -1721.53 for AIC, and -1645.50 vs -1616.61 for BIC, suggest model

A M_{2} (3)

to be slightly better at balancing model complexity while it also has slightly lower parameters. Marginally, the differences are too small implying both models to be balancing the parameter and model complexity in the same manner.

χ^{2}

statistics of 4.83 and 5.15 for models

A M_{2} (3)

and

A_{2} (3)

, suggest a slightly better fit for the data

A_{2} (3)

. The same applies to the p-values of 1 for each model, which may suggest a good fit, except for the issue of possible overfitting.

Parameter

κ_{θ υ}

under model

A_{2} (3)

moves from -33.900 to -33.962 suggests a stronger mean reversion which may lead to lower stochastic volatility and a more stable behaviour of the short rate. For model

A M_{2} (3)

it moves to -12.400, indicative of weaker mean reversion, higher stochastic volatility and more variability in the short rate. For

A_{2} (3)

κ_{r ν}

exhibit a movement from -35.300 to -35.071 (a difference of 0.229). This suggest an increase in the negative relationship between short rate and volatility, and an increase in volatility. A large negative value of -273.996 in

κ_{r ν}

for

A M_{2} (3)

is observed, this implies that even a small change in the short rate would have a large effect on volatility.

The covariance parameters

σ_{r υ}

A_{2} (3)

exhibits a move from -182.000 to -182.301 which is a modest increase in the negative relationship between the short rate r and volatility

υ

. This implies a slight increase in negative correlation between the r and

υ

. For

A M_{2} (3)

a change from -182.000 to -133.003 indicates a significant increase in the negative correlation between the r and

υ

. It is apparent that

A_{2} (3)

exhibits a slight increase in relationship with volatilities while in the case of

A M_{2} (3)

a slight increase in negative correlation between r and

υ

is observed.

Table 6 reports model performance in terms of both the RMSE and mean residuals. A pairwise analysis between model

A_{1} (3)

and

A_{1} (3)

is accomplished by comparing the RMSE, t-statistic and p-value for each model in the upper panel. The same analysis is carried out the mean residual

{\hat{ϵ}}_{t, i} = ϵ_{t, 1} - ϵ_{t, 2}

where

ϵ_{t, 1}

and

ϵ_{t, 2}

are residuals for models

A_{1} (3)

and

A M_{1} (3)

, respectively. The same variables can be applied to models

A_{2} (3)

and

A M_{2} (3)

, whose values are sitting on the right hand side of the table.

Model

A_{1} (3)

exhibits lesser RMSE than

A M_{1} (3)

within the short end of the yield curve, up to the region just over 10-year maturity. For MAE model

A_{1} (3)

is below

A M_{1} (3)

, although with a marginally small difference. This pattern is confirmed by Figure 4 (a) and (c). Statistically, despite one significance is noted along the 10-year maturity with a p-value of 0.012 which is lesser than 0.05, other results suggest no strong evidence that the models differ consistently in their performance in terms of RMSE. In the case of mean error

\hat{ϵ_{t}}

, four instances exhibit negative direction implying lesser errors for model

A_{1} (3)

. Overall,

\hat{ϵ_{t}}

also do not prove a significant difference between the models despite four instances found to have p-values less than 0.05.

Model

A_{2} (3)

exhibits lesser errors than

A M_{2} (3)

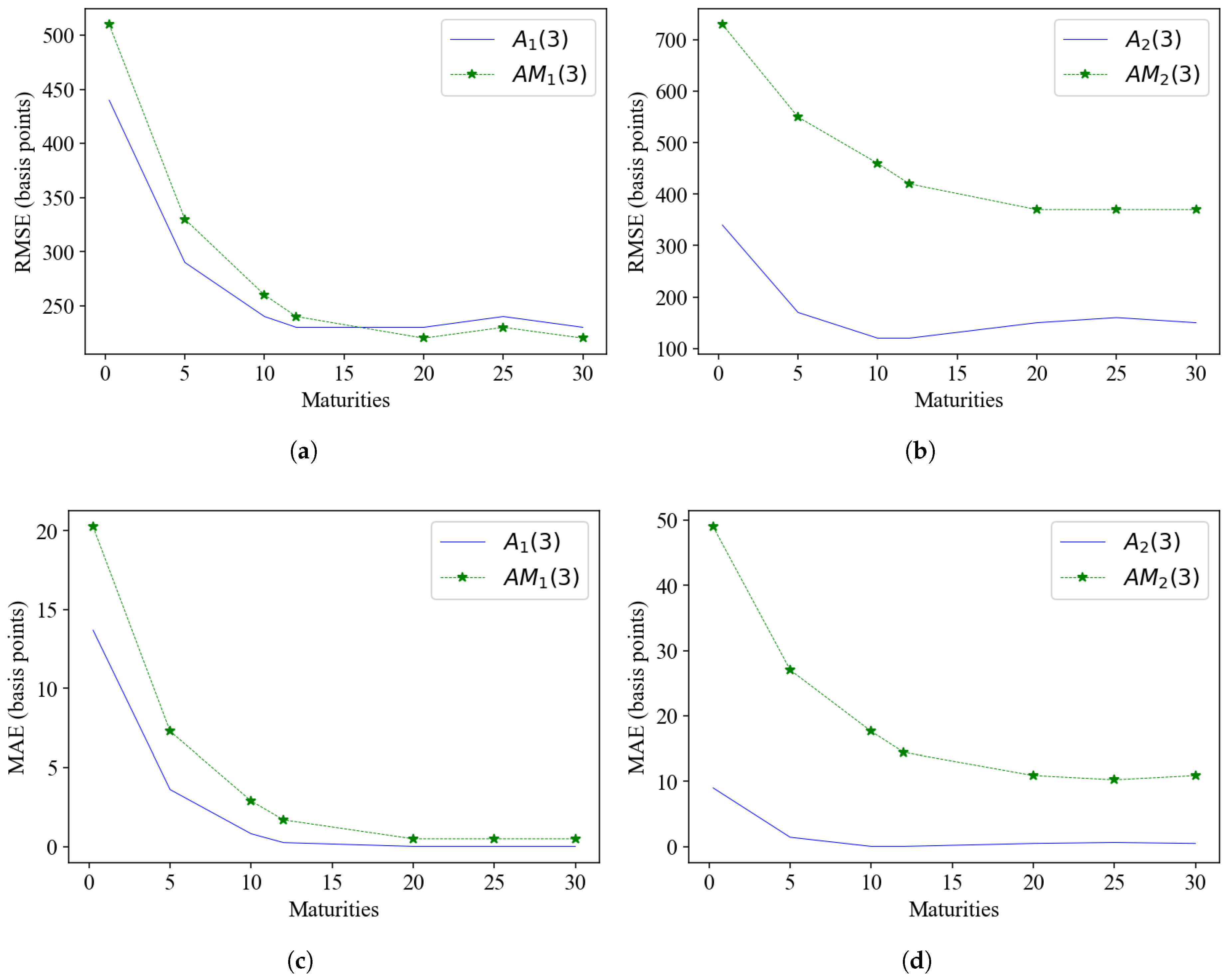

, both in terms of RMSE and MAE. The plots in Figure 4 (b) and (d) confirm the observation. There are three instances of weak statistical evidence of significant differences in RMSE between the models, but the majority of p-values are greater that 0.05 suggesting a strong evidence of a real difference. The models might perform similarly for those instances, while showing more distinct differences in some others. However,

\hat{ϵ_{t}}

has a p-values far less than 0.05 which confirms that models are significantly different. The plots are in favour of the differenes in models, particularly favouring model

A_{2} (3)

versus its maximal counterpart, both in terms of RMSE and MAE.

Finally, we compare models

A_{1} (3)

and

A_{2} (3)

to determine the best performing in terms of the RMSE using a pairwise analysis. The results are reported in Table 7 where model

A_{1} (3)

displays lower RMSE when compared to

A_{2} (3)

. Statistically, three instances show evidence for significance but the majority show a strong support for no differences in the models. The decision on model performance is in favour of

A_{1} (3)

10.3. Instanteneous Short Rate

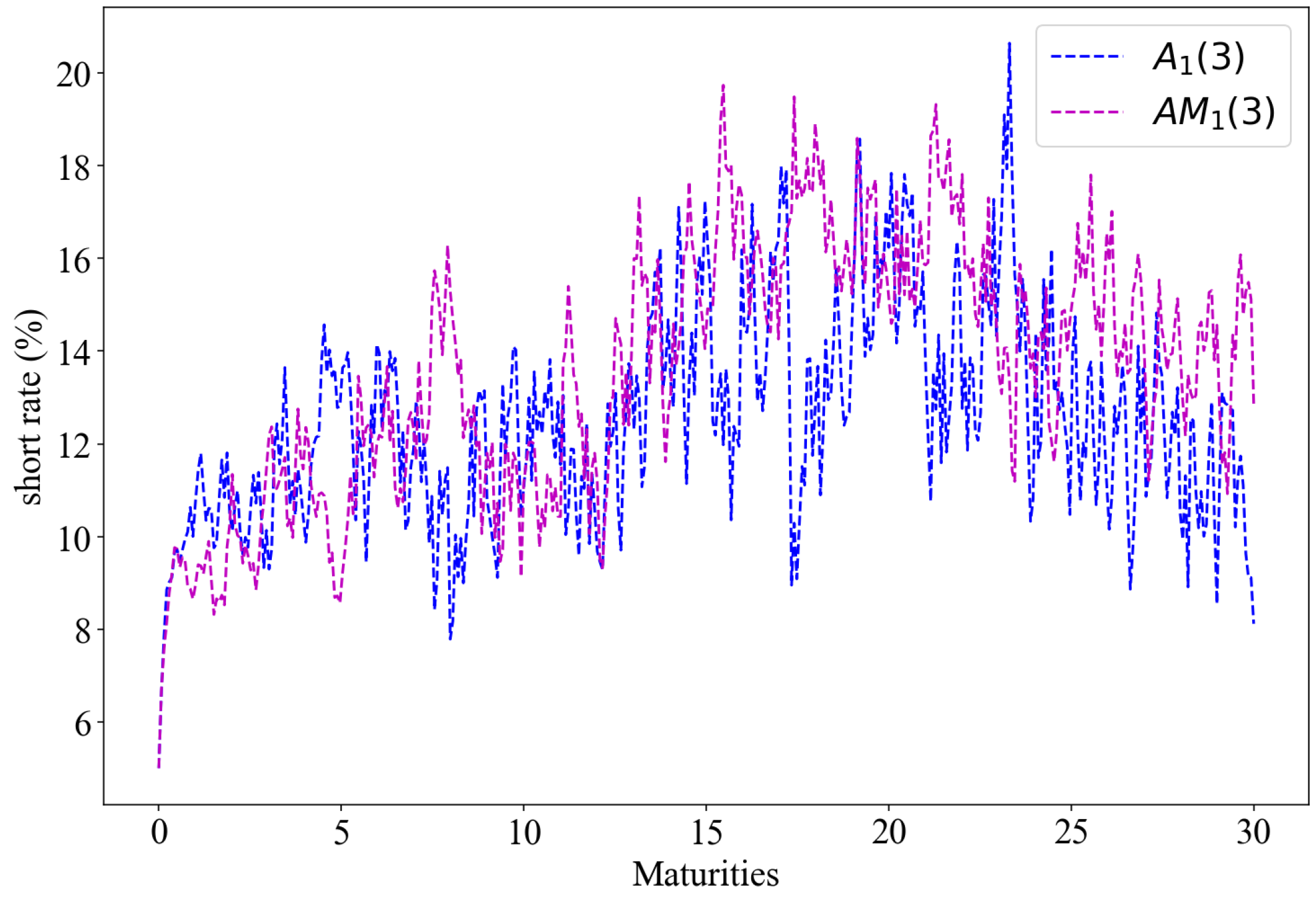

Figure 5 plots the model-implied instantaneous rate against maturities. Both

A_{1} (3)

and

A M_{1} (3)

in blue and magenta, respectively. The plots are based on estimated parameters fitted to the models.

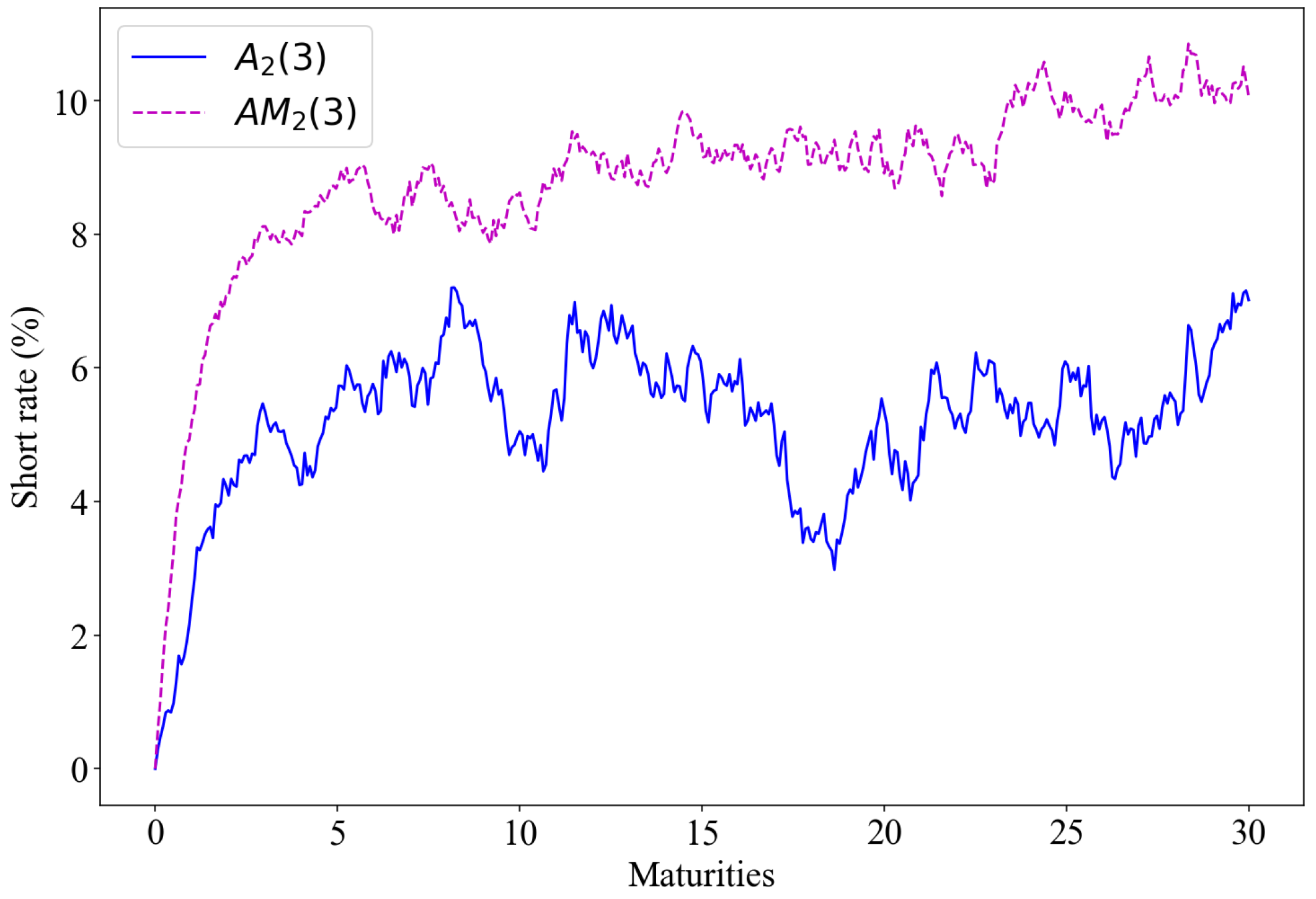

A_{2} (3)

and its maximal counterpart are plotted against maturities in Figure 6.

The model-implied instantaneous short rate functions from (22) and (25) are made up of a linear combination of factors

(Y_{1} (t), Y_{2} (t), Y_{3} (t))

mapped to

υ (t)

θ (t)

and

r (t)

and representing volatility, central tendency and short rate, respectively. They exhibit an average 11.9% and 8.1% short rates for

A_{1} (3)

and

A M_{1} (3)

, respectively. The

A_{1} (3)

and

A M_{1} (3)

models exhibits higher volatility than the

A_{2} (3)

and

A M_{2} (3)

models. As the instantaneous rate evolves, mean-reversion persists throughout the process. Both subfamilies of models suggest that a positive but stable economic growth is forecasted, exept for a higher volatility as reflected in

A_{1} (3)

and

A M_{1} (3)

plot.

10.4. Out-Sample Analysis

Table 8 presents the results of RMSE and mean error

\hat{ϵ_{t}}

to determine both the gootness-of-fit and model performance. RMSE figures show smaller errors for

A_{1} (3)

when compared to

A M_{1} (3)

. Statistically, p-values show a strong evidence of no differences in the models.

A_{2} (3)

and

A M_{2} (3)

on the other hand display a mixture of RMSE where early sections one model has lower RMSE and higher RMSE and in the other section, vice versa. The statistical results display a strong significance differences between the models

A_{2} (3)

and

A M_{2} (3)

with all p-values far below 0.05.

For mean error analysis

A_{1} (3)

tends to be slightly more consistent with a mix of positive and negative

\hat{ϵ_{t}}

, but

A M_{1} (3)

shows slightly better performance in pairs where the differences are statistically significant. As result,

A M_{1} (3)

may be considered to have slightly better performance in those instances. Model

A 2_{(} 3)

and

A M_{2} (3)

show a different patterns with

A M_{2} (3)

performing slightly better thatn its non-maximal counterparts, but with a strong evidence for significance.

In Table 8 the final analysis shows that model

A_{1} (3)

out-performs

A_{2} (3)

when measured in terms of the RMSE.

11. Conclusions

The historical behaviour of the term structure of interest rates for the SA treasury bond was analysed. The purpose was to establish whether the ATSMs specifications of the three-factor models were suitable for the data. The study also considered the conditional volatilities and correlations of the state variables as they are essential components. It has therefore been essential to thoroughly examine the interactions among the state variables—stochastic volatility, central tendency, and the short rate—within the framework of a three-factor approach to the ATSM.

Results of both AIC, BIC for model selection and parameter complexity are in favour of maximal models. The

χ^{2}

statistic also show bias towards the maximal models. The differences in AIC, BIC and

χ^{2}

statistic show small differences marginally, suggesting that both models and their maximal counteparts may fit data equally well. Evidence from a pairwise analysis between models confirm this position with RMSE, mean errors and statistical results accordingly. In both cases, despite a strong possibility of model similarities, RMSE tends to exhibit slightly better performance for

A_{1} (3)

and

A_{2} (3)

than their maximal counterparts. We extended the tests to a pairwise analysis on both models, which lead to a conclusion that

A_{1} (3)

out-performs

A_{2} (3)

both in and out-sample.

Our study does not focus more on the market price of risk despite its importance. It is only relevant to preserve the formulation of the affine structure of the SDE and the transition from risk-neutral to physical measure. SA as an emerging market is susceptible to several risk factors, such as liquidity, exchange rate, credit risk and political. It is crucial that a specific form of market price of risk be incorporated into these specifications. We could not explore any of these forms of market price of risk that are mentioned within the ATSMs literature for SA. We leave them to future research.

The specification makes a selection of a number of factors M in the

A_{M} (N)

model to serve as proxies for volatility. There are limitations in this method giving rise to a need to consider unspanned stochastic volatility models (USV). USV is capable of identifying latent volatility that could not be easily detected by three-factor models. They are also found to work better for capturing jumps, option pricing and hedging as they are able to highlight the hidden volatility. Future research on suitable specifications for SA should be extended to incorporating USV.

Author Contributions

Conceptualization, M.M. and G.V.; methodology, G.V.; software, M.M; validation, M.M, and G.V.; formal analysis,M.M., and G.V; investigation, M.M and G.V.; resources, M.M and G.V; data curation, M.M and G.V; writing—original draft preparation, M.M; writing—review and editing, G.V.; visualization, M.M.; supervision, G.V.; project administration, G.V.; funding acquisition, None. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the authors upon reasonable request.

Acknowledgments

None.

Conflicts of Interest

None.

Abbreviations

The following abbreviations are used in this manuscript:

ATSM	Affine term structure models
AIC	Akaike information criterion
BIC	Bayesian information criterion
BDFS	Balduzzi P, Das SR, Foresi S
DTSM	Dynamic term structure models
GMM	Generalised method of moments
MCMC	Markov chain monte carlo
ML-CCF	Maximum likelihood estimator by conditional characteristic function
ODE	Ordinary differential equation
PCA	Principal component analysis
RMSE	Root mean square error
SMM	Simulated method of moments
SDE	Stochastic differential equation
USV	Unspanned stochastic volatility

References

Dai, Q.; Singleton, K.J. Specification analysis of affine term structure models. The journal of finance 2000, 55, 1943–1978. [Google Scholar] [CrossRef]
Diebold, F.X.; Piazzesi, M.; Rudebusch, G.D. Modeling bond yields in finance and macroeconomics. American Economic Review 2005, 95, 415–420. [Google Scholar] [CrossRef]
Christiansen, C.; Lund, J. Revisiting the shape of the yield curve: The effect of interest rate volatility 2002.
Collin-Dufresne, P.; Goldstein, R.S.; Jones, C.S. Can interest rate volatility be extracted from the cross section of bond yields? Journal of Financial Economics 2009, 94, 47–66. [Google Scholar] [CrossRef]
Shu, H.C.; Chang, J.H.; Lo, T.Y. Forecasting the term structure of South African government bond yields. Emerging Markets Finance and Trade 2018, 54, 41–53. [Google Scholar] [CrossRef]
http://www.bis.org/statistics/.
Singleton, K.J. Empirical dynamic asset pricing: model specification and econometric assessment; Princeton University Press, 2006.
Piazzesi, M. Affine term structure models. In Handbook of financial econometrics: Tools and Techniques; Elsevier, 2010; pp. 691–766.
Duffie, D.; Kan, R. A yield-factor model of interest rates. Mathematical finance 1996, 6, 379–406. [Google Scholar] [CrossRef]
Gallant, A.R.; Tauchen, G. Which moments to match? Econometric theory 1996, 12, 657–681. [Google Scholar] [CrossRef]
Duffie, D.; Filipović, D.; Schachermayer, W. Affine processes and applications in finance. The Annals of Applied Probability 2003, 13, 984–1053. [Google Scholar] [CrossRef]
Vasicek, O. An equilibrium characterization of the term structure. Journal of financial economics 1977, 5, 177–188. [Google Scholar] [CrossRef]
Cox, J.C.; Ingersoll, J.E.; Ross, S.A. An analysis of variable rate loan contracts. The Journal of Finance 1980, 35, 389–403. [Google Scholar] [CrossRef]
Langetieg, T.C. A multivariate model of the term structure. The Journal of Finance 1980, 35, 71–97. [Google Scholar]
Dai, Q.; Le, A.; Singleton, K.J. Discrete-time dynamic term structure models with generalized market prices of risk 2006.
Darolles, S.; Gourieroux, C.; Jasiak, J. Compound autoregressive processes. Unpublished working paper. CREST 2001. [Google Scholar]
Aït-Sahalia, Y.; Kimmel, R.L. The Econometrics of Fixed-Income Markets. Handbook of Fixed-Income Securities.
Balduzzi, P.; Das, S.R.; Foresi, S. A simple approach three-factor affine term structure models 1996.
Chen, L. Stochastic mean and stochastic volatility: a three-factor model of the term structure of interest rates and its applications in derivatives pricing and risk management; Blackwell publishers, 1996.
Tebaldi, C.; Veronesi, P. Risk-Neutral Pricing: Monte Carlo Simulations. Handbook of Fixed-Income Securities.
Ikeda, N.; Watanabe, S. Stochastic differential equations and diffusion processes; Elsevier, 2014.
Yamada, T.; Watanabe, S. On the uniqueness of solutions of stochastic differential equations. Journal of Mathematics of Kyoto University 1971, 11, 155–167. [Google Scholar] [CrossRef]
Hirsa, A. Computational methods in finance; CRC Press Boca Raton, FL, 2013; pp. 11–22.
Rouah, F.D. The Heston model and its extensions in Matlab and C; John Wiley & Sons, 2013.
Duffee, G.R. Term premia and interest rate forecasts in affine models. The Journal of Finance 2002, 57, 405–443. [Google Scholar] [CrossRef]
Duarte, J. Evaluating an alternative risk preference in affine term structure models. The Review of Financial Studies 2004, 17, 379–404. [Google Scholar] [CrossRef]
Cheridito, P.; Filipović, D.; Kimmel, R.L. Market price of risk specifications for affine models: Theory and evidence. Journal of Financial Economics 2007, 83, 123–170. [Google Scholar] [CrossRef]
Christensen, J.H.; Steenkamp, D. Joint estimation of liquidity and credit risk premia in bond prices with an application 2025.
Andersen, T.G.; Benzoni, L. Can bonds hedge volatility risk in the US treasury market? A specification test for affine term structure models. Technical report, Working paper, Kellogg School of Management, Northwestern University, 2005.
Bikbov, R.; Chernov, M. Term structure and volatility: Lessons from the Eurodollar markets. Available at SSRN 562454 2004. [Google Scholar] [CrossRef]
Singleton, K.J. Estimation of affine asset pricing models using the empirical characteristic function. Journal of Econometrics 2001, 102, 111–141. [Google Scholar] [CrossRef]
Carrasco, M.; Chernov, M.; Ghysels, E.; Florens, J.P. Efficient estimation of jump diffusions and general dynamic models with a continuum of moment conditions. Available at SSRN 338961 2002. [Google Scholar] [CrossRef]
Duffie, D.; Pan, J.; Singleton, K. Transform analysis and asset pricing for affine jump-diffusions. Econometrica 2000, 68, 1343–1376. [Google Scholar] [CrossRef]
Litterman, R.B.; Scheinkman, J.; Weiss, L. Volatility and the yield curve. The Journal of Fixed Income 1991, 1, 49–53. [Google Scholar] [CrossRef]
Carrasco, M.; Chernov, M.; Florens, J.P.; Ghysels, E. Efficient estimation of jump diffusions and general dynamic models with a continuum of moment conditions 2000.

1	A condition is met when $2 κ θ \geq Σ^{2}$ ; where $κ$ represents the mean reversion speed, and $θ$ the mean reversion rate. It ensures that the drift is sufficiently large to guarantee a positive variance.
2	The state variable Y is a Markov process, therefore the future state $y_{s}$ at time s depends only on the current state at time t and not on the history before time t. Y satisfies the Markov property; see definition 5.1 in [7].
3	Continuous-time SDE are better treated in discrete form using methods such as the Euler approach. A discretised version also ensures a positive truncation for the variance; We approximate $Y (t)$ as $Y_{n + 1} = Y_{n} + κ (θ - Y_{n}) Δ t + Σ \sqrt{S (t)} Δ t$ ; where $Y_{n}$ is the approximation of $Y (t)$ at time $t_{n} = n Δ t$ ; $Δ t \sim N (0, 1)$ is a standard normal variable. Several authors discuss these discretisation schemes; see [23] : page 229 and [24] : page 177.
4	The parameters we used as initial guesses are based on the estimates according to [1]. We find these parameters to be the best starting point as they have empirically been tested to result in convergence. The same approach was also applied in the case of our $A_{1} (3)$ and $A M_{1} (3)$ models

Figure 1. Loadings of the first three principal components of the yields over maturities. Data were retrieved from Thomson Reuters.

Figure 2. (a) Time series of the first principal components of observed yields

y_{t}

. (b) Time series of the latent factors

Y_{t}

as extracted from the affine diffusion using (34) and the Kalman filtering. Data were retrieved from Thomson Reuters.

Figure 2. (a) Time series of the first principal components of observed yields

y_{t}

. (b) Time series of the latent factors

Y_{t}

as extracted from the affine diffusion using (34) and the Kalman filtering. Data were retrieved from Thomson Reuters.

Figure 3. 3-month, 5, 10, 20, and 30-year observed yields are plotted together with the spread between 5 and 20-year yields, against maturities. The 5 - 20-year spread is indicative of a slope while there are overlaps from one line to others suggesting either positive of inverted yields. Data were retrieved from Thomson Reuters.

Figure 4. In-sample models

A_{1} (3)

and

A_{2} (3)

are plotted versus their maximal counterparts. The top panel plots RMSE against maturities while the bottom panel plots the MAE against maturities. (a) RMSE for model

A_{1} (3)

A M_{1} (3)

. (b) RMSE for model

A_{2} (3)

A M_{2} (3)

. (c) MAE for model

A_{1} (3)

A M_{1} (3)

. (d) MAE for model

A_{2} (3)

A M_{2} (3)

Figure 4. In-sample models

A_{1} (3)

and

A_{2} (3)

are plotted versus their maximal counterparts. The top panel plots RMSE against maturities while the bottom panel plots the MAE against maturities. (a) RMSE for model

A_{1} (3)

A M_{1} (3)

. (b) RMSE for model

A_{2} (3)

A M_{2} (3)

. (c) MAE for model

A_{1} (3)

A M_{1} (3)

. (d) MAE for model

A_{2} (3)

A M_{2} (3)

Figure 5. Model-implied instantaneous rate in percentages is plotted against maturities.

A_{1} (3)

and

A M_{1} (3)

appear in blue and magenta colours, respectively. Data were retrieved from Thomson Reuters.

Figure 5. Model-implied instantaneous rate in percentages is plotted against maturities.

A_{1} (3)

and

A M_{1} (3)

appear in blue and magenta colours, respectively. Data were retrieved from Thomson Reuters.

Figure 6. Model-implied instantaneous rate in percentages is plotted against maturities.

A_{2} (3)

and

A M_{2} (3)

appear in blue and magenta colours, respectively. Data were retrieved from Thomson Reuters.

Figure 6. Model-implied instantaneous rate in percentages is plotted against maturities.

A_{2} (3)

and

A M_{2} (3)

appear in blue and magenta colours, respectively. Data were retrieved from Thomson Reuters.

Table 1. Statistical summary of in-sample yields for the SA Treasury bond by maturity caption. Data were retrieved from Thomson Reuters.

	3 mths	5 yrs	10 yrs	12 yrs	20 yrs	25 yrs	30 yrs
count	418	418	418	418	418	418	418
mean	0.066	0.084	0.094	0.098	0.104	0.104	0.104
std	0.013	0.007	0.006	0.007	0.009	0.009	0.009
min	0.035	0.066	0.084	0.085	0.087	0.088	0.088
25%	0.058	0.080	0.090	0.093	0.097	0.097	0.097
50%	0.069	0.085	0.092	0.096	0.101	0.101	0.101
75%	0.074	0.089	0.096	0.101	0.110	0.111	0.110
max	0.094	0.105	0.117	0.122	0.127	0.127	0.127
skew	-0.406	-0.361	1.162	0.939	0.569	0.561	0.583
kurtosis	-0.278	0.116	1.349	0.633	-0.511	-0.536	-0.457

Table 2. Correlation matrix of in-sample yields across maturities. Data were retrieved from Thomson Reuters.

	3 mths	5 yrs	10 yrs	12 yrs	20 yrs	25 yrs	30 yrs
3 mths	1.000	0.713	0.302	0.046	-0.140	-0.152	-0.152
5 yrs	0.713	1.000	0.612	0.269	-0.041	-0.063	-0.051
10 yrs	0.302	0.612	1.000	0.918	0.736	0.718	0.724
12 yrs	0.046	0.269	0.918	1.000	0.940	0.931	0.934
20 yrs	-0.140	-0.041	0.736	0.940	1.000	0.999	0.998
25 yrs	-0.152	-0.063	0.718	0.931	0.999	1.000	0.999
30 yrs	-0.152	-0.051	0.724	0.934	0.998	0.999	1.000

Table 3. Regression analysis between the three factors from the affine model against the three principal components. Factors are labelled

f a c t o r_{1}

f a c t o r_{2}

and

f a c t o r_{3}

and principal components level, slope and curvature are labelled

p c_{1}

p c_{2}

and

p c_{3}

, respectively.

Table 3. Regression analysis between the three factors from the affine model against the three principal components. Factors are labelled

f a c t o r_{1}

f a c t o r_{2}

and

f a c t o r_{3}

and principal components level, slope and curvature are labelled

p c_{1}

p c_{2}

and

p c_{3}

, respectively.

Dependent Variable	Independent Variable	Coefficient	Standard Error	$R^{2}$
$f a c t o r_{1}$	Intercept	0.000	0.000	0.943
$f a c t o r_{1}$	$p c_{1}$	0.921	0.011	0.943
$f a c t o r_{1}$	$p c_{2}$	-0.040	0.014	0.943
$f a c t o r_{1}$	$p c_{3}$	-0.225	0.037	0.943
$f a c t o r_{2}$	Intercept	0.000	0.000	0.958
$f a c t o r_{2}$	$p c_{1}$	-0.031	0.008	0.958
$f a c t o r_{2}$	$p c_{2}$	0.950	0.010	0.958
$f a c t o r_{2}$	$p c_{3}$	-0.084	0.026	0.958
$f a c t o r_{3}$	Intercept	0.000	0.000	0.841
$f a c t o r_{3}$	$p c_{1}$	-0.037	0.005	0.841
$f a c t o r_{3}$	$p c_{2}$	-0.007	0.006	0.841
$f a c t o r_{3}$	$p c_{3}$	0.789	0.017	0.841

Table 4. The estimators reported here are based on the log-likelihood computed from the Fourier inversion of the characteristic function of yields. Computation is based on variables

ν (t)

θ (t)

and

r (t)

of both the model-based and observed yields. Parameters in the first column are the same as those used in (23), second column are initial guesses while the 3rd and 4th columns are calibrated from the models

A_{1} (3)

and

A M_{1} (3)

, respectively. Bold and underlined figures in the second column refer to initial parameter values which are restricted to zero in terms of the model assumptions.

Table 4. The estimators reported here are based on the log-likelihood computed from the Fourier inversion of the characteristic function of yields. Computation is based on variables

ν (t)

θ (t)

and

r (t)

A_{1} (3)

and

A M_{1} (3)

, respectively. Bold and underlined figures in the second column refer to initial parameter values which are restricted to zero in terms of the model assumptions.

Parameter	Initial	Estimates
		$A_{1} (3)$	$A M_{1} (3)$
$μ$	0.365	0.365	0.366
$\bar{ν}$	0.015	0.015	0.008
$η$	0.001	0.001	0.001
$\bar{θ}$	0.083	0.083	0.083
$ζ^{2}$	0.000	0.000	0.000
$β_{θ}$	0.000	0.000	0.000
$σ_{r ν}$	4.270	4.270	4.200
$σ_{θ ν}$	0.000	0.000	0.021
$σ_{θ r}$	-0.094	-0.094	-0.089
$σ_{r θ}$	-3.420	-3.420	-3.770
$α_{r}$	0.000	0.000	0.000
$κ_{r ν}$	0.000	0.000	0.035
$κ$	17.400	17.400	18.000
$\bar{r}$	0.050	0.050	0.050
$δ_{0}$	0.050	0.050	0.050
$δ_{1}$	0.378	0.378	0.378
$δ_{2}$	0.756	0.756	0.756
$δ_{3}$	0.866	0.866	0.866
$λ_{ν}$		0	0.000
$λ_{θ}$		-0.019	0.000
$λ_{r}$		0.206	0.059
AIC		-1557.54	-1615.92
BIC		-1460.68	-1519.07
Log-likelihood function		-802.768	-831.96
$χ^{2}$		24.98	16.38

Table 5. The estimators reported here are based on the log-likelihood computed from the Fourier inversion of the characteristic function of yields. Computation is based on moment labels

υ (t)

θ (t)

and

r (t)

of both the model-based and observed yields. Parameters in the first column are the same as those used in (26), second column are initial guesses while the 3rd and 4th columns are calibrated from the models

A_{2} (3)

and

A M_{2} (3)

, respectively. Bold and underlined figures in the second column refer to initial parameter values which are restricted to zero in terms of the model assumptions.

Table 5. The estimators reported here are based on the log-likelihood computed from the Fourier inversion of the characteristic function of yields. Computation is based on moment labels

υ (t)

θ (t)

and

r (t)

A_{2} (3)

and

A M_{2} (3)

, respectively. Bold and underlined figures in the second column refer to initial parameter values which are restricted to zero in terms of the model assumptions.

Parameter	Initial	Estimates
		$A_{2} (3)$	$A M_{2} (3)$
$μ$	0.636	0.634	0.291
$κ_{θ ν}$	-33.900	-33.962	-12.400
$κ_{r ν}$	-35.300	-35.071	-273.996
$κ_{ν θ}$	0.000	0.000	-0.002
$κ_{r θ}$	0.000	0.000	3.550
$κ$	2.700	2.694	3.540
$\bar{ν}$	0.000	0.000	0.000
$\bar{θ}$	0.026	0.026	0.014
$\bar{r}$	0.026	0.026	0.053
$σ_{r ν}$	-182.000	-182.301	-133.003
$σ_{r θ}$	0.000	0.000	1.000
$σ_{θ ν}$	0.000	0.000	0.095
$η$	0.000	0.000	0.000
$ζ^{2}$	0.003	0.003	0.002
$β_{θ}$	0.000	0.000	0.000
$α_{r}$	0.000	0.000	0.000
$δ_{0}$	0.050	0.050	0.050
$δ_{1}$	0.562	0.562	0.562
$δ_{2}$	0.035	0.035	0.037
$δ_{3}$	0.111	0.111	0.111
$λ_{ν}$		0.000	0.000
$λ_{θ}$		0.058	0.000
$λ_{r}$		0.643	1.990
AIC:		-1721.53	-1750.42
BIC:		-1616.61	-1645.50
Degree of freedom		389	384
$χ^{2}$ statistic:		5.15	4.83
P-value:		1	1
Log-likelihood function		-886.77	-901.21

Table 6. The table contains a pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

and their maximal counterparts. In the top panal, in-sample RMSE for each maturity. In the lower panel mean errors are reported for each maturity. They are both accompanied by the t-statistics and p-values at each maturity level.

Table 6. The table contains a pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

Maturity	$A_{1} (3)$	$A M_{1} (3)$	t-stat	p-value	$A_{2} (3)$	$A M_{2} (3)$	t-stat	p-value
	In-sample RMSE
0.25	0.044	0.051	2.002	0.092	0.034	0.073	3.589	0.012
5	0.029	0.033	-1.341	0.228	0.017	0.055	5.597	0.001
10	0.024	0.026	3.529	0.012	0.012	0.046	3.563	0.012
12	0.023	0.024	-0.599	0.571	0.012	0.042	1.633	0.154
20	0.023	0.022	1.328	0.233	0.015	0.037	1.025	0.345
25	0.024	0.023	-1.244	0.260	0.016	0.037	-0.009	0.993
30	0.023	0.022	2.179	0.072	0.015	0.037	-0.455	0.665
In-sample mean error
0.25	-0.037	-0.045	2.746	0.102	-0.030	-0.070	31.978	0.007
5	-0.019	-0.027	2.746	0.006	-0.012	-0.052	31.978	0.000
10	-0.009	-0.017	2.746	0.538	-0.002	-0.042	31.978	0.000
12	-0.005	-0.013	2.746	0.041	0.002	-0.038	31.978	0.000
20	0.001	-0.007	2.746	0.008	0.007	-0.033	31.978	0.000
25	0.001	-0.007	2.746	0.663	0.008	-0.032	31.978	0.000
30	0.001	-0.007	2.746	0.033	0.007	-0.033	31.978	0.000

Table 7. In-smaple pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

as a refinement to the tests performed comprehensively against their maximal counterparts.

Table 7. In-smaple pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

as a refinement to the tests performed comprehensively against their maximal counterparts.

Maturity	$A_{1} (3)$	$A_{2} (3)$	t-stat	p-value
0.25	0.040	0.076	-4.934	0.003
5	0.028	0.057	-0.538	0.610
10	0.025	0.048	0.486	0.644
12	0.026	0.045	2.554	0.043
20	0.028	0.040	2.689	0.036
25	0.028	0.040	0.028	0.978
30	0.027	0.040	0.256	0.807

Table 8. The table contains a pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

and their maximal counterparts. In the top panal, out-sample RMSE for each maturity. In the lower panel mean errors are reported for each maturity. They are both accompanied by the t-statistics and p-values at each maturity level.

Table 8. The table contains a pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

Maturity	$A_{1} (3)$	$A M_{1} (3)$	t-stat	p-value	$A_{2} (3)$	$A M_{2} (3)$	t-stat	p-value
	Out-sample RMSE
0.25	0.016	0.022	-1.337	0.230	0.022	0.018	3.373	0.015
5	0.014	0.020	0.922	0.392	0.025	0.021	6.831	0.000
10	0.014	0.017	1.304	0.240	0.036	0.032	5.646	0.001
12	0.018	0.018	-0.498	0.636	0.045	0.040	6.219	0.001
20	0.029	0.027	-0.644	0.543	0.058	0.054	5.331	0.002
25	0.030	0.028	0.185	0.860	0.059	0.055	5.171	0.002
30	0.029	0.027	0.431	0.681	0.058	0.054	4.185	0.006
Out-sample mean error
0.25	-0.011	-0.016	-0.548	0.271	0.021	0.016	2.923	0.008
5	-0.008	-0.013	-0.548	0.251	0.024	0.019	2.923	0.000
10	0.004	-0.001	-0.548	0.526	0.036	0.031	2.923	0.000
12	0.012	0.008	-0.548	0.235	0.044	0.039	2.923	0.000
20	0.026	0.021	-0.548	0.002	0.058	0.053	2.923	0.000
25	0.027	0.022	-0.548	0.008	0.059	0.054	2.923	0.000
30	0.026	0.021	-0.548	0.603	0.058	0.053	2.923	0.027

Table 9. Out-smaple pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

as a refinement to the tests performed comprehensively against their maximal counterparts.

Table 9. Out-smaple pairwise analysis between models

A_{1} (3)

and

A_{2} (3)

as a refinement to the tests performed comprehensively against their maximal counterparts.

Maturity	$A_{1} (3)$	$A_{2} (3)$	t-stat	p-value
0.25	0.017	0.021	0.488	0.148
5	0.015	0.024	0.488	0.073
10	0.012	0.036	0.488	0.079
12	0.016	0.044	0.488	0.046
20	0.027	0.058	0.488	0.099
25	0.028	0.059	0.488	0.049
30	0.028	0.058	0.488	0.643

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.

Downloads

Views

Comments

Subscription

Notify me about updates to this article or when a peer-reviewed version is published.

MDPI Initiatives

Important Links

Choose an area of interest and we will send you notifications of new preprints at your preferred frequency.

Disclaimer

South African Government Bond Yields and the Specifications of Affine Term Structure Models

Abstract

Keywords:

Subject:

1. Introduction

2. Literature Review

3. Model Establishment

4. A Canonical Representation of ATSMs

5. The Three-Factor ATSMs

5.1. A 1 ( 3 )

5.2. A 2 ( 3 )

6. Estimation for Affine Models

7. Data Collection

8. Scenario Determination

9. Model Implementation

9.1. Three-Factor Models

10. Analysis of Results

10.1. Fitting the Yield Curve from the Instantaneous Rate

10.2. In-Sample Analysis

10.2.1. A 1 ( 3 ) and A M 1 ( 3 ) Models

10.2.2. A 2 ( 3 ) and A M 2 ( 3 ) Models

10.3. Instanteneous Short Rate

10.4. Out-Sample Analysis

11. Conclusions

Author Contributions

Funding

Institutional Review Board Statement

Informed Consent Statement

Data Availability Statement

Acknowledgments

Conflicts of Interest

Abbreviations

References

MDPI Initiatives

Important Links

Subscribe

5.1. $A_{1} (3)$

5.2. $A_{2} (3)$

10.2.1. $A_{1} (3)$ and $A M_{1} (3)$ Models

10.2.2. $A_{2} (3)$ and $A M_{2} (3)$ Models
