Chemical Evolution of Life on Earth

1. Introduction

There is an overarching concept in the pre-life chemical evolution of biological systems that has perhaps been neglected or incompletely expressed. That is, that biological systems initially evolved around a small number of central functional cores. For transcription systems, the central cores were two double-Ψ−β-barrel type DNA-dependent RNA polymerases, promoters and TFB in Archaea and σ factors in Bacteria [1,2,3,4,5]. TFB and σ factors are homologs of one another made up of repeating helix-turn-helix motifs. Translation systems, by contrast, evolved around transfer RNA (tRNA), which is the genetic adapter [6,7,8,9]. Essentially, all life and genetic coding evolved around the functional core of tRNA.

Evolution of life on Earth required chemical coevolution of tRNAomes (all the tRNAs of an organism), aminoacyl-tRNA synthetases (AARS), ribosomes, mRNA and a genetic code plus numerous interacting systems and molecules. This raises the question about how chemical evolution was driven by sufficiently powerful selective pressures before true cells could coalesce and commence Darwinian selection and evolution. This report addresses this question based on a history of chemical selection, written and recorded in conserved genetic code. Notably, the most central history of the pre-life to life transition on planet Earth was recorded in the sequences of tRNAs. Thus, the core story of genesis of life on Earth was chronicled in tRNA sequences.

The three 31 nt minihelix tRNA evolution theorem shows how tRNA evolved chemically on pre-life Earth [6,10]. For replication, a 31 nt D loop minihelix of known sequence was ligated to two 31 nt anticodon/T loop minihelices of almost entirely known sequence. After processing by 9 nt internal deletion(s) within ligated acceptor stems, type II and type I tRNAs were generated. Type II tRNA was formed by a single 9 nt internal deletion in a 93 nt tRNA precursor that was a replication intermediate for 31 nt minihelices. Type I tRNA was generated by two closely related 9 nt internal deletions in the same 93 nt tRNA precursor. The two internal 9 nt deletions to form type I tRNA were identical to one another on complementary RNA strands. An early version of type II tRNA could have been processed to type I tRNA via a single 9 nt internal deletion. Thus, the process for generation of the first tRNAs was highly ordered and not chaotic or random, showing that the early Earth was capable during pre-life of ordered, chemically evolved processes. We posit that these ordered processes won out over random processes in chemical evolution because ordered processes were faster to establish core functions. Chaotic processes were simply too slow to generate the genetic adapter that is the core feature of life.

Remarkably, the tRNA body was initially made up of 100% RNA repeats and inverted repeats (stem-loop-stems) of known sequence. The 5’-acceptor stem was a 7 nt GCG repeat (GCGGCGG). The 3’-acceptor stem was a 7 nt complementary CGC repeat (CCGCCGC). The 17 nt D loop minihelix core was a UAGCC repeat (UAGCCUAGCCUAGCCUA). The 17 nt anticodon and T stem-loop-stems were initially of the sequence ~CCGGG_CU/???AA_CCCGG (_ separates stems and loops; / indicates a U-turn in the RNA backbone; ? indicates that, because of coding, the pre-life sequence is not now known). It is possible the T loop minihelix was formed from the complement of the anticodon loop minihelix, with the initial sequence ~CCGGG_UU/???AG_CCCGG. The 9 nt internal deletion processing events were within ligated 3’- and 5’-acceptor stems (CCGCCGC_GCGGCGG→GGCGG (D 3’-stem and tRNA-26) and CCGCCGC_GCGGCGG→CCGCC (type I V loop)). These 9 nt internal deletions were identical on complementary RNA strands, so a single processing mechanism can account for both deletions. The type II V arm for tRNA^Leu and tRNA^Ser evolved from the initial sequence CCGCCGC_GCGGCGG to form a stem-loop-stem that could be discriminated by LeuRS-IA (5 tRNA^Leu in a synonymous set) and SerRS-IIA (4 tRNA^Ser in a synonymous set) [11]. Leucine and serine occupy 6-codon sectors in the genetic code. Because there are so many leucine and serine anticodons, the consistent and conserved tRNA type II V arm was used as a determinant for tRNA^Leu and tRNA^Ser discrimination rather than the anticodon loops. The number of synonymous type II tRNA sets in an organism is limited by the available trajectory set points of the V arm: 2 set points in Archaea (tRNA^Leu and tRNA^Ser) and 3 in Bacteria (tRNA^Tyr, tRNA^Leu and tRNA^Ser) [11]. From analysis of tRNA sequences, the pre-life Earth was capable of accurate complementary RNA replication. Very clearly, the first type II and type I tRNAs were generated by highly ordered, non-random processes on pre-life Earth.

Phylogenomics and bioinformatics methods provide insights into first proteins and cofactors that coevolved with the genetic code [12,13,14,15]. Integrating these data with tRNA evolution provides unprecedented insight into the pre-life to life transition on planet Earth.

A recent review describes a bricolage theory (multiple diverse functions coalescing into new functions) for evolution of translation systems [16]. Our view would include a radially outward evolution component centered first on a primitive adapter molecule (ACCA-Gly) and then on RNAs of increasing complexity attaching 3’-ACCA-Gly, evolving by a recognized pathway to Gly-tRNA. We posit that dirty, pre-life polyglycine formed the core aggregator for evolution of translation systems, protocells and the first true cells. Our view posits a powerful chemical selection for the pre-life to life transition on Earth. The history that we relate is centered on tRNA, based on the molecular history of tRNA as inscribed in tRNA sequences. The mechanism for evolution of tRNA demands that RNAs be ligated for complementary RNA replication. Thus, many complex RNAs were generated during pre-life to supply many tasks of complex ribozymes and to generate the first rRNA-like molecules. So, an RNA World and a complex Peptide World radiate from tRNA. There does not appear to be a “chicken and egg” problem in evolution of living cells on Earth. Our radially outward evolution model centered on tRNA makes rich predictions for many experiments.

2. Materials and Methods

Sequence logos are a visual way to relate multiple sequence data (https://weblogo.berkeley.edu/logo.cgi) [17,18]. tRNA sequences were obtained from the tRNAdb [19] and gtRNAdb [20,21]. Unfortunately, the tRNAdb is currently off line, so some of its features used here may not be as easily reproducible as they otherwise would be. For instance, tRNAdb produced typical tRNA diagrams for an organism with a few clicks of a mouse. Typical tRNA diagrams can be used to establish the three 31 nt minihelix tRNA evolution theorem using little effort [6,10].

Molecular structures were analyzed using ChimeraX [22,23,24].

3. Evolution of Type II and Type I tRNA

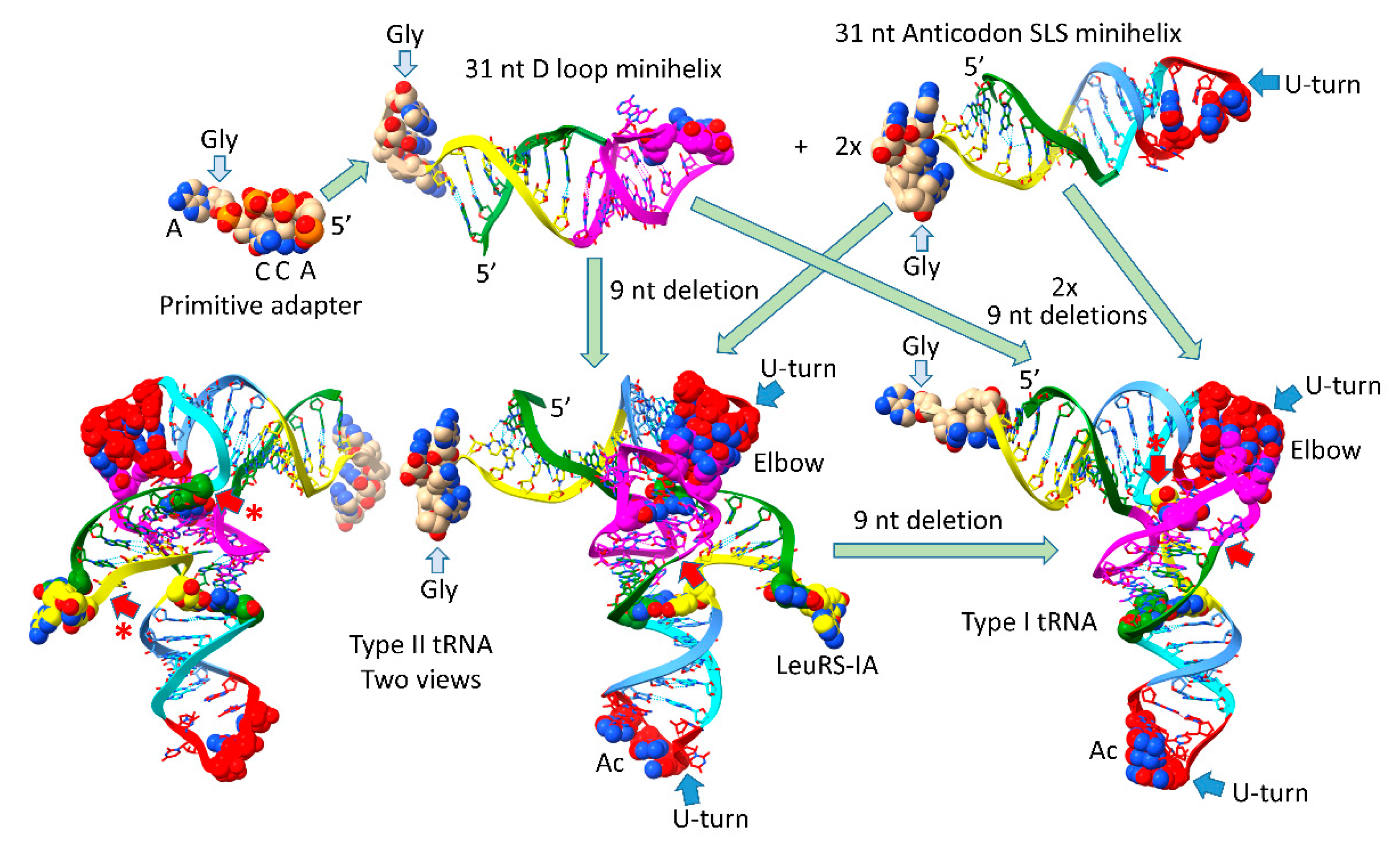

Evolution of type II and type I tRNAs is summarized in Figure 1. The molecules are colored according to the three 31 nt minihelix tRNA evolution theorem, as published elsewhere [6,10]. A 31 nt D loop minihelix lacking the 3’-ACCA-Gly adapter was ligated to a 31 nt anticodon stem-loop-stem minihelix lacking the 3’-ACCA-Gly adapter, which was ligated to a second anticodon stem-loop-stem minihelix lacking the 3’-ACCA-Gly adapter or else to its very similar complement (to form the T stem-loop-stem). The 93 nt tRNA precursor was then processed by two closely related internal 9 nt deletions within ligated 3’- and 5’-acceptor stems. An early version of the type II tRNA could be processed by a single 9 nt internal deletion to a type I tRNA, so type II tRNA could have been a processing intermediate to type I tRNA, depending on the order of deletions to form type I tRNA [11]. The more 5’ internal 9 nt internal deletion was identical for both type II and type I tRNAs (red arrows). The two internal 9 nt deletions in type I tRNA were identical on complementary RNA strands. On pre-life Earth, the purpose of these molecules was to synthesize polyglycine, posited to have been a main aggregator of pre-life intermediates and protocells [6,7,8,9,10,11,25,26,27,28,29]. The process for tRNA generation shows that the pre-life Earth was capable of: 1) RNA ligation (i.e., by a ribozyme RNA ligase); 2) complementary replication; 3) chiral sorting of precursors; 4) selection of 7 nt U-turn loops; 5) measuring stems and loops; 6) aminoacylation of ribose rings; 7) polypeptide synthesis; 8) internal processing of RNAs; and 9) sorting of U, A, G and C nucleotides and exclusion of other bases.

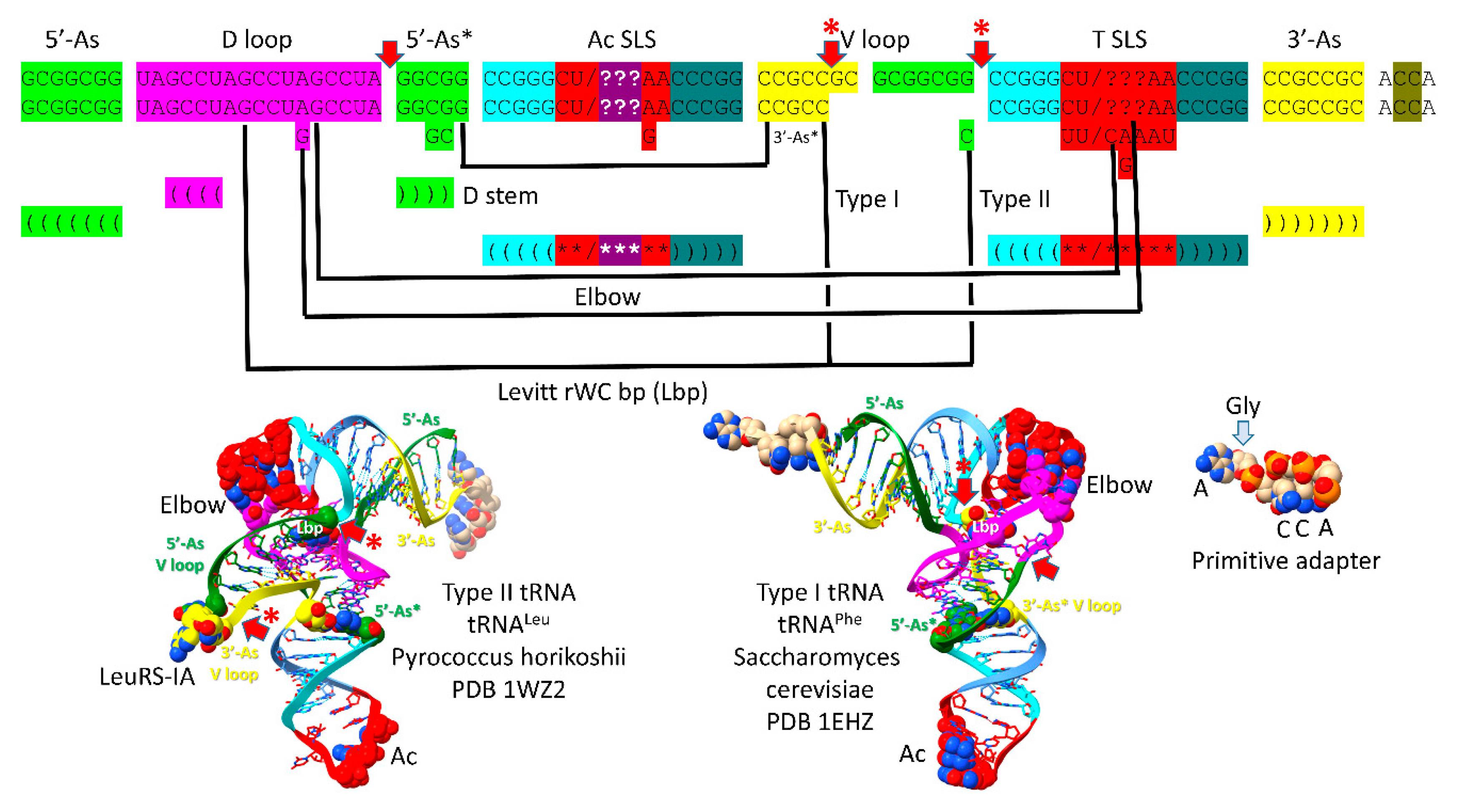

To correlate the tRNA structures to their root sequences, Figure 2 is shown. The entire tRNA sequence was formed from RNA repeats and inverted repeats (stem-loop-stems). Initially, the orderly process was a surprise because tRNA evolution had been proposed to have been chaotic [30,31,32,33,34,35]. 5’-acceptor stems and their 5’-acceptor stem remnants were formed from 7 nt GCG repeats (GCGGCGG and after deletion GGCGG). 3’-acceptor stems were formed from complementary 7 nt CGC repeats (CCGCCGC and after deletion CCGCC (the type I tRNA V loop)). The D loop was formed from a 17 nt UAGCC repeat. The anticodon and T stem-loop-stems had the initial 17 nt sequence ~CCGGG_CU/???AA_CCCGG. It is possible that the T stem-loop-stem initially formed from the complement of the anticodon stem-loop-stem (~CCGGG_UU/???AG_CCCGG). Ambiguity in the pre-life sequences arises because some of the nucleotides form the anticodon in tRNA, and the anticodon was scrambled in evolution to support coding. After LUCA (the last universal common (cellular) ancestor) the T loop sequence is known with confidence, but this sequence was strongly selected to form the tRNA “elbow” where the D loop binds the T loop, so uncertainty about the pre-life 7 nt U-turn loop sequence remains at the anticodon positions.

The major difference comparing type II and type I tRNAs is the variable loop (V loop). For type II tRNA, the sequence was a 3’-acceptor stem ligated to a 5’-acceptor stem (initially CCGCCGC_GCGGCGG) [11,36]. For type I tRNA, the V loop was initially CCGCC, processed from CCGCCGC_GCGGCGG by an internal 9 nt deletion removing GC_GCGGCGG. The type II tRNA V arm evolved to form a stem-loop-stem with a particular trajectory of the V arm from the tRNA body that is consistent within a synonymous tRNA set (i.e., in an Archaeon, there are 5 tRNA^Leu V arms with a common trajectory unique to tRNA^Leu and 4 tRNA^Ser V arms with a common trajectory unique to tRNA^Ser). Type I V loops contact residues in the D stem, explaining differences in type I V loops from the original sequence. The 5’-acceptor stem (5’-As*) remnant common to both type II and type I tRNAs was formed by an identical internal 9 nt deletion on the complementary RNA strand (CCGCCGC_GCGGCGG→GGCGG by deletion of CCGCCGC_GC). So, a single internal 9 nt deletion process can account for both the more 5’ and 3’ 9 nt internal deletions in type I tRNA. Because of complementary replication in pre-life, the strands on which 9 nt deletions occurred cannot now be known.

To support the tRNA fold, some sequence deviations were made from the original tRNA sequences and are indicated in Figure 2. The Levitt reverse Watson-Crick base pair is indicated by tRNA-15G (or GD₈) and the last base of the V loop (CV₅ for type I tRNAs and CV_n for type II tRNAs). For type II tRNA V arms, the original sequence was GV_n, changed to CV_n to support the Levitt G=C base pair. A reverse Watson-Crick base pair is a standard Watson-Crick pair (i.e., in DNA) with one of the bases flipped over and shifted slightly. A G=C reverse Watson-Crick base pair forms two hydrogen bonds instead of three, as in DNA. tRNA-18G (GD₁₂) replaced an A in the original UAGCC repeat sequence. GD₁₂ intercalates between tRNA-57A or tRNA-57G and tRNA-58A and forms a hydrogen bond to tRNA-55U, just before the T loop U-turn. The sequence change supports the tRNA fold by stabilizing the tRNA elbow where the D loop and T loop interact. Another elbow contact is tRNA-19G (GD₁₃) forming a Watson-Crick interaction with tRNA-56C. The 5’-As* sequence was slightly rearranged to support the stability of the D stem (typically 22-GGCGG-26→GGGCG to pair with D₃-GCCU-D₆). tRNA-G26 (or a substituted base) interacts with the V₁ base. The anticodon loop was selected to support coding with various anticodon sequences (typically CU/BNNAA) (B is U, C or G and not A; N is A, G, C or U; / indicates the U-turn). The T loop (typically UU/CAAAU) was selected to support D loop contacts at the elbow.

4. The tRNA D Loop Was Based on a UAGCC Repeat

Figure 3 shows a sequence logo that demonstrates that the D loop of tRNA was formed from a 17 nt UAGCC repeat. GD₈ interacts with CV₅ in type I tRNA and CV_n in type II tRNA (In Pyrococcus furiosis, CV₁₄ in tRNA^Leu and CV₁₅ in tRNA^Ser) to form the Levitt reverse Watson-Crick base pair. AD₁₂ was substituted by GD₁₂ to intercalate between tRNA-57A or G and tRNA-58A and to hydrogen bond to tRNA-55U, just before the T loop U-turn, at the elbow. GD₁₃ forms a Watson-Crick pair with tRNA-56C. The logo was prepared from 46 Pyrococcus furiosis tRNAs, which represents a complete tRNAome set for an ancient organism. If the logo were prepared from all Archaea, the result would not be substantially different [10,37,38]. We conclude that the D loop formed from a UAGCC repeat.

5. The Anticodon and T Stem-Loop-Stems

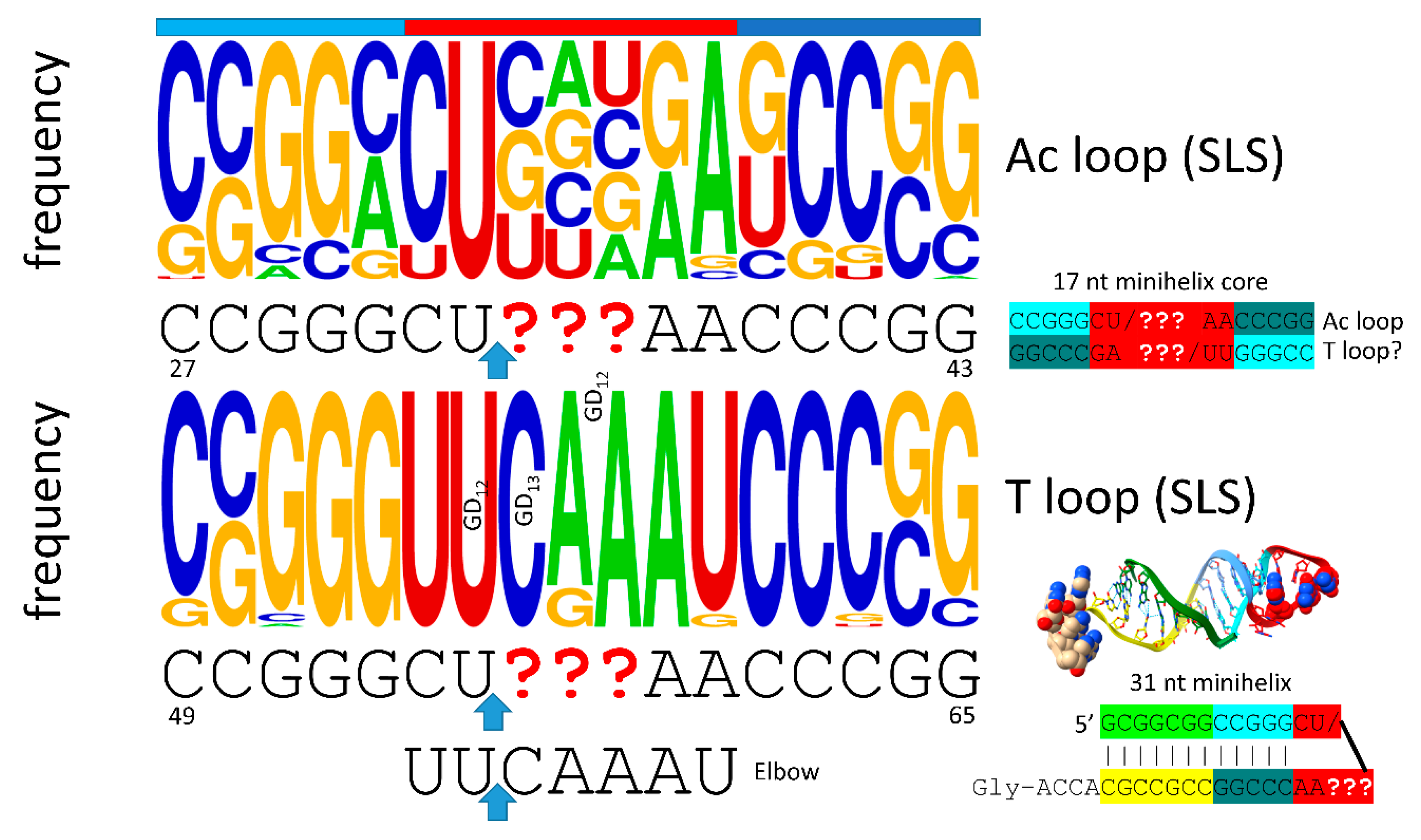

Remarkably, the anticodon and T stem-loop-stems, as with the D loop UAGCC repeat, are also 17 nt in length (Figure 4). We conclude that the D loop functioned similarly to the anticodon and T stem-loop-stems on pre-life Earth, with a different sequence but a common purpose, which was synthesis of polyglycine. The anticodon stem-loop-stem was evolved to support coding. In tRNA, the T stem-loop-stem was evolved to support elbow contacts to the D loop. The anticodon stem-loop-stem has the top logo sequence CCGGC_CU/BNNGA_GCCGG. The T stem-loop-stem has the top logo sequence CCGGG_UU/CAAAU_CCCGG. Clearly, these are homologous sequences, just by inspection. Because these are stem-loop-stems, they read very similarly on complementary strands. The T loop, therefore, may be derived from the complement of the anticodon stem-loop-stem, as indicated. We do not know, at this time, how to resolve which strand may have produced the T stem-loop-stem. The ~CU/BNNAA U-turn loop is significant intellectual property for evolution of life, as described below. The anticodon/T stem-loop-stem minihelix is shown in the figure. This is a more rigid stem-loop-stem than the D loop minihelix. On pre-life Earth, there may have been a negative selection for the rigid 31 nt anticodon stem-loop-stem minihelix with 12 C=G pairs. Difficulty in melting and replicating this long stem may have been part of the driving force for evolution of tRNA, in which C=G stems are shorter and more easily melted. It is probable that the flexibility of the D loop minihelix contributed to the initial formation of tRNAs. That is to indicate that tRNA, perhaps, could not have been evolved from ligation of three anticodon stem-loop-stem minihelices, which might have been expected to be, instead, processed to three 31 nt anticodon minihelices.

At the base of genetic code evolution, wobble tRNA-34A is not utilized. Wobble tRNA-34G interacts with wobble mRNA-3C (Watson-Crick pairing) or -3U (wobble pairing), so wobble tRNA-34A is not necessary. Without modification, wobble tRNA-34C pairs well with mRNA-3G but poorly with mRNA-3A. So, tRNA-34U is necessary to evolve the code, but unmodified wobble tRNA-34U is not ultimately suitable because of “superwobbling” [7,39,40]. In mitochondria, to shrink the size of the mitochondrial genome and tRNAome, a single unmodified wobble tRNA-34U reads wobble mRNA-3A, -3G, -3C and -3U. To evolve a code including two codon sectors, therefore, requires modification of tRNA-34U to restrict its reading. The acetyltransferase Elp3, which is as ancient as the genetic code, begins the modification [41]. For instance, tRNA-34cnm⁵U (5-cyanomethyluridine) is an example of a tRNA-34U modification initiated by Elp3, which may be as ancient as the genetic code, to suppress superwobbling. The tRNA-34 wobble position, therefore, has only purine-pyrimidine resolution, because reading A and U in a wobble position is awkward.

Reading A and U is also awkward at tRNA-36. Notably, at the base of the code, if tRNA-36A is present, the tRNA-37m¹G modification (or a similar modification) is present. If tRNA-36U is present, the tRNA-37t⁶A modification (or a similar modification) is present [7]. We conclude that modification of tRNA-37 affects the reading of tRNA-36, particularly, if tRNA-36A or tRNA-36U is present. We conclude that tRNA-36 was most likely a wobble position at which wobbling was suppressed during code evolution, in part, by modification of tRNA-37. Note that wobbling at tRNA-34 could not be suppressed in the same manner as tRNA-36 because tRNA-33 is on the opposite side of the anticodon loop U-turn. Modification of tRNA-33U would be unlikely to affect reading of tRNA-34. Modification of tRNA-35 could not be done to suppress tRNA-34 wobbling. As a Watson-Crick position for coding, there are four bases present at tRNA-35 and their modifications might disrupt coding.

6. The Anticodon Loop

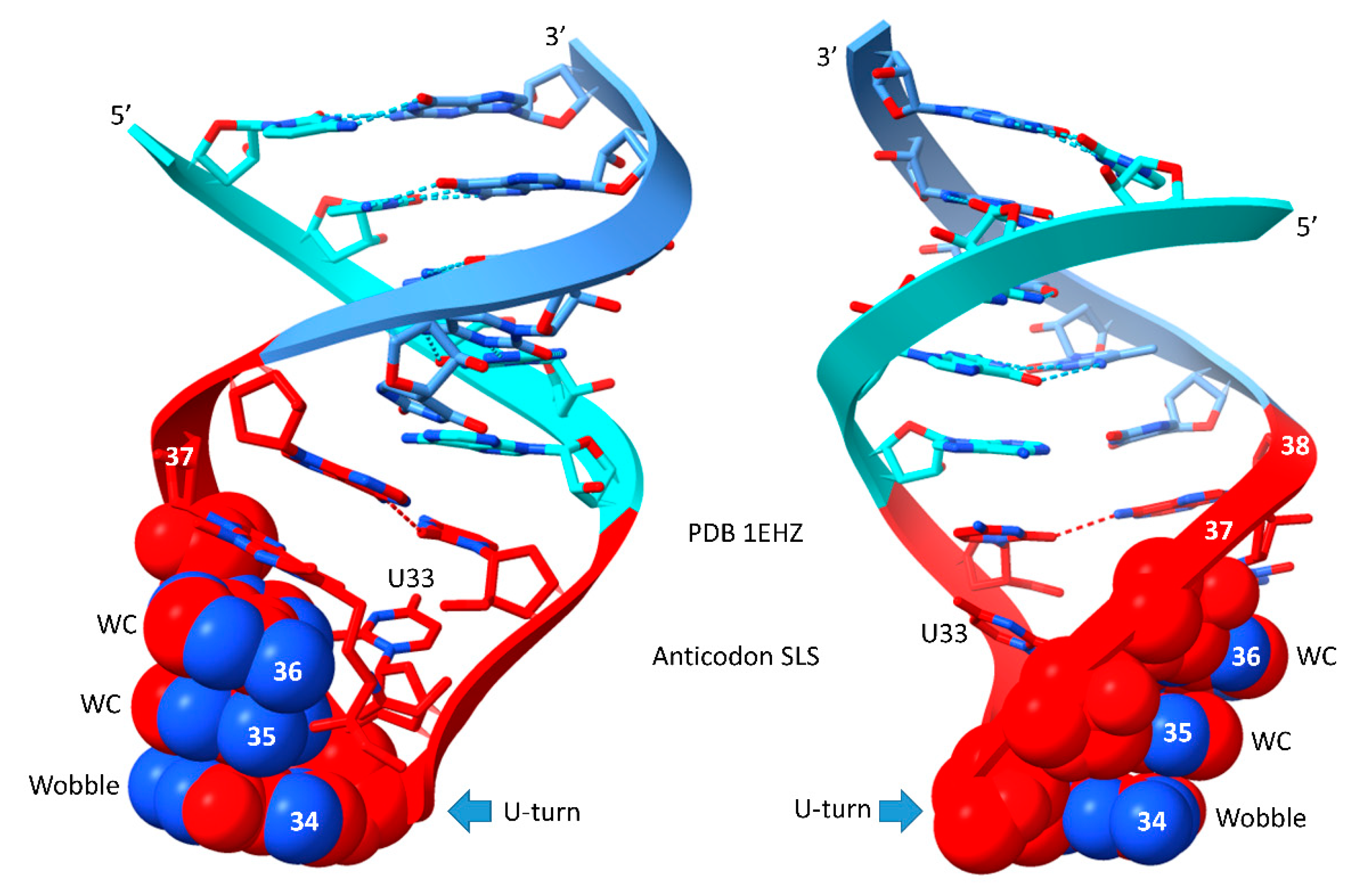

The anticodon stem-loop-stem is shown in Figure 5. The anticodon loop (~CU/BNNAA) was indispensable for evolution of tRNA and the genetic code. The anticodon 7 nt loop with a U-turn between loop positions 2 and 3 was the most essential intellectual property in pre-life chemical evolution of life. We posit that any attempt to replace this 7 nt U-turn loop with another RNA loop would have failed in evolution. A loop of 3, 4, 5, 6 or 8 nt would certainly have failed. In the 7 nt U-turn loop, loop C1 interacts with loop A7 via a reverse Hoogsteen hydrogen bond. This stacks the loop C1-A7 pair with the anticodon stem. Modifications to C1 (i.e., 2’-O-methyl-C; Cm) or A7 may affect this interaction [42]. The U-turn loop is a tight loop that would be expected to resist attacks by ribozyme nucleases in a pre-life world and, so, may have been strongly chemically selected. The C1-A7 pair and U2 set up the loop conformation to form the U-turn. The U-turn projects tRNA-34, tRNA-35 and tRNA-36 to form the 3 nt anticodon. Modifications of tRNA-37 contribute to the reading of tRNA-36. Apparently, wobbling at tRNA-36 was, in part, suppressed by modifications at tRNA-37. Wobbling at tRNA-34 cannot be suppressed in the same manner, as described above.

7. Evolution of the Type II V Arm and Alignment to the type I V Loop

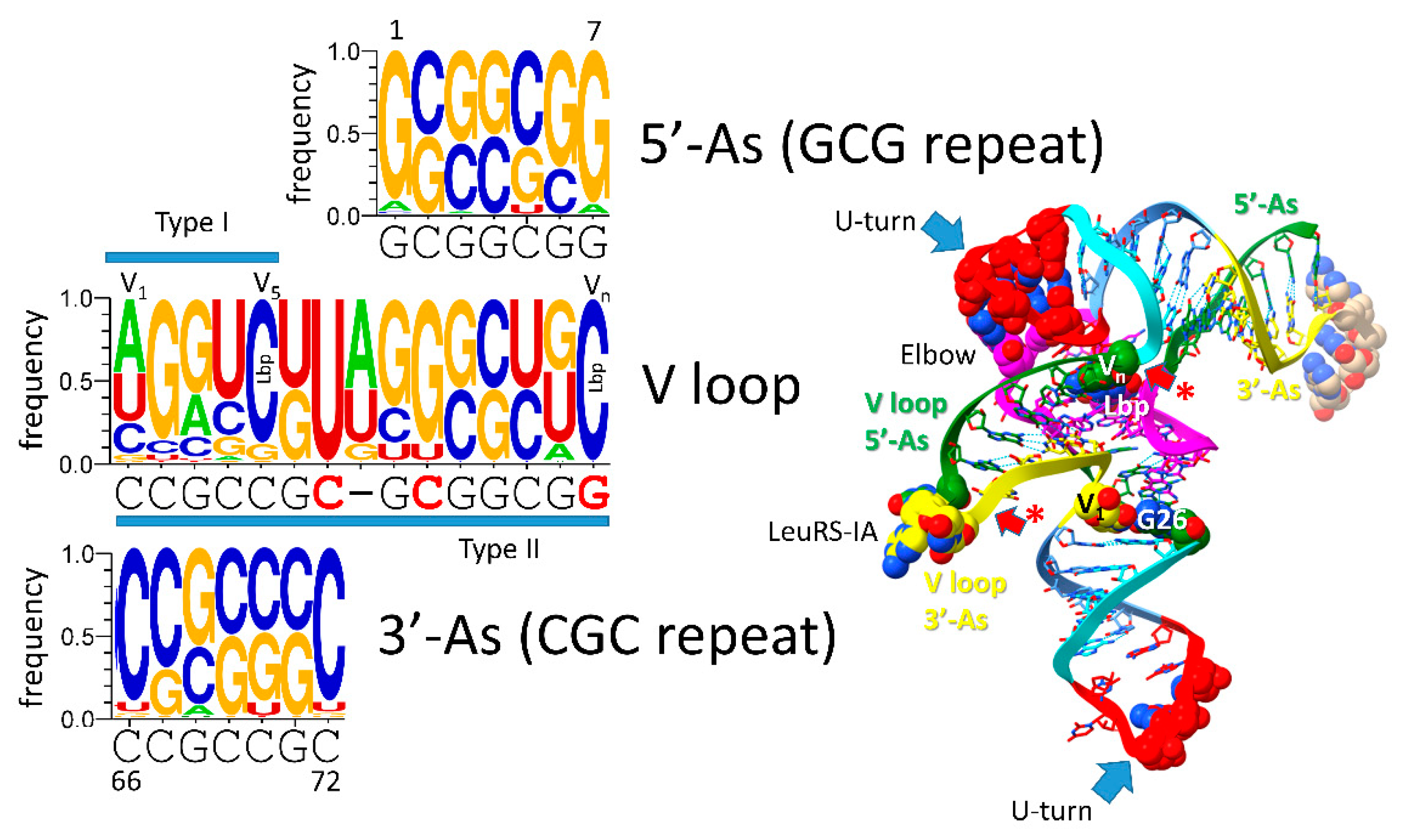

Figure 6 shows the mechanism of evolution of the tRNA type II V arm and how it aligns to the type I V loop [11,36]. The type II V arm was initially a 3’-acceptor stem (CCGCCGC) ligated to a 5’-acceptor stem (GCGGCGG) (see Figure 2). In the type II V arm, in an ancient Archaeon, UV₁ is always present to interact with tRNA-G26. CV_n is always present to form the Levitt reverse Watson-Crick base pair to tRNA-G15 (GD₈). Because the original sequence (CCGCCGC_GCGGCGG) pairs along its entire length and can form tangled mispairs, the type II V arm evolved to form a stem-loop-stem. In Archaea, tRNA^Leu (5 synonymous tRNAs) and tRNA^Ser (4 synonymous tRNAs) have type II V arms. The number of synonymous type II tRNA sets is limited by the allowed trajectory set points of the V arms, described below [11]. Because LeuRS-IA and SerRS-IIA must read so many different anticodons, LeuRS-IA and SerRS-IIA utilize the projecting type II V arm as a determinant for accurate aminoacylation instead of the more variable anticodon loops. LeuRS-IA interacts with the tRNA^Leu type II V arm end loop [11,43,44]. SerRS-IIA binds the tRNA^Ser V arm stems and elbow and recognizes the different trajectory of the tRNA^Ser V arm compared to tRNA^Leu [11,45]. The type I V loop aligns with the first 5 nt of the type II V arms in Pyrococcus furiosis. Currently, type II V arms and type I V loops are improperly aligned in tRNA databases, and these alignments must be adjusted.

8. Evolution of the 3’-D Stem and Type I V Loop

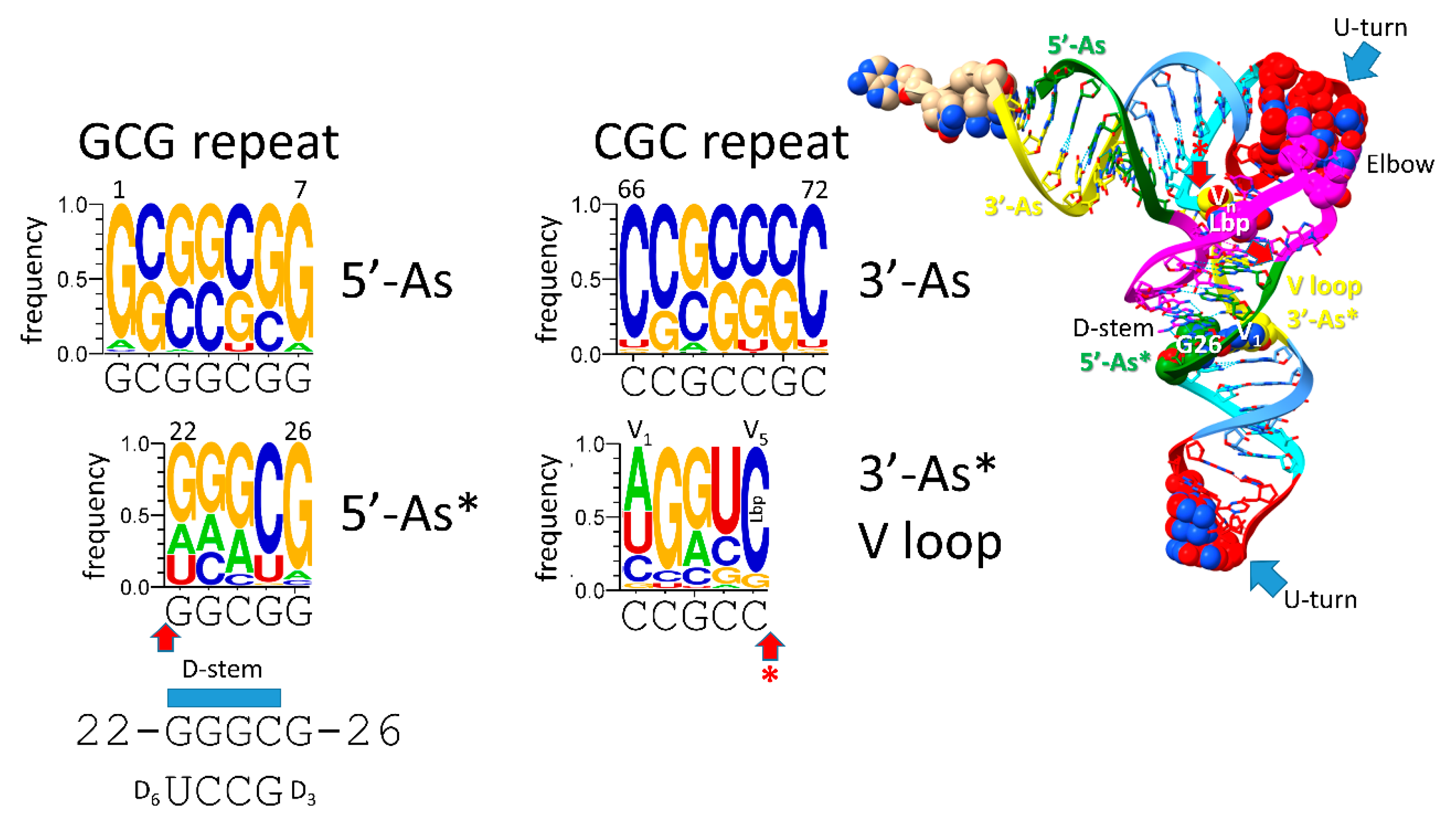

The 5’-As* green segment and the 3’-As* (type I V loop) yellow segment were formed by processing of ligated 3’- and 5’-acceptor stems (CCGCCGC_GCGGCGG) (Figure 7) (see also Figure 2). The 3’-D stem sequence was initially GGCGG. This sequence evolved typically to 22-GGGCG-26 in order to pair with D₃-GCCU-D₆ to form the 3’-D stem (see also Figure 2). tRNA-G26 typically binds the V₁ base. Statistical tests strongly support homology of the 5’-acceptor stem and typical 22-GGGCG-26 5’-As* sequence, aligned as shown [6,36]. The type I V loop (3’-As*) initially had the sequence CCGCC but evolved typically to V₁-AGGUC-V₅. V₁ typically interacts with G26. The type I V loop makes many interactions. GV₂ can interact with GD₃. GV₃ forms a triplex base interaction with 22G that pairs with UD₆ as part of the D stem. UV₄ can flip away and not form interactions to other tRNA bases. These interactions are affected by tRNA modifications and sequence and may not be the same for every tRNA. Here, the PDB 1EHZ structure was considered [42]. CV₅ forms the reverse Watson-Crick Levitt base pair to tRNA-G15 (GD₈). Statistical tests strongly support the homology of the 3’-acceptor stem and 3’-As* (type I V loop), aligned as shown. From the logos, the 5’-acceptor stem was clearly derived from a GCG repeat (typically GCGGCGG). The 3’-acceptor stem was clearly derived from its CGC repeat complement.

9. Evolution of the Type II V Arms and V Arm Trajectories

The number of synonymous tRNA sets in an organism that can have type II V arms is limited by the number of permitted V arm trajectories (Figure 8) [11]. In Archaea, only the synonymous sets of tRNA^Leu and tRNA^Ser utilize type II V arms. There are 5 tRNA^Leu and 4 tRNA^Ser in an ancient Archaeon, and each synonymous set of tRNA^Leu or tRNA^Ser has a common V arm trajectory and a similar sequence within the set. The V arm trajectory is given by the number of unpaired bases between the 3’-V arm stem and the Levitt base CV_n. For tRNA^Leu, the V arm has a trajectory score of 2 unpaired bases. For tRNA^Ser, the V arm has a trajectory score of 1 unpaired base. LeuRS-IA binds the tRNA^Leu V arm end loop V₆-UAG-V₈. The V₆-UAG-V₈ sequence that binds LeuRS-IA is highly conserved in Archaea (see the sequence logo). SerRS-IIA binds to the V arm stems and the elbow of tRNA^Ser. SerRS-IIA mostly recognizes the distinct trajectory of tRNA^Ser V arms and rejects tRNA^Leu V arms that have a cramped trajectory for SerRS-IIA contacts. In Archaea, only two type II V arm trajectories are observed. In Bacteria, by contrast, three type II V arm trajectories evolved. In Bacteria, tRNA^Tyr is also a type II tRNA. In Bacteria, for tRNA^Tyr the V arm has a trajectory set point score of 2 unpaired bases; tRNA^Leu has a trajectory set point score of 1 unpaired base; tRNA^Ser has a trajectory set point score of 0 unpaired bases [11]. tRNA^Ser V arms in Bacteria are longer than in Archaea, which may explain in part the evolution of the third trajectory set point of 0 unpaired bases for bacterial tRNA^Ser. The trajectory set point of 0 is not utilized in Archaea. In Bacteria, the longer tRNA^Ser V arm stems may stabilize the tighter connection at the base of the V arm stem (V₂-V_(n-1)).

10. ACCA-Gly Was the Pre-Life Adapter

We posit that ACCA-Gly was the primordial adapter molecule. After functioning alone, ACCA-Gly was ligated to other RNAs including 31 nt minihelices and tRNAs. RNAs in the pre-life world may have been modified at the 2’-O (i.e., 2’-O-methyl) to stabilize RNA in a pre-life environment [46]. Figure 9 shows the last 4 nts of tRNA in Pyrococcus furiosus, as a logo. tRNA-73 is considered the discriminator base because of its role in attaching the cognate amino acid by the cognate AARS enzyme. 74-CC-75 restrain the tRNA in the peptidyl and aminoacyl sites of the peptidyl transferase center of the ribosome. The ribose ring of 76A is the site of amino acid attachment. In an ancient Archaeon, tRNA-73A is the most common discriminator base. 73G is next, followed by 73U and 73C. In an ancient Archaeon, only tRNA^His utilizes discriminator tRNA-73C [19]. Because tRNA^His includes the sequence 73-CCCA, this may cause confusion in binding in the peptidyl site of the peptidyl transferase center of the ribosome. Confusion was relieved by modification of tRNA^His by posttranscriptional addition of GTP at the -1 position to pair with tRNA-73C. Addition of -1 GTP, which is specific for tRNA^His, also provides a unique discriminator C=G pair to direct accurate and selective tRNA^His charging [47].

11. Polyglycine in Pre-Life

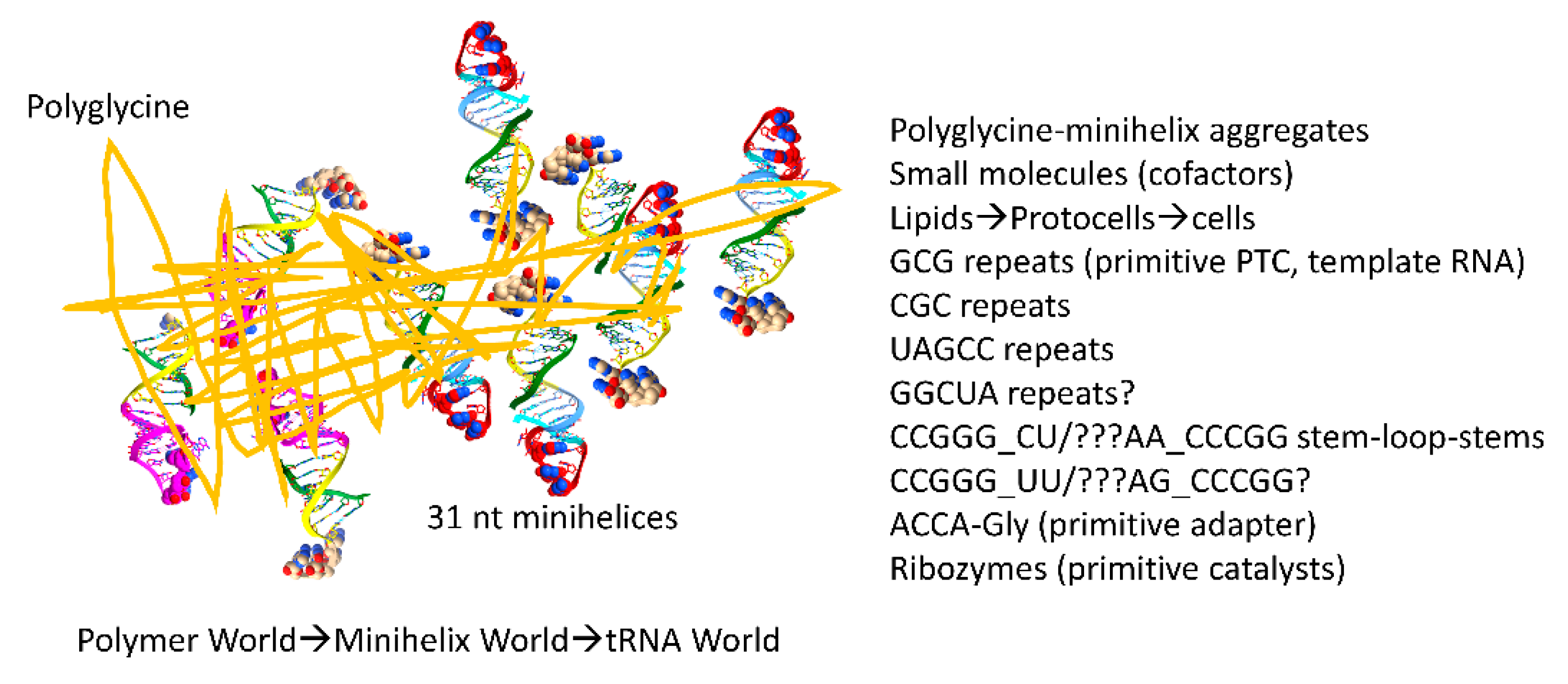

We posit that, in pre-life, polyglycine was initially the main aggregator of macromolecules, lipids and cofactors that would eventually form the first cells (Figure 10). Thus, polyglycine was the major driving force for chemical selection and coevolution of tRNAomes and translation systems. Sequence analysis of tRNA evolution shows that Polymer World progressed to Minihelix World that progressed to tRNA World [6,8]. Until Darwinian selection was imposed at about the time of LUCA, however, Polymer World, Minihelix World and tRNA World coexisted, because there was no straightforward mechanism for destruction of competitors. At LUCA, the first cells could largely destroy Polymer World and Minihelix World and many other pre-life chemistries. Evidence for Polymer World and Minihelix World, however, lives embedded in tRNA sequence. Sequences of tRNAs include GCG, CGC and UAGCC repeats. Clearly, pre-life Earth produced RNA repeats. GCG and CGC repeats are complementary to one another, indicating accurate complementary replication of RNA on a pre-life Earth. Formation of stem-loop-stems (i.e., ~CCGGG_CU/???AA_CCCGG) also indicates complementary replication on pre-life Earth because a stem-loop-stem can act as a snap back primer for complementary replication. ACCA-Gly is posited to be the primitive adapter molecule attached to RNAs on pre-life Earth (Figure 9). Ribozymes supported necessary catalysis. Polyglycine could be enriched as a primitive aggregator through interactions with the pre-life environment (i.e., ultraviolet light, amino acid incorporation errors (innovations) and other chemical reactions).

12. A Model for Evolution of the First Cells

A model to describe chemical evolution of the first cells is shown in Figure 11. There is no “chicken and egg” problem in the pre-life to life transition, and no supreme deity appears to be required. Phylogenomic and bioinformatics provide huge insight into the enzymes and cofactors that were likely present at LUCA. Here, we attempt to correlate parts of that emerging analysis with inferences that are based on tRNA evolution, as recorded in conserved tRNA sequence. Figure 12, Figure 13 and Figure 14 provide lists of some of the tRNA modifications and protein enzymes identified for LUCA that we infer must have coevolved with the genetic code.

Life on Earth evolved around tRNA and the tRNA anticodon. So far as we can see, this conclusion cannot now rationally be questioned. Translation systems and the genetic code coevolved with tRNAomes. Without a genetic adapter as good or better than tRNA, it is difficult to consider how else complex encoded enzymes and proteins could have evolved. Considering structure, function and evolution, it is difficult to re-design tRNA to evolve a more advantageous genetic adapter. To replace tRNA with a genetic adapter that is not comprised of RNA and that is not evolved within an aqueous environment is a daunting problem. To alter the tRNA anticodon loop to another loop structure (i.e., 3, 4, 5, 6 or 8 nt) is also a daunting problem to which there may not be a reasonable solution. The 7 nt U-turn tRNA anticodon loop must evolve to a 3 nt genetic code with a single tRNA-34 wobble position. The chances of evolving a 4 nt genetic code are vanishingly slim. Ribosomes evolved around tRNA. For instance, the large ribosomal subunit includes a tRNA-shaped channel through which the tRNAs advance [48]. We conclude that the genetic code and sequence-dependent proteins evolved around tRNA and the tRNA anticodon. Also, mRNA evolved secondarily to tRNA, so evolution of the tRNA anticodon directed mRNA codon evolution. Therefore, evolution of tRNA is the central story in evolution of life on Earth. Fortunately, the history of tRNA evolution was recorded and conserved for ~4.2 billion years in tRNA sequence.

We posit two coupled mechanisms for aggregation of pre-life macromolecules leading to life: 1) aggregation of macromolecules interacting with (dirty) polyglycine; and 2) progression of lipids→protocells→cells probably emulsified by polyglycine. When we refer to polyglycine, we consider dirty polyglycine, with other induced chemistries (i.e., reaction products from ultraviolet light exposure) and associations (i.e., binding by other amino acids and chemicals). Glycine was probably the first encoded amino acid. Glycine is the simplest amino acid. Glycine occupies the most favored sector in the genetic code (tRNA^Gly (BCC)), indicating that glycine might be the first encoded amino acid [8,9,25,26,27]. Glycine was present on early Earth.

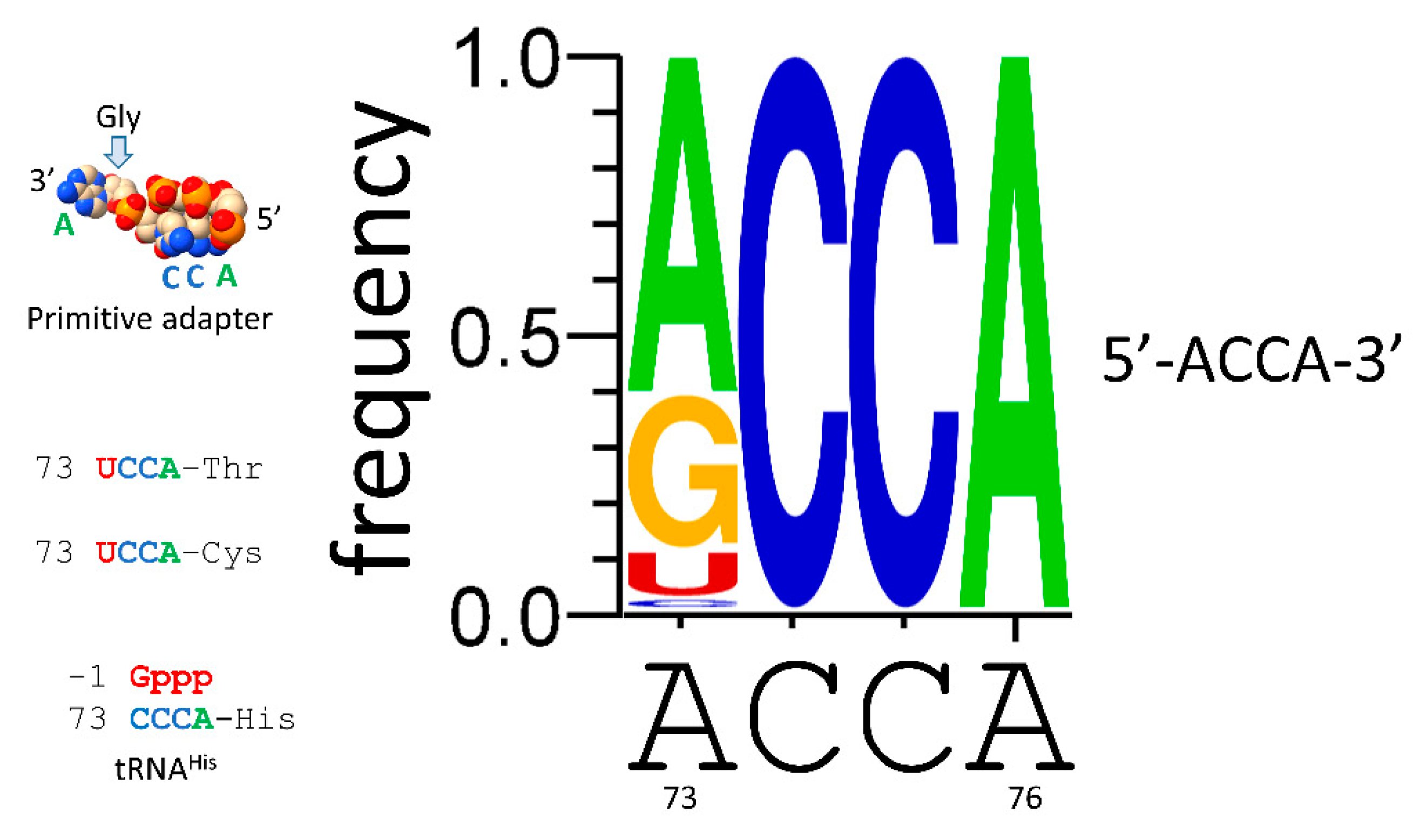

We posit ACCA-Gly as a primitive adapter molecule (Figure 9). We posit that ACCA-Gly was ligated (i.e., by a ribozyme ligase) to many RNAs on pre-life Earth. Analysis of tRNA sequence reveals that GCG, CGC and UAGCC repeats were present in pre-life Earth. Also, ~CCGGG_CU/???AA_CCCGG stem-loop-stems were present. Multiple ACCA-Gly could assemble on GCGGCGGCG repeats. Binding of multiple ACCA-Gly in proximity should be sufficient to support polyglycine synthesis (i.e., with wet-dry cycles) [46].

In the progression of RNAs of increasing complexity, GCG repeats, CGC repeats, UAGCC repeats and stem-loop-stems were recombined into 31 nt minihelices. With ACCA-Gly attached, these 35 nt minihelices could have been used to synthesize polyglycine, using a coevolved and mobile peptidyl transferase center that may have first arose from GCG repeats. At some point a primitive decoding center and the first mRNA-like molecules coevolved. We posit that polyglycine synthesis was the primary selective chemical driving force. As a molecular aggregator, polyglycine provided the major chemical selection for pre-life chemistries leading to the first cells. As noted above, 31 nt minihelices may have been partly selected against because of their long and very stable stems. This negative selection may have provided some of the impetus to evolve the first tRNAs, which do not include the long stems that may have rendered minihelices difficult to unwind and replicate. Also, tRNA was positively selected because it is a molecule that could “teach” itself to code by duplication and repurposing in a pre-life environment.

We posit that the initial purpose of type I and type II tRNAs was to synthesize polyglycine on a primitive decoding center with a primitive mRNA, utilizing a mobile, primitive peptidyl tranferase center perhaps derived initially from GCG repeats. As reported elsewhere, the genetic code appears to have evolved from encoding G→GADV→GADVLSER+CNQ→20 aas + stops [6,8,9,11,27]. Coevolution of tRNAomes, AARS, ribosomes, mRNA, tRNA-linked chemistry, first proteins and protocells drove the evolution of the first cells. We define first proteins as those that coevolved with the genetic code. We consider proteins identified at LUCA by phylogenomic studies to be likely candidates for first proteins.

We posit that the tRNA-based genetic code initially evolved to synthesize polyglycine. GADV are the four simplest amino acids and are posited to be the first four encoded [49,50,51,52,53,54]. GADV occupy the most favored row in evolution of the genetic code (tRNA-36C; anticodon BNC). The genetic code then appears to have progressed to an 8 amino acid bottleneck (GADVLSER). The 8 amino acid bottleneck arose because both tRNA-34 and tRNA-36 were wobble positions and only a single wobble position could be read at a time [6,8,11,27]. At a wobble position, only pyrimidine-purine resolution could be achieved, so, at this stage, the maximum complexity of the code was 2x4 or 4x2, which equals 8. Leucine and serine evolved to occupy 6-codon sectors in the final code, and tRNA^Leu and tRNA^Ser are type II tRNAs with longer V arms for LeuRS-IA and SerRS-IIA recognition, to avoid anticodon ambiguity in coding. Arginine also occupies a 6-codon sector of the code, but tRNA^Arg is a type I tRNA. To circumvent coding ambiguity, ArgRS-IA unwinds the tRNA^Arg anticodon loop to expose additional bases for cognate tRNA^Arg charging [55]. CNQ then may have been added to the expanding code via tRNA-linked chemistry. Serine→cysteine [56,57], aspartic acid→asparagine and glutamic acid→glutamine [58,59] are reactions identified in ancient organisms today. We posit that these reactions expanded the 8 amino acid bottleneck to an 11 amino acid code that could support synthesis of first proteins to coevolve with the code. Many proteins essential for life coevolved with the genetic code. Upon suppression of wobbling at tRNA-36, the genetic code expanded to 20 amino acids plus stops. Because of wobbling at tRNA-34, the maximum complexity of the genetic code is 2x4x4=32 assignments. Wobbling at tRNA-34 could not be suppressed in evolution. The code froze at 20 amino acids plus stops because of fidelity mechanisms. In textbooks and school, the genetic code is described as having a complexity of 4x4x4=64 assignments. That is not correct because ambiguous reading of wobble tRNA-34 on the ribosome requires degeneracy.

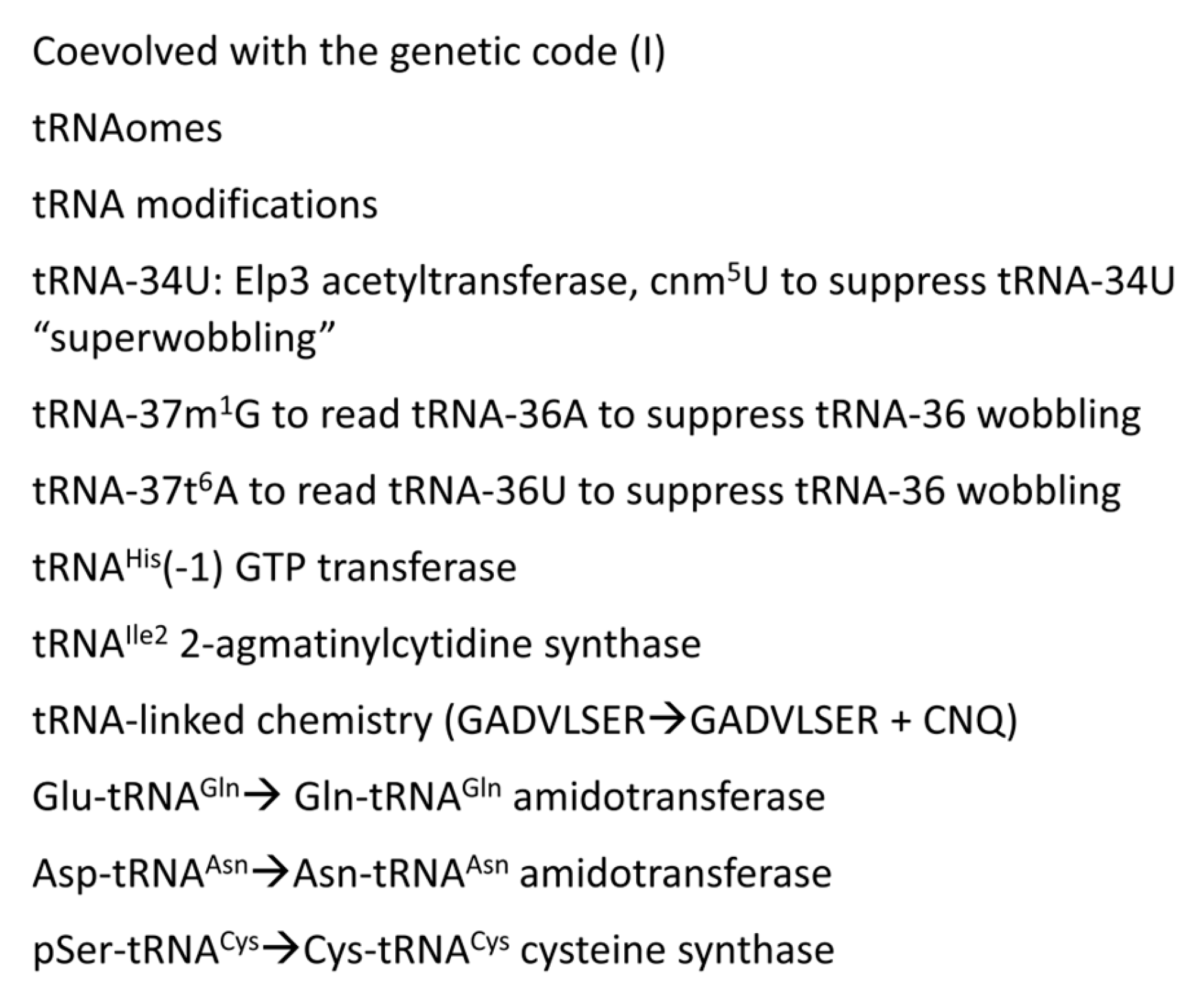

Figure 12, Figure 13 and Figure 14 describe some of the enzymes that coevolved with the genetic code to indicate how biological complexity arose [12,13,14,15,60]. Figure 12 concentrates on tRNAomes, tRNA modifications and tRNA-linked chemistry supporting code evolution. We posit that LUCA had a fully established genetic code [12,13]. tRNAomes coevolved with mRNA, ribosomes, AARS enzymes and other first proteins. tRNA modifications were necessary to evolve the code. Specifically, tRNA-34U modifications (i.e., tRNA-34cnm⁵U) were necessary to suppress superwobbling [7]. Such modifications begin with the Elp3 acetyltransferase. The 5-carbon of tRNA-34U is acetylated by Elp3 followed by other modifications. tRNA-34cnm⁵U appears to be one of the oldest such modifications. Without suppression of superwobbling, the genetic code would lack 2-codon boxes. To read tRNA-36A required a tRNA-37m¹G modification or a variation. To read tRNA-36U required a tRNA-37t⁶A modification or a variation. We posit that tRNA-36 was initially a wobble position. Wobbling at tRNA-36 was partially suppressed by tRNA-37 modifications. tRNA^His(-1) GTP transferase was necessary to properly position tRNA^His in the peptidyl site of the peptidyl transferase center. tRNA^His(-1) GTP transferase also confers a unique discriminator sequence for accurate histidine charging by HisRS-IIA [41,61]. For methionine to enter the genetic code, tRNA^Ile2 2-agmatinylcytidine synthase and loss of tRNA^Ile (UAU) were required. We posit that evolution of the genetic code stalled at 8 amino acids because of wobbling at tRNA-36. The 8 amino acid bottleneck was partially relieved by: 1) modifications at tRNA-37 [7]; 2) tRNA-linked chemistry to synthesize C, N and Q from S, D and E; and 3) evolution of the decoding center “latch” (see below). S→pSer→C reactions have been characterized [57]. D→N and E→Q amidotransferases have been identified [58,59,62].

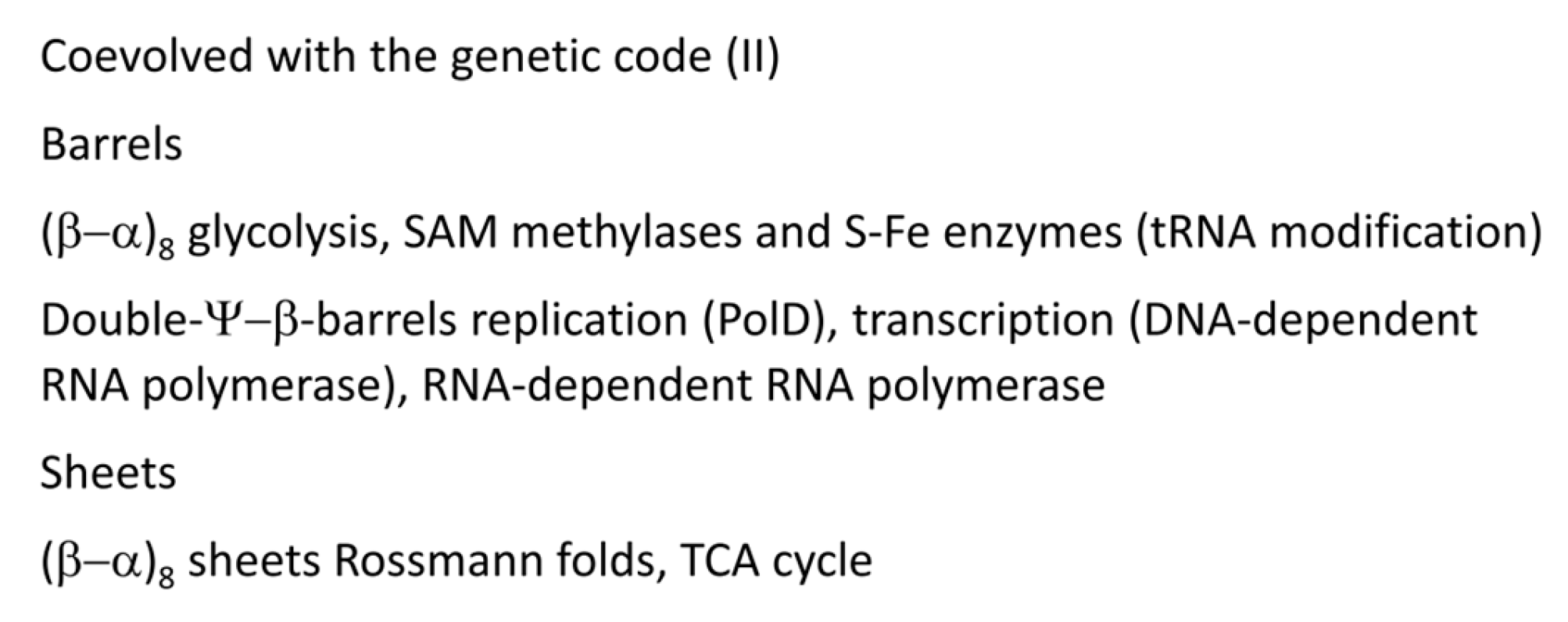

Figure 13 indicates barrels and sheets that support metabolism, DNA replication, transcription and essential tRNA modifications. We have proposed that (β−α)₈ barrels (i.e., TIM barrels; TIM for triosephosphate isomerase) were formed by a similar mechanism to tRNA in which multiple similar or identical RNAs were ligated for replication [6]. Ligation of multiple βαβα units resulted in (β−α)₈ barrels, which were also refolded into (β−α)₈ sheets (losing β7 in the process). TIM barrels and Rossmann folds describe much of core metabolism. Double-Ψ−β-barrels were formed similarly to (β−α)₈ barrels by RNA ligation, in this case, of two RNAs encoding ββαβ units followed by folding into the barrel ββαβββαβ. Two double-Ψ−β-barrel type enzymes describe DNA polymerase PolD in Archaea, which may be the first replicative DNA-dependent DNA polymerase [63,64], and, also, DNA-dependent RNA polymerases in all organisms [1,63].

A summary of additional first protein translation functions is shown in Figure 14. Ribosomes are posited to have evolved from an independent decoding center and peptidyl transferase center. Translation initiates on the small ribosomal subunit, which includes the decoding center and most of the “latch”. The latch enforces Watson-Crick geometry at the two Watson-Crick positions (anticodon tRNA-35 and -36; mRNA codon 1 and 2) and regulates wobbling (anticodon wobble tRNA-34; mRNA wobble codon 3) [65,66,67,68,69]. The ribosomal large subunit that includes the peptidyl transferase center (aminoacyl site and peptidyl site) couples with the small subunit after initiation, and, in tandem, the small and large ribosomal subunits support accurate stepwise translocation. Initiation factor 2 (IF-2), EF-Tu and EF-G are homologous GTPases that support initiation, aa-tRNA entry and translocation. EF-Tu and EF-G alternate binding to shared, overlapping sites mostly on the large ribosomal subunit during elongation. We consider the translation system to be relatively simple in concept but complex in its genetics and evolved structure. Basically, the ribosome appears to be a simple construct with a complex genetic history and many add-ons to the original evolving functional core.

Recent work on ancient protein folds SH3 and OB that are common in ribosomal proteins and cradle-loop barrels (i.e., double-Ψ−β-barrels; Figure 13) is very consistent with mechanisms we describe for evolution of first proteins [70,71].

LUCA appears to have encoded a full set of AARS enzymes and, therefore, must have had an intact genetic code. Despite claims to the contrary [72,73,74,75], class II and class I AARS enzymes are homologs [8,9,27,28]. Apparently, the first class I AARS (probably a primitive ValRS-IA) was formed by addition of an N-terminal extension to a primitive GlyRS-IIA. From the tRNA evolution scheme, probably, the 5’-RNA N-terminal encoding extension was ligated to a GlyRS-IIA RNA for replication, much as described above for 31 nt minihelix replication and tRNA evolution (Figure 1). Because translation termination was initially imprecise, these RNAs need not necessarily have been ligated in phase.

13. Order of Addition of Amino Acids into the Genetic Code

The precise order of addition of amino acids into the genetic code is important but has been difficult to determine. Recently, phylogenomic studies have been used to attempt to make this determination [13]. In contrast, we have approximated an order of addition into the code from inference based on the highly structured code [8,9,11,27]. We find the phylogenomic arguments somewhat awkward to provide a clear answer to this fundamental question about the origin of life. Also, we experienced some difficulty in sorting different amino acid addition orders that arise from different methods of ascertainment. What we conclude is that the best current understanding of this issue results if the order of amino acid additions is split into different columns of the genetic code, which causes different determinations to make better sense and to approach closer agreement.

Figure 15 and Figure 16 describe our best current understanding of this issue presented as a potential working model for amino acid entry into the genetic code. Figure 15 shows how consideration of evolution within code columns can simplify the discussion. Very clearly, the genetic code evolved to a large extent within code columns [8,9,11,27,28]. Glycine is the simplest amino acid and occupies the most favorable anticodon (tRNA-35C, tRNA-36C) [8,9,11,27,28]. The simplest amino acids GADV are found on the 4th row of the code (tRNA-36C), indicating that these were the first amino acids to be encoded [49,50,51,52,53,54]. It appears that amino acids entered the code filling larger sections that were then reduced as other amino acids entered. The amino acids that entered first retained the most favored available anticodons, according to the rules tRNA-35 (C>G>U>A) and tRNA-36 (C>G>U>>A).

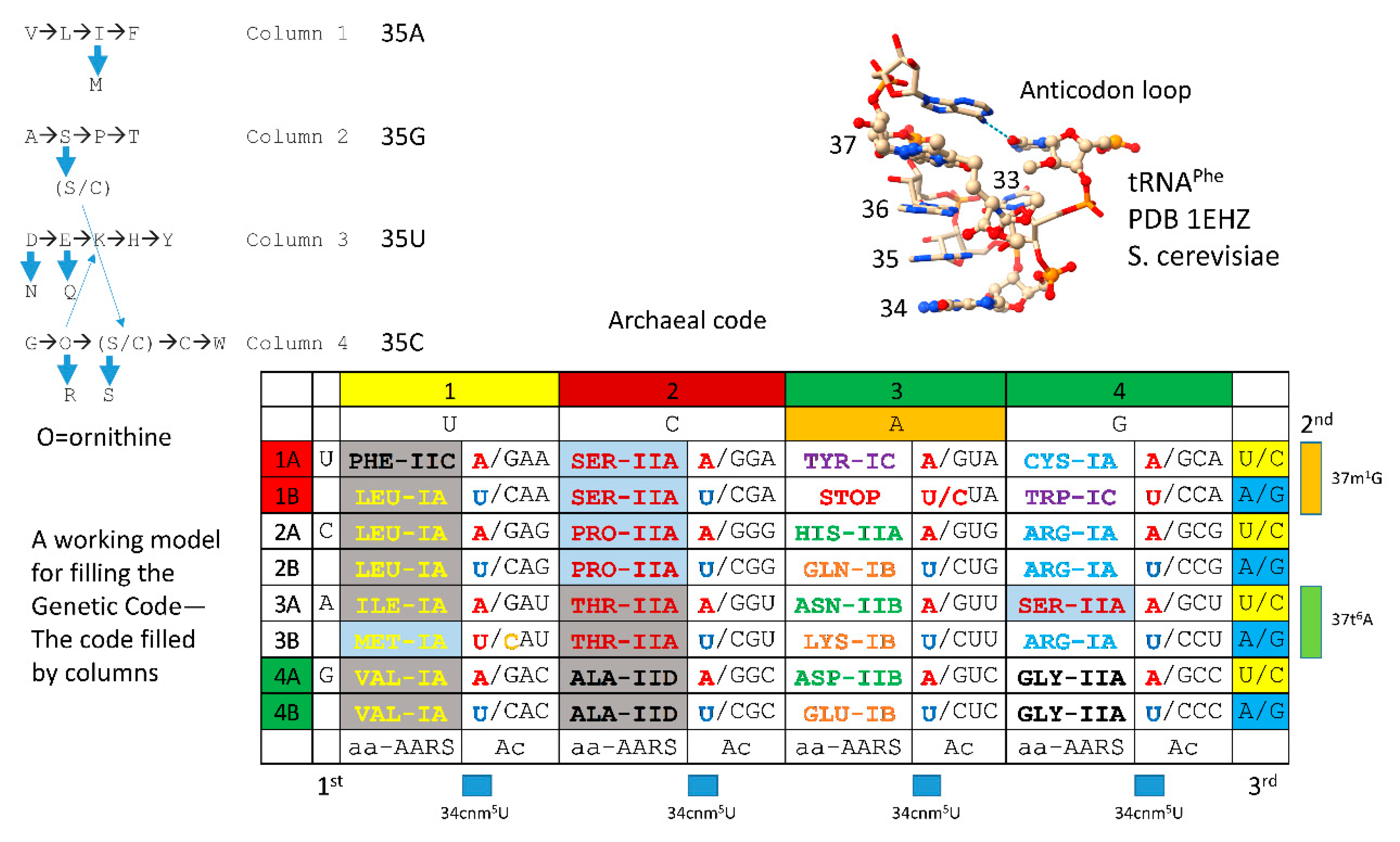

In Figure 16, the working model for amino acid additions is correlated with the structure of the archaeal genetic code, which we posit was the code at LUCA [8,9,11,27,28]. Bacterial and eukaryotic codes appear to be derived from a more primitive archaeal code at LUCA and via fusions at LECA (last universal eukaryotic common ancestor). In column 1, VIML are similar hydrophobic amino acids, and ValRS-IA, IleRS-IA, MetRS-IA and LeuRS-IA are closely related AARS enzymes. Methionine is posited to have invaded a 4-codon isoleucine sector, leading to differential wobble C modifications (C→agmatidine to encode isoleucine [76,77]; C is lightly modified (elongation) or unmodified (initiation) to encode methionine). Also, anticodon UAU is not utilized at the base of the code because use of UAU would cause ambiguity in coding for isoleucine and methionine. Leucine eventually occupies a 6-codon sector. We posit that an enlarged leucine sector gave rise to invasion by isoleucine and then methionine.

In column 2, ATPS are neutral amino acids. T and S are chemically related. Serine eventually occupies a 6-codon sector of the code that is split between column 2 and column 4 of the code. Serine is the only amino acid that splits between two code columns. ThrRS-IIA, ProRS-IIA and SerRS-IIA are closely related AARS enzymes. We posit that a now extinct AlaRS-IIA may have been replaced before LUCA with AlaRS-IID to suppress tRNA charging errors. We posit that an enlarged serine sector gave rise to threonine and proline sections and also may have allowed early entry of cysteine into the code. Cysteine, for instance, was necessary for early folding of AARS enzymes by binding Zn [28]. We posit that serine jumped from column 2 to column 4 of the genetic code, and this event may be associated with early entry of cysteine into the code. Cysteine can be generated from serine by two mechanisms [56,57]. Cysteine ended up on column 4, row 1 of the code.

We have previously suggested that D and E entered the code to form a striped pattern in column 3 that resolved to D, N and H in rows 4A, 3A and 2A and E, K and Q in rows 4B, 3B and 2B. In tRNA-linked reactions, D→N and E→Q via amidotransferase enzymes [58,59,62]. Note that, in Archaea, AspRS-IIB, AsnRS-IIB and HisRS-IIA are closely related AARS enzymes. In Archaea, GluRS-IB, LysRS-IB and GlnRS-IB are closely related AARS enzymes. Interestingly, GlnRS-IB was not utilized at the base of code evolution. GlnRS-IB was generated in eukaryotic systems and acquired in archaeal systems via horizontal gene transfers [7]. At the base of code evolution, a dual function GluRS-IB was coupled with the Glu-tRNA^Gln amidotransferase to generate Gln-tRNA^Gln.

Column 4 of the code was the most favored column (tRNA-35C), explaining why glycine occupies column 4, row 4 (BCC anticodon; the most favored anticodon). Arginine occupies a 6-codon sector of the code that was invaded by serine. It may be that ornithine was the initial positively charged amino acid to enter the code [78]. Ornithine can be converted to arginine in two steps. Ornithine is flexible similar to lysine. Arginine is more rigid and forms strong ion pairs to aspartic acid that are formed and broken in allosteric switching for many enzymes and proteins. Lysine entry into column 3 may relate to ornithine having been present in column 4 (i.e., initially, only a single CCU→CUU anticodon base change may have been required for ornithine or lysine jumping from column 4 into column 3).

Aromatic amino acids FYW are posited to have added late, across disfavored row 1 of the genetic code, perhaps initially as a now extinct PheRS-IC AARS [8,9,11]. We posit that PheRS-IC was replaced by PheRS-IIC before LUCA to discriminate phenylalanine and tyrosine, which utilizes TyrRS-IC, which is closely related to TrpRS-IC.

When considered according to genetic code columns, our working model closely relates to the orders of addition proposed by others. Our model stresses the importance of coupling metabolism to tRNAome and genetic code evolution. For instance, multiple tRNA-linked metabolic reactions can be identified in code evolution. S→C, D→N and E→Q could be attributed to tRNA-linked chemistry. O→R (O for ornithine), F→Y and V→L may be other examples of tRNA-linked reactions in evolution of the code. In pre-life, metabolism and genetic code evolution were tightly coupled. As soon as isoleucine was encoded, methionine could be incorporated into the code. We posit that arginine, which occupies a 6-codon sector, entered earlier than proposed by others. This discrepancy may relate to the posited replacement of ornithine by arginine and the enhanced roles of arginine in allosteric shifts in sequence-dependent proteins.

Methionine occupies a 1-codon sector because methionine invaded a 4-codon isoleucine box. Differential modifications of wobble tRNA-34C to agmatidine (isoleucine) or 2’-O-methyl-C (methionine; elongation) and elimination of the UAU anticodon tRNA describe these events. Tryptophan occupies a 1-codon sector and shares a 2-codon box with a stop codon. Stop codons do not utilize a tRNA and are recognized instead as stop codons bound by protein release factors that interact with mRNA on the ribosome to terminate the reading frame [79]. To split a 2-codon sector into two different amino acids presents problems that have not been solved in evolution.

14. Pre-Life RNA Replication Mechanism Generated Complexity

At the time of pre-life tRNA evolution, RNA was replicated by: 1) RNA ligations [80,81]; 2) ligating snap-back primers (stem-loop-stems); and 3) complementary replication (mechanism unknown) [6,82,83,84]. RNAs were processed out of large, complex RNAs by ribozyme nucleases [85]. Because of the replication and processing mechanisms, similar or identical RNAs (i.e., 31 nt minihelices) accumulated. Replication joined similar and identical RNAs generating RNA repeats. tRNA was generated from ligation of a D loop 31 nt minihelix to two anticodon 31 nt stem-loop-stem minihelices (Figure 1). We posit that complex RNAs such as rRNAs were generated by a similar mechanism. Translation of RNA repeats generated protein barrels and protein linear sheets refolded from barrels. Ligation of different RNAs generated complex RNA recombinants that could provide new protein folds and functions. SH3 and OB folds and cradle-loop-barrels (i.e., double-Ψ−β-barrels) (Figure 13) were likely generated in this manner [70,71]. ValRS-IA (a class I AARS) was initially generated by attaching a 5’-RNA to a 3’-GlyRS-IIA (a class II AARS) RNA [6]. The replication mechanism of ligations and processing accelerated pre-life complexity, and many enduring and diverse RNA and protein functions were generated. Because complex molecules could be synthesized early in pre-life, it is generally unnecessary to insist that simple RNAs and simple proteins (i.e., “urzymes”) [72,73] had to precede more complex forms. Significant molecular complexity was generated in pre-life Earth.

15. Discussion

Sequence logos colorfully illuminate the three 31 nt minihelix tRNA evolution theorem. tRNA evolved by ligation of three 31 nt minihelices of mostly known sequence to form a 93 nt tRNA precursor. RNA ligations were necessary to support the RNA replication mechanism on pre-life Earth, resulting in complex and diverse pre-biology. To generate tRNA required internal 9 nt deletions within RNAs where 3’- and 5’-acceptor stems were ligated. An early version of type II tRNA could have been processed to type I tRNA by a single internal 9 nt deletion within ligated acceptor stems. The two 9 nt internal deletions to generate type I tRNAs were identical on complementary RNA strands. Also, RNA repeats and inverted repeats conserved in tRNA sequences were generated on pre-life Earth. The 7 nt U-turn anticodon loop was selected in pre-life, and competing loops were negatively selected because of sensitivities to ribozyme nucleases. The structure of the anticodon loop requires evolution of a 3 nt genetic code with a single wobble position. tRNA evolution demonstrates how highly ordered chemical evolution processes generated some of the first complex macromolecules leading to chemical evolution of tRNAomes, AARS enzymes, first proteins, the genetic code, rRNA, ribosomes, DNA genomes and complex cells.

16. Conclusions

Type I and type II tRNAs evolved chemically via highly ordered mechanisms during pre-life. Very likely, these steps could be reproduced in laboratories.

The mechanisms for chemical evolution of tRNAs can be extended to generate highly complex RNAs such as rRNAs.

Polyglycine is proposed to have been a primary aggregator of pre-life macromolecules and cofactors and also to have promoted the transition of lipids to protocells and protocells to cells. The utility of polyglycine to promote these chemistries could be reproduced in laboratories.

With coevolution of translation functions, mechanisms for evolution of the first proteins that were coevolved with the genetic code can be described. RNA ligations of similar or identical RNAs generated barrels. Refolding of barrels generated linear sheets (i.e., Rossmann folds). Class I AARS were initially generated by attachment of an N-terminal extension to a primitive GlyRS-IIA (i.e., by RNA ligation for replication).

A straightforward and rational working model for evolution of the genetic code has been proposed based initially on the chemical evolution of tRNA and the tRNA anticodon. The model is supported by the coevolution of tRNAomes and AARS enzymes. Strong predictions arise about the order of entry of amino acids into the code and, also, the positioning of amino acids in the code. tRNA-linked reactions were necessary for code evolution. Metabolism and code evolution were tightly coupled. Evolution was primarily within code columns. There was very little chaos in chemical evolution of the code.

By focusing on the prominence of tRNA in evolution of translation systems, the genetic code and life, we emphasize the central winning pathway. Our approach has been a top-down, sequence-based approach, so the evidence for our conclusions is largely embedded in tRNA sequences in living organisms. A bottom-up approach would be to create life in a test tube from pre-life components. Much very reasonable pre-life chemistry done in laboratories, however, may represent dead-end strategies. Pre-life chemistry must have been complicated and diverse, and many chemically evolved processes must have gone extinct with the first organisms around the time of LUCA (i.e., Polymer World and Minihelix World). tRNA was a molecule chemically evolved in pre-life that has survived, supporting life for ~4.2 billion years.
