Adaptive Optics for Aberration Control in Einstein Telescope

1. Introduction

Gravitational wave (GW) astronomy has significantly advanced our understanding of the universe, providing valuable insights into phenomena such as black holes and neutron star mergers. The evolution of GW interferometers reflects a remarkable trajectory of technological advancements and scientific breakthroughs. First-generation detectors, including the initial LIGO and Virgo facilities, demonstrated the feasibility of GW detection but lacked the sensitivity required for actual observations. The advent of second-generation instruments, such as Advanced LIGO [1] and Advanced Virgo [2], marked a pivotal milestone, culminating in the first successful detection of GW in 2015 [3], followed by many other events [4,5,6,7,8]. Looking ahead, Einstein Telescope (ET) [9,10], a third-generation detector, aims to build on these achievements, offering enhanced sensitivity and an expanded frequency range to observe more distant, faint, and diverse sources, including those from the early universe.

The ET, designed as an underground interferometer with 10-15 kilometer-long arms, will operate across an extended frequency range through a dual-band approach. This innovative configuration features two distinct interferometers: a cryogenic low-frequency (ET-LF) system and a high-power high-frequency (ET-HF) one. The ET-HF, in particular, represents a significant technological challenge, with circulating cavity power expected to reach approximately 3 MW [9]. Addressing these challenges will necessitate advances in core optics design and effective mitigation of thermal effects.

2. Core Optics for Third Generation GW Detectors

The Core Optics (CO) are all the large optics that compose interferometric GW detectors’ resonant cavities; we’ll focus the conversation on the mirror test masses (TMs) that form the arm cavities since these have the most stringent requirements. These components are critical to achieve the extreme sensitivity necessary for astrophysical observations. For third-generation instruments, the design of CO must overcome unprecedented challenges posed by increased circulating laser power and stringent noise reduction requirements.

2.1. Current Mirror Technologies

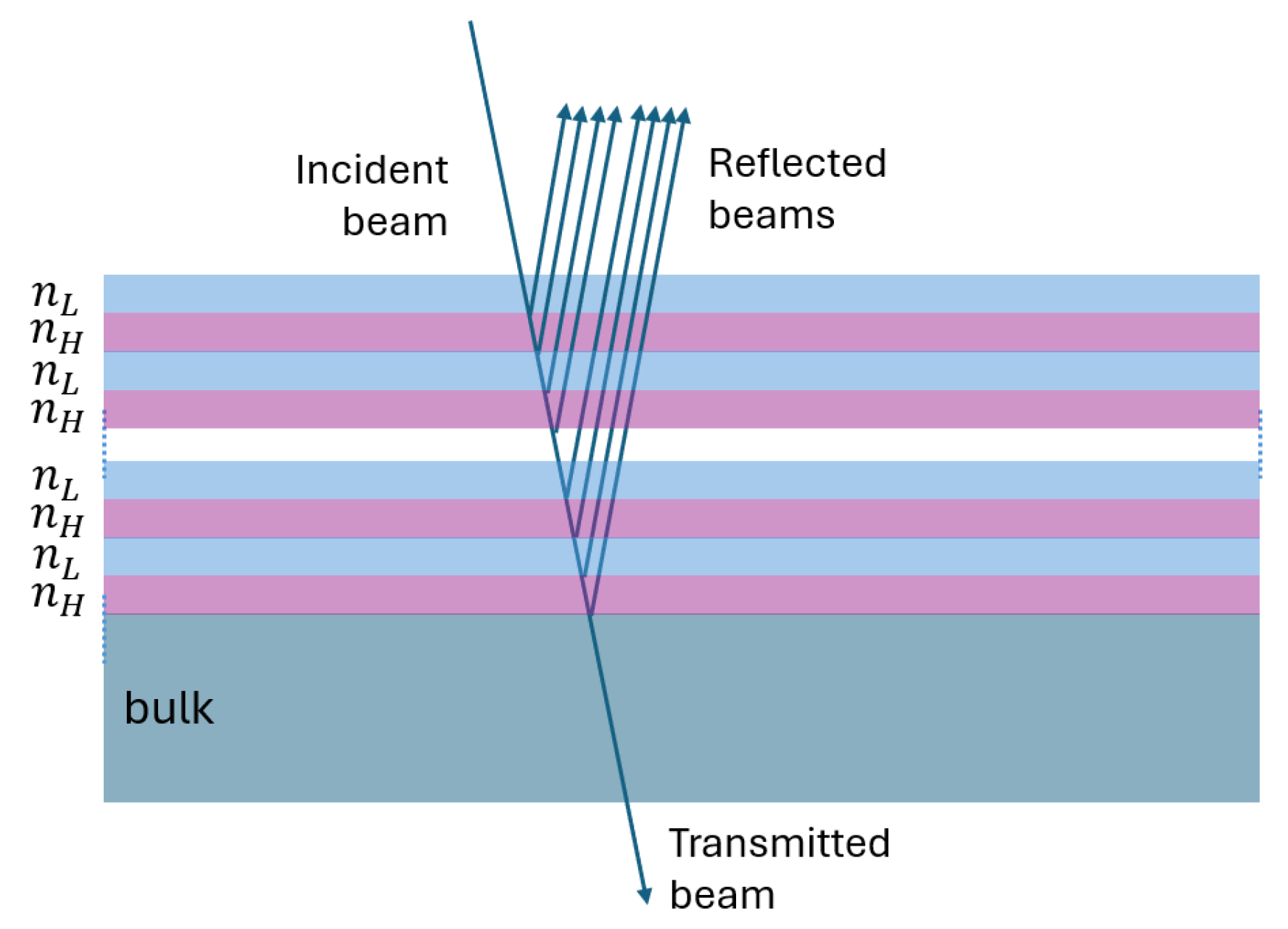

Modern GW detectors rely on dielectric mirrors composed of a substrate coated with a reflective multilayer stack, known as Bragg reflectors (see Figure 1).

These coatings consist of alternating layers of materials with high and low refractive indices $n_H$ and $n_L$, respectively, with each layer typically a quarter of the target wavelength in thickness. This arrangement achieves constructive interference for reflected light, yielding high reflectivity near the design wavelength. The reflectivity r of the stack depends on the refractive index contrast $n_H/n_L$ and the number of layer pairs N, as

$$r={\displaystyle \frac{1-n_{\mathrm{sub}}{(n_{\mathrm{L}}/n_{\mathrm{H}})}^{2N}}{1+n_{\mathrm{sub}}{(n_{\mathrm{L}}/n_{\mathrm{H}})}^{2N}}}$$

(1)

where $n_{\mathrm{sub}}$ is substrate refractive index. Higher reflectivity can be achieved by increasing N or by maximizing the refractive index contrast between the materials.

State-of-the-art coatings for second-generation detectors are manufactured at the Laboratoire des Matériaux Avancés (LMA). These coatings use alternating layers of ion beam-sputtered silica (SiO₂) and tantalum pentoxide (Ta₂O₅), with Ta₂O₅ doped with titanium oxide (TiO₂) to reduce mechanical losses. The materials choice reflects their low optical absorption at 1064 nm - the actual GW detector’s laser wavelength - and reduced Brownian coating thermal noise (CTN), which represents a critical limitation in the mid-frequency range [11,12,13,14]. These coatings combine excellent reflectivity, low absorption (< 0.5 ppm) and minimal scattering, ensuring high power recycling gains and mitigating phase noise from multiply scattered light. In [15] all the main properties are described; here, in Table 1 the main optical ones are reported.

Despite their high performance, the mechanical loss angle1 of these materials contribute to CTN, while absorption - although minimal - remains a critical parameter, particularly at the higher power levels envisioned for ET-HF.

2.2. Challenges and Requirements for ET

The ET-HF presents unique challenges for COs. Despite absorption levels being below 0.5 ppm, the expected circulating power of around 3 MW results in over 1 W of heat being deposited on each mirror’s surface. This absorption generates thermal gradients, leading to optical aberrations and scattering into higher-order transverse modes, which degrade interferometer performance (see Section 3). To address these challenges, ET-HF will rely on larger SiO₂ test masses (62 cm in diameter, 30 cm in thickness, 200 kg in weight) and expanded beam sizes (12 cm) [9] to effectively reduce thermal noise and distribute heat. Although actual designs leverage the coating materials used in the current generation of GW detectors, mechanical losses must be improved by a factor of four to meet ET’s stringent noise requirements, while preserving their exceptional optical properties - particularly the critically low absorption levels. These enhancements are essential to limit CTN and minimize thermally-induced distortions under high-power operation. Research efforts are also investigating alternative materials, such as crystalline coatings, which offer lower mechanical losses but present challenges in scalability and substrate bonding [16]. However, the immediate strategy prioritizes refining current Ta₂O₅/SiO₂-based coatings to balance their proven optical performance with the mechanical improvements necessary for ET-HF. While this article focuses on the requirements for ET-HF, it is worth mentioning that ET-LF, designed to extend the observable bandwidth in the low-frequency part, will operate at cryogenic temperatures. This introduces distinct challenges and opportunities for the development of core optics materials, such as silicon substrates and coatings optimized for low-temperature performance, which are outside the scope of this discussion. Lowering absorption remains paramount, as it directly impacts thermal effects and, consequently, the interferometer’s operativity. Achieving this goal is critical not only to reduce optical aberrations but also to enable effective adaptive optics strategies for maintaining optimal performance.

In the next Section, the effects generated by absorbed power in mirror substrates and coatings will be discussed and explained.

3. Wavefront Distortions and Thermal Effects

The presence of non-negligible absorption and the fact that mirrors, even when manufactured with the best possible technology, are not ideal give rise to a particularly significant and limiting phenomenon for interferometers: wavefront distortions (WD).

3.1. Wavefront Distortions and Their Impact on the Interferometer Performance

WDs are generated when a laser beam interacts with an optical system under non-ideal conditions, either in reflection or transmission. In the context of GW interferometers, these distortions represent deviations from the ideal optical wavefront, defined as the surface of a constant phase within the optical field. Their origins are often linked to the physical and optical properties of the interferometer’s components, and the implications for instrument performance are significant - particularly by introducing phase errors in the reflected and transmitted fields, which can limit the detector stability and indirectly its sensitivity [17,18].

The optical system’s configuration has a significant impact on the nature and magnitude of WD. A common form of WD is spherical distortion, which typically results from deviations in the radii of curvature (RoCs) of optical surfaces. In Fabry-Perot cavities, where the resonant optical modes are directly determined by the mirrors’ RoCs, the precision and quality of these components are crucial. Even small variations in the RoCs can lead to mode mismatches, which alter the cavity’s optical mode and reduce the coupling efficiency of the input beam [19]. These mismatches cause a reduction of the interferometer’s signal-to-noise ratio (SNR), as detailed in Section 4.1. A lower SNR compromises the instrument’s ability to detect signals, degrading overall performance. In GW detectors, this manifests in weaker signal amplification, increased noise at the interferometer’s anti-symmetric port and heightened technical noise, particularly in control and alignment subsystems. The adverse effects of WD extend to the interferometer’s stability and robustness, resulting in a diminished duty cycle.

3.2. Sources of WD and Thermal Effects

WDs can be categorized into two types: static and power-dependent. The static WDs arise from imperfections introduced during the production and polishing of optical components. These include manufacturing errors, such as deviations in surface curvature from the design specifications, as well as surface figure errors and spatial variations in the refractive index. Such imperfections do not depend on time and on the operational state of the detector, yet they significantly impact performance by introducing persistent optical aberrations [18]. The power-dependent distortions occur due to the absorption in the optic, which generates localized heating, creating a thermal gradient within the substrate. As already discussed in Section 2.2, this gradient leads to a non-uniform, steady-state temperature distribution after a transient phase, causing thermal distortions that alter the optical path length (OPL). For a medium of uniform thickness h and refractive index n at a constant temperature $T_0$, the OPL in the initial state - index zero - is given by

$$W=OP{L}_0=n·h$$

(2)

where W is the wavefront. The distortions manifest through three mechanisms: the thermo-optic, the thermo-elastic and the elasto-optic effect. The thermo-optic effect arises from the temperature dependence of the refractive index. A thermal gradient in the mirror substrate causes a thermal lensing effect that must be compensated with a complementary distortion. As the material temperature increases by an amount $\Delta T$, the refractive index changes, modifying the OPL to

$$W^{\prime }=\left(n+{\displaystyle \frac{dn}{dT}}\Delta T\right)·h,$$

(3)

where $dn/dT$ is the thermo-optic coefficient. The resulting WD is

$$\Delta W(r,\theta )={\displaystyle \frac{dn}{dT}}{\int }_0^h\Delta T(r,\theta ,z)dz.$$

(4)

where r, $\theta$ and z are the radial, angular and axial components, respectively. For what concerns the thermo-elastic effect, thermal expansion within the mirror material due to localized heating deforms the mirror surface, typically creating a bulge at the center. This deformation increases the RoC, reducing the concentricity of the optical cavity. As a result, the beam spot size on the mirrors shrinks, increasing thermal noise and potentially compromising cavity stability. To preserve the mode structure of the arm cavity, it becomes essential to actively manage the RoCs of all test masses. The change in the OPL due to thermal expansion is given by

$$\Delta W(r,\theta )=\alpha (1+{\sigma }_P)(n-1){\int }_0^h\Delta T(r,\theta ,z)dz,$$

(5)

where $\alpha$ is the linear thermal expansion coefficient and ${\sigma }_P$ the Poisson’s ratio.

The last effect, the elasto-optic one, is caused by the stress-induced birefringence which alters the refractive index in a polarization-dependent manner. This effect is quantified using the elasto-optic tensor and the strain tensor. Under cylindrical symmetry, the resulting WD can be expressed as

$$\Delta W(r,\theta )\simeq -\alpha p_{11}{\int }_0^h\Delta T(r,\theta ,z)dz$$

(6)

where $p_{11}$ is the component of the elasto-optic tensor along the beam polarization axis.

In the case of advanced detectors’ mirror material, i.e., fused silica, the major contribution to the WDs comes from thermal lensing.

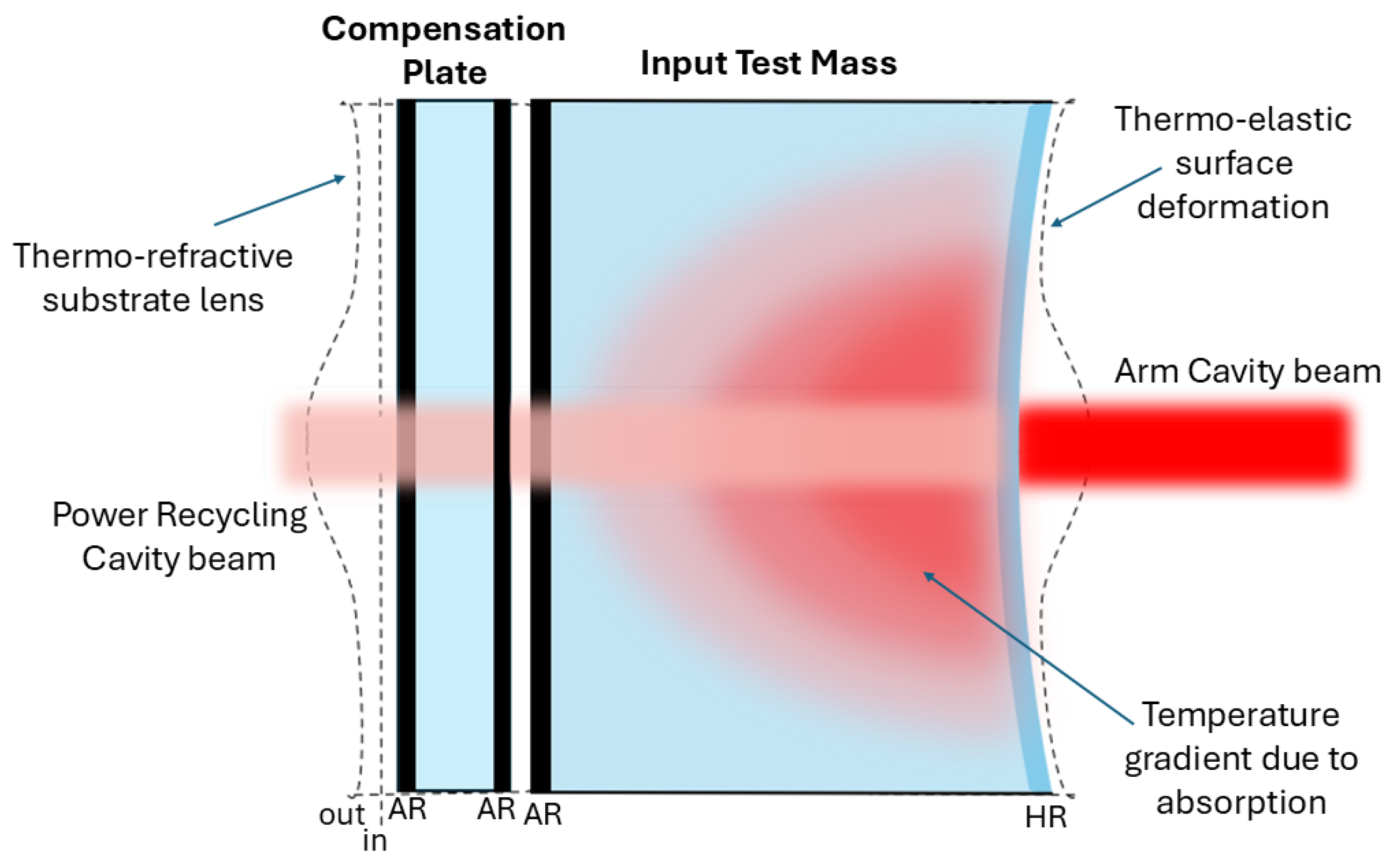

Thermal effects influence different components of the interferometer in distinct ways. In particular, in the input test masses (ITMs) - the mirrors placed at the input of the arm cavities - thermal effects are primarily driven by laser power absorption in the substrate, leading to thermo-optic effect that distorts the input beam profile. Conversely, in the end test masses (ETMs), they are more significant in the high-reflectivity coating, where localized heating causes wavefront aberrations and surface deformation (thermo-elastic effect). An illustration of these thermal effects on an ITM is shown in Figure 2.

The persistent dependence of WD on circulating power poses a major challenge in future GW detectors. The planned upgrades render their mitigation not only essential but also a subject of ongoing research and development, building upon the advanced technologies already in use and described in the next section.

4. Design and Operation of a Thermal Compensation System

To mitigate WDs, interferometric GW detectors rely on an advanced Thermal Compensation System (TCS). The TCS operates by monitoring WDs and introducing a complementary distortion - equal but opposite - in order to restore the design configuration. A critical step in designing the TCS involves defining the requirements for aberration control, as detailed below.

4.1. Requirements

The optical property that TCS has chosen as a figure of merit to assess the quality of the correction is the control of the power in the fundamental mode TEM₀₀ of the cavity. Therefore, a natural choice for this purpose is to minimize the fraction of power $S_{00,00}$ which is scattered out of the TEM₀₀ mode due to the presence of optical aberrations

$$\begin{array}{cc}\hfill S_{00,00}& =1-M_{00,00}^2\hfill \\ \hfill & =1-|\langle U_{00}|e^{ik\Delta W}|U_{00}{\rangle |}^2\sim 2\langle U_{00}|ik\Delta W|U_{00}\rangle \hfill \end{array}$$

(7)

where $M_{00,00}$ is a matrix representing the scattering of the electromagnetic field between modes, $U_{00}$ is the field of the TEM₀₀ mode out of the set of basis modes, $\Delta W$ is the WD and the last passage holds in the limit $k\Delta W(x,y)\ll 1$, i.e., of a small WD. The ideal scenario is $S_{00,00}=0$ - i.e., the TEM₀₀ is not affected at all by any WD. The target of the TCS is to maintain the fraction of power scattered out of the TEM₀₀ within the maximum acceptable level of SNR reduction2, i.e., $S_{00,00}\le \Delta SN{R}_{max}$. To achieve this, the TCS components must meet specific design criteria [18]:

• Actuation range. The actuators must handle the largest expected WD - $\Delta W_{max}$ - with additional capacity to accommodate variations over time - at least by a factor of two.
• Actuation precision. Actuators must achieve sufficient resolution to prevent introducing new distortions that exceed allowable SNR losses
• Sensor range and precision. The sensor must be able to detect - while the detector still operates - the maximum expected residual distortion. Regarding its precision, it is usually required to be good enough such that random error in any measurement is less than one order of magnitude of the root mean square (RMS) tolerable WD $\langle W_{max}\rangle$.
• Bandwidth. The actuator must be able to properly compensate for any thermal change to keep $S_{00,00}$ within the maximum acceptable value. The bandwidth is computed from the thermal time constant of the effect to be compensated for. For static WDs, a DC-only control is usually required.
• Noise. Both sensors and actuators can inject noise at all frequencies - including in the sensing bandwidth of the detector, in which it could even limit and dominate the sensitivity in a specific frequency range. Therefore, the injected noise of the actuators and their couplings with the interferometer must be properly computed and considered in the design phase.

4.2. Sensors

To monitor WD, two different types of sensors are currently engaged in the GW detectors. The first ones measure directly the WDs induced by individual optics, while the other ones derive signals from the interferometer’s optical mode.

4.2.1. Direct Sensing: Hartmann Wavefront Sensor

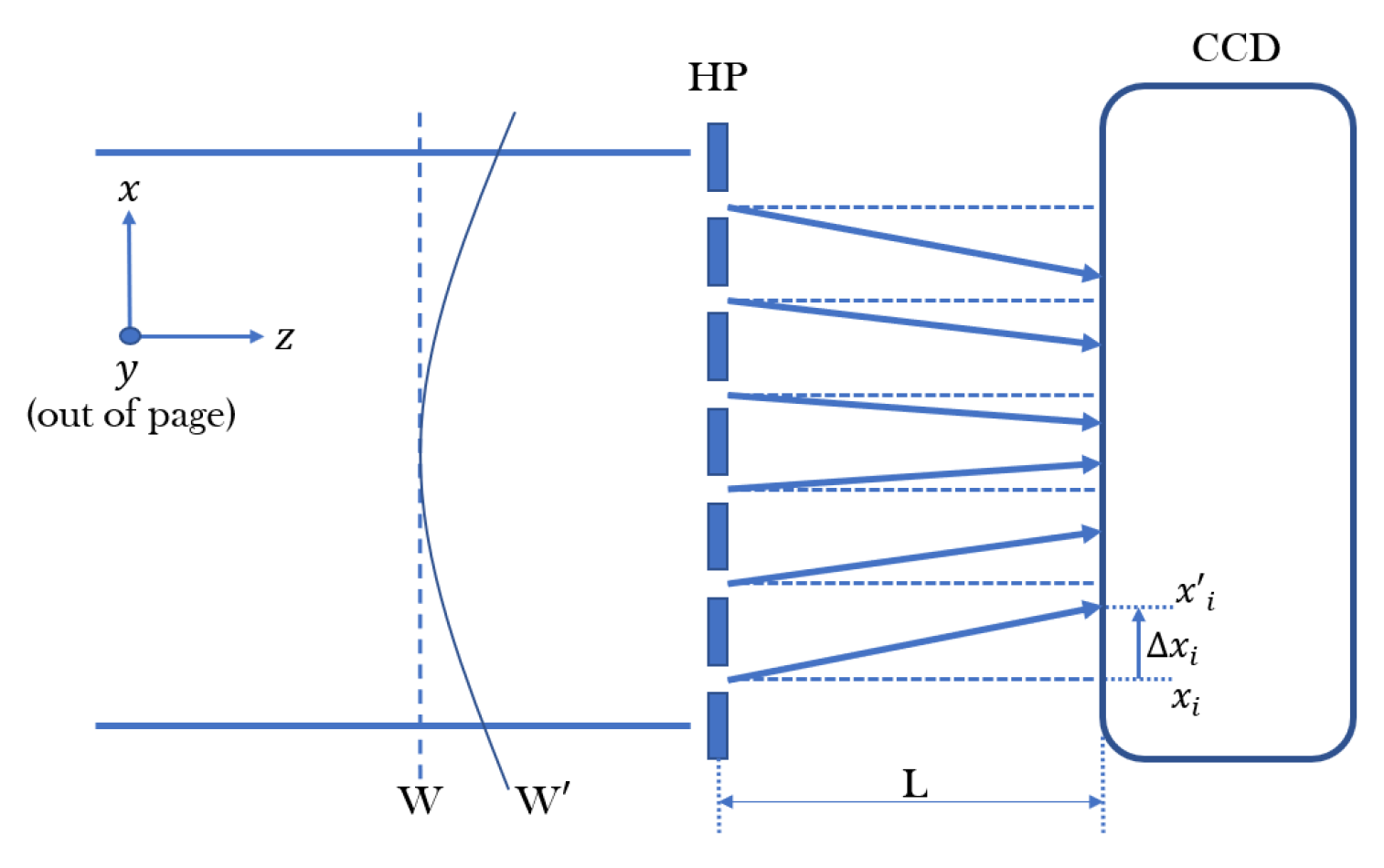

Hartmann Wavefront Sensors (HWS) [20,21] are used to directly measure the thermally-induced WD on each mirror. The HWS is composed of a Charge Coupled Device (CCD), an opaque plate containing an array of apertures known as Hartmann Plate (HP), two fins used to dissipate the heat of the CCD and two slabs of copper to carry the heat from the CCD to the fins.

HWS is a differential sensor - i.e., it computes the difference between a wavefront acquired at a generic time t and a reference one at the beginning of the measurement. The probe beam used to detect aberrations is generated by a Superluminescent Light Emitting Diode (SLED)3. The probe beam impinges on the mirror under test through a dedicated optical setup [22] and is reflected on the same optical path, reaching the HP. The working principle of the HWS is displayed in Figure 3 and it is fully addressed in [21,22].

The direct sensing main advantage is that the measurements carried on with the HWSs are mostly decoupled from all other optics. However, this configuration does not directly sample distortion of the interferometer mode itself.

4.2.2. Indirect Sensing: Phase Camera

The Phase Camera (PC) [23] sensor measures the amplitude and phase of the electromagnetic fields in the interferometer and produces relative maps. These maps are obtained using two beams: the signal beam, containing the information on the thermal status of the mirrors, and a reference beam, picked up before the laser enters the interferometer - not containing information about any cavity aberrations. These two signals, after recombination on a beamsplitter, reach a scanner and then are detected by a photodiode. PC is a complementary sensor to the above-described HWS, with the difference that it takes global measurements, i.e., contrary to the HWSs, it cannot distinguish contributions from individual optics.

4.3. Actuators

4.3.1. Ring Heaters

As introduced in Section 3.2, the thermo-elastic deformation induces a change in the RoC of the mirrors. To compensate for this effect and restore the nominal configuration, TCS uses an adaptive optical actuator called Ring Heater (RH) [24,25].

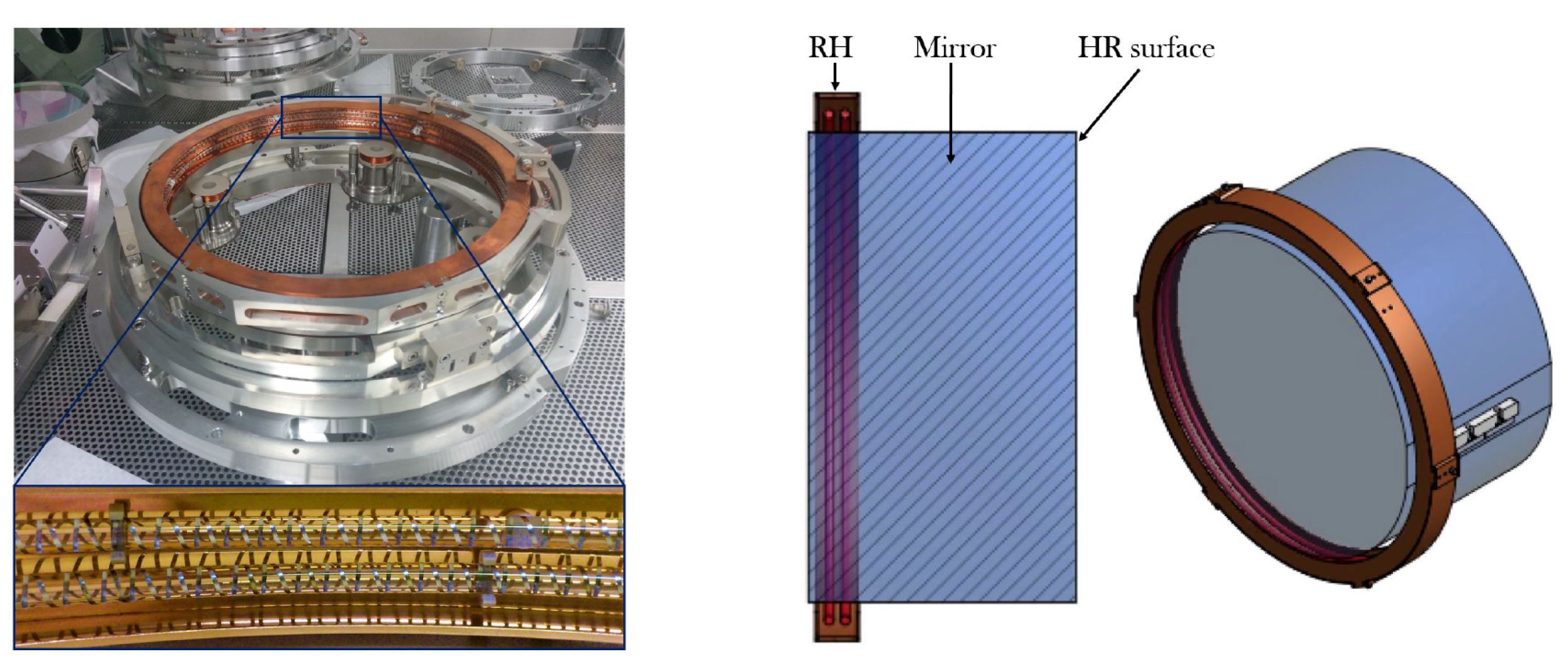

The RH is composed of two heaters and a shield. Each heater consists of a coil of Nickel Chrome wires wrapped around a ring of pyrex. The wires are heated via the Joule effect and the high emissivity of the pyrex assures an effective radiation of power. A complete view of a RH and its mounting around the mirror is displayed in Figure 4. As shown, the RH is mechanically centered around all optics within 0.5 cm, which allows users to easily identify the center of the related Test Mass (TM) on the HWS maps [26]. RHs are effective for compensating static distortions due to manufacturing imperfections or steady-state heating.

4.3.2. CO₂ Lasers Projector

The correction of thermal lensing caused by the thermo-optic effect is performed by heating the mirror, but through a method distinct from the one previously described. Thermal lensing arises primarily from the radial component of the temperature gradient. To counteract this, the compensation involves heating the periphery of the mirror, effectively canceling out the temperature gradient within it. A suitable approach for correcting thermal lensing is to shine on the optic a radiation which is completely absorbed in a thin surface layer. For mirrors made by fused silica, this requires the use of laser radiation with $\lambda$ > 5 $\mu$m [27] like high-power CO₂ lasers emitting at $\lambda$= 10.6 $\mu$m. This wavelength allows the generation of a variety of heating profiles, from which the most suitable one can be selected. To minimize noise coupling between the laser and the optics, the CO₂ laser is not directed directly onto the mirror but instead onto an additional transmissive optic known as the Compensation Plate (CP) [28]. The CP enables independent control of both the thermal lensing compensation and the correction of the RoC [27]. A schematic example of this actuation, with the CO₂ laser applied to one of the Advanced Virgo ITMs, is shown in Figure 5.

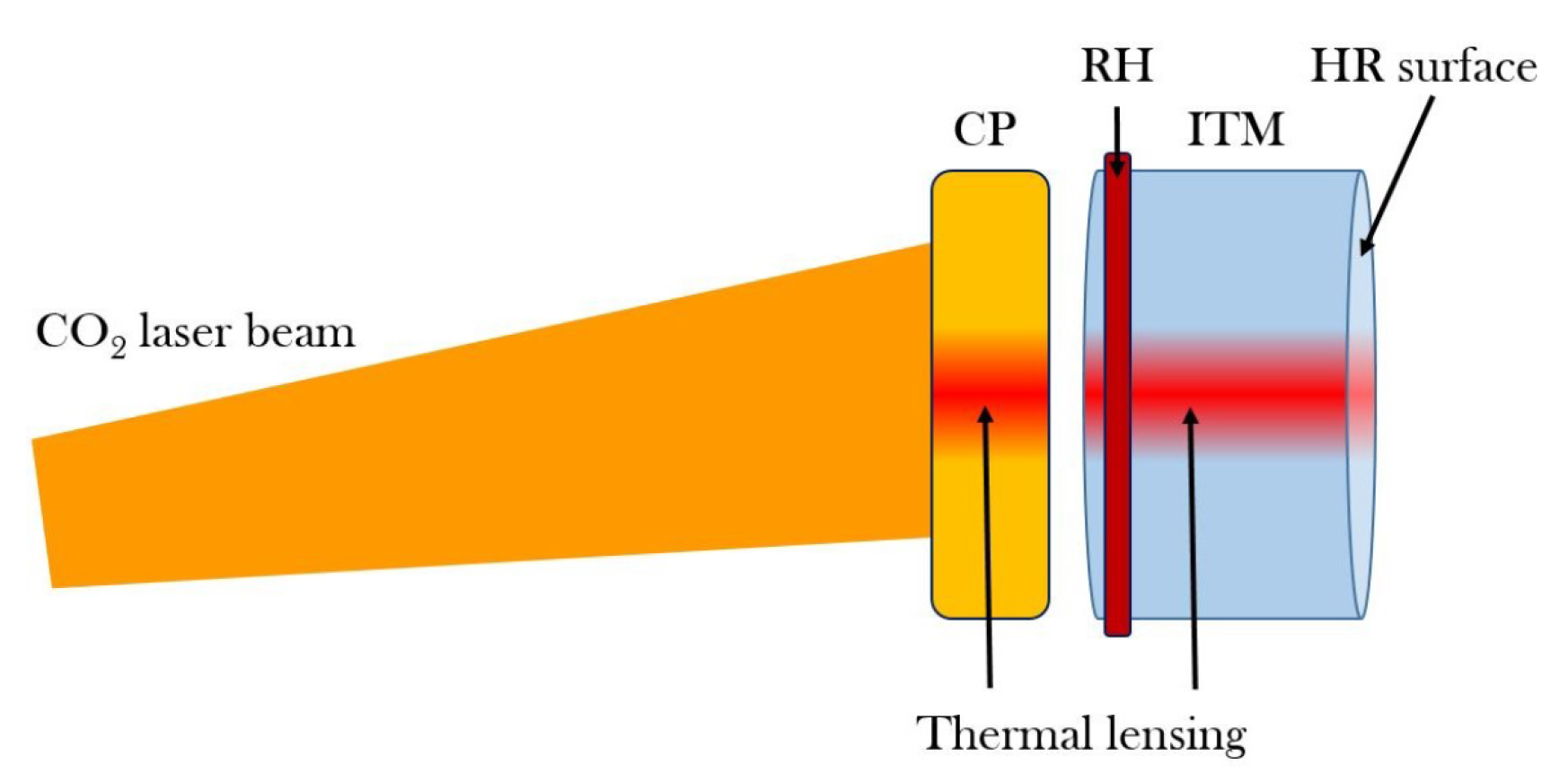

The actuation patterns projected on the CP are the Central Heating (CH) and the Double Axicon System (DAS) [22,24]. The former consists of a Gaussian beam shined at the center of the CP with the same dimensions as the main YAG laser beam. This pattern generates a negative lens, with the same sign as the thermal lensing caused by the self-heating of the optics from the main YAG beam. Its purpose is to mitigate thermal transients when the interferometer loses the lock, helping the system to recover faster the correct working point. The latter, on the other hand, is created by superimposing two annular beams of different sizes and radii to form a donut-shaped profile. The annular pattern is produced using an axicon - a lens with a conical surface that could convert a Gaussian laser beam into an annular one. Unlike the CH, the DAS generates a positive lens. It is used mainly to correct the thermal lensing due to uniform coating absorption in the ITMs and the cold defects showing a high degree of spherical aberration.

These two actuation patterns are static - i.e., they are applied in a "set and go" mode and they are usually not changed during a data-taking period. However, in the case of asymmetric WD - such as surface figure errors or non-uniform absorption - it becomes necessary to implement a dynamic correction. Although these aberrations are not critical for the current generation of GW detectors yet, they are expected to have a significant impact on third-generation instruments. For this reason, various research and development efforts [24,29,30] are underway to identify the most effective strategies for addressing these challenges.

5. Future Prospects for Thermal Effects Mitigation

The TCS has proven to be remarkably versatile, addressing challenges well beyond their original design scope. Experience gained from Advanced Virgo demonstrated their adaptability, as TCS were used not only for compensating static thermal effects but also to meet unforeseen commissioning needs and support advanced operational goals. Notable examples include adaptive mode matching for squeezed beam injection and mitigating round-trip losses in filter cavities. These applications highlight the critical role of TCS in current detectors and suggest their potential as indispensable tools for tackling optical aberrations in next-generation GW observatories.

However, significant advancements are still needed. To meet the stringent requirements of ET-HF, future TCS must achieve greater flexibility, independence and redundance. Sensors should be designed to provide decoupled and precise observations, while actuators must effectively control distinct degrees of freedom. Introducing redundant control mechanisms will further improve the overall system versatility by freeing actuation resources and boosting adaptability. These principles - flexibility, independence, and redundance - are essential for addressing the complex thermal and optical challenges anticipated in next-generation detectors.

As previously mentioned, the higher optical powers expected in the next generation of GW detectors will induce significant transient thermal effects in mirror substrates, particularly for ET-HF which relies on fused silica TM and operates at room temperature. Studies have shown that increasing arm power will require enhanced TCS, including more powerful RHs, CO₂ lasers and new actuators like FROSTI [31].

Future detectors may also require actuators capable of addressing non-spherically symmetric WDs to manage higher-order optical aberrations. Managing transient thermal effects will be a critical challenge. While HWSs and other innovative tools can monitor these behaviors, further development of actuators is necessary for effectively mitigating transient distortions [32,33]. To address these complexities, the next generation of TCS must reproduce intricate heating patterns without compromising detector sensitivity. Dynamic compensation will be essential for correcting all forms of aberrations. Current research is exploring radiative heating arrays [29,34,35], capable of acting on the high-reflectivity surfaces of optics, and deformable mirrors [30], which can imprint phase modulations onto Gaussian beams, holographically converting intensity distributions into the desired profiles. These advancements will be critical for ensuring the performance and reliability of third-generation detectors.

6. Conclusions

In this paper, an overview of the optical aberrations and the importance of their correction has been presented. While potential advancements in core optic materials and performance may reduce mirror absorption, a fraction of the laser power will still be absorbed, leading to thermal effects. The induced WDs - if not adequately corrected - could strongly limit the performance of a GW detector. To properly tackle them, the TCS has been designed, implemented and commissioned. Thanks to its actuators, WDs have been already properly compensated in the current generation of GW interferometric detectors, ensuring their proper operation. However, the significantly higher power circulating in the arms of ET-HF will present new challenges to the TCS. Despite potential improvements in mirrors’ absorption, the expected optical aberrations will be more offending than the ones currently compensated. Additionally, new types of aberrations - currently negligible or not impacting the operation of the GW detectors - are expected to play a significant role in the stability and controllability of the interferometers. Therefore, the actuators will need to be enhanced or redesigned, and new ones will be developed to adapt the TCS to the new demanding requirements and challenges posed by ET-HF.
