Conceptual Neighborhood Graphs of Topological Relations in Z2

1. Introduction

Egenhofer and Mark [1] made a provocative statement in their seminal work of Naïve Geography: topology matters and metric refines. This statement comes directly from the notion that the lion’s share of human decisions about space fall not to metric properties, but rather to our more intuitive spatial prepositions. While there are lots of spatial prepositions in a language context [2], not all spatial prepositions serve that role directly in the syntax of language. Terms like surrounds communicate spatial information about the topological relation between two objects, yet the word itself is not syntactically a preposition in established grammar [3,4]. At any rate, terms that function linguistically as prepositions do so because they greatly reflect our cognitive processing [5,6,7,8]. This concept is directly mirrored in conceptual neighborhood graphs [9] where researchers have shown that spatial prepositions map convexly onto these structures [10].

The world is currently in an information age, one that is exploding daily. Query languages leverage spatial concepts [11,12], but they do so atomically and in continuous spaces. Conceptual neighborhood graphs have been well studied [13,14,15,16,17], but these approaches have not found their way into computational implementation [18]. This oversight hinders crucial next steps in geospatial knowledge discovery. Since spatial concepts are critical to language [19] and our language controversially may influence our world view [20], generative artificial intelligence relies on being able to fully process spatial data to meaningful speech and/or text through geo-foundation models [21], just as effective spatial query relies on translating human language to computational data structures [11]. It is therefore necessary to leverage conceptual neighborhood graphs to do various tasks such as detecting events, bounding prepositional usage, and filling in gaps of incomplete data within spatial data streams [22].

While conceptual neighborhood graphs have been well studied, their study has been largely limited to continuous spaces. To date, discretized region-region neighborhoods have been exploited simply by using the matrix difference method [23,24,25]. This method only works for the transformation of anisotropic scaling. To fully realize the other spatial operations that generate neighborhoods in discretized spaces, work needs to be conducted. This paper fills that gap. In this paper, the region-region relations in ${\mathbb{Z}}^2$ [23] are exposed to a simulation protocol to establish conceptual neighborhood graphs for both translation and isotropic scaling. Leveraging duality [26], these neighborhoods are then transferred into their digital spherical space (${\mathbb{T}}^2$ ) counterparts [25]. The hyperraster representation of discretized regions [27] is then leveraged to provide a proof of concept to show that conceptual neighborhood graph edges in discretized spaces appropriately maintain their corresponding connections in well-studied continuous spaces [16].

The remainder of this paper is structured as follows. Section 2 details the set of qualitative topological relations considered in this work. Section 3 details conceptual neighborhood graphs. Section 4 defines the simulation protocol and methodology employed upon the output data. Section 5 presents the results of the data processing. Section 6 applies the hyperraster as a transformation to explore the structural integrity of the discretized neighborhood graphs with respect to their continuous counterparts. Section 7 considers a use case for the outcomes. Section 8 provides conclusions and calls for future study in this area.

2. Region-Region Relations in Continuous and Discretized Spaces

To conduct qualitative topological spatial reasoning, it is imperative to establish a vocabulary. Since this paper leverages both continuous and discretized relations, we introduce both in this section.

Linguistically, qualitative spatial relations of any form represent functional prepositions [2,28]. While these terms differ in their respective languages and might be represented in various parts of the overall grammatical syntax, they represent the expression of our cognitive processes. Our formal models of topological spatial relations thus represent attempts to encode these cognitive processes into machines through rigorous mathematical approaches, be they by topological means [10,11,29,30,31], mereotopological means [32,33], graph theoretical means [3,34], or by means of metric refinement [35,36,37]. In general, these processes anchor the Egenhofer-Cohn hypothesis of the salience of topological relativity [38].

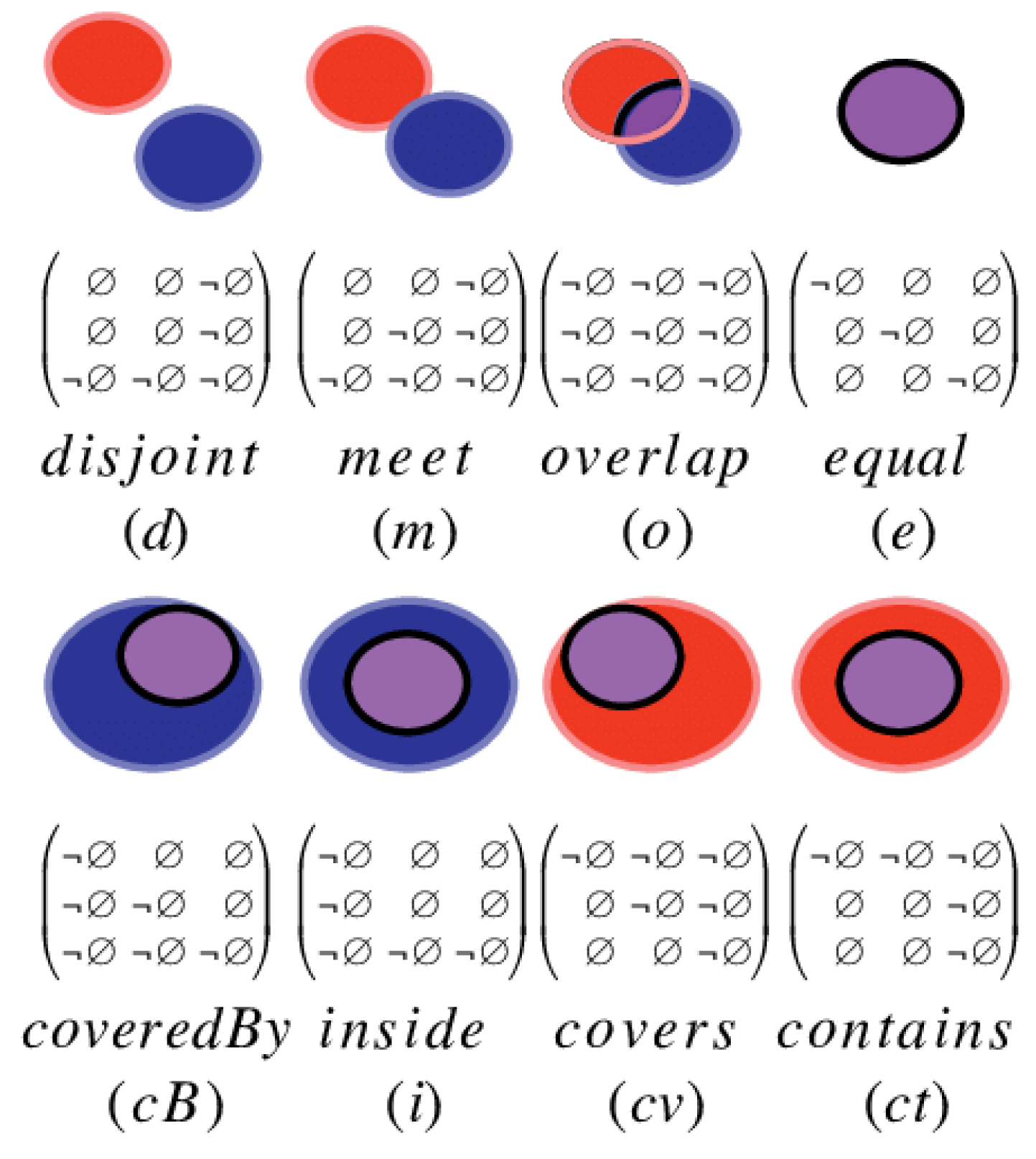

While many formalisms exist for these spatial concepts, this paper focuses on the 9-intersection family of qualitative topological reasoning [29,30,31]. This family of models partitions an embedding space through the existence of two objects, and uses topological definitions within the structure of those objects to categorize the partitions. The most basic form of this approach is the 9-intersection model [29]. This model classifies three jointly exhaustive and pairwise disjoint portions of the embedding space with respect to a set: the interior, boundary, and exterior. Depending on the type of object, this approach may leverage point-set topological concepts (such as in codimension 0 embeddings) [30] or algebraic topological concepts (such as in codimension > 0 embeddings) [39]. By applying this partitioning mechanism to multiple objects, we can then consider binary (or more) qualitative topological relations. Figure 1 shows the possible outcomes of the 9-intersection model on simple regions in ${\mathbb{R}}^2$ , the most iconic set of relations derived via this methodology.

Simple regions, however, create a dilemma: for all three topological components of an object, that component will be connected. When applying these concepts to other types of objects, that might not withstand scrutiny. Kurata [31] thus developed the 9+-intersection, an approach considering separated portions of topological components as having their own symbolic place in the symbol structure. This approach increases the complexity of the representation, but in so doing provides more expressive power.

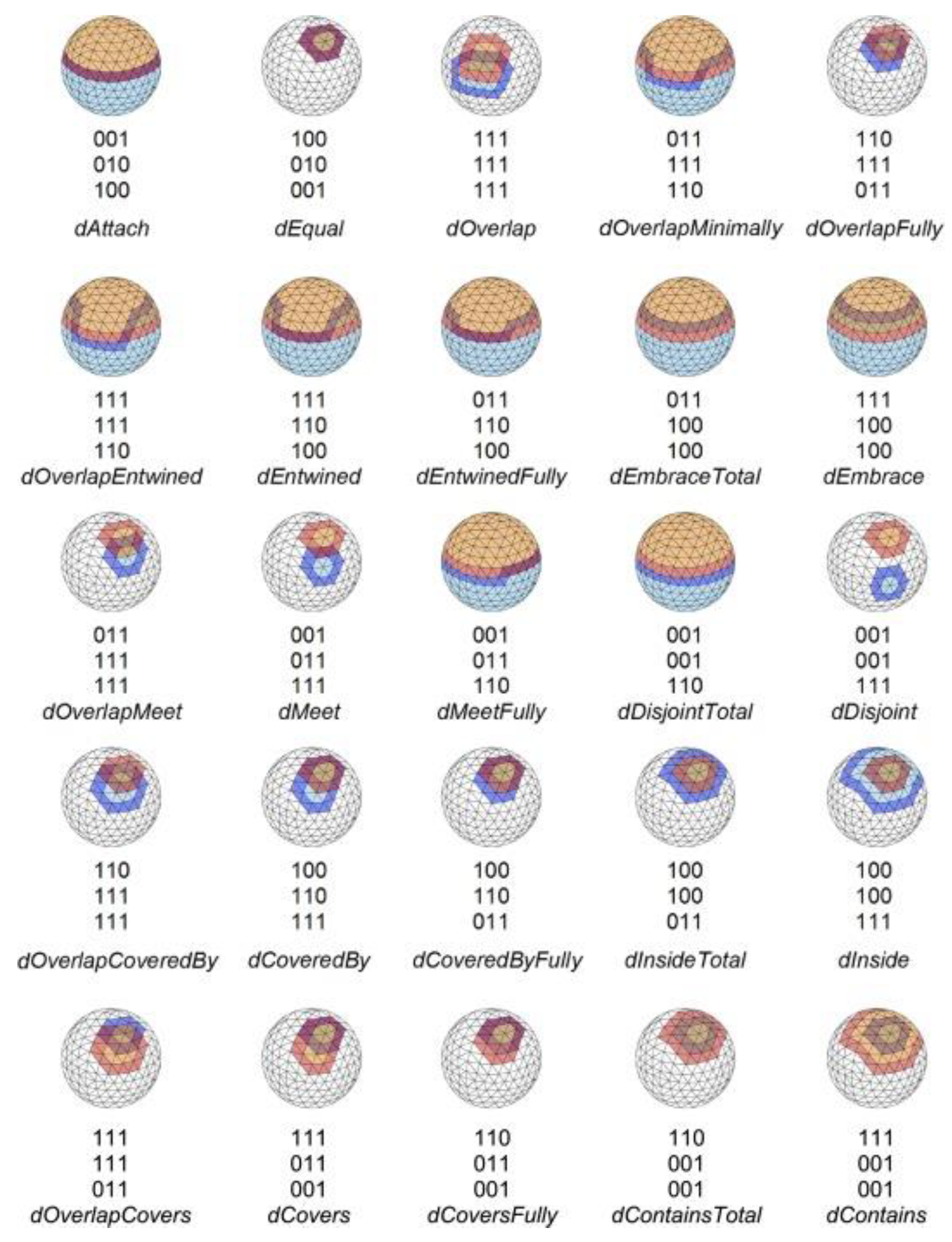

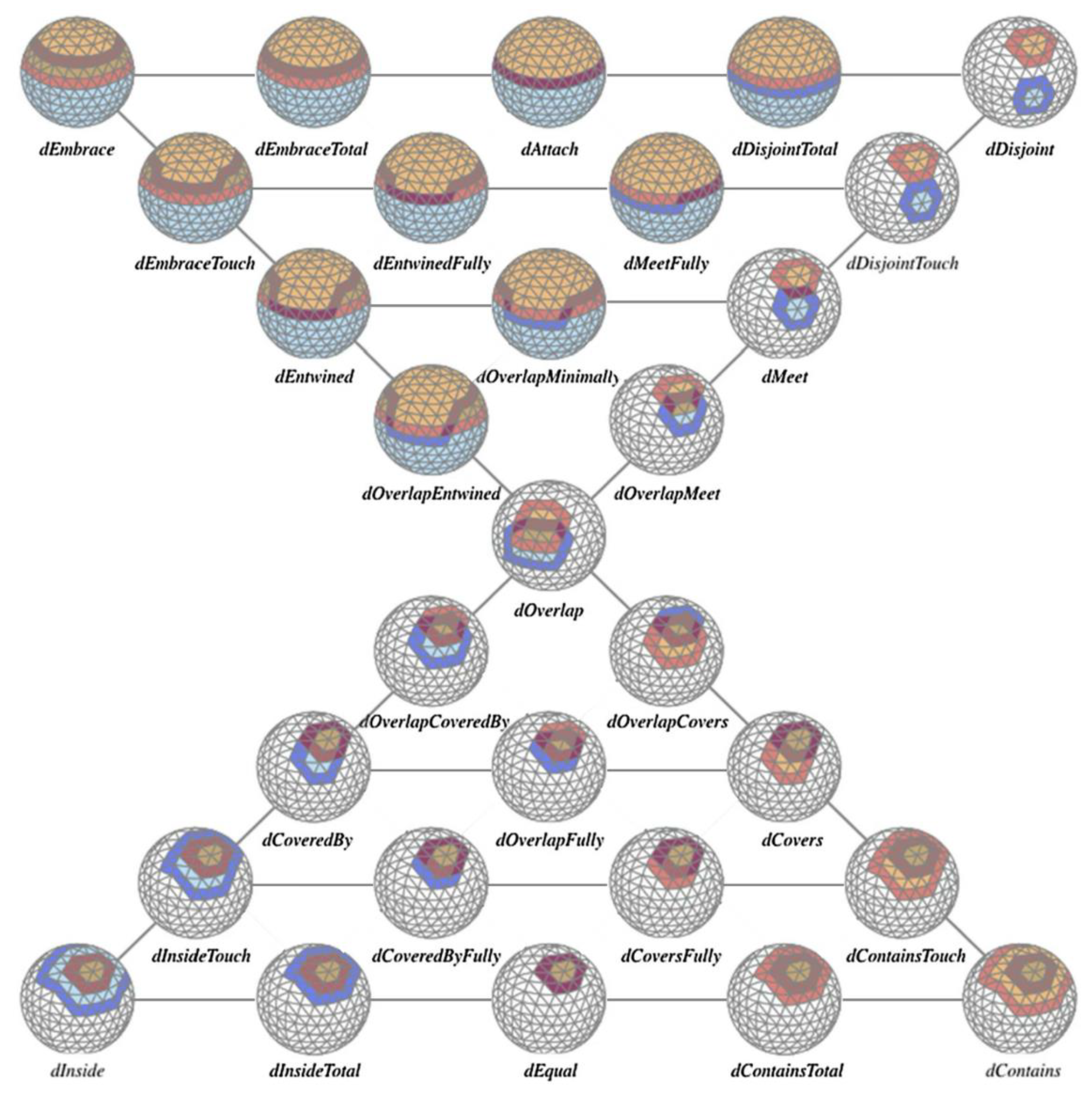

Borrowing loosely from Kurata’s approach, the expression of discretized topological relations in ${\mathbb{Z}}^2$ and ${\mathbb{T}}^2$ leverage the proximity of areal partitions to boundary pixels to provide more refined semantics to the 9-intersection. These relations are known as the dTouch relations, aggregate relations that hold topological relations that are otherwise indistinguishable from one another, yet may have practically meaningful difference [23,25]. The set of qualitative topological relations in ${\mathbb{T}}^2$ is shown in Figure 2 and Figure 3.

In both cases, the sets of relations output by the 9-intersection family are jointly exhaustive and pairwise disjoint, meaning that for any configuration, there exists a 9-intersection family symbol specific to it, such that the configuration corresponds to precisely one symbol. These relations in Figure 1, Figure 2 and Figure 3 form the foundation for the remainder of this paper.

3. Conceptual Neighborhood Graphs

Sets of topological relations represent the foundations for qualitative spatial reasoning tools, but they themselves do not form the totality of topological spatial knowledge. We live in a changing world, and that dynamicity gives rise to an entirely different concept that is critical to knowledge within spatial reasoning: ordering.

Conceptual neighborhood graphs represent that ordering [9]. Conceptual neighborhood graphs partially order sets of relations based on allowable deformations. While Freksa’s work [9] focuses on temporal semi-intervals [40], Egenhofer and Al-Taha [13] conducted a similar study on simple regions. Their work derived three conceptual neighborhood graphs for homeomorphic deformations, representing anisotropic scaling (non-homogeneous growth/decline), translation (movement), and isotropic scaling (homogenous growth/decline). These conceptual neighborhood graphs (when applied to continuous spherical topological relations) are shown in Figure 4.

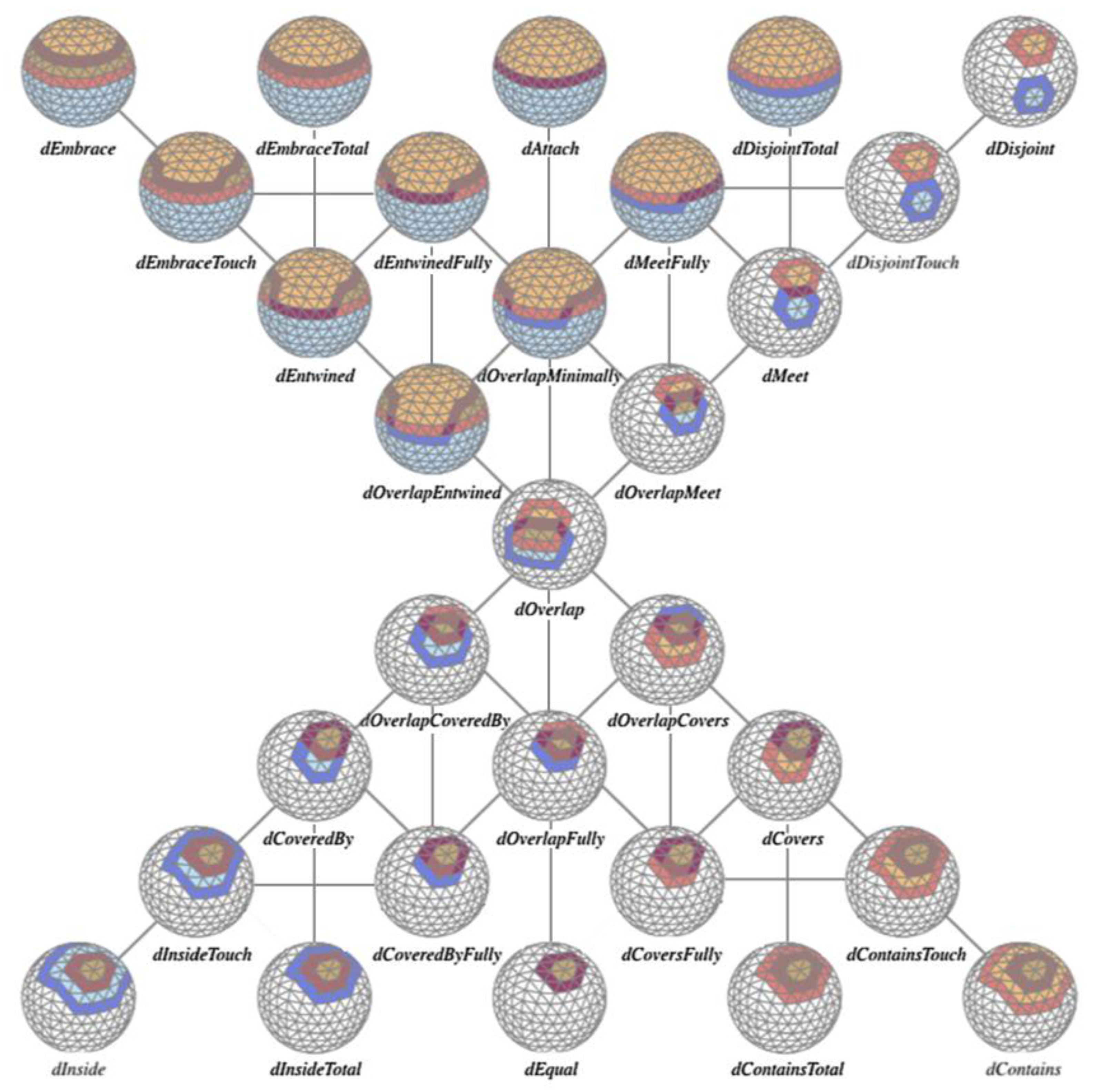

Conceptual neighborhood graphs have also been applied to a different class of transformations: non-homeomorphic deformations [41]. Non-homeomorphic deformations involve changing the number of distinct topological subcomponents of objects. These concepts were organized into a conceptual neighborhood graph [17], but that work is beyond the scope of this paper.

Common to all conceptual neighborhood graph studies in the literature is a process by which candidate relations are identified as conceptual neighbors. Many studies do this in a variety of ways:

• Freksa [9] approached the problem through considering the ordering of the boundary points of the semi-intervals within a space based on the corresponding mathematical changes exhibited by the objects,
• Egenhofer and Al-Taha [13] approached the problem through studying deformational paths based on the deformation strategies, starting at all possible configurations and creating a union of the deformation paths,
• Researchers who defined relations alongside neighborhood graphs (e.g., [15,17,23,24,25,39] approached the problem by consulting smallest matrix differences, but this approach only yields the anistropic scaling conceptual neighborhood graph.

While continuous spaces such as those explored by Freksa [9] and Egenhofer and Al-Taha [13] operate under an assumption of mathematical density, discretized spaces are not so endowed. As such, a different approach might be taken whereby a computer can assist in a simulation process. The next section defines this process as employed in this study.

4. Simulation Methodology for Establishing Conceptual Neighborhood Graphs

While continuous spaces have infinitely many versions of a single transformation, discretized spaces have a much more finite range of possibilities. Translation for example is done by shifting an object one pixel at a time; isotropic scaling is done by uniformly adding/subtracting one pixel at a time in all directions. Whereas Freksa [9] and Egenhofer and Al-Taha [13] had to conceptually conduct their experiments, discretized spaces afford the opportunity to simulate the results rigorously.

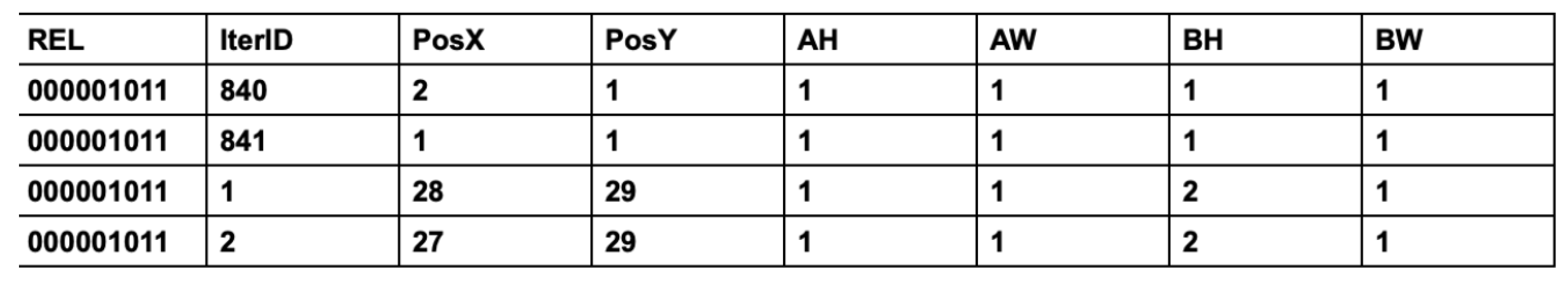

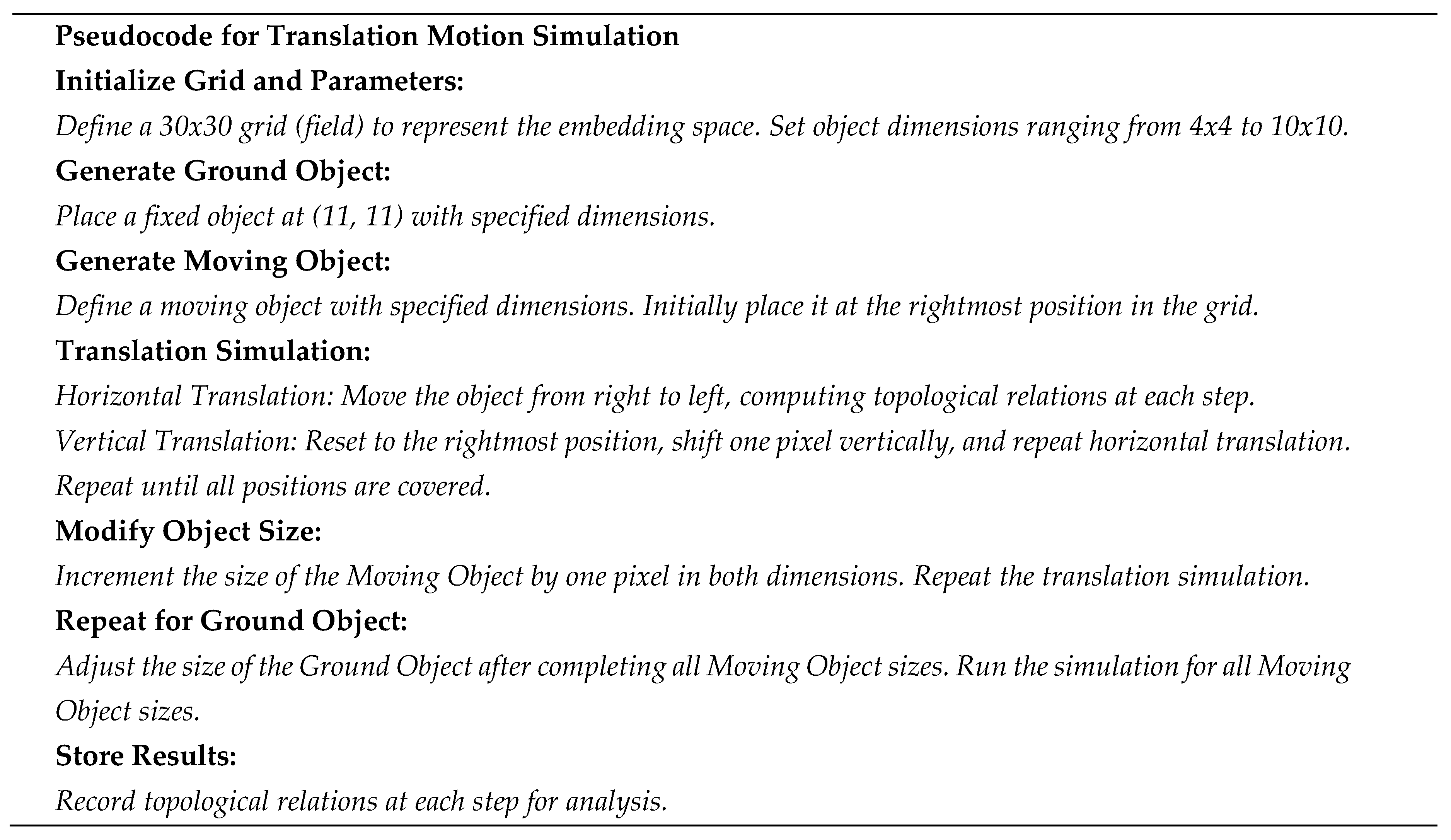

To study the relevant deformations, a simulation protocol was developed in Python 3.8. The smallest objects considered were 4 pixels by 4 pixels (consistent with the definition of objects from [23,25]), and the largest objects considered were 10 pixels by 10 pixels. The embedding space was encoded as a 30 pixel by 30 pixel grid to allow objects to sit at dDisjoint or dDisjointTouch to each other in every direction so that all relations possible could be represented. Each successive iteration kept one object’s top-left corner anchored at position (11,11) in the grid, while the other moved right-to-left across the grid. At each step, the topological relation was computed. When the grid was exhausted, the object was moved back to the right-hand side of the grid, and moved one pixel vertically while the process continued. This process continued until the entire space of positions for the moving object had been exhausted. The size of the moving object was then modified by one pixel and the process repeated. Once all combinations (4,10) x (4,10) had been completed, the central object was modified similarly and the process repeated. A pseudocode of this simulation is shown in Figure 5, and an example of the stored data is shown in Figure 6.

With the simulated data in tow, the paper will now proceed to describe the process by which the data can be connected using SQL to appropriately reflect the two missing neighborhood graph structures.

5. Processing the Simulations into Conceptual Neighborhood Graphs

To develop conceptual neighborhood graphs from the simulations, it was determined what mathematically a particular deformation should look like within the collected dataset.

5.1. Translation Conceptual Neighborhood Graph

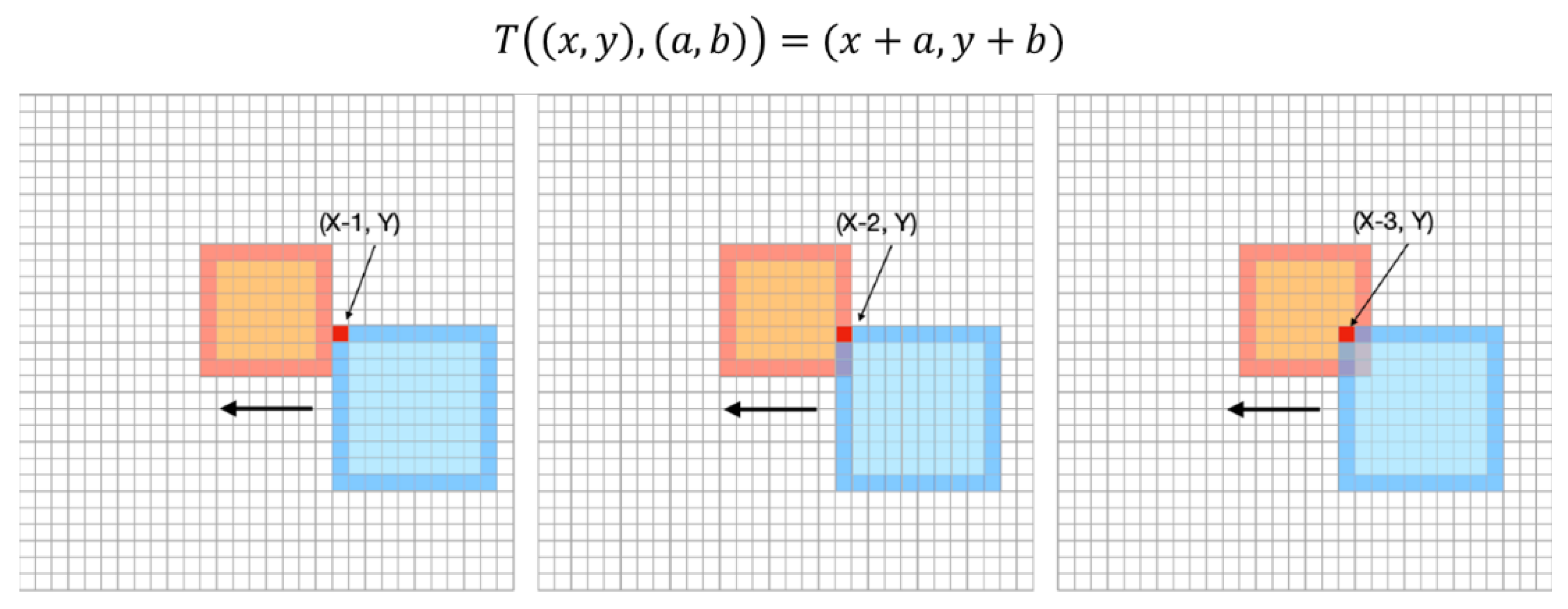

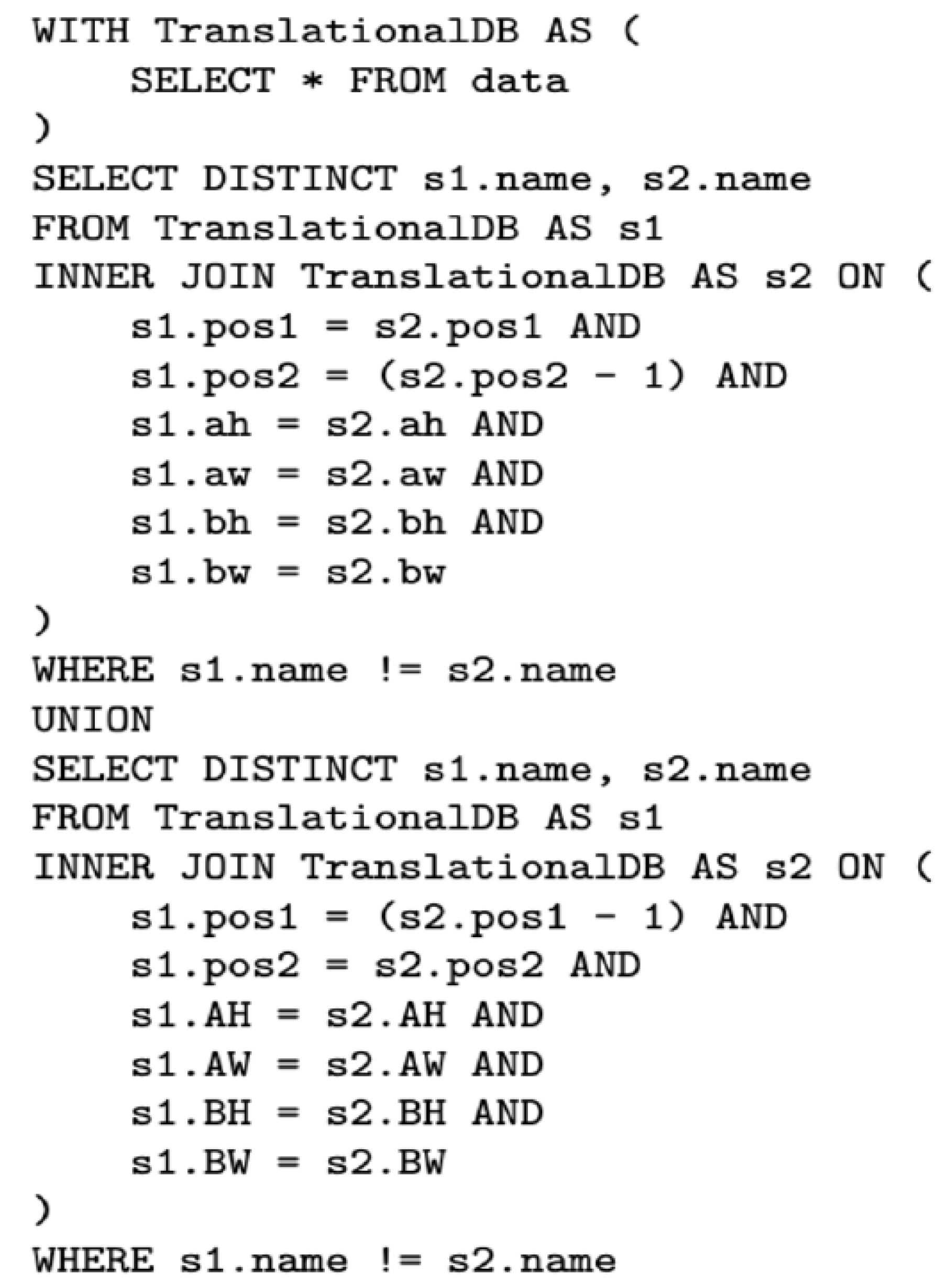

Translation (Figure 7) has a straightforward signature. Under translation, the objects themselves do not change in their size; they just move. As such, the sequence of changes need only consider that one of the coordinates in the grid is offset by precisely one pixel, while the others are the same. Furthermore, the sizes of the two objects must remain the same. A leg of the conceptual neighborhood graph is formed when the relations under such conditions differ. This information structures an SQL query that directly isolates the relevant records to be joined together, as shown in Figure 8. Figure 9 presents the connectivity information in graphical form.

Figure 9 represents something very specific: the existence of objects that can make the change from one relation to another at least one time. Both Freksa [9] and Egenhofer and Al-Taha [13] correct against this because ultimately it is important to recognize the overall patterns that consistently appear. This is critical for information systems – the last thing practically desirable in an information system is a spurious conclusion motivated by a special case. A similar occurrence of such a phenomenon is the direct linkage between overlap and equal (see Figure 1) that could be facilitated by specific configurations of objects [13].

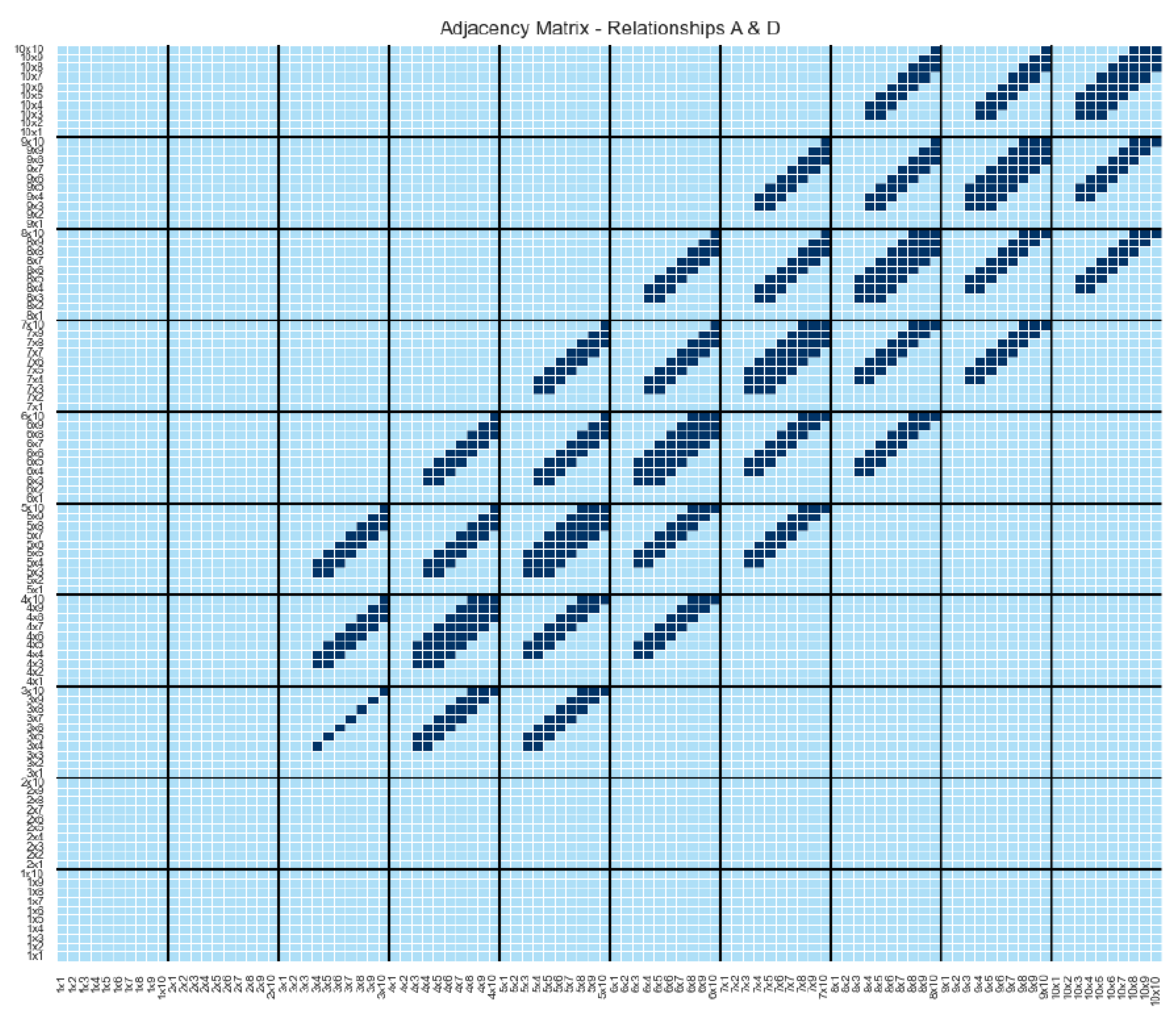

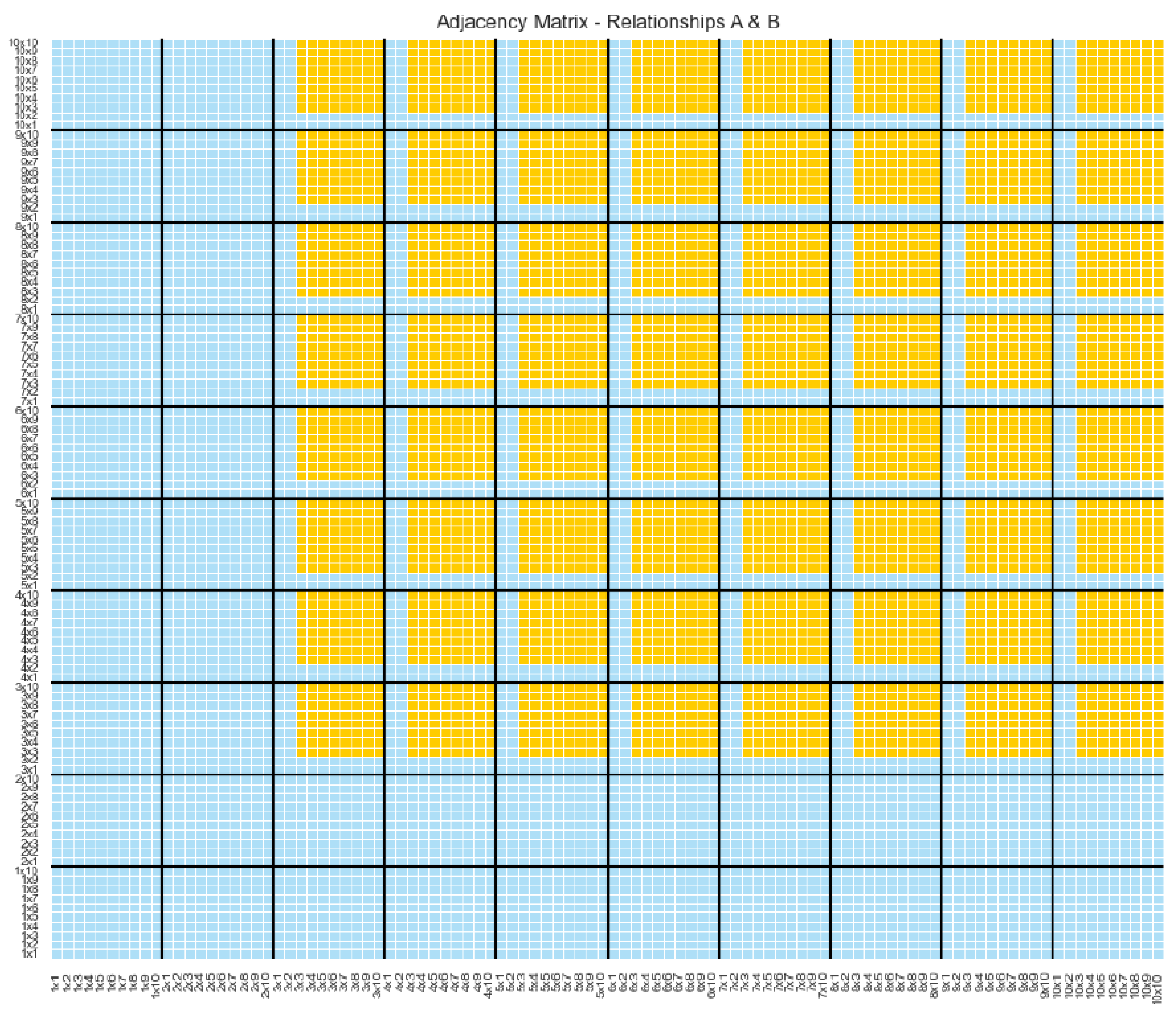

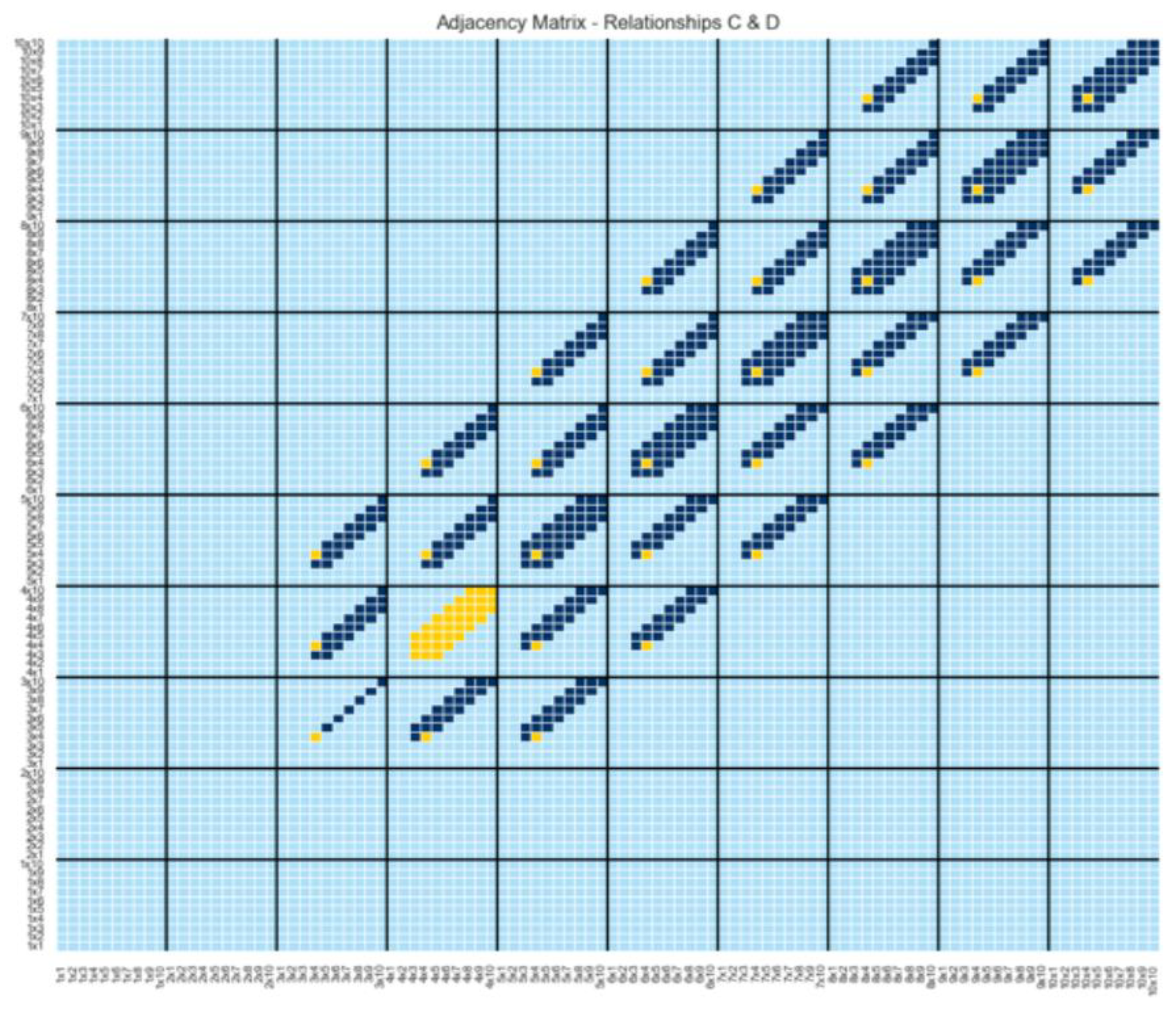

To correct for this in the simulation approach, an association rules approach [42] was employed as demonstrated in Figures 10 through 12. Figure 10 displays relations dDisjoint/dDisjointTouch and dOverlapFully, both of which never conceptual neighbors at any size. Figure 11 displays relations dOverlapMinimally and dOverlapFully, relations that are conceptual neighbors under very strict size conditions, but not otherwise. Figure 12 displays relations dDisjoint/dDisjointTouch and dMeet, relations that are always conceptual neighbors when mutually available. Relation pairs with patterns like Figure 12 become the edges of interest for the salient conceptual neighborhood graph for translation.

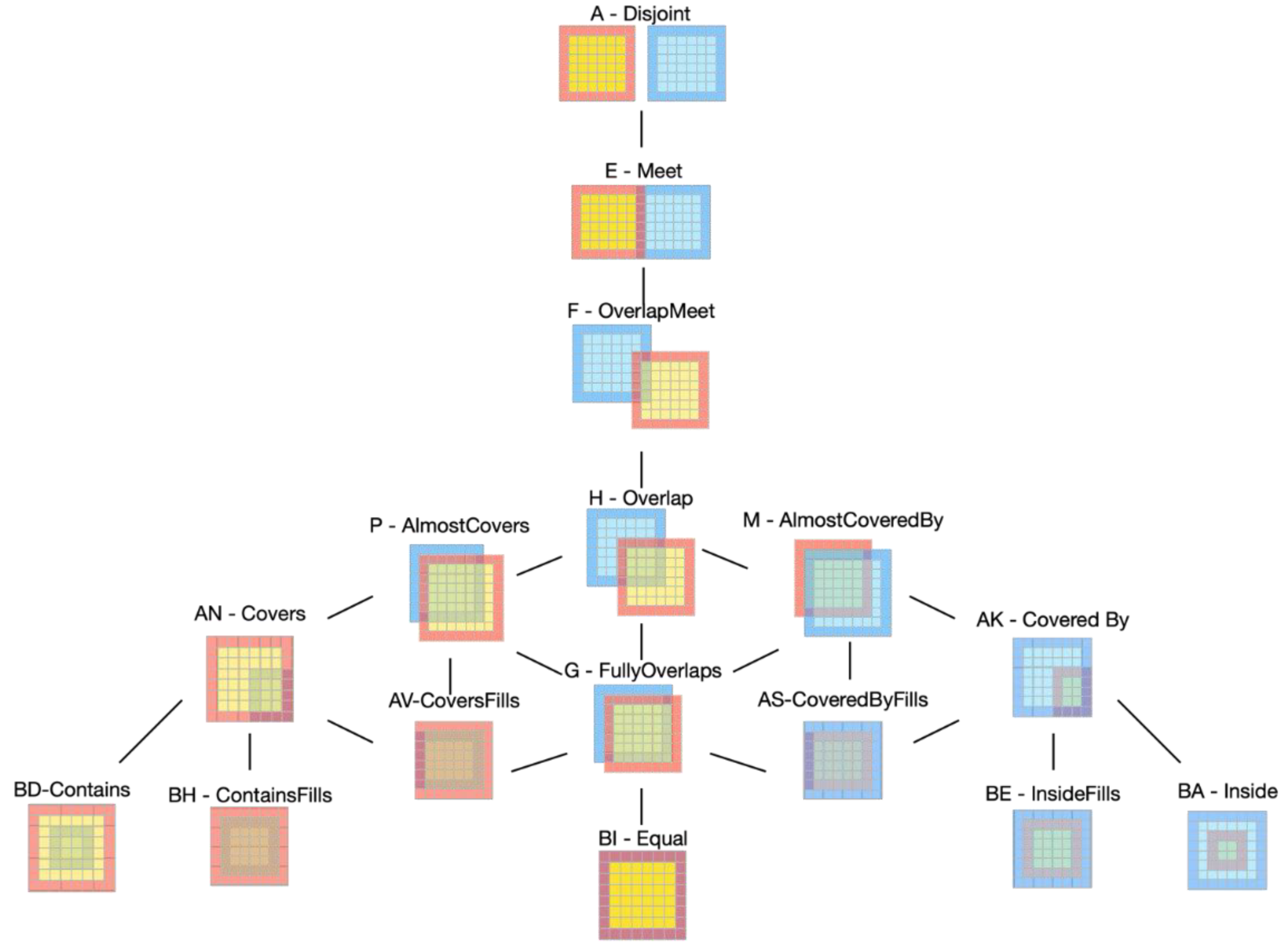

By considering all edges in Figure 9 that correspond to the pattern (all yellow) from Figure 12, the conceptual neighborhood graph can be successfully pruned to that shown in Figure 13 and Figure 14. Figure 13 consists of the relations available in the digital plane. Figure 14 is constructed by applying the dual transformations [26] to the relations in question.

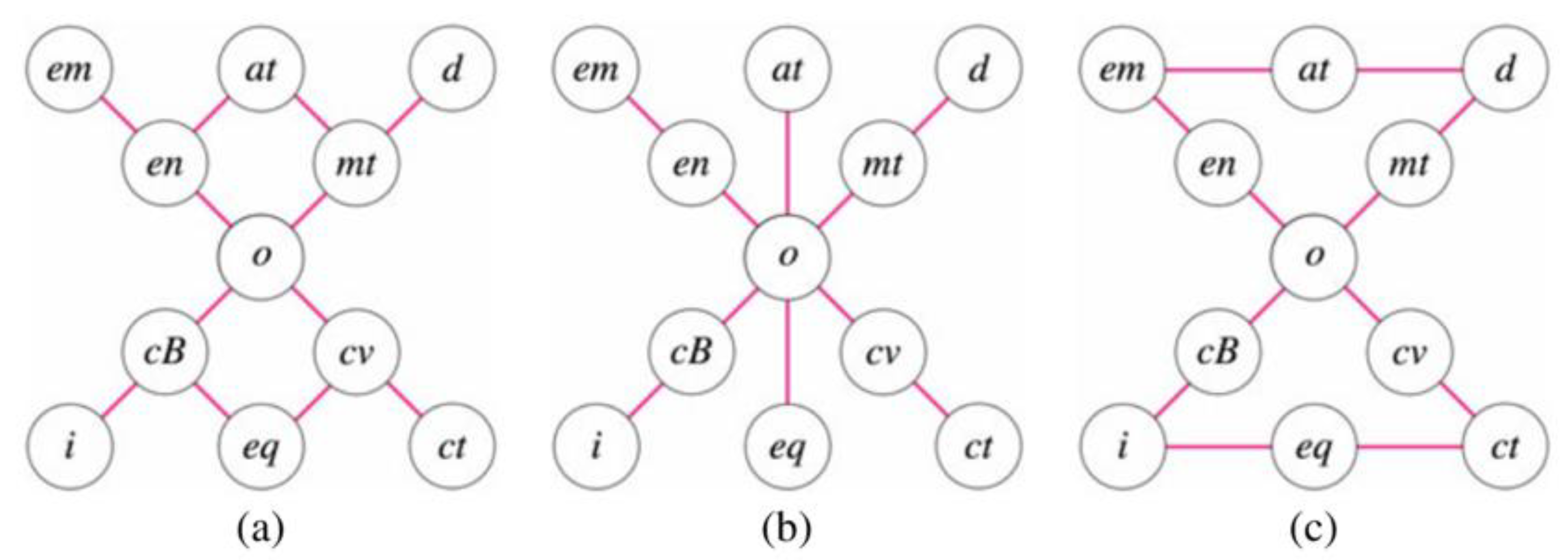

The output of this process represents a striking structural similarity to what we see in Figure 4(b). The relations show a vertical leg structure persisting throughout the conceptual neighborhood graph. This same sort of pattern adherence appears between the anisotropic scaling conceptual neighborhood graphs established in the literature with diagonal legs [13,15,23,24,25]. We will discuss this outcome more in the conclusion section as a different feature than we might hypothesize has arisen, maintaining some (but not all) diagonal connections.

5.2. Isotropic Scaling Conceptual Neighborhood Graph

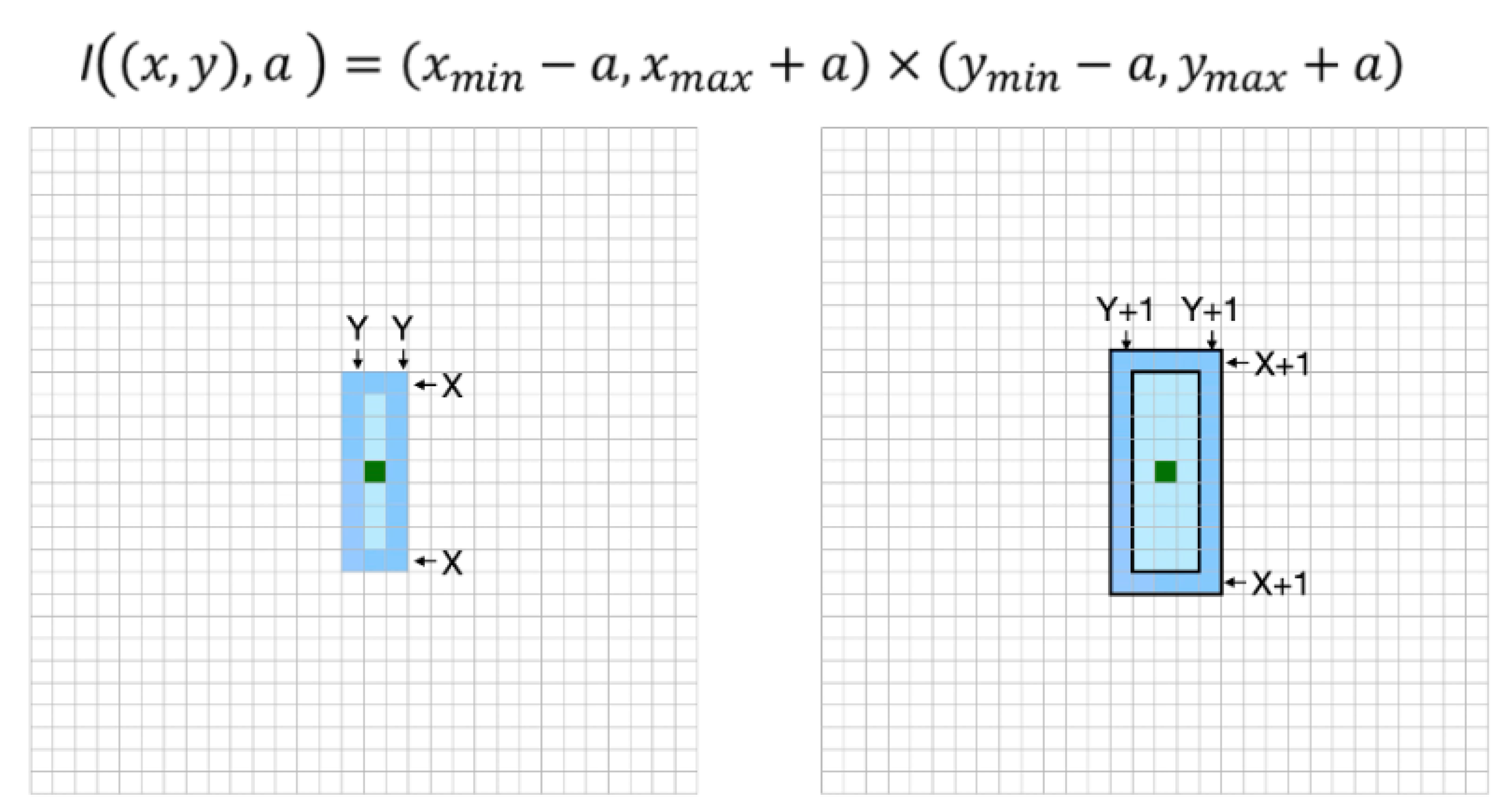

Following a similar procedure to the translation conceptual neighborhood graph, the first step is to isolate exactly what isotropic scaling looks like in the dataset. In this case, the position of the top left corner dictates the change. If the top left corner has (x+1,y+1) and the size of the object is -2 in both dimensions, this is the appropriate symbol for the object isotropically shrinking; if it is (x-1,y-1) and size of the object is +2 in both dimensions, this is the appropriate symbol for the object isotropically growing. Figure 15 shows the concept of growing by 1 unit in all directions.

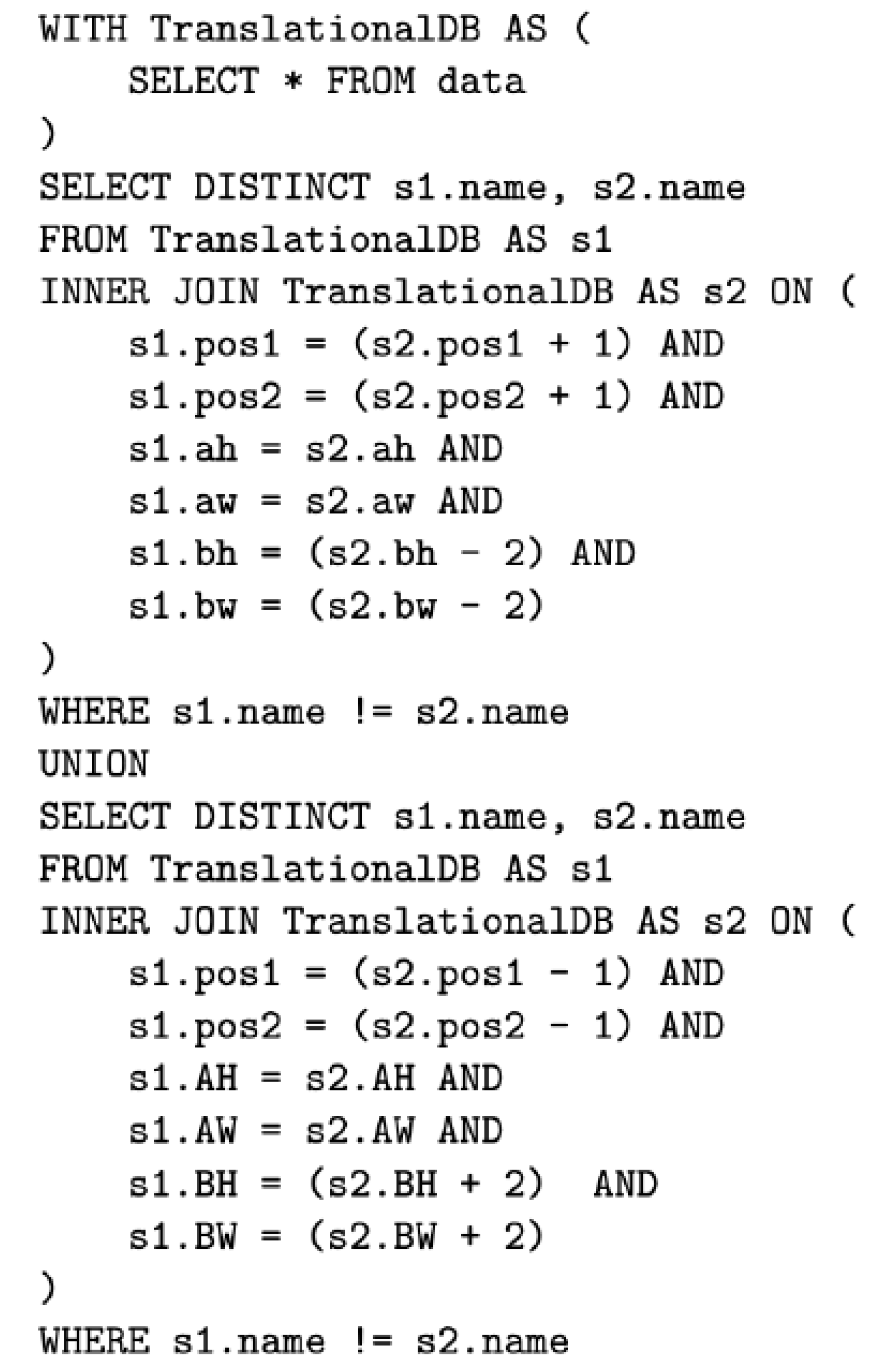

The change described in Figure 15 can be systematically isolated as an SQL query on the dataset as shown in Figure 16.

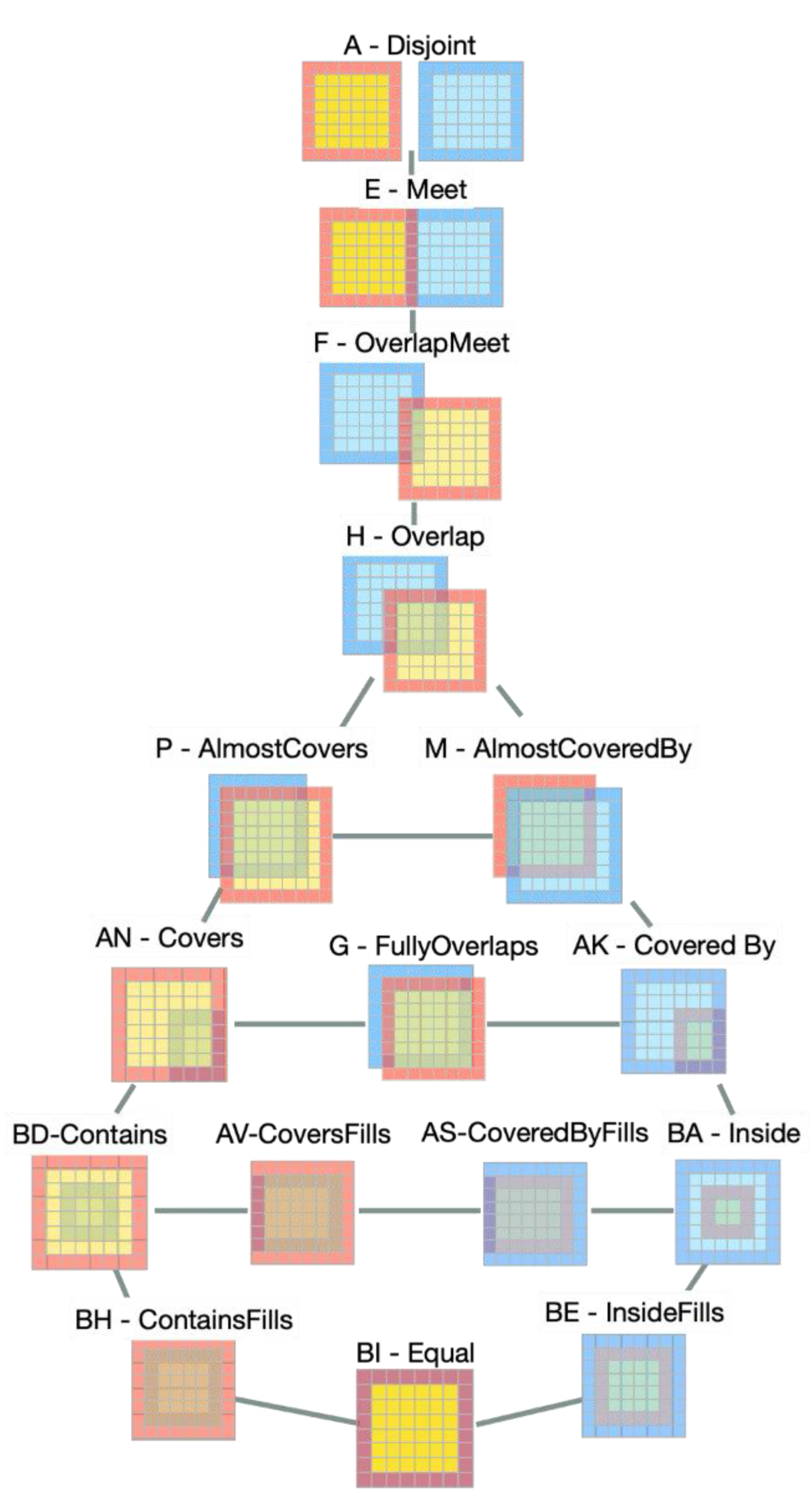

Unlike with the translational query, the isotropic query holds no spurious connections. As such, the conceptual neighborhood graphs for isotropic scaling are presented in Figure 17 and Figure 18. As in Figure 13 and Figure 14, Figure 17 is transformed into Figure 18 through the duality operation [26].

The pattern shown in Figure 17 and Figure 18 is consistent with the patterns shown by Freksa [9] and Egenhofer and Al-Taha [13]. The lateral leg structure that defines Figure 4(c) is present in both Figure 17 and Figure 18 without modification.

6. Litmus Test for Conceptual Neighborhoods from Simulation: The Hyperraster

Winter [27] proposed a data structure for rasterized regions that effectively in sum made them consistent with vectorized regions from the perspective of the 9-intersection called the hyperraster. This data structure treats the boundary of an object as the gap between its outermost pixels and the pixels that do not belong to it, retaining the ${\mathbb{S}}^1$ structure of the boundary of a polygonal object in ${\mathbb{R}}^2$ . This structure effectively turns the 19/29 rasterized region relations [23,25] into the 8/11 vectorized region relations [15,30].

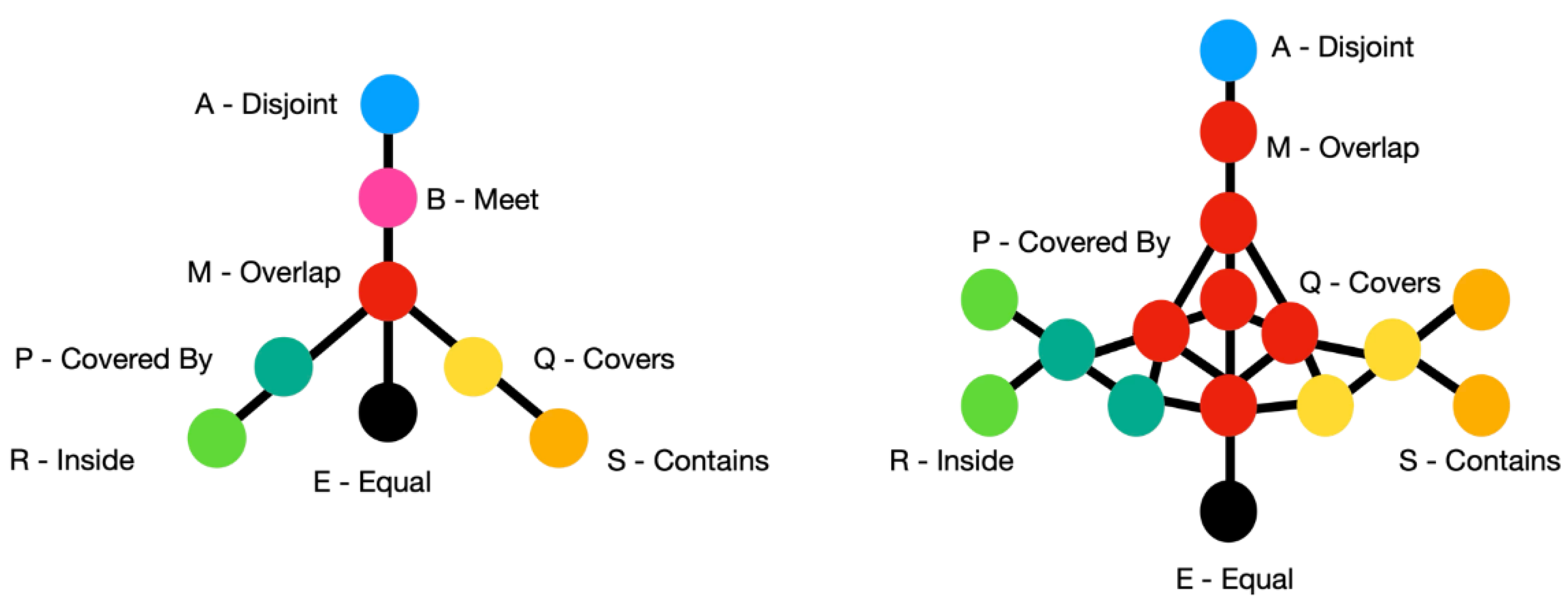

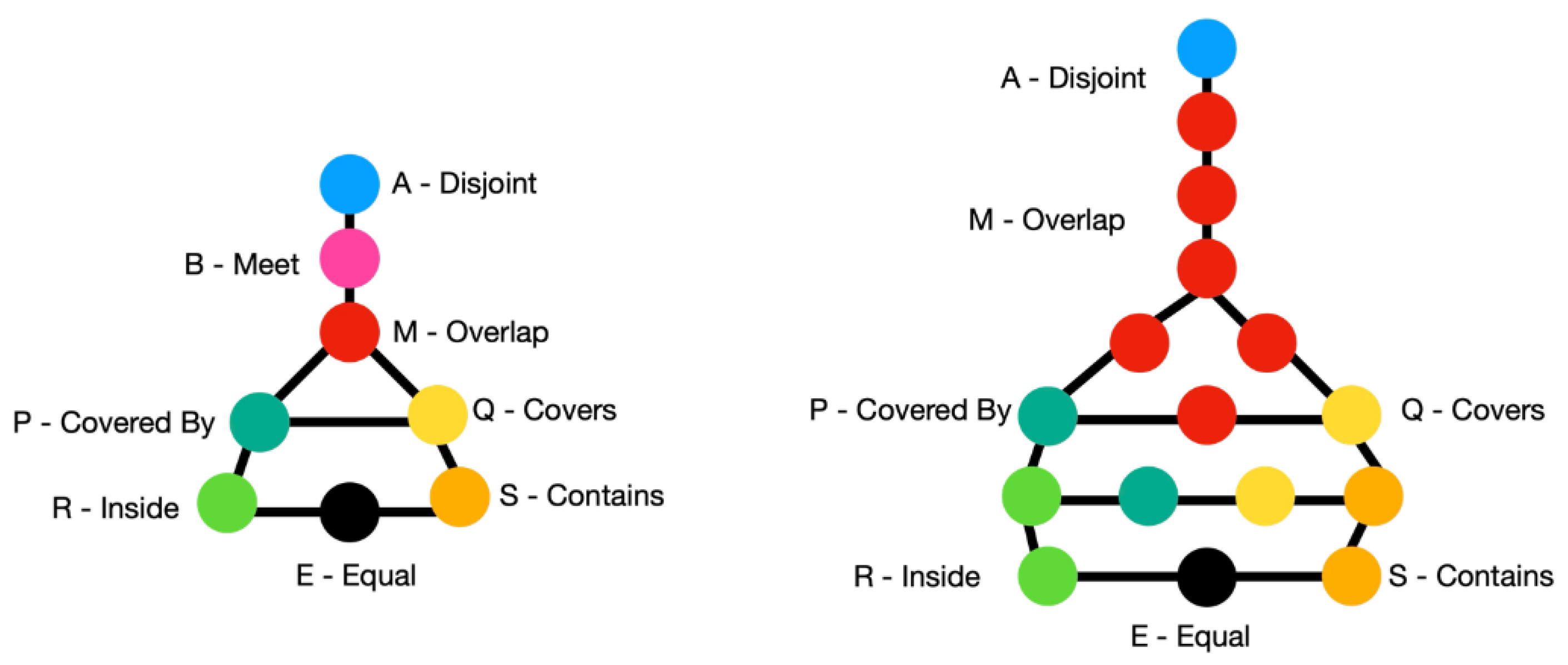

To evaluate the simulation approach in this work, the hyperraster definition is applied to the relations and the corresponding conceptual neighborhood graphs are aggregated in Figure 19 and Figure 20.

The differences in Figure 19 and Figure 20 are only in the classification of meet. Because dDisjointTouch was not separated from dDisjoint in the simulations, the meet relation does not appear. However, given the nature of both translation and isotropic scaling, the connectivity between dDisjoint and dMeet must be through dDisjointTouch as the growth of an object occupies the outer margin when at first it did not implies dDisjoint – dDisjointTouch – dMeet, and similarly the movement of an object implies the same transference. As such, any of the touch relations fit firmly between their corresponding dual counterparts in the conceptual neighborhood graphs, as demonstrated in the expansions to the spherical relations in Figure 14 and Figure 18. This result serves as a critical litmus test – when converted to vectorized regions, the exact neighbors that exist in the conceptual neighborhood graphs are the only neighbors that appear in the conceptual neighborhoods of these discretized relations. Had the simulation approach failed, these conceptual structures would not have been able to be merged appropriately.

7. Utility of the Outcome: Processing Pixelated Maps in Various Circumstances

Conceptual neighborhood graphs have heretofore been underutilized concepts in the informatics realm. One particular reason for this corresponds to the architecture of spatial data as just that: spatial data. The temporal dimension of spatial data is often minimally analyzed within the context of geographic information systems. With changes in data architecture [43,44], a set of use cases emerges for conceptual neighborhood graphs. Dube and Hall [22] identify a few critical application spaces for conceptual neighborhood graphs that have not fully been realized in the software world.

Cadastral records management provide two critical examples of where a specified topological relation that would motivate a spatial query may not be all inclusive of the phenomenon in question. The first is the search for trees that encroach upon property lines, whereas the second is the search for buildings or driveways that approach property lines. Humans are rightly prone to vocabulary suggestive of the physical world and its continuous topological relations [5,6,7,8,38]. As such, a human might choose to query such a database system using overlap in the first case and meet in the second case. If the stored data considering the cadastral records are discretized, these terms occupy specific relations in the conceptual neighborhood graph. Based such concepts as resolution, position, or sheer lack of terminology, other conceptual neighbors from Figures 13, 14, 17, and 18 are likely to satisfy the wishes of the user based on equivalencies from Figure 19 and Figure 20, and thus should be a logical included option in topological query systems. Similarly, a user should be able to fine-tune which conceptual neighbors are relevant to the appropriate application.

Conceptual neighborhood graphs allow for the realization of temporal events within spatial data. Rather than considering one layer of spatial data, we could consider multiple layers of spatial data and observe the changes between topological relations of objects. This scenario creates two use cases as well. The first use case is the discovery of an event such as becoming adjacent, reflecting the change from dDisjoint to dDisjointTouch or dDisjointTouch to dMeet (as determined by the desires of the user). Becoming adjacent differs from adjacent insofar as there is a communicated desiderata that the event does not start in the final configuration but rather progresses to that configuration from the outside. This type of question is only answered through information in the various conceptual neighborhood graphs. The second use case accounted for in this scenario is the determination that a state change is missing within the data due to combinations of spatial and temporal resolution. If consecutive time stamps represent non-conceptual neighbors, a missing relevant state can be discovered, thus increasing the intrinsic data quality of our data by increasing its completeness. Such an application is critical to generative artificial intelligence that attempts to leverage image data to glean insights.

8. Conclusions and Future Work

In this paper, the conceptual neighborhood graphs of discretized topological relations have been determined using a simulation protocol and corresponding queries to tease out persistent conceptual neighbors from the data. This approach extends the conceptual neighborhood graphs available to discretized regions in both ${\mathbb{Z}}^2$ and ${\mathbb{T}}^2$ to be consistent with those available for ${\mathbb{R}}^2$ and ${\mathbb{S}}^2$ [13,15].

The translation neighborhood graph (Figure 13 and Figure 14) shows a pattern that is slightly different than what we might have expected when considering the corresponding continuous neighborhood (Figure 4b). While this might at first suggest a problem with the simulation procedure, what is occurring is the fundamental lack of relation diversity in continuous spaces that is filled in within discretized spaces. The lower part of the continuous neighborhood does not have an appropriate amount of relations within it to show the patterns depicted in Figure 13 and Figure 14. Under the aggregation test, we observed the continued orphaning of the inside/coveredBy and contains/covers relations with respect to equal, a critical evaluation criteria. In other words, equal is only accessible from an overlap condition, and a very specific one at that (namely dOverlapFully). We similarly observed a consistent conceptual neighborhood graph structure for isotropic scaling, where the expectation from the continuous spaces was directly mirrored in discretized spaces without any surprises.

The world of big data necessitates that analysis procedures can be applied to both vector data and raster data, reflecting notions of interoperability stemming from the fundamental variety of data sources in our world. The work undergone here paves the way for software libraries that can process spatio-temporal queries that reflect the dynamically changing states of objects in various embeddings. To meet this demand, there is a critical need for the revisement of infrastructure in spatial databases to incorporate queries that target the change in object relations directly. Furthermore, modern spatial programming libraries need to implement raster protocols for working with the 9-intersection to make this aspiration a reality. To achieve these means, we need to embark on an architecture of space-time cubes for rasterized data [43] and temporal layering for continuous data [44].

There is more work to be done in the pursuit of these conceptual neighborhood graphs. The base level relations considered in this paper have been further extended to line up directly with the regions identified by the hyperraster approach [45]. These relations have a corresponding signature in the hyperraster, and thus the results in Figure 19 and Figure 20 provide implicit bounds for where these relations should sit schematically. More work needs to be undertaken to adequately place these relations within a larger framework. These relations themselves are special cases within the discretized relations because their boundaries and interiors violate basic properties of the digital Jordan curve [45,46]. This emphasizes the need for a deeper exploration of how these discretized relations interact with broader topological principles to refine their placement in a generalized model.
