Surface Properties of Coatings Based on Iron Amino-Functionalized Oxides Deposited on Dh 36 Steel Plates for Shipbuilding

1. Introduction

The development of more sustainable solutions to environmental concerns is a common goal that encompasses materials science technologies. Among them, paint and coating systems focus on the use of always less toxic components while preserving high physical-chemical and mechanical properties [1,2,3]. This need is particularly felt in shipbuilding, since the steel used for hull construction is subject to corrosion in seawater and biofouling while ensuring the requirements also to operate at extremely low temperatures [4].

A suitable strategy to enhance the functional features of organic coatings entails the addition of nanomaterials such as SiO₂, TiO₂, ZnO, Al₂O₃, CaCO₃, and CeO₂. The incorporation of targeted nanopowders into a polymeric matrix may influence the coating performance and optimize mechanical, chemical, and optical properties[5]. Some studies reported the functional performance of nanoparticles of SiO₂, Zn, and Fe₂O₃ as anti-corrosive agents as well as mechanical properties modifiers for epoxy [6] and silane-based sol-gel [7] coatings. The peculiar properties of nanoparticles have been utilized in the coating industry to improve the physical, mechanical, and chemical properties of organic coatings [8,9,10,11].

A great emphasis is placed on the utilization of easily available starting materials such as commercial silica gel whose high specific surface area combined with its high thermal and chemical stability allows a wide range of surface modifications. Another example of commercial nanopowder for the preparation of functional paints and coatings is titanium dioxide which emerged in the field of photocatalysis for environmental applications [12].

The demand for effective solutions to address marine biofouling challenges has driven the advancement of antifouling and anticorrosion coatings, often incorporating nanocomposite materials with biocidal agents or utilizing the fouling release mechanism [13,14,15,16]. More broadly, the development of nanocomposite materials with antimicrobial and antifouling characteristics is a widely studied area, with applications across diverse research domains, including the creation of biomedical devices, water purification systems, food packaging, and marine equipment.

It is well known the biocide action of some metal and metal oxide nanoparticles (NPs) in particular silver (Ag) NPs, copper (CuO), and zinc oxide (ZnO) [17,18]. The studies on these materials are still increasing due to their broad-spectrum antimicrobial properties. In general, they can act by the adhesion on the bacterial surface followed by the destabilization of the cell wall inducing modifications of membrane permeability or causing toxicity and oxidative stress by generation of reactive oxygen species (ROS). Recently, EuChems (www.euchems.eu) highlighted the issue of element scarcity arising from limited supplies, their locations in conflict areas, or the inability to fully recycle them. Despite their effective biocide activity, these elements are classified as a serious threat in the next 100 years (Ag and Zn) and with limited availability and future risk to supply (Cu). Concerning the cited metals, iron (Fe) belongs to those elements with a plentiful supply. Moreover, iron-based materials have shown antimicrobial features [17,19] probably acting in the form of iron cations, generating ROS and finally, leading to damage to the cell membrane. Thanks to its physical-chemical properties, its biocompatibility, and its plentiful supply, iron-based materials can result in a good candidate given the sustainability of the material design. Materials, containing quaternary ammonium salts [20] and ─NH₂ moieties, have also shown their antibacterial activity against a variety of microorganisms (as for Staphylococcus aureus, Escherichia coli, Candida albicans) [21,22,23]. Recently, some of us have described the excellent antibacterial properties of aminopropyl waste cellulose-derived materials [24,25]. In these studies cellulose and lignocellulose supports were functionalized with (3-aminopropyl)triethoxysilane (APTES) in sustainable reaction conditions. The antibacterial activity against Gram-positives and Gram-negatives was, then, evaluated both in batch [24] and in continuous flow [25] showing a high bacteria removal (93-100%).

Considering these premises, in this work, we prepared two hybrid materials based on commercial SiO₂ and TiO₂ which were modified with amino groups through the grafting of APTES on the surface of the nanopowders. The obtained samples (named SiO₂-NH₂ and TiO₂-NH₂) were used as solid supports for the immobilization of iron species stabilized through the interaction with -NH₂ sites. The final materials (named SiO₂-NH₂-Fe and TiO₂-NH₂-Fe) were, then, characterized and employed for the preparation of paint formulations which were applied on the surface of metal prototypes.

The surface properties of the resulting coatings, deposited on DH 36 steel plates, were evaluated through the determination of thickness, water wettability, roughness, and cross-cut adhesion tests. The antimicrobial activity of the iron-amino-functionalized materials was also tested, as proof of concept, on the growth of some bacterial strains.

2. Materials and Methods

2.1. Materials and Paint Formulation Synthetic Procedures

Plates of DH36 high strength structural steel, conforming to the ASTM standard or to the equivalent grade ABS DH36, were selected as the substrate for depositing and testing the coatings.

The chemical composition limits, according to ASTM A131/A131M—19 Designation [26], are shown in Table 1.

Silica or titania were functionalized with aminopropyl groups adopting a grafting method. In a typical procedure, a mixture of 1.00 g of calcined silica or titania in 15.0 mL of absolute ethanol and 1.00 mL of 3-aminopropyl triethoxysilane (APTES) was refluxed overnight. The materials were filtered in vacuo, washed with ethanol, and dried overnight at 120 °C. Iron (5% w/w) was supported by a wet impregnation procedure. In a typical procedure, iron nitrate nonahydrate (Fe(NO₃)₃·9H₂O, 543 mg) was dissolved in 10 ml of water and added to aminopropyl silica or titania (1.5 g). The mixture was stirred overnight at room temperature, then it was filtered and washed with water.

The preparation of paint forPlates of DH36 high-strength structural steel, conforming to ASTM standards or the equivalent grade ABS DH36, were selected as the substrate for depositing and testing the coatings.mulation was carried out by mixing the Fe-based powder into a commercially available two-component polyamine cured pure epoxy coating (Safeguard Universal ES, Jotun “tie-coat”). Component A (6 g, Safeguard Universal ES Comp. A), component B (1.2 g, Safeguard Universal ES Comp. B), the diluent (0.36 g, Thinner n° 17) and SiO₂-NH₂-Fe or TiO₂-NH₂-Fe solid (75.6 mg) were mechanically mixed into a PP vessel by using a flat brush until a homogeneous paint was obtained. The so-obtained SiO₂- or TiO₂-based formulations were deposited on the surface of a metal plate (stainless steel DH36 150x75 mm, thickness 5 mm) with a flat brush. The day before the application of Fe-based formulation, a pristine metal specimen, bearing a primer coating, was treated with a tie coat paint as the basic surface (Jotun, Sandefjord, Norway) and dried overnight at room temperature.

Table 2 lists the four types of materials used in this study, with the code, description, and details.

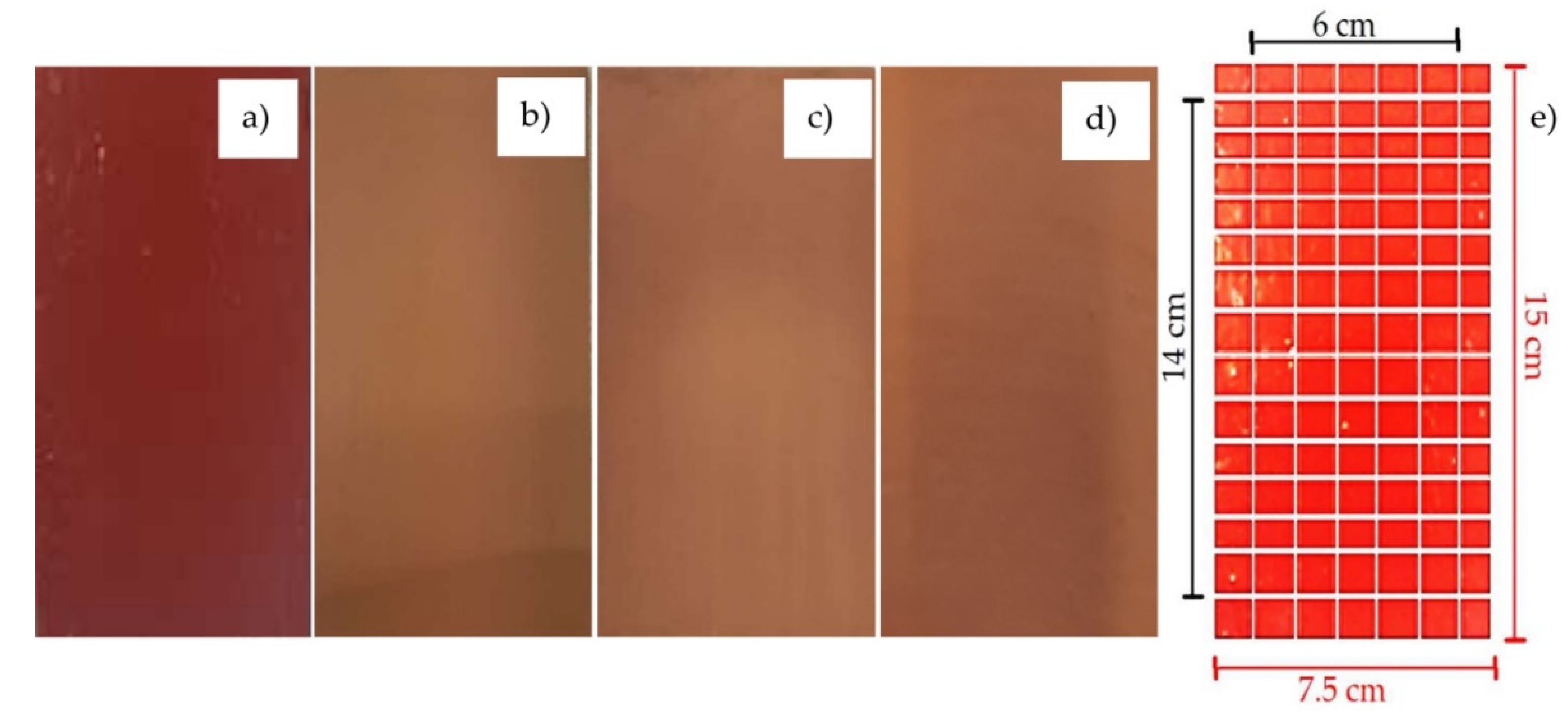

Figure 1 (a-d) shows the four coatings of this study after the deposition on the stainless steel DH36 plate (geometry of 150x75 mm, thickness 5 mm). Each coated stainless-steel plate was marked with a pencil that marked the various points to create an internal grid (14cm x 6cm). Thickness measurements were taken on these grid points to create a mapping extended to the entire sample (see Figure 1e and see the maps in Figure 6 that will be discussed in Section 3).

2.2. Chemical Characterization

The textural properties of the materials were examined with a Micromeritics ASAP2020 Plus 1.03 (Micromeritics, Ottawa, Canada). The specific surface areas of the samples were evaluated through the analysis of the N₂ adsorption isotherm at 77 K by using the BET method in the standard pressure range of 0.05–0.3 p/p0. The total pore volume, Vp, was calculated from the amount of nitrogen adsorbed at a relative pressure of 0.998, whereas mesopore size distribution values and mesopore volumes were estimated by applying the BJH model in the range of p/p0 of 0.1–0.98.

The thermogravimetric analysis of the samples was carried out in air using the TGA 1 Star System of Mettler Toledo (Mettler Toledo, Schwerzenbach, Switzerland). About 10 mg of sample was heated from room temperature to 100 °C, left at this temperature for 30 min, and then heated to 1000 °C at a rate of 10 °C/min in 40 mL/min of air.

The X-ray photoelectron spectroscopy (XPS) analyses were performed with a VG Microtech ESCA 3000 Multilab, equipped with a dual Mg/Al anode. Unmonochromatic Al Ka radiation (1486.6 eV) was used as the excitation source. The sample powders were mounted on a double-sided adhesive tape. The pressure in the analysis chamber was in the range of 10–8 Torr during data collection. The constant charging of the samples was removed by referencing all the energies to the C 1 s binding energy set at 285.1 eV. Analyses of the peaks were performed with the CasaXPS software.

2.3. Physical-Mechanical Characterization

The four coatings were physically and mechanically characterized by thickness evaluation, wettability tests, and cross-section tests (adhesion strength evaluation before, at t= 0 days, and after, t=30 days, a period of immersion in seawater).

To measure the thickness of metal specimens deposited with coatings, a digital thickness gauge SA-MA Tools SA8850 (SAMA Italia, Viareggio, Italy) was utilized. A grid was created on the metal specimen to acquire, at the intersection points, the different thickness values for the entirety of the specimen. Thickness measurements were taken at each grid point by positioning the probe perpendicular to the specimen. The average of all the measurements was subsequently calculated (Figure 2e).

The measurements of surface roughness were carried out using the portable and compact Surftest SJ-210 Series 178 roughness tester (Mitutoyo S.r.l., Milan, Italy), according to Equation:

$$R_a={\displaystyle \frac{1}{N}}{\displaystyle \sum }_{i=1}^n\left|Yi\right|$$

where Ra denotes the arithmetic mean of the absolute values of the deviations of the evaluation profile (Yi) from the mean line. The data presented are the average values from nine measurements for each type of sample.

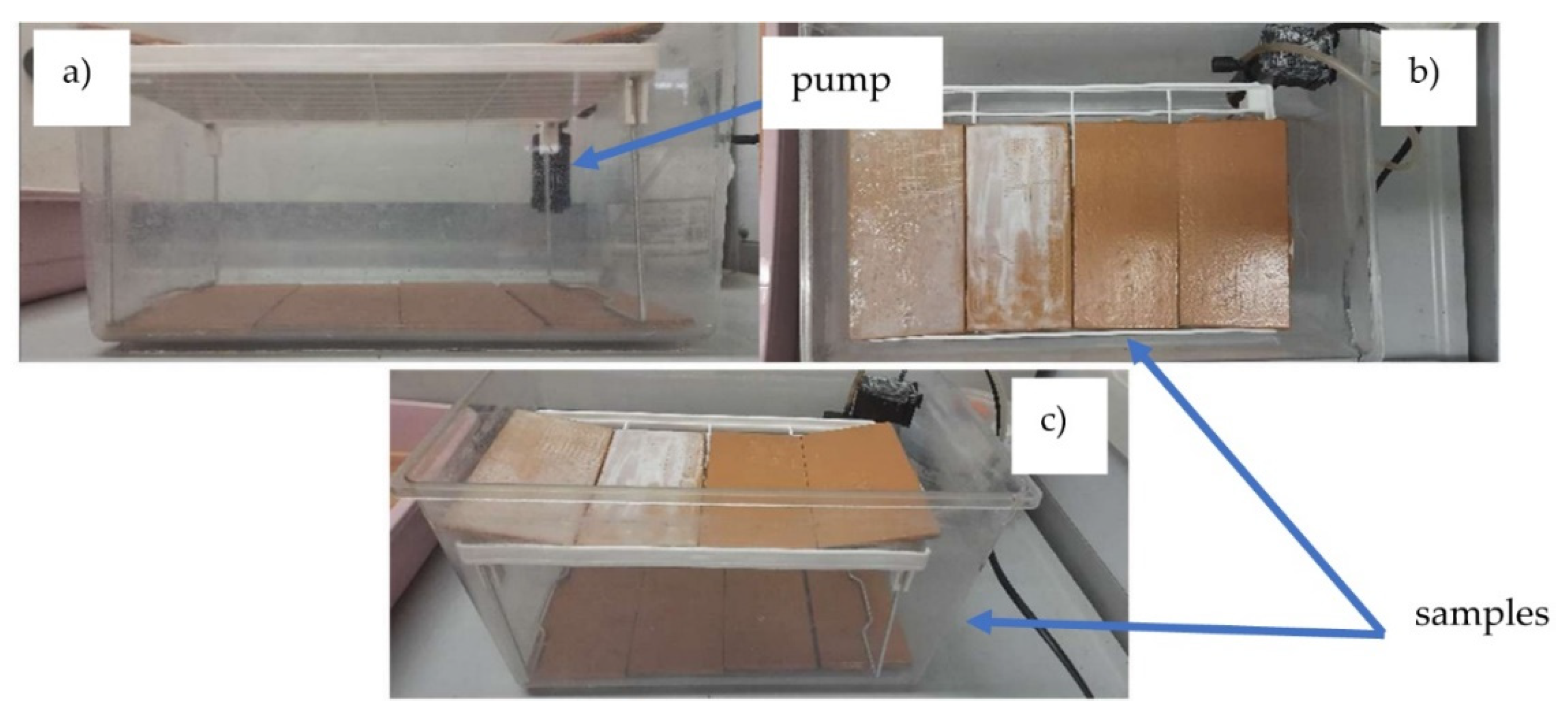

Figure 2. Different views of the set-up for the measurement of the resistance to seawater of the coatings deposited on stainless steel plate samples and fully immersed in seawater: low side (a), top (b), high side (c).

Figure 2. Different views of the set-up for the measurement of the resistance to seawater of the coatings deposited on stainless steel plate samples and fully immersed in seawater: low side (a), top (b), high side (c).

The Wenzel contact angle (θ_w) and of Young (θ_y, not dependent on the roughness) were assessed using the θ/2 method (prototype instrument—Engineering Department, Messina University) by measuring the contact angle of a 1 μL drop of deionized water placed on the horizontal surface of the sample, in accordance with ASTM D7334 [27] and Equation:

$${\theta }_w=2arctg\left({\displaystyle \frac{2h}{d}}\right); {\theta }_y=arcos \left({\displaystyle \frac{cos{\theta }_w}{r}}\right)$$

where (d) is the diameter (in mm) and (h) is the height (in mm) of the drop. The data presented are the average values obtained from ten measurements for each sample [28].

The adhesion resistance of antifouling coatings was evaluated in seawater in accordance with ASTM D870-97 standards. The samples were placed in aquarium tanks, completely submerged in seawater. To replicate the movement of seawater, a submerged aquarium pump with a filter was utilized to ensure constant water recirculation over the surfaces. The water temperature was maintained at 24°C, while the ambient temperature was kept at 23°C. The seawater was refreshed every two weeks (Figure 2).

The samples were subsequently examined for potential bubble formation, softening, and loss of adhesion using the crosshatch test (Cross Hatch Adhesion Tester by Sama Tools—SADT502-5) before and after immersion in seawater after 1 month.

This method employs a suitable cutting tool with a blade space of 2 mm (for coatings between 60-120 microns) to score the coating down to the substrate. Specifically, on a 15x15 cm substrate, two cuts are made that intersect at 90 degrees, creating a grid pattern with four intersections on the substrate. The cross-hatched area is then examined for any adhesion issues. The relevant standards for this test are D 3359-09e2 and ISO 2409:2007.

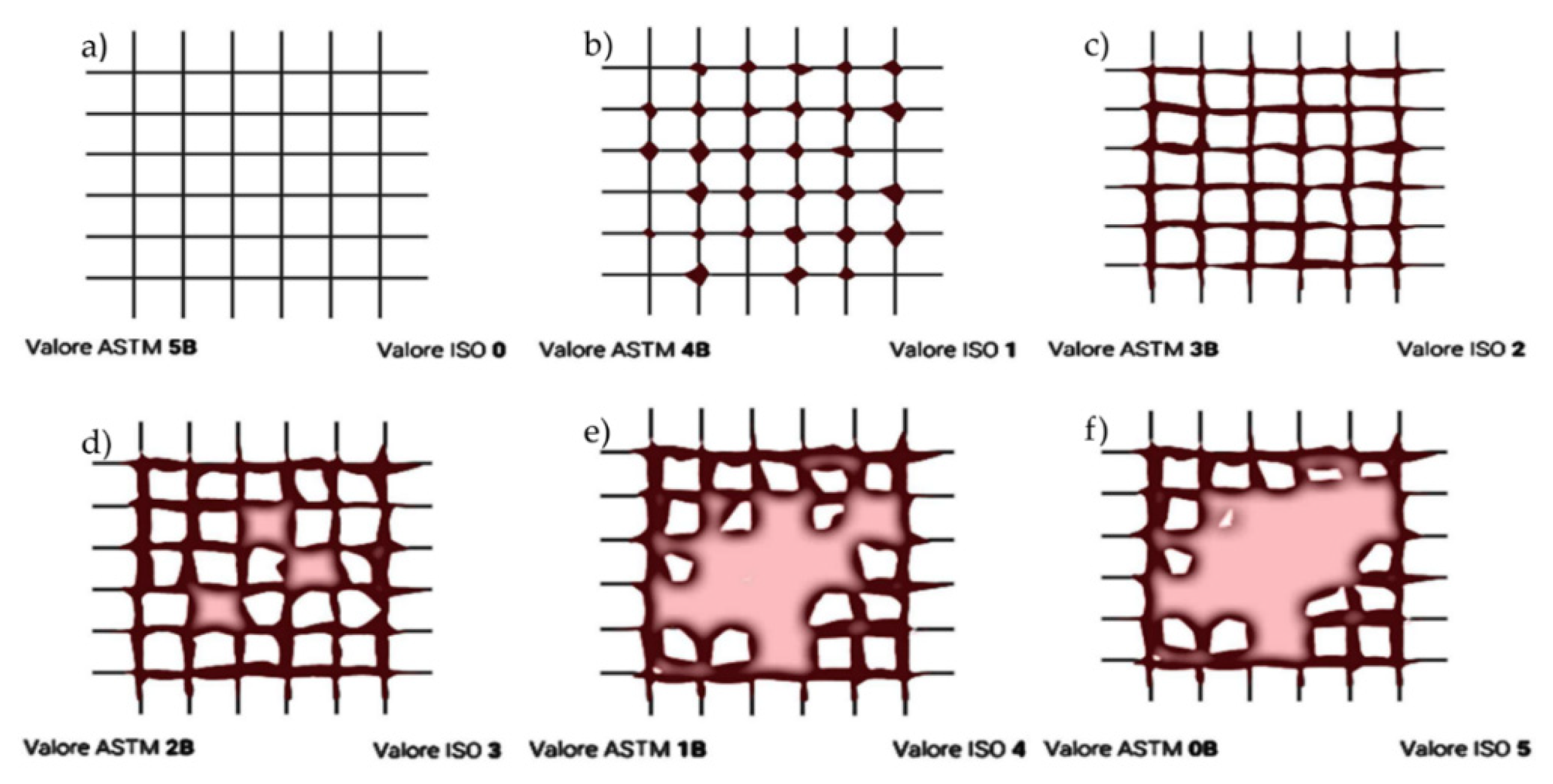

Figure 3. ASTM/ISO standards: 5B/0 (a), 4B/1 (b), 3B/2 (c), 2B/3 (d), 1B/4 (e), 0B/5 (f) detachment types.

Figure 3. ASTM/ISO standards: 5B/0 (a), 4B/1 (b), 3B/2 (c), 2B/3 (d), 1B/4 (e), 0B/5 (f) detachment types.

2.4. Microtox Assay

Microtox^® toxicity test was carried out on SiO₂-NH₂-Fe and TiO₂-NH₂-Fe materials. The Microtox^® toxicity tests have been conducted using the luminescent bacterium Vibrio fisheri according to the standard procedures of the EN12457 protocol with the following modifications. Values of bioluminescence inhibition (indirect index of toxicity values) were reported as the effective concentrations (100 mg L^-1) of toxicants resulting in a 50% decrease in bioluminescence (EC50). EC50 with 95% confidence intervals was calculated, after 15 and 30 minutes of exposition, following the procedures outlined in the Microtox^® System Operating Manual (Microtox, Columbus, Ohio, 2003). Each biocidal sample has been compared with a reference un-toxicity matrix.

2.5. Bacteria, Culture Conditions, and Microbiological Tests

Microbial strains: three bacterial strains Pseudoalteromonas sp., Alteromonas sp., and Pseudomonas sp. were used in this study. Both strains were isolated from the marine environment and maintained in the culture collection of the Institute of Biological Resources and Marine Biotechnology (IRBIM)-CNR of Messina (Italy).

Microbial preparation: starter cultures were carried out by inoculating microbial cells into 10 mL of Marine Broth (MB; Difco, Milan) mineral medium. Cultures were grown in a rotary shaker (New Brunswick C24KC, Edison NJ, USA; 150 rpm) at 20± 1 °C for 5 days. Mid-exponential-phase grown cells were harvested by centrifugation at 10.000× g for 10 min, washed twice with sterile MB, and inoculated into different 100 mL sterile Erlenmeyer flasks each containing 50 mL of Marine Broth.

Evaluation of the biocidal activity of the new functionalized coatings: mid-exponential-phase grown cells were harvested a second time as previously described and inoculated at a final concentration of 0.1 of optical density (OD600nm) in a sterile medium added with 100 mg L^-1 of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe materials. The cultures were incubated at 20 ± 1 °C, for 9 days, with shaking (150 ×g, New Brunswick C24KC, Edison NJ, USA). All experiments were carried out in triplicate. At the beginning of experimentation and regular intervals (3 days), the growth (biomass variations) of the cultures in the study was routinely assessed indirectly by measuring the turbidity (OD600nm) using a UV–visible spectrophotometer (Shimadzu UV-160, Markham, ON, Canada).

3. Results and Discussion

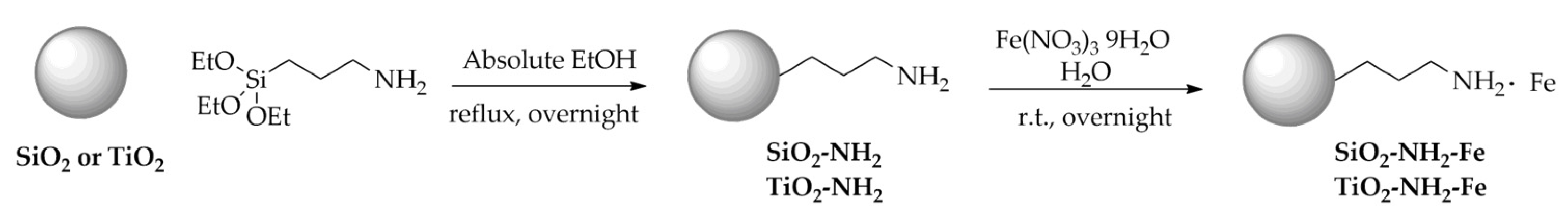

The synthesis of Fe-based powders, as reported in Scheme 1, was carried out through the covalent grafting of (3-aminopropyl)triethoxysilane (APTES) on the surface of commercial SiO₂ or TiO₂ in ethanol. The obtained hybrid materials SiO₂-NH₂ and TiO₂-NH₂ were used as supports for the immobilization of iron sites which was performed by a wet impregnation procedure using Fe(NO₃)₃·9H₂O as metal precursor. The final solids were labeled as SiO₂-NH₂-Fe and TiO₂-NH₂-Fe.

Scheme 1. Synthesis of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe.

Scheme 1. Synthesis of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe.

Thermogravimetric analysis (TGA) of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe showed, in both cases, good thermal stability at 180 °C.

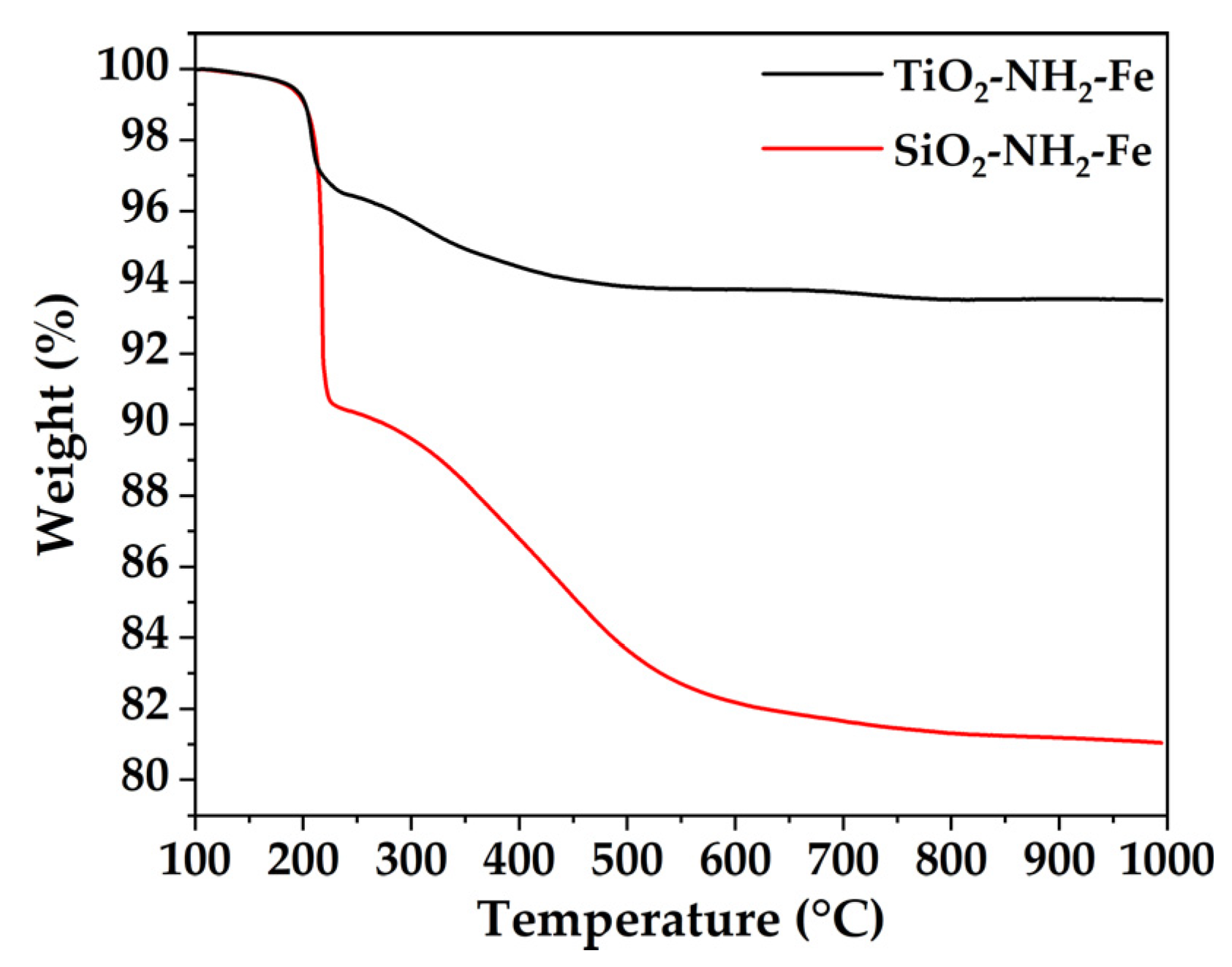

Figure 4. (a) TGA profiles of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe.

Figure 4. (a) TGA profiles of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe.

The higher organic loading of SiO₂-NH₂-Fe can be ascribed to the specific surface area of pristine SiO₂ (SSA_BET 545 m²/g) when compared to bare TiO₂ (SSA_BET 56 m²/g). The specific surface area value of silica implies a good -OH availability that is pivotal for the condensation of APTES functional groups. N₂ physisorption measurements were carried out on SiO₂-NH₂ (SSA_BET 208 m²/g), SiO₂-NH₂-Fe (SSA_BET 190 m²/g), TiO₂-NH₂ (SSA_BET 59 m²/g and TiO₂-NH₂-Fe (SSA_BET 48 m²/g).

Figure 5. N₂ adsorption-desorption isotherms of SiO₂-NH₂-Fe, SiO₂-NH₂-Fe, TiO₂-NH₂ and TiO₂-NH₂-Fe.

Figure 5. N₂ adsorption-desorption isotherms of SiO₂-NH₂-Fe, SiO₂-NH₂-Fe, TiO₂-NH₂ and TiO₂-NH₂-Fe.

XPS analysis has been done to analyze the surface of the synthesized additives. The survey spectra (see Figure 6 A) show for both materials the peaks due to the bare supports. In addition, for SiO₂-NH₂-Fe it is possible to appreciate the N1s peak due to the presence of the propylNH₂ functionalization. The presence of Fe is not evidenced in the survey spectra. In order to better analyze the materials, the single regions (Fe2p and N1s) were recorded and the results are shown in Figure 6 B and C respectively. The presence of iron is confirmed by the presence of the characteristic Fe2p doublet in both materials. The low intensity of the peaks and the natural complexity of the Fe2p emission [29] make it difficult to evaluate the oxidation state of iron, anyway, the position and the shape of the profile are consistent with the iron in the +3 oxidation state. The analysis of the N1s region, showing the presence of a peak at 399.8 eV typical of the amino group [25], confirms that the surface of SiO₂-NH₂-Fe has been functionalized. On the contrary, the absence of a visible N1s-related peak in the TiO₂-NH₂-Fe scan indicates that in this sample the functionalization was less effective.

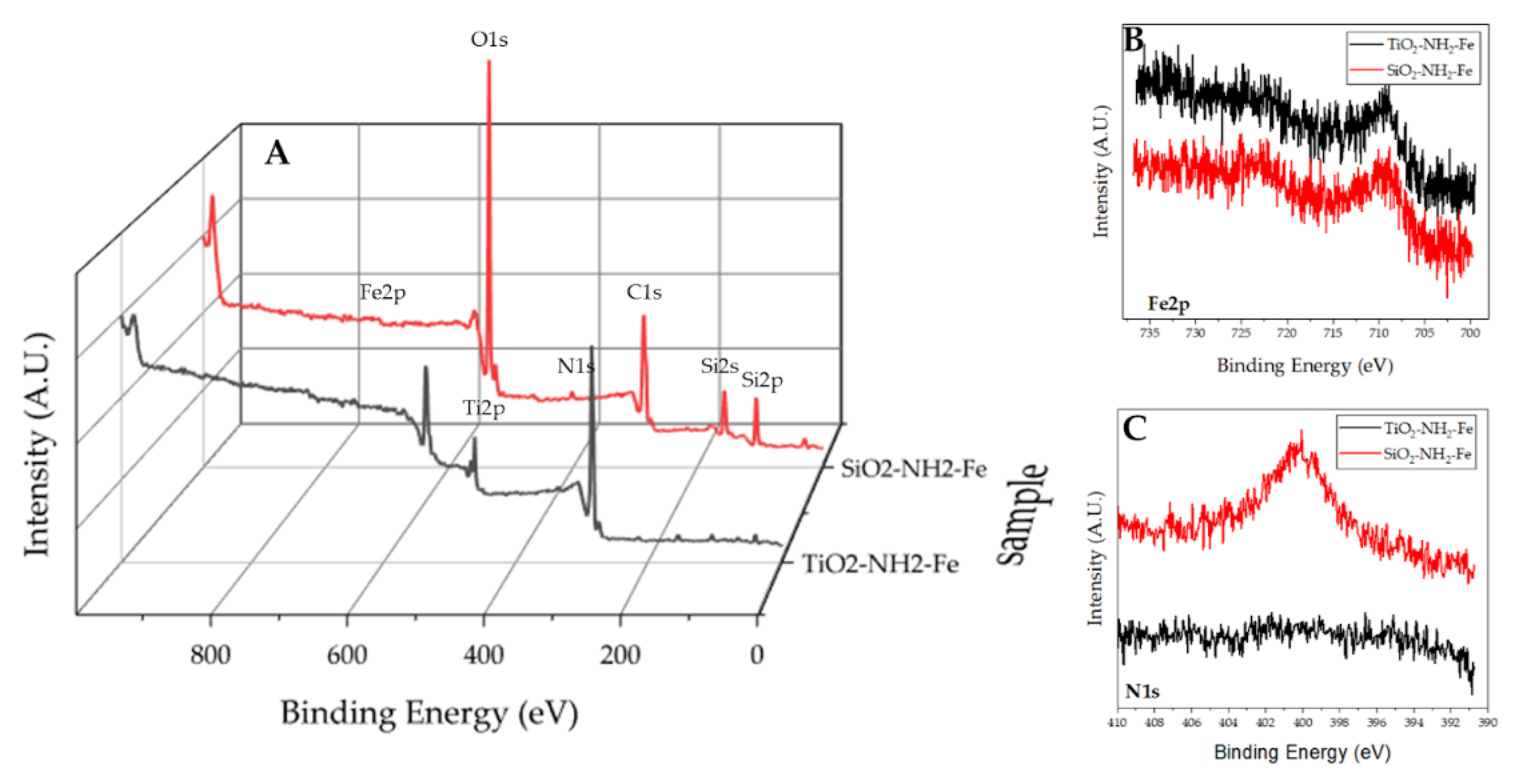

Figure 6. XPS spectra of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe. A survey spectra; B Fe2p region and C N1s region.

Figure 6. XPS spectra of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe. A survey spectra; B Fe2p region and C N1s region.

Regarding the ecotoxicological assays, Microtox tests show that SiO₂-NH₂-Fe and TiO₂-NH₂-Fe samples do not cause significant bioluminescence decay in Vibrio fischeri (Table 3). In the EN12457 protocol, the Microtox^® bioluminescent assay assessed in water typically shows an underestimated sensitivity to highly hydrophobic chemicals. This is primarily because these compounds have extremely low solubility in water and almost irreversible adsorption to a matrix like sediments.

Table 3. Measurement of Microtox^® toxicity on SiO₂-NH₂-Fe and TiO₂-NH₂-Fe materials.

Sample	Concentration (mg L-1)	Matrix	EC50 mg L-1 (15′)	EC50 mg L-1 (30′)
SiO2-NH2-Fe	100	Powder	>100	>100
TiO2-NH2-Fe	100	Powder	>100	>100

Table 3. Measurement of Microtox^® toxicity on SiO₂-NH₂-Fe and TiO₂-NH₂-Fe materials.

Sample	Concentration (mg L-1)	Matrix	EC50 mg L-1 (15′)	EC50 mg L-1 (30′)
SiO2-NH2-Fe	100	Powder	>100	>100
TiO2-NH2-Fe	100	Powder	>100	>100

The growth curves of the bacterial strains were monitored by measuring the optical density (OD) at 600 nm in the presence of two matrices: SiO₂-NH₂-Fe and TiO₂-NH₂-Fe. Measurements were taken over 9 days, with assessments every 3 days.

Strains grown with SiO₂-NH₂-Fe showed similar growth patterns initially, with the Alteromonas sp. strain peaking at day 6 before stabilizing. Pseudoalteromonas sp. also followed this trend by day 9, while Pseudomonas sp. exhibited the highest growth at the end. In contrast, the TiO₂-NH₂-Fe environment yielded higher growth for both Pseudoalteromonas and Pseudomonas strains. Pseudoalteromonas sp. reached values of 0.5 to 0.6 at days 3 and 6, then increased to about 0.9 by day 9. Pseudomonas sp. showed fluctuating growth initially but also increased to approximately 0.9 at day 9. The Alteromonas strain grew from 0.1 at day 0 to 0.6 at day 9.

In summary, bacterial strains demonstrated better growth in the TiO₂-NH₂-Fe suspension compared to SiO₂-NH₂-Fe.

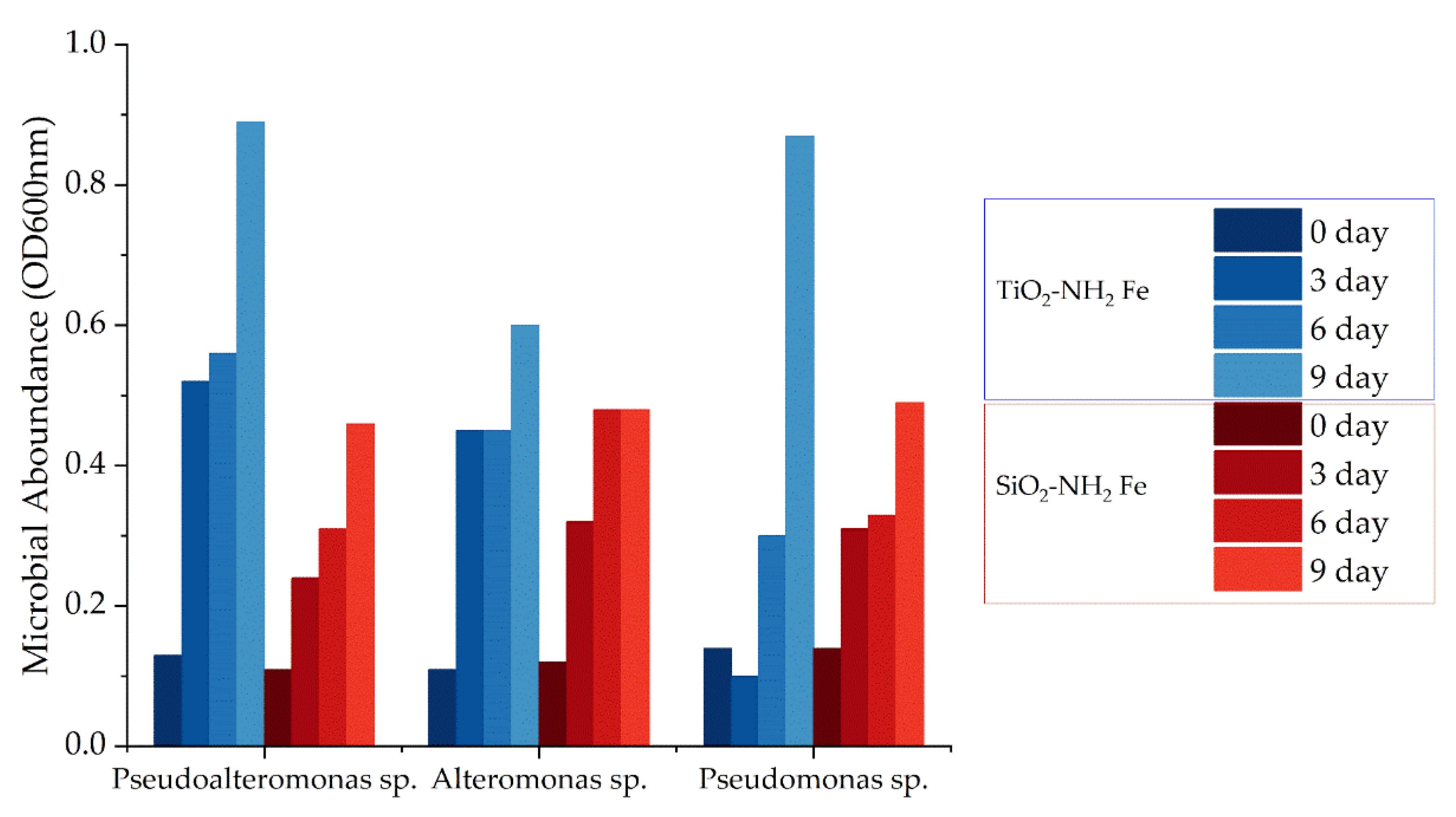

Figure 7. Growth of bacterial strains, measured as optical density (OD_600nm), in the presence of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe.

Figure 7. Growth of bacterial strains, measured as optical density (OD_600nm), in the presence of SiO₂-NH₂-Fe and TiO₂-NH₂-Fe.

Functional additives were mechanically dispersed in a commercial tie-coat to be applied on the surface of metal prototype plates by using a flat brush, according to the description of section 4 materials and methods.

The average thickness value is listed in Table 4. The value of the commercial tie-coat and topcoat was 498 microns and 515 microns, respectively. As expected, the thickness value improved after the addition of the two topcoats (653 microns (Si-Top) and 674 microns (Ti-Top)).

Table 4. Thickness, roughness, wettability, and adhesion power of all coatings.

sample code	Thickness [μm]	Wenzel/ Roughness/Young contact angle			Crosscut Test ASTM D 3359-09e2/ ISO2409:2007
		θw [°]	Ra [μm]	θy [°/μm]	(t=0 days)	(t=30 days)
C-Tie	498±96	93.47 ± 1.62	1.20 ± 0.04	92.89 ± 1.62	5B/0	4B/1
C-Top	515±52	73.04 ± 0.73	5.78 ± 1.47	87.11 ± 0.73	5B/0	2B/3
Si-Top	653±73	91.65 ± 1.58	1.21 ± 0.06	91.36 ± 1.58	5B/0	4B/1
Ti-Top	674±64	96.37 ± 1.75	1.30 ± 0.05	94.90 ± 1.75	4B/1	3B/2

Table 4. Thickness, roughness, wettability, and adhesion power of all coatings.

sample code	Thickness [μm]	Wenzel/ Roughness/Young contact angle			Crosscut Test ASTM D 3359-09e2/ ISO2409:2007
		θw [°]	Ra [μm]	θy [°/μm]	(t=0 days)	(t=30 days)
C-Tie	498±96	93.47 ± 1.62	1.20 ± 0.04	92.89 ± 1.62	5B/0	4B/1
C-Top	515±52	73.04 ± 0.73	5.78 ± 1.47	87.11 ± 0.73	5B/0	2B/3
Si-Top	653±73	91.65 ± 1.58	1.21 ± 0.06	91.36 ± 1.58	5B/0	4B/1
Ti-Top	674±64	96.37 ± 1.75	1.30 ± 0.05	94.90 ± 1.75	4B/1	3B/2

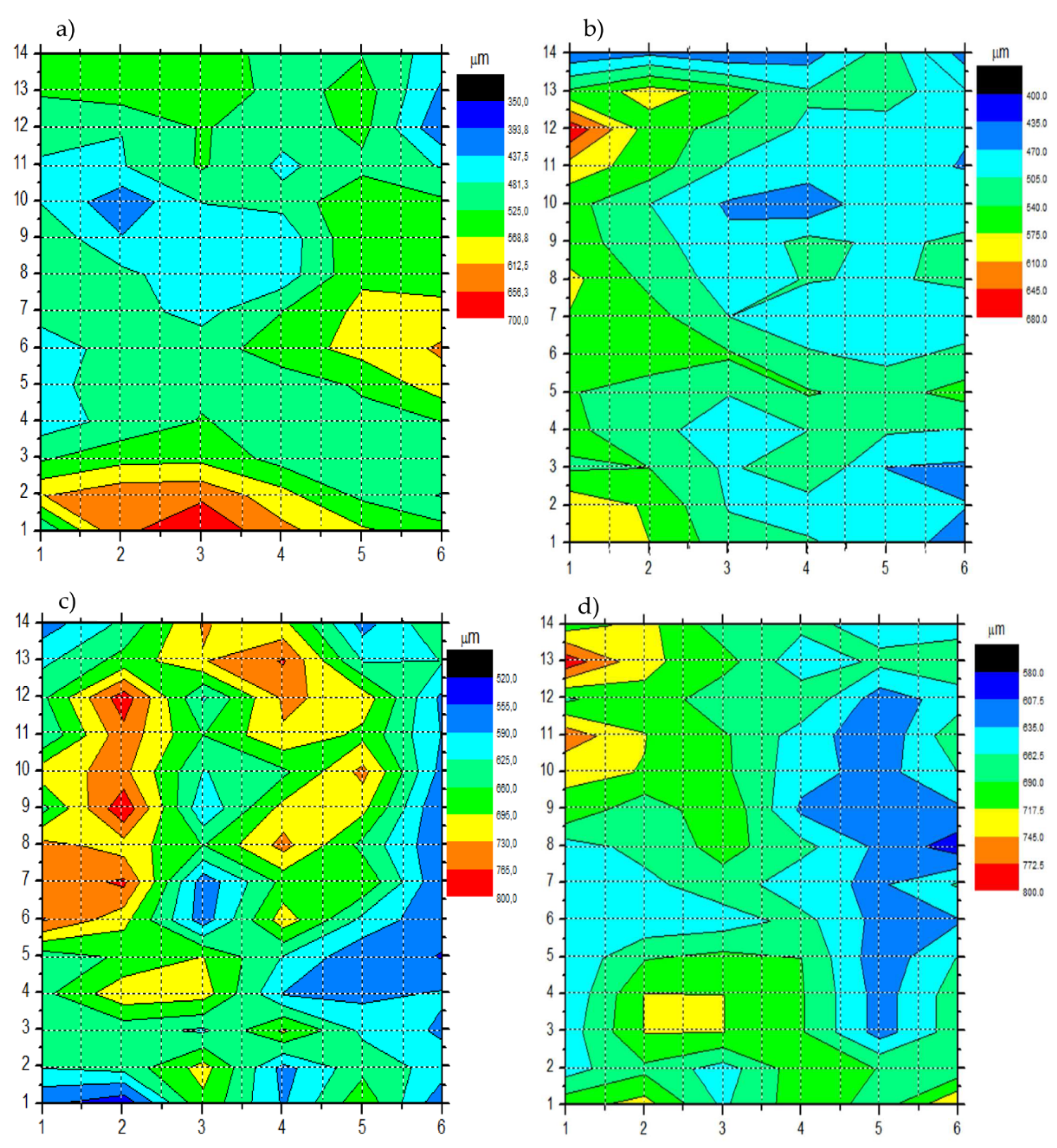

Figure 8 shows the thickness distribution map calculated on the 6 cm x 14 cm surface of the metal plate shown in Figure 8.

Generally, all the maps reveal a thickness distribution that is not always homogeneous. There is a greater inhomogeneity in the Si-Top compared to the other topcoats. This is due to the manual deposition of the coatings.

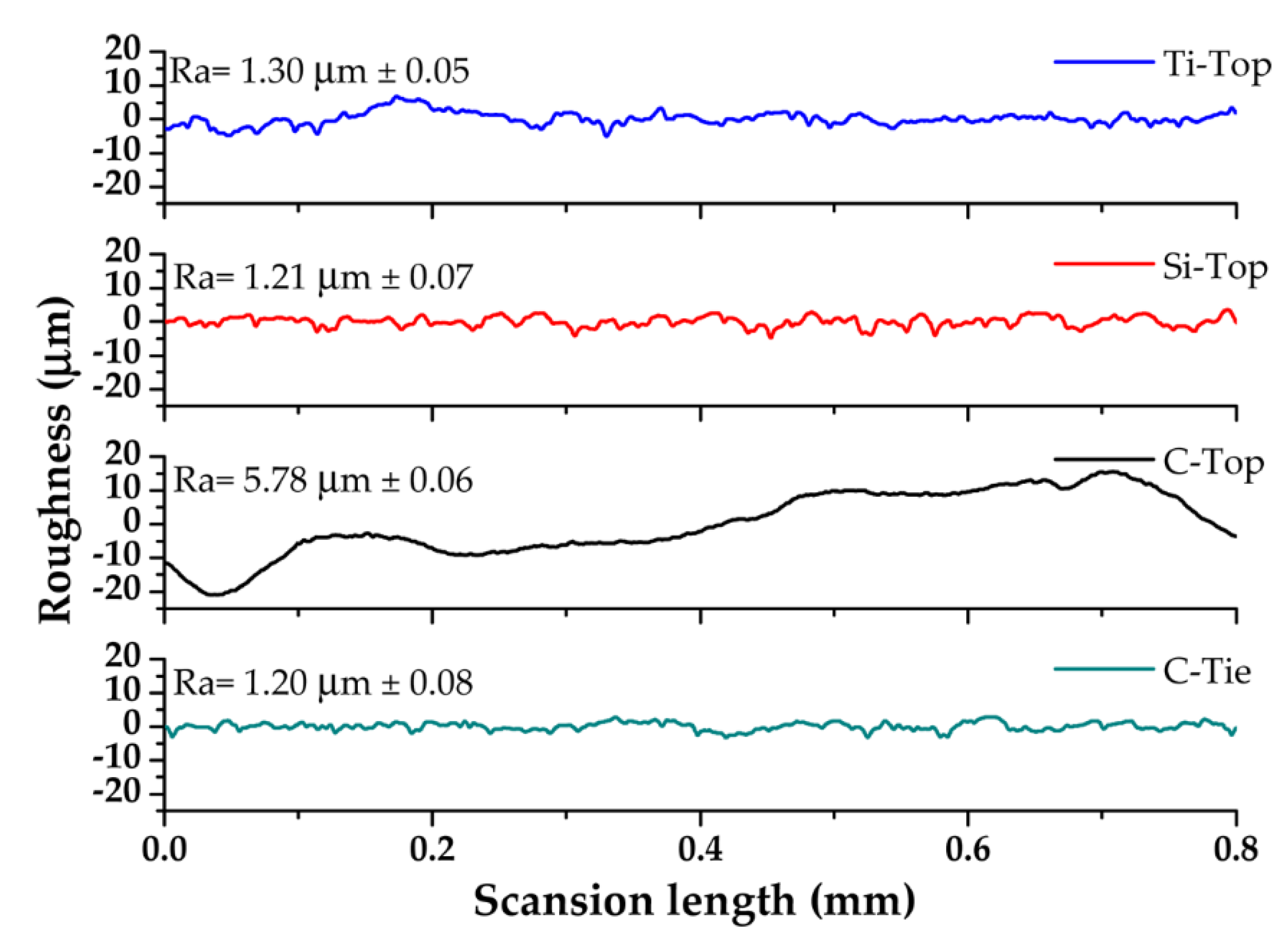

Table 4 summarizes the roughness Ra values of the coatings. Figure 9 shows that the C-Top coating is much rougher (Ra=5.78 μm) than the other substrates.

From the graph below and the values detailed in Table 4 it can be seen how the contact angle θ_w (°) and θ_y (°/μm) of the coatings, except for C-Top that is hydrophilic (θ_w= 73°, θ_y=87°), have hydrophobic characteristics, that is, they have a contact angle greater than 90°.

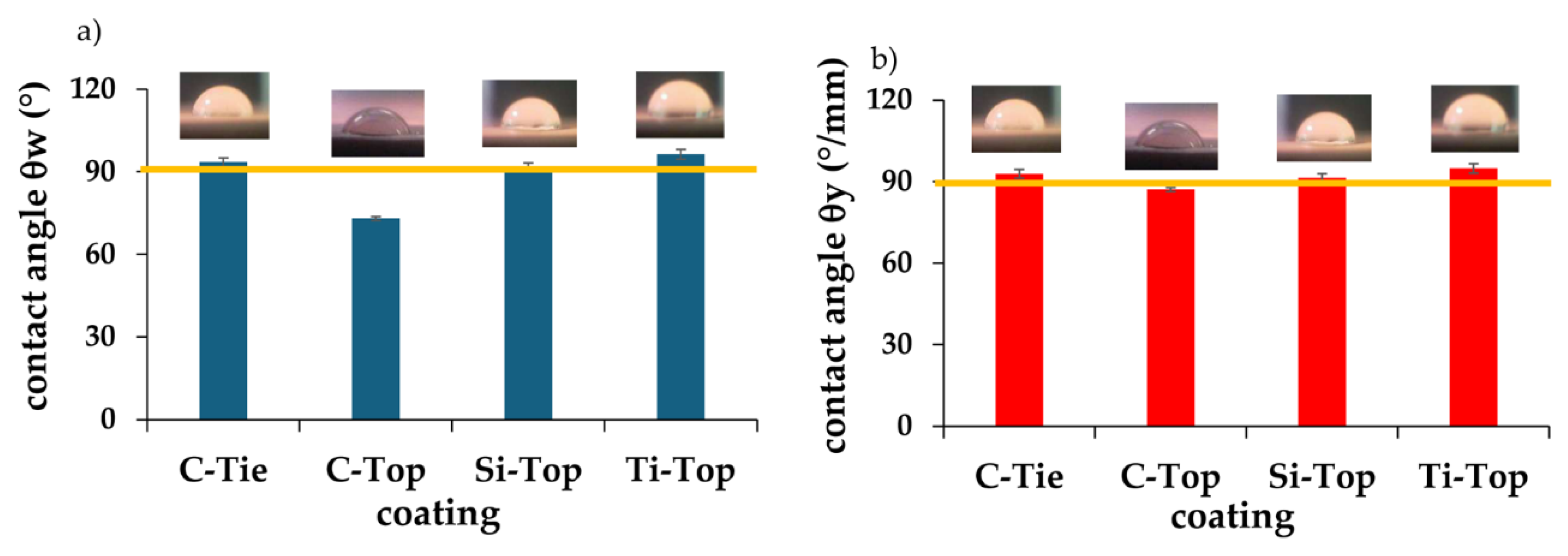

In particular, Ti-Top exhibits the highest contact angle value, resulting in the more hydrophobic coatings among the four investigated (Figure 10).

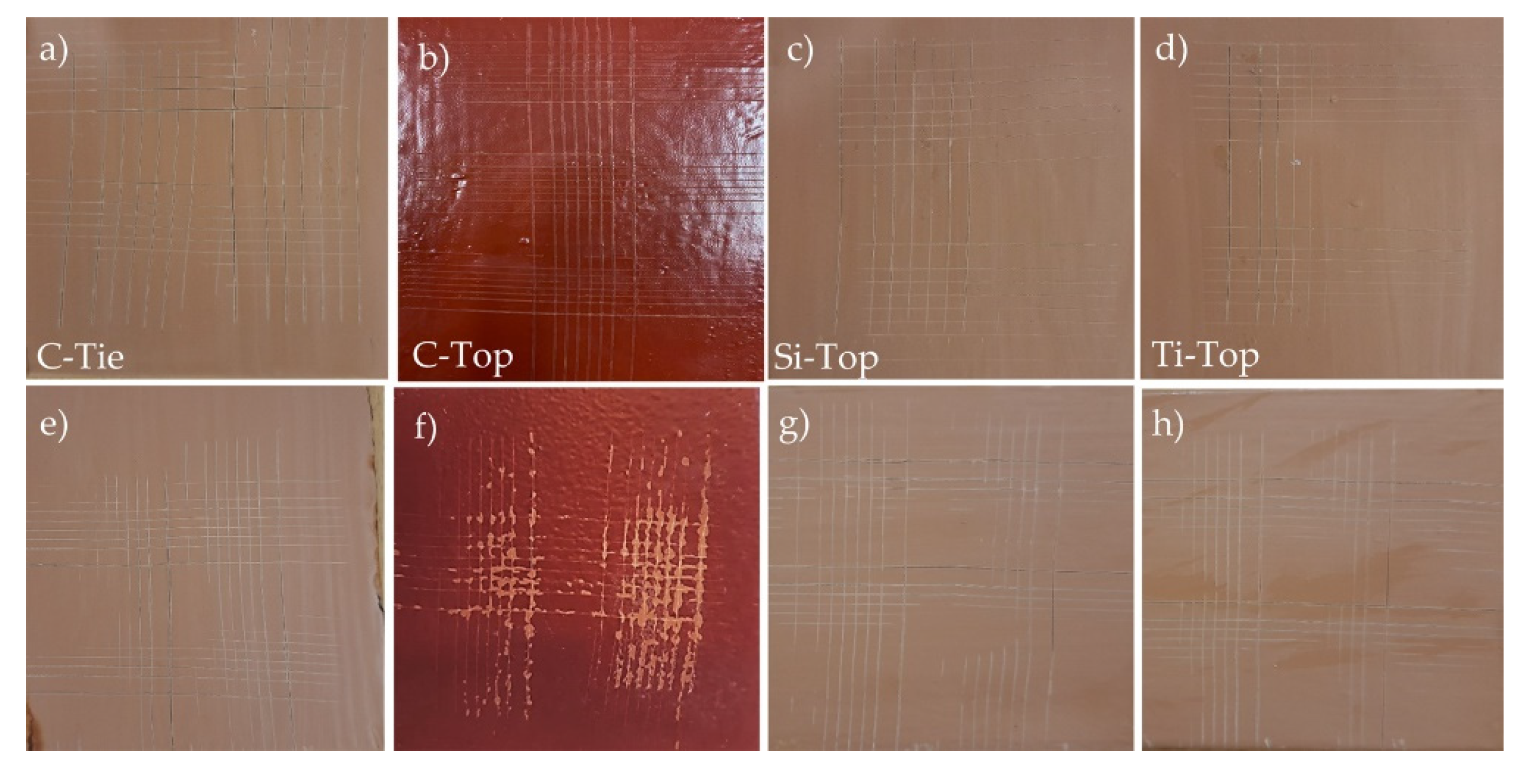

The cross-cut test (refer to Figure 11) showed that three coatings—C-Tie, C-Top, and Si-Top—exhibited the highest adhesion rating of 5B/0, according to the evaluation scale presented in Figure 3, before undergoing the seawater resistance test. In contrast, the Ti-Top coating had a lower adhesion rating of 4B/1.

The high adhesion value (5B/0) of the C-Tie, C-Top, and Si-Top coating agrees with the finding of other Authors that studied similar epoxy-based coatings containing ZnO-APTES, and they proved that the adhesin power was the highest [30,31].

After 30 days of testing in seawater, the adhesive capacity of all coatings decreases. The commercial top-coat demonstrates the lowest resistance among all the coatings analyzed because it drops from the value of 5B/0 to the value of 2B/3 (see Figure 3).

The most resistant coating, Si-Top, decreases from a value of 5B/0 to 4B/1. In comparison, the Ti-Top coating, which is less resistant, drops further from a value of 4B/1 to 3B/2. Therefore, the Si-Top antifouling coating is the best option regarding adhesive capacity and is also less hydrophobic than the Ti-Top coating.

The enhanced performance of Si-Top, along with its increased hydrophilicity, can be attributed to the higher concentration of amino groups in the SiO₂-based nanopowder with respect to the titania supported one. The increased loading of functional groups is associated with the large surface area of the SiO₂ support, which, in turn, results in a higher density of -OH groups, further enhancing the hydrophilic properties.
