Measurement Uncertainty in the Totalisation of Quantity and Energy Measurement in Gas Grids

1. Introduction

The primary purpose of measuring the quantity (i.e., mass or volume) and selected gas properties of energy gases is to enable financial transactions between buyer and seller. In this paper, we will call these measurements “fiscal measurements” and the related processes “fiscal metering”. It typically involves the measurement of the flow rate of gas at specified times, and if the transactions are based on energy, the measurement of the calorific value, or more formally, the enthalpy of combustion of the gas passing the sampling point. There are several standards and guidance documents describing fiscal metering of energy-containing gases, e.g., OIML-R140 [1], EN 1776 [2] and ISO 15112 [3]. The models used in these guidelines are very similar, and so are the requirements that measurement equipment shall be calibrated and that measurement results shall be metrologically traceable.

The models used for calculating the volume or energy delivered generally sum the volume or energy increments over time [3][clause 10]. With regard to the evaluation of measurement uncertainty, usually it is assumed that the quantities of interest (e.g., volume and calorific value) are mutually independent, and essentially normally distributed. Whereas the latter assumption is usually unproblematic, the assumption that the measurement results are mutually independent is only valid under quite peculiar conditions. These conditions include (1) steady-state with respect to flow rate and composition of the gas stream and (2) negligible systematic effects in both the flow meter and the device used for measuring the calorific value (often a gas chromatograph (GC)). Any violation of these conditions will give rise to an increase of the measurement uncertainty.

Steady state conditions with respect to flow rate and composition in gas grids are rare. Due to fluctuations in supply and demand, flow rates differ and the use of different kinds of natural gas give rise to fluctuations in composition. In an era, where gas grids are facing a further diversification of the gas entering into the grid (e.g., biomethane, hydrogen, natural gas import) and the fluctuations also increase, it is obvious that this diversification contributes to an even greater violation of these assumptions. The issue is that the current guidance to some extent acknowledges these issues [3], but the measurement models and the uncertainty calculations do not take the effects of the practical measurement conditions into account.

In the project called “Metrology for the hydrogen supply chain” (Met4H2) [4] in the European Partnership of Metrology programme, one objective is devoted to developing

novel methods for the evaluation of measurement uncertainty along the supply chain, namely with regard to the measurement of quantity, and energy and impurity content of hydrogen and hydrogen blends

The associated work is structured to start with natural gas (for which abundant experience and data are available) through hydrogen-enriched natural gas (blends of hydrogen from renewable sources and natural gas) to grids with hydrogen only.

To fully understand this objective, it is important to reiterate that internationally agreed guidance of the evaluation of measurement uncertainty, the Guide to the expression of Uncertainty in Measurement (GUM) requires the evaluation of any covariances between dependent input quantities [5][clause 5.2]. This evaluation of covariances is perceived by many as difficult, yet it can make the difference between a realistic value for the uncertainty and an unrealistic one [6]. A realistic value for the uncertainty is required for both gas allocation purposes (i.e., the quantity and energy balance in the grid), as well as to demonstrate conformity with regulatory and contractual requirements.

In this paper, an overview of the ideas behind the envisaged model improvements is given. The overview focusses on three aspects, (a) the effects due to the measurement of the relevant parameters (Section 2), (b) temporal effects (Section 3) and (c) the approximation of the total volume, mass, or energy by a summation of increments (Section 4).

2. Volume, Mass and Energy Measurement

2.1. Framework

The basis for computing the total mass, volume and/or energy is given in ISO 15112 [3]. For the total mass and volume, the flow rate as a function of the time is the key input. The evaluation of measurement uncertainty is described in several ISO standards [7,8,9,10]. Such methods for evaluating measurement uncertainty are the fundament for evaluating the measurement uncertainty associated with the total mass or volume of the gas metered.

For the measurement of energy, the calorific value, again measured as a function of time comes into play, supplementary to what was stated previously for measuring the total mass or total volume. The calorific value can be measured directly using a calorimeter or some other inferential device [11], or by measuring the composition by gas chromatography [12,13] followed by a computation of the calorific value using ISO 6976 [14]. The standards ISO 6974 and ISO 6976 provide the methods for evaluating the measurement uncertainty associated with the calorific value.

There are many possible configurations and approaches to the measurement of energy [3], but for the modelling it is sufficient to start with a simple configuration. Such a configuration could consist of one flow meter, one temperature transmitter, a pressure transmitter and a gas chromatograph. Such a configuration suffices to outline the relevant improvements to the uncertainty evaluation. Once the methods for obtaining a credible uncertainty statement have been developed for this instance, these methods can be applied to more complex configurations and used in gas networks, for example for gas allocation.

Evaluating dependencies between input quantities in measurement models [15] is a requirement [5,15] and it can make the difference between a credible uncertainty statement and a serious under- or overrating of the measurement uncertainty. The evaluation of correlations in measurements is, for example for measuring the calorific value through GC well established and covered by the relevant standards [12,13,14].

Relative little attention is being paid in the literature to correlations arising from using the same equipment for obtaining a sequence of measurement results. Most examples on uncertainty evaluation [5,16,17,18,19] and relevant standards [7,8,9,10,12,13,14] deal with a single measurement. As the uncertainty budget of a measurement result contains contributions in common with any following measurement result (e.g., from calibration), such results are always mutually correlated. A method for evaluating such correlations is using the uncertainty budgets of a pair of measurement results [6] which is in turn based on Annex F of JCGM 100 [5]. From the uncertainty budgets, the variables in common can be identified and these contribute to the covariance between the pair of measurement results.

2.2. Mass

The mass of gas delivered over a time period can be obtained by integrating the mass flow rate as a function of time, viz.,

$$m\left(t_j\right)={\int }_{t_0}^{t_j}{Q}_m\left(t\right)\mathrm{d}t,$$

(1)

where $Q\left(t\right)$ denotes the mass flow rate as a function of time and $t_0$ and $t_j$ the end points of the time interval. In practice, this integration is replaced with a summation, i.e.,

$$m\left(t_j\right)=\mathrm{\Delta }t\sum _{i=1}^N{Q}_{m,i},$$

(2)

where N denotes the number of mass flow measurements in the time interval $t_j-t_0$, and it is assumed that the flow rate measurements are made at regular time intervals. Usually, the standard uncertainty of $m\left(t_j\right)$ is obtained using the law of propagation of uncertainty (LPU) for uncorrelated input quantities [5][eqn. (10)]. If the flow rate measurements are dependent, the standard uncertainty of $m\left(t_j\right)$ can be readily obtained using the LPU for correlated input quantities [5][eqn. (13)], or, alternatively, the LPU for multivariate measurement models from JCGM 102 [18]. The formulation of the LPU in the latter document is already in vector-matrix notation, easing the implementation in computer software. The covariances can be obtained readily from the uncertainty budget for any pair $(Q_{m,i},Q_{m,j}),(i\ne j)$.

2.3. Volume

The treatment of volume is very similar to that of mass. The gas delivered over a time period can be obtained by integrating the volume flow rate as a function of time, viz.,

$$V\left(t_j\right)={\int }_{t_0}^{t_j}{Q}_V\left(t\right)\mathrm{d}t,$$

(3)

where $Q_V\left(t\right)$ denotes the volume flow rate as a function of time and $t_0$ and $t_j$ the end points of the time interval. In practice, this integration is replaced with a summation, i.e.,

$$V\left(t_j\right)=\mathrm{\Delta }t\sum _{i=1}^N{Q}_{V,i},$$

(4)

where N denotes the number of volume flow rate measurements in the time interval $t_j-t_0$, and it is assumed that the flow rate measurements are made at regular time intervals. The gas volume, as well as the volume flow rate, are pressure- and temperature dependent. In the calculations for volume, the volume flow rate is converted from actual conditions (pressure p and temperature T during the measurement) to reference conditions [20]. These reference conditions differ between countries, but have in common that they are fixed and without uncertainty. The conditions $p,T$ are measured and hence have uncertainty. The correction factor is given by [3]

$${\displaystyle \frac{Q_{V,0}}{Q_{V,\mathrm{act}}}}={\displaystyle \frac{p{T}_0{Z}_0}{p_{0}TZ}},$$

(5)

where Z denotes the compressibility factor. The pressure, temperature and compressibility factor at reference conditions are denoted by the corresponding symbols adorned with a subscript 0. The compressibility factors in equation (5) are functions of the gas composition [21,22]. Usually, different models are used at actual conditions and reference conditions. At reference conditions, often ISO 6976 [14] is used, whereas at actual conditions equations of state are used like AGA8 [23,24] or the GERG-2008 [22,25]. Instead of calculation from the gas composition, the compressibility factor can also be obtained from a measured density using the real gas law, provided that the molar mass of the gas is known.

Given the circumstance that the total volume needs to be computed at a single pressure and temperature, which are usually taken as the reference conditions [3,20], the propagation of the uncertainty for the total volume is markedly more difficult than for the case of the total mass. On the other hand, applying the LPU to equation (4) is not much different from that to equation (2). Only the evaluation of the covariances between pairs of $(Q_{V,i},Q_{V,j}),(i\ne j)$ is more involved, as the covariance arising from the conversion factors from equation (5) comes into play.

2.4. Energy

The energy of a gas flow is calculated from the basic differential equation [3]

$$e\left(t\right)=H\left(t\right)·Q\left(t\right),$$

(6)

where e denotes an energy increment, H the calorific value and Q the flow rate of the gas. Equation (6) underlines that all quantities are functions of time. When using mass flow, the calorific value in equation (6) is also on a mass basis, and when using volume flow, the calorific value is that of a real gas at volume basis. The reference conditions for the calorific value can be different from those of the flow metering [14]. Hence, the energy over a time interval $[t_0,t_1]$ is obtained by integration [3]

$$E\left(t_j\right)={\int }_{t_0}^{t_j}H\left(t\right)Q\left(t\right)\mathrm{d}t.$$

(7)

From a physical point of view, it is reasonable to expect that $H\left(t\right)$ and $Q\left(t\right)$ are continuous functions. Even if for example a rapid change in the gas grid takes place, it takes some time before this change is palpable in full in the measurement results obtained. In reality, flow meters, GCs make measurements at regular time intervals, so all that can be learnt from the functions $H\left(t\right)$ and $Q\left(t\right)$ are these snapshots.

For the energy determination during 1 $\mathrm{h}$, the following two procedures are provided (see also paragraphs 7.2.2.1 and 7.2.2.2 in ISO 15112):

-

multiplication of the calculated volume under reference conditions with the averaged calculated calorific value of the same hour;

-

in situ energy calculation in the volume-conversion device using the actual measured entities for the calculation of energy based on the calculation of $Q_j$ and $H_j$, followed by summing these single energy quantities over 1 $\mathrm{h}$.

The latter approach approximates the integral in equation (7) by increments over a period of time $\mathsf{\Delta }t$, i.e,

$$E\left(t_j\right)=\mathsf{\Delta }t·\sum _{i=1}^N{H}_i{Q}_i,$$

(8)

where it is assumed that the uncertainty associated with $\mathsf{\Delta }t$ is negligible in relation to the uncertainty associated with the summation of the increments. N denotes the number of increments in the period $t_j-t_0$.

Using the LPU for uncorrelated input quantities [5, eqn. (10)],

$$u^2\left(E\right)={\left(\mathsf{\Delta }t\right)}^2\left[\sum _{i=1}^N{H}_i^2{u}^2\left(Q_i\right)+\sum _{i=1}^N{Q}_i^2{u}^2\left(H_i\right)\right],$$

(9)

where the argument $t_j$ was dropped for brevity. If there only exist correlations among the $Q_i$ and the $H_i$ separately (so, the covariance between any pair of $(Q_i,H_j)$ would be zero), then the standard uncertainty associated with the energy can be obtained from

$$\begin{array}{c}{u}^2\left(E\right)={\left(\mathsf{\Delta }t\right)}^2\left[\sum _{i=1}^N{H}_i^2{u}^2\left(Q_i\right)+2\sum _{i=1}^{N-1}\sum _{j=i+1}^N{H}_i{H}_{j}u(Q_i,Q_j)\right.\hfill \\ \hfill \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\left.+\sum _{i=1}^N{Q}_i^2{u}^2\left(H_i\right)+2\sum _{i=1}^{N-1}\sum _{j=i+1}^N{Q}_i{Q}_{j}u(H_i,H_j)\right].\end{array}$$

(10)

At first glance, one might think that equation (10) addresses all correlations. When realising that the volume flow rate was converted from actual to reference conditions [20], it becomes apparent that the $Q_i$ in equation (10) are correlated through the ratio of the compressibility factors $Z_{\mathrm{act}}$ (actual conditions) and $Z_{\mathrm{ref}}$ (reference conditions) dependent on the results of the GC analysis, as is the calorific value [14]. So, the correlation coefficient between $Q_i$ and $H_i$ would then be non-zero.

3. Temporal Effects

The discussion of the measurement uncertainty so far addressed the uncertainty due to the measurement of flow rates and the calorific value. So, the uncertainty evaluated using equation (10) only addresses (in part) the measurement. Under steady-state conditions, the uncertainty evaluation presented in Section 2 may provide a reasonable value for the uncertainty.

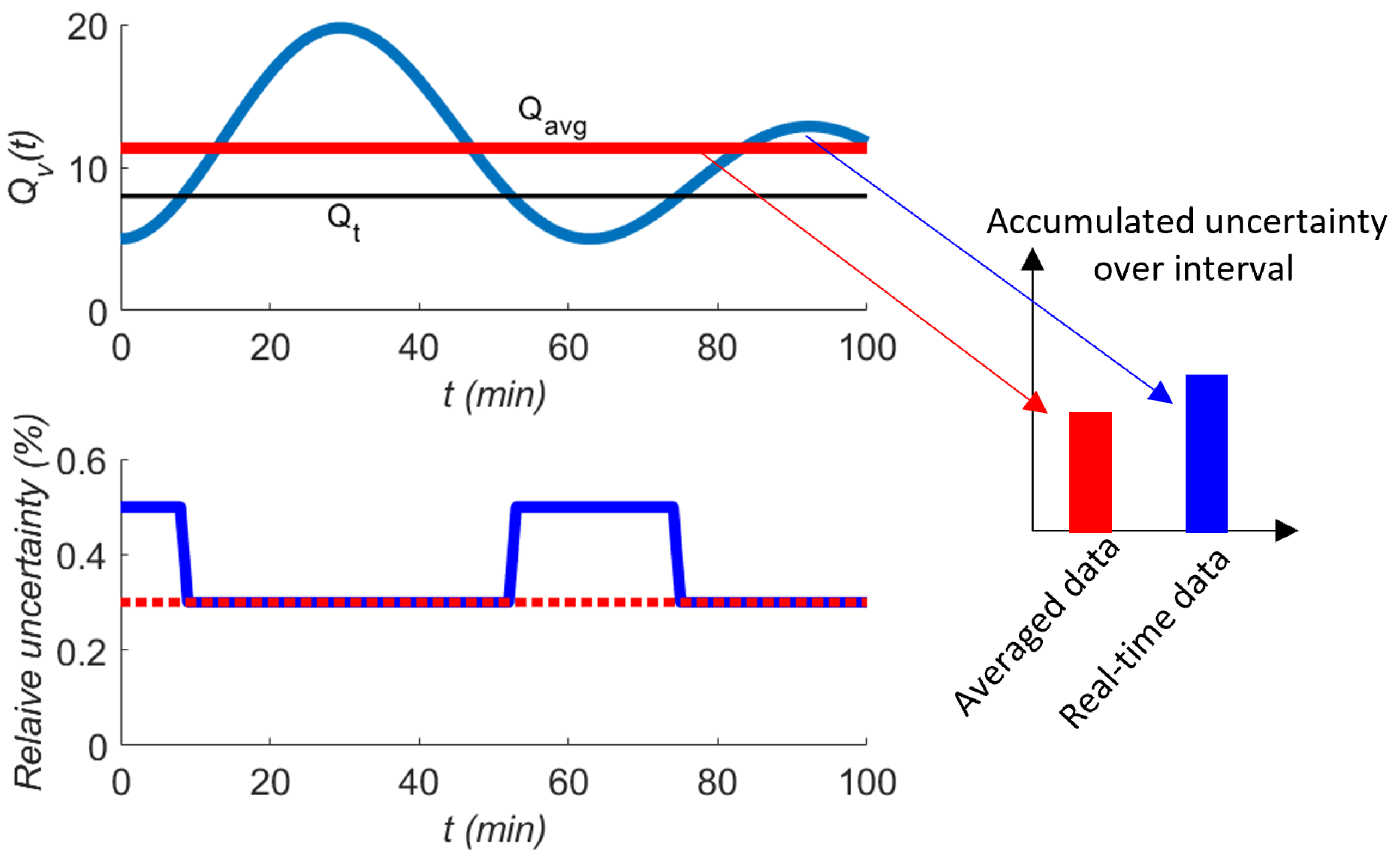

In practice, gas grids are used to support suppliers and users of gas, and notwithstanding that supply and demand are balanced, variations in measured flow rates and calorific values occur. In distribution grids for example, it can be expected that the demand is subject to a day-and-night rhythm, which might look like a sinusoidal signal. This variability should somehow be taken into account, as it affects the mean [15][clause 11.7] of, say, the flow rate, and by implication thus the total calculated as the sum of the increments (see Figure 1). The example given in JCGM GUM-6 shows a sinusoidal effect on the temperature of a water bath and the difference in uncertainty using a proper time-series model [26] and a naive type A evaluation assuming mutual independence of the observations [5][clause 4.2]. Periodical effects do not only occur in gas networks, but for example also in water networks [27][example E4.1].

Intuitively, one would expect that the obtained measurement results for flow rates and calorific values become more uncertain with increasing dynamics in fluid flow and diversity of energy gases transmitted or distributed. Also, the magnitude of $\mathsf{\Delta }t$ plays a role here. In a gas grid with dynamics, one would expect that the uncertainty of a calorific value taken as representative for a day to be more uncertain than one taken each 5 min.

Time series models can be fitted using frequentist [26] and Bayesian methods [28,29]. An important aspect in this description of the data is to find an acceptable model for the features in the data. The use of time series analysis may need data driven modelling to be useful. Deliberations such a model choice play then also a role here in the uncertainty evaluation [15][clause 11.7] as well as model uncertainty [15].[clause 11.10]

4. Totalisation

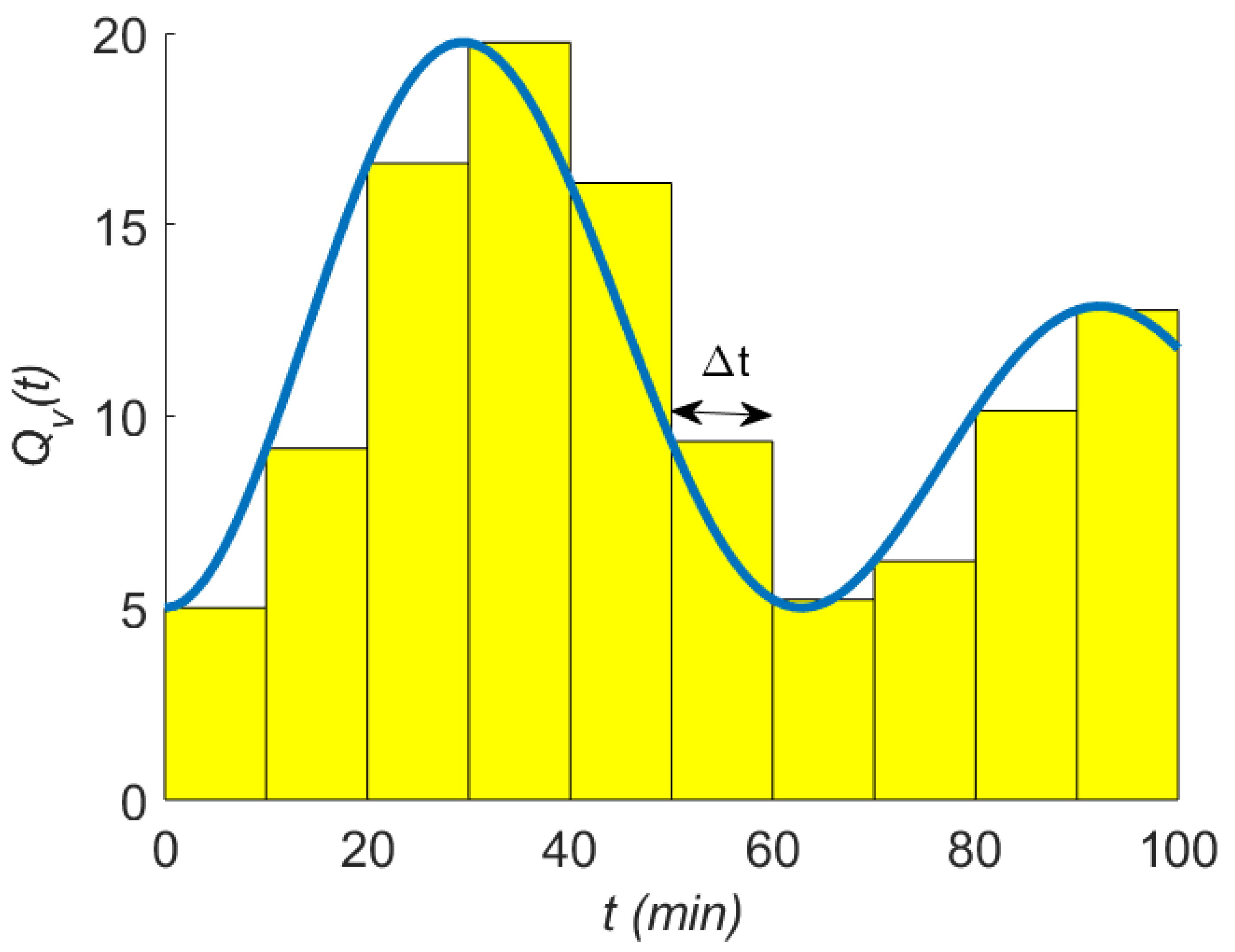

Finally, the question arises to what extent the summations in equations (2), (4) and (8) approximate the integrals in equations (1), (3) and (7). The issue is visualised in Figure 2. The coloured area is the calculated total and the area under the blue curve is the “true” total. In this example, the measurements are taken at time intervals of 10 min. With the same principle, the approximation would be better if the measurements had been taken with a higher frequency, say, every 1 min.

Apart from the time resolution of the measurements, also the dynamics in the grid come into play in this uncertainty component. A measurement result becomes less representative for a time interval if in this interval there are substantial changes in the quantity measured. A practical difficulty can be that one has little clue of such changes (there are no measurements), yet, using the principle of the type B evaluation of measurement uncertainty [5][clause 4.3], it should be possible to elicit a probability density function (PDF) based on the knowledge at hand. In a gas grid, there are more metering points, and also previous experience can under some circumstances be applied to evaluate the measurement uncertainty arising due to changes in the grid.

For various approaches of numerical integration [30,31], the error due to approximation of an integral by a summation is discussed. A practical issue with using these deliberations is that the solid curve in Figure 2 is not known, so it is not possible to use such approaches to guess the error due to totalisation. Faster, even approximate measurements of the same or related quantities might help in evaluating this uncertainty component.

5. Discussion and Outlook

In this paper, several shortcomings in the current uncertainty evaluation of the total mass, volume and energy in gas grids are presented. Current models and standards assume that the measurement data are independent. Based on simple deliberations, it is shown that this assumption cannot be right. Whereas the uncertainty contributions due to temporal effects and approximating the integral by a summation can be small under steady-state conditions, these uncertainty contributions can be substantial with a greater diversity of gases (e.g., biomethane, hydrogen, natural gas of different origins) in gas grids and with larger fluctuations in supply and demand.

Whereas efforts are made to balance the grid to ensure supply of gas of adequate quality, such efforts cannot make up entirely for the dynamics in the gas grids. In the ongoing transition from fossil natural gas to renewable gases, practices for fiscal metering need urgently to be improved to ensure that these grids can be operated safely and efficiently.

The third shortcoming, the correlation effects between measurement results coming from a single, calibrated instrument are relatively straightforward to capture with the framework of the Guide to the expression of Uncertainty in Measurement. Considering the large volumes of data, the use of vector-matrix algebra as described in JCGM 102 [18] is commended to obtain compact computer code. This approach has as additional advantage that measurement models can be broken up in parts more freely, as the law of propagation of uncertainty for multivariate measurement models provides by default a full covariance matrix, so that all covariances can be readily propagated from one stage of the measurement model to the next. With the legacy GUM [5], this is much more difficult, as it presumes that a measurement model can be broken up in expressions with mutually uncorrelated input quantities.
