Three-Dimensional Ultrasound, Physical and Virtual Fetal Heart Models: Current Status and Future Perspectives

1. Introduction

Congenital heart defects (CHD) are the most frequent congenital malformations with an incidence of approximately 6-12:1000 live births [1,2,3,4]. Concerning mortality due to congenital defects, it is important to bear in mind that this is one of the main causes of perinatal mortality [5]. However, the rate of prenatal diagnosis of CHD remains low. It is known that more than 25% of CHD are classified as critical, which means that these cardiac defects will require immediate care in the postpartum period by pediatric cardiology teams and surgery or a neonatal cardiac surgical procedure [6]. Therefore, early and accurate diagnosis of CHD is essential for proper prenatal and birth follow-up in a tertiary service.

The gold standard method for diagnosing CHD is fetal echocardiography [7]. This examination is carried out in few centers due to the need for trained professionals and high-tech equipment. Furthermore, since only 10% of CHD come from high-risk groups, being crucial the screening during second trimester ultrasound scan. Currently, with the addition of the ventricular outflow tracts and the superior mediastinum (three-vessels and three vessels and trachea) views to the four-chamber view, has improved the accuracy of screening for CHD by almost 90% [7,8]. Despite the potential benefits of echocardiography in diagnosing CHD, the requirement for a qualified professional and high-tech equipment currently precludes its routine implementation in clinical practice. Accordingly, the majority of international guidelines advocate the referral of pregnant women for fetal echocardiography, contingent upon the risk profile of the population in light of the available evidence [9].

The advent of three-dimensional (3D) ultrasound in the early 1990s, and in particular, the four-dimensional (4D) spatio-temporal image correlation (STIC) software in the early 2000s, marked a significant turning point in the field of fetal imaging. This has enabled significant technological advancement in fetal heart assessment, particularly in the identification of atrioventricular and semilunar valve regions, as well as the delineation of interatrial and interventricular septum areas and volumes, cardiac chambers, and ventricular walls [10,11,12,13,14]. The advantages of STIC in fetal cardiac assessment include a reduced dependence on the operator's experience in obtaining diagnostic plans, a shorter examination time with the analysis of volumes conducted in the absence of the patient, and the capacity to transmit volumes for analysis to reference centers in fetal cardiology via an internet link [15]. It is possible to "navigate" within the cardiac structures by moving from one plane to another, thus enabling the cardiac anatomy to be detailed and diagnoses regarding cardiac malformations to be clarified [16,17,18].

In the early 2010s, the advent of 3D reconstruction software, coupled with the advent of high-definition printers, enabled the virtual and physical reconstruction of fetuses, as well as virtual navigation of fetal cavities using 3D ultrasound and magnetic resonance imaging (MRI) data. This has facilitated realistic visualizations of structures such as the upper airways in cases of cervical tumors, the urinary tract in cases of lower obstructions, and central nervous system malformations [19,20,21]. Furthermore, the use of physical 3D models has facilitated enhanced maternal-fetal interaction in cases of blind pregnancies, as well as more comprehensive parental understanding of fetal pathologies and interactive discussion by multidisciplinary medical teams [22,23]. With regard to the fetal heart, due to its specific aspect of movement, magnetic resonance imaging (MRI) data acquisition is still of low resolution, and 3D ultrasound using STIC software is still the preferred method.

The 3D physical model realistically reconstructs the 3D ultrasound image, providing a better understanding of fetal heart disease for parents [24,25]. Most CHD require immediate care in the postpartum period by a team of specialists, so that an early and accurate diagnosis permits the formulation of an appropriate birth plan and, in cases of critical heart disease, facilitates the referral of the pregnant woman to a center with specialized cardiac team resources for prenatal care and scheduled delivery. This approach has the potential to reduce morbidity and mortality. The utilization of physical and virtual 3D reconstructions facilitates comprehensive visualization of cardiac anatomy and morphology, facilitating interactive discourse between the multidisciplinary team (obstetricians, neonatologists, pediatric cardiologists, cardiac surgeons, specialist nurses) and enhanced comprehension of the anomaly by the parents [26,27,28].

Despite an increase in the number of ultrasound view included in the screening process for CHD, the prenatal diagnosis of cardiac malformations remains inadequate. This is due to the limited access to high-quality ultrasound images and the interpretation of images obtained by non-specialists, particularly in cases of high complexity. The recent developments in fetal heart imaging technologies and artificial intelligence (AI) have the potential to enhance the prenatal detection of CHD [29,30]. This review article will provide an overview of several of these imaging technologies.

2. Three-Dimensional Ultrasound and Saptiotemporal Image Correlation

The advent of fetal echocardiography approximately forty years ago has facilitated the study of embryonic development, morphology, biometry and fetal heart function. Since 2003, the 4D ultrasound with spatial-temporal image correlation (STIC) has enabled detailed digital assessment of the fetal heart. The STIC technology, initially described by De Vore et al. [10], enables the acquisition of cardiac volumes using a volumetric transducer over a single scan period of 7.5 to 15 seconds, with the acquisition of 150 images per second. The reconstruction of these images in 3D, correlated to time (STIC), allows the image of the fetal heart in motion to be presented with high definition (cinellop). This technology allows navigation through the valves, cavities, and vessels of the fetal heart, thereby facilitating the anatomical and functional detailed examination of the fetal heart [10,31]. Although the methodology is already familiar to practitioners, it is important to reiterate that in order to obtain high-quality cardiac volumes from the images used for the study of the fetal heart with STIC, it is recommended that the fetal spine be positioned at 6 o'clock (posterior dorsum) with an opening angle between 20^o and 40^o [32]. Therefore, unfavorable fetal statics, such as an anterior fetal dorsum and fetal movement during examination, can limit the accuracy of the image and pose a challenge to this technology, in a similar manner to two-dimensional (2D) ultrasound [33].

Furthermore, the assessment of cardiac volumes by STIC may be conducted with or without the patient (offline), as well as via the internet to tertiary centers (tele-STIC). Consequently, this technology has the potential to maximize cardiac screening by enabling remote access to fetal heart experts, thereby reducing costs and shortening distances. Fetal telemedicine has shown that it can improve prenatal parental counseling and cardiac screening by tele-medicine assisted or via a telemedicine link [34,35].

In this scenario, it is essential to highlight that 3D/4D spectral tissue imaging by reproducing a complete cardiac cycle allows the examiner in multiplanar and rendering modes to select the optimal image quality and observe detailed morphological and functional aspects of the fetal heart [36,37]. Additionally, the examiner has the option of transmitting the selected images to the experts via the Internet and being viable for obstetric ultrasound cardiac screening programs even by assisted ultrasound scanning of fetal heart [34,35,38,39].

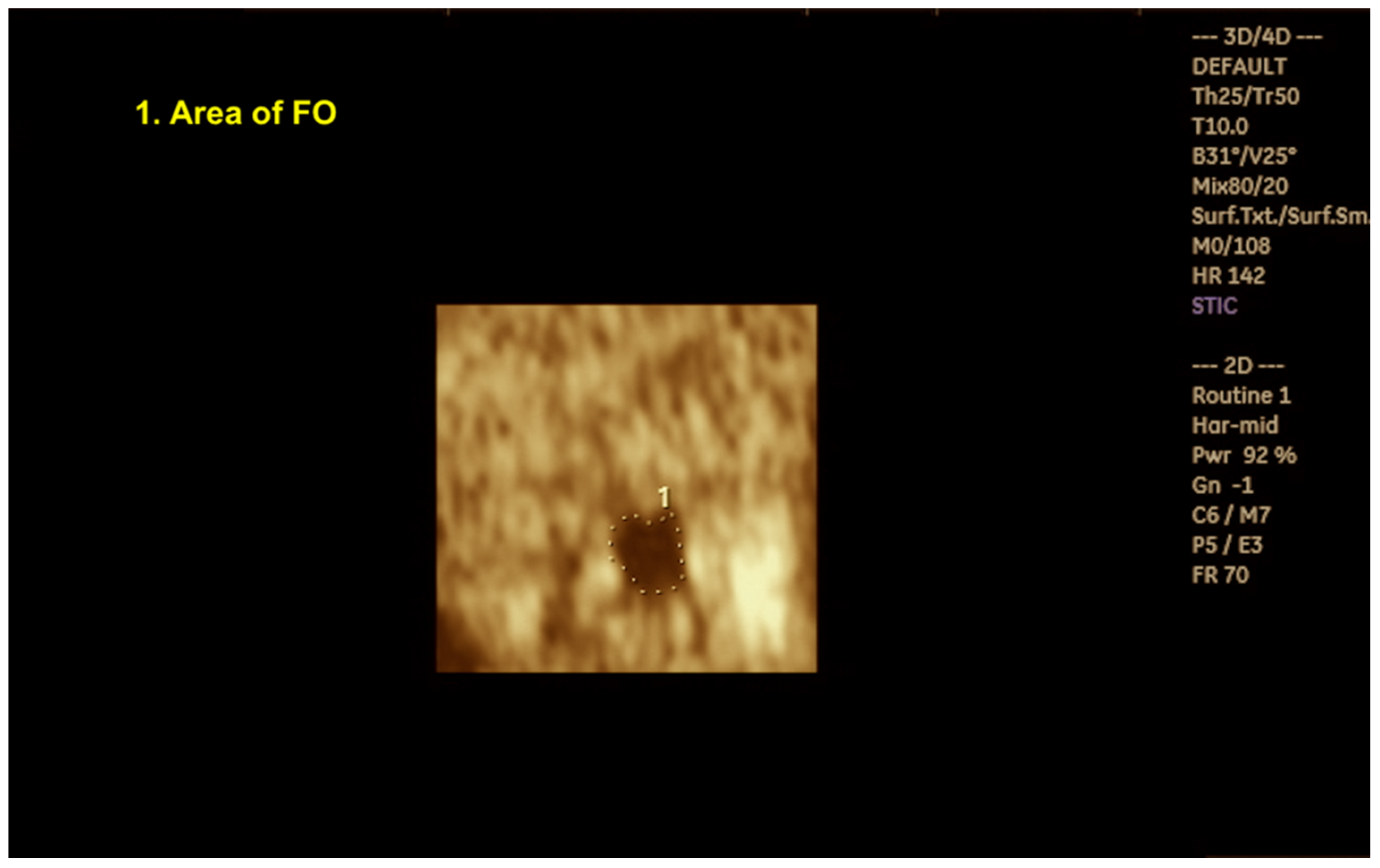

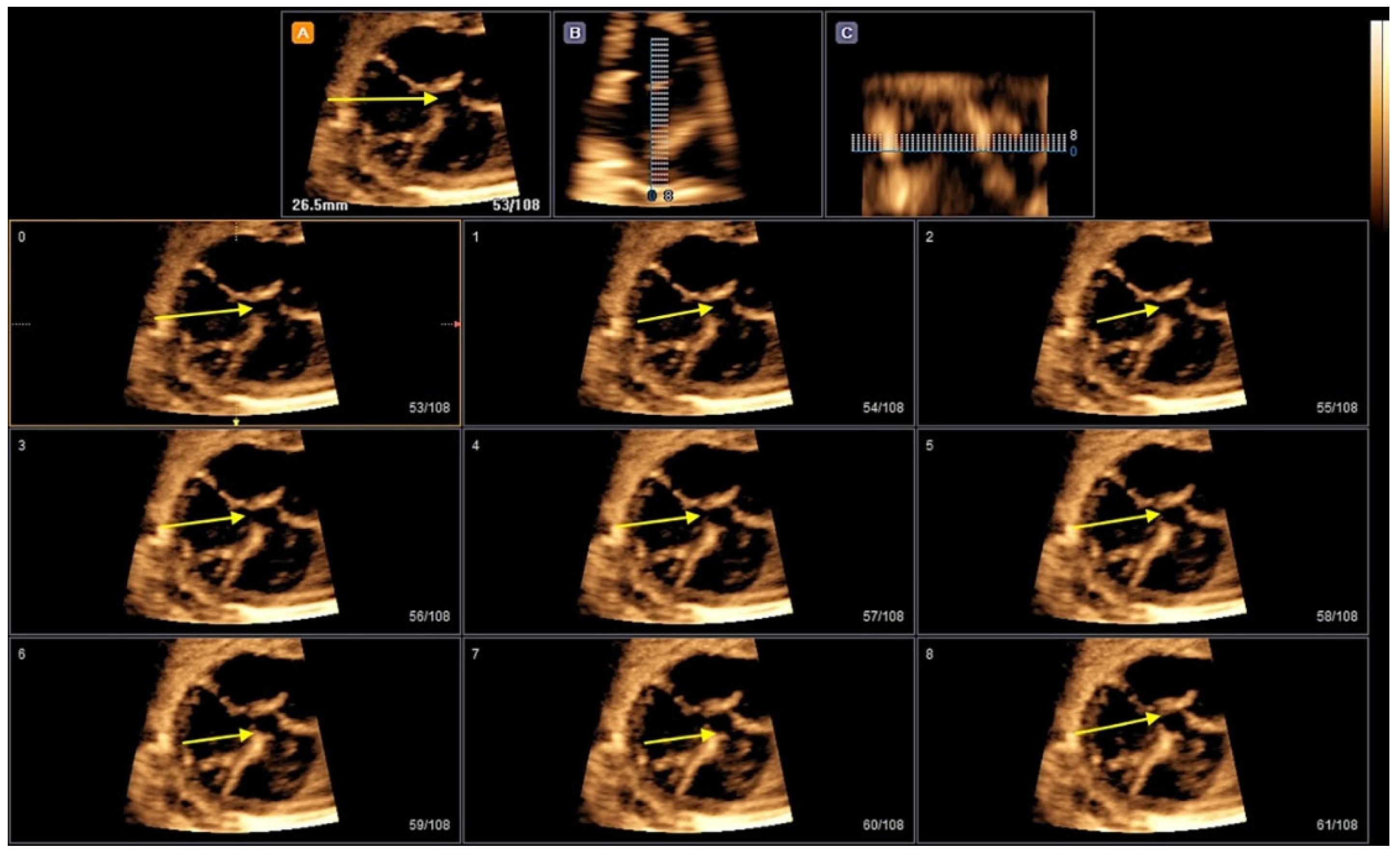

By adjusting the brightness and color, STIC in rendering mode facilitates enhanced image clarity, thus enabling diagnoses of structural CHD, the measurement of area and volume of various fetal heart structures, including the interventricular septum, valves, and papillary muscles (Figure 1), and the assessment of cardiac function in fetuses at risk of heart failure (Figure 2) [14,40,41]. STIC technology is capable of reconstructing moving images and displaying them in a variety of modes, including STIC-M, inversion mode, Doppler (color Doppler/HDlive flow), B-flow, tomographic ultrasound imaging (TUI), HDlive Silhouette mode (Figure 3, Figure 4, Figure 5 and Figure 6) [42,43,44,45].

Advanced technologies have the potential to elucidate complex CHD such as anomalous venous return, vascular rings, heterotaxy syndromes, and conotruncal anomalies. These imaging techniques can provide a more realistic appearance of the cardiac structures, which is an invaluable asset in the diagnosis and management of these conditions [46,47,48,49]. An accurate fetal cardiac diagnosis will have a significant impact on a number of medical areas, including decision-making and/or cardiac surgical procedures in utero or postnatally, improved birth planning, parental counseling, and, in countries where it is permitted by law, the decision to terminate pregnancies in a safer and less traumatic manner [9,33].

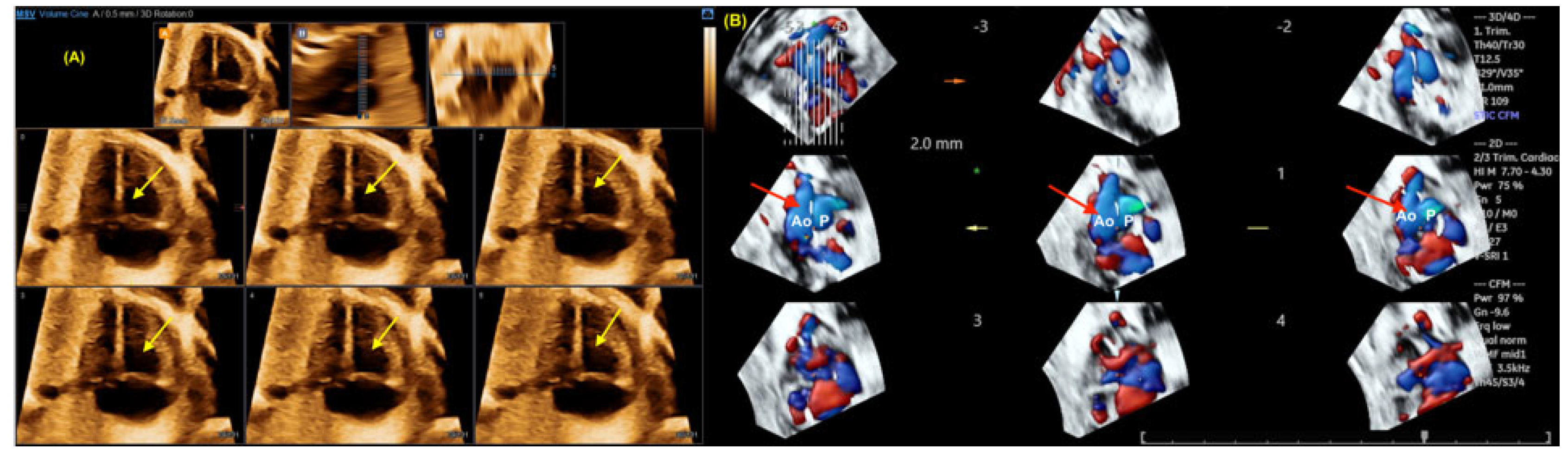

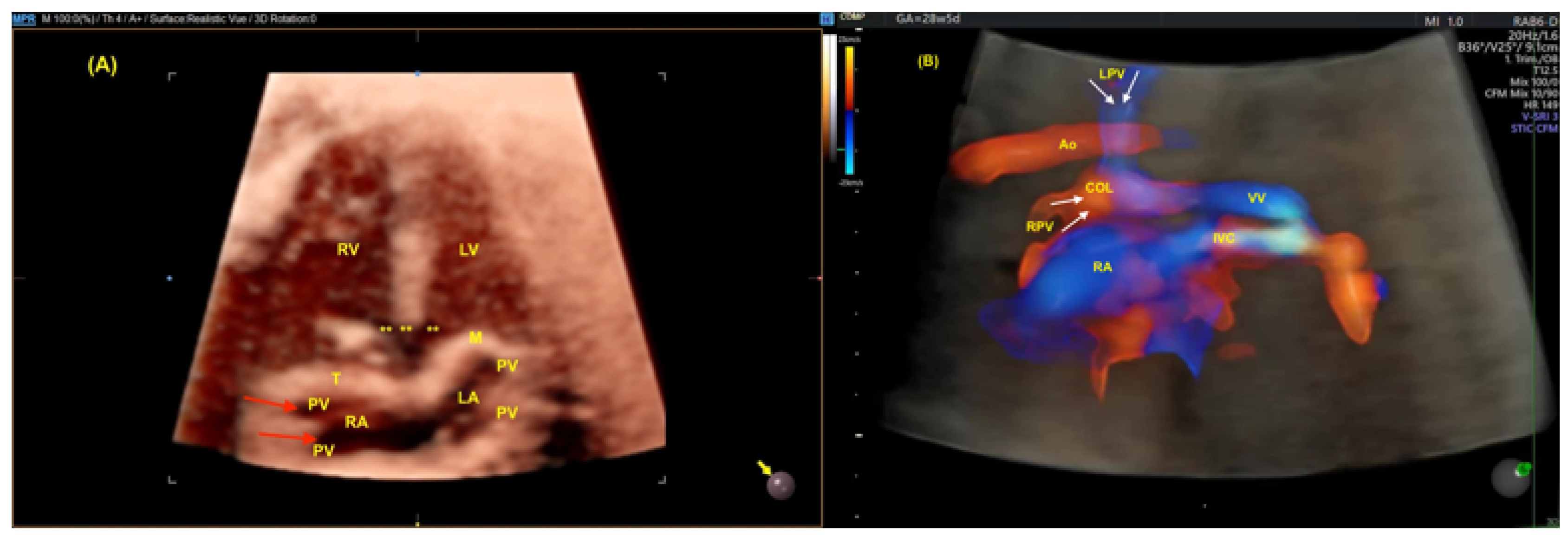

Anomalous pulmonary venous return, in either its total or partial forms (Figure 7), is frequently misdiagnosed during the prenatal period. In this scenario, advanced fetal cardiovascular imaging technologies are useful tools for providing high-quality images with greater definition of the venous vessel walls and, consequently, of the drainage site as well as points of obstruction. Underdiagnosis of total anomalous pulmonary venous return (TAPVR) affects postnatal outcome, especially in obstructive forms (critical TAPVR), in which planned delivery and perinatal management are crucial to providing a better outcome [47,50,51]. Similarly, some umbilical vein anomalies (such as the agenesis of the ductus venosus and the persistence of the right umbilical vein) as well as systemic venous return anomalies (such as the agenesis of the portal vein and the interruption of the inferior vena cava) can be more accurately identified by 3D high-definition Doppler ultrasound. One of the most frequently encountered anomalies of the inferior vena cava (IVC) is the interruption of its intrahepatic segment at the suprarenal level. In such cases, the IVC flow typically returns to the right atrium via the azygos vein (or hemiazygos vein), which is associated with left heterotaxy or left atrial isomerism (also known as two morphologically left atria) (Figure 8) [46,52].

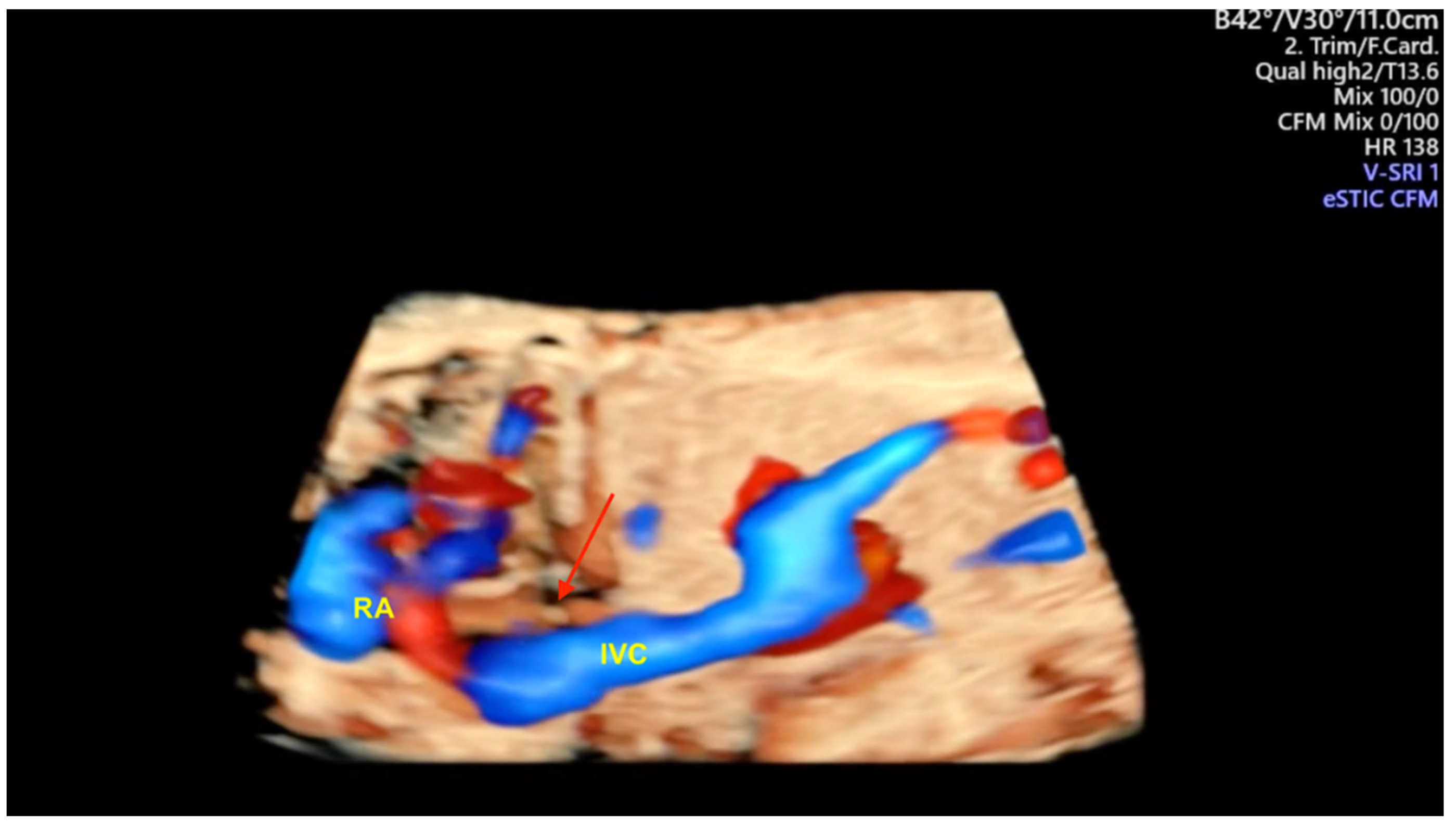

In general, persistence of the right umbilical vein (PRUV) is a benign anatomic variant, however, it could be associated with cardiac and extra cardiac anomalies (trisomy 18, monosomy X, genitourinary and central nervous system anomalies, septal and conotruncal anomalies) [53,54]. Extra-hepatic forms of PRUV are associated with agenesis of ductus venosus (ADV) and a poor prognosis [55]. In Indeed, ADV is associated with cardiac and extracardiac malformations, requiring a rigorous examination of the fetal anatomy and comprehensive testing for chromosomal anomalies, including trisomies 13, 21, 18, and monosomy X. The extrahepatic form of ADV is associated with a poorer prognosis and an elevated risk of hydrops [56,57]. In this scenario, the use of 3D color Doppler is beneficial for illustrating the spatial course of the vessels and the absence of flow through the DV (Figure 9). This can assist in predicting prognosis, identifying associated malformations, and providing parental guidance.

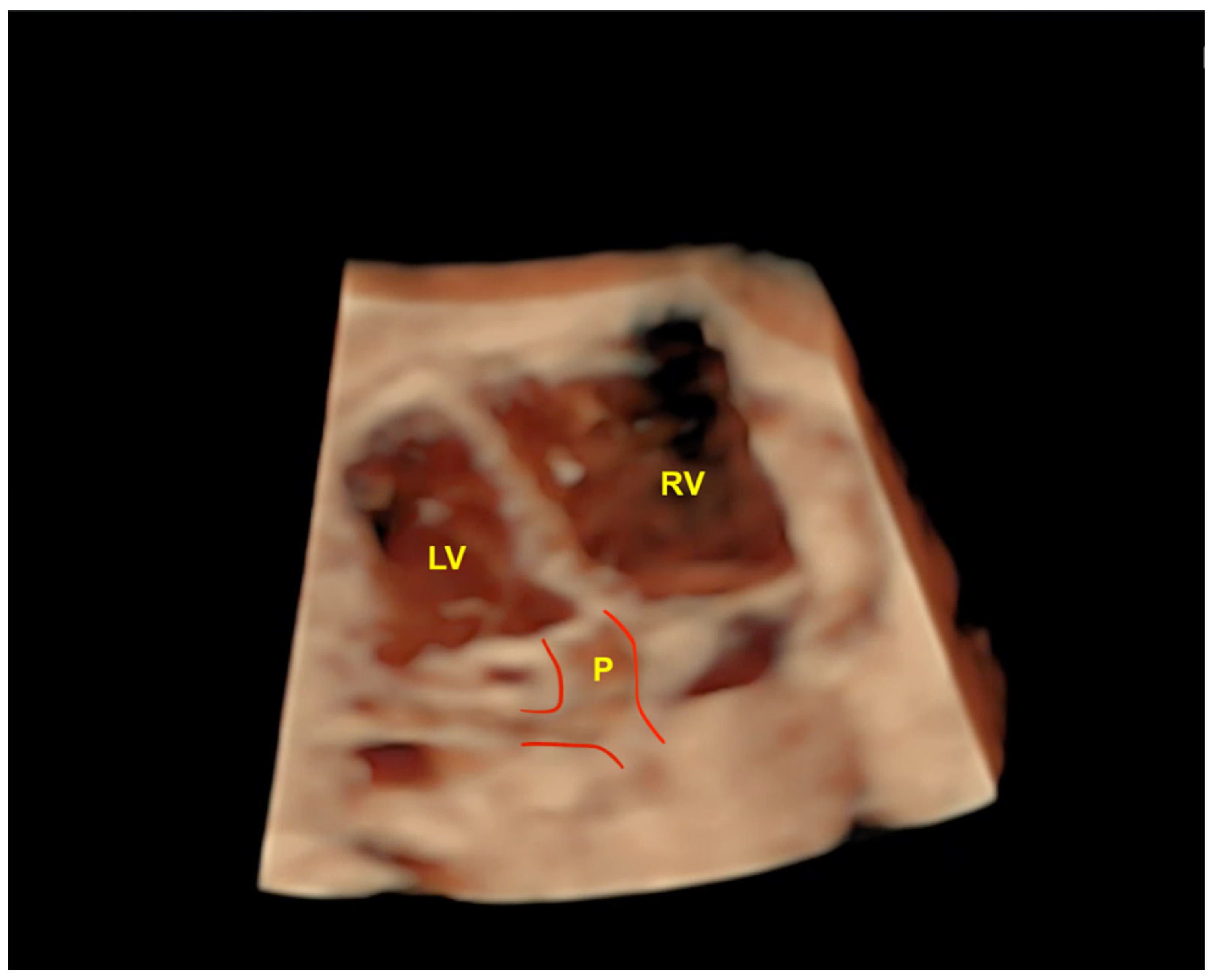

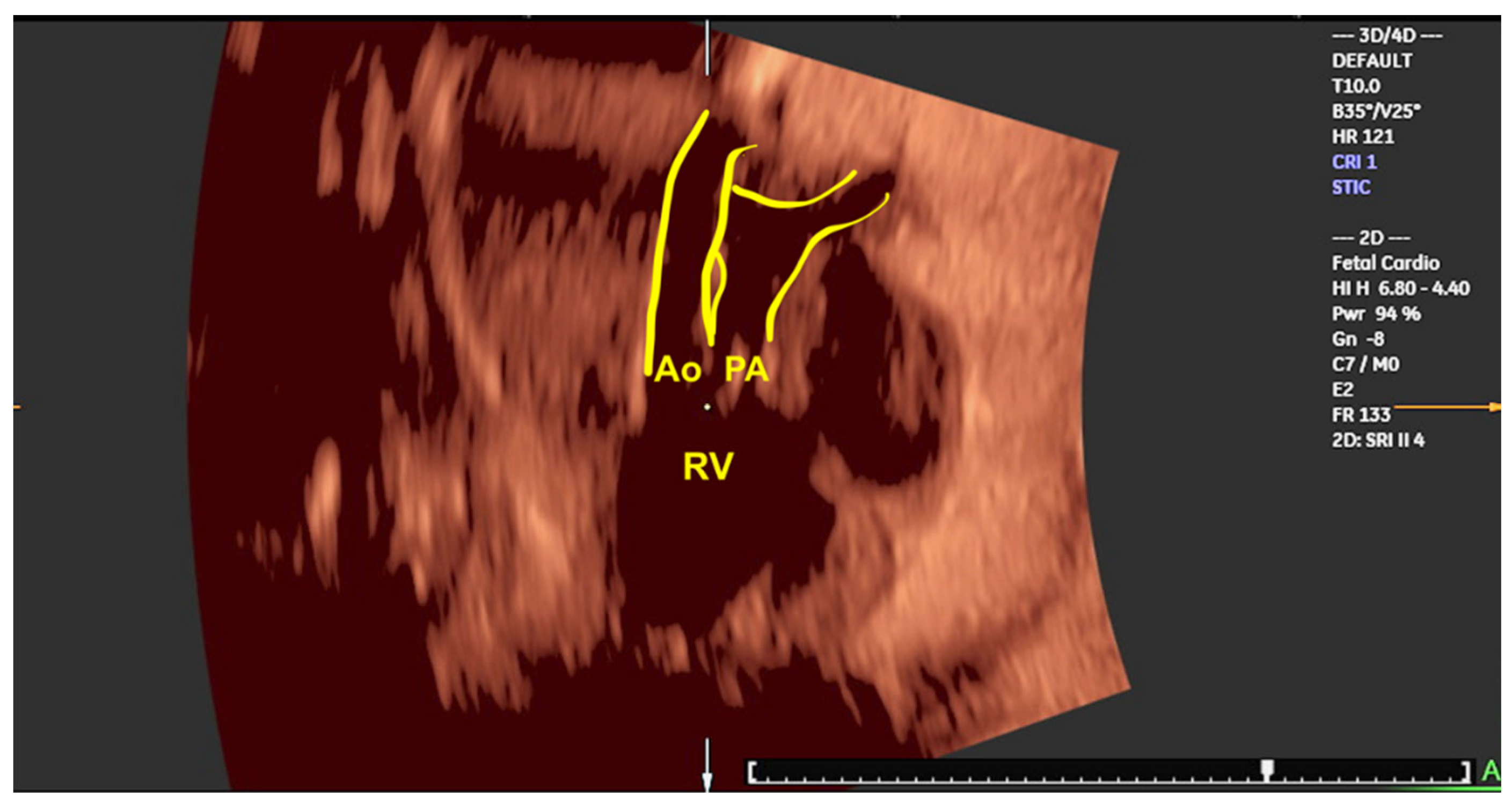

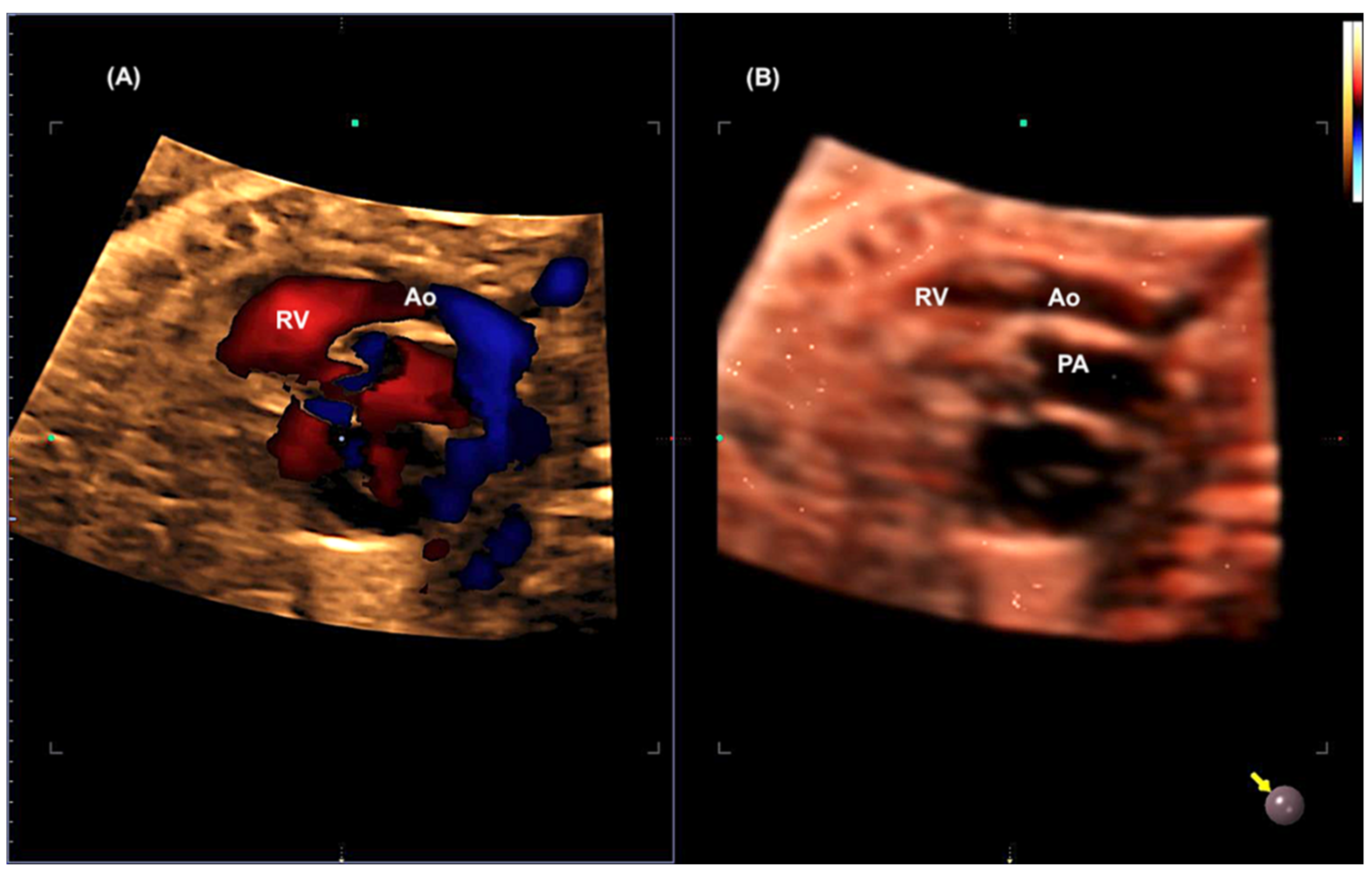

The advantages of 3D/4D ultrasound in the diagnosis of conotruncal anomalies, including simple transposition of the great arteries (TGA), aortic arch interruption, and double Taussig-Bing type right ventricle outflow tract, have been well-documented in the literature (Figure 10 and Figure 11) [58,59,60,61]. The automatic reconstruction of the outflow tracts from a 4D cardiac volume acquired from a standard four-chamber view facilitates the enhancement of the images of the ventricular outflow tracts, thereby improving the diagnostic accuracy. Moreover, TUI, inversion mode, HDlive Silhouette, HDlive flow, MV-Flow, LuminiFlow and other advanced imaging technologies utilizing 3D ultrasound have the capacity to enhance visualization of the outflow tracts, thereby facilitating a more accurate diagnosis of TGA (Figure 12). These tools allow for a more efficient examination and facilitates the reconstruction of the great arteries [58,59,60,61]. In cases of TGA with progression to restriction of the foramen ovale (FO), it may be necessary to perform an in utero opening of the foramen ovale and/or urgent postnatal ballon atrioseptostomy. Maximum velocity of pulmonary vein (a wave), FO flap mobility and FO diameter are important parameters to perform this evaluation [62]. Measurements of the area of the interatrial septum using 4D ultrasound with STIC have been performed in normal fetuses with the construction of reference curves, however the applicability in fetuses with CHD has not yet been validated (Figure 13) [63]. Future directions using these measurements in STIC to evaluate restrictive FO may be promising.

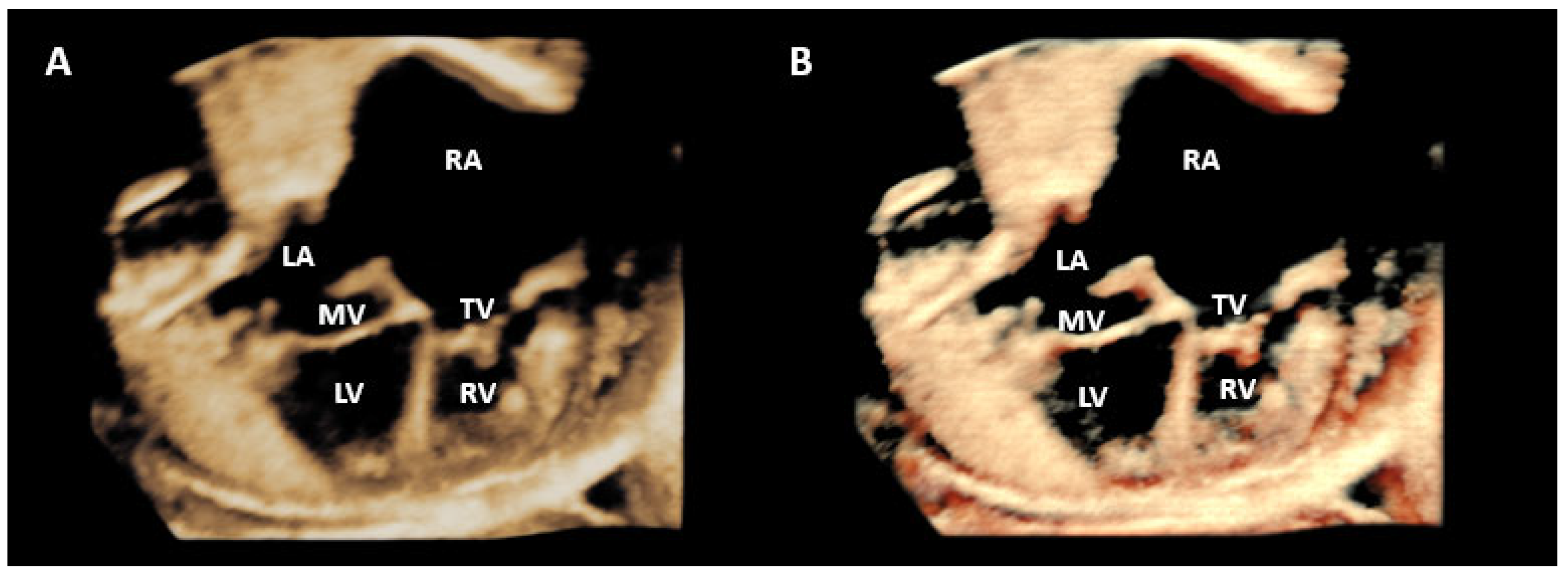

The most noteworthy distinction between Ebstein's anomaly (EA) and tricuspid dysplasia (TD) pertains to the anatomical characteristics of the tricuspid valve. In EA, the tricuspid valve cusps are attached to the right ventricular myocardium, resulting in a displacement of the usual tricuspid valve plane and atrialization of right ventricle. Conversely, in TD, the cusps are inserted normally at the level of the valve annulus, and regurgitation is caused by dysplasia with varying degrees of cusps deformation. Tricuspid regurgitation (TR) exists in EA and TD and in fetuses with severe TR, an increase in right ventricle pressure is observed with pulmonary insufficiency and progression to circular shunting. In these cases, blood circulates through the arterial ductus instead of going to the fetal body and placenta (Figure 14). The maternal use of anti-inflammatory drugs (indomethacin and/or ibuprofen) between 20 and 34 weeks has been shown to reduce mortality in EA and TD [64].

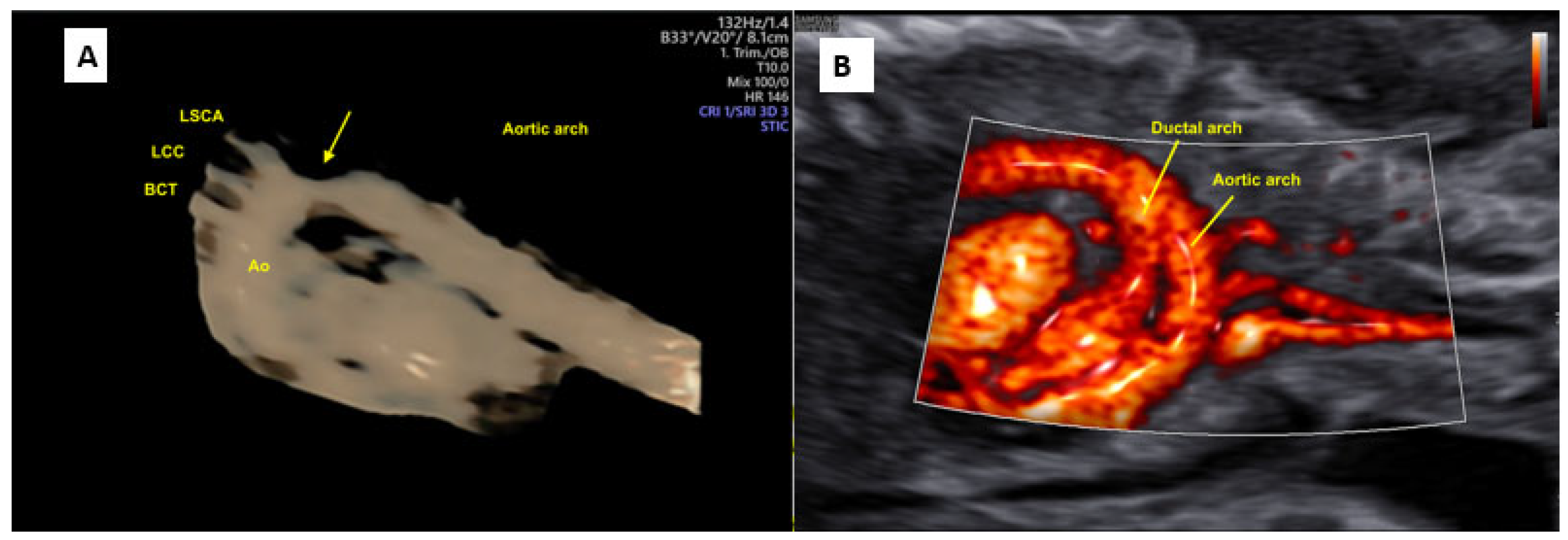

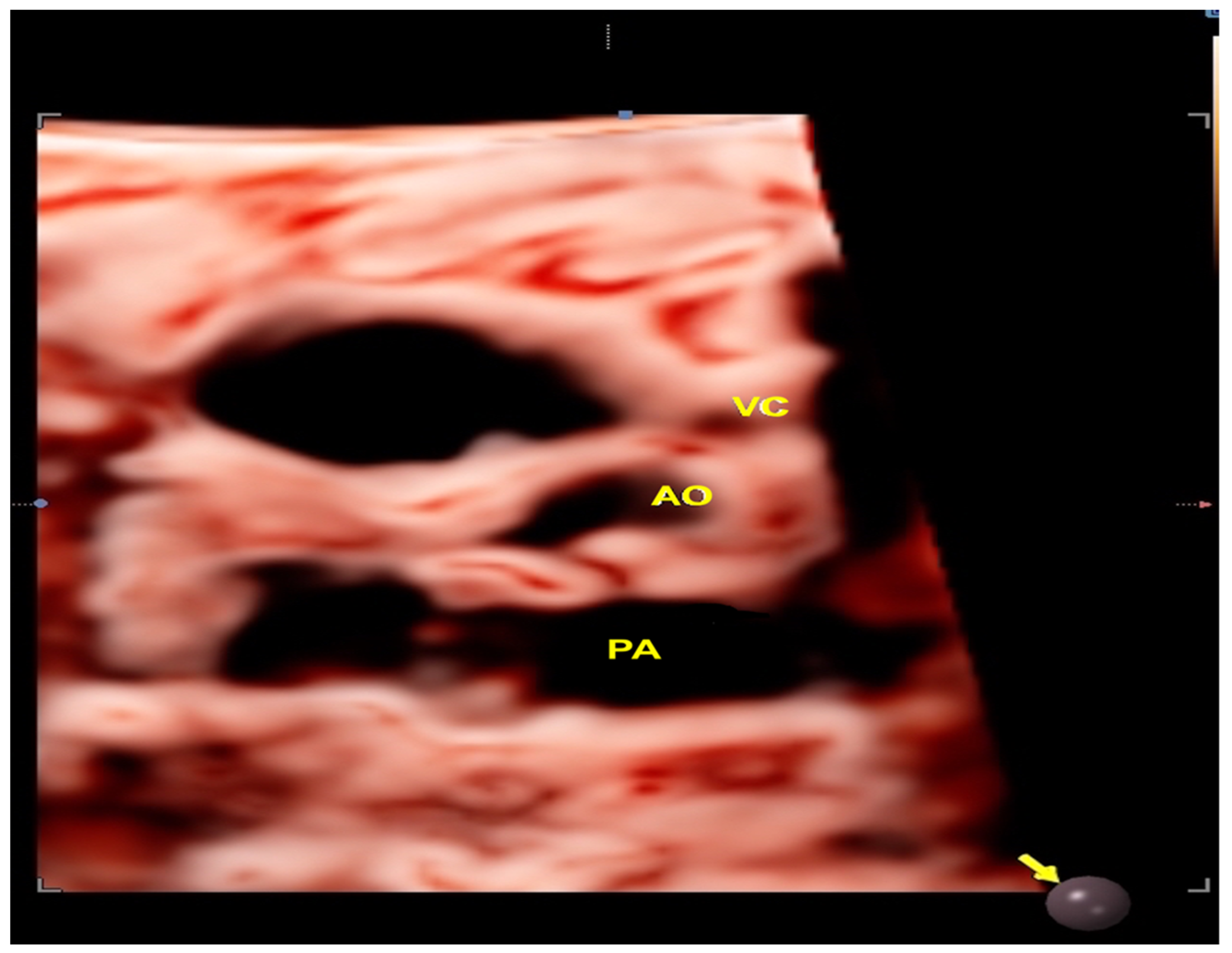

Regarding to vascular anomalies, STIC navigation with HDlive Silhouette, the post-processing inversion mode, high-resolution color Doppler such as HDlive flow, and Luminiflow techniques enable the detailed reconstruction of aortic and ductal arches with realistic images (Figure 15). In this scenario, anomalies of the laterality of the aortic arch and anomalies of the origin of the vessels and anomalies of the vascular ring can be more easily clarified (Video S1) [65,66,67,68].

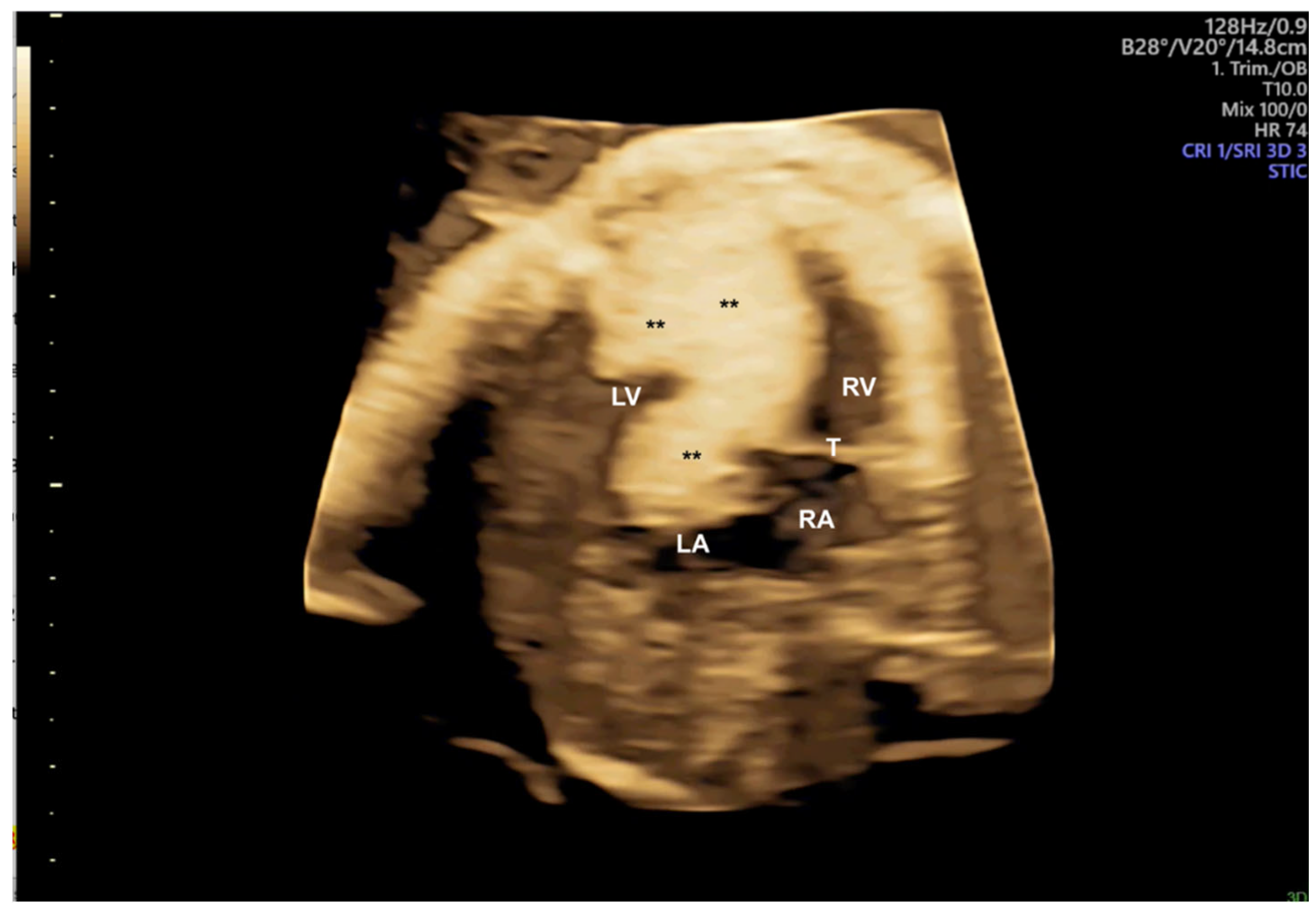

Although cardiac tumors are rare, they can cause hemodynamic repercussions when there is obstruction to flow. Among fetal cardiac tumors, rhabdomyoma is the most prevalent. It is estimated that over 80% of rhabdomyomas are associated with tuberous sclerosis, which is linked to mutations in the TSC1 and TSC2 genes. These genes stimulate the production of hamartin and tuberin, thereby stimulating tumor proliferation. In cases of large masses with flow obstruction, myocardial dysfunction, and arrhythmias in fetuses that are not yet viable, some groups have been using mTOR inhibitors (Sirolimus) from 23 to 35 weeks of gestation with success [69,70,71]. Teratomas represent 15% of fetal cardiac tumors and are most frequently intrapericardial. They have the potential to grow rapidly and may be associated with large pericardial effusions, which can result in fetal hydrops [72]. In such cases, mortality is high, and aspiration of the pericardial effusion in utero is a crucial procedure. In this scenario, 3D ultrasound is particularly useful tool for identifying the type of tumor (Figure 16).

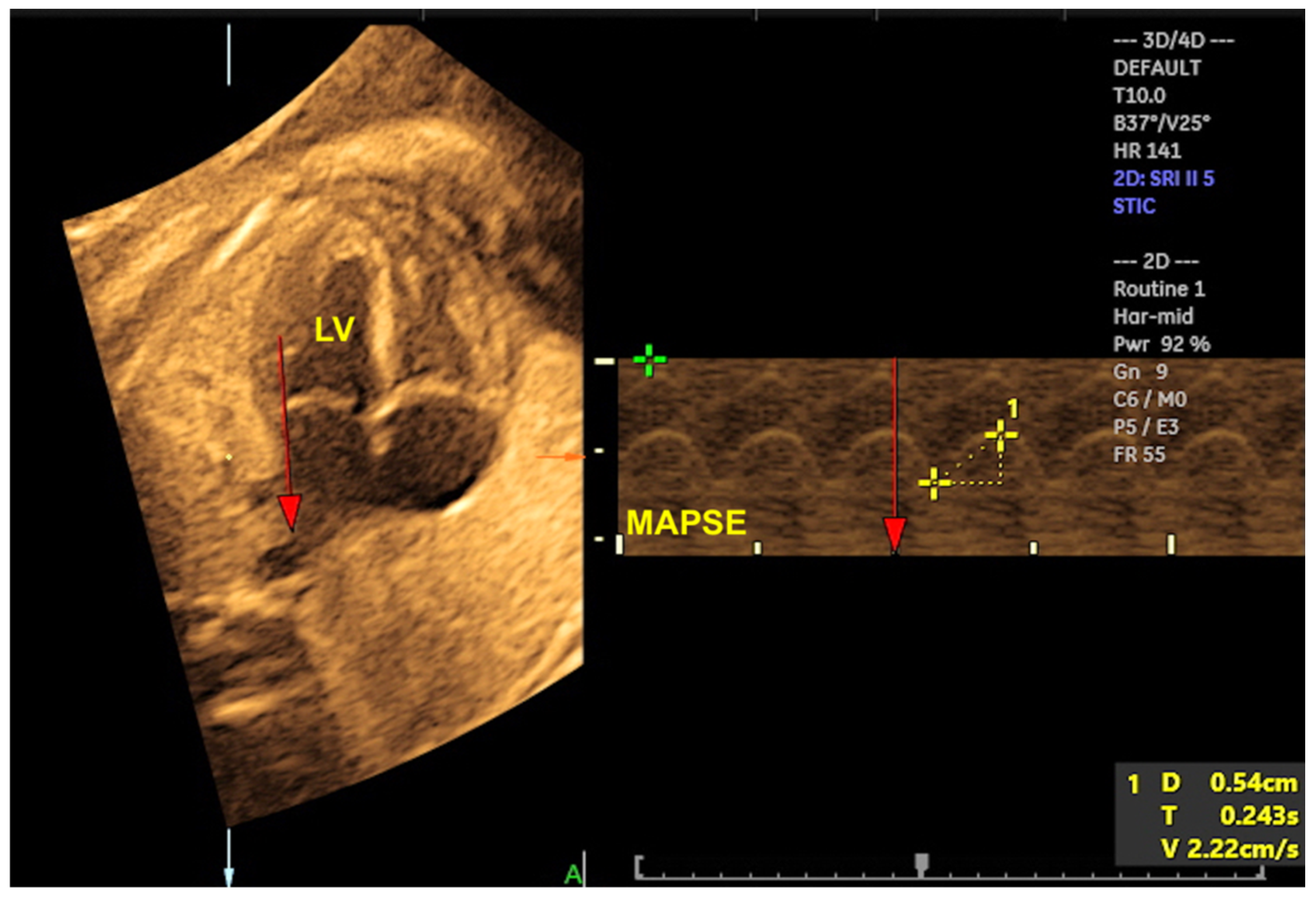

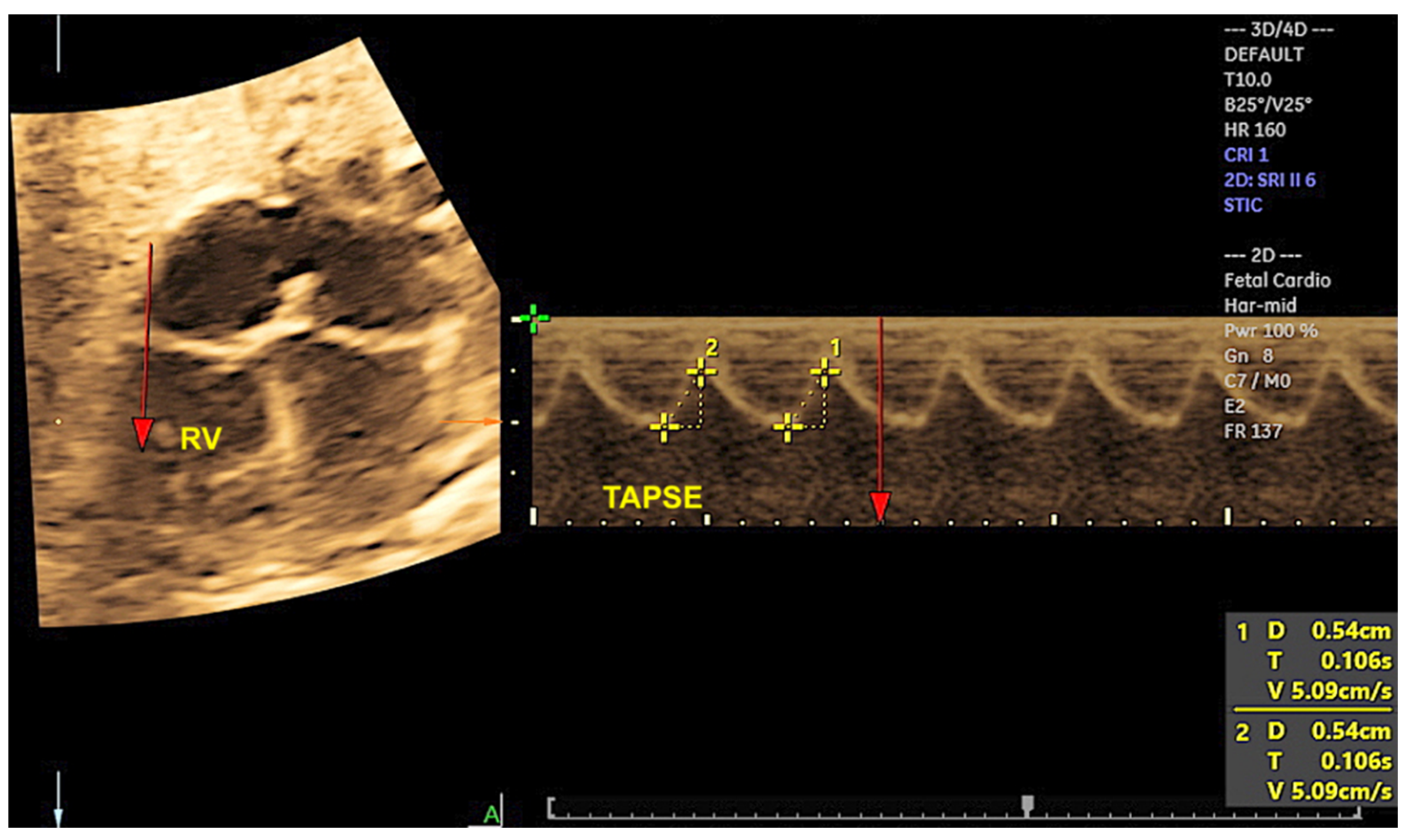

The cardiovascular score, which is based on a variety of parameters obtained from 2D Doppler ultrasound, enables the assessment of fetuses who are at risk of developing heart failure. Nevertheless, at the initial stages of myocardial dysfunction or even to provide detailed cardiac function assessment, 4D ultrasound with STIC can assist in the evaluation of STIC-M, tricuspid annular plane systolic excursion (TAPSE) and mitral annular plane systolic excursion (MAPSE), which are parameters that assess systolic dysfunction at an earlier stage than the filling fraction or the calculation of ejection fraction by virtual organ computer-aided analysis (VOCAL) (Figure 17 and Figure 18 / Videos S2 and S3). This can be beneficial in cases of diabetic fetuses, fetuses with vascular malformations such as Galen, tumors, as well as other conditions. Therefore, functional parameters (stroke volume, cardiac output and ejection fraction) can be assessed using the STIC with VOCAL. Each ventricular volume is measured at the end of diastole (maximum volume) and at the end of systole (minimum volume). The caliper is positioned inside the basal and apical ventricular regions. After six sequential plans, manually delineated for each ventricle, VOCAL provides the chamber volume and reconstructs its 3D image. Finally, stroke volume, cardiac output and ventricular ejection fraction values are calculated for each ventricle [73,74,75,76,77].

3. Fetal Intelligent Navigation Echocardiography (Fine) and Artificial Intelligence

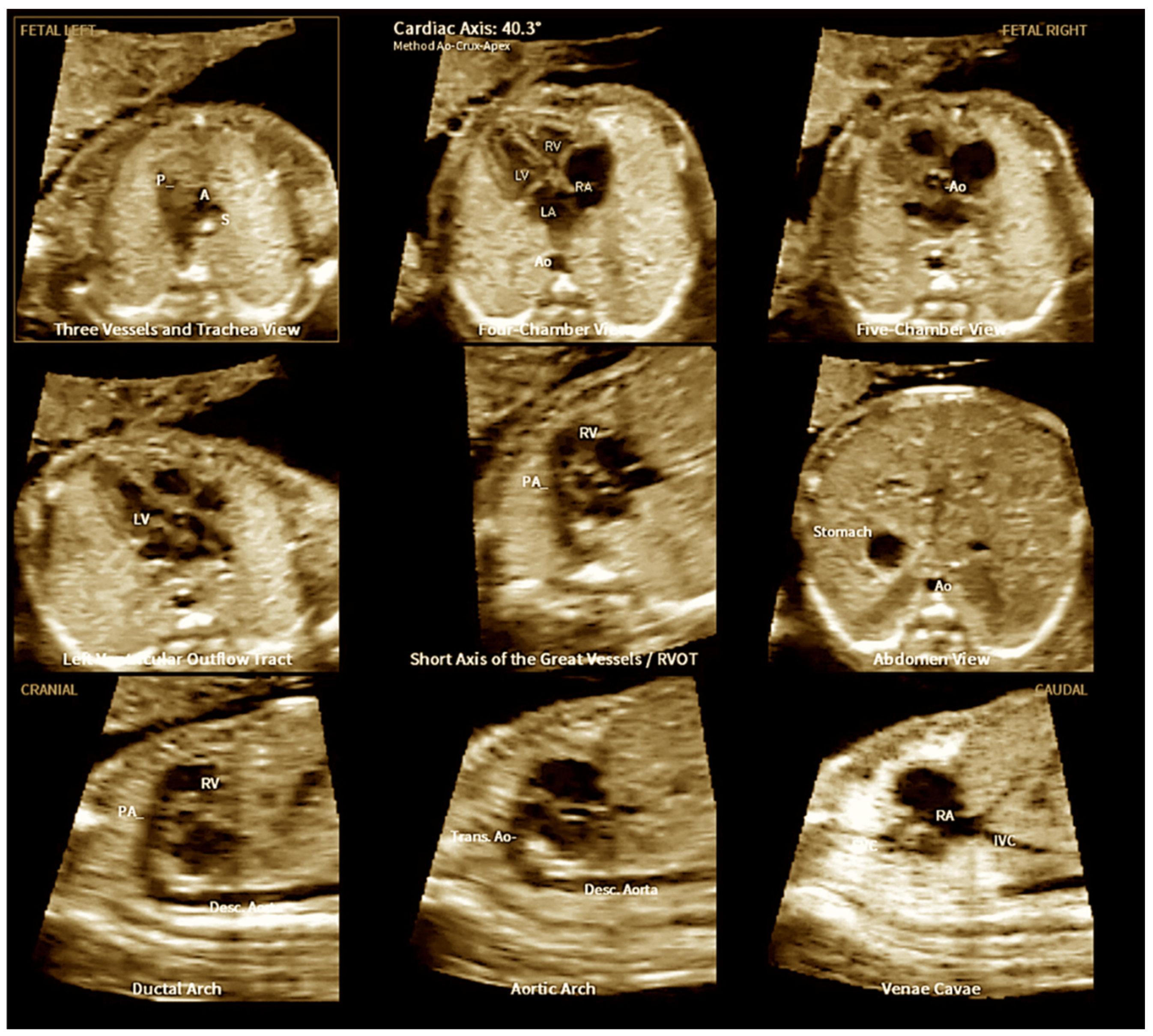

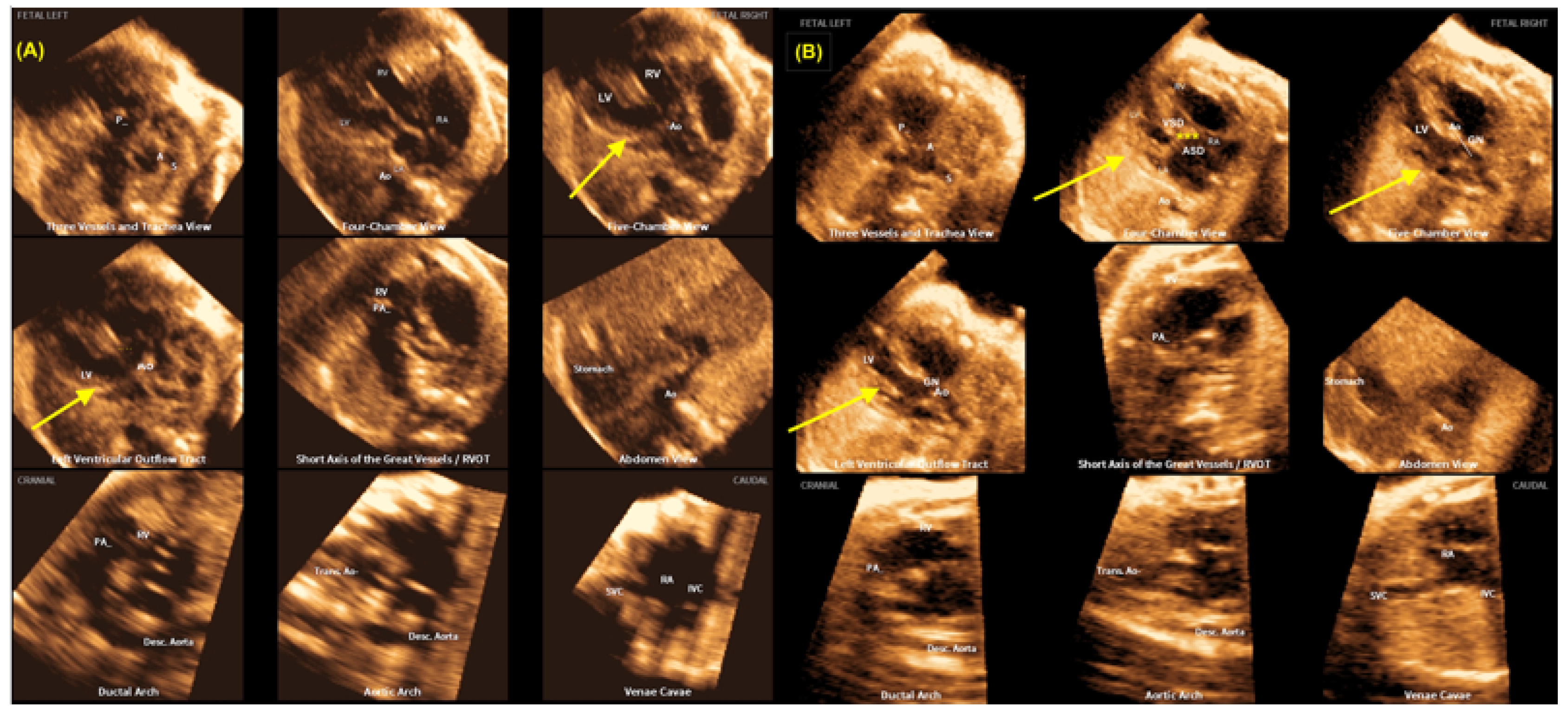

The Fetal Intelligent Navigation Echocardiography (FINE) technique, referred to as “5D-Heart”, comprises the automated reconstruction of the 9 planes that have been standardized by fetal echocardiography. This is achieved by marking strategic cardiac anatomical points from the four-chamber view of the fetal heart. The software utilizes intelligent navigation to direct the examiner in the marking of seven points (the descending aorta, crux cordis, pulmonary valve, superior vena cava and transverse aorta) and subsequently, the 9 fetal echocardiography views are reproduced in sequence [78,79,80]. The FINE technique comprises the automated reconstruction of the 9 planes that have been standardized by fetal echocardiography. This is achieved by marking strategic cardiac anatomical points from the four-chamber view of the fetal heart (Figure 19). The software utilizes intelligent navigation to direct the examiner in the marking of seven points (the descending aorta, crux cordis, pulmonary valve, superior vena cava and transverse aorta) and subsequently, the nine fetal echocardiography views are reproduced in sequence. The diagnostic views and VIS-Assistance videoclips can be transmitted to experts in fetal cardiology [78,79,80,81].

Automatic applications including structure identification, automated measurements and providing alerts on probable diagnoses was added to the FINE technology. This recent AI software, designated HeartAssist^TM (Samsung Co., Seoul, South Korea) is capable of recognize fetal heart structures and perform automatic (anatomical and functional) measurements, reducing examination time and minimizing measurement errors related to operator-examinator variations (Figure 20) [82,83,84].

The evidence concerning the potential benefits of AI in fetal cardiac ultrasound assessment, as demonstrated by HeartAssist^TM, is encouraging. The current focus within the field of AI is the development of automated techniques for the detection of specific types of CHD, such as hypoplastic left heart syndrome, atrioventricular septal defect and tetralogy of Fallot (TOF). To exemplify, in TOF, fetuses with a pulmonary valve Z-score of less than -5.0 and a Z-score difference between the pulmonary and aortic valves of >5 have an increased risk of pulmonary flow dependence on ductal arch flow [85]. The measurements could be plotted in fetal Z scores against gestational age, biparietal diameter and femur length, helping us to categorize the diameters of the pulmonary valve and arteries.

Automating the measurement of cardiac structures using AI during the screening process provides an objective approach that can be performed in busy clinical environments, reduces operator variability and extends fetal heart screening by enabling non-specialists to be alerted to malformations. HeartAssist^TM method is a potential method for automated fetal cardiac structure measurement. The establishment of reference curves of automated Z-scores of the fetal heart obtained by AI represents an encouraging avenue of research and the development of these automated techniques remains a work in progress [86].

4. Three-Dimensional Physical and Virtual Models of the Fetal Heart

The 4D ultrasound with STIC software provides the acquisition of cardiac volumes in multiplanar and rendering modes, enabling the offline navigation through the structures of the fetal heart. Physical and virtual 3D reconstruction of the fetal heart can be created from 3D ultrasound volumes (Figure 21 and Figure 22). This technology facilitates a more complete understanding of the anatomical changes associated with CHD, provides a platform for interactive discussion between the multidisciplinary medical team [87,88].

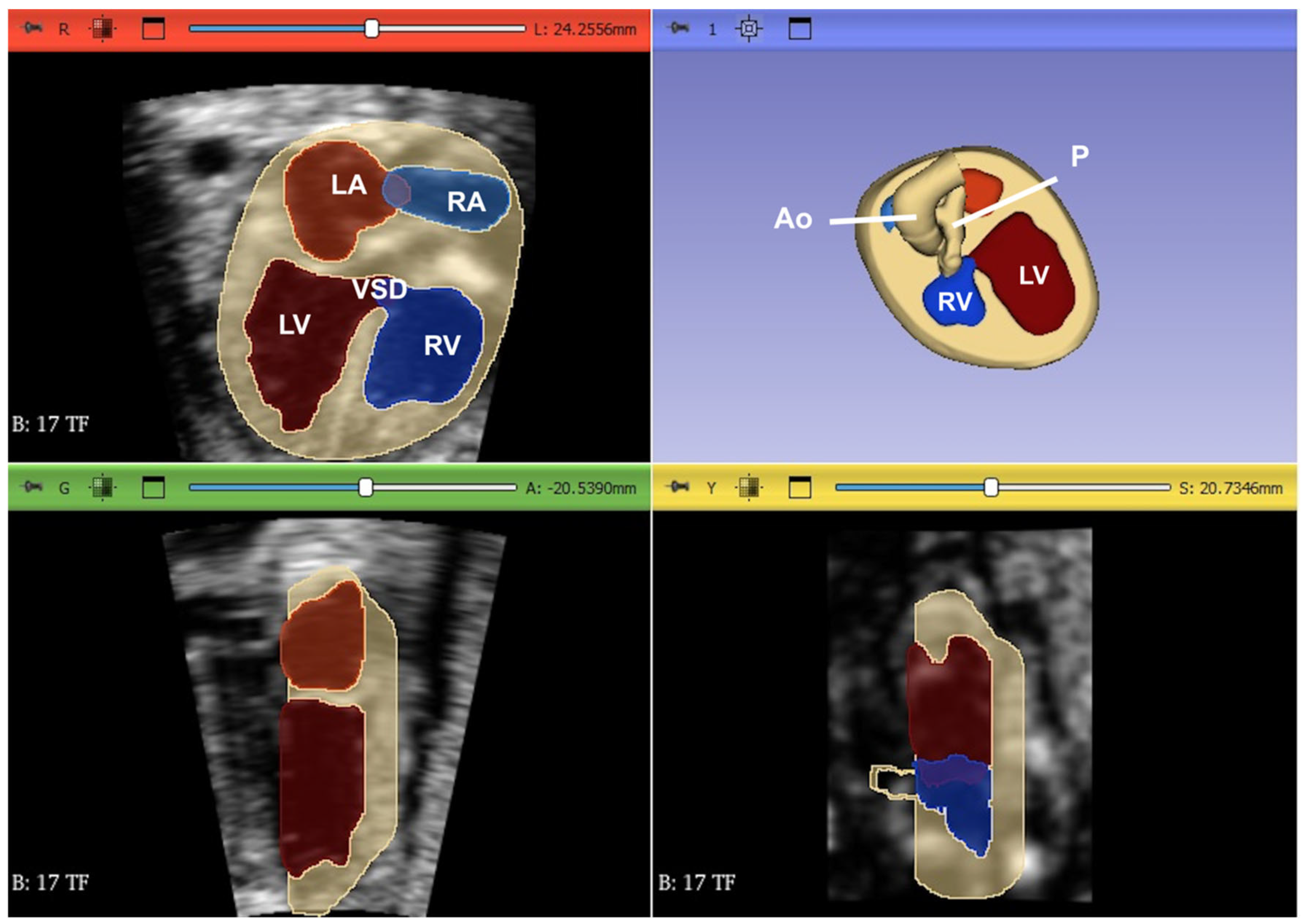

After acquire images of the fetal heart from 3D ultrasound (heart volumes), using tools from the Slicer 3D (Birmingham, UK) software, we may create different masks on each image in a sequence. Each mask corresponds to a particular structure. For example, a blue mask delineates a cavity or vessel within the fetus, thus defining the boundaries between structures. The program identifies all pixels in the sequence with a shade between the two values and selects them by creating an overlapping mask and assigning a color to each cardiac chamber or vessel. Once the segmentation is completed and the structures are properly separated in the masks, we proceed to generate the 3D physical model. From the 3D data generated, 3D physical models of the fetal heart can be printed on 3D printers [26].

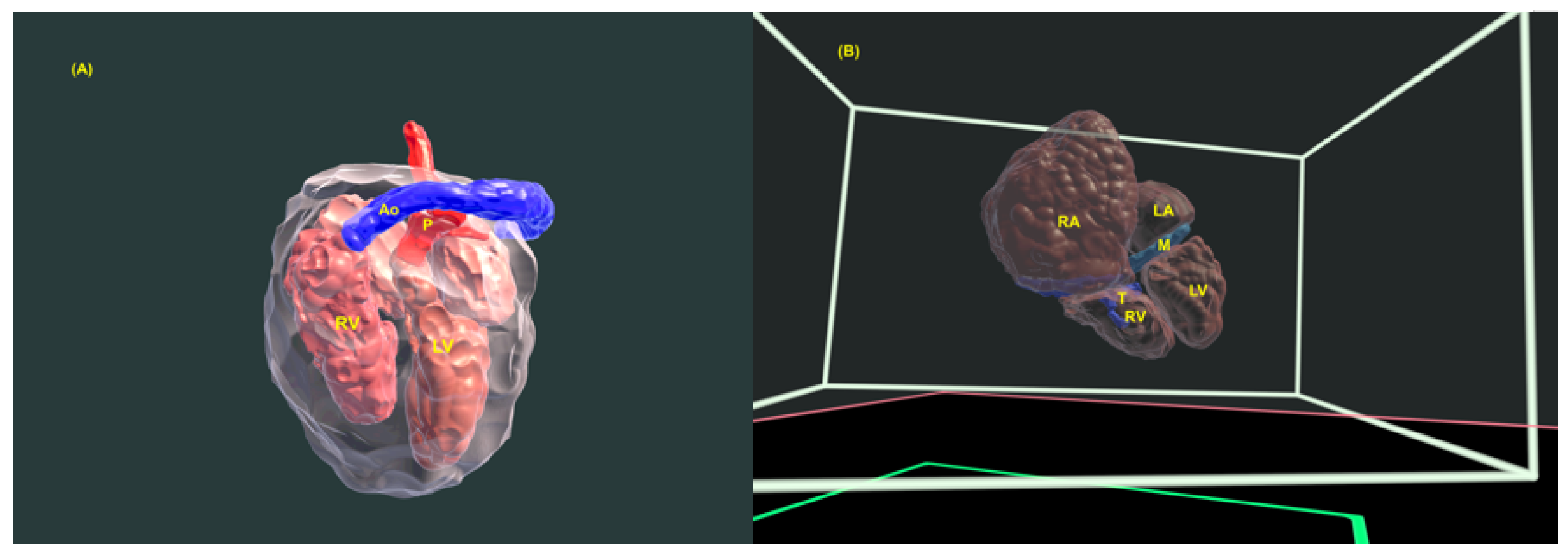

In the process of creating virtual models of the fetal body, the 3D ultrasound or MRI mages of the fetal heart are exported to a 3D virtual navigation software named Elucis (Elucis software, Realize Medical, Ottawa, Canada). During the rendering process, the software calculates the lighting and shading effects according to the color and shape of the model, saving the images produced throughout the process (30 images for every second of movement). The aforementioned images will be employed to structure the navigation video and will be saved as an MP4 video [28].

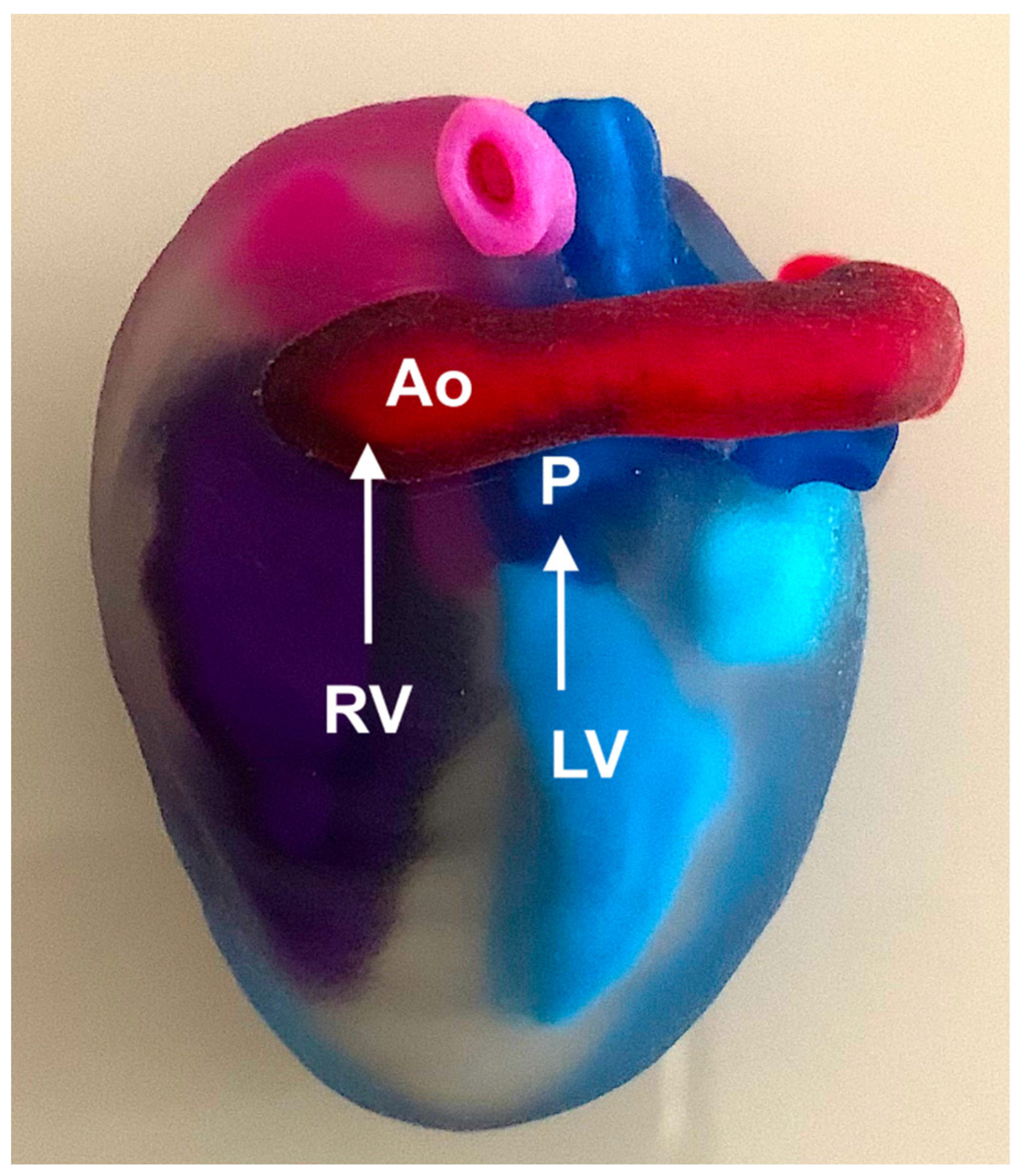

The creation of 3D physical models of CHD can facilitate the enhancement of anatomical detail and contribute to the accuracy of diagnostic procedures. In addition, the use of 3D physical models can facilitate parental counselling, and may enhance therapeutic planning of cardiac diseases by a multidisciplinary team as it provides a more comprehensive understanding of the CHD [89,90,91]. Moreover, these 3D resin models can be employed in classes of cardiac anatomy. Virtual navigation has been utilized in other medical specialties for surgical training, and in fetal cardiology, it represents a promising tool due to its capacity to facilitate the training and planning of postnatal surgical procedures in virtual simulation rooms [27].

The utilization of virtual simulation rooms facilitates the participation of experts and students from disparate geographical locations, thereby reducing the physical distances that would otherwise be traversed. In this way, surgical procedures can be trained by the team before being actually performed, and a more experienced medical team can assist remotely [92].

5. Fetal Cardiac Magnetic Resonance Imaging

Fetal cardiac MRI is still limited by high fetal heart rates and the small size of fetal heart structures. The time required for the examination is also a limitation for the pregnant woman. On the other hand, unfavorable fetal statics is a major limitation for ultrasound, but not for MRI [93].

MRI is also capable of non-invasively assessing oxygenation through the calculation of both oxygen saturation and the hematocrit of the blood within a vessel, utilizing the T1 and T2 relaxation times. Fetal cardiac MRI has yielded significant insights into the circulatory systems. Fetal cardiac MRI may be useful when conventional fetal echocardiography is inconclusive, especially in vascular malformations, such as vascular rings, aortic anomalies and arteriovenous malformations (Galeno vein aneurism, coronary fistulas, hemangiomas) [94,95,96]. Fast sequences such as single-shot T2-weighted turbo spinecho (TSE) MR with half-Fourier reconstruction and steadystate free precession (SSFP) are the most used sequences for the assessment of fetal heart [97]. Bright-blood SSFP sequences provide optimal contrast between the cavities blood and myocardium [98] (Figure 24).

A study evaluated the clinical utility of fetal cardiac MRI in cases where conventional fetal echocardiography did not visualize all anatomic structures. Of a total of 31 fetuses, fetal cardiac MRI was helpful in management and/or parental counseling in 26 cases (84%). For aortic arch anatomy including signs of coarctation (20 cases), fetal cardiac MRI added diagnostic information in 16 cases (80%). In 4 fetuses with hypoplastic left heart syndrome (HLHS), fetal cardiac MRI helped delivery planning in 3 cases (75%) [99].

In a retrospective cohort study involving 431 singleton pregnancies (62 fetuses with CHD and 269 healthy fetuses), MRI cardiac axes were measured in both CHD and normal fetuses. The authors observed a good inter- and intraobserver reproducibility of fetal cardiac axes measured by echocardiography and MRI [100]. In other study, the authors assessed the contribution of fetal cardiac MRI to identify cardiovascular anomalies in fetuses with CHD. The authors identified 73 (60.3%) of cardiovascular anomalies in 31 fetuses with CHD. Fetal echocardiography was more sensitive for diagnosing cardiovascular anomalies compared to fetal MRI, but without significant differences [101].

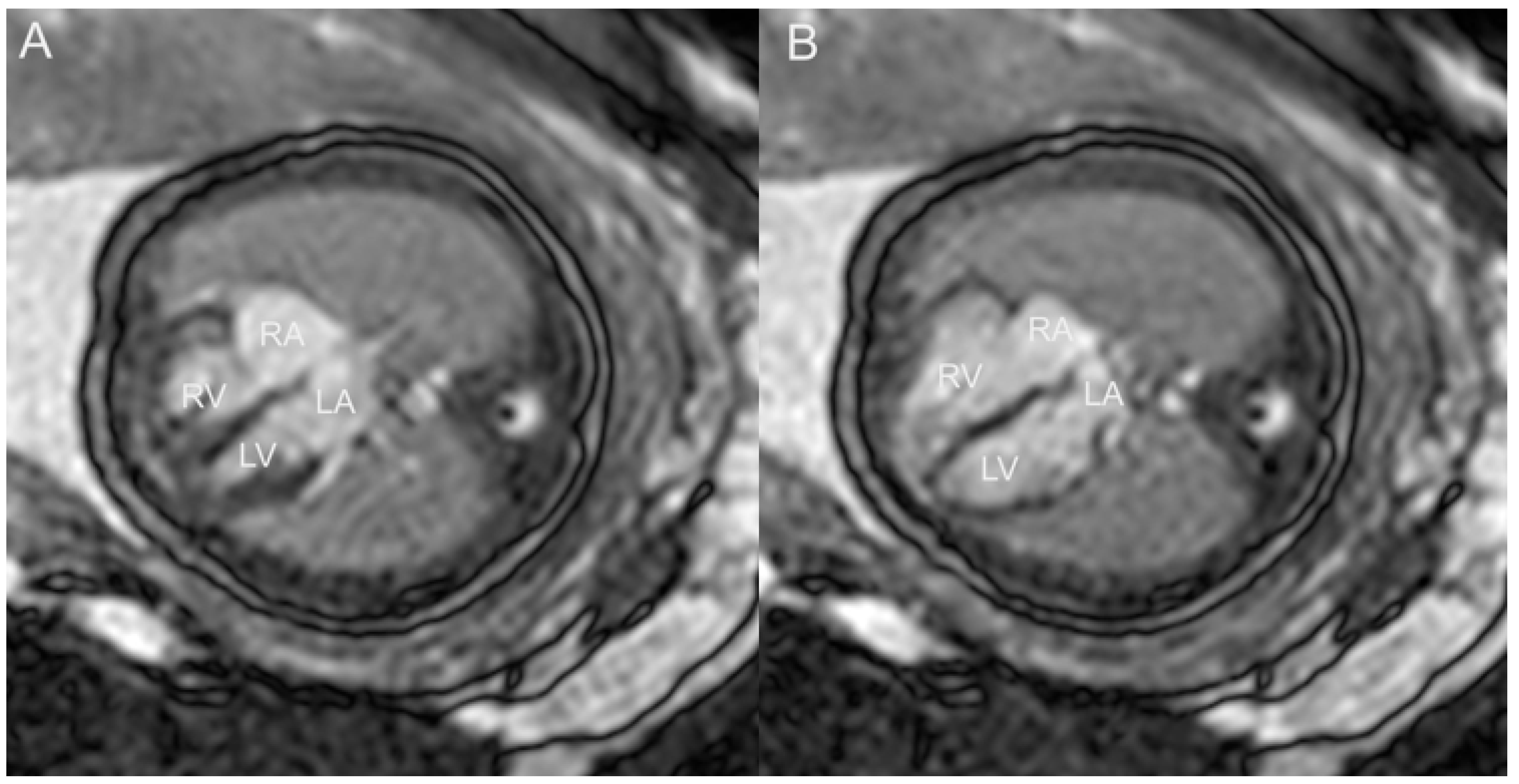

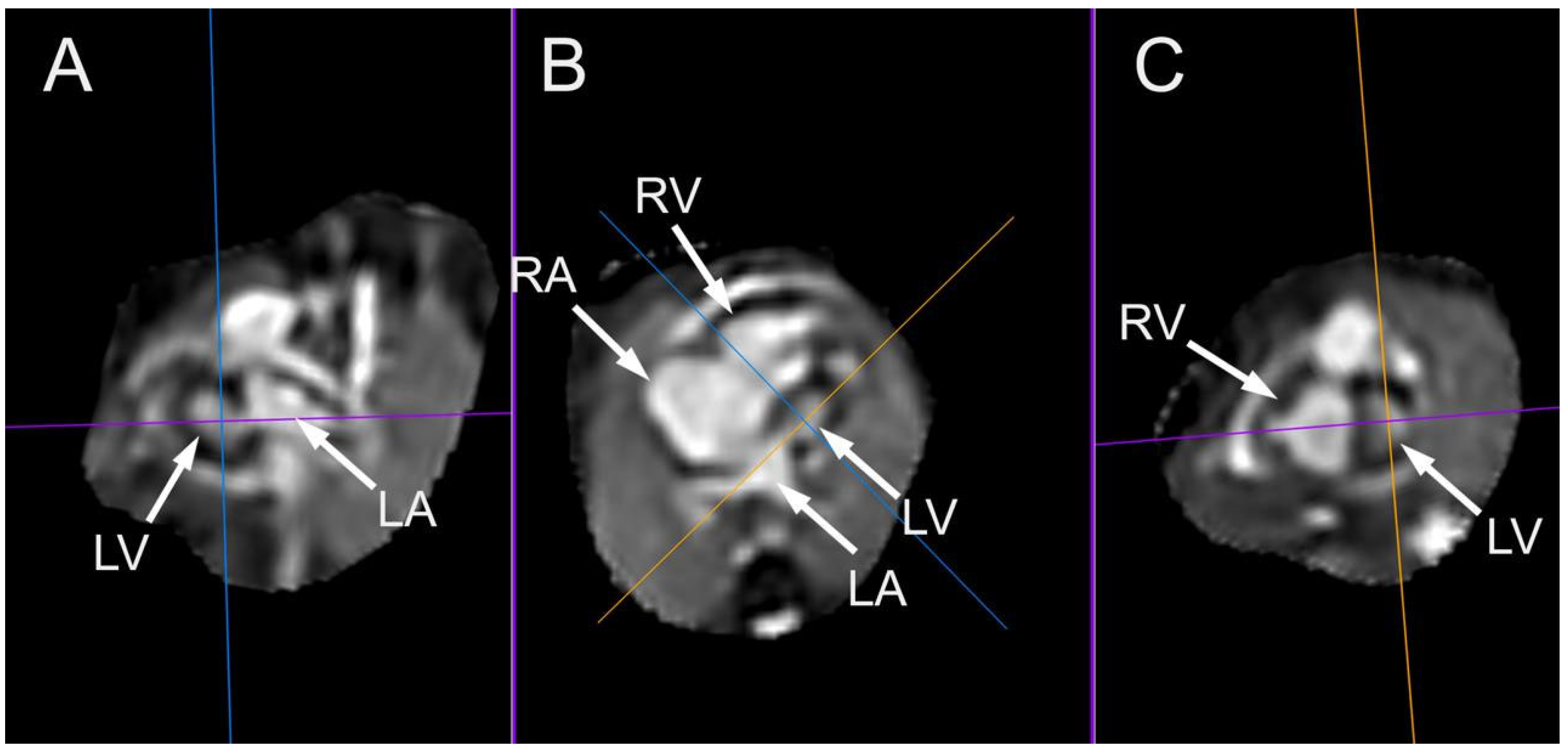

A cohort study involving 13 fetuses (24 – 36 weeks of gestation) with CHD evaluated the image quality for slice-to-volume reconstruction of 4D balanced steady-state free precession (bSSFP) imaging of the fetal heart. Two radiologists evaluated slice-to-volume reconstruction image quality on a scale from 0 to 4 using 11 categories based on a segmental approach to defining cardiac anatomy and pathology. In 11 out of 13 cases, the average radiologist score of image quality across all categories was ≥ 3.0 [102] (Figure 25).

6. Conclusions

The application of advanced imaging techniques facilitates the acquisition of images with greater clarity, enabling the delineation or clarification of anatomical structures and the navigation of cardiac structures and vessels in real time and offline. Furthermore, these techniques can assist in the screening of CHD by non-specialists in fetal cardiology. In this scenario, the incorporation of advanced technology into the 2D ultrasound images of the fetal heart can enhance the prenatal detection of CHD. Automated measurements of the anatomical and functional structures of the fetal heart can reduce operator-dependent discrepancies. In addition to measurements, AI can assist in the identification of potential cardiovascular alterations. The prospective applications of 3D physical and virtual models of fetal cardiac structures and functions are promising tools for perinatal management of cardiovascular diseases.
