Analyzing Archive Transit Multibeam Data for Nodule Occurrences

A peer-reviewed version of this preprint was published in:
Journal of Marine Science and Engineering 2024, 12(12), 2322. https://doi.org/10.3390/jmse12122322

Submitted:

29 October 2024

Posted:

30 October 2024

You are already at the latest version

Abstract
We show that analyzing archived and future multibeam backscatter and bathymetry data, in tandem with regional environmental parameters, can help identify polymetallic nodule fields in the world’s oceans. Extensive archived multibeam transit data through remote areas of the world’s oceans are available for data mining. New multibeam data will be made available through the Seabed 2030 Project. Uniformity of along and across track backscatter, backscatter intensity, angular response, water depth, nearby ground-truth data, and local slope, sedimentation rate, and seafloor age provide thresholds for discriminating areas permissive for nodule presence. A case study of this methodology is presented using archived multibeam data from a remote section of the South Pacific along the Foundation Seamounts between the Selkirk paleomicroplate and East Pacific Rise that were collected in 1997 during the Hotline cruise. The 12 kHz Simrad EM12 DUAL multibeam and the forementioned data strongly suggest a previously unknown nodule occurrence exists. Methods include comparing analyses using three different backscatter products to further determine if scanned backscatter products, rather than primary digital multibeam files can be used for analysis, and comparing results from using digitized 8-bit images, or 8-bit and decibel-value surfaces derived from the MB-SystemTM software. We show this expeditious analysis of broad areas of multibeam data could characterize benthic habitat types efficiently in remote deep ocean areas prior to more time consuming and expensive video and sample acquisition surveys. Additionally, utilizing software other than specialty sonar processing programs during this research explores how multibeam data products could be interrogated by a broader range of scientists and data users. Future mapping, video, and sampling cruises in this area would test our prediction and investigate how far it might extend to the north and south.
Keywords:
Multibeam echosounder
;
Backscatter
;
Polymetallic nodules
;
Benthic habitat mapping
;
Angular response
Subject:
Environmental and Earth Sciences  -   Oceanography

1. Introduction

Polymetallic nodules, also known as manganese nodules or ferromanganese (Fe-Mn) nodules, grow out of seawater or sediment pore water around any hard nucleus on deep-sea sediments and exist at various locations throughout the global ocean [1,2,3,4,5]. Individual nodules can range from <1 to 20 cm with most measuring 1-12 cm, and fields can cover hundreds of km2 with highly variable abundance [1,5,6,7]. Nodules serve as a deep-sea benthic habitat and are of economic interest owing to their metals content, as they are often enriched in Mn, Fe, Ni, Cu, Co, Ti and rare earth elements [1,3,5,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23].
Existing analytical methods to identify prospective nodule areas include a review of oceanographic, geographic, geologic, and environmental parameters, supplemented with review of existing geological sample and seafloor photography records [14,24,25,26,27,28,29,30,31,32,33,34,35,36,37]. Principal component analysis of sediment characteristics can be incorporated with inputs for environmental values to facilitate mineral prospectivity mapping [26,38]. Mizell et al. (2022) note that areas conducive for nodule occurrence generally exhibit low bathymetric relief, low to moderate sedimentation rate and surface productivity, water depths near or below the carbonate compensation depth, and pre-Quaternary crustal age which typically implies the seafloor has subsided sufficiently to be below the CCD (carbonate compensation depth), and adequate time has passed for accretion of a nodule around a nucleus [34]. Nodule occurrences may not be contiguous within an area and often exhibit variable abundance and predominate physical characteristics, e.g., size and shape [39].
Acoustic backscatter data can aid in identifying nodules on the seafloor [9,11,18,40,41,42,43,44,45,46]. Oceanographic remote sensing data including multibeam bathymetry and backscatter data can be used to analyze prospective areas identified through initial desktop research. Previously collected, archived multibeam data are readily available for research, and additional multibeam data can be collected during follow up site investigations. However, the utility of using multibeam data collected during full speed transits for identifying nodule occurrence is not often considered nor discussed in the literature. Normally, exploratory surveys are planned with managed speed, sensor settings, regular sound velocity profile collection, etc., and may be undertaken with hull-mounted, towed, or AUV-mounted multibeam and side-scan systems [2,6,11,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67].
The methodology described in this research is novel in that it further explores the use of transit multibeam backscatter and bathymetry for identifying potential nodule presence, with subsequent analysis of environmental parameters to evaluate whether the geographic context supports nodule formation, following the initial (Master’s thesis) work by Mussett (2023) [68]. This research also investigates the use of angular response diagrams derived for further classifying seafloor geology [6,46,69,70,71,72,73]. Angular response diagram generation undertaken in this research is based on pixel-value backscatter raster data. This provides an alternative to multibeam processing software methods for angular response analysis, as it requires only a backscatter raster product, and provides analysis based on averaged along-track pixel values rather than from a per-ping acoustic data file.
This research uses a case study based on real-time observations made during a transit where Simrad EM12 DUAL (12 kHz) multibeam bathymetry and backscatter data were collected on the Foundation-Hotline cruise aboard R/V Atalante, operated by IFREMER between Papeete (Tahiti) and Easter Island (Chile) in January and February 1997 with cruise objectives to map and date the Foundation Seamount chain up to the East Pacific Rise (EPR) [74,75]. No adjustments were made to gain settings during transit (coauthor D.F. Naar, personal communication, 2021).
The multibeam bathymetry data were used to generate a digital terrain model. The backscatter data were used both to generate digital surfaces via MB-SystemTM format identifier 76, as well as plot paper charts at sea during the cruise, which were digitized and georeferenced during this research [68,75,76]. The methods described herein are applicable for analyzing pixel-based outputs of backscatter data whether they are analog paper or digital.
The data coverage area includes an approximately 125 km long swath of homogenous high backscatter, hereafter referred to as Area A (Figure 1). Area A predominately consists of low relief seafloor and is distal from any known recent lava flows from any nearby seafloor spreading system or submarine volcanoes. This study analyzes multibeam bathymetry and backscatter data, auxiliary data regarding geographic parameters, and angular response of the backscatter to investigate if the high backscatter data in this area could be due to a large, previously uncharted and unexplored nodule field.

2. Observations

2.1. Transit Observations and Geological Setting

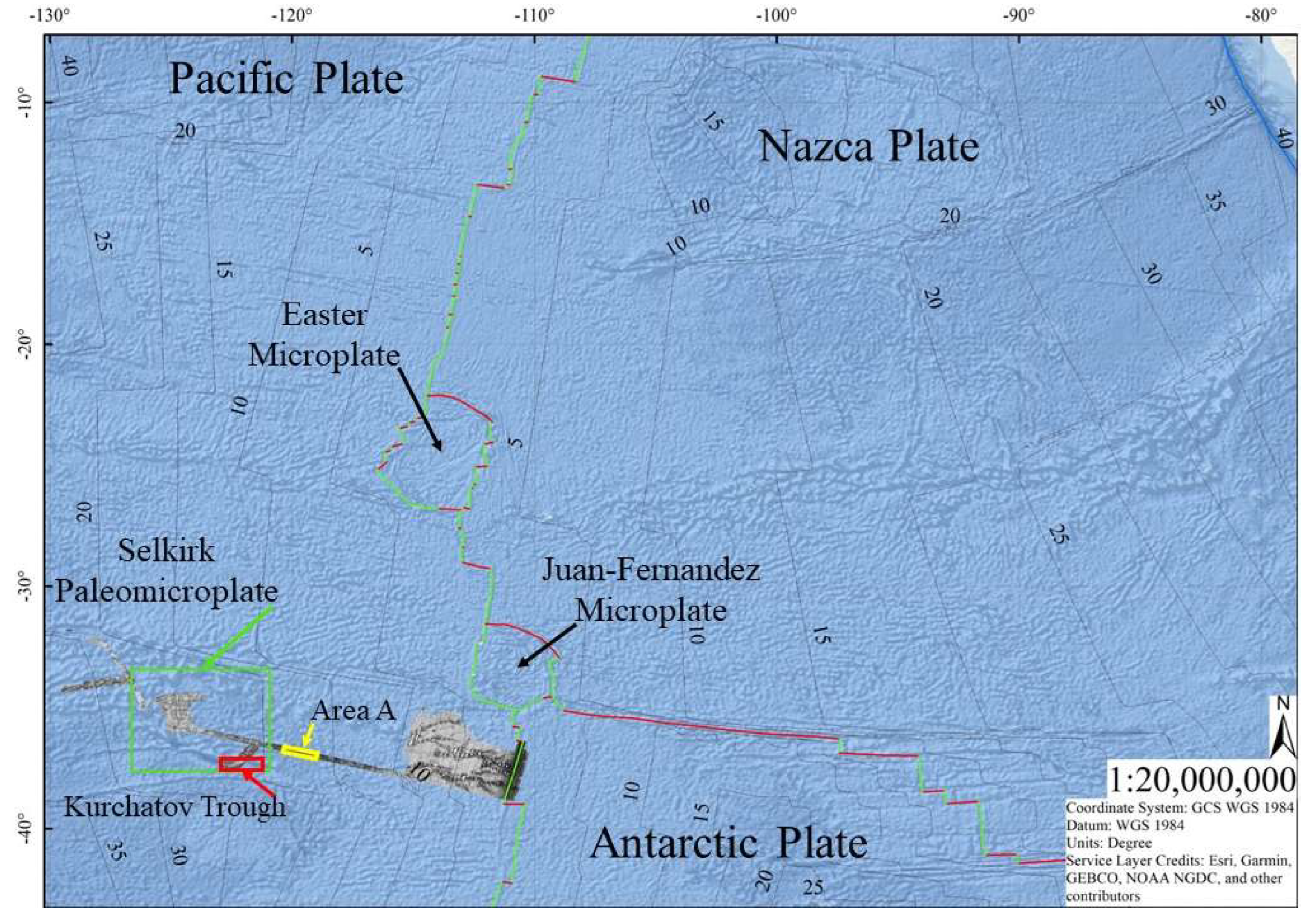

The ship transit investigated in this study trends approximately 102° and spans from approximately -32° latitude, -130° longitude to -39° latitude, -110° longitude. The transit crosses the Pacific plate from about ~25 Ma, across the EPR at 0 Ma, and out to ~1 Ma onto the Antarctic plate [77,78], and crosses a variety of seafloor terrain including abyssal hills, submarine volcanoes, lava flows, sedimented seafloor, and tectonic fabric and structures related to the Selkirk paleomicroplate (>20 Ma) in the far west [79].
Area A is not documented in literature as a known occurrence or region highly permissive for nodule formation [7,13,14,24,26,27,30,31,32,33,34,35,36,37,80,81,82], and is ~115 km north of suggested areas of low nodule abundance [26,81] and ~1700 km east from suggested area of high abundance [34]. However, there are two proximal ground truth sites that indicate nodules. One site (-36.33° latitude, -121.50° longitude) is <2 km from the northern extent of the data set and ~100 km to the northwest of Area A. This site provided a nodule sample recovered during sediment coring during the 14th cruise of R/V Dmitry Mendeleev in 1975 [83]. The other site from -35.22° latitude, -124.97° longitude, within the data set and ~450 km west of Area A consists of seafloor photos collected at core station 16 visited during the 24th cruise of USNS Eltanin in 1966. The core description indicates 2-5% micronodules in the upper 7 cm of core [84]. Seafloor photos from the station indicate abundant nodule coverage [68,85].
Water depths in the dataset range from 334 m (seamount summits) to 6630 m (failed rifts, trenches, fracture zones or pseudofaults related to the Selkirk paleomicroplate) [79]; the average seafloor depths from west to east along the transit (apart from the aforementioned shallow and deep features) rise from below to above the CCD, regionally estimated at approximately 4100 m [86].

2.2. Environmental Parameters Suitable for Nodule Formation

Seafloor below or near the CCD is considered a suitable environment for nodule formation [1,3,4,7,14,16,27]. Some nodule fields do exist above the CCD, e.g., Blake Plateau [4,87,88,89], Galicia Bank [90], the Pernambuco Plateau [91], and the South China Sea [92], and have different environmental constraints, which should be further reviewed to identify additional parameters that control their occurrence such as limitation of sedimentation resulting from strong near-bottom currents. This study focuses on nodule occurrence in deep water only.
Slope of the seafloor is also an important parameter for determining nodule presence from multibeam backscatter data. Areas delineated from hull-mounted, deep-water multibeam data exhibiting seafloor slope ≤7° can be considered conducive for nodule existence, and low slope environments, e.g., <10° further limit the impact of slope on acoustic backscatter [17,41].
Additionally, a very low sedimentation rate of 0.3 to <1 cm ka-1 is considered coincident with abundant nodule presence [1,13,24,93,94]. The sedimentation rate can be estimated using surface productivity as a proxy of POC (particulate organic carbon) flux to the seafloor [95,96], or by dividing sediment thickness [97] by seafloor age [78].
Seafloor age can also dictate whether an area is permissive for nodule occurrence. Newly created seafloor is often shallower than the local CCD, as is the case for the EPR and associated ridge structures included in this case study data. Additionally, time is required for newly created seafloor to subside to water depths below the CCD. Also, if an area is over a recent a recent lava flow, adequate time may not have lapsed for nodule accretion atop newly sedimented seafloor. Likewise, considering an estimated hydrogenetic radial nodule growth rate of 5 mm Ma-1 [1] to ~7 mm Ma-1 [83], a minimum of 2 Ma growth time is necessary for an accretion to reach a minimum 2 cm diameter, irrespective of nucleus size or mineral replacement of the nucleus. Hence, a 2 Ma minimum age can be considered a requirement for nodule formation where slow growth rate exists.
The influence of bottom water, dissolved oxygen concentrations in seawater, available sources of nuclei, dissolved metals content, and microtopography are not considered in this study owing to lack of data for this case study and a lack of agreement on influence of these parameters on abundant nodule presence.

2.3. Transit Areas Aligning with Prospective Nodule Characteristics

Along the transit near the EPR, all areas younger than 12 Ma are shallower than 4000 m, therefore above the estimated shallowest threshold for nodule presence, using a local CCD depth of ~4100 m [86] considered as a general ceiling for nodule occurrence in the Pacific [1,3,9]. Therefore, the youngest areas are neither old enough nor deep enough to satisfy requisite characteristics for nodule prospectivity. Most areas of older seafloor within the transit, including Area A, are not much deeper than 4000 m except the Kurchatov trough and the low slope seafloor immediately to its south.
The entirety of the data set (except very near the EPR) exhibits a sedimentation rate <1 cm ka-1 [78,97], therefore meeting the requisite sedimentation threshold described above.
Much of the data exhibit slopes less than the maximum threshold of 7° for nodule presence, though areas near the EPR and off-axis volcanic seamount chains, tectonic structure of the Kurchatov trough and Selkirk paleomicroplate, and isolated abyssal hill feature exhibit slopes greater than 7°. Both Area A and the area south of the Kurchatov trough consist of low slope seafloor along and across track.

3. Research Objectives

This research will attempt to predict whether a previously undescribed nodule occurrence exists within the data area, and whether it may relate to a larger nodule occurrence in the region. Methods will explore the utility of transit multibeam backscatter, firstly, and bathymetry, secondly for identifying potential nodule presence. Likewise, this research will address the suitability of backscatter products, rather than raw multibeam data, for identifying nodule presence on the deep seafloor. This will be done by comparing results from analysis of different outputs from the same original data set, e.g. 8-bit visualization of backscatter, a surface containing backscatter intensity values. This assessment will also inform whether the differing backscatter products produced from the same data, but with different software or methods, can provide for similar interpretations of seafloor characterization. Angular response diagrams from different visually apparent domains within the data will provide an additional basis against which to verify characterization based on backscatter value, bathymetry, and geologic parameters.

4. Materials and Methods

4.1 8-bit Graphic Paper Chart Analysis

During the cruise, 8-bit grey scale images with pixel values representing backscatter intensity were printed. For this research, these were digitally photographed at 300 dpi resolution using a Nikon D800. Images were merged into a single digital image with 8-bit pixel values using Adobe Photoshop 2022. This digital image was georeferenced using ESRI ArcMap 10.8, yielding an 80bit surface of 230 m X 230 m cell size [68]. As gain was not adjusted during data collection and visual observation of the paper charts does not indicate apparent along-track jumps in backscatter intensity, the relative backscatter values depicted by pixel values were used for analysis in [68].
Visually identifying seafloor domains identified in these images served as the first iteration of analysis. Observation identified areas of high, low, and variable backscatter. One homogenous area overlies the EPR, which is an area of known seafloor creation, and thus its pixel characteristics can be inferred to represent high backscatter values. Areas of homogenous, high backscatter values include the EPR, volcanic and abyssal hill structures extending distally from the EPR, and Area A. The Kurchatov trough and immediately adjacent areas exhibit variable backscatter.
Histogram equalization through a cumulative distribution function, and subsequent reclassification of the backscatter into a surface of 8 bins were undertaken as described in Mussett (2023) [68]. The reclassified backscatter data were then constrained by parameters conducive for nodule formation. This included elimination of pixels meeting the following parameters: <50% of the maximum backscatter value, shallower than the local CCD, where slope is >7°, where seafloor is younger than 2 Ma, and where sedimentation rate is ≥1 cm ka-1. This methodology identified areas within the data where nodules may be present.

4.2. Comparing 8-bit Graphic Paper Chart with Digital Backscatter Products

Digital multibeam data from the cruise were processed in MB-SystemTM to produce both an 8-bit backscatter surface (Graphic), and a surface containing intensity values on dB (decibel) basis (BS). These two surfaces and the 8-bit graphic paper chart (Scan) describe above are hereinafter referred to as the ‘three surfaces’. The three surfaces were compared using zonal statistics.
A 90 x 90 km fishnet grid was applied to delineate zones for general visualization of the data from the three surfaces. Trendlines of standard deviation, median, and mean for the three surfaces were created to illustrate similarities and differences between the three surfaces. Separately, a 4 x 4 km fishnet was applied to delineate zones to constrain the three surfaces to conducive nodule area based on bathymetry and geologic parameters. This included constraining the data to ≥1σ backscatter value to eliminate low backscatter zones, and further constraining the data to ≤-1σ standard deviation to eliminate high variability zones. These constraints emphasize areas where nodules may be present based on backscatter.
The final method for zonal statistical analysis included dividing the data coverage area into longitudinally equal zones of 1°. This segmented the data into 20 zones. The number of 4 x 4 km cells in each zone exhibiting low backscatter variability and high backscatter value were counted for each of the three surfaces to identify zones with a higher concentration of prospective nodule area. The 1° zones were then constrained by bathymetric and geologic parameters to include only areas with conducive environmental conditions for nodule presence. This constraint reduced the number of 1° zones from 20 to 14. The 1° zones with the highest concentration of 4 x 4 km cells, following the applied constraints described above, were identified as clusters where nodules may exist. These comparisons will test the similarity of results derived from the different methods of displaying and analyzing backscatter data.

4.3. Comparing Angular Response

Finally, angular response diagrams were generated from select sites representing visually different backscatter domains and different geographic locations. The diagrams were derived from cell values of the backscatter surface with pixel values in dB, and were not taken per-ping. Nadir position is estimated from nadir artifact position in the backscatter, and angle is estimated as a function of water depth, swath width, and across-track pixel position relative to nadir. Average backscatter value and diagram shape in terms of average departure from trendline intercept are recorded, and the qualitative profile shape was noted. These results are graphed against 15 kHz angular response backscatter data for a variety of substrate types as described in the High-Frequency Ocean Environmental Acoustic Models Handbook, hereinafter ‘handbook’ [98]. A qualitative comparison of angular response from the test case data and 12 kHz angular response from a survey area described by Yang et al. (2020) was also graphed [46]. The angular response data serve as another verification for use of backscatter data in delineating seafloor geology domains, and both the profile shape and across-track values relative to highest near-nadir values provide a basis for comparison with theoretical profile shapes attributable to different seafloor substrate.

5. Results

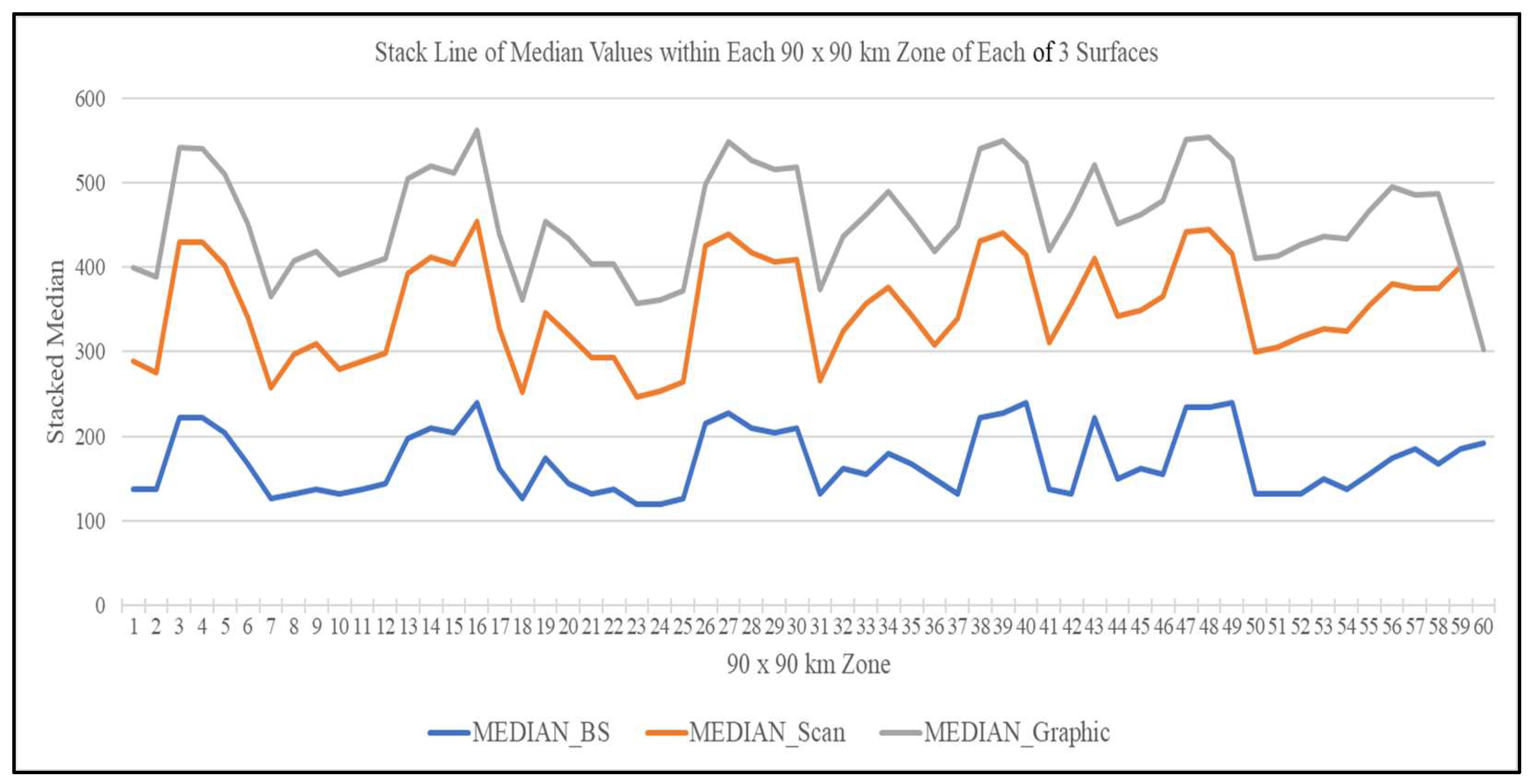

The three surfaces exhibit similar trends in their 90 x 90 km zonal statistics, indicating all three should generate similar results from a given analysis (Figure 2).
Producing zonal statistics for all three surfaces on a 4 x 4 km zonal basis (normalizing resolution to 16 km2 cells, hereinafter ‘cells’) allowed for cluster analysis to be undertaken and the surfaces to be compared. This was achieved by further binning the surfaces to bins of 1° longitude width (Figure 3). Constraining the three surfaces to only cells exhibiting high backscatter values identifies areas of low seafloor acoustic absorption e.g. hard substrate including crusts, nodules, exposed basalt, etc.; additionally constraining the surfaces to only include cells with low backscatter standard deviation (σ) further identifies areas of homogenous backscatter intensity. When an area is shown to exhibit high backscatter values and high backscatter homogeneity, it is inferred as a uniform or semi-uniform expanse of relatively hard seafloor substrate.

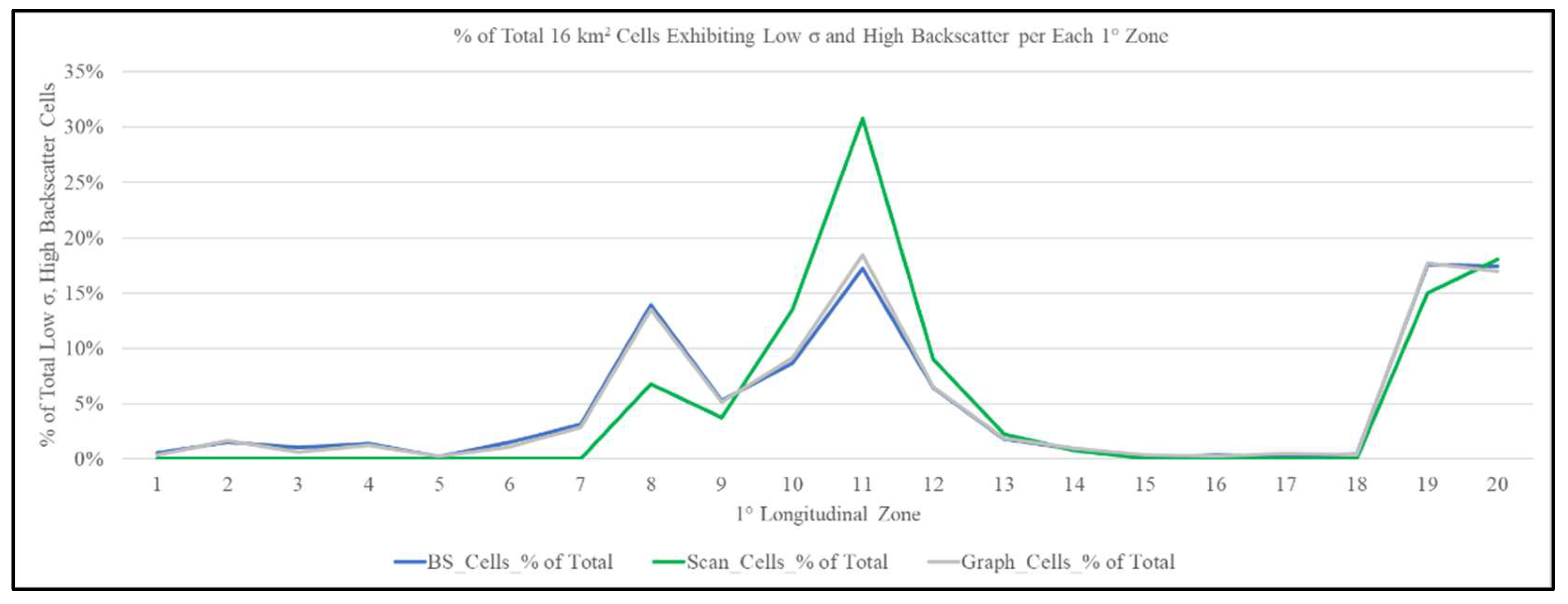

Counting the percentage of total cells present in each 1° bin for each respective surface emphasizes clusters of strong, homogenous backscatter. This also allows for differences between the three surfaces to be examined. The results for all three surfaces are similar, with 1° zones 8, corresponding to the Kurchatov trough area, 11, corresponding to Area A, and 19 and 20, corresponding to the EPR emphasized as clusters of high, homogeneous backscatter (Figure 4 and Figure 5; Table 1). However, while the two surfaces created via MB-SystemTM align very closely (R = 0.998), the scanned surface correlates well but not as closely (R = 0.912), exhibiting higher stack line peaks for clusters in Zones 10, 11 and 12 (Area A and adjacent), and a lower peak in Zone 8 (Kurchatov trough).

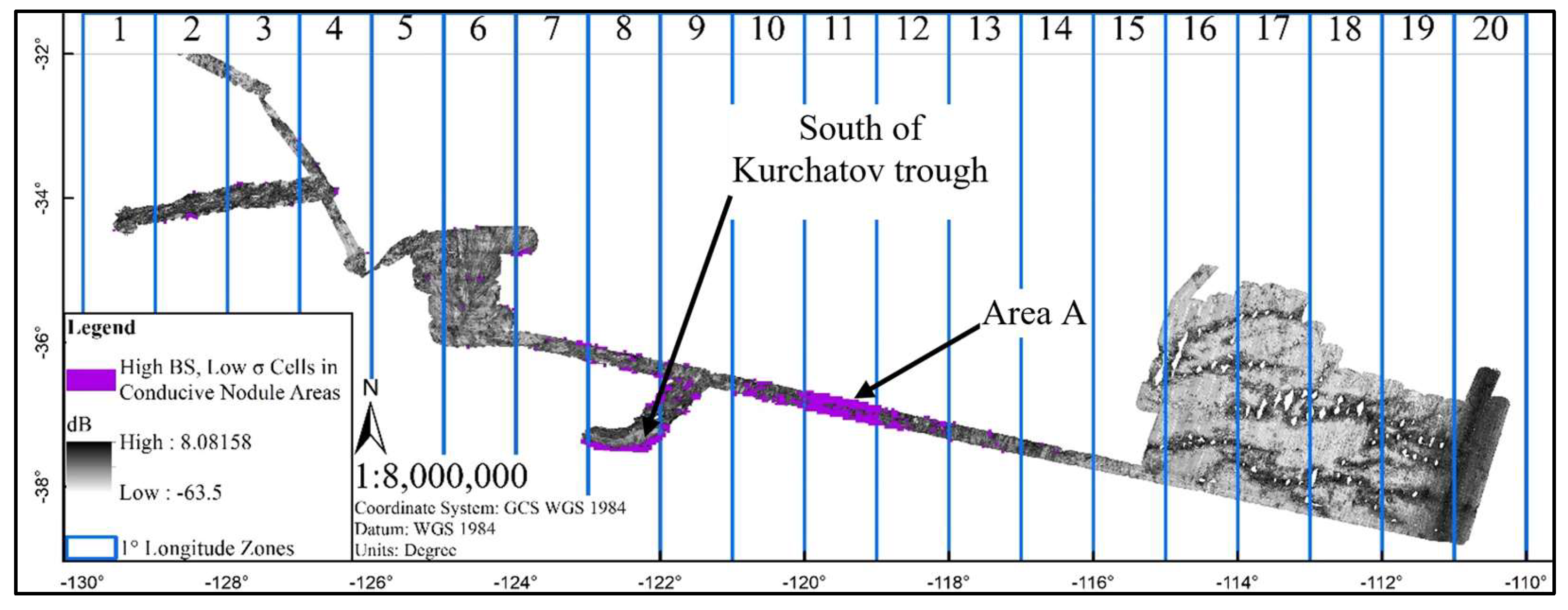

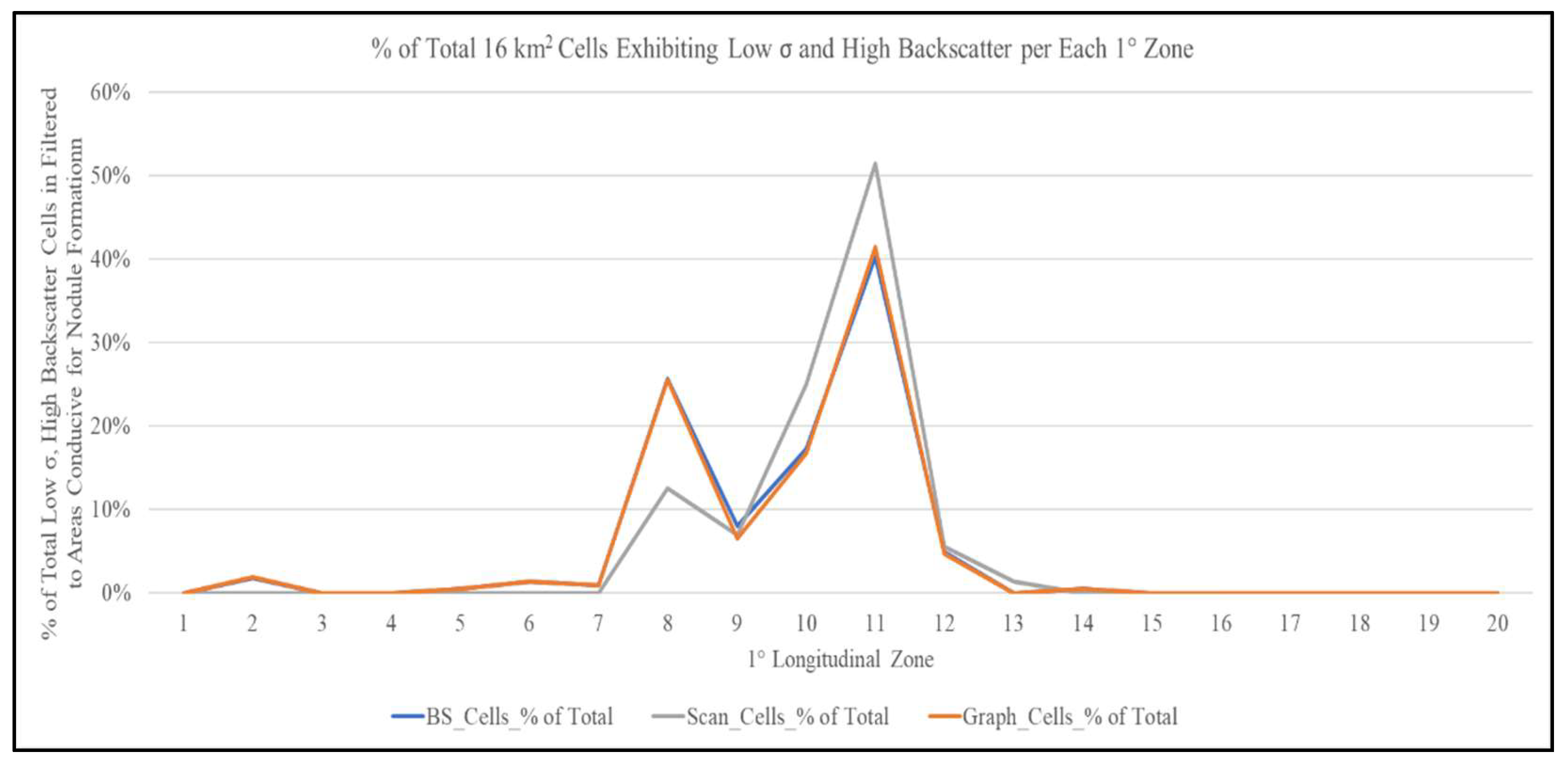

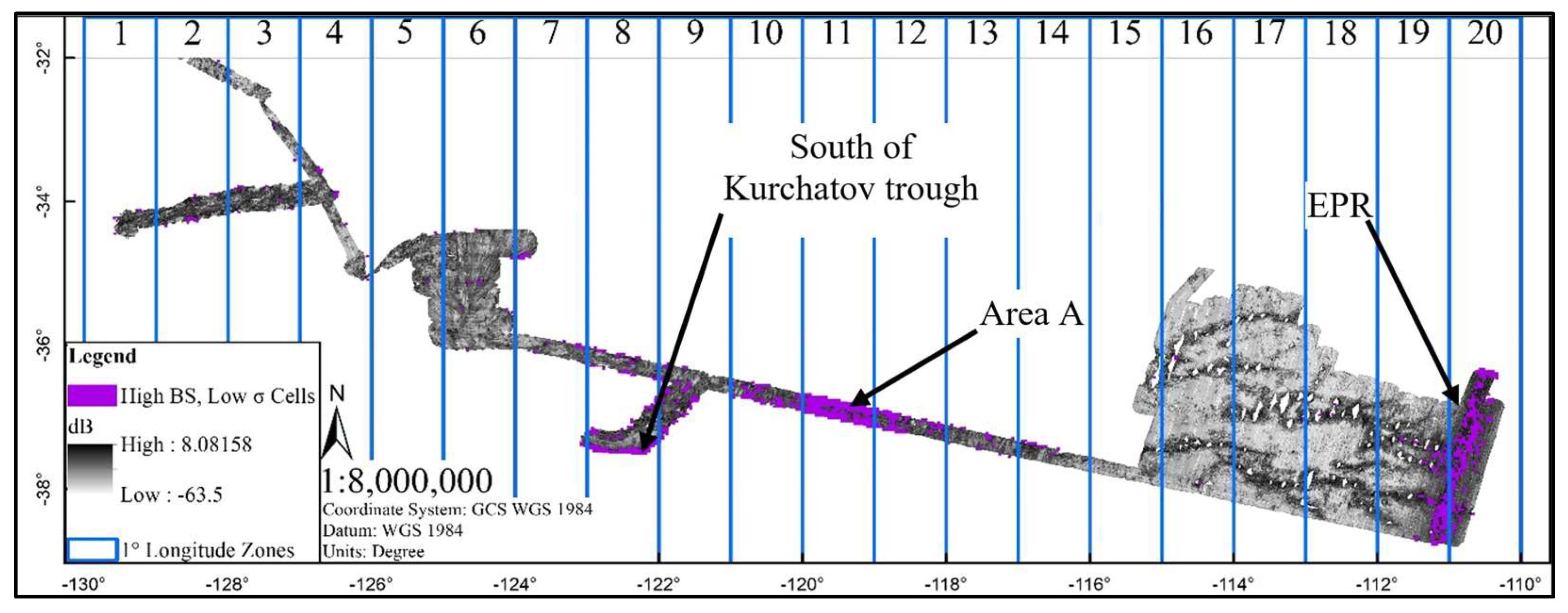

Further constraining the high backscatter, low σ filtered data to only those geographic areas in the data >2 Ma old and accumulating sediment at a rate of 0.3 to <1 cm ka-1, and also shown by bathymetry data to be deeper than the local CCD and exhibit a slope ≤7° identifies areas most conducive for nodule presence. The three surfaces all identify similar areas within the data exhibiting homogenous, high backscatter which, based on bathymetric and geologic context, are attributable to nodule presence. These areas include the Kurchatov trough area (Zone 8) and Area A (Zone 11, with lesser clusters in the adjacent Zones 10 and 12); the EPR area is excluded based on age and water depth. Similarly to the comparison of the cell distributions prior to filtering by slope, depth, sedimentation rate and age, the two surfaces created via MB-SystemTM align very closely (R = 0.999), and the scanned surface correlates well but not as closely (R = 0.941 between ‘backscatter’ and ‘scan’ surfaces, and R = 0.943 between ‘graphic’ and ‘scan’ surfaces). For all 3 surfaces higher cluster peaks exist in Zones 10, 11 and 12 (Area A and adjacent), with a lower peak in Zone 8 (Kurchatov trough) (Figure 6 and Figure 7; Table 2).

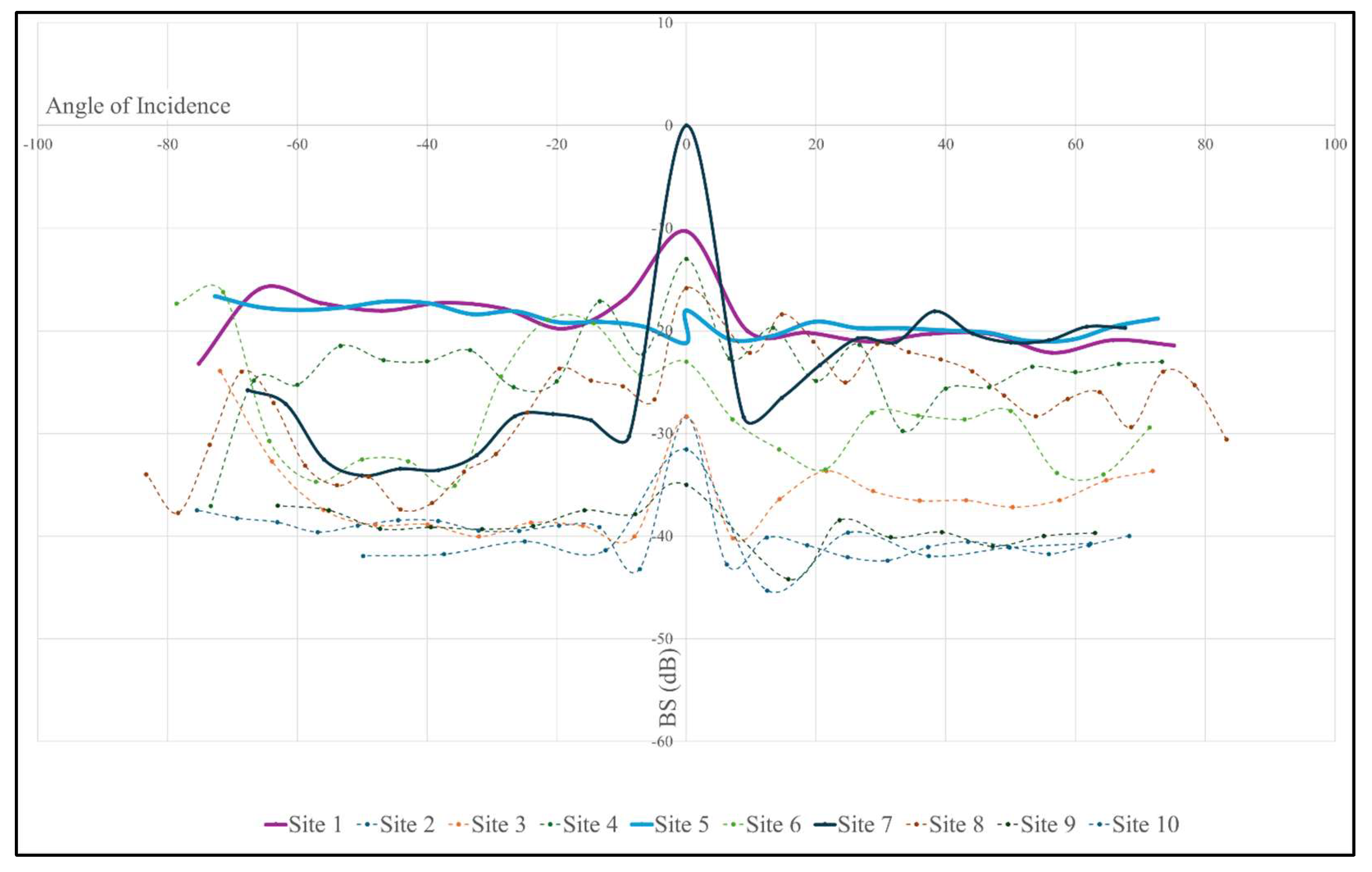

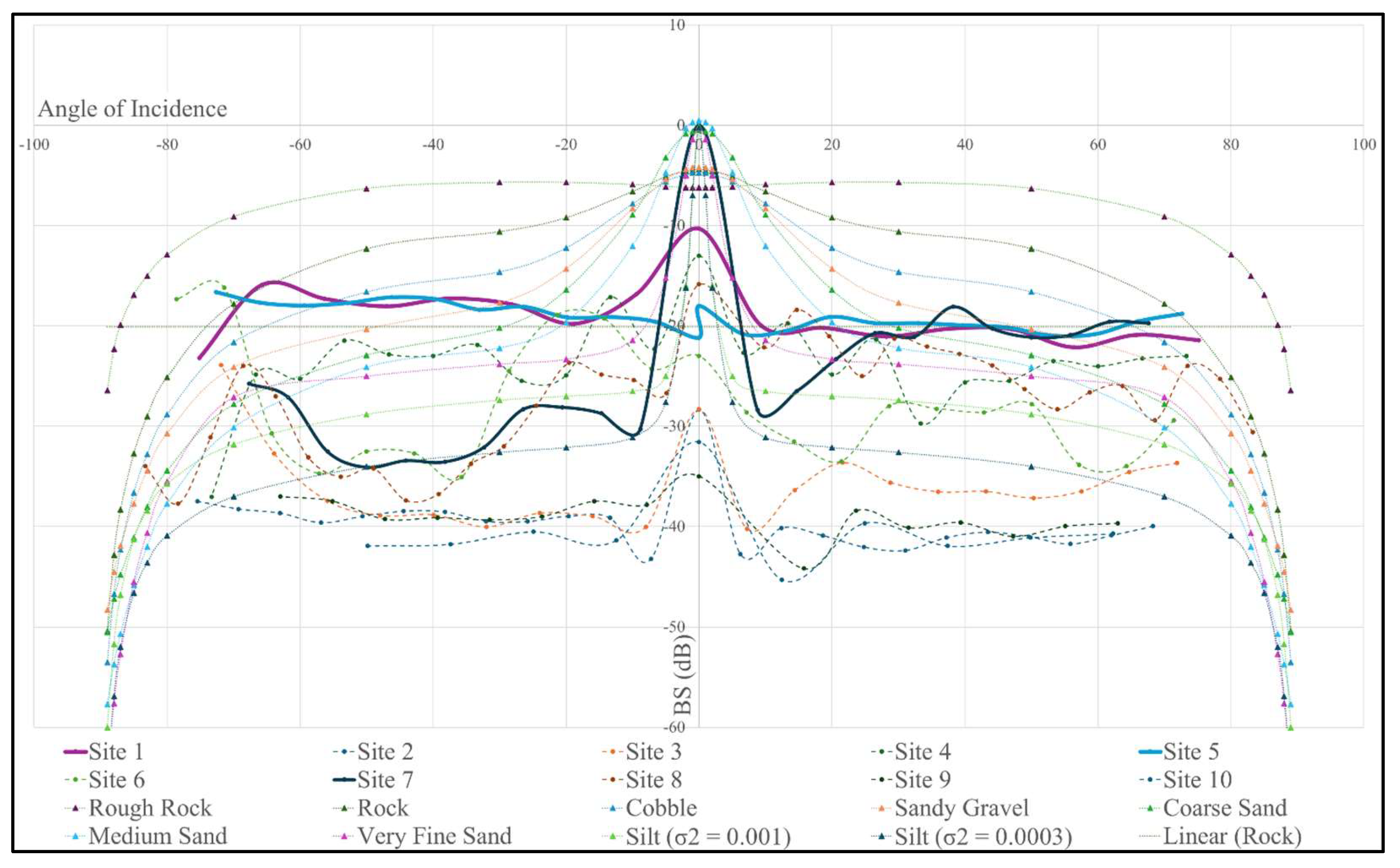

Angular response data from select geographic locations indicate a difference in seafloor substrate for sections of the data. This is determined by both the mean across-track backscatter intensity, and profile shape of the angular response diagram. These locations are shown in Figure 8 and described in Table 3. Figure 9 depicts the angular response of the across-track sites within the data. Figure 10 depicts the same as well as modelled profiles for 15 kHz sonar for a range of substrate types as described in the handbook [98], and Figure 11 depicts the same with an additional overlay of angular response at 12 kHz by substrate type, including nodules of ~20 kg/m2 and ~40 kg/m2 abundance observed at a site in the western Pacific Ocean adapted from Yang et al. (2020) [46].

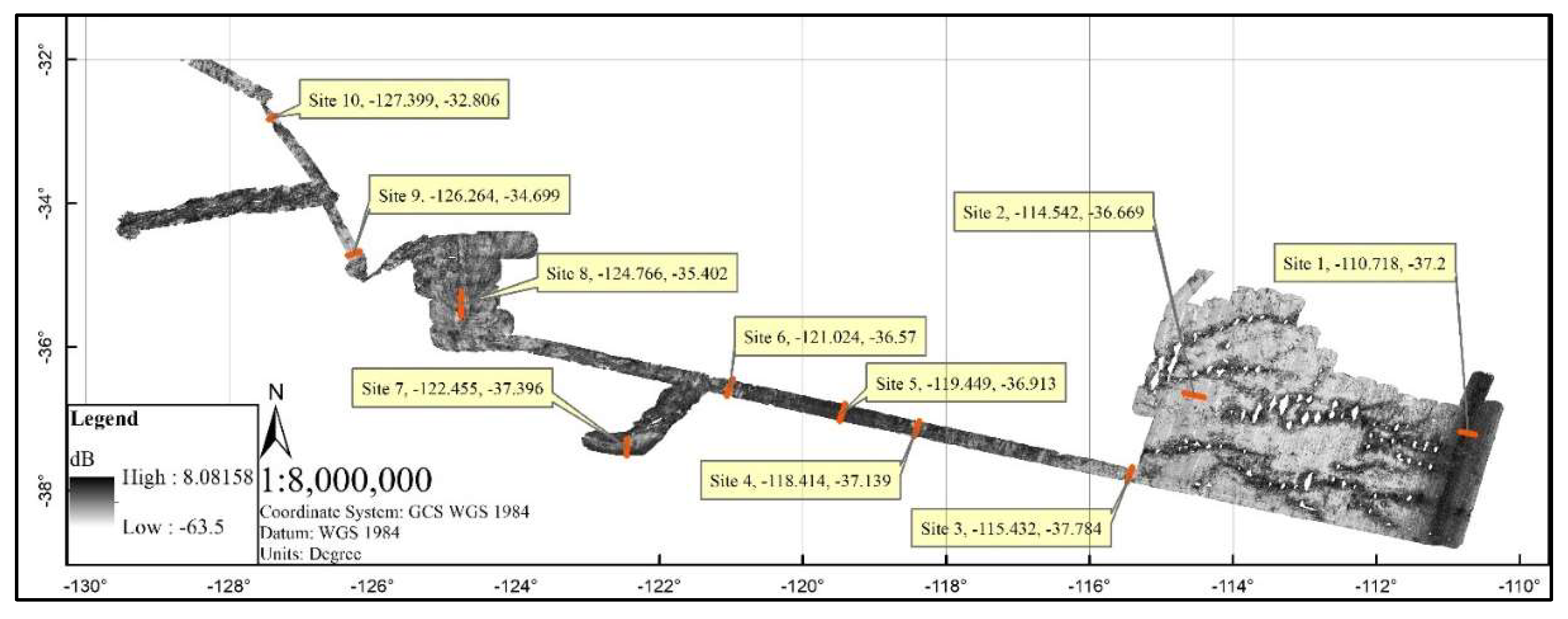

Sites within the data where across-track angular response diagrams were generated from the backscatter surface generated in MB-SystemTM with cell values in dB (Table 3). The absolute average difference between the diagram trendline and nadir intercept was used as a marker of general flatness of the profile in terms of the range of backscatter values about the trendline intercept. Site 5, corresponding to Area A exhibited the lowest variability. Site 7, corresponding to the area south of the Kurchatov trough exhibited the highest variability. Sites 5, 6, 7, and 9 are the only sites >1σ difference of intercept to backscatter across track, indicating these are significantly higher or lower in terms of their profile flatness. Sites 1 and 5 exhibit the highest mean backscatter values. The high mean backscatter and flat profile of Site 5 align with an expected nodule profile as shown in Figure 11, adapted from Yang et al. (2020) [46].

6. Discussion

Analysis of the multibeam bathymetry and backscatter data together with the environmental data predict nodule occurrences both in Area A, and south of the Kurchatov trough. Across-track angular response diagrams qualitatively reinforce the characterization of nodule presence in Area A (Site 5), while suggesting a different type of substrate, or more variable seafloor geology may exist south of the Kurchatov trough (Site 7). However, the area analyzed for angular response south of the Kurchatov trough only overlaps potential nodule areas from ~30° to ~70° angle of incidence (Figure 7 and Figure 8). For this section of the Kurchatov trough area (Site 7) angular response diagram the angular response closely aligns with the respective sections of angular response diagrams of the EPR (Site 1) and Area A (Site 5), indicating nodule presence only in this section of the data area analyzed for Site 7. It must be noted the angular response diagrams were generated from the backscatter raster, and were not taken per-ping.
The extent to which multibeam data editing may have impacted the results is not evident when working only with raster data. However, this methodology may provide a more readily attainable means for assessing angular response by scientists without access to digital multibeam data or specific software needed for generating angular response diagrams. However, this method requires additional effort and inherent imprecision for matching a wide swath from a hull-mounted multibeam system operated in deep water with the most likely average seafloor type in a specific location in the data; if the wide swath encounters an area of apparent variable backscatter, the angular response profile may not match closely with a modeled profile. Without built-in capability afforded by specialized software, interpretation can prove more challenging for an investigator to accurately, and consistently, determine. Ideally, calibrated backscatter data can be acquired with a respective system and used as a benchmark. Comparative analysis undertaken in this research relied on profiles described in both the handbook [98], which did not provide a 12 kHz model output, as well as by Yang et al. (2020) [46], which considered data collected in the same ocean and at the same frequency but with a multibeam system not necessarily intended to be used as a calibrated benchmark to compare with other backscatter data. However, this research indicates the use of angular response diagrams as an evaluative tool work well as a complement to analysis undertaken with bathymetry and backscatter surfaces.
During this research, similar results were achieved regardless of which of the three surfaces were used, though trends were more subdued in the scanned chart. The scanned chart allows for data analysis but digital products derived in MB-SystemTM provide greater data density, which may result in accentuated trends in pixel distribution graphs. Similarities between the three surfaces may be accentuated owing to processing undertaken during and following the cruise, which may have included treatment in the contemporaneous Simrad or IFREMER acquisition and processing software suites (e.g., CARAIBES ©). Comparing results from additional data sets and products, as well as products produced from additional software suites may offer future opportunity to address the research objective of whether differing backscatter products produced from the same data, but with different software or methods, can provide for similar interpretations of seafloor characterization.
This study suggests backscatter products such as raster surfaces provide a suitable basis for evaluating prospective nodule areas and delineating seafloor substrate types; while assessment relying on raw multibeam data may compliment or refine results based solely on backscatter products, the adaptability of backscatter products in software other than specialized multibeam software may afford more opportunity to a broader range of scientists and persons interested in characterizing seafloor geology.
Explanations for high backscatter intensity other than nodule presence include presence of abyssal hill outcrops, recent lava flows, or polymetallic crusts. However, the geomorphology of both Area A and the area south of the Kurchatov trough do not indicate the characteristic dendritic patterns of lava flows or sharp contrasts with older sedimented seafloor (e.g., Hagen et al., 1990) [99]. Polymetallic crust presence, e.g., Fe-Mn coating on exposed igneous basement may be present throughout this general area of the transit, but this coating is not expected to be a predominate feature of Area A, because unlike nodules, flat crusted seafloor would be buried by sediment in this location. Likewise, the differences in angular responses and the broad areas of high, homogenous backscatter (Figure 9, Figure 10 and Figure 11) would be best explained by a large nodule field.
Future ground-truth data collection will be needed to test this prediction and validate the applicability of this method in detecting nodule fields. Models based on remote sensing data can be trained with inputs of empirical data to establish nodule domains, as well as geological domains of different seafloor type. Differentiating seafloor substrate types will assist with marine spatial planning, as domain types, spatial extents of individual domains, and benthic habitats can be more precisely defined. This may facilitate marine spatial planning initiatives and fulfillment of objectives such as the protection and conservation designation of 30% of marine area by 2030 as stated in the Kunming-Montreal Global Biodiversity Framework, as well as support ongoing management of marine mineral resources, e.g., the International Seabed Authority [100,100,101,101,102].
The whole of this case study data exist in international waters, in an area with seabed resources administered by the United Nations. Area A accounts for ~3,000 km2 of seafloor, and the potential nodule area south of the Kurchatov trough accounts for ~1,000 km2 of seafloor. Estimated area of seafloor prospective for abundant nodules in the Pacific Ocean is ~28,000,000 km2 from 9 areas, ranging from ~350,000 km2 to ~8,000,000 km2 [34]. Should Area A and the surrounding region be confirmed to contain abundant nodule fields, this would contribute to estimates of Pacific seafloor containing nodules and support efforts to classify benthic habitat domains throughout the Pacific. Similar high resolution data are scarce in the region; low-resolution bathymetric estimates and application of filters for environmental parameters conducive for nodule presence suggest the occurrences indicated in the case study data may be part of a much larger occurrence. As more of the world’s oceans are mapped in high resolution, new data may show this area as a continuance of known occurrences in the southern Pacific Ocean, or as a unique contiguous field unconnected to known occurrences. Future multibeam data collection, particularly adjacent to the data boundary to the south and east of the Kurchatov trough area, as well as north and south of Area A would enable such an assessment.

7. Conclusions

Analysis indicates Area A and the area south of the Kurchatov trough contain polymetallic nodule occurrences. This is based on the respective data characterization of homogenous, high backscatter value, and application of bathymetric and geologic context. Zonal analysis of the data indicates a higher concentration of 16 km2 cells exhibiting high backscatter values and low heterogeneity within Area A than elsewhere in the data. This is true whether or not the data are constrained to areas conducive for nodule formation. The zone including the Kurchatov trough exhibits the second highest concentration of such cells when constraining to areas conducive for nodule formation, while the EPR exhibits the second highest concentration of such cells when constraints for nodule formation are not applied. The scanned paper chart contains a higher proportion of such cells in Area A than do the MB-SystemTM backscatter products; likewise, clusters of such cells are less apparent in the scanned paper chart results when mapping these data, perhaps owing to the higher data density of MB-SystemTM products.
A relative seafloor valley slightly below the CCD exists in and immediately adjacent to Area A, while low-slope seafloor of ~4500 m water depth exists to the south of the Kurchatov trough. Results suggest smaller areas within the data also may contain nodules, though proximity to tectonic structures limits their expanse compared to Area A and the plain south of the Kurchatov trough. Qualitative assessment of angular response diagrams generated from select locations throughout the data indicate geological characteristics differ, and reinforce the interpretation of nodule presence where bathymetry, backscatter value, and environmental parameters suggest. Although ground-truth sample data are required to validate the characteristics of seafloor geological domains, this research strongly suggests that transit multibeam bathymetry and backscatter data, including angular response, can be used with geologic and environmental data, prior to ground-truth data collection, to predict areas of deep seafloor likely to contain polymetallic nodules.
The primary variables to identify areas likely to contain polymetallic nodules are homogeneous, strong multibeam backscatter data in areas of seafloor older than 2 Ma that are deeper than the CCD, subject to sedimentation rates of 3 to <10 mm ka-1, and with an overall seafloor slope ≤7o. Based on this proposed method we predict evidence from a single multibeam transit indicates two areas of respectively ~3,000 km2 and ~1,000 km2 in water depths >4,000 m contain nodule occurrences. These locations are limited to the extent of the data. Future use of similar methods may be used with low resolution bathymetric estimates of adjacent areas to identify whether a much more expansive occurrence may exist in the region, though angular response analysis would not be possible and results would only be indirectly comparable owing to poorer bathymetric resolution. Future work may also include a data mining exercise to locate geological samples coincident with data collected using the same multibeam system in comparable water depths; this would allow for an additional case study, and provide an empirical basis for interpretating angular response diagrams generated in this study.
Lastly, considering the vast amount of archived multibeam transit data through remote areas of the world’s oceans and new multibeam data expected from the Seabed 2030 Project [103,104,105,106,107], we propose that this type of first-order analysis could be useful as a cost-effective, desk-based analytical method for determining other potential nodule fields using a specific set of variables starting with multibeam backscatter data exhibiting high values and homogeneity (along and across track), geomorphology from multibeam bathymetry, environmental parameters conducive for nodule formation, and angular response profiles fitting a shape and intensity representing a high impedance, high rugosity seafloor. This proposed method could help prioritize future exploration activities including transit planning to or from focused survey areas, and can assist scientists and regulators in estimating marine ecological and mineral resources. Additional industrial applications for characterizing seafloor geology with these methods include cable route surveys, locating seamounts or other features, which could pose a navigation hazard, and identifying types of seafloor habitats.
