On Confined-Track Samples for Constraining Thermal Histories

1. Introduction

The fission-track method for dating and retracing the thermal histories of geological samples is based on counting and measuring the damage trails from uranium fission in minerals. Apatite is the most important mineral: separated grains are mounted in resin, polished and etched for microscopic inspection. Etching creates channels along the damage trails. Etched fission tracks have distinct shapes and dimensions depending on their orientation and that of the etched surface. It is not evident how their numbers and lengths are related to those of the unetched tracks. For that reason, experimental protocols and a calibration against age standards must guarantee accurate results.

This contribution deals with matters related to etching, selection and measurement of confined fission tracks. Reasonable requirements of a confined-track sample are that it is a sufficient size for statistical treatment, representative of the track population, consistent with the modelling assumptions and calibration data, and that the measurements are reproducible and consistent between analysts. The variation of the mean track length amounts to ~3% for replicate measurements by an experienced scientist and ~5% for different scientists measuring the same sample (Gleadow et al., 1986; Green et al., 1986; Carlson et al. 1999; Barbarand et al., 2003). It is <0.5% for two scientists measuring the same track images (Tamer et al., 2019). However it rises to ≳10% for complex samples (Barbarand et al., 2003) and when the results of different observers, etching and measurement protocols are compared (Miller et al., 1993; Ketcham et al., 2015; 2018). Although we know of no statistical comparisons, is reasonable to suppose that the track length distributions are less reproducible than their means (Barbarand et al., 2003 - Figure 7). Several factors are known to bias confined-track measurements. Following Barbarand et al. (2003), we distinguish between geometrical bias, etching bias, observer bias and measurement bias.

Geometrical biases include length bias, orientation bias, fracture and host-track thickness bias, and edge- and surface-proximity bias (Laslett et al., 1982; 1984; Galbraith et al., 1990; Galbraith, 2002; 2005; Ketcham, 2003; 2005). Geometrical biases are not under the scientist’s control but can be dealt with on a theoretical basis. Measurement biases are related to the experimental setup: microscope magnification, use of reflected or transmitted light, oil immersion, inclusion of dipping tracks, or TinCLE’s, and Cf- or ion-irradiation (Watt et al., 1984; 1985; Crowley et al., 1991; Ketcham et al., 1999; Barbarand et al., 2003; Li et al., 2018; Tamer and Ketcham, 2023). Measurement biases can be held in check by standardizing measurement procedures. Unintentional observer bias occurs when scientists measure different lengths on the same tracks. This effect is moderated by normalizing to a “zero”-length specific to the scientist (Kohn et al., 2002; Spiegel et al., 2007; Ketcham et al., 2015; 2018). Intentional observer bias occurs when a subset of confined tracks is selected for modelling, and other tracks are discarded as “not suitable for measurement”.

We formulated an etch model for apatite and measured the corresponding etch rates (Aslanian et al., 2021; Jonckheere et al., 2022; Fu et al., 2024; Trilsch et al., 2024). This enables us, from observation of a confined track, to infer its c-axis orientation, its effective etch time, and its etch rate, in addition to its length. This releases us from the rigid etching protocols in common use and provides insight in the relationship between etching and sampling (intentional observer) bias. We consider how to use this to improve the confined-track sample and the resulting thermal histories.

2. Step-Etching

Figure 1 shows a horizontal confined induced track (αγ) at ~60° to the c-axis in a prism face of Durango apatite after 15, 30 and 45 s immersion in 5.5 M HNO₃ at 21 °C (Carlson et al., 1999). It is intersected at ¼ of its length by the host track (β). It is widest at β and narrows towards α and γ, implying a finite track etch rate v_T. The ruler-straight edges show that v_T is constant over almost its entire length (Fleischer et al., 1969). The track width at β is ~0.9 µm, indicating that it was etched for the last ~7.4 seconds of its immersion, while during the first ~7.6 s the acid progressed down the host track and across to the confined track. For an average track etch rate v_T the tip (α) closest to β was etched for about five seconds, whereas (γ) was etched for two seconds at most. Nevertheless γ is blunt (rounded), which has been taken as a sign that the track is well-etched or even over-etched (Laslett et al., 1984; Figure 7). In contrast, α just begins to develop a polygonal shape bounded by slow etching basal and prism faces (Jonckheere et al., 2019, Figure 11; Aslanian et al., 2021, Figure 2) in agreement with the theories of crystal growth and dissolution (etching). In crystal growth and dissolution, it is rounded rather than polygonal forms that require explaining. But that is straightforward: a constant v_T accounts for the straight track, a deceasing v_T accounts for a rounded tip (motorboat effect; Fleischer et al., 1969, Figure 2), and zero v_T for a termination determined by the apatite etch rates v_R. It is thus not before a confined track has developed polygonal terminations at both ends that it can be considered as fully etched.

After the second immersion the width of the track in Figure 1 increases to three times that after the first immersion, and after the third to more than five times, whereas its length has increased <10%. This is because both ends become bounded by basal and prism faces, which limit the rate of length increase to that controlled by the lowest apatite etch rates. At high angles to the c-axis, the basal face grows faster in extent; at low angles, the prism face grows faster (Jonckheere et al., 2019 - Figure 11; Aslanian et al., 2021 - Figure 2). A short etch gives thin tracks with rounded tips that are easier to measure, but underetched, whereas a longer etch produces broad tracks with angular terminations that are to an extent overetched and appear more difficult to measure. It is however per definition right to measure the track length from the intersection between the basal and prism face at one end of the track to that at its opposite end (Figure 1d). Supplement-Figure 1 shows that the measurements of confined track lengths by two analysts are more consistent after 30 s immersion (correlation coefficient r_l = 0.99) than after 15 s (r_l = 0.95); there is no further improvement after 45 s immersion (r_l = 0.99). The same appears to be the case for the track widths (w) and effective etch times (t_E). The fact that the etch times are less consistent than the track widths underlines the importance of the track orientations (ϕ) for calculating t_E = ½ w/v_R(ϕ).

Figure 1 illustrates that there is no time at which a confined track is well-etched at both ends. At the moment that one end goes from track etching (v_T, v_L) to bulk etching (v_R), the other will be overetched if it is closer to the host track, or underetched if it is more distant. On top of that, shorter tracks will, on average, be overetched relative to longer tracks (Laslett et al., 1984). Therefore different confined tracks not only have different formation and geological histories but also different etching histories. The aim of etching protocols should be to minimize etching artefacts. This raises the question what to aim for. An etching protocol that achieves the closest possible approximation to the intrinsic (latent) tracks lengths, or one that produces the best fit with the published annealing datasets on which the current Tt-modelling equations are based. In either case, the next question is whether the goal is best achieved by a uniform, standardized protocol or by protocols tailored to the etching properties of the samples and the tracks (fossil or induced).

3. Ion Irradiation

Besides a representative sample and accurate measurements, the number of tracks is important for modelling the thermal histories of geological samples. It is not uncommon to expose samples to fission fragments from a ²⁵²Cf source (Donelick and Miller, 1991). This creates tracks that act as conduits along which the etchant gains access to fission tracks in the grain interior. The “Cf-tracks” from “Cf-irradiation” are short and expose confined tracks within half a full track length of the surface. This method uses the same immersion times and etch protocols as for unirradiated samples. The increase of the confined track sample can reach almost an order of magnitude in suitable apatite samples (Donelick and Miller, 1991; Figure 3) but appears to be less in zircon Yamada et al. (1998). These authors also studied artificial fracturing and accelerator-ion irradiation as alternatives to Cf-irradiation, while Ito (2004) used extended etching for increasing the sample size.

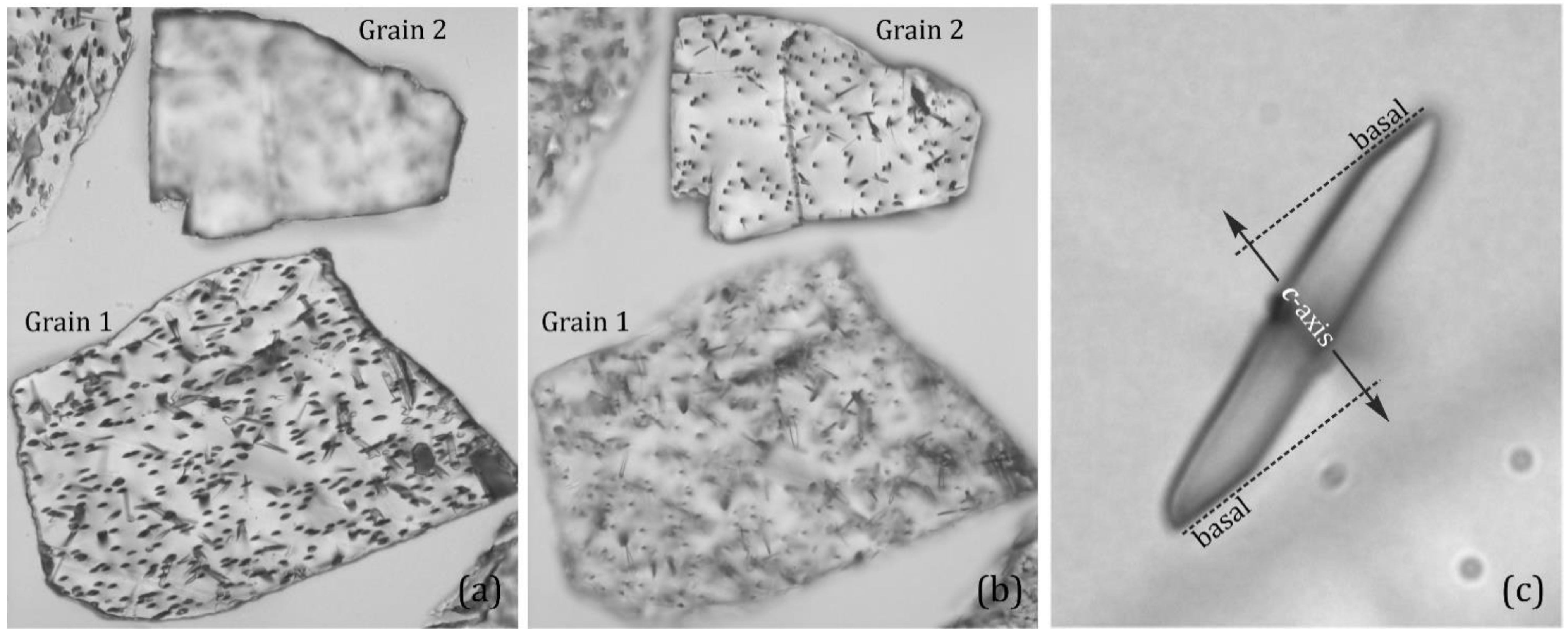

Ions from a linear accelerator can have GeV-energies, enabling them to traverse entire apatite grains. Nevertheless, fission tracks at ≳10 µm depth are in general underetched at standard immersion times because it takes time for the etchant to advance down the ion tracks. However, we are less bound by protocols if we can calculate the effective etch time of each confined track from its width at its intersection with the host track (Aslanian et al., 2021; Fu et al., 2024; Trilsch et al., 2024). It is then advantageous to combine ion irradiation with an extended etch time or with step-etching. The result depends on the sample, the beam properties and the etch protocol. Just increasing the immersion time, keeping all else constant, can increase the confined track sample by an order of magnitude, for the most part due to the widening of the ion tracks (Jonckheere et al., 2007; Figure 3 and Figure 6). This approach has other advantages: Figure 3a,b shows two apatite grains etched for 40 s in 5.5 M HNO₃ at 21 °C. The obvious focus difference between the fast-etching and the slow-etching grains facilitates rapid grain selection at moderate magnification. Figure 3c shows a confined fission track at a depth below the surface beyond the deepest surface tracks, etched to a point where it is terminated at both ends a basal and prism face. Thus the outline of a single well-etched confined track suffices for determining the orientation of the apatite c-axis.

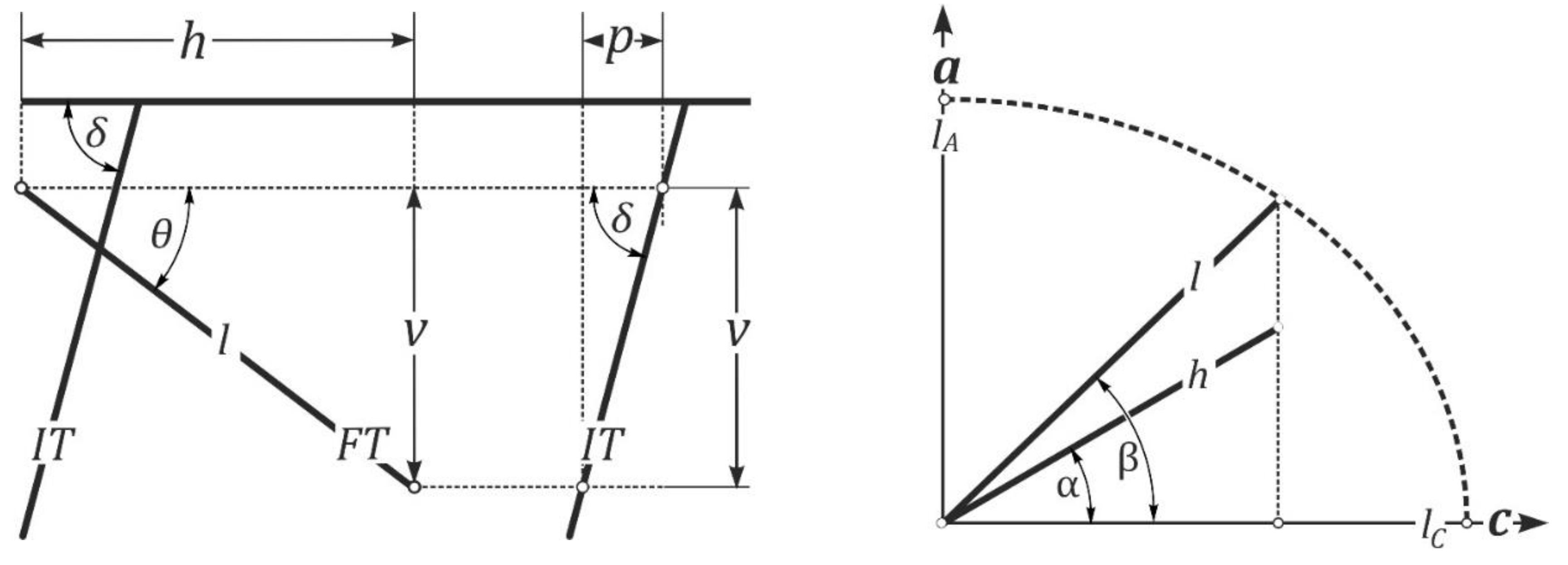

In relative terms, ion irradiation reveals more non-horizontal confined tracks than Cf-irradiation. Their lengths and orientations can be measured with dedicated software but also without. The ion tracks at a fixed angle (δ) to the surface allow converting a horizontal distance (p) into a height (v), requiring no correction for refraction. One measures the horizontal distances h and p and the apparent angle to the c-axis α while focussing, as normal, on the upper and lower end of the confined fission track (Figure 4). Its true length l and c-axis angle β are then calculated as (Jonckheere and Ratschbacher, 2010):

$$l=\sqrt{h^2+p^2{tan}^2\delta }$$

$$\beta ={cos}^{-1}\left(hcos\alpha /l\right)$$

Measuring two or more ion tracks (averaging p) around each confined track increases precision, which is at least as good as that of 3D length measurements on image stacks (Supplement Figure 2; Tamer et al., 2019). In contrast to the orientation-dependent surface openings of fission tracks (Sobel and Seward, 2010) the identical ion track openings also permit precise Dpar estimates for each individual grain. Video supplement 1 of an apatite grain irradiated with 2.5 10⁶ cm⁻² Xe-ions and etched 40 s in 5.5 M HNO₃ at 21 °C shows the advantages of ion irradiation and an extended etch time.

4. Apatite Etch Rates

Because of their sub-microscopic diameters, fission tracks in apatite are made visible under an optical microscope by chemical etching. This is because the disordered region along the trajectories of the fission fragments reacts faster than the ordered lattice (Price and Walker, 1962). Fleischer and Price (1963) described track development in polymers and glasses in terms of the etch rate v_T along the track and the bulk etch rate v_B of the detector. With a notable exception (Maurette, 1966), this concept has also been adopted as a framework for describing track revelation in apatite (Tagami and O’Sullivan, 2005; Hurford, 2017), which affords the rationale for using prism faces for dating. However, a (v_T, v_B)-model cannot explain the varied appearances of etched fission tracks depending on their orientation and that of the etched surface (Jonckheere et al., 2019).

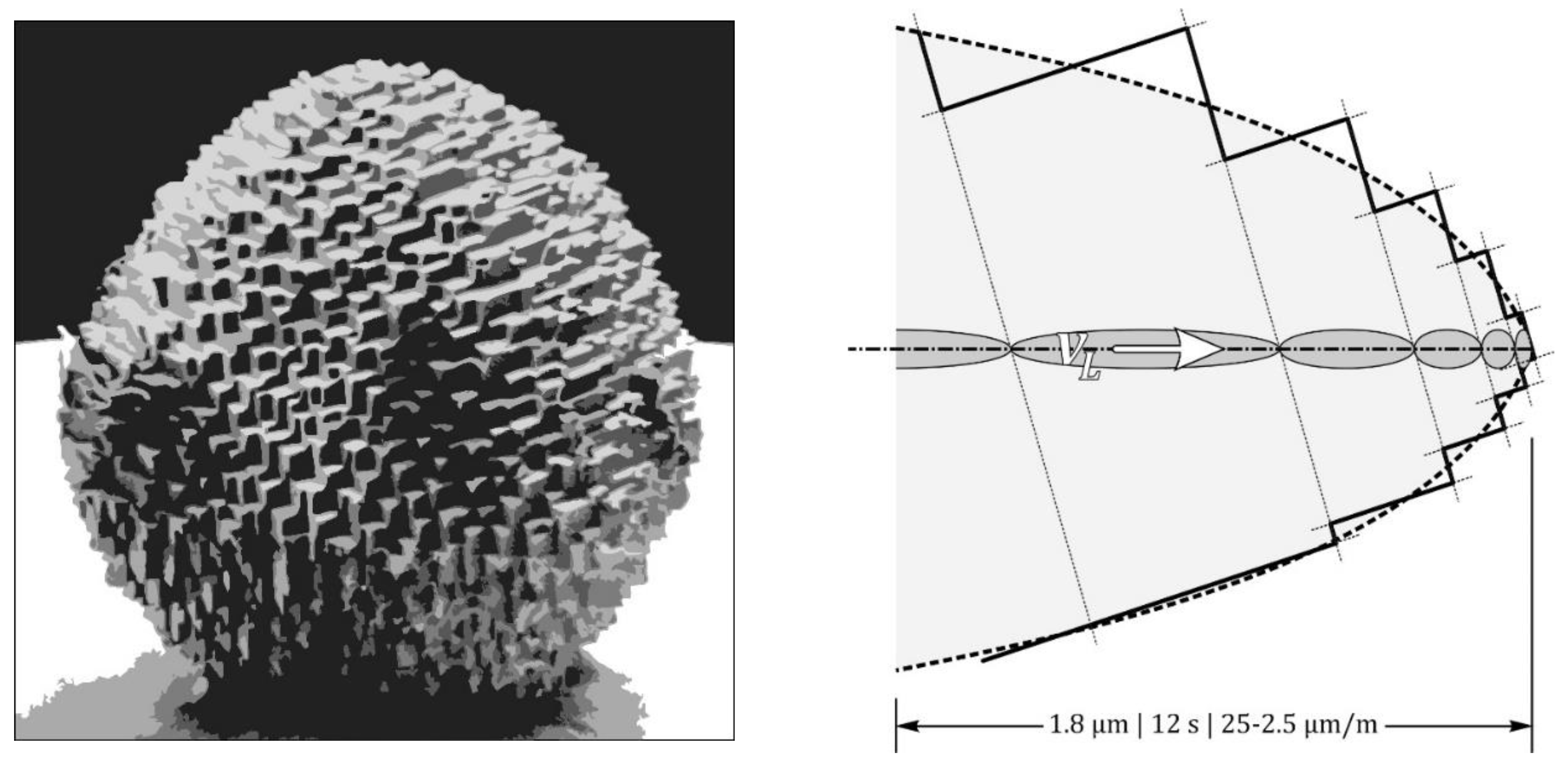

Aslanian et al. (2021) proposed a new model with three etch rates; v_T is as before the track etch rate, and v_R is the anisotropic apatite etch rate. In contrast to v_B, which is the etch rate of a point on an etched surface (Huygens-Fresnel principle), v_R is the rate of displacement of a complete lattice plane as in the theories of crystal growth and dissolution (Wulff, 1901; Gross, 1918). For practical reasons we further distinguish v_L, the rate of increase of confined track lengths; v_L is a combination of apatite and track etch rates, which at present cannot be resolved in its components (Figure 2).

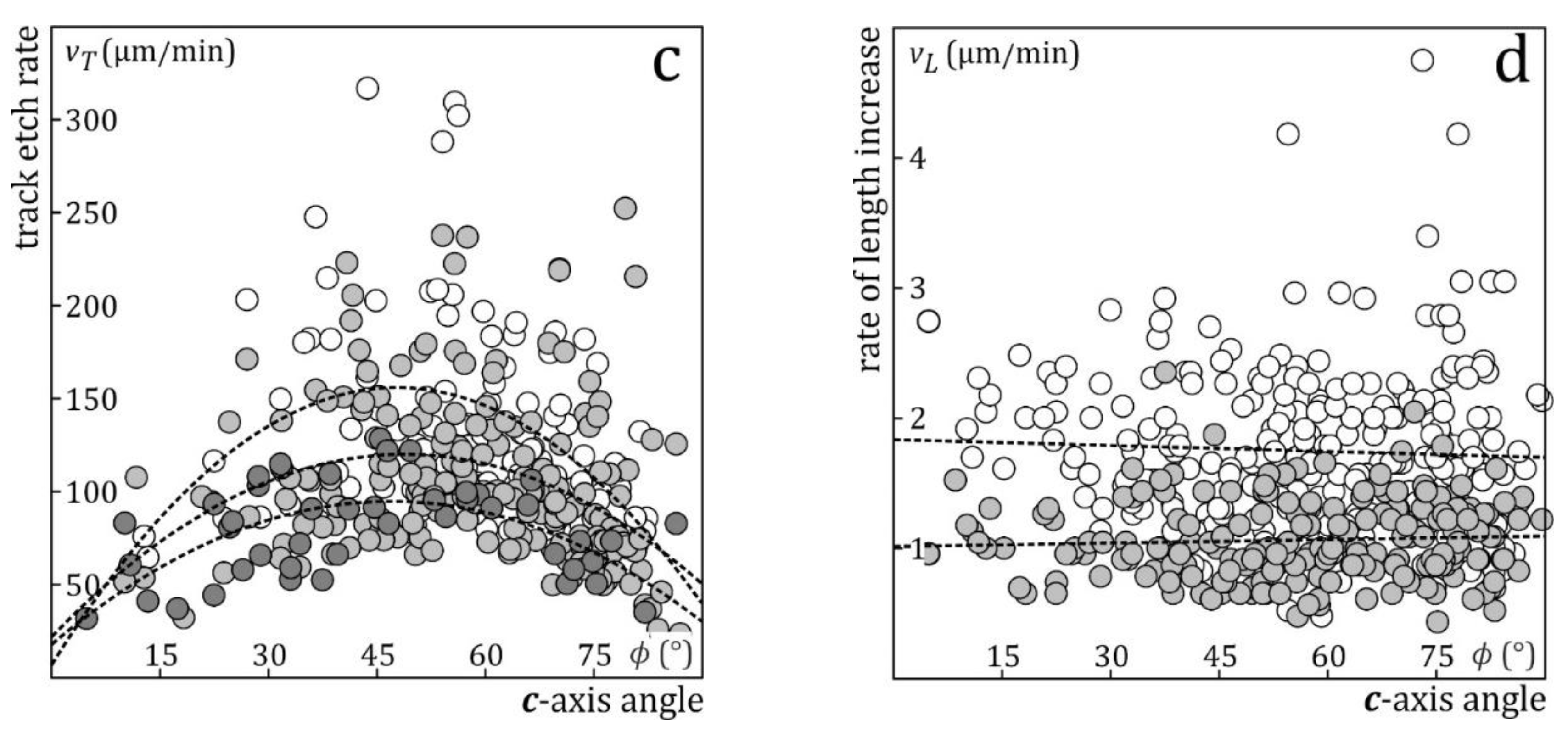

Step-etch experiments are used for measuring etch rates (Aslanian et al., 2021;2022; Fu et al., 2024; Trilsch et al., 2024); v_R is calculated from the width increase of confined tracks between successive immersions, and v_L from their length increase (Figure 1); v_T is calculated from v_R and the angle between facing edges of the track channel. Tracks with different orientations permit to calculate v_R, v_L and v_T as a function of c-axis angle (Figure 5). The apatite etch rate v_R is lowest parallel and perpendicular to the c-axis and highest at ~20° to c; v_T differs from track to track, also with lower average values parallel and perpendicular to c, (Gleadow, 1981). Measurements of induced tracks in Durango apatite after 15, 30 and 45 s immersion in 5.5 M HNO₃ at 21 °C give decreasing v_T-estimates due to the fact that during the second and third immersion the etchant needs a finite time to reach the track tips again (Trilsch et al., 2024). The first and highest estimates are thus closest to the true track etch rates v_T. Since the track length measures its extent of annealing, v_L has the greatest effect on the thermal histories of geological samples; v_L shows significant differences from track to track but on average no angular dependence, it can be higher or lower than the apatite etch rate along the axis of the track and decreases with increasing immersion time. This shows that v_L is a combination of track and apatite etch rates, which converges with increasing immersion time to the lowest apatites etch rates, as the influence of v_T decreases and vanishes when the tips become bounded by basal and prism faces (Figures 1, 2, and 5).

The etch rates allow us to calculate the duration for which individual confined tracks have been etched (effective etch time t_E), providing a quantitative criterion for judging whether a track is under- or overetched, and to consider the effect of the resulting track lengths on the thermal histories of geological samples. The practical advantage is that it liberates us from strict adherence to established protocols and allows to tailor the etching conditions to the properties of the samples.

5. Immersion Time

Supplement Figure S3 plots the lengths of induced and fossil confined tracks in Durango apatite against effective etch time. It shows the striking difference between the low-t_E interval, where different lengths increase at different rates, and the high-t_E region, where most lengths increase at about the same rate. The different rates at low t_E reflect the etching histories of the tracks. At higher t_E the tracks enter the bulk etching stage. From then on their length increase is controlled by a similar constant v_R in all directions (Jonckheere et al., 2019, Figure 11). Their etching histories are overwritten and the lengths of induced tracks come to reflect their formation histories, related to the masses, charges, energies and trajectories of the fission fragments. All track lengths continue to increase with t_E but the differences between them are little changed. The length differences between the fossil tracks come to reflect their combined geological and formation histories. It is interesting to speculate if the order of their lengths continues to reflect their formation histories or if there are significant crossovers due to the different individual thermal histories of the tracks. This is more likely to be the case in cases of slow cooling than rapid cooling.

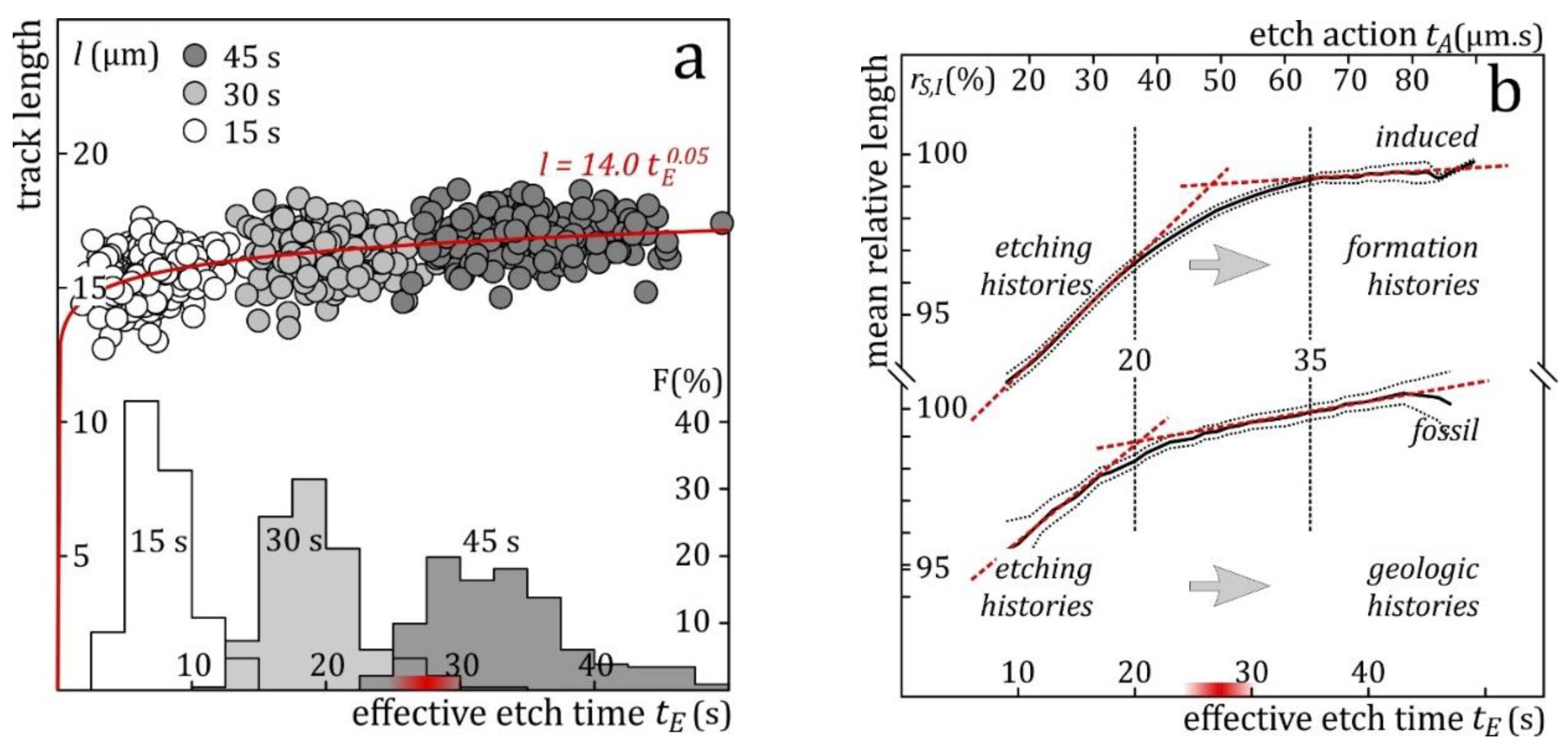

Figure 6a plots the measured lengths of induced tracks in Durango apatite against the effective etch times calculated from their widths. The fitted power function shows that most tracks reach something close to their full lengths in a matter of seconds, as reported before for similar etchants (5.0-5.5 M HNO₃; Laslett et al., 1984; Green et al., 1986; Carlson et al., 1999; Barbarand et al., 2003; Moreira et al., 2010). This supports an average track etch rate v_T of the order of ~100 µm/min. (Aslanian et al., 2021; Jonckheere, 2023; Fu et al., 2024). The lengths thereafter increase at a diminishing rate. Figure 6b shows the track lengths normalized to their final values, measured after 45 s. This eliminates most of the intrinsic length differences between the tracks and exposes the general dependence of the confined track length on effective etch time. At t_E ≲ 20 s, the sample-v_L is an average of tracks in less and more advanced etching stages. The differences are due to the track length, its etch rate v_T, and the host track intersection point. From t_E ≳20 s onward, an increasing fraction enters the bulk etching stage, lowering the average v_L. At t_E ≳ 35 s, all tracks are in bulk etching, so that their lengths in all orientations increase at more or less the same rate (Jonckheere et al., 2017, Figure 6; 2019, Figure 11; Tamer and Ketcham, 2020, Figure 3).

The fossil track data show the same general trend, except for some details: (1) at t_E ≲ 20 s, the length increase of fossil tracks is slower than that of the induced tracks; (2) fossil tracks enter the bulk etching stage before the induced tracks, and the transition is shorter and less gradual than that of the induced tracks; (3) from then on, their length increases faster than that of the induced tracks. The fossil track data are compiled from several experiments and thus less homogeneous and perhaps less certain than the induced-track data. They are however consistent with earlier observations, indicating that the track etch rate v_T of fossil tracks is in general lower than that of induced tracks (Aslanian et al., 2021; Jonckheere, 2023; Fu et al., 2024;), whereas the rate of length increase v_L due to bulk etching is higher (Jonckheere et al., 2017; Trilsch et al., 2024). Observations (2, 3) are thought to be related to increased apatite etch rates due to the accumulated radiation damage in the fossil-track samples which is annealed in the induced-track samples.

Plots of track length against effective etch time are independent of the number of etch steps, of their respective immersion times, and of the set of tracks selected for measurement. At t_E ≳ 35 s, all induced tracks in Durango apatite are in “bulk etching”, of which a fraction is over-etched. Their mean length increases 2.5% from t_E = 20 s to 35 s, 1.1% from 25 to 35 s and 0.4% from 30 to 35 s. It thus seems practical to aim for an average effective etch time of 25-30 s. Confined tracks in this interval have well-defined outlines (Figure 1b) and allow reproducible length and width measurements (Figure S1). In contrast to their lengths, the number of tracks in the chosen interval depends on the etch protocol and initial selection. Our three-step protocol is not efficient at generating confined tracks in the t_E-range 25-30 s; after 15+15 s immersion, most tracks fall short of the goal, while after 15+15+15 s most tracks overshoot it (Figure 6a). A single 45 s immersion produces the same tracks as after three 15-s-steps, but also a long left-tail, extending to short t_E. A one-step immersion is thus much more efficient at revealing an adequate number of confined tracks. A disadvantage of long immersion times, whether in a single step or several, is that the increasing dimensions of the etched surface tracks can come to obscure the confined tracks. On the other hand, an extended immersion time, combined with deep ion irradiation, allows to measure confined tracks well below, and with minimal interference from, the surface tracks. In an ongoing geological investigation of geological Fluor-apatites, we combine deep ion irradiation with a single 40-s-immersion in 5.5 M HNO₃ at 21 °C (Figure 3 and Video supplement 1).

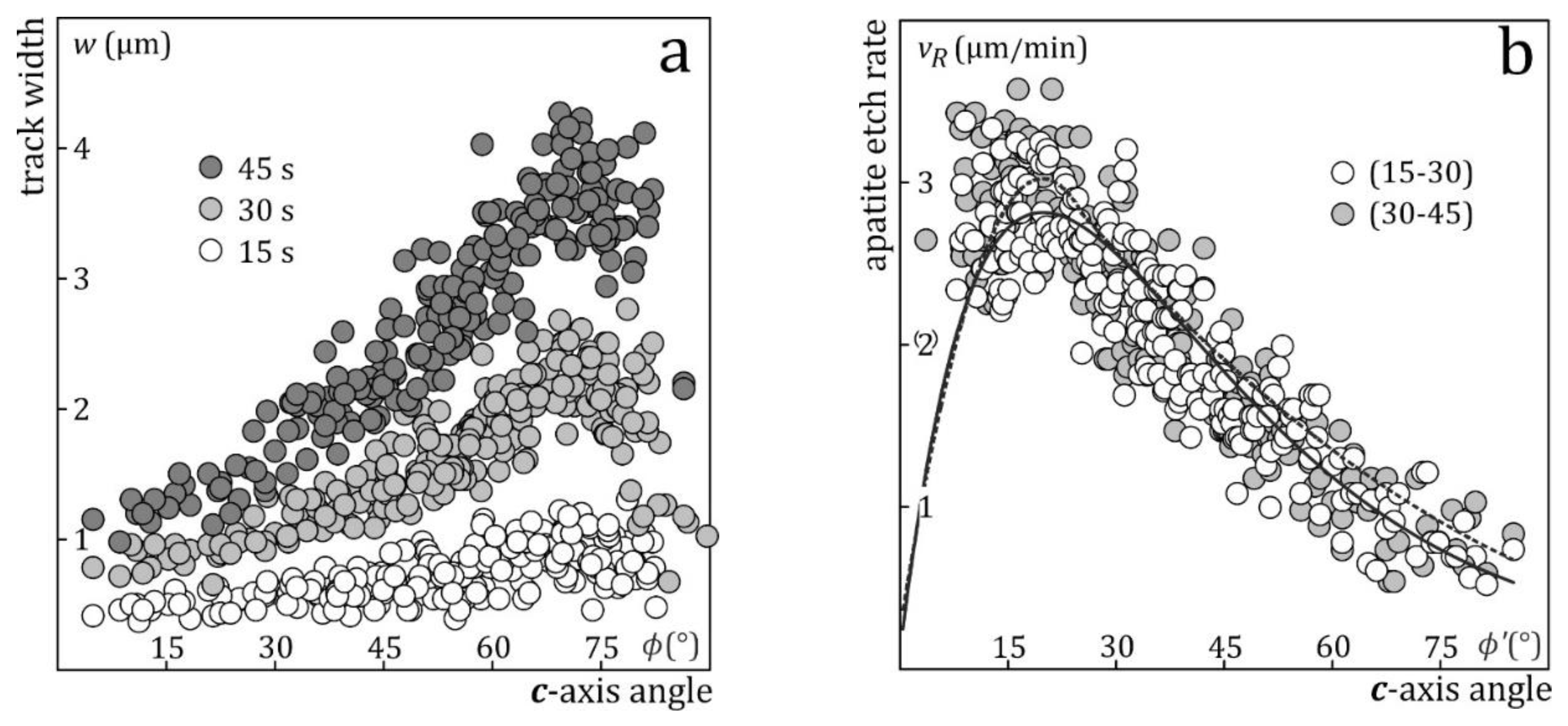

The definition of v_R requires that the apatite etch rate remains constant during the immersion of a sample (t_I; Figure 5ab; Sobel and Seward 2010). It follows that v_R is interchangeable with t_I and that samples with equal v_R × t_I are etched to the same degree. This applies to the effective etch times t_E of confined tracks as well: those for which the same v_R × t_E present similar widths and shapes. This applies to tracks with different orientations within a sample but also across apatite species. Their etch rates depend on their compositions and scale with Dpar (Donelick et al., 1999; 2005; Fu et al., 2024). It thus makes sense to plot step-etch data not against the etch or immersion time but against etch action: t_A = Dpar × t_E (or t_A = Dpar × t_I). Figure 7a illustrates the power of t_A: it shows the mean interpolated lengths (l_M) of step-etched fossil confined tracks in five samples with different compositions, and Dpar’s ranging from 1.6 µm to 4.6 µm, against t_A. From t_A ≳ 20 µm.s onward the rate of length increase in all five samples is the same. The constant rate also agrees with the fact that fossil tracks are in bulk etching at t_A ≳ 20 µm.s (Figure 5b).

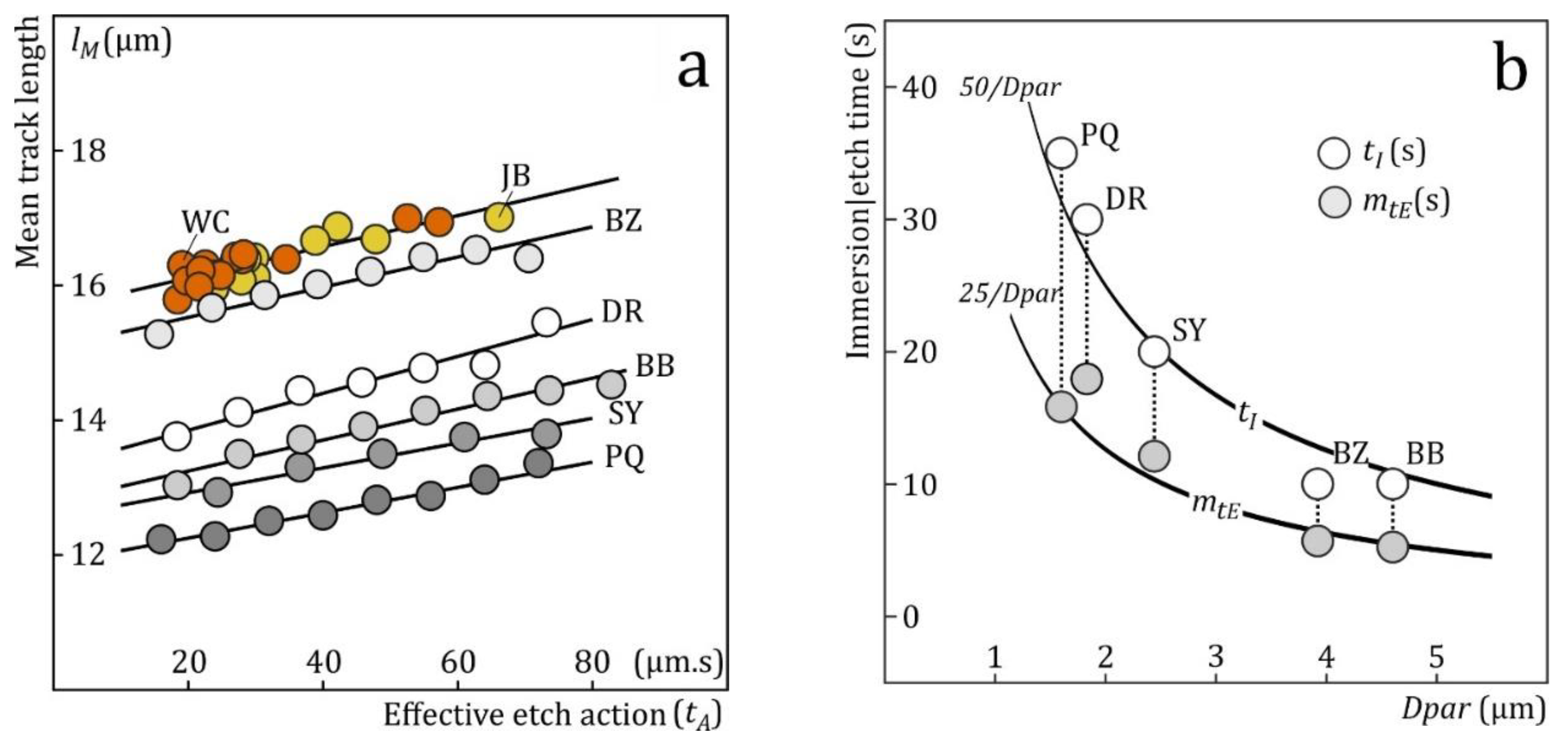

Figure 7a also shows the mean lengths of induced tracks in various apatites etched for the same immersion time (t_I) against t_A (Carlson et al., 1999: 20s in 5.5 M HNO₃ at 21 °C; Barbarand et al. 2003: 20s in 5.0 M HNO₃ at 20 °C; reported lengths corrected 2% for the lower etchant concentration; Tamer et al., 2019). Here, the trend for each dataset is due to different Dpar, not different t_E. The striking fact that all the data define a common slope testifies to the fact that “etch action t_A” has physical meaning. It shows that track etching is not so complicated that each variable has to be considered on its own, and that confined track lengths can be corrected using a common rate. On closer inspection, the length data of Carlson et al. (1999; Figure 1) and Barbarand et al. (2003; Figure 8) show a slight drop at Dpar ≲ 2 µm, suggesting that their immersion times (t_I = 20 s) are a little too short for the slowest etching samples (t_A ≲ Dpar × ½ t_I = 20 µm.s; Figure 6b). It seems useful to recommend selecting immersion times for apatite in inverse proportion to Dpar (t_I = k × Dpar⁻¹; Figure 7b), or, which amounts to the same thing, to step-etch different samples to the same Dpar, as for zircon (Yamada et al., 1995). The value of k can be decided based of the estimates that the mean and standard deviation of the effective etch time distribution of the confined tracks are m_tE ≈ ½ × t_I and s_tE ≈ ⅕ × t_I for a single immersion step (Fu et al., 2024).

6. Length vs. Angle

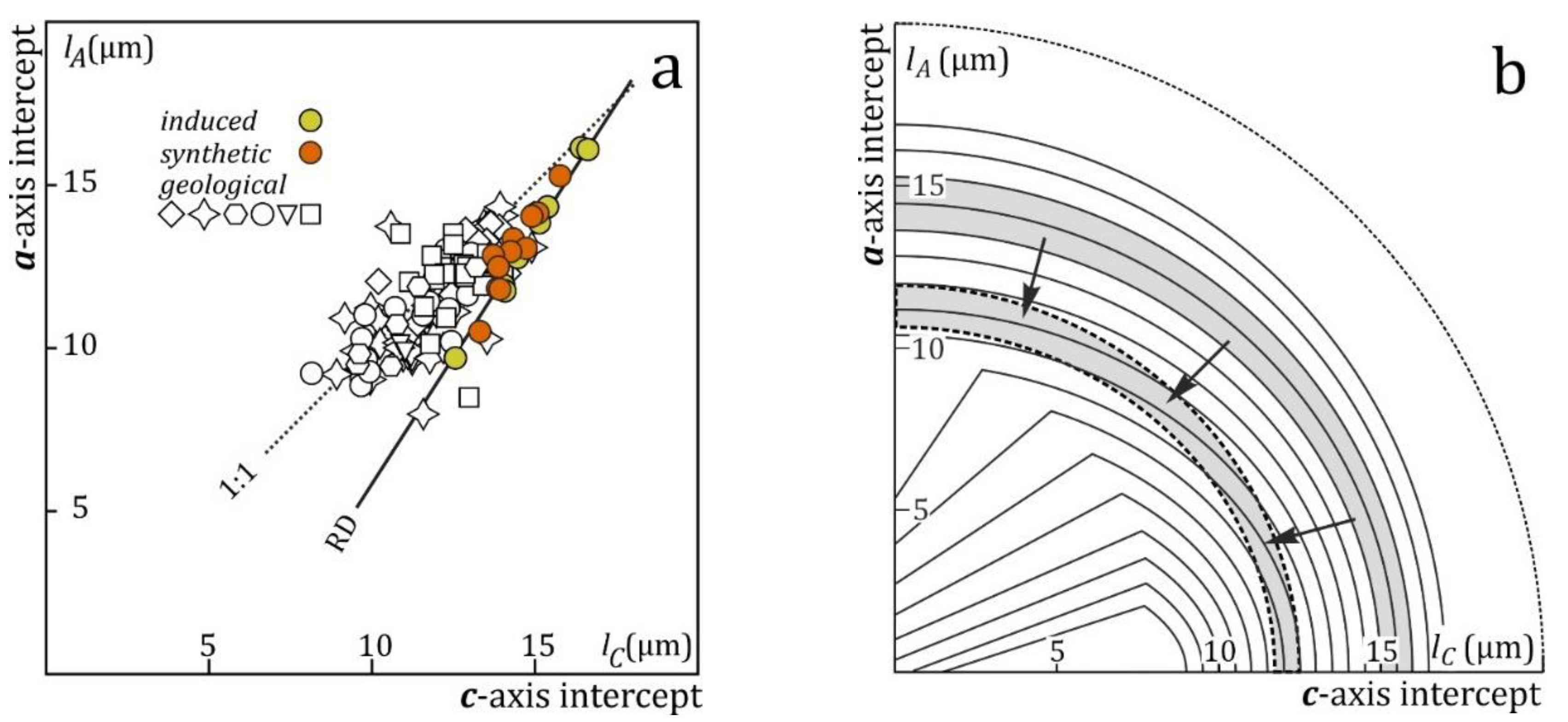

Figure 8a plots the a- vs. c-axis intercepts of ellipses fitted to the length vs. orientation data for different confined-track samples (Donelick, 1991). All the tracks in individual unannealed and annealed induced-track samples, with mean lengths from ~16 to ~10 µm, have “identical” thermal histories, and their a- and c-axis intercepts plot on a line: l_A = 1.632 l_C -10.978 (Donelick et al., 1999; Ketcham, 2003). Tracks in the fossil-track samples, on the other hand, have different geological thermal histories. Most fossil-track data plot above the induced-track line, i.e., fossil tracks appear to be more isotropic than induced tracks of comparable length. This observation is consistent with one reported before based on 390 geological samples (Donelick et al., 1999, Figure 12), which was ascribed to suspected experimental factors related to the measurements and ellipse fitting. Although the scientists stressed the need for further investigation, none has been forthcoming. Length bias complicates fitting ellipses to complex populations because the differences between the constituent populations are greater at higher angles to the c-axis. Unequal angular distributions of the constituent populations with different degrees of annealing (Ketcham, 2003, Figure 5) changes the relative weights of the components at different c-axis angles. Neither factor is expected to be of much consequence within the length-range of our samples however (l_C and l_A ≳ 10 µm). E.g., the simulated complex samples in Figure 8a deviate little from the induced-track line, even though several have standard deviations greater than 2.5 and even 3 µm.

The offset of the fossil-track data from the induced-track model is in our opinion due to the fact that fossil tracks are under-etched compared to induced tracks etched with the same protocol. Figure 8b shows how an isotropic length deficit (arrows) results in more isotropic lengths than expected for a given mean. It also shows that c-axis projection over-estimates the c-axis equivalents of high-angle tracks relative to those of low-angle tracks although both, of course, underestimate their true values. Apart from the ample data of Donelick et al. (1999) and in Figure 8a, etch experiments indicate that fossil track do not etch in the same manner as induced tracks (Figure 6b) and there are indications from direct v_T-measurements that the average track etch rate of fossil tracks is lower than that of induced tracks in Durango apatite (Aslanian et al., 2021; Jonckheere, 2023).

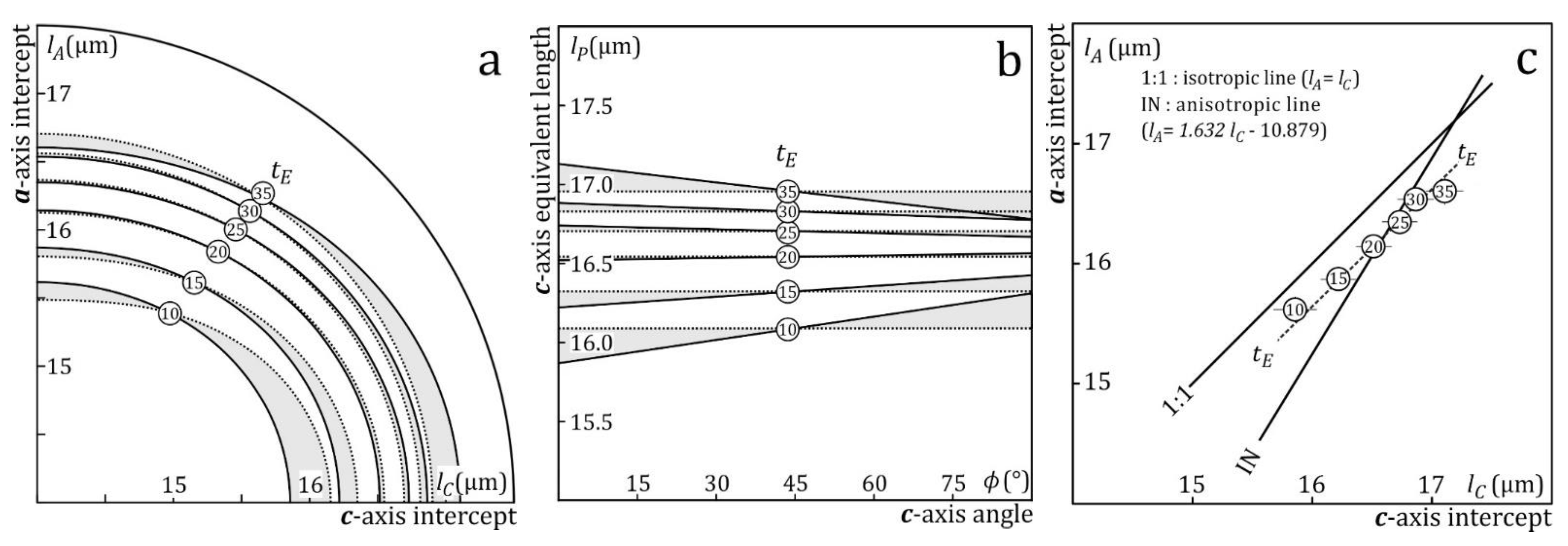

We interpolated the step-etch data (Figure 6; supplement Figure S3) to obtain the track lengths at fixed effective etch times, and fitted ellipses to the length vs. orientation data (Figure 9a) and straight lines to the c-axis-projected lengths vs. orientation (Figure 9b). At t_E = 10-15 s, the track lengths are more isotropic than the model prediction, and the c-axis projection over-corrects the high-angle data, causing the line of c-axis-projected lengths vs. angle to have a positive slope. With increasing t_E, the track lengths increase at about the same rate in all directions (Figure 5d) until, at t_E = 20-30 s, they are consistent with the model, and c-axis projection produces a horizontal line (Figure 9b). With continued etching the relationship is inverted as the track lengths become more anisotropic than the model predicts, and c-axis projection produces a line with a negative slope. T,t-modelling of under- or over-etched tracks produces artefactual thermal histories. A plot of c-axis-projected lengths vs. orientation is thus a powerful tool for detecting such artefacts. It is reasonable to assume that track lengths consistent with this model are the best estimates of their true values, regardless of the etch protocol that produced them (Trilsch et al., 2024). The best fit is obtained for effective etch times between 20 and 30 s, which correspond to longer immersion times than those of the annealing experiments on which the model is based (Carlson et al., 1999; Donelick et al., 1999). Because of differences between fossil and induced tracks (Figure 6b), and between scientists’ selection criteria, it is not clear that strict adherence to the protocols underlying the annealing equations guarantees correct results, much like strict adherence to the ζ-procedure does not ensure accurate ages (Gleadow et al., 2019; Jonckheere et al., 2024).

Figure 9c plots the a-axis intercepts vs. c-axis intercepts of ellipses fitted to the orientations and interpolated lengths of induced tracks in Durango apatite at effective etch times t_E = 10 – 35 s. At short t_E, the data plot above the model line for induced tracks, towards the isotropic line. With increasing t_E, l_A and l_C increase at a diminishing rate (Figure 6) parallel to the isotropic line (Figure 5d) and between t_E = 20 and 30 s cross the induced-track line (Donelick, 1991; Donelick et al., 1999).

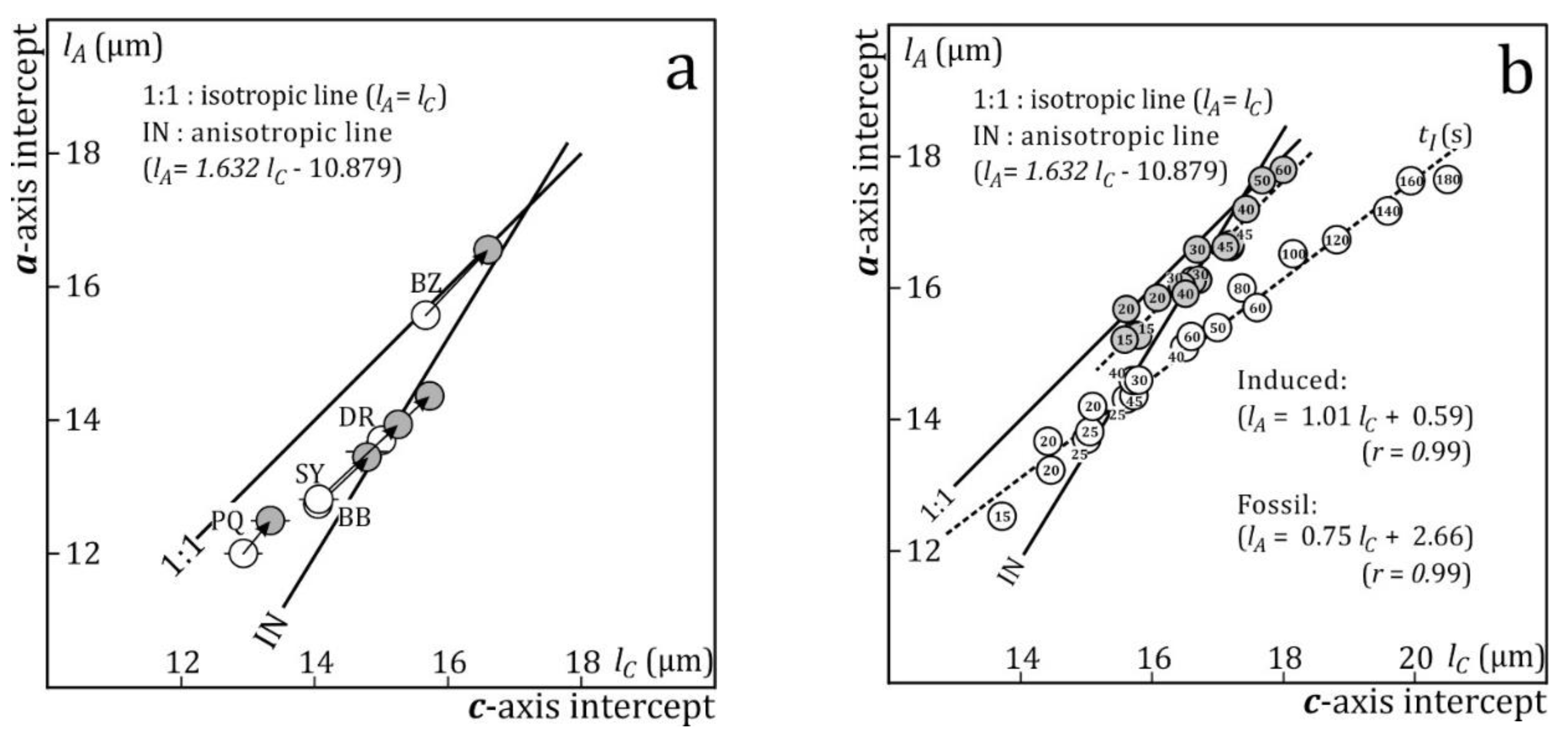

Figure 10a plots the data for step etched fossil-tracks in five apatite samples with different compositions and Dpar (Fu et al., 2024). The measurements refer to consecutive immersion times rather than effective etch times but that is of no consequence for this discussion. After the first immersion for t_I ≈ 50/Dpar (Figure 7b), all samples except Durango plot above the model line for annealed induced tracks, towards the isotropic line, as did the under-etched induced tracks (Figure 9c). Of the five samples, PQ has the shortest mean confined track length (l_M = 12.3 µm) with the greatest standard deviation (σ_M = 1.7 µm). These values and those for all the samples are still well outside the limit for substantial departures from the model line either due to length bias or to unequal angular distributions of the constituents (Ketcham, 2003; Figure 5; Jonckheere, 2023; Figure 5). It is therefore reasonable to assume that the fossil tracks are still under-etched. Indeed, after an additional 15-s immersion, four out of five samples agree with the expected trend.

The increase of the fossil-track lengths after the second immersion appears to be isotropic, like that of the induced tracks. However more extensive step-etch data for fossil and induced tracks in Durango apatite (Figure 10b) indicate that there is a difference. The increase of the induced track length is isotropic, but the lengths of low-angle fossil tracks appear to increase at a somewhat faster rate than those of high-angle tracks. This could be related to radiation damage or other defects in the unannealed samples, which have a greater effect on the etch rate of basal faces than on that of prism faces. Notwithstanding the lack of empirical evidence, this is a reasonable assumption because basal faces are F-faces, whose etch rate is more susceptible to defects than that of prism faces, which are S-faces (Hartmann and Perdok, 1955; Jonckheere et al., 2019; Figure 4). It is not possible at this point to determine if this trend is the same for all fossil-track samples.

7. Conclusion

The related issues of etching protocol and track selection are difficult to untangle. There is to date no universal protocol for the different HNO₃-concentrations in use in different laboratories. Based on our experiments with 5.5 M HNO₃ at 21 °C (Carlson et al., 1999), we propose that the immersion time should be matched to the apatite etch rate, e.g., t_I (s) ≈ 50 (µm.s)/Dpar (µm), assuming that Dpar is known. This is equivalent to etching different apatites to the same Dpar. The calculated immersion time for Durango apatite is t_I ≈ 50/1.85 ≈ 27 s. This is just an estimate; in practice we used t_I = 30 s, which produces a large number of confined tracks terminated by basal and prism faces at both ends (Figure 1b), enabling consistent length measurements by experienced scientists, and permitting to orient individual tracks relative to the c-axis. The Dpar-criterion implies that different immersion times are required for the components of multi-compositional samples. However, provided it is long enough, the immersion time is not so critical if the effective etch times (t_E) of the selected tracks are calculated from their measured widths. Then, whether the sample is mono- or multi-compositional, it is possible to select subsets of the confined tracks, in accordance with each grains’ Dpar, that are considered suitable for modelling. Up to a point, the etchant concentration and immersion time are interchangeable in well-stirred solutions at constant temperature (Jonckheere et al., 2017). While it is not to be relied upon, this could provide an initial estimate of the appropriate immersion time for weaker etchants than used in this work, until such time as an empirical relationship is established.

In general, this helps secure an adequate sample of well-etched tracks, but it does not guarantee that they are suitable for modelling. The lengths of fossil tracks in geological samples are often found to be more isotropic than expected for their average values, due to the fact that they are under-etched compared to induced tracks annealed to the same length. This should be assumed if a regression line to l_P vs. ϕ has a positive slope or if the semi-axes of a fitted ellipse (l_C, l_A) plot left of the induced-track line. In that case an additional etch can increase the track lengths to a point where they are consistent with the accepted model based on annealing of induced tracks, a condition for valid thermal histories. It is not clear how long a second immersion should be, or even whether model-consistent track lengths can be obtained within practical etch-time limits. However if the widths of confined tracks are measured along with their lengths and orientations, it should be possible to select a subset with effective etch times that are consistent with the model. If a second etch is not possible, e.g., because the mount was irradiated after the first etch, one might attempt to achieve the same result with numerical means, i.e., by increasing the measured lengths by a fixed amount until the regression line to l_P vs. ϕ is flat or (l_C, l_A) plot on the model line. For the purpose of modelling this can be approximated by lowering the “zero-length” (l₀), albeit to values well below any measured initial lengths or any calculated from compositional data. These remedies are indeed quite imperfect but the alternative of modelling fossil track data that are inconsistent with the model assumptions is unlikely to give valid thermal histories.

There is a growing interest in integrating thermochron data on regional and larger scales. This can involve merging newer and older data from labs using different protocols. We suggest that, where the track lengths and angles are available, the l_P vs. ϕ and l_A vs. l_C plots mentioned above can help to evaluate the thermal histories. If unirradiated mounts are available, an additional etch and re-measurement, including the track widths as well as their lengths and angles, could be worthwhile. It would be interesting to see how this affects the intriguing recent worldwide exhumation, and the geological bias for curvilinear equations over lab-based linear annealing equations.
