Nutcracker Syndrome: First Case Causing Left Renal Intraparenchymal Varicose Veins

Nutcracker syndrome(NCS) is a condition with typical clinical findings that occurs secondary to compression of the left renal vein(LRV) between the abdominal aorta(AA) and superior mesenteric artery(SMA) [1]. In the presence of the same anatomical variation but no clinical symptoms or signs, this situation is called Nutcracker phenomenon(NCP) [2,3]. Although hematuria(microscopic or macroscopic) is most commonly observed in patients, chronic abdominal or flank pain, hypertension and proteinuria may be observed. Depending on the severity of venous congestion, it may cause varicocele in men and pelvic congestion syndrome(PCS)(dyspareunia, dysmenorrhea, chronic pelvic pain) in women [2,4]. According to our research, this case, which we followed conservatively with a diagnosis of NCS, is the first case in the literature accompanied by renal intraparenchymal varicose veins.

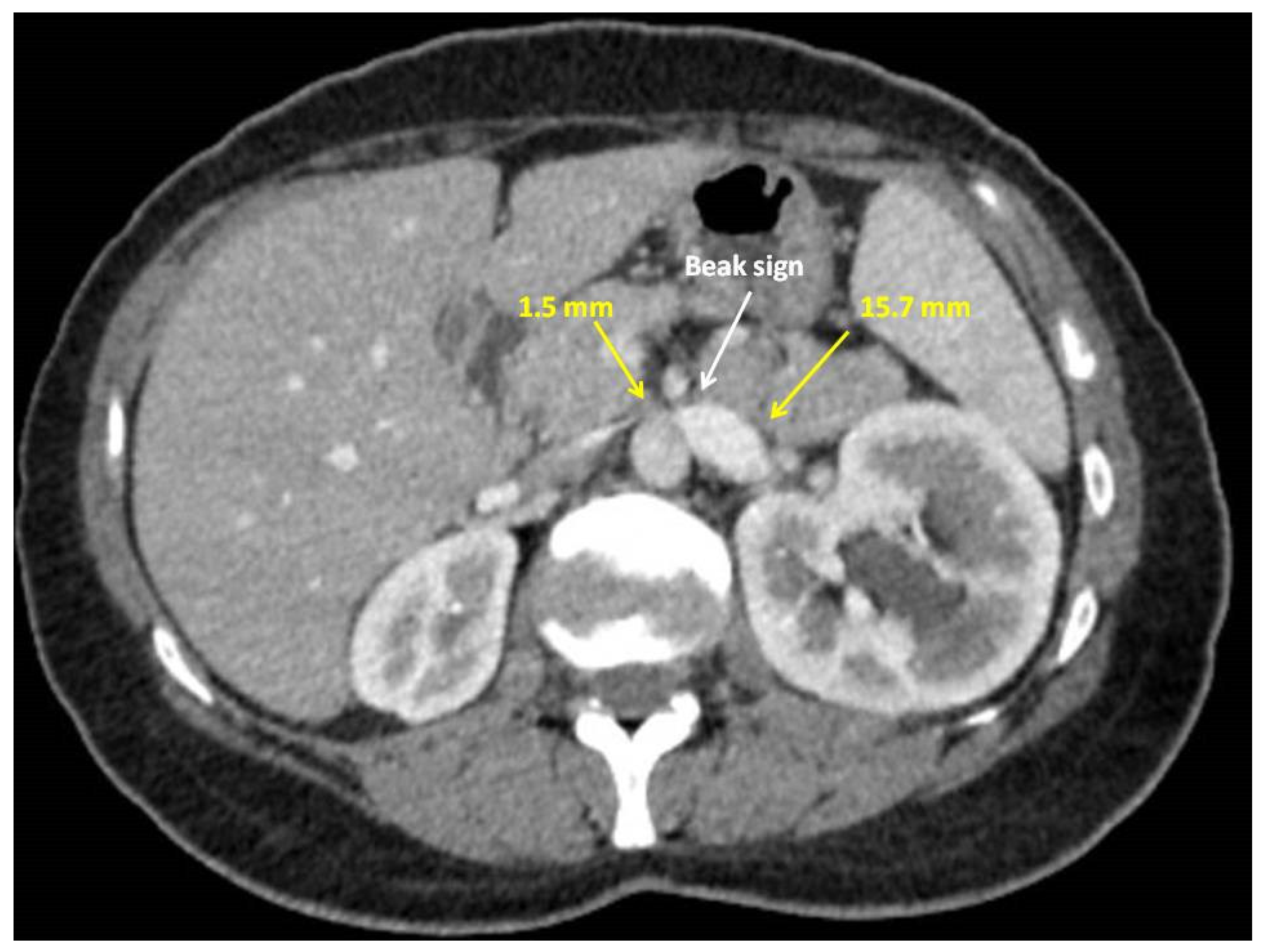

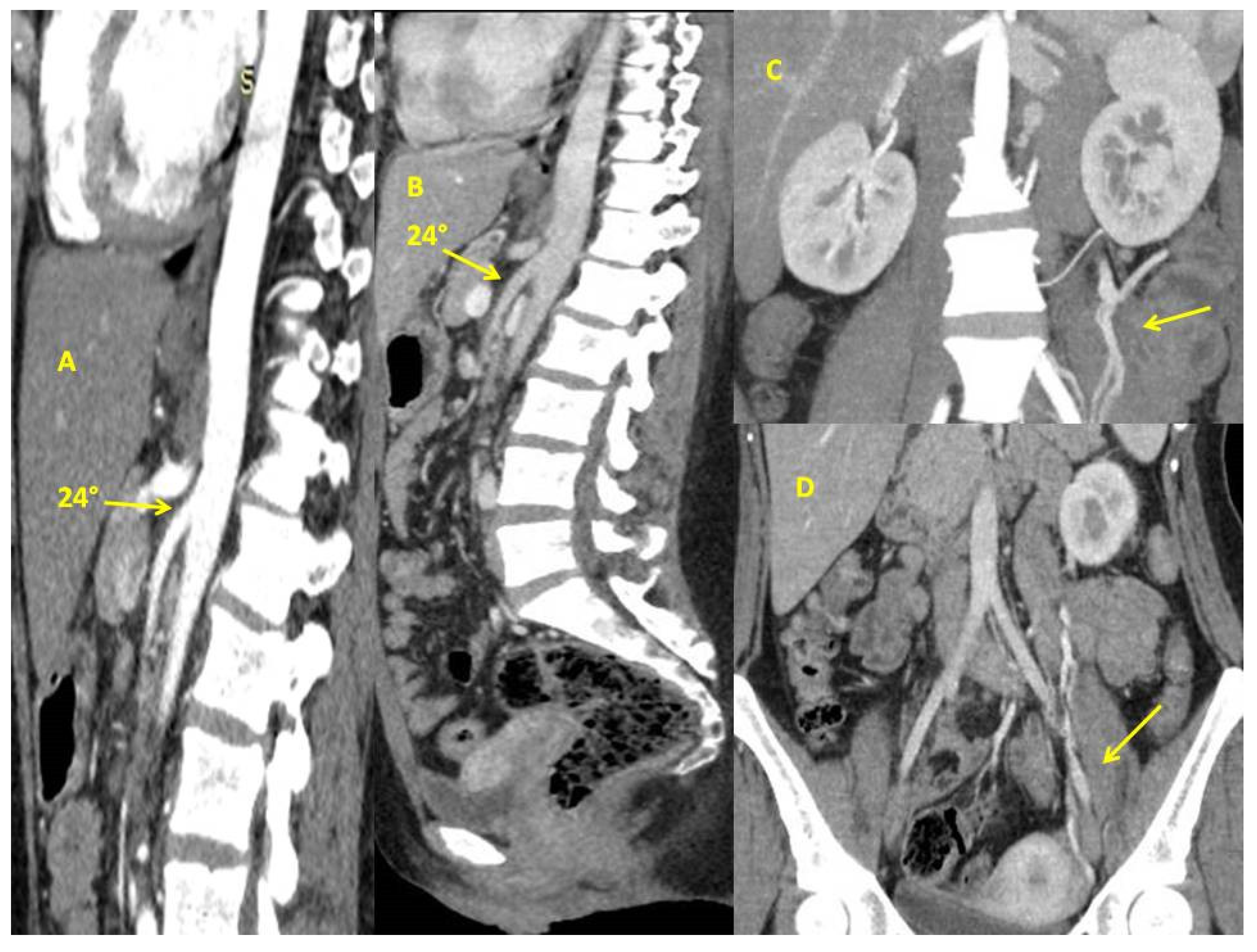

The physical examination of a 30-year-old female patient with no abnormal personal or family history, who applied to the urology outpatient clinic with complaints of chronic abdominal and flank pain, was unremarkable except for minimal increased tenderness in the flank area. Our patient’s height, weight and blood pressure were 1.6 m, 60 kg and 110/70 mmHg, respectively. In laboratory tests, the creatinine value was 0.66 mg/dl. No hematuria or proteinuria was detected in the urinalysis. In abdominal ultrasonography (US), the size of the left kidney increased compared to the right, and tubular appearances, the largest of which were 22x8 mm, were observed in the lower pole of the left kidney, and venous bleeding encoding was observed in color Doppler ultrasonography(RDU). Thereupon, contrast-enhanced computed tomography(CT) showed that there were two LRVs draining the lower and upper poles. It was observed that the vein draining the lower pole narrowed significantly between SMA and AA and then continued to widen, while the vein draining the upper pole was normal. The renal vein draining the lower pole was wide and tortuous in appearance and had extrarenal and parenchymal components(Figure 1). On CT, the segment diameter of the LRV between SMA and AA was 1.5 mm, and the diameter in the hilar region was 15.7 mm and the ratio was 1/10(Figure 2). Aorto-mesenteric angle(AMA) was 24º(Figure 3). It was stated that the veins containing extrarenal and parenchymal components in a dilated, tortuous appearance secondary to venostasis in the renal vein draining the lower pole showed intraparenchymal extension and showed endophytic mass formation in the first US examination, which was suspicious for angiomyolipoma(Figure 1). It was observed that this venous stasis extended to the left ovarian and parauterine veins and caused varicose dilatation(Figure 3). Although many cases similar to ours have been reported in the literature, the fact that it is the first case with renal intraparenchymal varicose veins makes this case privileged in the sense of the literature.

LRV compression was first described anatomically by Grant in 1937. The clinical importance of this phenomenon was revealed by El-Sadr and Mina in 1950. Schepper was the first author to use NCS terminology in 1972 [3,5,6,7,8,9]. According to its morphological characteristics, there are two types: anterior NCS(ANCS) and posterior NCS(PNCS) [3,9]. In ANCS, which is the most common type, LRV is subjected to compression between AA and SMA, while in PNCS, retroaortic or circumaortic variation can be seen, caused by compression of LRV between AA and vertebral column. Although the prevalence of NCS is not known exactly because the symptoms are variable and not specific to NCS, the incidence of ANCS and PNCS is 3.2% and 0.1%, respectively [2,10]. In a study, it was found that NCP was seen at a rate of 4.1% [8,11]. While there are patients diagnosed in all age groups, it is most common in the third and fourth decades in female gender [3]. It has been stated that thin and tall people are more affected than overweight people, and that weight gain provides relief in symptoms by increasing retroperitoneal fat tissue [3,8,12]. Symptoms vary depending on the severity of venous stasis and the organs where the stasis occurs. In addition to fatigue, flank pain, macroscopic or microscopic hematuria (after rupture of venous structures into the collecting system due to high venous pressure), proteinuria, it can cause varicocele in men, PCS and chronic pelvic pain in women[3,5,6,8,12]. The most common symptom has been reported to be hematuria [3,5,9]. Our patient had no symptoms or signs other than flank painFlank pain may mimic stone-related colic pain in some patients, and the diagnosis may be missed because stones are not seen on non-contrast CT. Hematuria and colic pain may increase with exertion, and the patients’ anamnesis indicating this is very meaningful to us [13]. NCS should be among the diagnoses that should be considered in these patients. For diagnosis, the first thing that needs to be done is a good medical history and detailed physical examination. Then, complete blood count, kidney function tests, urine analysis, urine cytology, cystourethrography, US and CT urography are examined in certain steps [5]. In these evaluations, when malignancies, stones, arteriovenous malformations are excluded and NCS is considered, it is recommended to first perform RDU, which has a sensitivity and specificity of 69-90% and 89-100%, respectively, due to its non-invasive nature [1,3,6,14]. CT and magnetic resonance imaging (MRI) are useful because they provide simultaneous condition of surrounding tissues and anatomical correlation. A hilar to aorto-mesenteric segment ratio of LRV≥4.9 is the most important CT finding (100% specificity) [6,9,12]. The highest diagnostic accuracy observed in axial CT is the “beak sign” and LRV diameter [6,12]. Another diagnostic criterion is that the aortomesenteric angle (AMA), which normally varies between 38º and 56º, is less than 35º[2,3,6,9]. In our case, the aorto-mesenteric segment ratio was >10 and AMA was 24º, which was typical for NCS. In cases where radiation exposure and contrast allergy are to be avoided, MRI can also be used, which provides evidence with similar accuracy as CT [6,12]. If we look at what the gold standard method is, we see that there is a method of measuring the pressure gradient between the inferior vena cava and LRV (normal is 0-1 mmHg, >3 mmHg has diagnostic value in terms of NCS) with venography and endovascular US [2,6,8,9]. These two invasive methods are used when there is doubt in the diagnosis of NCS [3]. Recently, owing to innovations such as 3D reconstructions provided by CT or MRI technologies, it is possible to obtain axial, coronal and sagittal images with high diagnostic value, so there is no need for invasive methods. There is no clear algorithm for the treatment of NCS, and decisions are made on a patient-by-patient basis, depending on the severity of the symptom. While conservative follow-up is performed in patients without very serious symptoms, active treatment is performed in the presence of hematuria causing significant anemia, deterioration in renal functions and serious pain [3,5,6,8,9]. Medical treatment also has a place in patients at risk of venous thrombosis [13]. Treatment of NCS includes open, laparoscopic and robotic surgical repair and endovascular/extravascular stent placement [1,3]. Endovascular stent placement is the most common and first choice [9,11]. Open, laparoscopic and robotic, LRV repositioning and renal auto-transplantation are other surgical treatments [2,6,14]. We are conservatively following our patient, who does not have any serious symptoms.

Due to nonspecific symptoms, NCS is often not the first diagnosis that comes to mind, and there is a risk of missing a diagnosis in these patients. For this reason, the patient’s anamnesis, examination findings, laboratory and radiological imaging should be evaluated holistically. Patients diagnosed with NCS should receive follow-up or treatment modalities appropriate to the severity of NCS and the patient’s symptoms.
