Rydberg-State Double-Well Potentials Of Van Der Waals Molecules

1. Introduction—Double-Well Structure of Rydberg Potential Energy Curves

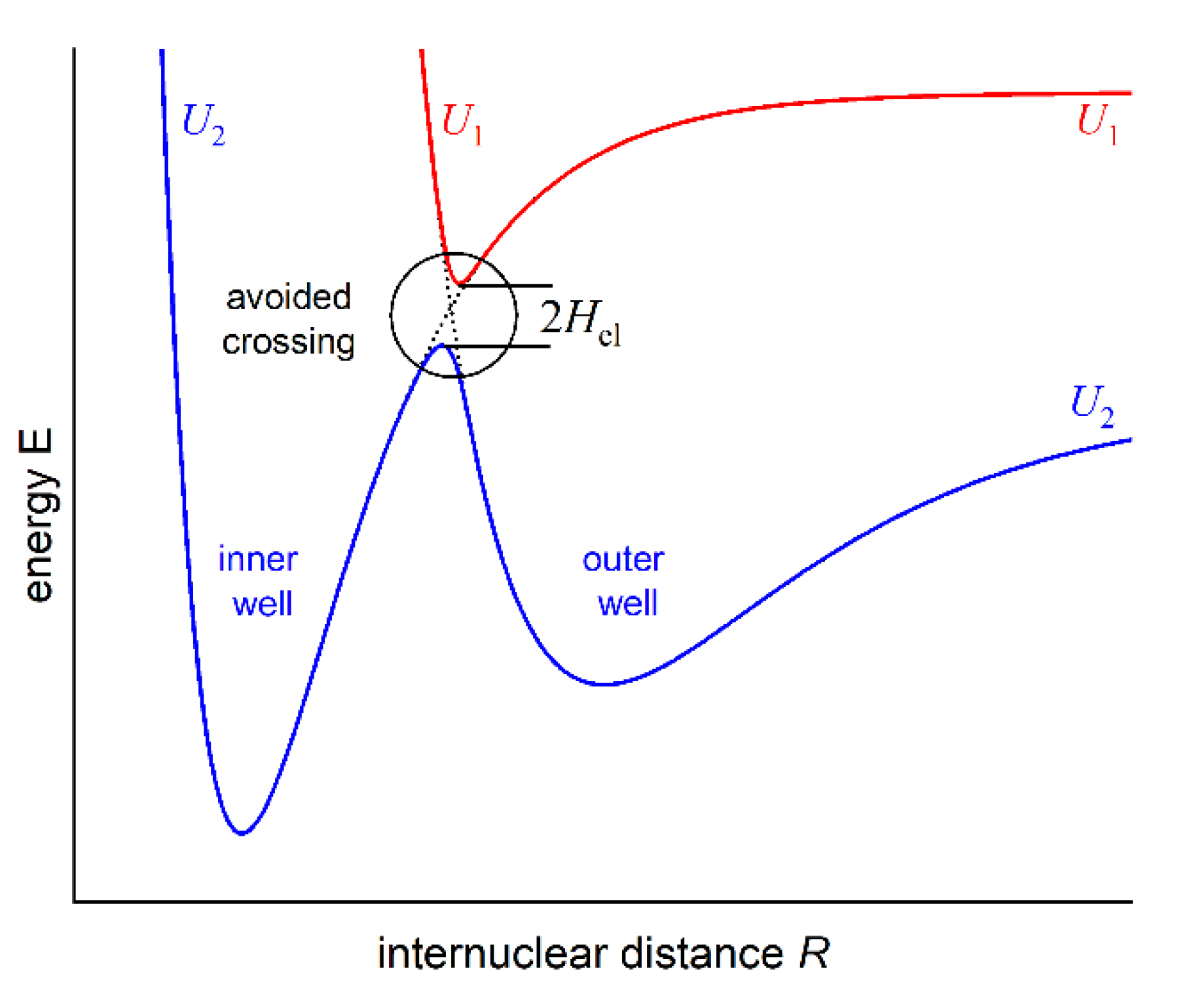

As formulated by von Neumann and Wigner, double-well (or double-minimum) structure of an interatomic potential energy curve (PEC) may have its origin in so-called anti-crossing (or avoided crossing) phenomenon that occurs for two molecular potentials possessing the same symmetry properties [1]. For two anti-crossed potentials, the Born-Oppenheimer approximation breaks down, the adiabatic representation of electronic states takes over the diabatic one, and the potentials repel themselves (see Figure 1). It may cause formation of a potential energy barrier that separates two potential wells (or potential minima). In order to facilitate the description, in 1985 Dressler postulated so-called adiabaticity parameter [2]: $\gamma =H_{\mathrm{e}\mathrm{l}}/\hslash {\omega }_{U_1}$, where the $H_{\mathrm{e}\mathrm{l}}$ electronic matrix element that couples the diabatic states and gives rise to a double-well state is compared with the vibrational constant ${\omega }_{U_1}$ in the upper of the two adiabatic states (description consistent with Figure 1). Strongly avoided (adiabatic) or weakly avoided (non-adiabatic) case dominates when $\gamma \gg 1$ or $\gamma \ll 1$, respectively.

Rydberg character of an electronic energy state of diatomic molecule may be manifested by the undulations of its PEC. It happens when one of the atoms is excited into its Rydberg state and the other atom experiences interactions with the Rydberg electron at relatively large internuclear distances (R), where the Rydberg state possesses consecutive lobes, see Refs. [3] and [4], and references therein.

As far as 12-group MeNg (Me=Zn, Cd, Hg and Ng=noble gas atom) van der Waals (vdW) molecules are concerned: early ab initio calculations of PECs of the lower-lying $E^3{\mathsf{\Sigma }}_1^{+}\left[ns\left(n+1\right)s{ }^3{\mathrm{S}}_1\right]$ and${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left[ns\left(n+1\right)s{ }^1{\mathrm{S}}_0\right]$ 1),2) Rydberg states in ZnNg $(n=4)$ [5], CdNg $(n=5)$ [6], [7] and HgNg $(n=6)$ [8] showed that the potential barrier is not formed for Ng=He, it is formed in the neighbourhood of a single well for Ng=Ne and it is formed separating two potential wells for Ng=Ar, Kr and Xe manifesting a double-well character of the above mentioned Rydberg state potentials (e.g. refer to Figure 4 in Section 3.1). The findings were corroborated in a number of experiments performed for ZnAr [9], CdNe [10], [11], CdAr [12,13,14,15,16,17,18], CdKr [14], [16], [19], [20] HgNe [21,22,23] and HgAr [22], [24], [25], and recently in more detailed ab initio studies performed for ZnAr [3] and CdAr [4] up to the $(4s{6s)}^{ }$and $(5s{7s)}^{ }$asymptotes, respectively, where the double-well character of the PECs was obtained for all the considered $\mathsf{\Sigma }$ Rydberg states.

However, the above mentioned low-lying Rydberg states are well-separated from each other excluding any (anti-) crossings of PECs. Already in 1986 it was suggested by Duval et al. [24] that the energy barrier of the lowest Rydberg state of HgAr molecule may be correlated with the maximum of the Rydberg electron density; later similar claim was addressed to the lowest Rydberg state of HgNe [21]. In the 1990s it was shown by Onda et al. [22], [23] that the properties of the PECs derived from the OODR spectra of the $\mathsf{\Sigma }$ Rydberg states of HgNe and HgAr correlate with the Rydberg electron density. Inspired by the ab initio study of Rydberg states performed by Yiannopoulou et al. [26] for small diatomic molecules, the extensive ab initio calculations [3], [4] have supported the observation that the double well structure (with the potential barrier present) of the $E^3{\mathsf{\Sigma }}_1^{+}$ Rydberg state in ZnAr and CdAr, respectively, as the one possessing $\mathsf{\Sigma }$ symmetry, does not result from the anti-crossing with other electronic state (note: the $E^3{\mathsf{\Sigma }}_1^{+}$ is degenerate with the ${ }^3{E}^3{\mathsf{\Sigma }}_0^{-}$ state correlating with the same $\left(4s{5s}^3{\mathrm{S}}_1\right)$ or $\left(5s{6s}^3{\mathrm{S}}_1\right)$ atomic asymptote in Zn or Cd, respectively). In this case, the formation of the potential barrier has different origin. Similarly as in the case of the so-called Rydberg molecules [27] it can be attributed to the low-energy scattering of the electron ($e^{-}$) being in the Rydberg state of Zn or Cd atom from the ground-state Ng atom. This is a consequence of a model proposed by Fermi [28] and Omont [29] (see also Greene and collaborators [30], [31]) who considered interaction of Rydberg $e^{-}$ and the perturbing ground-state atom in a first approximation as the low-energy s-wave (and p-wave [29]) scattering leading to the energy shift that depends on R and is proportional to Rydberg $e^{-}$ density, i.e. atomic Rydberg wavefunction squared, namely

$$E_s\left(R\right)=2\pi A_s\left(k\right){\left|{\mathsf{\Psi }}_{nlm}\left(R,0,0\right)\right|}^2,$$

(1)

where $A_s\left(k\right)$ is the s-wave scattering length depending on (classical) momentum $k$ of Rydberg electron in state ${\mathsf{\Psi }}_{nlm}\left(R,\theta ,\phi \right)$ [29]. Rydberg molecule is assumed here to be on z-axis, where $\theta$ and $\phi$ are zero. The model of $e^{-}$- Ng interaction as $e^{-}$ scattering from Ng, is more accurate for highly excited – Rydberg molecules [27], [31]. As a consequence of this s-wave scattering, when at least one of the molecular constituents (e.g. Zn or Cd atom) is excited into the Rydberg state, PECs of the Rydberg $\mathsf{\Sigma }$ states exhibit undulations outside the inner potential well that reproduce the oscillations of the Rydberg $e^{-}$ density along the internuclear axis [3], [4].

The description presented above is based on formal division of the MeNg molecule in to three subsystems: $\mathrm{M}{\mathrm{e}}^{+}$ cation, ground-state Ng atom and Rydberg electron $e^{-}$. Outside the inner potential well, i.e. for sufficiently large R, the dominating contribution to the interaction energy between $\mathrm{M}{\mathrm{e}}^{+}$and Ng is due to the charge-induced dipole interaction, whereas the $\mathrm{M}{\mathrm{e}}^{+}$- $e^{-}$ interaction is dominated by Coulomb charge-charge one; interaction between Rydberg electron $e^{-}$ and Ng atom is described by the generalized Fermi potential [28], [29] considered above. In case of the $\mathrm{M}{\mathrm{e}}^{+}$- Ng pair, also the dispersion interaction is present. However, this contribution to the interaction energy is smaller than in the case of the ground state of MeNg, mainly due to the smaller polarizability of $\mathrm{M}{\mathrm{e}}^{+}$ cation in comparison to the Me atom. This interpretation is applicable for the $E^3{\mathsf{\Sigma }}_1^{+}$ and ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ Rydberg states in a variety of MeNg molecules as suggested in Refs. [3], [4], [22-24] and [21] for ZnAr, CdAr, HgAr and HgNe, respectively.

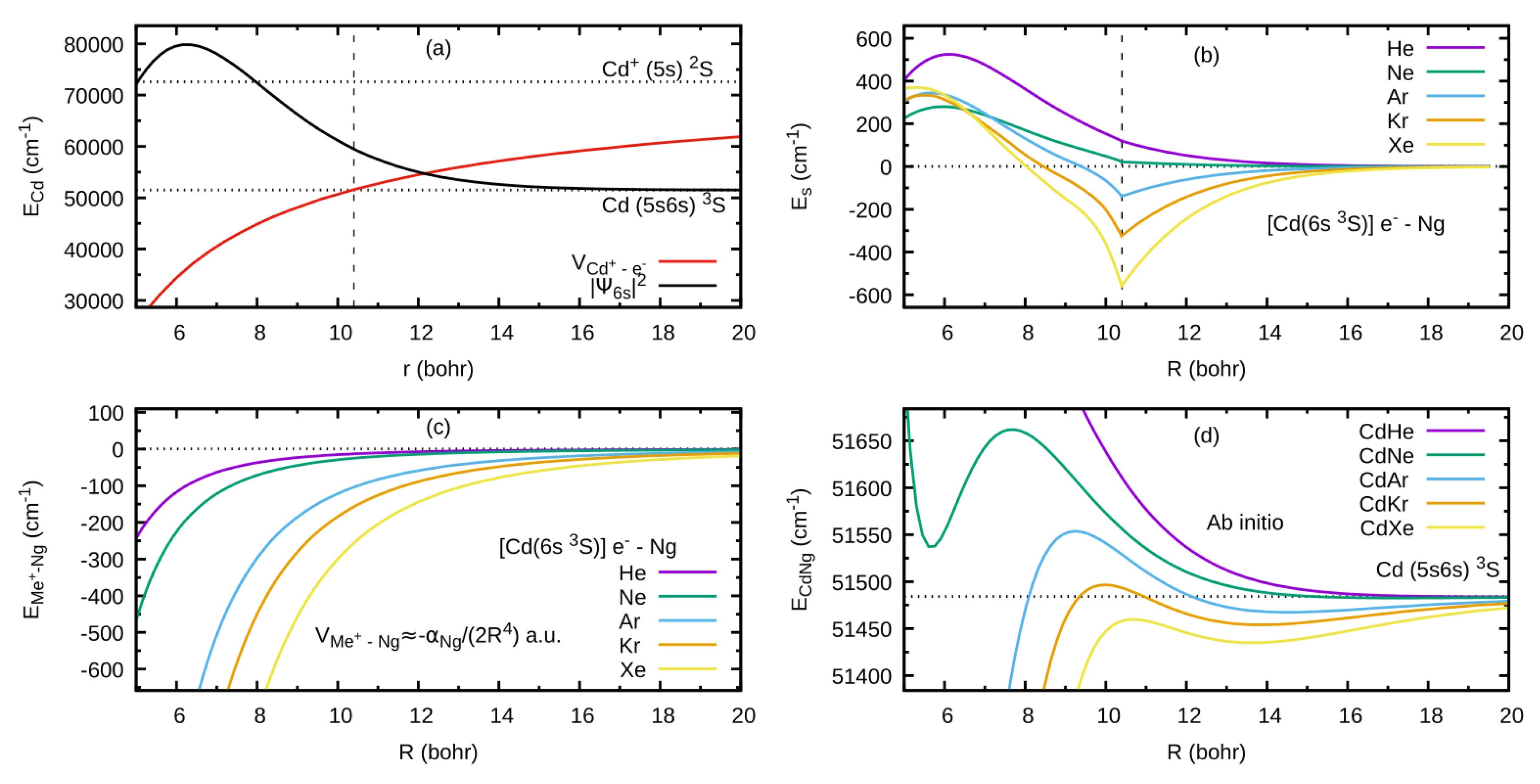

As an example developed for the review, let consider formation of the outer well and the energy barrier in the $E^3{\mathsf{\Sigma }}_1^{+}$ state of CdNg molecule. In this case, Cd atom in the lowest Rydberg state $\left(5s{6s}^3\mathrm{S}\right)$ is perturbed by the appearance of the ground-state Ng atom. In Figure 2(a) the interaction between $\mathrm{C}{\mathrm{d}}^{+}$ ion and the Rydberg electron $e^{-}$ (here: classical point charge $-\left|e\right|$) is presented along with ${\mathsf{\Psi }}_{6s}$ atomic orbital of Cd, where the values of the orbital are in arbitrary units and they do not correspond to the values provided on the vertical axis; plots are based on results of ab initio calculations taken from Ref. [4], whereas energy levels of Cd atom are taken from [32]. From Figure 2(a) the classically allowed region for the Rydberg electron can be established, here $r<~$10.4 bohr ($~$5.50 $Å$) 3), as well as the classical momentum of Rydberg electron $k^2=2\left[E\left(5s{6s}^3\mathrm{S}\right)-V(\mathrm{C}{\mathrm{d}}^{+}-e^{-})\right]$ corresponding to this region. Interaction between Rydberg electron $e^{-}$ and ground-state Ng atom is in first approximation determined by the Fermi potential [28],[29] leading to the energy shift $E_s\left(R\right)$ given by Eq. (1), presented in Figure 2(b) for the $\left(5s{6s}^3\mathrm{S}\right)$ Cd state. Cusps on the border of the classical region in Figure 2(b) result from the fact that the scattering length $A_s\left(k\right)$ from Eq. (1) is described semi-classically, where for the classically forbidden region the value of $A_s\left(k\right)$ in the limit $k⟶0$ was adopted [27],[28]. Low-energy electron scattering from Ng atoms data for generation of the E_s(R) in Figure 2(b) was taken from Refs. [33,34,35,36,37]. Figure 2(c) presents the charge $\mathrm{M}{\mathrm{e}}^{+}$- induced dipole (on Ng) interaction that dominates in the region of large-enough R of the $\mathrm{M}{\mathrm{e}}^{+}$- Ng subsystem, where Ng static dipole polarizabilities ${\alpha }_{\mathrm{N}\mathrm{g}}$, that determine the $\mathrm{M}{\mathrm{e}}^{+}$ - Ng interaction, were taken from Ref. [38]. Figure 2(d) collects the $E^3{\mathsf{\Sigma }}_1^{+}$-state PECs of CdNg molecules taken from Refs. [39],[40] and shows the internuclear region around the outer wells and the energy barriers. In a first approximation, the sum of the $\left(5s{6s}^3\mathrm{S}\right)$ Cd asymptote of Figure 2(a) and of the subsystem interactions $e^{-}$- Ng and ${\mathrm{C}\mathrm{d}}^{+}$- Ng of Figure 2(b),(c) should mimic the behavior of the actual PECs of CdNg molecules from Figure 2(d). It should be kept in mind that the simplified model of the Rydberg molecules works well for highly-excited states [27], and at the same time, the lowest Rydberg state of CdNg molecules is considered here. Anyway, some intuitions derived from the simplified description may be picked up even in such a case [3],[4]. It is seen from Figure 2(b),(d) that the position of energy barrier of the E ³Σ₁⁺ state may be ascribed to a situation in which the outside lobe of the Rydberg atomic orbital seen in the Figure 2(a) is accompanied with the positive value of the scattering length $A_s\left(k\right)$ for momentum $k$ large enough leading to the positive energy shifts $E_s\left(R\right)$. Positions of the top of the energy barrier of PECs of CdNg molecules are shifted with respect to the maximum of the square of the Rydberg atomic orbital towards larger distances due to the attractive ${\mathrm{M}\mathrm{e}}^{+}$- Ng interaction of Figure 2(c). At the same time the negative values of the scattering length $A_s\left(k\right)$ in the $k⟶0$ limit for Ng=Ar, Kr, Xe along with relatively large attractive ${\mathrm{C}\mathrm{d}}^{+}$- Ng forces, see Figure 2(b),(c), results in formation of the outer well seen in ab initio PECs in Figure 2(d). In the case of Ng=He, Ne, the positive values of scattering length $A_s\left(k\right)$ and relatively weak attractive ${\mathrm{C}\mathrm{d}}^{+}$- Ng forces lead to almost purely repulsive 4) PECs outside the energy barrier. Thus, it is evident that the properties of PECs of the lowest Rydberg state of CdNg may be qualitatively described within simplified model of Rydberg molecules.

2. Motivation for The Study and Realistic Applications of the Results

Results gained in basic-science research frequently result in practical applications and technological development. Technological achievements serve society and broadly understood human activities, including economic development, but also assist in pushing of basic-science concepts forward thereby, closing the circle between basic research and practical applications. This universal statement can be easily employed in basic research reviewed here and devoted to acquiring knowledge on irregular double-well molecular potentials of Rydberg electronic states leading to description of complexity of interatomic interactions. To illustrate this, we will mention only few from the rich diversity of examples where knowledge on molecular potentials led to significant progress towards their applicability. We focus on: creation of entanglement between atoms – a step towards the concept of quantum computer, laser photoassociation and invention of methods for vibrational and rotational cooling leading to creation of cold molecules in the ultimately coolest $(\upsilon =0,J=0)$ energy level, allowing, among others, to develop molecular clocks and frequency standards. Also, we cannot leave out something that theorists appreciate greatly - impressive advances in ab-initio calculation methods that subsequently allows to credibly confront theoretical and experimental results.

2.1. Molecular Optical Clocks and Frequency Standards for Fundamental Tests

Frequency standards and optical clock transitions have been suggested as a tool for testing fundamental forces in search for New Physics beyond the Standard Model [42], for laboratory search of dark-matter [43,44,45,46,47] to explore possible variations in the fundamental constants of nature [43], [47–49] and variations in the proton-to-electron mass ratio [50–53], for searching and establishing constraints of the electron’s electric dipole moment [48], [54,55,56,57].

12-group Me closed-shell atoms have attracted an attention as the possible candidates for optical lattice clocks based on Hg [48], [58,59,60], Cd [60,61,62,63] and Zn [60], [61] due to presence of long-live atomic levels, ultra-narrow optical transitions, very small black-body radiation shift of the ${ }^1{\mathrm{S}}_0-{ }^3{\mathrm{P}}_0$ ‘clock transition’ and reduced susceptibility to the blackbody radiation as compared to Sr- or Yb-based clocks. Consequently, they serve as promising alternatives to the currently operational Sr and Yb clocks [61], [63].

This automatically directs one to possibility of considering molecules as candidates for optical clocks and, indeed, there are examples of molecular clocks constructed using ${\mathrm{I}}_2$ [64], ${\mathrm{C}\mathrm{H}}_4$ [65], and proposals for clocks based on molecular ions ${\mathrm{H}}_2^{+}$ and $\mathrm{H}{\mathrm{D}}^{+}$ as an active media [66], [67]. So far, molecular clocks based on 12-group atoms are somewhat elusive. However, just recently, weakly bonding vdW diatomic molecules containing Zn or Cd and opened-shell alkali–metal (Li, Na, K, Rb, Cs, Fr) or alkaline–earth–metal (Be, Mg, Ca, Sr, Ba, Ra) atoms - due to their considerable permanent electric dipole moments and high chemical reactivity - were considered within ab initio approach for the potential use in the chemistry experiments and ultracold physics [68] that might lead to proposals for molecular optical clocks. Other homo-atomic weakly bound molecules, $\mathrm{Y}{\mathrm{b}}_2$ [69] and $\mathrm{S}{\mathrm{r}}_2$ [70], were proposed to serve as suitable media to construct optical clocks based on optical Rabi frequency induced by magnetic coupling and long vibrational coherence driven by off-resonant Raman process, respectively, or working as THz lattice clock in $\mathrm{S}{\mathrm{r}}_2$ based on pure molecular vibrations [71].

2.2. Experimental Versus Ab-Initio Calculated Rydberg Molecular Potentials - Calculational Challenges

Frequently, a comparison of the results of ab-initio calculated molecular potentials with those from experimental studies shows large discrepancies for both ground- and excited-state potentials, including these of Rydberg-states with complex, double-well, shape. In majority of our studies of 12-group MeNg [11-13], [15-17], [19], [20] and $\mathrm{M}{\mathrm{e}}_2$ [72], [73] molecules the discrepancies manifested themselves to varying degrees. The problem was closely analysed in recent articles on the calculations of Rydberg-state potentials of CdAr [4] and ZnAr [3] molecules. In general, at present time exact ab initio calculations of many electron systems such as 12-group MeNg and $\mathrm{M}{\mathrm{e}}_2$ are impossible, where the main source of inaccuracy is due to deficiencies in description of the electron correlation. Apart from the requirements for sufficient computer power to be used, the requirements of the proper description of the excited states within ab initio calculations are the following: 1º adequate atomic basis set that efficiently describes considered states including electron correlation (and relativistic) effects, 2º (quasi)-relativistic description starting from reference function usually obtained within single- or multiconfiguration self-consistent field (SCF) method, and taking into account: 3º multireference character of the electronic state using e.g. complete active space SCF (CASSCF) method (usually in case of the excited electronic states), 4º dynamic correlation as thorough as possible, 5º spin-dependent relativistic effects (spin-orbit, spin-spin couplings). Dynamic electron correlation for the multi-reference CASSCF function is usually calculated with CAS second-order perturbation theory (CASPT2) or multi-reference configuration interaction (MRCI) method. Alternatively, due to the fact that the ground state of MeNg molecules is dominated by a single-electron configuration, the excited states may be calculated with equation-of-motion (EOM) method performed for the single-reference coupled clusters (CC) function of the ground state. If very accurate results are needed one may consider the inclusion of hyperfine-structure interactions (if present), effects of finite nuclear mass (beyond Born-Oppenheimer approximation) or QED effects.

More accurate ab initio calculations stimulated requirements for more precise experiments investigating the molecular energy structures with better spectral resolution. The stimulation works both ways and was exceptionally challenging for Rydberg electronic states.

2.3. Scheme for Dissociation of Diatomic Molecules - Entanglement Between Objects With Rest Masses

In 1995, Fry and coworkers published a proposal for experimental realization of Bohm’s spin-1/2 particle version [74], [75] of the Einstein-Podolski-Rosen (E-P-R) experiment [76] for two ${ }^{199}\mathrm{H}\mathrm{g}$ atoms, each with nuclear spin $I=1/2$, that are produced in an entangled state with total nuclear spin zero [77]. It was proposed that the entanglement is possible to achieve by laser dissociation of vibrationally and rotationally cold isotopologue of the ${ }^{199}\mathrm{H}{\mathrm{g}}_2$ dimer produced in a supersonic expansion beam, using spectroscopically selective stimulated Raman process. The measurement of nuclear spin correlations between the two ${ }^{199}\mathrm{H}\mathrm{g}$ atoms in the entangled state is achieved by detection of the atoms using spin-state selective two-photon excitation-ionization scheme. In order to realize the idea, one needs to explore, theoretically and experimentally, the ro-vibrational energy structure of electronic energy states involved in the process of selective dissociation, including subtle irregularities in the interatomic potentials. Proposal of Fry and coworkers followed earlier suggestion for a test of so-called Bell inequalities [78]. Configuration of the electronic energy states in $\mathrm{C}{\mathrm{d}}_2$ allowed to formulate similar proposal for two ${ }^{111}\mathrm{C}\mathrm{d}$ atoms obtained by laser dissociation of isotopologue of the ${ }^{111}\mathrm{C}{\mathrm{d}}_2$ dimer [79] which is presently realized experimentally in our laboratory.

Except for 12-group ${ }^{199}\mathrm{H}{\mathrm{g}}_2$ and ${ }^{111}\mathrm{C}{\mathrm{d}}_2$ isotopologues, the E-P-R experiment and tests of the Bell inequalities was also designed for $\mathrm{N}{\mathrm{a}}_2$ molecule [80] and ${ }^{171}\mathrm{Y}{\mathrm{b}}_2$ isotopologue [81], both produced in supersonic beams. Some aspects of the two-atoms entanglement phenomenon were experimentally realized for $\mathrm{C}{\mathrm{a}}_2$ [82], [83] and ${\mathrm{H}}_2$ [84], [85] molecules dissociated using laser and electron beams, respectively. General discussion on the quantum-entanglement-related aspects of the dissociation process of homo- (${\mathrm{H}}_2$, ${\mathrm{H}\mathrm{e}}_2$, ${\mathrm{L}\mathrm{i}}_2$, ${\mathrm{C}\mathrm{l}}_2$) and heteronuclear (HCl) diatomic molecule experiments was reported by Esquivel and coworkers [86] where, in particular, the electronic entanglement during a dissociation process is shown to be associated, among others, with spatial electronic density in function of R, and consequently, to be dependent on the exact shape of corresponding interatomic potential.

2.4. Photoassociation of Molecules With Double-Well Potentials—Cold Molecules From Cold Atoms

In different branches of atomic and molecular physics there is rapidly growing interest in long-range forces acting between atoms interacting in a variety of traps and photoassociation (PA) of cold molecules [87,88,89].

The recent advances in laser cooling and optical trapping techniques as well as one- and two-step PA processes of cold molecules have been largely responsible for the renewed interest in the studies of the interatomic potentials including those with complex (e.g. double-well) structure, with distinct barriers present and specific behaviour in the long-range region of R [90] (see Figure 3). For a long time now, molecular energy states with double-well potentials have been considered as particularly suitable for PA experiments [91], [92]. Knowledge of the complex shape of the interatomic potentials (including higher-lying Rydberg potentials) facilitates an optimum design of the PA schemes. Among the various available techniques, molecular spectroscopy of diatomic molecules has proved to be the most effective and precise way to obtain information about the interaction between atoms in the molecule being created usually in a cold environment of atomic trap.

It is important to emphasize here that knowledge on the interatomic potentials allowed to design also unique schemes for PA processes. For example, using the $3^1{\mathsf{\Sigma }}_{\mathrm{u}}^{+}\left(6s{ }^2{\mathrm{S}}_{1/2}\right)$ double-well state in $\mathrm{R}{\mathrm{b}}_2$ it was possible to propose its formation via PA and application for cold-physics experiments [93]. Proposal for PA of ultra-long range rotating Rydberg molecules was also recently reported [94]. The proposal specified different steps to calculate the wave functions and the transition matrix elements so, they could be transferred to other Rydberg molecules involving different atomic species or molecular coupling cases.

2.5. Vibrational and Rotational Cooling of Diatomic Molecules

Exploration of electronic and ro-vibrational energy structures in molecules provides a source of information to elaborate schemes for cooling of molecular degrees of freedom: external - translation, and internal - vibration and rotation [95], [96]. The cooling process can be realized in a variety of atomic or molecular traps and, in case of atomic traps, it usually follows a process of creation of molecules (e.g. through PA, see Section 2.4). Internal cooling of molecules is also possible to realize in molecular beams (e.g. free-jet or supersonic) where vibrations and rotations are partly frozen out due to properties of the expansion itself. With respect to interatomic potentials involved in the process, including those of a complex character, it is important that for an efficient cooling process electronic transition with good properties, in terms of lifetime, coupling strength, laser accessibility and losses of molecules from the cooling scheme, is chosen. Moreover, the cooling electronic transition should be as ‘closed’ as possible with the assumption that after excitation spontaneous emission returns the largest possible fraction of molecular population to the initial electronic state. Consequently, it imposes one of favourable conditions: position of the excited-state potential minimum ${(R}_e^{\prime })$ which should be as close as possible to that of the ground-state potential ${(R}_e^{\prime \prime }$) i.e., $R_e^{\prime }-R_e^{\prime \prime }=∆R_e\approx 0$. The condition assures highly diagonal Franck-Condon (F-C) factors i.e. domination of ${\upsilon }^{\prime }-{\upsilon }^{\prime \prime }=\mathsf{\Delta }\upsilon =0$ transitions, where $\upsilon$ is a vibrational quantum number.

The above-mentioned conditions allowed to propose theoretical schemes for cooling and experimentally realize them for homoatomic (e.g. [81], [95], [97,98,99,100]) and heteroatomic (e.g. [95], [101,102,103,104]) molecules. Caesium dimer $\mathrm{C}{\mathrm{s}}_2$ was the first homoatomic molecule for which the cooling scheme was proposed. Its external and internal cooling in supersonic beam was based on the $B^1{\mathsf{\Pi }}_{\mathrm{u}}\left(6p{ }^2{\mathrm{P}}_{1/2}\right)-X^1{\mathsf{\Sigma }}_{\mathrm{g}}^{+}\left(6s{ }^2{\mathrm{S}}_{1/2}\right)$ transition [97]. It was followed by experimental realization in a trap using the $B^1{\mathsf{\Pi }}_{\mathrm{u}},$ $C^1{\mathsf{\Pi }}_{\mathrm{u}}\left(6p{ }^2{\mathrm{P}}_{3/2}\right)-X^1{\mathsf{\Sigma }}_{\mathrm{g}}^{+}$ transitions (with the $C^1{\mathsf{\Pi }}_{\mathrm{u}}$ state possessing double-well structure) [95], [98], reaching the absolute ground-state $({\upsilon }^{\prime \prime }=0, J^{\prime \prime }=0)$ level [98], where $J$ is a rotational quantum number. Proposals for vibrational and rotational cooling of 12-group ${ }^{202}\mathrm{H}{\mathrm{g}}_2$ [99] and ${ }^{114}\mathrm{C}{\mathrm{d}}_2$ [81], [100] were based on the $F^3{0}_{\mathrm{u}}^{+}\left({6s6p}^3{\mathrm{P}}_1\right)-X^1{0}_{\mathrm{g}}^{+}\left(6s^2{{ }^1\mathrm{S}}_0\right)$ and $c^3{1}_u\left(5s{5p}^3{\mathrm{P}}_2\right)-X^1{0}_{\mathrm{g}}^{+}\left(5s^2{{ }^1\mathrm{S}}_0\right)$ transitions, respectively. The ${ }^3{0}_{\mathrm{u}}^{+}\left({6s6p}^3{\mathrm{P}}_1\right)-X^1{0}_{\mathrm{g}}^{+}\left(6s^2{{ }^1\mathrm{S}}_0\right)$ transition was proposed for cooling down internal degrees of freedom in${ }^{174}\mathrm{Y}{\mathrm{b}}_2$ [81], [100]. Among heteroatomic molecules, frequently possessing large permanent electric dipole moments which is desirable in manipulation by means of static and/or time-dependent electric fields, experimental realization of vibrational and rotational cooling was reported for kinetically cold NaCs in a magneto-optical trap [95], [101] using the $A^1{\mathsf{\Sigma }}^{+},b^3\mathsf{\Pi }(3s{ }^2{\mathrm{S}}_{1/2}+6p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2})-X^1{\mathsf{\Sigma }}^{+}\left(6s{ }^2{\mathrm{S}}_{1/2}\right)$ transitions and achieving vibrational cooling from ${\upsilon }^{\prime \prime }\ge 4$ to ${\upsilon }^{\prime \prime }=0$. Moreover, theoretical schemes for direct vibrational and rotational cooling of TlCl [102], AgH, AgD [103], and ${ }^{24}\mathrm{M}{\mathrm{g}}^{35}\mathrm{C}\mathrm{l}$ [104] were proposed employing the $a^3{\mathsf{\Pi }}_{0^{+}}(6p{ }^2{\mathrm{P}}_{1/2}+3p^5{ }^2{\mathrm{P}}_{3/2})-X^1{\mathsf{\Sigma }}_{0^{+}}$, $A^1{\mathsf{\Sigma }}^{+}({5p}^2{\mathrm{P}}_{1/\mathrm{2,3}/2}+1s{ }^2{\mathrm{S}}_{1/2})-X^1{\mathsf{\Sigma }}^{+}(5s{ }^2{\mathrm{S}}_{1/2}+1s{ }^2{\mathrm{S}}_{1/2})$ and $A^2\mathsf{\Pi }(3s^2{ }^1{\mathrm{S}}_0+3p^5{ }^2{\mathrm{P}}_{3/2})-X^2{\mathsf{\Sigma }}^{+}$ transitions, respectively, as well as highly diagonal F-C factors patterns.

3. Optical-Optical Double Resonance (OODR) Method in Molecular Spectroscopy—Assessment and Main Advantages

3.1. OODR—Principle of the Method

This article describes, in a broader context of similar methods, molecular spectroscopy experiments in which molecules are sequentially excited using spatially overlapping two laser beams. This sequential excitation method, called optical-optical double-resonance (OODR), is a special case of two-photon spectroscopy in which two visible or ultraviolet wavelength photons of different frequencies resonantly excite a molecule from an initial level ($\upsilon ,J$) to a final level ($\upsilon \mathrm{\prime },J\mathrm{\prime }$) via a real intermediate level ($\upsilon \prime \prime ,J\prime \prime$). The OODR process is also called double optical resonance, step-by-step excitation, or stepwise, two-step or two-colour excitation.

OODR method provides possibility of excitation of higher-lying molecular electronic energy states to which excitation from the ground state using one-step process is not possible as the energy of excitation is too high (deep UV or VUV) or symmetry of the excited state forbids the direct excitation from the ground state. This way, OODR paves the way for investigation of higher-lying Rydberg molecular states or, in case of homoatomic molecules, for study molecular states that possess the same symmetry as the ground state from which the excitation originates. As a good example from our laboratory is spectroscopy of a gerade Rydberg energy state in $\mathrm{C}{\mathrm{d}}_2$ while the${ }^3{1}_{\mathrm{g}}\left(5s{6s }^3{\mathrm{S}}_1\right)$ state was excited from the $X^1{0}_{\mathrm{g}}^{+}\left(5s^2{{ }^1\mathrm{S}}_0\right)$ ground state via the $b^3{0}_{\mathrm{u}}^{+}\left({5s5p }^3{\mathrm{P}}_1\right)$ intermediate state [105].

Another advantage of OODR, that makes it an extremely useful spectroscopic tool, is a possibility to adequately choose an intermediate state in order to excite different parts of the final-state potential. This approach was employed in studies of 12-group-MeNg molecules: HgNg [21,22,23,24,25] and CdNg [10,11,12,13,14,15,16,17], [106]. Figure 4 illustrates OODR method using example of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s{6s}^3{\mathrm{S}}_1\right)\leftarrow B^{3}1\left(5s{5p}^3{\mathrm{P}}_1\right){\leftarrow X^1{\mathsf{\Sigma }}_{0^{+}}^{ }}^{ }\left(5s^2{{ }^1\mathrm{S}}_0\right)$ or $E^3{\mathsf{\Sigma }}_1^{+}\left(5s{6s}^3{\mathrm{S}}_1\right)\leftarrow A^3{\mathsf{\Pi }}_{0^{+}}\left(5s{5p}^3{\mathrm{P}}_1\right){\leftarrow X^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s^2{{ }^1\mathrm{S}}_0\right)}^{ }$ transition in CdAr 5). The molecule is excited in the first resonant optical transition from the $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ ground state to one of the $A^3{\mathsf{\Pi }}_{0^{+}}$ or $B^{3}1$ state using the chosen ${\upsilon }_A^{\prime \prime }\leftarrow {\upsilon }_X=0$ or ${\upsilon }_B^{\prime \prime }\leftarrow {\upsilon }_X=0$ vibrational transition, respectively. The second resonant optical transition is a matter of choice. As the final $E^3{\mathsf{\Sigma }}_1^{+}$ Rydberg state possesses a double-well structure, its potential can be probed using ${\upsilon }_E^{\prime }\leftarrow {\upsilon }_A^{\prime \prime }$ or ${\upsilon }_E^{\prime }\leftarrow {\upsilon }_B^{\prime \prime }$ transitions starting from either the $A^3{\mathsf{\Pi }}_{0^{+}}$ or $B^{3}1$ state, respectively. Using the $A^3{\mathsf{\Pi }}_{0^{+}}$ state as an intermediate, only the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well ($E^3{\mathsf{\Sigma }}_{1 \mathrm{i}\mathrm{n}}^{+}$) can be probed whereas excitation via the $B^{3}1$ state offers an exploration of the $E^3{\mathsf{\Sigma }}_1^{+}$-state outer well ($E^3{\mathsf{\Sigma }}_{1 \mathrm{o}\mathrm{u}\mathrm{t}}^{+}$) along with the potential barrier exploring free$\leftarrow$bound transitions (note: using excitation via the $B^{3}1$ state a limited number of transitions to the $E^3{\mathsf{\Sigma }}_{1 \mathrm{i}\mathrm{n}}^{+}$ near the dissociation limit can also be realized). Electronic transition dipole moments squared ${\left|\mathrm{T}\mathrm{D}\mathrm{M}\right|}^2$ shown in Figure 4 constitute supporting information which part of the $E^3{\mathsf{\Sigma }}_1^{+}$-state PEC can be probed in the chosen transition.

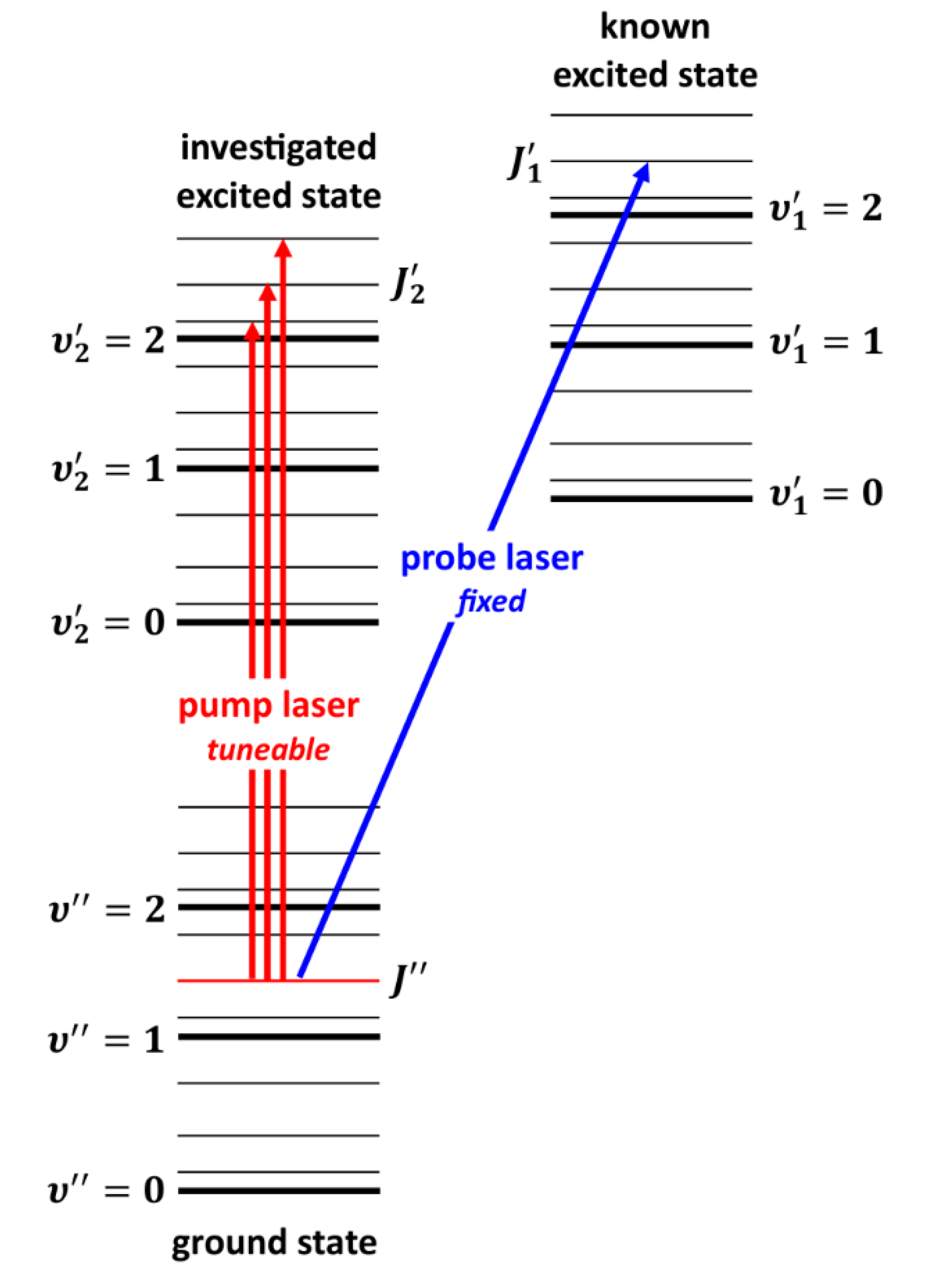

Figure 4. Illustration of optical-optical double resonance (OODR) method applied in molecular excitation. Potential energy curves (PEC) (solid lines) of the $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s^2{{ }^1\mathrm{S}}_0\right)$, $A^3{\mathsf{\Pi }}_{0^{+}}\left(5s{5p}^3{\mathrm{P}}_1\right)$, $B^{3}1\left(5s{5p}^3{\mathrm{P}}_1\right)$ and $E^3{\mathsf{\Sigma }}_1^{+}\left(5s{6s}^3{\mathrm{S}}_1\right)$ states in CdAr, and electronic transition dipole moments squared ${\left|\mathrm{T}\mathrm{D}\mathrm{M}\right|}^2\left(R\right)$ (dashed lines) are plotted according to the recent result published by Krośnicki et al. [4]. ${\left|\mathrm{T}\mathrm{D}\mathrm{M}\right|}^2$ are plotted for (a) first step of OODR: the $A^3{\mathsf{\Pi }}_{0^{+}}\leftarrow X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ and $B^{3}1\leftarrow X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ transitions, and (b) second step of OODR: the $E^3{\mathsf{\Sigma }}_1^{+}\leftarrow A^3{\mathsf{\Pi }}_{0^{+}}$ and ${E^3{\mathsf{\Sigma }}_1^{+}\leftarrow B^{3}1}^{ }$ transitions. Examples of vibrational transitions (a) ${\upsilon }_{A,B}^{\text{'}\text{'}}\leftarrow {\upsilon }_X=0$ and (b) ${\upsilon }_E^{\text{'}}\leftarrow {\upsilon }_{A,B}^{\text{'}\text{'}}$ used in OODR are shown with vertical lines. Intensity of the vibrational transition depends on ${\left|\mathrm{T}\mathrm{D}\mathrm{M}\right|}^2\sim {\left|\int {\psi }_{\mathrm{e}\mathrm{l}}^{\text{'}*}{{\mathit{\mu }}_{\mathbf{e}\mathbf{l}}{\psi }_{\mathrm{e}\mathrm{l}}^{\text{'}\text{'}}}_{ }d{\tau }_{\mathrm{e}\mathrm{l}}\right|}^2$ along with so-called overlap integrals (a) $\int {\psi }_{\upsilon }{\psi }_{{\upsilon }^{\text{'}\text{'}}}dR$ and (b) $\int {\psi }_{{\upsilon }^{\text{'}\text{'}}}{\psi }_{{\upsilon }^{\text{'}}}dR$ for the first and second transition, respectively, where ${\mathit{\mu }}_{\mathbf{e}\mathbf{l}}$ is an electric dipole operator, ${\psi }_{\mathrm{e}\mathrm{l}}$ are electronic eigenfunctions, and ${\psi }_{\upsilon }$ are $\upsilon$-level vibrational eigenfunctions (shown for each vibrational level). (c) Details of the second excitation. Ab-initio calculated height of the potential barrier is somewhat larger than that obtained from experiment (see Figure 15). Experimental positions of ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ and ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$ and ${\upsilon }_{A,B}^{\text{'}\text{'}}$ levels are also depicted.

Figure 4. Illustration of optical-optical double resonance (OODR) method applied in molecular excitation. Potential energy curves (PEC) (solid lines) of the $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s^2{{ }^1\mathrm{S}}_0\right)$, $A^3{\mathsf{\Pi }}_{0^{+}}\left(5s{5p}^3{\mathrm{P}}_1\right)$, $B^{3}1\left(5s{5p}^3{\mathrm{P}}_1\right)$ and $E^3{\mathsf{\Sigma }}_1^{+}\left(5s{6s}^3{\mathrm{S}}_1\right)$ states in CdAr, and electronic transition dipole moments squared ${\left|\mathrm{T}\mathrm{D}\mathrm{M}\right|}^2\left(R\right)$ (dashed lines) are plotted according to the recent result published by Krośnicki et al. [4]. ${\left|\mathrm{T}\mathrm{D}\mathrm{M}\right|}^2$ are plotted for (a) first step of OODR: the $A^3{\mathsf{\Pi }}_{0^{+}}\leftarrow X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ and $B^{3}1\leftarrow X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ transitions, and (b) second step of OODR: the $E^3{\mathsf{\Sigma }}_1^{+}\leftarrow A^3{\mathsf{\Pi }}_{0^{+}}$ and ${E^3{\mathsf{\Sigma }}_1^{+}\leftarrow B^{3}1}^{ }$ transitions. Examples of vibrational transitions (a) ${\upsilon }_{A,B}^{\text{'}\text{'}}\leftarrow {\upsilon }_X=0$ and (b) ${\upsilon }_E^{\text{'}}\leftarrow {\upsilon }_{A,B}^{\text{'}\text{'}}$ used in OODR are shown with vertical lines. Intensity of the vibrational transition depends on ${\left|\mathrm{T}\mathrm{D}\mathrm{M}\right|}^2\sim {\left|\int {\psi }_{\mathrm{e}\mathrm{l}}^{\text{'}*}{{\mathit{\mu }}_{\mathbf{e}\mathbf{l}}{\psi }_{\mathrm{e}\mathrm{l}}^{\text{'}\text{'}}}_{ }d{\tau }_{\mathrm{e}\mathrm{l}}\right|}^2$ along with so-called overlap integrals (a) $\int {\psi }_{\upsilon }{\psi }_{{\upsilon }^{\text{'}\text{'}}}dR$ and (b) $\int {\psi }_{{\upsilon }^{\text{'}\text{'}}}{\psi }_{{\upsilon }^{\text{'}}}dR$ for the first and second transition, respectively, where ${\mathit{\mu }}_{\mathbf{e}\mathbf{l}}$ is an electric dipole operator, ${\psi }_{\mathrm{e}\mathrm{l}}$ are electronic eigenfunctions, and ${\psi }_{\upsilon }$ are $\upsilon$-level vibrational eigenfunctions (shown for each vibrational level). (c) Details of the second excitation. Ab-initio calculated height of the potential barrier is somewhat larger than that obtained from experiment (see Figure 15). Experimental positions of ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ and ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$ and ${\upsilon }_{A,B}^{\text{'}\text{'}}$ levels are also depicted.

3.2. Review of OODR Experiments in Diatomic Molecules

Since late 1970s and early 1980s OODR method has been employed in spectroscopy of higher-lying (Rydberg) electronic energy states of a variety of diatomic molecules which were produced in quartz cells, heat-pipe ovens, specially designed furnaces or molecular beams, including supersonic jets.

As the first, alkali diatomic homoatomic molecules have been investigated in heat-pipe ovens. Bernheim and coworkers spectroscopically studied the${{ E}^1\mathsf{\Sigma }}_{\mathrm{g}}^{+}\left(3s{ }^2{\mathrm{S}}_{1/2}\right)$ and ${{ F}^1\mathsf{\Sigma }}_{\mathrm{g}}^{+}, G^1{\mathsf{\Pi }}_{\mathrm{g}}(2p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2}+2p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2})$ Rydberg states in ${}_{ }{}^7{\mathrm{L}\mathrm{i}}_2$, and provided molecular constants and quantum defects for ${{ n\mathrm{s}\sigma }^1\mathsf{\Sigma }}_{\mathrm{g}}^{+}$, ${{ n\mathrm{d}\sigma }^1\mathsf{\Sigma }}_{\mathrm{g}}^{+}$ and ${{ n\mathrm{d}\pi }^1\mathsf{\Pi }}_{\mathrm{g}}^{ }$ Rydberg series [107-110]. Xie and Field performed studies of the $2^3{\mathsf{\Pi }}_{\mathrm{g}}(2p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2}+2p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2})$, ${{ 3}^3\mathsf{\Sigma }}_{\mathrm{g}}^{+}\left(3p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2}\right)$, ${{ a}^3\mathsf{\Sigma }}_{\mathrm{u}}^{+}\left(2s{ }^2{\mathrm{S}}_{1/2}\right)$ and $b^3{\mathsf{\Pi }}_{\mathrm{u}}\left(2p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2}\right)$ states in other isotopologue, ${}_{ }{}^6{\mathrm{L}\mathrm{i}}_2$ [111]. In Na₂, the${ }^3{\mathsf{\Pi }}_{\mathrm{g}}(3p{ }^2{\mathrm{P}}^0+3p{ }^2{\mathrm{P}}^0)$ state was directly observed by Li and Field [112], whereas the${{ 5}^1\mathsf{\Sigma }}_{\mathrm{g}}^{+}\left(4p{ }^2{\mathrm{P}}^0\right)$ and ${{ 6}^1\mathsf{\Sigma }}_{\mathrm{g}}^{+}\left(5s{ }^2{\mathrm{S}}_{1/2}\right)$ so-called ‘shelf’ states were investigated by Sanli et al. [113] and Saaranen et al. [114]. In 1999, OODR spectroscopy of Li₂ and Na₂ Rydberg states was comprehensively characterized and discussed in a review article of Li and Lyyra [115]. For ${}_{ }{}^{39}{\mathrm{K}}_2$ four Rydberg states ${4^3\mathsf{\Sigma }}_{\mathrm{g}}^{+},3^3{\mathsf{\Pi }}_{\mathrm{g}}\left(5p{ }^2{\mathrm{P}}^0\right)$, $2^3{\mathsf{\Delta }}_{\mathrm{g}}\left(4d{ }^2{\mathrm{D}}_{3/\mathrm{2,5}/2}\right)$ and $b^3{\mathsf{\Pi }}_{\mathrm{u}}\left(4p{ }^2{\mathrm{P}}^0\right)$ were studied by Kim et al. [116], while for Rb₂ Arndt et al. observed and analysed the $3^1{\mathsf{\Pi }}_{\mathrm{g}}(6\mathrm{s}{ }^2{\mathrm{S}}_{1/2}+6p{ }^2{P}^0)$ state [117] and double-well of the ${6^1\mathsf{\Sigma }}_{\mathrm{g}}^{+}(5p{ }^2{\mathrm{P}}^0+5p{ }^2{\mathrm{P}}^0)$ state [118]. Studies of Rydberg states in heteroatomic diatoms employing OODR were performed, among others, by Jabbour and Huennekens for the $6^1{\mathsf{\Sigma }}^{+}({5p }^2{\mathrm{P}}_{1/2}+4s{ }^2{\mathrm{S}}_{1/2})$ state in NaK [119] and Chu et al. for the $C^1{\mathsf{\Sigma }}^{+}(4s{ }^2{\mathrm{S}}_{1/2}+1s{ }^2{\mathrm{S}}_{1/2})$ double-well state in NaH [120], both in heat-pipe ovens, by Bernath and Field for the $E^2{\mathsf{\Sigma }}^{+}$ and $E^{\mathrm{\prime }2}{\mathsf{\Pi }}^{+}$ states in CaF [121], and Ludwigs and Royen for the $G^2{\mathsf{\Sigma }}^{+}$ state in BaCl [122] both produced in a Broida-type furnaces, and by Field et al. for the${\mathrm{i}}^1{\mathsf{\Sigma }}^{+}$ and $a^3\mathsf{\Pi }$ states in BaO [123] produced in a specially designed apparatus [124].

A number of experiments, similar as reported from our lab in this review, employing OODR combined with molecular beams has been performed in studies of Rydberg states, among others, by Donovan and coworkers who investigated the ${E0}_{\mathrm{g}}^{+}{(5s5p^5 }^3{\mathrm{P}}_2)$ and ${f0}_{\mathrm{g}}^{+}{(5s5p^5 }^3{\mathrm{P}}_0)$ ion-pair states in I₂ using a pulsed beam of iodine with He as a carrier gas [125], by Michalak and Zimmermann studying the ${ }^2\mathsf{\Sigma }{(5s }^2{\mathrm{S}}_{1/2})$, ${ }^2\mathsf{\Sigma }{(7s }^2{\mathrm{S}}_{1/2})$,${ }^2{\mathsf{\Pi }}_{1/2}$,${ }^2{\mathsf{\Pi }}_{3/2}$, ${\mathsf{\Delta }}_{3/2}$, ${\mathsf{\Delta }}_{5/2}{(5d }^2{\mathrm{D}}_{3/\mathrm{2,5}/2})$ and ${\mathsf{\Delta }}_{5/2}{(5f }^2{\mathrm{F}}_{5/\mathrm{2,7}/2})$ states in KAr vdW molecule expanded in a supersonic continuously working (cw) jet [126], by Bouloufa et al. who investigated the $C^1{\mathsf{\Sigma }}^{+}(3s{ }^2{\mathrm{S}}_{1/2}+1s{ }^2{\mathrm{S}}_{1/2})$ state in LiH produced in an effusive cw beam [127], by Kleimeno et al. studying the $1_{\mathrm{g}}\left({2p^{5}4p}^{\prime }[3/\mathrm{2,1}/2{>]}_1\right)$ and $0_{\mathrm{g}}^{+}\left({2p^{5}4p}^{\prime }[3/2{>]}_2\right)$ states in Ne₂ vdW molecule expanded in a pulsed supersonic beam [128], and by Sunahori et al. who investigated the $E^4\mathsf{\Pi }{(3p}^2{\mathrm{P}}_{1/\mathrm{2,3}/2}+2p^2{ }^3{\mathrm{P}}_0)$ state in BC free radical produced in a discharge free jet pulsed expansion [129]. In all of the above OODR schemes, the Rydberg state excitation was realized from the electronic ground state via an adequately and carefully chosen intermediate state.

The family of vdW molecules described in this article refers to MeNg, where Me is a 12-group metal atom (Me=Hg, Cd, Zn) and Ng is a noble gas atom. In early experiments, excitation of the Rydberg states in MeNg has been realized using OODR and reported for HgNe [21-23], HgAr [22], [24], [25], CdNe [11], CdAr [17], [106] and CdKr [20]. Rydberg energy states of other MeNg molecules have not been explored using OODR, but it is worthwhile to mention here that laser vaporization - optical resonance (LV-OR) method (see Section 3.3.1) has been employed in case of ZnAr [9]; as an alternative to OODR, LV-OR has also been used in an investigation of Rydberg states in CdAr [18].

Analysing those early experiments, one has to note that employing OODR a number of Rydberg electronic energy states has been reached. From among HgNg (Ng=Ne, Ar) molecules, the first one that has been investigated is the $C^3{\mathsf{\Sigma }}_1^{+}\left({6s7s}^3{\mathrm{S}}_1\right)$ double-well triplet state in HgAr 6). The $C^3{\mathsf{\Sigma }}_1^{+}$ state was excited from the ground state via the $A^3{\mathsf{\Pi }}_{0^{+}}\left({6s6p}^3{\mathrm{P}}_1\right)$ or $B^{3}1\left({6s6p}^3{\mathrm{P}}_1\right)$ intermediate state and characterized using LIF excitation spectra [24]. The authors found the inner and outer potential wells to be 1430±7 ${\mathrm{c}\mathrm{m}}^{-1}$ and 38±7 ${\mathrm{c}\mathrm{m}}^{-1}$ deep, respectively. The same intermediates, $A^3{\mathsf{\Pi }}_{0^{+}}$ and $B^{3}1$, were used to excite the triplet Rydberg series of the${\mathrm{i}}^3{\mathsf{\Sigma }}^{+}\left({6sns }^3{\mathrm{S}}_1,n=7-10\right)$ states in HgNe [21], [22], the${\mathrm{i}}^3{\mathsf{\Sigma }}^{+}\left({6s8s}^3{\mathrm{S}}_1\right)$ Rydberg state in HgAr [22] and the singlet Rydberg series of the$i^1{\mathsf{\Sigma }}^{+}\left(6s{ns }^1{\mathrm{S}}_0,n=7-9\right)$ states in HgNe [23]. Studies of Onda et al. [22], [23] showed that for HgNe a distinct potential barrier in the ${ }^3{\mathsf{\Sigma }}^{+}\left(6s{ns }^3{\mathrm{S}}_1\right)$ and $i^1{\mathsf{\Sigma }}^{+}\left({6sns }^1{\mathrm{S}}_0\right)$ occurs for $n=7$ and is accompanied with the inner well located (almost) entirely above the dissociation limit. For $n=8$ relatively deep inner well $(D_e\ge 200 {\mathrm{c}\mathrm{m}}^{-1})$ appears along with small energy barrier $(D_e~10 {\mathrm{c}\mathrm{m}}^{-1}\mathrm{a}\mathrm{t}R=~7\mathrm{Å})$ for singlet state, whereas for triplet state the energy barrier is expected at slightly larger $R$. For the ${\mathrm{i}}^3{\mathsf{\Sigma }}^{+}\left({6s8s}^3{\mathrm{S}}_1\right)$ state in HgAr only the inner potential well was characterized and found to be 1602±4 ${\mathrm{c}\mathrm{m}}^{-1}$ deep (the outer, shallower potential well was not located).

Early studies of CdNg (Ng=Ne, Ar, Kr) molecules in which OODR was employed has been performed by Czajkowski et al. [106], and Koperski and Czajkowski [11], [17], [20]. For all of three molecules, potential of the $E^3{\mathsf{\Sigma }}_1^{+}\left({5s6s}^3{\mathrm{S}}_1\right)$ state was investigated in CdNe [11], CdAr [17] and CdKr [20] using excitation from the $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s^2{ }^1{\mathrm{S}}_0\right)$ via the $A^3{\mathsf{\Pi }}_{0^{+}}\left({5s5p }^3{\mathrm{P}}_1\right)$ or $B^{3}1\left({5s5p }^3{\mathrm{P}}_1\right)$ intermediate state allowing to perform first-time studies of different parts of the $E^3{\mathsf{\Sigma }}_1^{+}$-state potential exploring bound$\leftarrow$bound and free$\leftarrow$bound transitions, however, with limited spectral resolution. From those studies it was concluded that the $E^3{\mathsf{\Sigma }}_1^{+}$- state potential in CdNe, CdAr and CdKr possesses a distinct potential barrier which, in CdAr and CdKr, separates inner (deep) and outer (shallow) potential wells (for the $E^3{\mathsf{\Sigma }}_1^{+}$state in CdNe, an evidence of the outer well was not found and the potential barrier was located entirely above the ${(5s6s}^3{\mathrm{S}}_1) \mathrm{C}\mathrm{d}$ asymptote). It was also concluded that the outer well in CdAr and CdKr may accommodate 8 (${\upsilon }^{\prime }$=0-7) and 7 (${\upsilon }^{\prime }$=0-6) vibrational levels, respectively.

3.3. Example of Methods Alternative to OODR

3.3.1. Laser vaporization - optical resonance (LV-OR)

In general, laser vaporization - optical resonance (LV-OR) method relies on utilizing a vaporization laser pulse (commonly second or third harmonic of 1064 nm Nd:YAG laser, 690 nm Ti:Sa laser, or 308 nm XeCl excimer laser) in the first-step of the excitation. It is usually used to overcome obstacles associated with heating a metal sample in the reservoir before the expansion to assure sufficient metal partial vapour pressure (typical values are 250-350 mbar) to produce molecules during adiabatic expansion to the vacuum. For most of the metal elements, the heating temperature should exceed 1300 K creating considerable difficulties. Laser vaporization itself produces a number of metal atoms in their metastable electronic states. For example, for ZnAr ($n=4$) [9] and CdAr ($n=5$) [18], during the expansion the metastable metal atoms form molecules with a carrier gas (argon) in electronic states, such as the $a^3{\mathsf{\Pi }}_{0^{-}}\left({nsnp}^3{\mathrm{P}}_0\right)$ or $b^3{\mathsf{\Pi }}_2\left({nsnp}^3{\mathrm{P}}_2\right)$, which may serve as intermediate states in LV-OR process. Consequently, characterisation of the $E^3{\mathsf{\Sigma }}^{+}\left(4s5s{{ }^3\mathrm{S}}_1\right)$ Rydberg state in ZnAr and the $e^3{\mathsf{\Sigma }}^{+}\left(5s6s{{ }^3\mathrm{S}}_1\right)$ Rydberg state in CdAr was performed using supersonic expansion beams and LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}^{+}⟵a^3{\mathsf{\Pi }}_{0^{-}}$, $b^3{\mathsf{\Pi }}_2$ and $e^3{\mathsf{\Sigma }}^{+}⟵b^3{\mathsf{\Pi }}_2$ second-step transitions, respectively.

The problem with LV-OR method relies on highly non-selective excitation process that is realized in the first-step of excitation (LV) which produces a considerable amount of intermediate states, such as the $a^3{\mathsf{\Pi }}_{0^{-}}\left({nsnp}^3{\mathrm{P}}_0\right)$, ${ A}^3{\mathsf{\Pi }}_{0^{+}}$, $B^{3}1\left({nsnp}^3{\mathrm{P}}_1\right)$ and $b^3{\mathsf{\Pi }}_2$, ${{ }^3\mathsf{\Sigma }}_1^{+}$, ${ }^3{\mathsf{\Sigma }}_{0^{-}}^{+}\left({nsnp}^3{\mathrm{P}}_2\right)$. Consequently, usually more than one intermediate state may participate in the second-step of the excitation causing difficulties in proper interpretation of the LIF excitation spectra. Such particular case can be found in the above mentioned investigation of the $E^3{\mathsf{\Sigma }}^{+}$ state in ZnAr (e.g. Figure 1 in Ref. [9]) where two distinct $\upsilon \prime$-progression to the $E^3{\mathsf{\Sigma }}^{+}$ state are present. In the interpretation of the recorded spectrum the authors assumed that ‘the two series of vibrational progressions correspond to transitions from ${\upsilon }^{\prime \prime }=0$ of different${ }^3{\Pi }_{\Omega }$ levels to the F-C favoured $\upsilon \prime$ levels of the $E^3{\Sigma }^{+}$ upper state’ and the ${ }^3{\mathsf{\Pi }}_{\mathsf{\Omega }}$ - state potentials were represented by respective Morse functions. Unfortunately, in analogous study of the $e^3{\mathsf{\Sigma }}^{+}$ state in CdAr no corresponding spectrum was presented [18].

As compared to OODR, another disadvantage associated with LV-OR relies on the fact that it makes impossible to choose the most appropriate intermediate-state in order to study different parts of the final-state interatomic potential.

Despite of the above-mentioned disadvantages, LV-OR method was employed using supersonic expansion beams also in studies of other MeNg and Me₂ (Me = 2-, 11- or 13-group atom) molecules, for example MgNg (Ng=Ne, Ar, Kr, Xe) [130-134], AgNg (Ng=Ar, Kr, Xe) [135], AuAr [136], AlNg (Ng=Ar, Kr, Xe) [137], [138], InNg (Ng=Ar, Kr, Xe) [139], [140], Be₂ [141], Ba₂ [142], and Ga₂ [143].

3.3.2. Laser Photoassociation and Excitation (Pump-And-Probe)

Another frequently used technique that allows to study Rydberg electronic states in molecules, especially those without stable or very weakly bound ground electronic state, is so-called pump-and-probe method. The method has been widely used in the investigation of 12-group homoatomic Hg₂ [144], [145] and Zn₂ [146-149] dimers, and heteroatomic HgZn [150-153] and HgCd [154] excimers in search of media for potential tuneable laser working in UV and based on vdW molecules and exciplexes. These unstable diatomic molecules have repulsive ground-state potentials exhibit shallow vdW minima with depths in the range 220-550 ${\mathrm{c}\mathrm{m}}^{-1}$ [155,156,157,158]. Consequently, in temperatures higher than 270-380 K they cannot exists in their ground states, so excitation to their Rydberg states has to be re-arranged creating considerable population of their low-lying metastable states while maintain their vapour partial pressure at the necessary level.

Pump-and-probe method employed in those studies relied on irradiation of hot atomic vapour in a quartz cell by two laser pulses. The cell contained Hg, Zn, Zn-Hg mixture or Cd-Hg amalgam for investigation of Hg₂, Zn₂, HgZn, HgCd, respectively. The cell was heated up to 600-1100 K, depending on its content, to ensure metal vapour partial pressure in the range of 600-2200 mbar. The first laser (pump) pulse is close to the resonance transition from the ${ }^1{\mathrm{S}}_0$ atomic ground state to the lowest-lying ${ }^3{{\mathrm{P}}_{ }}_J$ manifold. As a result of the process of three-body collisions ${2\mathrm{M}\mathrm{e}(}^1{\mathrm{S}}_0)+h\nu ⟶(\mathrm{M}{\mathrm{e}}_2^{\mathrm{*}} \mathrm{o}\mathrm{r}\mathrm{M}\mathrm{e}\mathrm{M}{\mathrm{e}}^{\mathrm{*}})$ and collisional relaxation that followed them, $\mathrm{M}{\mathrm{e}}_2^{\mathrm{*}}$ homoatomic or $\mathrm{M}\mathrm{e}\mathrm{M}{\mathrm{e}}^{\mathrm{*}}$ heteroatomic metal dimer in a metastable $A{0}_{\mathrm{g}}^{\pm }{(6s6p}^3{\mathrm{P}}_1)$, ${{ }^3\mathsf{\Pi }}_{\mathrm{g}}{(4s4p }^3{{{\mathrm{P}}_{ }}_J}_{ })$, $A{0}_{ }^{\pm }{(6s^2{ }^1{\mathrm{S}}_0+4s4p }^3{{\mathrm{P}}_{ }}_J)$ or ${{ }^3\mathsf{\Pi }}_{ }{(6s^2{ }^1{\mathrm{S}}_0+5s5p }^3{{{\mathrm{P}}_{ }}_J}_{ })$ state is created in $\mathrm{H}{\mathrm{g}}_2$, ${\mathrm{Z}\mathrm{n}}_2$, HgZn or HgCd, respectively (for HgZn [153] and Hg₂ [72], see Figure 5). The consecutive laser (probe) pulse excites corresponding molecule from the metastable ‘reservoir’ to the higher-lying Rydberg state after which a resulting LIF is recorded while tuning the probe-laser frequency. Several Rydberg states were investigated providing spectroscopic characterization for the $H^1{1}_{\mathrm{u}}{(6s6p }^1{\mathrm{P}}_1)$, $I^1{0}_{\mathrm{u}}^{+}{(6s7s }^1{\mathrm{S}}_0)$ and ${J^1{1}_{\mathrm{u}}(6s7s }^3{\mathrm{S}}_1)$ states in Hg₂ [144], [145], the${{ }^3\mathsf{\Pi }}_{\mathrm{u}}{(4s4d }^3{\mathrm{D}}_J)$ and ${{ }^3\mathsf{\Sigma }}_{\mathrm{u}}^{+}$, ${{ }^3\mathsf{\Pi }}_{\mathrm{u}}$, ${ }^3{{\mathsf{\Sigma }}_{\mathrm{g}}^{+}}_{ }({4s4p }^3{\mathrm{P}}_J+{4s4p }^3{\mathrm{P}}_J)$ states in Zn₂ [146,147,148,149], the $E{0}^{-}$, $F1(6s^2{ }^1{\mathrm{S}}_0+4s{5s}^3{\mathrm{S}}_1)$, $F{0}^{-}\left({6s^2{ }^1{\mathrm{S}}_0+4s5p }^3{\mathrm{P}}_1\right)$, $D{0}^{+}, G1{(6s6p }^1{{\mathrm{P}}_1+4s^2{ }^1{\mathrm{S}}_0}_{ })$ and $E1{(6s6p }^3{{\mathrm{P}}_2+4s^2{ }^1{\mathrm{S}}_0}_{ })$ states in HgZn [150–153], as well as the $E1(6s^2{ }^1{\mathrm{S}}_0+{5s5p }^1{\mathrm{P}}_1)$ and $F1\left({6s^2{ }^1{\mathrm{S}}_0+5s6s }^3{\mathrm{S}}_1\right)$ states in HgCd [154], some of them having a complex double-well structure in their Rydberg-state potential.

Instead of hot atomic ensemble in a cell or in heat-pipe oven, pump-and-probe experiments can be carried out for cold or ultracold atoms in atomic traps (magneto-optical, all-optical etc.). Knowledge on the interatomic potentials, especially those with ‘exotic’ irregular structure, thus enabling PA of cold or ultracold homo- and heteroatomic diatomic molecules, is highly required. Formation of cold $\mathrm{C}{\mathrm{s}}_2$ through PA in the $0_{\mathrm{g}}^{-}\left({6p}^2{\mathrm{P}}_{3/2}\right)$ double-well excited state [159], [160], and in the ground state through PA in the $1_{\mathrm{u}}\left({6p}^2{\mathrm{P}}_{3/2}\right)$ long-range state [160] were reported. Also, giant, so-called Rydberg macrodimers, i.e. 1-$\mathsf{\mu }\mathrm{m}$-sized cold $\mathrm{C}{\mathrm{s}}_2$ molecules correlating with the $n{\mathrm{P}}_{3/2}(n+1){\mathrm{S}}_{1/2}$, dissociation asymptotes $(n=43, 44)$ was produced from two Cs Rydberg atoms [162]. Cold ${\mathrm{K}}_2$ molecules were formed through PA in the ${{\mathrm{B}}^1\mathsf{\Pi }}_{\mathrm{u}}\left({4p }^2{\mathrm{P}}_J\right)$ state with potential barrier [163] and in the ground state through two-photon PA in the ${5^1\mathsf{\Pi }}_{\mathrm{u}}\left(4d{ }^2{\mathrm{D}}_J\right)$ or ${6^1\mathsf{\Pi }}_{\mathrm{u}}\left(4f{ }^2{\mathrm{F}}_J\right)$ state via ${1^1\mathsf{\Pi }}_{\mathrm{g}}\left({4p }^2{\mathrm{P}}_J\right)$ state [164]. Formation of cold ${ }^{85}\mathrm{R}{\mathrm{b}}_2$ through ${\upsilon }^{\prime \prime }=39$ level of the ${\mathrm{a}}^3{\mathsf{\Sigma }}_{\mathrm{u}}^{+}\left(5s{ }^2{\mathrm{S}}_{1/2}\right)$ state short-range PA to the $1^3{\mathsf{\Pi }}_{\mathrm{g},\mathsf{\Omega }=1}\left(5p{ }^2{\mathrm{P}}_{3/2}\right)$ state with potential barrier [165] was performed. Among heteroatomic molecules, formation of ultracold dipolar LiCs in the lowest ro-vibrational levels $({\upsilon }^{\prime \prime }=0, J^{\prime \prime }=0)$ by PA into the $B^1\mathsf{\Pi }(2s{ }^2{\mathrm{S}}_{1/2}+{6p}^2{\mathrm{P}}_{3/2})$ state and decay to the $X^1{\mathsf{\Sigma }}^{+}(2s{ }^2{\mathrm{S}}_{1/2}+6s{ }^2{\mathrm{S}}_{1/2})$ state was reported [166]. In each of the above cases, when cold molecules were formed in one of their excited electronic state, the PA was followed by an ionization using carefully chosen molecule $⟶$ molecular ion electronic transition using tuneable laser radiation. It allowed a precise vibrational spectroscopy of very dense $\upsilon \prime$ levels close to the dissociation limit in a long range of R.

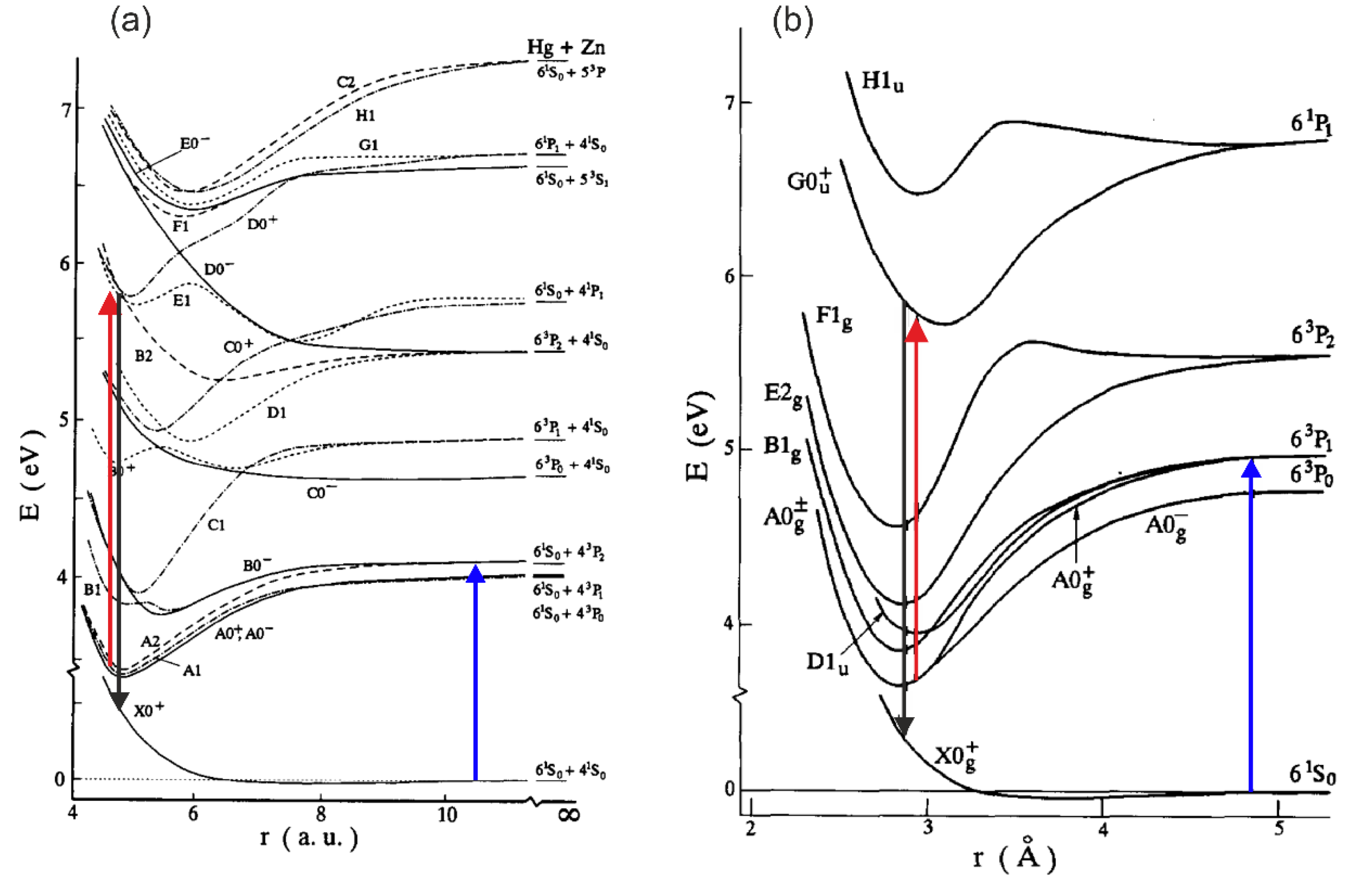

Figure 5. Diagram of interatomic potentials for (a) HgZn (from Ref. [153], under permission of Elsevier Science B.V.) and (b) Hg₂ (from Ref. [72], under permission of Elsevier Science B.V.) showing the relevant pump (blue arrows), probe (red arrows) and LIF (black arrows) processes. Arrows are added to the original figure. Note: 1 a.u. = 0.5292 $Å$.

Figure 5. Diagram of interatomic potentials for (a) HgZn (from Ref. [153], under permission of Elsevier Science B.V.) and (b) Hg₂ (from Ref. [72], under permission of Elsevier Science B.V.) showing the relevant pump (blue arrows), probe (red arrows) and LIF (black arrows) processes. Arrows are added to the original figure. Note: 1 a.u. = 0.5292 $Å$.

3.3.3. Polarization Labelling Spectroscopy

Very interesting alternative to OODR is polarization labelling spectroscopy (PLS) method [167] which allows to simplify spectra of diatomic molecules and investigate, among others, higher-lying molecular states, including those with complex nature. A V-type optical double-resonance version of PLS relies on using two lasers: fixed-frequency probe-laser and tuneable-frequency pump-laser (see Figure 6). The frequency of the linearly polarized, weak probe-laser is set in resonance with known ro-vibrational molecular transitions $({\upsilon }_1^{\prime },J_1^{\prime })⟵({\upsilon }^{\prime \prime },J^{\prime \prime })$. The frequency of circularly or linearly polarized pump-laser is tuned across the studied band system. At the frequencies at which the transition induced by the pump-laser $({\upsilon }_2^{\prime },J_2^{\prime })⟵({\upsilon }^{\prime \prime },J^{\prime \prime })$ shares the same lower level $({\upsilon }^{\prime \prime },J^{\prime \prime })$ with the probe-laser transition, the probe-laser beam changes its polarization. The change is detected with a set of crossed polarizers placed in the path of the probe-laser beam on both sides of the molecular sample. Tuning the pump-laser frequency over the excited-state ${\upsilon }_2^{\prime }$- progression $({\upsilon }_2^{\prime },J_2^{\prime }=J_1^{\prime }\pm 1)$ provides the desired polarization labelling spectrum, simplified by the fact that it originates from a few ground-state levels with fixed and known $({\upsilon }^{\prime \prime },J^{\prime \prime })$ quantum numbers.

PLS method has been employed in characterization of potentials of electronic states with double-minima in alkali metal homoatomic dimers: ${{ 2}^1\mathsf{\Sigma }}_{\mathrm{u}}^{+}\left(n\mathrm{s}{ }^2{S}_{1/2}\right)$ in K₂ (n=5) [168] and in Na₂ (n=4) [169], $C^1{\mathsf{\Pi }}_{\mathrm{u}}\left(2p{ }^2{\mathrm{P}}_{1/\mathrm{2,3}/2}\right)$ and ${{ 2}^1\mathsf{\Sigma }}_{\mathrm{u}}^{+}\left(3s{ }^2{\mathrm{S}}_{1/2}\right)$ in Li₂ [170], ${{ 3}^1\mathsf{\Sigma }}_{\mathrm{u}}^{+}\left(6s{ }^2{\mathrm{S}}_{1/2}\right)$ in Rb₂ [93], $E\left(3{)}^1{\mathsf{\Sigma }}_u^{+}\right(6s{ }^2{S}_{1/2}+7s{ }^2{S}_{1/2})$ in Cs₂ [171], and in heteroatomic dimers: ${6^1\mathsf{\Sigma }}_{ }^{+}(3s{ }^2\mathrm{S}+5p{ }^2\mathrm{P})$ in NaK [172], ${{ 6}^1\mathsf{\Sigma }}_{ }^{+}$ in KCs $(5s{ }^2{\mathrm{S}}_{1/2}+6s{ }^2{\mathrm{S}}_{1/2})$ [173], and ${{ 6}^1\mathsf{\Sigma }}_{ }^{+}(4s{ }^2{\mathrm{S}}_{1/2}+5d{ }^2{\mathrm{D}}_{3/\mathrm{2,5}/2})$ in NaRb [174], all produced in heat-pipe ovens.

4. Ab-Initio Calculated Potentials of MeNg Molecules—Early, Recent and Future Approaches

Interatomic potentials of 12-group MeNg molecules (Me=Zn, Cd, Hg), including those of Rydberg electronic energy states, have been ab-initio calculated by a number of researchers bringing information on their PECs, respective absorption oscillator strengths $\left(f\right)$ and TDMs. The ab initio results were frequently confronted with the experimental outcomes, in some cases allowing to perform successful experiments by correct choice of excitation and/or emission spectral regions associated with studied molecular electronic transitions.

The interatomic potentials of higher-lying electronic energy states of CdNg molecules including Rydberg states correlating with the $\left(5s6s^3{\mathrm{S}}_1\right)$ and $\left(5s6s^1{\mathrm{S}}_0\right)$ Cd asymptotes, and $f\mathrm{s}$ or TDMs were theoretically studied by Czuchaj and Sienkiewicz [175] 7), Czuchaj and Stoll [6], Czuchaj et al. [7] and Krośnicki and collaborators [39], [40], Krośnicki et al. [4], Li et al. [177], where in Refs. [4] and [177] Rydberg states were calculated up to the $\left(5s7s^1{\mathrm{S}}_0\right)$ asymptote. The spin-orbit (s-o) effect was not included in Ref. [6] (in fact, in Ref. [6] s-o interaction was included only for $\left(5s5p^3{\mathrm{P}}_J\right)$ Cd levels using a semi-empirical approach 8). Calculations of Refs. [4], [6], [7], [39], [40] resulted in a double-well structure of the ${ }^3{\mathsf{\Sigma }}_1^{+}\left(5s{6s}^3{\mathrm{S}}_1\right)$ and ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left({5s6s}^1{\mathrm{S}}_0\right)$ - state potentials; it should be noted that in Ref. [4] all the considered Rydberg states of $\mathsf{\Sigma }$ symmetry up to the $\left(5s7s^1{\mathrm{S}}_0\right)$ asymptote exhibit double-well character.

As far as the methods of calculation are concerned, in Ref. [175] the semiempirical pseudopotential method, where CdNg molecule was treated as two-electron system by placing ${\mathrm{C}\mathrm{d}}^{2+}$ and total Ng into cores, while in Ref. [6] valence ab-initio CASSCF/CASPT2 [178] calculations for CAS ${\left(5s5p6s\right)}^2$ were executed with ${\mathrm{C}\mathrm{d}}^{2+}$ and ${\mathrm{N}\mathrm{g}}^{8+}$ cores replaced by semi-empirical [179] and quasi-relativistic [180] pseudopotentials, respectively 9). In Ref. [7] large scale valence ab initio CASSCF/CASPT2 [178] calculations were performed for CAS ${\left(5s5p6s6p\right)}^2$ with ${\mathrm{C}\mathrm{d}}^{20+}$ and ${\mathrm{N}\mathrm{g}}^{8+}$ cores simulated by energy-consistent effective-core pseudopotentials (ECP), including scalar-relativistic effects and s-o interaction within the valence shell [180], [181]. Finally, in Refs. [39] and [40] the calculations were performed with CASSCF/CASPT2 level of theory [178] for CAS ${\left(5s5p6s6p\right)}^2$ with ${\mathrm{C}\mathrm{d}}^{28+}$ and ${\mathrm{N}\mathrm{g}}^{8+}$ cores replaced by ECPs [180], [182]. Ground state PECs in Refs. [39] and [40] were calculated with coupled clusters method CCSD(T) [183], [184]. It is noted that in Refs. [39] and [40] the internally-contracted MRCI method [185], [186] was used for better description of the wavefunctions taken for the calculations of TDMs.

With respect to recent ab initio calculations of CdAr interatomic potentials, in 2019 Krośnicki et al. [4] reported on the relatively unexplored area of low-lying Rydberg states of vdW molecules. They performed first-time fully ab initio calculations on interatomic potentials of the Rydberg states of CdAr lying above the $(5s6s^3{\mathrm{S}}_1$,${ }^1{\mathrm{S}}_0)$ asymptotes, reaching the $\left(5s6p^3{\mathrm{P}}_{\mathrm{0,1},2}\right)$, $(5s5d^1{\mathrm{D}}_2$,${ }^3{\mathrm{S}}_{\mathrm{1,2},3})$, $\left(5s6p^1{\mathrm{P}}_1\right)$ and $(5s7s^3{\mathrm{S}}_1$,${ }^1{\mathrm{S}}_0)$ asymptotes. All the calculated PECs of the Rydberg states of $\mathsf{\Sigma }$ symmetry exhibited undulations resulting in their double-well character (see also Section 1). Main calculations were performed with restricted active space (RAS) SCF [187] method followed by RAS second-order perturbation theory (RASPT2) [188] for RAS (5s–1e//5p5d6s6p7s–1h) 10); s-o interaction was included via RAS state interaction (RASSI) method [189]. Wherever it was possible, the selected states were recalculated with CASSCF/CASPT2 [190-193] as well as with CCSD(T) [194] methods. In Ref. [4] the results of CCSD(T) calculations have served as the benchmarks for the assessment of the RASSCF/RASPT2 counterparts.

In other recently performed calculations of CdNg potentials of Li et al. [177], only singlet potential curves of CdNg, up to the${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s{7s}^1{\mathrm{S}}_0\right)$ Rydberg state, and corresponding fs and TDMs were calculated. Surprisingly, no conclusion was provided in Ref. [177] about double-well character of the ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ - Rydberg state potentials. Excitation energies in Ref. [177] were calculated with EOM-CCSD method [195-198]. The corresponding PECs of the excited states were obtained by adding the EOM-CCSD excitation energies to the ground state PEC obtained with CCSD(T) method, and with quasirelativistic energy-consistent small-core ECPs [182] along with large atom-centred basis sets and with midbond functions. Towards such results the experimental verification is highly needed. The respective experimental approach is planned in our laboratory in order to meet the demand.

To ensure a complete view on the calculations of Rydberg-state interatomic potentials of 12-group MeNg molecules, those for ZnNg and HgNg are reviewed below.

Large scale quasirelativistic valence ab initio CASSCF/CASPT2 for CAS ${\left(4s4p5s5p\right)}^2$ calculations of the ${ }^3{\mathsf{\Sigma }}_1^{+}$ and ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ - Rydberg state potentials of ZnNg correlating with the $\left(4s5s^3{\mathrm{S}}_1\right)$ and $\left(4s5s^1{\mathrm{S}}_0\right)$ Zn asymptotes, respectively, were performed by Czuchaj et al. [5] and Krośnicki and collaborators [39], [40]. In the calculations of Ref. [5], the ${\mathrm{Z}\mathrm{n}}^{20+}$ and ${\mathrm{N}\mathrm{g}}^{8+}$ cores were replaced by ECP [180], [199] which also accounted for scalar-relativistic effects and s-o interaction. Result of the calculations shown that the ${ }^3{\mathsf{\Sigma }}_1^{+}$ and ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ - state potential curves in ZnAr, ZnKr and ZnXe exhibit shallow second minima at larger Rs. In Refs. [39], [40] calculations were made similarly as for CdNg described above with the ${\mathrm{Z}\mathrm{n}}^{20+}$ and ${\mathrm{N}\mathrm{g}}^{8+}$ cores replaced by ECP and s-o and relativistic effects taken into account.

Recent ab initio calculations of ZnNg interatomic potentials are those performed by Kędziorski et al. for ZnAr [3], Li et al. for ZnNg [200] and Li et al. for ZnHe [201]. In Ref. [3] PECs were ab-initio calculated up to Rydberg state correlating with the $\left(4s6s^1{\mathrm{S}}_0\right)$ Zn asymptote. The state-average (SA) CASSCF [190] was employed for CAS ${\left(4s4p4d5s5p6s\right)}^2$. Dynamic correlation effects were accounted for via multi-state (MS) CASPT2 [193]. The s-o interaction was included via restricted active space state interaction method (RASSI-SO) 11). In Ref. [200], only singlet interatomic potentials of ZnNg, including the ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left({4s6s }^1{\mathrm{S}}_0\right)$ Rydberg state, and corresponding TDMs, F-C factors, and spectroscopic constants were calculated with EOM-CCSD method as in Ref. [177] with no conclusion about double-well character of the ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ state. Calculations reported in Ref. [200] were executed using method similar to that employed in Ref. [177]. Finally, in Ref. [201] ZnHe Rydberg state potentials were ab-initio calculated up to the $\left(4s5p^1\mathrm{P}\right)$ asymptote using multireference configuration interaction plus Davidson correction (MRCI+Q) method [185], [202] on the top of CASSCF calculations with CAS ${\left(\mathrm{Z}\mathrm{n} 4s4p5s5p \mathrm{H}\mathrm{e} 1s\right)}^4$; s-o coupling was included.

Large scale valence ab initio CASSCF/CASPT2 [178] for CAS ${\left(6s6p7s7p\right)}^2$calculations of the Rydberg ${ }^3{\mathsf{\Sigma }}_1^{+}$ and ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ - state potentials of HgNg correlating with the $\left(6s7s^3{\mathrm{S}}_1\right)$ and $\left(6s7s^1{\mathrm{S}}_0\right)$ Hg asymptotes, respectively, were performed by Czuchaj et al. [8]. In the calculations, the ${\mathrm{H}\mathrm{g}}^{20+}$ and ${\mathrm{N}\mathrm{g}}^{8+}$ cores were simulated by energy-consistent pseudopotentials [180], [181] which also accounted for scalar-relativistic effects and s-o interaction. Result of the calculations shown that the${ }^3{\mathsf{\Sigma }}_1^{+}$ and ${ }^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ - state potential curves in HgAr, HgKr and HgXe exhibited shallow second minima at larger Rs.

As it was mentioned above, the main source of the inaccuracies of the ab initio calculations of excited states of MeNg molecules is due to deficiencies in description of the electron correlation. Thus, future approach of capturing of electron correlation will be probably based on EOM-CC methods, where the level of the approximation should go beyond the CCSD one. The need of higher level of CC approximation was shown e.g. in Ref. [3], where the results of CCSD calculations were less accurate in comparison with the MS-CASPT2 counterparts. First works reporting EOM-CC calculations for excited states of MeNg molecules were already published by Li et al. [177], [200], where the non-iterative triples were taken into account indirectly by adding EOM-CCSD excitation energies to the CCSD(T) total energies of the ground state of MeNg molecule. Detailed comparison of these recent results of ab initio calculations [177], [200] with experimental data is needed.

5. Progress in CdNg Spectroscopy of the ${\mathbf{E}}^3{\mathsf{\Sigma }}_1^{+}\left(5\mathit{s}6\mathit{s}{ }^3{\mathbf{S}}_1\right)$

Rydberg State—Recently Performed OODR Experiments

Since 2015, in our lab we have been performing a series of experiments involving characterization of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state in CdNe, CdAr and CdKr molecules. The experiments brought very interesting results and conclusions that moved forward ways to characterize Rydberg states and/or employ subtleties of the method to extract interesting spectroscopic characteristics that had been impossible to be deduced earlier. Results of the experiments were frequently confronted with those from available outcomes of ab initio calculations.

In this review we present progress that has been made to the present [10], [12-15], [19], [203]. The presentation is supplemented with extended analyses and discussions. We also present other ab-initio and experimental results representing original evidence and analyses that constitute the most interesting advances in the ${\mathit{E}}^3{\mathsf{\Sigma }}_1^{+}$ Rydberg state theoretical and experimental characterization in CdNg molecules. The progress should be compared with previous studies of others that are reviewed in Section 3.2 and 3.3, and in Section 5 below.

5.1. Special Approach for Rotational Characterization—Direct Bond Length Determination of the $E^3{\Sigma }_1^{+}\left(5s6s{ }^3{S}_1\right)$

State in CdNe

In case of heavy molecules, rotational spectroscopy imposes higher demand on the spectral bandwidth of the laser that is employed to resolve the relatively dense rotational energy structure. In OODR experiment the demand is imposed on two lasers tuned to both optical transitions.

Until 2022, the spectroscopical characterization of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state potential of CdNe molecule has been performed only once [11]. It did not involve rotational resolution approach. Very recently, using OODR process, Urbańczyk et al. [10] first-time demonstrated a selective $J^{\prime }$- excitation in the energy structure of the $E^3{\mathsf{\Sigma }}_1^{+}$state - a smart approach that allowed to perform rotational characterization with laser possessing a limited spectral bandwidth. The OODR experiment employed the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\prime },J^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=(0, 1),J_R^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ path of the excitation.

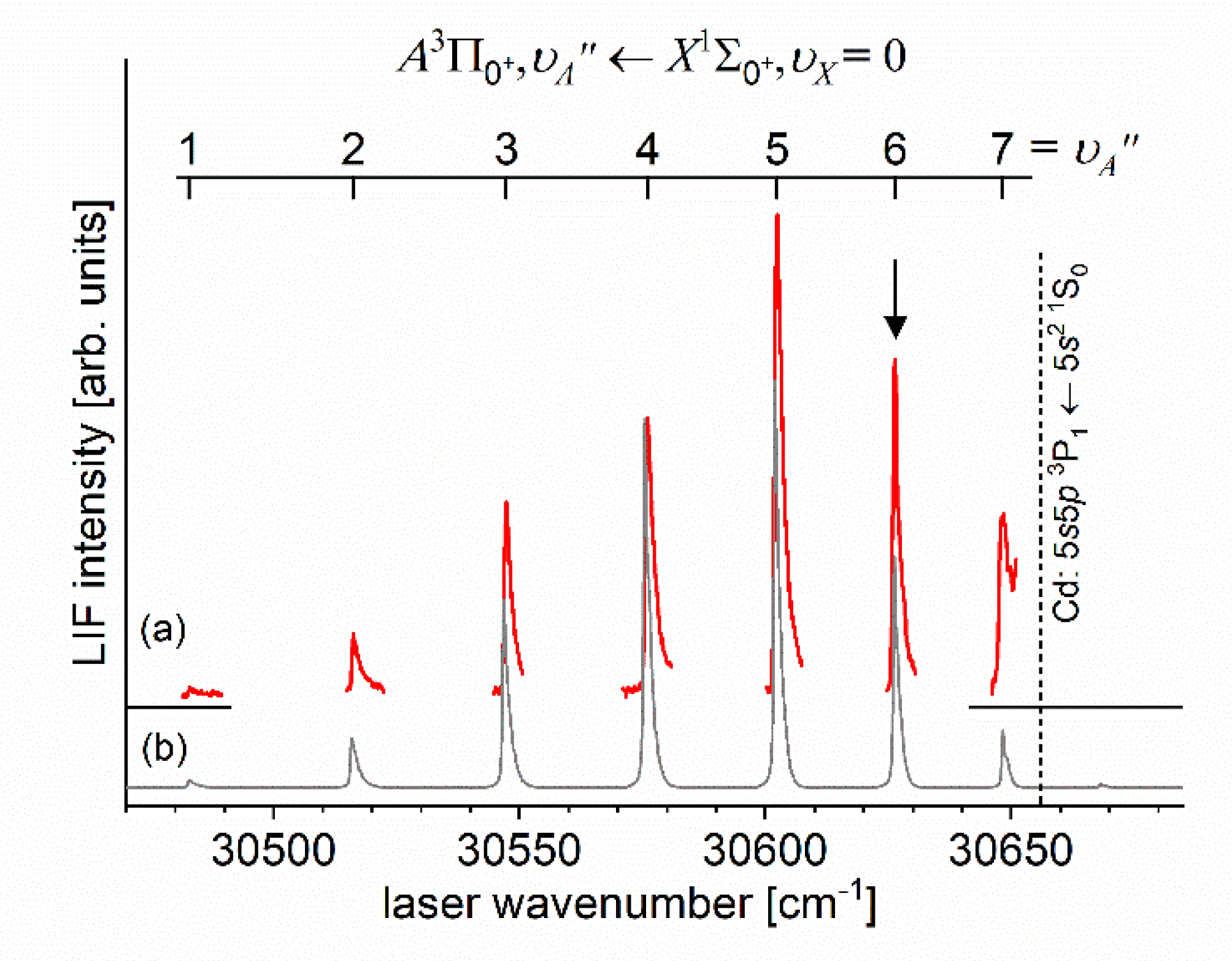

As the first step in OODR process, the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=\mathrm{0,1}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ vibrational transitions were used. The corresponding low-resolution LIF excitation spectrum is shown in Figure 7 [204], whereas profile of the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=0⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0$ transition is shown in Figure 8. It reveals partly resolved rotational structure that, after simulation, was interpreted as pronounced transitions of R-branch $(J_R^{\prime \prime }=J+1)⟵J$ and condensed transitions of P-branch $(J_P^{\prime \prime }=J-1)⟵J$ which constitutes the band head and partly overlaps R-branch for low $J_R^{\prime \prime }$ 12). Energy separations of R-branch transitions were large enough to selectively chose one rotational transition to the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }$ state with $0.1 \mathrm{c}{\mathrm{m}}^{-1}$ (FWHM) spectrally broad laser. The excited rotational level in the intermediate state was applied to excite molecules using the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\prime },J\prime ⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=0,J_R^{\prime \prime }$ second step OODR transition.

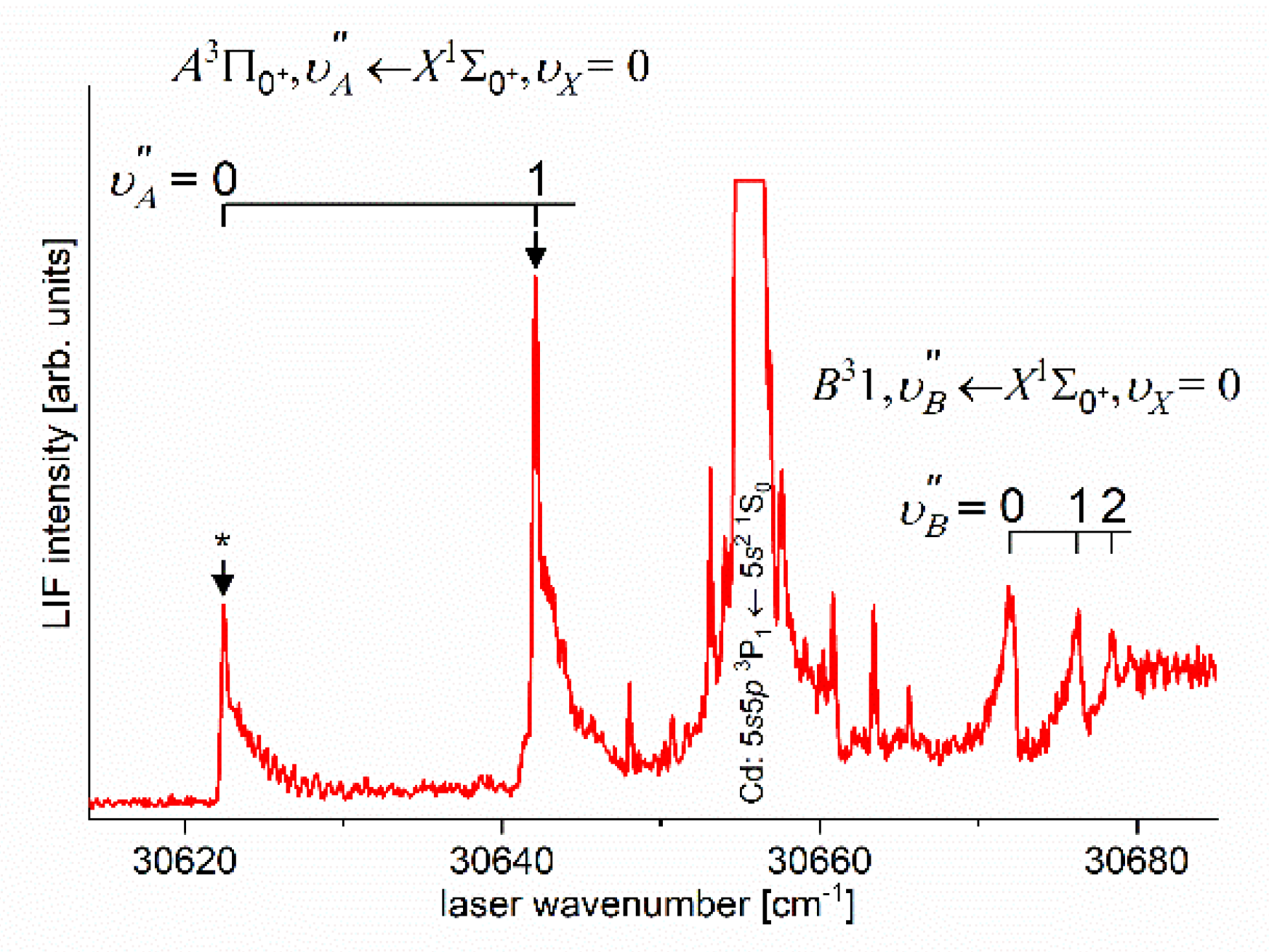

Figure 7. LIF excitation spectrum recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ and $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ transitions in CdNe as reported in Ref. [204], the former being first step of the excitation in OODR process: $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ that allowed to investigate the $E^3{\mathsf{\Sigma }}_1^{+}$ - state potential and, partly, potential barrier. Arrows shows the ${\upsilon }_A^{\text{'}\text{'}}=\mathrm{0,1}$ that was used as origin for the second transition in OODR. Asterisk depicts vibrational band recorded in higher resolution and shown in Figure 8.

Figure 7. LIF excitation spectrum recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ and $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ transitions in CdNe as reported in Ref. [204], the former being first step of the excitation in OODR process: $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ that allowed to investigate the $E^3{\mathsf{\Sigma }}_1^{+}$ - state potential and, partly, potential barrier. Arrows shows the ${\upsilon }_A^{\text{'}\text{'}}=\mathrm{0,1}$ that was used as origin for the second transition in OODR. Asterisk depicts vibrational band recorded in higher resolution and shown in Figure 8.

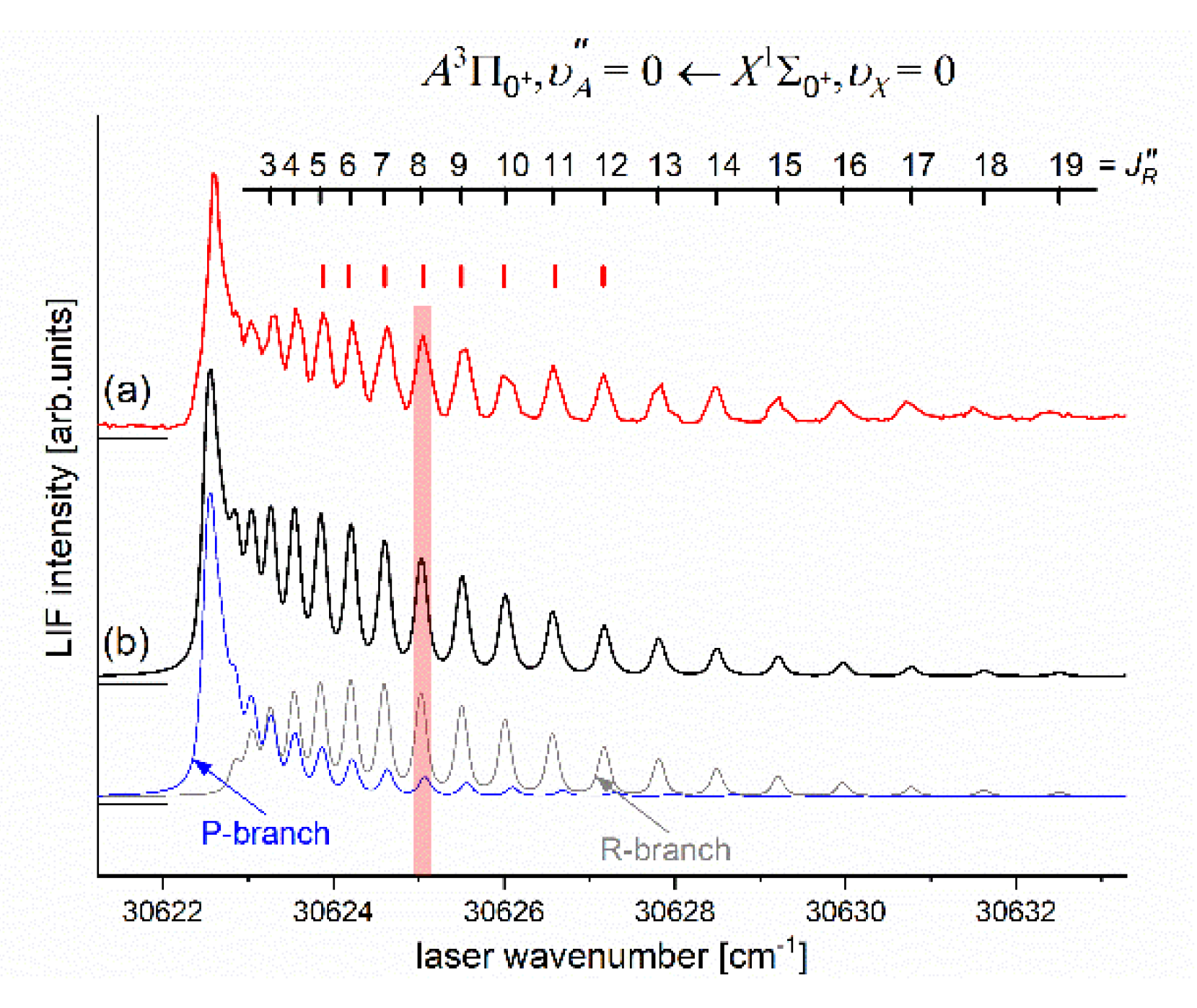

Figure 8. (a) LIF excitation spectrum showing profile of the vibrational component recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ first OODR transition in CdNe. (b) Simulation performed using LEVEL [206] and PGOPHER [207] programs allowed to determine the $J_R^{\text{'}\text{'}}$ - assignment shown above the spectrum which reveals partly resolved structure of the R-branch (P-branch is also shown). In the simulation $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=5 \mathrm{K}$ (rotational temperature) and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$ were assumed (Lorentzian and Gaussian broadenings responsible for laser bandwidth and transversal divergence of molecular beam, respectively) as well as Morse representations of the $A^3{\mathsf{\Pi }}_{0^{+}}$ and $X^1{\mathsf{\Sigma }}_{0^{+}}$ - state potentials from Ref. [204]. Positions of $J_R^{\text{'}\text{'}}$ levels used as the intermediates in OODR process (red ticks, compare with Figure 9) and $\pm 10 \mathrm{c}{\mathrm{m}}^{-1}$ vertical bar representing laser bandwidth are depicted.

Figure 8. (a) LIF excitation spectrum showing profile of the vibrational component recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ first OODR transition in CdNe. (b) Simulation performed using LEVEL [206] and PGOPHER [207] programs allowed to determine the $J_R^{\text{'}\text{'}}$ - assignment shown above the spectrum which reveals partly resolved structure of the R-branch (P-branch is also shown). In the simulation $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=5 \mathrm{K}$ (rotational temperature) and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$ were assumed (Lorentzian and Gaussian broadenings responsible for laser bandwidth and transversal divergence of molecular beam, respectively) as well as Morse representations of the $A^3{\mathsf{\Pi }}_{0^{+}}$ and $X^1{\mathsf{\Sigma }}_{0^{+}}$ - state potentials from Ref. [204]. Positions of $J_R^{\text{'}\text{'}}$ levels used as the intermediates in OODR process (red ticks, compare with Figure 9) and $\pm 10 \mathrm{c}{\mathrm{m}}^{-1}$ vertical bar representing laser bandwidth are depicted.

The rotational transitions that were involved in OODR process are schematically shown in Figure 9. After each R-branch transition in the $A^3{\mathsf{\Pi }}_{0^{+}}⟵X^1{\mathsf{\Sigma }}_{0^{+}}$ first excitation, three P-, Q- and R-branch $(J\prime =J_R^{\prime \prime }-1)⟵J_R^{\prime \prime }$, $(J\prime =J_R^{\prime \prime })⟵J_R^{\prime \prime }$ and $(J^{\prime }=J_R^{\prime \prime }+1)⟵J_R^{\prime \prime }$ transitions, respectively, were possible in the $E^3{\mathsf{\Sigma }}_1^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ second excitation.

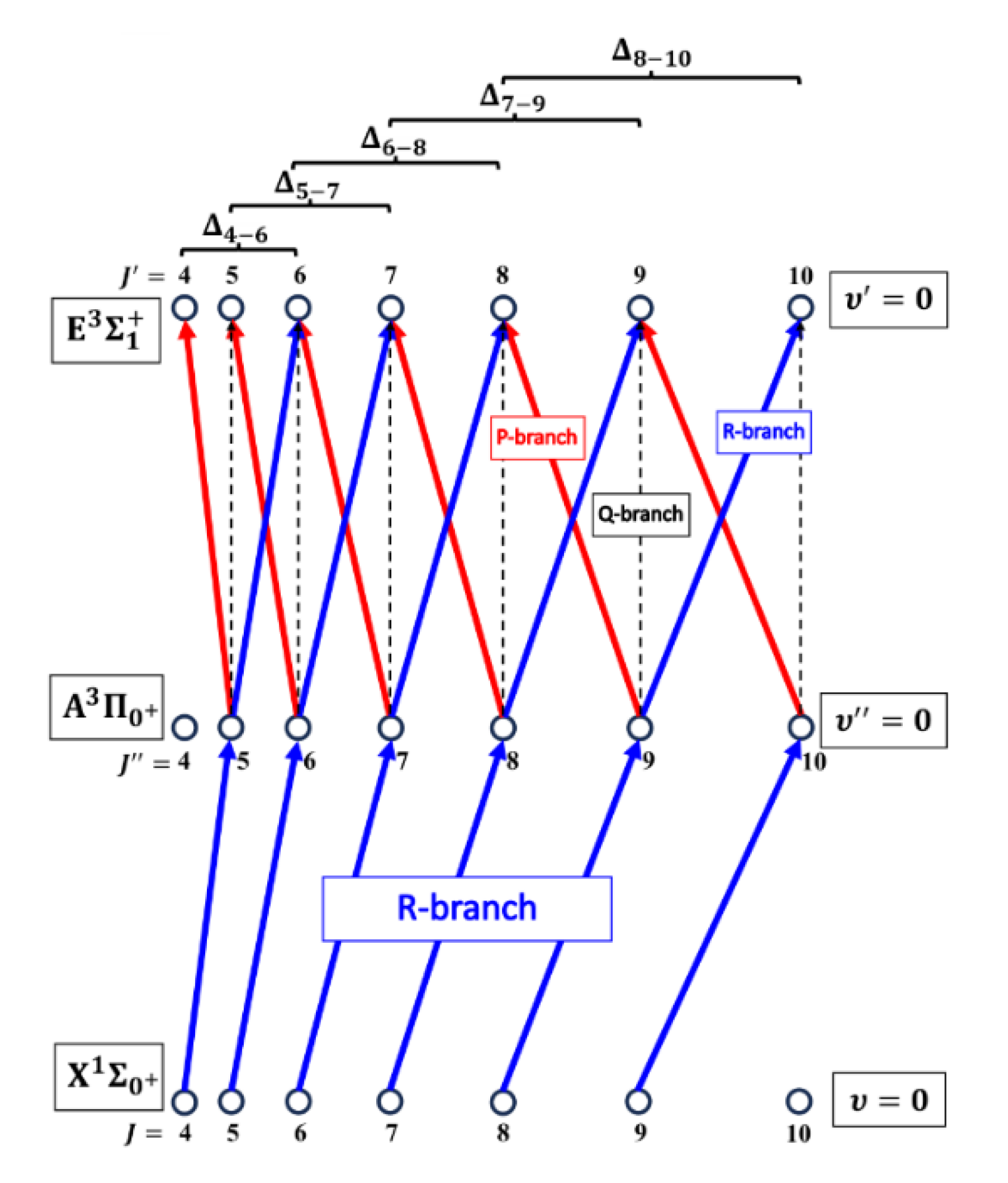

Figure 9. Branches of rotational transitions involved in the realization of the selective $J^{\text{'}}$ excitation in OODR experiment performed in CdNe using the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}=0,J\text{'}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ transitions path. Details in text.

Figure 9. Branches of rotational transitions involved in the realization of the selective $J^{\text{'}}$ excitation in OODR experiment performed in CdNe using the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}=0,J\text{'}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ transitions path. Details in text.

Figure 10(a) presents result of the experiment. LIF excitation spectra were recorded using the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\prime }=0,J^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=0,J_R^{\prime \prime }$ second OODR transition after $J_R^{\prime \prime }=5,\dots ,12$ were selected in the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=0,J_R^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ first OODR transition as shown in Figure 8. The $\mathsf{\Delta }=\mathrm{E}\mathrm{n}\mathrm{e}\mathrm{r}\mathrm{g}\mathrm{y}\left(J_P^{\prime }\right)-\mathrm{E}\mathrm{n}\mathrm{e}\mathrm{r}\mathrm{g}\mathrm{y}\left(J_R^{\prime }\right)$ increase linearly with $J_R^{\prime \prime }$ - see Figure 10(b) - the observed $\mathsf{\Delta }\left(J_R^{\prime \prime }\right)$ dependency allowed to directly determine the $B_{{\upsilon }^{\prime }=0}$ rotational constant. Similar experiment was performed for the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\prime }=1,J^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=0,J_R^{\prime \prime }$ second OODR excitation resulting in determination of the $B_{{\upsilon }^{\prime }=1}$. The results are collected in Table 1.

Several essential remarks have to be stated here. Firstly, in the experiment the isotopic structure has not been resolved as vibrational quantum numbers ${\upsilon }_E^{\prime }$ and ${\upsilon }_A^{\prime \prime }$ involved in the transitions are small. Secondly, the $E^3{\mathsf{\Sigma }}_1^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ transition occurs for ${\mathsf{\Omega }}^{\prime }=1⟵{\mathsf{\Omega }}^{\prime \prime }=0$, so according to the selection rules the spectra should contain Q-branch as well. According to Okunishi and coworkers, however, who investigated analogous transition in HgNe [21], the intensity of Q-branch band-head can be significantly lower with respect to that of P- branch.

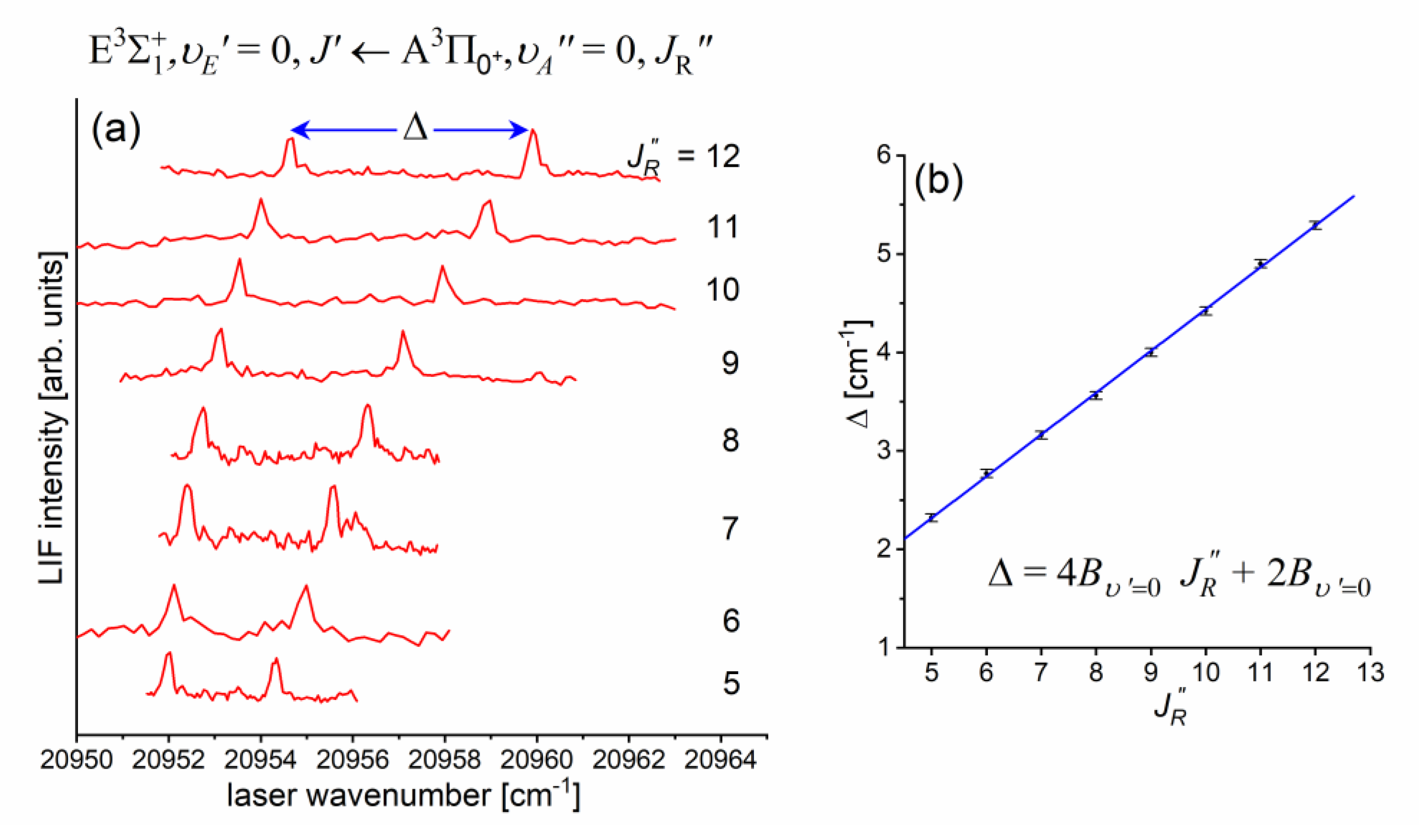

Figure 10. (a) LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}=0,J\text{'}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}$ second OODR transition in CdNe, for $J_R^{\text{'}\text{'}}=5,\dots ,12$ selected in the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ first OODR transition (see also Figure 9). (b) Separations $\mathsf{\Delta }\left(J_R^{\text{'}\text{'}}\right)$ between energies of rotational transition recorded for $\mathrm{P}(J_R^{\text{'}\text{'}}-1)$ and $\mathrm{R}(J_R^{\text{'}\text{'}}+1)$ branches. Linear regression allowed to determine $B_{{\upsilon }^{\text{'}}=0}$ rotational constant.

Figure 10. (a) LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}=0,J\text{'}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}$ second OODR transition in CdNe, for $J_R^{\text{'}\text{'}}=5,\dots ,12$ selected in the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=0,J_R^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_{0^{+}},{\upsilon }_X=0,J$ first OODR transition (see also Figure 9). (b) Separations $\mathsf{\Delta }\left(J_R^{\text{'}\text{'}}\right)$ between energies of rotational transition recorded for $\mathrm{P}(J_R^{\text{'}\text{'}}-1)$ and $\mathrm{R}(J_R^{\text{'}\text{'}}+1)$ branches. Linear regression allowed to determine $B_{{\upsilon }^{\text{'}}=0}$ rotational constant.

Rotational constant $B_e^{\text{'}}$ at the equilibrium internuclear distance $R_e^{\text{'}}$ is related to $B_{{\upsilon }^{\text{'}}}$ according to the relation $B_{{\upsilon }^{\text{'}}}=B_e^{\text{'}}-{\alpha }_e^{\text{'}}({\upsilon }^{\text{'}}+1/2)$, where ${\alpha }_e^{\text{'}}$ is a constant. Having experimentally determined $B_{{\upsilon }^{\text{'}}=0}$ and $B_{{\upsilon }^{\text{'}}=1}$ it is straightforward to calculate $B_e^{\text{'}}$ without knowing ${\alpha }_e^{\text{'}}$ and then, using relationship $R_e^{\text{'}}=\sqrt{h/8{\pi }^{2}c{\mu }_{\mathrm{C}\mathrm{d}\mathrm{N}\mathrm{e}}{B}_e^{\text{'}}}$, where $h$, $c$ and ${\mu }_{\mathrm{C}\mathrm{d}\mathrm{N}\mathrm{e}}$ are Planck constant, speed of light and reduced mass of CdNe, directly derive the $R_e^{\text{'}}$ (see Table 1).

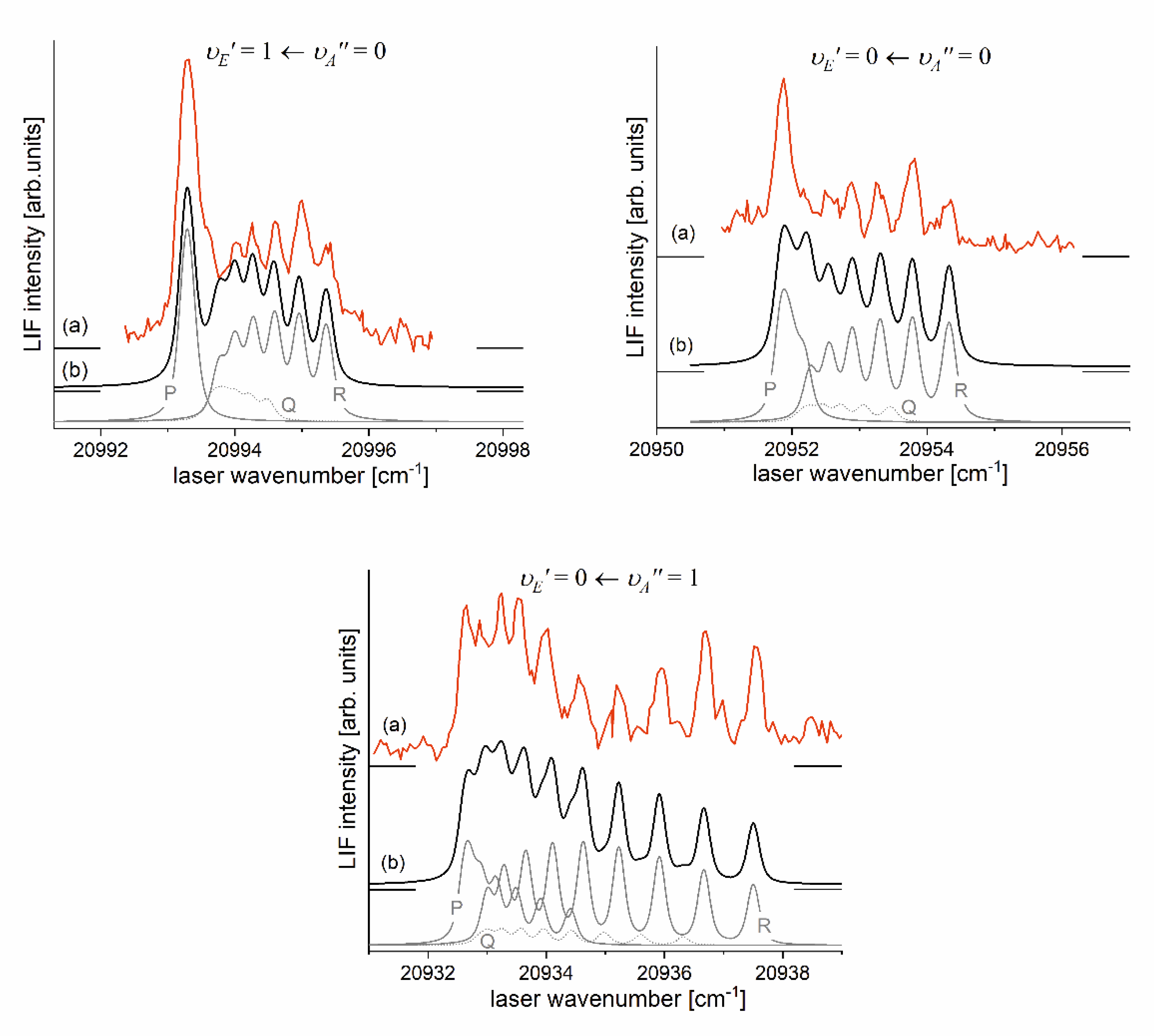

It is interesting to examine partly rotationally resolved profiles of vibrational bands recorded in LIF excitation spectra of the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}=\mathrm{0,1}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=\mathrm{0,1}$ second-step OODR transitions when the second excitation was not performed as in Figure 8, with selection of particular $J_R^{\text{'}\text{'}}$, but with first-step laser frequency set at the band-head where components of P-branch are very dense. Figure 11 present profiles of the ${\upsilon }_E^{\text{'}}=0⟵{\upsilon }_A^{\text{'}\text{'}}=0$, ${\upsilon }_E^{\text{'}}=1⟵{\upsilon }_A^{\text{'}\text{'}}=0$ and ${\upsilon }_E^{\text{'}}=0⟵{\upsilon }_A^{\text{'}\text{'}}=1$ transitions and their simulations [206], [207] in which rotational constants derived in the above-described analysis were used. Alee simulations show satisfactory agreement with experimental profiles which confirms the correctness of the adopted experimental procedure and interpretation of the obtained results.

Figure 11. (a) Partly rotationally resolved profiles of vibrational bands recorded in LIF excitation spectra of the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}$ second-step OODR transitions in CdNe. (b) Simulations performed using LEVEL [206] and PGOPHER [207] programs: P-, Q-, and R-branches are shown. Intensity of Q-branch is damped as concluded in Ref. [10]. All simulations performed with assumption: $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=5 \mathrm{K}$, ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.15 \mathrm{c}{\mathrm{m}}^{-1}$, $J_{\mathrm{m}\mathrm{a}\mathrm{x}}=6-9$ depending on the transition and the isotopic shift between included in the simulation CdNe isotopologues (abundances >3%) as approximately one order of magnitude smaller than their rotational structure.

Figure 11. (a) Partly rotationally resolved profiles of vibrational bands recorded in LIF excitation spectra of the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}$ second-step OODR transitions in CdNe. (b) Simulations performed using LEVEL [206] and PGOPHER [207] programs: P-, Q-, and R-branches are shown. Intensity of Q-branch is damped as concluded in Ref. [10]. All simulations performed with assumption: $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=5 \mathrm{K}$, ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.15 \mathrm{c}{\mathrm{m}}^{-1}$, $J_{\mathrm{m}\mathrm{a}\mathrm{x}}=6-9$ depending on the transition and the isotopic shift between included in the simulation CdNe isotopologues (abundances >3%) as approximately one order of magnitude smaller than their rotational structure.

The $E^3{\mathsf{\Sigma }}_1^{+}$Rydberg state potential well in CdNe accommodates three vibrational levels $\left({\upsilon }_E^{\text{'}}=0, 1, 2\right)$, as concluded from experiment and its Morse representation, two of them were rotationally investigated providing position of the potential well in Rs [10] (see Figure 12). Height of the barrier estimated from experimentally acquired data [11] should not exceed 132 ${\mathrm{cm}}^{-1}$ above the Cd $\left(5s6s{ }^3{\mathrm{S}}_1\right)$ asymptote. Additionally, having determined earlier the $D_e^{\text{'}}$ well depth [11], the obtained $E^3{\mathsf{\Sigma }}_1^{+}$- state PEC could be confronted with results of ab initio calculations [6], [7], [39] and [40]. From the comparison shown in Figure 12 may be seen that as far as the $D_e^{\text{'}}$ (from the bottom of the well to the top of the potential barrier) and the $R_e^{\text{'}}$ bond length of the $E^3{\mathsf{\Sigma }}_1^{+}$- state potential are concerned, the closest to the experimental values ($D_e^{\text{'} \mathrm{expt}}=91.0 {\mathrm{cm}}^{-1}$, $R_e^{\text{'} \mathrm{expt}}=2.98 Å$) 13) are that from ab initio result of Czuchaj et al. [7] ($D_e^{\text{'} \mathrm{ab}-\mathrm{initio}}=79.0 {\mathrm{cm}}^{-1}$, $R_e^{\text{'} \mathrm{ab}-\mathrm{initio}}=3.05 Å$). However, ab initio result of Krośnicki and collaborators [39], [40] in the closest way reproduces position of the experimentally determined potential above the Cd asymptote. General conclusion may be expressed stating that for this relatively light CdNe molecule experiment-to-ab-initio-result comparison is moderately satisfactory and Morse potential derived from the experiment and detection of bound🠐bound trandistions does not depart from available ab-initio calculated PECs.

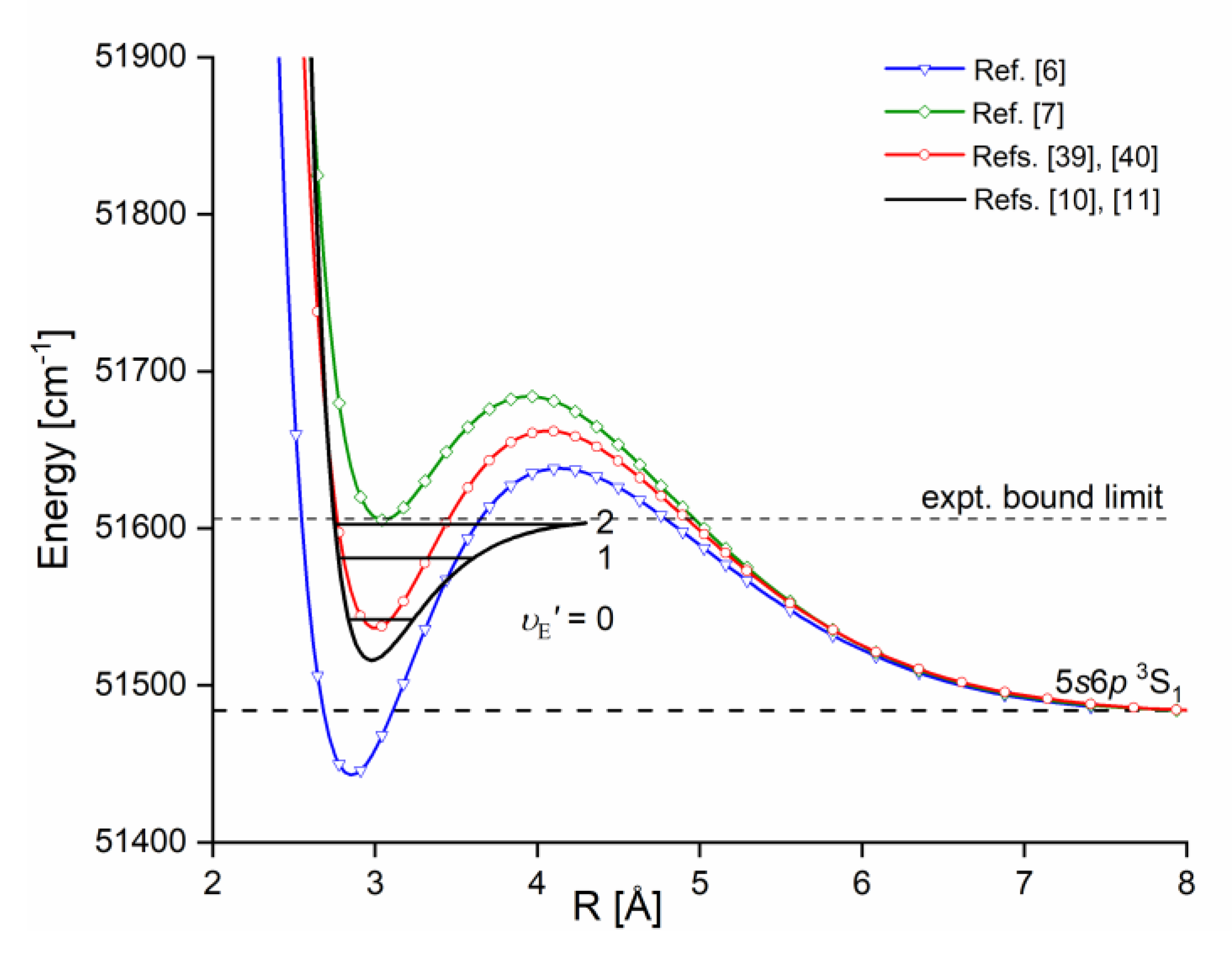

Figure 12. The $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state potential well of CdNe determined experimentally [10], [11] (black solid line) represented with a Morse function compared with results of ab initio calculations: Czuchaj and Stoll [6] (blue: empty triangles and line), Czuchaj et al. [7] (green: empty squares and line) and Krośnicki and collaborators [39], [40] (red: empty circles and line). Positions of ${\upsilon }^{\text{'}}$ levels supported by the potential well are depicted: $E\left({\upsilon }^{\text{'}}=0\right)=51542 {\mathrm{c}\mathrm{m}}^{-1}$, $E\left({\upsilon }^{\text{'}}=1\right)=51581 {\mathrm{c}\mathrm{m}}^{-1},$ $E\left({\upsilon }^{\text{'}}=2\right)=51602.5 {\mathrm{c}\mathrm{m}}^{-1}$ as observed in the experiment. Energy limit beyond which no bound$⟵$bound transitions were observed is depicted.

Figure 12. The $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state potential well of CdNe determined experimentally [10], [11] (black solid line) represented with a Morse function compared with results of ab initio calculations: Czuchaj and Stoll [6] (blue: empty triangles and line), Czuchaj et al. [7] (green: empty squares and line) and Krośnicki and collaborators [39], [40] (red: empty circles and line). Positions of ${\upsilon }^{\text{'}}$ levels supported by the potential well are depicted: $E\left({\upsilon }^{\text{'}}=0\right)=51542 {\mathrm{c}\mathrm{m}}^{-1}$, $E\left({\upsilon }^{\text{'}}=1\right)=51581 {\mathrm{c}\mathrm{m}}^{-1},$ $E\left({\upsilon }^{\text{'}}=2\right)=51602.5 {\mathrm{c}\mathrm{m}}^{-1}$ as observed in the experiment. Energy limit beyond which no bound$⟵$bound transitions were observed is depicted.

5.2. Advances in the $E^3{\Sigma }_1^{+}\left(5s6s{ }^3{S}_1\right)$

- StateCharacterization in CdAr

5.2.1. Improved Determination of the ${\mathrm{E}}^3{\mathsf{\Sigma }}_1^{+}$

- State Inner-Well Potential

By 2018, the inner well of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state potential ($E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$) of CdAr molecule (see Figure 4) has been investigated as a whole twice, in 1992 [106], and in 2003 [17]. In both studies, pronounced ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=0-19⟵{\upsilon }_A^{\prime \prime }=5$ vibrational progression has been recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}\left(5{s5p}^3{\mathrm{P}}_1\right)$ second OODR transition. The experiments allowed to characterize the inner well potential and representing it with a Morse function stating at the same time that the Morse representation is not adequate close to the dissociation limit [106] or while approaching the potential barrier [17] (note: in Ref. [106] the potential barrier and outer well were not identified from experimental data).

Also, profiles of several ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }{⟵\upsilon }^{\prime \prime }$ vibrational bands of the $e^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵b^3{\mathsf{\Pi }}_2\left(5{s5p}^3{\mathrm{P}}_2\right)$ [18] and $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ [16] transition were recorded in two experiments performed employing LV-OR and OODR methods, respectively. Bennet and Breckenridge reported high resolution spectra of ${\upsilon }_{e_{\mathrm{i}\mathrm{n}}}^{\prime }=6-10{⟵\upsilon }_b^{\prime \prime }=0$ bands [18] as well as $B_e^{\prime }$ and respective $B_{{\upsilon }^{\prime }}$ rotational constants. Urbańczyk et al. [16] recorded partly isotopically resolved ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=\mathrm{13,14,16}⟵{\upsilon }_A^{\prime \prime }=5$ bands, which allowed for, limited however, rotational characterization of the $E^3{\mathsf{\Sigma }}_1^{+}$ - state inner potential well. Both characterizations were consistent with each other.

In very recent experiment of Urbańczyk et al. [13], the $E^3{\mathsf{\Sigma }}_1^{+}$ - state inner well was reinvestigated and ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=0-19⟵{\upsilon }_A^{\prime \prime }=6$ progression was recorded with higher accuracy and with spectrally narrower laser than that in Ref. [17]. Figure 13 and Figure 14 present LIF excitation spectra recorded using transitions corresponding to first- ($A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$) and second-step ($E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=6$) of OODR process, respectively.

It is crucial to notice here, that mutual positions of the $E^3{\mathsf{\Sigma }}_1^{+}$- and $A^3{\mathsf{\Pi }}_{0^{+}}$-state potentials allow (providing proper choice of ${\upsilon }_A^{\prime \prime }$) to record a whole vibrational progression termination at all ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }$ supported by the $E^3{\mathsf{\Sigma }}_1^{+}$- state potential inner well. This gives an opportunity to characterize the inner well in the best possible way. The improvement in Ref. [13] was achieved by thorough analysis and simulation of the spectrum: more consistent characterization of the inner well based on inverted perturbation approach (IPA) [208]. Moreover, ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=\mathrm{2,5},\mathrm{11,17}{⟵\upsilon }_A^{\prime \prime }=6$ vibrational bands were recorded with higher resolution, which provided their more reliable rotational characterization (see Figure 17 below). To complete the inner well characterization, free$⟵$bound (${\upsilon }_A^{\prime \prime }=6)$ transitions were included in the analysis (see Figure 16 below).

Figure 13. (a) LIF excitation spectrum recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ transition in CdAr, being first step of excitation in OODR process: $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ that allowed to investigate the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ - state inner well and, partly, potential barrier. (b) Simulation performed using LEVEL [206] and PGOPHER [207] programs and data derived from analysis of the experimental spectrum [13]. Arrow shows the ${\upsilon }_A^{\text{'}\text{'}}=6$ that was used as origin for the second transition in OODR. Also ${\upsilon }_A^{\text{'}\text{'}}=6⟵\upsilon =0$ band recorded with (see Figure 17(B)) higher resolution was used in, among others, in isotopologues selection experiment (see Section 5.4). Position of the atomic transition in Cd is depicted.

Figure 13. (a) LIF excitation spectrum recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ transition in CdAr, being first step of excitation in OODR process: $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ that allowed to investigate the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ - state inner well and, partly, potential barrier. (b) Simulation performed using LEVEL [206] and PGOPHER [207] programs and data derived from analysis of the experimental spectrum [13]. Arrow shows the ${\upsilon }_A^{\text{'}\text{'}}=6$ that was used as origin for the second transition in OODR. Also ${\upsilon }_A^{\text{'}\text{'}}=6⟵\upsilon =0$ band recorded with (see Figure 17(B)) higher resolution was used in, among others, in isotopologues selection experiment (see Section 5.4). Position of the atomic transition in Cd is depicted.

IPA method starts from the chosen ab-initio or analytical potential expressed in $E\left(R\right)$ pointwise form, optimizes $E$ of specific points in order to obtain the best agreement between $E\left({\upsilon }^{\prime }\right)$ vibrational and $E\left(J^{\prime }\right)$ rotational energy levels determined by solving the Schrödinger equation and energies recorded in experimental spectra. What is important, optimization of the pointwise potential, which possesses more degrees of freedom than e.g. analytical potential, allows for better agreement between the simulated and experimental energies and providing better, more reliable results for PEC representation.

IPA method employed for the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=0-19⟵{\upsilon }_A^{\prime \prime }=6$ progression concluded with better simulation of the LIF excitation spectrum with the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well represented by the pointwise potential. Figure 14 shows a comparison of the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=0-19⟵{\upsilon }_A^{\prime \prime }=6$ progression recorded in experiment with two simulations: that obtained from IPA method and that with the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well represented by a Morse function. What is evident from the comparison is an inadequacy of Morse-function representation for approximately ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }>12$ (which is generally acknowledged conclusion a Morse function most adequately representing molecular potential in the vicinity of the bottom of the potential well), the problem that is eliminated by the IPA result. The conclusion is also demonstrated in a respective Birge-Sponer (B-S) plot shown in the inset. The conclusion is in line with the Rydberg character of the $E^3{\mathsf{\Sigma }}_1^{+}$- state and conclusion reached by Krośnicki et al. [4] showing the presence of maximum in the Rydberg-electron density distribution in the region of the outer wall (i.e., that which is closer to the barrier) in the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well.

Figure 14. (a) LIF excitation spectrum of the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0-19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ progression recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ in CdAr. (b) Simulations performed using representation of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well (b) obtained from IPA method and (c) using a Morse function. As figure compares only positions of the vibrational components, their intensities in (a), (b) and (c) were normalized. To make a comparison easier, several last ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵{\upsilon }_A^{\text{'}\text{'}}=6$ components were shown in different horizontal scale. Details of the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ component, shown in rectangular frame, are shown also in Figure 16. (d) B-S plot for the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0-19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ progression presenting a distinct nonlinearity for approx. ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}>12$.

Figure 14. (a) LIF excitation spectrum of the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0-19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ progression recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ in CdAr. (b) Simulations performed using representation of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well (b) obtained from IPA method and (c) using a Morse function. As figure compares only positions of the vibrational components, their intensities in (a), (b) and (c) were normalized. To make a comparison easier, several last ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵{\upsilon }_A^{\text{'}\text{'}}=6$ components were shown in different horizontal scale. Details of the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ component, shown in rectangular frame, are shown also in Figure 16. (d) B-S plot for the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0-19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ progression presenting a distinct nonlinearity for approx. ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}>12$.

The comparison of the IPA result with available ab initio inner well representations is shown in Figure 15. It is evident that the $E^3{\mathsf{\Sigma }}_1^{+}$ - state IPA representation of inner well is deeper than depths obtained in all ab initio results. Additionally, three ab-initio calculated potentials, i.e. those of Czuchaj and Stoll [6], and Krośnicki and collaborators [39], [40] as well as that, very recent, of Krośnicki et al. [4] are very close to each other as far as depth of the potential well is concerned. As can be seen from Figure 14 (and Figure 15), IPA method, by definition, provided very reliable representation of the $E^3{\mathsf{\Sigma }}_1^{+}$ - state inner-well potential. But one has to deal here with more complex i.e. double-well potential, therefore the inner-well potential representation of the $E^3{\mathsf{\Sigma }}_1^{+}$- state should join smoothly with a reliable representation of the potential barrier and representation of the potential outer-well that extends for larger Rs.

In order to investigate the two crucial joining points, it was necessary to reach the potential barrier in the excitation from both sides i.e. to record ${\upsilon }_E^{\prime }{⟵\upsilon }_{A,B}^{\prime \prime }$ progressions to the highest ${\upsilon }_E^{\prime }$ in both $E^3{\mathsf{\Sigma }}_1^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ and $E^3{\mathsf{\Sigma }}_1^{+}⟵B^{3}1$ transitions (refer to in Figure 4). As far as the former is concerned, Figure 16 shows the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=19⟵{\upsilon }_A^{\prime \prime }=6$ last quasi-bound$⟵$bound transition lying (along with that to ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=18$) above the dissociation energy correlating with the $\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Cd asymptote (see Figure 15) 14). Also, Figure 16 shows a wide profile of free$⟵$bound transitions starting from ${\upsilon }_A^{\prime \prime }=6$ and terminating at the repulsive inner wall of the potential. Simulation of both parts of the spectrum assuming representation of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well by IPA result confirmed once again its advantage over that of a Morse function. However, simulation of free$⟵$bound transitions shown in Figure 16(c) had to be shifted by 5 ${\mathrm{c}\mathrm{m}}^{-1}$ towards larger wavenumbers to reproduce the experimental spectrum – this may suggest that the steepness of the repulsive part of the inner well potential is somewhat smaller than assumed in the simulation. The height of the barrier was estimated to be in the 21.1-39.4 ${\mathrm{c}\mathrm{m}}^{-1}$ energy interval above the $\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Cd asymptote (see inset in Figure 15).

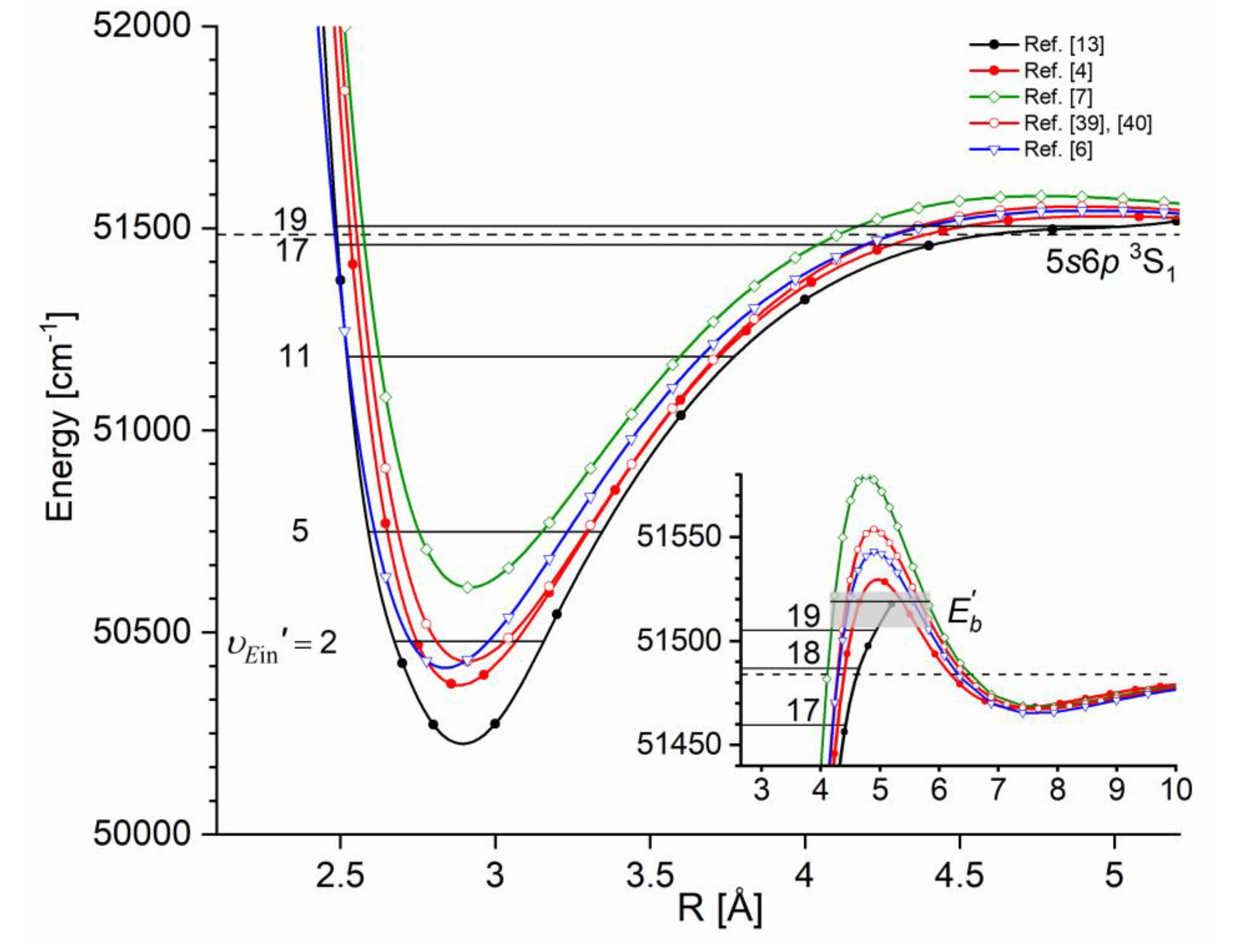

Figure 15. Comparison of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ - state inner well IPA representation in CdAr (black: full circles and line) with results of most recent ab initio calculations of Krośnicki et al. [4] (red: full circles and line), and ab initio calculations of: Czuchaj and Stoll [6] (blue: empty triangles and line), Czuchaj et al. [7] (green: empty squares and line), Krośnicki and collaborators [39], [40] (red: empty circles and line). Inset shows vicinity of the potential barrier that separates the inner and the outer wells. Position of three ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ levels closest to the dissociation energy is shown. Height of the potential barrier $E_b^{\text{'}}$: as estimated in Ref. [13] (grey rectangle) and as determined in Ref. [12] (horizontal black line) (see also Table 1). Note: for the potential barrier and outer well representations see Figure 23.

Figure 15. Comparison of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ - state inner well IPA representation in CdAr (black: full circles and line) with results of most recent ab initio calculations of Krośnicki et al. [4] (red: full circles and line), and ab initio calculations of: Czuchaj and Stoll [6] (blue: empty triangles and line), Czuchaj et al. [7] (green: empty squares and line), Krośnicki and collaborators [39], [40] (red: empty circles and line). Inset shows vicinity of the potential barrier that separates the inner and the outer wells. Position of three ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ levels closest to the dissociation energy is shown. Height of the potential barrier $E_b^{\text{'}}$: as estimated in Ref. [13] (grey rectangle) and as determined in Ref. [12] (horizontal black line) (see also Table 1). Note: for the potential barrier and outer well representations see Figure 23.

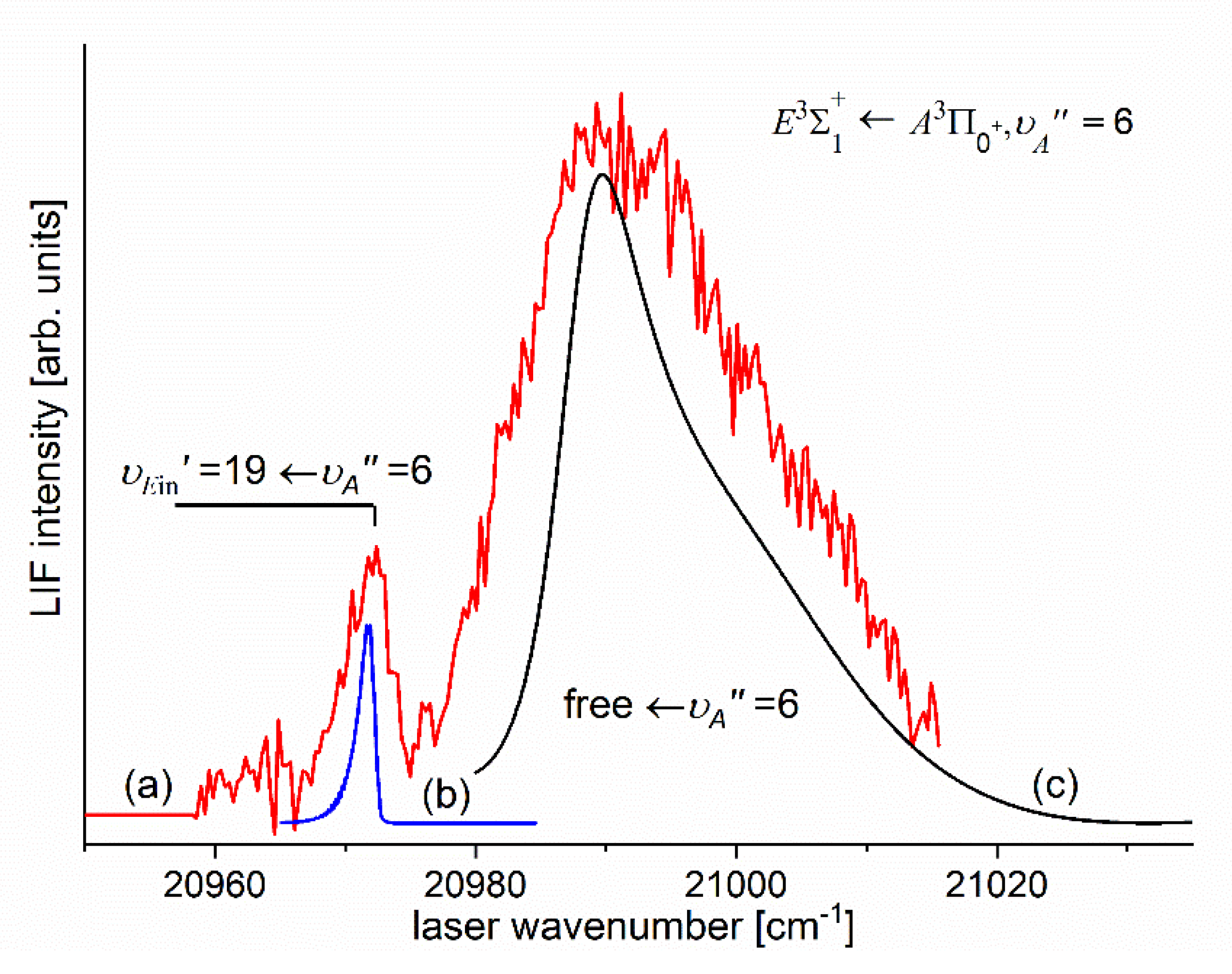

Figure 16. (a) LIF excitation spectrum recorded using the $E^3{\mathsf{\Sigma }}_1^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ transition in CdAr [13] showing the last ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ quasi-bound$⟵$bound transition and profile of free$⟵$bound transitions starting from ${\upsilon }_A^{\text{'}\text{'}}=6$; (b) and (c) simulations of the bound$⟵$bound and free$⟵$bound transitions performed using PGOPHER [207] and BCONT [209] programs, respectively.

Figure 16. (a) LIF excitation spectrum recorded using the $E^3{\mathsf{\Sigma }}_1^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ transition in CdAr [13] showing the last ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=19⟵{\upsilon }_A^{\text{'}\text{'}}=6$ quasi-bound$⟵$bound transition and profile of free$⟵$bound transitions starting from ${\upsilon }_A^{\text{'}\text{'}}=6$; (b) and (c) simulations of the bound$⟵$bound and free$⟵$bound transitions performed using PGOPHER [207] and BCONT [209] programs, respectively.

As far as the position of the inner well ($R_{e \mathrm{i}\mathrm{n}}^{\prime })$ is concerned, it was corroborated in detection and simulation of a series of partly rotationally resolved profiles of vibrational bands of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }$ transition in ${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ with small admixture of ${ }^{114}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$. A selective isotopologue excitation exploiting the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=6⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ first-step OODR transition was possible as was shown in Figure 17(B) and discussed in more detail in Section 5.4 of this review. Figure 17(A) presents four recorded profiles corresponding to ${{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=2, 5, 11, 17⟵}^{ }{\upsilon }_A^{\prime \prime }=6$ vibrational transitions. Simulation of the profiles allowed to determine respective $B_{{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }}$ rotational constants and corroborate the $R_{e \mathrm{i}\mathrm{n}}^{\prime }=2.850\pm 0.005\mathrm{Å}$ as that verified also employing IPA method. As already stated, rotationally resolved vibrational profiles were recorded by Bennet and Breckenridge [18] but they belonged to the $e^3{\mathsf{\Sigma }}^{+}, {\upsilon }_{e_{\mathrm{i}\mathrm{n}}}^{\prime }⟵b^3{\mathsf{\Pi }}_2, {\upsilon }_b^{\prime \prime }$ transition after highly nonselective LV process and with assumption of ${\upsilon }_b^{\prime \prime }=0$.

From Figure 15 it is obvious that, similarly as for the $E^3{\mathsf{\Sigma }}_1^{+}$ Rydberg state in CdNe, also in CdAr agreement between experimental and ab-initio calculated potentials is not entirely satisfactory for both the inner well and the potential barrier. It was necessary to make an effort and characterize the complex $E^3{\mathsf{\Sigma }}_1^{+}$- state double-well potential for all three components: both inner and outer wells and the barrier. It is presented in Section 5.2.3.

Figure 17. (A) Partly rotationally resolved profiles of vibrational bands recorded in LIF excitation spectrum of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=6$ second-step OODR transition in ${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ (with small admixture of ${ }^{114}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$); (a) experimental spectra, (b) simulations performed using LEVEL [206] and PGOPHER [207] programs with assumption of $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=2.5 \mathrm{K}\left({\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=2 \mathrm{a}\mathrm{n}\mathrm{d} 5\right),T_{\mathrm{r}\mathrm{o}\mathrm{t}}=3.5\mathrm{K}({\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=11 )$ $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=$5 K (${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=17$), and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$. (c) Intensities of rotational P-, Q- and R-branches contributing to (b) depicted with colour code as in part for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=17$. Intensity of Q-branch is damped as concluded in Ref. [10]. (B) Profile of the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=6⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ first-step OODR transition showing possibility of selective excitation of ${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ with small admixture of ${ }^{114}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ isotopologue (see also Section 5.4). (a) Experimental LIF excitation spectrum, (b) total simulation of the profile, (c) contributions to the total simulated profile corresponding to different CdAr isotopologues. Vertical blue dashed line and wide bar depict a laser wavenumber of first-step OODR transition and the laser bandwidth, respectively.

Figure 17. (A) Partly rotationally resolved profiles of vibrational bands recorded in LIF excitation spectrum of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=6$ second-step OODR transition in ${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ (with small admixture of ${ }^{114}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$); (a) experimental spectra, (b) simulations performed using LEVEL [206] and PGOPHER [207] programs with assumption of $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=2.5 \mathrm{K}\left({\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=2 \mathrm{a}\mathrm{n}\mathrm{d} 5\right),T_{\mathrm{r}\mathrm{o}\mathrm{t}}=3.5\mathrm{K}({\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=11 )$ $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=$5 K (${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=17$), and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$. (c) Intensities of rotational P-, Q- and R-branches contributing to (b) depicted with colour code as in part for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=17$. Intensity of Q-branch is damped as concluded in Ref. [10]. (B) Profile of the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=6⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ first-step OODR transition showing possibility of selective excitation of ${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ with small admixture of ${ }^{114}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ isotopologue (see also Section 5.4). (a) Experimental LIF excitation spectrum, (b) total simulation of the profile, (c) contributions to the total simulated profile corresponding to different CdAr isotopologues. Vertical blue dashed line and wide bar depict a laser wavenumber of first-step OODR transition and the laser bandwidth, respectively.

5.2.2. Agreement Plot, Agreement Parameter and New Method for The Outer-well ${\mathrm{R}}_{\mathrm{e}\mathrm{o}\mathrm{u}\mathrm{t}}^{\mathrm{\prime }}$

Bond Length Adjustment

Experimental evidence of the existence of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state outer well ($E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$) in CdAr molecule, that corroborated findings of ab initio calculation, has not been known until 2003. Koperski and Czajkowski [17] first-time reported presence of the second shallow outer well that was separated from the inner well ($E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$) by the potential barrier. From LIF excitation $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=\mathrm{0,1},2$ bound←bound and free←bound spectra recorded with limited spectral resolution they characterized the outer well and attempted to join the inner and outer wells with arbitrarily chosen polynomial function.

Further investigation [16] was devoted to detection of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }=0-6⟵B^{3}1,{\upsilon }_B^{\prime \prime }=1$ vibrational bands and was conducted with higher spectral resolution which allowed to partly resolve rotational structure. Moreover, in Ref. [17], as the result of better spectral resolution than in Ref. [16], the ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$-assignment in the spectrum has been changed: ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }\left[16\right]={\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }\left[17\right]-1$. Consequently, determination of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ well depth ($D_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }$) and bond length ($R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }$) was improved to new values (see Table 1). Later on, a new method for the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }$ adjustment has been proposed along with revisitation of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}⟵B^{3}1$ spectrum [15]. The $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }=0-6⟵B^{3}1,{\upsilon }_B^{\prime \prime }=2$ vibrational band was additionally recorded and, along with that originating from ${\upsilon }^{\prime \prime }=1$, served as input data for the proposal based on the fact that with the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }$=7.63 $Å$ [16] simulation of both spectra, i.e. originating from ${\upsilon }_B^{\prime \prime }=1$ and from ${\upsilon }_B^{\prime \prime }=2$, showed considerable disagreement with the experimental ones as far as distribution of intensities of vibrational components is concerned (see traces (a) and (b) in Figure 18). To resolve the problem so-called agreement parameter was proposed

$$C\left(R_{e\mathrm{o}\mathrm{u}\mathrm{t}}^{\mathrm{\prime }}\right)={\displaystyle \frac{1}{\sum _i{\left[I_{\mathrm{e}\mathrm{x}\mathrm{p}\mathrm{t}}^{\left(i\right)}-I_{\mathrm{s}\mathrm{i}\mathrm{m}}^{\left(i\right)}\left(R_{e\mathrm{o}\mathrm{u}\mathrm{t}}^{\mathrm{\prime }}\right)\right]}^2}}$$

(2)

where $I_{\mathrm{e}\mathrm{x}\mathrm{p}\mathrm{t}}^{\left(i\right)}$ and $I_{\mathrm{s}\mathrm{i}\mathrm{m}}^{\left(i\right)}\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }\right)$ are the normalized experimental and simulated intensities of the ith vibrational component in LIF excitation spectrum. Such a definition of the $C\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }\right)$ causes that it achieves highest values only for those $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }$ for which the intensity distribution of the simulated vibrational components are close to the intensity of the respective components in the experimental spectrum. Figure 19 shows $C\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }\right)$ agreement coefficient for the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }$ transition originating from (a) ${\upsilon }_B^{\prime \prime }=1$ (empty circles) and (b) ${\upsilon }_B^{\prime \prime }=2$ (full circles) along with resulting $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }=6.90\pm 0.15 Å$ [15]. For comparison, also the result of Ref. [16] is shown. Moreover, the plot in Figure 19 was augmented with the best result so far showing improvement of the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }$ determination, i.e. $7.235\pm 0.121 Å$ [12] resulting from accumulation of more experimental data and correction of ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$- assignment (see next Section 5.2.3).

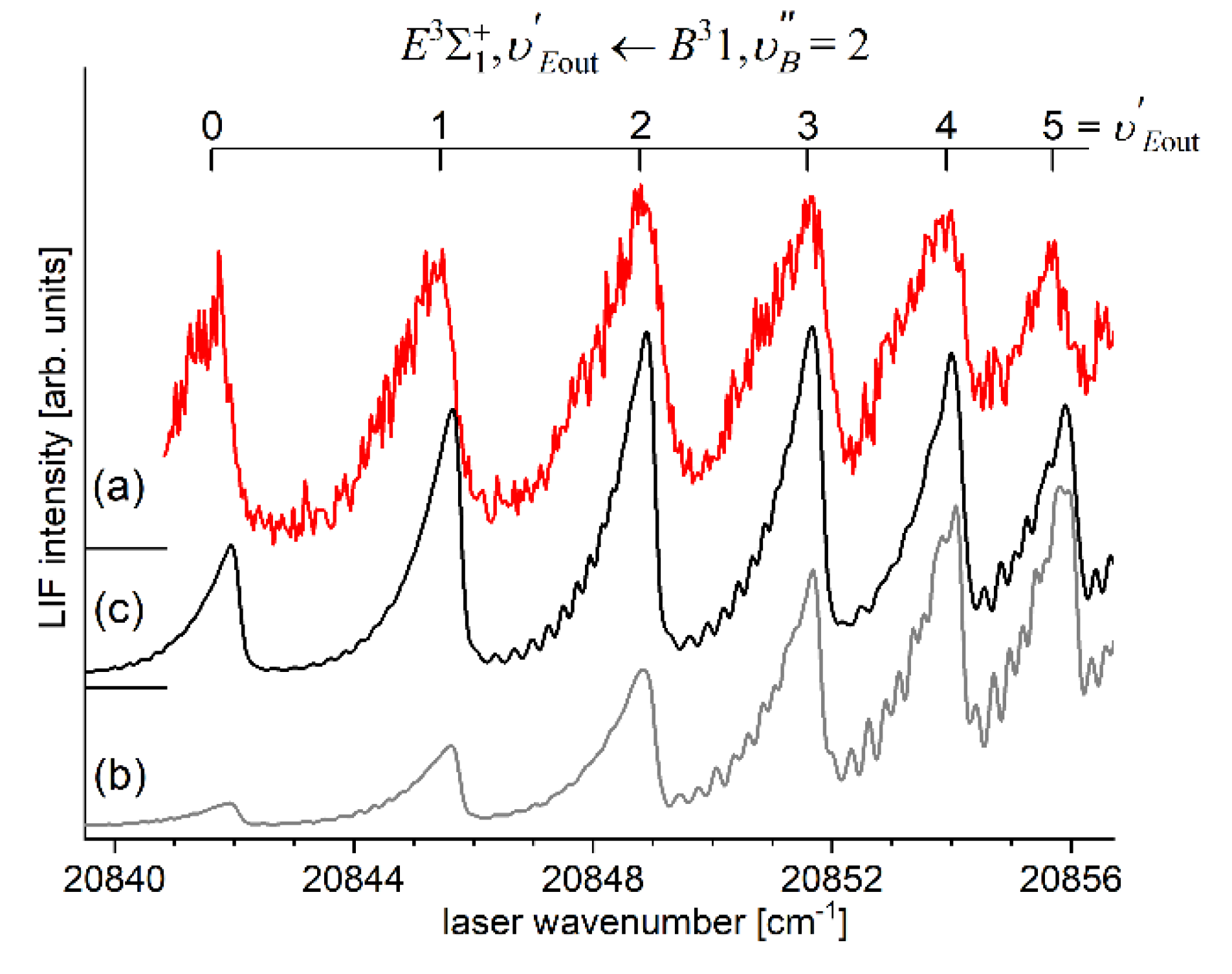

Figure 18. The $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=2$ vibrational band of CdAr. (a) Experimental spectrum. Simulations performed using PGOPHER program [207] with the assumption of (b) the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$=7.63 $Å$ [16], (c) the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$=6.90 $Å$ obtained as a result of new method of bond length adjustment with the help of the $C\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}\right)$ agreement parameter [15]. In both simulations $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=5 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$ were used. Note: according to later studies, figure shows wrong ${\upsilon }_{E\mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$-assignment as it lacks the low-intensity ${\upsilon }_{E\mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}=0⟵{\upsilon }_B^{\text{'}\text{'}}=2$ component that was recorded during investigation of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ transitions [12] (see Figure 22) causing correction of the spectroscopical characterization of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ well; it was also illustrated in Figure 19 and Figure 20.

Figure 18. The $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=2$ vibrational band of CdAr. (a) Experimental spectrum. Simulations performed using PGOPHER program [207] with the assumption of (b) the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$=7.63 $Å$ [16], (c) the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$=6.90 $Å$ obtained as a result of new method of bond length adjustment with the help of the $C\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}\right)$ agreement parameter [15]. In both simulations $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=5 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$ were used. Note: according to later studies, figure shows wrong ${\upsilon }_{E\mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$-assignment as it lacks the low-intensity ${\upsilon }_{E\mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}=0⟵{\upsilon }_B^{\text{'}\text{'}}=2$ component that was recorded during investigation of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ transitions [12] (see Figure 22) causing correction of the spectroscopical characterization of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ well; it was also illustrated in Figure 19 and Figure 20.

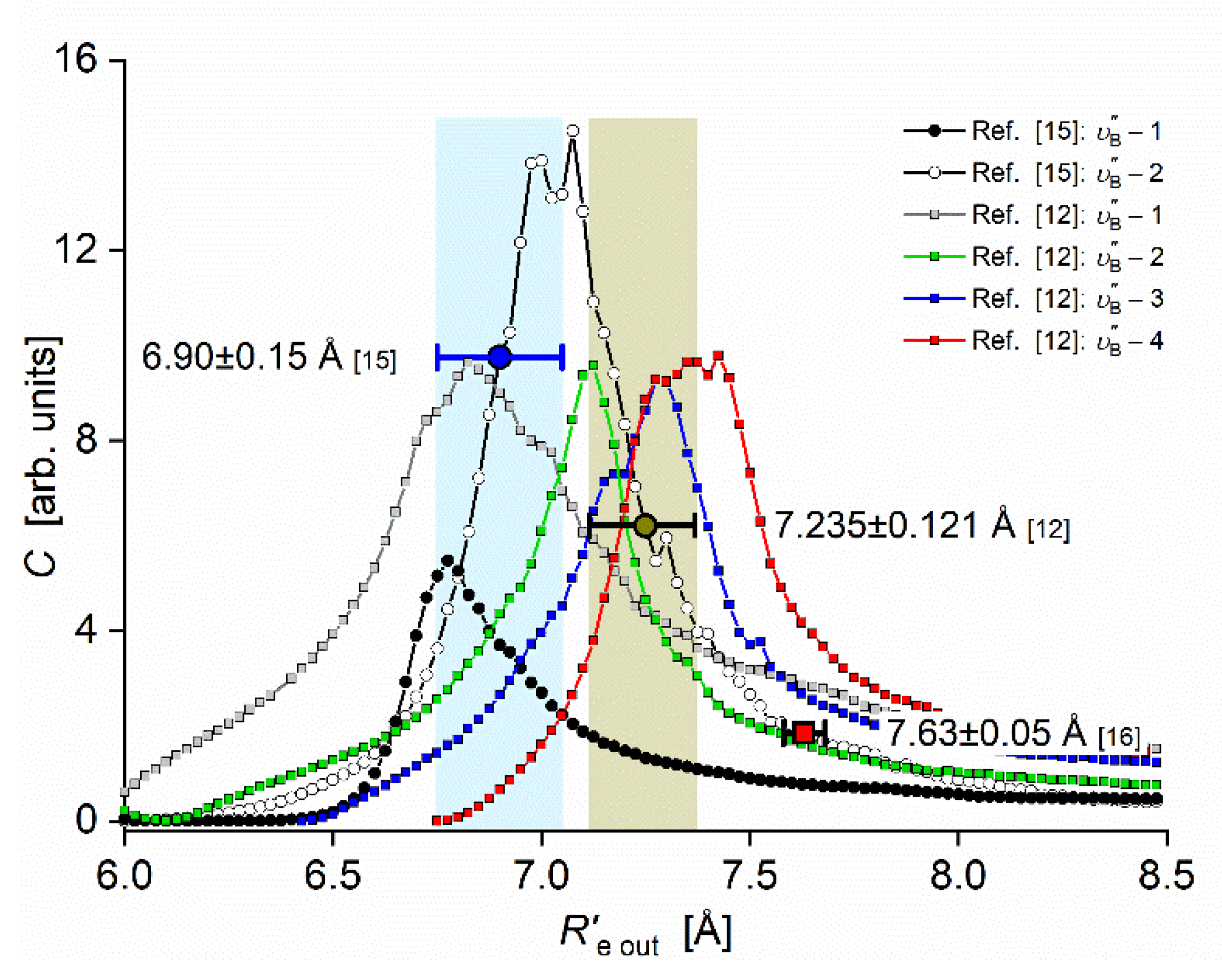

Apart from a new method of agreement coefficient $C$, another method, called agreement plot was proposed in Ref. [15] as complementary to e.g., B-S plot with respect to determination of the ${\omega }_e^{\prime }$ and ${\omega }_e^{\prime }{x}_e^{\prime }$ vibrational constants, and it can be used providing the upper electronic-state potential (to which excitation occurs) is represented by a Morse function. The agreement plot illustrates the fact that ${\omega }_e^{\prime }$ and ${\omega }_e^{\prime }{x}_e^{\prime }$ are not independent and there is a number of ${(\omega }_e^{\prime },{\omega }_e^{\prime }{x}_e^{\prime })$ pairs resulting in satisfactory simulation of the experimental spectrum (with not resolved rotational structure). Also, the agreement plot allows to determine the ${\omega }_e^{\prime }$ and ${\omega }_e^{\prime }{x}_e^{\prime }$ uncertainties in a more reliable way than when using B-S plot. The method of the agreement plot relies on the calculated value of P coefficient (see Figure 20) expressed by the formula 15)

Figure 19. The $C\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}\right)$ agreement coefficient describing agreement between $I_{\mathrm{e}\mathrm{x}\mathrm{p}\mathrm{t}}^{\left(i\right)}$ experimental and $I_{\mathrm{s}\mathrm{i}\mathrm{m}}^{\left(i\right)}\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}\right)$ simulated intensities of the vibrational components in the LIF excitation spectrum recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ transition (see Eq. (2)) for ${\upsilon }_B^{\text{'}\text{'}}=1$ (black full circles and line) [15] and ${\upsilon }_B^{\text{'}\text{'}}=2$ (black empty circles and line) [15]. The plot is supplemented with recent results of Ref. [12] which concluded in correction of ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$- assignment (see Section 5.2.3) for: ${\upsilon }_B^{\text{'}\text{'}}=1$ (grey squares and line), ${\upsilon }_B^{\text{'}\text{'}}=2$ (green squares and line), ${\upsilon }_B^{\text{'}\text{'}}=3$ (blue squares and line), and ${\upsilon }_B^{\text{'}\text{'}}=4$ (red squares and line). Symbols with error bars and corresponding rectangles depict $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$ being the results of Refs. [15] and [12], and for comparison, Ref. [16].

Figure 19. The $C\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}\right)$ agreement coefficient describing agreement between $I_{\mathrm{e}\mathrm{x}\mathrm{p}\mathrm{t}}^{\left(i\right)}$ experimental and $I_{\mathrm{s}\mathrm{i}\mathrm{m}}^{\left(i\right)}\left(R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}\right)$ simulated intensities of the vibrational components in the LIF excitation spectrum recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ transition (see Eq. (2)) for ${\upsilon }_B^{\text{'}\text{'}}=1$ (black full circles and line) [15] and ${\upsilon }_B^{\text{'}\text{'}}=2$ (black empty circles and line) [15]. The plot is supplemented with recent results of Ref. [12] which concluded in correction of ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$- assignment (see Section 5.2.3) for: ${\upsilon }_B^{\text{'}\text{'}}=1$ (grey squares and line), ${\upsilon }_B^{\text{'}\text{'}}=2$ (green squares and line), ${\upsilon }_B^{\text{'}\text{'}}=3$ (blue squares and line), and ${\upsilon }_B^{\text{'}\text{'}}=4$ (red squares and line). Symbols with error bars and corresponding rectangles depict $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\text{'}}$ being the results of Refs. [15] and [12], and for comparison, Ref. [16].

$$P={\displaystyle \frac{1}{0.01+{\chi }^2}}$$

(3)

where ${\chi }^2=\sum _{{\upsilon }^{\prime }}(\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{e}\mathrm{x}\mathrm{p}\mathrm{t}}-\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{s}\mathrm{i}\mathrm{m}}{)}^2$, $\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{s}\mathrm{i}\mathrm{m}}$ is the separation between the energies of corresponding ${\upsilon }^{\prime }$: $\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{s}\mathrm{i}\mathrm{m}}=E_{{\upsilon }^{\prime }}^{\mathrm{s}\mathrm{i}\mathrm{m}}-E_{{\mathrm{i}\mathrm{n}\mathrm{t} \upsilon }^{\prime }}^{\mathrm{s}\mathrm{i}\mathrm{m}}$, where $E_{{\mathrm{i}\mathrm{n}\mathrm{t} \upsilon }^{\prime }}^{sim}$ is the energy of a selected (for example the most intense) $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵{B^{3}1,\upsilon }_B^{\prime \prime }=1$ transition in the experimental spectrum, and $\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{e}\mathrm{x}\mathrm{p}\mathrm{t}}$ is the separation between energies of vibrational components in the experimental spectrum calculated similarly as the $\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{s}\mathrm{i}\mathrm{m}}$. Next, for each ${\omega }_e^{\prime }$ and ${\omega }_e^{\prime }{x}_e^{\prime }$ combination, the $\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{s}\mathrm{i}\mathrm{m}}$ were computed (LEVEL program [206]) and $\mathsf{\Delta }{E}_{{\upsilon }^{\prime }}^{\mathrm{e}\mathrm{x}\mathrm{p}\mathrm{t}}$ were determined from the experimental spectrum, leading to $P{(\omega }_e^{\prime },{\omega }_e^{\prime }{x}_e^{\prime })$ according to Eq. (3). The result for the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=1$ transition [15] is shown in Figure 20(a) whereas Figure 20(b) shows the result after recording additional component in the spectrum and change of the ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$- assignment (see Section 5.2.3) [12]. It should be emphasized that each of the ${(\omega }_e^{\prime },{\omega }_e^{\prime }{x}_e^{\prime })$ pair for which $P>30$ results in satisfactory simulation-to-experiment agreement.

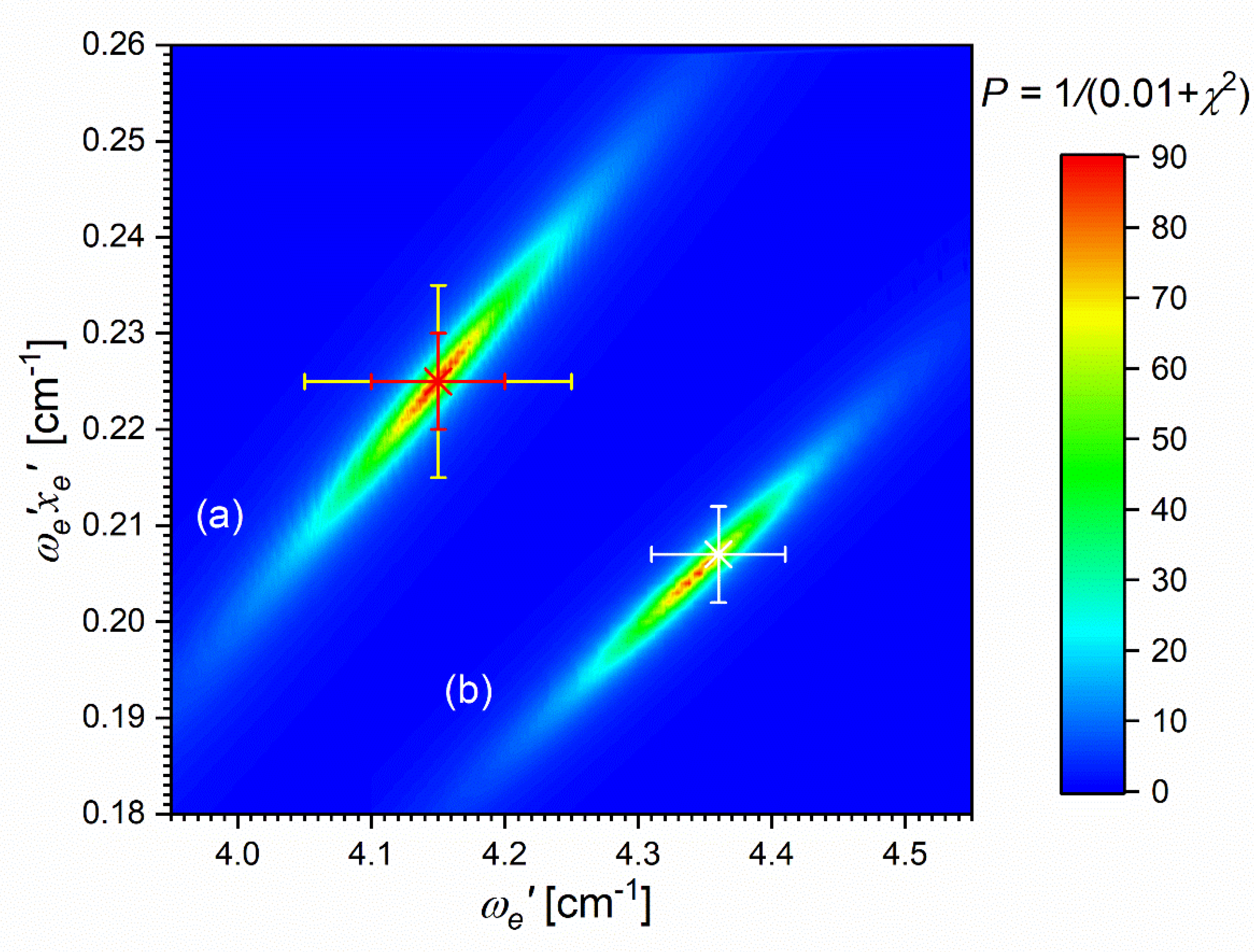

Figure 20. The $({\omega }_e^{\text{'}}-{\omega }_e^{\text{'}}{x}_e^{\text{'}})$ agreement plot drawn according to Eq. (3) expressing simulation-to-experiment agreement with respect to the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ state of CdAr using LIF excitation spectra of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ transitions for (a) ${\upsilon }_B^{\text{'}\text{'}}=1$ as in Ref. [15] and (b) ${\upsilon }_B^{\text{'}\text{'}}=3$ as in Ref. [12] after recording an additional component in the spectrum and correction of ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$-assignemnt (see Section 5.2.3). Plot shows dependency between ${\omega }_e^{\text{'}}$ and ${\omega }_e^{\text{'}}{x}_e^{\text{'}}$ vibrational constants. Error bars: uncertainties of the ${\omega }_e^{\text{'}}$ and ${\omega }_e^{\text{'}}{x}_e^{\text{'}}$ as in Ref. [16] (red), Ref. [15] (yellow) and, finally, Ref. [12] (white).

Figure 20. The $({\omega }_e^{\text{'}}-{\omega }_e^{\text{'}}{x}_e^{\text{'}})$ agreement plot drawn according to Eq. (3) expressing simulation-to-experiment agreement with respect to the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ state of CdAr using LIF excitation spectra of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ transitions for (a) ${\upsilon }_B^{\text{'}\text{'}}=1$ as in Ref. [15] and (b) ${\upsilon }_B^{\text{'}\text{'}}=3$ as in Ref. [12] after recording an additional component in the spectrum and correction of ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$-assignemnt (see Section 5.2.3). Plot shows dependency between ${\omega }_e^{\text{'}}$ and ${\omega }_e^{\text{'}}{x}_e^{\text{'}}$ vibrational constants. Error bars: uncertainties of the ${\omega }_e^{\text{'}}$ and ${\omega }_e^{\text{'}}{x}_e^{\text{'}}$ as in Ref. [16] (red), Ref. [15] (yellow) and, finally, Ref. [12] (white).

5.2.3. Final approach: The ${\mathrm{E}}^3{\mathsf{\Sigma }}_1^{+}$ - State Complete Potential Determination

Thanks to the very recent investigation of LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}⟵B^{3}1,{\upsilon }_B^{\prime \prime }$ transitions [12], the respective measurement range has been widened as compared to the previous studies [15] described in Section 5.2.2. Both, bound$⟵$bound and free$⟵$bound type of transitions in the excitation spectra have been recorded and involved in the analysis and, moreover, a number of ${\upsilon }_B^{\prime \prime }$ levels from which the excitation originates was increased from ${\upsilon }_B^{\prime \prime }=0-2$ to ${\upsilon }_B^{\prime \prime }=0-4$. Consequently, the study became the most complete characterization of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ Rydberg state potential of CdAr performed to date, and together with earlier studies of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner-well [13] constitutes the most thorough description of the MeNg Rydberg state potential based on experimental data.

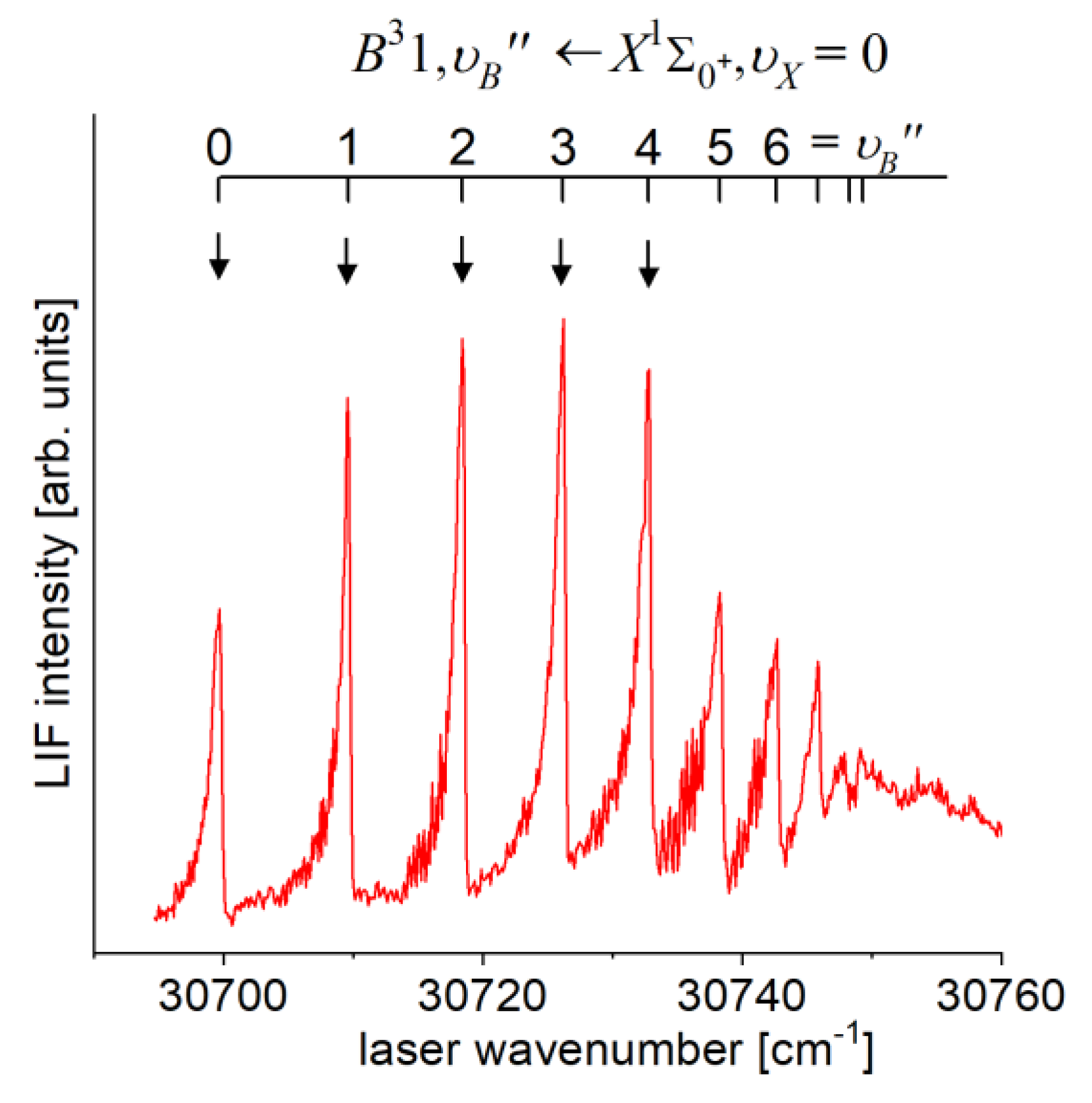

Figure 21 and Figure 22 present LIF excitation spectra recorded using transitions corresponding to first- ($B^{3}1,{\upsilon }_B^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$) and second-step ($E^3{\mathsf{\Sigma }}_1^{+}⟵B^{3}1,{\upsilon }_B^{\prime \prime }=0-4$) of OODR process, respectively. It is necessary to emphasize that in order to characterize the $E^3{\mathsf{\Sigma }}_1^{+}$- state outer well and the potential barrier, five ${\upsilon }_B^{\prime \prime }$ were chosen as origins for the second-step excitation (see Figure 21). It assured very thorough and complete probing of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ outer well and neighbouring barrier via bound$⟵$bound and free$⟵$bound transitions to different parts of the $E^3{\mathsf{\Sigma }}_1^{+}$- state potential.

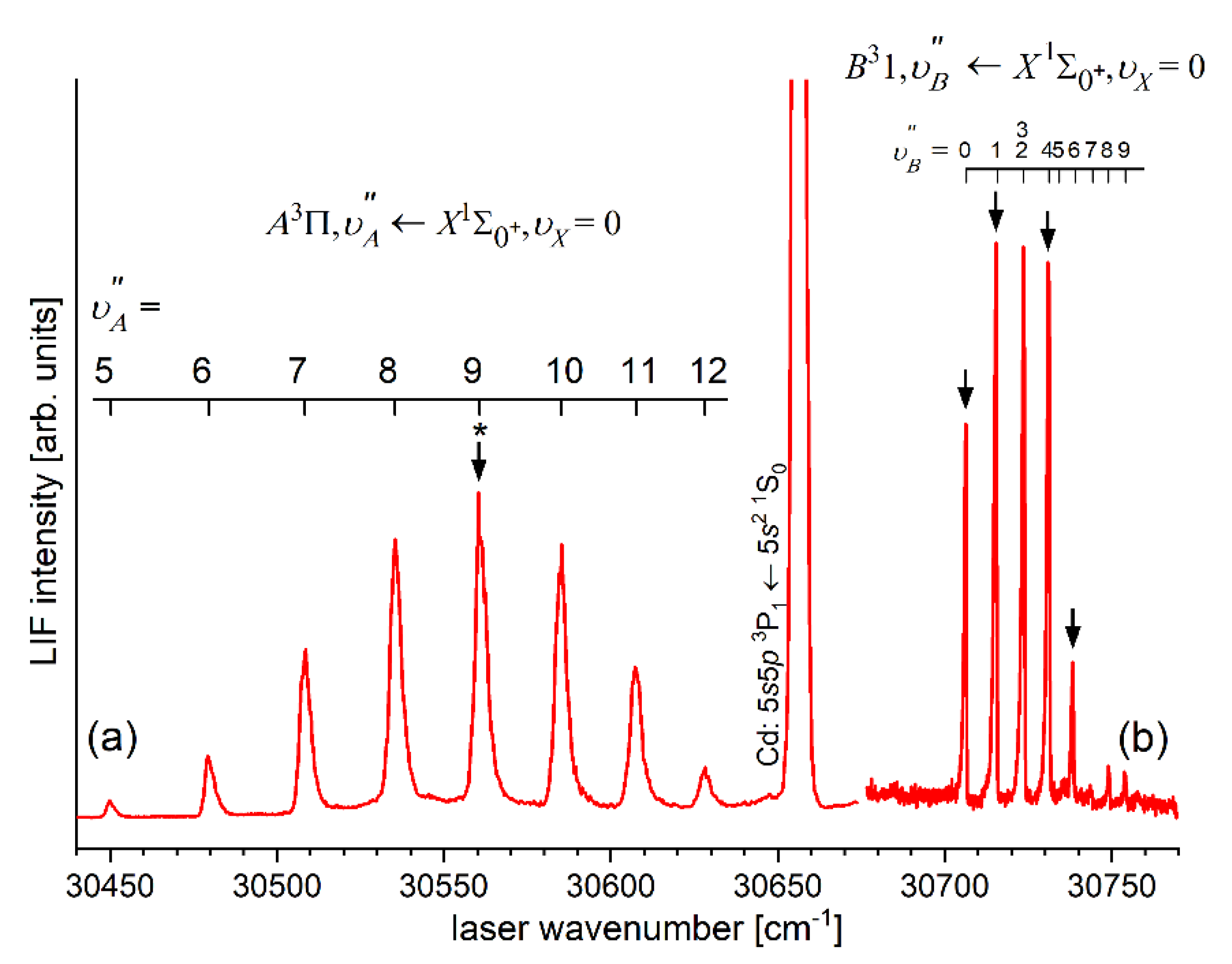

Figure 21. LIF excitation spectrum recorded using the $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ transition in CdAr, as reported in Ref. [210], being the first-step of excitation in OODR process that allowed to investigate the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ - state outer well [12], [15] and potential barrier [12] using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ second-step OODR transition. Arrows show ${\upsilon }_B^{\text{'}\text{'}}$ that were used as origins in the second step transition.

Figure 21. LIF excitation spectrum recorded using the $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ transition in CdAr, as reported in Ref. [210], being the first-step of excitation in OODR process that allowed to investigate the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ - state outer well [12], [15] and potential barrier [12] using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ second-step OODR transition. Arrows show ${\upsilon }_B^{\text{'}\text{'}}$ that were used as origins in the second step transition.

Closer look at Figure 22 reveals a series of bound$⟵$bound and free$⟵$bound LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_1^{+}⟵B^{3}1,{\upsilon }_B^{\prime \prime }$ transition and originating from ${\upsilon }_B^{\prime \prime }=0-4$.

Bound$⟵$bound transitions probe the vibrational energy structure in the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ well, whereas free$⟵$bound transitions terminate on the outer wall of the potential barrier above the dissociation limit (refer to Figure 4) and provide information on the barrier itself i.e. its position, height and, to a certain degree, its shape.

Figure 22. LIF excitation spectra (red lines) recorded using (a) the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=0-4$ bound$⟵$bound and (b) the $E^3{\mathsf{\Sigma }}_1^{+}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=0-4$ free$⟵$bound transition in CdAr, and their respective simulations [206], [207], [209] (black lines). Position ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}=0⟵{\upsilon }_B^{\text{'}\text{'}}$ component that was not previously recorded [15] is depicted (one asterisk). Position of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=17-19⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ vibrational components is shown, proving that the spectrum contains also transitions to $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well. Unlike in other spectra recorded using second-step OODR transition and presented in this review, here laser wavenumbers are given with respect to the $X^1{\mathsf{\Sigma }}_1^{+}$-state asymptote. Energy corresponding to the $\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Cd asymptote is depicted (vertical dashed line). Inset to (a) shows detail of the very weak ${{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵\upsilon }_B^{\text{'}\text{'}}=0$ bound$⟵$bound transitions with clearly visible ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=18⟵{\upsilon }_B^{\text{'}\text{'}}=0$. (c) B-S plot for ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵{\upsilon }_B^{\text{'}\text{'}}=4$ progression and with corrected ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$ - assignment providing final values for the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ outer well vibrational constants ${\omega }_e^{\text{'}}=4.36 {\mathrm{c}\mathrm{m}}^{-1}$ and ${\omega }_e^{\text{'}}{x}_e^{\text{'}}=0.207$ ${\mathrm{c}\mathrm{m}}^{-1}$.

Figure 22. LIF excitation spectra (red lines) recorded using (a) the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=0-4$ bound$⟵$bound and (b) the $E^3{\mathsf{\Sigma }}_1^{+}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=0-4$ free$⟵$bound transition in CdAr, and their respective simulations [206], [207], [209] (black lines). Position ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}=0⟵{\upsilon }_B^{\text{'}\text{'}}$ component that was not previously recorded [15] is depicted (one asterisk). Position of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=17-19⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ vibrational components is shown, proving that the spectrum contains also transitions to $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well. Unlike in other spectra recorded using second-step OODR transition and presented in this review, here laser wavenumbers are given with respect to the $X^1{\mathsf{\Sigma }}_1^{+}$-state asymptote. Energy corresponding to the $\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Cd asymptote is depicted (vertical dashed line). Inset to (a) shows detail of the very weak ${{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵\upsilon }_B^{\text{'}\text{'}}=0$ bound$⟵$bound transitions with clearly visible ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=18⟵{\upsilon }_B^{\text{'}\text{'}}=0$. (c) B-S plot for ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵{\upsilon }_B^{\text{'}\text{'}}=4$ progression and with corrected ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$ - assignment providing final values for the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ outer well vibrational constants ${\omega }_e^{\text{'}}=4.36 {\mathrm{c}\mathrm{m}}^{-1}$ and ${\omega }_e^{\text{'}}{x}_e^{\text{'}}=0.207$ ${\mathrm{c}\mathrm{m}}^{-1}$.

This unique opportunity of simultaneously recording both kind of transitions is due to a relative positions of the $E^3{\mathsf{\Sigma }}_1^{+}$- and $B^{3}1$- state potentials. Interpretation of LIF excitation spectra of ${\upsilon }_E^{\prime }⟵{\upsilon }_B^{\prime \prime }$ bound$⟵$bound transitions is straightforward but interpretation of free$⟵$bound transitions originating from a given ${\upsilon }_B^{\prime \prime }$ needs an explanation. As can be seen in Figure 22(b), spectra of free$⟵$bound transitions show undulated structure (oscillations), however, they do not correspond strictly to so-called reflection nature, as classified by Tellinghuisen [211], according to which they should ‘reflect’ the radial probability distribution in the initial ${\upsilon }_B^{\prime \prime }$ level conserving the peak and node count (i.e. ${\upsilon }_B^{\prime \prime }+1$) of the ${\psi }_{{\upsilon }_B^{\prime \prime }}$ initial ${\upsilon }_B^{\prime \prime }$-level wavefunction. The reflection spectra (unlike the second type - interference spectra) are frequently recorded in dispersed emission (also called dispersed fluorescence) from a previously excited ${\upsilon }^{\prime }$ level to the repulsive branch of, most frequently, the ground-state ${\upsilon }^{\prime \prime }$ level, giving opportunity to determine the emitting ${\upsilon }^{\prime }$-level quantum number [16]⁾ (see examples for MeNg molecules reported in Refs. [213], [214]). However, in this particular case of the $E^3{\mathsf{\Sigma }}_1^{+}{⟵B}^{3}1,{\upsilon }_B^{\prime \prime }$ excitation, free$⟵$bound transitions terminate on the upper-state repulsive part (i.e. outer wall) of the potential barrier (causing immediate dissociation of the molecule) providing a rare opportunity to its characterization.

As far as spectra of bound$⟵$bound transitions are concerned (Figure 22(a)), entire ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$- levels vibrational structure in the $E^3{\mathsf{\Sigma }}_1^{+}$- state outer well was probed in the experiment [12], therefore, B-S plot analysis (Figure 22(c)) turned out to be very reliable tool to determine ${\omega }_e^{\prime }$, ${\omega }_e^{\prime }{x}_e^{\prime }$ and ${\upsilon }_{\mathrm{m}\mathrm{a}\mathrm{x}}^{\prime }={\displaystyle \frac{{\omega }_e^{\prime }}{2{\omega }_e^{\prime }{x}_e^{\prime }}}-{\displaystyle \frac{1}{2}}=10$, i.e. maximum number of ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$ in the outer well. Moreover, as the B-S plot is linear, it was straightforward to propose a Morse representation for the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ potential well. In addition, with respect to the earlier analysis of Ref. [15] (see in Section 5.2.2 and Figure 18), here an additional ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$ (previously missing) component in the spectrum has been recorded (see Figure 22(a) - marked with asterisk). Therefore, the whole approach delivered new vibrational characterization of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ outer well which was compared with that of Ref. [15] presented in Figure 20. New ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$- assignment also affected determination of the $R_{e \mathrm{o}\mathrm{u}\mathrm{t}}^{\prime }$ presented in Ref. [15] (see Figure 19 and Table 1).

Analysing spectra of free$⟵$bound transitions (Figure 22(b)) one may notice their departure from pure reflection character. Following Duval et al. [24] it can be interpreted as extraneous oscillations in the spectra which possess in fact an interference structure that results from occurrence of a potential barrier. Also, an influence of lying above the dissociation limit last ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=19$level, supported by inner well and excited from the $B^{3}1, {\upsilon }_B^{\prime \prime }$ levels, is evident and this vibrational component overlaps with bound free$⟵$transitions.

Additional information of the $E^3{\mathsf{\Sigma }}_1^{+}$ - state potential barrier provides experiment and analysis presented in Ref. [13] (see Figure 16 in Section 5.2.1): LIF excitation spectrum recorded using the $E^3{\mathsf{\Sigma }}_1^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=6$ transitions that includes a profile of free$⟵$bound transitions terminating at the repulsive inner wall of the potential barrier. As already stated, simulation of that profile provided estimation of the height of the barrier (see inset in Figure 15). Determination of the height of the barrier from the $E^3{\mathsf{\Sigma }}_1^{+}{⟵B}^{3}1,{\upsilon }_B^{\prime \prime }$ free$⟵$bound transitions [12] corroborated that previous result [13] and specified the value as $E_b^{\prime }$= 27 ${\mathrm{c}\mathrm{m}}^{-1}$ (see Table 1).

A real success of the presented studies relied on first-time determination of entire $E^3{\mathsf{\Sigma }}_1^{+}$ - state interatomic potential that consisted of inner well, potential barrier and outer well. It was achieved entirely using experimental data obtained from LIF excitation spectra of bound$⟵$bound and free$⟵$bound transitions and their simulations assuming a pointwise model potential consisting of three parts corresponding to the three regions - this potential is shown in Figure 23 and consists of:

-

$E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$, deeper inner well – for $R<4.56 Å$ – adopted as the result of IPA method [13],

-

potential barrier – for $4.82 Å<R<5.91 Å$ – modification of ab-initio calculated potential [4],

$E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$, shallower outer well – for $R>6.38 Å$ – represented by a Morse function [12] converted to the pointwise form combined using a cubic spline method. To obtain simulation of the free$⟵$bound profiles that satisfactorily reproduce that recorded in the experiment, slight modifications were introduced: 0.01-$Å$ and 0.16-$Å$ shifts along the R axis of all ab-initio points [4] used to construct the barrier and the IPA-based $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ - state potential [13], respectively.

In Figure 23 the $E^3{\mathsf{\Sigma }}_1^{+}$ - state potential of Ref. [12] is compared with those representations that were obtained earlier with limited sets of experimental data [15], [17].

Figure 23. Comparison of CdAr interatomic potential of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state outer well representations close to the dissociation limit being the result of series of experiments using OODR excitation method: very first investigation of Koperski and Czajkowski [17] (grey dashed-dotted line), result of Urbańczyk and Koperski [15] (grey dotted line) and most recent result of Sobczuk et al. [12] (black solid line) – see also Table 1. Note: for inner potential well representations refer to Figure 15. Part of the whole $E^3{\mathsf{\Sigma }}_1^{+}$- state potential representation in the vicinity of the potential barrier as the result of Ref. [12] is also shown (blue line and points) - see text for details. Ab-initio calculated potential of Krośnicki et al. [4] is shown for comparison (red line and points). Potential of the $B^{3}1$ intermediate state [16] used in OODR process is also drawn (green solid line). Three ways to execute the excitation using the $E^3{\mathsf{\Sigma }}_1^{+}{⟵B}^{3}1,{\upsilon }_B^{\text{'}\text{'}}=4$ transitions are depicted with vertical arrows: (a) quasi-bound$⟵$bound to the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$, (b) and (c) free$⟵$bound terminating at the inner and outer repulsive walls of the potential barrier, respectively, and (d) bound$⟵$bound to the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$.

Figure 23. Comparison of CdAr interatomic potential of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state outer well representations close to the dissociation limit being the result of series of experiments using OODR excitation method: very first investigation of Koperski and Czajkowski [17] (grey dashed-dotted line), result of Urbańczyk and Koperski [15] (grey dotted line) and most recent result of Sobczuk et al. [12] (black solid line) – see also Table 1. Note: for inner potential well representations refer to Figure 15. Part of the whole $E^3{\mathsf{\Sigma }}_1^{+}$- state potential representation in the vicinity of the potential barrier as the result of Ref. [12] is also shown (blue line and points) - see text for details. Ab-initio calculated potential of Krośnicki et al. [4] is shown for comparison (red line and points). Potential of the $B^{3}1$ intermediate state [16] used in OODR process is also drawn (green solid line). Three ways to execute the excitation using the $E^3{\mathsf{\Sigma }}_1^{+}{⟵B}^{3}1,{\upsilon }_B^{\text{'}\text{'}}=4$ transitions are depicted with vertical arrows: (a) quasi-bound$⟵$bound to the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$, (b) and (c) free$⟵$bound terminating at the inner and outer repulsive walls of the potential barrier, respectively, and (d) bound$⟵$bound to the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$.

5.3. Perspectives: bound → free Emission after OODR excitation of CdAr (and ZnAr) Rydberg State—Characterization Of Lower Lying ‘Dark’ States Or States Inaccessible In Direct Excitation From The Ground State

Higher-lying, Rydberg, electronic energy state can be exploited, after its excitation, as a source of emission to lower-lying states that: (1) due to the selection rules in excitation cannot be excited from the ground state (consequently called ‘dark’ states) or (2) due to their relative position, certain parts of their PECs can be probed only in emission (not in excitation). Figure 24 shows a number of electronic energy states of CdAr lying below the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state, therefore, after excitation of a selected $E^3{\mathsf{\Sigma }}_1^{+}$-state ${\upsilon }_E^{\prime }$ level, corresponding number of emission channels occurs and the emission terminates on those states giving rise to bound→free or bound→bound transitions, depending where the emission terminates, on the repulsive or bound part of the respective molecular potential, respectively. The analysis of the dispersed emission spectra (recorded with spectrometer or monochromator) allows to determine the shape of the potential on which the emission terminated.

The approach presented above for the $E^3{\mathsf{\Sigma }}_1^{+}$ Rydberg state in CdAr as a source of multichannel emission after OODR process down to the ‘dark’ electronic states has also been demonstrated for the ${ }^{1}1\left({4s4d }^1{\mathrm{D}}_2\right)$ Rydberg state in ZnAr [203]. More versatile study, i.e. simulations supported by experiment, has been performed for the $C^3{\mathsf{\Sigma }}_1^{+}\left(6s7s{ }^3{\mathrm{S}}_1\right)$ Rydberg state of HgAr by Duval et al. [24].

Figure 24. (a) Ab-initio calculated interatomic potentials of CdAr electronic energy states [4] used to illustrate OODR process of excitation of the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}\text{'}}=2$ from the $X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ via the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=5$ (vertical solid arrows) followed by emission to several lower-lying molecular states allowing characterization of their potentials using bound→free and bound→bound transitions. (b) Examples of simulation of dispersed emission spectra [206], [207], [209] with bound→free (b→f) and bound→bound (b→b) transitions from the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}\text{'}}=2$ to the $c^3{\mathsf{\Sigma }}_1^{+}\left(5s5p{ }^3{\mathrm{P}}_2\right)$, $b^3{\mathsf{\Pi }}_2\left(5s5p{ }^3{\mathrm{P}}_2\right)$ and $a^3{\mathsf{\Pi }}_{0^{-}}\left(5s5p{ }^3{\mathrm{P}}_0\right)$ electronic ‘dark’ states which would serve as data to determine their PECs [203].

Figure 24. (a) Ab-initio calculated interatomic potentials of CdAr electronic energy states [4] used to illustrate OODR process of excitation of the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}\text{'}}=2$ from the $X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ via the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=5$ (vertical solid arrows) followed by emission to several lower-lying molecular states allowing characterization of their potentials using bound→free and bound→bound transitions. (b) Examples of simulation of dispersed emission spectra [206], [207], [209] with bound→free (b→f) and bound→bound (b→b) transitions from the $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}\text{'}}=2$ to the $c^3{\mathsf{\Sigma }}_1^{+}\left(5s5p{ }^3{\mathrm{P}}_2\right)$, $b^3{\mathsf{\Pi }}_2\left(5s5p{ }^3{\mathrm{P}}_2\right)$ and $a^3{\mathsf{\Pi }}_{0^{-}}\left(5s5p{ }^3{\mathrm{P}}_0\right)$ electronic ‘dark’ states which would serve as data to determine their PECs [203].

5.4. Improved Determination of Inner and Outer Wells of the ${\mathit{E}}^3{\mathit{\Sigma }}_1^{+}$

- StatePotential in CdKr

By 2018, the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg double-well state potential of CdKr molecule was investigated as a whole only once, in 2004 [20]. In that study, pronounced ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=0-23⟵{\upsilon }_A^{\prime \prime }=9$ and ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=18-27⟵{\upsilon }_B^{\prime \prime }=1$ progressions to vibrational energy structure of the inner well were recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ and ${E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵B}^{3}1$ transitions, respectively. Also, ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }=0-6⟵{\upsilon }_B^{\prime \prime }=1$ progression to the outer well and fraction of free$⟵$bound (${\upsilon }_B^{\prime \prime }=1$) transitions to the repulsive wall of the potential barrier were recorded using the ${E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}⟵B}^{3}1$ transition. Analysis of the experimental spectra allowed for limited characterization of the inner and outer $E^3{\mathsf{\Sigma }}_1^{+}$- state potential wells. Both potential wells were individually represented with a corresponding Morse function stating at the same time that Morse representations are not adequate close to the dissociation limit or the potential barrier.

In the next study, the ${E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=21⟵{A^3{\mathsf{\Pi }}_{0^{+}},\upsilon }_A^{\prime \prime }=9$ vibrational band has been recorded and simulated focusing on its isotopic and rotational structures [16]. Simulation of the band [207] allowed to perform a limited rotational characterization by determination of respective rotational constants (see Table 1).

In 2019, very thorough and as complete as possible investigation of the CdKr inner $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ and outer $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ potential wells has been conducted performing a series of experiments in a relatively large spectral region by recording LIF excitation spectra that probed vibrational and isotopic structures of both $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ and $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ in different ranges of ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }$ and ${\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\prime }}$, respectively [19]. Both, the ${\mathrm{A}}^3{\mathsf{\Pi }}_{0^{+}}$ and ${\mathrm{B}}^{3}1$ intermediate states were used in OODR process (see the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ [215] and (b) $B^{3}1,{\upsilon }_B^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ [216] transitions used in OODR first-step excitation – Figure 25) and the following transitions were recorded:

-

to the inner potential well (see Figure 26(a),(c)):

$$E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\mathrm{\prime }}=0-23⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\mathrm{\prime }\mathrm{\prime }}=9$$

$$E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\mathrm{\prime }}=21-28⟵B^{3}1,{\upsilon }_B^{\mathrm{\prime }\mathrm{\prime }}=1$$

-

to the outer potential well (see Figure 27(a)-(d)):

Figure 25. LIF excitation spectra recorded using the (a) $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ [215] and (b) $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ [216] transitions in CdKr, both being first-steps of the excitation in OODR processes: $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ and $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ that allowed to investigate the inner $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ and outer $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ potential wells. Arrows show the ${\upsilon }_A^{\text{'}\text{'}}=9$ and ${\upsilon }_B^{\text{'}\text{'}}=0, 1, 4, 6$ that were used as origins for the second-step OODR transition. Asterisk depicts the ${\upsilon }_A^{\text{'}\text{'}}=9⟵{\upsilon }_X=0$ vibrational band recorded with higher resolution (see Figure 29) and used, among others, in isotopologues selection experiment (see Section 5.4). Note: irregular i.e., non-Morse behaviour of ${\upsilon }_B^{\text{'}\text{'}}$ levels is due to double-well character of the $B^{3}1$ - state potential [216].

Figure 25. LIF excitation spectra recorded using the (a) $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ [215] and (b) $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ [216] transitions in CdKr, both being first-steps of the excitation in OODR processes: $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ and $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ that allowed to investigate the inner $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ and outer $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ potential wells. Arrows show the ${\upsilon }_A^{\text{'}\text{'}}=9$ and ${\upsilon }_B^{\text{'}\text{'}}=0, 1, 4, 6$ that were used as origins for the second-step OODR transition. Asterisk depicts the ${\upsilon }_A^{\text{'}\text{'}}=9⟵{\upsilon }_X=0$ vibrational band recorded with higher resolution (see Figure 29) and used, among others, in isotopologues selection experiment (see Section 5.4). Note: irregular i.e., non-Morse behaviour of ${\upsilon }_B^{\text{'}\text{'}}$ levels is due to double-well character of the $B^{3}1$ - state potential [216].

[215] and (b) $B^{3}1,{\upsilon }_B^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ [216] transitions in CdKr, both being first-steps of the excitation in OODR processes: $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ and $E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }⟵X^1{\mathsf{\Sigma }}_1^{+},{\upsilon }_X=0$ that allowed to investigate the inner $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ and outer $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ potential wells. Arrows show the ${\upsilon }_A^{\prime \prime }=9$ and ${\upsilon }_B^{\prime \prime }=0, 1, 4, 6$ that were used as origins for the second-step OODR transition. Asterisk depicts the ${\upsilon }_A^{\prime \prime }=9⟵{\upsilon }_X=0$ vibrational band recorded with higher resolution (see Figure 29) and used, among others, in isotopologues selection experiment (see Section 5.4). Note: irregular i.e., non-Morse behaviour of ${\upsilon }_B^{\prime \prime }$ levels is due to double-well character of the $B^{3}1$ - state potential [216].

$$E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\prime }}=1-3⟵B^{3}1,{\upsilon }_B^{\prime \prime }=0,$$

$$E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\prime }}=1-8⟵B^{3}1,{\upsilon }_B^{\prime \prime }=1,$$

$$E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\prime }}=0-10⟵B^{3}1,{\upsilon }_B^{\prime \prime }=4,$$

$$E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\prime }}=0-17⟵B^{3}1,{\upsilon }_B^{\prime \prime }=6.$$

Figure 26(a),(c) presents LIF excitation spectra recorded using transitions terminating at the energy structure of ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }$ levels probed from both, the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=9$ and $B^{3}1,{\upsilon }_B^{\prime \prime }=1$ intermediate levels, respectively, this way extending accessibility of the excitation to all ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }$ levels (from 0 to 28) supported by the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ well. Before simulation of both spectra, it was concluded that the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ well characterizes itself with a distinct non- Morse behaviour close to the dissociation limit. As can be seen in Figure 26(e), B-S plot reveals non-linear component for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }\ge 24$ that prevent representation of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ well with a Morse function. Therefore, to solve the problem, with finding a proper representation for the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$, IPA methodology [208] was employed. This approach allowed to arrive at simulations, presented in Figure 26(b),(d), that reconstruct both spectra satisfactorily as far as positions of the components in ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵{\upsilon }_A^{\prime \prime }=9$ and ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵{\upsilon }_B^{\prime \prime }=1$ progressions are concerned, including their partly resolved isotopic structure for high ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }$. As for the $E^3{\mathsf{\Sigma }}_1^{+}⟵A^3{\mathsf{\Pi }}_{0^{+}}$ and $E^3{\mathsf{\Sigma }}_1^{+}⟵B^{3}1$ transitions in CdKr, in the simulations only FC-F factors were taken into account concluding with relatively good agreement between simulated and recorded intensities of vibrational components including their isotopic structure.

Figure 26. Experimental LIF excitation spectra terminating at the vibrational energy structure of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner potential well in CdKr, recorded using (a) $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9$ and (c) $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=1$ transitions, with intensities of the spectrum in (a) normalized due to large spectral region in which the total spectrum for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ was recorded, (different dye lasers used and carrier gas pressures were applied). (b) Simulation of positions only and (d) simulation of positions and intensities performed assuming the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ potential representation as the result of IPA method using (b) LEVEL [206] and (d) LEVEL and PGOPHER [207] programs, assuming (d) $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=3 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.15 \mathrm{c}{\mathrm{m}}^{-1}$. (e) B-S plot for the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0-21⟵{\upsilon }_A^{\text{'}\text{'}}=6$ (full squares) and ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=22-28⟵{\upsilon }_B^{\text{'}\text{'}}=1$ (empty squares) progressions showing distinct nonlinearity for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}\ge 24$. Size of points in the plot equals error bars for $\mathsf{\Delta }G$.

Figure 26. Experimental LIF excitation spectra terminating at the vibrational energy structure of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner potential well in CdKr, recorded using (a) $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9$ and (c) $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=1$ transitions, with intensities of the spectrum in (a) normalized due to large spectral region in which the total spectrum for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ was recorded, (different dye lasers used and carrier gas pressures were applied). (b) Simulation of positions only and (d) simulation of positions and intensities performed assuming the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ potential representation as the result of IPA method using (b) LEVEL [206] and (d) LEVEL and PGOPHER [207] programs, assuming (d) $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=3 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.15 \mathrm{c}{\mathrm{m}}^{-1}$. (e) B-S plot for the ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0-21⟵{\upsilon }_A^{\text{'}\text{'}}=6$ (full squares) and ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=22-28⟵{\upsilon }_B^{\text{'}\text{'}}=1$ (empty squares) progressions showing distinct nonlinearity for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}\ge 24$. Size of points in the plot equals error bars for $\mathsf{\Delta }G$.

The $E^3{\mathsf{\Sigma }}_1^{+}$- state outer well was probed using LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=0, 1, 4$ ,6 second-step transitions of OODR process (note that in the first study [20] only one ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵{\upsilon }_B^{\prime \prime }=1$ progression was recorded with poor spectral resolution). The spectra are shown in Figure 27(a)-(d). As can be easily concluded, ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵{\upsilon }_B^{\prime \prime }$ progressions of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}⟵B^{3}1$ transition overlaps with ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵{\upsilon }_B^{\prime \prime }$ progressions of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵B^{3}1$ transition which makes the analysis more difficult. However, two separate simulations for each ${\upsilon }_B^{\prime \prime }$ with assumed representations of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ and $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ potential wells as these derived from IPA methodology (for $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ representation derived from spectrum shown in Figure 26 was used), and $B^{3}1$- state representation from Ref. [216]) revealed satisfactory reconstruction of the recorded spectra. It is important to notice that the simulations were performed without TDM function for the transition, and intensities of vibrational components were assumed to have arbitrary values. Additionally, as the $B^{3}1$- state potential also possesses a double-well structure (which was concluded from ab initio calculation [40] and experimental studies [216]), small change in its shape would have a significant impact on the shape of ${\upsilon }_B^{\prime \prime }$ - level wavefunctions and consequently, on intensities of ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵{\upsilon }_B^{\prime \prime }$ and ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵{\upsilon }_B^{\prime \prime }$ transitions.

Figure 28 presents representation of the $E^3{\mathsf{\Sigma }}_1^{+}$ Rydberg state potential in CdKr that was derived from the LIF excitation spectra of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=9$ and $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=1$ transitions (see Figure 26(a),(c)), and the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=6$ transition (see Figure 27(d)) using IPA methodology. The approach was justified by a nonlinearity of B-S plots that were constructed for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }$ (Figure 26(e)) and ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }$ (Figure 27(e)) vibrational energy structures supported by $E^3{\mathsf{\Sigma }}_1^{+}$- state inner and outer potential wells, respectively, and immediate conclusion that neither inner nor outer well cannot be represented by a Morse function. IPA representation is compared with two results of ab initio calculations: that of 2008 [39], [40] and most recent [217] showing their disagreement with the experimental result calling for additional studies using both, calculational and experimental approaches (note: most recent ab initio result shows noticeable improvement as compared to the earlier one).

Figure 27. LIF excitation spectra (red traces) terminating at the ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$ vibrational energy structure of the $E^3{\mathsf{\Sigma }}_1^{+}$- state outer well and most upper-lying ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ levels of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well in CdKr, recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ and $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$, respectively starting at (a) ${\upsilon }_B^{\text{'}\text{'}}=0$, (b) ${\upsilon }_B^{\text{'}\text{'}}=1$, ${\upsilon }_B^{\text{'}\text{'}}=4$, and ${\upsilon }_B^{\text{'}\text{'}}=6$. Simulations of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}⟵B^{3}1$ and $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵B^{3}1$ spectra (blue and grey traces, respectively) performed using LEVEL [206] and PGOPHER [207] programs in which $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$, $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ and $B^{3}1$- state representations were taken from Refs. [19] and [216], and $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=3 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.15 \mathrm{c}{\mathrm{m}}^{-1}$ were assumed. (e) B-S plot drawn for the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ potential well in CdKr based on the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}{,\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=6$ transition shown in (d) in which strong nonlinearity is present, and two regions, A (${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}=0-8$) and B (${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}=9-16$), each of linear behaviour, can be extracted.

Figure 27. LIF excitation spectra (red traces) terminating at the ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}$ vibrational energy structure of the $E^3{\mathsf{\Sigma }}_1^{+}$- state outer well and most upper-lying ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ levels of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner well in CdKr, recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ and $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$, respectively starting at (a) ${\upsilon }_B^{\text{'}\text{'}}=0$, (b) ${\upsilon }_B^{\text{'}\text{'}}=1$, ${\upsilon }_B^{\text{'}\text{'}}=4$, and ${\upsilon }_B^{\text{'}\text{'}}=6$. Simulations of the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}⟵B^{3}1$ and $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}⟵B^{3}1$ spectra (blue and grey traces, respectively) performed using LEVEL [206] and PGOPHER [207] programs in which $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$, $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ and $B^{3}1$- state representations were taken from Refs. [19] and [216], and $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=3 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.15 \mathrm{c}{\mathrm{m}}^{-1}$ were assumed. (e) B-S plot drawn for the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ potential well in CdKr based on the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}{,\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}⟵B^{3}1,{\upsilon }_B^{\text{'}\text{'}}=6$ transition shown in (d) in which strong nonlinearity is present, and two regions, A (${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}=0-8$) and B (${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\text{'}}=9-16$), each of linear behaviour, can be extracted.

Figure 28. Representations of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state potential of CdKr with inset showing details of the potential barrier and outer potential well close to the dissociation limit. $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ (red line and circles) and $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ (red line and squares) potential wells representations as results of IPA methodology and analysis of spectra in Figure 26(a),(c) and Figure 27(d), respectively. Morse representation of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ being the result of B-S plot analysis in Figure 26(e) is also presented (blue solid line). The experimentally determined representations are compared with two results of ab initio calculations showing their considerable difference: that of 2008 performed by Krośnicki and collaborators [39], [40] (black line and empty circles) and most recent performed by Krośnicki et al. [217] (black line and full circles). Estimated height of the potential barrier $E_b^{\text{'}}$ is shown with red horizontal line. For comparison, also result of the first experimental study is included [20] (grey solid lines). Ranges of ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ and ${\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\text{'}}}$ excited from the $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ and analysed [19] are shown (grey rectangles).

Figure 28. Representations of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state potential of CdKr with inset showing details of the potential barrier and outer potential well close to the dissociation limit. $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ (red line and circles) and $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ (red line and squares) potential wells representations as results of IPA methodology and analysis of spectra in Figure 26(a),(c) and Figure 27(d), respectively. Morse representation of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ being the result of B-S plot analysis in Figure 26(e) is also presented (blue solid line). The experimentally determined representations are compared with two results of ab initio calculations showing their considerable difference: that of 2008 performed by Krośnicki and collaborators [39], [40] (black line and empty circles) and most recent performed by Krośnicki et al. [217] (black line and full circles). Estimated height of the potential barrier $E_b^{\text{'}}$ is shown with red horizontal line. For comparison, also result of the first experimental study is included [20] (grey solid lines). Ranges of ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}$ and ${\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\text{'}}}$ excited from the $B^{3}1,{\upsilon }_B^{\text{'}\text{'}}$ and analysed [19] are shown (grey rectangles).

Rydberg state potential of CdKr with inset showing details of the potential barrier and outer potential well close to the dissociation limit. $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ (red line and circles) and $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+}$ (red line and squares) potential wells representations as results of IPA methodology and analysis of spectra in Figure 26(a),(c) and Figure 27(d), respectively. Morse representation of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ being the result of B-S plot analysis in Figure 26(e) is also presented (blue solid line). The experimentally determined representations are compared with two results of ab initio calculations showing their considerable difference: that of 2008 performed by Krośnicki and collaborators [39], [40] (black line and empty circles) and most recent performed by Krośnicki et al. [217] (black line and full circles). Estimated height of the potential barrier $E_b^{\prime }$ is shown with red horizontal line. For comparison, also result of the first experimental study is included [20] (grey solid lines). Ranges of ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }$ and ${\mathsf{\upsilon }}_{{\mathrm{E}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\mathrm{\prime }}$ excited from the $B^{3}1,{\upsilon }_B^{\prime \prime }$ and analysed [19] are shown (grey rectangles).

Special attention has to be paid on all three aspects of the problem: depth of two potential wells and height of the potential barrier. As can be seen in Figure 28, experimentally determined depth of the inner well [19] falls between both ab initio results whereas depth of the outer well is significantly larger than both ab-initio calculated. The comparison is supplemented with the first experimental result [20] which for the inner well is close to the IPA potential (Table 3 in Ref. [19]) but for the outer well not surprisingly departs largely from that obtained using IPA method (Table 5 in Ref. [19]) as obtained from a smaller data set as argued above (for detailed spectroscopic data see Table 1). Unfortunately, from the recorded spectra it was not possible to conclude either the shape of the $E^3{\mathsf{\Sigma }}_1^{+}$- state potential near the barrier nor the shape of barrier itself. However, the highest ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }=17$ observed in the $E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=6$ spectrum possesses the energy that is 3 $\mathrm{c}{\mathrm{m}}^{-1}$ above the top of the barrier that has been recently ab-initio calculated [217]. This suggests that the actual height of the barrier is somewhat larger. This can be additionally supported by the presence of a broad band (see Figure 27(d)) spanning over approx. 20 $\mathrm{c}{\mathrm{m}}^{-1}$ (i.e. between 51462 $\mathrm{c}{\mathrm{m}}^{-1}$ and 51483 $\mathrm{c}{\mathrm{m}}^{-1}$ with respect to $X^1{\mathsf{\Sigma }}_1^{+}$- state dissociation energy) that has been interpreted based on the hypothesis of unresolved ${\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵{\upsilon }_B^{\prime \prime }=6$ vibrational transitions supported by the $E^3{\mathsf{\Sigma }}_1^{+}$- state potential above the barrier and below the dissociation limit correlating with the $\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Cd asymptote.

5.5. Practical Method for Isotopologue Selection Using OODR - Case of CdKr and CdAr

In general, the isotopologue-selective excitation could be possible providing the isotopic shift in chosen vibrational components is sufficiently large. It has been demonstrated with a proper choice of a wavenumber of the laser with sufficiently narrow spectral bandwidth in OODR first-step excitation which can lead to a isotopologue-selective excitation in the $A^3{\mathsf{\Pi }}_{0^{+}}$ intermediate state. Thanks to this approach, selected isotopologues could be excited contributing subsequently to intensity of LIF signal originating from the $E^3{\mathsf{\Sigma }}_1^{+}$ final state after OODR second-step excitation.

In Section 5.2.1 the isotopologue selection in excitation has been suggested in case of the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=6⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ first-step OODR transition in CdAr where only two isotopologues,${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$ and ${ }^{114}{\mathrm{C}\mathrm{d}}^{40}\mathrm{A}\mathrm{r}$, were excited with the former predominating (see Figure 17(B)). Then, result of the isotopologues selection has been demonstrated in the subsequent $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=2,5,11,17⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=6$ second-step OODR transitions (see Figure 17(A)) showing possibility of increasing resolution of rotational structures in the recorded spectra due to limited number of isotopologues excited. Note: CdAr possesses 6 out of 24 ${ }^{A_{\mathrm{C}\mathrm{d}}}{\mathrm{C}\mathrm{d}}^{A_{\mathrm{A}\mathrm{r}}}\mathrm{A}\mathrm{r}$ isotopologues with considerable abundance $\alpha$, i.e. $\alpha >3\%$ $A_{\mathrm{C}\mathrm{d}}$ (and $A_{\mathrm{A}\mathrm{r}}$ are Cd and Ar mass numbers, respectively).

The isotopologue selection in the excitation has also been convincingly demonstrated for CdKr using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=9⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ first- and, subsequent, $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=18⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=9$ second-step OODR transitions. Figure 29(A) presents the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=9⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ profile with considerably large isotopic shift (the shift increases with increasing ${\upsilon }_A^{\prime \prime }$) between${ }^{A_{\mathrm{C}\mathrm{d}}}{\mathrm{C}\mathrm{d}}^{A_{\mathrm{K}\mathrm{r}}}\mathrm{K}\mathrm{r}$ isotopologues. From Figure 29(A) is evident that the possibility of excitation of selected isotopologues is most favourable for ${\nu }_{las 1}=\mathrm{30556,90} \mathrm{c}{\mathrm{m}}^{-1}$ for which sole ${ }^{116}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ can be excited (see position-1 in Figure 29(A)). However, as in the experiment natural abundances of Cd and Kr were used, abundance of ${ }^{116}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ in molecular beam is relatively small, i.e. $\alpha =1.3\%$ that resulted in small signal-to-noise ratio (SNR) (see Figure 29(B)). SNR is much better for other positions of ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}$. This is the case with ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}=\mathrm{30557,58} \mathrm{c}{\mathrm{m}}^{-1}$, in position-2, for which ${ }^{114}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ and small admixture of ${ }^{116}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ are excited, or for ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}=\mathrm{30559,35} \mathrm{c}{\mathrm{m}}^{-1}$, in position-4, for which excitation of most abundant ${ }^{114}{\mathrm{C}\mathrm{d}}^{84}\mathrm{K}\mathrm{r}$ with relatively very small admixtures of four other isotopologues. Note: CdKr possesses 22 out of 48 isotopologues with considerable abundance $\alpha$ (i.e. $\alpha >1\%$).

Simplification of LIF excitation spectra by reducing number of excited isotopologues allows to partly resolve their rotational structure and facilitates their simulation. In some cases, such as discussed here, for vibrational components recorded at the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }$ second-step OODR transitions it would be difficult (or even impossible) to achieve partial resolution of rotational structure without applying the proposed approach. Using sufficiently narrow spectral bandwidth laser in the first-step excitation has also an impact on the distribution of the populations of the excited $J_A^{\prime \prime }$ intermediate-state rotational levels. In other words, if OODR first-step excitation laser ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}$ is sufficiently spectrally narrow, only a selected group of rotational levels $J_A^{\prime \prime }$ (from $J_{A \mathrm{m}\mathrm{i}\mathrm{n}}^{\prime \prime }$ to $J_{A \mathrm{m}\mathrm{a}\mathrm{x}}^{\prime \prime }$) in ${\upsilon }_A^{\prime \prime }$ level is populated. It is evident that by narrowing the ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}$ spectral bandwidth, one can restrict the range of $J_A^{\prime \prime }$ in the intermediate state without manipulating of $T_{\mathrm{r}\mathrm{o}\mathrm{t}}$. Consequently, also LIF excitation spectrum originated as the result of the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }$ transition contains contribution only from the selected range of $J_{E_{\mathrm{i}\mathrm{n}}}^{\prime \prime }$. Illustration of the problem is presented in Figure 29(C) where profiles of LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=0,3,18⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=9$ transitions in ${ }^{114}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ with small admixture of ${ }^{116}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ (see Figure 29(A): ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}$ in position-2). Simulations of the profiles were performed with assumption of strictly specified $T_{\mathrm{r}\mathrm{o}\mathrm{t}}$ and ranges of excited $J_A^{\prime \prime }$ from $J_{A \mathrm{m}\mathrm{i}\mathrm{n}}^{\prime \prime }$ to $J_{A \mathrm{m}\mathrm{a}\mathrm{x}}^{\prime \prime }$ (see figure caption).

It is evident that due to the isotopic shift between different isotopologues of the investigated CdNg molecules, even for relatively rich isotopic composition, by employing laser with sufficiently small spectral bandwidth is possible to select one or few ${ }^{A_{\mathrm{C}\mathrm{d}}}{\mathrm{C}\mathrm{d}}^{A_{\mathrm{N}\mathrm{g}}}\mathrm{N}\mathrm{g}$ isotopologues in OODR first-step excitation. Limiting number of isotopologues participating in the LIF signal as the result of OODR second-step excitation leads to simplification of the recorded spectra originating from considerably dense rotational energy structure allowing to partly resolve and simulate rotational profiles.

Figure 29. (A): (a) Profile of LIF excitation spectrum recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ transition in CdKr. (b) Total simulation of the profile performed using PGOPHER [207] program, assuming $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=4 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$ as well as $B_{\upsilon }$ and $D_{\upsilon }$ rotational constants, and transition energies calculated using LEVEL [206] program for the $A^3{\mathsf{\Pi }}_{0^{+}}$ [16] and $X^1{\mathsf{\Sigma }}_1^{+}$- state [215] potential characteristics. (c) Individual contributions to (b) that originate from different ${ }^{A_{\mathrm{C}\mathrm{d}}}{\mathrm{C}\mathrm{d}}^{A_{\mathrm{K}\mathrm{r}}}\mathrm{K}\mathrm{r}$ isotopologues with abundances larger than 1%. (d) Positions of ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}$ laser wavenumber of OODR first-step excitation used in (B); examples of ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}\pm 0.1 \mathrm{c}{\mathrm{m}}^{-1}$ are represented with blue vertical dashed lines and rectangles. (B): Profiles of LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=18⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9$ OODR second-step transition for different ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}\pm 0.1 \mathrm{c}{\mathrm{m}}^{-1}$ depicted in (A)-(d), i.e. for different combinations of ${ }^{A_{\mathrm{C}\mathrm{d}}}{\mathrm{C}\mathrm{d}}^{A_{\mathrm{K}\mathrm{r}}}\mathrm{K}\mathrm{r}$ isotopologues excited. For simulation shown with black line (in position-2) refer to (C). (C): (a) Profiles of LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0,3,18⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9$ transitions in ${ }^{114}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ (with small admixture of ${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{K}\mathrm{r}$) – excitation in position-2: ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}=\mathrm{30557,58}\pm 0.1 \mathrm{c}{\mathrm{m}}^{-1}$ shown in (A). (b) Simulations performed using PGOPHER [207] program, assuming $J_{A \mathrm{m}\mathrm{i}\mathrm{n}}^{\text{'}\text{'}}=0, { J}_{A \mathrm{m}\mathrm{a}\mathrm{x}}^{\text{'}\text{'}}=15$, $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=4 \mathrm{K}$ (for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0\mathrm{a}\mathrm{n}\mathrm{d}3$), $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=15 \mathrm{K}(\mathrm{f}\mathrm{o}\mathrm{r}{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=18$), and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$, as well as $B_{\upsilon }$ and $D_{\upsilon }$ rotational constants, and transition energies calculated using LEVEL [206] program for the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ [16] and $A^3{\mathsf{\Pi }}_{0^{+}}$ - state [16] potential characteristics,. (c) Simulated distributions of P-, Q- and R-branch components depicted with colour code as in part for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0$. Intensity of Q-branch is damped as concluded in Ref. [10].

Figure 29. (A): (a) Profile of LIF excitation spectrum recorded using the $A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9⟵X^1{\mathsf{\Sigma }}_1^{+},\upsilon =0$ transition in CdKr. (b) Total simulation of the profile performed using PGOPHER [207] program, assuming $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=4 \mathrm{K}$ and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$ as well as $B_{\upsilon }$ and $D_{\upsilon }$ rotational constants, and transition energies calculated using LEVEL [206] program for the $A^3{\mathsf{\Pi }}_{0^{+}}$ [16] and $X^1{\mathsf{\Sigma }}_1^{+}$- state [215] potential characteristics. (c) Individual contributions to (b) that originate from different ${ }^{A_{\mathrm{C}\mathrm{d}}}{\mathrm{C}\mathrm{d}}^{A_{\mathrm{K}\mathrm{r}}}\mathrm{K}\mathrm{r}$ isotopologues with abundances larger than 1%. (d) Positions of ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}$ laser wavenumber of OODR first-step excitation used in (B); examples of ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}\pm 0.1 \mathrm{c}{\mathrm{m}}^{-1}$ are represented with blue vertical dashed lines and rectangles. (B): Profiles of LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=18⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9$ OODR second-step transition for different ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}\pm 0.1 \mathrm{c}{\mathrm{m}}^{-1}$ depicted in (A)-(d), i.e. for different combinations of ${ }^{A_{\mathrm{C}\mathrm{d}}}{\mathrm{C}\mathrm{d}}^{A_{\mathrm{K}\mathrm{r}}}\mathrm{K}\mathrm{r}$ isotopologues excited. For simulation shown with black line (in position-2) refer to (C). (C): (a) Profiles of LIF excitation spectra recorded using the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0,3,18⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\text{'}\text{'}}=9$ transitions in ${ }^{114}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$ (with small admixture of ${ }^{116}{\mathrm{C}\mathrm{d}}^{40}\mathrm{K}\mathrm{r}$) – excitation in position-2: ${\nu }_{\mathrm{l}\mathrm{a}\mathrm{s} 1}=\mathrm{30557,58}\pm 0.1 \mathrm{c}{\mathrm{m}}^{-1}$ shown in (A). (b) Simulations performed using PGOPHER [207] program, assuming $J_{A \mathrm{m}\mathrm{i}\mathrm{n}}^{\text{'}\text{'}}=0, { J}_{A \mathrm{m}\mathrm{a}\mathrm{x}}^{\text{'}\text{'}}=15$, $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=4 \mathrm{K}$ (for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0\mathrm{a}\mathrm{n}\mathrm{d}3$), $T_{\mathrm{r}\mathrm{o}\mathrm{t}}=15 \mathrm{K}(\mathrm{f}\mathrm{o}\mathrm{r}{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=18$), and ${\mathsf{\Delta }}_{\mathrm{L}}={\mathsf{\Delta }}_{\mathrm{G}}=0.1 \mathrm{c}{\mathrm{m}}^{-1}$, as well as $B_{\upsilon }$ and $D_{\upsilon }$ rotational constants, and transition energies calculated using LEVEL [206] program for the $E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+}$ [16] and $A^3{\mathsf{\Pi }}_{0^{+}}$ - state [16] potential characteristics,. (c) Simulated distributions of P-, Q- and R-branch components depicted with colour code as in part for ${\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\text{'}}=0$. Intensity of Q-branch is damped as concluded in Ref. [10].

6. Particular spectroscopic Applications of Rydberg Double-Well Electronic Energy States In Diatomic Molecules

A number of current spectroscopic applications of the results related to knowledge on potentials of the higher-excited (Rydberg) electronic energy states of homo- and heteroatomic molecules has been reviewed in Section 2. Here, the review is concluded with two interesting applications that employ HgAr vdW molecule in supersonic beams. The reason the HgAr is being mostly used in such demonstrations, is a relative ease of production of Hg carried with Ar in a supersonic expansion (Hg temperature and Ar pressure corresponding to 400 K and 1-3 bar, respectively) that, in effect, constitutes an efficient source of ro-vibrationally cold HgAr mostly in $\left({\upsilon }^{\prime \prime }=0, \mathrm{l}\mathrm{o}\mathrm{w} J^{\prime \prime }\right)$ ground-state levels.

6.1. Spectroscopy of ‘dark’ $c^{3}1$ state of HgAr

A very interesting application has been presented by Amano and coworkers [25] and aimed at spectroscopy of so-called ‘dark’ state (see Figure 30, notation of molecular states after Ref. [25]). That was first observation of the $c^{3}1\left({6s6p }^3{\mathrm{P}}_2\right)$ state of HgAr that after excitation from the $X^1{0}^{+}\left(6s^2{ }^1{\mathrm{S}}_0\right)$ ground state does not emit back; it is caused by the fact that it correlates with the ${(6s6p }^3{P}_2)$ atomic level to which the dipole transition from the $\left(6s^2{ }^1{S}_0\right)$ level is strictly forbidden. This property partly transfers from atomic levels to the respective molecular states: $c^{3}1⟵ X^1{0}^{+}$ excitation may occur but emission is supressed due to the long fluorescence lifetime. To overcome the obstacle, the authors used a sequence of the pump- and probe-laser pulses. The first, pump-laser pulse, tuned to the $c^{3}1({\upsilon }_c^{\prime }=0-8)⟵ X^1{0}^{+}({\upsilon }_X^{\prime \prime }=0)$ progression preceded the probe-laser pulse tuned to the $E^{3}1\left({6s7s }^3{\mathrm{S}}_1\right)⟵c^{3}1$ transition. The knowledge on the $E^{3}1$ Rydberg double-well state that was acquired from the study of Duval and coworkers [24], allowed to time-adjusting the pump-laser pulse, so it terminated at the outer wall of the potential barrier separating the two wells. Consequently, the molecule dissociated and the $\left({6s7s }^3{\mathrm{S}}_1\right)⟶\left({{6s6p }^3{\mathrm{P}}_J),}^{ }\right(6s^2{ }^1{S}_0)$ atomic fluorescence was recorded displaying ${\upsilon }_c^{\prime }$ - progression in the $c^{3}1$ ‘dark’ state.

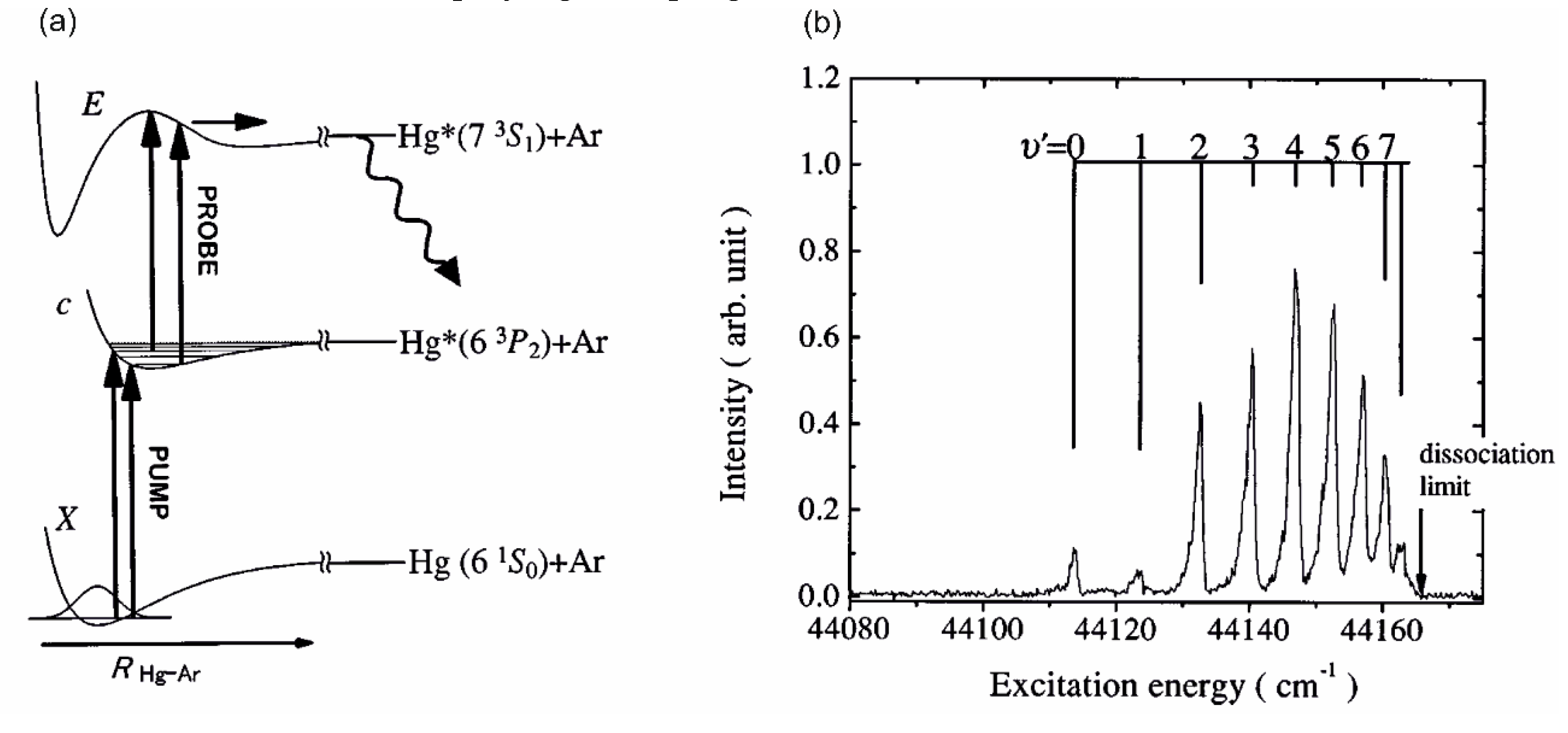

Figure 30. (a) Scheme of the double-resonance technique for the detection of the ‘dark’ intermediate ${\upsilon }^{\text{'}}$ vibrational levels of the $c^{3}1$ state in HgAr using probe-laser excitation to the potential barrier in the $E^{3}1$ Rydberg state. (b) $c^{3}1\left({\upsilon }^{\text{'}}\right)-X^1{0}^{+}({\upsilon }^{\text{'}\text{'}}=0)$ excitation spectrum of the HgAr vdW complex plotted against the pump wavenumber (from Ref. [25] under permission of American Institute of Physics).

Figure 30. (a) Scheme of the double-resonance technique for the detection of the ‘dark’ intermediate ${\upsilon }^{\text{'}}$ vibrational levels of the $c^{3}1$ state in HgAr using probe-laser excitation to the potential barrier in the $E^{3}1$ Rydberg state. (b) $c^{3}1\left({\upsilon }^{\text{'}}\right)-X^1{0}^{+}({\upsilon }^{\text{'}\text{'}}=0)$ excitation spectrum of the HgAr vdW complex plotted against the pump wavenumber (from Ref. [25] under permission of American Institute of Physics).

6.2. Molecular Wave-Packet Interferometry with HgAr

Molecular wave-packet interferometry demonstrated with a high-precision was reported by Ohmori and coworkers [218]. The wave packet was created in the $A^3{0}^{+}\left(6s6p{ }^3{\mathrm{P}}_1\right)$ state of HgAr molecule using two time-delayed ($\tau$) femtosecond (300 fs) pulses with wavelength centred at 254.2 nm (see Figure 31, notation of molecular states after Ref. [218]). The centre wavelength of the pulses was selected so that the ${\upsilon }_A^{\prime \prime }=3,4,\mathrm{a}\mathrm{n}\mathrm{d}5$ vibrational eigenstates of the $A^3{0}^{+}$ state were coherently superimposed, and two molecular wave-packets were created sequentially near the outer turning point of the $A^3{0}^{+}$ - state PEC. A probe-laser nanosecond pulse was delayed by 30 ns with respect to the femtosecond pulses, tuned to the $E^{3}1⟵A^3{0}^{+}$ transition, and used for LIF detection of the $A^3{0}^{+}$ - state population. Due to its spectral bandwidth the probe-laser covered a small number of rotational lines ($J_A^{\prime \prime }=4-8$) with either ${\upsilon }_E^{\prime }=15⟵{\upsilon }_A^{\prime \prime }=3$, $16⟵4$, or $17⟵5$ vibrational bands of the $E^{3}1⟵A^3{0}^{+}$ transition. It allowed to observe the interferograms (with almost 100% fringe contrast) for the populations of the ${\upsilon }_A^{\prime \prime }=3,4,\mathrm{a}\mathrm{n}\mathrm{d}5$ vibrational levels as a function of the $\tau$ delay-time which was tuned with sub-10 ns stability and resolution.

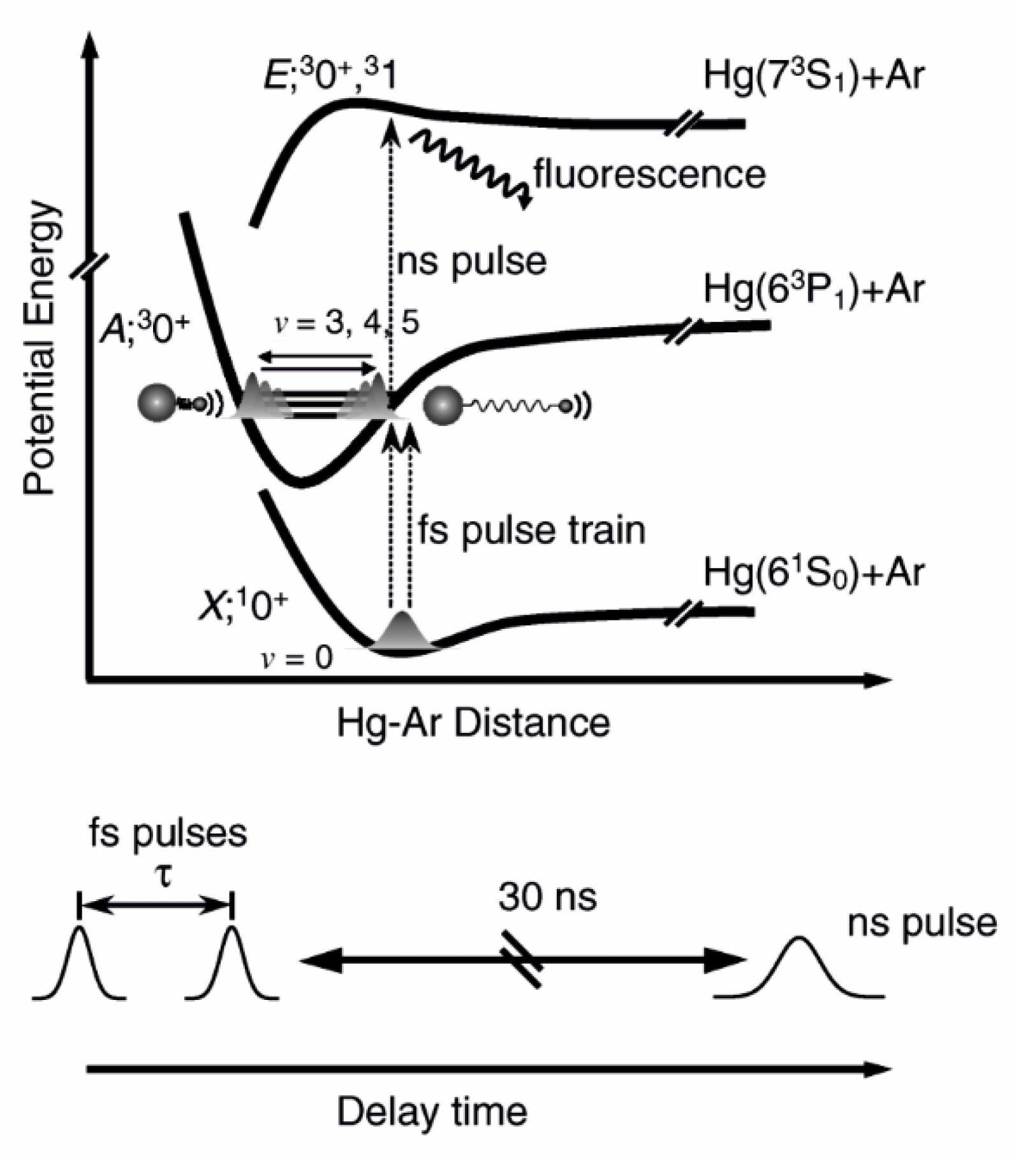

Figure 31. Pump-control-probe scheme for detection of the populations of the $A^3{0}^{+}$, ${\upsilon }_A^{\text{'}\text{'}}$ vibrational levels created by a double-laser pulse from the $X^1{0}^{+}$, ${\upsilon }_X=0$ vibrational level (from Ref. [218] under permission of The American Physical Society).

Figure 31. Pump-control-probe scheme for detection of the populations of the $A^3{0}^{+}$, ${\upsilon }_A^{\text{'}\text{'}}$ vibrational levels created by a double-laser pulse from the $X^1{0}^{+}$, ${\upsilon }_X=0$ vibrational level (from Ref. [218] under permission of The American Physical Society).

7. Conclusions

Recent progress in studies of Rydberg double-well electronic energy states of 12-group CdNg (Ng=Ne, Ar, Kr) vdW molecules produced in molecular beams and investigated using techniques of laser spectroscopy such as OODR has been presented and analysed.

As a representative illustration we quote the progress that has been made to the present [10], [12-15], [19], [203] as well as other supplementing results representing the most interesting advances in the $E^3{\mathsf{\Sigma }}_1^{+}$ Rydberg state characterization in CdNg molecules showing a real added value to the review:

-

ab-initio analysis of formation of the outer well and the energy barrier in the $E^3{\mathsf{\Sigma }}_1^{+}$ state of MeNg molecules presented in Section 1;

-

newly recorded experimental spectra, e.g. presented in Figure 11 ($E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\prime }=0⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=\mathrm{0,1}$ transition in CdNe) and Figure 22 ($E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=0$ transition in CdAr);

-

new simulations of rotational profiles, e.g. presented in Figure 11 ($E^3{\mathsf{\Sigma }}_1^{+},{\upsilon }_E^{\prime }=0⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=\mathrm{0,1}$ transition in CdNe), Figure 17 ($E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }$ transition in CdAr), and Figure 29 ($E^3{\mathsf{\Sigma }}_{1\mathrm{i}\mathrm{n}}^{+},{\upsilon }_{E_{\mathrm{i}\mathrm{n}}}^{\prime }=0,3,18⟵A^3{\mathsf{\Pi }}_{0^{+}},{\upsilon }_A^{\prime \prime }=9$ transitions in ${ }^{114}{\mathrm{C}\mathrm{d}}^{86}\mathrm{K}\mathrm{r}$);

new analyses of experimental spectra, e.g. presented in Figure 19 ($E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=1-4$ transitions in CdAr) and Figure 20 ($E^3{\mathsf{\Sigma }}_{1\mathrm{o}\mathrm{u}\mathrm{t}}^{+},{\upsilon }_{E_{\mathrm{o}\mathrm{u}\mathrm{t}}}^{\prime }⟵B^{3}1,{\upsilon }_B^{\prime \prime }=\mathrm{1,3}$ transitions in CdAr);

-

preliminary study of dispersed emission spectra recorded using the $B^{3}1\left(5s{5p}^3{\mathrm{P}}_1\right),{\upsilon }^{\prime \prime }=4\to X^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s^2{{ }^1\mathrm{S}}_0\right),\upsilon$ transitions in CdAr and their simulations presented in Figure 32 below.

Several examples of recent achievements and interesting approaches for rotational characterization, therefore, direct bond-length determination in both potential wells, improved determination of potential representations for inner and outer potential wells, and the barrier that separates them have been described. It allowed determination of the complete Rydberg-state potential energy curves using recorded free$⟵$bound and bound$⟵$bound excitation spectra.

Concept of so-called agreement plot and agreement parameter employed for more comprehensive vibrational characterization of the energy structure supported by electronic energy state as well as for determination of the molecular bond length from modelling od distributions of F-C factors in excitation spectra have also been introduced.

As a practical approach, method for isotopologue selection for rich isotopic and spectroscopically dense molecular energy structure using OODR has been demonstrated as useful method for considerable simplification of vibrational and rotational analyses.

Bound→free and bound→bound dispersed emission spectra after OODR excitation of selected Rydberg state has been presented via simulation as a perspective for characterization of lower lying ‘dark’ states or other electronic energy states inaccessible in a direct excitation from the ground state.

The presentation and analyses have been performed in a broader context of Rydberg states of MeNg and Me₂ diatomic molecules which interatomic potentials possess complex (for example double-well) structure and including variety of spectroscopic methods of their investigations such as laser vaporization-optical resonance and pump-and-probe methods or polarization labelling spectroscopy.

Importance of current state-of-the-art applications of Rydberg states with irregular potentials in photoassociation, vibrational and rotational cooling, molecular clocks, frequency standards or molecular wave-packet interferometry has been emphasized.

All spectroscopic characteristics of the $E^3{\mathsf{\Sigma }}_1^{+}\left(5s6s{ }^3{\mathrm{S}}_1\right)$ Rydberg state in CdNe, CdAr and CdKr determined in presented studies of these molecules performed in the Authors’ laboratory are collected in Table 1 where they are compared with experimental results of other studies and with results of ab initio calculations; suggestions for recommended values are also shown.

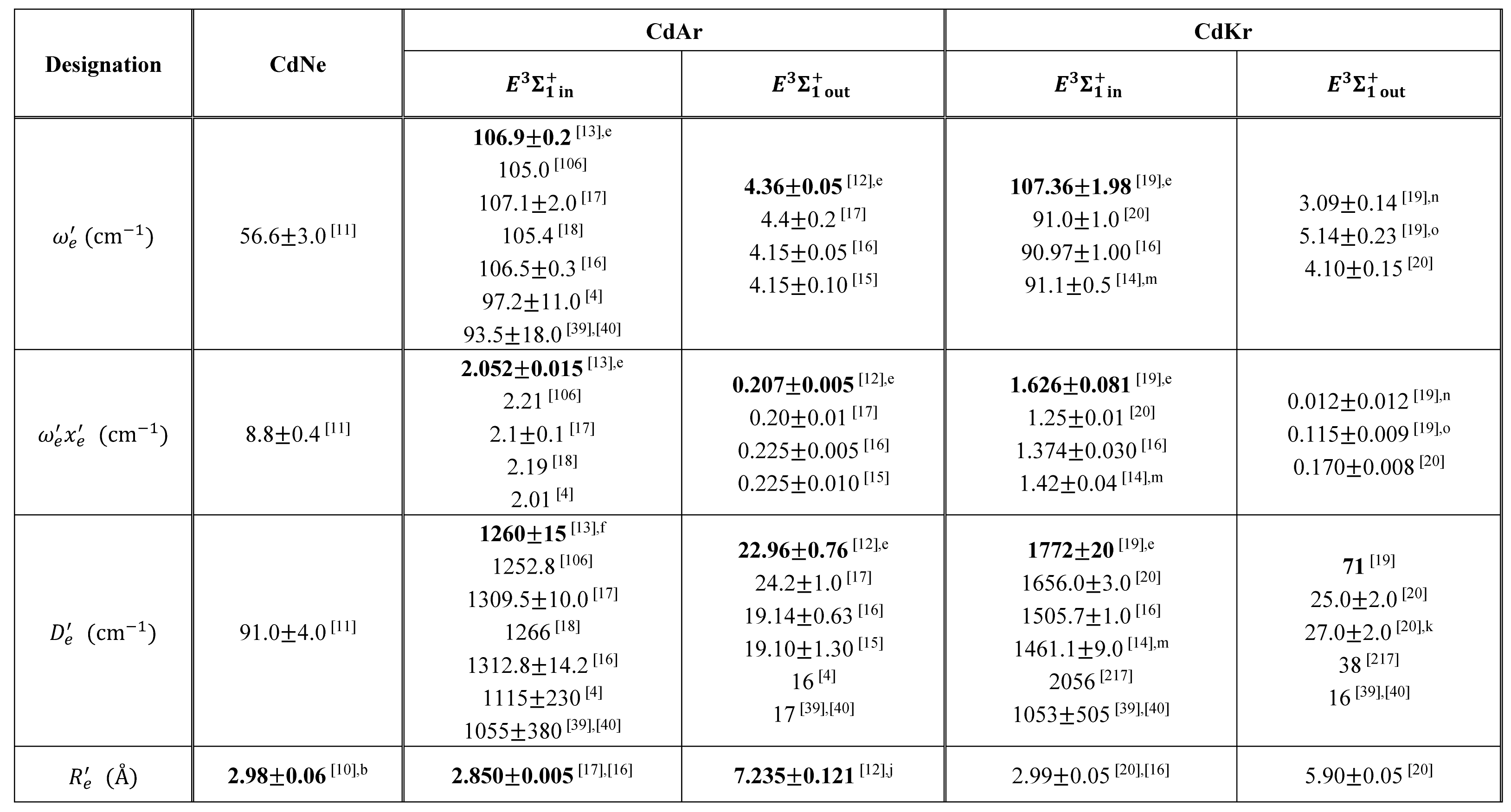

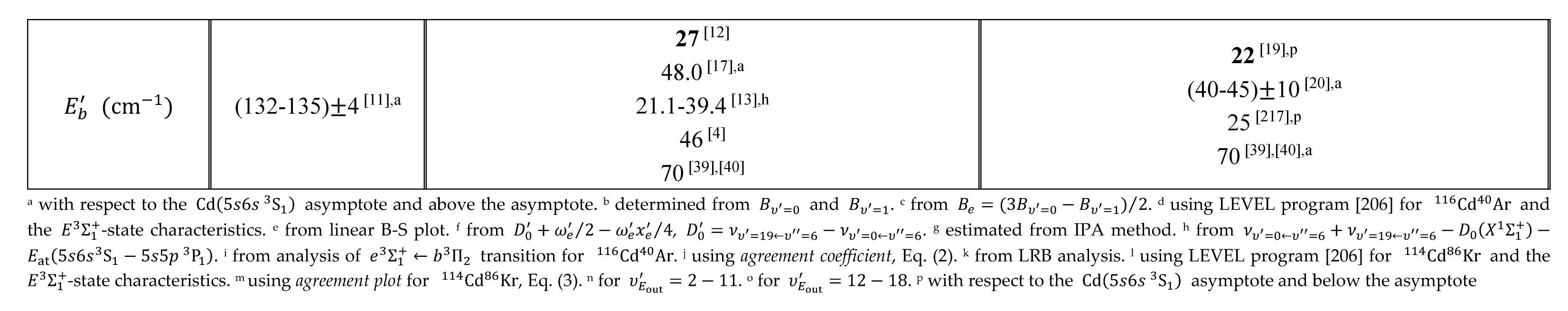

Tentative estimates of the errors of ab initio values of the $E^3{\mathsf{\Sigma }}_1^{+}$- state inner potential well characteristics are shown in Table 1. Errors are extrapolated from the analyses presented in Ref. [3] for the two dominating sources of errors, i.e. incompleteness of the basis sets and deficiency in description of the electron correlation. The latter factor appears to be the main source of errors. The errors due to remaining factors were estimated by the magnitude of error due to deficiency in description of the electron correlation. Estimation of the errors of the characteristics of energy barrier and outer potential well needs further analysis that goes beyond the scope of this review. Similarly, the estimates of errors of the results of ab initio calculations performed for CdKr and presented in Ref. [217] need further analysis.

Considering future research plans on CdNg molecules, one has to postulate new ab initio calculations related to interatomic potentials of low-lying, non-Rydberg electronic energy states. It has been indicated that deficiencies in the description of the electron correlation could be main source of the inaccuracies of ab initio calculations of excited states of MeNg molecules. Also, it has been pointed out that future approaches of capturing electron correlation will most likely be based on EOM-CC methods, where the level of the approximation should go beyond the CCSD method. This would provide better theory-to-experiment agreement in the future research not only for Rydberg but also lower-lying electronic state.

As far as experimental studies are concerned, it is necessary to point out that so far they have mainly been based on the analysis of bound$⟵$bound and free$⟵$bound LIF excitation spectra. Future detection of both bound→bound and bound→free dispersed emission spectra can provide additional information about shape of PECs of the electronic energy states. In our laboratory we plan to carry out experiments with detection of dispersed emission spectra of CdNg molecules, spectra that correspond to transitions originating from both non-Rydberg electronic states ($A^3{\mathsf{\Pi }}_{0^{+}}$, $B^{3}1$) and low-lying Rydberg states ($E^3{\mathsf{\Sigma }}_1^{+})$. Figure 32 presents preliminary result showing an example of the dispersed emission spectrum recorded for CdAr molecule after laser excitation of ${\upsilon }^{\text{'}\text{'}}=4$ level in the $B^{3}1$ state along with its simulation.

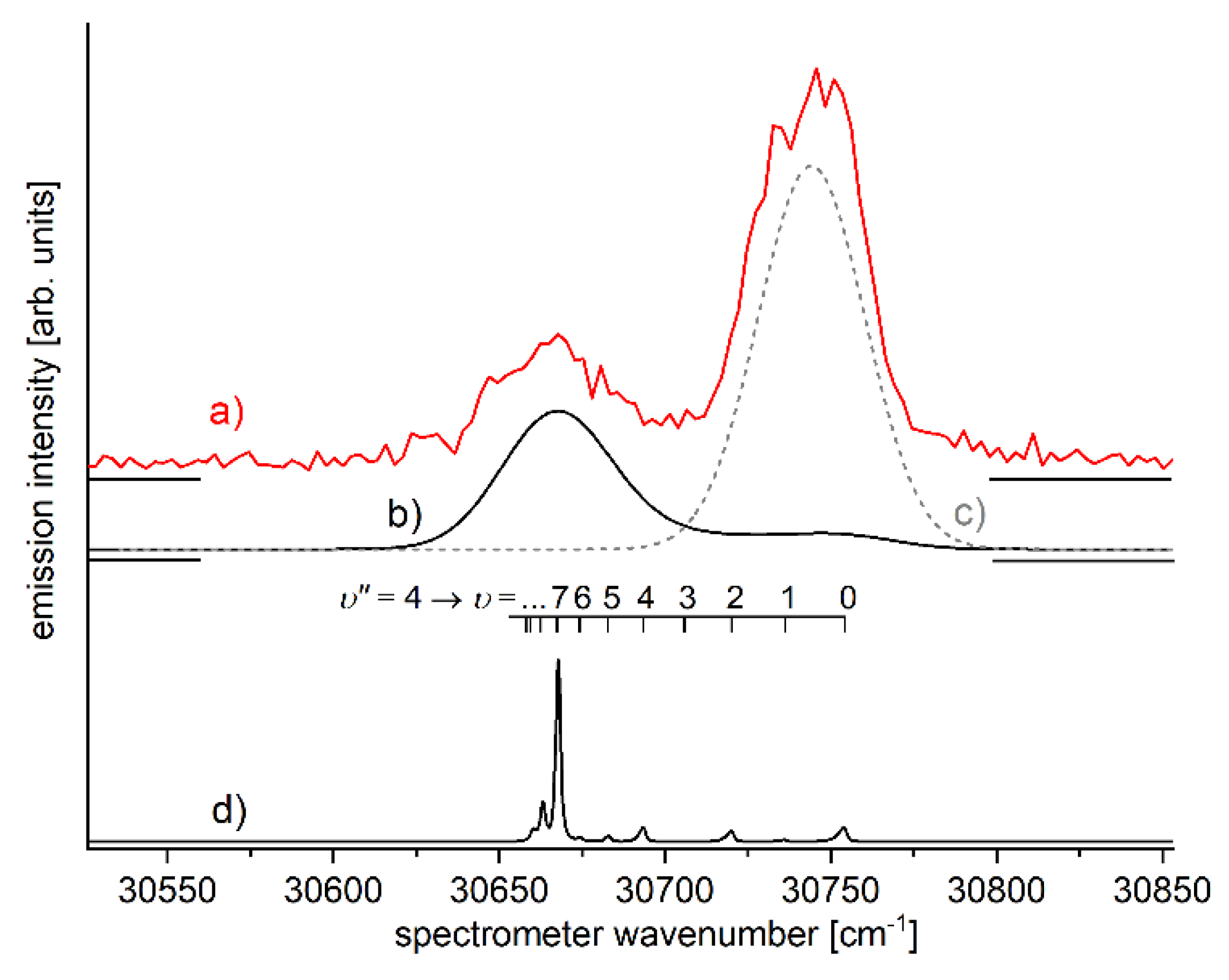

Figure 32. Dispersed emission spectrum corresponding to the $B^{3}1\left(5s{5p}^3{\mathrm{P}}_1\right),{\upsilon }^{\text{'}\text{'}}=4\to X^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s^2{{ }^1\mathrm{S}}_0\right),\upsilon$ transitions in CdAr molecule (a) recorded using the SpectraPro HRS 750 spectrometer (Teledyne Princeton Instruments) equipped with a CCD camera with an image intensifier (PIMAX 4) and diffraction grating with 1200 grooves/mm. (b) Simulation of the dispersed emission spectrum from (a) performed using LEVEL [206] and PGOPHER [207] programs and assuming parameters of the $B^{3}1$ and $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ - state potentials from Refs [219] and [14], respectively, as well as Gaussian broadening responsible for spectrometer spectral throughput ${\mathsf{\Delta }}_{\mathrm{G}}=38 \mathrm{c}{\mathrm{m}}^{-1}$. (c) Simulation of the recorded background signal associated with the excitation laser beam at the $B^{3}1,{\upsilon }^{\text{'}\text{'}}=4⟵X^1{\mathsf{\Sigma }}_{0^{+}}^{ },\upsilon =0$ transition. (d) Simulated [206], [207] distribution of transitions to different $\upsilon$ in the $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ground state originating from ${\upsilon }^{\text{'}\text{'}}=4$ in the $B^{3}1$ state performed for ${\mathsf{\Delta }}_{\mathrm{G}}=1.9 \mathrm{c}{\mathrm{m}}^{-1}$.

Figure 32. Dispersed emission spectrum corresponding to the $B^{3}1\left(5s{5p}^3{\mathrm{P}}_1\right),{\upsilon }^{\text{'}\text{'}}=4\to X^1{\mathsf{\Sigma }}_{0^{+}}^{ }\left(5s^2{{ }^1\mathrm{S}}_0\right),\upsilon$ transitions in CdAr molecule (a) recorded using the SpectraPro HRS 750 spectrometer (Teledyne Princeton Instruments) equipped with a CCD camera with an image intensifier (PIMAX 4) and diffraction grating with 1200 grooves/mm. (b) Simulation of the dispersed emission spectrum from (a) performed using LEVEL [206] and PGOPHER [207] programs and assuming parameters of the $B^{3}1$ and $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ - state potentials from Refs [219] and [14], respectively, as well as Gaussian broadening responsible for spectrometer spectral throughput ${\mathsf{\Delta }}_{\mathrm{G}}=38 \mathrm{c}{\mathrm{m}}^{-1}$. (c) Simulation of the recorded background signal associated with the excitation laser beam at the $B^{3}1,{\upsilon }^{\text{'}\text{'}}=4⟵X^1{\mathsf{\Sigma }}_{0^{+}}^{ },\upsilon =0$ transition. (d) Simulated [206], [207] distribution of transitions to different $\upsilon$ in the $X^1{\mathsf{\Sigma }}_{0^{+}}^{ }$ground state originating from ${\upsilon }^{\text{'}\text{'}}=4$ in the $B^{3}1$ state performed for ${\mathsf{\Delta }}_{\mathrm{G}}=1.9 \mathrm{c}{\mathrm{m}}^{-1}$.
