Rapid Monitoring of Scale Precipitation and Inhibition in Geothermal Fluid Using Optical Fiber Sensor Based on Surface Plasmon Resonance

1. Introduction

In geothermal power plants and hot spring facilities, inorganic salts dissolved in geothermal fluids become supersaturated and precipitate as scales in pipes and other locations with changes in temperature, pH, and pressure. Calcium carbonate scale precipitates from the reaction of dissolved Ca²⁺ and HCO₃⁻ as the temperature decreases and the pH of geothermal brine increases due to gas–liquid separation [1]. Likewise, silica scale precipitates when silica is concentrated and supersaturated in geothermal brine due to gas–liquid separation in production wells and separators. Scale deposits in pipes and heat exchangers cause a wide range of problems, such as reductions in the flow rate of geothermal brine in pipes and heat exchange efficiency. To address these problems, researchers have proposed using inhibitors or adjusting the pH of brine by adding sulfuric acid; however, these methods have insufficient efficiency (Dalas and Koutsopoulos, 1993; Gallup, 1996, 1997, 2002; Ueda et al., 2003; MacAdam and Parsons, 2004; Gallup and Barcelon, 2005; Li et al., 2015, 2017; Alabi et al., 2015; Ikeda and Ueda, 2017; Hanajima and Ueda, 2017) [2,3,4,5,6,7,8,9,10,11,12,13].

The rate of scale formation from geothermal brine can be determined by immersing glass plates or metal pieces in the brine, collecting them after several weeks or months, and observing the weight change of the scale formation. Alternatively, scale precipitation is evaluated by continuously passing brine through a column apparatus filled with rocks or glass grains and observing the changes in its flow rate for several weeks (Hirowatari, 1996; Gallup, 2002; Ueda et al., 2003) [5,6,14]. However, these tests have long operation periods and high costs and complexity. Our research team developed an optical fiber scale sensor that can evaluate scale formation in geothermal brine in a few hours using the properties of optical fiber, such as pressure and heat resistance (Okazaki et al., 2015, 2017a, 2017b, 2017c, 2019, 2020, 2021, 2022) [17,18,19,20,21,22,23,24]. The sensing part of this sensor is a portion of the optical fiber core that is exposed by removing the cladding, where deposited scale inhibits the total reflection and reduces the propagated light. Therefore, scale formation can be monitored by measuring the light intensity reaching the detector. Through this approach, the formation of calcium carbonate and silica scales and their prevention status with the addition of an inhibitor in geothermal power plants and hot spring facilities are observed in a few hours to half a day. Nonetheless, this analysis of scale precipitation using scale sensors requires high sensitivity and a further reduction in the measurement duration. Zotzmann et al. has been acheived that real-time monitoring barite precipitation using fiber optic sensor at high pressure high temperature conditions in an autoclave and indicates overcome for important shortcoming of existing non-optical detection [25].

Surface plasmon resonance (SPR) is widely applied in the biosensor field because of its high refractive index sensitivity. In particular, optical fiber SPR sensors are easy to handle because the SPR response is measured as an absorption wavelength. Moreover, the systems used to measure changes in peak wavelengths have low susceptibility to power supply instability, vibration, and unexpected changes in light intensity.

In this study, we applied SPR, a highly sensitive detection technique, to the geothermal field by developing a scale sensor that enables the rapid examination of scale precipitation and its prevention. The proposed instrument is an optical fiber SPR scale sensor (“SPR sensor” hereinafter) made by depositing a gold thin film on the surface of an optical fiber with an exposed core. We first investigated the optimal film thickness through laboratory experiments. The applicability of this sensor was examined in a field test using geothermal brine from the Obama Binary Geothermal Power Plant in Unzen, Nagasaki Prefecture. In this facility, calcium carbonate scale precipitation is mainly suppressed by injecting sodium polyacrylate into production wells. By contrast, Mg–SiO₂ scale near the wellheads and heat exchange plates and in the aboveground pipes remains an issue. Mg–SiO₂ scale precipitation is inhibited by adjusting the pH of geothermal brine to acidic levels (Ueda and Odashima, 2002; Morita et al., 2016) [26,27]. Thus, field tests were conducted to compare the evaluation of the SPR sensor and a conventional optical fiber scale sensor (“conventional sensor” hereinafter) of scale formation in raw and pH-adjusted brines.

2. Scale Sensor Overview

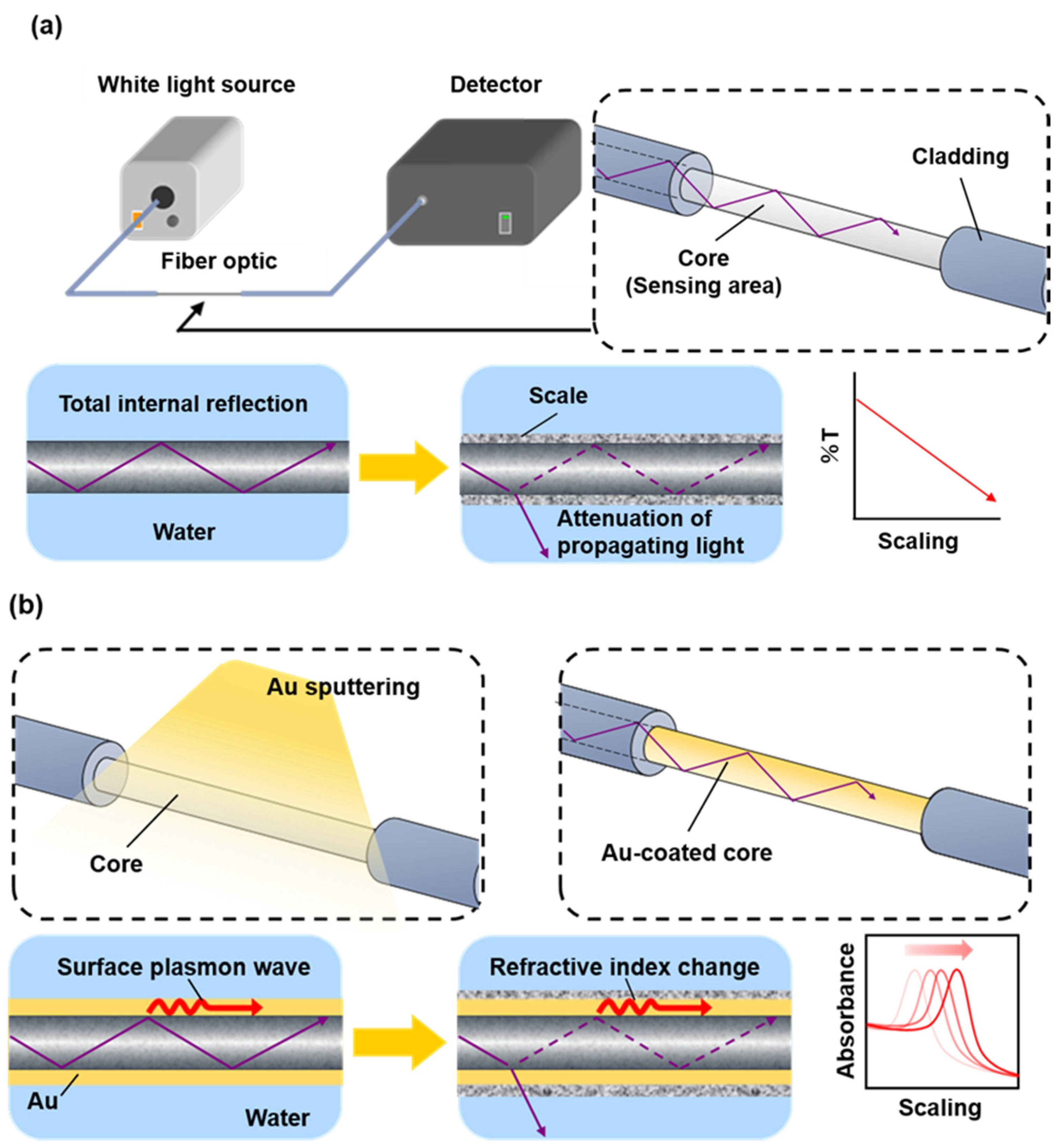

The optical fiber used in this study was a core–clad step-index multimode optical fiber (FT200EMT; Thorlabs, Inc.) with a core diameter of 200 μm and a cladding diameter of 225 μm. For the conventional sensor, the sensing length was 16 cm and the core was exposed by removing the cladding using acetone after peeling off the jacket (Figure 1a). For the SPR sensor, an optical fiber with 5 cm of exposed core was placed in the chamber of a turbomolecular pumped coater (Q150T Plus; Quorum); a gold thin film was deposited on the sensor part (Figure 1b) in the direction perpendicular to the gold target and the fiber. After deposition, the fiber was rotated 180°, and gold was deposited on the entire fiber surface in the abovementioned manner. The film thickness, calculated using the specifications of the turbomolecular pumped coater, ranged from 15 nm to 60 nm, and the difference in sensor sensitivity between film thicknesses was investigated. A halogen light source (HL-2000-FHSA; Ocean Optics) was the light source, and a spectrophotometer (MV-3200; JASCO Co.) was used to evaluate sensor response to scale formation (Figure 1a).

An optical fiber sensor with an exposed core satisfies the total internal reflection in the presence of surrounding water and excites evanescent waves at the boundary between the core and geothermal brine. Thus, in a conventional sensor, the amount of propagating light leakage (%T) in the core varies depending on the amount of scale deposited on the sensing part (Figure 1a). In the SPR sensor, the formation of a gold thin film with a thickness of several tens of nanometers on the core surface induces an interaction between the surface plasmon waves on the metal thin film surface and the evanescent waves, thus exciting SPR. The peak wavelength of the SPR spectrum shifts due to changes in the refractive index of the external field caused by scale deposition on the gold thin film (Figure 1b).

3. Materials and Methods

3.1. Optimization of Film Thickness of SPR Sensor via Laboratory Tests

SPR is sensitive; its surrounding refractive index changed with the film thickness. Therefore, we determined the optimal film thickness for the SPR sensor by changing the thickness of the gold thin film deposited on the optical fiber surface. Three SPR sensors with 15-, 30-, and 60-nm thick gold thin films were fabricated. The film thickness was controlled using the deposition duration. Then, 10, 20, 30, 40, and 50 wt.% glycerol test solutions were prepared by diluting glycerol with Milli-Q^® water, resulting in refractive indices of 1.34, 1.35, 1.37, 1.38, and 1.39, respectively. The SPR spectra were obtained for water and the five aqueous glycerol solutions using air as the reference (Figure 2a). During the test, the sensor section was washed using Milli-Q^® water each time the solution was replaced. This operation was performed for each SPR sensor. The optimal film thickness for scale formation evaluation was determined based on the change in the SPR absorption band with the refractive index.

3.2. Field Experiment

A field experiment was conducted on the SPR sensor from November 11 to 15, 2022, using the hydrothermal brine from the Obama Binary Geothermal Power Plant in Unzen, Nagasaki Prefecture. The brine composition is shown in Table 1. This power plant generates 100 kW of electricity through heat exchange with a 110°C source. Its geothermal brine contains high levels of CO₂, and carbonate and silica scales precipitate in the production wells and pipes. Scanning electron microscopy (SEM)–energy-dispersive spectroscopy (EDS) analysis of the scales showed that the white precipitates in the production wells are aragonite (CaCO₃) and the black precipitates in the production wells and heat exchangers are amorphous Mg–SiO₂ (MgSiO₃･H₂O) and chrysotile (Mg₃Si₂O₅(OH)₄) scales (Morita et al., 2017) [27].

The geothermal brine used in the experiments was raw; that is, it was obtained before sodium polyacrylate was injected as an inhibitor of carbonate minerals in the production wells). The brine was exposed to the atmosphere in a tank with an internal volume of 30 L and flowed through a silicone tube with an inner diameter of 10 mm via a siphon-type method to a reaction vessel at a flow rate of 1 L/min. The travel time of the brine from the brine tank to the reaction vessel was approximately 20 s. One tube was prepared for the raw brine, and two tubes were prepared for the pH-adjusted brines. Then, 1 mL of 2 M sulfuric acid was added to each tube to adjust the solution pH to 5 and 6. Each optical fiber sensor was directly immersed in the brine in the reaction vessel, and scale formation was evaluated using the peak shift of the SPR absorption band (Figure 2b).

Experiments were conducted on the conventional sensor with an exposed core in the raw brine and the pH 5 and pH 6 adjusted brines. The length of the sensor section was set to 16 cm because the scale precipitated in the field test in a short period was in trace amounts. The sensor was immersed in the brine pumped into the reaction vessel, and transmittance measurements were simultaneously obtained for 1310 min immediately after sensor immersion. The light transmittance of the sensor was measured by connecting it to a white-light source and a spectroscopic detector (Color Compass MF, AT System, Japan).

The SPR sensor with the gold film thickness of 30 nm was tested in the raw brine and the pH 5 adjusted brine. The experiment in the pH 5 adjusted brine lasted 270 min, and that in the raw brine was conducted twice (270 and 660 min) to examine the reproducibility of the response and the effect of prolonged measurement on the response. The atmosphere was used as the reference. In addition, the SPR spectrum over time was obtained, and scale formation was assessed based on the peak shift of the SPR absorption band.

3.3. SEM–EDS Analysis of Scale Precipitates

SEM–EDS (JCM-7000 NeoScope™; JEOL) was used to observe the surfaces of the conventional and SPR sensors with the deposited scale from the field experiments. As the optical fiber penetrated the electron beam of the microscope and prevented accurate measurement, approximately 3 cm of the optical fiber was cut as its sensor part and placed in the chamber of a sample coater (DII-29010SCTR Smart Coater; JEOL), which was used to deposit a 10-nm-thick gold thin film. The sample was then placed on the SEM–EDS stage. During the surface observation of the SPR sensor, the chemical composition of a 162 nm × 325 nm area was analyzed via EDS.

4. Results and Discussion

4.1. Appropriate Film Thickness for SPR Sensor

Figure 3 shows the response of the three SPR sensors with different film thicknesses to refractive index changes in the laboratory experiment. For all sensors, the peak shifts to longer wavelengths with an increase in the refractive index. The prominence of the peak shift increases with the film thickness. For all sensors, the peak shift of the SPR absorption band exhibits linearity with respect to the refractive index change (right column of Figure 3). The refractive index sensitivities (nanometers per refractive index unit [RIU]) of the sensors with film thicknesses of 15, 30, and 60 nm are 833, 2141, and 2575 nm/RIU, respectively. The sensor with the 60 nm film thickness has the highest refractive index sensitivity and is sensitive to ambient refractive index changes. However, an SPR-unrelated peak appears at approximately 530 nm. Based on these results, the optimal film thickness is 30 nm, which achieves a relatively high refractive index sensitivity and low vulnerability to the 530 nm peak.

4.2. Sensor Performance Evaluation via Field Experiment

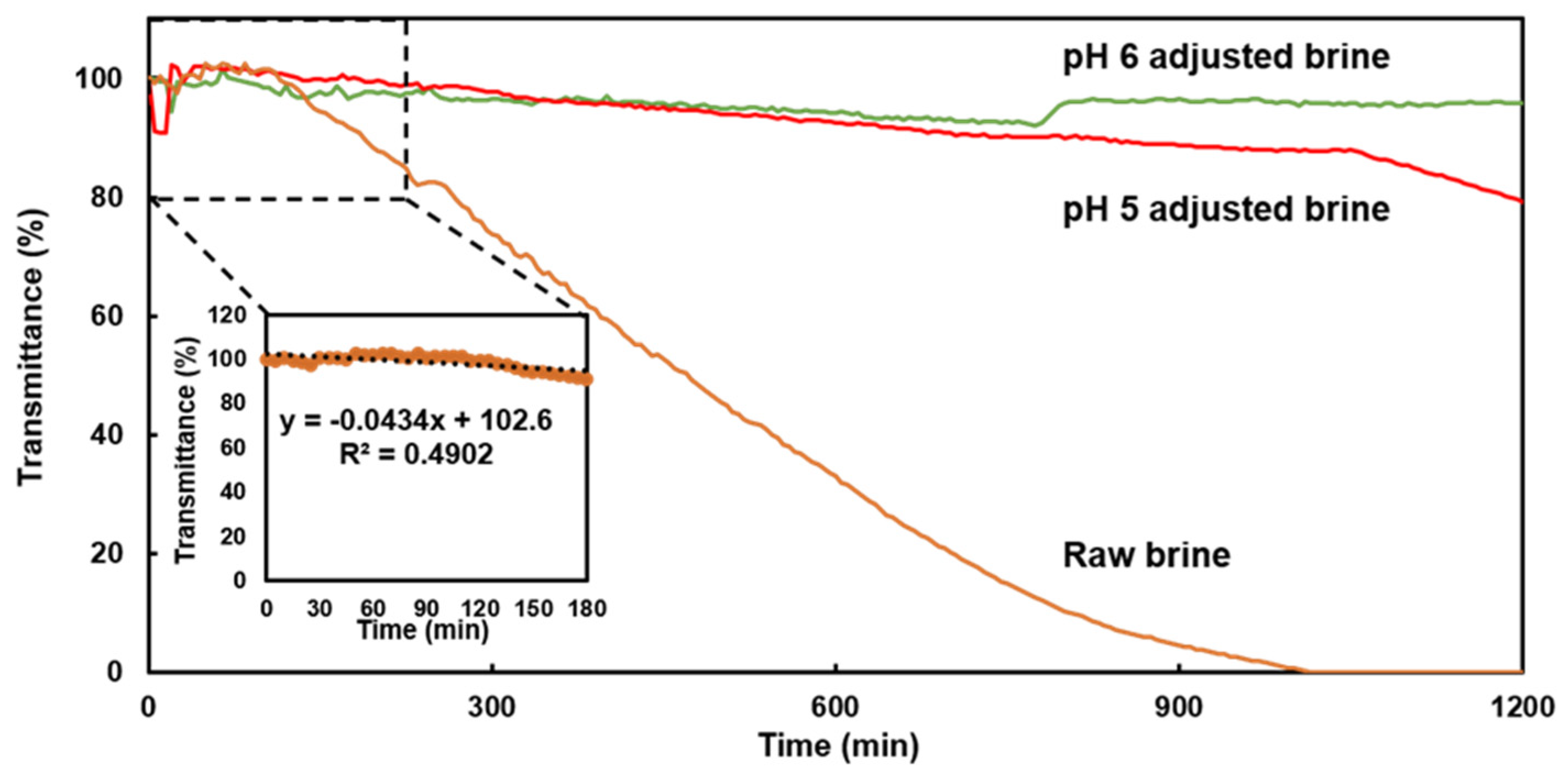

In the field experiment on the conventional sensor in the raw brine, the light transmittance decreases with time, indicating scale formation (Figure 4). By contrast, no decrease in light transmittance is noted in the pH 5 and pH 6 adjusted brines because scale precipitation was mostly inhibited by the pH adjustment. However, light transmittance in the pH 5 adjusted brine starts to decrease at approximately 1050 min after sensor immersion. Scale precipitation may have occurred because of the consumption of the sulfuric acid solution for pH adjustment at night, which meant that only raw brine was flowing through the system. For the pH 6 adjusted brine, light transmittance increases approximately 800 min after sensor immersion, which can be attributed to the discontinued water supply and the flow of only sulfuric acid, which increased the pH. Therefore, the conventional sensor is highly responsive to changes in the experimental conditions.

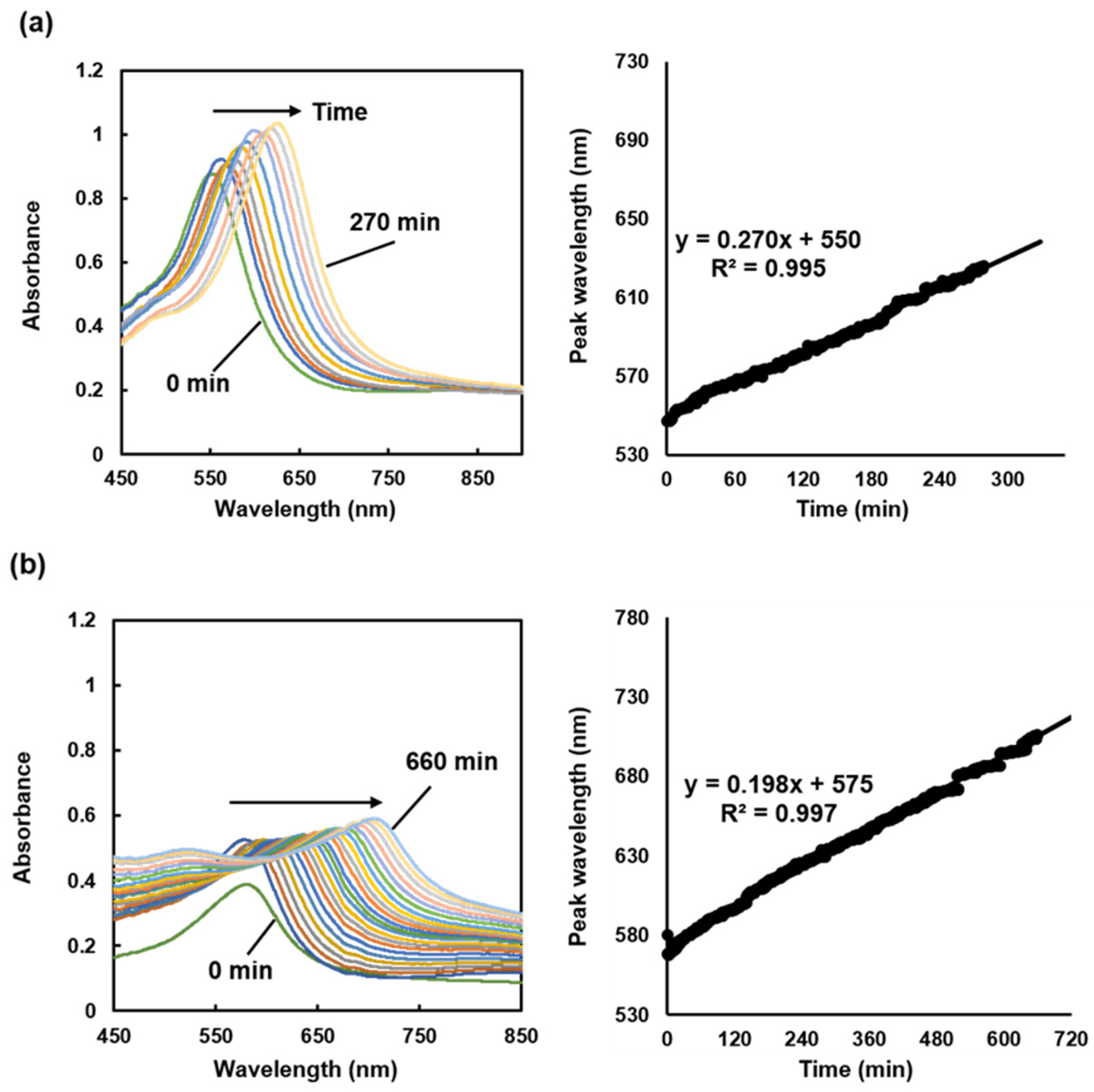

The experiment on the SPR sensor in the raw brine shows that the SPR peak linearly shifts toward longer wavelengths with time. At 270 min after sensor immersion, the SPR peak shifts by 73 nm (Figure 5a), indicating the formation of scale with a higher refractive index than that of the sensor surface. The peak wavelength of the SPR spectrum immediately after sensor immersion in the raw brine is approximately 550 nm. Combined with the result in Figure 3b, this suggests that the refractive index during sensor immersion is approximately 1.33 RIU. The decrease in the SPR peak intensity is likely due to scale formation. A linear peak shift with the immersion duration is also observed in the 660 min experiment (Figure 5b). The slopes of the proximal line up to 270 min after sensor immersion in the short- and long-term experiments are approximately 0.27 and 0.198, and the coefficients of determination are 0.995 and 0.997, respectively, confirming that the SPR sensor has a highly reproducible response.

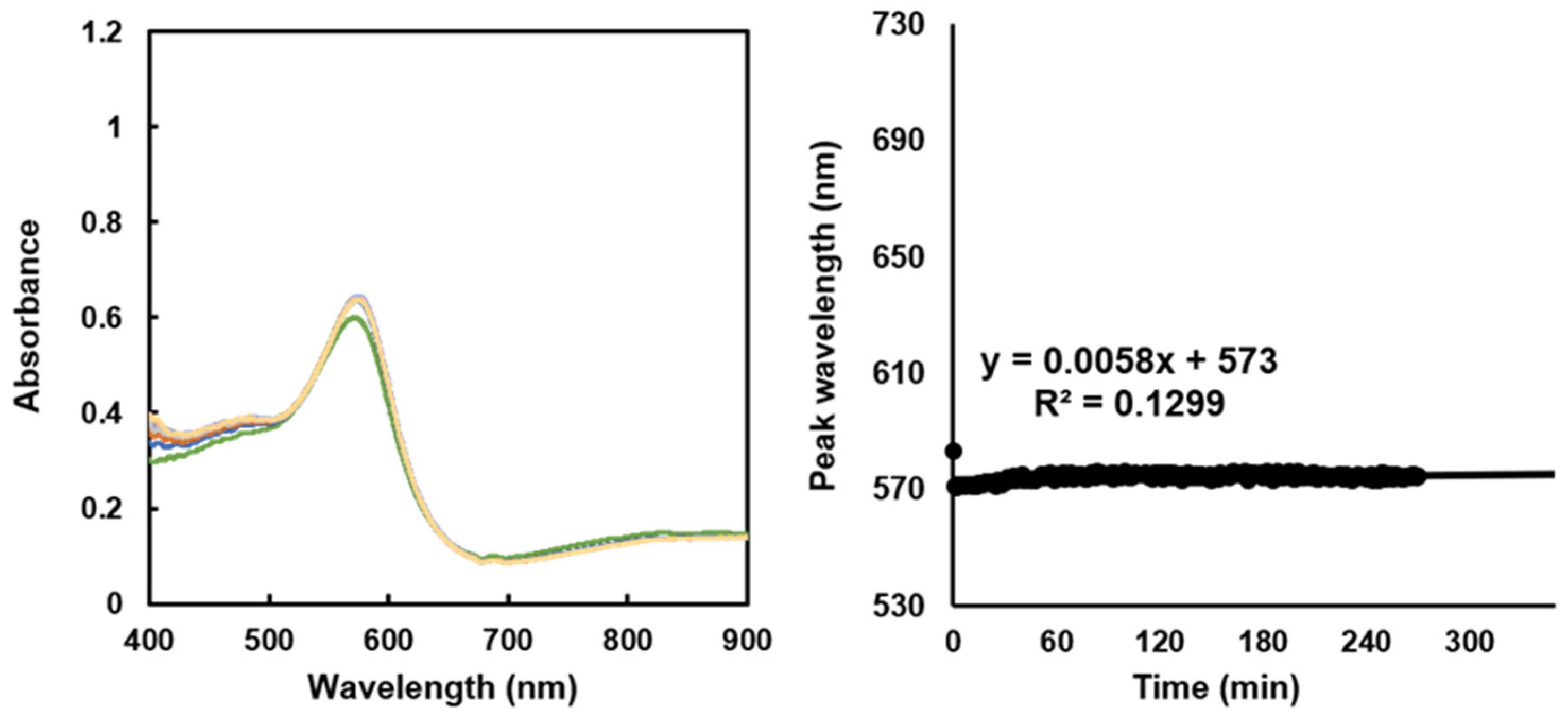

In the pH 5 adjusted brine, the SPR peak slightly shifts by 4 nm at 270 min after sensor immersion, and the SPR sensor exhibits minimal response (Figure 6). These results are similar to those for the conventional sensor. In the experiments in the raw brine, the SPR sensor responds immediately after its immersion, whereas the conventional sensor responds the light intensity changes with scale formation after approximately 100 min.

4.3. SEM–EDS Observation of Precipitates on Sensor

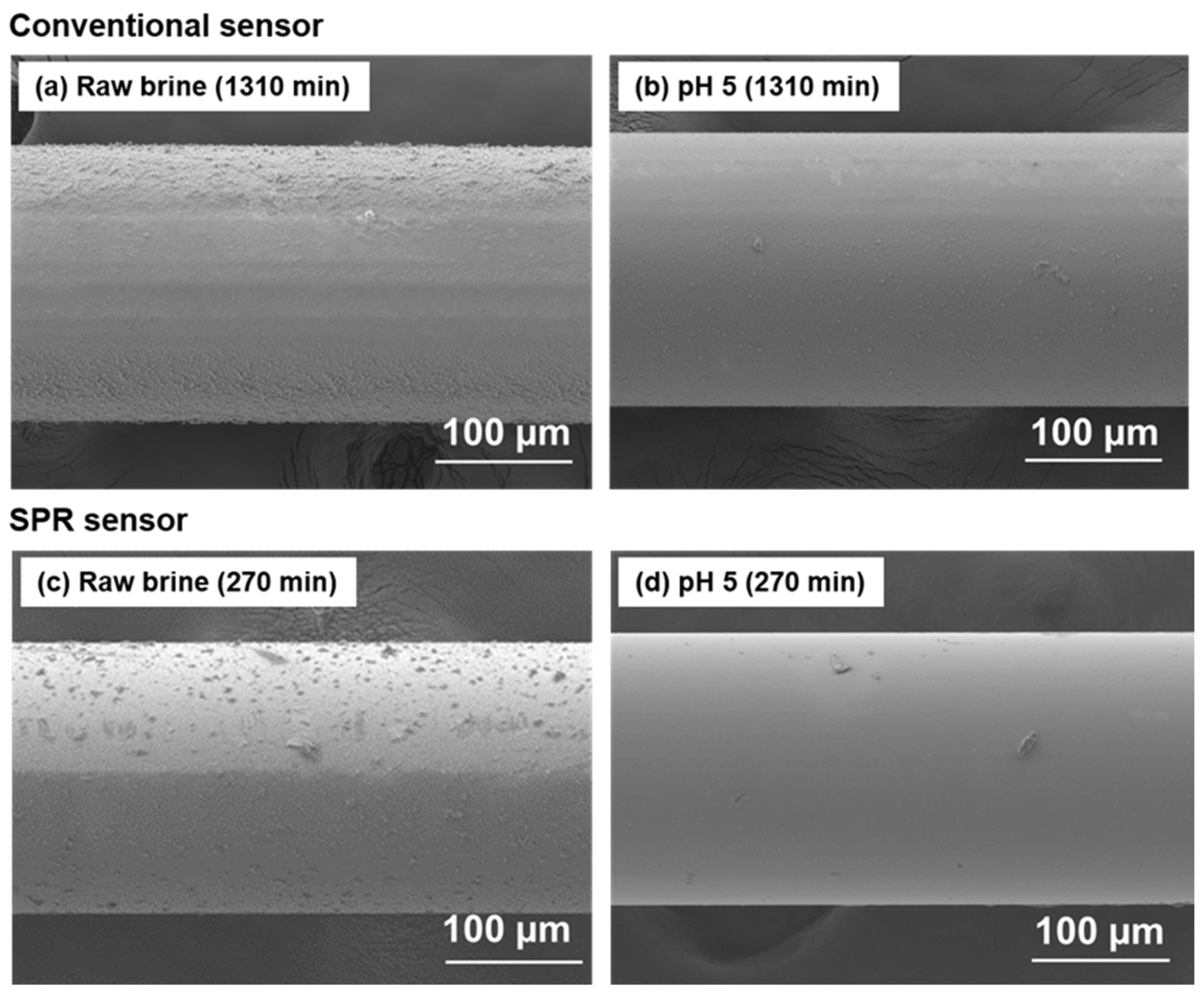

The precipitates on the sensors after the field tests were observed through SEM–EDS, and their surface morphology and chemical composition were analyzed (Figure 7 and Table 2). In the raw brine, both the conventional and SPR sensors have uniform films of deposited scale. More scale is deposited on the conventional sensor after a long immersion period (Figure 7a). By contrast, the SPR sensor immersed in the pH 5 adjusted brine has no precipitates. The conventional sensor in the pH 5 adjusted brine has a small amount of precipitates because the sulfuric acid cannot be pumped for pH adjustment in the latter half of the experiment.

The chemical composition of the precipitate on the conventional sensor includes Mg and Fe in addition to Si. According to the scale survey results obtained by Morita et al. (2016) [27], this precipitate is Mg–SiO₂. A small amount of precipitate containing Mg and Fe is detected on the SPR sensor because of the short test duration. The pH of the pH 5 adjusted brine during the experiment on the conventional sensor was equal to that of the raw brine. Therefore, in addition to Si, Mg and Fe are detected in the precipitate on the sensor. By contrast, trace amounts of Mg and Fe are observed in the precipitate on the SPR sensor.

4.4. SPR Simulation

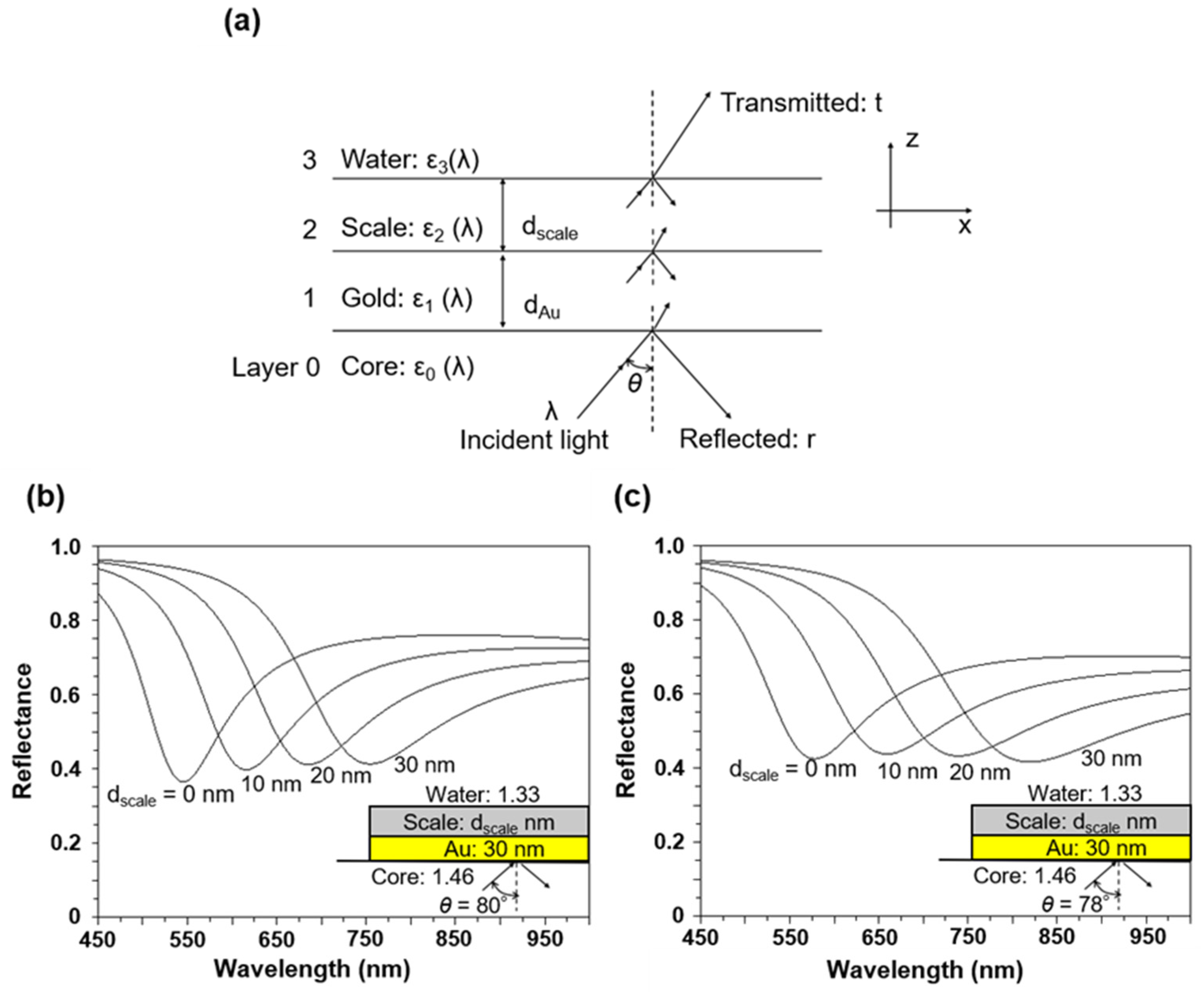

A possible reason for the shift of the SPR peak to longer wavelengths is the formation of scale films with different thicknesses associated with the immersion duration of the SPR sensor in the brine. A four-layer structure (glass/gold/scale/water) was modeled to predict the extent of the peak shift using the SPR numerical method (Figure 8a). The structure consisted of glass (fiber core; 0), an SPR excitation layer (gold layer; 1), a scale layer (2), and water, i.e., brine (3). The dielectric constant of each layer is ε_n (n = 0, 1, 2, 3), and the thicknesses of the gold and scale layers are d_Au and d_scale, respectively. In the planar optical configuration shown in Figure 8a, the incident light is reflected at the interface between the core surface and the gold layer at an angle θ, satisfying the total reflection condition. With the appropriate thickness of the multilayer structure, the evanescent light produced by the total reflection can extend to the gold layer and reach the outer boundary (brine). SPR occurs when the x-direction wavenumber of the incident light coincides with that of the surface plasmon wave at the core–gold interface. The reflection coefficient of the multilayer structure in the SPR numerical calculation was calculated using a general 2 × 2 matrix formula (transfer matrix method) (Roy, 2001) [28]. During the numerical calculations, the refractive indices of the cladding and the scale (talc) were set to 1.46 and 1.59, respectively, and the dielectric constant of gold was obtained from the literature (Sharma and Gupta, 2007) [29].

Contrary to the case of the planar layer in Figure 8a, the cylindrical fiber core has different angles between the critical angle and 90°. Therefore, the SPR spectrum obtained in the experiment is the sum of the SPR spectra for the various incident angles. Figure 8b and 8c show the SPR resonance wavelength spectra at d_Au = 30 nm; d_scale = 0, 10, 20, 30 nm; and incident angle θ = 80°, 78°. The SPR wavelength shifts toward longer wavelengths with an increase in the scale thickness regardless of the incident angle. In addition, the SPR spectral width widens with an increase in scale thickness (Figure 8b). The increase in film thickness with scale formation is attributed to this sensor response.

5. Conclusions

We developed an optical fiber sensor that can detect scale formation in geothermal power plants using SPR as first attempt. The SPR scale sensor developed in this research can rapidly detect and measure precipitates on the Mg-SiO₂ scale with dramatically greater sensitivity than the conventional optical fiber scale sensors have been reported buy our research group. In addition, since the SPR reflects the ambient refractive index, the refractive index of the scale can be estimated once the response reaches equilibrium with respect to scale precipitation. This sensor not only has the potential to rapidly monitor the formation of various scale species in hydrothermal fluids used for geothermal power generation, but also could be useful in the evaluation of concretionary processes and in the field of CCS using mineralization reactions.
