A Multi-Scale Graph Attention-Based Transformer for Occluded Person Re-Identification

1. Introduction

The primary goal of person re-identification (ReID) tasks is to identify and match the same individual across different camera viewpoints [1,2]. Consequently, achieving efficient and precise person re-identification (ReID), which entails identifying and associating the same individual across distinct camera viewpoints, has emerged as a paramount challenge that urgently needs to be addressed [3,4]. The task of occluded ReID is even more challenging than traditional ReID, due to two primary factors: occlusions not only lead to the loss of pedestrian information but also introduce irrelevant features, which are inadvertently captured as noise during feature extraction by standard neural networks. This process results in ReID methods learning fewer discriminative features from pedestrian images, leading to incorrect retrievals. Of late, partial ReID approaches have been proposed to tackle such complexities. However, the process of ReID still encounters a multitude of challenges, including pose variations, viewpoint changes, occlusion noise, and missing information, further magnifying its complexity.

Recently, a series of models [5–10] have emerged that apply the transformer architecture to the domain of person re-identification. Under occlusion scenarios, pertinent human features can be partially obscured by obtrusive objects. The introduction of occlusion noise compromises the efficacy of global attention, as our analysis suggests that the self-attention mechanism of ViT may be influenced by occluding objects. This results in attention being misdirected towards irrelevant areas. Most graph-based works [11–19] have used human key points as graph nodes to integrate key point information. Therefore, corresponding modules must be used to extract human body node information or perform pose estimation. However, the proportion of human content in features is unpredictable. In the case of occluded data sets in particular, considering the influence of occluded objects on human features, missing key point information may weaken the robustness of the model.

To address the above limitation, we introduce a novel module that employs multi-scale graph attention for feature weight re-distribution. Our module does not need to extract human body node information, automatically encodes the basic features extracted with Vision Transformer(ViT) into the graph structure, and carries out multi-scale graph attention [21,22] aggregation to solve the problem of the imbalance of the human body image in the occlusion scene. The results of visualization experiments show that our module can re-focus the ViT-extracted features on more important parts. Building upon this innovation, we propose a person re-identification model specifically designed to excel in occlusion scenarios, aiming to achieve enhanced robustness and accuracy under challenging conditions where occlusions are prevalent.

In this study, a feature extraction network is introduced that combines transformers and multi-scale graph convolutional feature fusion, specifically designed for occluded person re-identification (ReID) data sets. Our model employs Vision Transformer [23] as the backbone for image feature extraction, where images are divided into multiple patches and input into ViT. The final layer’s Transformer outputs are treated as nodes [5,24], with the class token serving as the central node. Given that the class token aggregates information from all tokens, edges are established between the class token and other nodes; in comparison, additional edges are formed between other nodes based on their feature similarity, creating a graph of nodes. This graph, along with node features, is then fed into a multi-scale graph attention module, featuring three branches, each utilizing a graph attention network of a different scale. Moreover, we use fully connected layers to map the features to a common dimension before concatenation. Within our model, this module is stacked multiple times, allowing the ViT-extracted features to incorporate inter-node relationships after passing through. Additionally, the class token from ViT is processed through a network, such as SENet [25], to derive a channel attention weight. Ultimately, the class token, after graph convolution computations, is combined with the channel weight through a weighted operation, and the resultant feature is fed into a ReID classification head.

The main contributions of our study can be summarized as follows:

• A method is proposed to construct graphical data centered around the Transformer’s class token, where each output token from the Transformer is treated as a node, with the class token serving as the core. This approach offers good versatility and can be flexibly integrated into other Transformer-based models.
• A multi-scale graph attention-based person re-identification model is proposed, which greatly improves the recognition accuracy through integrating features from different image patches using a multi-scale graph attention module.
• Extensive experiments conducted on the occluded person ReID databases validate our proposed method, MSGA-ReID, as being effective in occluded ReID tasks.

The remainder of this paper is organized as follows. Section 2 provides a brief overview of related work on person re-identification under the perspective of occlusion. Section 3 presents the proposed method in detail, including the overall architecture, construction of graph structural information, the MSGA(Multi-Scale Graph Attention) module and the Global Channel Attention. Section 4 reports the experimental results on partial and occluded Re-ID datasets, along with comparisons to other methods. Finally, Section 5 discusses the experimental result and future work.

2. Related Works

2.1. Occluded Person Re-Identification

In the context of ReID, feature extraction is crucial for accurate pedestrian identification, with early models employing Convolutional Neural Network (CNN)-based feature extraction modules. However, CNN-based feature extraction predominantly focuses on local regions [20], overlooking the significance of distant information. A series of models have recently emerged that apply the Transformer architecture to the domain of person re-identification. Transformer-based visual models, endowed with self-attention mechanisms, excel at capturing the global context from input images, facilitating comprehensive understanding of the overall appearance features. This capability has led to significant advancement of CNN-based models in recent years.

However, under occlusion scenarios, pertinent human features can be partially obscured by obtrusive objects. The introduction of occlusion noise compromises the efficacy of global attention, as analysis results suggest that the self-attention mechanism of ViT ay be influenced by occluding objects. This process results in attention being misdirected toward irrelevant areas, consequently undermining the performance of ViT models in occluded settings.

The objective of occluded person re-identification is to locate a person (or persons) with the same characteristics as in an occluded image across different camera angles. However, this task becomes notably more challenging in the presence of incomplete information about the people in occluded images and spatial misalignment due to varying viewpoints. Specifically, there are two main influences of occlusion on person ReID: occlusion noise and image scale change caused by occlusion.

2.2. Transformer-Based ReID

Researchers [5–10] have recently employed Transformer-based models for feature extraction, introducing multi-head attention modules which make Transformer-based models well-suited to address challenges in this area. Research on Transformer-based ReID has seen substantial progress in recent years. Compared to Convolutional Neural Networks (CNNs), Vision Transformers exhibit superior global information processing capabilities. Through leveraging self-attention mechanisms, ViTs excel at capturing long-range dependencies and global contextual information, thereby enabling the model to effectively extract inter-regional feature correlations when dealing with variations in pedestrian poses, occlusions, and images from different viewpoints. TransReID [6] was the first model to apply ViT in ReID, in which ViT offers a more flexible feature representation; through dividing images into multiple patches and directly applying self-attention to these patches, the model learns features without constraints imposed by local receptive fields, providing a more adaptable expression for subtle differences in pedestrian identities. DC-Former [5] employs multiple class tokens to represent diverse embedding spaces. This approach incorporates SDC in the output of the final Transformer block, thereby encouraging class tokens to be distanced from one another and embedded into distinct representational spaces. Part-Aware Transformer (PAT) [9] introduces a mechanism that adaptively identifies and highlights multiple key body parts of persons during the training process. Furthermore, through incorporating occlusion-aware loss functions and training strategies, the model is enabled to better comprehend and adapt to the effects of occlusions, thereby enhancing its robustness in recognizing individuals under such challenging conditions. PVT [10] uses a pose estimator to detect key points in the human body and uses these points to locate intermediate features. These intermediate features of key points are input into the pose-based Transformer branch to learn point-level features.

However, the attention mechanism of ViT may be influenced by occluded objects, resulting in attention being dispersed to the occluded area. Features of these parts are ineffective for ReID tasks, leading to a decrease in the performance of ViT-based models when considering occluded scenes.

2.3. Graph-Based ReID

Graph Convolutional Networks (GCNs) [26], with their ability to model abstract node relationships, have recently been applied in the ReID domain to capture temporal and spatial information in video sequences. In pedestrian images, body parts inherently possess structural relationships, and GCNs capitalize on this prior knowledge by encoding spatial or semantic similarities between pedestrian image features through edge weights, fortifying the model’s ability to learn pedestrian characteristics.

Graph-based person re-identification leverages the highly structured human skeleton to extract semantic information at the image pose level, thereby suppressing noise interference through guiding or fusion mechanisms. PFD [17] divides images into overlapping fixed-size patches, followed by the employment of a Transformer encoder to capture contextual relationships among these patches. Subsequently, pose-guided feature aggregation and a feature-matching mechanism are utilized to emphasize visible body parts explicitly. Finally, pose heatmaps and a decoder are leveraged as keys and values to enhance the discriminability of individual body parts. HOReID [11] introduces a learnable relation matrix, treating human key points obtained from pose estimation as nodes in a graph and, ultimately, forming a topological graph that mitigates noise disturbances. The PMFB [18] utilizes pose estimation to acquire confidence scores and coordinates of human key points. Subsequently, thresholds are set to filter out occluded regions and visible parts are employed to constrain feature responses at the channel level, addressing the challenge of occlusion. PGMANet [19] employs human heatmaps to generate attention masks, synergistically eliminating noise interference through both element-wise multiplication with feature maps and guidance from higher-order relations. EcReID [12] consists of three modules: a mutual denoising module, an inter-node aggregation and update module, and a graph matching module. Among them, the graph matching module uses a graph matching method based on the human body’s topology to obtain a more accurate calculation of the mask image similarity.

The authors of some studies have partitioned each image’s features horizontally [3], treating each segment as a node. However, human-related features may constitute a relatively small proportion of horizontal features in an image, and relying solely on horizontally segmented features can lead to interference from background characteristics in experimental outcomes. The authors of other works have integrated key point information, using human key points as graph nodes. However, he ratio of human content in features is unpredictable; this is particularly true in the case of occluded datasets, considering the fact that the impact of occluders on human features might result in missing key point information, undermining the model’s robustness.

3. Methods

To better capture the features of irregularly shaped persons and associate local information with global information, thus extracting truly effective information, we propose a Multi-Scale Graph Attention-based Pedestrian Re-identification model, called MSGA-ReID. This approach comprises five main components: data augmentation, graph construction, feature extraction, multi-scale graph attention feature aggregation, and global channel attention. The network architecture is depicted in Figure 1. We employed two data augmentation strategies to fully leverage the information in the training data set and utilized Vision Transformer for fundamental feature extraction.

To enhance the dependency among features, we constructed a graph-structured data set based on the features extracted by ViT. Features output by the Transformer serve as nodes, with images synthesized based on feature similarity. The class token, through multi-head attention mechanisms, engages in information exchange with all image patches, “summarizing” this local information to form an understanding of the entire image’s content. This process enables the class token to carry high-level semantic features regarding the image’s overall classification, thereby establishing connections between the central node and all other nodes. Subsequently, node features together with graph information are fed into our proposed multi-scale graph attention module for feature aggregation. At this stage, we posit that our module is capable of performing relationship extraction among features and re-allocating feature weights, thereby focusing the features on aspects that genuinely contribute to pedestrian re-identification.

3.2. Feature Extraction

In our model architecture, we opted for the Vision Transformer as the backbone network, which is tasked with efficiently extracting high-level semantic features from input images. The introduction of ViT has revolutionized conventional feature extraction methodologies based on Convolutional Neural Networks (CNNs), with it particularly excelling in handling global information and long-range dependencies. The images were segmented into uniformly sized patches and, through setting the stride of the ViT network slightly to less than the patch size, we ensured a degree of overlap between adjacent patches. This process increases information redundancy, enabling the model to capture continuity and detail within local regions, to some extent, thereby enhancing its ability to learn fine-grained features while maintaining sensitivity to spatial structures.

Each patch is regarded as a visual word (visual token). Through linear projection, these patches are mapped into a fixed-dimensional vector space, ensuring encoding of the image’s local features. Consequently, each patch is transformed into a D-dimensional vector after projection. A special class token is prepended to all patch vectors, serving as the sequence’s start and guiding the model to learn a global feature representation that is conducive to classification. The serialized patch vectors, together with the class token, are then fed into a multi-layer Transformer encoder. The self-attention mechanism within the Transformer allows for global information exchange among different patches, capturing long-range dependencies. The hierarchical structure, in comparison, bolsters feature expression through deep learning.

The input image x ∈ R ^H×W×C is divided into N patches of size (P, P). We configured the ViT model with a patch size of P and a stride of S; consequently, the number of patches into which an image is divided is calculated as follows:

$$N=\left(H-P\right)\left(W-P\right)/S^2,$$

(1)

where (H, W) is the resolution of the input image and C is the number of channels. Subsequently, trainable linear projections are employed to map these patches onto D-dimensional vectors, with the resultant output recorded as patch embeddings. An additional learnable embedding is incorporated into the input sequence of the Transformer, serving as a class token xclass to learn contextual information from other embeddings. Next, a learnable position embedding is added to the input sequence, and the sequence is fed into multiple Transformer layers. We express the feature Z = {z_class, z₁, z₂, ..., z_N} ∈ R^(N+1)×d (where d is the dimension of each feature vector) output by ViT as follows:

$$\mathrm{Z}=ViT\left(I\right), I\in \left[I_{original},I_{erasing}{,I}_{cropping} \right].$$

(2)

3.3. Graph Construction

In our proposed method, we leverage the features output by ViT to construct graph-structured information, thereby enhancing the model’s comprehension and expression of the pedestrian feature space. In our overall architecture, features are passed through this module multiple times to enhance their representations. The expression of the graph-structured information takes the form of

$$G=\left(F,A\right),$$

(3)

$$similarity\left(f_i, f_j\right)={\displaystyle \frac{f_i·f_j}{‖f_i‖·‖f_j‖}},$$

(4)

$$a_{i,j}=\left\{\begin{array}{c}1, i=0 or j=0\\ 1,\mathrm{s}\mathrm{i}\mathrm{m}\mathrm{i}\mathrm{l}\mathrm{a}\mathrm{r}\mathrm{i}\mathrm{t}\mathrm{y}\left(f_i,f_j\right)>m\\ 0, \mathrm{s}\mathrm{i}\mathrm{m}\mathrm{i}\mathrm{l}\mathrm{a}\mathrm{r}\mathrm{i}\mathrm{t}\mathrm{y}\left(f_i,f_j\right)\le m\end{array}\right.,$$

(5)

where F denotes the features of nodes and A is the adjacency matrix. Specifically, we assess the degree of association between different nodes by computing the cosine similarity between their respective feature vectors. When the cosine similarity between the features of two nodes surpasses a predefined threshold, we infer a strong correlation between these nodes in the feature space, prompting us to establish an edge connection between them. Consequently, the corresponding entries in the constructed adjacency matrix are assigned a value of 1, visually representing the established connections between nodes. In alignment with the principles underlying the Transformer architecture, we posit that the class token’s features encapsulate information regarding global relationships among relevant features. Consequently, we establish connections between the class token and all other nodes. Then, all remaining connections are set to 0.

3.4. Multi-Scale Graph Attention Feature Aggregation

After acquiring the graph information, we feed the graph structural details, comprising the features of nodes and the adjacency matrix, into our proposed Multi-scale Graph Attention Feature Fusion module. Details of this module’s architecture are depicted in Figure 2. Each branch employs a dedicated Graph Attention Module to extract features, with each branch configured to operate at a different feature scale. The feature calculation formula for the MSGA module is as follows:

$$e_{i,k,s}^{\left(l\right)}=W_{k,s}^{\left(l\right)}{h}_{i,k,s}^{\left(l\right)},$$

(6)

$${\mathsf{\alpha }}_{ij,k,s}^{\left(l\right)}={softmax}_j\left(LeakyReLU\left(a_k^{{\left(l\right)}^T}\left[e_{i,k,s}^{\left(l\right)}\right]\left[e_{i,k,s}^{\left(l\right)}\right]\right)\right),$$

(7)

$$f_{i,k,s}^{\left(l\right)}=MLP\left(ReLU\left(\sum _{j\in N}{\alpha }_{ij,k,s}^{\left(l\right)}{e}_{j,k,s}^{\left(l\right)}\right)\right)+h_{i,k,s}^{\left(l\right)}, k=\mathrm{1,2},\dots , K$$

(8)

$$F^{\left(l+1\right)}=F_{s1}^l{+F}_{s2}^l{+F}_{s3}^l.$$

(9)

For each attention head $k$, the graph attention computation is initiated by applying a weighting matrix to the feature vectors of each node, effectively transforming them into a new feature space. We control the scales of features with varying dimensionality by setting the ${\mathrm{W}}_{k,s}^{\left(l\right)}$, where k denotes the attention head and s is the scale of each branch. Subsequently, attention coefficients are computed for each pair of nodes within each head, following which the features of neighboring nodes are aggregated through a weighted sum according to their respective attention coefficients. Then, the outputs from all heads are concatenated to obtain the feature representation after the nodes have undergone graph attention extraction. Subsequently, a Multi-layer Perceptron (MLP) layer is employed to map features from different scales into a common dimensionality. Finally, the features extracted from the three branches at different scales are aggregated through summation to achieve feature fusion. To mitigate the potential loss of original feature information in deeper layers, residual connections are introduced to reinforce the representation of the original features.

3.5. Global Channel Attention

Ultimately, our model employs a channel attention operation on the aggregated features. The raw class tokens output by the ViT model are passed through an MLP to derive weights for the channel features, which are then used as channel attention to perform a weighted multiplication with the features. The above process is illustrated by the following equation:

$$\hat{F}=softmax\left(MLP\left(Z_{clas{s}_{t}oken}\right)\right)\otimes F.$$

(10)

Integrating the global perspective of the Transformer architecture with the channel attention mechanism, the class token—once transformed via the MLP—carries comprehensive information about the entire image sequence. Utilizing this token to generate channel-level attention weights ensures that the model not only considers local features, but also leverages the global context effectively. This methodology enables the model to more accurately discern the correlations and significance among different feature channels, leading to richer and more discriminative feature representations.

4. Experiments and Results

4.1. Data Sets

Experiments were conducted across three occlusion scenario data sets, in order to assess the performance of our proposed methodology. Our primary objective was to address the challenge of occluded person re-identification; hence, the experiments utilized the Occluded-Duke [27], OccludedREID [28], and Partial-ReID [29] data sets. The Mean Average Precision (mAP) and Rank-1 accuracy were employed as standard evaluation metrics, consistent with prevailing practices in ReID research.

The Occluded-Duke data set was constructed based on the original DukeMTMC-reID data set, yielding Occluded-DukeMTMC, which encompasses 15,618 training images, 17,661 gallery images, and 2210 occluded query images, making it the largest occluded ReID data set to date. DukeMTMC-reID serves as a widely adopted benchmark for pedestrian re-identification, featuring a substantial collection of pedestrian images captured by surveillance cameras, ideal for assessing the performance of cross-camera tracking algorithms. The Occluded-Duke data set was meticulously derived from DukeMTMC-reID by selecting instances with occlusions, aiming to escalate the difficulty of re-identification tasks, particularly when parts of pedestrians’ bodies are obscured by objects such as pillars, backpacks, or other pedestrians.

The Occluded-REID data set is specifically designed for occluded person re-identification, consisting of 2000 images of 200 distinct pedestrians captured by a moving camera. Each identity is represented by five full-body gallery images and five query images with different viewpoints and varying degrees of severe occlusion. All images have been uniformly resized to a dimension of 128 × 64, facilitating studies on the impact of occlusion on pedestrian recognition.

The Partial-ReID data set comprises 600 images of 60 pedestrians, with each pedestrian represented by 5 partial images and 5 full-body images. Using the visible portions, the images are manually cropped to create new partial images. The images in the data set were collected across a university campus under various viewpoints, backgrounds, and degrees of occlusion.

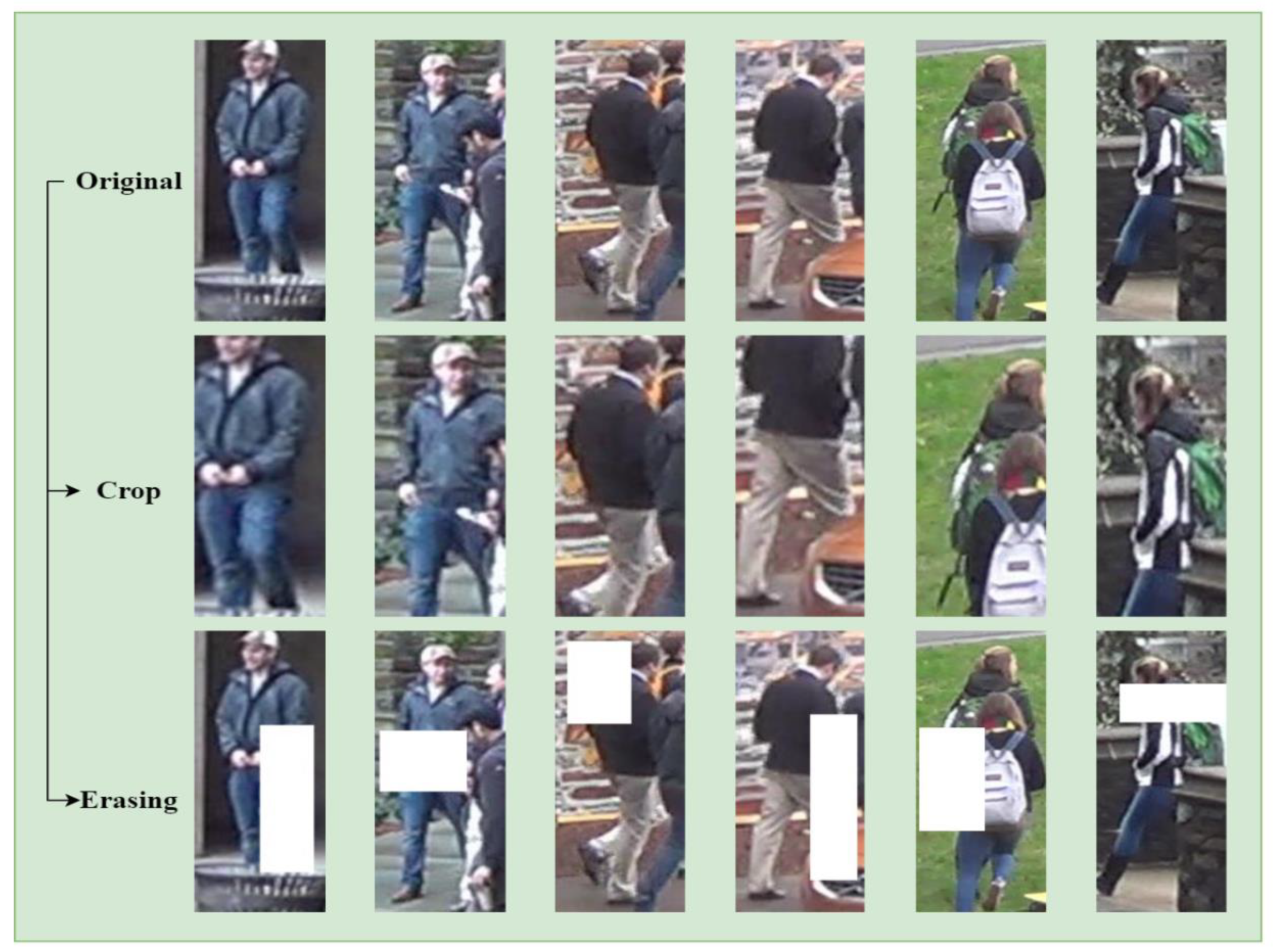

4.2. Data Augmentation

Almost all commonly utilized data augmentation methods involve the use of random erasing, cropping, flipping, filling, and adding noise operations to the training data set during the data pre-processing stage. However, the random enhancement operation cannot be reproduced; that is, the method of each enhancement is not the same. In order to mitigate the above problems, we adopted a fixed enhancement method to make full use of the training data and strengthen the robustness of our model. We performed two enhancement operations of erasing and cropping on the input image x to obtain three groups of images (I_original, I_erasing, and I_cropping). Among them, I_original is the original input image, I_erasing adds obstacles to the image, and I_cropping irregularly crops the image. Based on the original occluded data, we obtained two images with enhanced degrees of occlusion based on each original image. As shown in Figure 3, several examples of the data augmentation methods we used are provided.

4.3. Implementation

All experiments were conducted on four NVIDIA V100 GPUs. The fundamental architecture of our approach was based on VIT-B/16, comprising 12 Transformer layers. The model’s initial weights were pre-trained on ImageNet. In our experiments, we also incorporated methodologies from TransReID, employing both overlapping patch embedding and Scale-Invariant Embedding (SIE). When constructing the adjacency matrix, the threshold m was set to the mean value of the similarity matrix. The batch size was configured to 128, with each containing 4 images per identity. The initial learning rate for the experiments was set at 0.00196, and the learning rate was decayed following a cosine annealing schedule.

We used the Cumulative Matching Curve and Mean Average Precision (mAP) to evaluate different ReID methods.

The Rank-1 accuracy of CMC is a metric that evaluates whether the correct match can be found at the top of the retrieval list. Specifically, if the image ranked first in the retrieval results corresponding to a query image indeed belongs to the same individual, it is counted as a successful match. The Rank-1 accuracy is, thus, the ratio of successful matches to the total number of queries.

The Mean Average Precision (mAP) is a more comprehensive evaluation metric that takes into account all correct match positions in the retrieval results. mAP is the mean of the average precision, where precision is defined as the ratio of the number of correct matches to the total number of retrieved items up to a certain position in the retrieval list; recall, in contrast, is the ratio of the number of correct matches to the actual total number of matches. This metric provides a balanced view between precision and recall, offering a more holistic assessment of retrieval performance.

4.3. Results of Data Set Verification

We compared our approach with various state-of-the-art methods on the occluded person re-identification benchmark, as listed in Table 1. The comparison encompassed three categories of methods: multi-scale convolutional approaches, methods utilizing spatial key point information, and those based on the Transformer architecture. The results of our experiments demonstrate that our method outperforms other methods in occluded scenarios, excelling in extracting more effective features compared to its counterparts.

4.4. Comparison of Parameter Tuning

In Table 2, we present the results of our evaluation of the effectiveness of data augmentation on the occluded data sets. To fully leverage the training information and mitigate the issue of data imbalance in the test set, three augmentation techniques were applied during the data pre-processing stage. The experimental results show that data augmentation significantly enhanced the performance of our model. On OCC_Duke, the augmentation strategies notably improved the method’s efficacy, with an increase of 5.6% in mAP and 1.8% in Rank-1 accuracy. For OCC_ReID, the improvements in mAP and Rank-1 accuracy were even more pronounced, at 7.4% and 2.4%, respectively. Likewise, on Partial-ReID, the enhancements yielded an increase of 2.3% in Rank-1 accuracy. It is evident that the incorporation of data augmentation was efficacious across all three occlusion data sets.

In Table 3, we present our evaluation of the impact of the number of layers in our proposed module on the results. The MSGA module was configured with 1, 2, or 3 layers, and the results of our experiments show that the best performance was attained when the number of layers was set to 3. This result proves that deeper MSGA modules can learn more intricate feature representations, enabling the module to capture abstract ReID features.

In Table 4, we present our analysis of the impact of the number of attention heads. We configured the number of heads to 2, 4, 6, or 8. Moreover, we conducted experiments on occluded data sets. The use of multi-head attention enables GAT to concurrently capture diverse features from the input data. Each head is initialized with distinct weights. An increase in the number of heads allows for the learning of a broader range of distinct features; however, beyond a certain threshold, some heads may begin to learn redundant features, duplicating information already captured by others which, in turn, leads to a decline in performance.

4.5. Visual Experiment

4.5.1. Examples of Inference on the Occluded Data Set

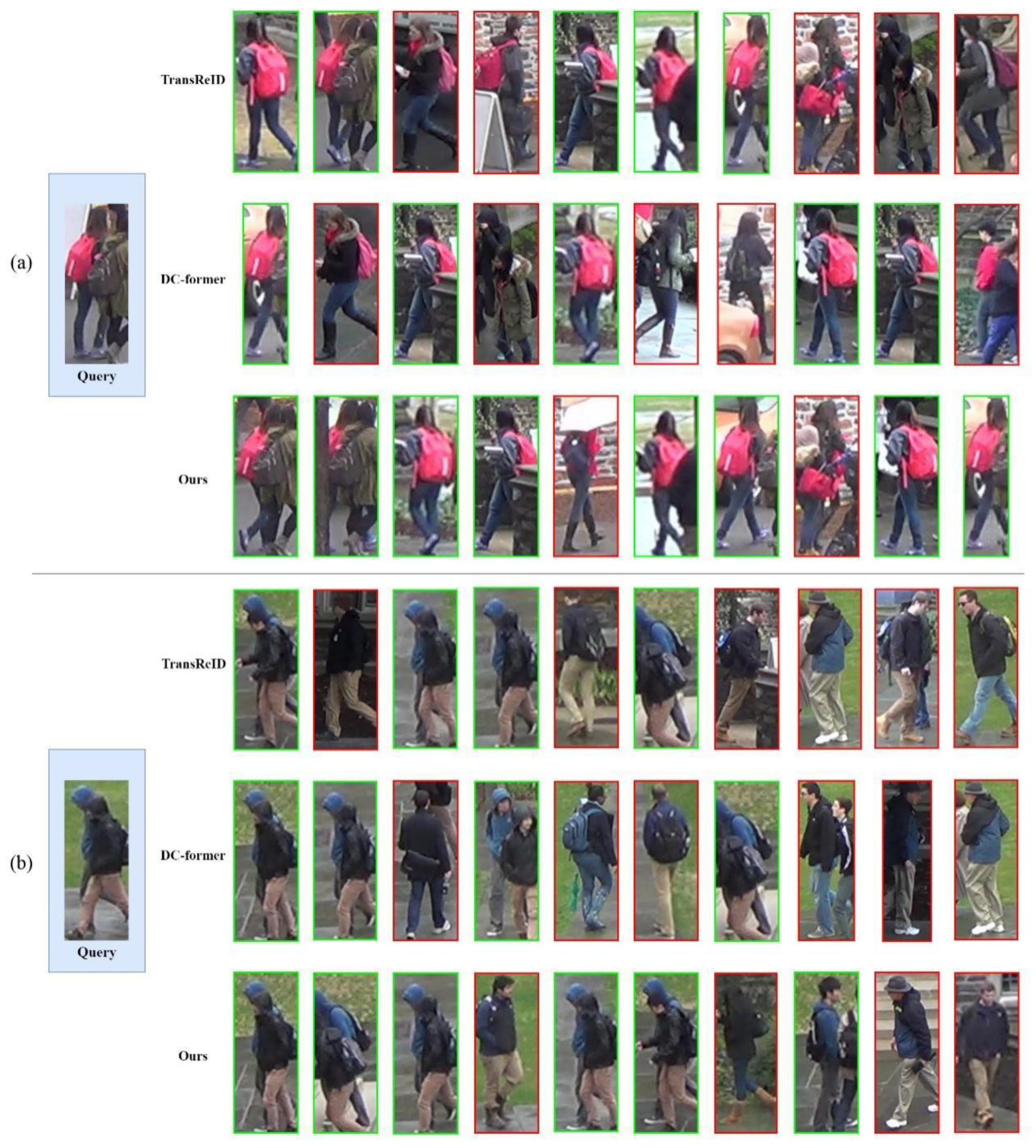

In the following section, we show two examples of inference on the Occ_Duke data set. As illustrated in Figure 4, both of the query images show occluded persons. It can be seen that, compared to the other two Transformer-based baseline approaches, our approach was more clearly aware of persons being occluded. The other two methods presented more cases of using shelter features for matching, resulting in errors.

4.5.2. Visual Comparison of Feature Attention

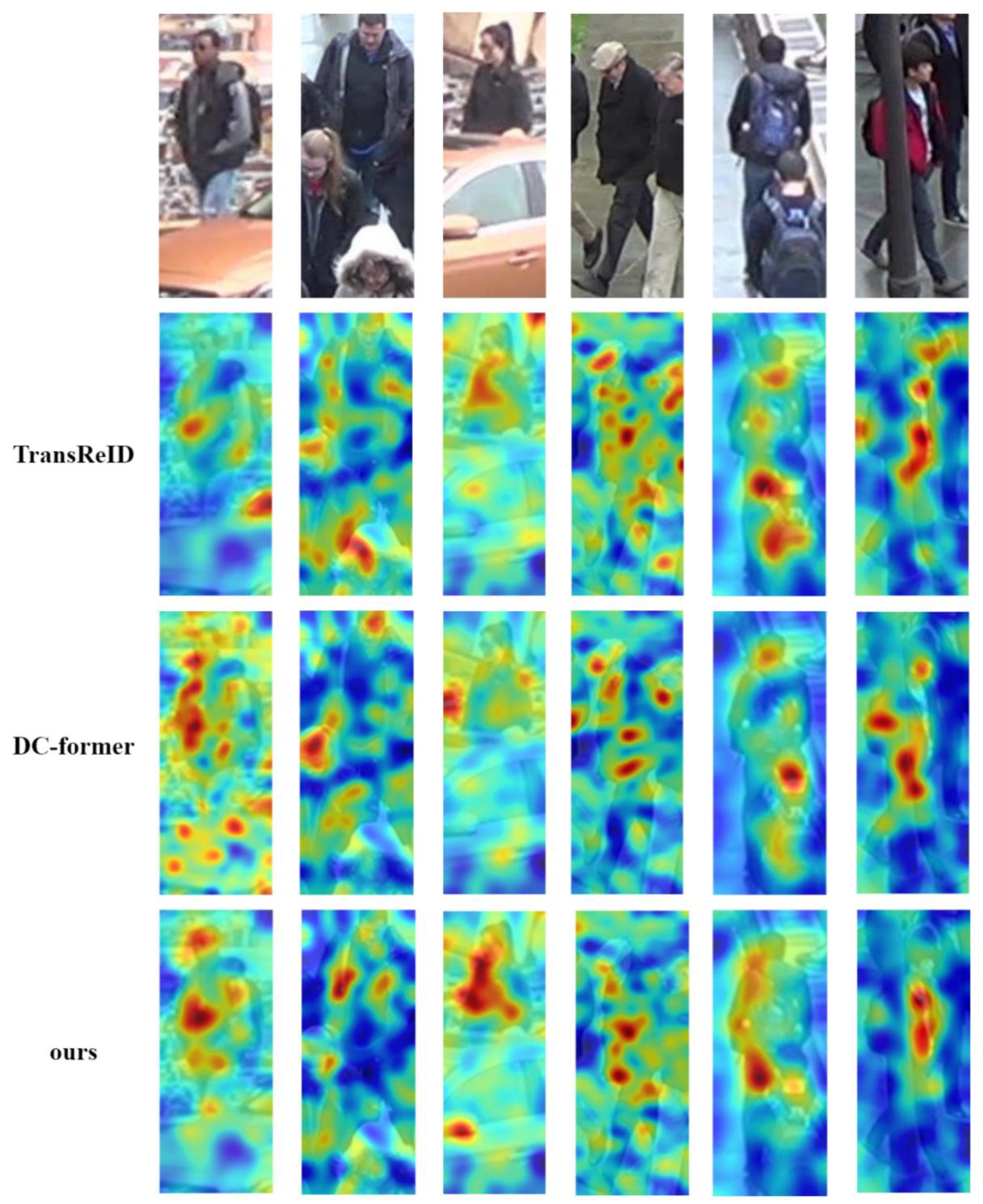

As shown in Figure 5, gradient-based visualization was employed to analyze the attention heatmap of the features ultimately fed into the ReID head. It is evident that, in comparison with the two baseline approaches, our model was notably effective in directing focus to salient portions of the person, rather than being distracted by occluding objects, particularly under conditions of occlusion.

5. Discussion/Conclusions

In this study, we proposed a novel module that harnesses the graph attention mechanism to aggregate human feature information. After analyzing other transformer based models, we believe that The self-attention mechanism in ViT might be vulnerable to interference caused by occluding objects, which can result in attention being scattered across irrelevant areas. To mitigate the impact of occlusions, some approaches have utilized pose estimation or human keypoint detection to create graph-structured data. However, these methods introduce additional noise, partly due to challenges like the invisibility of keypoints.

Our method addresses the reliance of graph-based models on human key point detection through re-assembling the features extracted with ViT to concentrate on effective information segments under occlusion scenarios. Our overarching framework employs ViT as the backbone, treating features extracted by ViT as graph nodes, which are then processed with our multi-scale attention module for information aggregation. By adopting graph structures and attention-driven feature learning, the network is encouraged to focus on features that persist stably, even under occluded conditions, while integrating pedestrian features across various scales. This approach sustains robust recognition performance in the presence of occlusions. Through assigning attention weights to feature maps at different scales, the model effectively integrates both global and local information. Our method surpasses most existing models based on graph convolutional approaches—albeit not outperforming the most recent ones—which remains an area for future investigation and improvement. Currently, our method for constructing graph-structured information relies solely on feature similarity, which may not fully align with the feature distribution of person re-identification tasks, thus potentially degrading model performance. We plan to explore this issue in future work.
