Divergent Transcriptional Regulation and Functional Role of Chick WT1_76127 and Mouse Gm14014 lncRNAs in Epicardial Cell Migration

1. Introduction

Cardiac development is a complex developmental process that initiates soon after gastrulation with the configuration of symmetrical pools of cardiomyogenic precursors that subsequently fused in the embryonic midline, leading to the formation of the cardiac straight tube [1]. This early tube is composed of an external myocardial layer and an internal endocardial lining. Soon after, a rightward looping develops and embryonic atrial and ventricular chambers become progressively configured [2]. At this stage, the embryonic heart becomes externally covered by a new epithelial lining, the embryonic epicardium (EE). The EE originates from the proepicardium (PE), a transitory structure with a cauliflower appearance located at the junction of the cardiac and hepatic anlagen within the septum transversum [3]. Cells emanating from the PE bridged to the naked embryonic myocardium providing an external lining [4]. Soon after, a subset of these embryonic epicardial cells, undergoes an epithelial-to-mesenchymal transition (EMT), colonizing the subepicardial space and migrating into the embryonic myocardium [5,6]. In chicken, these epicardial derived cells (i.e. EPDCs) have been consistently reported to contribute to distinct coronary vascular components, including vascular endothelium, smooth muscle and adventitial layers, as well as cardiac fibroblasts [7,8]. However, in mice, several lineage tracing experiments have provided evidence of a modest contribution of EPDCs to cardiac endothelium, while their contribution to coronary smooth muscle and adventitial vasculature and fibroskeleton is undisputed [9].

In recent years, our understanding of the molecular mechanisms that govern proepicardial and epicardial formation has greatly emerged [3]. Evidence highlighting the pivotal role of Bmp and Fgf during proepicardial and myocardial specification was reported by Kruithof et al. [10] demonstrating that Fgf enhances proepicardial specification while Bmp promotes cardiomyogenic differentiation. More recently, the role of distinct transcription factors has emerged as key players in epicardial development. Wt1 is essential for epicardial EMT and maturation [11,12,13,14,15,16]. Similarly, Tbx18 has also been reported to be expressed in the embryonic epicardium but its role in epicardial formation is controversial. Greulich et al. [17] reported that Tbx18 is dispensable for epicardial formation, EMT and subsequent differentiation into smooth muscle cells and fibroblasts while Wu et al. [18] demonstrated impaired coronary plexus formation and identified impaired expression of several signaling pathways related to vascular development, such as Hedgehog, Vegf, Angiopoetin and Wnt signaling. Further support for the role of Tbx18 in epicardial EMT was reported by Takeichi et al. [19] using murine primary epicardial cells. Epicardin/Tcf21 is also discretely expressed in the PE and EE [20,21] and regulates the specification and maturation of the proepicardial cells [22] in Xenopus, while in mice it has been reported to be essential for epicardial derived fibroblast formation [23] and the inhibition of smooth muscle differentiation [24]. Other cardiac transcription factors with pivotal roles in cardiogenesis, including Gata4, Nkx2.5, Isl1 and Pitx2 have been reported during PE/EE formation [25,26], yet their functional contribution is still uncertain, except Gata4 that is essential for PE formation [27].

For decades, the adult epicardium was considered merely an external cardiac lining with no or limited physiological implications. However, it has become clearly demonstrated that upon injury, the epicardium is reactivated, providing essential cues to regenerate the damaged heart in experimental models such as zebrafish, medaka and mice [28,29,30,31,32,33]. While the direct epicardial cellular contribution is limited [34], adult thymosin β4 primed epicardial cells can be converted into fully functionally integrated cardiomyocytes after myocardial infarction [35,36,37], supporting the therapeutic potential of the epicardium to heal the damaged heart [38,39,40,41]. Furthermore, EPDCs play determinant roles in distinct cardiac pathological conditions, contributing to an increased fibrous response after myocardial infarction [42] as well as providing cellular substrates for atrial fat deposition [43] that correlates with an enhanced prevalence of arrhythmogenic diseases such atrial fibrillation [44,45,46].

Over the last decade, we have witnessed the rise of a novel layer of complexity governing gene regulation with the discovery of non-coding RNAs [47,48]. Non-coding RNAs are broadly classified according to their length into small non-coding RNAs (<200 nt) and long non-coding RNAs (>200 nt) [47,48]. microRNAs constitute the most abundantly expressed and widely studied types of RNAs among small non-coding RNAs. microRNAs are 20-24 nucleotides in length molecules that play essential roles controlling post-transcriptional regulation of coding RNAs by base pair complementary binding within the 3´UTRs and promoting mRNA degradation and/or protein translation blockage [47]. On the other hand, long non-coding RNAs displayed a similar biogenesis as coding RNAs but despite their length, no protein coding potential is identified [48]. Several lncRNAs have been reported to exert pivotal roles during early embryonic development, such as Fendrr and Braveheart [49,50], but none of them have been identified during epicardial formation. Furthermore, some lncRNAs have been identified to be distinctly expressed in cardiac pathological conditions such as myocardial ischemia, heart failure or arrhythmogenic diseases, respectively [51,52,53,54].

Recently, we have identified three distinct lncRNAs, adjacent to the Wt1, Bmp4 and Fgf8 chicken gene loci, with enhanced expression in the PE as compared to the embryonic myocardium in the developing embryonic chicken heart. These lncRNAs are distinctly regulated by Bmp, Fgf and thymosin β4, providing support of their plausible implication in epicardial cell lineage specification [55]. Within this study, we therefore provided thorough characterization of their tissue and subcellular distribution, their transcriptional regulation, their conservation in mice and their functional characterization. We provide herein evidence that these lncRNAs are widely distributed and transcriptional regulated by cardiac enriched transcription factors. Furthermore, mouse Gm14014, but not its chicken homologue Wt1_76127, is required for epicardial cell migration.

2. Results

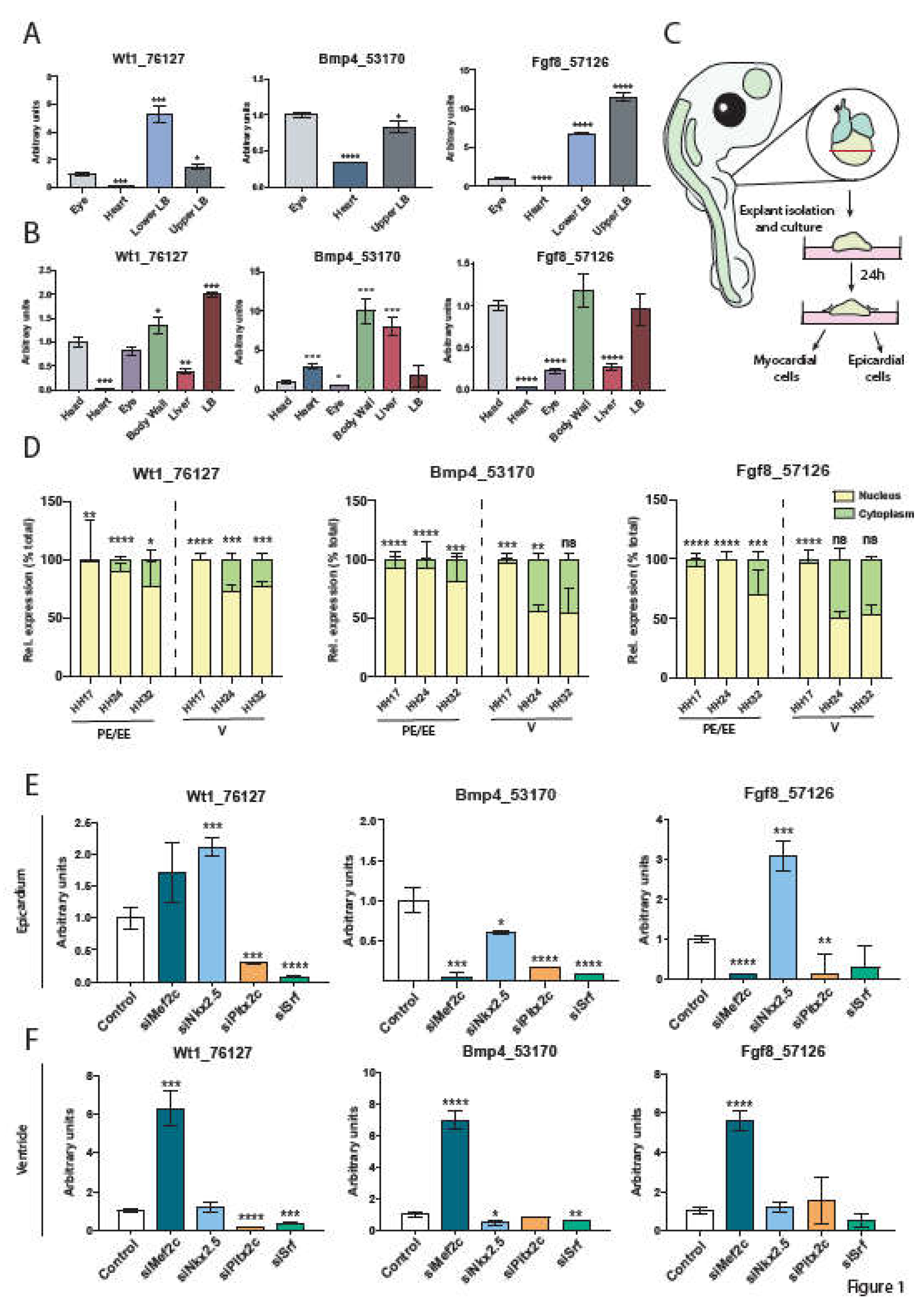

2.1. Tissue Distribution in the Embryonic Chicken

The analyses of gene expression and tissue distribution are important features for understanding the plausible functional roles of lncRNAs because they can provide hints on their cellular function depends on whether they are expressed in a tissue restricted manner or multiple tissues [68]. We therefore have analyzed by RT-qPCR the expression profile of Wt1_76127, Fgf8_57126 and Bmp4_53170 lncRNAs in distinct embryonic structures of HH24 and HH32 chicken embryos. Our data demonstrate that Wt1_76127 and Fgf8_57126 are predominantly expressed in limb buds and eye with residual expression in the heart at HH24 (Figure 1A). On the other hand, Bmp4_53170 is preferentially expressed in the eye and upper limb buds, with lower expression in the heart and not detectable levels in the lower limb buds (Figure 1A). At HH32, the expression of Wt1_76127 remains to be highest in the limb buds followed by the body wall, head, eye and liver with minimal expression in the heart, similarly as at HH24 (Figure 1B). Fgf8_57126 displays a rather similar expression profile as Wt1_76127 (Figure 1B), while Bmp4_53170 displayed the highest expression in the body wall and liver, moderate expression in the heart and limb buds and low expression levels in the head, limb buds and eye (Figure 1B). Overall these data demonstrate that Wt1_76127 and Fgf8_57126 display similar expression patterns during embryogenesis, in contrast to Bmp4_53170, yet all three of them are widely distributed in different tissues during embryogenesis. These data therefore suggest that these lncRNAs might be functional relevant in multiple tissues.

2.2. Subcellular Distribution in Proepicardial, Epicardial and Ventricular Tissues during Development

LncRNAs have been extensively reported to be distinctly located in distinct subcellular compartments; exerting epigenetic and transcriptional roles if preferentially distributed in the nucleus and post-transcriptional roles if in the cytoplasm. We are particularly interested in understanding their functional role in the developing and adult heart, even though the expression of these lncRNAs is low. Therefore, we analyzed their subcellular distribution in the cytoplasmic and nuclear compartments of proepicardial (HH17), epicardial (HH24 and HH32, respectively) and ventricular (HH17, HH24 and HH32, respectively) tissues (Figure 1C). Our data demonstrate that Wt1_76127, Fgf8_57126 and Bmp4_53170 display a prominent nuclear localization in the proepicardial and epicardial cells at all stages analyzed (Figure 1D). On the other hand, while the expression of Wt1_76127, Fgf8_57126 and Bmp4_53170 is prominently nuclear at early developmental ventricular stages, i.e. HH17, yet they become to be progressively also expressed in the cytoplasm at HH24 and HH32, being almost equally represented for Fgf8_57126 and Bmp4_53170, while Wt1_76127 remains to be predominantly nuclear (Figure 1D). Thus, these data support the notion that these lncRNAs might preferentially exert epigenetic and transcriptional roles.

2.3. Transcriptional Regulation of Wt1_76127, Fgf8_57126 and Bmp4_53170

Several studies demonstrate the ability of lncRNAs to regulate the expression transcription factors that promote or repress gene expression [69]. However, the expression of lncRNAs is also a transcriptionally regulated process [70], although their transcriptional regulation has been currently scarcely investigated. We sought to investigate whether different cardiac-enriched transcription factors, i.e. Mef2c, Nkx2.5, Pitx2c and Srf, can regulate the expression of Wt1_76127, Fgf8_57126 and Bmp4_53170 lncRNAs in epicardial and ventricular explants. To dissect this point, we performed loss-of-function assays in HH24 epicardial and ventricular explants, respectively, and transfected with their corresponding siRNAs (loss-of-function) as previously reported [62] (Supplementary Figure S1A). Our data demonstrate that silencing Mef2c in epicardial explants significantly diminishes the expression of Bmp4_53170 and Fgf8_57126 while Wt1_76127 is not altered (Figure 1E). Nkx2.5 siRNA administration leads to up-regulation of Wt1_76127 and Fgf8_57126 while Bmp4_53170 expression is down-regulated. On the other hand, silencing Pitx2c and Srf leads to downregulation of all three lncRNAs (Wt1_76127, Bmp4_53170 and Fgf8_57126), except for Fgf8_57126 that Srf siRNA is not significantly altered after Srf siRNA administration (Figure 1E). Overall these data suggest that Mef2c, Pitx2c and Srf are essential for transcriptional activation of these three lncRNAs while Nkx2.5 might be acting as a repressor in the case of Wt1_76127 and Fgf8_57126.

Analyses of loss-of-function assays in ventricular explants also demonstrates a distinct transcriptional regulation by these transcription factors. Silencing Mef2c leads to upregulation of all three lncRNAs, i.e. Wt1_76127, Fgf8_57126 and Bmp4_53170, in HH24 ventricular explants (Figure 1F). Nkx2.5 silencing only decreases Bmp4_53170 while Wt1_76127 and Fgf8_57126 are not altered, Pitx2c silencing only diminishes Wt1_76127 but not Bmp4_53170 or Fgf8_57126 while Srf silencing in ventricular explants only decreases Bmp4_53170 and Wt1_76127 but Fgf8_57126 is not modified (Figure 1F). Thus, these data suggest that Mef2c plays a fundamental role repressing the expression of all three lncRNAs in the ventricular explants while the role of the other three cardiac-enriched transcription factors is spurious and limited to Wt1_76127 and Bmp4_53170, respectively.

Since we have previously observed that these lncRNAs display a dynamic subcellular distribution during embryonic development, we sought to investigate if silencing these transcription factors might distinctly regulate the subcellular distribution in the embryonic epicardium, focusing particularly on Mef2c. Loss-of-function of Mef2c in epicardial explants in HH24 did not modify nuclear vs cytoplasmic distribution of Wt1_76127, enhanced Bmp4_53170 expression in both subcellular compartments and selectively down-regulated Fgf8_57126 expression in the nucleus while not altering cytoplasmic expression (Supplementary Figure S1B). Nuclear vs cytoplasmic distribution in Fgf8_57126 in HH32 remained the same as in HH24 after loss-of- function of Mef2c, although it negatively regulated Wt1_76127 nuclear distribution and Bmp4_53170 cytoplasmic distribution, respectively (Supplementary Figure S1C). Thus, these data support the notion that cytoplasmic vs nuclear localization is modulated in part by Mef2c.

2.4. Wt1_76127 Is Conserved in the Mouse (Gm14014)

Conservation of lncRNAs in different species is currently rarely identified as lncRNAs seem to be less conserved than coding-RNAs. [48,71]. We sought to investigate if Wt1_76127, Fgf8_57126 and Bmp4_53170 are conserved in the mouse genome. Analyses of the lncRNAs annotated in the mouse genome lead to the identification of Gm14014 as a putative homologue of Wt1_76127, since it is located in the vicinity of the Wt1 locus and it shares a 39,1% homology identity with Wt1_76127 (Supplementary Table S2). Comparative analyses of such nucleotide conservation display a wide and heterogeneous distribution of such conserved nucleotide stretches in Gm14014 (Supplementary Figure S2). On the other hand, no homologues for Fgf8_57126 and Bmp4_53170 were found.

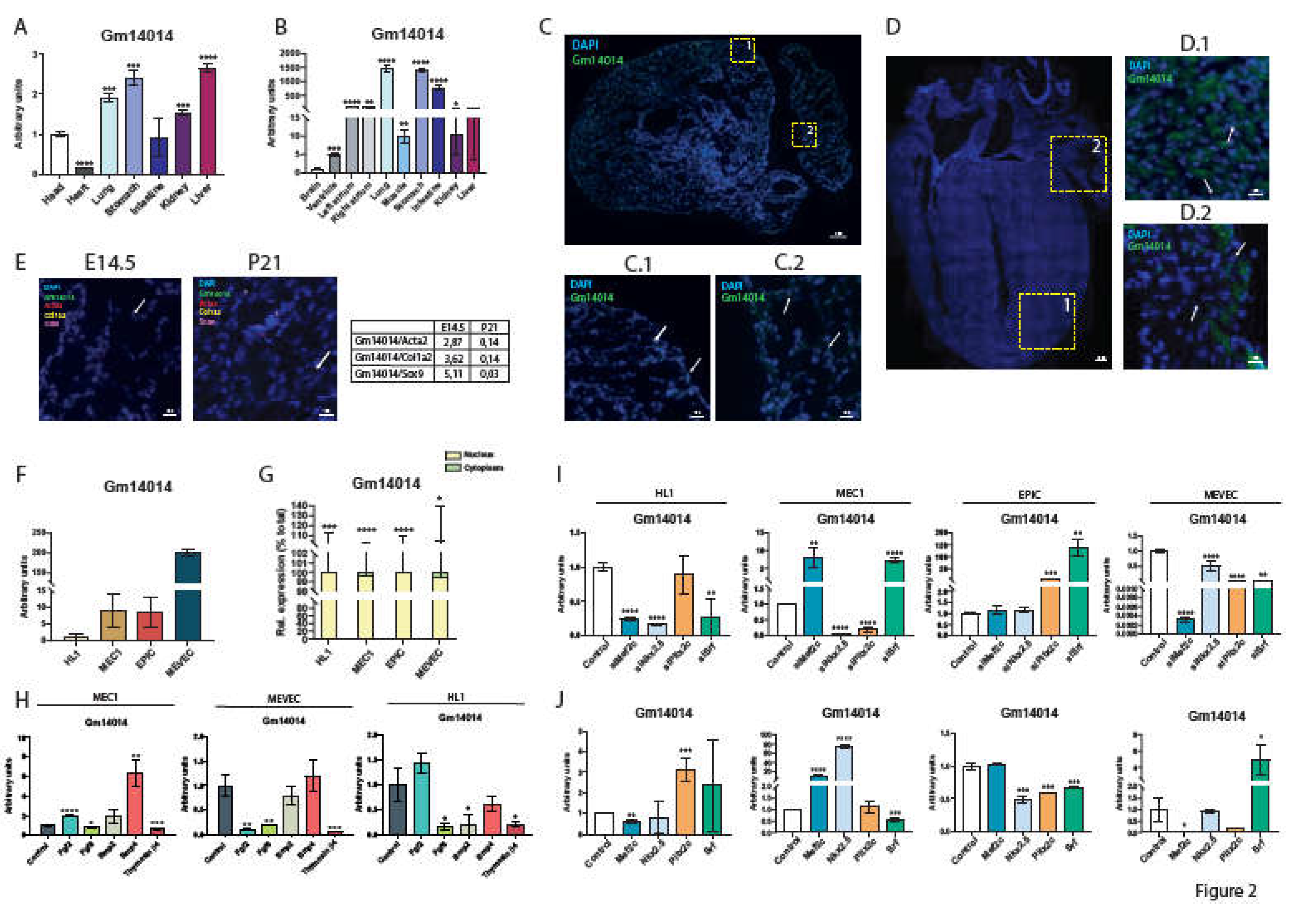

2.5. Gm14014 Is Widely Expressed in Mouse Embryonic Tissues

To investigate whether the homology between Wt1_76127 and Gm14014 correlates with similar expression patterns and determine if Gm14014 is a lncRNA with ubiquitous expression (as Wt1_76127) or is a tissue-specific lncRNA, we tested Gm14014 expression in multiple tissues during embryonic development. RT-qPCR analyses demonstrated that in mouse E13.5 embryos Gm14014 is more abundantly expressed in the lungs, stomach, kidney and liver as compared to the head, while similar expression levels are observed in the intestine and lower expression levels are detected in the heart (Figure 2A). Analyses of Gm14014 by RT-qPCR in adult mice also displayed a wide tissue distribution. The lungs, stomach and intestine displayed the highest expression levels as compared to the brain, followed by the left and right atria, liver, skeletal muscle, kidney and ventricle (Figure 2B). Overall these data are in line with those observed for Wt1_76127 in chicken embryos, displaying a wide tissue distribution and low expression levels in the developing heart.

To get further insights into the tissue distribution of Gm14014, single molecule SCRINSHOT analyses were performed in embryonic (E14.5) and postnatal (P21) hearts. Gm14014 SCRINSHOT analyses showed a similar tissue distribution at both stages (Figure 2C,D), indicating the specific position of Gm14014-positive cells (Supplementary Figure S3C). Subsequently, colocalization analyses with muscular (Acta2) [72], epicardial (Col1a2) [73] and fibroblast (Sox9) [74] markers were performed (Figure 2E). The highest colocalization was identified between Gm14014 and Sox9 (5.11 %) in E14.5, while in P21 it was significantly decreased (0.03%). Gm14014 colocalization with Col1a2 and Acta2 in E14.5 was 3.62% and 2.87% respectively, while in P21 it was 0.14% in both cases. Furthermore, the global Gm14014 signal quantification was higher in E14.5 than in P21 (Supplementary Figure S3D). These data demonstrate therefore that Gm14014 is widely distributed in different cell types in the embryonic and adult heart, displaying higher expression in embryonic stages.

2.6. Gm14014 Is Nuclearly Located and Displays Tissue-Specific Transcriptional Regulation

In order to further characterize the cardiovascular expression of Gm14014 and thus to determine its plausible biological role in this context, we analyzed the expression of Gm14014 in different cardiac cell lines, as well as its subcellular localization. Moreover, since regulation of lncRNA expression is similar to that of coding RNAs, we investigated the impact of growth factors and key transcription factors involved in cardiogenesis in Gm14014 expression. We analyzed Gm14014 expression level in four distinct cardiac cell lines, i.e. HL1 atrial cardiomyocytes, MEC1 and EPIC epicardial cells and MEVEC endocardial cells. Our data demonstrate that the highest expression is observed in endocardial MEVEC cells, followed by EPIC and MEC1 epicardial cells, with the lowest expression in HL1 atrial cardiomyocytes (Figure 2F). Importantly, subcellular localization analyses by RT-qPCR, demonstrated that Gm14014 is primarily located in the nucleus in all four distinct cell lines (Figure 2G & Supplementary Figure S3A).

It has been previously demonstrated that several members of the Fgf and Bmp families, e.g. Bmp2, Bmp4, Fgf2 and Fgf8, are essential players of cell fate determination during cardiogenesis, particularly during PE/EE development [10,75]. We have also recently demonstrated that Wt1_76127, Fgf8_57126 and Bmp4_53170 are distinctly regulated by these growth factors as well as by thymosin β4. We therefore scrutinize herein whether these growth factors are able to modulate Gm14104 in the different cardiac cell lines. Within epicardial (MEC1) cells, Gm14014 expression is increased after Fgf2 and Bmp4 administration, respectively, while addition of Bmp2 displayed no significant differences and Fgf8 as well as thymosin β4 significantly down-regulated it (Figure 2H). Additionally, we also tested if these growth factors could also influence Gm14014 in MEVEC endocardial and HL1 cardiomyocytes. In endocardial MEVEC cells, Fgf2, Fgf8 and thymosin β4 administration resulted in significant Gm14014 downregulation while Bmp2 and Bmp4 lead to no significant differences (Figure 2H). Within HL1 cells, Fgf8, Bmp2 and thymosin β4 administration significantly down-regulate Gm14014 expression, while Fgf2 and Bmp4 resulted in no significant differences (Figure 2H). Therefore, these data demonstrate that both Fgfs and Bmps can distinctly modulate Gm14014 in different cell types. Curiously, thymosin β4 administration consistently downregulated Gm14014 in all three cardiovascular cell types.

We subsequently tested the functional role of distinct cardiac enriched transcription factors in these four different cell lines using gain- and loss-of-function assays for Mef2c, Nkx2.5, Pitx2c and Srf transcription factors (Supplementary Figure S3B). Within HL1 atrial cardiomyocytes, Gm14014 is significantly down-regulated by Nkx2.5 and Srf inhibition while over-expression of these transcription factors did not significantly modulate its expression (Figure 2I,J). On the other hand, Pitx2c over-expression, but not inhibition, significantly upregulated Gm14014 (Figure 2I,J). Curiously, both Mef2c gain- and loss-of-function assays led to significant downregulation of Gm14014 in this cell type (Figure 2I,J). Overall, these data demonstrate that Mef2c, Nkx2.5 and Srf are indispensable for Gm14014 expression while Pitx2c on its own is capable to enhance Gm14014 expression in cardiomyocytes.

Gm14104 expression in MEC1 epicardial cells is equally upregulated by Mef2c gain and loss-of-function, while Nkx2.5 inhibition significantly down-regulated and Nkx2.5 over-expression upregulated Gm14014 (Figure 2I,J). In contrast, Srf inhibition significantly up-regulates, while Srf over-expression downregulates Gm14014, displaying therefore opposite regulatory capabilities to Nkx2.5 (Figure 2I,J). On the other hand, only Pitx2c inhibition selectively down-regulates Gm14014 while Pitx2c over-expression does not modulate its expression (Figure 2I,J). Therefore, these data demonstrate that Nkx2.5 and Srf play fundamental and opposite roles regulating Gm14014 in MEC1 epicardial cells, while only Pitx2c silencing modulates its expression.

Within EPIC epicardial cells, the modulatory roles of these transcription factors seem to be substantially different as for MEC1 epicardial cells, probably correlating with the epicardial nature of MEC1 as compared to EPIC that display mixed epicardial and mesenchymal behavior. Mef2c and Nkx2.5 silencing does not modulate Gm14014 while Pitx2c and Srf inhibition significantly up-regulates its expression (Figure 2I,J). On the other hand, Mef2c over-expression does not modulate Gm14014 while Nkx2.5, Pitx2c and Srf significantly down-regulated Gm14014, respectively (Figure 2I,J). Therefore, Pitx2c and Srf are essential factors for Gm14014 expression in EPIC cells and only Srf displays similar regulatory effects in MEC1 and EPIC cells.

Finally within MEVEC endocardial cells, Mef2c inhibition and over-expression significantly down-regulated Gm14014 expression (Figure 2I,J), while Nkx2.5 and Pitx2c inhibition significantly downregulated Gm14014, while their over-expression did not significantly alter its expression (Figure 2I,J). On the other hand, Srf inhibition downregulated while Srf over-expression upregulated Gm14014 in MEVEC endocardial cells (Figure 2I,J). Therefore, all four transcription factors analyzed are essential for Gm14014 expression in MEVEC endocardial cells, yet only Srf overexpression is capable of inducing Gm14014 expression. Consequently, these data demonstrate that expression of Gm14014 is regulated in part by Mef2c, Nkx2.5 and Srf in HL1 cardiomyocytes, Nkx2.5 and Pitx2c in MEC1 epicardial cells and Mef2c, Nkx2.5, Pitx2c and Srf in MEVEC endocardial cells but is not critically dependent on any of the tested transcription factors in EPIC cells, as revealed by the siRNA assays.

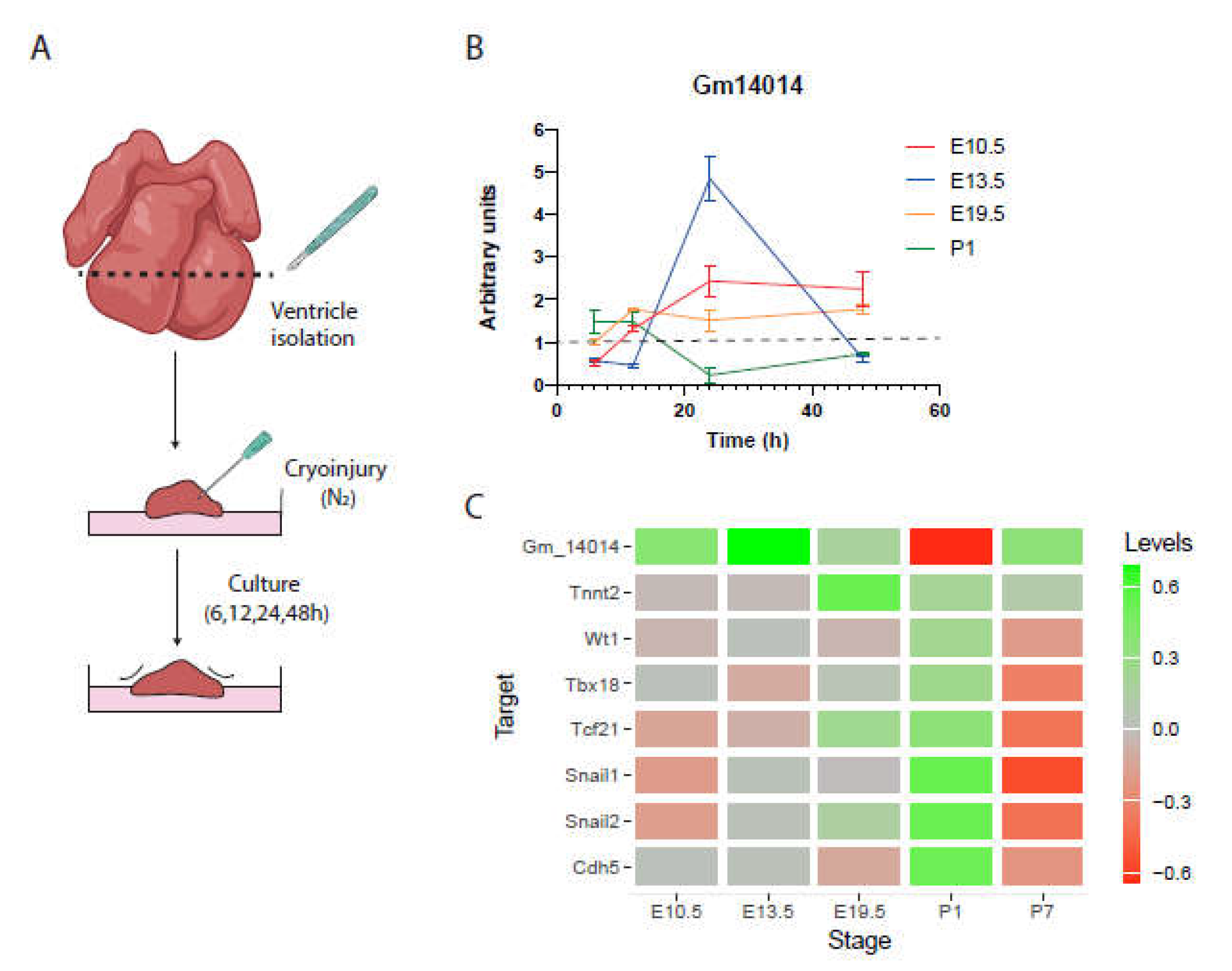

2.7. Gm14014 Is Distinctly Regulated upon Myocardial Injury

Epicardial activation has been reported to be induced after myocardial injury [76,77,78,79,80,81], significantly contributing to myocardial regeneration. We therefore established an ex vivo model to dissect if Gm14014 is activated after cryoinjury and thus might be involved in regeneration. Ventricular explants for mouse E10.5, E13.5, E19.5 and postnatal day (P1) hearts were cultured and cryoinjured with a liquid nitrogen freeze needle and incubated at different times, ranging from 6-48 hours post-injury (Figure 3A). Gm14014 displayed increasing expression levels after cryoinjury ranging from 6 to 48 hours post-injury in E10.5, E13.5 (except at 48h) and E19.5 ventricular explants while it decreases at 24h and 48h in P1 cryoinjured ventricular explants (Figure 3B).

In the regeneration context, it has been shown that the timing of injury is crucial in achieving cardiac regeneration. Cardiac damage at P1 stage allows almost complete regeneration after one month, whereas at P7 such ability is largely reduced [82]. Therefore, we tested whether cryoinjury modulates the expression of Gm14014 as well as distinct molecular markers related to epicardial activation (Wt1, Tbx18, Tcf21), epithelial to mesenchymal transition (Snail1, Snail2, Cdh5) and cardiomyogenic maturation (Tnnt2) at 24h post-injury in ventricular explant for mouse E10.5, E13.5, E19.5, P1 and P7 stage. Epicardial activation markers (Wt1, Tbx18 and Tcf21) are barely modulated in cryoinjured embryonic stages while they are significantly upregulated at P1 cryoinjured hearts and considerably decreased at P7 (Figure 3C and Supplementary Figure S4). Importantly, Tcf21 is also significantly upregulated at E19.5 (Figure 3C and Supplementary Figure S4). These data therefore suggest that epicardial activation is exclusively observed at P1 concomitantly with Gm14014 down-regulation, while at P7 the epicardial activation is significantly reduced and Gm14014 is increased, showing a complementary patterns between P1 and P7 stages. We subsequently analyzed epithelial to mesenchymal transition markers such as Snail1, Snail2 and Cdh5, and cardiomyogenic maturation makers such as Tnnt2 (Figure 3C and Supplementary Figure S4). These markers display a similarly overt expression profile upon cryoinjury, i.e. no modulation or down-regulation at embryonic stages, up-regulation at P1 and a down-regulation in P7 cryoinjured hearts, further reinforcing the inverse correlation between Gm14014 modulation upon cryoinjury and the activation of these molecular markers. Furthermore, these data support the notion that Gm14014 might be relevant during cardiac regeneration, given its differential regulation in neonatal stages with regenerative (P1) vs non regenerative (P7) potential.

2.8. Identification of Gm14014 Interacting Proteins

LncRNAs can exert their function interactive with different types of molecules, including other RNAs species and protein. Importantly, dissenting lncRNA-protein interactions can provide hints of their roles in post-transcriptional regulation [83,84]. In order to get further insights into the molecular mechanisms driven by lncRNA Gm14014 in epicardial context, we performed RNA pull-down (PD) assays followed by mass spectrometry (MS) to identify Gm14014 associated proteins in epicardial MEC1 cells. A total of 315 proteins were uniquely identified in the Gm14014 PD assays as compared to input and Gapdh PD controls (Supplementary Table S3); ~25% were exclusively nuclear, ~30% were exclusively cytoplasmic and ~28% were present in both compartments (Supplementary Table S3). Gene ontology (GO) analyses of uniquely identified proteins in Gm141014 PD where primarily involved in biological processes such as mRNA processing, translation, mRNA processing RNA splicing, protein transport, positive regulation of gene expression, cytoplasmic translation, RNA splicing-via spliceosome and actin cytoskeleton organization (Supplementary Figure S5A). These results highlight the prominent role of Gm14014 in association with nuclear biological processes, in line with its predominant nuclear localization, although it is importantly to detail that distinct cytoplasmic biological functions are also identified.

GO analyses of cellular components revealed that cytoplasm, cytosol, nucleus, nucleoplasm, cytoskeleton synapse and nucleolus as the most representative compartments (Supplementary Figure S5B). Finally, GO molecular function analysis identified protein binding, nucleotide binding, RNA binding, identical protein binding, nucleic acid binding, ATP binding and actin binding as the most represented functions (Supplementary Figure S5C). Thus, all GO analyses support a dual nuclear and cytoplasmic role for Gm14014.

We subsequently focused our attention on those cellular compartments and molecular and biological functions with a higher number of uniquely identified proteins in Gm14014 PD, i.e. cytoplasm, protein binding and translation. Among these categories, several families of proteins are highly represented, such as ribosylation factors, DEAD box helicases, small GTPases RAB proteins, splicing factors, ribosomal proteins and cytoskeletal proteins. Additionally, multiple cytoskeletal proteins were found to interact with Gm14014, including those controlling actin filament organization (Rac1), positive and negative action polymerization (cofilin, profilin, gelsolin, filamin) and actin interacting proteins (actins, actinins, myosins, talin, tubulin, tropomyosin and vinculin). These findings suggest therefore that Gm14014 might be involved in cytoskeletal organization, plausible playing a role in cell cytoskeletal remodeling and/or migration.

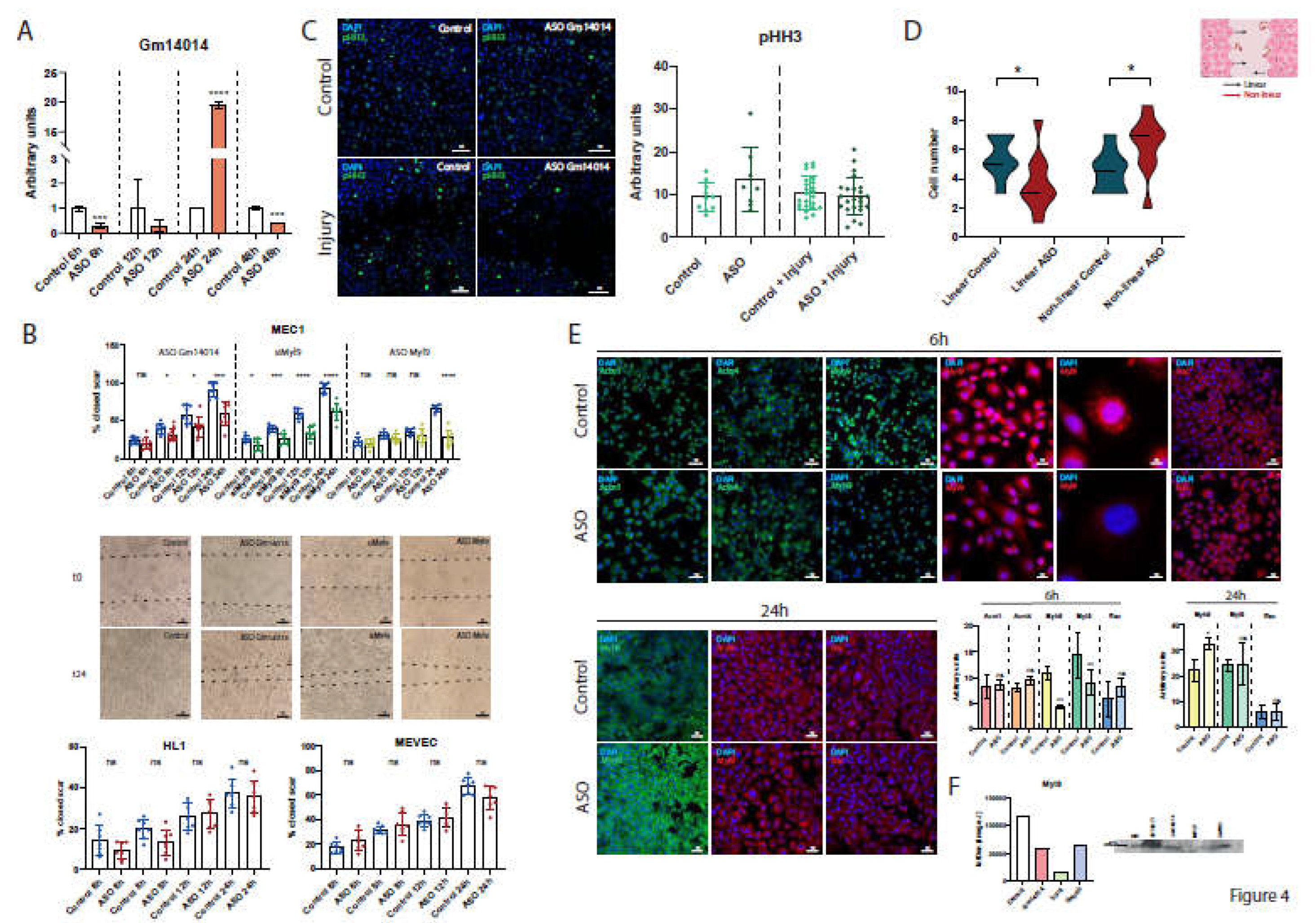

2.9. Dissecting the Functional Role of Gm14014 in Epicardial Cell Migration

As mentioned above, epicardial cell migration is a critical process during embryonic development, allowing the external coverage the myocardium as well as promoting epicardial derived cells to invade the myocardium. Importantly, epicardial cell migration is not only required during embryogenesis, but also after cardiac injury when epicardial cells are activated to promote cardiac regeneration. To elucidate a plausible role for Gm14014 in the epicardial cell migration process, we performed a loss-of-function assay of Gm14014 in MEC1 epicardial cell line. We designed two distinct ASOs and demonstrated that ASO1, but not ASO2, was capable of inhibiting Gm14014 expression (Supplementary Figure S6A) after 6 hours of transfection. Thereafter we tested the timeframe of Gm14014 ASO1 inhibition demonstrating that consistent downregulation was also observed at 12h and 18h while at 24 hours, inhibition was blunted and an overt upregulation was promoted (Figure 4A). Surprisingly, 48h after transfection, downregulation was detected again (Figure 4A). Based on these results, all Gm14014 inhibitions were carried out only with ASO1 (i.e. ASO from now on).

To determine the effect of Gm14014 inhibition on the migration process, we carried out cell migration assays, which were performed by generating a scratch into the semi-confluent MEC1 epicardial cells and monitored for 24 hours in controls and Gm14014 ASO treated conditions. Analyses of the migratory cells demonstrated that Gm14014 ASO treated cells were consistently delayed at 8, 12 and 24 hours, demonstrating a functional role for Gm14014 in epicardial cell migration (Figure 4B). Furthermore, phospho-histone 3 (pHH3) immunohistochemical assays demonstrate no significant differences in cell proliferation, supporting the notion that such migratory differences are independent of cell proliferation (Figure 4C). In addition, time-lapse analyses demonstrated that Gm14014 inhibition lead to impaired cell migration as compared to controls, provided that non-linear migration (i.e. random) was significantly increased (Figure 4D and Supplementary Figure S6B).

To uncover if the functional role of Gm14014 in migration also occurs in other cardiovascular cell types, scratch assays were also performed in HL1 cardiomyocytes and MEVEC endocardial cells. Importantly, no differences in cell migration were observed at any time point analyses (Figure 4B), supporting the notion that Gm14014 role in cell migration is cell type specific, i.e. epicardial cells.

Multiple cytoskeletal proteins were identified in our PD assay to interact with Gm14014, including those controlling actin filament organization (Rac1), positive and negative action polymerization (cofilin, profilin, gelsolin, filamin,) and acting interacting proteins (actins, actinins, talin, tubulin, myosins, tropomyosin and vinculin). We therefore tested whether differences in epicardial cell migration after Gm14014 inhibition are induced by changes in the cell cytoskeleton. Immunocytochemical analyses of Actn1, Actn4 and Rac1 displayed no significant differences between Gm14014 ASO treated epicardial cells and controls at 6h (Gm14014 downregulated) or 24h (Gm14014 upregulated) (Figure 4E). On the other hand, Myh9 and Myl9 displayed significant differences at 6h after ASO administration, since Gm14014 inhibition significantly reduced Myl9 and Myh9 protein levels. However, when Gm14014 is upregulated at 24h after ASO treatment, we only observed increased Myh9 protein levels, while for Myl9 there are no significant differences (Figure 4E). Furthermore, no differences in the expression of Myh9 and Myl9 were observed in HL1 atrial cardiomyocytes at both 6 and 24h, in line with their lack of migration differences following Gm14014 ASO1 administration (Supplementary Figure S6D,E). It is importantly to highlight in this context that Myl9 expression is significantly diminished in both nuclear and cytoplasmic compartments while Myh9 only displayed differences at cytoplasmic level (Figure 4E). Such observations might be linked to the capacity of Myl9 to translocate into the nucleus and exert transcriptional activity [85,86]. To further sustain the plausible role of Gm14014 modulating such cytoskeletal proteins, PD assays and WB were performed, confirming that Myl9, but not Rac1, interacted with Gm14014 (Figure 4F). To support the possible role of Gm14014 regulating epicardial cell migration through cytoskeletal protein binding, Myl9 loss-of-function assay were performed. Two different strategies were employed: Myl9 siRNA to inhibit its expression in the cytoplasm, and Myl9 ASO to inhibit its expression, both in the nucleus and cytoplasm (Supplementary Figure S6C). These results were similar to those obtained with Gm14014 inhibition, showing a reduction in epicardial cell migration capacity from 6h to 24h when Myl9 expression levels are diminished at both cellular compartments (Figure 4B). Thus, these data demonstrate the involvement of Gm14014 in modulating cytoskeletal proteins that play a regulatory role in the epicardial cell migration process.

2.10. Dissecting the Functional Role of Wt1_76127

Gm14014 displayed almost 40% nucleotide similarity to Wt1_76127 (Supplementary Table S2). However, it remains unclear if such limited sequence conservation is sufficient to maintain similar molecular functional capabilities. In other to get insights into the plausible conserved functional role of Wt1_76127, we designed an ASO against this lncRNA since it is predominantly nuclear. We isolated primary cultures of cardiac embryonic fibroblasts and cardiomyocytes as a proxy to test the plausible functional role of Wt1_76127. Expression of Wt1_76127 was primarily detected in cardiomyocytes (Figure 5A), particularly in the nucleus (Figure 5B) and therefore we selected this cell type for further analyses. Inhibition with 20nM Wt1_76127 ASO yielded almost 70-80% of inhibition in both cardiomyocytes and epicardial cells (Figure 5C). Cell viability was assayed in CMs, demonstrating that no differences after Wt1_76127 inhibition, while a small but significant increase in apoptosis was detected (Figure 5D).

To analyze the possible functional conservation between Gm14014 and Wt1_76127, proliferation and migration in CMs were analyzed after ASO treatment, displaying no significant no differences in both cases (Figure 5E–G). Curiously, cytoskeletal protein such as Actn1 and Myh9, but not Actn4 were significantly downregulated (Figure 5J). Additional experiments using epicardial explants assays demonstrated neither significant differences in cell migration (Figure 5H) nor in Actn1, Actn4 or Myh9 immunohistochemical detection in migrating epicardial cells (Figure 5I). Therefore, these data demonstrated that Wt1_76127 inhibition does not influence epicardial and/or myocardial cell migration in chicken embryos and suggest that the function of this lncRNA is not conserved across species.

To further explore the plausible role of Wt1_76127 during embryonic development, in vivo pericardial injections were performed in HH17 chicken embryos (Supplementary Figure S7A). Viability was not compromised by intrapericardial injections of Wt1_76127 ASO (Supplementary Figure S7B). Similarly, cardiac rhythm, i.e. beats per minutes and beating regularity, and cardiac development were neither compromised (Supplementary Figure S7C,D). To further confirm the in vitro data obtained by Wt1_76127 silencing, we isolated and ex vivo cultured ventricular explants after ASO administration and the migration capacity of epicardial cells was analyzed. No significant differences in epicardial cell migration between control and ASO-treated explants was observed (Supplementary Figure S7E), supporting the notion that the function of Wt1_76127 and Gm14014 lncRNAs is not conserved between species.

3. Discussion

LncRNAs represent a large family of non-coding RNAs with a wide cellular and tissue distribution. We have previously characterized three newly identified lncRNAs in the chicken genome that display enhanced expression in the developing PE as compared to the embryonic ventricle [55]. We now further elaborated into distinct characteristics of these lncRNAs, including a more detailed analysis of their tissue distribution, transcriptional regulation, functional role and evolutionary conservation in mice. Our data demonstrated that these lncRNAs displayed a broad tissue distribution, in line with other reports demonstrating a global expression of lncRNAs in different tissues [87,88,89]. In addition, we also demonstrated that these lncRNAs are preferentially nuclearly located, supporting in first instance a more plausible role in transcriptional and/or epigenetic regulation [68]. Intriguingly, their subcellular localization is modulated as embryonic development advances in a tissue-specific manner, i.e. more prominent in the embryonic ventricles as compared to the PE/EE. Thus, these observations support the notion of a dynamic lncRNA subcellular localization that might reflect changes in their maturation and/or biological function [90], a process that seems to be distinctly regulated by transcription factors such as Mef2c, as demonstrated herein.

Cardiac-enriched transcription factors such as Mef2c [91,92,93], Nkx2.5 [94,95,96] Srf [97,98] and Pitx2 [99,100,101,102] play pivotal roles in cardiogenesis as well as in proepicardial/embryonic epicardial development [103,104,105,106] by transcriptionally regulating multiple downstream targets, particularly in heart development. While ample evidence is reported on transcriptional regulation of protein-coding RNA [107,108,109,110], scarce evidence is available regarding non-coding RNAs, particularly lncRNAs [62,111,112]. We provide herein evidence that Mef2c exerts a robust transcriptional repression in embryonic ventricle but not in the epicardium (except for Wt1_76127) while such repressive signals are mostly mediated by Nkx2.5 in the epicardium. On the other hand, Pitx2c and Srf are essential for proper lncRNAs expression in the epicardium while mostly dispensable in the embryonic ventricle. Overall these data reinforce the notion that lncRNA transcriptional expression is modulated by distinct cardiac-enriched transcription factors, as previously reported for other lncRNAs [62,111] in a tissue-specific manner.

Long non-coding RNAs are poorly conserved non-coding RNA molecules [48,71], in contrast to microRNAs [47]. We could only identify a mouse homologue for Wt1_76127 in the mouse genome, given that is located in the syntenic genomic locus, i.e. the vicinity of Wt1 transcription factor and shares a 39,1% nucleotide homology. Analyses of its embryonic and adult tissue distribution as well as its subcellular distribution within distinct cardiovascular cellular types display a rather similar profile as its chicken homologue, further supporting its evolutionary conservation.

On the other hand, transcriptional regulation of Gm14014 displays a mixture of similar control mechanisms as the chicken Wt1_76127 homologue, as Nkx2.5 and Srf are completely dispensable for their expression in myocardial cells while Mef2c and Pitx2c exert repressive and activation capacities on epicardial cells. On the other hand, divergent roles for Mef2c and Pitx2c are observed in myocardial cells, displaying opposite transcriptional regulation in chicken vs mouse. Thus, these data support the notion that cardiac-enriched transcription factors can distinctly and selectively regulate homologue lncRNA expression in a cell-specific manner, as previously reported for other lncRNAs [62,111,113]. Furthermore, transcriptional regulation of lncRNAs seems to rapidly evolved among different species, as previously reported [48,71], supporting the notion that they might even exert divergent functional roles in chicken vs mice.

Cardiac injury, such as myocardial infarction, in the adult mammalian heart is unable to compensate its myocardial loss. However, during a transient neonatal period, i.e. first week, complete healing of the heart is achieved in mice [114]. Several injury models such as apical ventricular resection, cryoinjury and left coronary artery occlusion have been reported, displaying all of them a characteristic healing pattern [115,116,117]; an early inflammatory response is firstly activated, followed by a fibrous extracellular matrix deposition phase that allows to maintain the cardiac structural and functional integrity that is finally followed by a resolution phase that promotes myocardial cell division and fibrous scar clearance (see for a recent review; [118]). Thus, multiple cell types are required to heal the damaged heart, including the epicardial and myocardial layers, as well as fibroblasts and macrophages. Understanding of the molecular mechanisms driving cardiac regeneration has greatly advanced over the last decade [119,120], including the functional role of non-coding RNAs such as microRNAs [121,122,123] and lncRNAs [124,125,126,127,128], particularly with emphasis on cardiomyocyte recovery. In our study we explored the plausible contribution of Gm14014 during cardiac injury by generating embryonic and postnatal ex vivo cryoinjury models. Gm14014 upregulation is observed in all embryonic stages tested as early as E10.5 when the embryonic heart is formed by epicardial, myocardial and endocardial cells in the absence of a structured fibroskeleton and resident immune cells, supporting the notion that it should be upregulated in one of these three layers. On the other hand, Gm14014 is down-regulated at P1 stage, when all previously cited cell types are already present. Curiously, activation of distinct signaling pathways including epicardial activation (Wt1, Tbx18, Tcf21), and epithelial-to-mesenchymal transition (EMT) (Snail1, Snail2, Cdh5) is prominently observed at P1 cryoinjured hearts but not at early embryonic stages (E10.5 and E13.5) supporting a negative correlation between Gm14014 up-regulation and the onset of these biological processes. Such negative correlation is also observed at P7, since those genes involved in the signaling pathways mentioned above are also down-regulated while Gm14014 is upregulated, similarly as in the embryonic stages. Therefore, these data support a plausible role of Gm14014 in cardiac regeneration provided its complementary pattern after cryoinjury in P1 (regenerative) and P7 (non-regenerate) stages [82].

LncRNAs can modulate multiple biological processes, including epigenetic, transcriptional and post-transcriptional processes [48,71,90]. Dissecting their subcellular localization and searching for protein partners can provide further evidence of their functional roles [48,71,90]. We demonstrated herein by RT-qPCR as well as by SCRINSHOT that Gm14014 is widely expressed in different tissues and cell types. Within the cardiovascular context, its expression is prominently observed in MEC1 epicardial and MEVEC endocardial cells as compared to HL1 myocardial cells and furthermore its subcellular localization in all these cell types is prominently nuclear. Furthermore, functional in vitro analyses demonstrated that Gm14014 is essential for epicardial cell migration, but not for endocardial and myocardial migration, supporting a cell-type specific role. While a large body of evidence is currently reported on the role of lncRNA in oncogenic cell migration and metastasis (see for recent reviews; [129,130,131]), this is, to the best of our knowledge the first evidence of the functional role of a lncRNA in homeostatic cell migration, with implication for embryonic epicardial development.

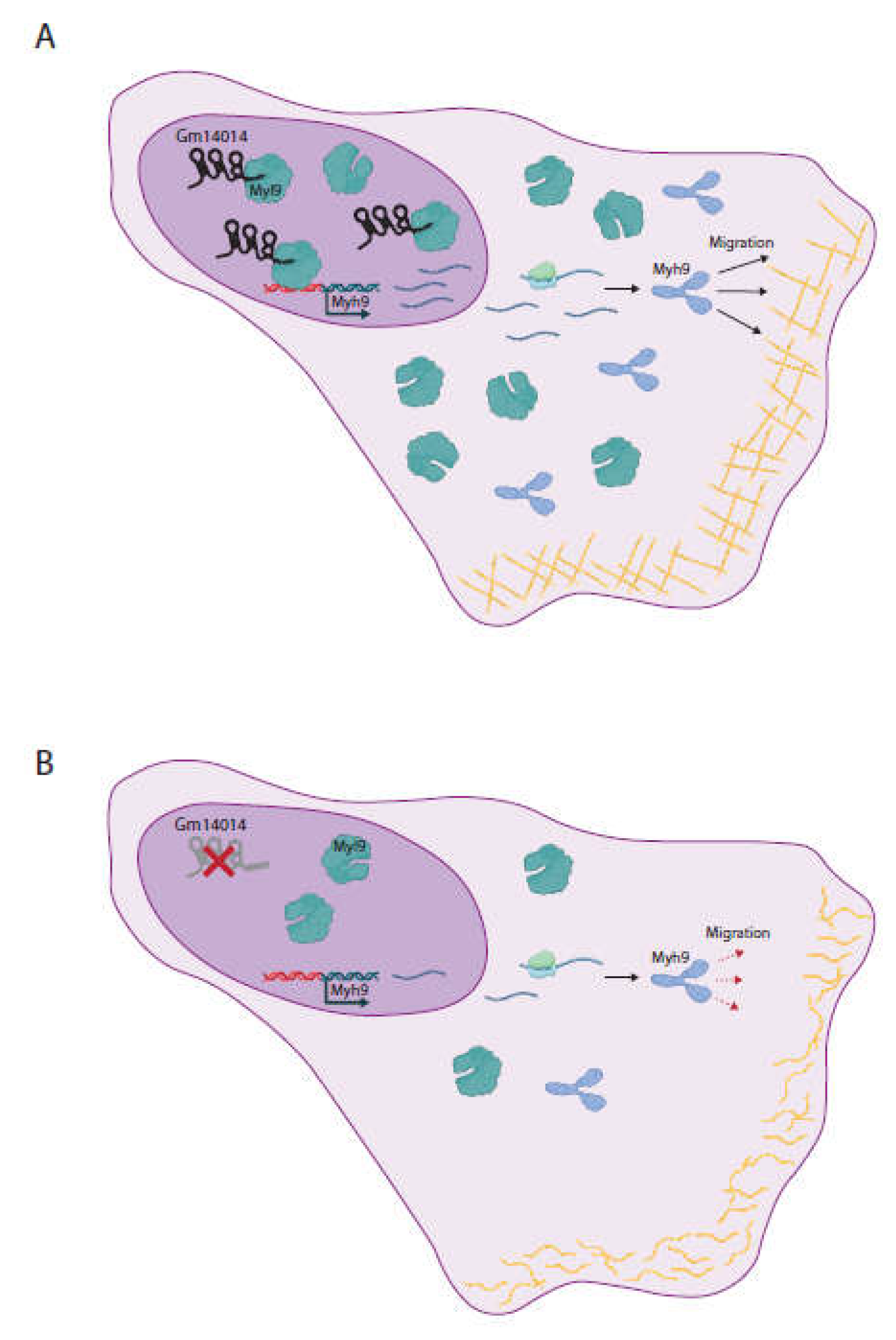

Mechanistically, the identification of Gm14014-associated proteins by MS revealed a similar number of nuclear, cytoplasmic and nuclear/cytoplasmic proteins. Silencing assays demonstrate that several cytoskeletal proteins such as Myh9 and Myl9 are severely impaired, supporting a plausible molecular link to impaired epicardial cell migration [85,132,133,134]. However, it remains to be reconciled why Gm14014 is primarily localized in the nucleus but cytoskeletal reorganization is observed. A plausible explanation is that immature Gm14014 transcripts are retained into the nucleus and only a subset is selectively translocated towards the cytoplasm exerting its functional role [90], a process that might be developmentally and transcriptionally dynamic. This is indeed in line with the fact that chicken Gm14014 homologue lncRNA subcellular expression, i.e. Wt1_76127, during epicardial and myocardial maturation, progressively becomes more abundantly expressed in the cytoplasm as development proceeds. Similar observation has also been reported for other lncRNAs during development [66,105].

Alternatively, Gm14014 can interact with nuclearly located proteins that transcriptionally control the expression of key master genes regulating actin cytoskeletal proteins, since also multiple nuclear proteins were detected in our MS analyses. We tested whether Rac1 might be this linking factor, but failed to demonstrate Gm14014 physical interaction nor immunocytochemical differences. Thus, it might be plausible that Gm14014 might be interacting with proteins that are both nuclear and cytoplasmic. We provided evidence that Gm14014 physically interacts with Myl9. Furthermore, we demonstrated that inhibition of Gm14014 selectively translocates Myl9 to the cytoplasm and additionally diminished Myh9 expression, a downregulation that is selectively observed only in MEC1 epicardial cells where migration is also halted by Gm14014 silencing but not in other cell types. Therefore, these observation supports a working model by which Gm14014 physically interacts with Myl9 in the nucleus, facilitating Myh9 transcription and thus modulating cell migration as previously reported [85] (Figure 6). In absence of Gm14014, Myl9 translocates to the cytoplasm and thus does no longer promotes Myh9 transcription. As a consequence, Myh9 is downregulated in the cytoplasm and furthermore, leading to cytoskeleton remodeling and thus halting cell migration (Figure 6). Surprisingly, such molecular mechanisms are not observed in the chicken Gm14014 homologue, i.e. Wt1_76127, demonstrating divergent functional roles.

In summary, we provide herein evidence that chicken Wt1_76127 lncRNA and its murine homologue, i.e. Gm14014, display similar tissue distribution profile in embryonic and adult stages. However, transcriptional regulation by key cardiac enriched transcription factors display conserved and divergent profiles. Additionally, we demonstrated that murine Gm14014, but not chicken Wt1_76127 is essential for epicardial, but not myocardial, cell migration, a process that is modulated by Gm14014-Myl9 physical interaction and subsequent nuclear-to-cytoplasmic translocation and cytoskeletal re-arrangement. Thus, these data support the notion that homologues lncRNAs can exert distinct and species-specific functional capabilities.

4. Conclusions

We provided herein evidence that chicken Wt1_76127 and its mouse homologue Gm14014 are widely distributed in different embryonic and adult tissues, displaying a prominent nuclear localization. Transcriptional regulation of these lncRNAs is exerted by distinct cardiac enriched transcription factors revealing divergent functionalities in chicken and mice. Furthermore, Gm14014 is distinctly regulated in cryoinjured explants from postnatal mice with (P1) vs without (P7) regenerative capacity, postulating a plausible role for this lncRNA in cardiac regeneration. Mechanistically, Gm14014 is required for epicardial cell migration, a process mediated by partnering with Myl9, but not Wt1_76127, highlighting such evolutionary differences. Thus our data demonstrate a pivotal role for Gm14014 lncRNA in cell migration, a biological process that is pivotal during cardiac regeneration.

5. Methods

5.1. Chicken Embryonic Tissues and Epicardial Explants

Fertilized eggs from white Leghorn chickens (Granja Santa Isabel, Córdoba, Spain) were incubated at 37.5°C and 50% humidity for 2–7 days. Embryos were harvested at different developmental stages (HH17, HH24 and HH32) and classified according to Hamburger and Hamilton [56]. Embryos were removed from the egg by cutting the blastocyst margin with iridectomy scissors and placed into phosphate-buffered saline (PBS). For RT-qPCR analyses, HH17 PE were dissected out, pooled (n=10), and stored at -80°C until used. Additionally, in vitro explants cultures, HH24 and HH32 cardiac explants were cultured for 24 hours and subsequently the ventricular and epicardial outgrowths were separated, isolated, pooled (n=10), and stored at -80°C until used.

5.2. Chicken Primary Cultures

HH36 embryonic hearts were isolated and disintegrated with iridectomy scissors and placed in PBS. The tissues were incubated with trypsin for 30 minutes at 37°C and the supernatant was collected. This trypsinization step was repeated until all the tissue was fully dissociated. The supernatant was centrifugated and the pellet was cultured in plastic Petri dishes with fibroblast culture medium (Dulbecco’s Modified Eagle’s Medium-high glucose) (Sigma) supplemented with fetal bovine serum (FBS) 10%. Two pre-plating steps were made to separate cardiac fibroblasts (CFs) and cardiomyocytes (CMs). Subsequently, CMs from supernatant was cultured in a plastic Petri dish with fresh CMs culture medium supplemented with 0,001M 5-bromo-2-deoxyuridine (Sigma) to inhibit fibroblast proliferation as previously reported [57].

5.3. Mouse Embryonic Tissues

CD1 mice were bred and embryos were collected at different embryonic developmental stages, including embryonic day (E) E10.5, E13.5 and E19.5. Postnatal day (P1, P7 and P21) hearts were also collected. Pregnant females and neonatal mice were euthanized by cervical dislocation and by decapitation, respectively. Subsequently, embryonic and postnatal tissues were dissected, pooled and stored at -80°C until used. Approved consent of the Andalusian Ethic Committee was obtained prior to the initiation of the study.

5.4. Mouse Explants for Cryoinjury

Embryonic hearts for different developmental stages (E10.5, E13.5 and E19.5) and postnatal hearts (P1 and P7) were collected. Apical ventricular sections were isolated and dissected using dissection forceps and micro-scalpel and cultured in multi-wells plates with DMEM/F-12 + GlutaMAX 1 (1X) (Gibco) as culture medium. Apical ventricular explants were cryoinjured using a needle frozen with liquid nitrogen and were cultivated at different times (6, 12, 24 and 48 hours). The explants were collected and stored at -80°C until used.

5.5. Nucleus/Cytoplasm SUBCELLULAR isolation

Cytoplasmic and nuclear RNA fractions from HH17 PE, HH24 and HH32 epicardial/ myocardial outgrowths as well as from primary chicken cardiomyocytes, HL1 cardiomyocytes (SCC065, Sigma-Aldrich), MEVEC endocardial cells [58], MEC1 (SCC187, Sigma-Aldrich) and EPIC epicardial cells [59] were isolated with Cytoplasmic & Nuclear RNA Purification Kit (Norgen, Belmont, CA, USA) following the manufacturer’s instructions. After RNA isolation, RT-qPCR analysis for nuclearly enriched Xist (isoform 2) mRNA and cytoplasmic Gapdh mRNA were performed to validate enrichment on each subcellular fraction. RT-qPCR analysis of distinct lncRNAs was subsequently performed as detailed below.

5.6. siRNA Cell Transfections

Chicken ventricular and epicardial explants, HL1 cardiomyocytes, MEVEC endocardial cells, MEC1 and EPIC epicardial cells (6 × 10⁵ cells per well) were transfected with Pitx2c-siRNA, Srf-siRNA, Nkx2.5-siRNA, Mef2c-siRNA and Myl9-siRNA (Sigma, Aldrich, Munich, Germany), respectively, as previously described [60,61,62]. siRNA sequences are provided in Supplementary Table S1.

5.7. ASO Design and Transfection

Antisense oligonucleotides (ASOs) were designed as previously reported [63]. The structure of ASOs used in this report consist of a main backbone (10 nucleotides) with phosphorothioate groups, and on both sides 5 nucleotides with different methyl groups. ASO transfections were carried out with Lipofectamine 2000 (Invitrogen, Carlsbad, CA, USA) following the manufacturer’s guidelines. A concentration of 20nM of Wt1_76127 and Gm14014 ASO was applied to the cells at different times, respectively while for Myl9 ASO the concentration used was 80nM. ASOs sequences are provided in Supplementary Table S1.

5.8. Cell Viability Assays

Cell viability was analyzed with Apoptosis/Necrosis Assay Kit (Abcam), following the manufacturer’s instructions. Cell cultures were analyzed using a Leica TCS SP5 II confocal scanning laser microscope. Viable cells were detected with Cytocalcein violet 450 reagent (blue), apoptotic cells with Apopxin Deep Red (red) and apoptotic and necrotic cells were detected with Nuclear Green DCS1 reagent (green).

5.9. Cell Migration Assays

Cell migration was analyzed by scratch assay, as described by Ascione et al. [64]. Primary chicken cardiomyocytes, HL1 cardiomyocytes, MEVEC endocardial cells and MEC1 epicardial cells were plated on 24-well culture dishes at a density of 6 × 10⁵ cells per well and incubated until 90-100% confluence. Cell monolayers were manually scratched with a p200 pipette tip. PBS was used to wash the cells and subsequently replaced by the serum-free medium. The experimental group was treated with lipidic vesicles containing ASOs as cargo, while the control group was treated with empty lipidic vesicles, respectively. All plates were photographed after 24 h. In addition, a time lapse analysis was carried out for the two conditions. Cell monolayers were scratched, transfected and cultured for 24h taking pictures every 15 minutes. A Leica TCS SP5 II confocal microscope was used, maintaining optimal temperature and humidity conditions for cell growth.

5.10. Growth Factors and Thymosin β4 Administration

HL1 cardiomyocytes, MEVEC endocardial cells and MEC1 epicardial cells were treated for 24 h with Bmp2, Bmp4, Fgf2, Fgf8 and thymosin β4 (Prospec, East Brunswick, NJ, USA), respectively, as reported by Dueñas et al. [55]. Cells were collected and processed according for RT-qPCR. In all cases, 3–5 independent biological replicates were analyzed.

5.11. Immunohistochemical Analyses

Control and experimental treated cells were collected after the corresponding treatment, rinsed in PBS for 10 min and fixed with 4 % PFA for 10 minutes at room temperature. After fixation, the samples were rinsed three times (10 min each) in PBS at room temperature and then permeabilized with 1% Triton X-100 and NH₄Cl 50nM in PBS for 10 min at room temperature. To block nonspecific binding sites, PBS containing gelatin solution 0,2% (Sigma) was applied twice (10 min each). After blocking, the samples were rinsed three times (10 min each) in PBS at room temperature and were immunofluorescently labeled to detect different proteins. Primary antibodies against Actn1 (ab68194, Abcam), Actn4 (ab108198, Abcam), Myh9 (ab75590, Abcam), pHH3 (CA-92590, Milipore), Myl9 (sc-28329, Santa Cruz), Rac1 (sc-514583, Santa Cruz) and MF20 (ATCC) were used, diluted (1:200) in blocking solution, and applied to each culture overnight at 4°C, respectively. Subsequently, the samples were rinsed three times (10 min each) in PBS to remove excess of primary antibody and incubated 30 min at room temperature with Alexa-Fluor 546, 488 and 633 (1:100; Invitrogen) as a secondary antibody, respectively, as corresponding. Finally, the cells were incubated with DAPI (1:2000; Sigma) for 10 min at room temperature and rinsed three times in PBS for 5 min each. Cell cultures were stored in PBS in darkness at 4°C until analyzed using a Leica TCS SP5 II confocal scanning laser microscope.

5.12. SCRINSHOT In Situ Hybridization

SCRINSHOT ((Single-Cell Resolution IN Situ Hybridization On Tissues) assay was conducted as described by Sountoulidis et al. [65]. Heart tissue from mouse embryos (E14.5) and postnatal 21 days (P21) animals were collected, washed in PBS 1X (pH=7.4), embedded in OCT (FSC22 Clear, Leica), and stored at -80°C until used. 5µm thick cryostat sections were obtained (Leica CM3050S). Padlock probes (40-45 nucleotides) were designed using PrimerQuest online tool (IDT: Integrated DNA Technologies). These DNA oligos were used to design the fluorophore detection oligos, replacing 2-3 “T” nucleotides with “U” to subsequently remove these oligos after the detection cycle using the enzyme Uracil-DNA Glycosylase (Thermo, EN0362). The sequences of the padlock probes and the fluorophore detection oligos are provided in Supplementary Table S1. Images were obtained using a Zeiss Axio Observer Z.2 fluorescent microscope. Image analysis was based on the nuclear segmentation and alignment of the different detection cycles for the genes of interest. Colocalization was obtained as the number of positive cells for the gene of interest relative to the total number of cells in each sample. Further image processing was carried out using FIJI, Cell Profiler, RStudio and TissUUmaps software.

5.13. RNA Isolation and cDNA Synthesis

Total RNA was isolated Direct-Zol RNA Miniprep Kit (Zymo Research), according to the manufacturer’s instructions. In all cases, at least three distinct pooled samples were used to perform the corresponding RT-qPCR experiments. For mRNA expression measurements, reverse transcription Maxima First Strand cDNA Synthesis Kit for RT-qPCR (Thermo Scientific) was used, according to the manufacturer’s guidelines. Negative controls to assess genomic contamination were performed for each sample, without reverse transcriptase, which resulted in all cases in no detectable amplification product.

5.14. qPCR Analyses (mRNA and lncRNA)

Real-time PCR experiments were performed with 2μL of diluted cDNA, GoTaq® qPCR Master Mix (Promega) and corresponding primer sets described in Supplementary Table S1. All qPCRs were performed using a CFX384TM thermocycler (Bio-Rad) following the manufacturer’s recommendations. The relative level of expression of each gene was calculated as described by Livak & Schmittgen [66] using Gapdh as an internal control for mRNA expression analyses. All primers were designed to span exon-exon boundaries using the online Primer3 software Primer3Plus (https://www.bioinformatics.nl/cgi-bin/primer3plus/primer3plus.cgi). Each PCR reaction was carried out in triplicate and repeated in at least three distinct biological samples to obtain representative means. No amplifications were observed in PCR control reactions containing only water as template.

5.15. LncRNA Pull Down Assays

Pull down of biotinylated RNA was carried out as described by Panda et al. [67]. Biotinylated RNA of exon 1 and exon 2 of Gm14014 and Gapdh were synthesized from PCR fragments using specific forward primers that contained the T7 RNA polymerase promoter sequence [(T7) AGTAATACGACTCACTATAGGG]. Seven fragments were obtained for the sequence of Gm14014 and one fragment for Gapdh. The fragments were biotinylated with Biotin-14-CTP (Thermo Fisher Scientific, Invitrogen) and transcribed with MaxiScript T7 kit (Thermo Fisher Scientific, Invitrogen). Whole-cell lysates (500 μg) from MEC1 cells were incubated with 1 μg of biotinylated RNA (biotinylated Gm14014 and Gapdh samples) for 2h at room temperature. An input sample incubated only with cell lysate was included as a negative control. Complexes were isolated with Streptavidin-coupled Dynabeads (Invitrogen) and analyzed by mass spectrometry (MS). DAVID database and Gene Ontology analyses were subsequently performed on the resulting proteomic data.

5.16. Western Blot

Western blot (WB) was performed with 10% of the pull-down lysate to validate the interaction between Gm14014, Myl9 and Rac1. The primary antibodies Myl9 (sc-28329, Santa Cruz) and Rac1 (sc-514583, Santa Cruz) were used at a concentration of 1:100 incubated for 5h at room temperature and the secondary antibody-HRP conjugate (170-6516, Biorad) at 1:5000 for 30 min at room temperature. Blocking was carried out with albumin and washes with PBST, according to the antibody manufacturer's recommendations.

5.17. Statistical Analyses

For statistical analyses of datasets, unpaired Student’s t-tests were used. Significance levels or P values are stated in each corresponding figure legend. P < 0.05 was considered statistically significant.
